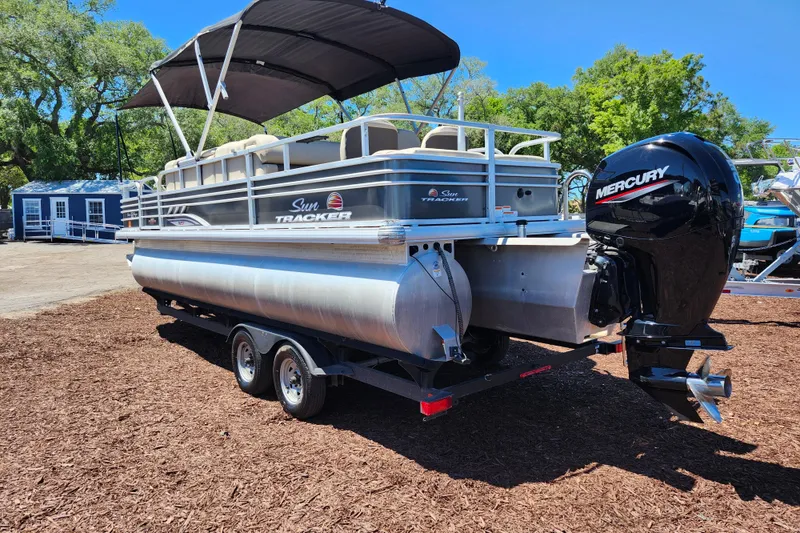

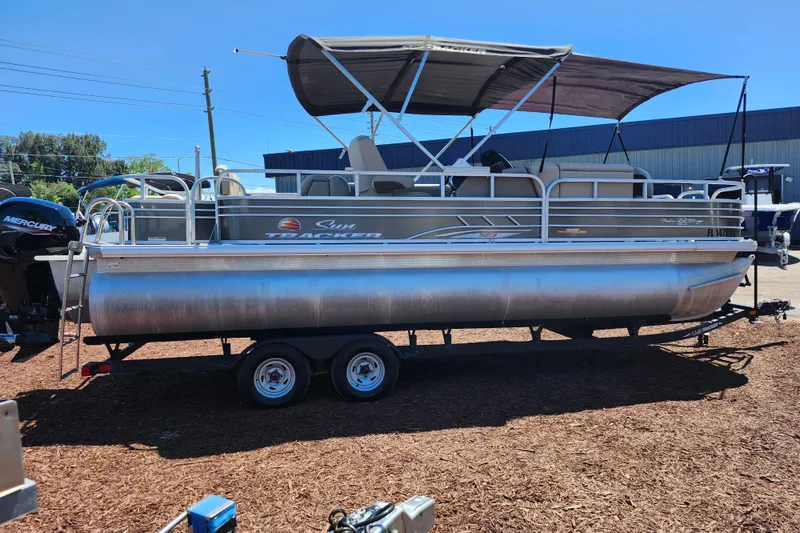

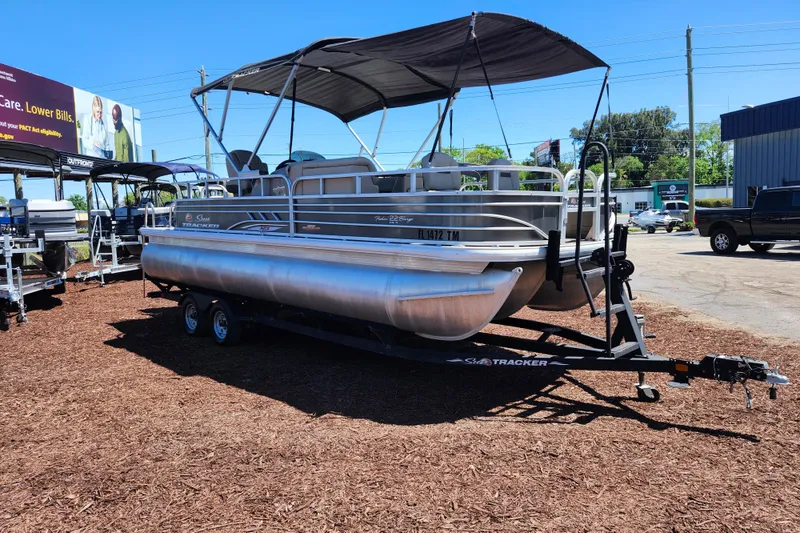

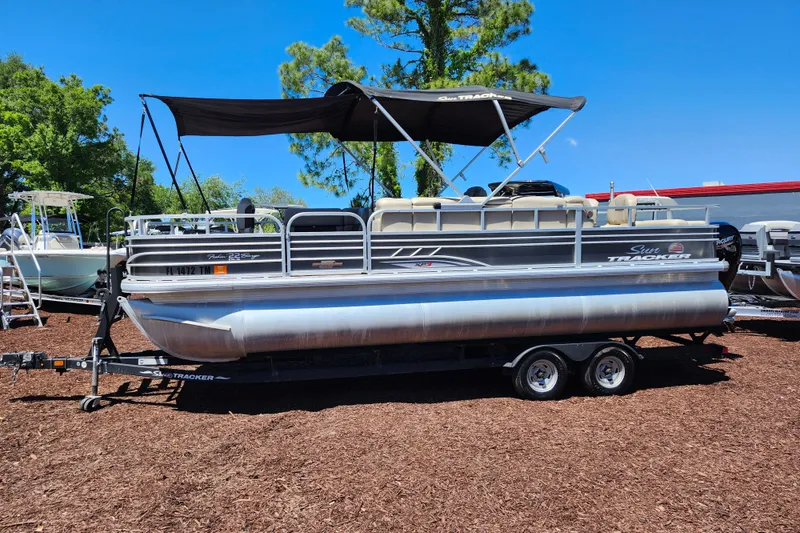

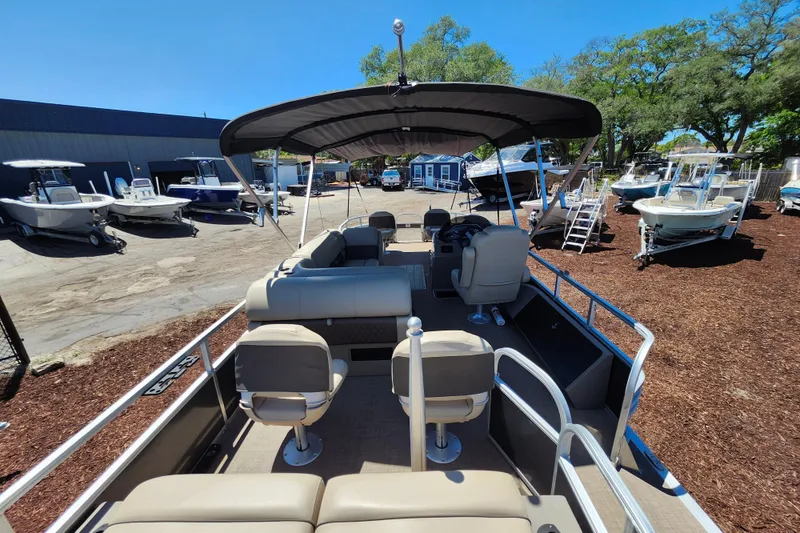

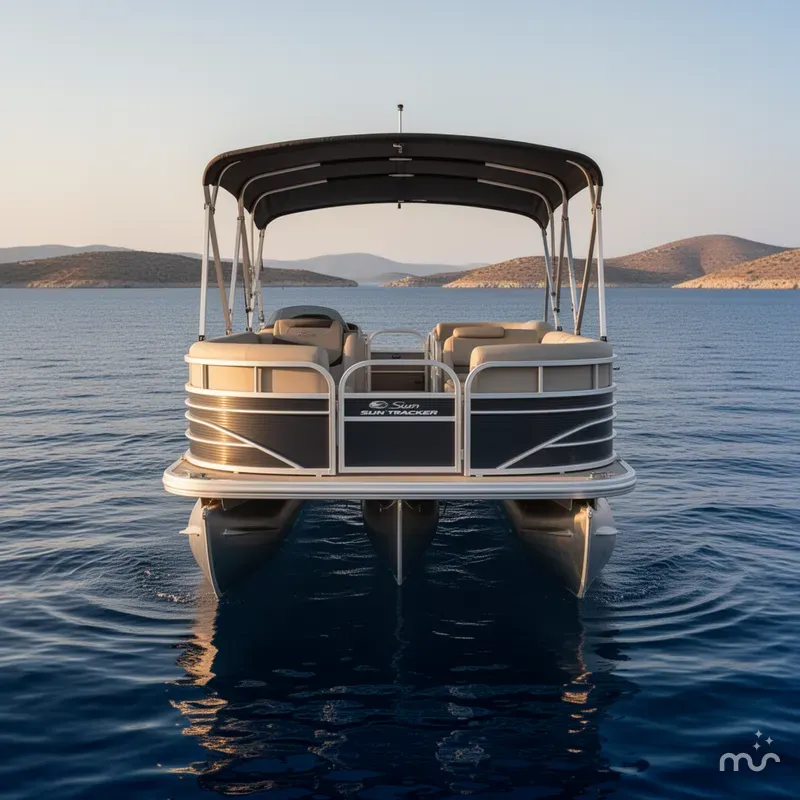

2023 Sun Tracker Fishin' Barge 22 XP3

• Length:24' 2"

• Deck Length: 22' 1"

• Deck Width: 8' 6"

• Max. Recommended HP: 200 HP

• Fuel Capacity: 52 gal.

• Pontoon Log Length: 22' 3"

• Pontoon Log Diameter: 26"

• Pontoon Log Material: 0.1 5052 marine alloy

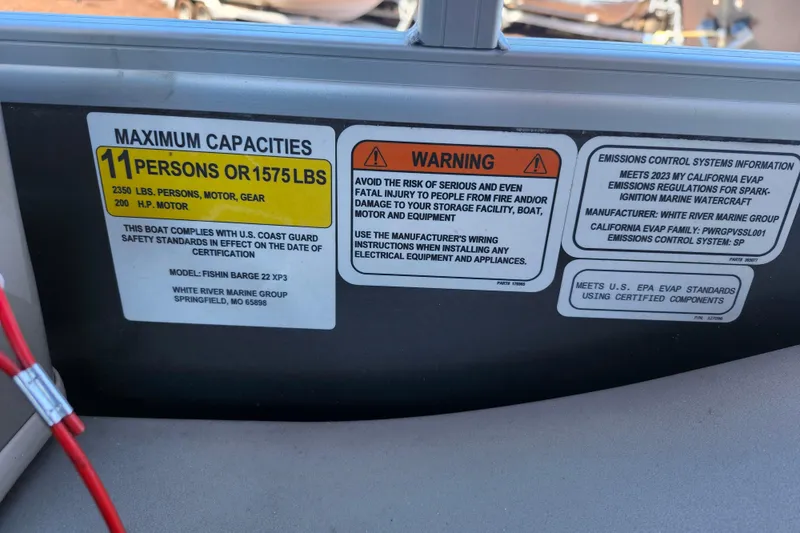

• Max. Person Capacity: 11 persons

• Max. Person Weight: 1575 lbs.

• Max. Person, Motor & Gear Weight: 2350 lbs.

• Interior Depth: 26"

• Average Dry Weight: 2880 lbs.

• Average Package Weight: 4875 lbs.

• Package Height: 9' 2"

• Package Width: 8' 6"

• Towing Length: 32' 4"

• Storage Length: 32' 4"

Comfort, Convenience & Peace of Mind

• 10+LIFE™ Limited Lifetime Warranty

• NMMA® certified

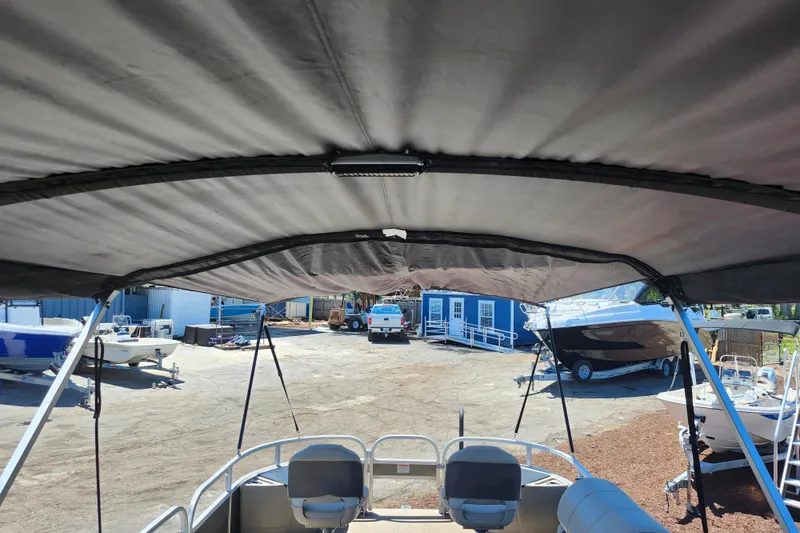

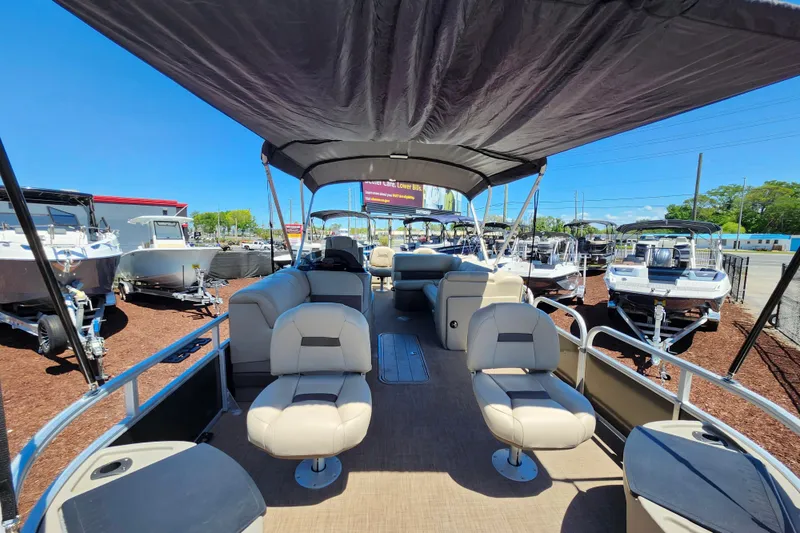

• 10' (3.05 m) SureShade® powered Bimini top w/push-button stow & deploy, LED courtesy lights & protective boot (Bimini top will be Black w/Black or Charcoal fencing colors & will be Sand w/Caribou, Copper Red or Indigo Blue fencing colors)

• Storage pockets in Bimini top

• Nylon gate latches & heavy-duty hinges that open inward

• Port & starboard LED navigation lights

• Bimini-mounted anchor/navigation light

• Mooring eye on starboard side for tie off

• Four 4.5" (11.43 cm) fold-down mooring cleats

• Motor-stop safety lanyard

• Fire extinguisher

• Horn

Livewell System

• Bow port 16-gal. (60.57 L) rotomolded & aerated livewell w/shutoff valve & composite lid w/ruler

• Aft port 16-gal. (60.57 L) aerated livewell w/removable bait bucket & shutoff valve

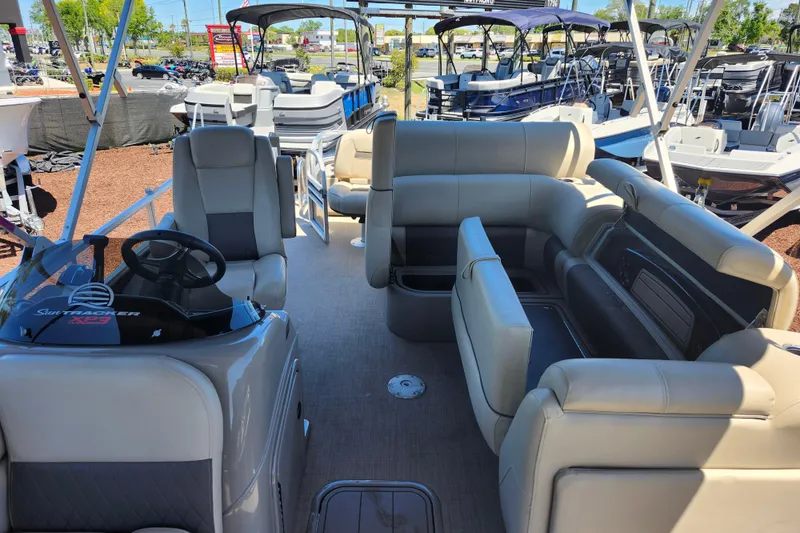

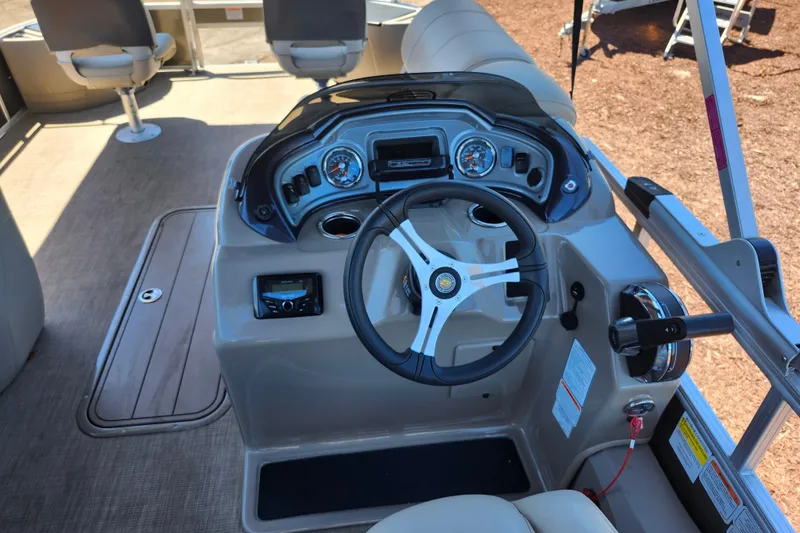

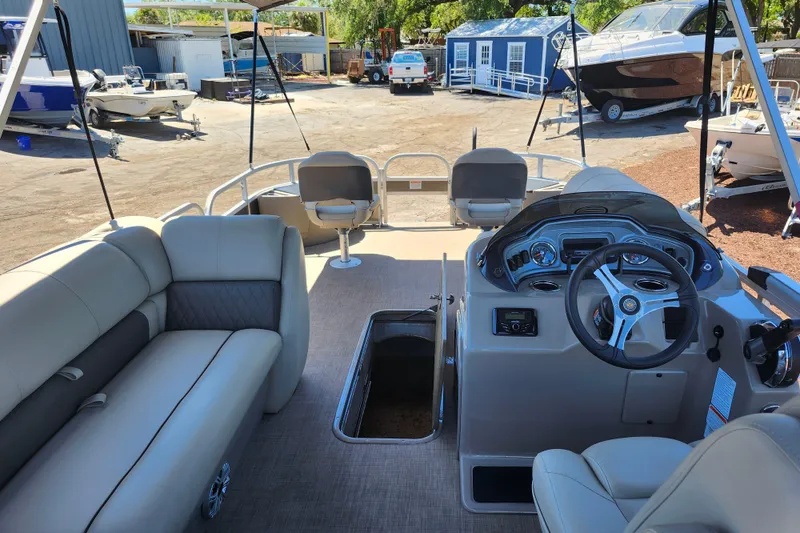

Console

• Deluxe soft-touch sport steering wheel

• Tilt hydraulic steering

• Wraparound sport console shroud & tinted, removable windscreen

• Below-console cooler/storage space w/door & integrated pouch

• Small items tray

• Drink holders

• Built-in footrest w/non-skid pad

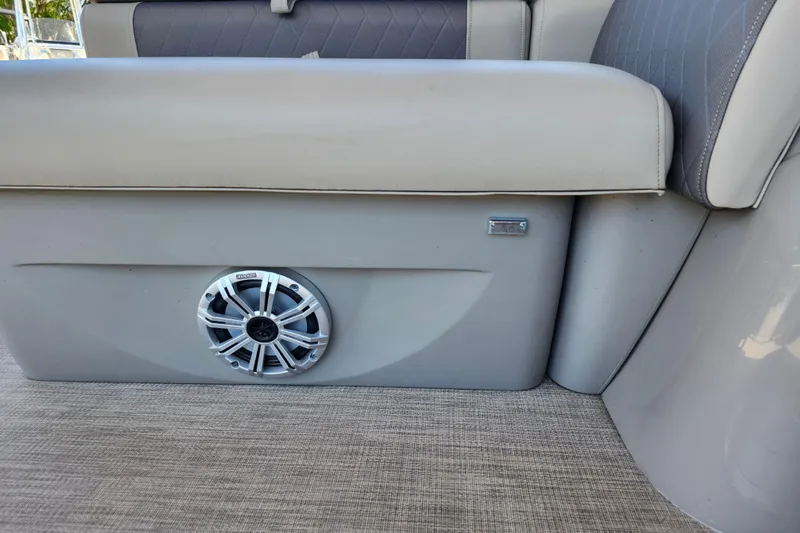

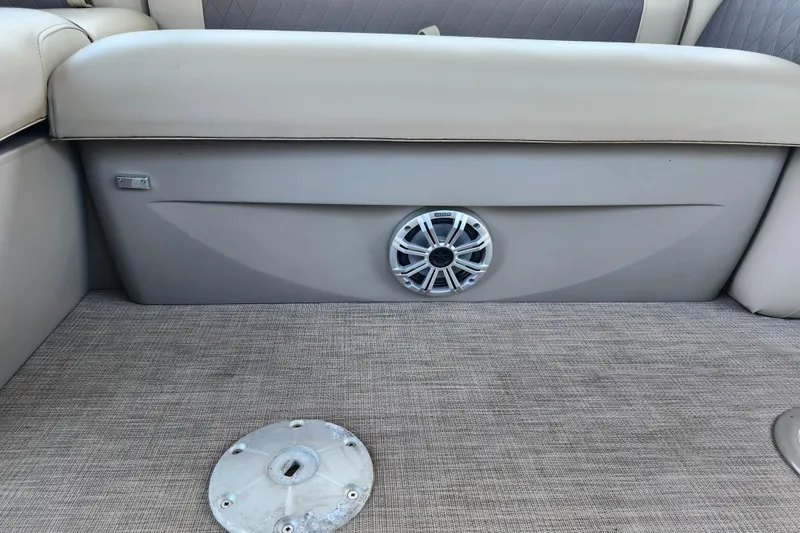

• AM/FM Bluetooth®-capable stereo head unit w/integrated low voltage alarm & 2 NEW upholstery speakers

• USB/3.5 mm auxiliary input ports on console for direct stereo connection

• Tachometer, trim meter/speedometer & fuel & hour gauges

• Lighted rocker switches w/bilge switch

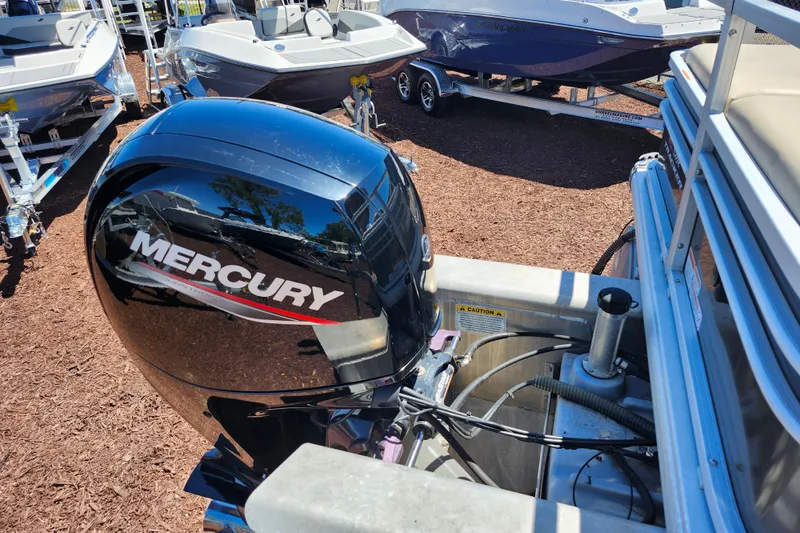

• Ergonomically positioned Mercury® binnacle control box w/trim

• 12V outlet

• Dark console color

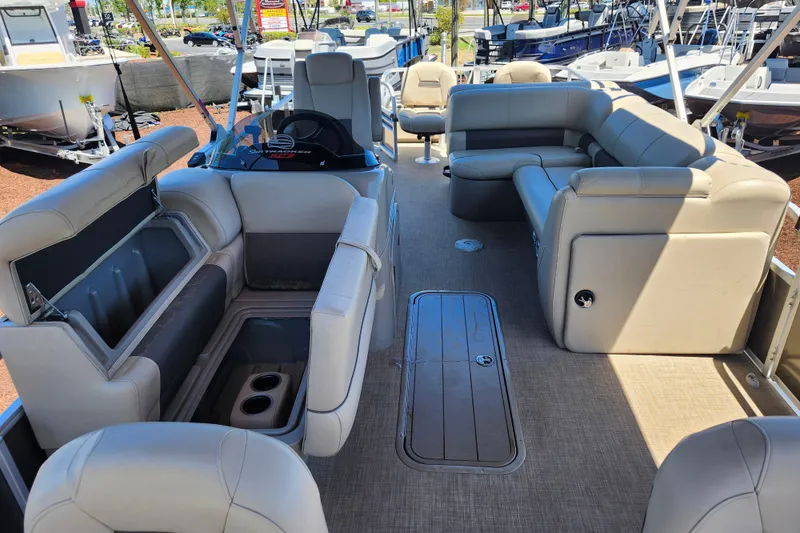

Interior

• The patented STOW MORE™ system features an added compartment in the seat back for increased storage

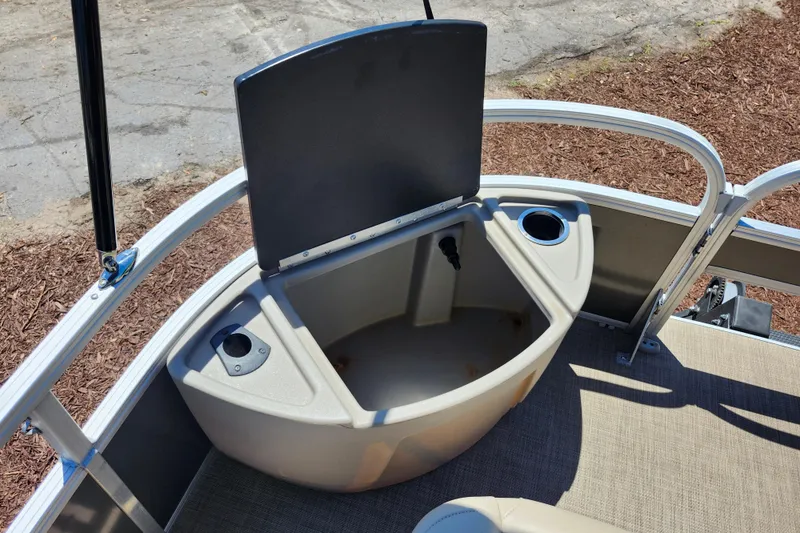

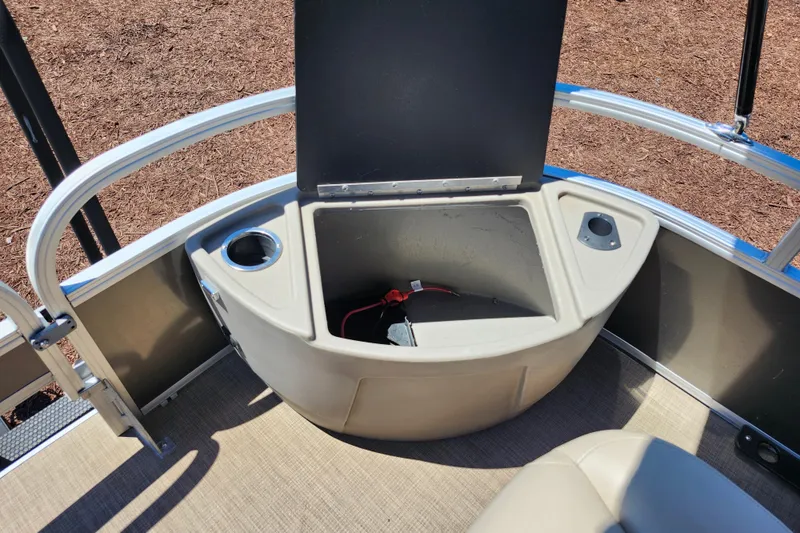

• Large bow port rotomolded box w/livewell, ruler, drink holders & lid

• Large bow starboard rotomolded box w/storage, ruler, drink holders & lid w/room for 24V total battery capacity

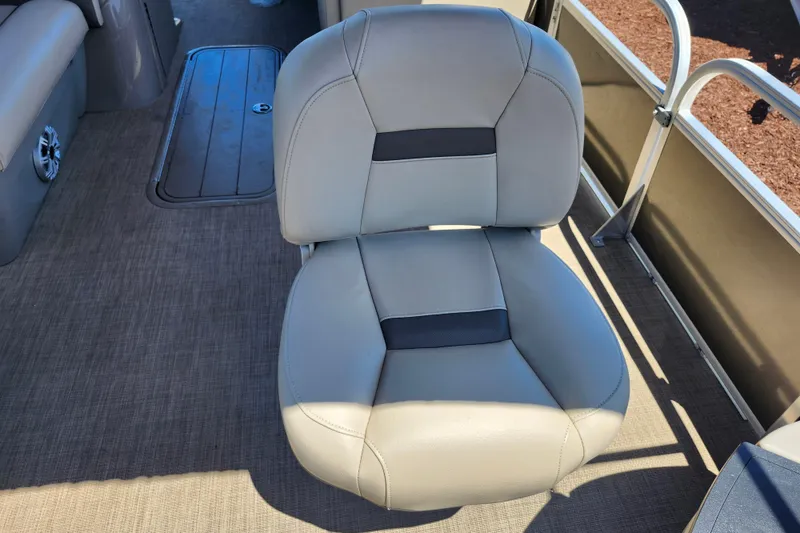

• Clam-shell fishing chairs constructed w/all-composite seat frames w/heavy-duty 2-3/8" (6 cm) diameter pedestals

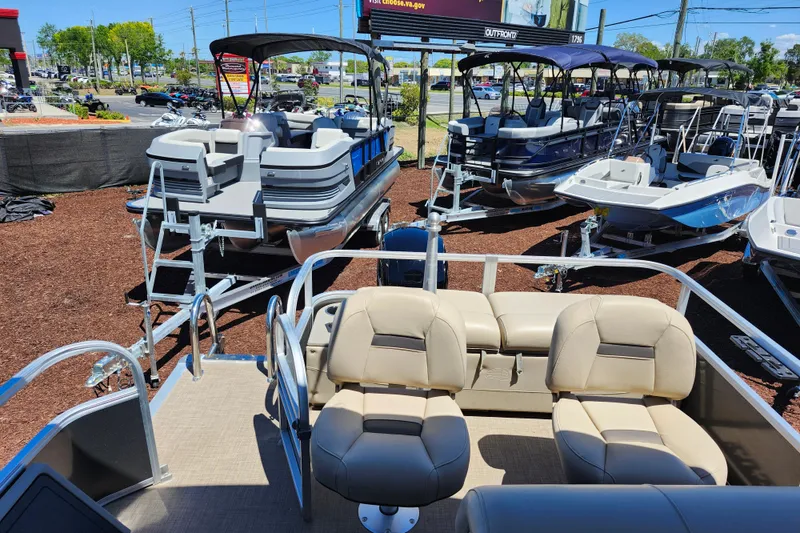

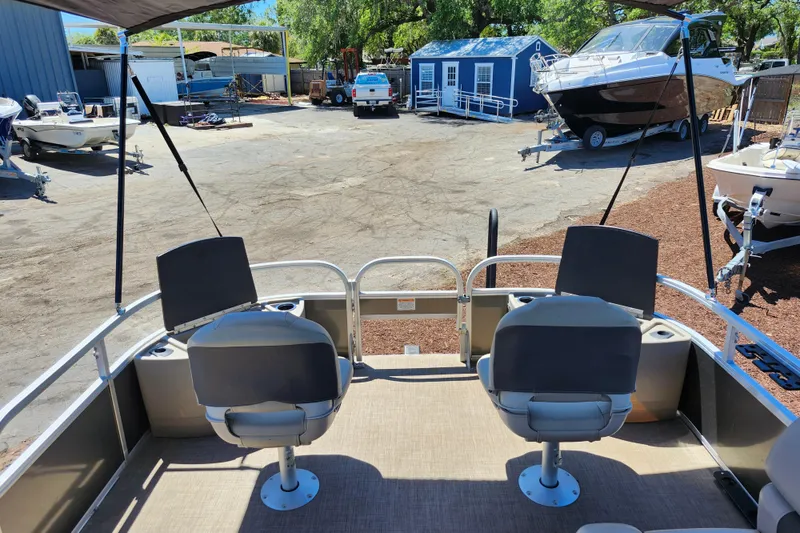

• Bow fishing deck w/2 removable folding fishing chairs

• Bow rail-mounted vertical rod & tool holders

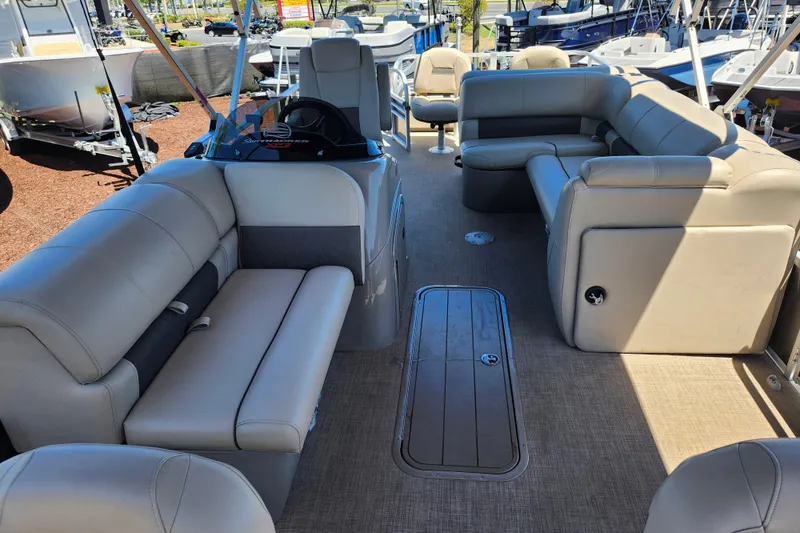

• Forward-console couch w/STOW MORE™ system & lockable underseat storage

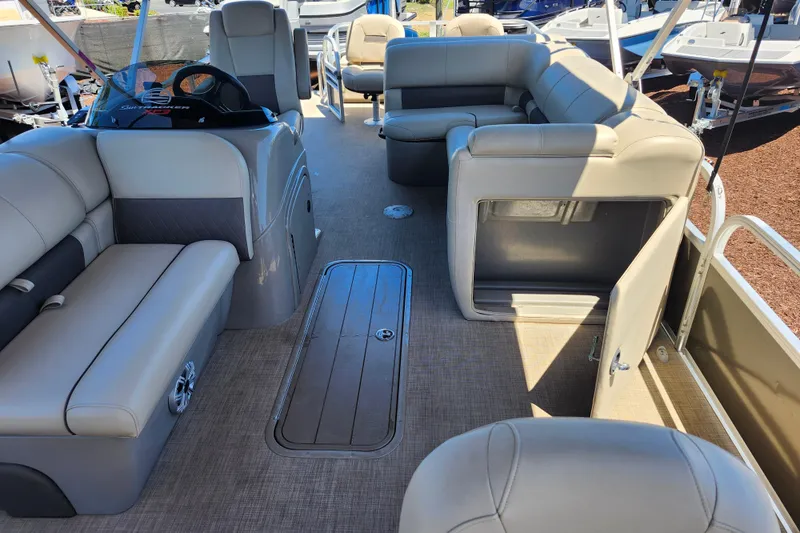

• 88" (2.24 m) long, 23" (58.42 cm) deep lighted in-floor storage compartment w/bilge pump in center log & NEW spaghetti mat

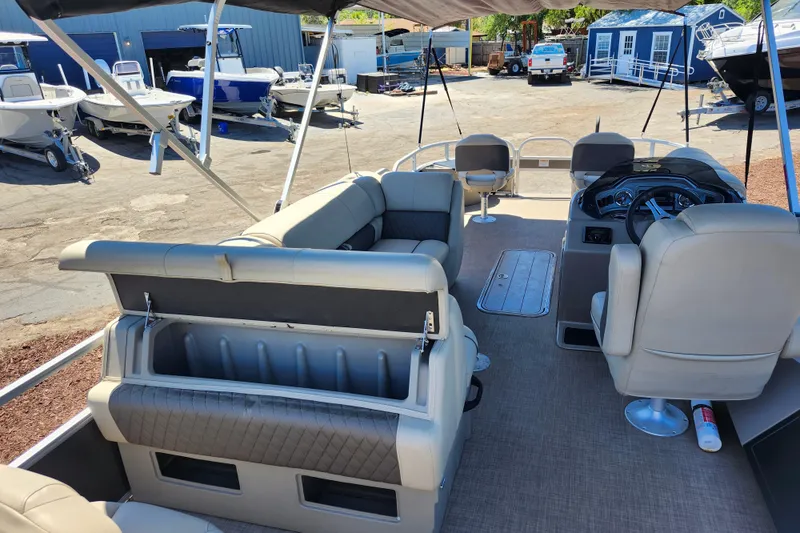

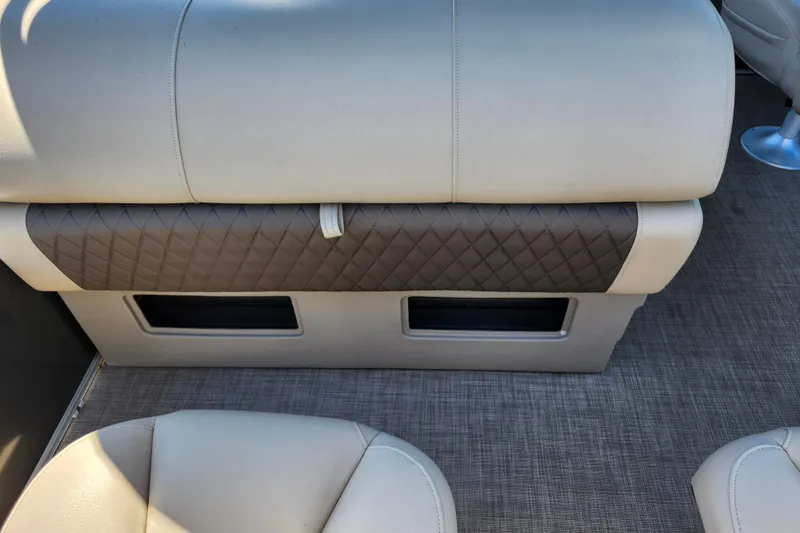

• Aft L-lounge w/STOW MORE™ system & underseat storage

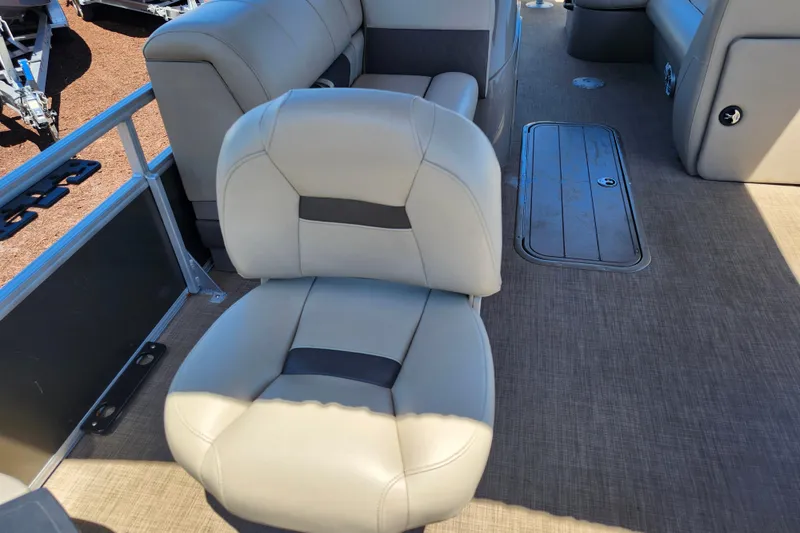

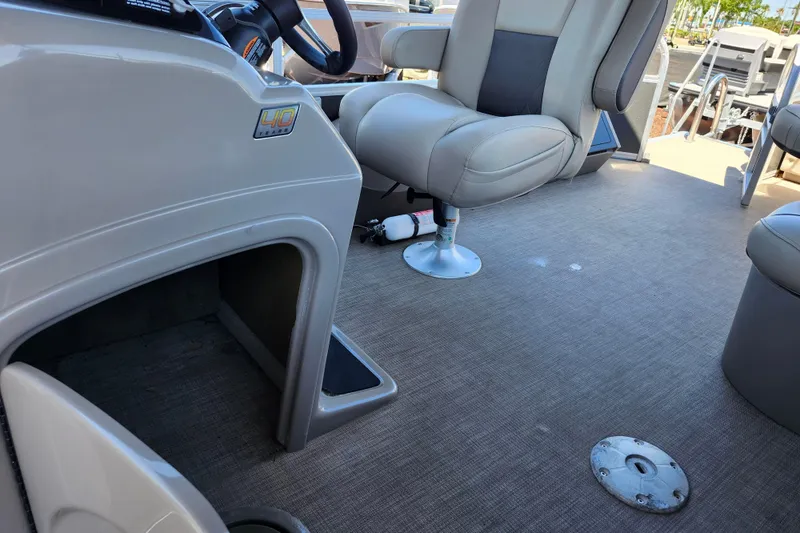

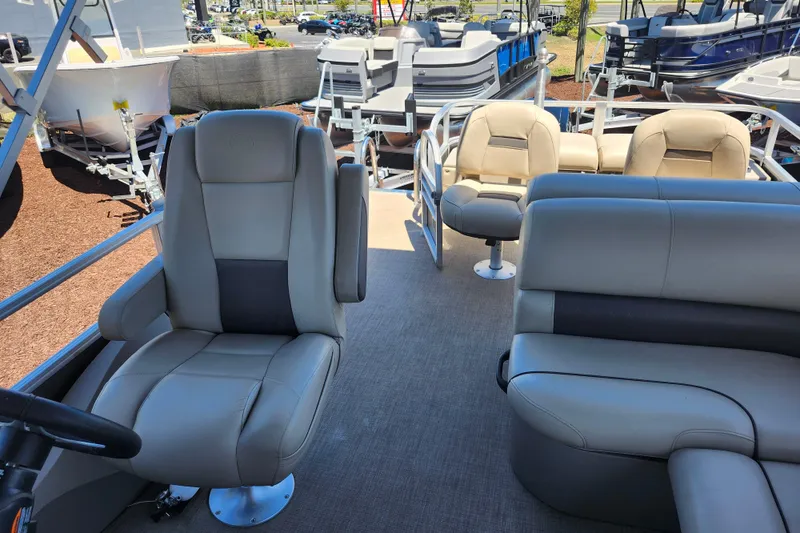

• High-back swiveling helm bucket seat, reclining & w/self-leveling arms

• Rear-facing tackle storage in aft L-lounge

• Aft rail-mounted vertical rod & tool holders

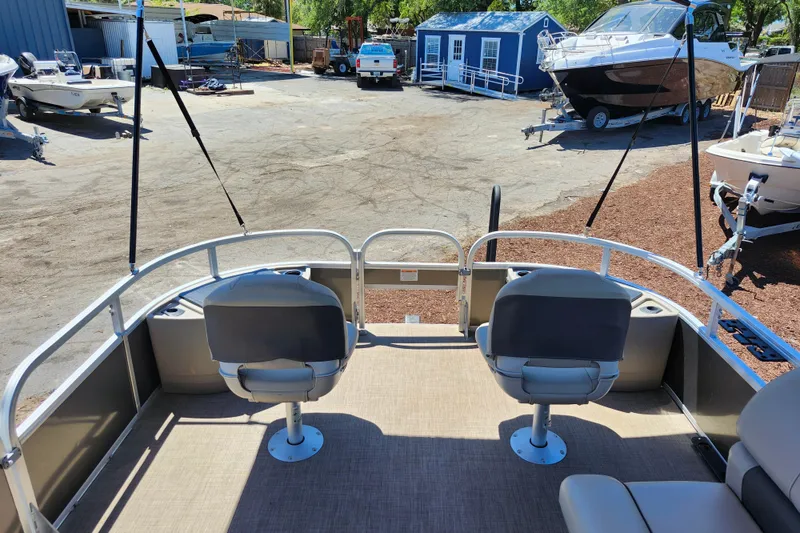

• Aft fishing deck w/2 removable folding fishing chairs

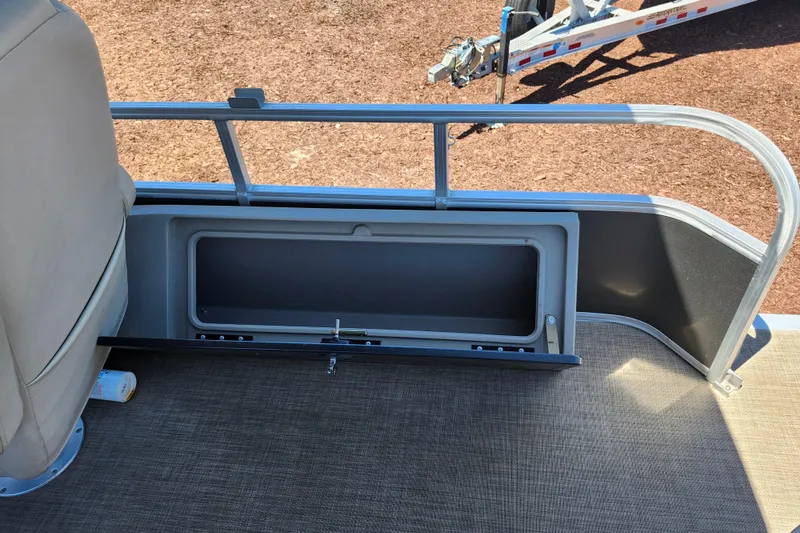

• Molded aft starboard lockable rod box for 6 rods to 7' 6" (2.29 m) w/lid, rod tube holders & organizer

• Receptacle for optional ski tow pylon

• Woven 16-oz. (.45 kg) marine-grade flooring throughout

• Marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam

• Movable drink holder/armrest

• Removable table w/padded insert, 4 molded-in drink holders & 2 pedestal base locations

Performance

• XP3 performance package – strakes on inboard side of outer logs & both sides of center tube

• Nose cone & motor pod wave/spray deflectors for a drier ride

• Factory-matched aluminum propeller

Construction & Exterior

• Color: Charcoal or NEW Indigo Blue fencing

• Exterior styling w/XP3 graphics package

• Plasma & laser cutters & robotic welding help ensure precise fit & finish throughout

• Rotomolded couches & backs for furniture w/Diamante Pepper accent

• Fishing seats w/Diamante Pepper accent

• Heavy-duty bow U-channel reinforcement behind deck trim

• Three 26" (66.04 cm) diameter XP3 high-performance multichambered pontoon logs w/welded-on lifting strakes & internal bracing for additional strength

• 1-piece full-length M-bracket deck supports

• Protective exoskeleton rail & panel system for durability & a quieter ride

• High-sheen fence finish for long-lasting good looks

• 1-1/4" (3.18 cm), .090" (.23 cm) thick anodized aluminum fence rails w/decorative styling

• Factory-installed underpinning (under-deck shielding) for improved performance

• Extruded anodized aluminum deck edging w/polished aft corner covers

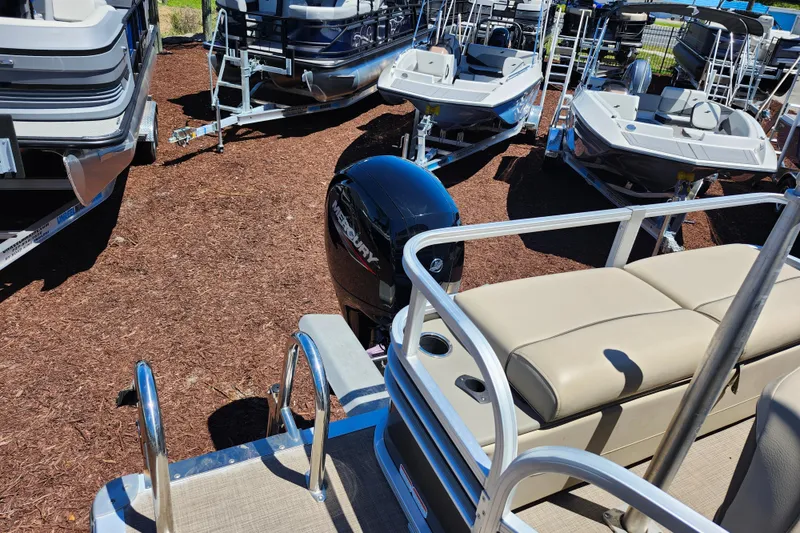

• All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system

• Stainless or coated corrosion-resistant fasteners

• Pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty

• Full-width heavy-duty extruded Z-bar deck supports that are thru-bolted to M-brackets

• Elevated fence panels for deck drainage & ventilation

• Sound- & vibration-deadening fence insulation for a quiet ride

• Box-beam all-aluminum transom for strength & longevity

• Port wheelchair-access gate

• Rear boarding platform w/NEW 4-step telescoping boarding ladder & grab rails

Electrical

• 500 GPH (1892.71 LPH) Ultima auto bilge pump

• Interior courtesy lighting

• Battery disconnect switch

• Easy-access marine-grade automotive-style fuse panel w/latching fuse block door

• Protective abrasion-resistant wire wrap

• Water-resistant connectors
