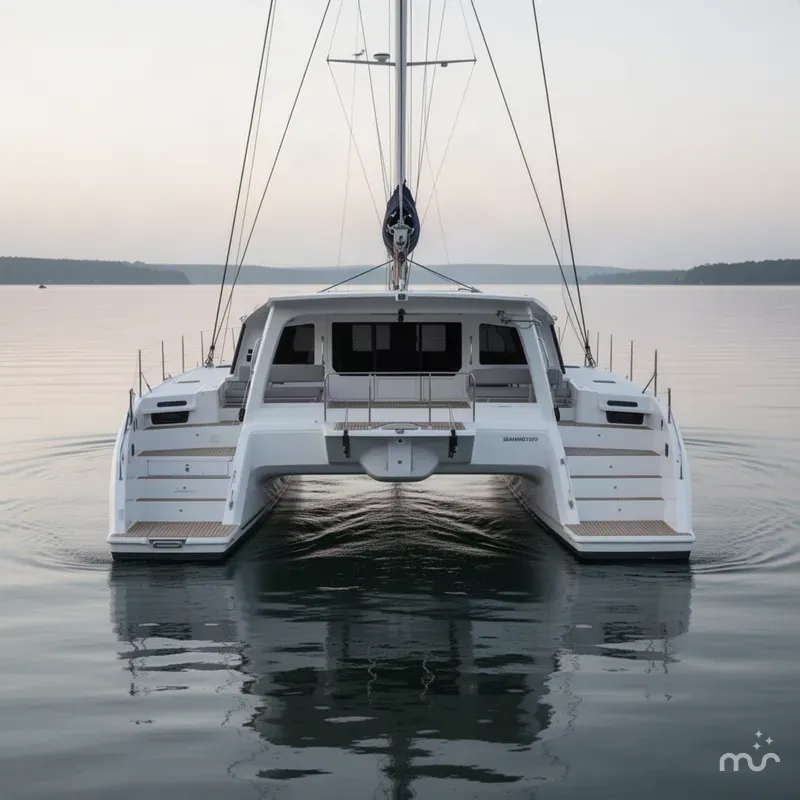

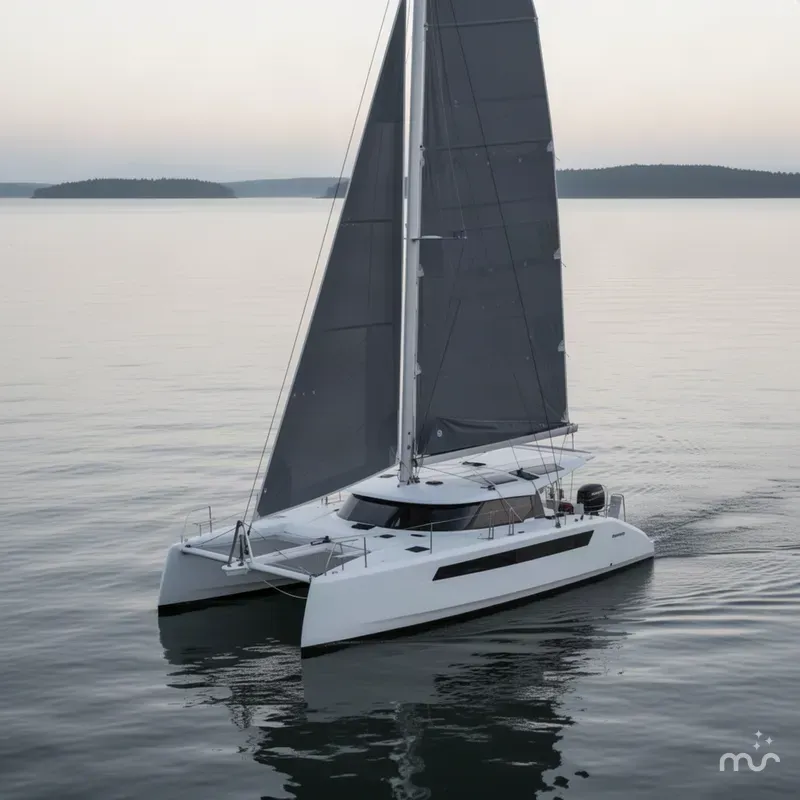

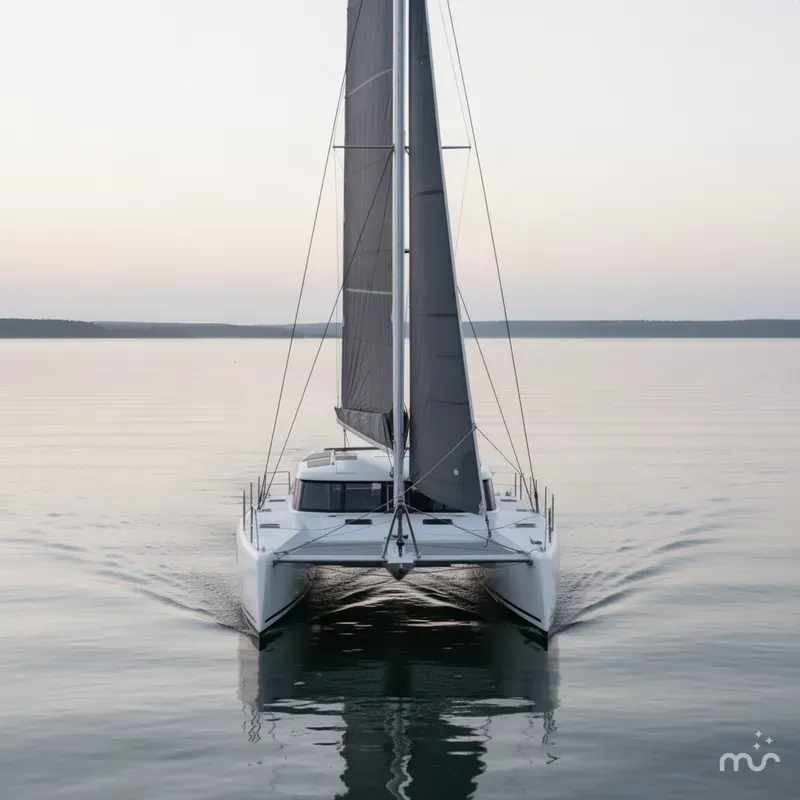

2024 Seawind 1370 Boat in Edgewater, MD 21037 US

SEAWIND 1370 (13.7 METERS / 45 FT)

STANDARD SPECIFICATIONS AND EQUIPMENT – OWNERS 3 Cabin Version

GENERAL: The overall finish of the Seawind 1370 will be consistent with a luxury world-standard yacht of this size and type. Only very high-quality equipment is used throughout. The overall aim is for a level of construction, workmanship, equipment, tout and style that surpasses any other comparable catamaran available in the market at this size range.

EXTERIOR / LAMINATE:  Finish: Full female molded hulls & decks, exterior gelcoat finish with molded-in non-slip surface on deck areas. Laminates:

Hull Laminate: Vinyl Ester (Modied epoxy) resin infusion laminate of the entire hull laminate. PVC Foam cored construction using a hybrid of e-glass and carbon fiber reinforcement.


Deck Laminate: Vinyl Ester (Modied epoxy) resin infusion laminate of the entire deck laminate. PVC foam cored construction using a hybrid of e-glass and carbon fiber reinforcement.

Other Components: all other components shall be made using Polyester resin, vacuum formed or infused with a hybrid of e-glass and carbon fiber reinforcement over PVC foam cores.


Laminate specifications are to Australian survey compliant and international standards including European CE certification.

MAST/BOOM/SAILS:

• Clear anodized aluminum mast and boom. Double Spreader, fractional rig
• Standing Rigging: All fitted with turnbuckles and T-ball end fittings
• Forestay 3/8 (10mm) 1 x 19 Dieform wire
• Side stays 3/8 (10mm) 1 x 19 Dieform wire
• Diamonds 5/16 (8mm) 1 x 19 Dieform wire
• Main halyard: 12 mm Spectra rope: Heavy duty shackle
• Genoa halyard: 8 mm Spectra rope. Heavy duty shackle
• Topping lift: 10 mm double braid, Heavy duty shackle
• Spinnaker Halyard: 12mm double braid with snap-shackle spliced to end
• Screecher Halyard: 10mm Spectra rope: 2:1 purchase with heavy duty block
• Boom outhaul
• 3 x mainsail single line reefing fitted
• Main halyard, topping lift and reefing lines to be led back to cockpit through turning blocks and rope clutches
• Fully battened mainsail – Fiberglass sail battens
• Mast adjustable ball bearing batten car
• Cruising mainsail cover with integrated lazy jack system
• Self-tacking headsail
• Curved headsail traveller track with end stops
• Control sheet to cockpit
• Headsail furler

DECK EQUIPMENT:

• Flush mounted deck hatches (8 in total)
   4 x Forward Hatches 470mm x 470mm
   2 x Mid cabin side hatches 507mm x 377mm
   1 x Port Bathroom window hatch 507mm x 377mm

1 x Aft Cabin window hatch 507mm x 377mm

• Fiberglass Deck Hatches (8 total):
   Cockpit storage hatches x 2
   Forward anchor & storage hatches x 5

Cockpit Icebox & hatch x 1

• 6 x Docking cleats. Each side: bow, stern & amidships
• 1 x Heavy duty mooring cleat on forward walkway
• Ventilation: 2 x forward cabin hatch vents
• Mast base turning blocks
• Main halyard, reefs & sail controls led to cockpit
• 15 x Rope clutches
• Manual Sheet winches:

2 x 46ST – 2 speed self-tailing

2 x 40ST – 2 speed self-tailing

• Stanchions/Rails: High quality stanchions, bow rails and stern rails with 3 lifelines 700mm high surpassing international CE requirements
   2 x transom access gates with pelican hook releases

      2 x side access gates with pelican hook releases

• Aft swim ladder: folding stainless aft swim ladder

FORWARD BEAM, CATWALK AND TRAMPOLINES:

• Forward beam section 251 x 162mm
• Pelican striker and adjustable cable
• 2 x Anchor rollers under deck
• Permanent stowage position for anchor
• Structural longeron in PVC foam-sandwich fiberglass. Structural, and removable carbon fiber bowsprit. Code-0/Screecher takeoff built into longeron
• PVC coated open weave offshore trampolines

AFT BEAM AND DECK:

• Molded fiberglass Targa Bar with curved mainsheet track
• Offshore standard dinghy davits mounted to aft beam with 300kg working load

RUDDER SYSTEM:

• Twin, protected helm stations (dual)
   2 X 32” composite steering wheels
• Cable and tie rod linkage with both wheels independently linked to steering system – system offers back-up redundancy

INTERIOR FINISH:

• Luxury finish interior
   Sides and cabin top lined with textured fabric, simulated timber laminates or molded gelcoat
• Floors: Common area soles simulated timber

SALOON:

• Timber dining table: Lowers to create coffee table or double bed
• Upholstered settee with day lounge
• Cocktail cabinet/storage under day lounge
• Timber chart table
• Forward opening windows in 10mm toughened glass in marine anodized aluminum frame
• Side windows in 6mm toughened glass
• Saloon / cockpit doors: Molded gelcoat tri-fold doors. Complete with folding mechanism for folding into Targa walkway

GALLEY:

• Spacious galley with coordinated Polystone counter surfaces, timber accents
• Three (3) burner LPG stove with stainless steel potholders and flame failure device to shut off LPG immediately in event of flame going out
• Double bowl stainless steel sink
• Pressure hot & cold freshwater system with single lever mixing tap
• Refrigerator: Front opening upright fridge 130 liters
• Under bench storage with timber door fronts & cutlery drawers
• Inboard side of galley: Over-bench cupboard with sliding door fronts
• LPG solenoid control in galley

SLEEPING CABINS:

• Timber doors on all private cabins
• Port owners’ cabin: queen sized bed (2050mm x 1540mm)
• Starboard fwd. cabin: queen sized bed (2050mm x 1540mm)
• Aft Starboard cabin: double bed (1950mm x 1420mm)
• Mattresses to be 150mm (6”) quilted foam upholstered
• Cabins lined
• Recessed 12volt lighting
• Storage/Cupboards
• 1x 12V USB outlet in each cabin

PORT HEAD:

• Timber lockable door
• Electric toilet that discharges via holding tank.
• Holding tanks built in. Discharge Pump out by shore station or directly overboard through 130L holding tank
• Pipes, skin fittings and seacocks are easily accessible and to meet survey requirements
• Vanity basin with pressure hot & cold water
• Wall mounted shower head & mixer tap
• Electric shower bilge pump with direct overboard discharge
• Large quantity cupboards / shelves to very high quality
• Toilet roll holder, towel rack & mirror mounted

STARBOARD HEAD:

• Timber lockable door
• Electric toilet discharges via holding tank.
• Holding tank built in. Discharge Pump out by shore station or directly overboard
• Pipes, skin fittings and seacocks to be easily accessible and to meet survey requirements
• Vanity basin with pressure hot & cold water
• Shower head and basin mixer tap with electric shower bilge pump. Cupboard/shelves to very high quality
• Toilet roll holder, towel rack & mirror mounted

LIGHTING/ELECTRICAL SYSTEM:

• High quality DC electrical switch panel with circuit breakers, with LED indicator lights and voltage display
• Marine grade tinned electrical wiring with extensive use of heat-sealed connectors
• Batteries x 3 comprising House System (540-amp hrs.)
  1. 2 x 270-amp hr AGM (Absorbed Glass Matt) deep cycle / heavy duty batteries
  2. One engine cranking battery 130AH – 900 CCA AGM
• 230amp heavy duty isolation switch
• BEP Battery Monitor
• 12 V lighting: Numerous 12V LED interior lamps and courtesy lights throughout including recessed lights in cockpit. Dome lights in cockpit. (All lights are LED)
• 4 x 12V USB outlets
• Survey approved LED navigation lights. Port & Starboard mounted on bow rails
• Deck floodlight mounted on mast
• Mast head anchor / riding light
• 2x 160w Solar Panels and 40amp regulator

PLUMBING /FRESH WATER TANKS:

• Pressure hot & cold-water system:

Hot water storage system (40 liter / 8.8 gallons)

Hot & cold water to galley and both bathrooms

Galley freshwater tap is lever type
 Fresh water tank: 600 liters (155 gallons)

Remote deck filler
 Electric freshwater pump

• Electric bilge pumps (2) with controls integral with master battery switch panel

Float Switches (2)

Manual bilge pumps (2) in each hull

• Marelon through-hull fittings to CE international standard
• Electric toilets in each head
• Port and Starboard bathroom with separate shower stall

Electric sump pump for shower drain

• 2 x LPG bottles – 4.5kg galvanized
• Fresh water tank gauge

ENGINES:

• Twin Yanmar 40hp sail drive diesel engines. Fresh water cooling, rubber isolation mounts on reinforced fiberglass bed with integral oil drip pan
• Three bladed fixed propellers
• Fuel tanks: Total 600 liters (155 gallons) in two CE approved pressure tested roto-molded tanks. Fuel gauges fitted
• Water intakes for engines protected by external strainer (1 per engine)
   Primary Racor water separator / fuel filters

secondary engine fuel filters

• Engine, fuel tank & fuel line installation to CE standards
• Console mounted engine instruments with electric tachometers, engine monitoring / warning systems, and engine hour meters

NAVIGATION:

• Steering compass
• DSC VHF radio

ANCHORING /MOORING:

• Electric anchor winch with chain & gypsy located under locker to give clean deck
• Primary anchor is 55 lb. Delta type with 55 meters x 10mm short link galvanized chain
   Primary anchor is stored in a specially designed anchor roller under the forward beam
• Anchor winch has foot switch at the winch plus a remote up / down control at the helm station
• 4 x PVC Inflatable Fenders
• 4 x Mooring lines (each 15 meters x 14mm)

ANTIFOULING / STRIPING:

• Epoxy barrier coat plus 2 coats of high-quality Altex antifouling bottom paint
• Seawind 1370 decals on each hull and stern

DISCLAIMER: The Specifications above may change at Seawind Catamaran’s discretion

ANCHORING:

PRIMARY ANCHOR UPGRADE TO 66LBS SARCA EXCEL

SECONDARY ANCHOR (FORTRESS FX-55, 15MX8MM CHAIN & 50M WARP)

ANCHOR CHAIN COUNTER

UPGRADE TO 90M OF 8MM HIGH TENSILE CHAIN

CARBON COACH ROOF

CARBON FIBER STEERING WHEEL UPGRADE

COCKPIT ICE MAKER

COCKPIT FREEZER

COCKPIT SIDE CLEARS

COCKPIT SIDE SHADE

COMFORT:

EXTERIOR SCREENS SALOON SHADE

Thermo Pro 120 Hydronic Heater System

FAN CAFRAMO SIROCCO

UPGRADE TO ELECTRIC MICROWAVE OVEN

WASTE CHUTE DIRECTLY TO SEA

SINGLE GALLEY SINK - CORIAN TOP

UPGRADE SALON TABLE & NAV DESK TOP TO MAPLE VENEER

SCREEN HATCH SKY - BLACKOUT/INSECT (1)

SCREENS CABIN BLINDS

SCREENS SALOON BLINDS

SCREENS BATHROOM BLINDS

INSECT SCREEN FOR FORWARD OPENING WINDOWS

UPGRADE TO 2 BURNER LPG WITH SINGLE INDUCTION BURNER (110V)

UPGRADE STARBOARD FORWARD WORKBENCH FIT OUT

AIR CONDITIONING SALOON & CABINS 32,000BTU (24V)

FLEXITEEK DECKING (COCKPIT & TRANSOM STEPS) - SCRUBBED WITH WHITE CAULK

FORWARD DECK LOUNGE CUSHION

ELECTRICAL:

BATTERY LITHIUM UPGRADE (400AH)

BATTERY LITHIUM UPGRADE ADDITIONAL (200AH)

INVERTER/CHARGER: 4500W/120AMP (110V) - ?? 1370-14-05 (220V)

ISOLATION TRANSFORMER 7KW (110V)

C-ZONE DIGITAL SWITCHING (DC)

LIGHT DIMMING BY CZONE

INTERIOR MOOD LIGHTING

UNDERWATER LIGHTS (2)

LED  MEGA BEAM DECK LIGHT UPGRADE

LED HELLA STERN STERN MOUNTED FLOOD LGHT

LIGHTNING PROTECTION

ADDITIONAL 12V/24V USB-C TYPE OUTLET

ADDITIONAL USB-C TYPE OUTLET EXTERIOR

ADDITIONAL 12V OUTLET

GFCI GPO FOR AREAS NEAR WATER

SHORE POWER & DOUBLE GPO 3X 110V 60HZ INC GALVANIC BLOCKER

SHORE POWER ADDITIONAL GPO (110V & US TYPE OUTLET)

TRANSOM STEP LIGHT

WASHING MACHINE - DAEWOO MINI 3.5KG 240V

DUAL VOLTAGE CHARGING 110V

SOLAR PANEL UPGRADE TO 2310W & 2x MPPT CONTROLLER

ENGINES:

ROPE CUTTER - SHAFT SHARK

UPGRADE YANMAR 57HP ENGINES INCLUDED DUAL VC20 ELECTRICAL CONTROL

FUEL POLISHING SYSTEM

ENTERTAINMENT:

ADDITIONAL 2 X SPEAKERS AMPLIFIER & SUBWOOFER

STEREO/TV/DVD/CD 22"WIDE SCREEN LCD HD ENTERTAINMENT SYSTEM INC DIGITAL ANTENNA

UPGRADE TO 40" TV

EXTRAS:

GANGWAY (2.6M CARBON FOLDING W/ DECK FITTINGS STANCHIONS)

PREMIUM FENDER UPGRADE

PROPSPEED

Hailer (new 2026) $500 and attached to Vesper system

Camera on spreader (new 2026)

Cyclops system for standing rigging (new 2026)

8-man lift raft installed

Davit racks – to be mounted

Outfitted kitchen

Paddle Board

Asymmetrical spinnaker.

Medical / first add supplies on board

EPIRB

Handheld VHF radio

Toppers on three beds

Air flow venting material installed under three beds

Various hand tools and miscellaneous parts

Starlink on board

Transfer pump on board

Linens and bedding and pillows

Vacuum on board

LPG:

GAS DETECTOR

COOKOUT DELUXE GAS BBQ

NAVIGATION:

 B&G NAVIGATION PACKAGE WITH 7" PLOTTER, TRIDATA AND AUTOPILOT

NAVIONICS+ CHART (select locations)

B&G ADDITIONAL AUTOPILOT CONTROL AT NAV DESK (STD ON PORT HELM)

B&G Additional 4.5" Multifunction Display

UPGRADE TO 12" ZEUS 3S CHART PLOTTER

B&G HALO20+ RADAR

B&G FORWARD SCAN

CHART PLOTTER REPEATER TO TV

MAST HEAD TRICOLOR NAV LIGHT

SATELLITE PHONE/DATA WIFI ROUTER IRIDIUM GO

UPGRADE TO VESPER CORTEX V1 (VHF & AIS) (INCL TETHERED HAND SET)

ADDITIONAL B&G 16" PLOTTER AT CHART TABLE (NAV DESK)

WIRELESS ROUTER KIT - NORTH AMERICA WITH LIMITED EURO AND ASIA

STARLINK CABLE TO AFT & BATTERY AREA

PLUMBING:

DECK WASH FRESHWATER (FOREDECK AND COCKPIT OUTLETS)

DECK WASH SALT WATER

SALTWATER DECK WASH ADDITIONAL OUTLET IN IN COCKPIT (FOR FISH CLEANING)

TRANSOM SHOWER (HOT & COLD)

WATERMAKER (SPECTRA NEWPORT inc Z-ION UNIT)

FRESH WATER HANDHELD BIDER SPRAYER (1)

FRESH WATER UV PURIFIER AT GALLEY WITH FAUCET

FRESH WATER PUMPS & PLUMBING ONLY INSTALLED FOR TOILETS

SAFETY:

DINGHY HIGHFIELD CL360BLT - HYPALON

DINGHY WHEELS

DINGHY OUTBOARD BRACKET AND MOTOR CRANE

ALLOY PLATE IN PORT INBOARD COAMINGS FOR FISHING GEAR

JACKLINE PAD EYES AND JACKLINES

LIFE RAFT STORAGE BOX

DROGUE ATTACHMENT POINTS

SAIL HARDWARE:

BOWSPRIT & DOWNWIND DECK FITTING KIT - CARBON FIBER

ELECTRIC MAINSHEET TRAVELER CONTROL

UPGRADE ALL HARKEN WINCHES (2 X ELECTRIC 50.2, 2 X MANUAL 50.2, 1 X MANUAL 46.2)

MAST HEAD WINDEX

MAST STEPS TO SPREADER

SYNTHETIC LIFELINES

CRUISING LAMINATE JIB UPGRADE

CRUISING LAMINATE MAIN UPGRADE

STORM JIB WITH FURLER, SHEET & HARDWARE

STAINLESS STEEL SCREECHER LINK PLATE AND FITTINGS (INCLUDING LINK PLATE, A PIN & SPLIT RING)

EXTRA WORK FOR CHAIN PLATE ACCESS

VESSEL MONITORING - SENTINEL MARINE - new option

SAILBAG/FABRICS:

SEAWIND 1370 LOGO STITCHED ONTO SAILBAG

SAILBAG COLOR - CAPTAIN NAVY

EXTERIOR CUSHION COLOR - PLATA

INTERIOR CUSHION COLOR - CARBON SKY

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
