2025 Seawind 1160 Lite Sold Boat in Edgewater, MD US

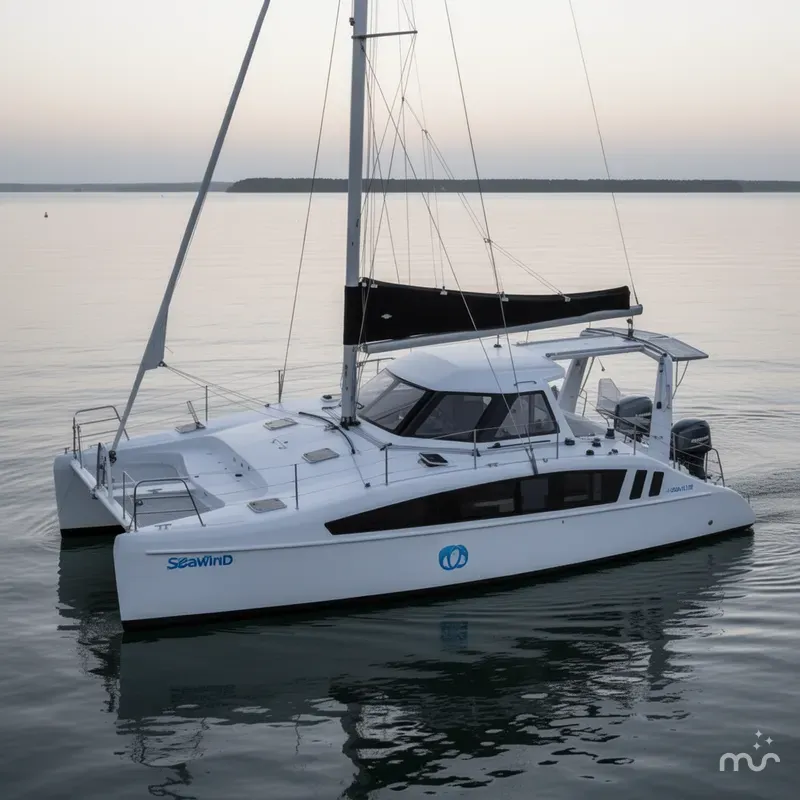

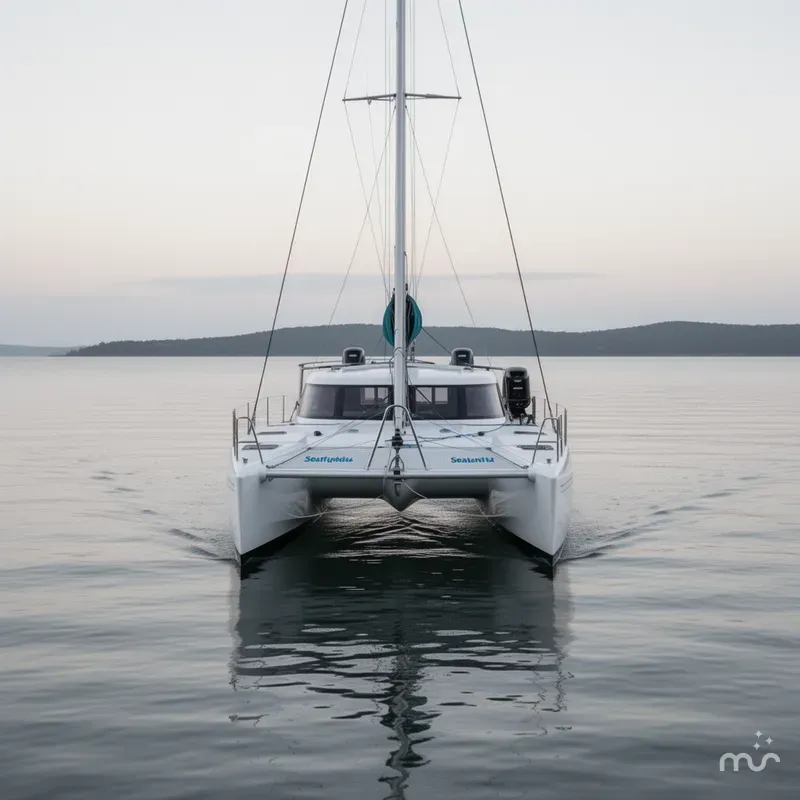

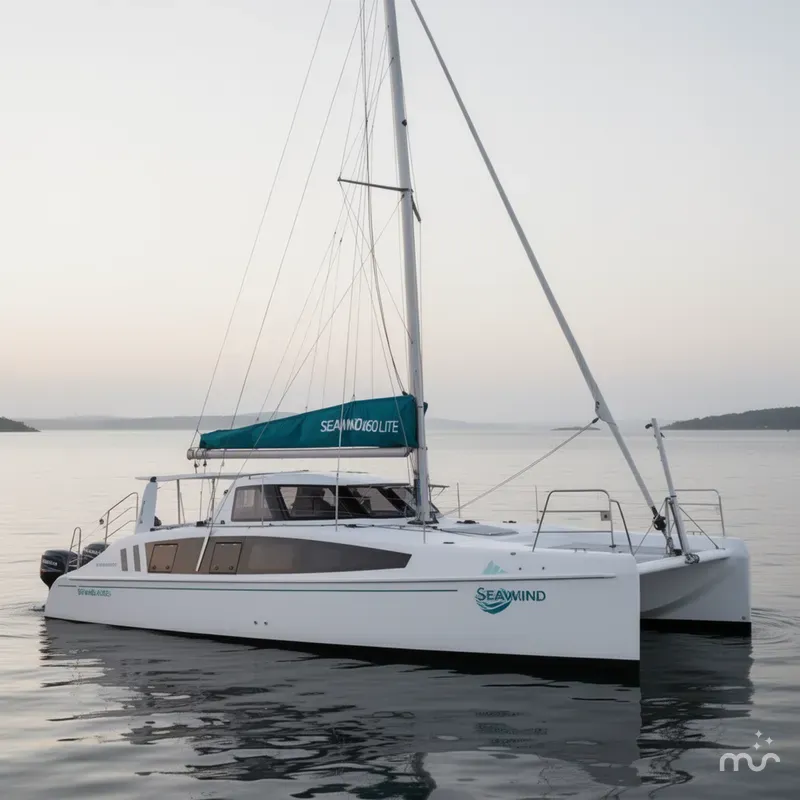

2025 Seawind 1160 Lite on our docks at Liberty Marina Edgewater, Maryland.

PAID - IMPORTAION DUTIES - DELIVERY AND COMMISINING INCLUDED

The owners of this nicely equipped 1160 Lite had to step away from their purchase due to change in life circumstances, so if you have dreamed of a brand new Seawind but thought that you would have to wait or plan years in advance, this boat could be the answer for you! There is a small amount of time remaining on the build process, so it is possible we can still make a few changes. But she is ready very soon, so please call for details!

SEAWIND 1160 (11.6 METERS / 38 FT )

OWNERS 3 Cabin Version - ALL DETAILS ARE BELOW with the options included with the base boat in standard print, with the added-on options highlighted in bold for quick reference:

2. CONSTRUCTION:

• Finish: Full female moulded hulls & decks, exterior gelcoat finish with moulded-in non-slip surface on deck areas.
• Hull Laminate: New Infused Vinyl Ester (Modified epoxy) resin laminate of the entire hull laminate
• Hull Core Material: New PVC closed cell foam core
• Deck Laminate: New Vacuum formed polyester resin laminate
• Deck Core Material: PVC closed cell foam core

3. MAST/BOOM/SAILS:

• Clear anodized aluminum mast and boom. Single Spreader, 7/8 rig
•

  • Standing Rigging :

- Forestay 3/8 (10mm) 1 x 19 Dieform wire.

- Sidestays 3/8 (10mm) 1 x 19 Dieform wire

- Diamonds 5/16 (8mm) 1 x 19 Stainless Steel wire

• Halyards:

- Main halyard: 10 mm Spectra rope : Heavy duty shackle

- Jib halyard: 8 mm Spectra rope. Heavy duty shackle

- Topping lift: 8 mm rope, Heavy duty shackle

- Boom outhaul: 10mm Spectra

• Single line reefing, run to helm. Three reefing points with 2 reef lines

- Reef 1 & 3: 10mm rope. Leech/Clew blocks and snap shackle

- Reef 2: 10mm rope. Heavy duty shackle

• Sheets:

- Main sheet: 10mm rope

- Main traveler: 8mm rope

- Jib sheet: 10mm rope

• All halyards, reefing lines to be lead back to cockpit through turning blocks, rope clutches
• Fully battened mainsail. Triple stitched reinforced construction. Leach adjustable batten end caps. Fibreglass sail battens
• Mainsail cover with integrated lazy jack system.
• Self-tacking headsail, curved headsail traveler track with end stops. With New single line control sheet to cockpit.
• Jib clew control system - allows the jib to come freely but also stopping it from hitting the traveller block
• Jib roller furler
• Main Reefing Blocks
• Third reef in main
• Mast Adjustable Ball Bearing Batten Car UPGRADE
• MPS Deck Fitting Kit
• Genoa Deck Fittings
• Winch 45 Electric UPGRADE
• Winch Additional Size 40 (Spinnaker/Screecher Sheeting)
• Mast Head Windex

1. DECK EQUIPMENT:

• aluminum Hatches & portholes (9 in total)

- 4 x Forward Hatches 470mm x 470mm

- 2 x Mid cabin hatches 470mm x 470mm

- 1 x Port Bathroom window hatch 507mm x 377mm

- 1 x Galley window hatch 507mm x 377mm

- 1 x Aft Cabin window hatch 507mm x 377mm

• Fibreglass Deck Hatches:

- 5 x Forward anchor & storage hatches

- 2 x Cockpit storage hatches

• 6 x Docking cleats. Each side : bow, stern & amidships
• 6 x Safety handles around cockpit
• 1 x Heavy duty mooring cleat on forward walkway
• Ventilation: 2 x forward cabin hatch vents
• Mast base turning blocks. All halyards & sail controls to cockpit
• 9x Rope clutches
• Sheet winches : 1 x 45ST - 2 speed self tailing, 2 x 40ST - 2 speed self tailing
• Stanchions/Rails: High quality stanchions, bow rails and stern rails with 3 life-lines. With700mm high lifelines to meet CE requirements
• 2 x transom access gates with pelican hook releases
• 2 x side access gates with pelican hook releases
• Aft swim ladder: folding stainless aft swim ladder

1. NAVIGATION:

• Twin steering compasses
• B&G Navigation Package with 7" Plotter, Tridata and Autopilot (includes two 4.1" MFD)
• UPGRADE to 12" Zeus 3S Chartplotter
• Navionics + Chart - US and Canada
• B&G Autopilot Remote
• B&G V60-B VHF Radio
• B&G VHF Wireless Handset at Helm

1. FORWARD BEAM, CATWALK AND TRAMPOLINES:

• New Carbon reinforced fwd beam
• Pelican striker and adjustable cable
• 1 x Mooring plate above foredeck
• 2 x Anchor roller under deck. Permanent stowage position for 45lb Plough (CQR/Delta type) anchor (cheeks 75mm high)
• Catwalk in PVC foam-sandwich fibreglass
• New Light weight plastic coated open netted trampolines
• Deck Wash Fresh Water

1. AFT BEAM & DECK:

• Targa Bar with curved mainsheet track and continuous line traveler control system
• Stainless steel framed slatted seats behind aft beam
• Cockpit Targa Cushions - color: Silverguard Taupe
• Raised Cockpit Helm Seat - Port helm
• Side clears for weather protection at helms
• New full width hard top over cockpit
• UPGRADE to Long Hardtop Handrails for extra cockpit safety & security
• Transom Shower (Hot & Cold)
• Additional 4.5KG LPG Bottle & Holder
• BBQ - Grill (Magma)
• Dinghy Davits
• Dinghy motor crane & outboard mounting bracket

1. STEERING SYSTEM:

• Twin helm stations
• 2 X 32" lightweight composite steering wheels
• Both wheels independently linked to steering system
• System offers back-up redundancy

9. INTERIOR

• New Lightweight interior redesign
• Furniture and cabin sides gloss gelcoat finish
• Cabin top lined with light weight internally molded gelcoat liner
• New Floors: synthetic timber flooring
• New Lightweight cupboard doors and trimmings
• Air Conditioning Saloon & Main Cabins Compact (I16 VSD 16,000 BTU (110V 60HZ)
• Insect Screen for Forward Opening Windows
• Navigation Desk with Storage Compartment
• Screen Hatch Sky - Blackout/Insect (1)
• Screen Insect - Side Hatch (3)
• Screens Cabin's Privacy (6)
• Screens Midships Privacy (4)
• Screens Saloon Shade Clip On
• Screens Toilet Privacy (3)

10. SALOON

• New Lightweight handcrafted saloon table
• Upholstered settee
• New Lightweight handcrafted coffee table
• Forward aluminum opening windows
• Saloon side windows in 8mm toughened glass
• Tri folding cockpit doors
• Removable low profile, helm hatches

11. GALLEY

• Spacious galley with coordinated Polystone counter surfaces
• Three (3) burner LPG stove, stainless steel pot holders. Flame failure device to shut off LPG immediately in event of flame going out
• LPG Oven
• Benchtop Freezer
• Galley Cupboard Upper
• Double bowl stainless steel sink
• Pressure fresh water system
• Refrigerator: Front opening upright fridge 130 litres
• Under bench storage
• Trash bin
• LPG solenoid control in galley

12. PORTHEAD:

• Polished light weight PVC foam cored door
• Electric Toilet XL Quiet Flush UPGRADE (1)
• Holding tank built in. Discharge pump out by shore station or directly overboard 130L
• Pipes, skin fittings and sea-cocks are easily accessible and to meet survey requirements
• Vanity basin with pressure water
• Separate shower stall with wall mounted shower head & mixer tap
• Electric shower bilge pump with direct overboard discharge
• Large quantity cupboards / shelves to very high quality

13. LIGHTING/ELECTRICAL SYSTEM:

• High quality DC electrical switch panel with circuit breakers, LED indicator lights and voltage display
• Marine grade tinned electrical wiring with extensive use of heat sealed connectors
• Batteries x 3 comprising: House System (260 amp hrs) : 2 x 130 amp hr heavy duty batteries. One engine cranking battery - 130 amp hr heavy duty battery - Upgraded -Battery 12V/200AH Deep Cycle Gel Additional
• Battery Charger/Inverter: Mastervolt 2600W/100AMP 110V
• Generator and Hot Water Kit (110V)
• Isolation Transformer 3.5KW (110V)
• Shore Power & Double GPO 3 x including Gavanic Blocker (110V & US Type Outlet)
• 230amp heavy duty isolation switch
• 12V lighting : Numerous 12V interior lamps and courtesy lights throughout including recessed lights in cockpit
• Light Dimmer 6 Groups (Saloon x 1, Starboard x 3. Port Side x 2)
• 4 x 12V Outlets
• CE approved navigation lights. Port & Starboard mounted on bow rails
• Deck floodlight mounted on spreaders
• Mast head anchor / riding light.
• Solar Panel UPGRADE to 1130W includes 2 x 400W Rigid and 2 x 165W Flush Panels
• Fan Locations (8 total): (four) 2 in each forward cabin, (one) in the starboard aft cabin, (one) galley, (two) saloon
• (three) 12V USB (DC) outlets in STANDARD locations; (one) Nav Desk below and (two) one in each forward cabin.
  - (one) 12V lighter style (DC) outlet in the STANDARD location inside the port helm near the DVD box.
  - (one) additional 12V USB (DC) outlet to be installed: aft cabin
• (three) additional Shore Power GPO 110V: (three) 1 in each cabin.
• Aqualumar Series 6 Underwater Through Hull Light (2) - standard color: BLUE
• LED Hella Mega Beam Deck Light UPGRADE
• Transom Step Light (8) - standard color: WHITE

14. PLUMBING/FRESH WATER TANKS:

• Pressure water system with water to galley and bathroom
• Fresh water tank: 700 litres( 185gallons) rotomoulded. Remote deck filler
• Electric fresh water pump
• Electric bilge pumps (2) with controls integral with master battery switch panel
• Manual bilge pumps (2) in each hull
• New Marelon through-hull fittings to CE/ISO standard
• Manual toilet in starboard head, electric in port
• 1 x LPG bottle - 4.5kg
• Fresh water tank gauge
• Starboard Forward Head with Shower, Basin & Toilet
• Pre-Plumbing & Pre-wire 12V for Watermaker: through Hull Fittings

15. ENGINES:

• Twin lightweight Honda 20hp 20" engines. Mounted under each helm seat at each steering station UPGRADED TO 2 x 25HP High Thrust Yahamas
• Engine Hour and Tachometer at Helm
• 5" leg extensions added to engines to reduce cavitation
• Remote electric key start with electric tilt fitted
• Dual engine controls at port helm station
• 270l fuel tank mounted in external locker fwd of mast

16. ANCHORING / MOORING:

• Primary anchor is 45 lb CQR anchor type with 15 mtrs x 8mm short link galvanized chain and 40 mtrsx 16mm triple braid anchor warp
• Additional Anchor Chain (55M to 80M 8mm)
• Anchor Second System (35lb Delta, 10M Chain & 50M Rope)
• Anchor Bridle
• Primary Anchor UPGRADE to 48lb Sarca Excel
• Windlass - UPGRADE with Capstain
• Windlass foot switch down added
• Primary anchor is stored in a specially designed anchor roller under the forward beam
• 3 x PVC Inflatable Fenders
• 3 x Mooring lines (each 15 metres x 14mm)

17. ANTIFOULING / STRIPING:

• Epoxy barrier coat plus 2 coats of high quality black antifouling bottom paint
• Seawind 1160 Lite decal on each hull and stern
