2023 Sea Ray SDX 250 Sold Boat in Ocala, FL 34482 US

$109,995

Used
We will let you know when another 2023 Sea Ray SDX 250 is available in Ocala, FL
builtBuilt in 2023
Year the boat was built
model

SDX 250

Boat model
engine

1 Engine (MerCrusier)

Engine type and count
length

25 feet

Overall boat length
fuel

Gas

Fuel type
material

Fiberglass/Reinforced

Hull material

Boats For Sale in Florida, United States Similar to the 2023 Sea Ray SDX 250

Compare with similar boats and find the perfect one for you.

This Boat
Similar Boats

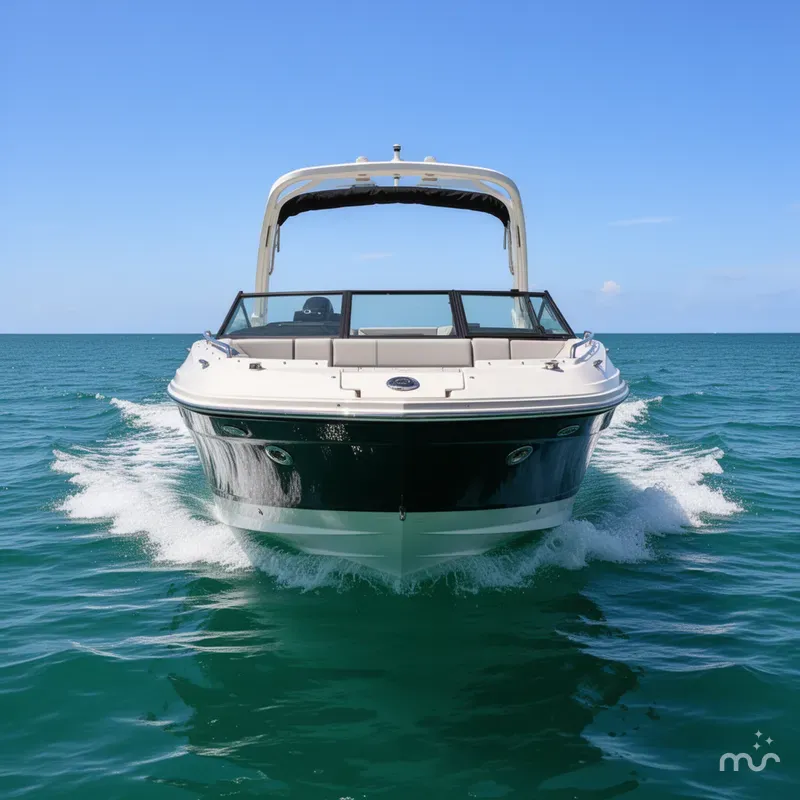

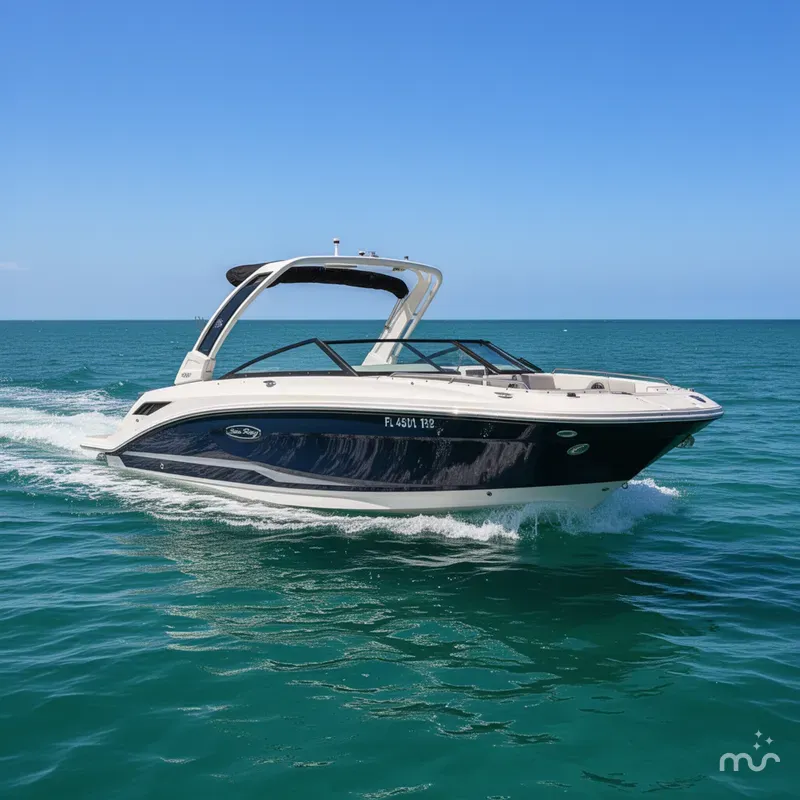

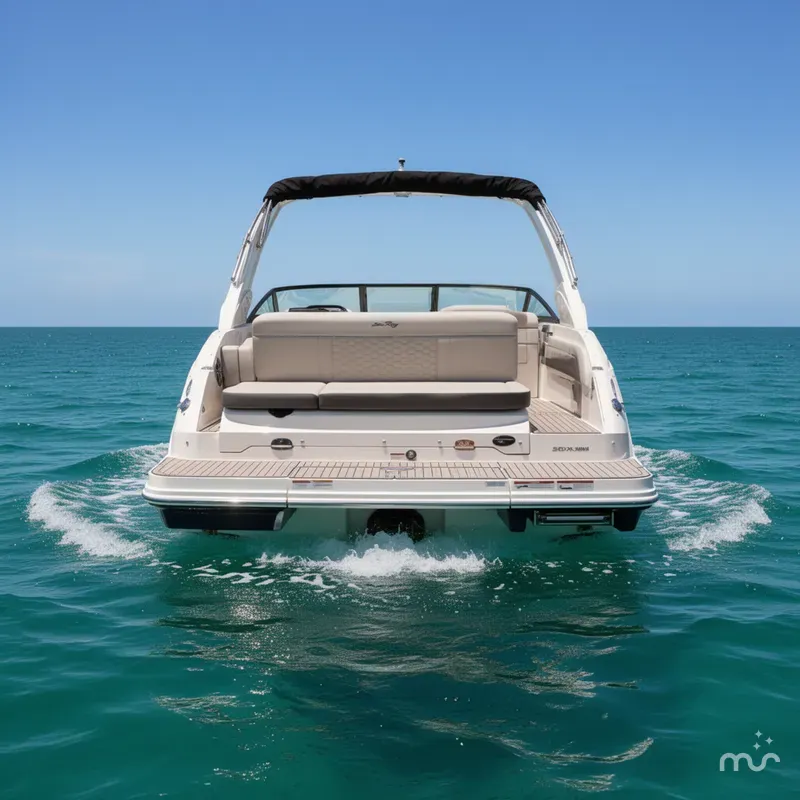

The Image of Sea Ray SDX 250 2023 - 02023 Sea Ray SDX 250
Price$109,995$109,900$111,065$108,900$104,995$104,900
LocationOcalaPensacolaHomosassaFort MyersNaplesSaint Petersburg
Nominal Length25'25'24'27'28'27'
Draft3'-----
Engine MakeMerCrusierMERCURY-MERCURYYamahaMERCURY
Total Engine Power300 hp250 hp-300 hp250 hp300 hp
Days on Market5383711617857457
Get in touch
Nominal Length
25ft
Length Overall
25.17ft
Beam
8.5ft
Max Draft
3.33ft
Drive Up Draft
3ft
Deadrise At Transom
21deg
Dry Weight
6629lb
Cabins
1
Heads
1
Fresh Water Tanks
12gal
Fuel Tanks
65gal
Holding Tanks
6gal
Hull Material
fiberglass
Engine 1
Engine Make
MerCrusier
Engine Model
6.2L MPI ECT Bravo III
Total Power
300hp
Engine Hours
68
Engine Type
inboard
Fuel Type
gasoline
Propeller Type
4-blade
Propeller Material
stainless-steel
Teak Cockpit
Cockpit Cushions
Swimming Ladder
Road Trailer
Launching Trailer
Underwater Lights
Electric Bilge Pump
Marine Head
Sea Water Pump
Battery Charger
Navigation Center
Radio
Compass
Gps
Cockpit Speakers
Bimini Top
Cockpit Cover
Additional Information

This latest version of its popular Sundeck has an improved layout and versatility with a more refined design for an even slicker social experience. The Sundeck 240 had been the company’s most popular boat for the last dozen years, so its replacement, the SDX 250, has an enviable reputation to uphold. Although there is also an outboard version now in the lineup, this sterndrive shows that big-capacity inboard power still holds sway.

THE BUILDER

As a brand at the top end of the American boating sector, Sea Ray has continually improved luxury, performance and innovation over the model range and this latest bowrider version is no exception. Making the most of its 7.67m length, the SDX 250 adds a bigger cabin with bed and toilet as well as a more ergonomic layout by changing the central bow access (seen in previous iterations) to a portside walkthrough.

The Sundeck series are open cockpit designs with enviable amounts of room from bow to stern that run on a sharp entry and a deep- V design that transforms to a twenty-one-degree deadrise. Seating for up to fourteen is spread around the boat, and with storage everywhere possible, all their gear can be secreted away without cluttering the decks. Guests are welcomed with various combinations of seating, lounging and dining options, while a freeboard of nearly one metre and numerous handholds make it a safe environment for younger members of the family.

THE FINISH

Sea Ray is an upmarket brand and so the SDX series is a tier above entry level, displaying style, high levels of comfort and attention to every detail. Years of perfecting the deckboat concept show in the boat’s integrated seating and natural flow from the rear swim platform to the bow, where there is stress-free boarding from the beach over an inbuilt ladder.

Wide seating up front is possible thanks to a generously flared bow that doesn’t detract from its sporty lines. A small hatch seamlessly blends into the forepeak to hide the anchoring gear and the retractable boarding ladder, which makes climbing aboard from the beach a breeze. A fibreglass table and a set of infill cushions - both parts of a Platinum upgrade package - convert the bow into a big sunpad or a dining area to seat four. Side seat bases have nicely moulded storage bins too, while a carry-on cooler clips into its dedicated spot under the forward seat.

The cabin below is accessed from the portside walkway to the side of the helm, and although it’s not a huge opening I found access was relatively untroubled by entering backwards and stepping down to the deep floor. A full infill creates a space for an afternoon nap, a spot for the kids to play or even somewhere to camp overnight. An electric flush toilet connects to a holding tank, and there's a window for light and ventilation.

Cockpit seating offers an almost endless variety of changes for different whims of relaxing, socialising, dining, swimming or zooming between anchorages. Both the helm and navigator chairs flip to face back to the cockpit and a lounge at the rear converts to face forward, rearwards, or flatten into a sunpad.

In dining mode, the cockpit converts to a wrap-around arena with its own moulded table as the centrepiece. Set the rear lounge to face backwards and you get a great swim or boarding platform that leads onto the wide SeaDek clad swim platform, which has a smaller section that is submersible.

Extending over the cockpit is a large black Sunbrella bimini mounted on a black anodised alloy tower with wake mount point. The tower gives a sporty look that isn’t all show, and it folds down for stowing the boat under cover.

The engine, which on the test boat is upgraded to a 6.2L 300hp Mercury V8, sits under the rear lounge, which itself lifts easily on a gas strut for maintenance and storage access. Service points are easy to reach, while Sea Ray's Quiet Ride sound insulation is so good that mechanical engine noise is almost absent - not that you could hear anything above the thumping Rockford Fosgate system with its six speakers and a central sub-woofer.

Underfoot is Infinity Weave matting that clips out (and looks great against the Dune coloured seating), while a very deep central locker in the floor demonstrates the impressive depth of the hull.

A full helm is courtesy of the offset bow access, while the SDX 250 fits the modern requirements of instant engine and navigation data retrieval on a Simrad touch screen that’s integrated into an extensive flush panel glass display. The electronics include Mercury Active Trim and a Cruise Control system that can be individualised for four different wakeboard rides.

THE RIDE

Bolster seating means you can be comfortable sitting high above the raked screen or settled back low and out of the breeze. Either way vision is good, and the side controls are intuitively placed. It didn’t take much to get the big 3t boat moving, and we were soon skipping across a short Sydney Harbour chop at an effortless cruise of 20kts at 3200rpm. The hull was super quiet, the bimini was flap and rattle- free and the exhaust was a glorious low note in the background. Best fuel burn showed at 3500rpm(24kts), using 37lph and a range of 138nm from the 238L tank with 10% in reserve.

Acceleration was impressive to 29kt at 4000rpm and a fuel burn of 53lph, while we quickly topped out at 5300rpm and 40kts. Handling is safe thanks to the reassuring feel of a heavy engine that’s planted deep in the boat to keep things upright. The Bravo 3 counter-rotating props grip (like Pauline Hanson to her last remaining senator) through turns as the Active trim works its digital magic.

THE WRAP

The latest SDX 250 has moved forward with a friendlier layout and better amenities below but it’s still a lot of fun to drive, which helps it keep its place as one of the favoured compact dayboats or harbour cruisers. Optioned up with the bigger engines and accessory packs it hits the scales at $163,590. You could add a trailer at a pinch, but it’s more suited to park on your mooring or at a stacking facility, allowing you to just enjoy the ride

Additional Equipment

Main Hull Color: Blue, Secondary Hull Color: White, Upholstery Color: White, Carpet Color: Gray, Trailer Color: Not Selected

Disclaimer

At Black Label Marine Group, we make every effort to ensure all pricing and information represented on this website is completely and wholly accurate. In spite of our efforts, occasionally errors may result in typos and inaccurate detail information. We are not responsible for these errors and reserve the right to correct them at any time. This vessel is offered subject to prior sale, price change, or withdrawal without notice.

Contact Black Label Marine Group - Ocala

4211 NW Blitchton Road, Ocala, FL, 34482

Sea Ray SDX 250: BoatTEST Review

Reviewed by Jeff Hammond

Overview

The SeaRay SDX-250 Outboard is a 27-foot, outboard-powered sun deck boat designed primarily for families and social gatherings. It serves as a companion model to the stern drive version, emphasizing spaciousness, versatility, and ease of use. With a beam of 8 feet 6 inches and a draft of 36 inches, this model balances ample onboard accommodations with strong performance characteristics.

Exterior Design and Deck Layout

Boarding the SDX-250 is facilitated via a SeaDek non-skid swim platform that cleverly maintains space while accommodating the outboard motor and providing sufficient buoyancy to prevent stern wave wash during deceleration. The swim platform also features a built-in insulated cooler with support struts and a concealed reboarding ladder on the starboard side. The cockpit seating extends approximately seven and a half feet forward along the port side, including beverage holders, USB connectivity, and an accessory plug. The aft lounger seat slides aft by 17 inches to expand cockpit space when underway, accessed through a 15-inch wide starboard walkway gate. Seating wraps across the back, along the port side, and partially on the starboard side, with integrated beverage holders and a pedestal table that mounts to a side bracket for added functionality. A port side flip seatback converts seating orientation, and a substantial 24-inch grab rail runs alongside the side window frame, enhancing safety and ergonomics. The upholstery features textured materials with custom embroidery, reflecting an elevated level of fit and finish. Additional storage includes two removable coolers, dedicated compartments for the cockpit table, and extensive in-deck storage with gas-assisted hatches. A bimini top provides overhead protection, and an optional arch includes an elevated tow point for water sports.

Interior and Amenities

The SDX-250 offers an expanded head compartment that extends from near the port side under the helm console to the starboard bulkhead and forward beneath the bow seating. This area includes ventilation and space for a five-foot-long berth suitable for children, with storage beneath steps and cushions. Access to the bow is through a 15-inch port walkthrough with an opening windshield that latches securely. The bow seating area features a three-across aft seat and a full-width forward seat, with beverage holders, speakers, USB connectivity, and charging ports. A five-inch bolster surrounds the seating for comfort, and the cockpit table can be relocated here. Filler cushions convert the bow seating into a sun pad. Safety is enhanced by grab rails measuring 31 inches to the cap rail and 34 inches to the top of the grab rail. The foredeck includes a hatch concealing a beach reboarding ladder over the anchor locker, and snaps for bow and cockpit covers extend protection to the windshield.

Helm and Electronics

The helm features a reversible seat back and a flip bolster for versatile seating positions. The dash is soft-touch and positioned seven inches below the windshield frame. The standard gauge panel is upgraded with a Simrad display offering preloaded chart plotting, sonar with transducer, and media connectivity. Buyers may choose between nine-inch or 12-inch displays, both equipped with VesselView Link for comprehensive engine diagnostics and readouts. The system includes towing modes with pre-programmed speeds and ramp settings, and users can customize display screens via drag-and-drop functionality. The helm also incorporates a faux-marble panel, beverage holders, a convenient central cubby, and a Fusion Apollo Series stereo system. Controls include a horn button, three electrical switches, USB connections, ignition, and a tilt-mounted steering wheel.

Power and Performance

Powered by a single 300-horsepower Mercruiser Verado outboard engine turning a 17-pitch Rev-4 propeller, the SDX-250 achieves a top speed of 46.9 miles per hour at 6,000 RPM. The boat's test weight was approximately 6,480 pounds, including 84% fuel and three passengers. Best cruise speed was recorded at 32.8 miles per hour at 4,500 RPM, yielding a fuel burn of 11.9 gallons per hour and an efficiency of 2.8 miles per gallon, translating to a range of 156 miles with a 10% fuel reserve from the 63-gallon tank. Acceleration to planing speed occurs in 4.3 seconds with minimal bow rise, reaching 20 miles per hour in 5.7 seconds and 30 miles per hour in 9.2 seconds. Handling is responsive and smooth, with a slight bow-up running attitude achieved by modest up-trim adjustments. The boat exhibits solid turn feel with a 17-degree roll and minimal chine walk, maintaining speed through turns with no prop ventilation even under aggressive maneuvers.

Conclusion

The SeaRay SDX-250 Outboard is a thoughtfully designed sun deck boat that effectively combines spacious seating, extensive storage, and versatile accommodations with strong performance and handling characteristics. Its outboard power configuration enhances storage capacity and ease of maintenance, while features such as dual coolers, convertible bow sun pads, an oversized head with sleeping accommodations, and advanced helm electronics make it well-suited for extended days on the water. Overall, the SDX-250 offers a compelling package for families and groups seeking a comfortable, capable, and user-friendly recreational boat.

Rating: 4.3 out of 5
