2004 Sea Ray 480 Sedan Bridge Sold Boat in Fort Myers, FL 33919 US

Maintenance and Upgrades

Mid Cabin A/C – 7/22

Replace Turbo- Stbd -10/23

Alternator -  port – 1/24

New Hydraulic Lift motors – 3/24

Bow Thruster Battery – 4/24

Main V Berth A/C – 4/24

New Eisenglass -6/24

A/C water Pump -9/24

100 hr Oil Service- 3/25

(incl generator)

New Starter Stbd – 3/25

Main Salon A/C – 4/25

100 hr Oil Service- 6/25

Complete reseal/caulk front window set – 6/25

Complete compound/wax bridge to water line 10/25

Bottom paint –11/2025

In 2013, the following upgrades have been made: in 2013, a Raymarine E-127 multi-function display and dome radar were installed; two new cutlass bearings were installed at the time of purchase; in 2015, both freshwater pumps were replaced; in 2016, a new air conditioning unit was added to the master stateroom; in 2017, the rudder steering arm was rebuilt, deck padding with a teak look was applied to the flybridge, stairs, and cockpit, the bow thruster prop was replaced with a six-blade version, hydraulic lift port-side shock was replaced, and a new seacock basket was installed on the port side; in 2018, flybridge captain chairs received new gas shocks, four bilge pumps in the engine compartment (forward and aft) were replaced, and new seat cushions were added to the cockpit bench; and in 2019, the flybridge water pump was replaced.

Included Items

The boat includes a Garmin GPS and sonar depth finder, stainless rod holders, an eight-gallon built-in fuel tank, and a four-blade stainless steel propeller. Spare props are also provided. Dual GPS and radar systems feature a Raymarine E127 multi-functional display screen with overlaying radar and a Raymarine RL80C display with overlaying radar.

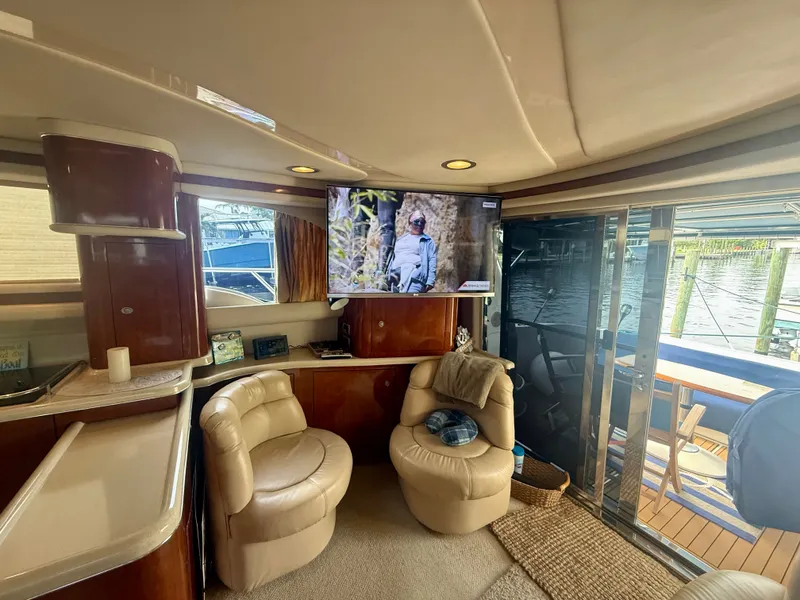

Salon

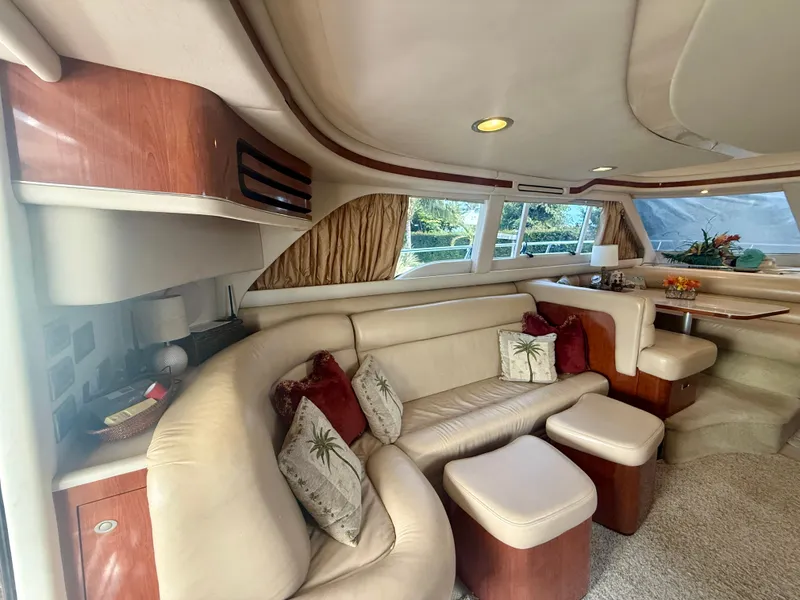

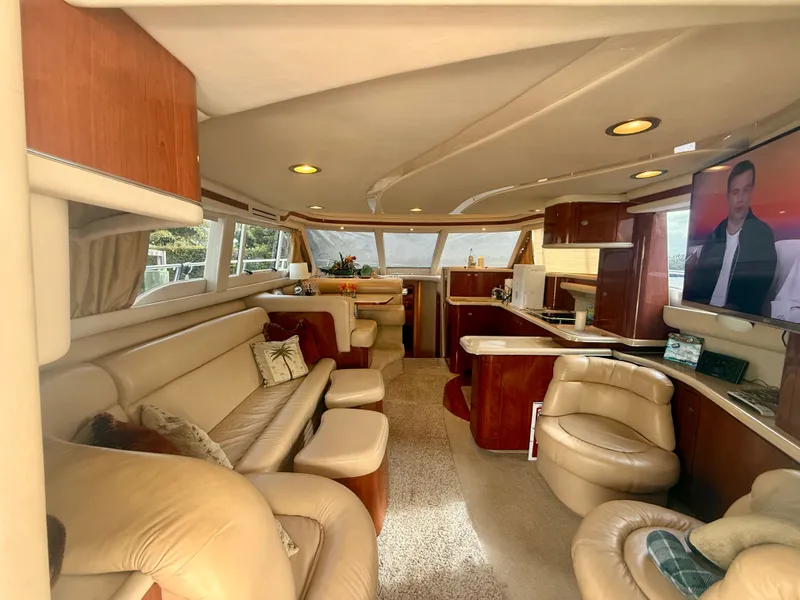

The salon includes an entertainment center with updated AV equipment, seating including two barrel chairs, and an L-shaped sofa with an electrically operated slide-out bed in Ultraleather HP™. Storage options consist of starboard cabinets, and a movable folding-leaf dining/cocktail table that adjusts hi-lo with stools.

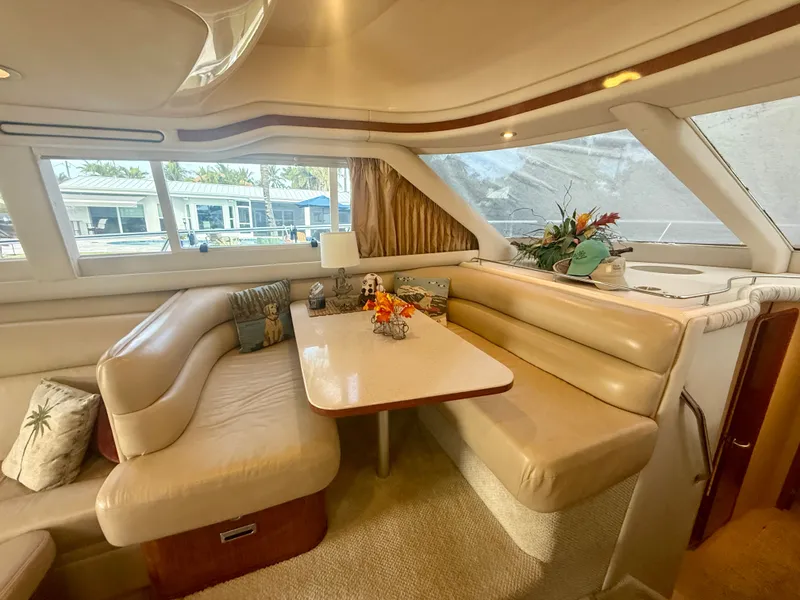

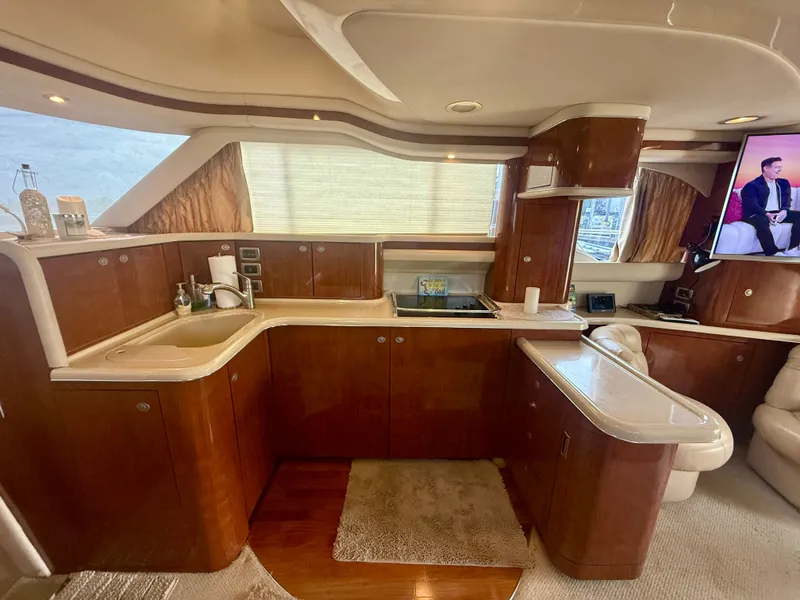

Galley and Dinette

The dinette offers opposing seating with storage below the table. The galley is equipped with a 120V Spacemaker™ coffeemaker, a molded fiberglass countertop with granite-colored gel-coat, a single-lever Grohe® faucet and Corian® sink cover, wood flooring, dual-voltage lighting (120V/12V), a microwave/convection oven, a 120V power vent, a 12V refrigerator and freezer with icemaker (Sub-Zero®), bottle storage, drawers with cutlery insert, upper and lower storage with designated areas for plates, glasses, and bottles, a 240V flush-mount three-burner stove with stainless steel safety rail, and a trash receptacle with chute and Corian® cover.

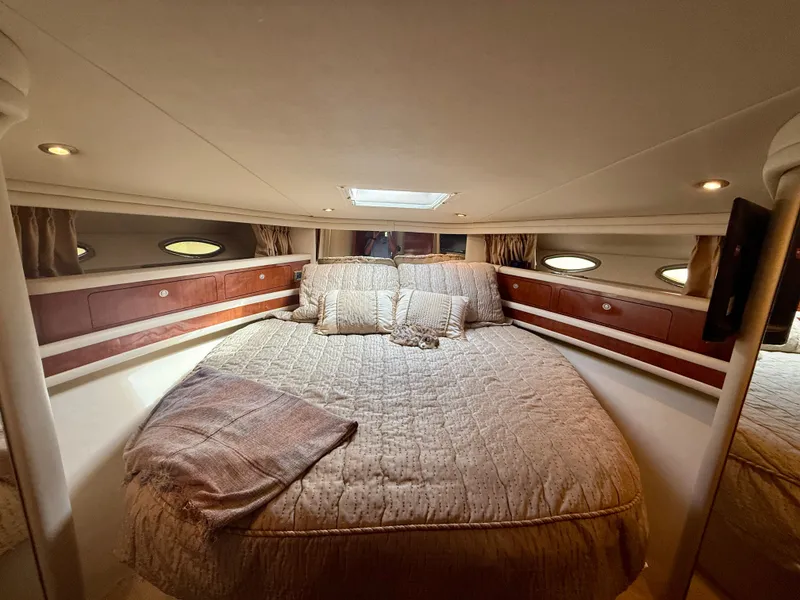

Master Stateroom

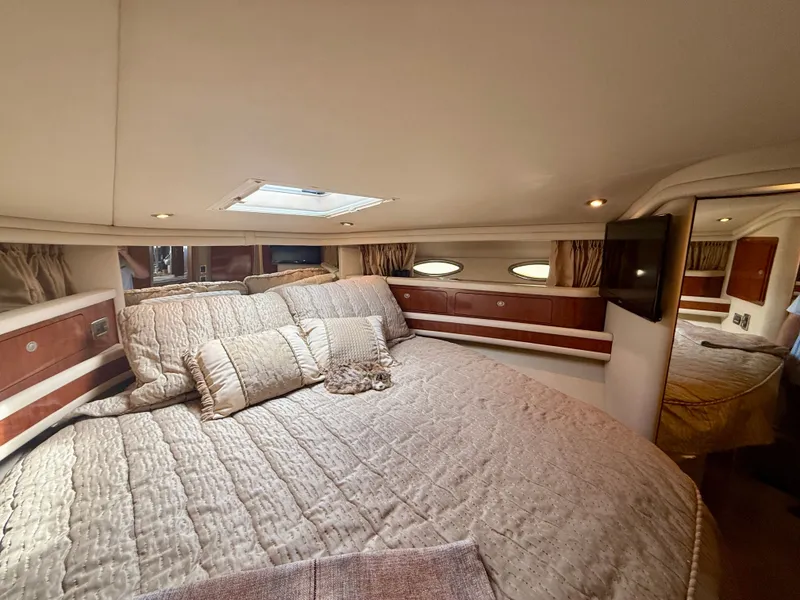

The master stateroom features a full-size bed with innerspring mattress, pillows, two sets of sheets, coordinated spread, and drawer storage below with a gas-assisted hatch. Privacy is provided by a hanging door, along with two full-length cedar-lined hanging lockers with lights and beveled mirrored doors. Additional storage includes a mirrored rope locker bulkhead, gunwale cabinets, and a 13" 120V TV/DVD combo with remote and coax outlet.

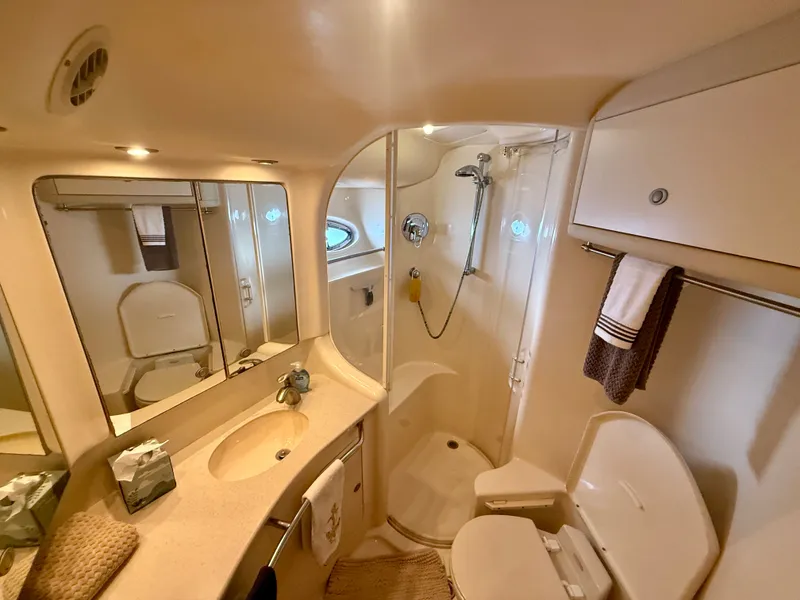

The master stateroom head and shower include a clothes hook, privacy door accessible from the stateroom, stainless steel handrails, a fiberglass settee lid (VacuFlush® head), 12V power vent, shower with seat, adjustable shower wand, circular acrylic door, upper cabinet storage, mirrored medicine cabinet, vanity with Corian® countertop, Grohe® faucet, sink, and storage below.

Port Stateroom

The port stateroom has a full-size bed with innerspring mattress, pillows, two sets of sheets, coordinated spread, and drawer storage below with a gas-assisted privacy hatch door. It includes a cedar-lined hanging locker with light and beveled mirrored door, wall accent mirrors, circular skylight, storage drawers, and a 13" 120V TV/DVD combo with remote and coax outlet.

Guest Bath

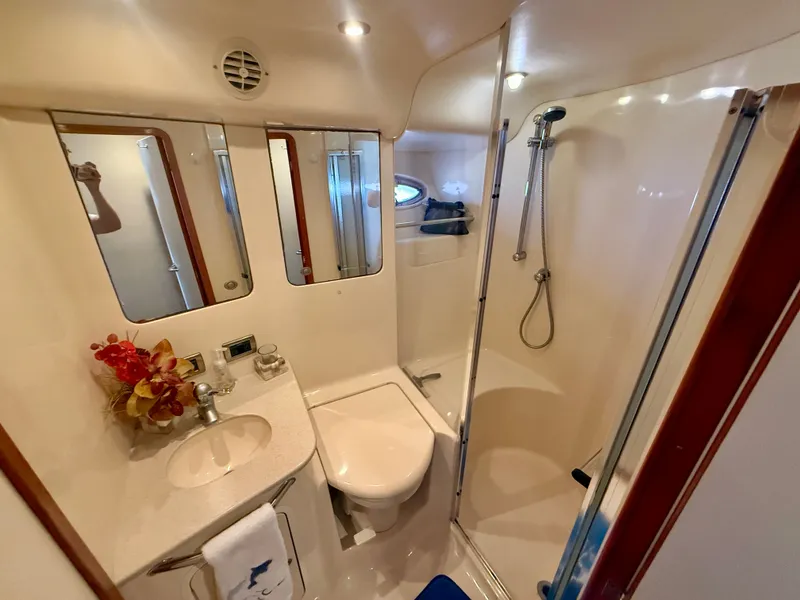

The guest bath features a clothes hook, privacy doors accessible from the hallway and port stateroom, stainless steel handrails, fiberglass settee lid (VacuFlush® head), 12V power vent, shower with seat, adjustable shower wand, bifold door, upper cabinet storage, mirrored medicine cabinet, vanity with Corian® countertop, Grohe® faucet, sink, and storage below.

Starboard Stateroom

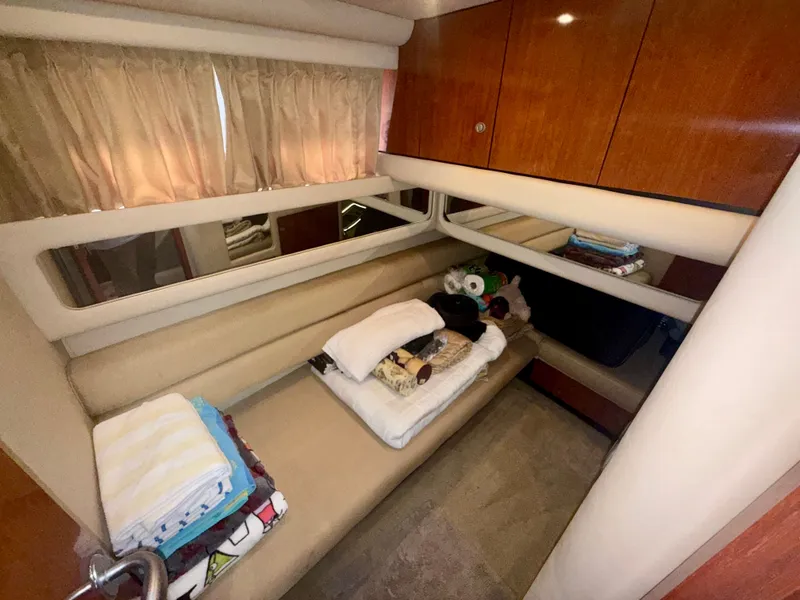

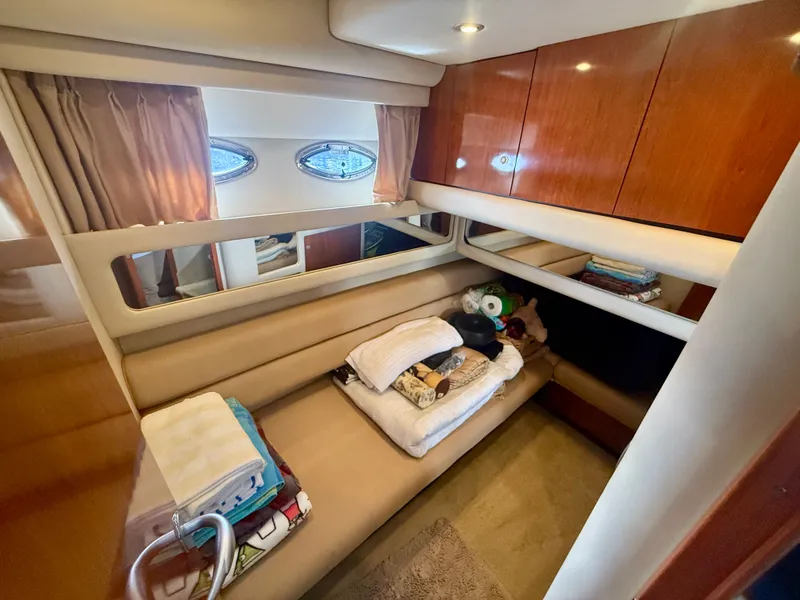

The starboard stateroom includes an aft bunk bed with pillows, sheets, and coordinated spread; wall accent mirrors; a sofa with drawer storage below that converts to a twin bunk with pillows, sheets, and coordinated spread; a circular skylight; and upper and lower cabinet storage.

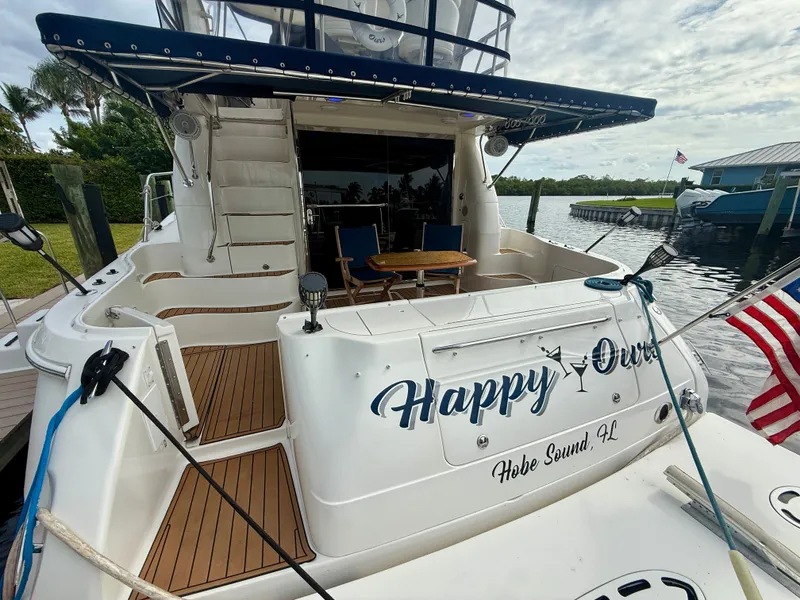

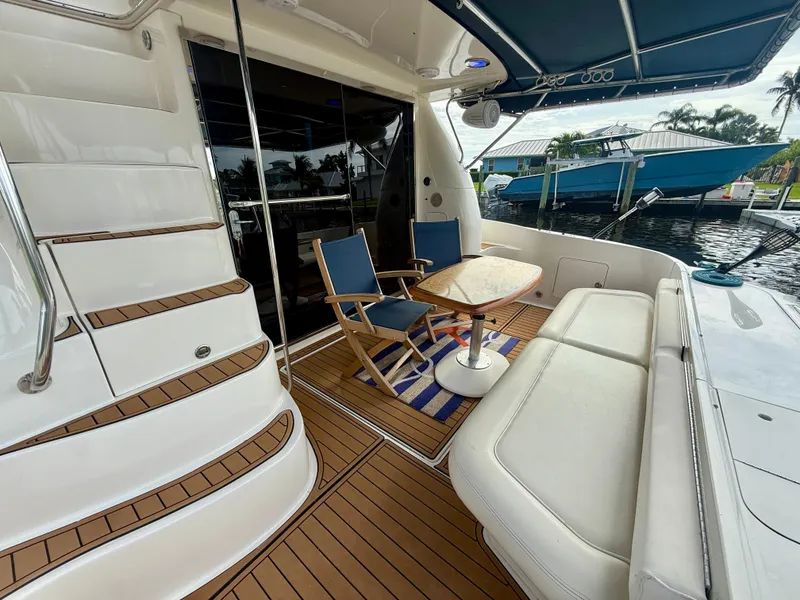

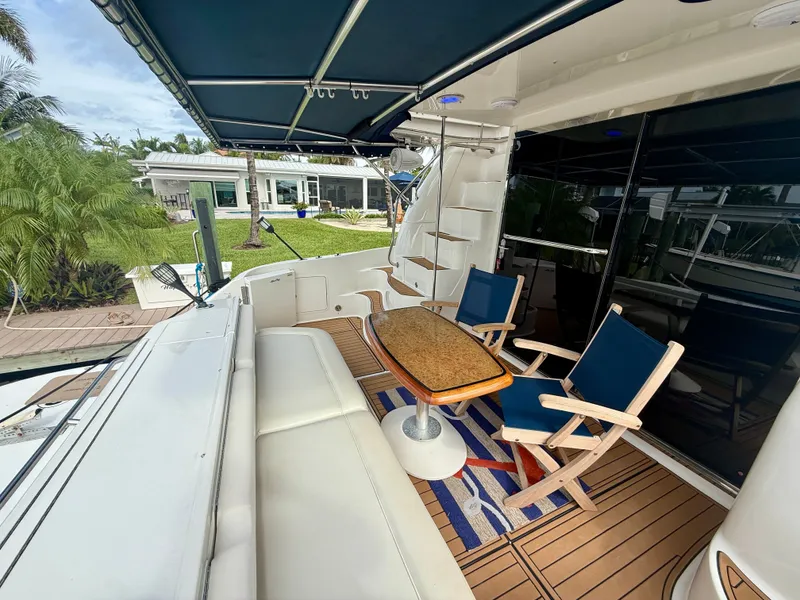

Cockpit

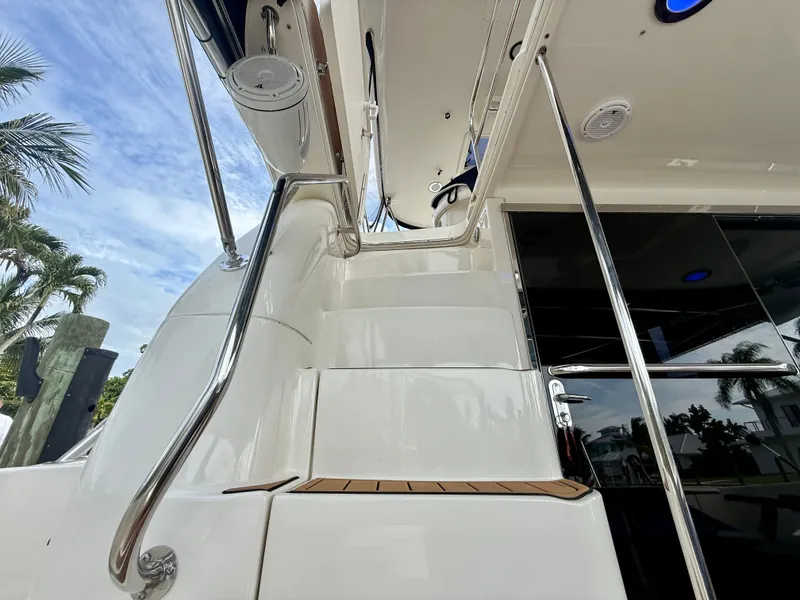

The cockpit is fitted with Sea Deck flooring, a sliding and lockable cabin entry door with screen (stainless steel), fiberglass transom floor liner (self-bailing), 316 stainless steel handrails, gas-assisted engine service hatch, indirect lighting, 120V GFI-protected outlet, two protected rod holders, an aft bench seat with fiberglass storage base (removable), molded deck access steps, and aft coaming storage with fiberglass bins.

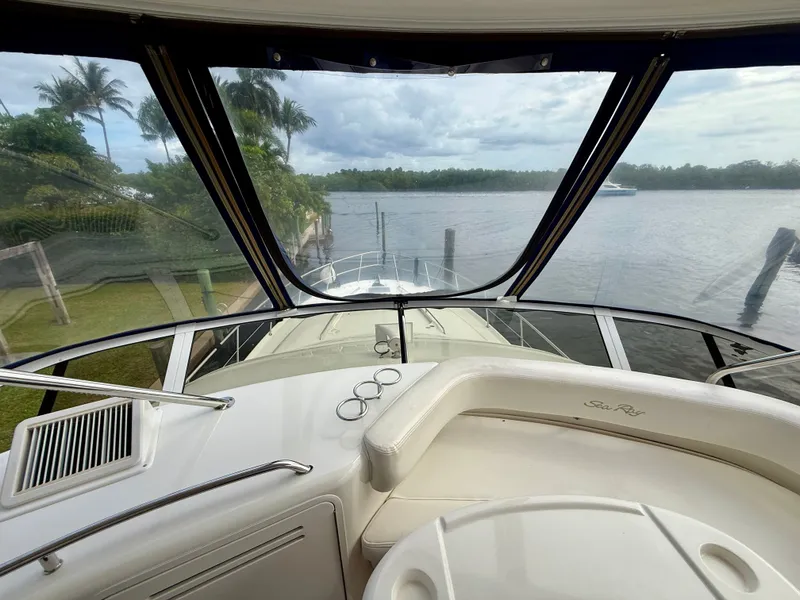

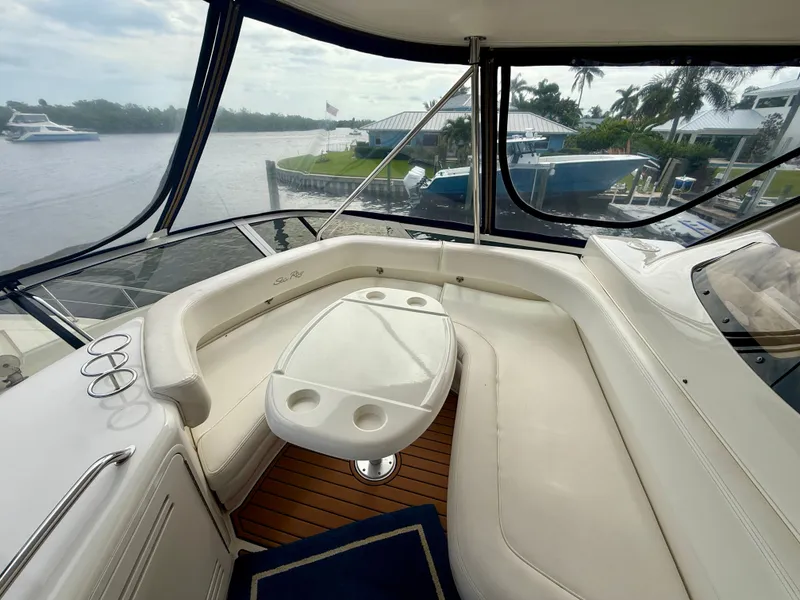

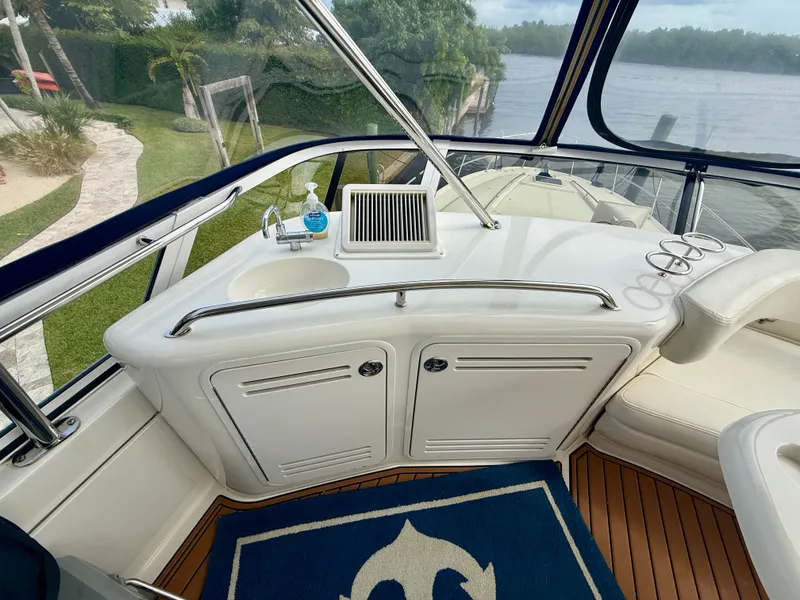

Bridge

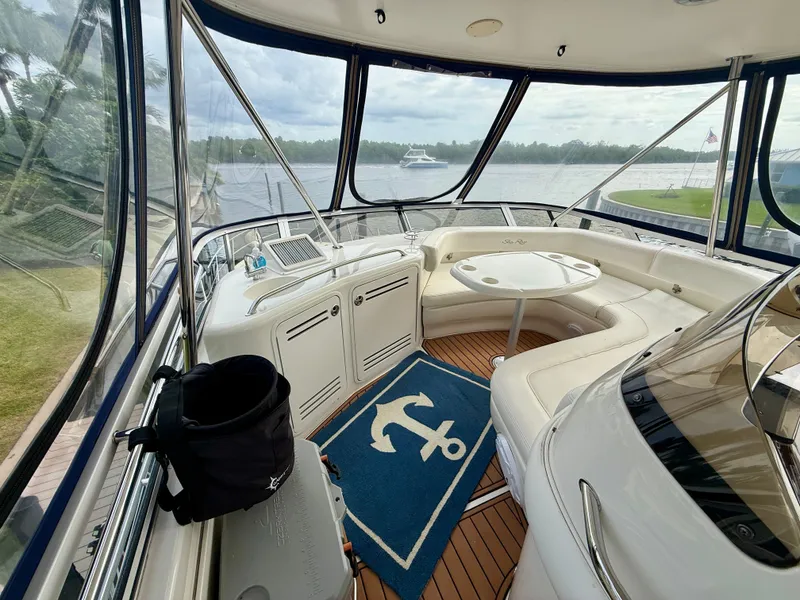

The bridge provides six beverage holders, bottom paint, control station, snap-in carpet liner, handrails, fiberglass hardtop, bridge access hatch, 12V lighting, 12V outlet, 120V GFI-protected outlet, 12V accessory outlet, 120V refrigerator, two helm seats, U-shaped seating, ship's bell, molded bridge access steps, 12V AM/FM single CD stereo, chart storage drawer, and bridge wet bar table.

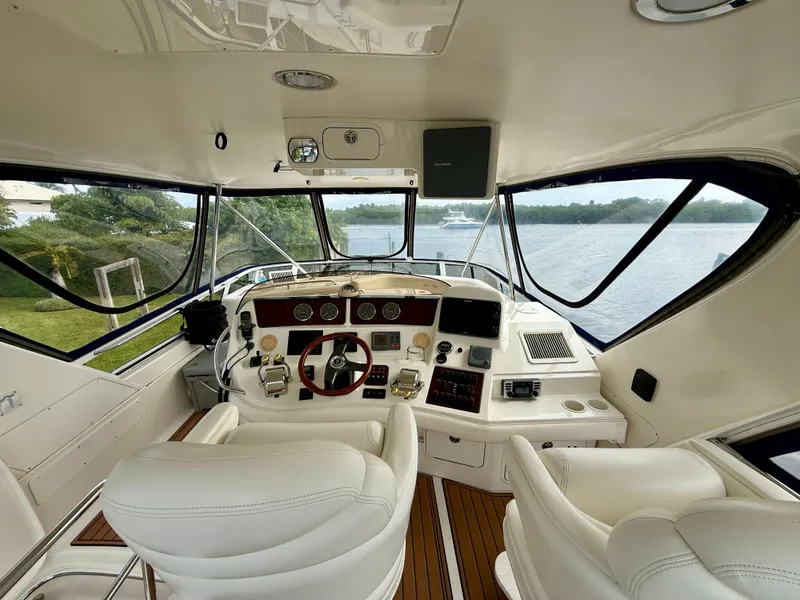

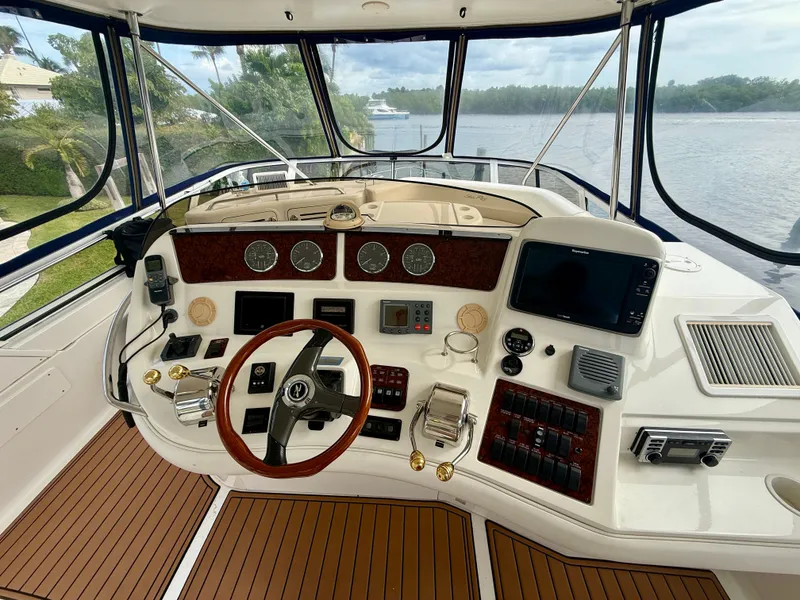

Control Station

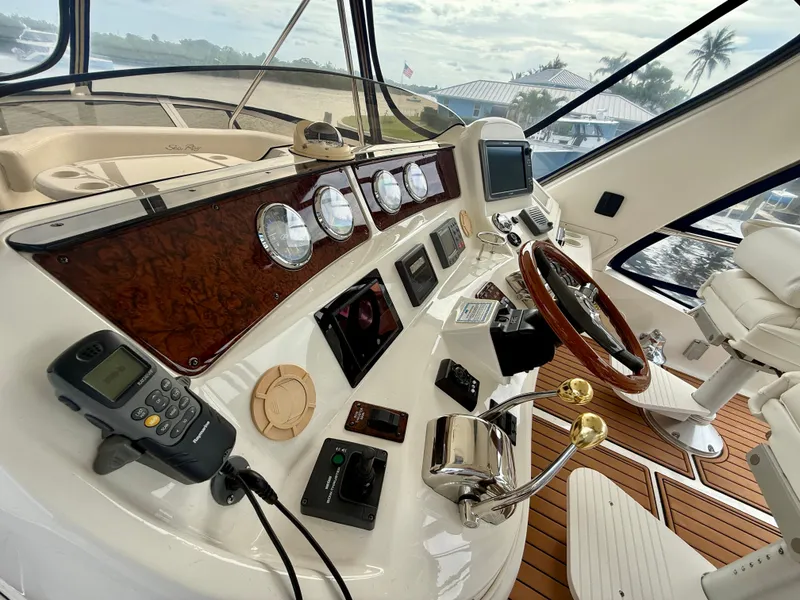

The control station includes alarms for engine oil, water, and transmission oil, as well as high-water bilge and cabin alarms; a compass; emergency engine stop; emergency start system for engines; concealed dual trumpet air horns; high-gloss burl instrument panels; SmartCraft™ diagnostics with custom Sea Ray® SmartCraft 4-in-1 multigauges (two) featuring low-glare blue night lighting and chrome bezels (including fuel level, oil pressure, voltmeter, and water temperature); SmartCraft System View (including air and water temperature, combined fuel flow/range, depth, engine alarms/hourmeters, engine synchronizer, GPS interface, and system maintenance records); power-assisted steering; tilt wheel steering; wood-accent steering wheel; backlit high-gloss burl switch panel; illuminated weatherproof rocker switches and dimmer; and a digital LCD control systems monitor for engine diagnostics and pump monitoring.

Electrical Systems

Electrical systems comprise two 8-D batteries with boxes and one Group 27 for the genset; a 120V/50 Amp/12V battery charger/converter; battery charger overcurrent protection; two galvanic isolators; remote circuit breaker panel; DC main breaker panel; main distribution AC and DC panels; Glendinning Cablemaster 50 Amp/240V/60-cycle shore power with 75' cords and wireless remote (not available with 220V/50 cycle); 50 Amp/120V/60-cycle shore power isolation transformers; TV/phone inlet with TV antenna, TV shore cord, and phone shore cord; and color-coded wiring with chafe protection.

Systems

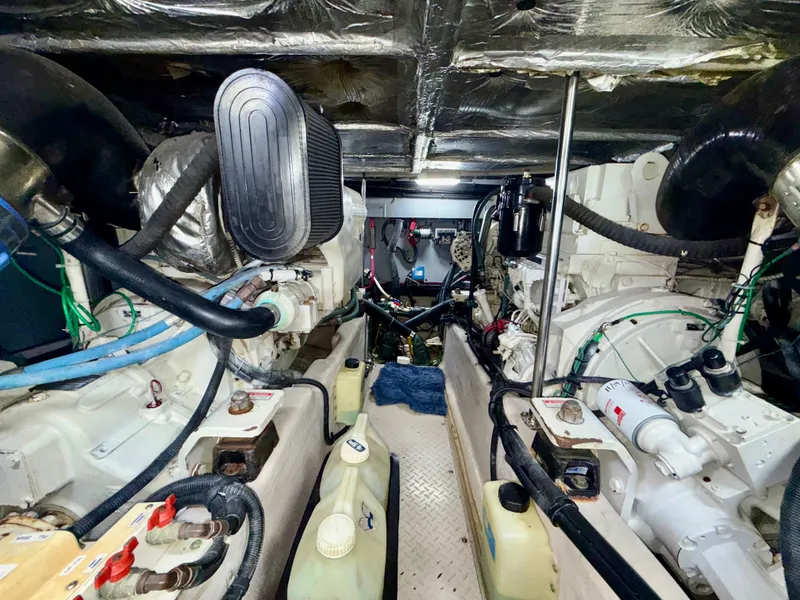

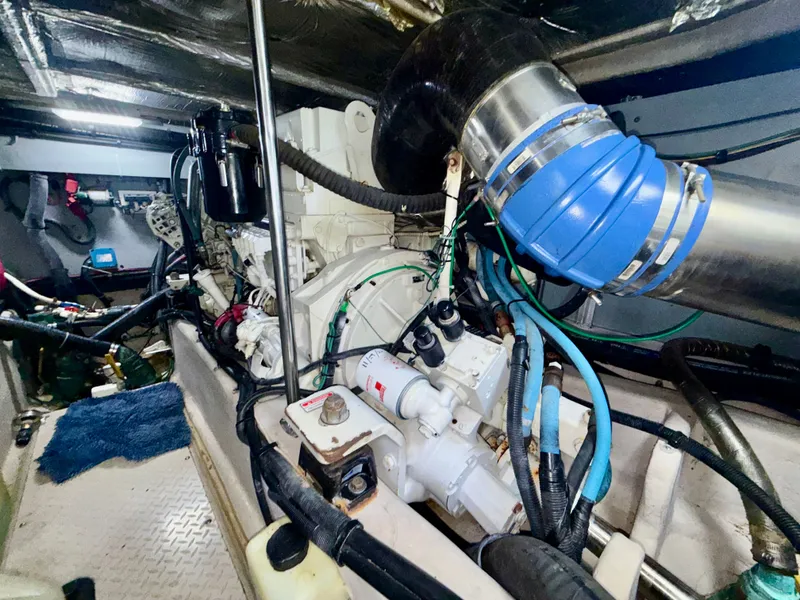

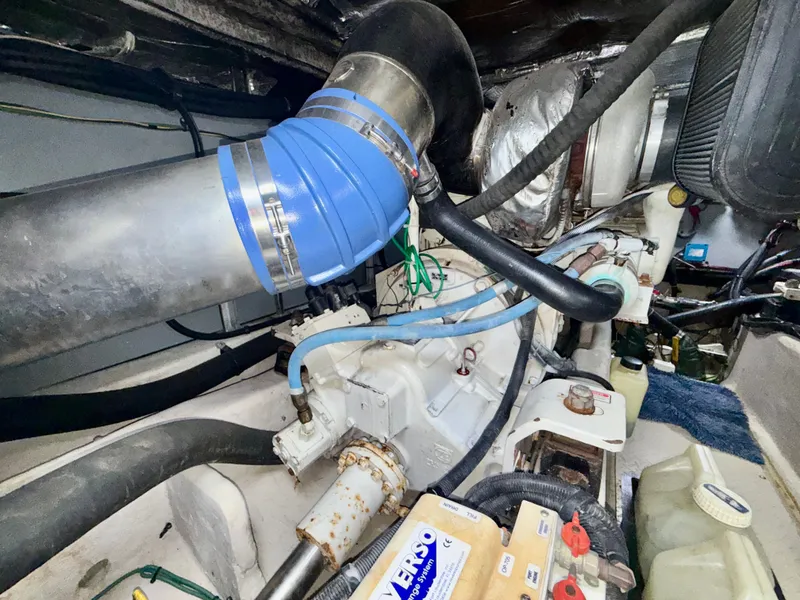

The generator is a remote-start Onan® diesel with muffler, freshwater cooling, fuel filter, seacock, and seawater strainer at 240V 13.5 kW. Air conditioning and heating feature a zone-controlled reverse-cycle system (38,000 BTU) with a custom integral vent system. The engine room includes two 12V automatic bilge pumps, one 12V automatic high-water bilge pump and one cabin pump, two 12V bilge blowers, engine drip sumps, power Pac/lift system exhaust mufflers, automatic fire suppression system with manual pull, freshwater cooling, gel-coated engine room with 2" oyster insulation and vinyl barrier, removable stainless steel ladder, 12V lighting, oil changer system for engines, transmissions, and generator, and engine synchronizer.

The fuel system offers a crossover fuel system; three Racor® fuel filters (two 75-1000MAX for engines, one 500MA for generator); USCG Type A-1 fuel lines; and two aluminum fuel tanks with anti-siphon valves and electric sending units. The water system includes an engine room freshwater hose and spigot, freshwater washdown spigot, pressure water system with dual 12V pumps, cockpit hot and cold shower, 240V 18-gallon water heater, dockside water inlet, and 140-gallon water tank. Waste systems consist of a central drain system, VacuFlush® head system, MDP and heads holding tank level indicators, 68-gallon holding tank with dockside pump-out, and automatic sump box with pump.

Underwater gear features a bonding system with zinc hull plate; two 2 1/2" Aquamet 22 stainless steel propeller shafts; Nibral four-blade cup propellers; manganese-bronze rudders with stainless steel posts; seacocks on all underwater fittings; seawater strainers; dripless shaft logs with extra seal carrier kit; manganese-bronze struts; and hydraulic trim tabs.
