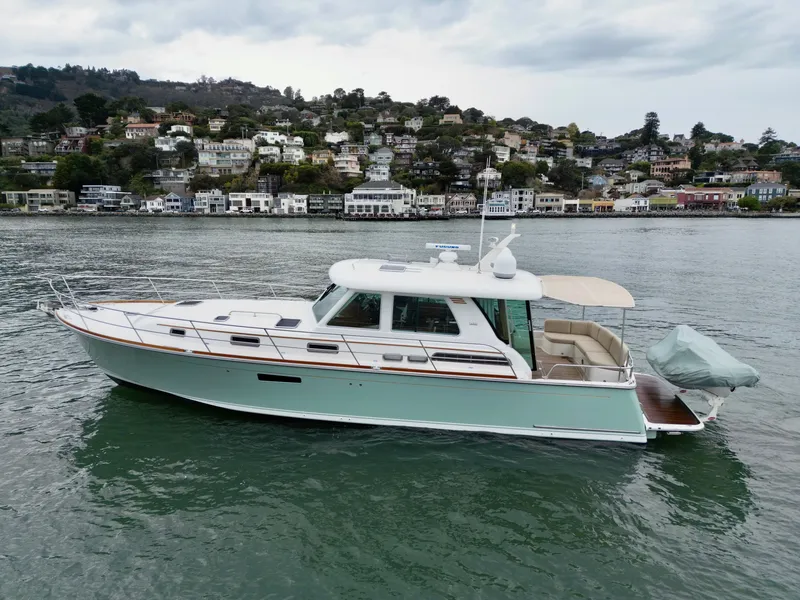

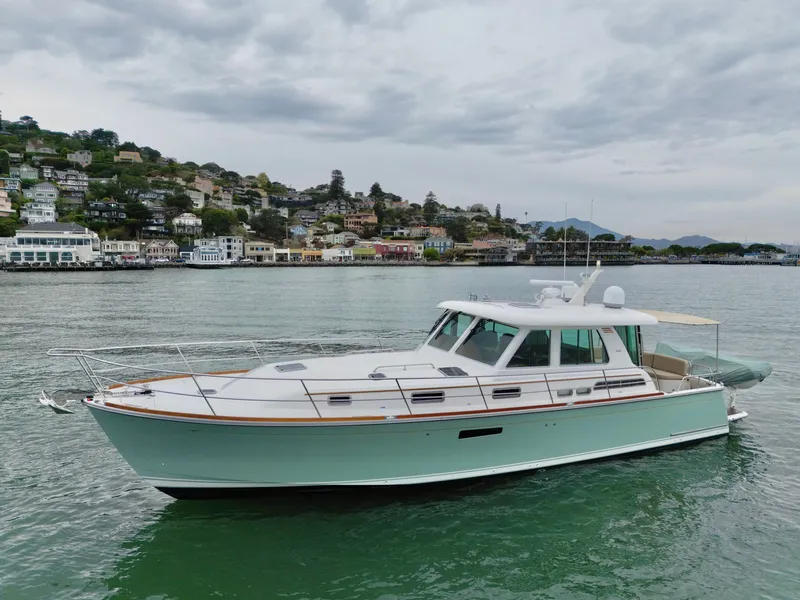

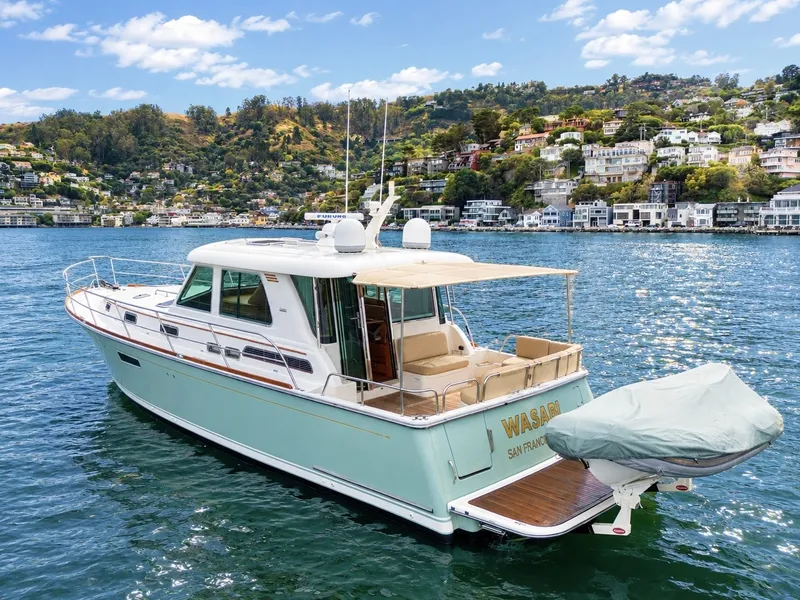

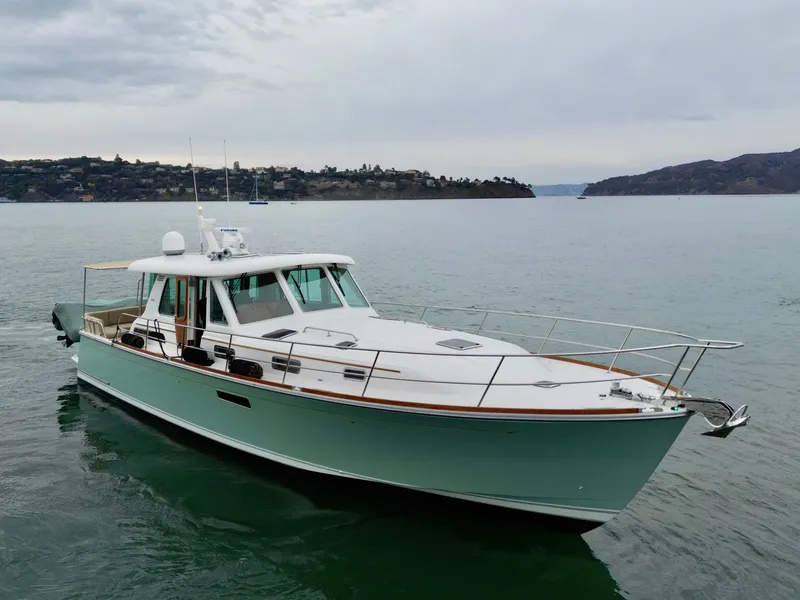

2016 Sabre 48 Salon Express Boat in Sausalito, CA 94965 US

**2024 Damage report findings, Boat Yard repair invoices, photos & post-repair insurance survey report ALL available upon request.**

Surveyor's comments from reports are as follows:

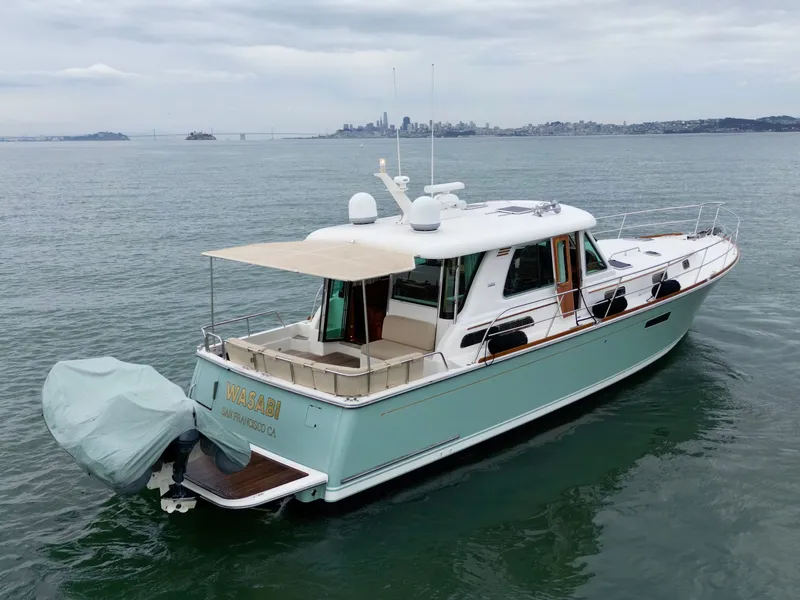

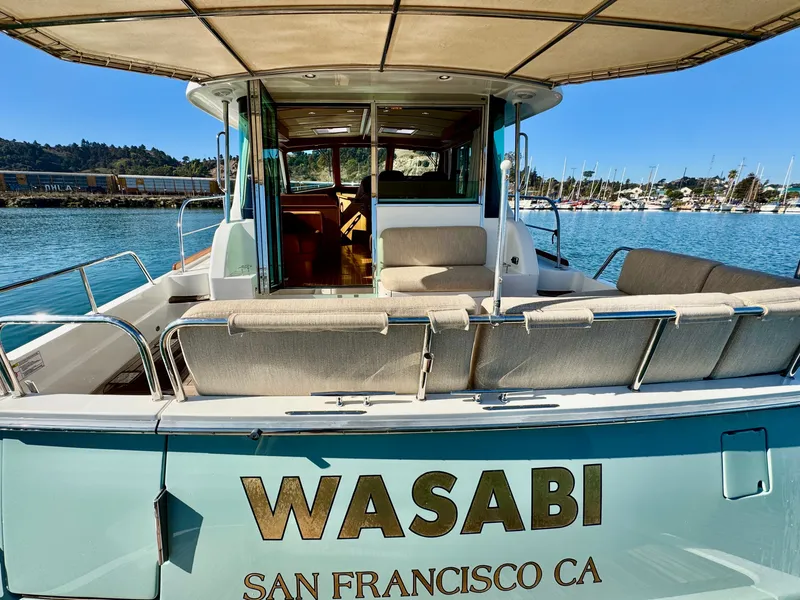

"A 2016, 48 foot, fiberglass hull motor yacht named “WASABI”, bearing USCG Doc# 1266656, reported to have struck a channel marker while underway in Richardson Bay, CA, on 09/16/2024. Survey was held while vessel was hauled out at KKMI, Sausalito, CA on 09/23/2024."

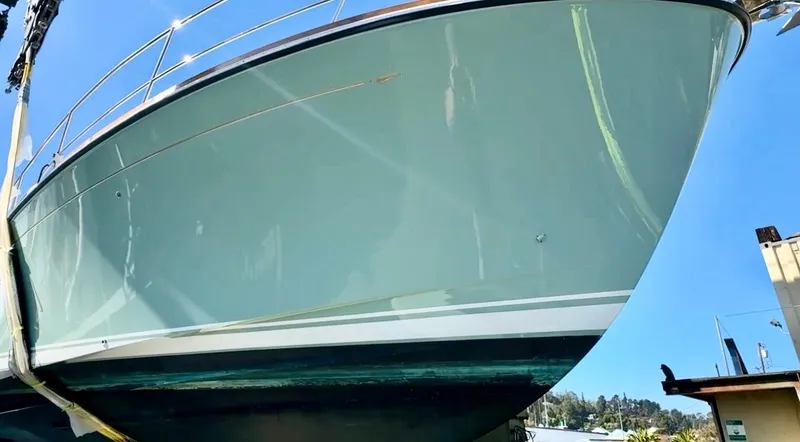

"Vessel sustained significant damage to the forward 10’ of the bow hull and deck. Repairs were completed utilizing a section of the hull and deck, manufactured by Sabre, and attached at KKMI Richmond. I surveyed the vessel upon completion of the repairs and found the vessel to be in like new condition.

A sea trial was conducted at the time of inspection. All equipment functioned satisfactory and no discrepancies were identified.

The vessel is in overall good condition and considered suitable for its intended use as a pleasure craft operating on an inland and coastwise route upon completion of below recommendations, Section A."

Broker’s Comments:

Damage was all above waterline with no indication or report of any water intrusion. Hull sides are cored with foam.

Repair took nearly a year while boat yard sourced new ground tackle and parts, Sabre molded new hullsides, deck and cabinetry for forward bow section.

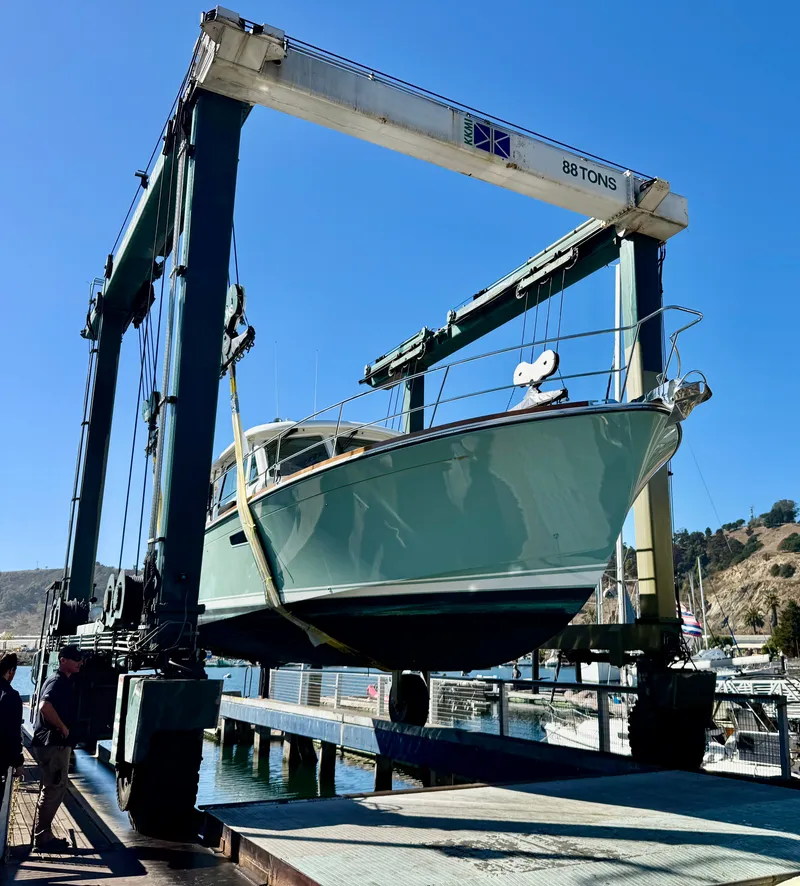

Once bow section was complete and shipped KKMI boat yard “scarfed” the new bow section into place. Hull was then repaint in original “Aqua Mist” awlgrip paint. Her exterior condition is exceptional supported by Sept. 2026 condition and valuation insurance survey. On the inside, again there is no indication of a repair being made. Of course this disclosure will follow the vessel for the remainder of her recreational use.

Photos of repair progress, yard receipts, and both pre & post surveys available upon request. Current Seller is acting fiduciary to the now deceased previous owner’s trust. Any and all written offers will be presented.

• Awlgrip painted hull in "Aqua Mist"

• New linen cockpit upholstery

• New Owner's queen mattress with fitted pillow top

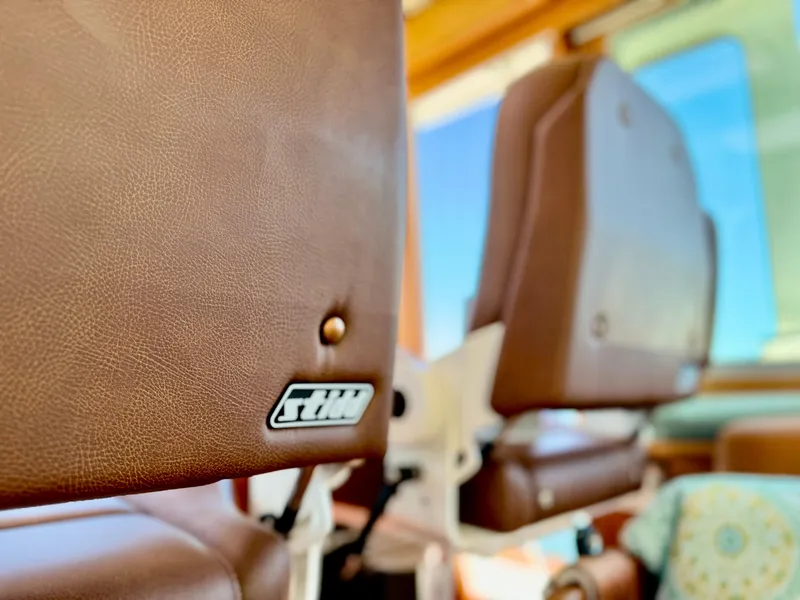

• (2) Upgraded Wide Admiral Series Stidd helm seats

• Freedom Lift

• Custom cockpit fixed awning

• Hand rail on ceiling of main salon

• Upgraded cushions on starboard settee, mates seat, and sliding settee

• Ultraleather upholstery in main salon

• Salon settee is larger than average at over 7-feet long

• Custom main salon table is 24-inches wide

• Single cup holder on the shelf behind the curved window to port in salon

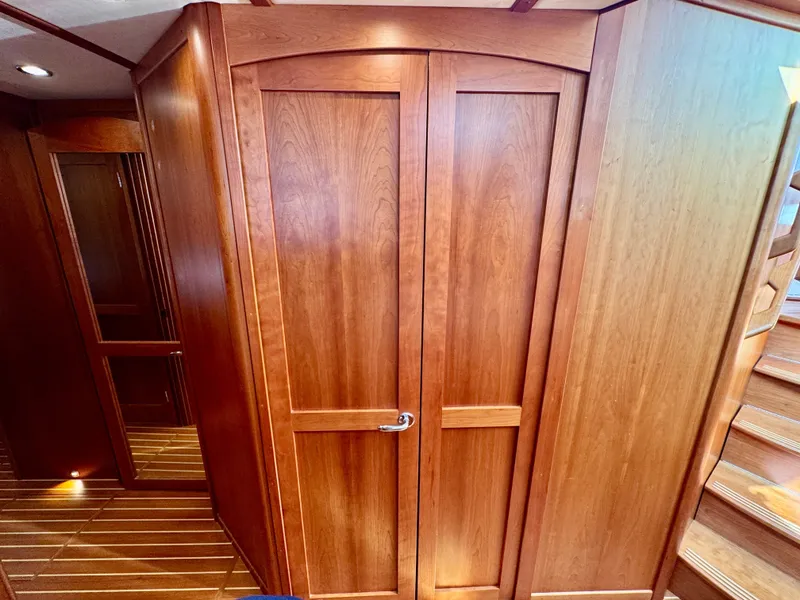

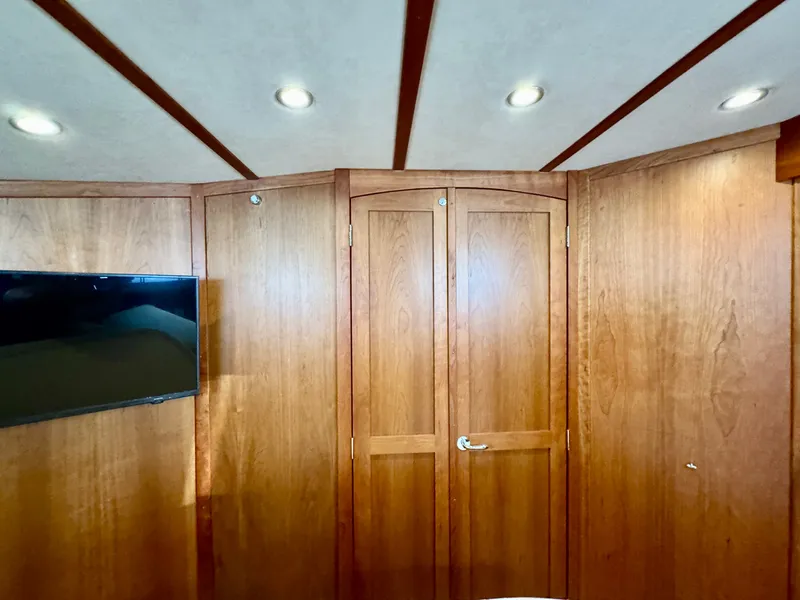

• Master cabin entry doors are 1 1/4-inch thick cherry panel doors.

• VIP cabin, and head doors are 1 1/4-inch thick with cherry panels

• Mirror on top and bottom of VIP cabin door, facing the berth

• VIP cabin berth has Latex Mattress Supreme

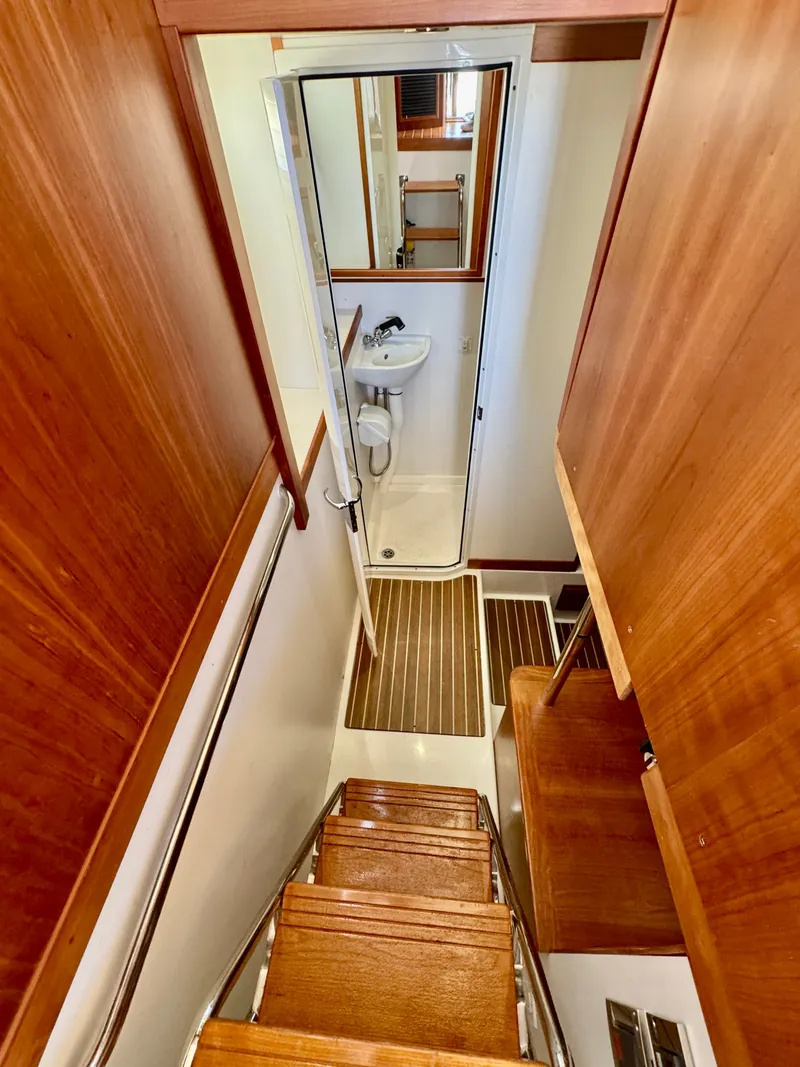

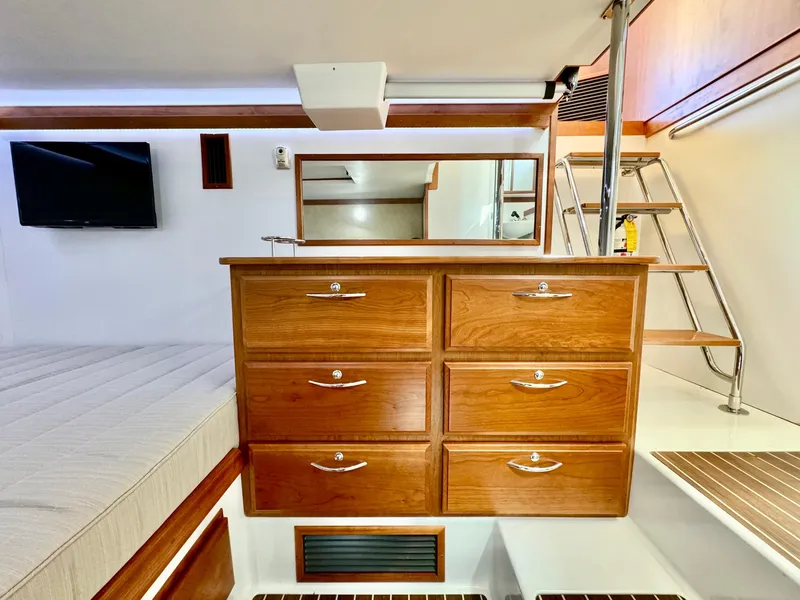

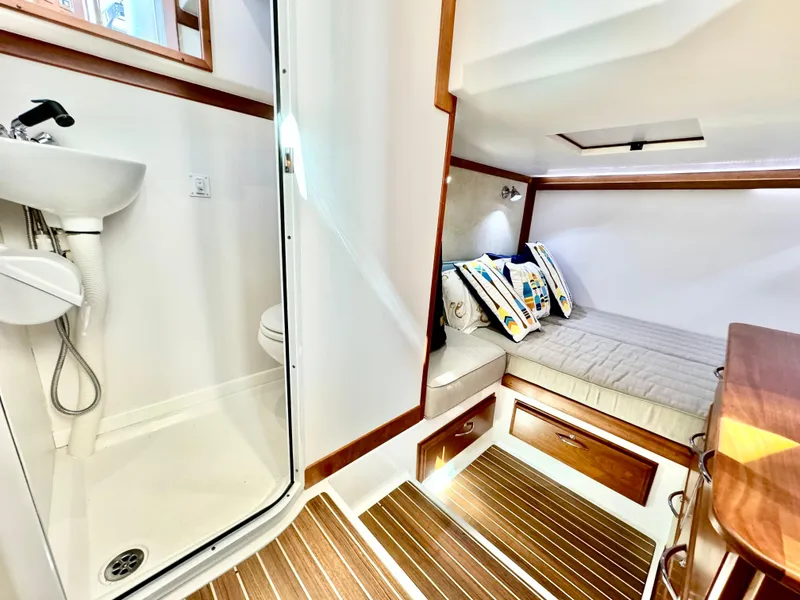

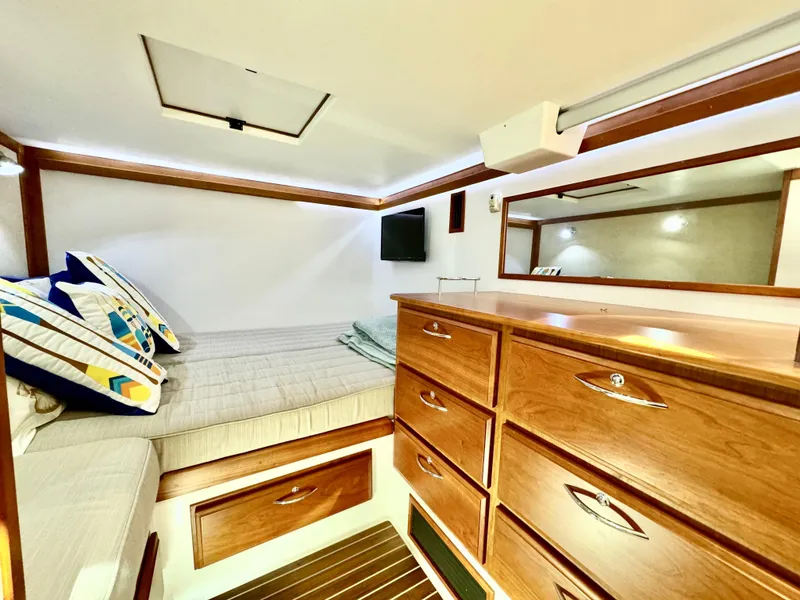

• Crew quarters with head in lieu of standard utility room

• (2) Ocean LED underwater lights

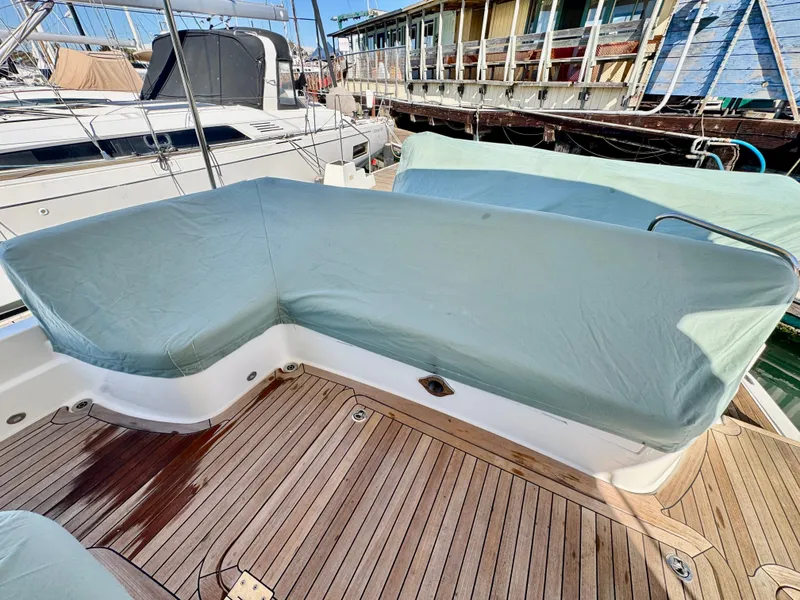

• Custom cockpit fabric, (Donghia Dixie Turquoise)

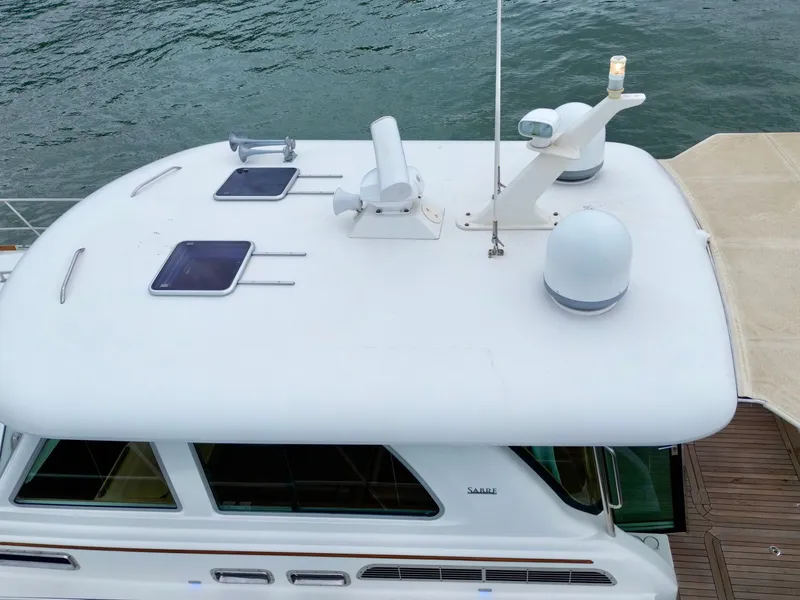

• FRP molded mast. Separate radar platform & satellite pods

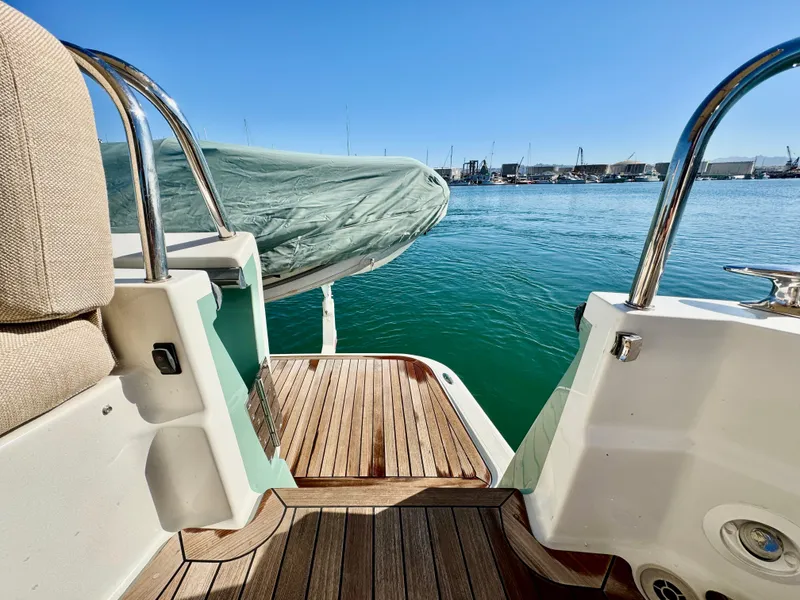

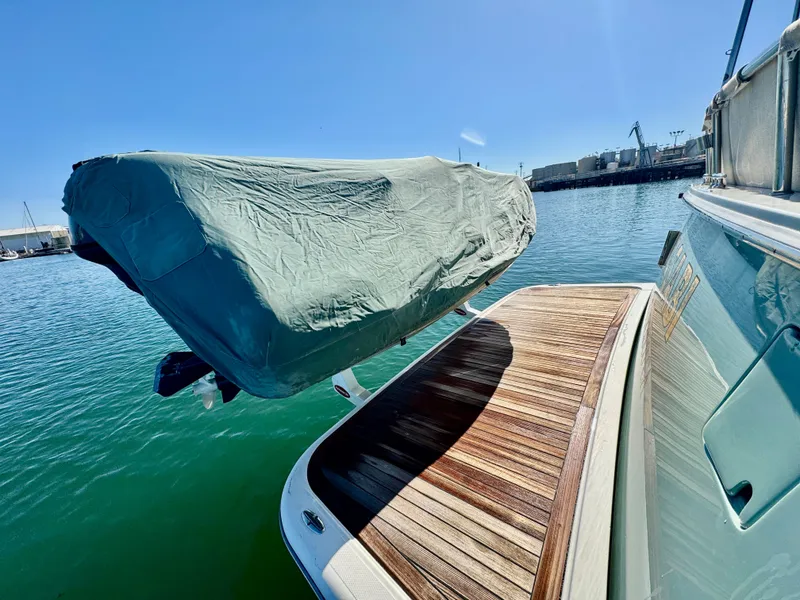

• Teck deck on FRP swim platform

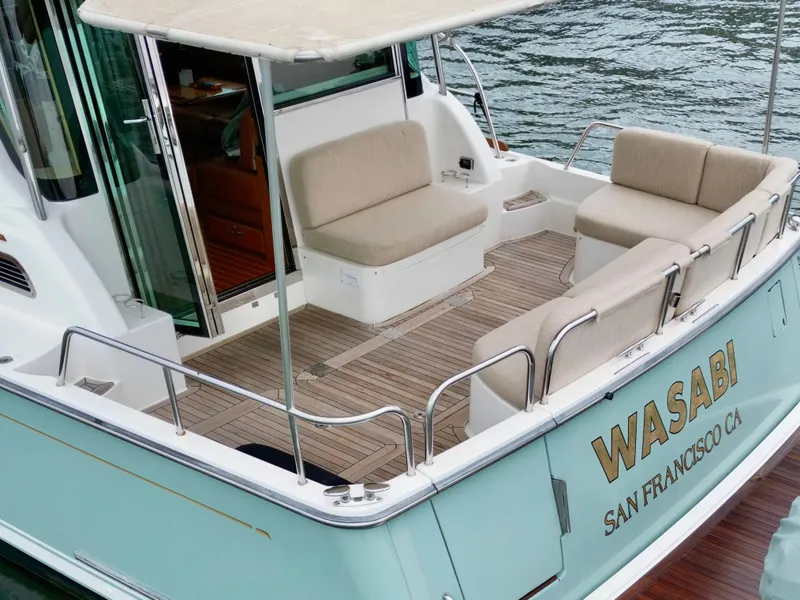

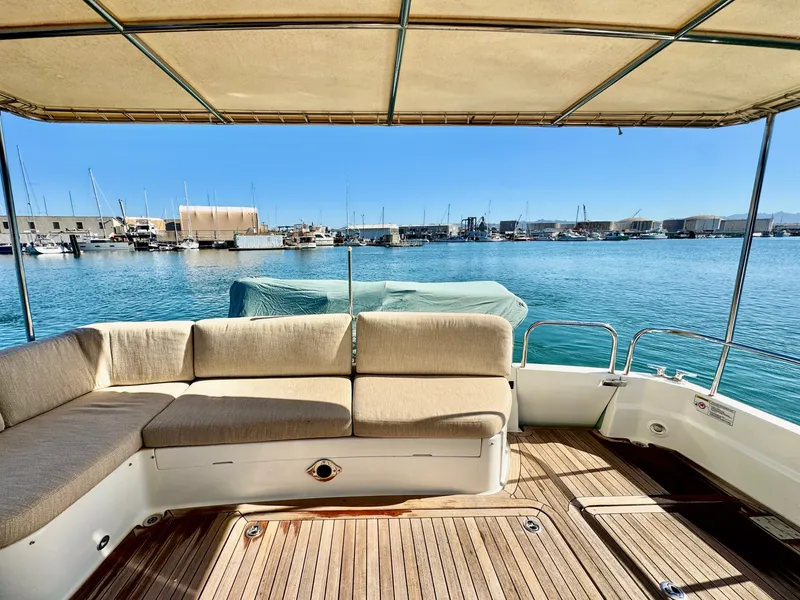

• Teak decking on aft cockpit including steps

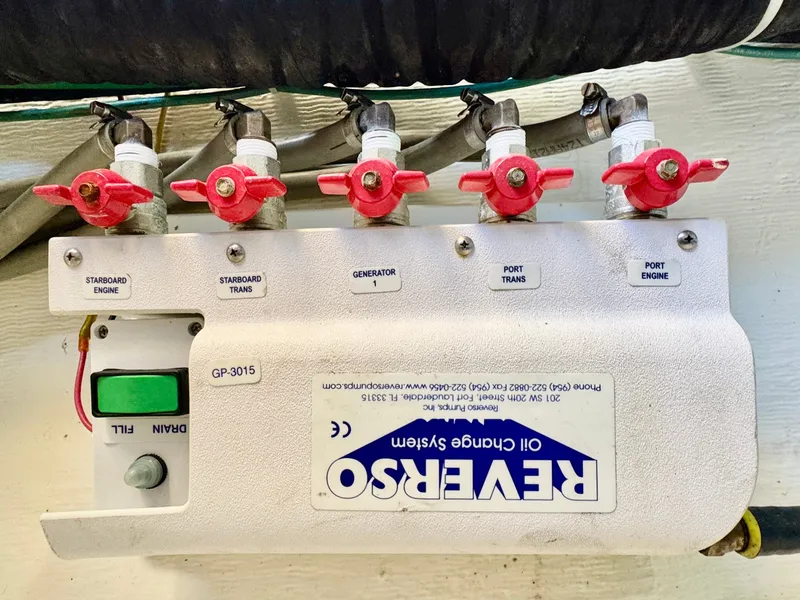

• Reverso oil change system

• Shore water inlet

• Single Seagull water purifier on galley cold water with separate spigot

• Fresh water wash down forward

• Fusion Marine AV750I stereo with wired remote

• Inverter/charger 3000-watt true sine wave with remote at electrical panel

• Searchlight dual beam mounted on hard top mast

• Additional Vessel View display, for a total of 2

• Exterior deck lights at base of cabin house

• Bi-fold aft door with corresponding hardtop

• Kahlenberg triple chrome horns

• Hot and Cold transom shower

• Accord Shades on all opening ports

• Larger trash area under sink

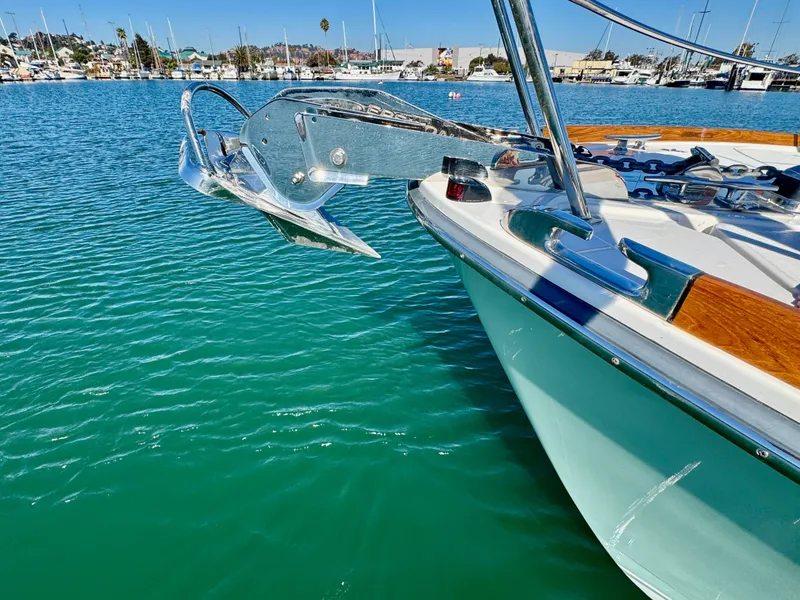

• Stainless Steel plow anchor

• 300-foot chain, and 100-feet of line for the anchor

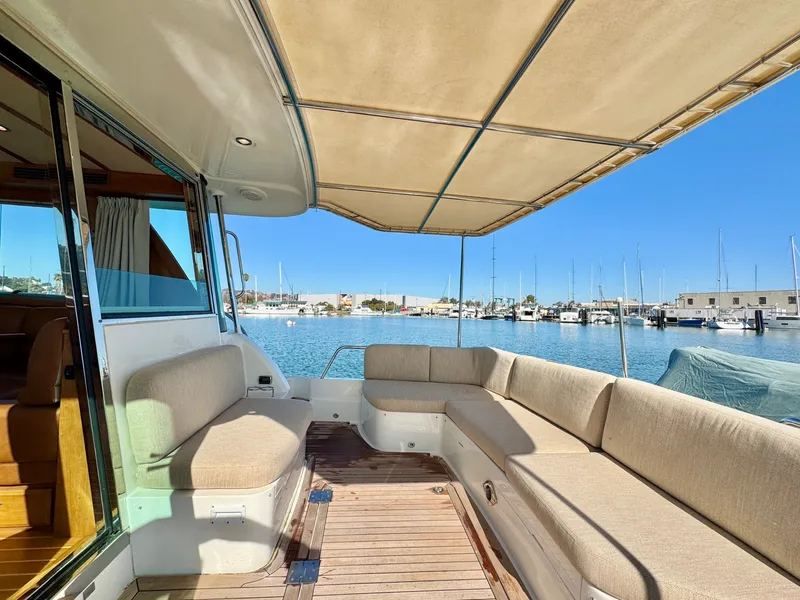

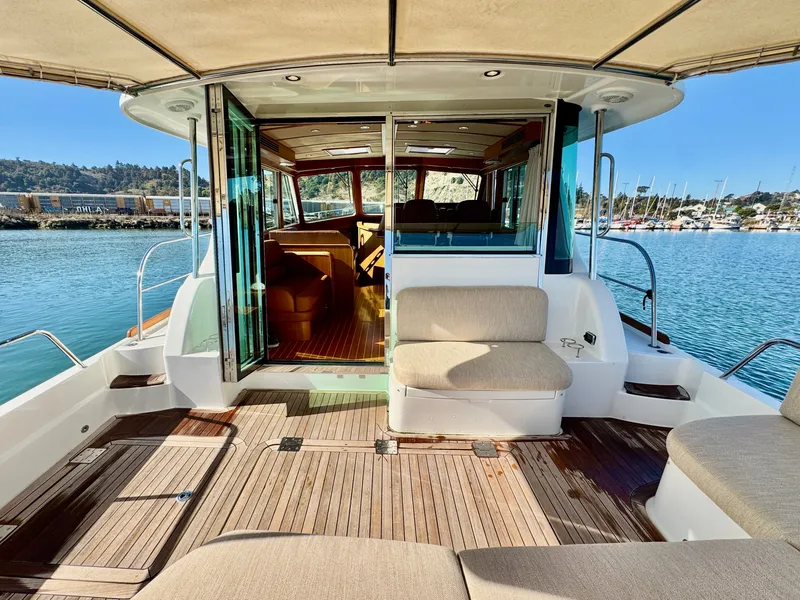

From the teak deck in the raised aft seating area to the salon with its lush ultra leather upholstery, this yacht is for the most discerning buyer.

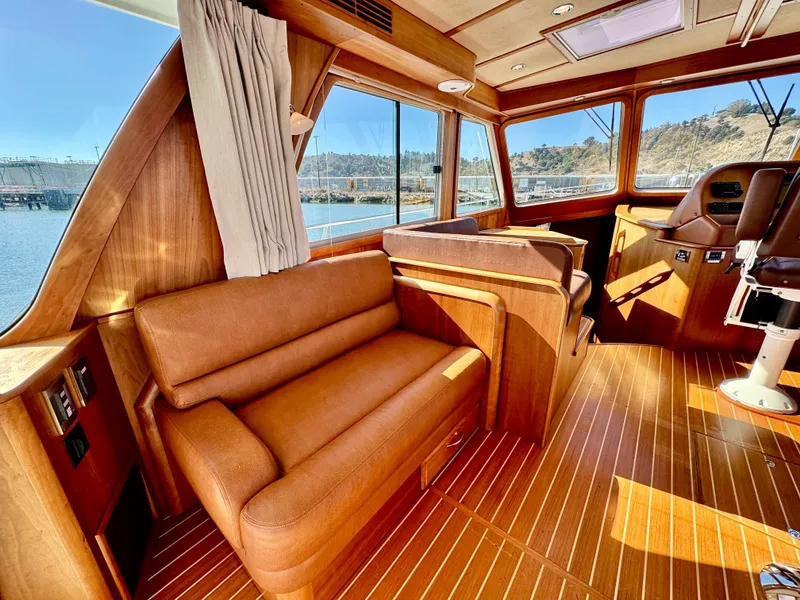

A focal point in this model is the port settee in the salon. With the touch of a switch, the settee glides towards the center of the salon, bringing it closer to the salon table for more guests to gather around the table when serving a meal or playing a card game. Once the settee moves from the wall, the stairway is revealed to the third stateroom perfect for crew or guests with a double berth, large bureau, under berth storage, flat screen TV w/ DVD player, private head with hand held shower and dedicated AC/heat zone.

The airy and large galley forward has an abundance of storage, a large galley counter and skylight. Across from the galley is the master stateroom with multiple cedar lined closets, drawers and storage space. With an en-suite full head and large, tiled shower.

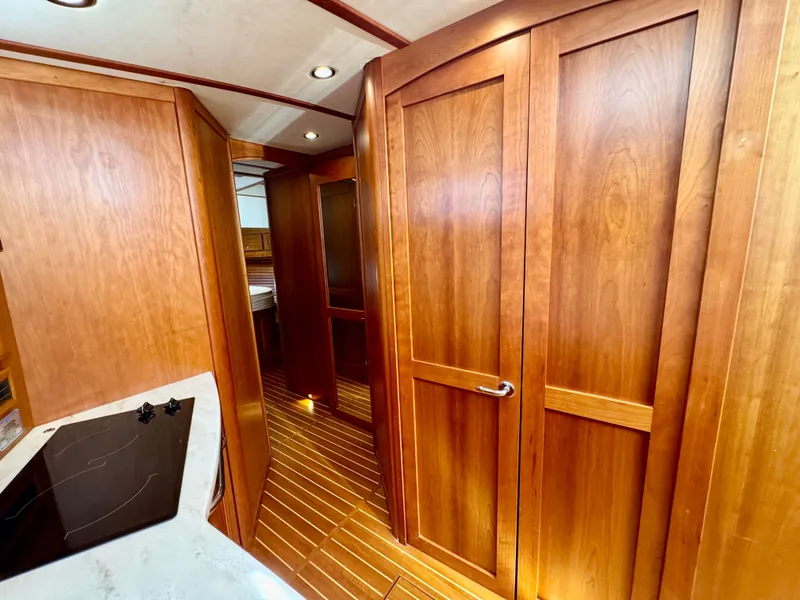

Forward of the galley is the passageway to the VIP Stateroom with island berth, cedar lined closets, drawers and under the berth storage. An en-suite head with stall shower, and a separate door that closes this area off completely from the passageway, offers the owner and their guests maximum privacy.

The interior custom decor of this 48 features a combination of two complimentary ultra leathers with upgraded cushions with stiffer knee rolls, coordinated bed coverings and pillows and custom master cabin, VIP cabin and head doors are made thicker than standard. The exterior boasts custom Awlgrip paint, a Freedom Lift, Ocean
LED underwater lights, custom cockpit seat covers and windshield cover and more. No detail has been overlooked in the building of this custom Sabre 48SE.

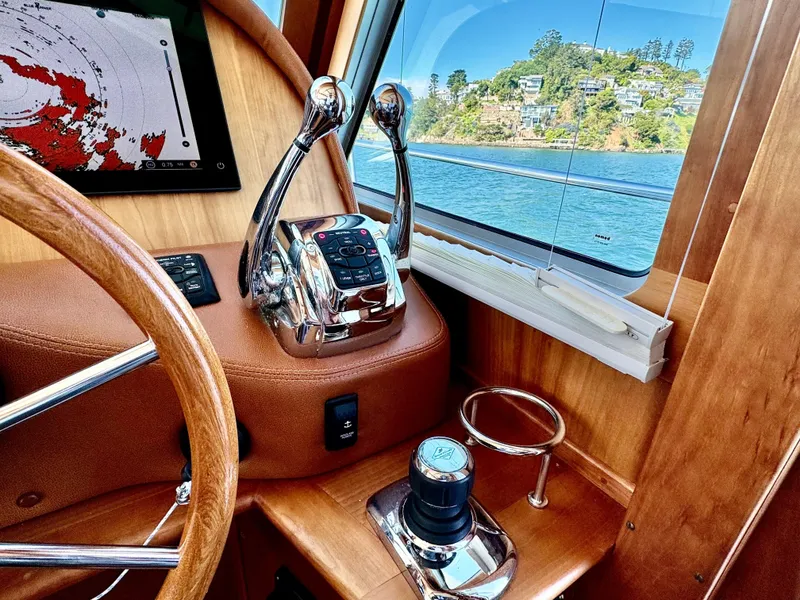

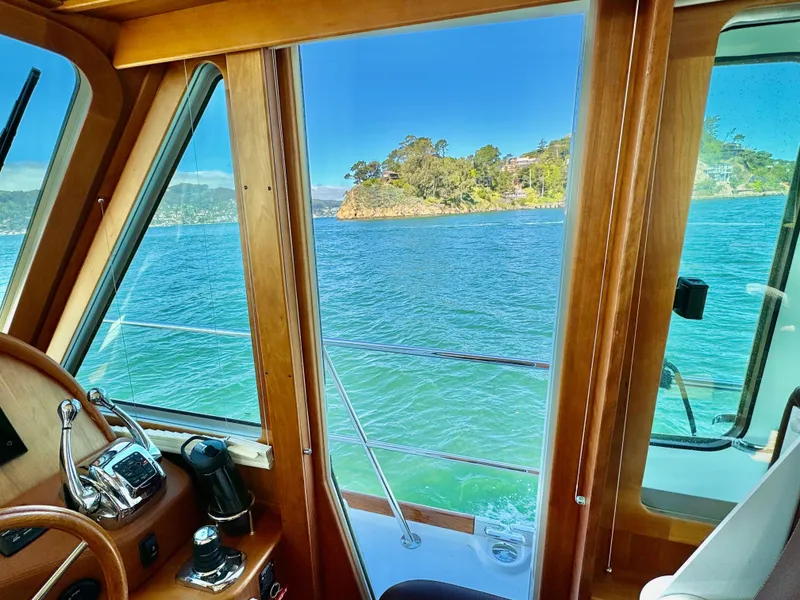

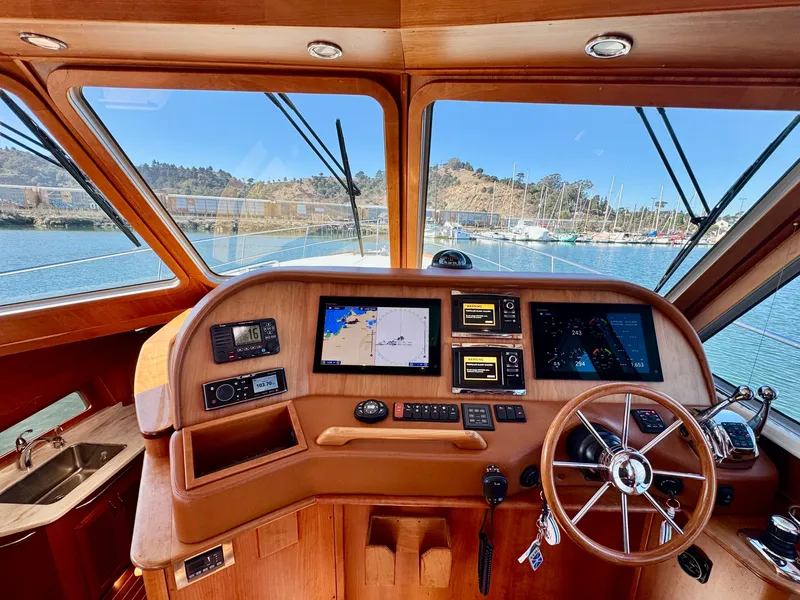

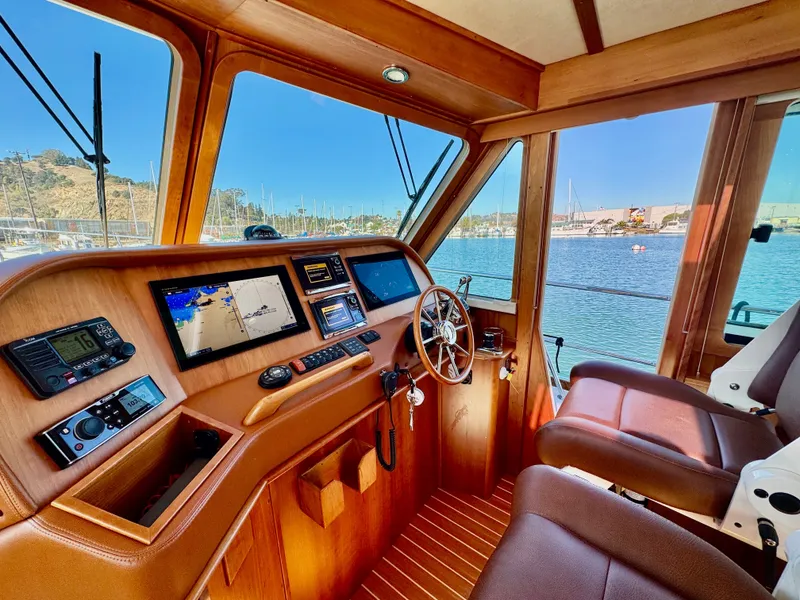

HELM

• Cummins DTS single lever electronic controls

• Cummins Smart Craft display (engine data, tank levels, vessel
  data, alarms)

• Mercury/Cummins Joystick for low speed maneuvering w/SkyHook position hold

• Cummins Zeus pod automatic trim tab system

• Ritchie Compass

• Switch controls for horn, running lights, anchor light & blower

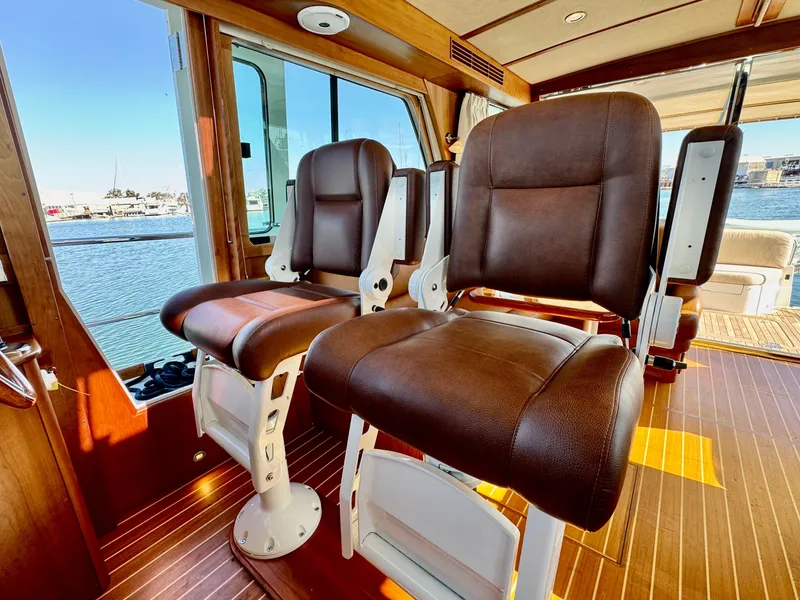

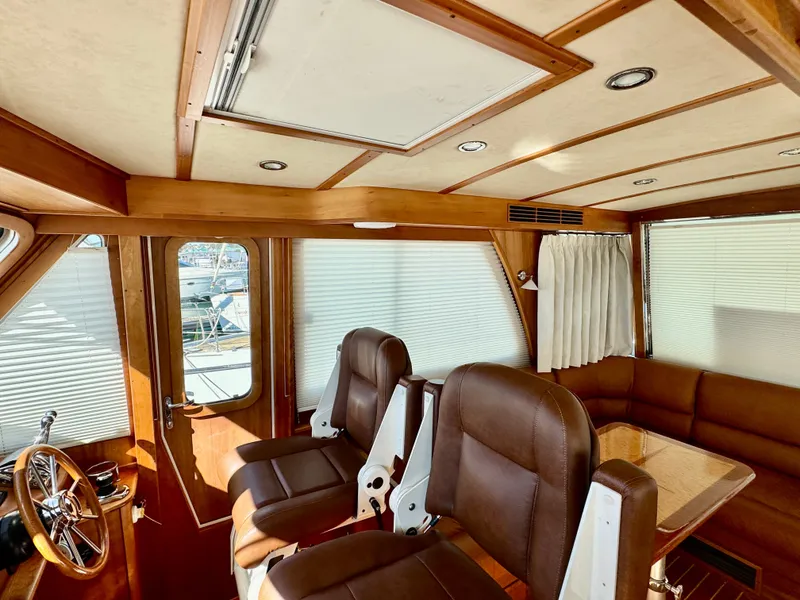

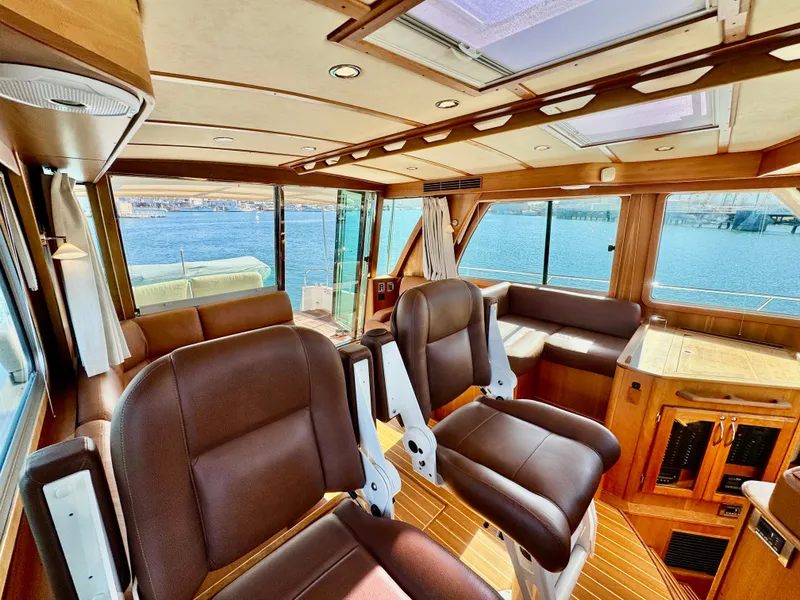

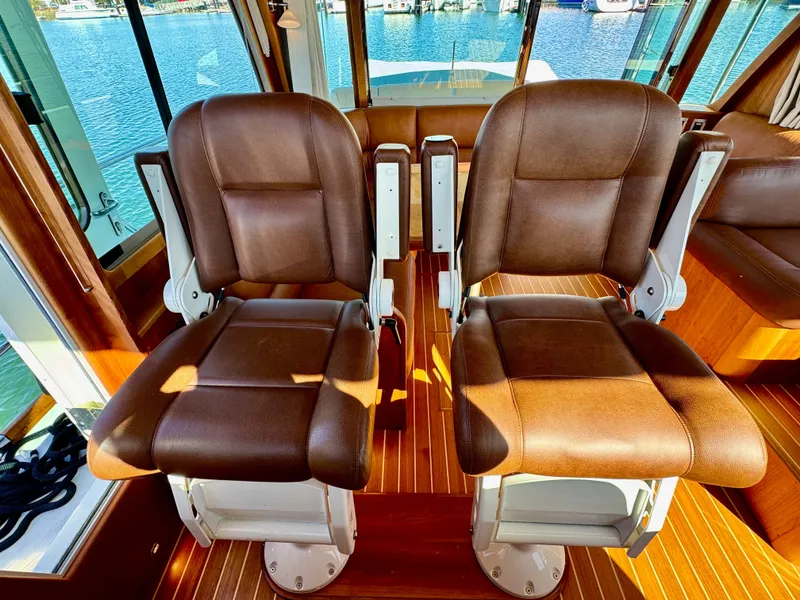

• Stidd 500N series helm seats with Ultraleather fabric (saddle brown)

• Ultraleather wrap on helm/ navigation pod (saddle brown)

• Stazo 400mm custom teak steering wheel w/ tilt & Sabre logo

• Triple windshield wipers with washers

• Reverse cycle heat and air conditioning

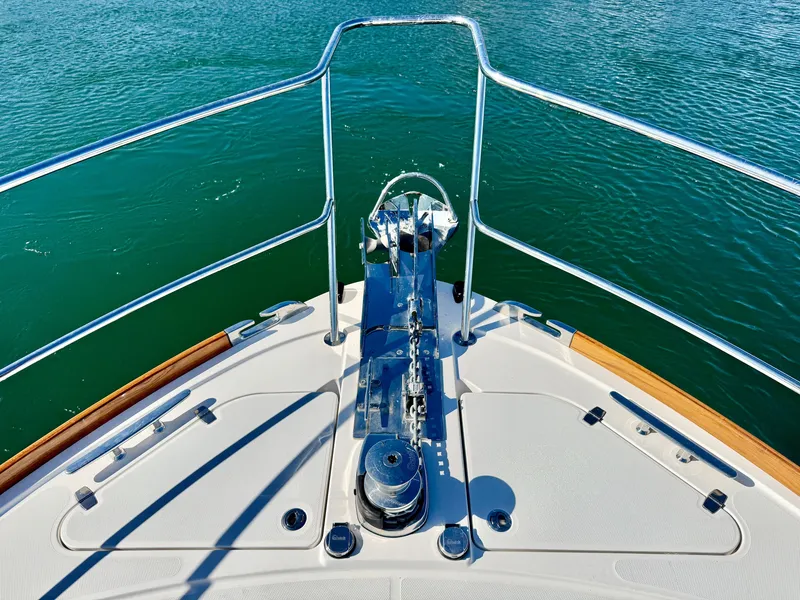

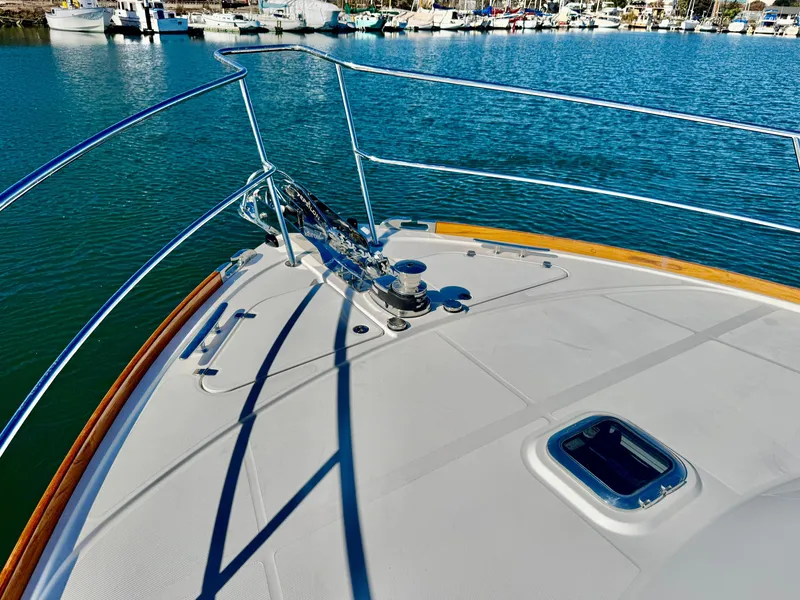

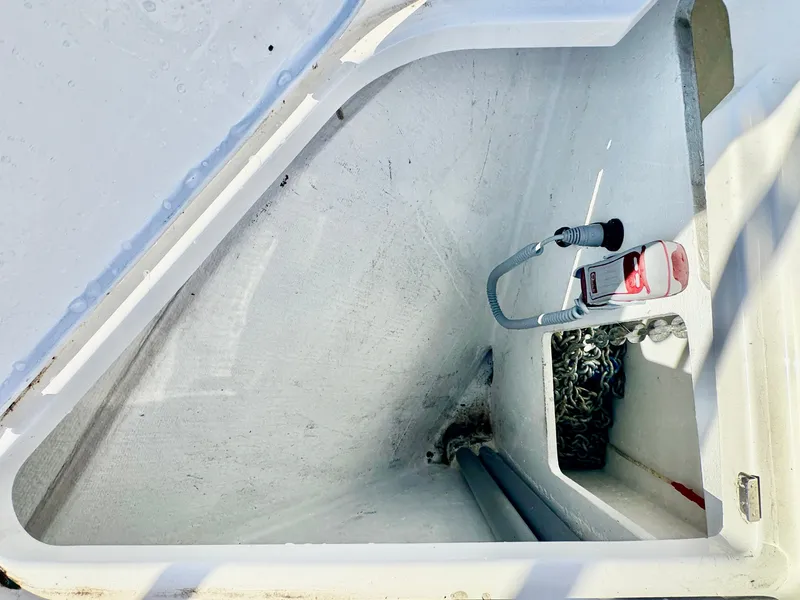

• Anchor windlass with rope/chain gipsy

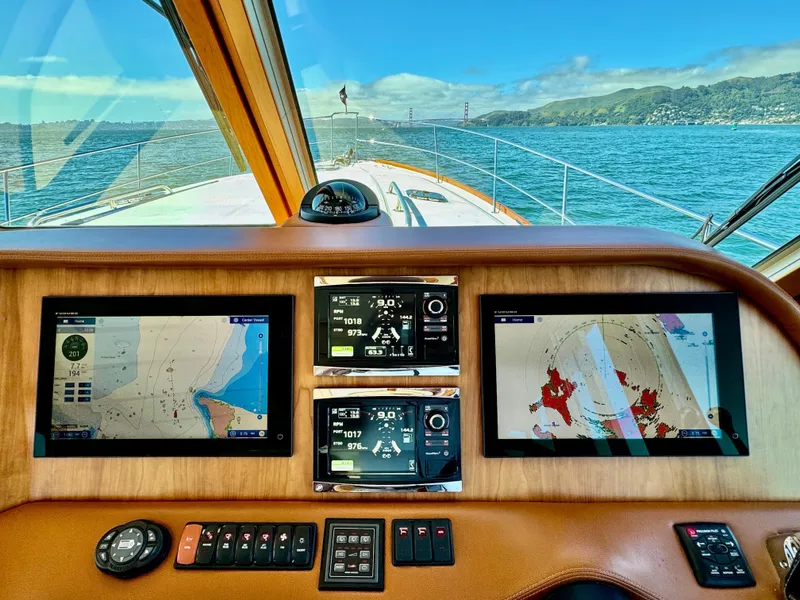

ELECTRONICS

• Furuno 15-inch touch screen multifunction displays

• Furuno 4 KW open array 3.5’ radar

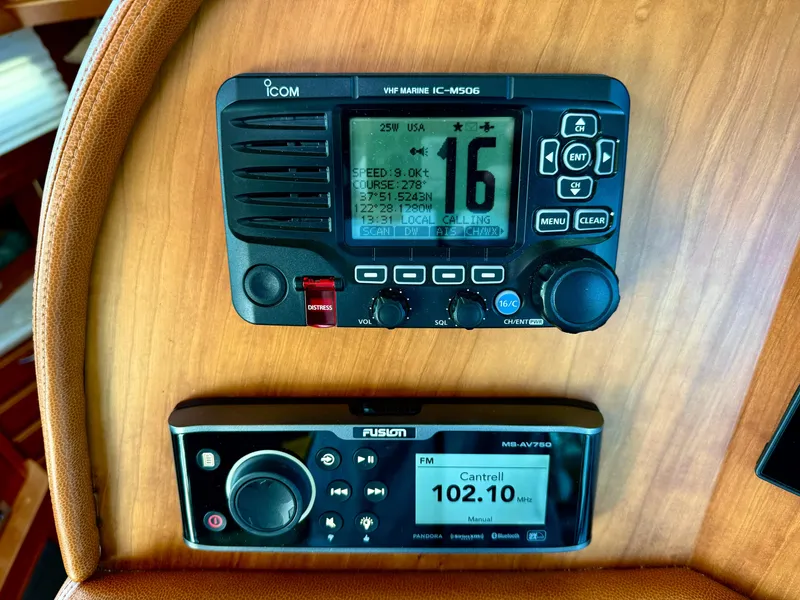

• Icom VHF radio with AIS

• Fusion AM/FM stereo radio w/ cockpit remote

• KVH Sat TV antenna

• KVH dummy antenna

• KVH deca broadband kit to allow for multiple receivers

• (3) Receiver boxes for Sat TV

• (2) Ocean Led XP8 blue underwater lights

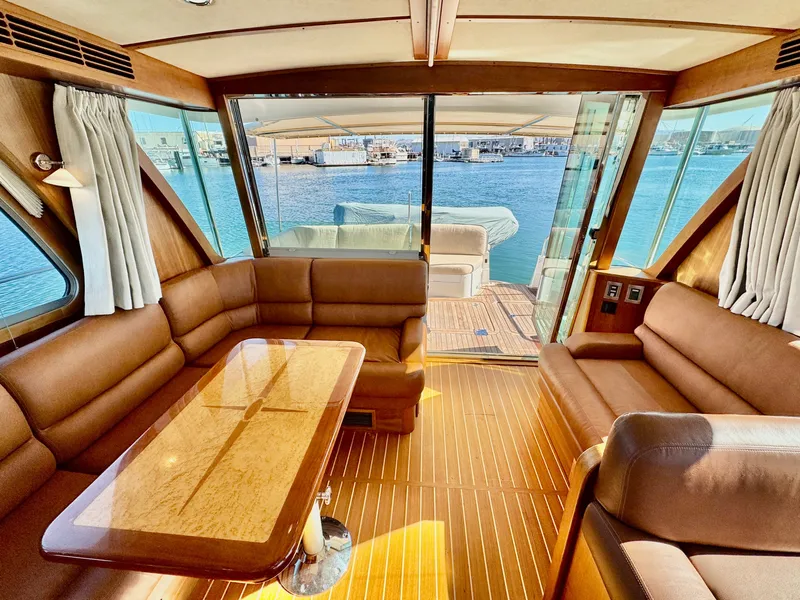

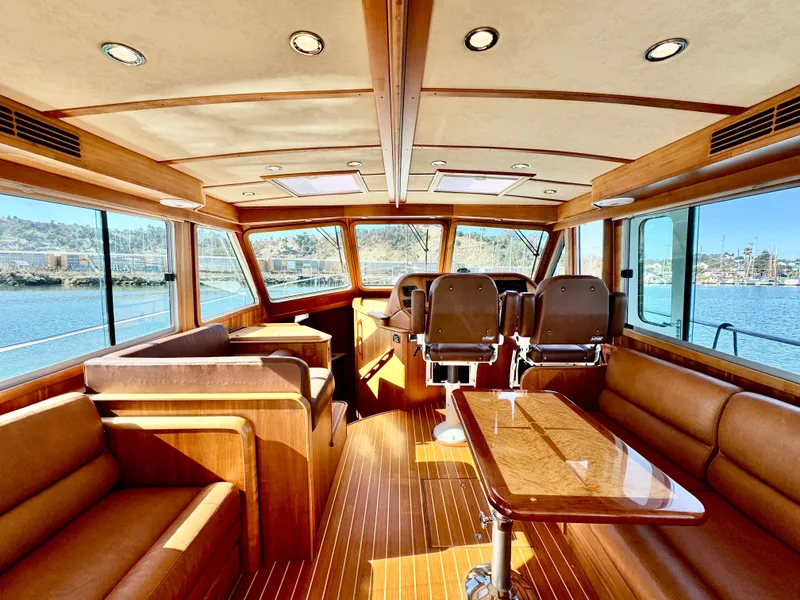

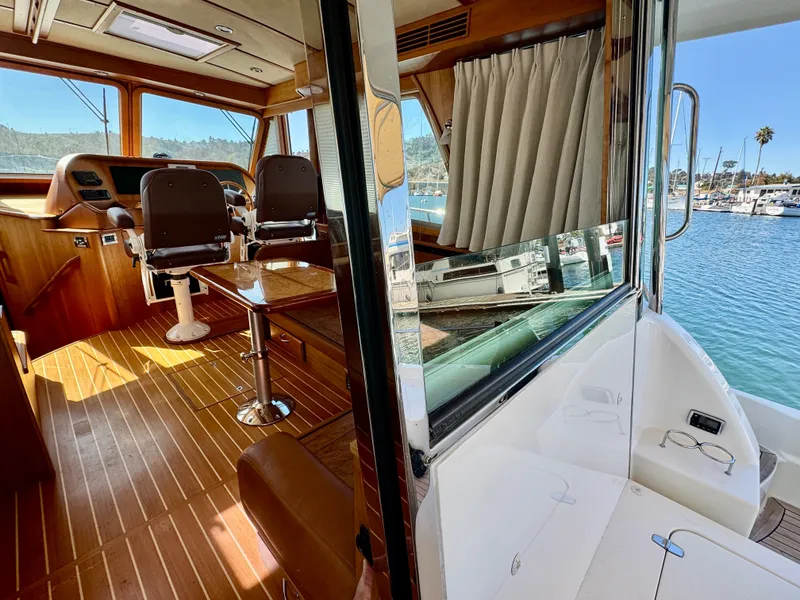

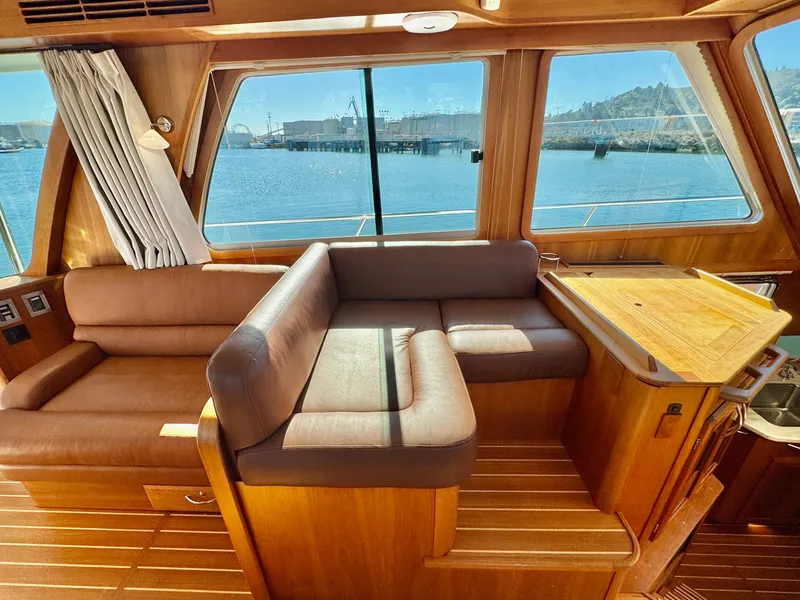

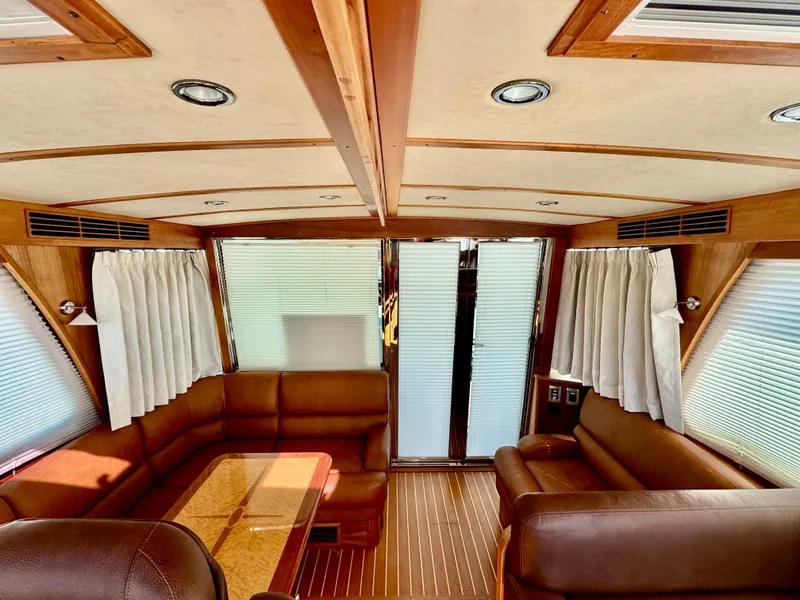

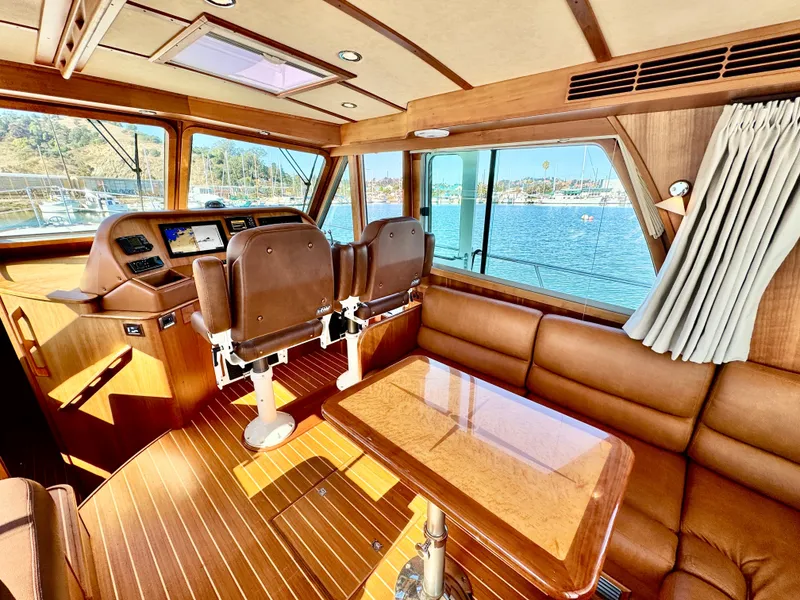

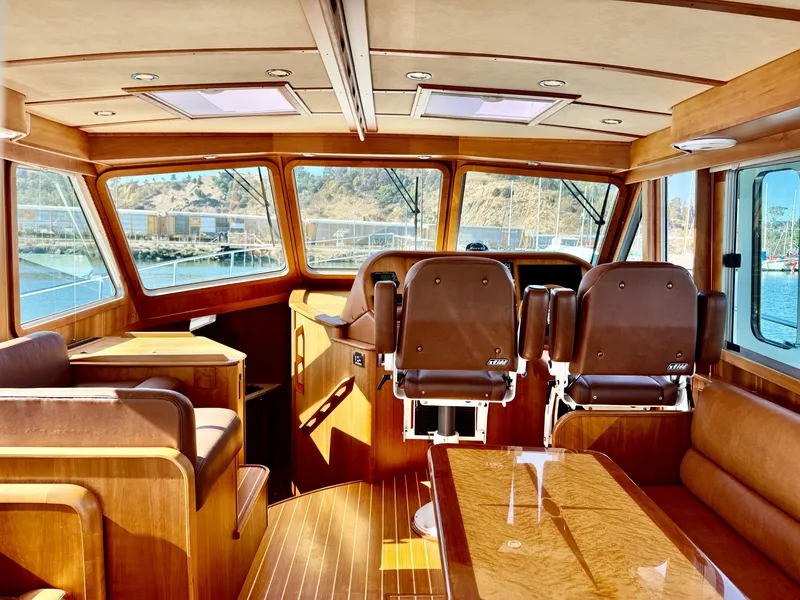

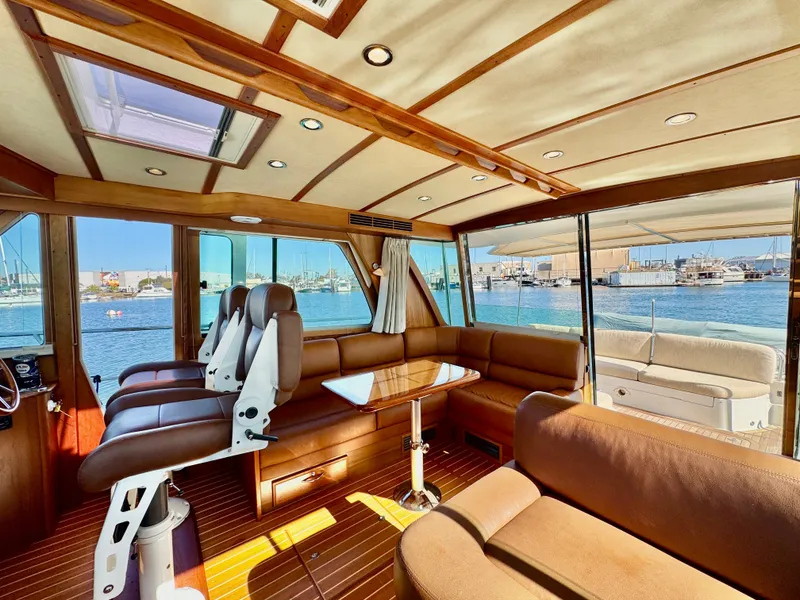

SALON

• Port side settee slides to expose utility space below

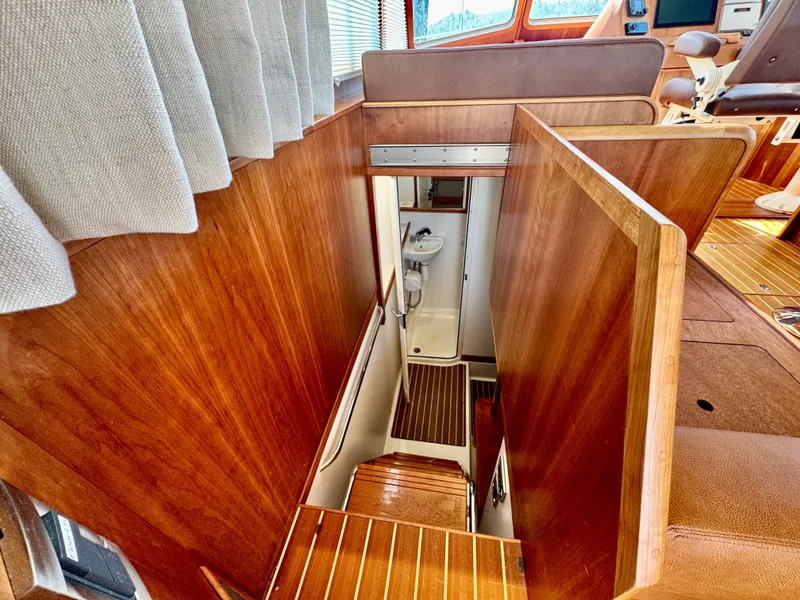

• Optional crew quarters below main salon, escape hatch in salon sole

• Crew cabin accessible by sliding port settee fwd with electric rocker switch

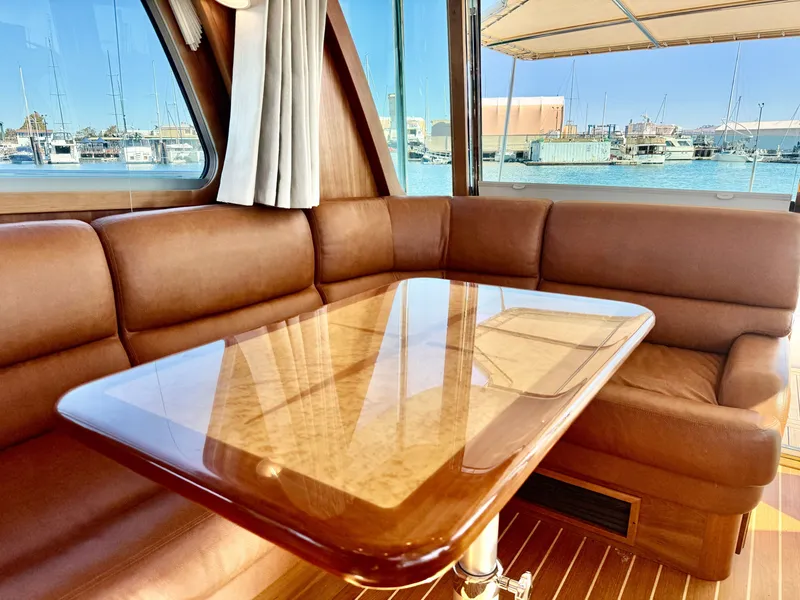

• L-settee to starboard with elegant high gloss inlaid table

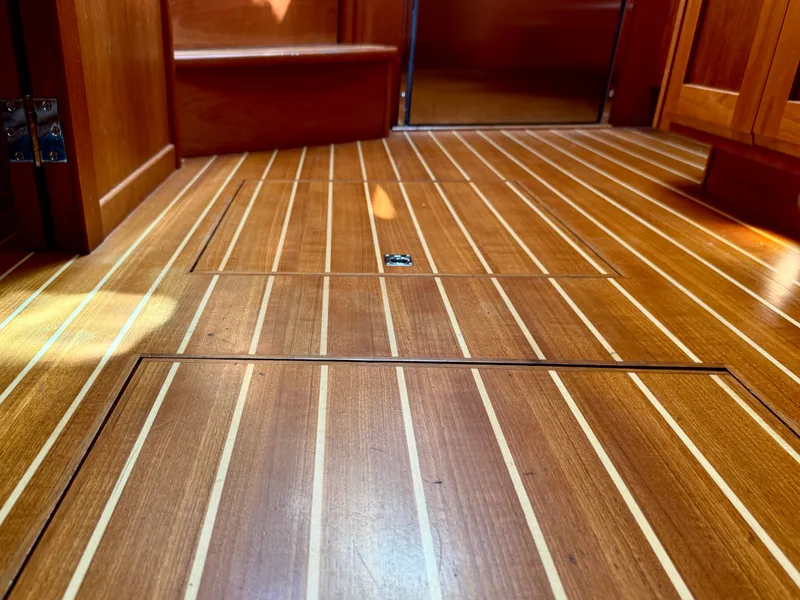

• Teak & Holy salon sole

• Mates lounge forward with chart locker

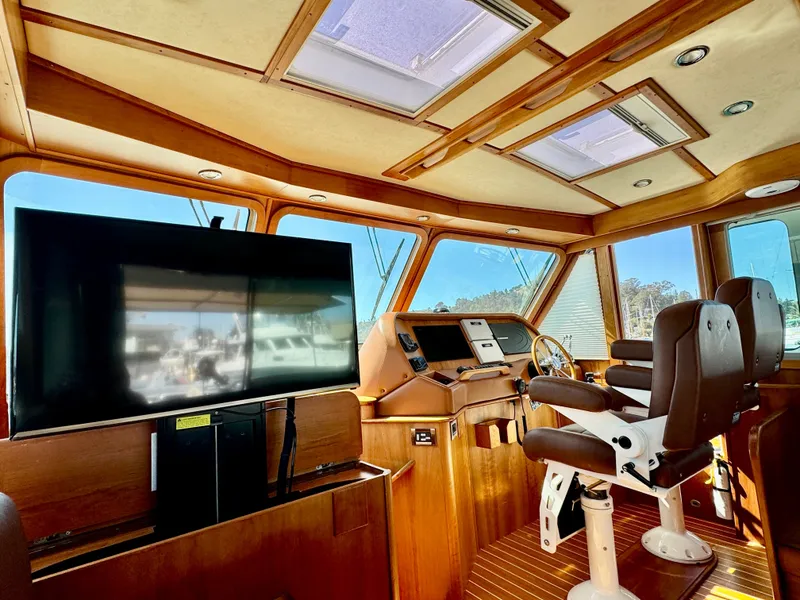

• 32” LED Television on electric lift

• Stainless steel aft bulkhead with bi-fold door

• Electrically operated aft drop down window to starboard

• Curved safety glass windows in aft corners

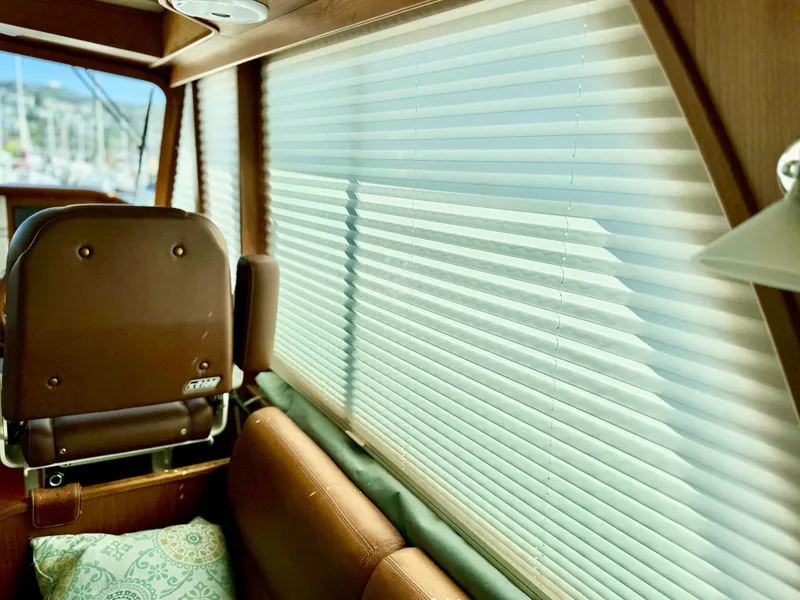

• Curtains and fabric blinds in salon for full privacy

• Sconce reading lights

• Overhead hatches for light and ventilation

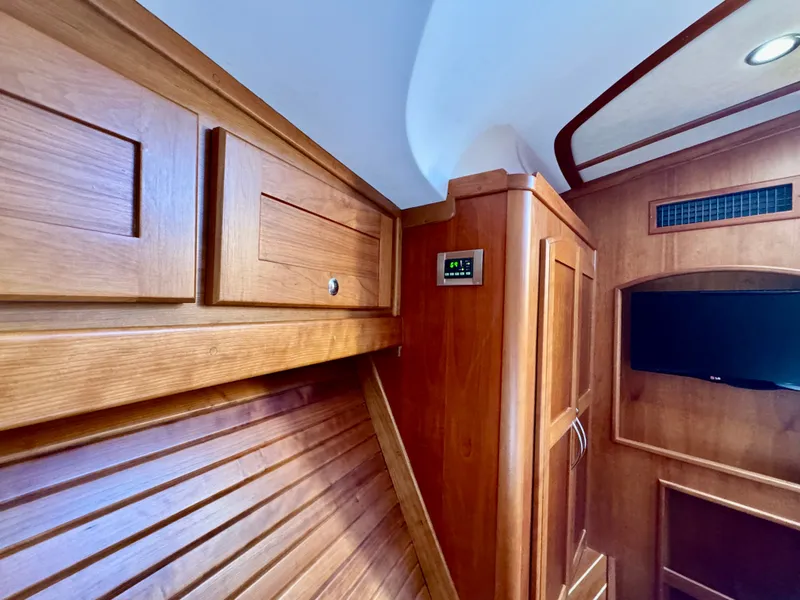

OWNER'S CABIN

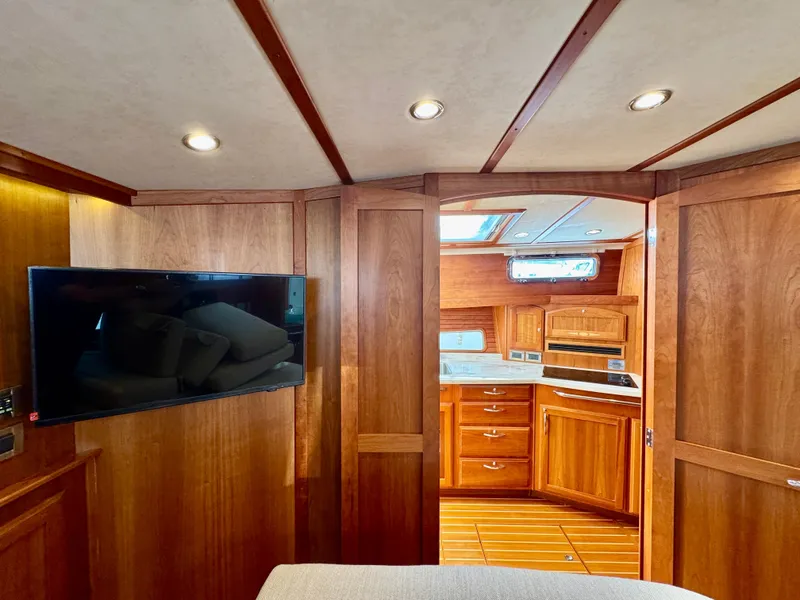

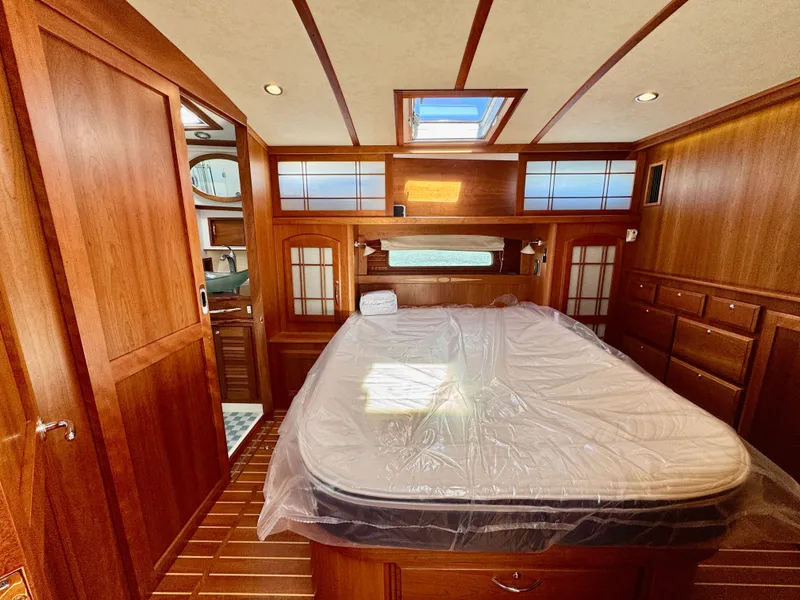

• Master stateroom amidships with queen size island berth

• Solid Cherry doors for added privacy

• Deadlight in hull side over master berth headboard

• Abundant hanging and drawer storage throughout

• Shoji style portlight screens over berth

• LED televisions

• Guest/day head with circular shower enclosure

• Large overhead hatches and opening portlights

• Reverse cycle heat and air conditioning

• Vessel sink in head

• Fresh water flush MSD w/holding tank and macerator

• Shower stall in head with tempered glass door

• Solid surface countertops

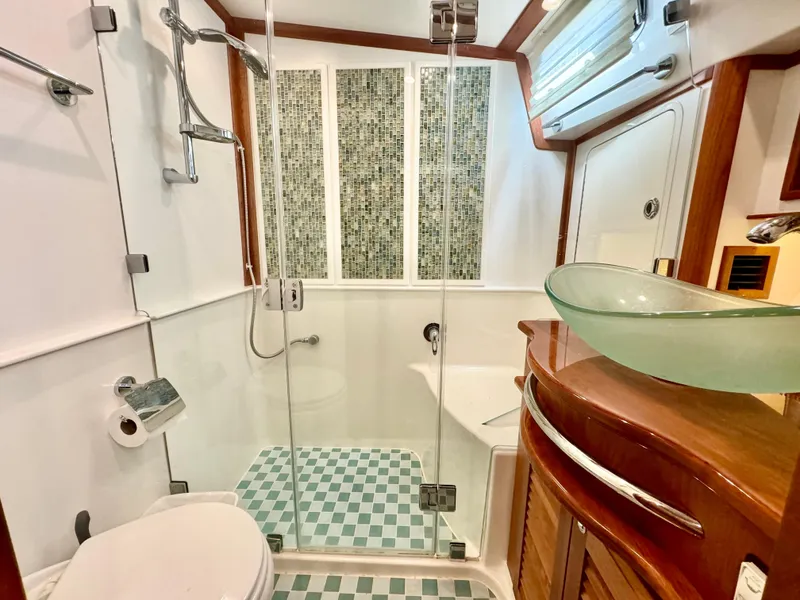

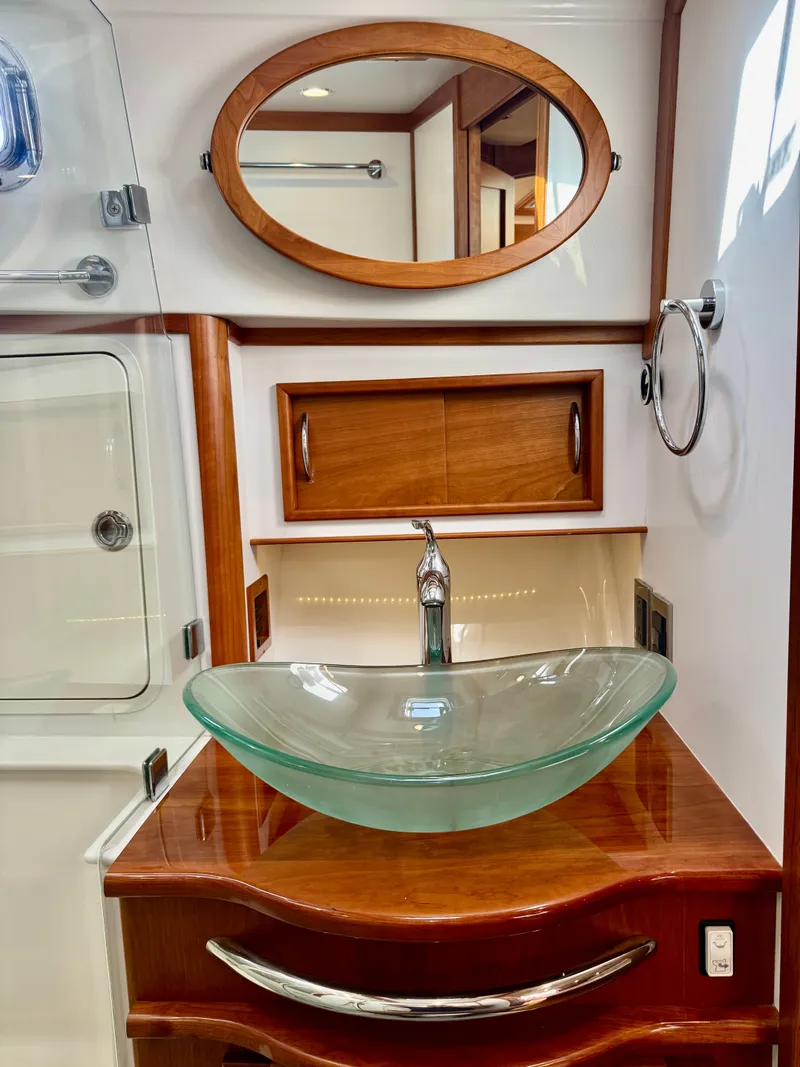

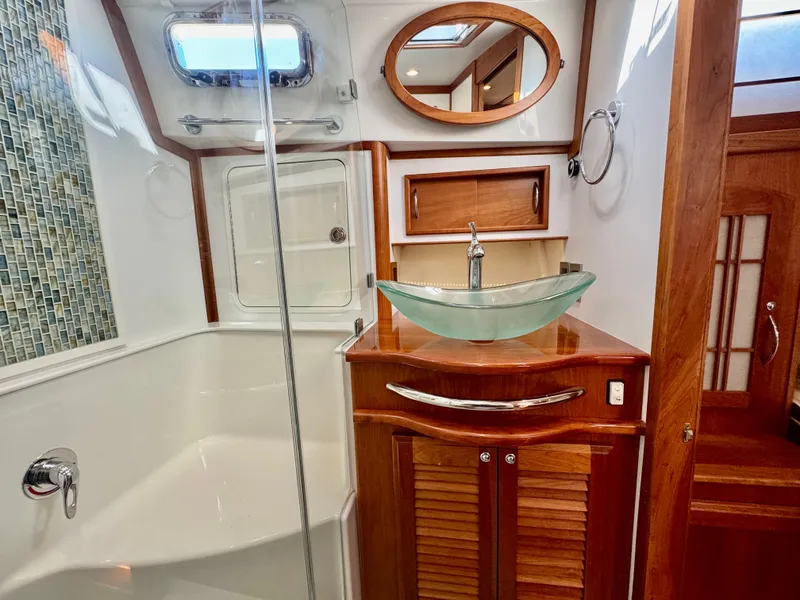

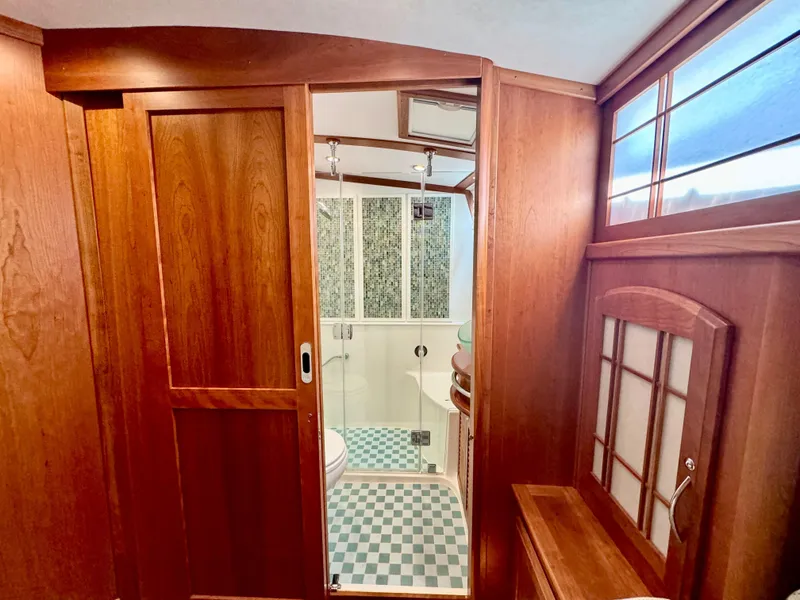

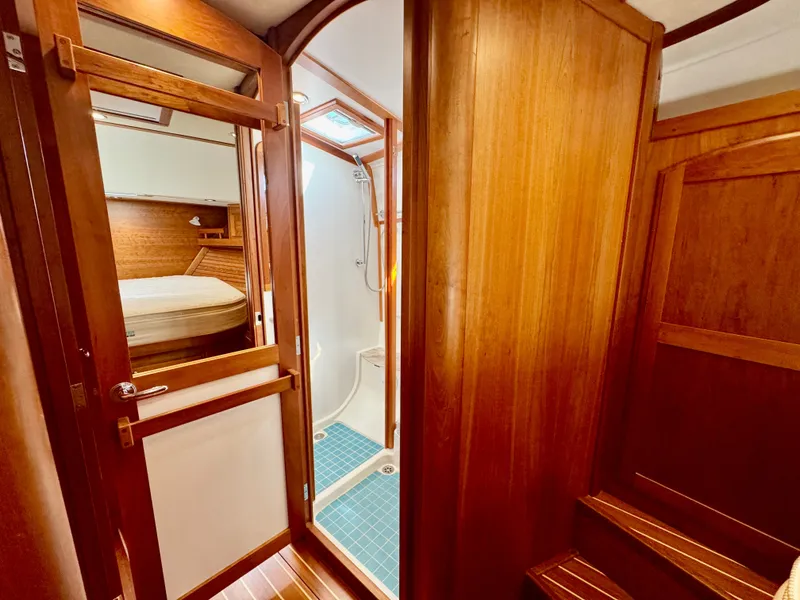

OWNER' HEAD

• Private access from master stateroom

• Master head with glass vessel sink, ceramic tile sole

• Master shower stall with glass divider and glass tile decor

• Tecma electric freshwater head

• Custom tile in WC and shower sole

• Glass vessel style sink

• High gloss finish over solid cherry counter Vanity cabinet below sink

• Storage outboard

• Mirror above vanity, cherry framed

• Separate shower stall with clear bi-fold enclosure and glass tile accent wall

• Electric shower sump pump

• Opening port to side deck

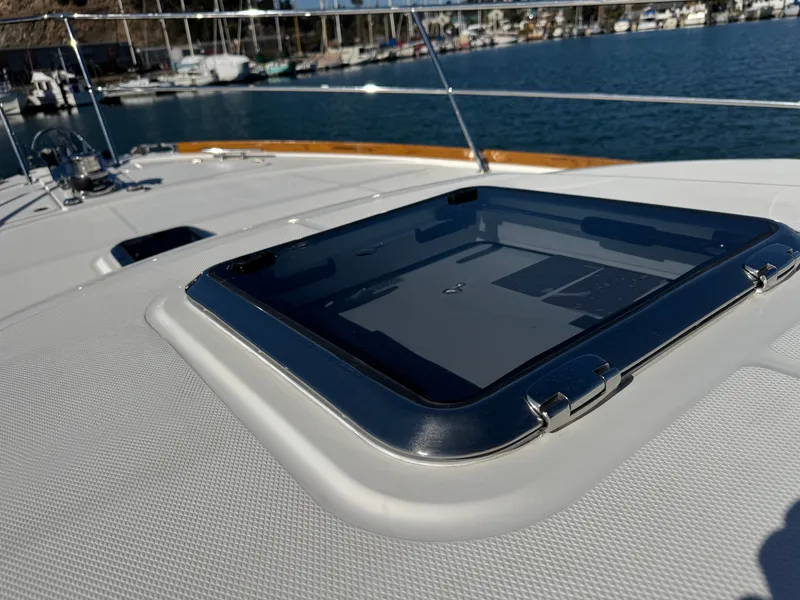

• Deck hatch with blind/screen overhead

• Ventilation blower

• Stainless steel towel bars

• Private access from master stateroom

• Glass vessel style sink

• High gloss finish over solid cherry counter

• Vanity cabinet below sink

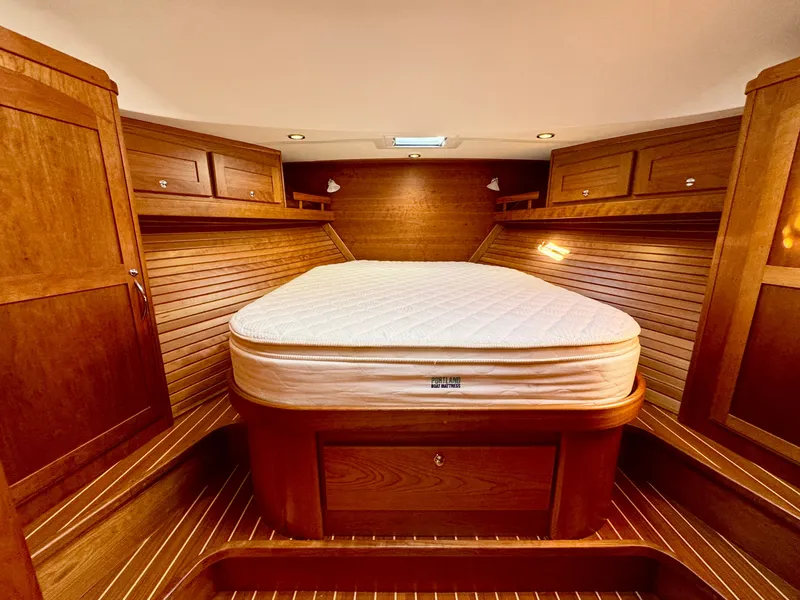

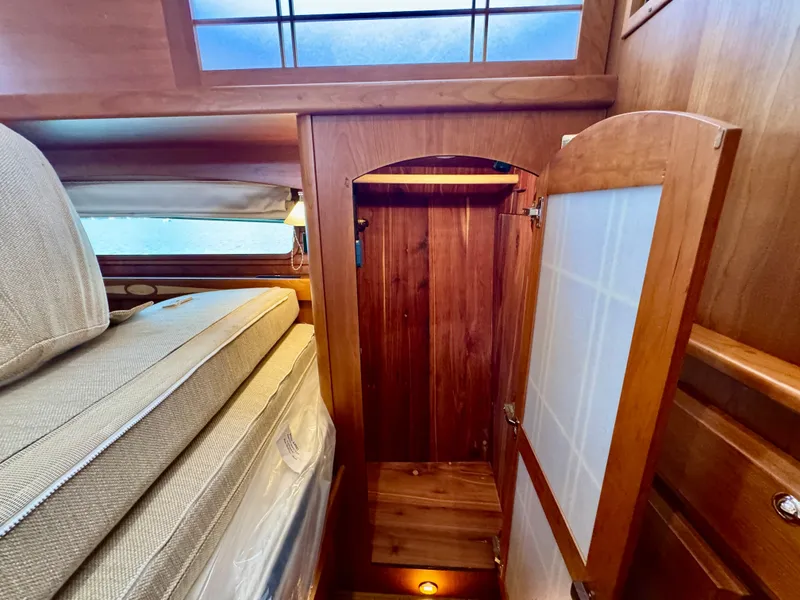

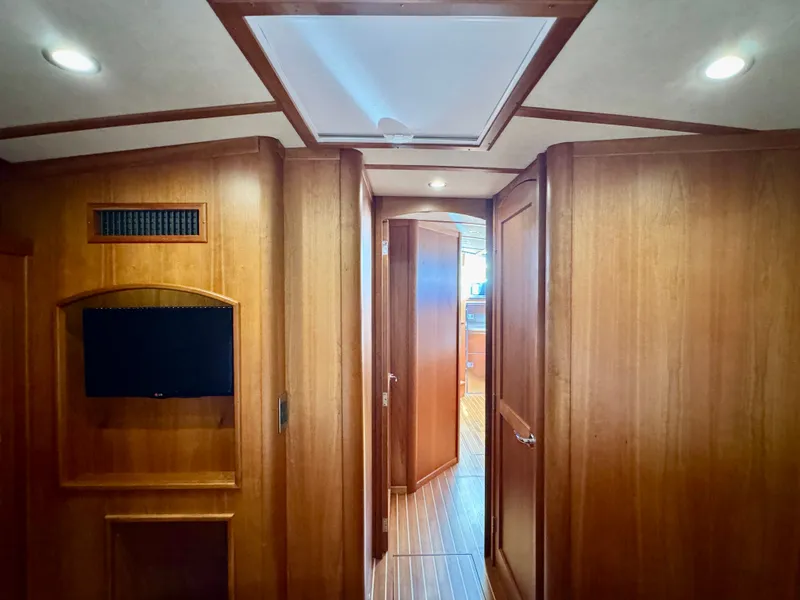

VIP CABIN

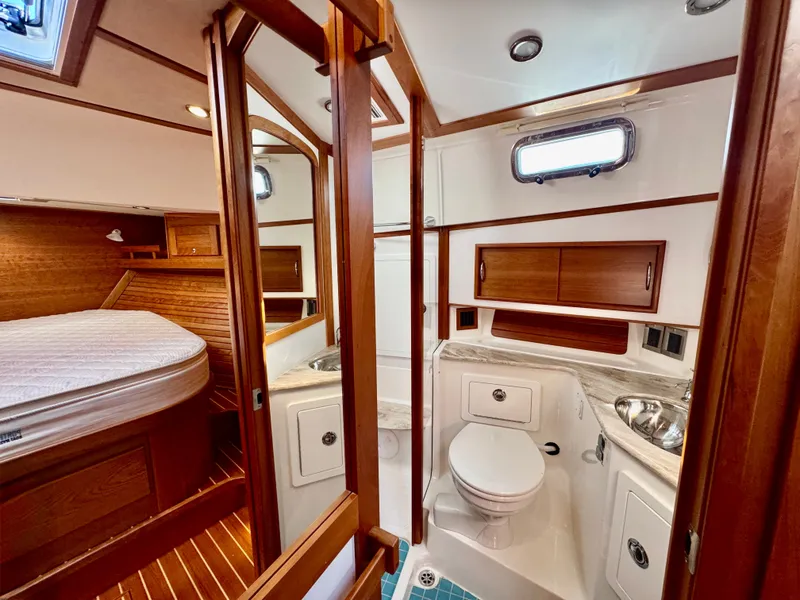

• Guest cabin forward with queen sized island berth

• Cherry hull ceilings

• Drawers under berth

• A/C return grille beside Storage lockers, drawers and shelves

• Teak and holly sole

• Sound deadening soft headliner panels

• Pocket door to passageway

• Flat screen TV

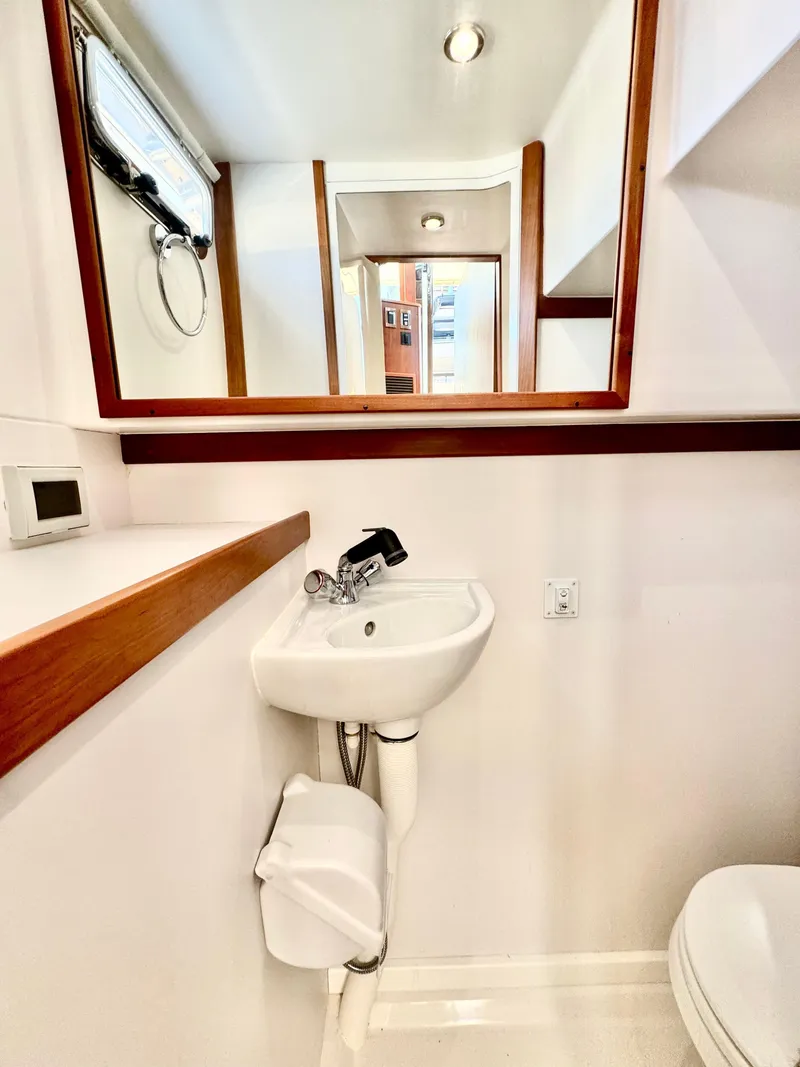

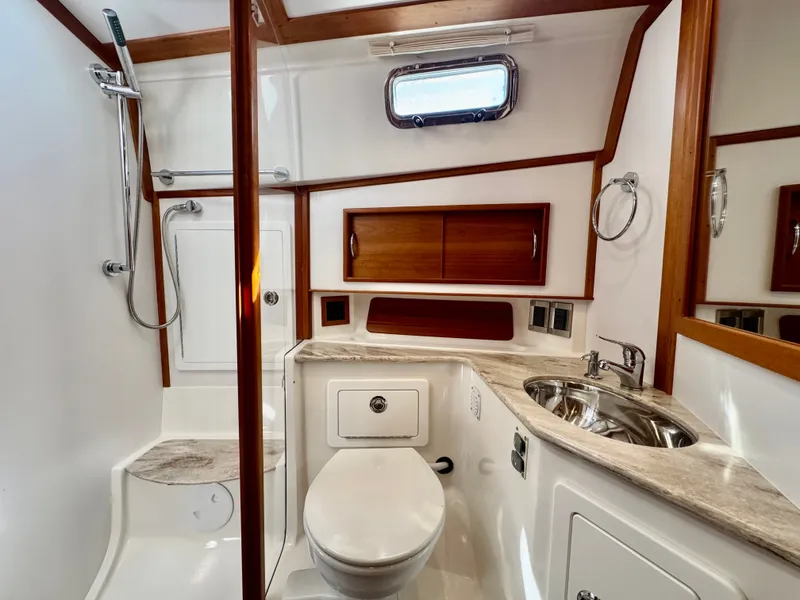

VIP HEAD

• Private access to forward head and shower

• Jabsco Quiet Flush fresh water head

• Stainless steel under mount sink

• Shower stall with seat and locker outboard

• Hot and cold pressure water

• Electric shower sump pump

• Storage lockers

• Solid surface vanity top with bull nose moldings Towel bars

• Soap dispenser

• Cherry wood trimmed mirror over sink

• Ventilation blower

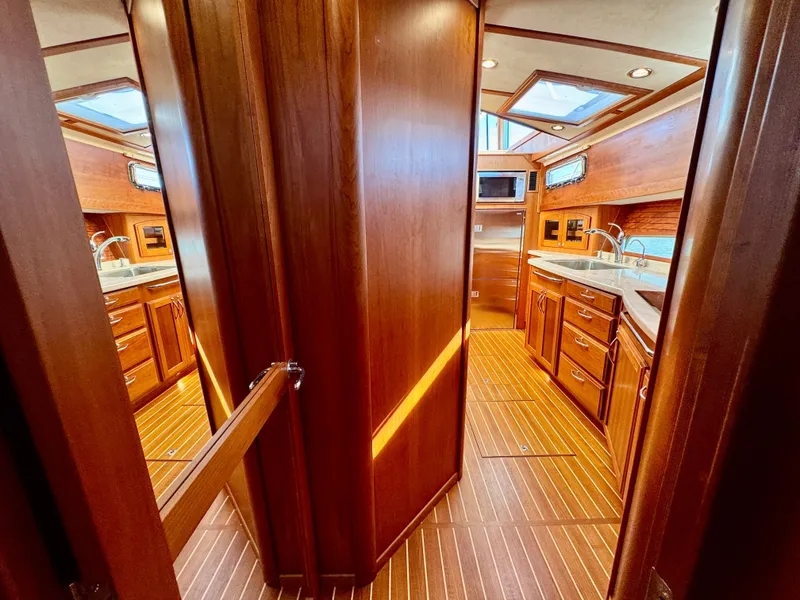

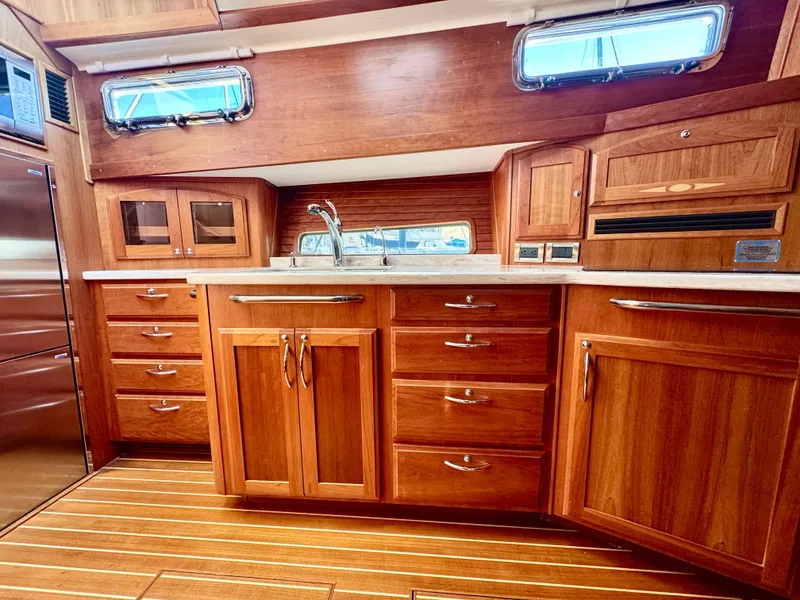

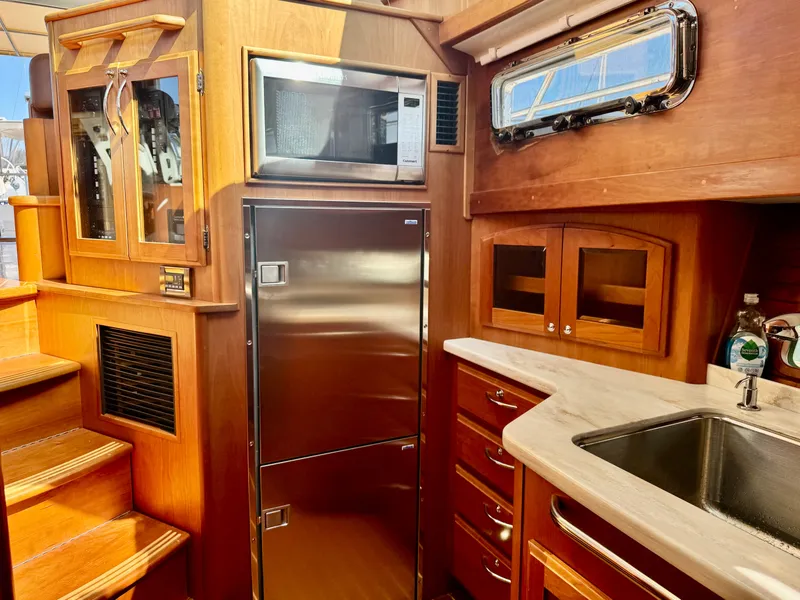

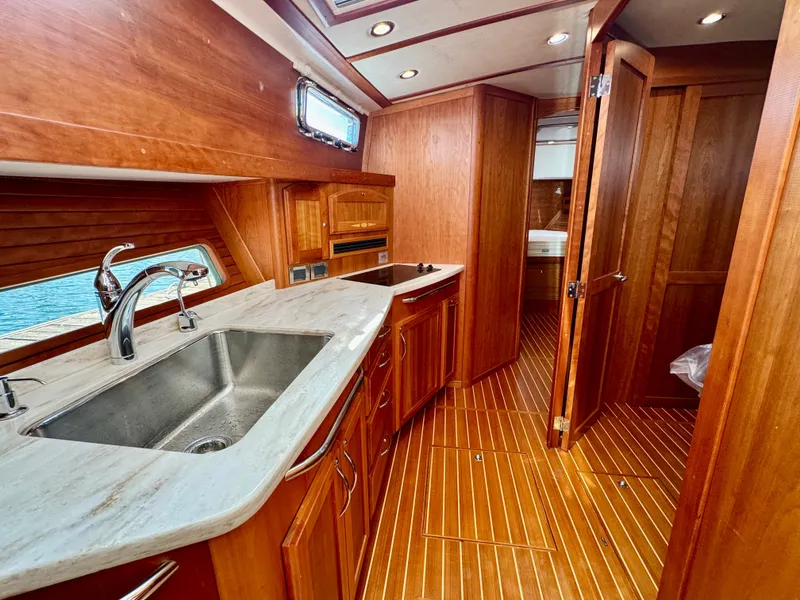

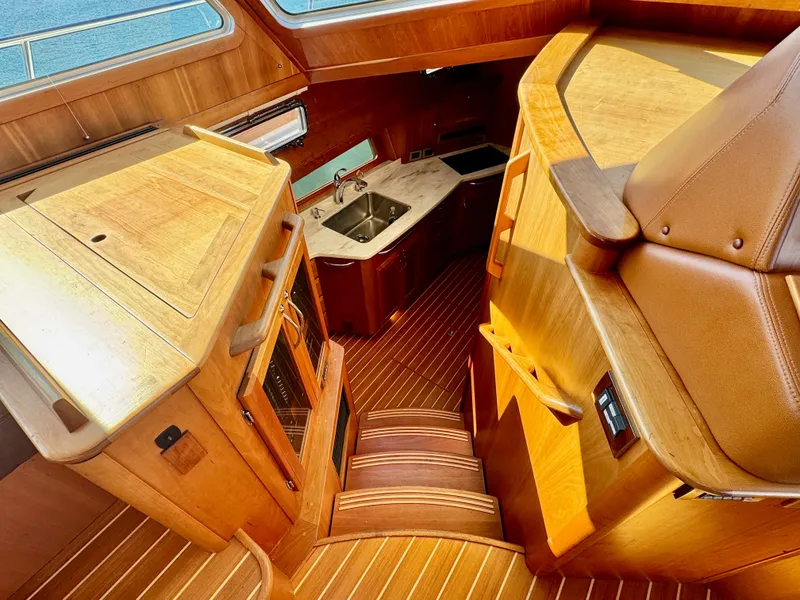

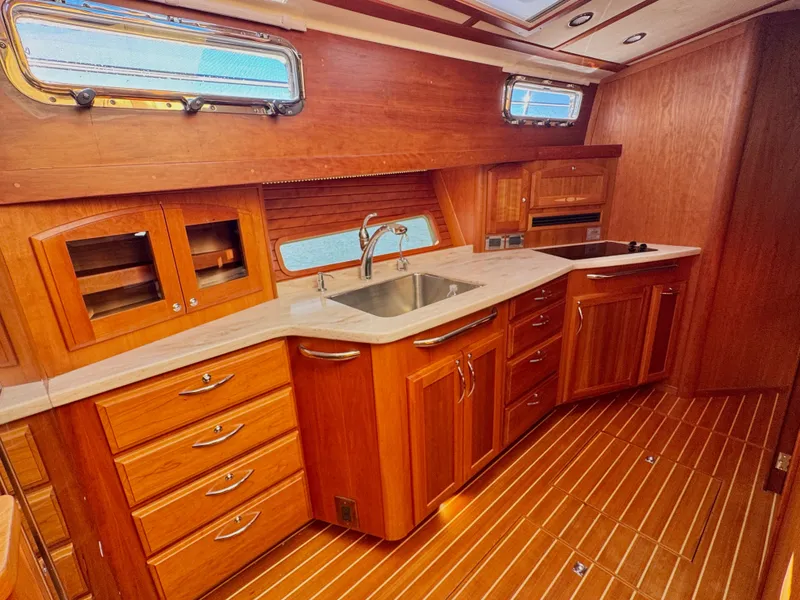

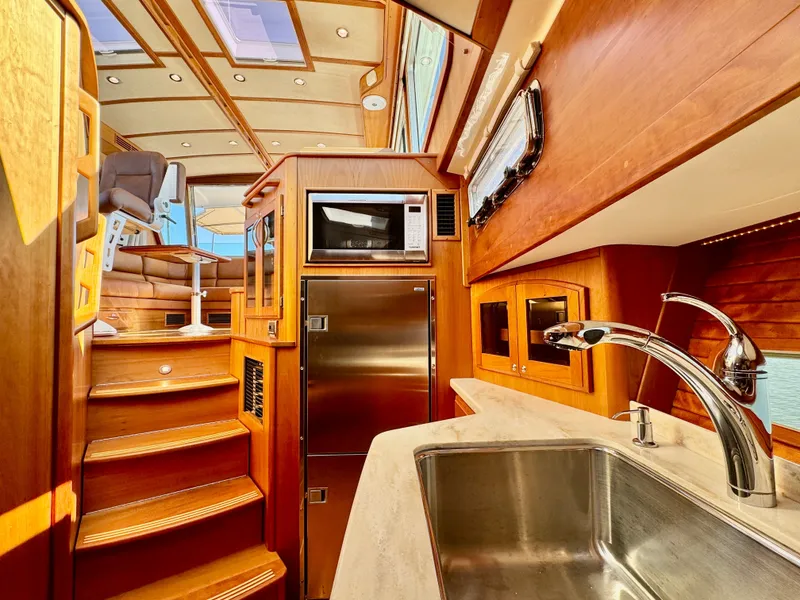

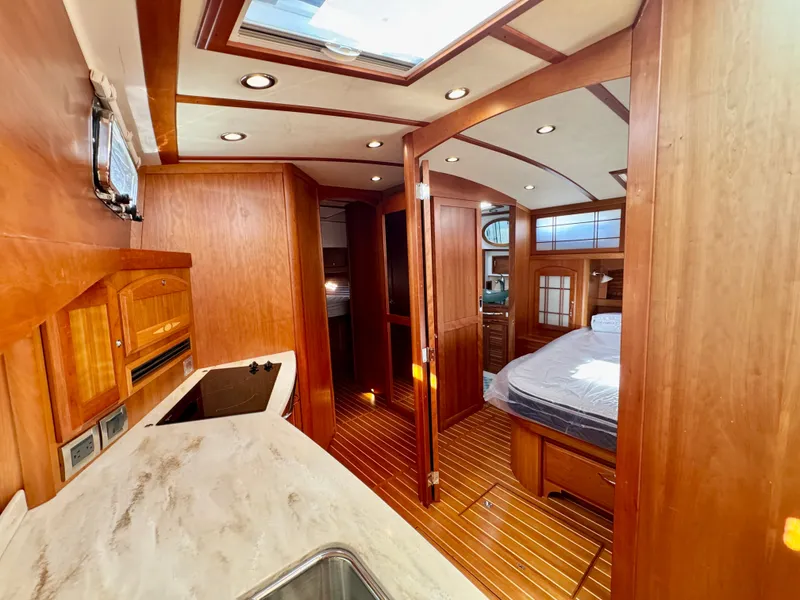

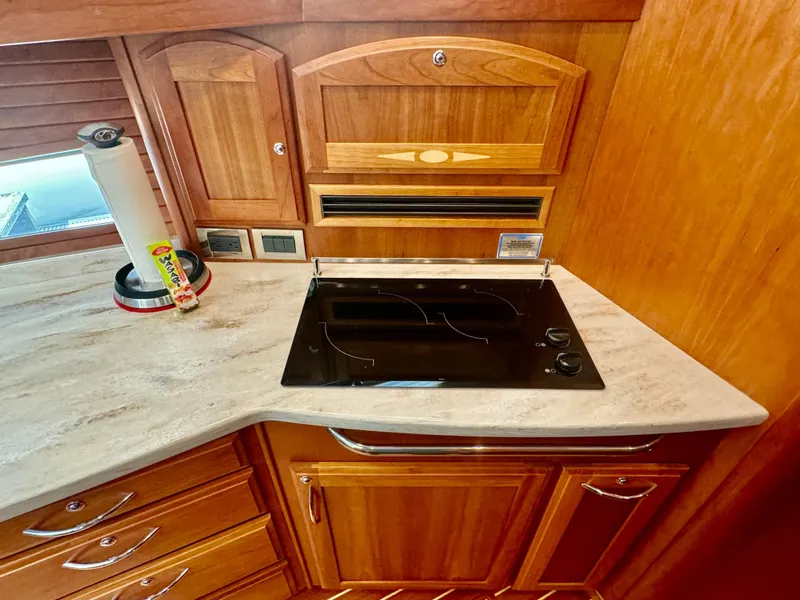

GALLEY

• Solid surface galley counter top

• Stainless steel sink with cover and pull-out faucet

• Stainless steel under mount prep sink with cover

• Soap dispenser

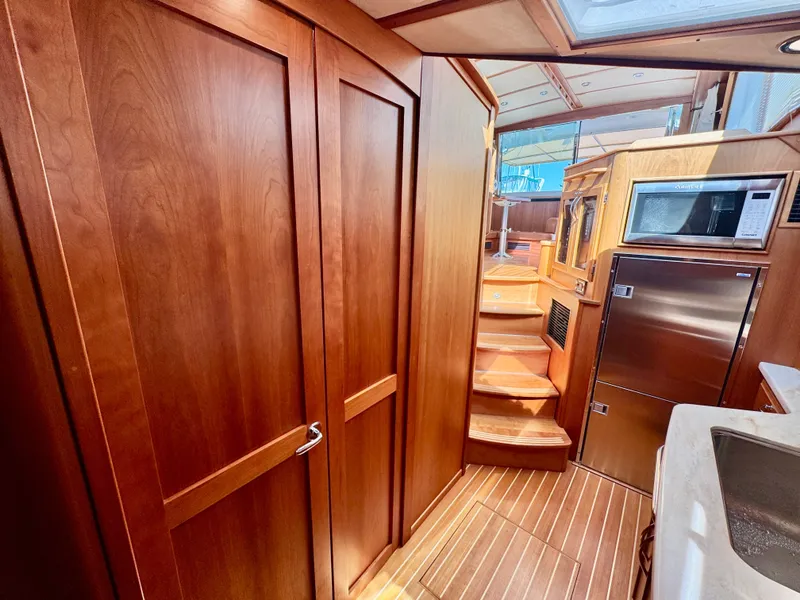

• Isotherm stainless steel stand-up refrigerator (top) and freezer

• Two burner electric cook top

• Convection microwave with stainless steel face

• Drawers and storage lockers below counter

• Built-in waste basket

• Recycle bin below steps

• Storage beneath down galley stairs

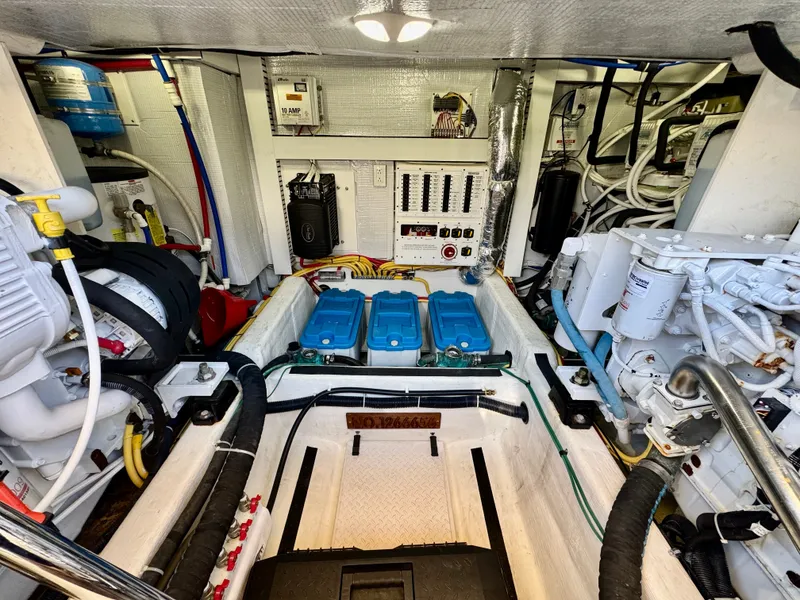

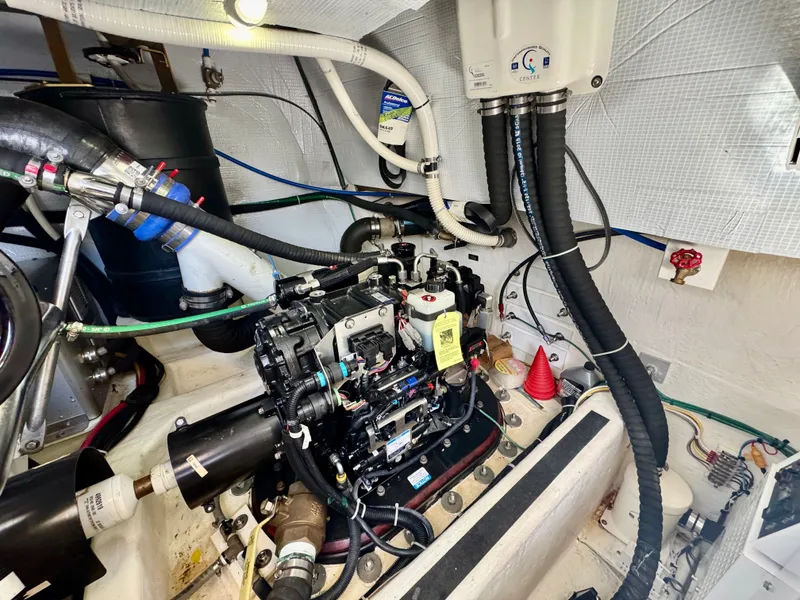

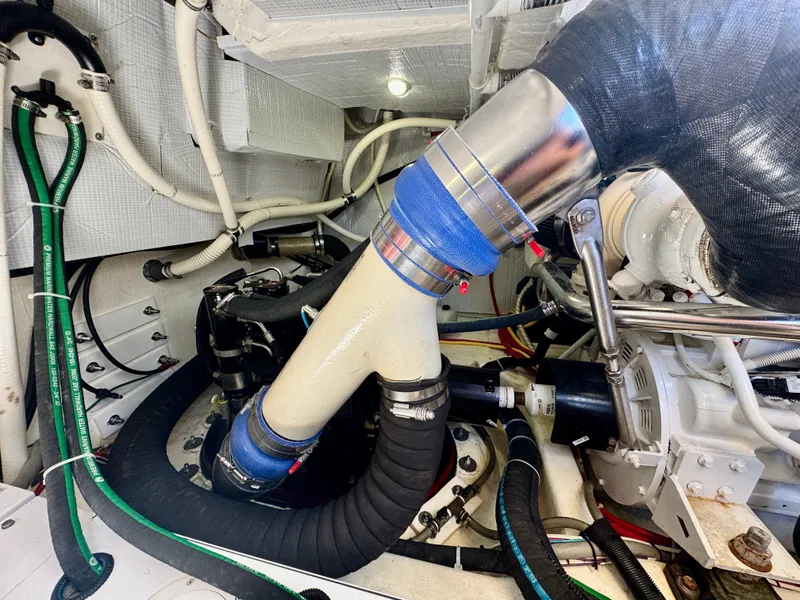

ENGINES

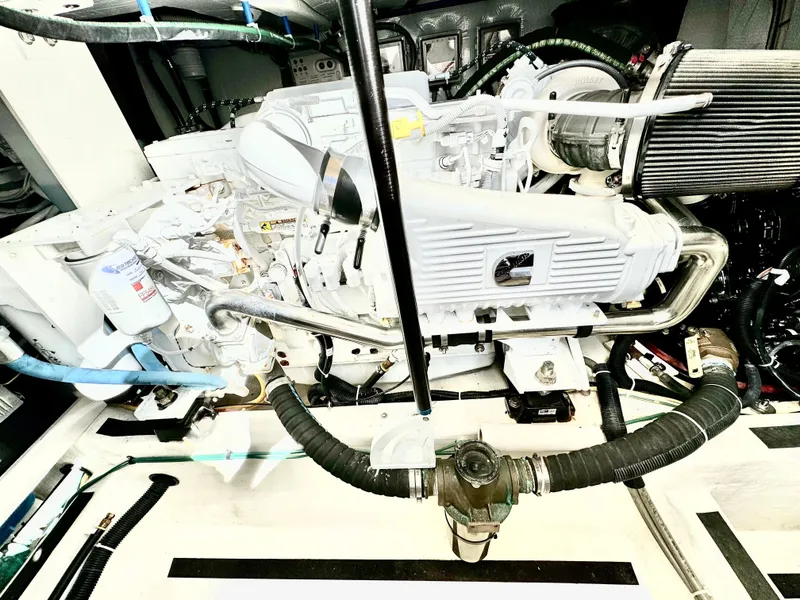

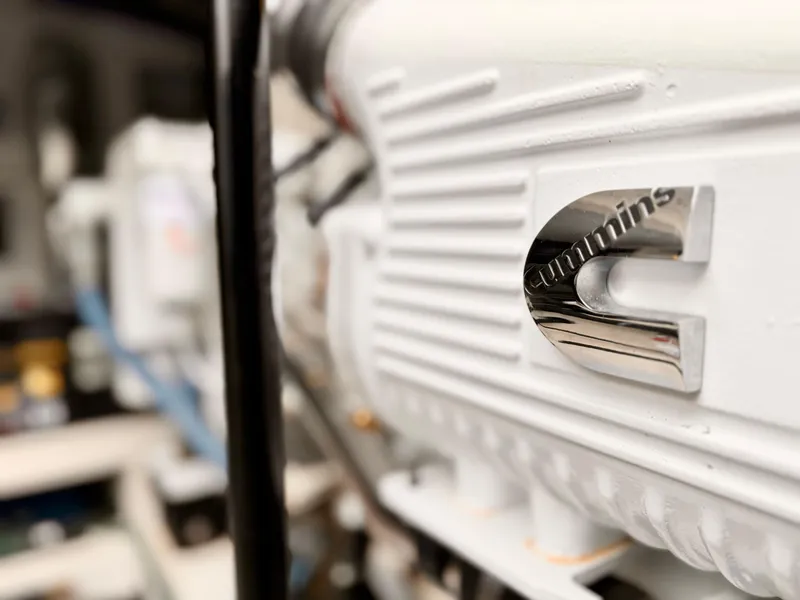

• Twin Cummins QSC 8.3L 550hp (420hrs)

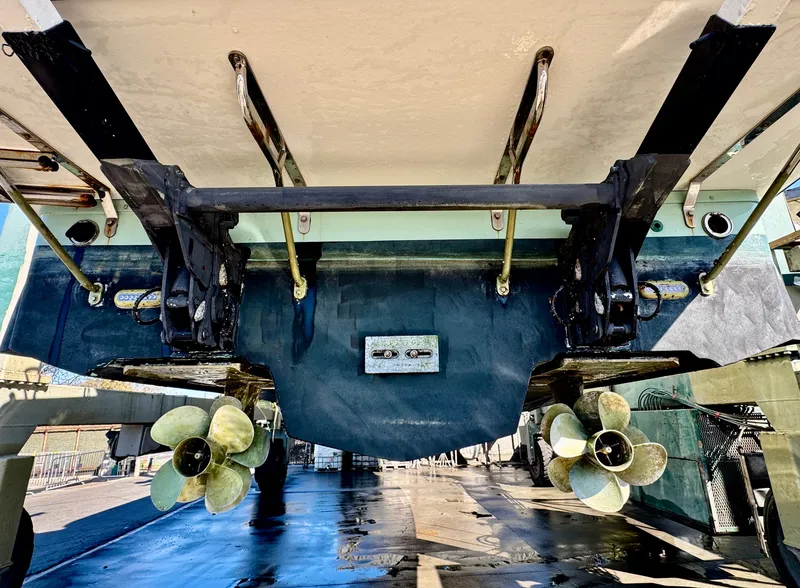

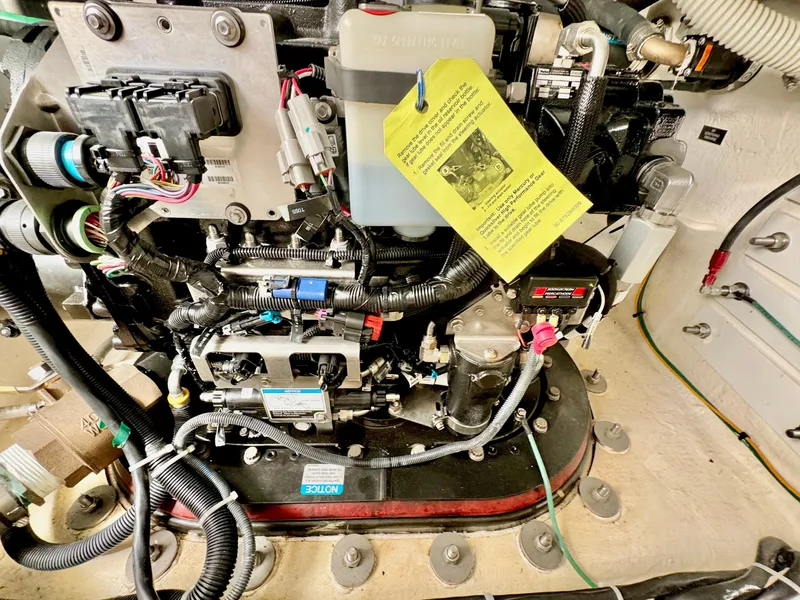

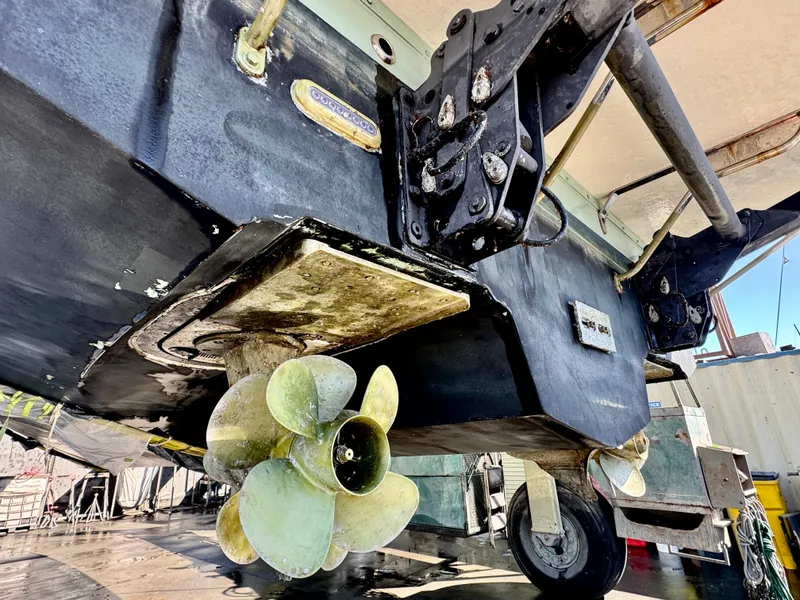

• Zeus 3800 pod drives with integrated steering, trim

• Oil samples taken Sept. 2026.

• Cummins main port side raw water pump replaced (April 2024)

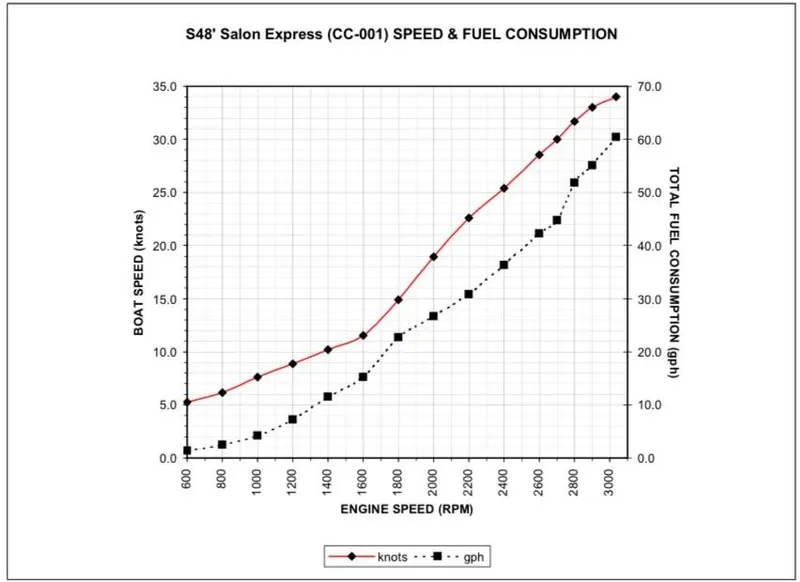

• 27 kt Cruise @ 2500 rpm, burning 38gph, 320 nm range (.70 nmpg)

• 40 mph WOT @ 3000 rpm

• Cummins electronic controls and Smartcraft display

• Joy stick for low speed maneuvering

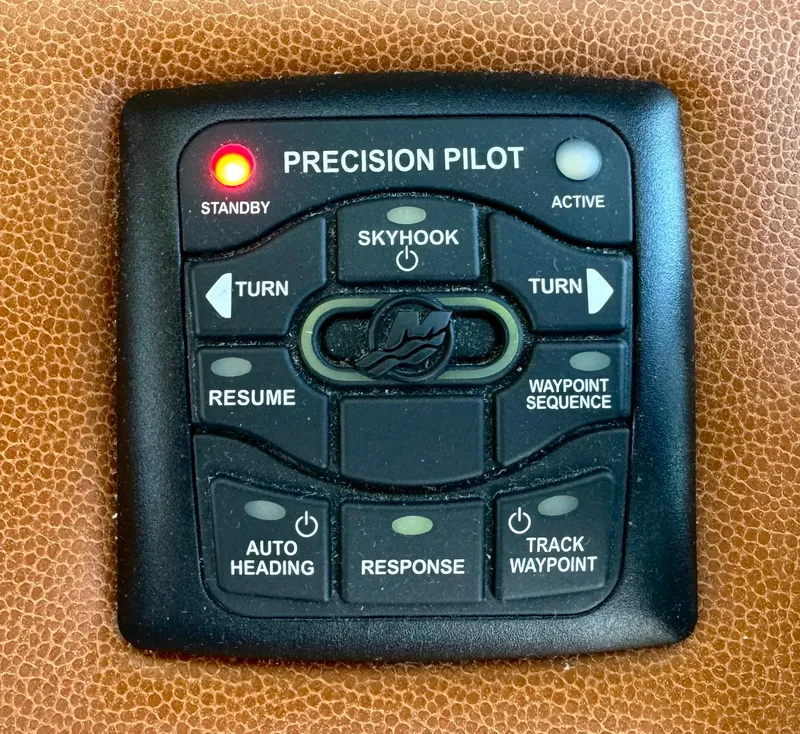

• Skyhook "digital anchor" positioning system

• Trim tabs integrated in CMD Zeus pod drives

• Autopilot integrated in CMD Zeus system

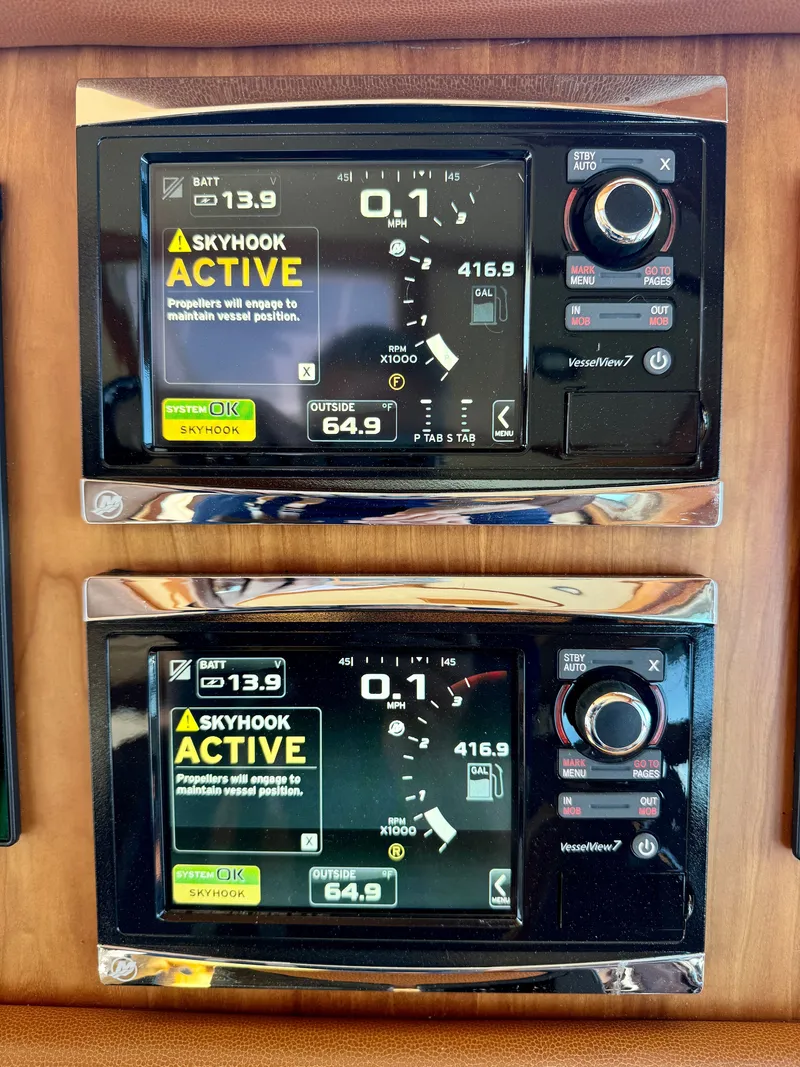

• "Skyhook” GPS position hold system with dedicated GPS receiver

• Triple windshield wipers with washers

• Reverse cycle heat and air conditioning

• Anchor windlass with rope/chain gipsy

• (3) bilge pumps with high water alarms

• 20A, 12V alternators each engine

• (2) Exhaust by-pass mufflers

• Engine room blower

• Engine room vent ducts

• Engine room floor with FRP anti-skid

• White gelcoated engine room

• Mylar face foam noise barrier

• (2) 260 USG diesel fuel tanks port and starboard

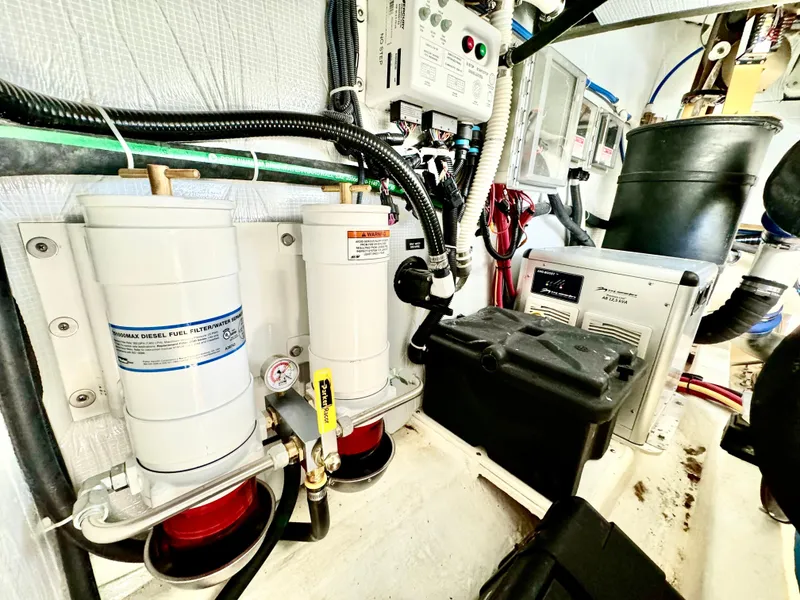

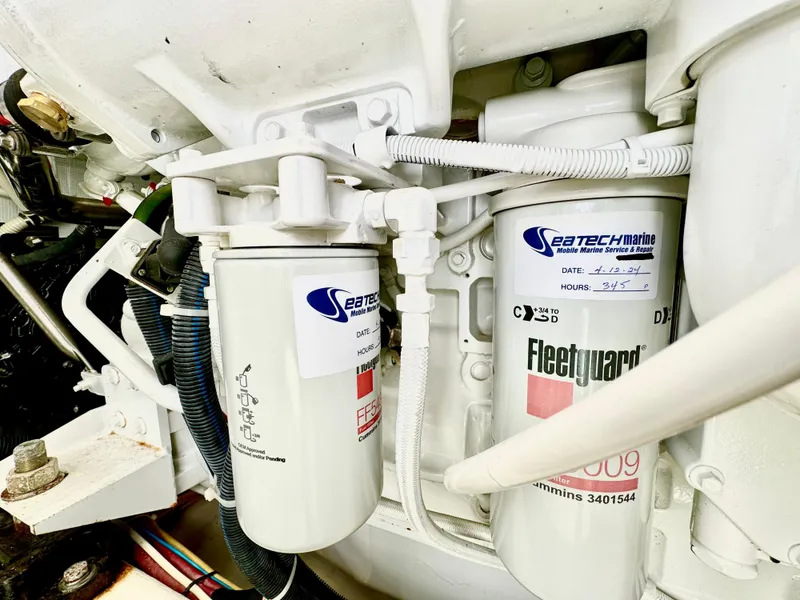

• Racor fuel filters with water in fuel probes

• (2) 2” “Diesel” deck fill plates

• Fire extinguishers, (5) at 2 1/2 lbs.

• Marelon sea valves on all thru-hull fittings below waterline

• Bonding system to safeguard against galvanic corrosion

• Automatic fire extinguishing discharge system in engine space with override

• (3) Automatic 12V electric bilge pumps

• (3) high water switches and alarm

110/220 VAC ELECTRICAL SYSTEM

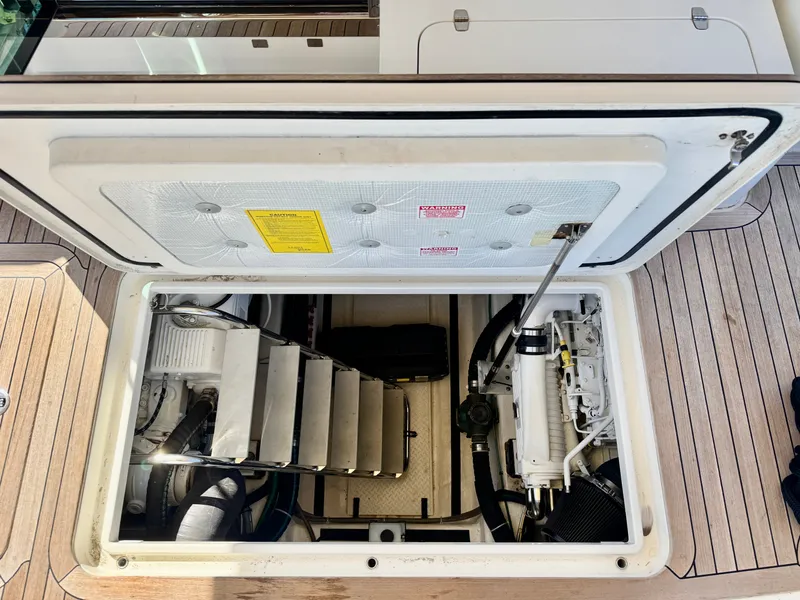

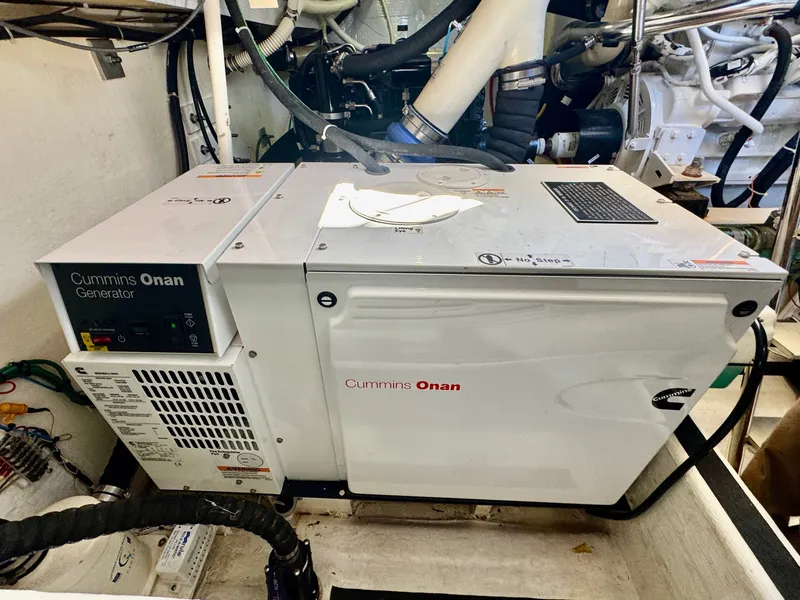

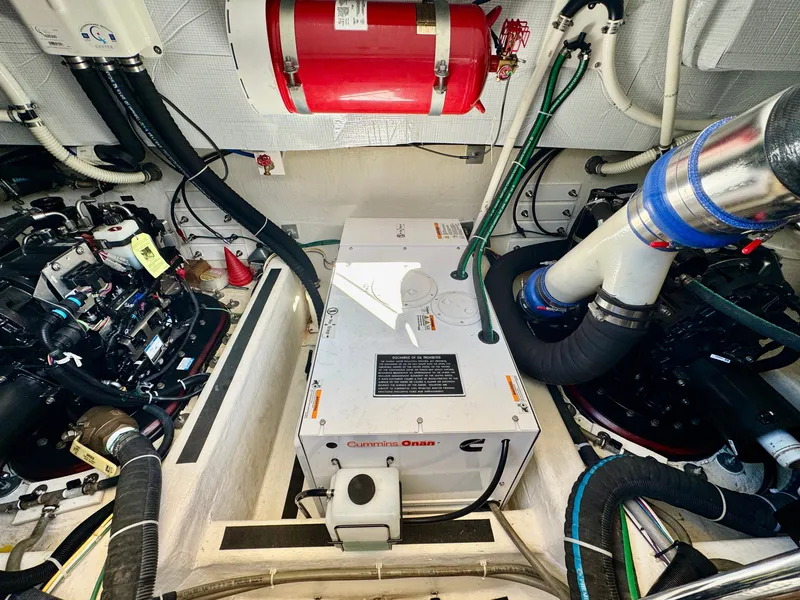

• 13.5KW Onan Genset (350hrs)

• Dedicated start battery

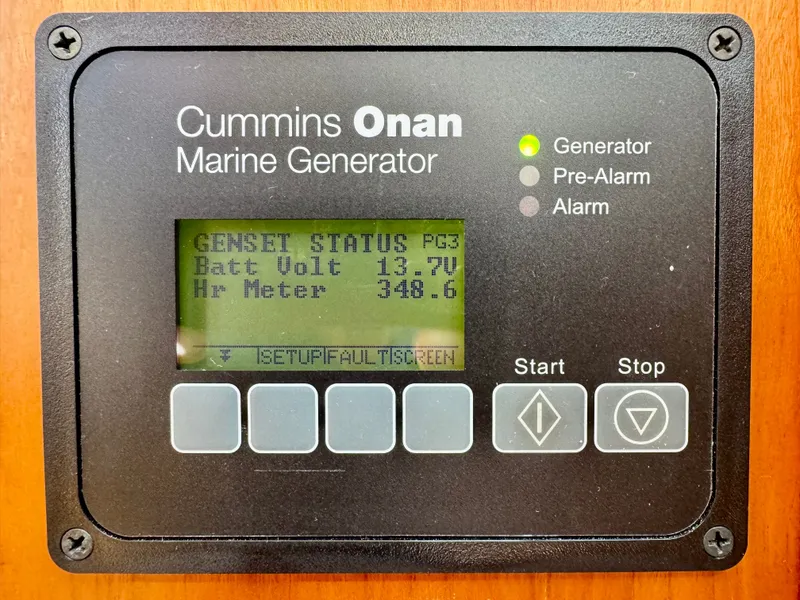

• Onan E series display

• Water drop muffler

• Cooling water intake strainer

• Sound shield

• Transfer switch

• Digital AC system monitor

• 50A three bank battery charger

• 50A / 220 V shore power service

• Glendinning Cablemaster & 70 ft. cord

• Siren Marine Monitory System for Batteries, Shore power & security

• Galvanic isolator

• Isolation transfomer

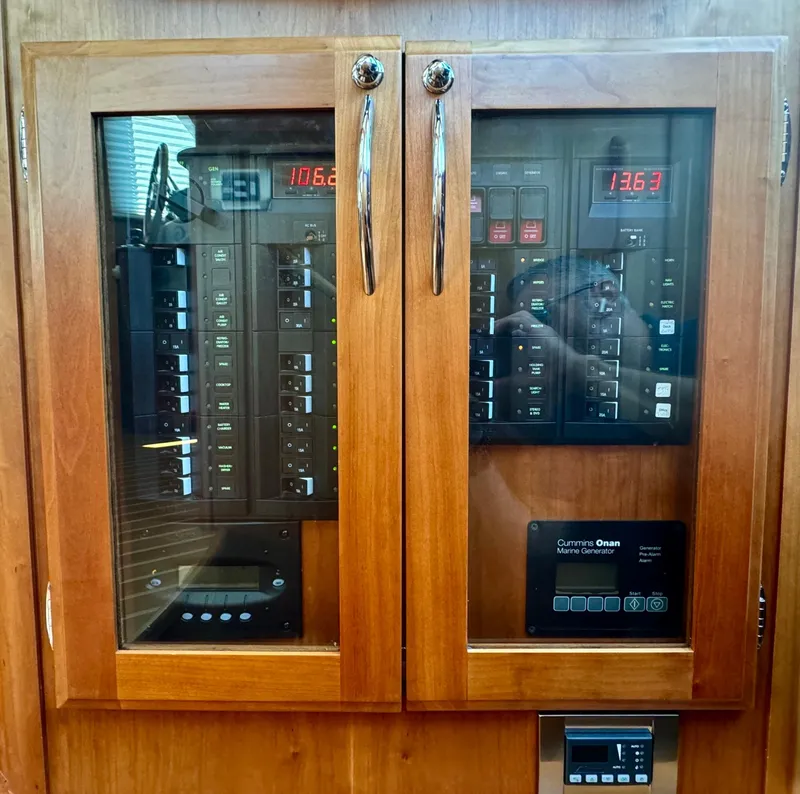

• Illuminated circuit breaker panel at galley steps

• 120 V outlets throughout interior and in engine room

• Galley and head receptacles are GFI protected

• LED overhead and reading lights

• 60 Amp 3-bank battery charger

• Tinned wire used throughout

• Illuminated main circuit breaker distribution panel

• 120V GFCI protected outlets in each cabin & engine room

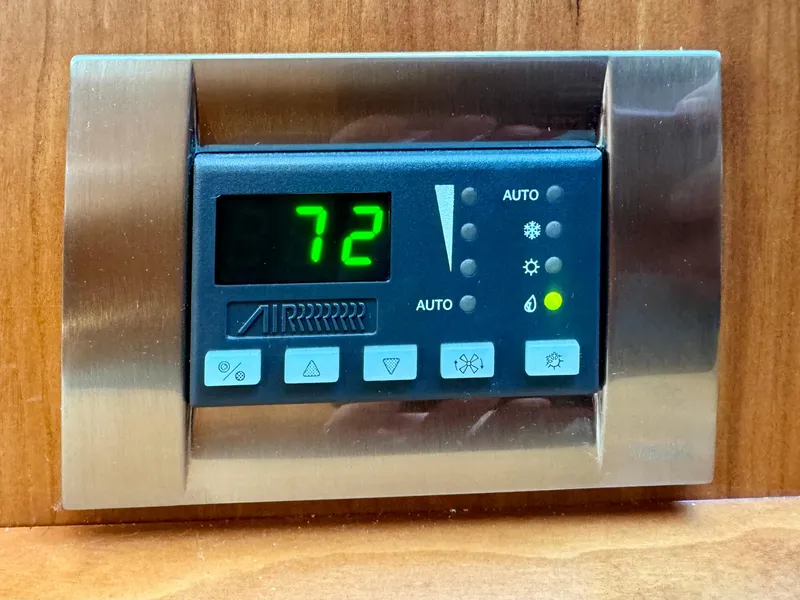

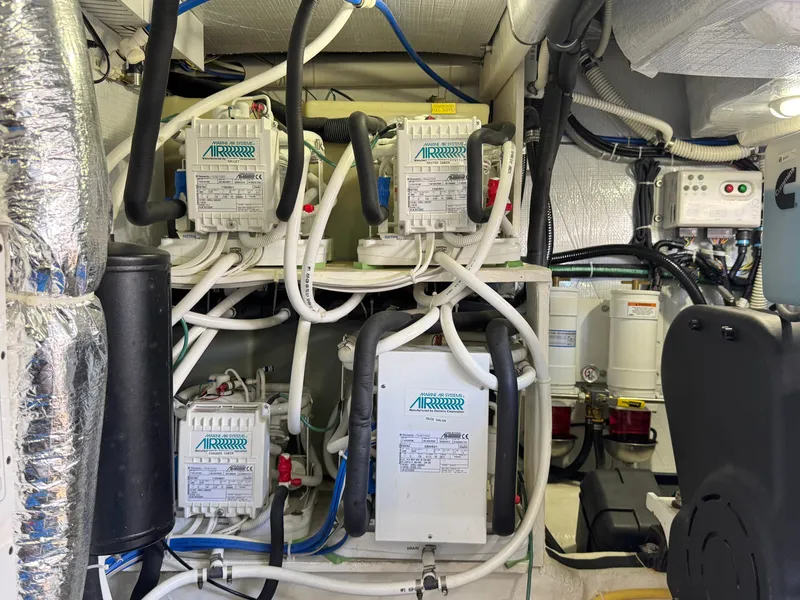

• Reverse cycle heat/ air conditioning in (5) zones

12V DC ELECTRICAL SYSTEM

• (2) AGM Group 31 dedicated engine start batteries

• (3) AGM 4D deep cycle ship's service batteries (April '24)

• (1) AGM Group 24 generator start battery

• Siren Marine SOC Battery Monitor

• Remote control battery switches with controls at helm

• Manual emergency battery crossover switch

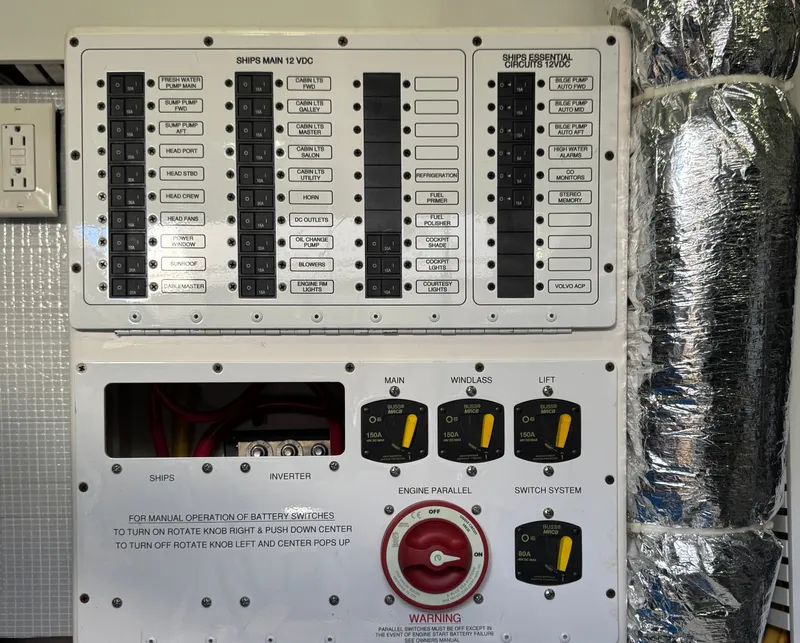

• Illuminated main circuit breaker distribution panel

• Digital battery monitor

• St. Maarten amber cabin reading lights

• High output LED lights in the overhead

• LED strip lighting in appropriate locations

• LED engine room lighting

• Tri-color lights over the helm station (red, white and blue)

• Cockpit courtesy lights

• Marine-grade, tinned wire throughout

• 12VDC USB chargers at helm and in all cabins

• Custom lighting on side walkways

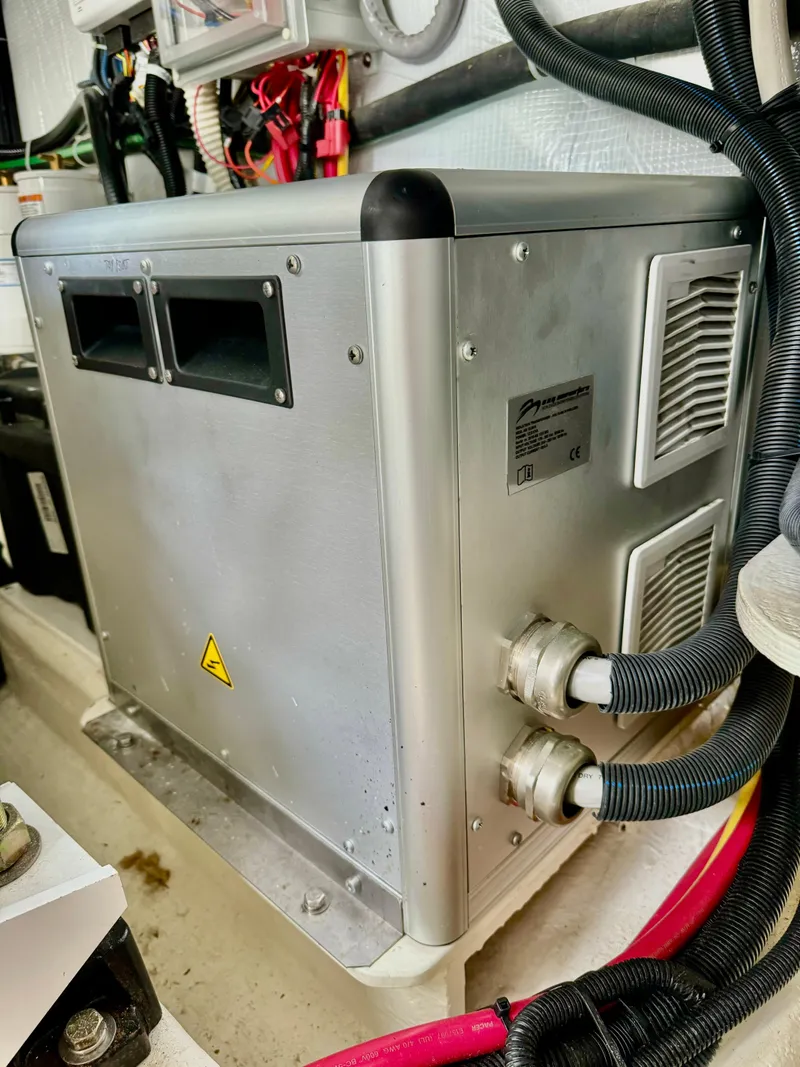

• Inverter/charger 3000 watt true sine wave with remote

PLUMBING

• Polyethylene 160 gal water tank

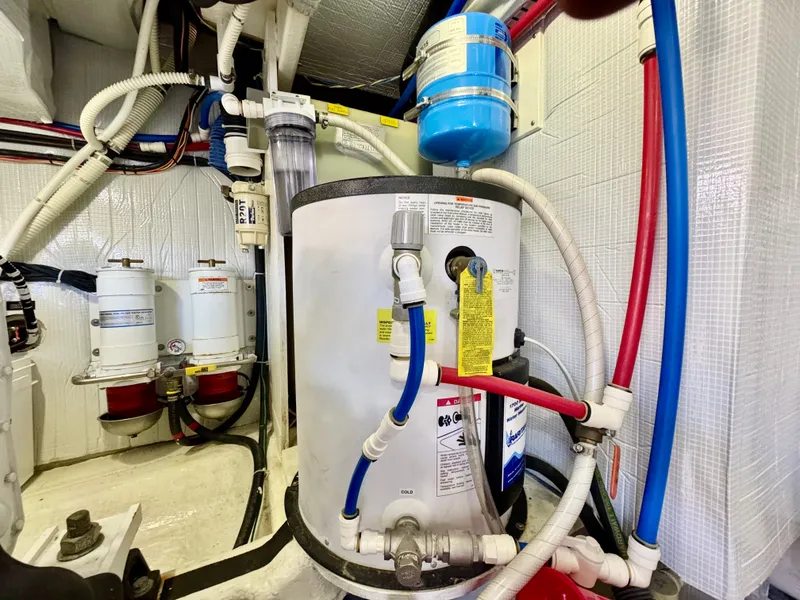

• 20 gal S/S hot water tank

• Stainless sink in galley

• Vessel sink in head

• Fresh water flush MSD w/holding tank and macerator

• Shower stall in head with tempered glass door

• Solid surface material and galley and head countertops

• Marelon sea valves on all below waterline fittings

• Polyethylene holding tank with 70 gallon capacity

• Diaphragm waste pump on holding tank

HULL

• Modified Deep “V” Planing hull design

• Vacuum-bagged resin infused laminated fiberglass construction

• SAN Corecell foam coring

• Knitted bi-axial structural reinforcements

• Foam/Plywood stringer system

• Shallow pod drive tunnels

• 14o deadrise at transom

• 23o deadrise amidships

• ISO NPG white gelcoat w/vinylester back-up resin
  Bottom, topsides and transom VIP resin infused biaxial E-glass with Corecell SAN foam core

• Stringer system biaxial E-glass with foam core

• Resin Infused E-glass swim platform with molded-in anti-skid surface

• Hull side rubbing strakes

• PVC rub rail with stainless steel cap

• Painted (Urethane) double boot top

• Gold recessed cove stripe

• VIP Resin infused laminate

• SAN Corecell foam coring

• Knitted bi-axial structural reinforcements

• Foam/Plywood stringer system

• Swim platform with under mounted ladder

• PVC rub rail with stainless steel cap

• Herreshoff  bow and spring cleats

• LP painted boot strip

• Gold cove stripe

DECK

• VIP resin infused laminate

• Molded in anti-skid surfaces

• Anodized Aluminum framed windows

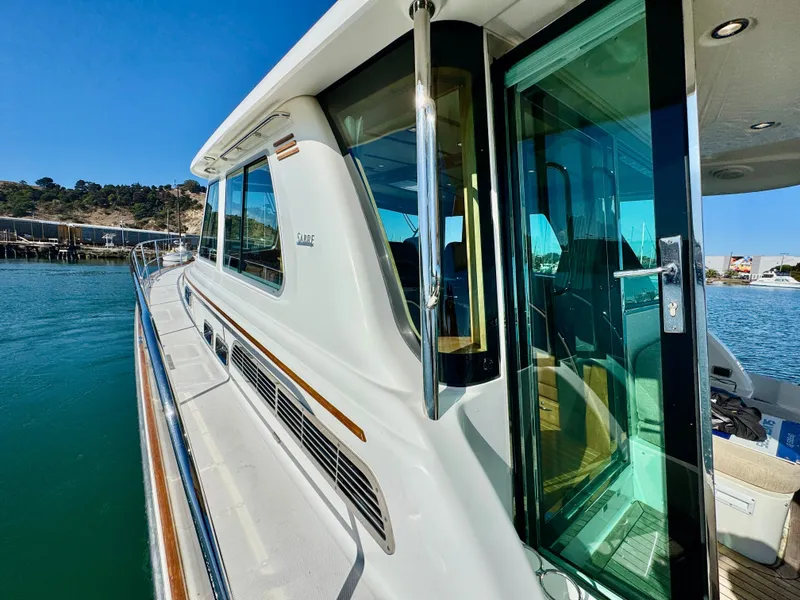

• Helm deck door to starboard side deck

• Large diameter stainless steel perimeter rails

• Herreshoff  bow and spring cleats

• Horn style aft mooring cleats

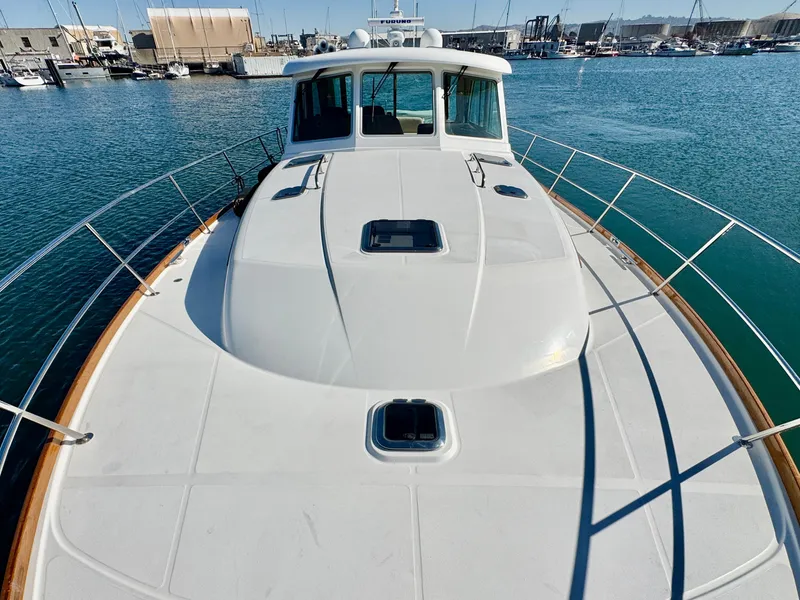

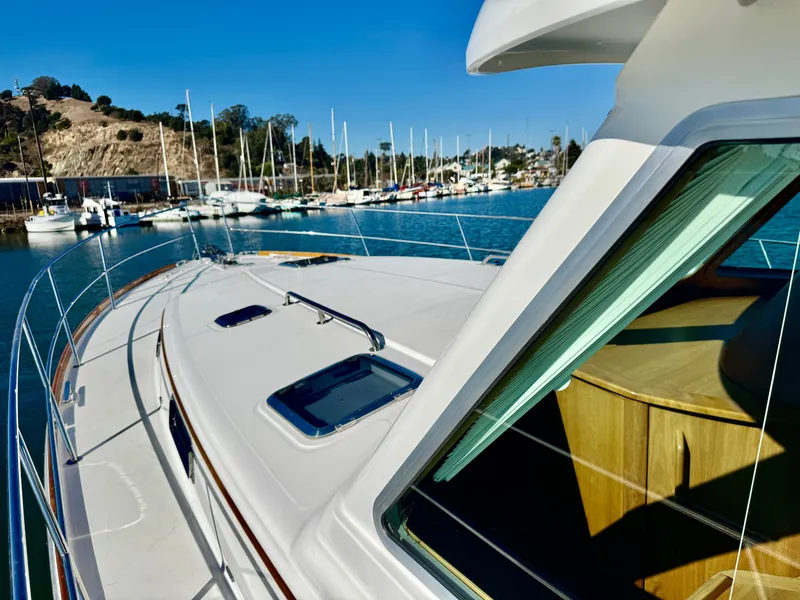

• Low profile stainless steel opening hatches with shades and screens

• Low profile pilot hatches in hard top

• Stainless steel anchor roller

• L-shaped cockpit seating with folding, high gloss table

• ISO NPG gelcoat

• VIP resin infused biaxial E-glass with balsa

• Molded-in anti-skid deck surfaces

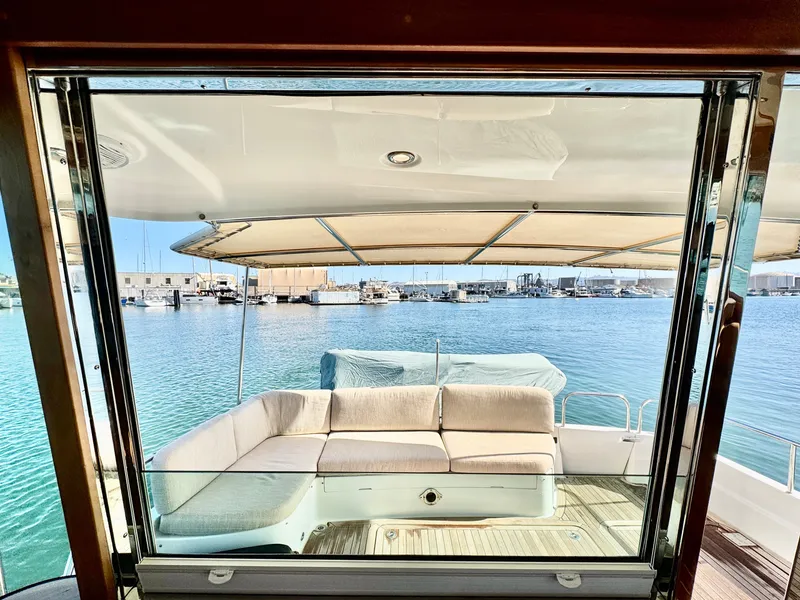

• Bi Fold aft salon door to port

• Anodized Aluminum framed windows

• Sliding windows in salon on cabin sides

• Electric opening window in salon aft bulkhead

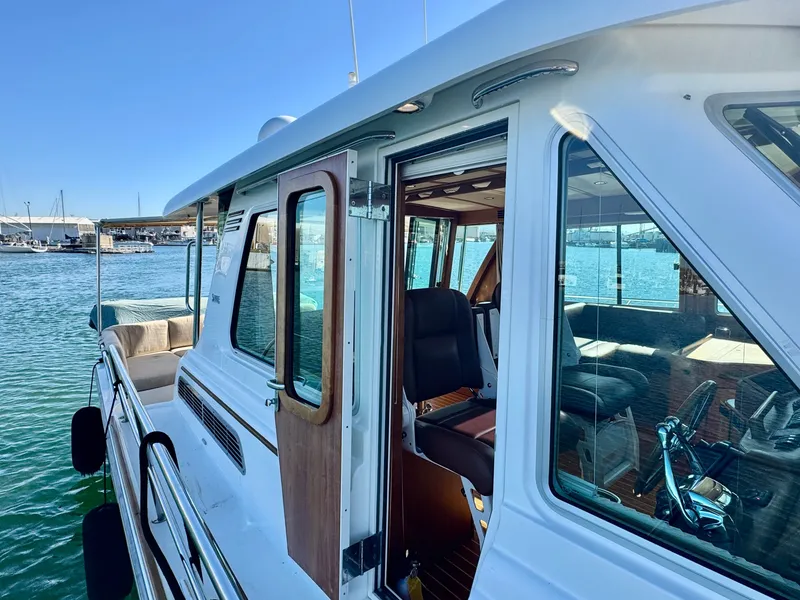

• Hinged access door to side deck at helm

• Flush, outward opening, transom door with latch

• Anchor locker with slam latch

• 12V Electro-hydraulic ram operated lazarette/engine room access hatch in cockpit sole with compression latches

• Fixed cockpit awning

• Swim platform with under mounted ladder

• Teak decking on swim platform

• Teak decking in aft cockpit including steps

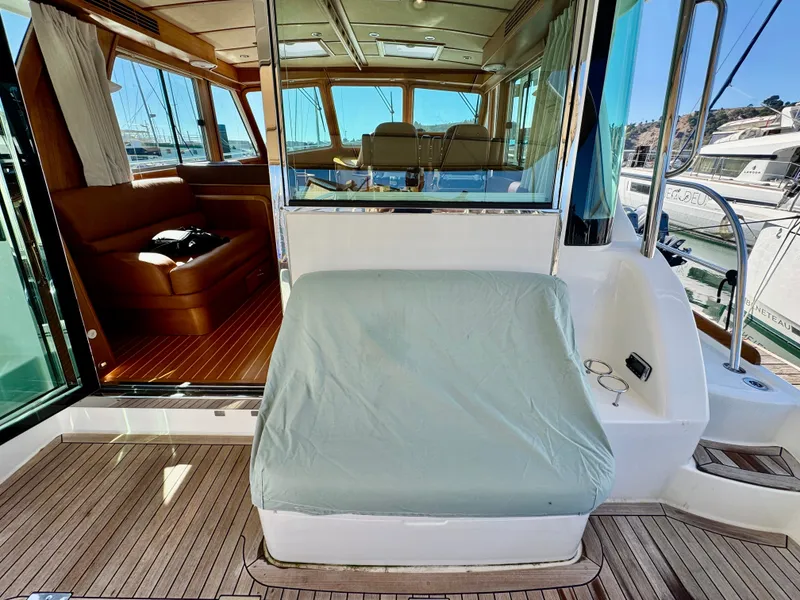

• L-shaped cockpit seating with folding, high gloss table

• Helm deck door to starboard side deck

• Large diameter stainless steel safety rails

• Horn style aft mooring cleats

• Low profile stainless steel opening hatches with shades and screens

• Low profile pilot hatches in hard top

• Stainless steel anchor roller

• 1 1/4" Diameter type 316 stainless steel perimeter rail system

• (8) 12” Stainless steel cleats (2 fwd, 4 mid ship, 2 in aft cockpit)

• (1) 10” Stainless steel cleat to starboard of windlass as anchor rode tie off

• (4) Custom cast stainless steel mid-rail line chocks

• (2) Custom cast stainless steel skene chocks forward

• (2) Custom folding stainless steel mooring cleats aft

• Bow pulpit with dual anchor roller

• Quick anchor windlass, electric rope-chain type

• Flag staff and socket on taffrail

• Burgee staff on bow pulpit

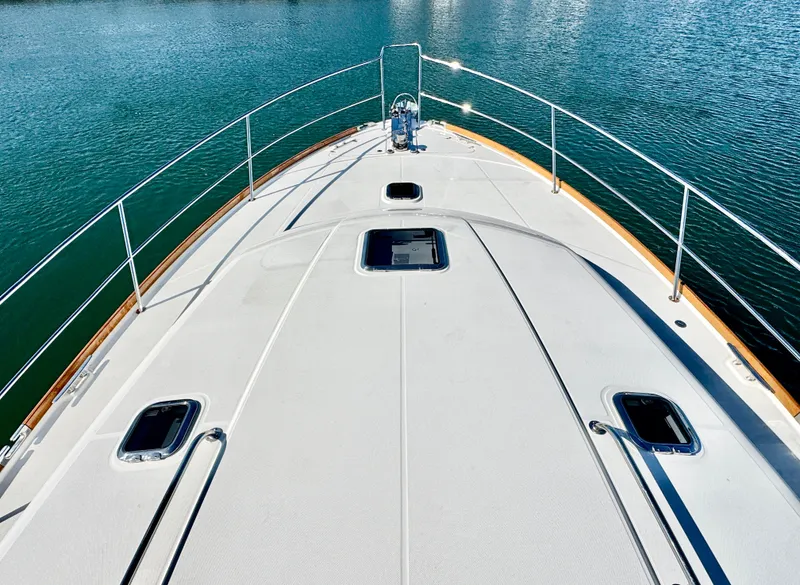

• (6) Low Profile stainless steel hatches w/screens

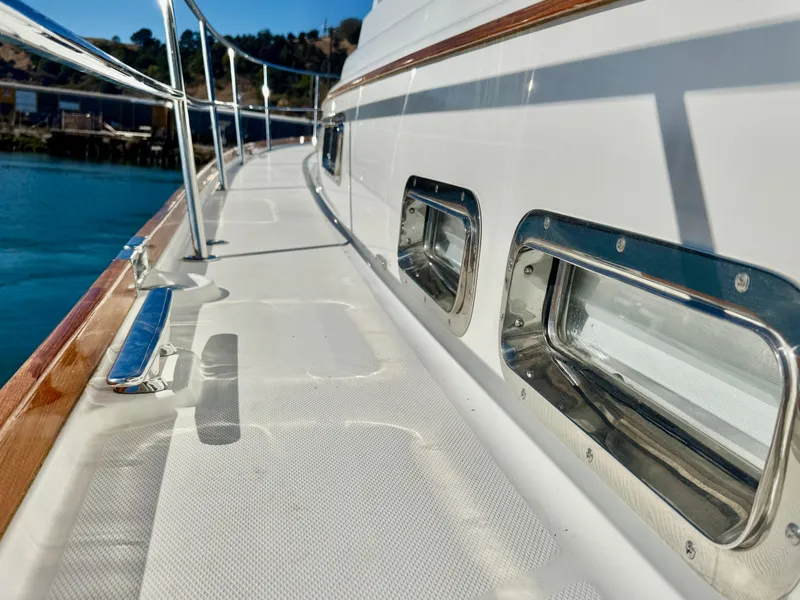

• (6) Custom stainless steel opening port lights

• Teak toe rails

• Teak cabin side eye-brow

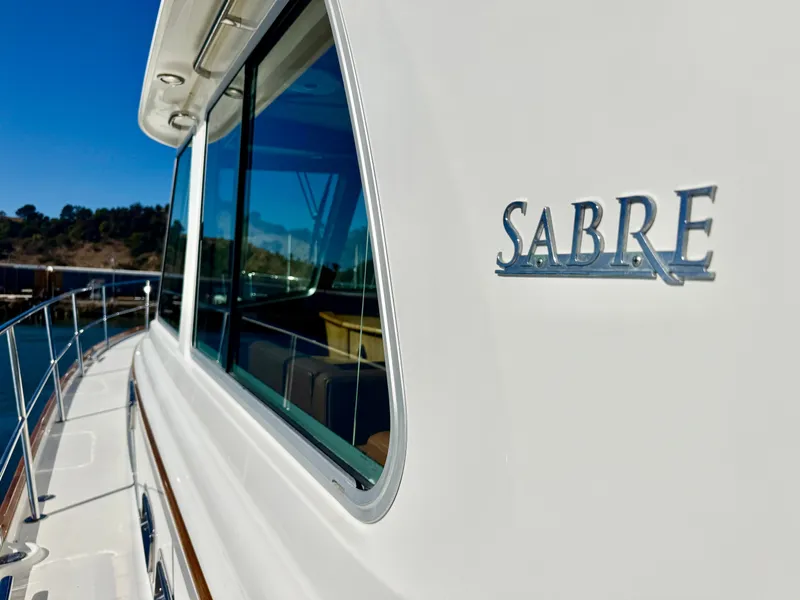

• Custom cast stainless steel “SABRE” medallion

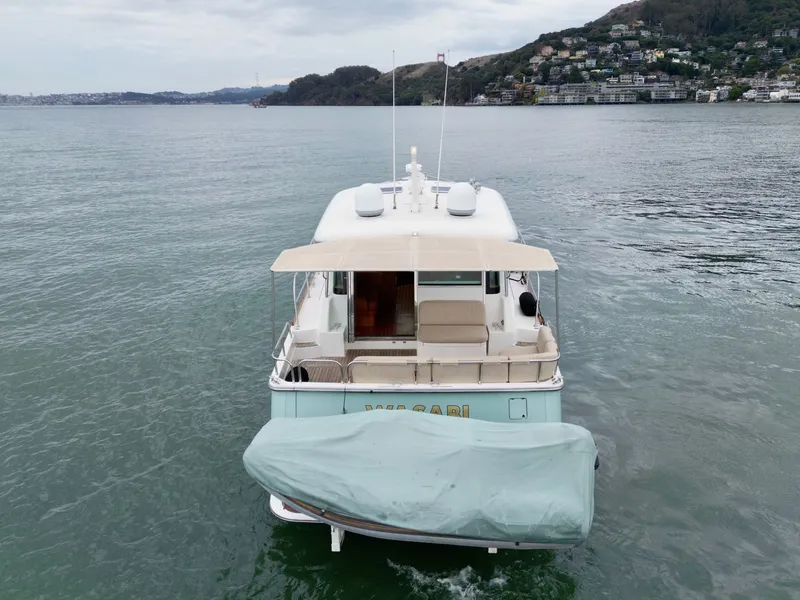

• Freedom Lift for tender

• Custom side walkway lights

• Ocean LED blue under water lights

• (2) Cockpit seat covers

• Flag staff cover

• RFP molded mast, separate radar platform and satellite dome pads

• Searchlight dual beam mounted on mast

As an early adopter of pod drive systems, Sabre Yachts has a clear understanding of how these revolutionary drives can best be used to increase efficiency, maximize ease of operation and owner confidence. The all-new Sabre 48 Salon Express is our fifth pod driven model and she takes full advantage of this technology in both her performance and in her interior accommodation plan.

The 48's traditional exterior profile belies the contemporary performances of her vee-hull. Her Zeus drive train is the latest in pod  technology from ZF Marine and Cummins. Pods offer quieter operation, better fuel economy than straight shafts, and unequalled easy of handling around the docks.

She cruises at 27 knots and at wide open throttle she'll attain more than 32 knots. With the Zeus pod drive system, turns at speed are as exciting as they are in a fine sports car but perhaps even more exhilarating is the quiet that one experiences at cruise speeds. Less than 75 Dba makes her one of the quietest motoryachts available today. The joystick and Skyhook operations give every Captain the confidence to dock her in the most difficult of circumstances.

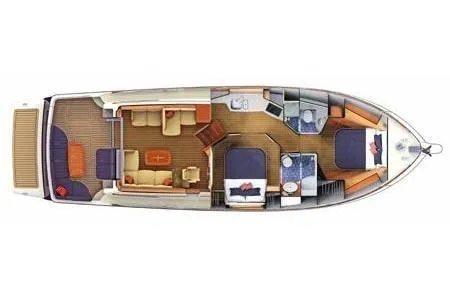

Her raised cockpit sole brings together the social aspects of the cockpit and main salon and the aft end of the house opens up fully to connect the spaces. Her main salon offers ample seating surfaces for entertaining or simply relaxing to read or enjoy the standard entertainment systems. While underway the raised settee to port of the Stidd helm chair is a perfect place for the crew to enjoy the ride. And when docking, a standard side deck door serves her helmsman and crew, well. The two cabin, two head layout is supplemented by a mechanical space forward of the engine room. Optionally, this space can be laid out as a crew quarters with berth and head unit.

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
