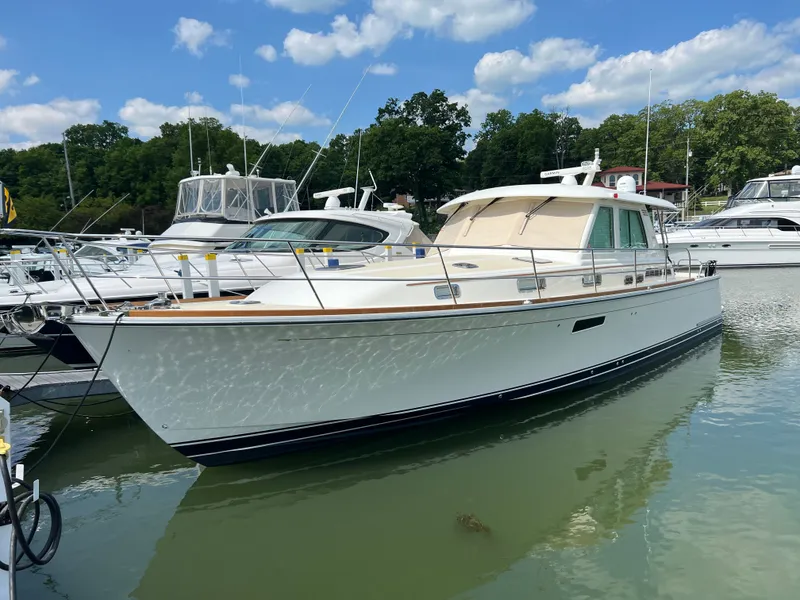

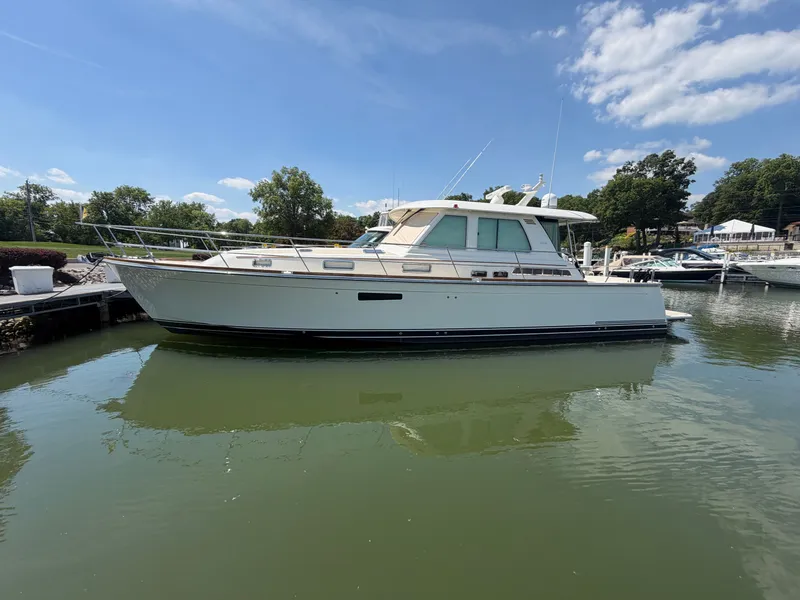

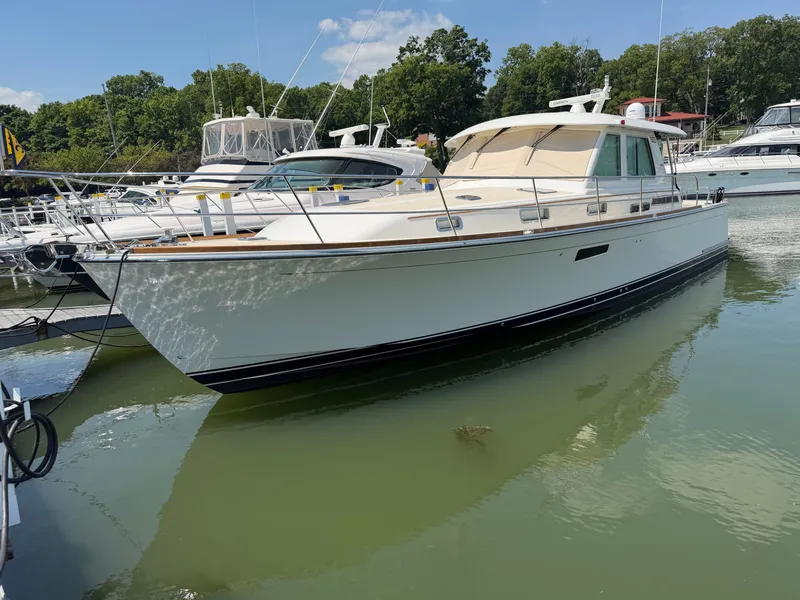

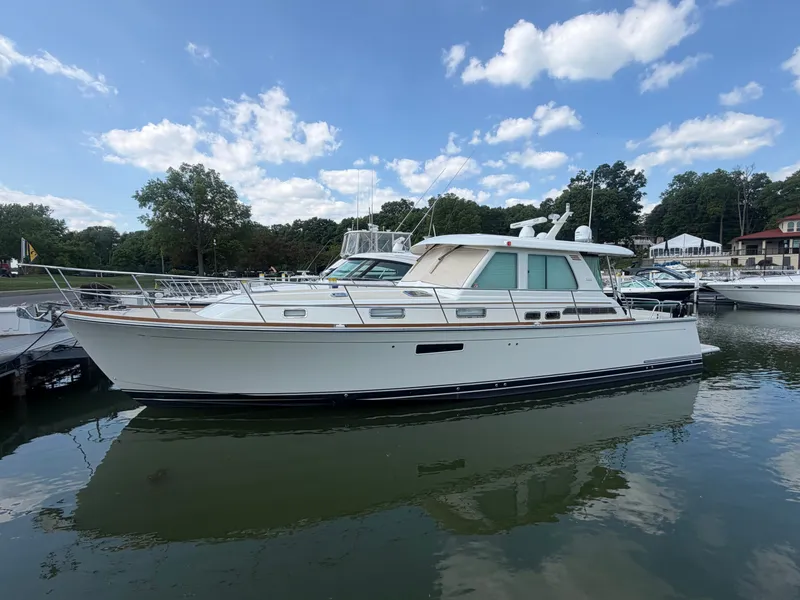

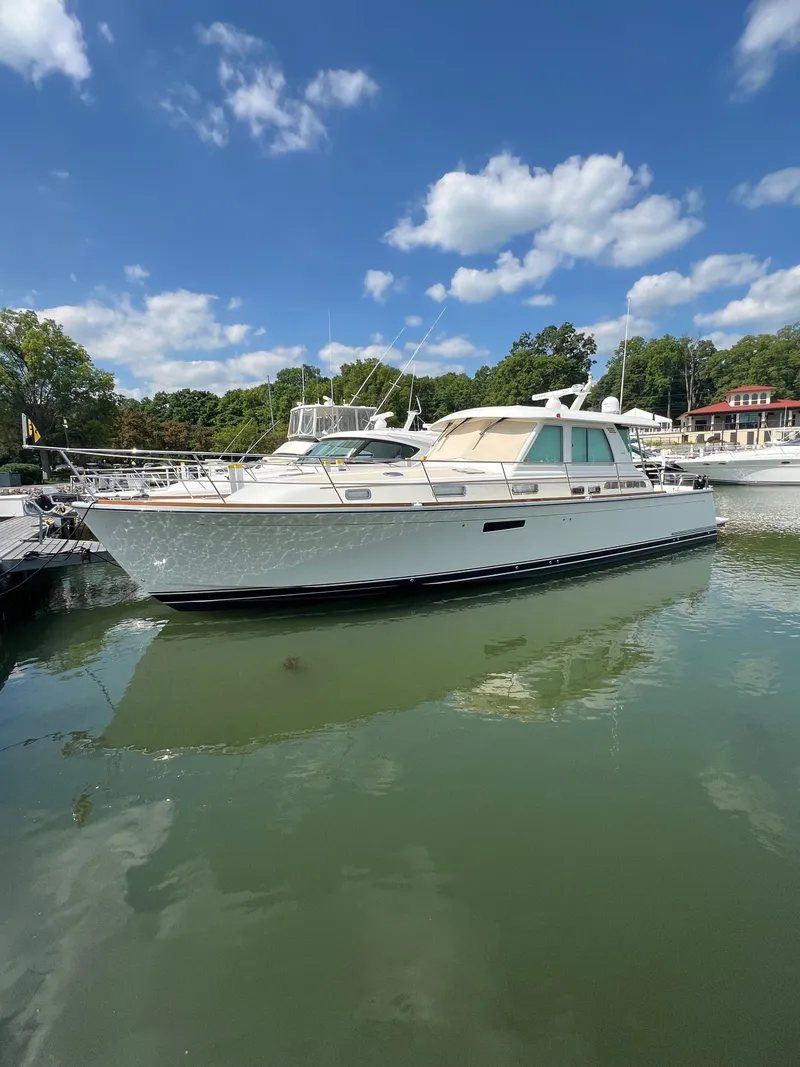

2016 Sabre 48 Salon Express Boat in Port Clinton, OH 43452 US

* Hull color:                                      Sabre White * Boot Top Color:                                  Flag Blue * Cove Stripe Color:                                  Gold * Deck Color:                                  Sabre White * Anti-Skid Color:                                  Beige
* Swim Platform Color and Anti-Skid: Sabre White w/ Beige Anti-Skid  * Head Gelcoat Color: Sabre White * Galley Corian Color:   Sandalwood * Guest Head Corian Color: Savanah * Master Wall Tile Color: Serentiy Blue VA90 Glossy Square * Master Head Sole Tile Color: Buff Granite A52 2X2 * Guest Head Sole Tile Color: Mushroom Speckled A41 2X2
* Stidd Seat Fabric: UL Brisa Distressed Chamois 396-3024 * Mates Lounge Fabric:  UL Brisa Distressed Chamois 396-3024 * Main Salon Fabric: UL Brisa Distressed Chamois 396-3024 * Aft Cockpit Fabric: High UV UL Brisa Distressed Chamois                                                                         396-3024

   FIBERGLASS
* Anti-skid color (fore & side decks, aft cockpit, and recessed area of swim platform.
MECHANICAL
* Reverso oil change system. * Shore water inlet. * Salt water wash down system fore and aft. * Fresh water wash down forward.
ELECTRICAL
* Additional dimmer switches in Master, VIP, Cockpit. * Fusion Marine stereo iPod dock with (4) speakers and remote control. * Inverter/ charger 3000 watt true sine wave with remote control. * 2nd Shorepower inlet at bow with 25-foot cord set. * Beam central vac system with (2) outlets and a 32' expandable hose. * Searchlight dual beam mounted on hard top mast.
EXTERIOR AND DECK

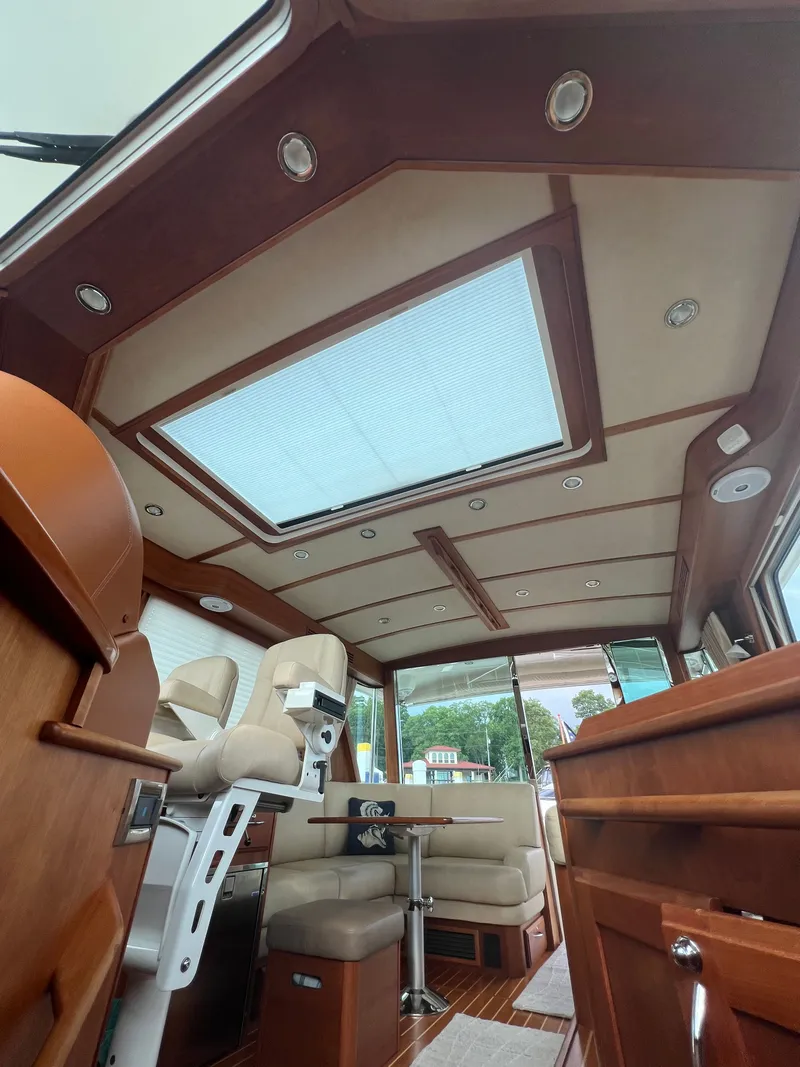

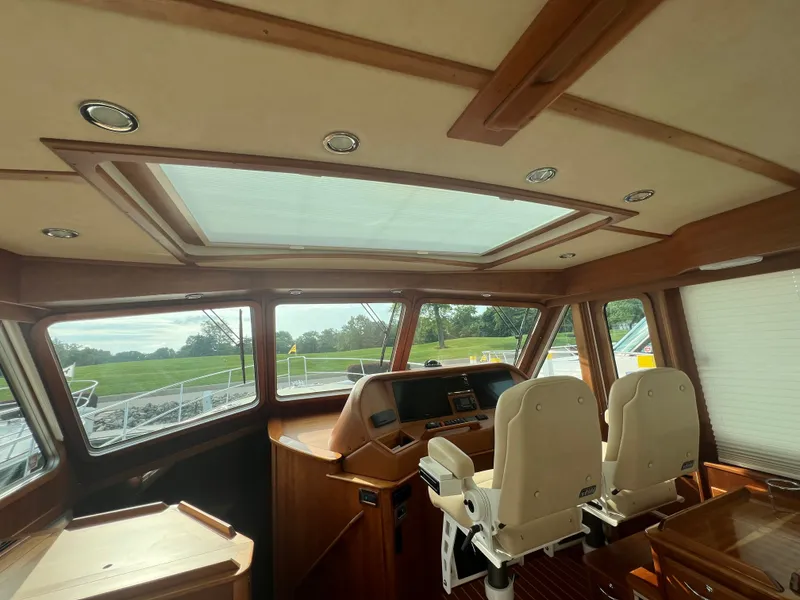

* Electric sunroof with sunscreen in lieu of standard two (2) pilot hatches. * FRP molded mast & separate radar platform for sedan hardtop. * Kahlenberg dual chrome horns. * Hot and cold transom shower.

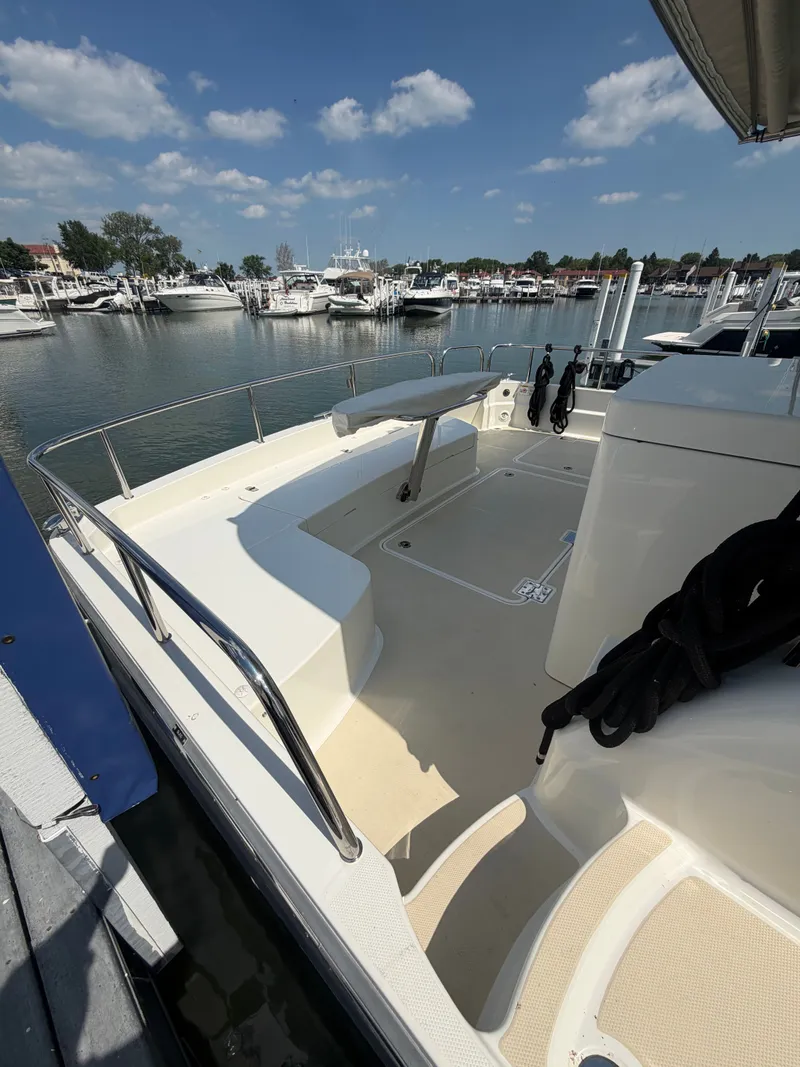

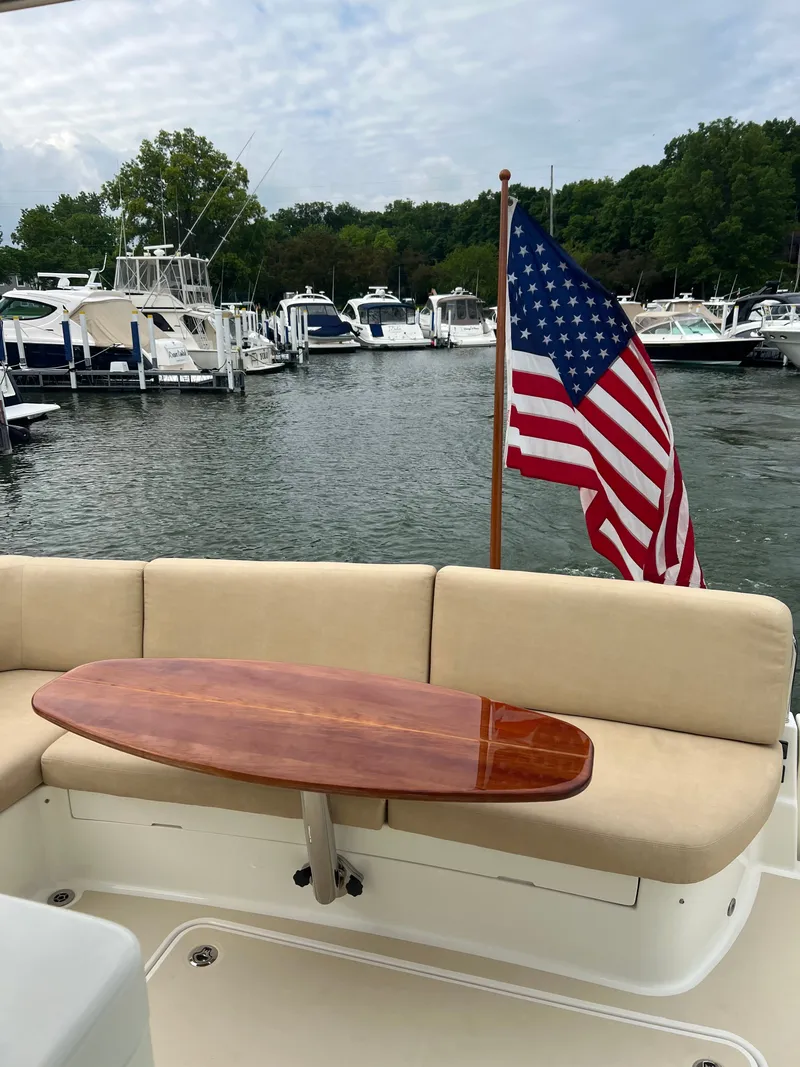

COCKPIT
* Upgrade cockpit fabric to High UV Ultraleather.
INTERIOR
* Accord Shades on all opening ports.

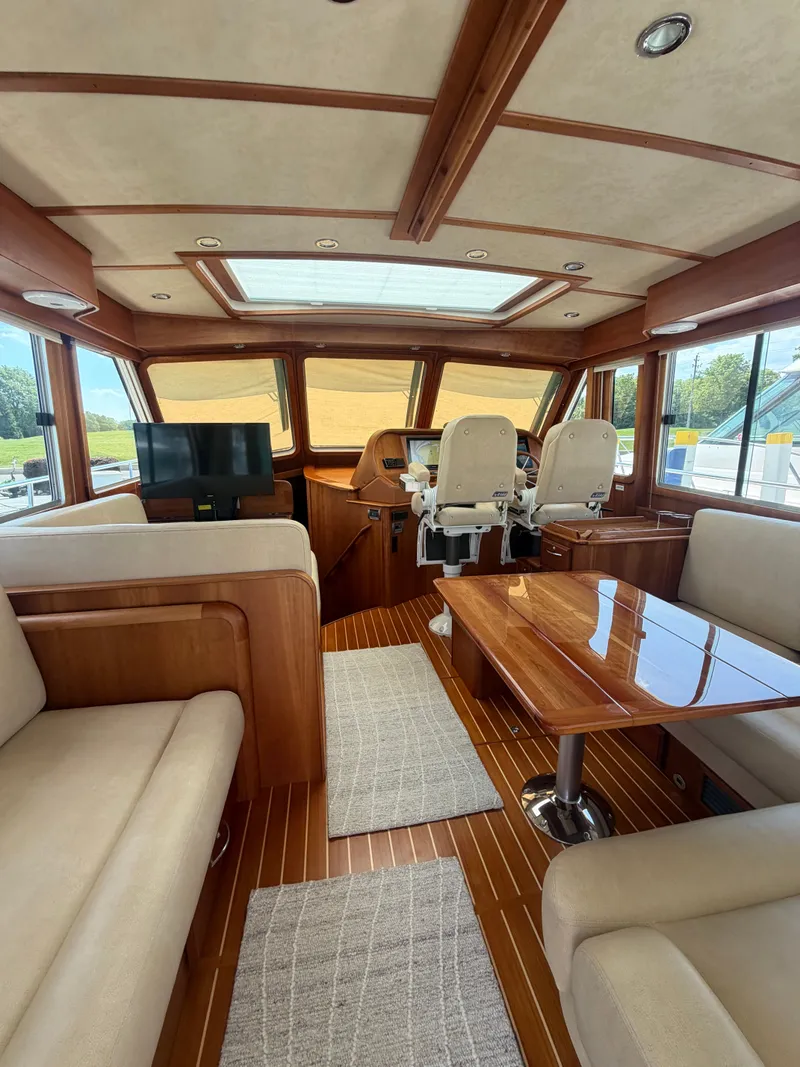

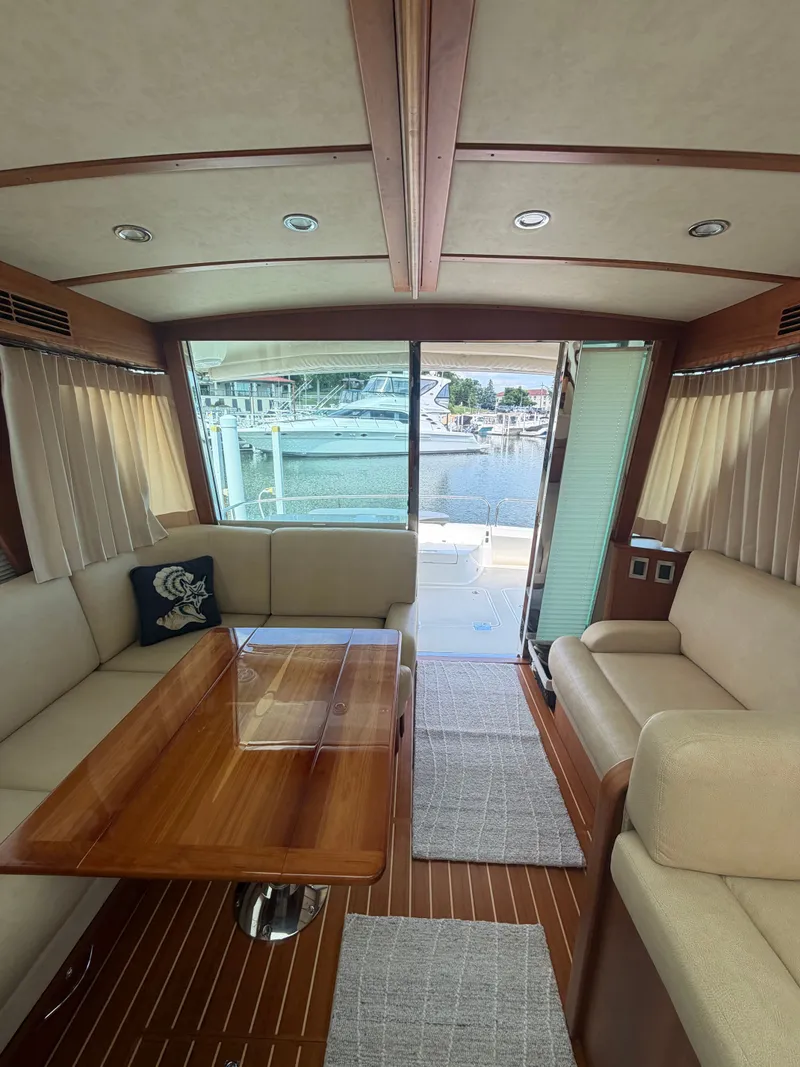

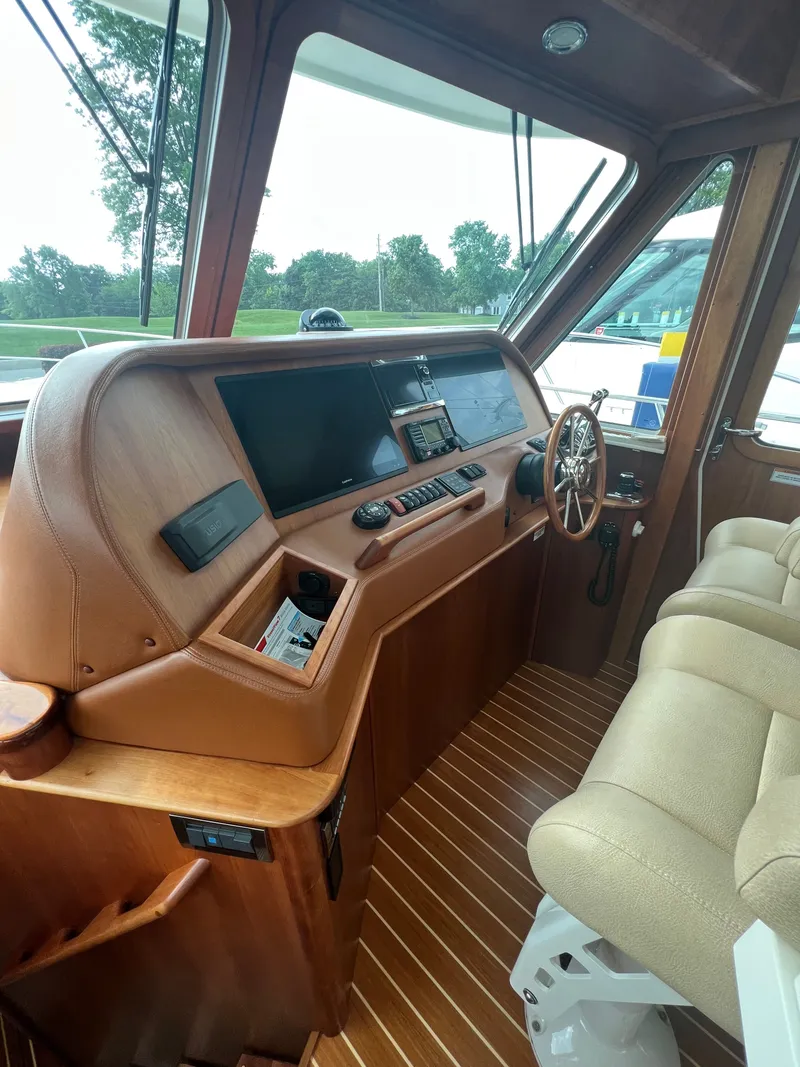

MAIN SALON & HELM
* Drawer fridge, drawer and hi- gloss inlay countertop aft of helm seat * Ultraleather upholstery main salon. * (2) Stidd cup holders. One on port armrest of Mates Stidd seat. One on stbd armrest of    Captains Stidd seat.

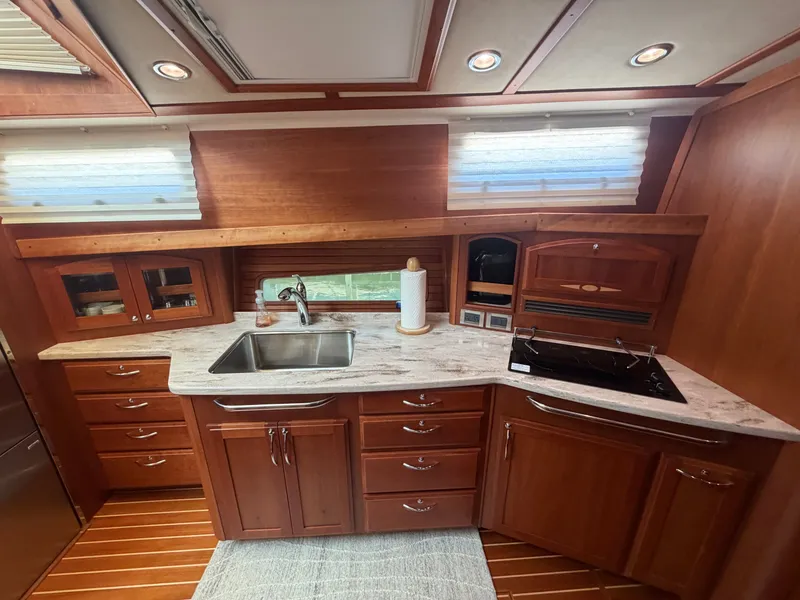

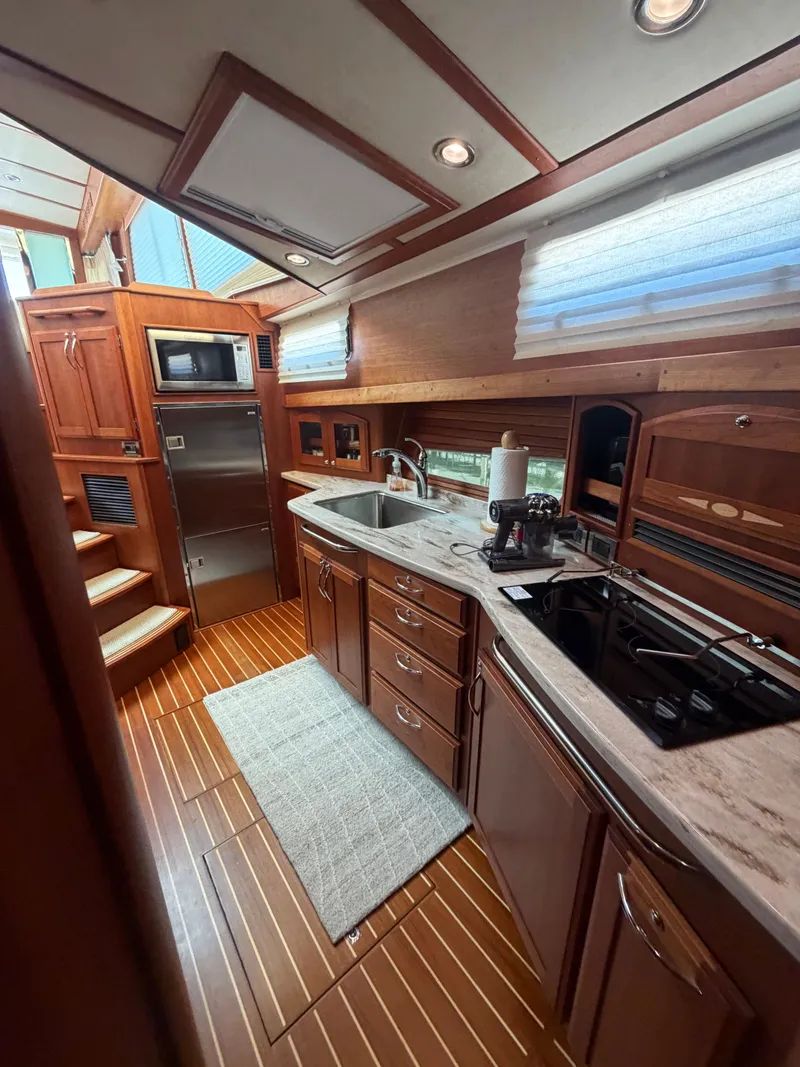

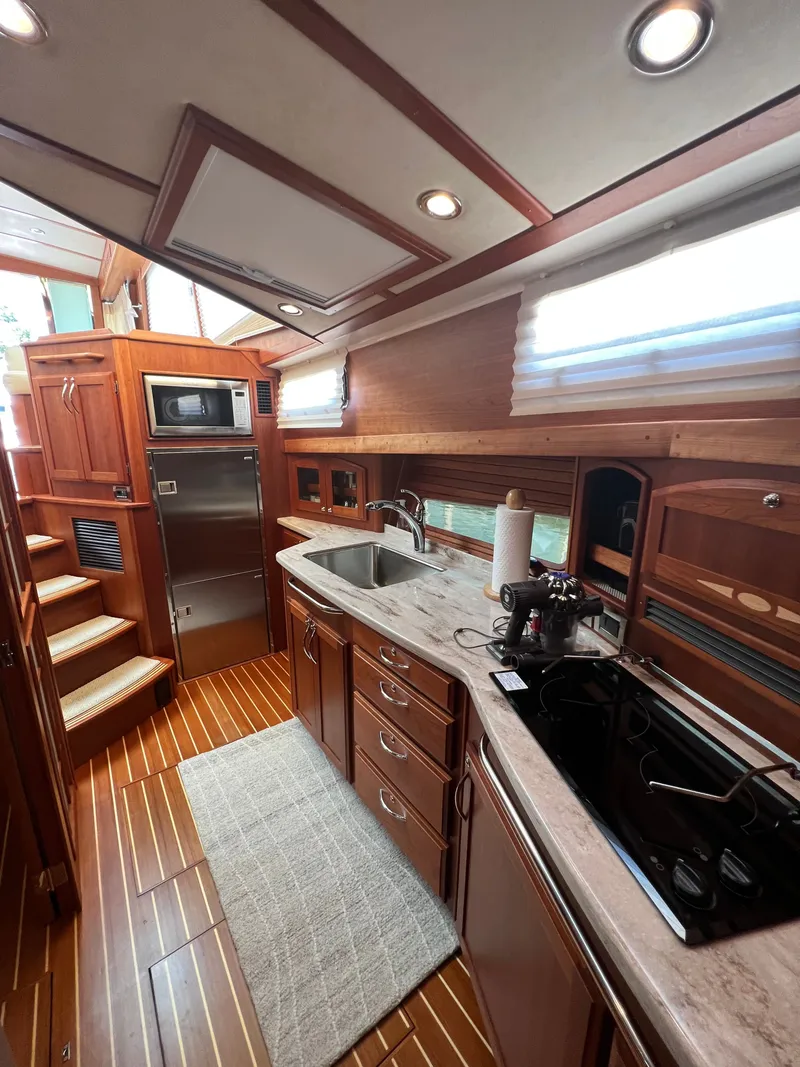

GALLEY
* Install S42SE galley storage racks below the galley sole. 1 rack running aft of the aft     sole hatch, 1 rack running fwd of the fwd hatch sole.
* In the galley, open up the storage cubby just aft of the exhaust, so that the opening is    at least 8" wide X 12" tall with 110V outlet for storage of coffee maker. Delete the     standard shelf and fiddle. Install a removeable fiddle at the front of the opening for a     coffee maker.

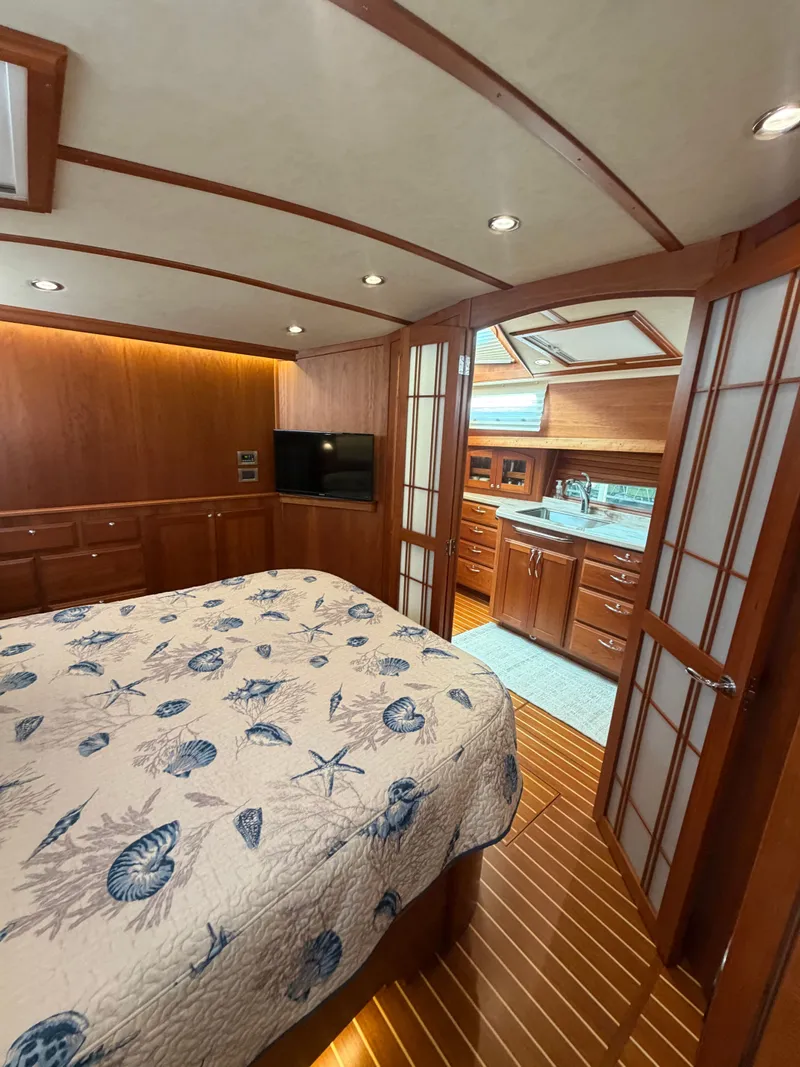

MASTER STATEROOM & HEAD
* Undermount sink in master head in lieu of designer sink, Prefers stainless. With lower    profile faucet VIGO chrome #3615251 model # VGO1023CH. With Riviera Corian in    lieu of cherry, Ala CC019.
VIP CABIN & HEAD
* Add a mirror to the bottom half of VIP head door to make full length.

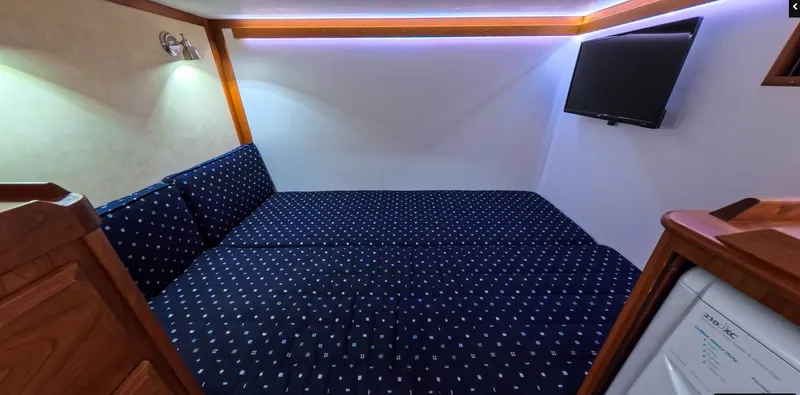

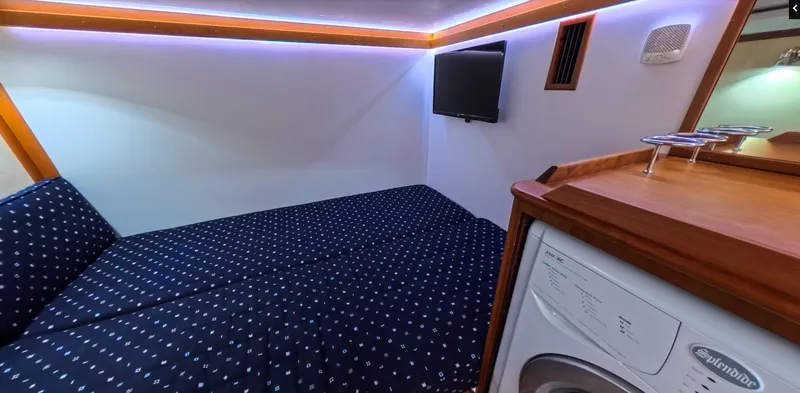

CREW QUARTERS

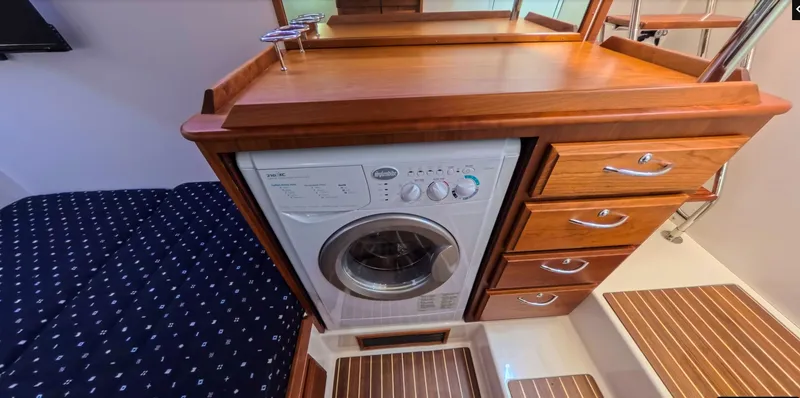

* Crew quarters with head in lieu of standard utility room. * Customize Crew quarters, Install Slendide model #2100XC combo washer/dryer in crew    seat location. Build cherry box around unit and add fiddles to top of box.

* Custom Main Salon: Build 2015 main salon layout. 2 Stidd seats on medium pedestals at    the helm in lieu of cherry box. Drawer fridge, drawer and hi-gloss inlay countertop in    cabinet aft of helm. High gloss fiddles on top of cabinet, install standard folding main     salon.

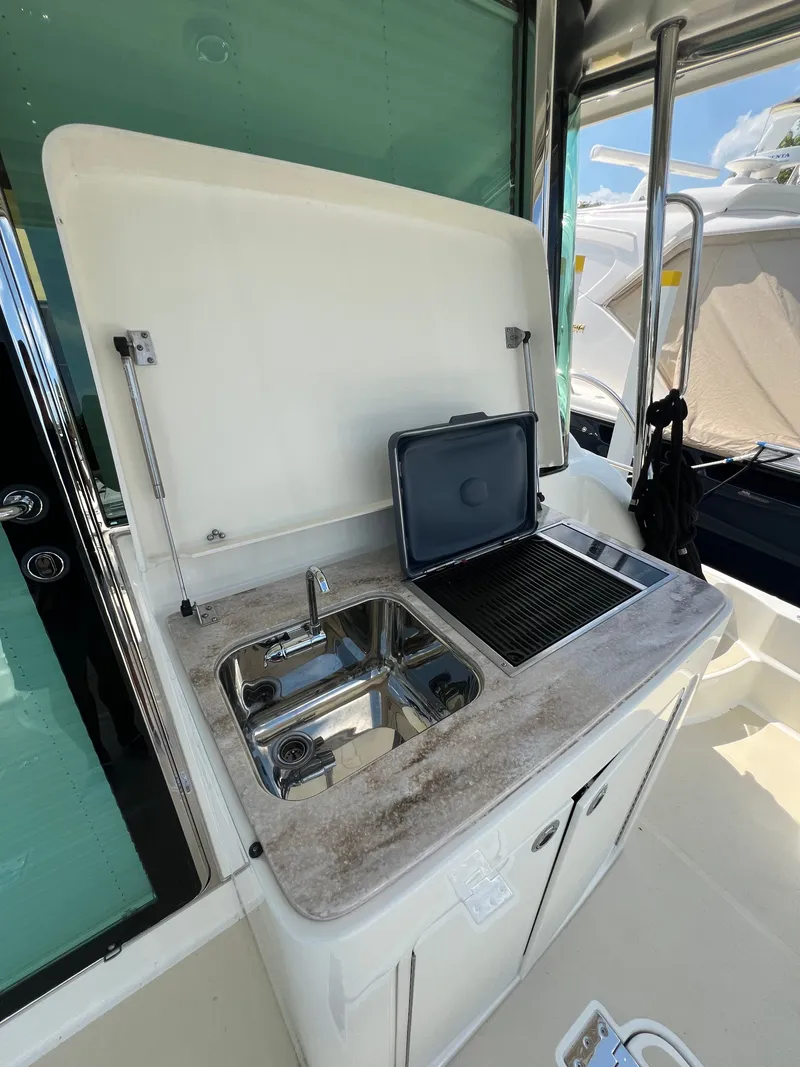

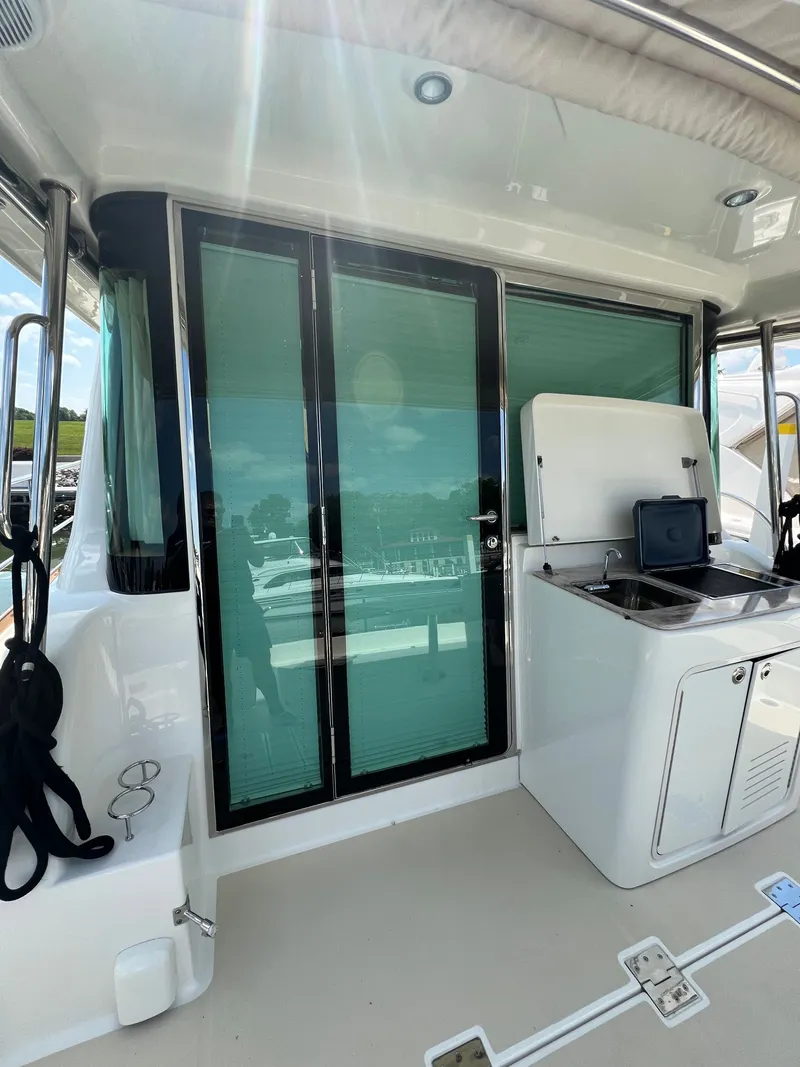

* Aft cockpit grill cabinet with storage, no icemaker. Cabinet to include grill and sink with    Corian counter. Counter Sandalwood.
* (1) Custom ottoman with a removable upholstered top and storage inside that fits    below the table pedestal on either side. Ottoman top to be upholstered U/L Distressed    Moccasin 335-3871, Base of box to be cherry.
* Install a fixed fiddle on forward end of nav desk the same length and location as hinge    on fwd end of cover. Add another fixed fiddle at the aft end of the tv cover, 32' length.    Install a fiddle inboard of nav desk.
* Install 120 V AC outlet inside the cockpit grill cabinet.
* Delete the crew seat and replace with nightstand with built in drawers and fiddles on    top. Ala CC075. Modify the face of the nightstand so that the wood between the bottom     middle drawers is removeable creating an access to the float switch below.

* (2) Garmin 8617 MFD 17". * Garmin Card Reader. * Garmin GXM 52 Sirus XM Marine Receiver. * Garmin GPS 19x NMEA 2000 High Sensitivity Receiver. * Garmin GMR 624 X hd2 4' Open Array Radar & Pedestal. * Garmin GSD 24 Network Sounder. * Garmin B60 600W Tilted with Element * Garmin Marine Camera with infrared (engine room) * Garmin Marine Camera with infrared (aft deck) * Fusion SXV200B Sirus Receiver for 700 Series stereo
UNDERWATER LIGHTS
* Lumishore 3- SMX102 Master light- 14,400 Lumens

HULL
- Modified Deep “V” Planing hull design, with shallow pod drive - 14º deadrise at transom, 23º    deadrise amidships.
- ISO NPG white gelcoat w/vinylester back-up resin.
- Bottom, topsides and transom VIP resin infused biaxial E-glass - Stringer system biaxial E-      glass with foam core.

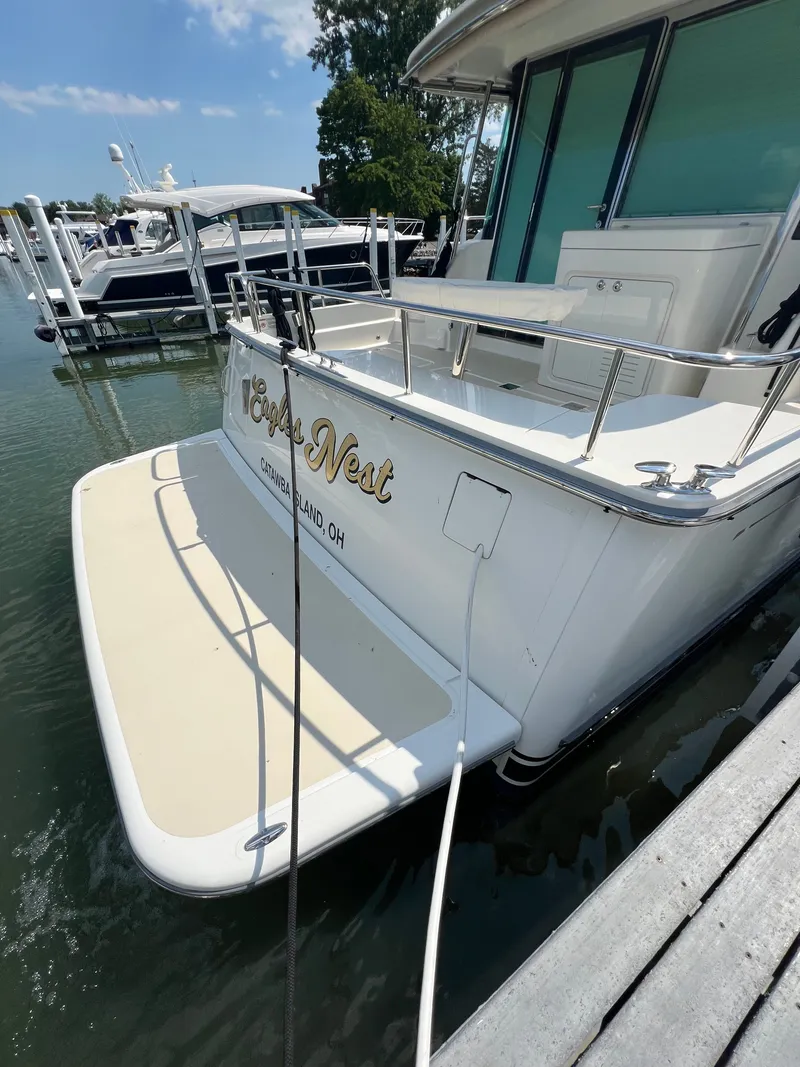

- Resin Infused E-glass swim platform with molded-in anti-skid surface.
- Hull side rubbing strakes.
- PVC rub rail with stainless steel cap.
- Painted (Urethane) double boot top.
- Gold recessed cove stripe.

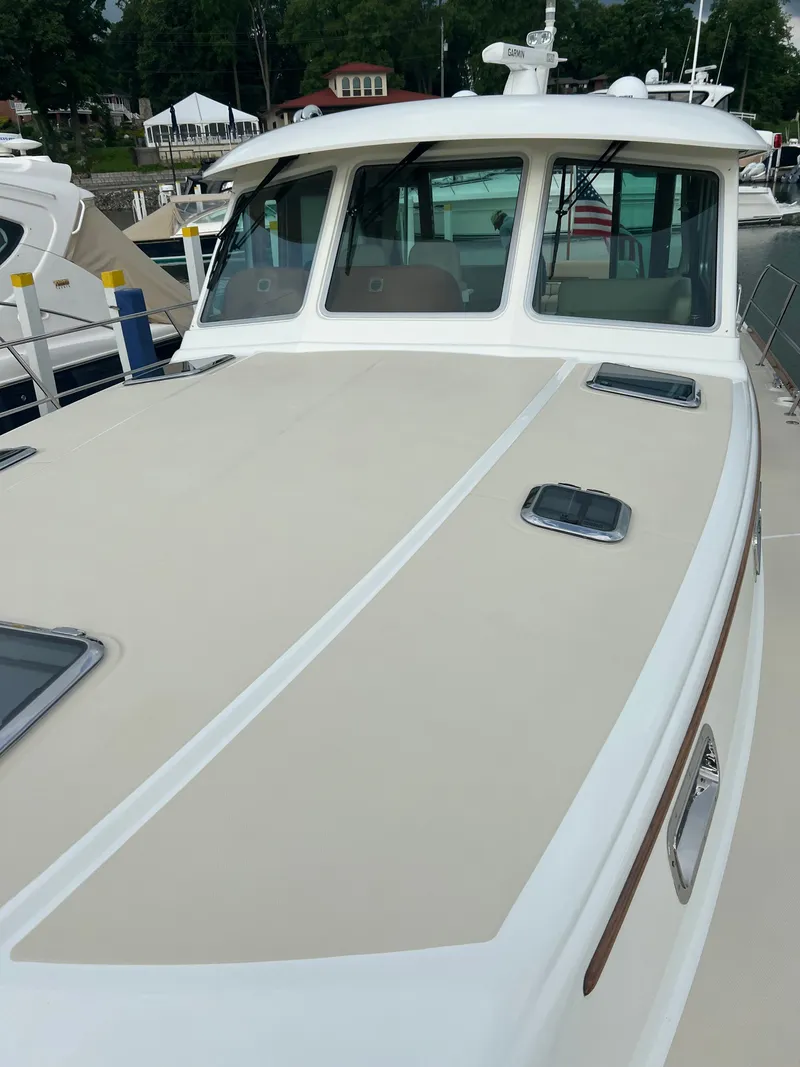

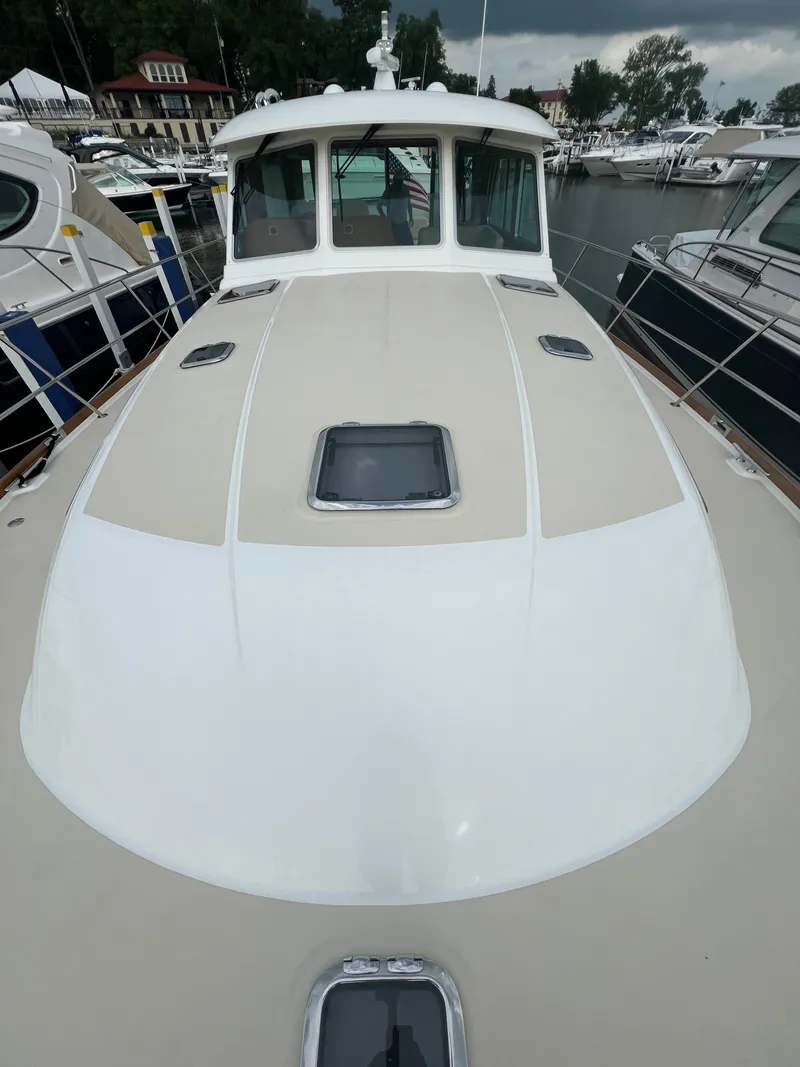

DECK and HARDTOP
- ISO NPG gelcoat.
- VIP resin infused biaxial E-glass with balsa core.
- Molded-in anti-skid deck surfaces.
- Companionway door to port.

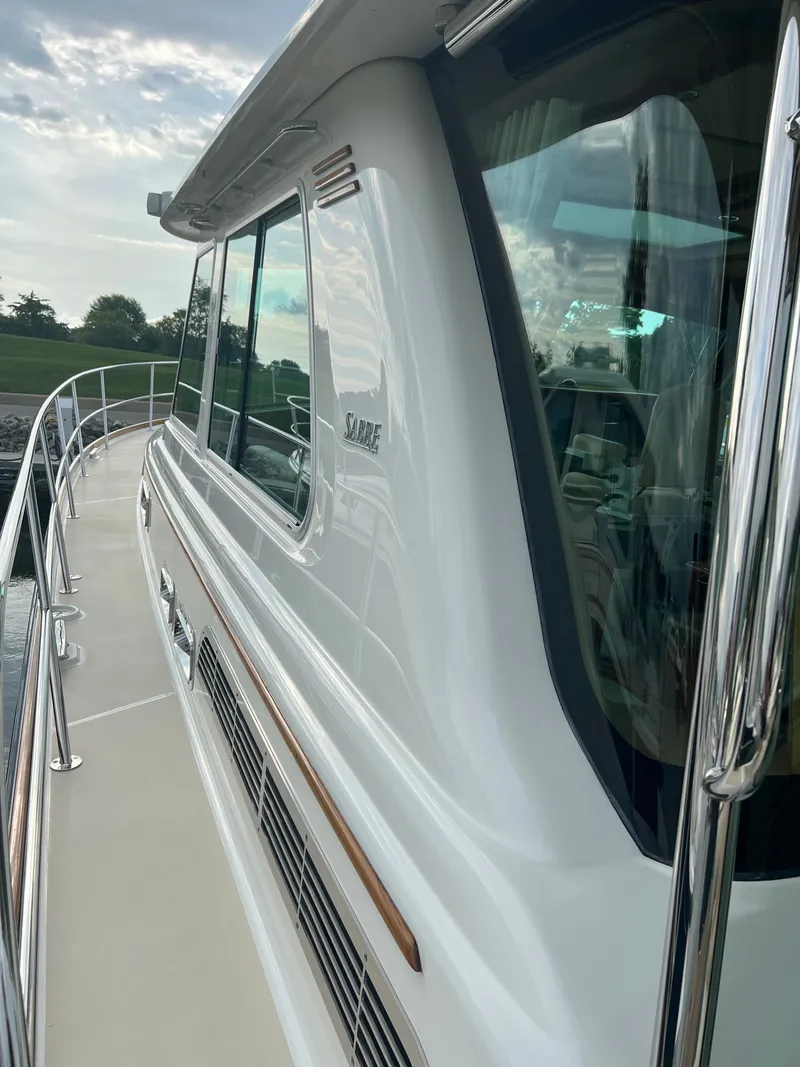

- Sliding windows in salon on cabin sides.
- Electric opening window in salon aft bulkhead.

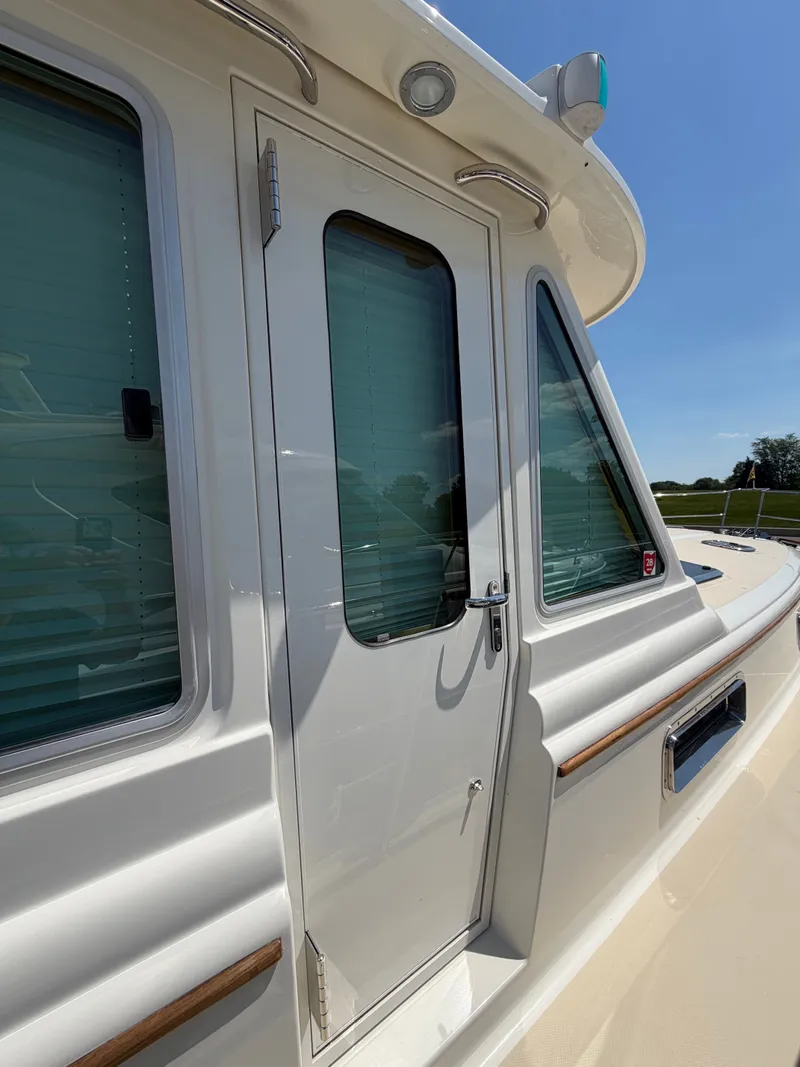

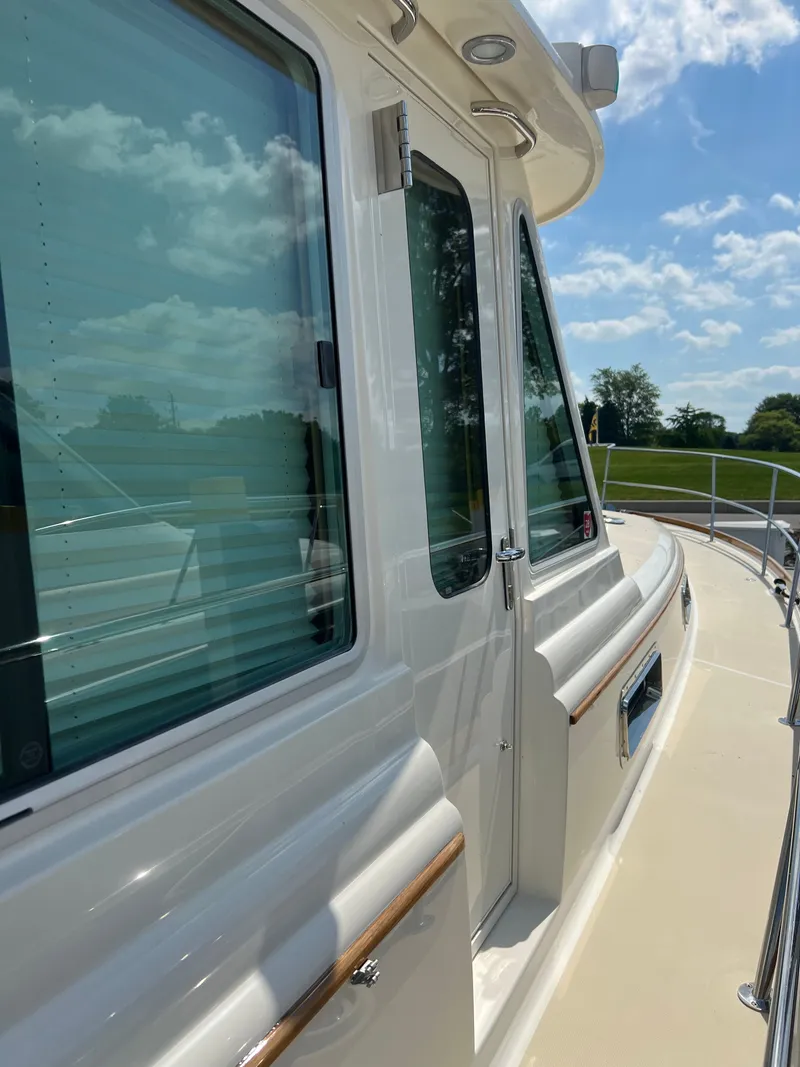

- Hinged access door to side deck at helm.
- Flush, outward opening, transom door with latch.
- Anchor locker with slam latch.
- Large lazarette/engine room access hatch in cockpit sole with - Integrated Sure Shade system over cockpit
DECK HARDWARE
- 1 1/4" Diameter type 316 stainless steel perimeter rail system.
- (8) 12” Stainless steel cleats (2 fwd, 4 mid ship, 2 in aft cockpit).
tunnels.
with Corecell SAN foam core.

- ISO NPG gelcoat.
- VIP resin infused biaxial E-glass with balsa core.
- Molded-in anti-skid deck surfaces.
- Companionway door to port.
- Sliding windows in salon on cabin sides.
- Electric opening window in salon aft bulkhead.
- Hinged access door to side deck at helm.
- Flush, outward opening, transom door with latch.
- Anchor locker with slam latch.
- Large lazarette/engine room access hatch in cockpit sole with compression latches. - Integrated Sure Shade system over cockpit.


- 1 1/4" Diameter type 316 stainless steel perimeter rail system.
- (8) 12” Stainless steel cleats (2 fwd, 4 mid ship, 2 in aft cockpit. - (1) 10” Stainless steel cleat to starboard of windlass as anchor rode tie off.
- (4) Custom cast stainless steel mid-rail line chocks.
- (2) Custom cast stainless steel skene chocks forward.
- (2) Stainless steel bollard style mooring cleats aft
- (2) Stainless 12” cleats on cockpit coaming on centerline

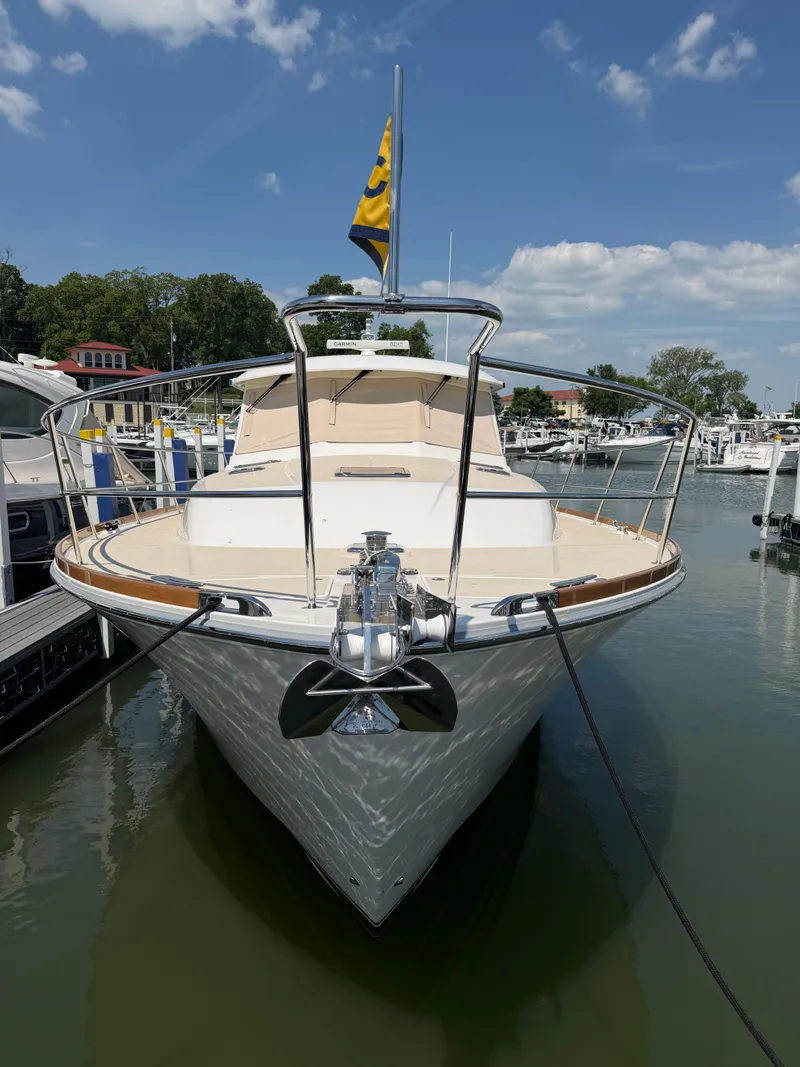

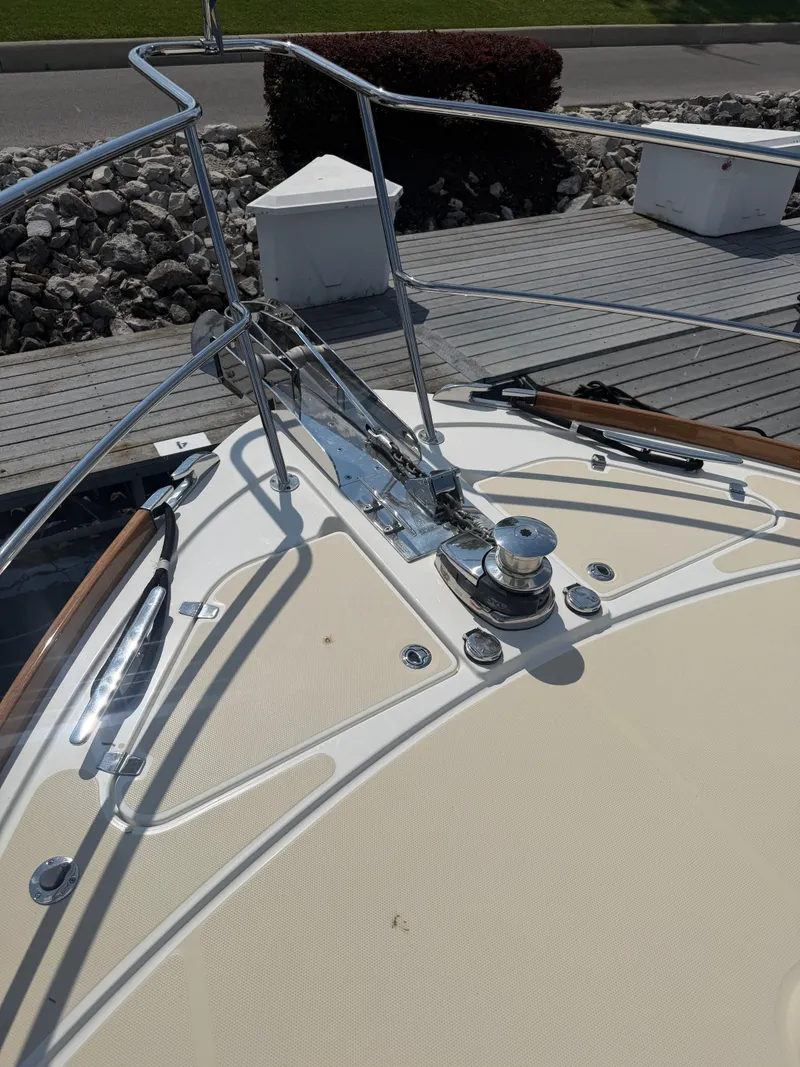

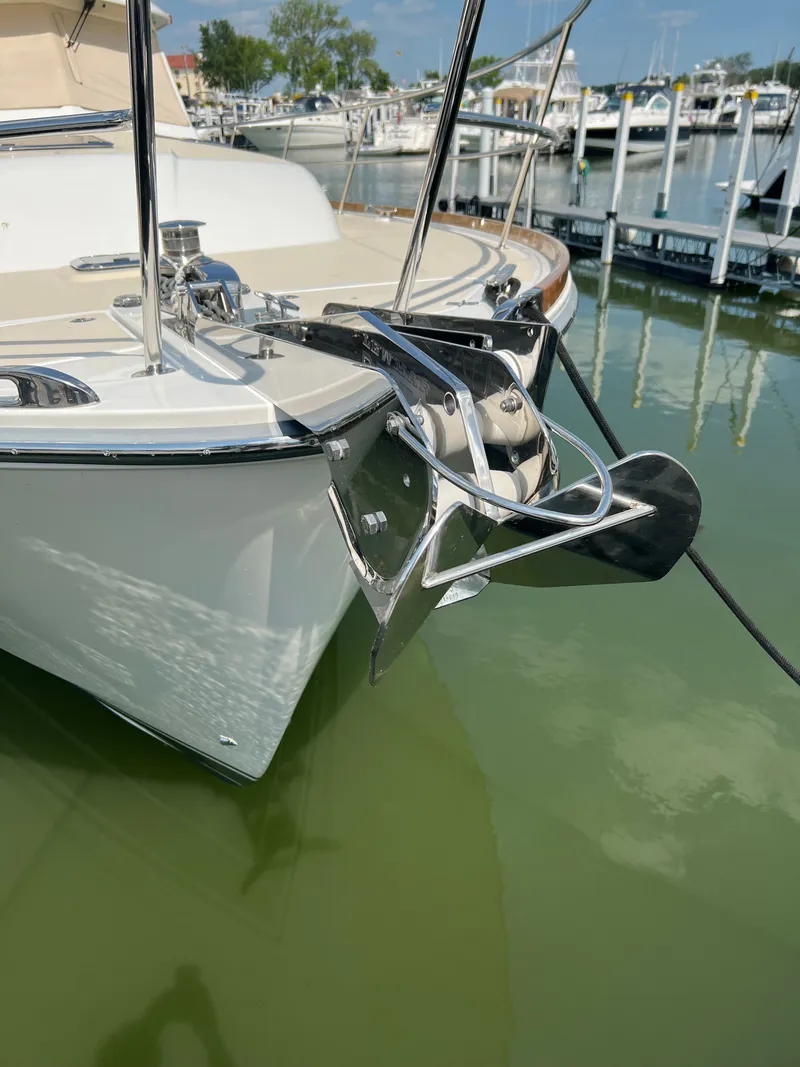

- Custom stainless steel bow pulpit with dual anchor roller for 44# CQR or Delta anchor and “lunch hook”
.
- Quick anchor windlass, electric rope-chain type.
- Flag staff and socket on taffrail.
- Burgee staff on bow pulpit.
- (6) Low Profile stainless steel hatches w/screens.
- (6) Custom stainless steel opening port lights.

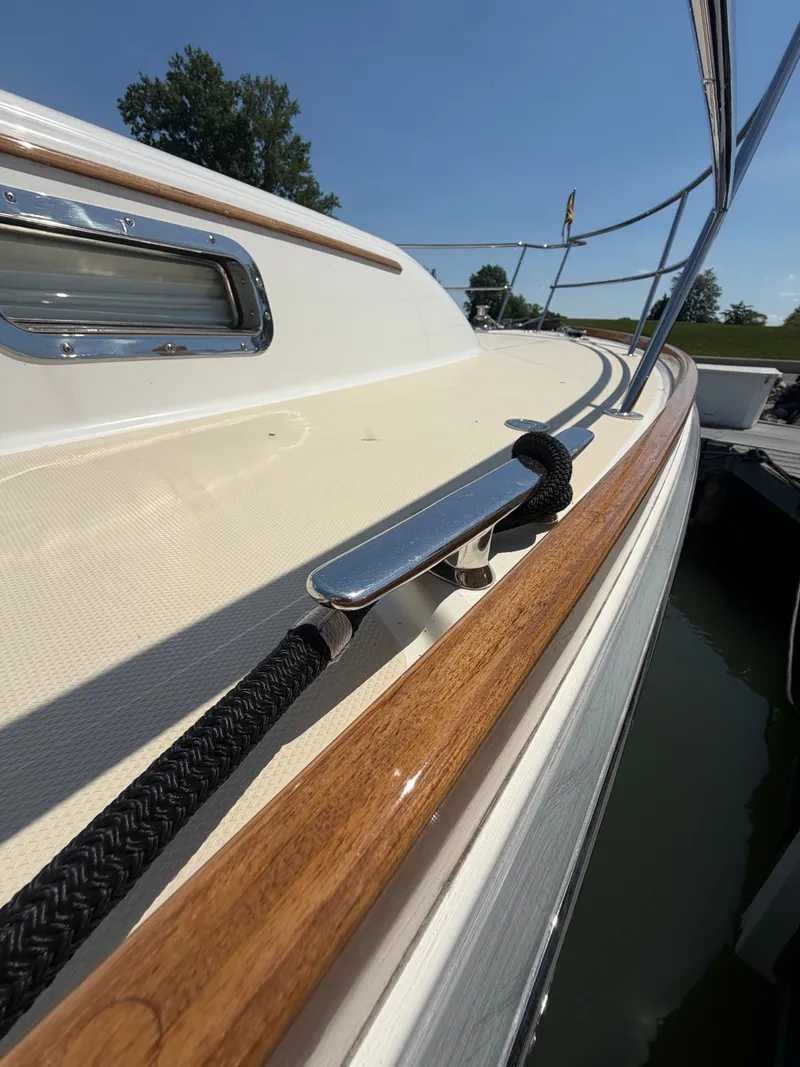

- Teak toe rails.
- Teak cabin side eye-brow.

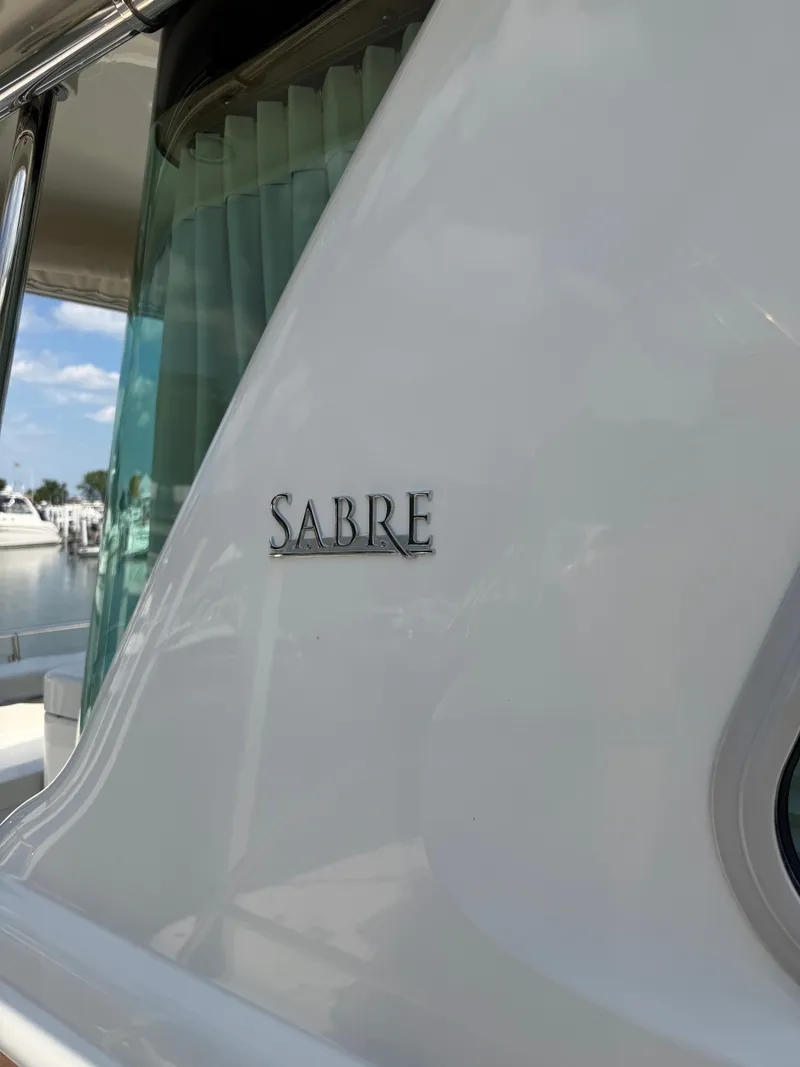

- Custom cast stainless steel “SABRE” medallion.

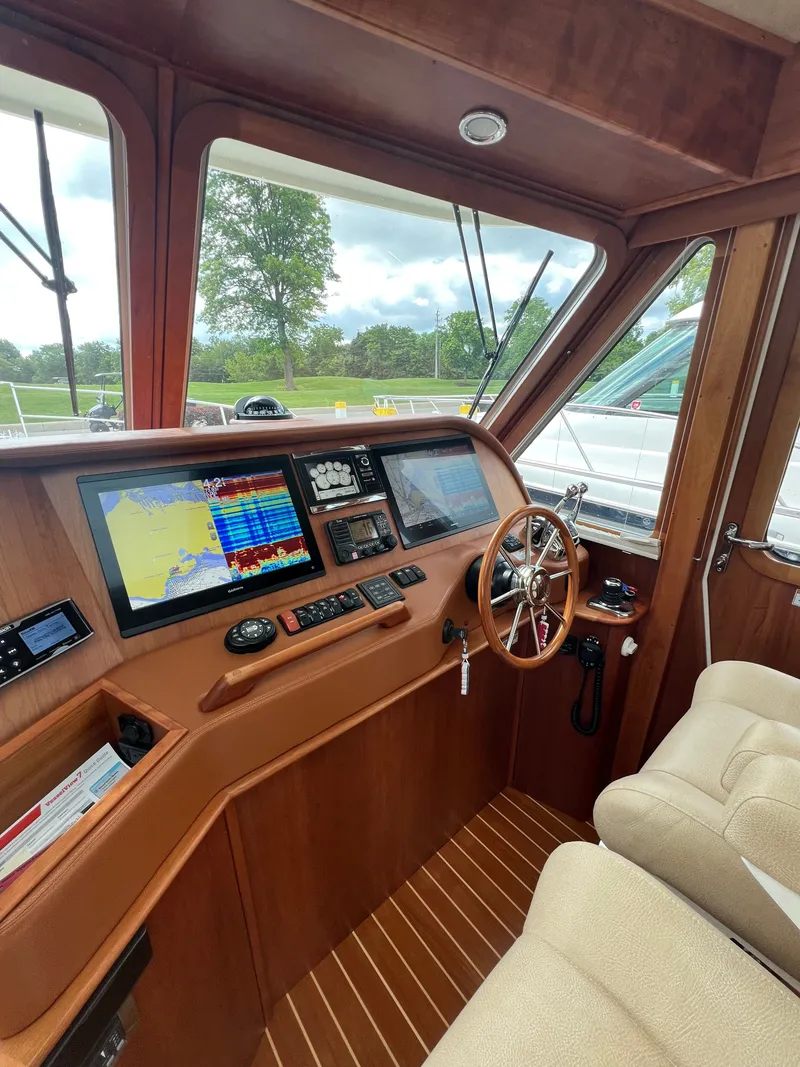

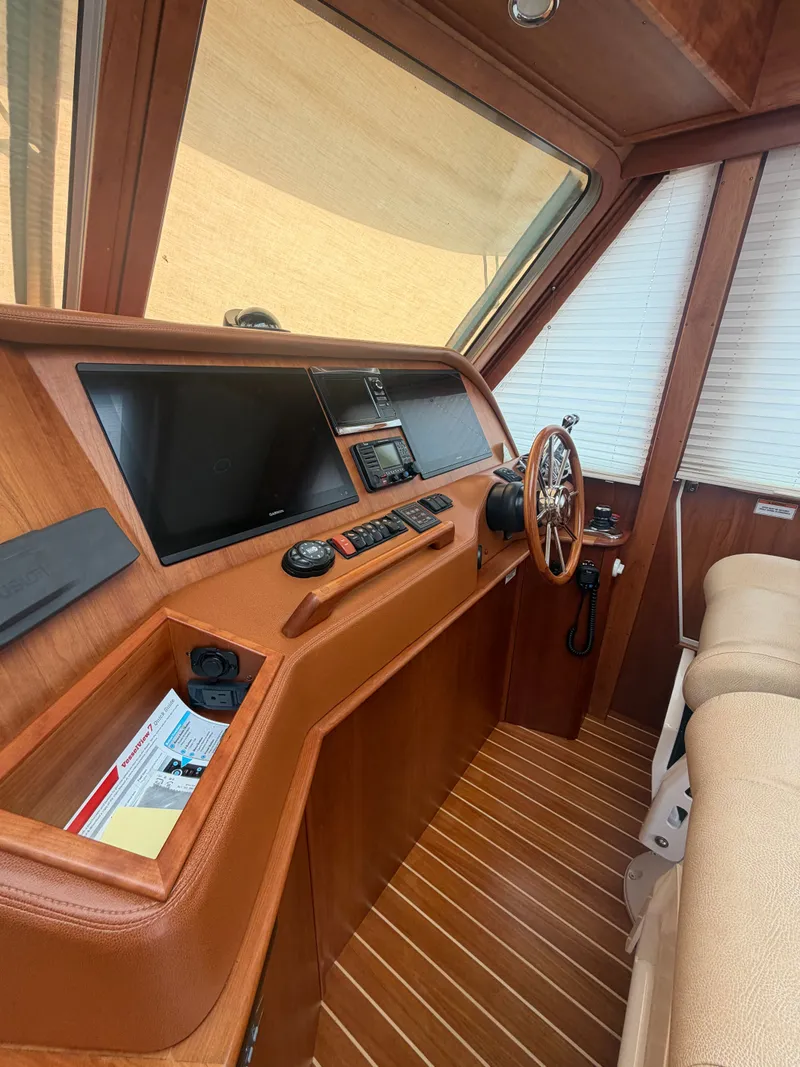

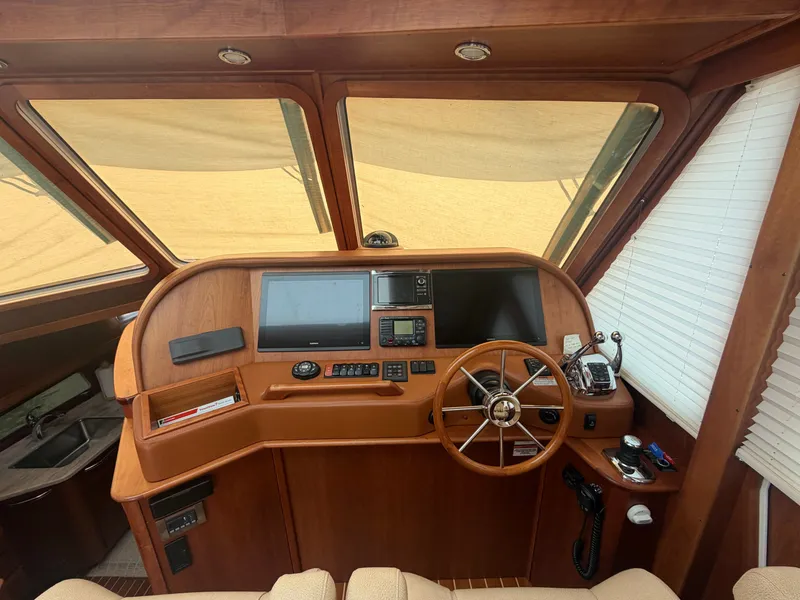

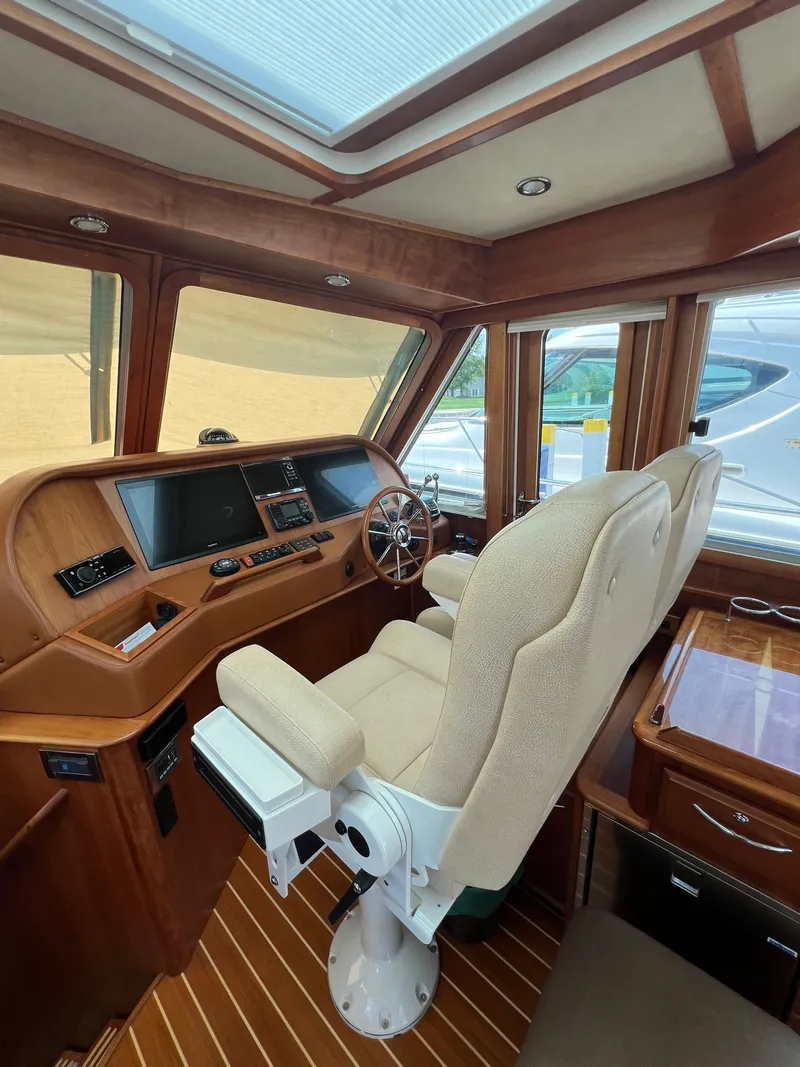

- Cummins DTS single lever electronic controls.
- Cummins Smart Craft display (engine data, tank levels, vessel data, alarms).
- Triple windshield wipers with washers.
- Ritchie Compass.
- Switch controls for horn, running lights, anchor light, engine room blower   and optional equipment. - Stazo 400 mm custom teak steering wheel with tilt helm and Sabre logo.

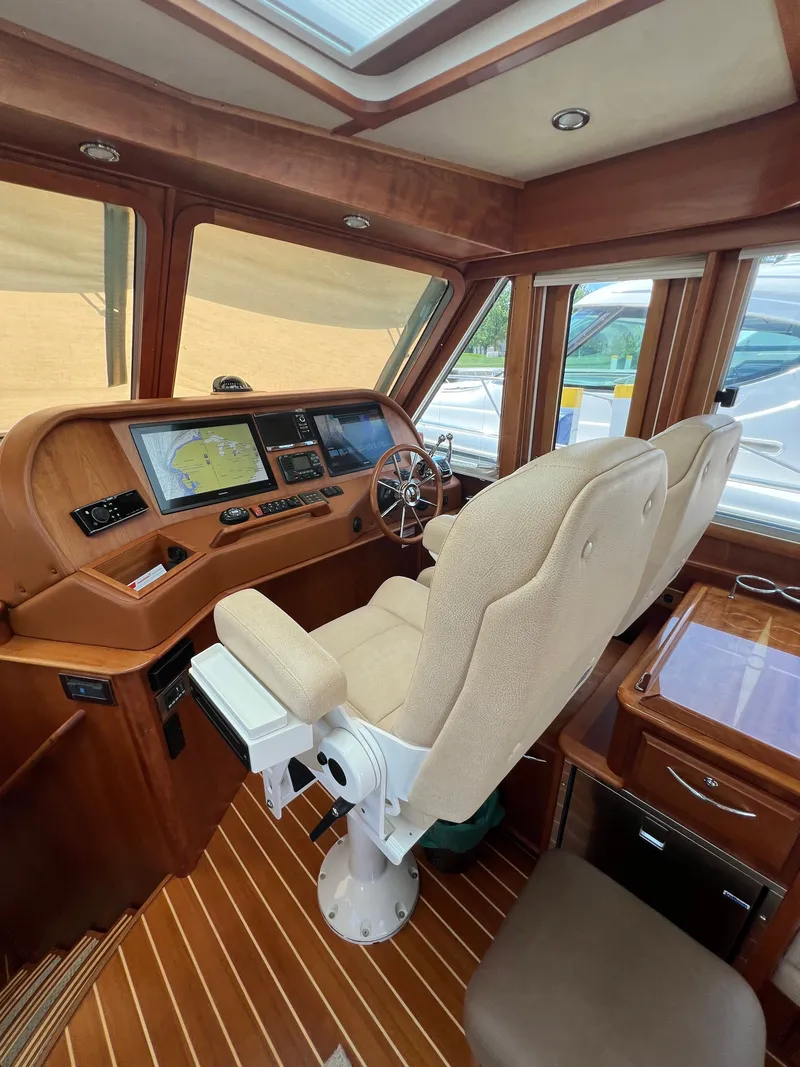

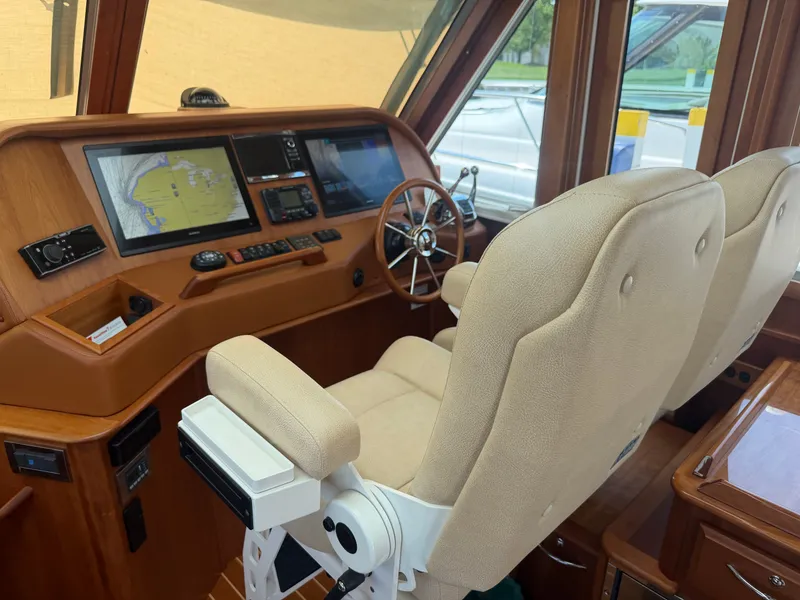

- (2) Stidd N Series helm seats with Ultraleather fabric, mounted on a box

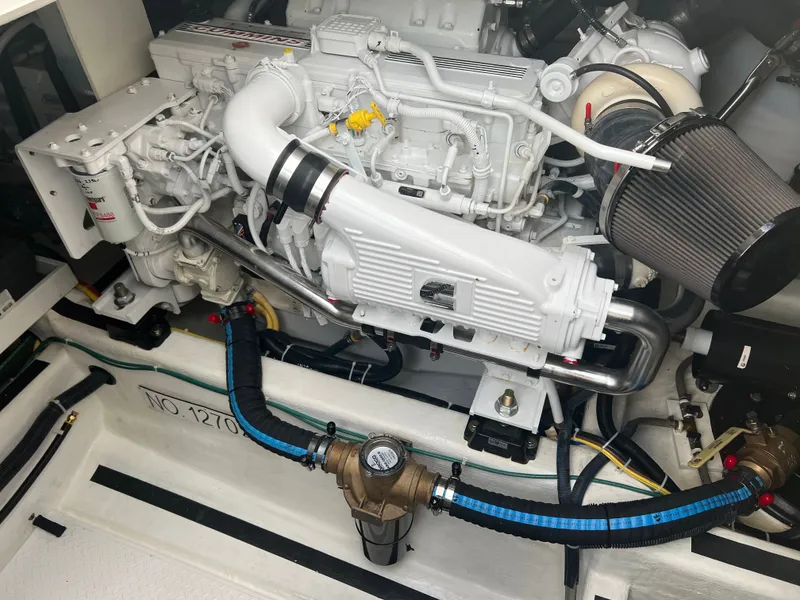

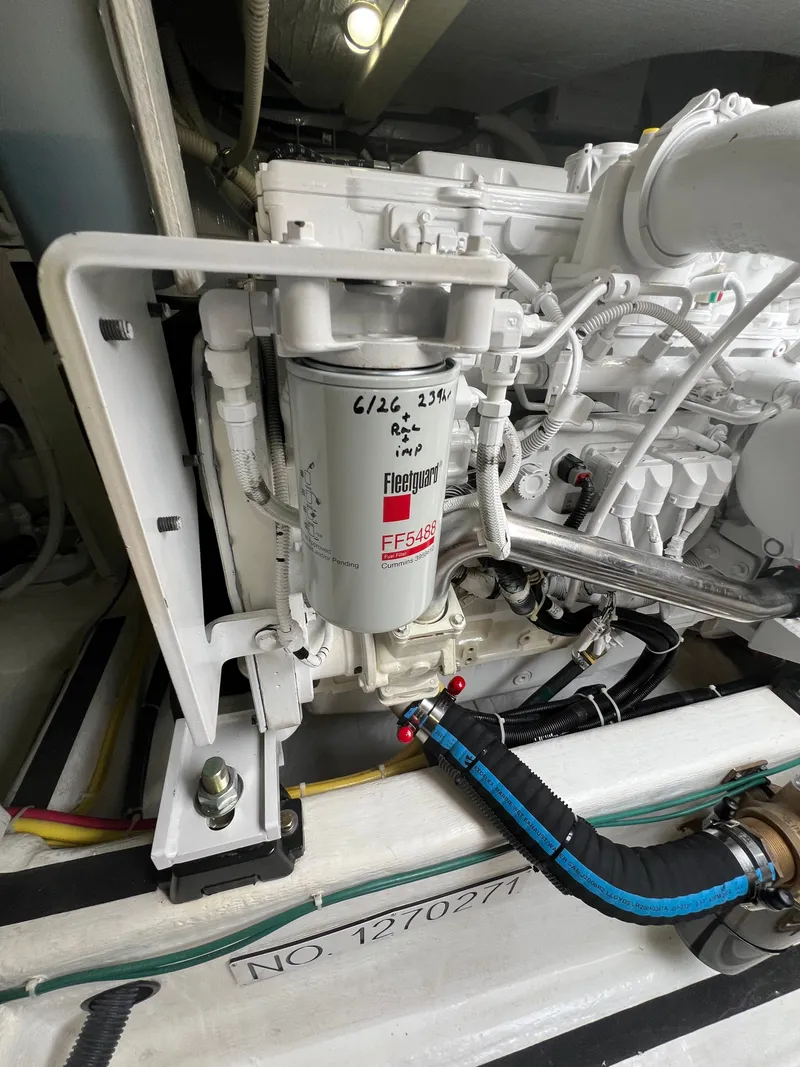

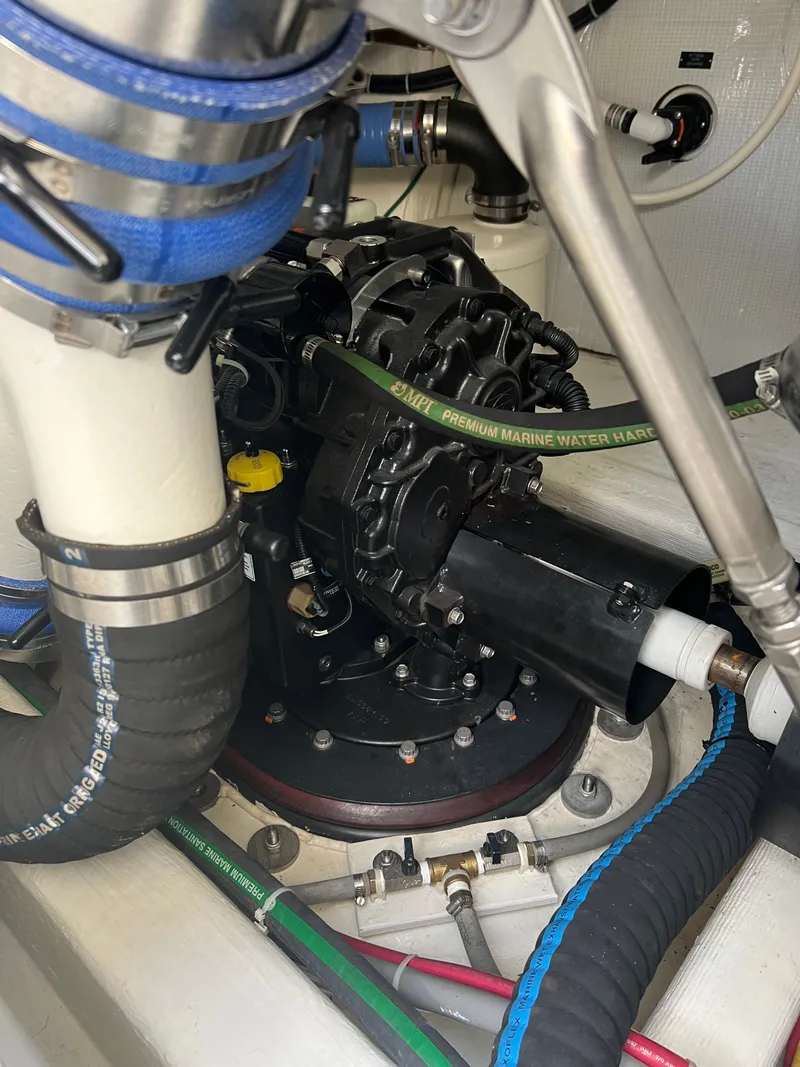

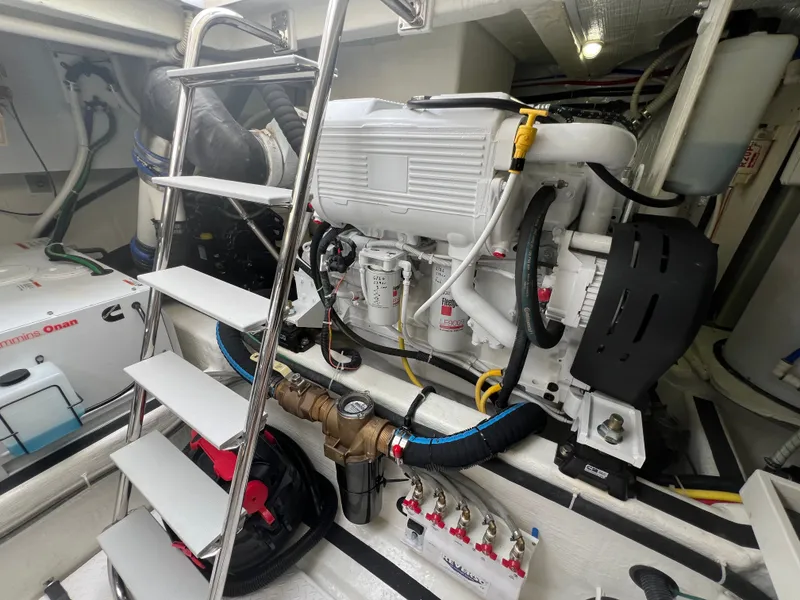

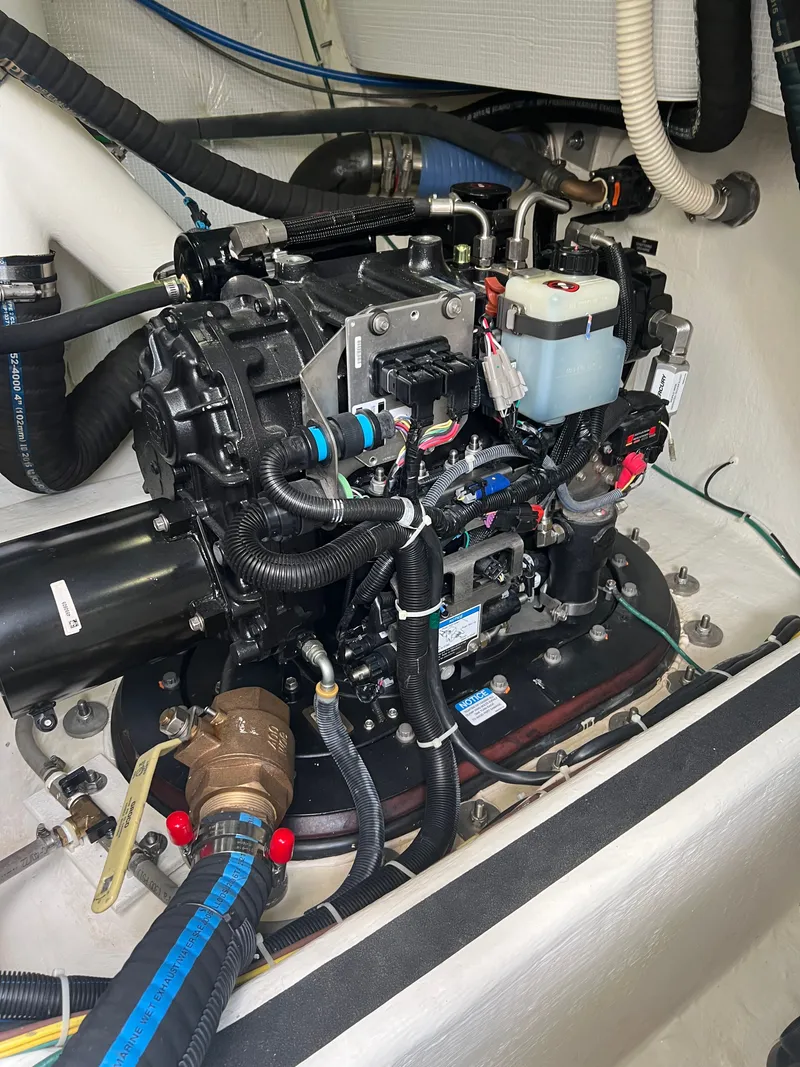

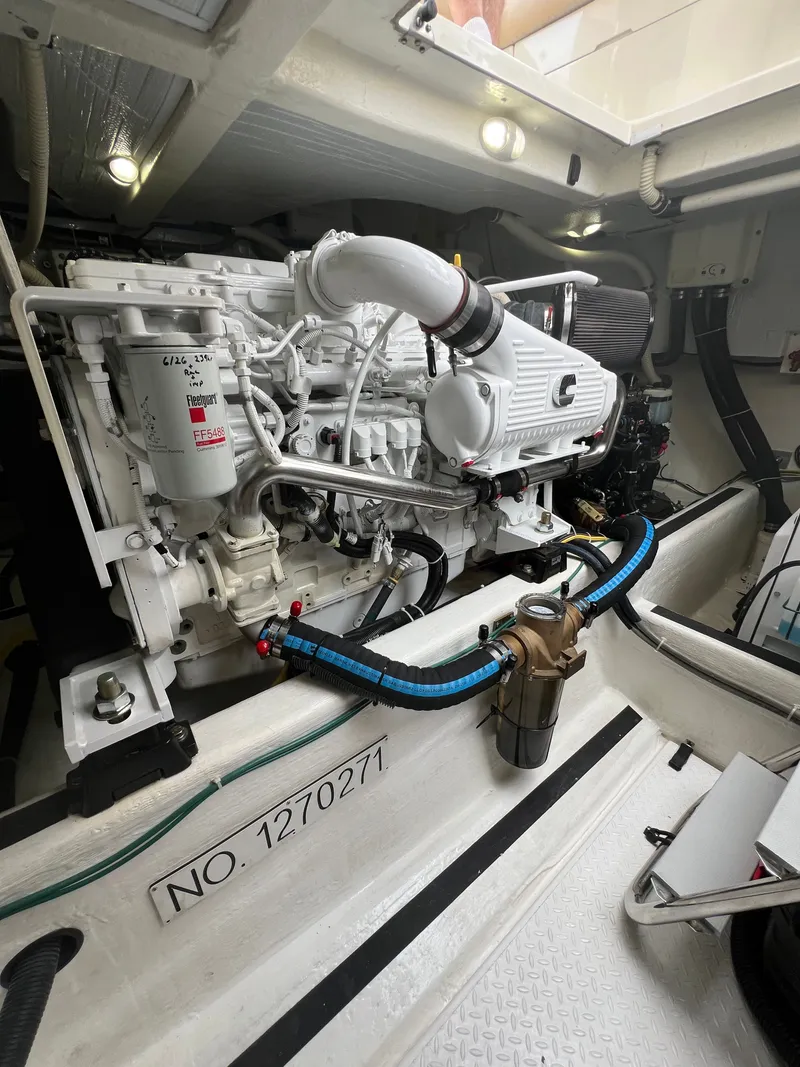

 Twin Cummins QSC 8.3 550 hp electronic, fresh water-cooled engines with Zeus 3800 pod drives, with integrated steering and trim
- 120A, 12V alternators each engine.
- (2) Exhaust by-pass mufflers.
- Engine room blower.
- Engine room vent ducts.
- Engine room floor with FRP anti-skid.
- White gelcoated engine room
- Mylar face foam noise barrier.

- (2) 260 USG diesel fuel tanks port and starboard.

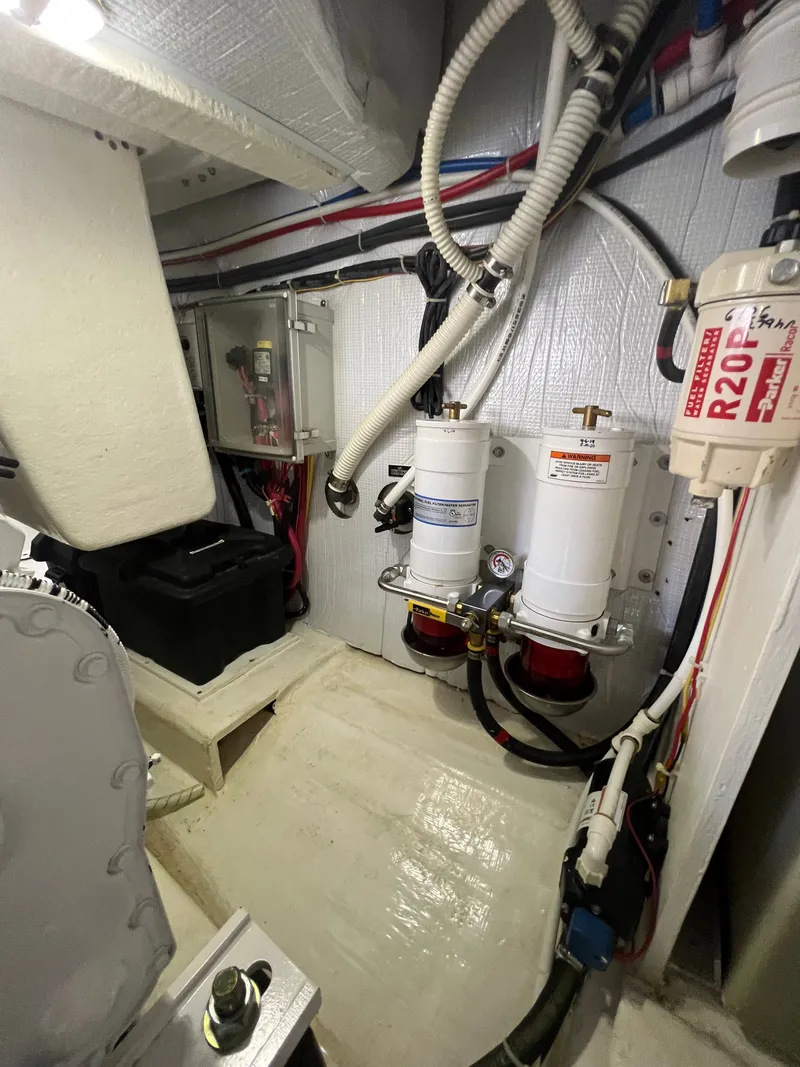

- Dual Racor fuel filters with water in fuel probes.
- (2) 2” “Diesel” deck fill plates.

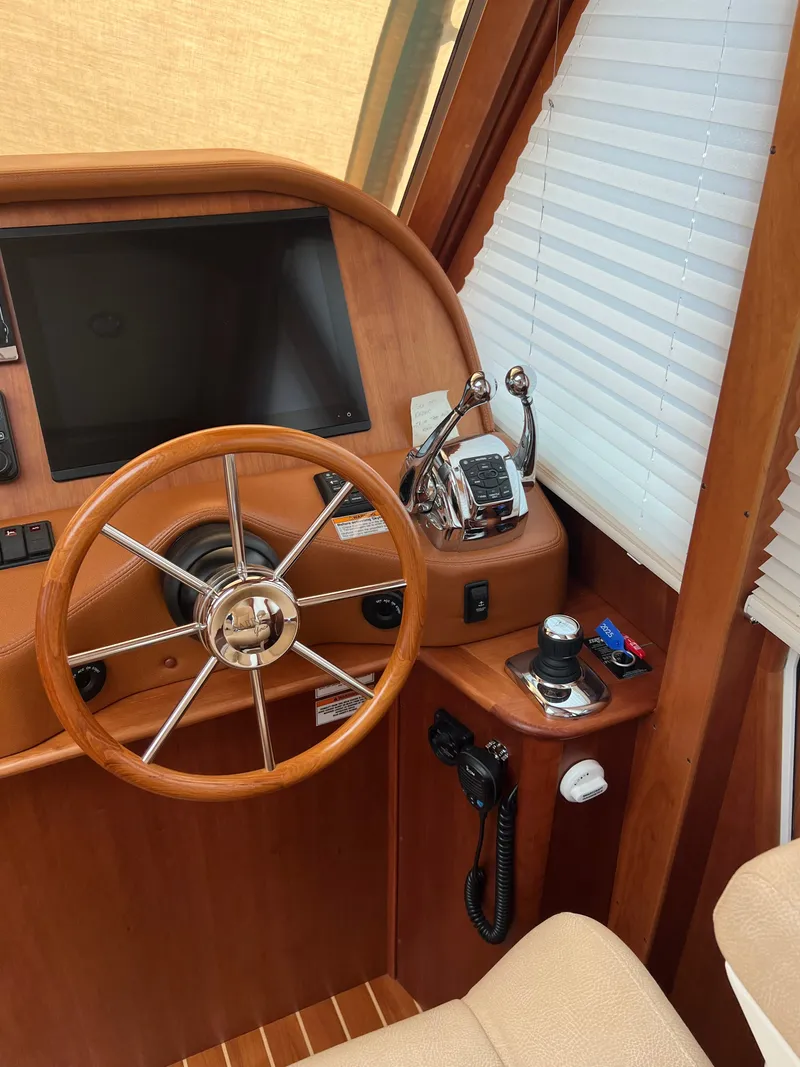

CMD helm, with joystick.
- Trim tabs integrated in CMD Zeus pod drives.
- Autopilot integrated in CMD Zeus system.
- “Skyhook” GPS position hold system with dedicated GPS receiver.

- Two AGM Group 31 dedicated engine start batteries.
- Three AGM 4D deep cycle ship's service batteries.
- One AGM Group 24 generator start battery.
- Remote control battery switches with controls at helm.
- Manual emergency battery crossover switch.
- Illuminated main circuit breaker distribution.
- Digital battery monitor.
- Lighting:
St. Maarten amber cabin reading lights.
High output LED lights in the overhead.
LED strip lighting in appropriate locations.
LED engine room lighting.
Tri-color lights over helm station, red, white blue
Cockpit courtesy lights.
- Marine-grade, tinned wire throughout.
12VDC USB chargers at helm and in all cabins

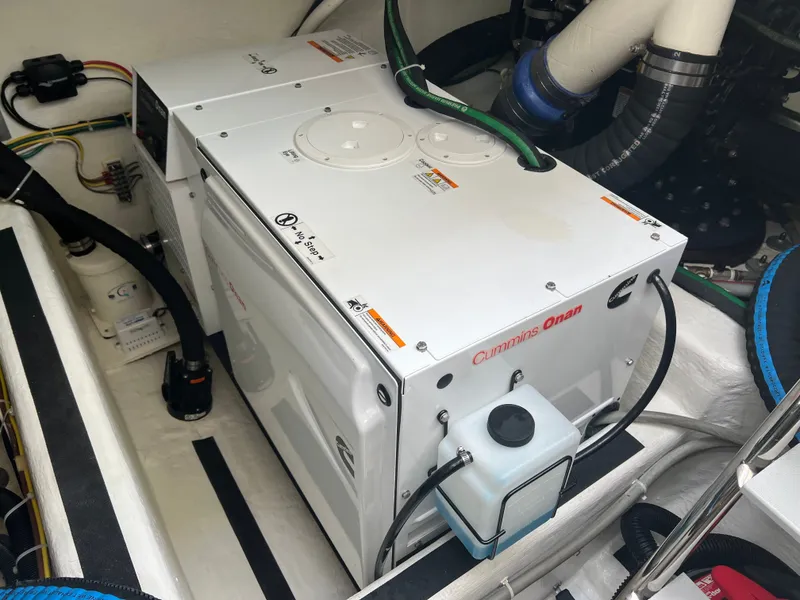

- Onan 13.5 kw generator including:
Onan E series display
Dedicated start battery.
Water drop muffler.
Cooling water intake strainer.
Sound shield. Transfer switch
- 50A shore power service with Glendinning Cablemaster & 70 ft. cord.
- Isolation transformer
- Illuminated main circuit breaker distribution panel.
- Digital AC system monitor
- 120V GFCI protected outlets in each cabin and engine room.
- 50amp, 3-bank battery charger
- Reverse cycle heat/ air conditioning in (3) zones

- Hull side deadlight over head board
- Shoji style passageway and closet doors
- Shoji style portlight screen panels
- Cherry hull ceilings.

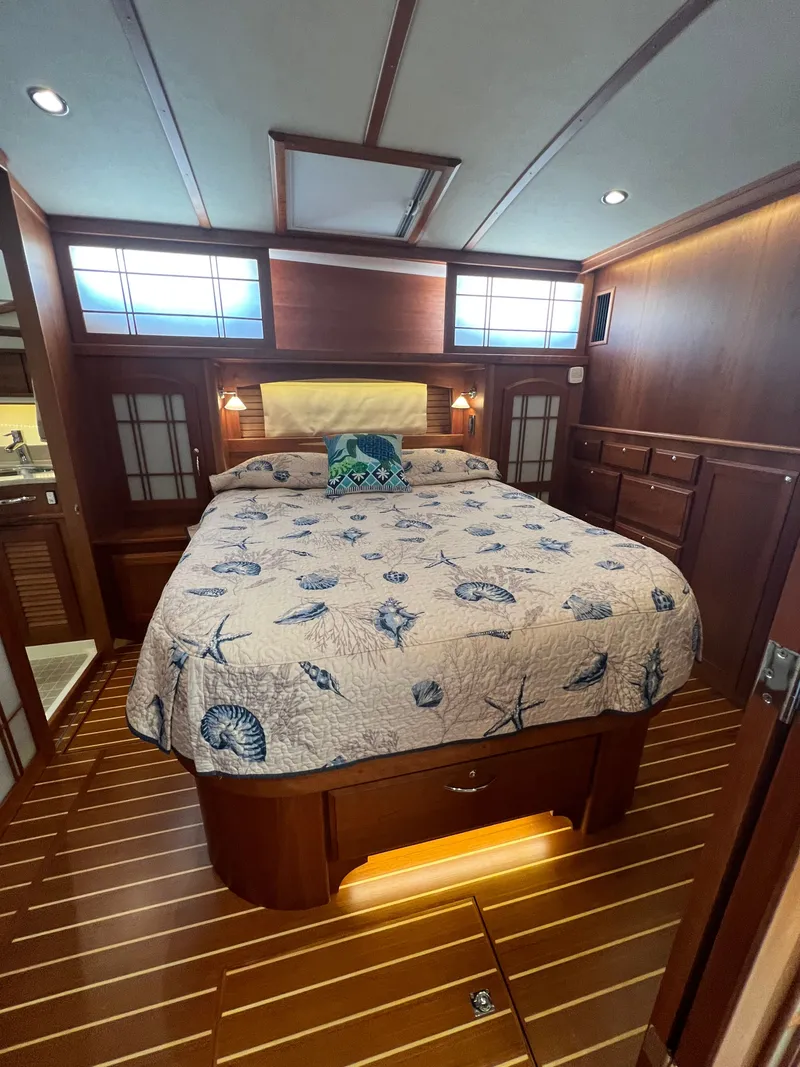

- Drawers under berth and in bulkhead aft of berth.
- (2) hanging lockers fore and aft of bed.

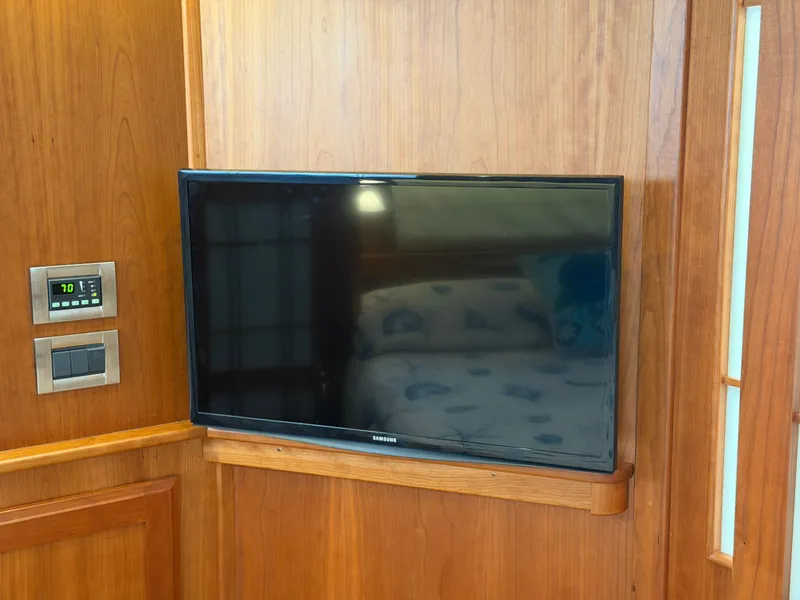

- LED flat screen TV and DVD player.
- Teak and holly sole.
- Sound deadening soft headliner panels.

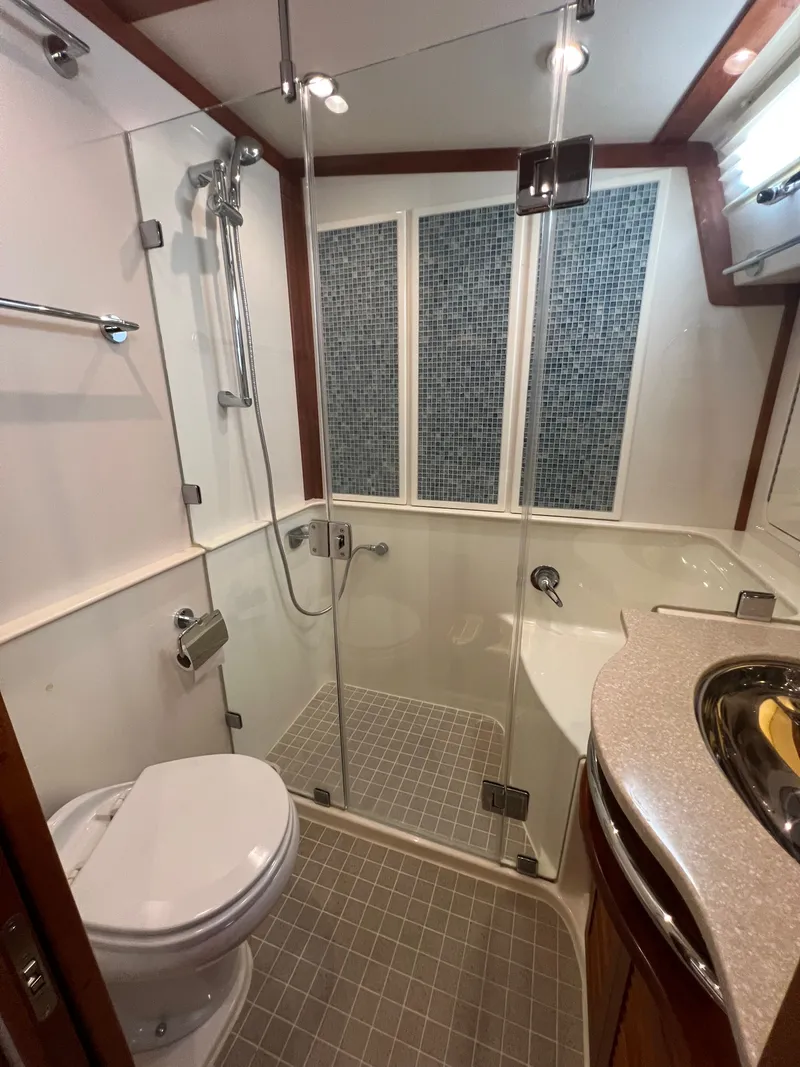

- Pocket door to master head compartment.

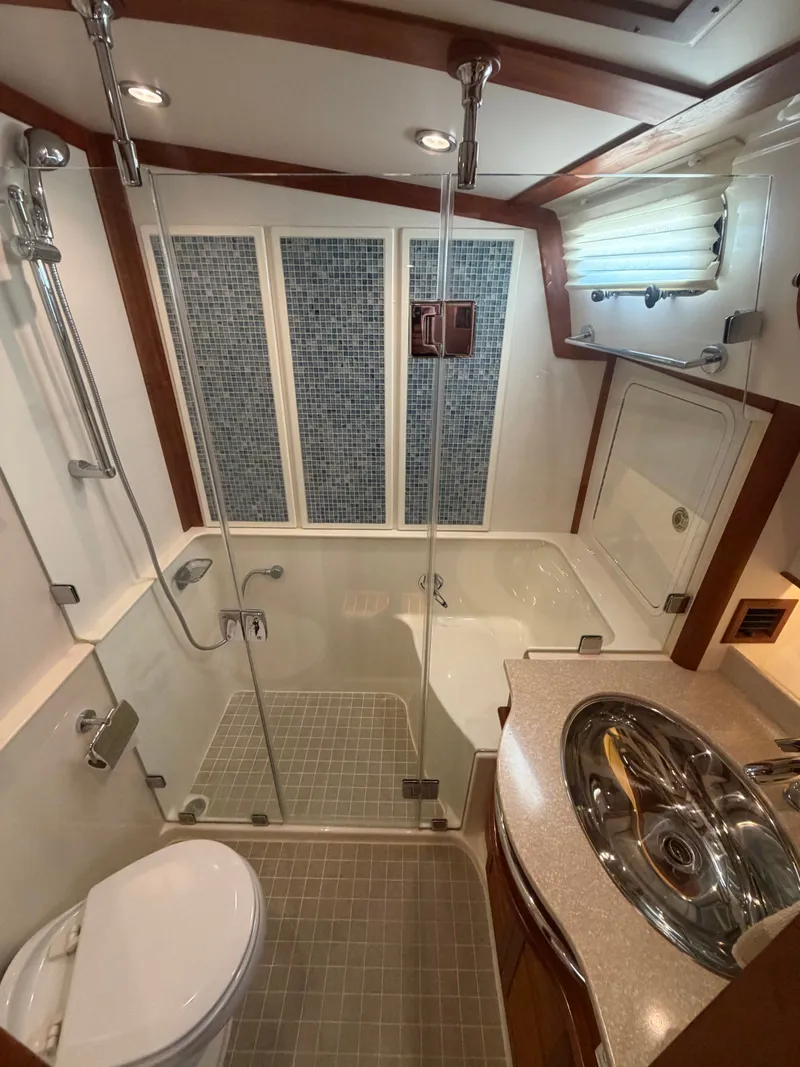

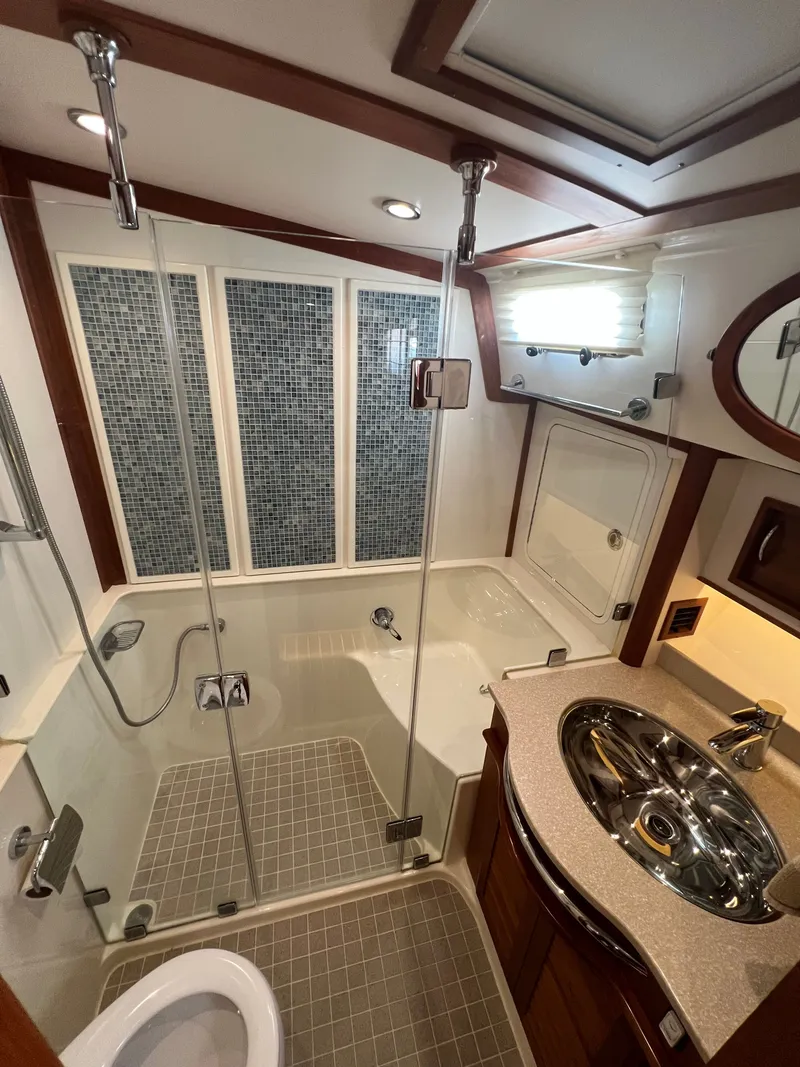

- Private access from master stateroom
- Custom tile in WC and shower sole
- Glass vessel style sink
- High gloss finish over solid cherry counter.
- Vanity cabinet below sink
- Storage outboard
- Mirror above vanity, cherry framed
- Separate shower stall with clear bi-fold enclosure and glass tile accent wall within
- Electric shower sump pump
- Opening port to side deck
- Deck hatch with blind/screen overhead
- Ventilation blower
- Stainless steel towel bars

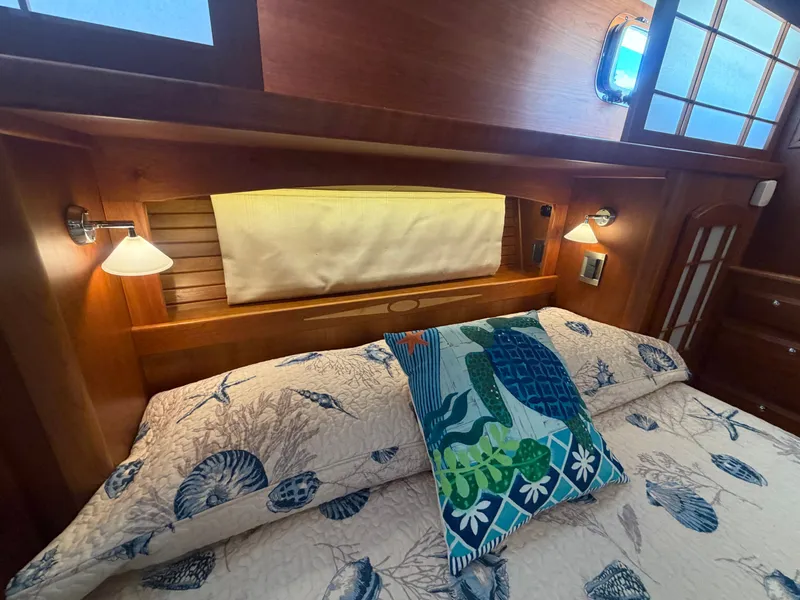

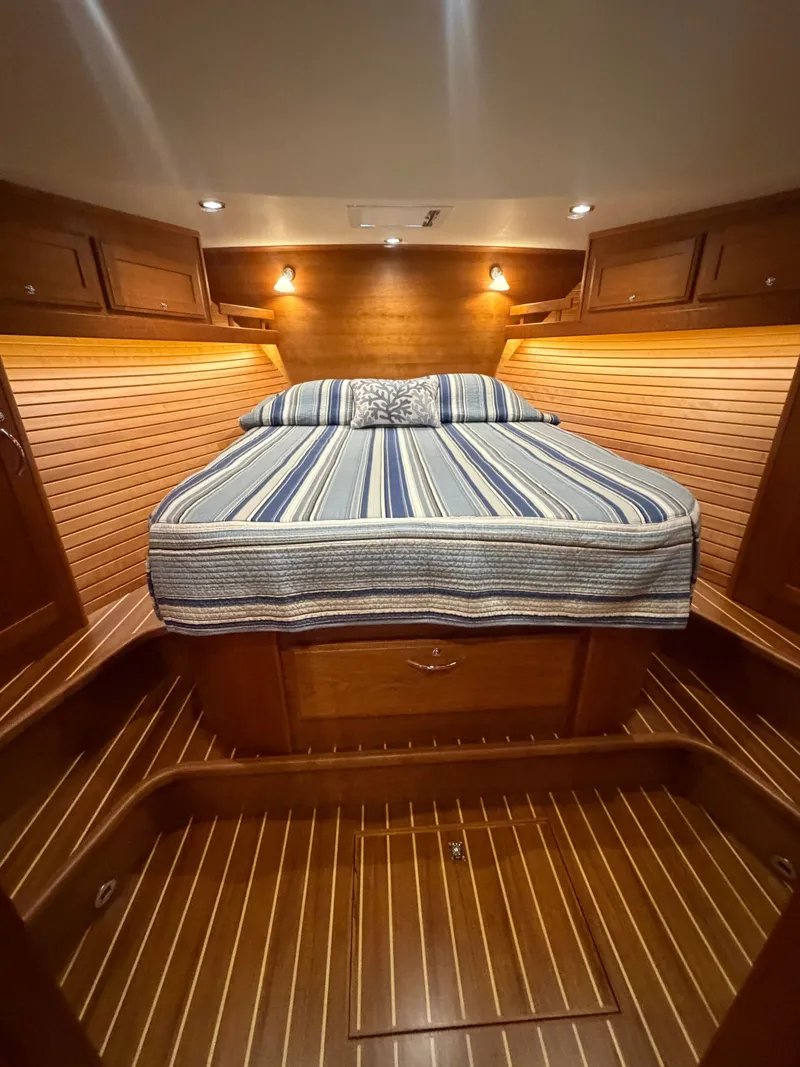

- Spacious island berth, with laminated trim.
- Cherry hull ceilings.
- Drawers under berth, A/C return grille beside.
- Storage lockers, drawers and shelves.
- Teak and holly sole.
- Sound deadening soft headliner panels.
- Pocket door to passageway.

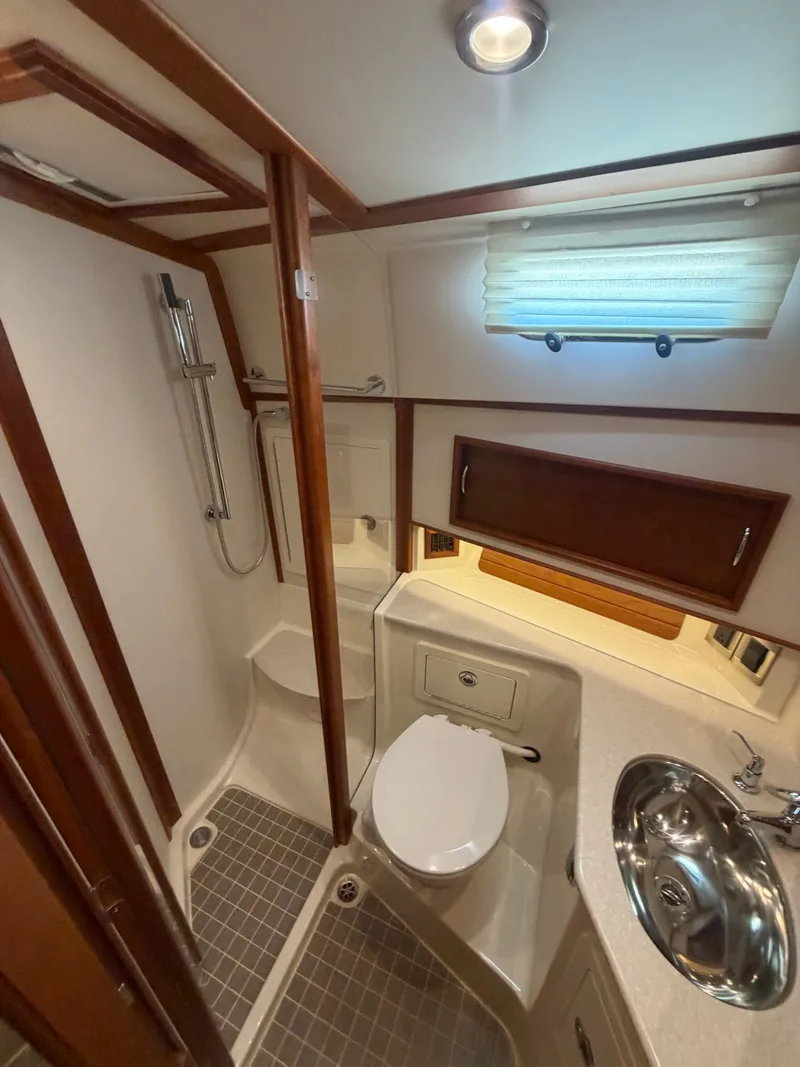

- Private access to forward head and shower

- Stainless steel under mount sink.
- Shower stall with seat and locker outboard.
- Hot and cold pressure water
- Electric shower sump pump.
- Storage lockers.
- Solid surface vanity top with bull nose.
- Towel bars
- Soap dispenser
- Cherry wood trimmed mirror over sink.
- Ventilation blower.

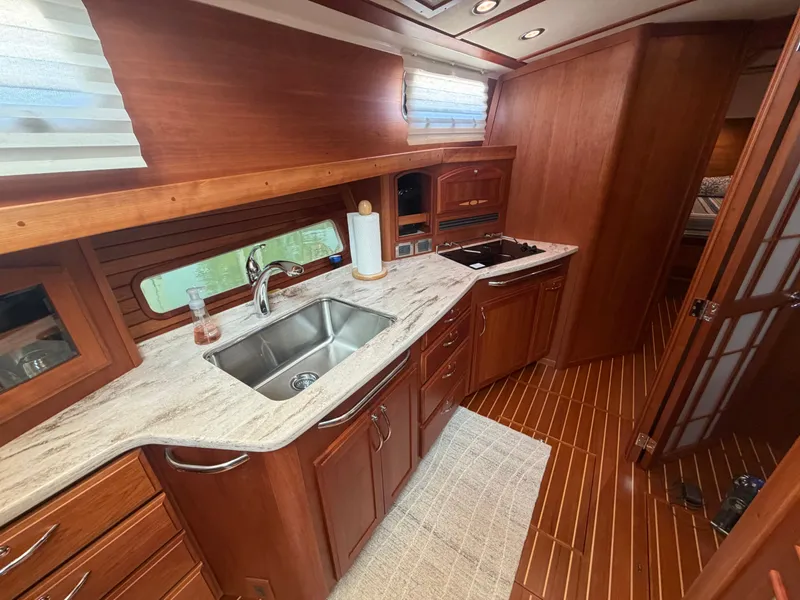

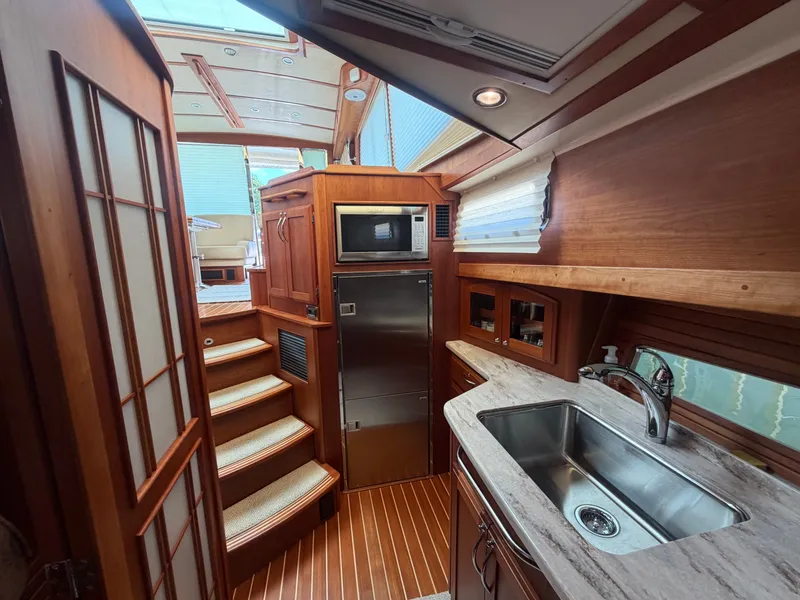

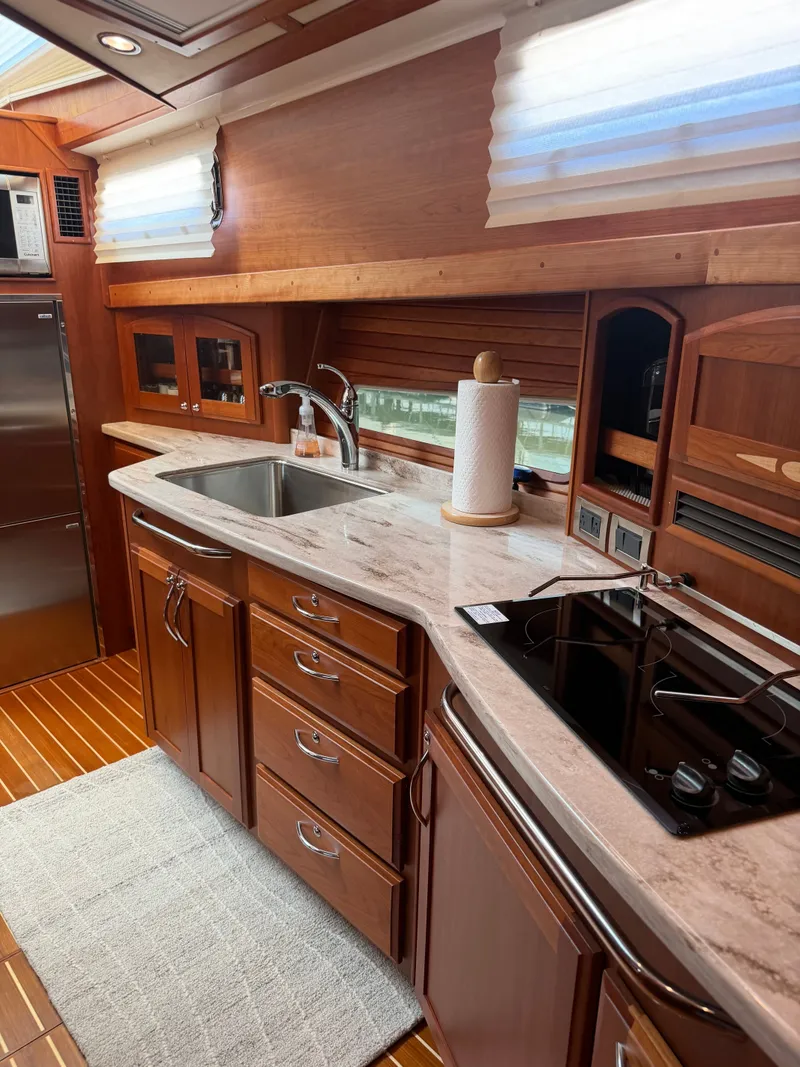

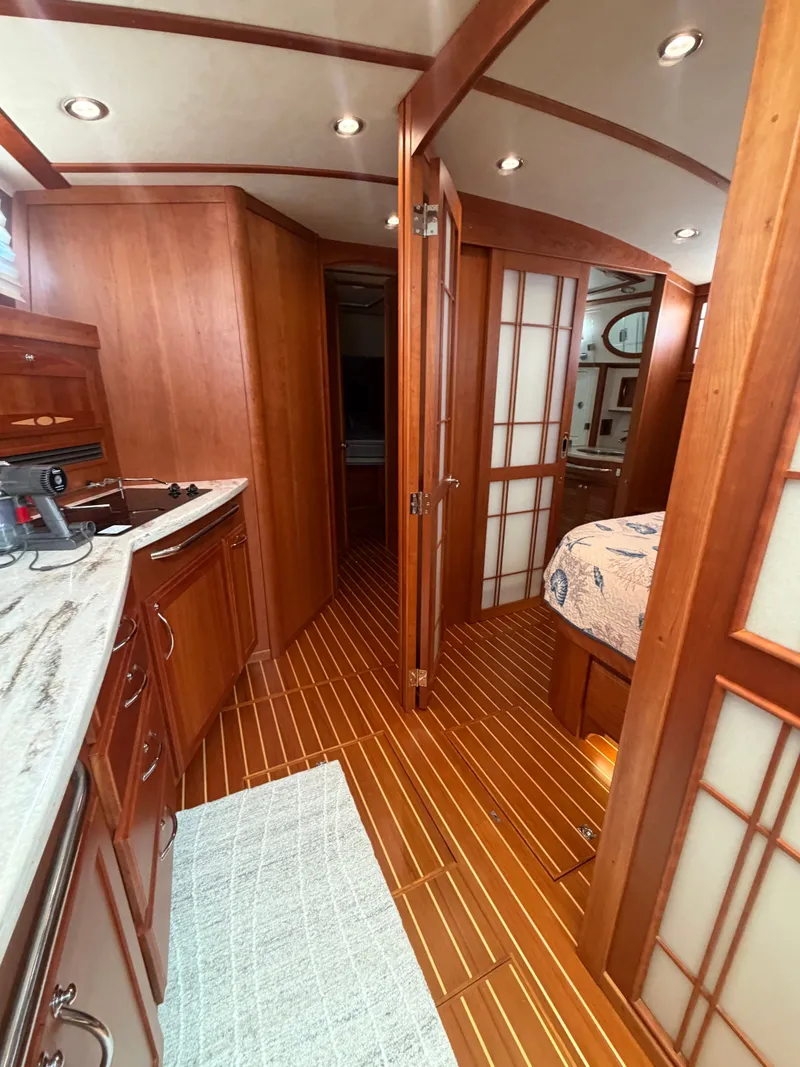

- Solid surface galley counter top.

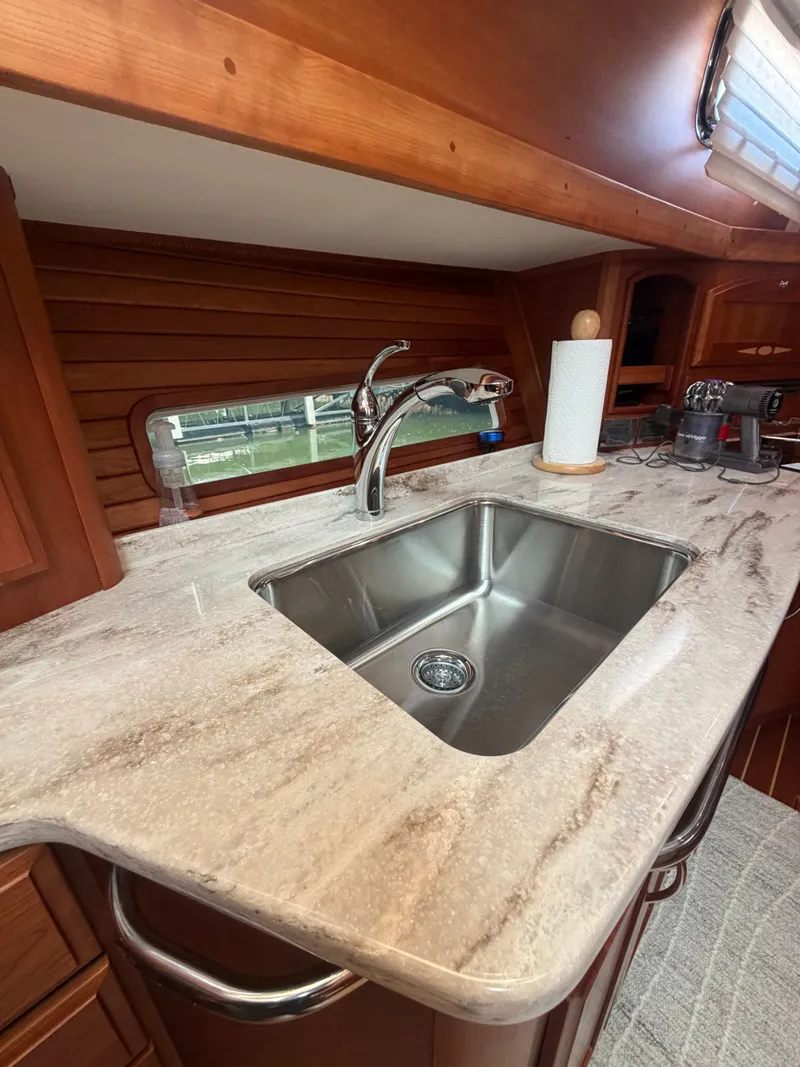

- Stainless steel under mount sink with cover and pull-out faucet
- Stainless steel under mount prep sink with cover.
- Soap dispenser
- Isotherm stainless steel stand-up refrigerator (top) and freezer
- Two burner electric cook -  - Convection microwave with stainless steel face.
- Drawers and storage lockers below counter.
- Built-in waste basket. Recycle bin below steps.

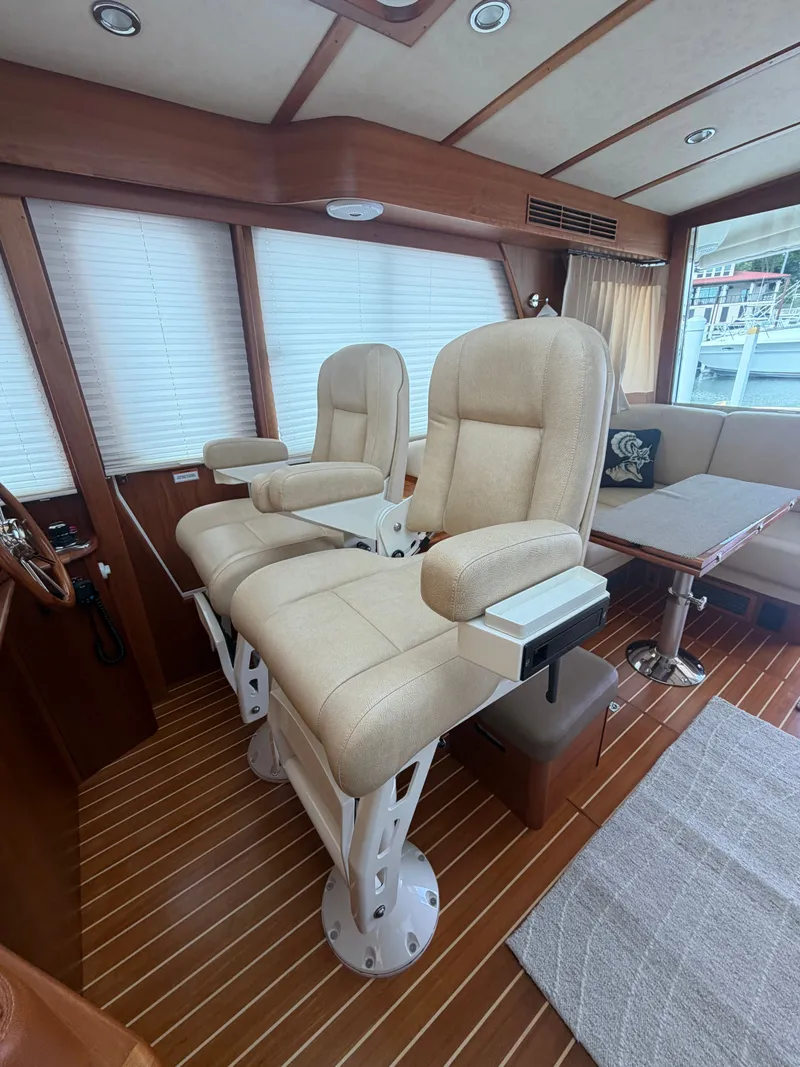

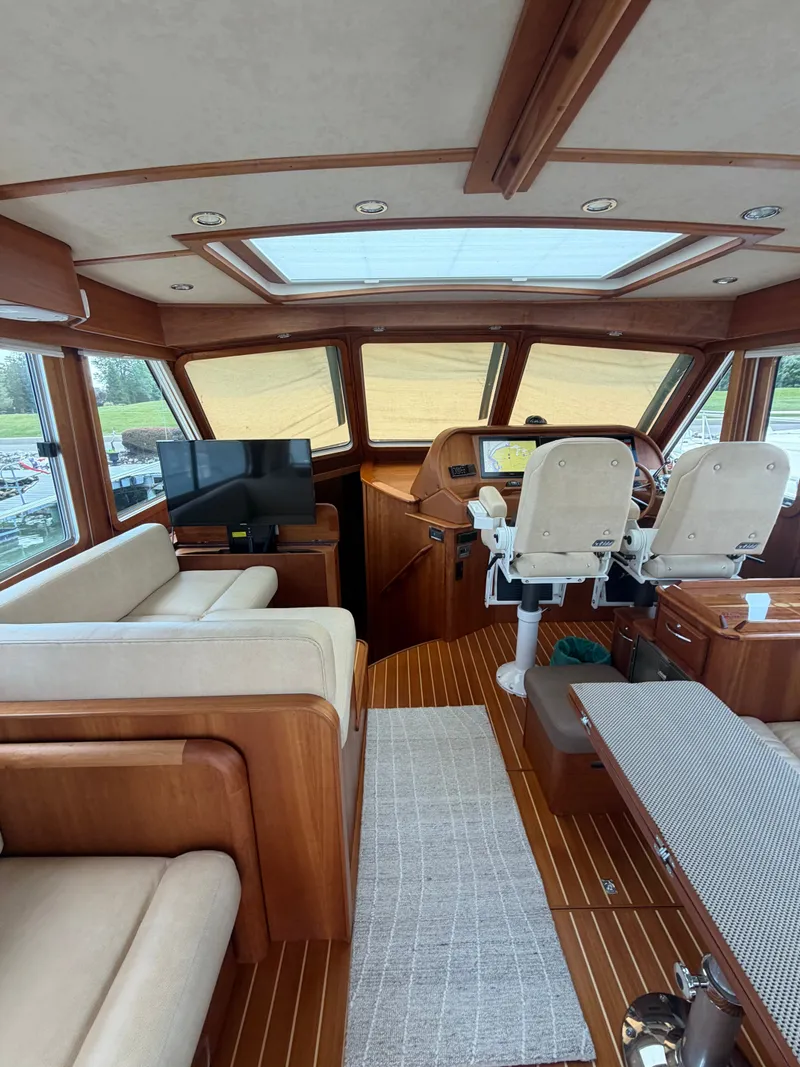

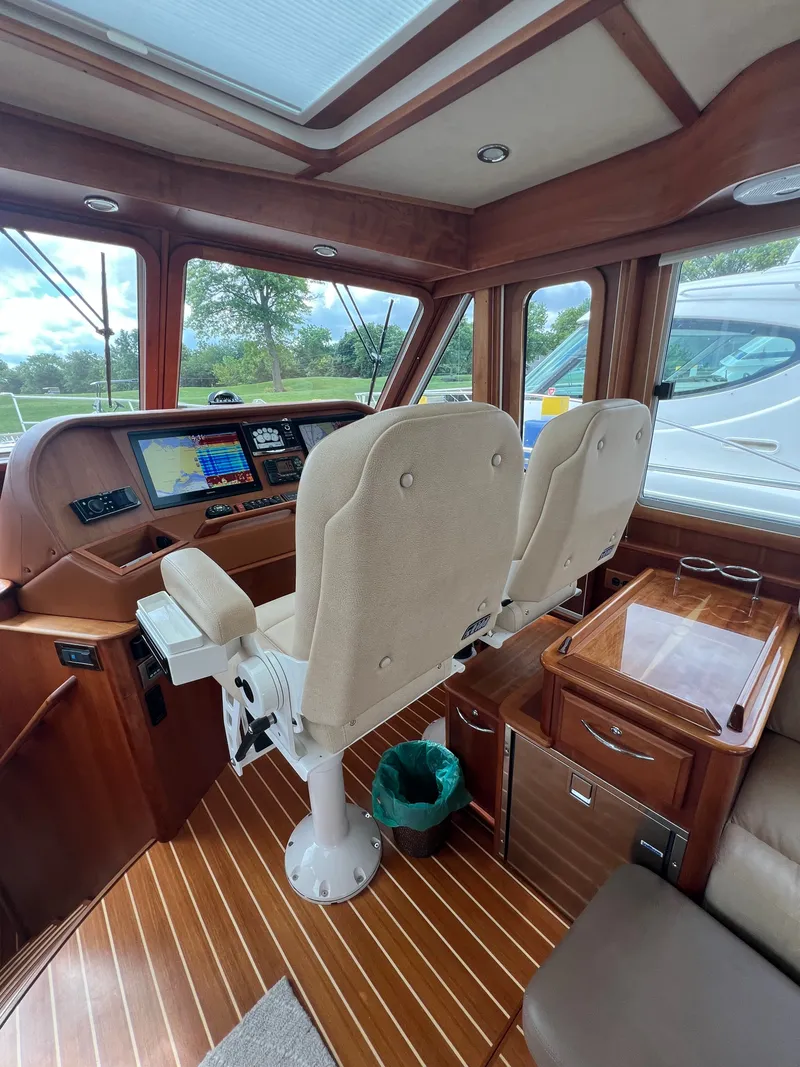

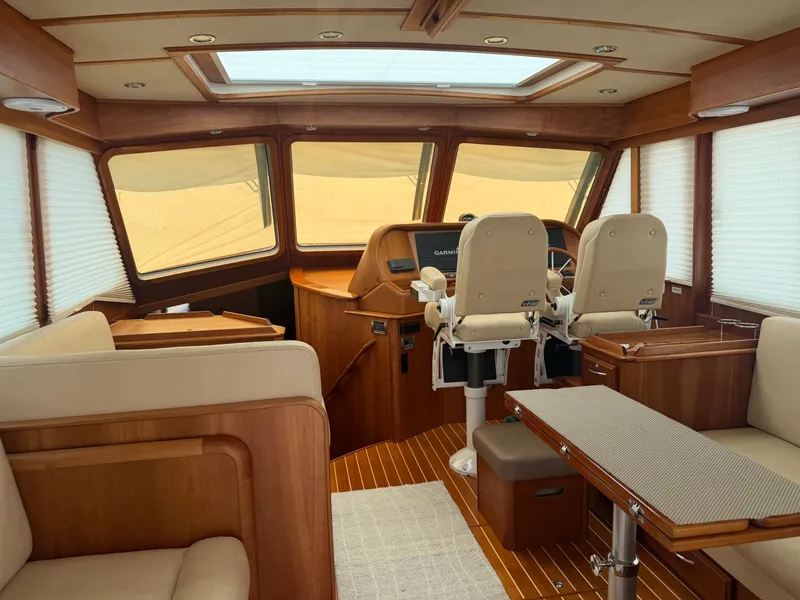

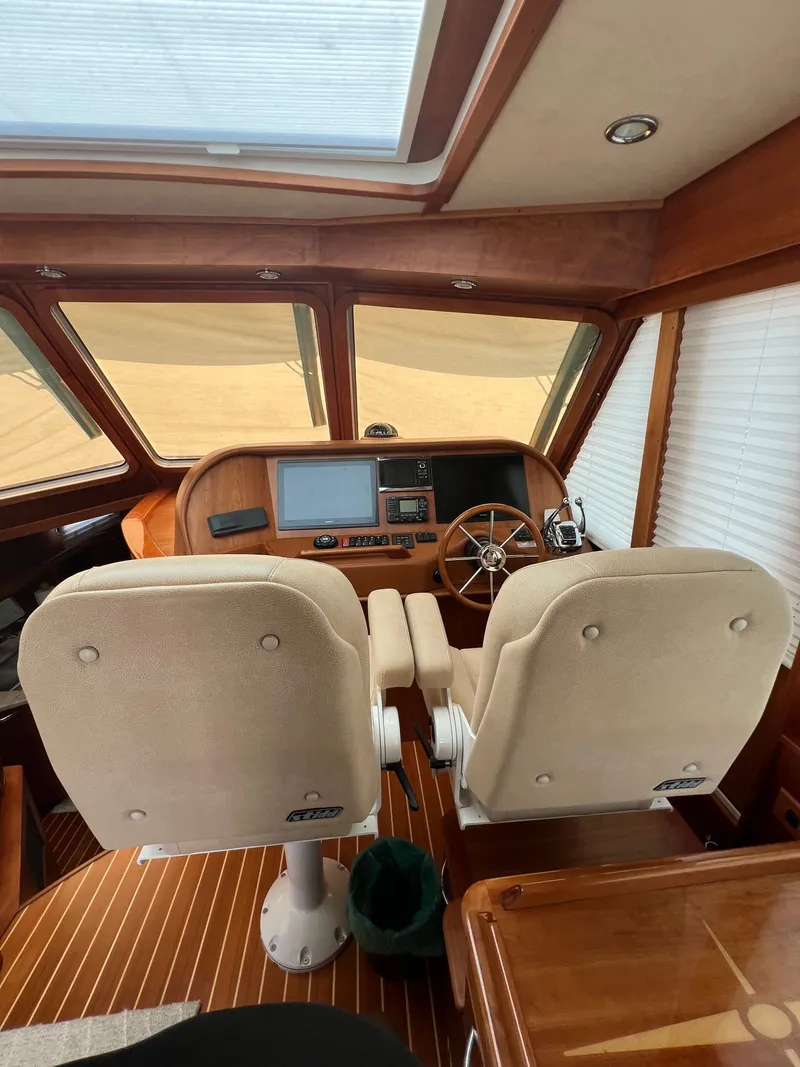

- Two Stidd N Series helm chairs mounted on a box

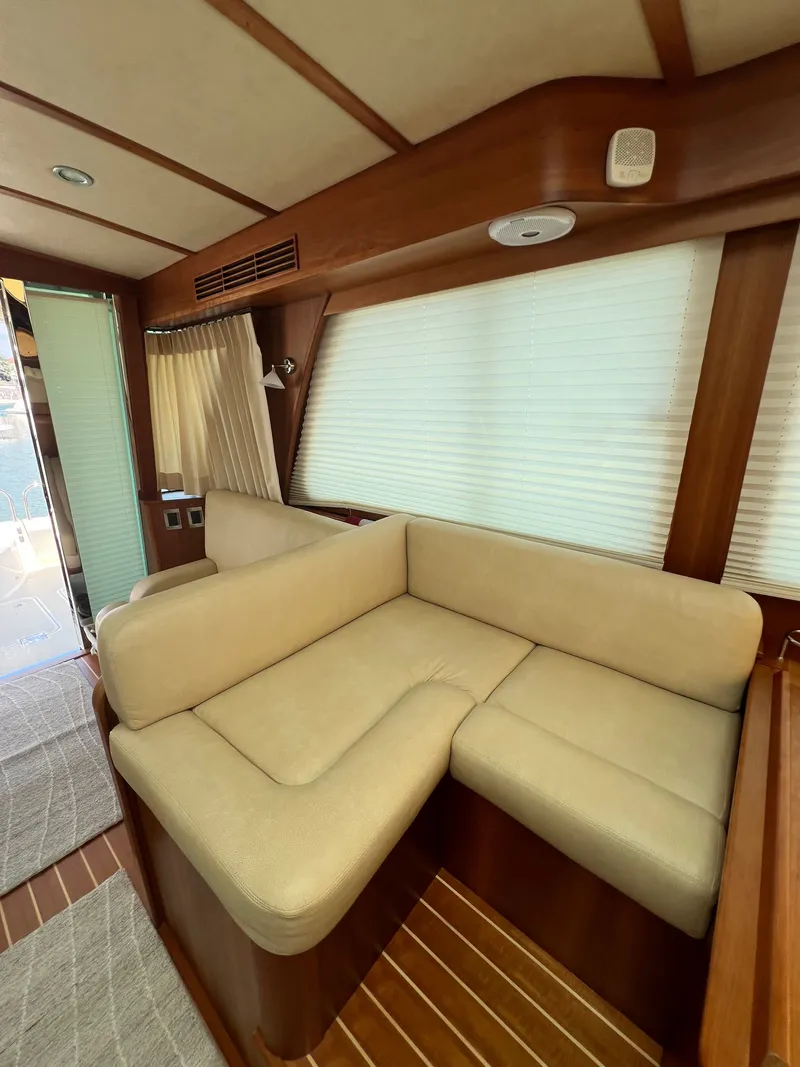

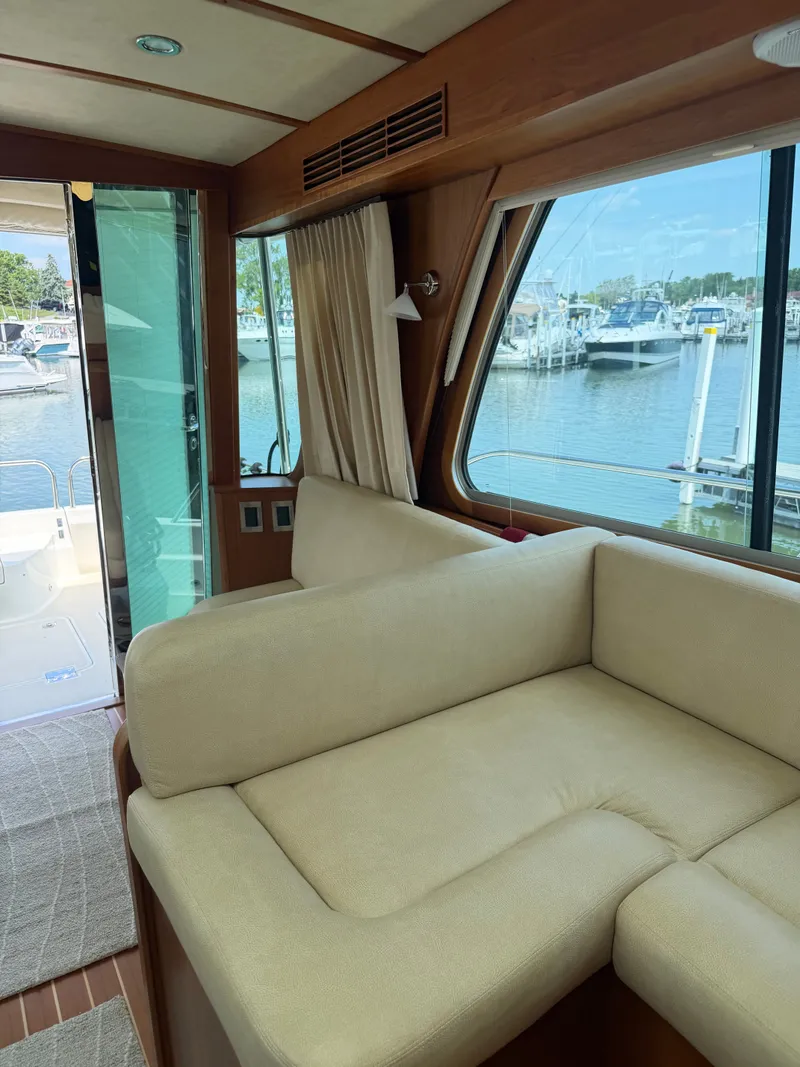

- “L” settee to starboard, 5” foam cushions, with storage and Sabre tool drawer under.

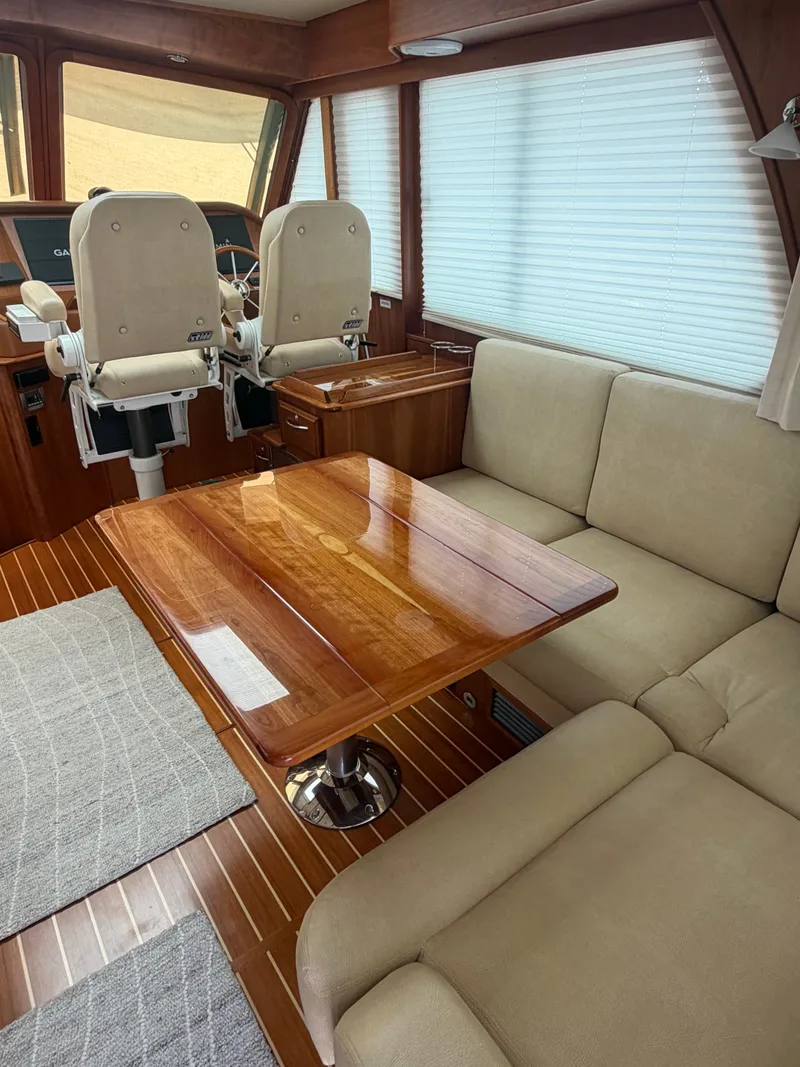

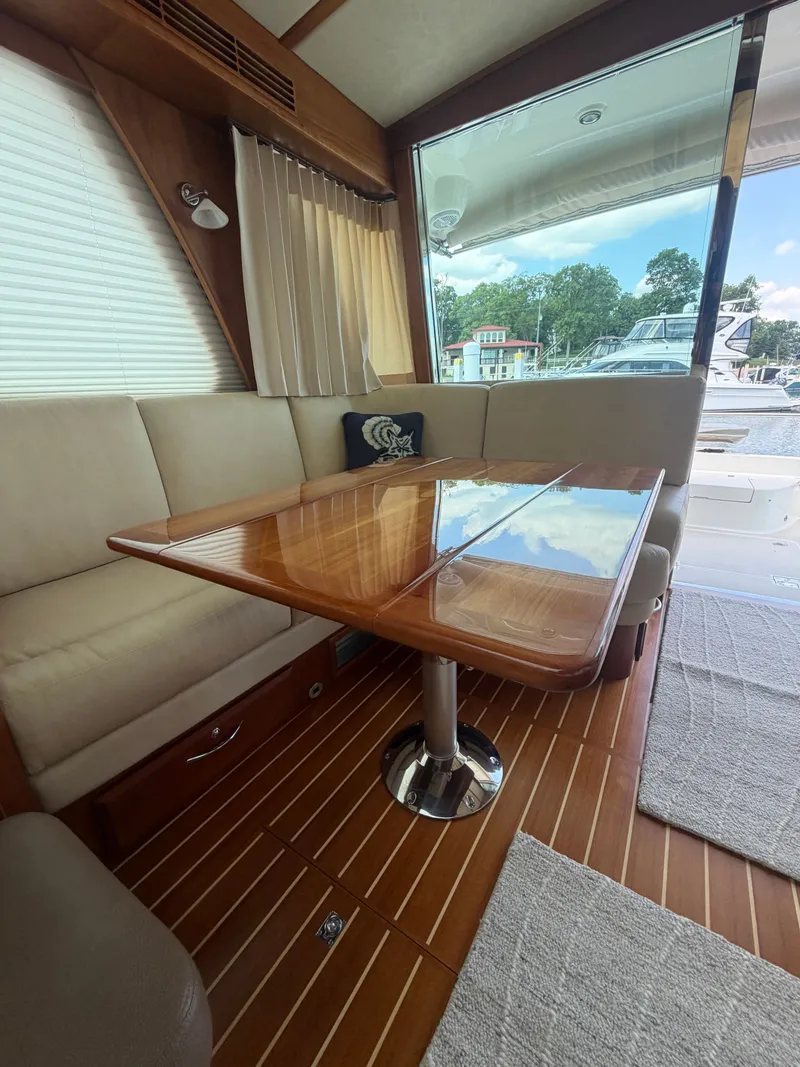

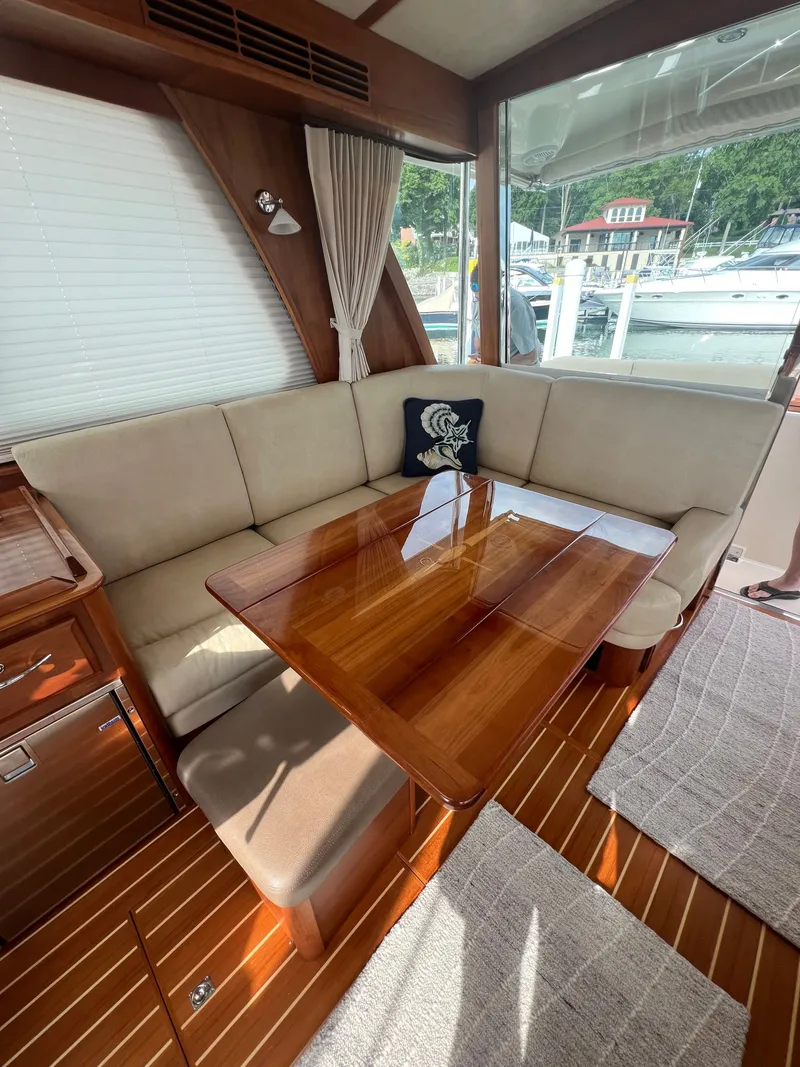

High Gloss finished table with hi-low pedestal and angled slide mechanism. Lowers to coffee table height.
- Entertainment unit to port including:

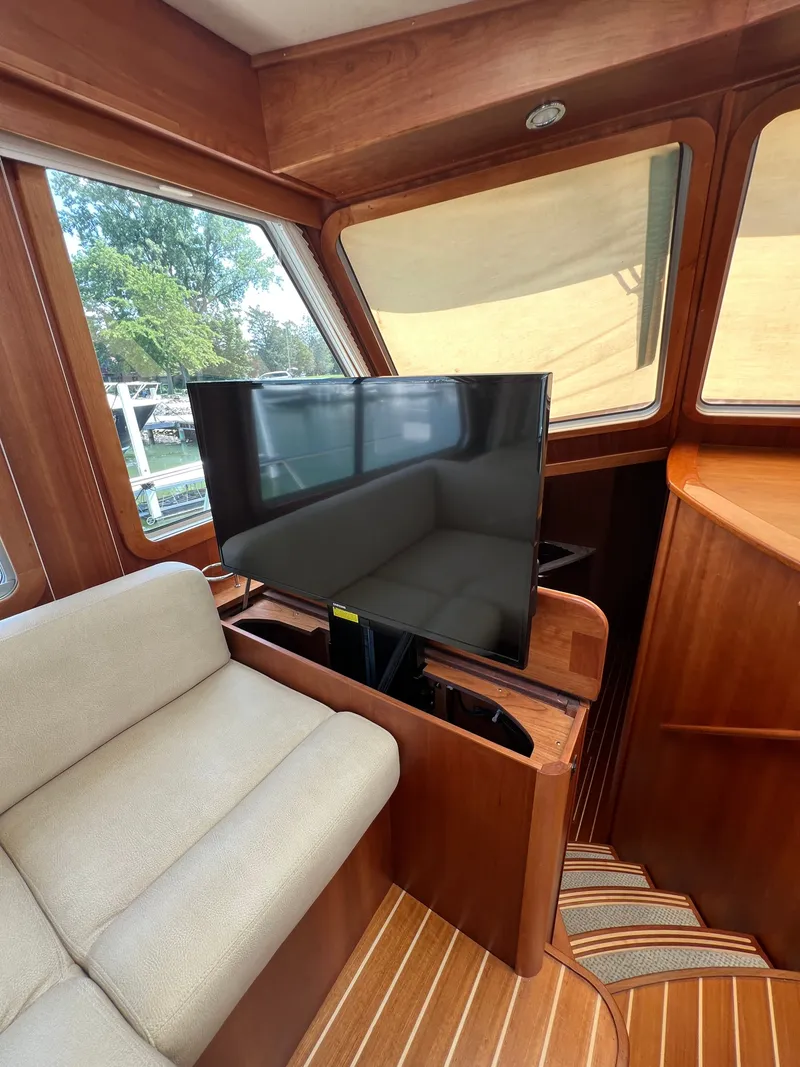

flat screen LCD TV 32” on lift with DVD player
- Sound deadening, soft headliner panels.

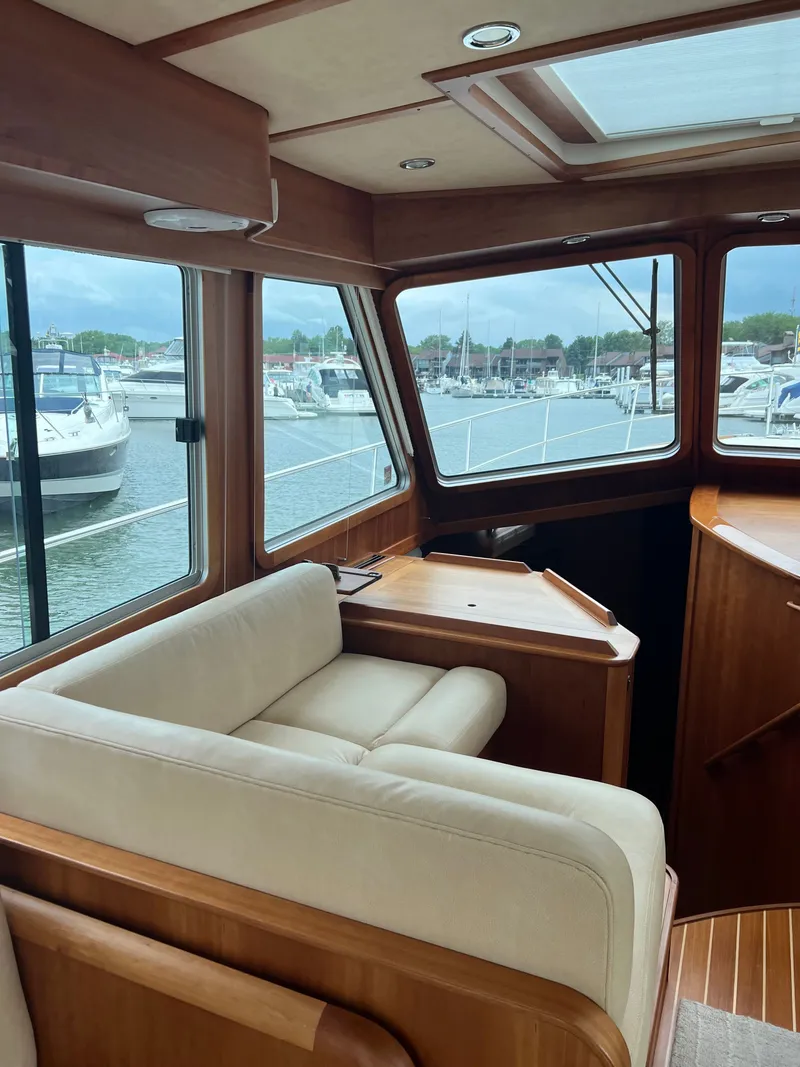

- Raised mates L-shaped settee to port of helm

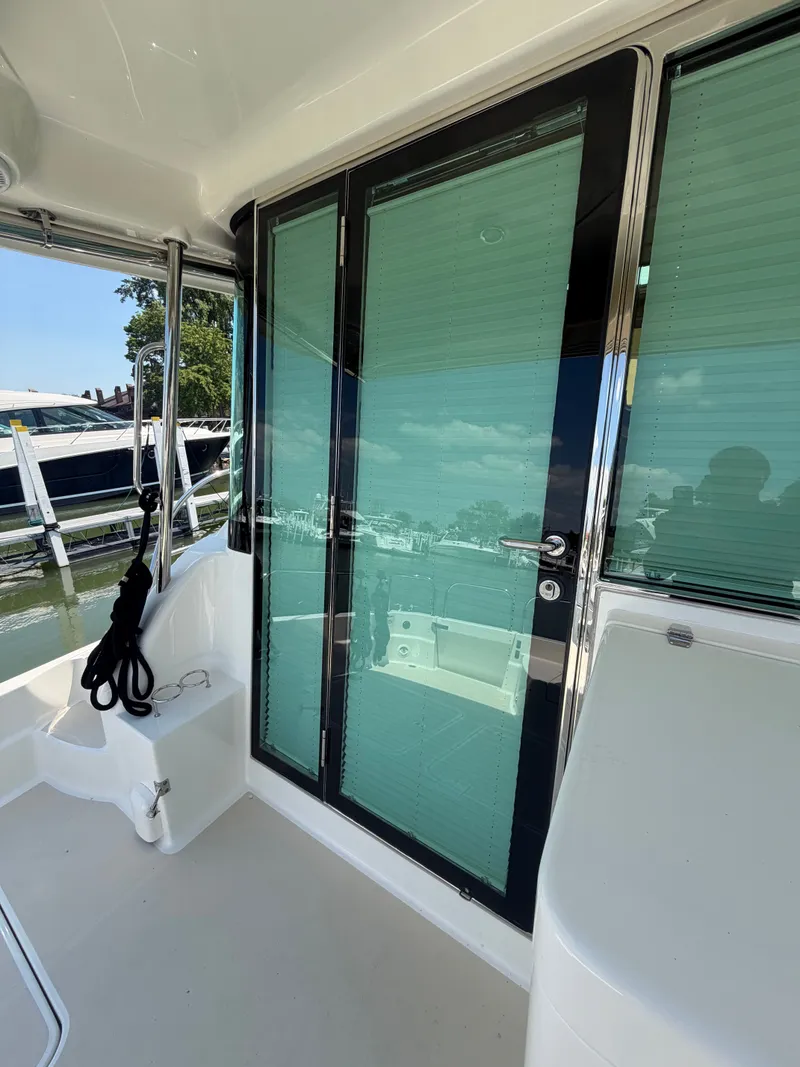

- Stainless steel door to cockpit
- Electrically operated window aft of L-settee
- Swing door at helm to starboard side deck
- Deep chart table forward of L-settee. Fiddles at nav station

- Varnished cherry interior finish.
- Screens on all opening ports.
- Ocean Air screen/blinds on deck hatches.
- Ocean Air pleated blinds on side windows and side door
- Drapes on aft curved windows
- Optional fabric and drapery selections.
- Dovetailed, varnished maple drawer boxes

- Water capacity 160 gals.
- Stainless steel, 20 gal. water heater, operates on 110-VAC or  - Temperature control valve on hot water supply.
- Hot and cold water pressure system 12V.
- Fresh water spigot in engine room.
- Optional Cockpit shower, hot and cold.
- Optional Fresh water wash down in anchor locker.

engine heat.

- Polyethylene holding tank with 70 gallon capacity.
- Jabsco Quiet Flush fresh water MSD in guest head
- Tecma Eco MSD in master head
- Diaphragm waste pump on holding tank.

- Single Kahlenberg chrome trumpet horn with compressor
- Fire extinguishers, (5) at 2 1/2 lbs.
- Marelon sea valves on all thru-hull fittings below waterline.
- Bonding system to safeguard against galvanic corrosion.
- Automatic fire extinguishing discharge system in engine space - (3) Automatic 12V electric bilge pumps.
- (3) high water switches and alarm.

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
