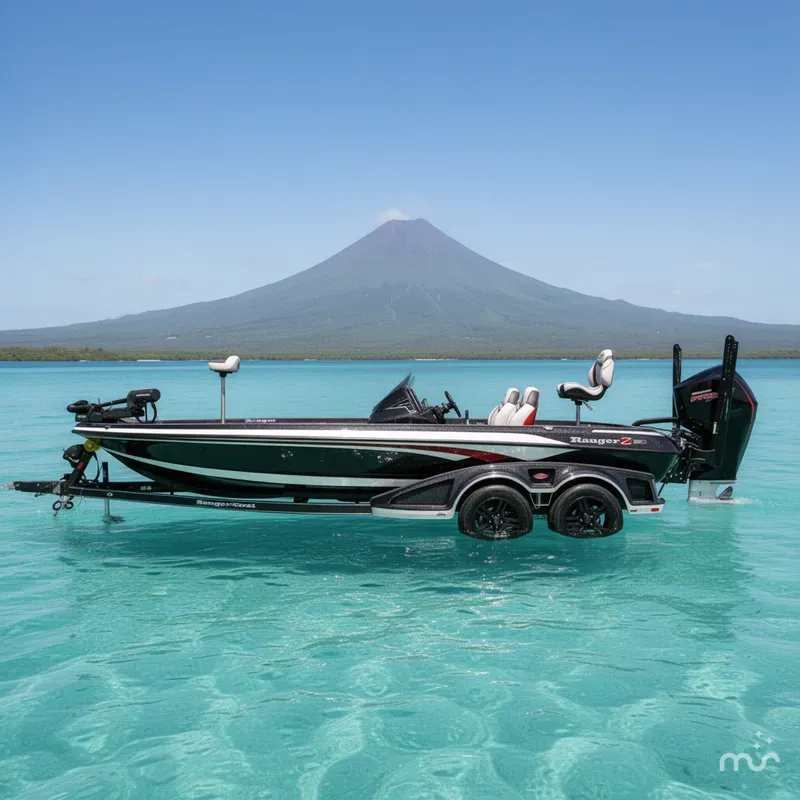

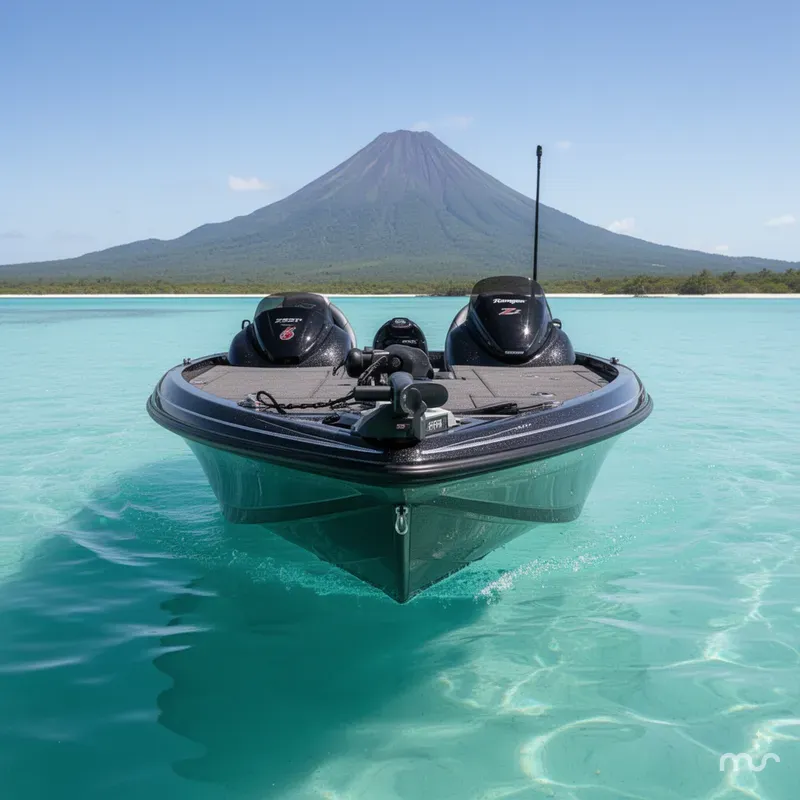

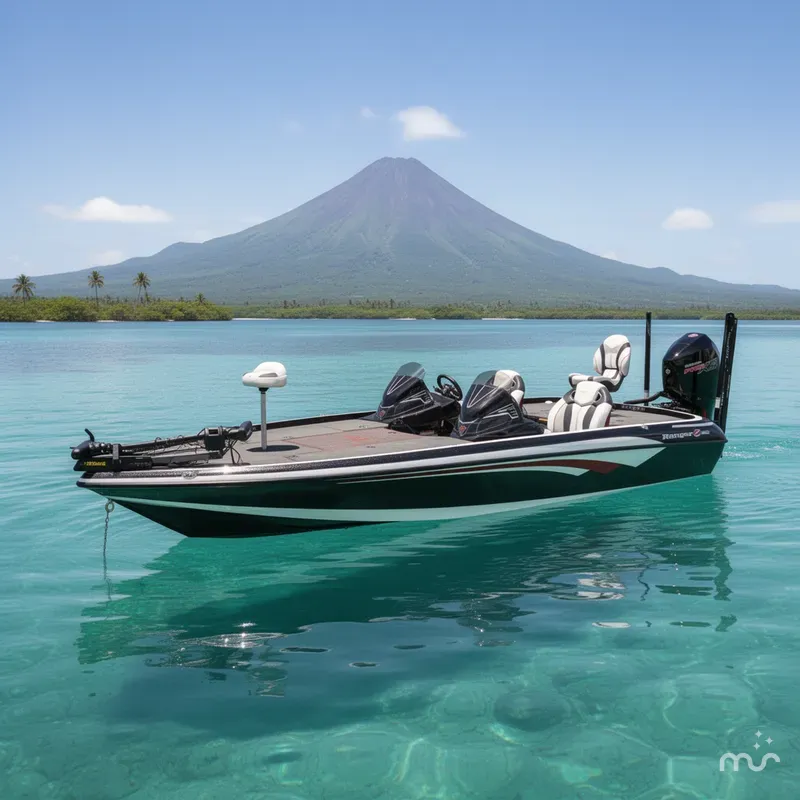

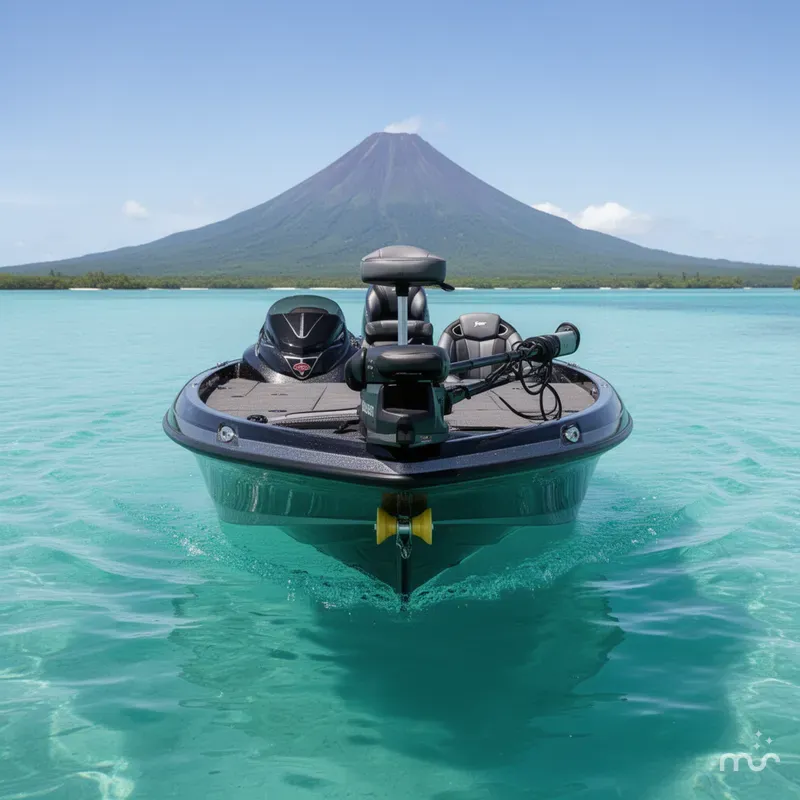

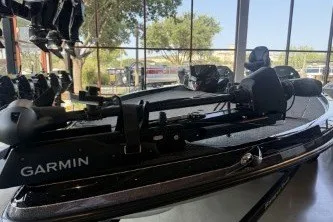

2025 Ranger Z521R Cup-Equipped

• Length:21' 9"

• Beam: 96"

• Max. Recommended HP: 300 HP

• Engine Shaft Length: 20"

• Inside Depth: 21"

• Fuel Capacity: 54 gal.

• Livewell Capacity: 31 gal.

• Total Person, Motor, Gear: 1900 lbs.

• Approximate Boat Weight: 2300 lbs.

• Rod Box Length - Port Top Shelf: 9 ft.

• Rod Box Length - Port Middle Shelf: 8 ft.

• Rod Box Length - Port Bottom Shelf: 7' 6"

• Rod Box Length - Center Row 1: 8' 6"

• Rod Box Length - Center Row 2: 8 ft.

• Rod Box Length - Starboard: 7' 0"

• Rod Box Length - Starboard Top Shelf: 7' 6"

• Rod Box Length - Starboard Bottom Shelf: 6' 8"

• Max. Person Capacity: 5 persons

• Trailer GVWR: 5400 lbs.

• Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate): 27' 11"

• Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate): 25' 1"

• Width On Trailer: 102"

• Height On Trailer: 79"

Custom Details

• Ranger Echelon™ Rod Storage System - 3-tiered port & 2-tiered starboard rod lockers

• Custom color package

• Power Ventilation Rod Storage™

• Insulated 40 qt. step-up cooler

• Integrated center-storage rod & tackle management system

• Stainless steel push-to-close locking latches

• Traction Pad Front Deck Center Lid

• Color-matched cockpit floor and compartment liner mats

• Integrated line spooling station under battery lid

• Ranger® tournament measuring board integrated at front deck step

• Retractable rod buckles

• Runnin' rod rack w/ retractable strap

• Remote drain plug

• Tool holders at bow and front deck step

• Pultrusion-reinforced decks, floors, transom & stringers

Electronics

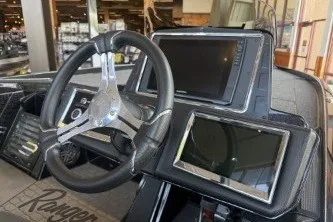

• Ranger® R.I.D.E.™ (Ranger Intelligent Display Engine) -integrated full-boat network control and monitoring via 9" touchscreen

• Push-to-Start Ignition with proximity Key Fob

• Solid-state digital keypad at bow with push-button trim switches

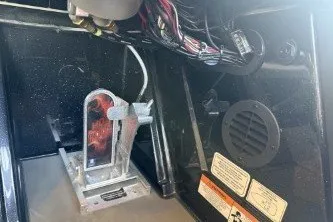

• Ranger® Umbilical™ dedicated bow-to-stern 6-gauge electronics wiring harness w/ 30A breaker

• Ranger Cup Equipped Electronics Package (see RCE)

• Ranger Cup Equipped Trolling Motor (see RCE Package)

• Heavy Duty 6-gauge trolling motor wiring harness w/ 60A breaker

• Master Power on/off battery disconnect switch

• Auto-on LED storage compartment lighting & LED courtesy & livewell lighting

• Integrated LED bow navigation lights & removable LED anchor light

• Wireless phone charging station in Coin Box

• 12V power receptacle with USB

• NOCO™ GB40 jump starter w/ on-board USB charging

• Dual Pro™ on-board 15A x 4 bank charger w/ auto-detect technology & remote charging port

• Battery Charge Gauge

Ranger Cup Equipped - GARMIN® Package

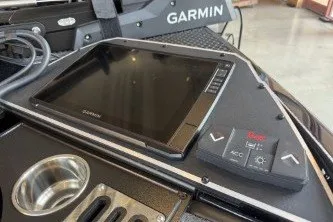

• GARMIN® ECHOMAP™ Ultra 2 126sv at bow

• GARMIN® ECHOMAP™ Ultra 2 126sv at console w/ GT36UHD & GT8HW-IH Transducers

• GARMIN® Live Scope™ Plus LVS34 Live Sonar

• GARMIN® Force® 36V Trolling Motor

• Blinker Trim

• Hot Foot

• 17" Challenger II wheels w/ matching spare

Ranger Cup Equipped - LOWRANCE® Package

• Lowrance® HDS® 12 PRO at bow

• Lowrance® HDS® 12 PRO at console w/ Active Imaging™ HD

• Lowrance® Active Target™ 2 Live Sonar

• Lowrance® Ghost 45" 36V Trolling Motor

• Blinker Trim

• Hot Foot

• 17" Challenger II wheels w/ matching spare

Power/Performance

• Pultruded Fiberglass Transom

• (3) Lithium 80AH trolling batteries w/trays

• AGM Starting battery w/ tray

• Backup manual ignition keyswitch

• One-Piece-Feel™ Interloc Construction

• Integrated engine setback

• 12" manual setback plate

• Tilt hydraulic steering

• Recirculating aerated livewell w/ removable divider & integrated culling tag system

• Pure Oxygen Generator

• Venturi Aeration System

• Recessed trolling motor foot pedal

• High performance stainless steel prop

• Foam-filled fiberglass stringer system

Safety/Comfort

• Upright Level Flotation exceeding all USCG & NMMA standards

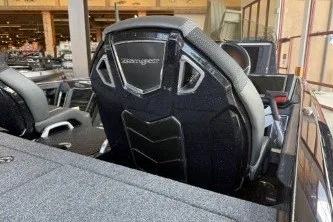

• Heated Cloud-9™ Air-Ride Driver's Seat

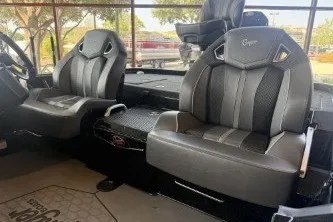

• Custom-fitted Ranger® Soft Ride Seating™ system with driver & passenger seat slides & color-matched fiberglass seat shells

• Custom bike seat & SRS fold-down on heavy duty pedestals

• Padded front deck

• Integrated grab handles

• Rite Track Keel®

• Pop-up tie cleats

• Automatic and manual bilge pumps

• Integrated re-boarding ladder

• Skid-resistant material on bow

• Stainles steel bow & stern eyes

• Stainless steel seat bases

• NMMA® certified

Trailer Features

• Ranger Trail® trailer w/ torsion axles and c-channel frame

• Ranger® Road Armor Equipped® trailer protectant coating

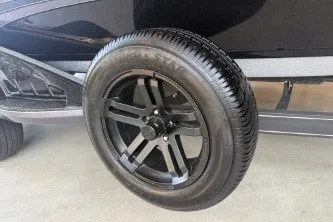

• 17" Challenger II wheels w/ matching spare

• Ranger Trail® Vault® Hub lubrication system

• Fiberglass fenders w/ step pads

• Hydraulic surge disc brakes

• Swing-away tongue

• Integrated center-swing jack finished in black powdercoat

• LED lighting

• LED back-up lights

• Stainless steel ratcheting tie-downs

• NMMA®/NATM certified

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice. All sales are final. No returns accepted.
