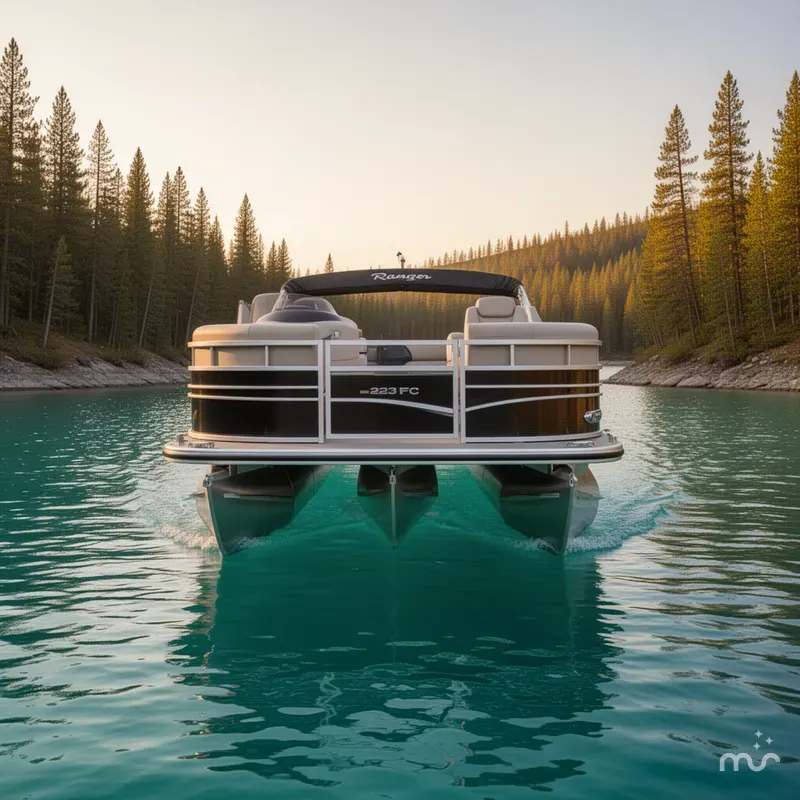

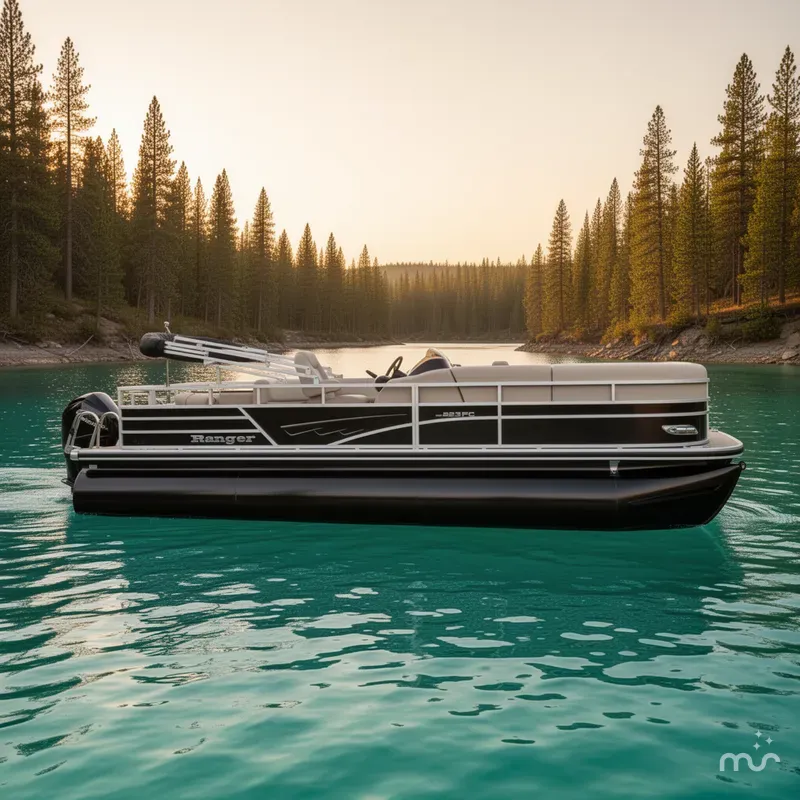

2025 Ranger Reata 223FC

Additional Specs

• Length:24' 2"

• Deck Length: 22' 1"

• Deck Width: 102"

• Max. Recommended HP: 200 HP

• Fuel Capacity: 52 gal.

• Pontoon Log Length: 22' 3"

• Pontoon Log Diameter: 26"

• Pontoon Log Material: 0.1 5052 marine alloy

• Max. Person Capacity: 11 persons

• Max. Person Weight: 1537 lbs.

• Max. Persons/Motor/Gear Weight: 2300 lbs.

• Interior Depth: 24"

• Average Dry Weight: 3104 lbs.

• Average Package Weight: 5100 lbs.

• Package Height: 9' 5"

• Package Width: 8' 6"

• Towing Length: 32' 6"

• Storage Length: 32' 6"

Electrical

• 500 GPH (1,893 LPH) aerator pump

• LED navigation lights & built-in docking lights

• LED courtesy lighting throughout

• Motor kill switch w/ lanyard

• Phone management system w/ power outlets

• Sealed wiring connectors

• Wiring encased in conduit to prevent chafing

• Conveniently located 12V & USB outlets

Fishing

• 2 aft fold-down, swiveling fishing chairs

• Aft fishing station w/ livewell, tool & gear storage

• Aft 15 gal. (56.78 L) timed aerated livewell

• 7' 6" (2.29 m) starboard lockable rod box w/ organizer

• Pre-wired for easy installation of optional trolling motor and trolling motor front gate

Helm

• NEW - Ranger® System Monitor - 7" Touchscreen that displays all boat and engine data at a glance, eliminating the need for gauges and 12-button switch panel

• Adjustable, swiveling & reclining helm chair w/ self-leveling arms & storage pouch

• Built-in footrest

• Recessed storage area

• Enclosed in-console cooler compartment w/ door-mounted molded storage

• Ergonomically-located throttle & steering wheel

• Tilt steering wheel

• Fire extinguisher

• Horn

• NEW - Wet Sounds® stereo w/Bluetooth & 4 upholstery speakers

• Molded shroud w/ soft-touch finish

• Automotive-style fuse panel

Craftsmanship

• ABYC® approved

• 26" (66.04 cm) diameter, .100 pontoon logs w/ individual chambers & internal supports

• 3/4" (1.91 cm) pressure-treated deck w/ every panel mechanically fastened to Z-bars

• All-aluminum, box beam transom

• Full-width extruded Z-bar deck support hidden fastener system

• Heavy-duty reinforced deck trim

• Fire extinguisher & horn

• Heavy-duty, 1-piece extruded M-bracket deck support throughout

• Multi-density furniture foam for maximum comfort

• Premium marine upholstery

• Stainless steel & coated carbon steel fasteners

• Ranger® 10-Year Lifetime Limited Structural Warranty

Exterior

• NEW - Updated, modern graphics

• .032"-thick high-sheen fence panels

• 3 powder-coated pontoon logs w/lifting strakes

• Available colors: charcoal metallic, black metallic, Ranger blue, pearl white, or matador red

• Bold exterior styling combining dimensional chrome graphics & externally-mounted anodized railings

• Aluminum deck undercladding

• Noise-dampening fence insulation

• Stylish deck trim w/ rub rail & highly polished aft corner castings

• Factory-rigged Mercury® outboard motors

• 1-1/4" (3.2 cm) railing w/ mooring cover mounting track

• Performance-enhancing extended motor pod

• 4-step, fold-down, telescoping stainless steel boarding ladder w/ two tall handrails

• Factory-matched propeller

• Snapless, trailerable mooring cover w/ removable bow extension for full coverage at home, in the slip or on the road

• Elevated fencing for better drainage & ventilation

• 4 Fold-down stainless steel cleats

• Front porch area

• Aft boarding platform

• Mount for optional ski pylon

• Port wheelchair-accessible gate

Interior

• Aft bench-style lounge w/ roto-molded livewell & storage

• Extra deep rain channels on all molded couch bases for drier storage

• NEW - 10' (3.05 m) EasyLift™ Bimini top w/LED courtesy lights, storage pockets & protective boot

• NEW - Luxury woven cushioned floor

• Midship L-lounge w/ roto-molded, drained storage

• Plush starboard bow lounge and two port side reclining chairs w/ self-leveling arms

• Stowable table w/ molded-in drink holders
