2023 Ranger RB190

• Length:19' 10"

• Hull Length: 19' 10"

• Beam: 96"

• Max. Recommended HP: 115 HP

• Engine Shaft Length: 20"

• Side Depth: 21"

• Hull Thickness: 0.1"

• Bottom Width: 68"

• Fuel Capacity: 21 gal.

• Approximate Boat Weight: 1325 lbs.

• Rod Box Length - Port: 8' 0"

• Rod Box Length - Starboard: 8' 0"

• Max. Person Capacity: 5 persons

• Trailer GVWR: 2950 lbs.

• Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate): 24' 8"

• Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate): 23' 2"

• Width On Trailer: 96"

• Height On Trailer: 78"

Custom Details

• Special 55th Anniversary badging

• Custom fitted marine upholstery: aluminum leaning post, (1) fold down, (1) bike, dual jump Seats

• Rawhide™ coating on gunnel & interior

• Integrated cup holders / tool holders

• High gloss metallic paint with custom Ranger® graphics

• Choice of colors: white, teal, carbon, bay blue, or bay green

• Windshield w/ stainless steel handrail

Electronics

• 2 Deep-cycle trolling batteries w/trays

• 8 gauge trolling motor wiring

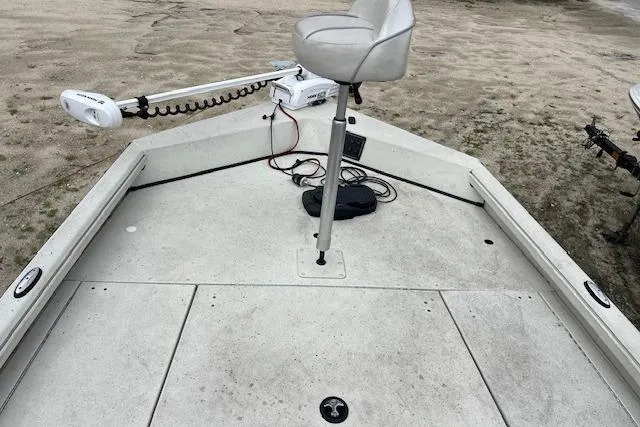

• MinnKota® Riptide Maxxum 80lb / 52in / Hand / Bowguard / 24V (white) trolling motor

• Lowrance® Hook Reveal 7 Combo depthfinder @ console

• On-board lithium capable charger 6A x 3 bank

• 12V power outlet (USB included)

• Automatic bilge pump

• Removable navigation lights

Power/Performance

• Cranking battery with tray

• Premium steering wheel

• Binnacle mounted remote throttle control

• Power trim

• Bow trim and navigation light switches

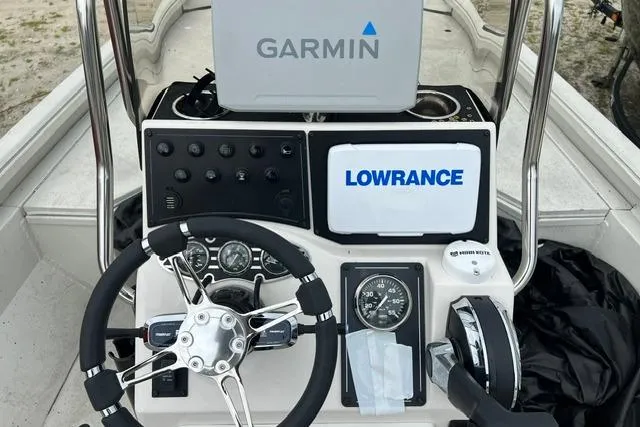

• Custom fiberglass console w/ tach, speed, fuel, trim gauges & easy touch switching

• Recirculating aerated 25 gal livewell on rear deck

• Prop (stainless standard at 115HP and up)

• Tilt hydraulic steering

Safety/Comfort

• Broad Beam Stability™

• All-welded construction

• Console rod rack

• All welded aluminum transom

• Fire extinguisher

• Built-in horn assembly

• Stainless steel boarding ladder

• NMMA® certified to ABYC® standards

• Pull-up tie cleats (4)

• Heavy duty bow / stern eyes

• All aluminum floors & decks

• Upright, level flotation

• 5052 H34 Marine-grade aluminum

• Foam-filled one-piece construction

• Remote drain plug

Trailer Features

• Custom built Ranger Trail® single axle trailer with aluminum frame

• Aluminum trailer frame w/ galvanized crossmembers and axles

• Custom Ranger Trail® directional aluminum wheels with spare

• Leaf-spring axle

• Swing jack

• Swing-away tongue

• Integrated load guides

• NMMA®/NATM certified

• LED lighting

• Retractable trailer tie-downs
