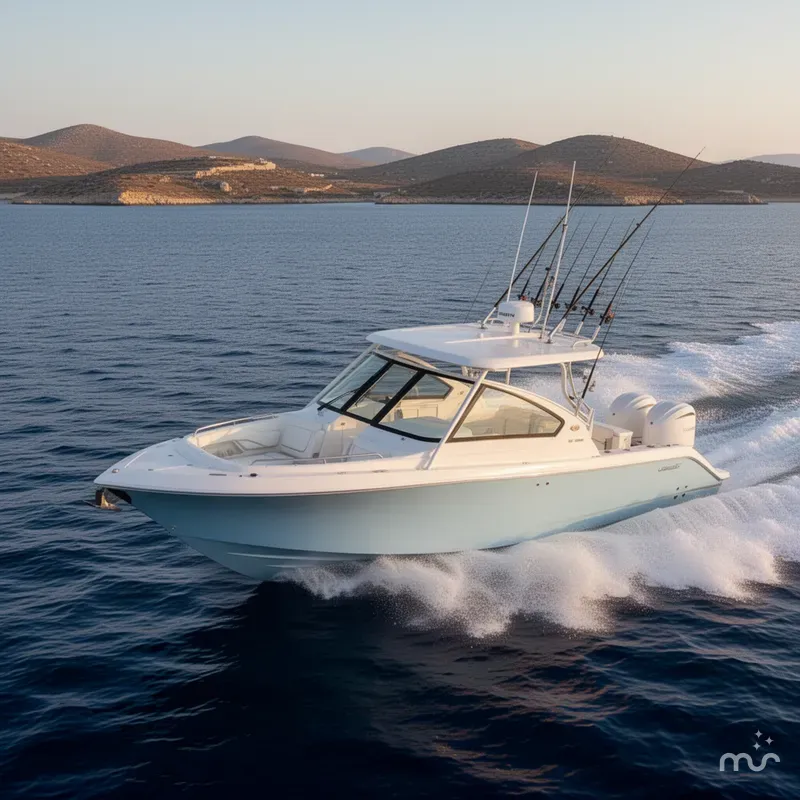

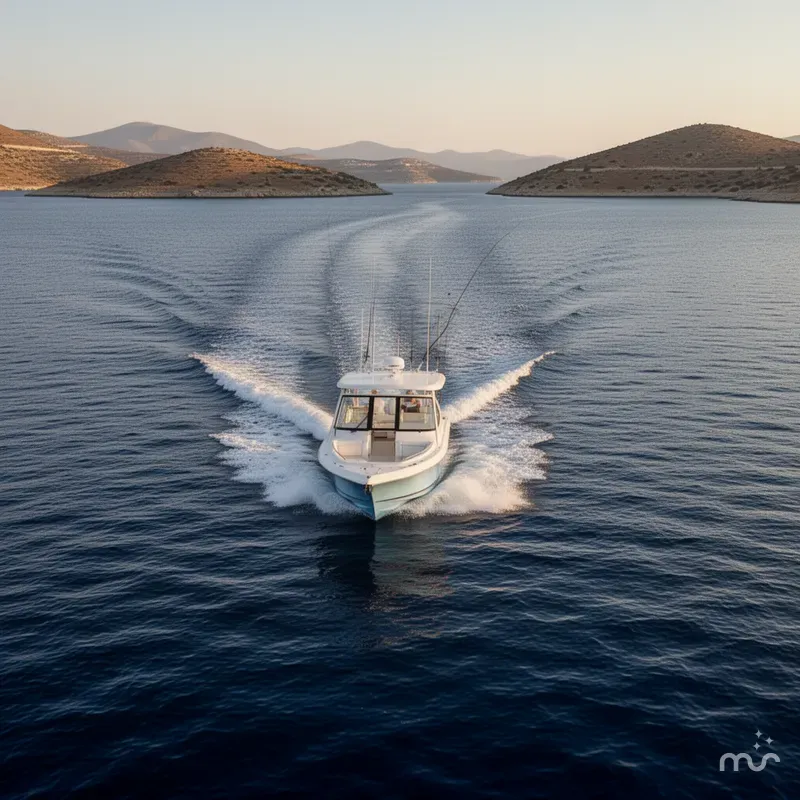

2026 Pursuit DC 286 Dual Console

• HULL FEATURES

• Pursuit Protection Plan:

  • 5 Year Hull and Deck Structural Warranty

  • 5 Year Blister Free Warranty

  • 2 Year Limited Warranty

• Pursuit Fresh White Gelcoat

• Hand Laminated Hull with Vinyl Ester Resin and Engineered Fabrics

• 5 Ply Resin Infused Composite Transom System with Patented Transom Reinforcement Grid

• Infused Fiberglass Structural Grid System with Molded Finish and Integrated Bilge Water Management System

• Foam Filled Structural Grid

• Molded FRP Hull Side Boarding Door with Removable/Storable Ladder and 316L Stainless Steel Grab Rail

• Bronze Thru Hull Fittings Below Water Line

• Chrome over Bronze Thru Hull Fittings Below the 7 Degree Heel Line

• Stainless Clad Composite Thru Hull Fittings Above the 7 Degree Heel Line

• Bronze Garboard Drain

• Trim Tabs, Lenco Electric with Auto-Retract

• Bow Eye, 5/8” 316L Stainless Steel

• Stern Eyes (2), 5/8” 316L Stainless Steel

• Integrated Transom Platform Extensions Outboard of Engines

• Boarding Ladder, 3-Step Telescopic, Mounted in Hull Platform

• Anchor System, Integrally Molded Thru-Stem

• Horn, Electric, with Oval Stainless Steel Cover

• Dedicated Transducer Location

DECK FEATURES

• Hull and Deck Joint Mechanically Fastened

• Rub Rail: High Density PVC with Solid 316L Stainless Steel Insert

• Molded One Piece Deck and Cockpit Liner with Non-Skid Pattern Area

• Navigation Lights, LED, 2 Mile

• Flush Mounted Integral Anchor Locker with Fiberglass Lid and Gas Shock including:

  • Horizontal Anchor Windlass with Switch at Helm and Remote at Anchor Locker

  • 316L Stainless Steel through Stem Anchor Roller with 8” Mooring Cleat

  • Chain Binder

  • 14lb Stainless Steel Plow Style Anchor

  • Self-Righting Shackle

  • 150’ Rode (1/2” 8 Plait including 15’ of 1/4” G4 Chain)

  • Fresh & Raw Water Washdown Connections

  • LED Courtesy Light

• Removable/Storable Bow Beach Boarding Ladder (Shared for Hull Side Door)

• Cleats, 316 Stainless Steel, 8” Pop Up (2) Stern, (4) Spring and (2) Bow

• Molded Recessed Hatches with Flush Hinges, Gaskets and 316L Stainless Steel Latches and Overboard Drain Tracks

• Molded Transom Walkthrough with Hinged Transom Door, 316L Stainless Steel Latch and Magnetic Catch

• Self-Draining Cockpit with Bronze Ball Valve at Hull Side

• Bow Grab Rails, 316L Stainless Steel, (Port and Starboard)

• Transom Grab Rail, 316L Stainless Steel, (Port)

• Single-Level Splashwell Deck with Non-Skid Pattern Area

HARDTOP & WINDSHIELD

• Molded Fiberglass Full-Beam Hardtop with Dedicated Locations for Outriggers and Electronics

• Powder Coated Hardtop Structural System with Heavy Duty Aft Supports with Integrated Rod Holders (4) and handrails

• Custom Windshield System with Fiberglass Frames, Tempered Glass, and Center Walk-Through Door

• Custom Stainless Steel Ratcheting Anchor/Stern Light with Burgee Rings and USA Flag

• Tri-Color LED Lights (4)

• Integrated Fore and Aft-Facing LED Spreader Lights (1 fwd / 2 aft)

• 316L Stainless Steel Underside Grab Rails (2)

• Windshield Wiper (starboard) with Washer System

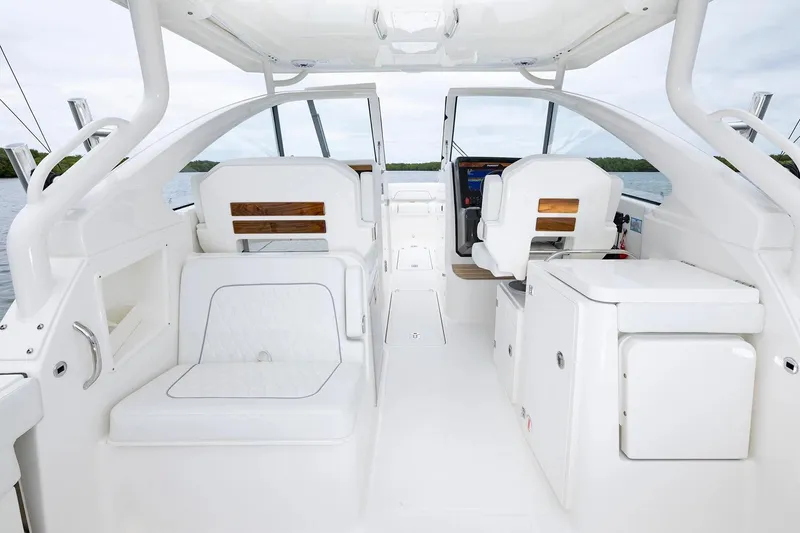

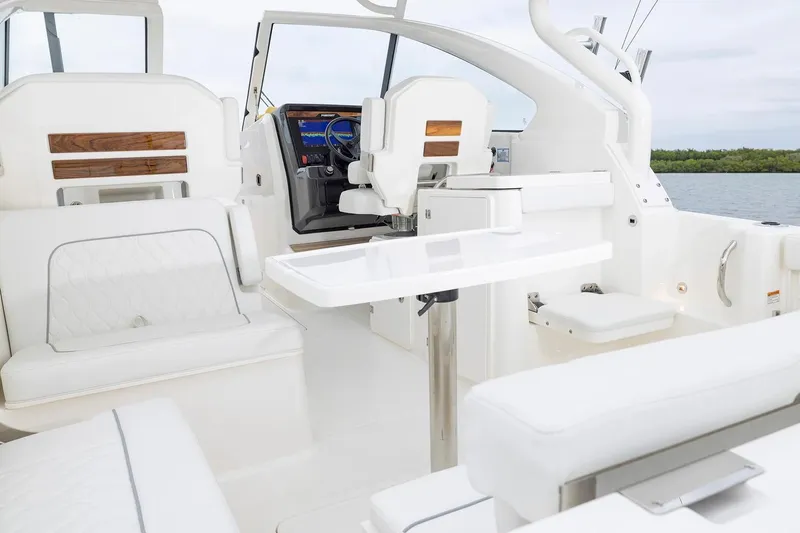

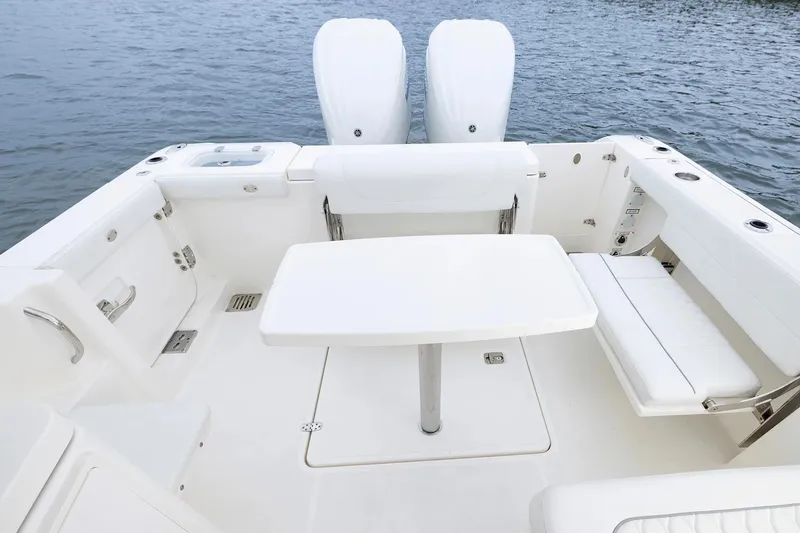

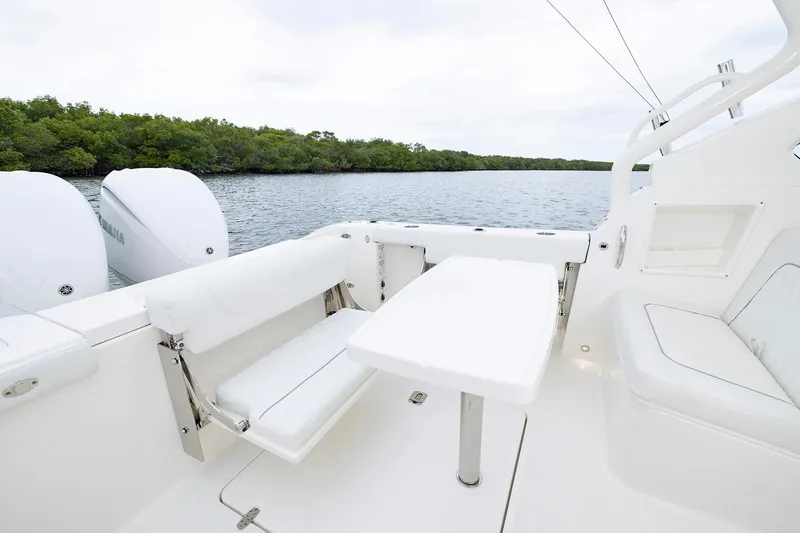

COCKPIT FEATURES

• Folding Transom Seat with Patented Self-Adjusting Backrest

• Custom Cockpit Upholstery with Dri-Fast Foam and Mesh Backing

• Captain’s Chair with Folding Armrests, Flip-Up Bolster, Wood Accents, and Swivel Base with Fore & Aft Adjustment

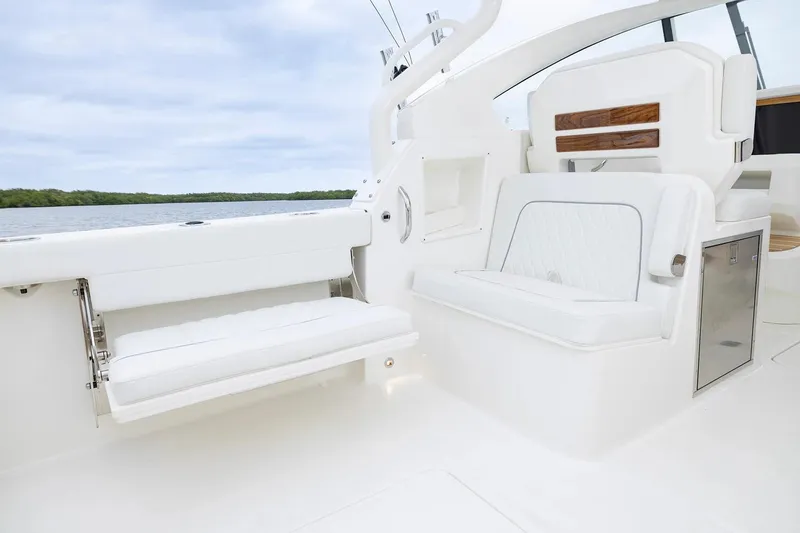

• Starboard-Side Aft Facing Fold-Down Jump Seat

• Portside Aft Facing Seat with folding armrest, Recessed Drink Holder with Storage Pocket, and 28-gallon Insulated Cooler Below

• Portside Companion Seat with Folding Armrests, Drink Holders, Storage Compartment and 316L Stainless Steel Grab Rail

• Audio Entertainment System: Custom-Tuned JL Audio Stereo System with Bluetooth Compatible Media Master MM105 Surface-Mount Source Unit, Premium M6 Coaxial Speakers with Classic Grilles - (4 Hardtop), 10” Subwoofer (1), DSP Amplifier, and FM Antenna with Ratchet-Mount Base

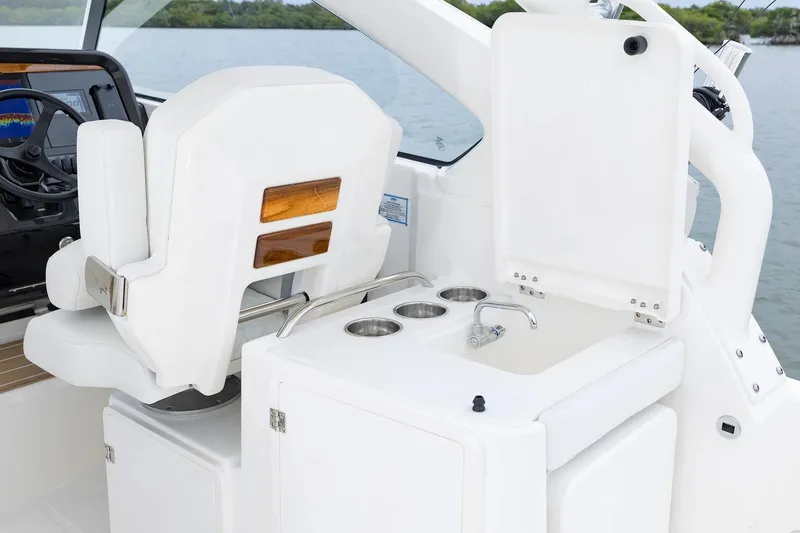

• Molded Entertainment Center with Sink, Faucet, Corian Countertop, Hinged Fiberglass Lid, Drink Holders, and Storage with Trash Can Below

• Cockpit Machinery Access Hatch

• Bow Floor Storage with Machinery Access

• Midship Floor Storage with Machinery Access

• Fresh Water Shower with Pullout Sprayer

• Fresh and Raw Water Outlets in Cockpit with Quick Connect Fittings and 25’ Coil Hose

• LED Cockpit Courtesy Lights (white)

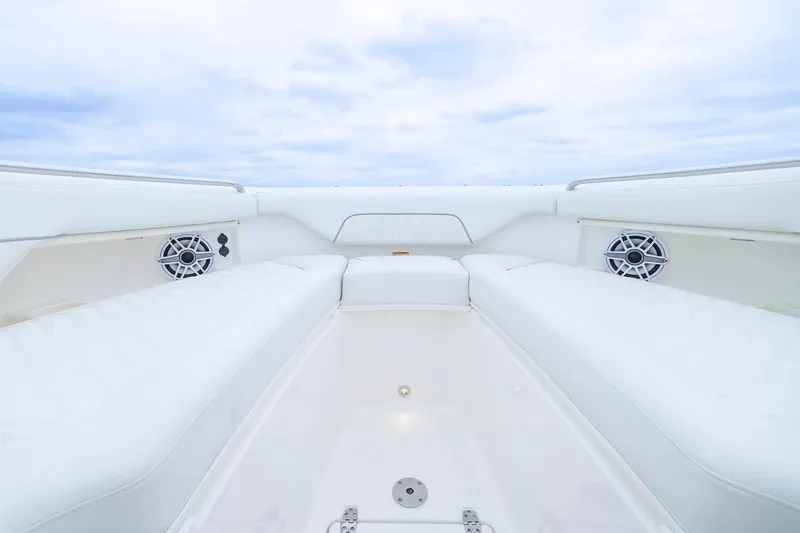

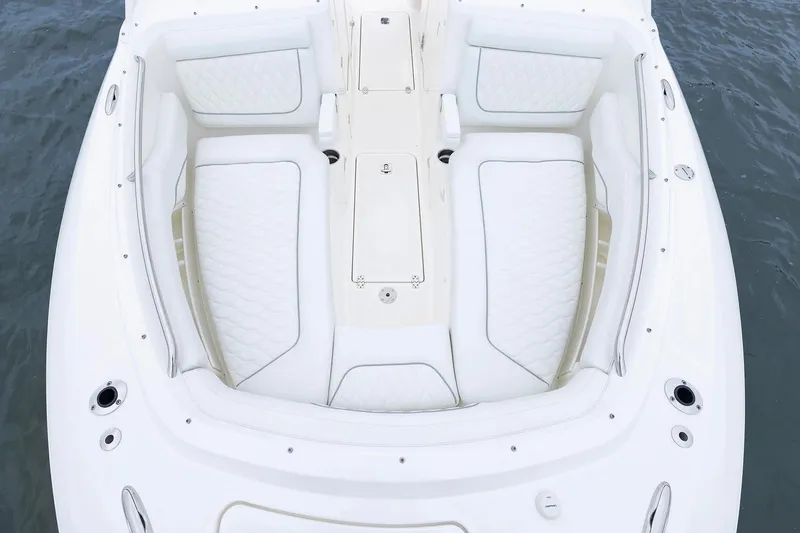

• Molded Forward Bow Seating with Folding Armrests and Insulated Storage Below with Molded Bucket Storage Retainers and Dedicated Storage for Hull Side Door/Bow Beach Boarding Ladder (port side)

• Port and Starboard Bow Coaming Boxes with Drink Holders, Storage Keepers, and 12V Outlet and USB (A & C) Charger (port side only)

• Single Piece Acrylic Bow Access Door

• Sunbrella Bow Tonneau Cover

• Fire Extinguishers (3 - helm / entertainment center / companion seat base)

FISHING FEATURES

• Rod Holders (4), Stainless Steel, in Gunwale

• Rod Holders (4), Stainless Steel, in Transom

• Rod Holders (4), Aft Hardtop Supports

• Lighted Oceana Blue 22 Gallon Recirculating Insulated Livewell, with Clear Acrylic Lid

• Under Gunwale Brush/Gaff Storage (Port) (n/a with port fold-out seat option)

• Insulated Transom Fish Box/Storage Tub (36 Gallon) with Overboard Drain

• Tackle Storage in Portside Seat Base (n/a with cockpit refrigerator option)

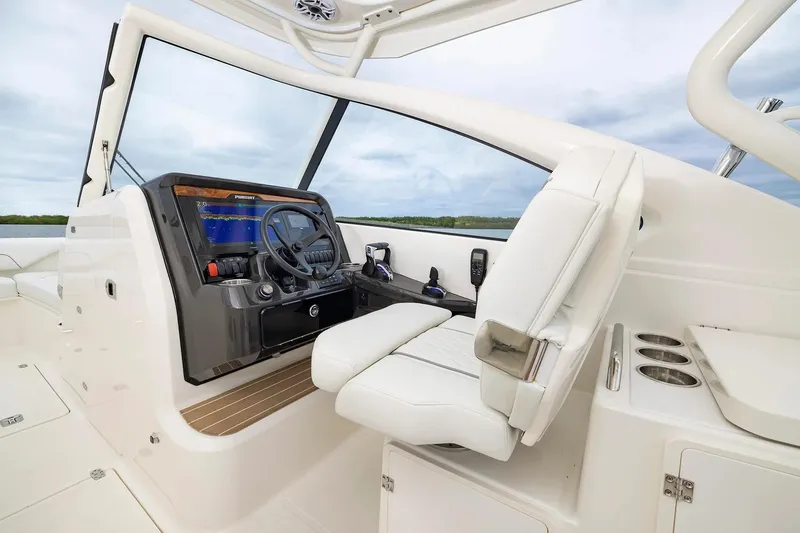

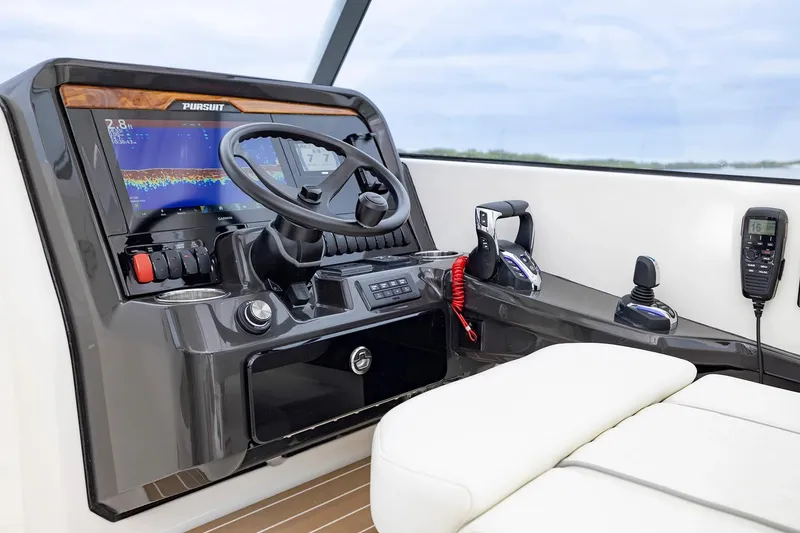

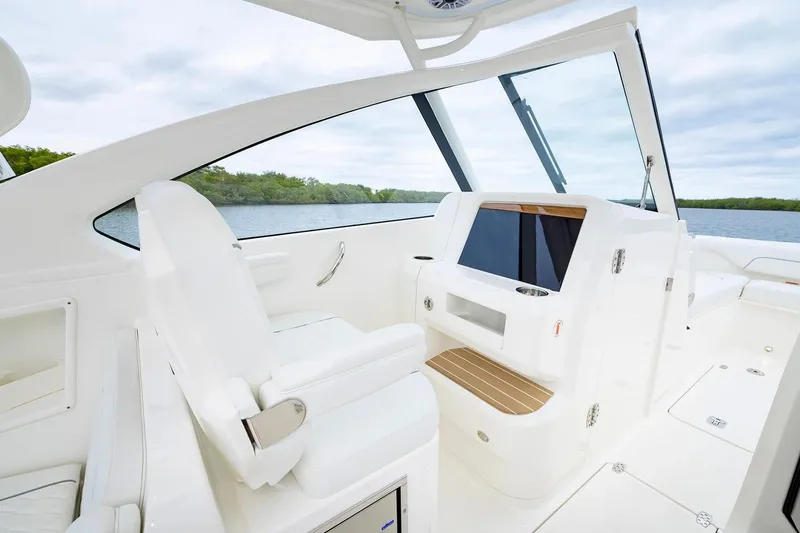

HELM

• Molded Fiberglass Helm with Instrumentation Visor, Wood Accent Trim, Electronics Mounting Surface, and Molded-In Footrest

• Yamaha Electric Steering with Programmable Steering Friction, Tilt Helm, Edson 316L Stainless Steel Steering Wheel with Control Knob and Non-Slip Grip

• 12V Switch Panel with Illuminated Rocker Switches and Backlit Function Text

• JL Audio MM105 Surface-Mount Source Unit

• Compass

• Trim Tab Control Panel and Indicator

• Drink Holders (2 - one extra-deep)

• Integrated Coaming Storage

• Glovebox

• 12V Outlet and Dual USB (A & C) Charger

• Wireless Phone Charger

ELECTRONICS

• Garmin Electronics Package: GPSMAP 1243-XSV with Custom Pursuit User Interface (UI) Displays, Custom Dash Panel, 1kW CHIRP Transducer, Yamaha CL-5 Touchscreen Display, NMEA 2000 Starter kit, and VHF Radio with Antenna and Ratchet-Mount Base

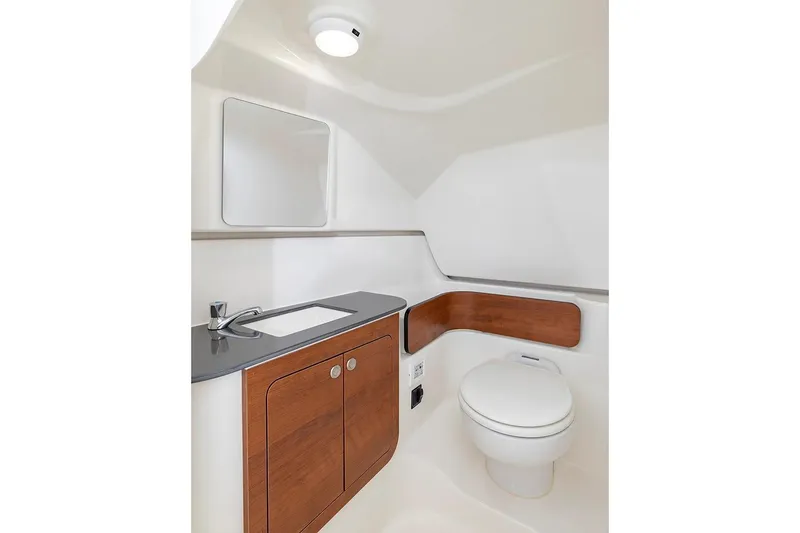

HEAD (PORT SIDE)

• Fiberglass Door with Integrated Storage Compartment and 316L Stainless Steel Locking Latch

• Entryway Step and 316L Stainless Steel Handrail

• Molded Interior Liners, Upper and Lower

• Electric Marine Head with 9 Gallon Holding Tank, Macerator Discharge Pump, 316L Stainless Steel Deck Pump-out Fitting and Bronze Through Hull Fitting with Seacock

• Vanity with Molded Sink, Faucet, Corian Countertop, Mirror, and Wood Accent Cabinet with Storage Below

• Cubby Storage with Wood Accent Keeper

• Toilet Tissue Holder

• Integrally Switched Overhead Light

• 12V Outlet and Dual USB (A & C) Charger

CONSOLE (STARBOARD SIDE)

• Locking Access Door (hidden behind bow access door)

• Molded Console Liners, Upper and Lower

• Dedicated Dock Line Storage

• Integrally Switched Overhead Light

ELECTRICAL SYSTEMS

• UL Rated Fully Tinned, Color-Coded Copper Wire

• Custom In-House Built, Heat Sealed, Mechanically Crimped, Color-Coded Battery Cables

• Custom In-House Built, One-Piece Electrical Harness with Waterproof Connectors and Chafe Protection

• Powder Coated, Aluminum, Screen Printed (Front and Back) Battery Switch and Breaker Panel

• Bonding System: Thru Hull Fittings Below Water Line, Trim Tabs, Zinc Anode and Garboard Drain

• Three (3) 12V Outlets and Three (3) Dual USB (A & C) Outlets

• Three Battery System: Port Engine (1), Starboard Engine (1) and House (1) (AGM)

• Electronics Fuse Block

• Grounding Bus Bar

WATER SYSTEM

• 26 Gallon Water Capacity (two 13-gallon tanks) and 316L Stainless Steel Deck Fill Plate

• Premium Sea Tech Color Coded Water Hose System with Mechanically Crimped Ends

• Pressure Sensing/Variable Speed Pump with In-Line Filter

• Centrally Located Freshwater Manifold

MECHANICAL SYSTEMS

• Molded Interior White Gel Coat

• Molded Hatch with Gasket and Stainless Steel Gas Spring

• Molded Bilge Sump Area

• Two (2) 1500 GPH Bilge Pumps with Electronic Switches and Stainless Steel Clad Thru Hull Fittings

• 1100 GPH Tournament Series Livewell Pump, with Bronze Seacock and Thru Hull Fitting

• Pressure Sensing Raw Water Pump with In-Line Filter

FUEL SYSTEM

• EPA Compliant Lined 217 Gallon Rotomolded Fuel Tank with Engine Pickups, Shutoff Valves, Digital Level Indicator and Deck Fuel Fill Plate

• Custom Built Premium Fuel Feed Lines with Mechanically Crimped Fittings

• Two (2) Yamaha Water Separating Fuel Filters with Primer Bulbs

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
