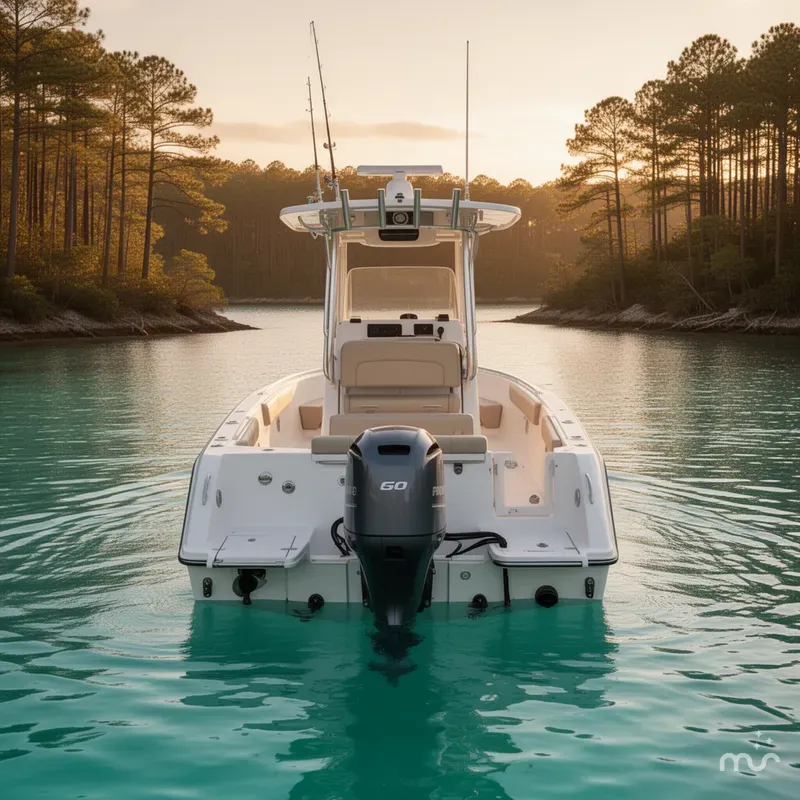

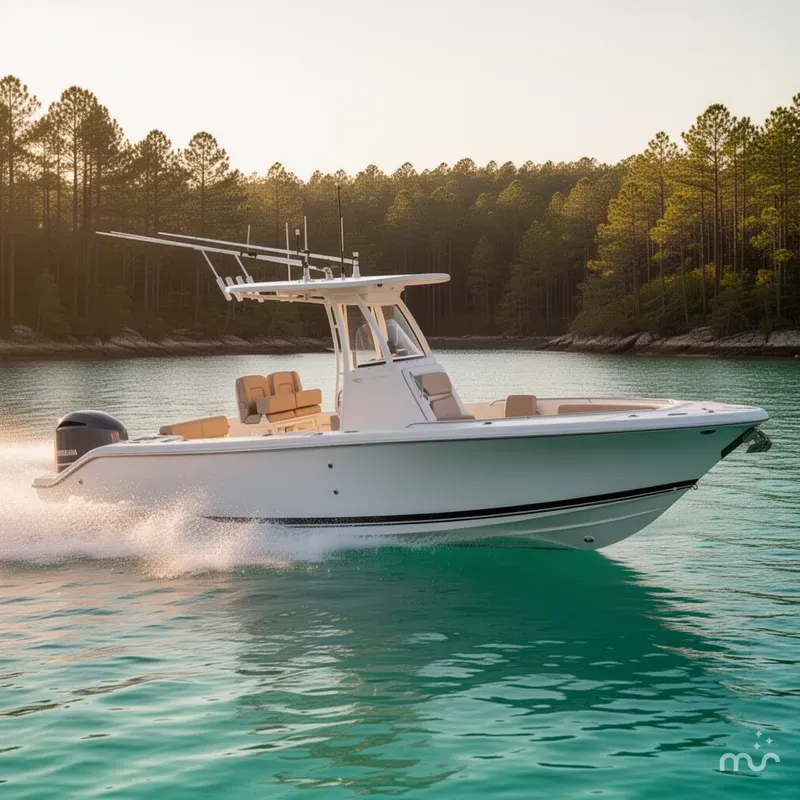

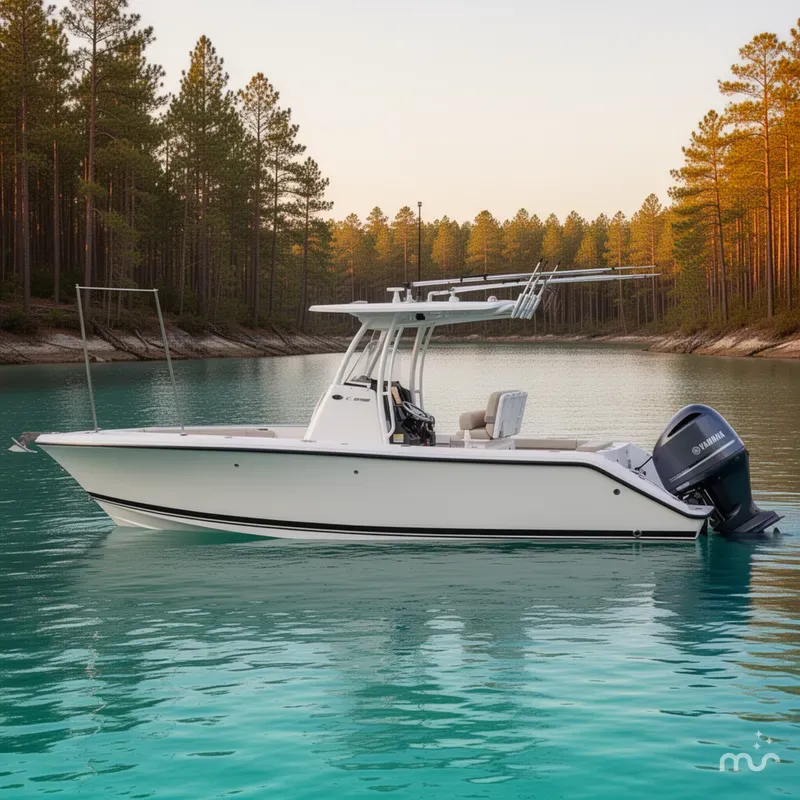

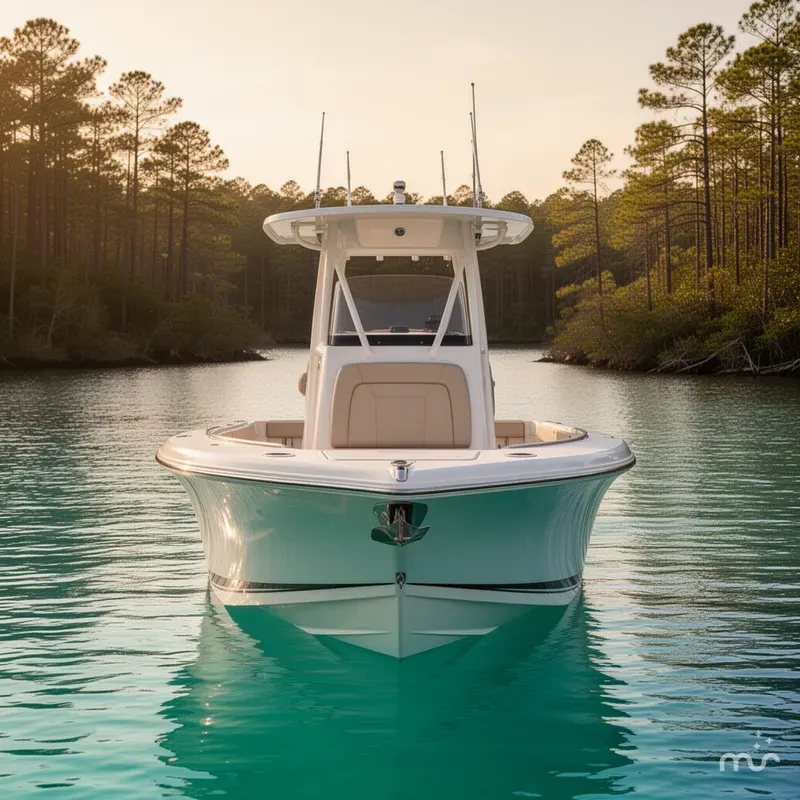

2018 Pursuit C 238 Center Console

HULL, DECK & COCKPIT

• Pursuit® Protection Plan:
  5-year hull/deck structural warranty
  5-year blister-free warranty
  2-year limited warranty
• Basic Floatation
• Pursuit Fresh White Gelcoat
• Hand Laminated Hull with Vinyl Ester Resin and Engineered Fabrics
• Infused Fiberglass Structural Grid System with Molded Finish and Integrated Bilge Water Management System
• 5 Ply Resin Infused Composite Transom System
• Integrated Transom Platform Extensions Outboard of Engines
• Trim Tabs with Indicator Lights and Auto-Retract
• Self-Draining Rope & Anchor Locker
• Bronze Thru Hull Fittings Below Water Line
• Chrome over Bronze Thru Hull Fittings Below 7 Degree Heel Line
• Stainless Clad Composite Thru Hull Fittings Above the 7 Degree Heel Line
• Bronze Garboard Drain
• 3 Step Telescopic Boarding Ladder Mounted in Hull Platform
• Electric Oval Horn with SS Cover
• High Density PVC Rubrail with Solid 316L SS Insert, Molded Rubrail Corners and 316L SS Transom Cap
• 1/2“ 316L SS Bow Eye
• 1/2” 316L SS Stern Eyes (2)
• Molded One Piece Deck and Cockpit Liner with Non-Skid Pattern Area and Overboard Drains
• Hull and Deck Joint Mechanically Fastened
• 8” 316L SS Pop Up Cleats (2) Stern, (2) Mid-Ship and (2) on Bow
• Molded Recessed Hatches with Gaskets and 316L SS Latches and Overboard Drain Tracks
• Flush Mounted Integral Anchor Locker with Fiberglass Lid
• One-Piece Welded 316L SS Recessed Grab Rail in Bow
• Four (4) 316L SS Rod Holders in Gunwales
• Under Gunwale Rod Storage, Port and Starboard
• Molded Transom Walkthrough and Hinged HDPE Transom Door with 316L SS Latch and Positive Catch
• Port and Starboard 316L SS Transom Grab Rails
• Custom Cockpit Upholstery with Dri-Fast Foam and Mesh Backing
• FRP Leaning Post / Powder Coated Frame with Dedicated Cooler Space
• Lighted Oceana Blue 23 Gallon Recirculating Live Well
• Folding Stern Seat
• 316 L SS Cockpit Drink Holders (2) Bow , and (2) in Gunwales
• Bow Seating Port and Starboard with Fiberglass Hatches and Storage Below
• Raw Water Outlet in Cockpit with Quick Connect Fittings and 25’ Hose
• LED Cockpit Accent Lights (4)
• Port and Starboard 2 mile LED Navigation Lights
• 316L SS Deck Plates for Water and Waste
• Anchor Roller Chute / 8” Cleat with Chain Binder 14lb Delta Style Anchor, 150’ of 1/2”, 8 Plait Rode

CONSOLE AND HELM

• Molded Console with Integrated Footrest and Forward Facing Seat
• Hydraulic Steering Pump
• 13.5” 316L SS Steering Wheel
• 12V Switch Panel
• 316 L SS Helm Drink Holders (2)
• Compass
• Trim Tab Control Panel and Indicator
• 316 L SS Grab Rail
• One 12V Outlet (1) and Dual USB Charger (1)
• Helm Fire Extinguisher
• Tempered Glass Windscreen with Powder Coated Frame

HARDTOP

• Molded Fiberglass Hardtop
• Overhead Glove Box
• Powder Coated Structural Hardtop Support
• 4 Rod Holders
• Combination Anchor / Stern LED All-around Navigation light.
• Two (2) Tri Color LED Lights
• Aft Facing LED Spreader Light

ELECTRICAL SYSTEMS

• UL® Rated Fully Tinned, Color Coded Copper Wire
• Custom Built, Heat Sealed, Mechanically Crimped, Color Coded Battery Cables
• Custom Built, One Piece Electrical Harness with Water Proof Connectors and Chafe Protection
• Powder Coated, Aluminum, Screen Printed (Front & Back) Battery Switch and Breaker Panel
• Two Battery System: Engine (1) and House (1)
• One Grounding Bus Bar
• Electronics Fuse Block

MECHANICAL SYSTEMS

• Molded Interior White Gel Coat
• Removable Access Hatch
• Molded Bilge Sump Area
• 900 GPH Low Profile Bilge Pump with Automatic Float Switch and SS Clad Composite Thru Hull Fittings
• 1100 GPH Tournament Series Live well Pump , Sea Cock and Thru Hull Fitting
• Pressure Sensing Raw Water Pump with In-Line Filter

FUEL SYSTEMS

• EPA Compliant Lined 105 Gallon Rotomolded Fuel Tank with Engine Pickup, Shutoff Valve and Digital Level Indicator.
• Custom Built Fuel Lines with Mechanically Crimped Fittings
• Yamaha® Water Separating Fuel Filter with Primer Bulb

.
