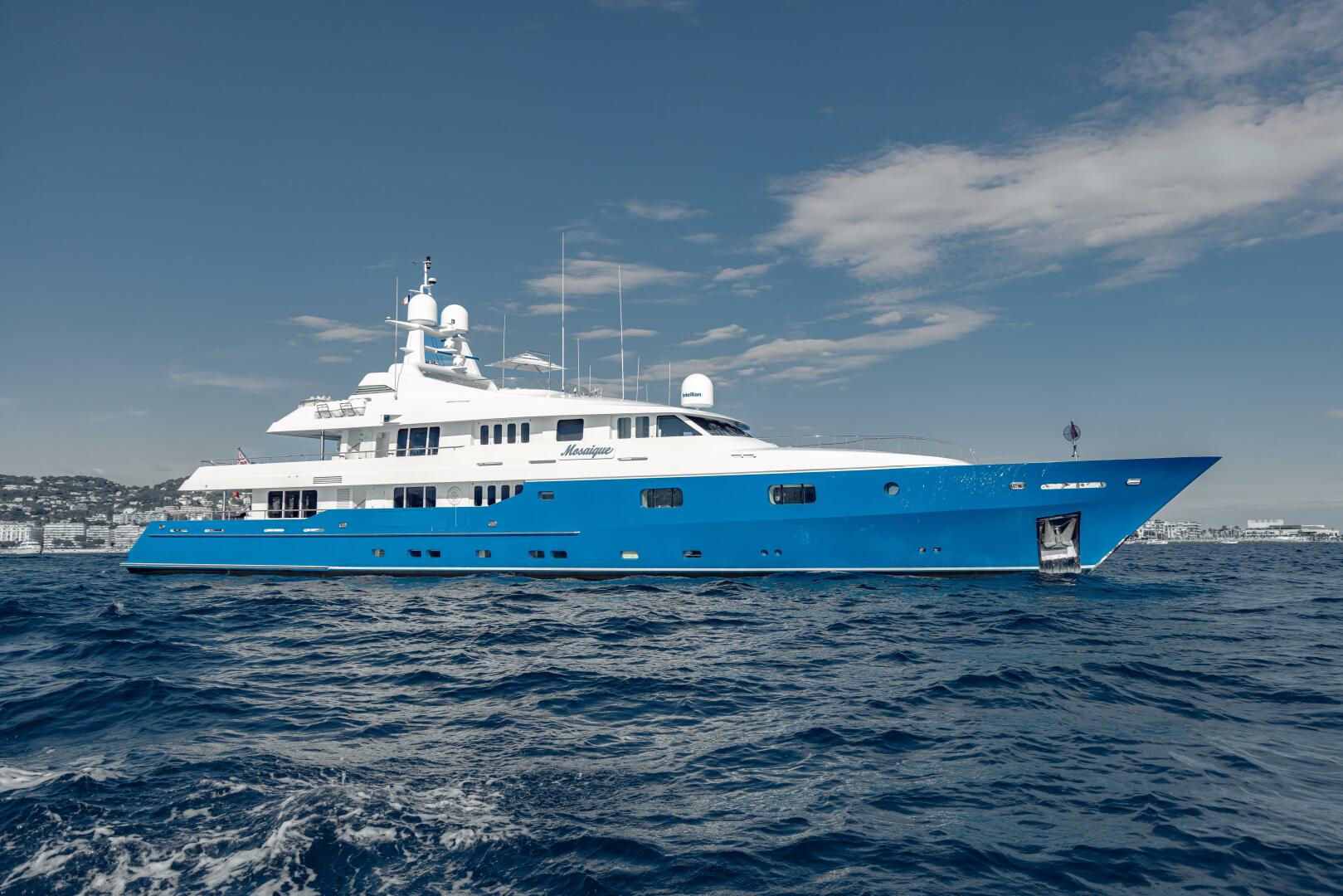

2002 Proteksan Full Displacement Oceangoing Sold Boat in West Palm Beach, FL 00000 US
Built in 2002
Full Displacement Oceangoing
1 Engine (--)
163.8 feet
--
Steel
Boats For Sale in Florida, United States Similar to the 2002 Proteksan Full Displacement Oceangoing
Compare with similar boats and find the perfect one for you.
 2002 Proteksan Full Displacement Oceangoing | ||||||
|---|---|---|---|---|---|---|
| Price | $12,500,000 | $12,499,000 | $12,499,000 | $12,900,000 | $12,000,000 | $11,995,000 |
| Location | West Palm Beach | Fort Lauderdale | Fort Lauderdale | Fort Lauderdale | Fort Lauderdale | Jupiter |
| Nominal Length | - | 110' | 110' | 97' | 84' | 120' |
| Draft | 10' | - | - | - | - | - |
| Engine Make | - | MTU | MTU | MAN | Cummins | Caterpillar |
| Total Engine Power | - | 2638 hp | 2638 hp | 1900 hp | 440 hp | 1900 hp |
| Days on Market | 732 | 235 | 595 | 5 | 939 | 31 |
| Get in touch |
CONSTRUCTION
Steel hull, aluminum superstructure, teak decks
DIMENSIONS
General
Length Overall (L.O.A.):
- 163.72 feet
- (49.90 meters)
Beam (molded):
- 30.51 feet
- (9.30 meters)
Draft (loaded):
- 9.61 feet
- (2.93 meters)
Tonnage: 480 gross
Capacities
Fuel Capacity:
- 22,375 US Gallons
- (84,700 liters)
Water Capacity:
- 6,119 US Gallons
- (23,162 liters)
Black Water:
- 599 US Gallons
- (2,266 liters)
Grey Water:
- 3,817 US Gallons
- (14,450 liters)
Watermakers: 2/ea Octo Marine Deepblue T8-8m3/day
Fuel Consumption
Fuel Consumption for 2 ME: 180 l/hr at cruising speed (12 knots)
Fuel Consumption for 2 ME: 320 l/hr at top speed (15 knots
MACHINERY
Main Engines
Engine Type: (2) Caterpillar 3508 DI-TA diesels @ 1,100 Hp each
Gearboxes for Main Engines: Reintjes WAF 541
Drive: (2) Teignbridge 5 blade propellers
Generators & Electricity
Output: 220V 50hz / 300V 50hz 3phase
Generators: Caterpillar 3306BT
Generator Fuel Consumption: 20 l/hr
Shore Power: 120 / 380V 1&3phase 50/60hz
Converter: Atlas 80Kw
Batteries: 24V
Air Conditioning
Type: Condaria WM-RE 120002
Other Machinery
Watermakers: (2) Octo Marine Deepblue T8-8m3/day
Trim Tabs/Stabilizers: Quantum Zero Speed
Bow Thruster: CRAMM V2 20H
Steering System: Ulstein JR 2.130 (Total Rebuild 6/2024)
Fuel Separator & Filtration: Alfa Laval MAB 103B
Sewage System: Hamann Type 2
Fresh Water System: C-PVC
Bilge Water Filtration: Heli Sep HS-500 OCD Bilge Water Separator (6/2021)
COMMUNICATION, NAVIGATION & ENTERTAINMENT SYSTEMS
Communication Systems
SATcom: Starlink
Telephone System: Panasonic
SSB: MF/HF DSC Radio set
VHF: (2) Sailor 6222 VHF DSC
Cellular Phone System: Kerio System with Sim Cards & Google Phones
Intercom: Panasonic
Navigation Systems
Radar:
- (1) FURUNO FAR22x8BB with (1) Furuno 8' Open Array Antenna, X-Band
- (1)Furuno XN20CF/6.5 6.5' Open Array Antenna, X-Band (6/2023)
Gyrocompass: Anschutz STD22 (Sphere replaced 4/2024)
Magnetic Compass: Cassens & Plath Delta (4/2024)
Auto Pilot: Anschutz Pilotstar D
Echo Sounder: ELAC LAZ 5100
GPS: Simrad A170 + Furuno GP170
Weather FAX: B & G Hydra 2000
Laser Plotter: Transas
Wind/Speed Log: Consilium SAL R1
Navtex:
- Sailor TT-3606E / Navtex Reciever/Printer
- NX700P
AIS: Simrad
Chart Display: Transas Navi Sailor 4000 MFD
BNWAS: Foruno BR500PA Pilothouse Alerter System
Entertainment Systems
Video & Audio Equipment
- AV system with HD screens throughout the yacht updated with new releases (2023)
- Full surround sound cinema with pop up screen in the main saloon
- Plasma or liquid crystal flat screen TV's throughout the yacht - makes and sizes below:Sky Lounge - flat screen LED Samsung 55"
- Master cabin - flat screen Pioneer TV 41"
- All other cabins - flat screen Sony TV 20"
- Sky TV (Mediterranean)
- Audio on demand system available throughout the yacht (inside & outside)
- Sound server and iPAD docking stations in both saloons and all cabins
GALLEY & LAUNDRY EQUIPMENT
Main Galley Equipment
Cooking Equipment:
- (2) Convotherm combi oven
- 4 Ring MKN Induction
- (1) Microwave
Refrigeration/Freezer:
- (2) Afinox refrigerator
- (2) Electrolux refrigerator
- (2) freezers
- (3) ice makers
Dishwasher: Hobart
Crew Galley/Mess Equipment
Cooking Equipment: Microwave
Refrigeration/Freezer: Liebherr Refrigerator/Freezer
Other: Miele Dishwasher
Laundry Equipment
Main Laundry Equipment
- (2) Miele washers
- (3) Miele dryers
TENDERS & TOYS
Tenders:
- BSC 66 (6.6m) tender with 200HP Yamaha gas outboard engine, seats 12
- 4.2m Rescue Boat tender with 2-stroke 15HP Tohatsu gas OB engine
Dive Gear:
- Air compressor
- 3 Regulators, 3 BCD’s
- 4 oxygen tanks
- 1 Nitro Tank
- 15 Sets Snorkel Gear
Other: Ghost tracking system for tender
DECK EQUIPMENT
Anchor Windlass System: (2) Muir VRC 15000 (Rebuilt (6/2024)
Aft Warping Capstans: (2) Muir VC 13000 (Serviced (6/2024)
Anchors: (2) 2/ea 495 kg anchors
Anchor Chain: (2) New (6/2024)
Boat Crane and Davits:
- Rescue Crane – Cramm SWL 3100kg
- Lazarette Crane – Cramm SWL 500kg
Passerelle: Retractable hydraulic Cramm Ocean
Swimming Platform: 612 x 148cm with hot and cold shower
Other:
- Retractable sun awning on bridge deck
- Parasols on the sundeck
SECURITY, FIRE FIGHTING & SAFETY EQUIPMENT
Security Equipment
CCTV System: Fully Operational
Cameras: (5) CCTV Cameras
Monitors: Located in Bridge and Crew Mess
Fire Fighting Equipment
Fire Control System: Ultra Fog
Fire Extinguishers: Portable Units Serviced Annually
Alarms: Consilium
Safety Equipment
Life Rafts: (4) 25 Person SOLAS A
Life Jackets: SOLAS Inflatable 38 x Adult, 6 x Child
EPIRBS: Current as of 6/2024
Flares: Current as of 6/2024
Medical Equipment: Current as of 6/2024
Rescue Tender: DSB 420 IRB Solas Rescue Boat
ACCOMMODATIONS

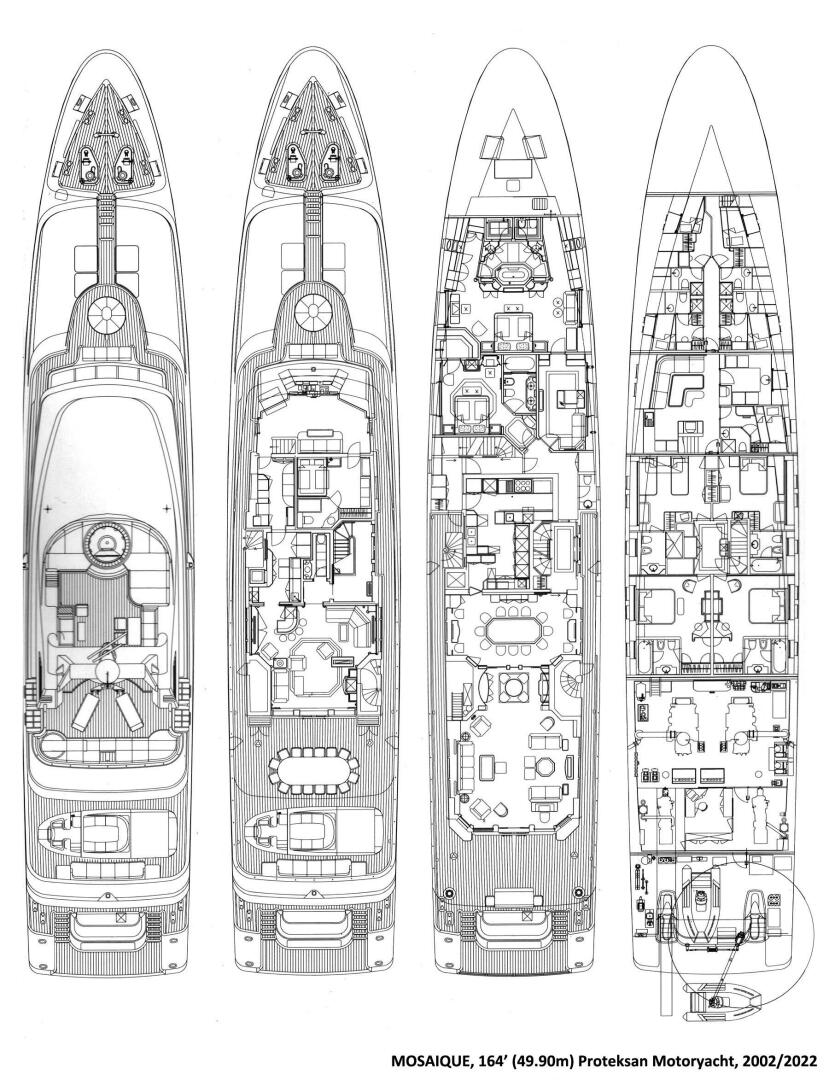

MOSAIQUE accommodates up to 12 guests in 6 staterooms, including a full beam master stateroom and a VIP stateroom on the main deck, as well as four additional staterooms on the lower deck.

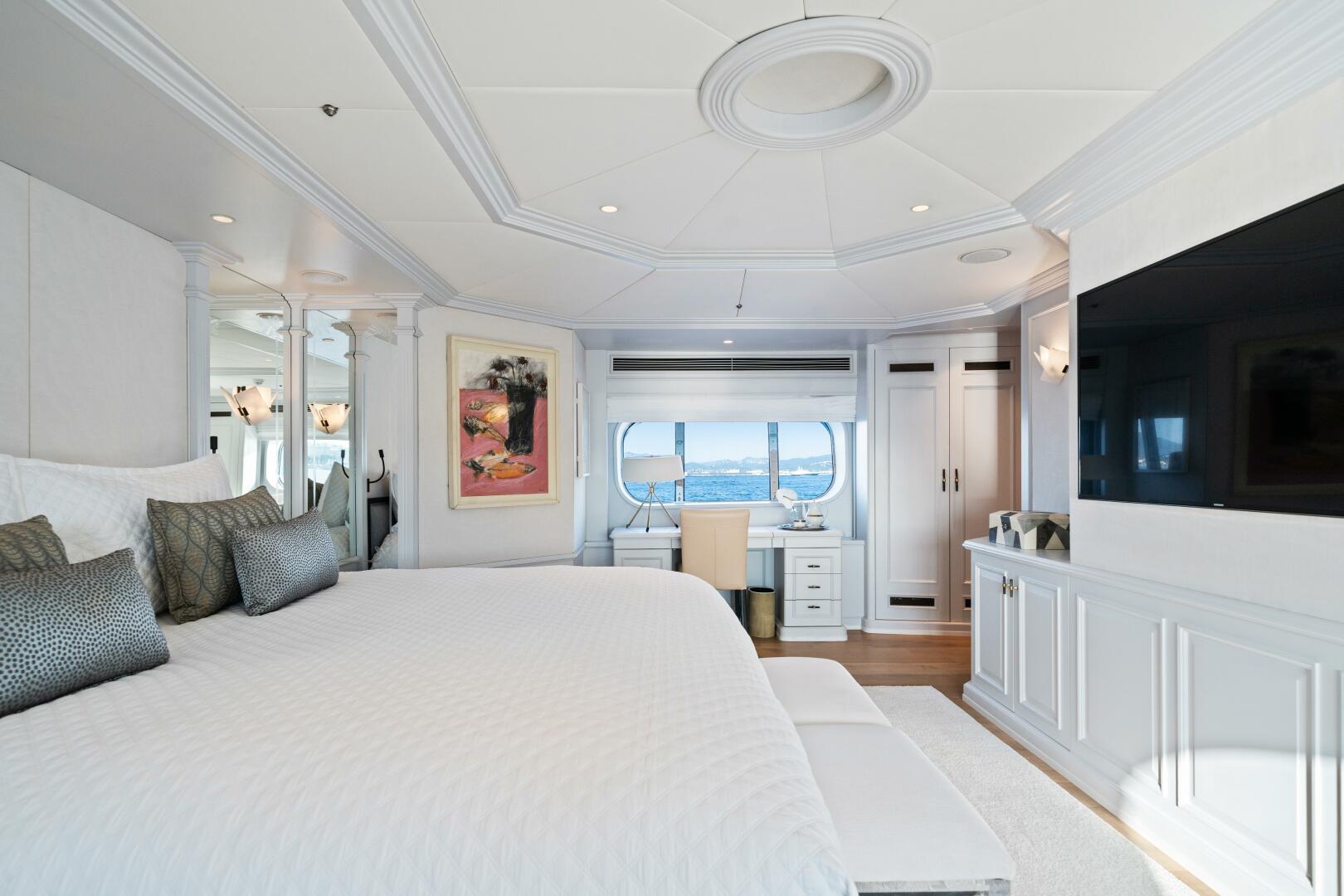

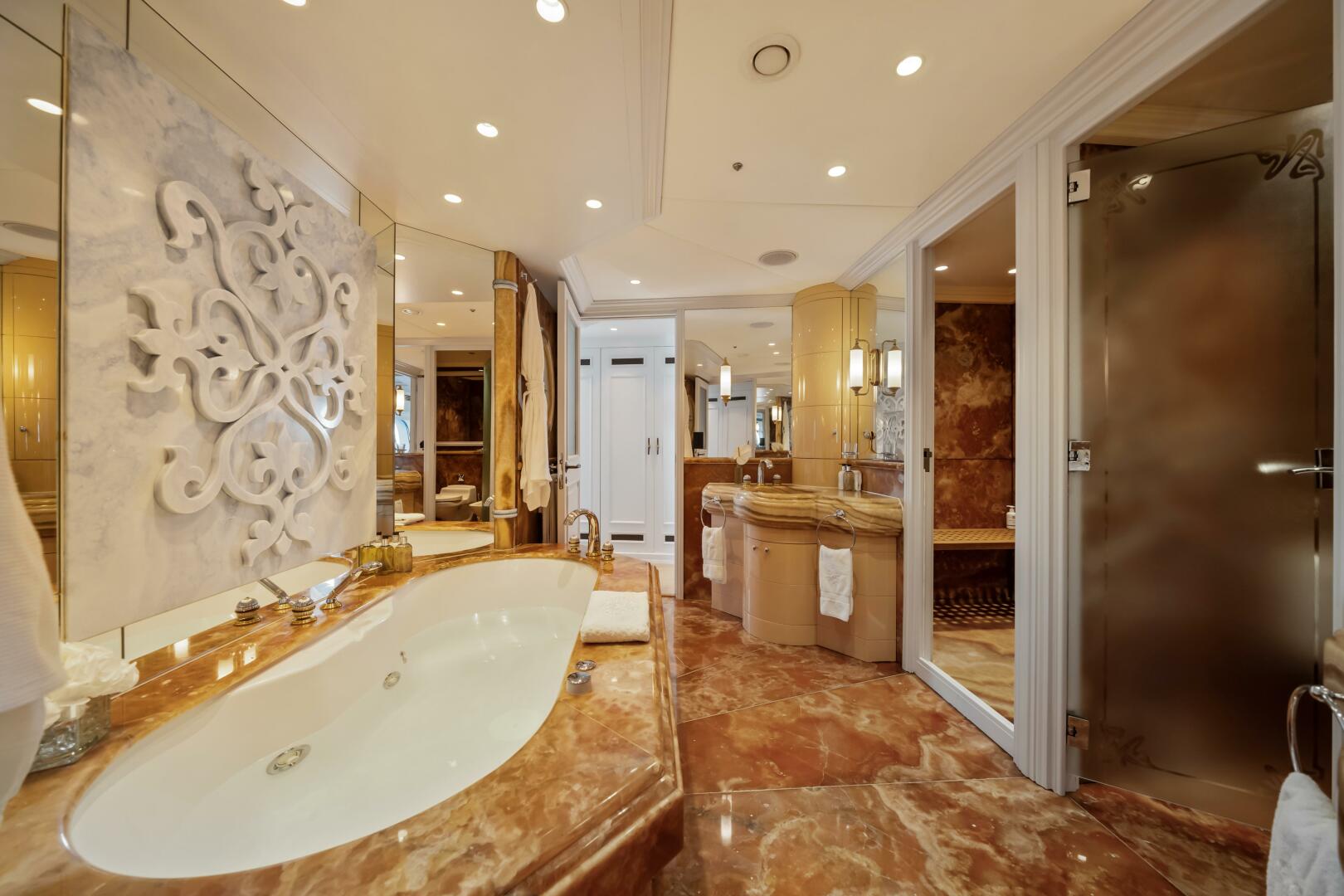

The full beam master stateroom on the main deck features a king-sized bed, a separate seating area, and a luxurious bathroom with a whirlpool tub, steam shower, and double vanity, all elegantly decorated in onyx and marble.
The VIP stateroom on the main deck includes a large double bed and an ensuite bathroom with a double vanity.

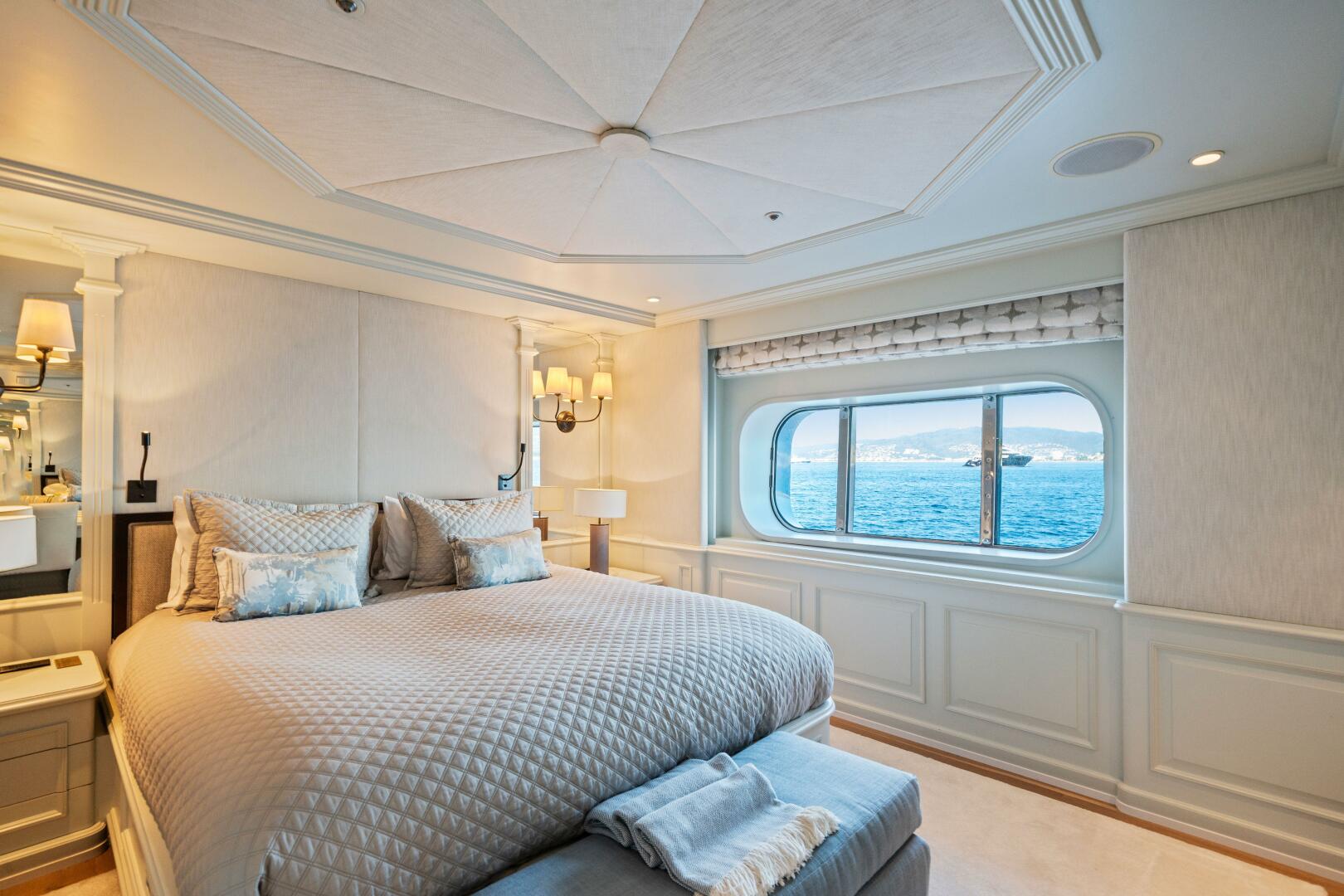

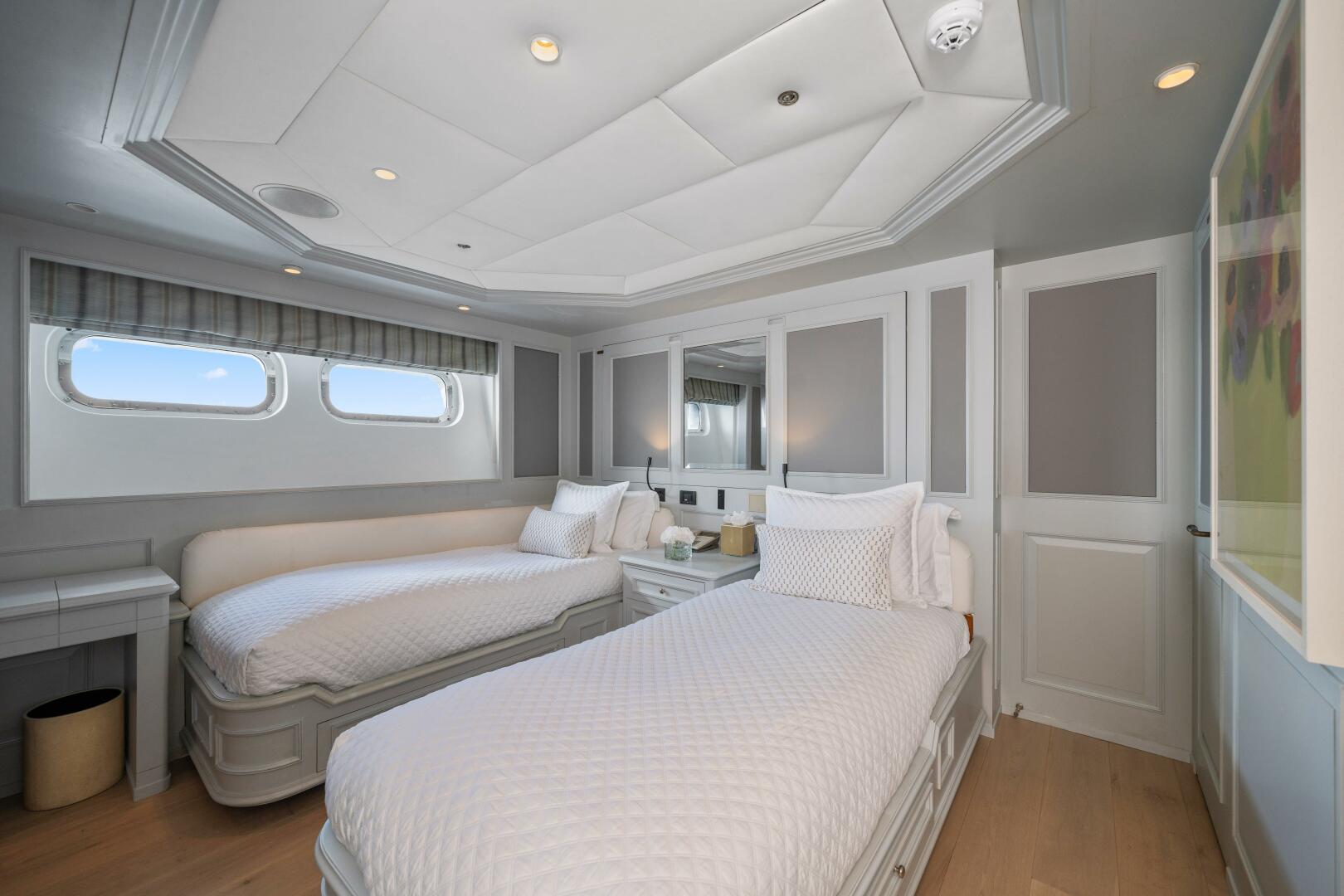

On the lower deck, there are three double staterooms, each with an ensuite bathroom, and one twin stateroom with an ensuite bathroom.
COMMENTS
Designed by the esteemed Dubois Naval Architects, MOSAIQUE is a sophisticated and stylish luxury yacht that manages to maintain a sense of intimacy despite her expansive decks and luxurious suites. Her thoughtful and creative design ensures that every space feels personal and inviting.
Her lovely interior is light, bright and airy and in the “Hamptons Beach House” style.

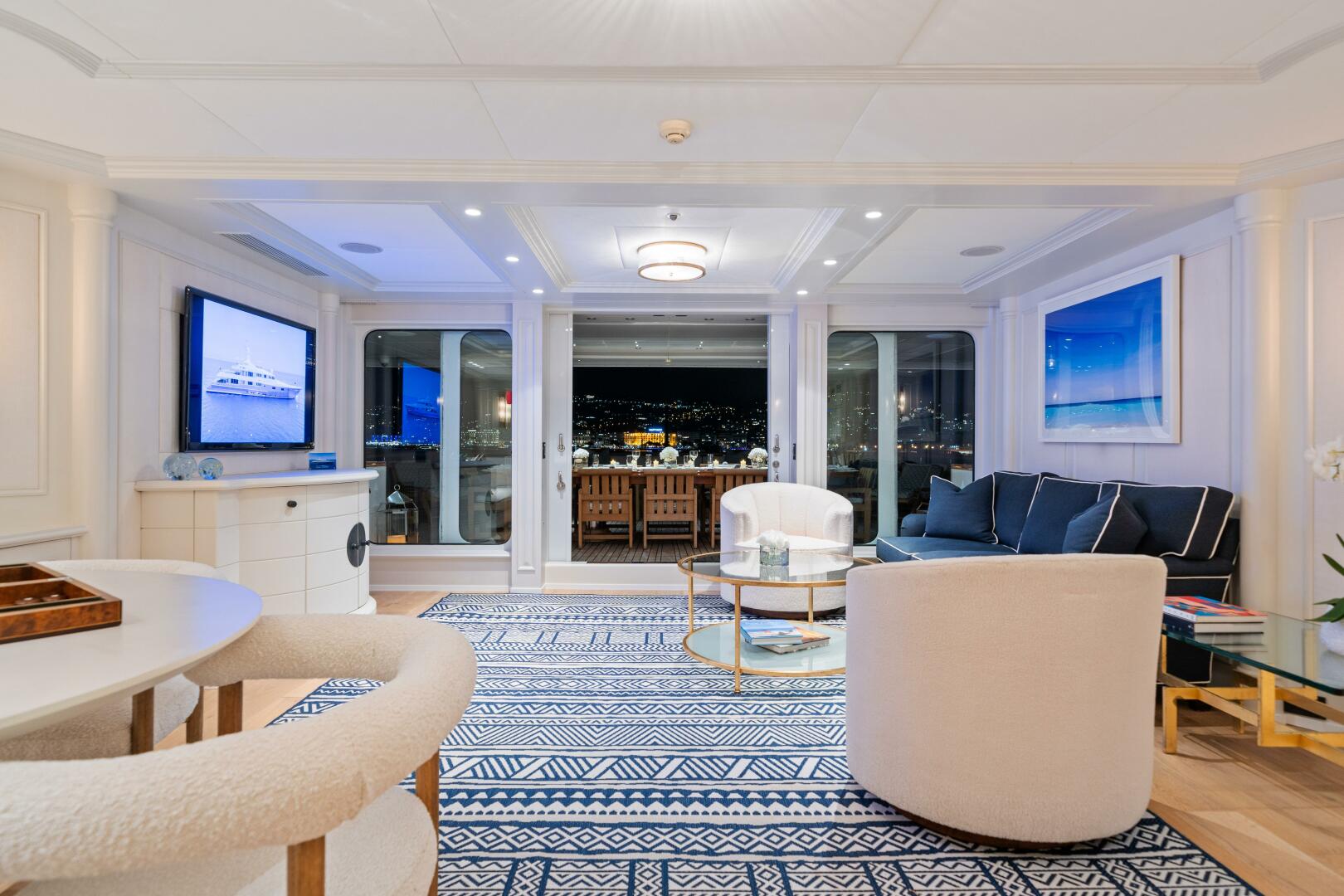

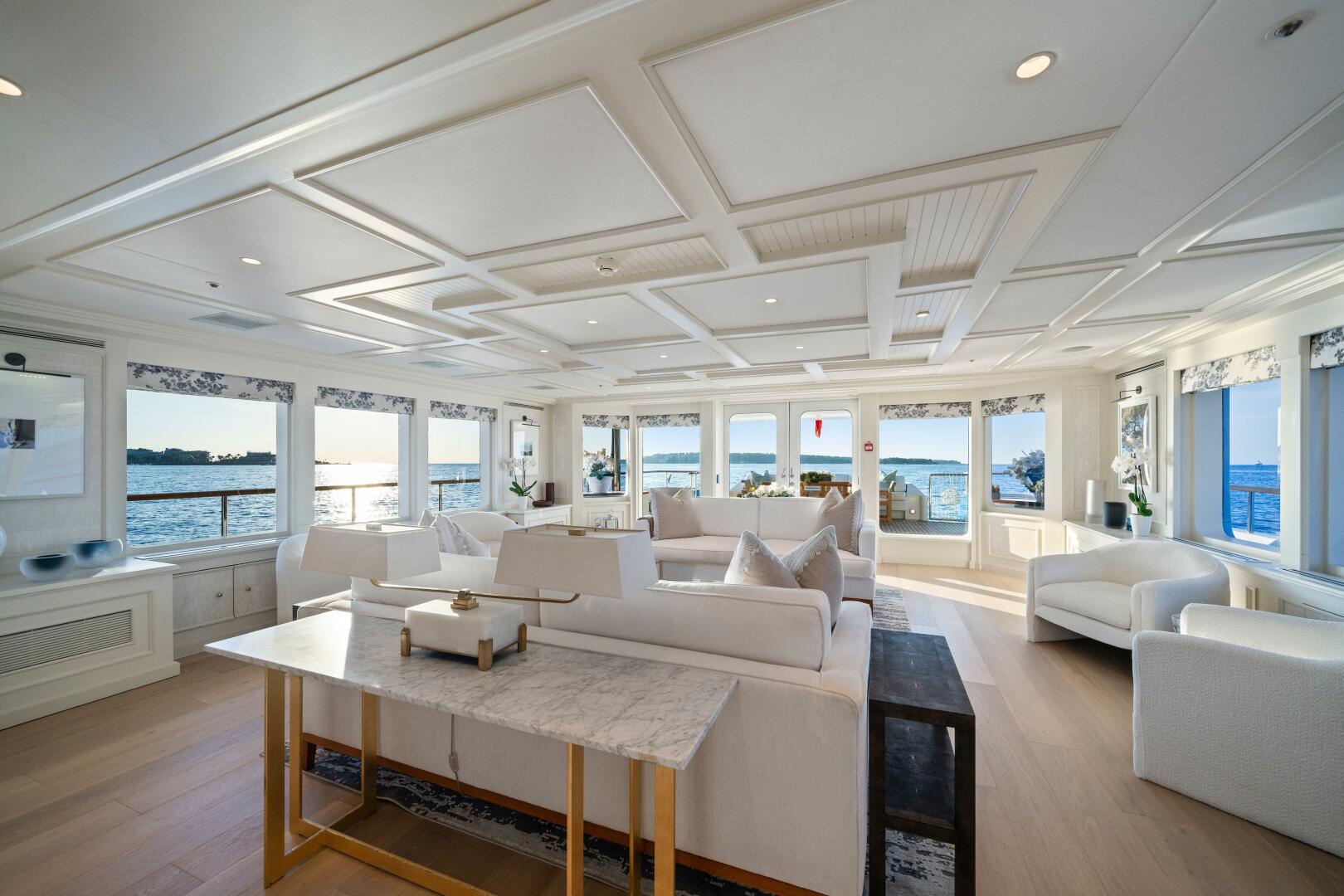

The yacht’s main deck is ideal for relaxation, featuring a spacious salon that opens onto an elegant foyer leading to a formal dining room for 12 guests. These areas are adorned with a refined palette of modern and classic tones, neutral carpets, and soft furnishings. For an alternative retreat, the upper deck saloon offers a charming, equally serene space.
On the main deck, the magnificent full beam master stateroom sets a high standard for the five additional staterooms. The master stateroom includes a private owner’s lounge/office and an opulent bathroom finished in onyx and marble. Each stateroom is equipped with a fully integrated audio-visual system, providing guests with a wealth of entertainment options.

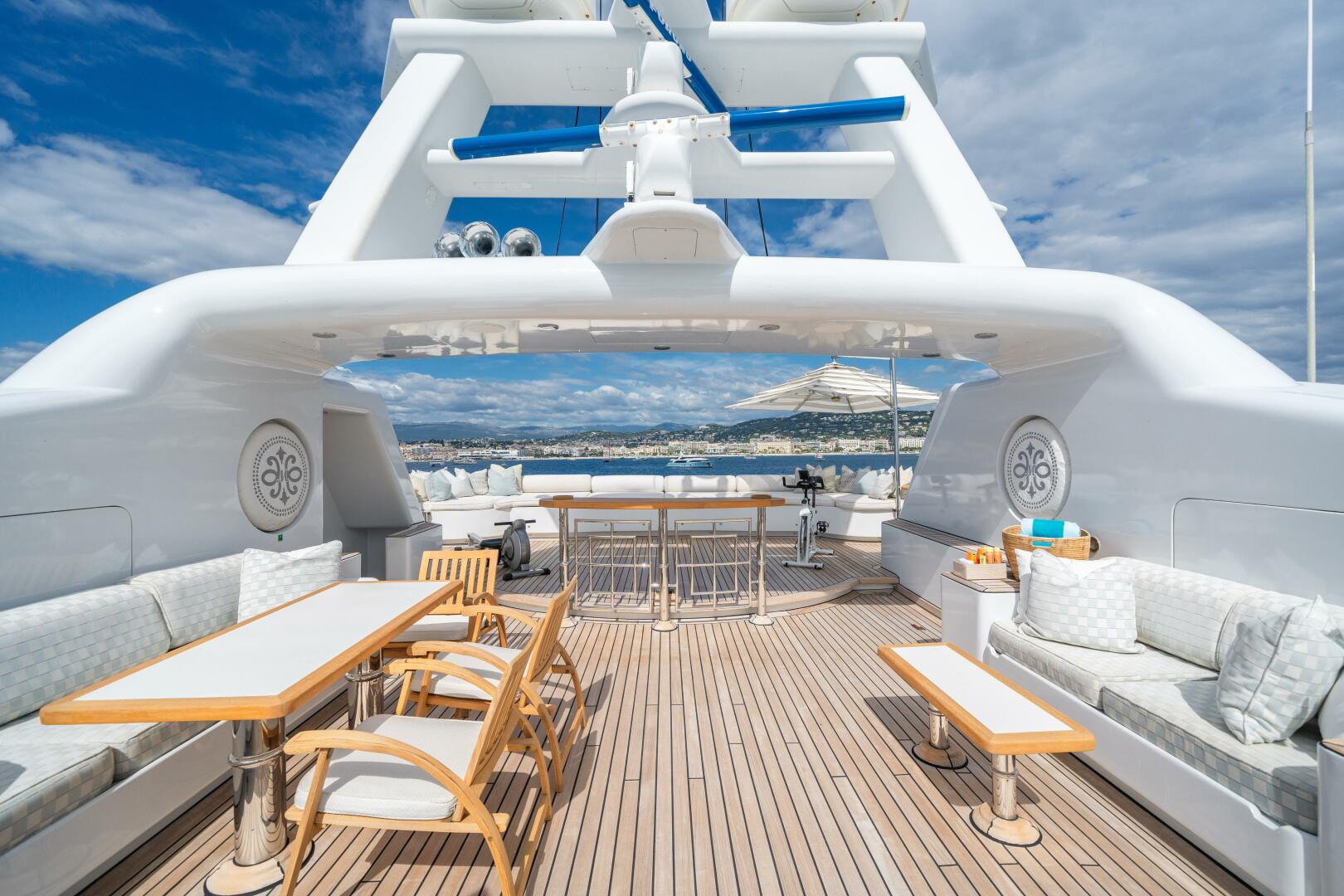

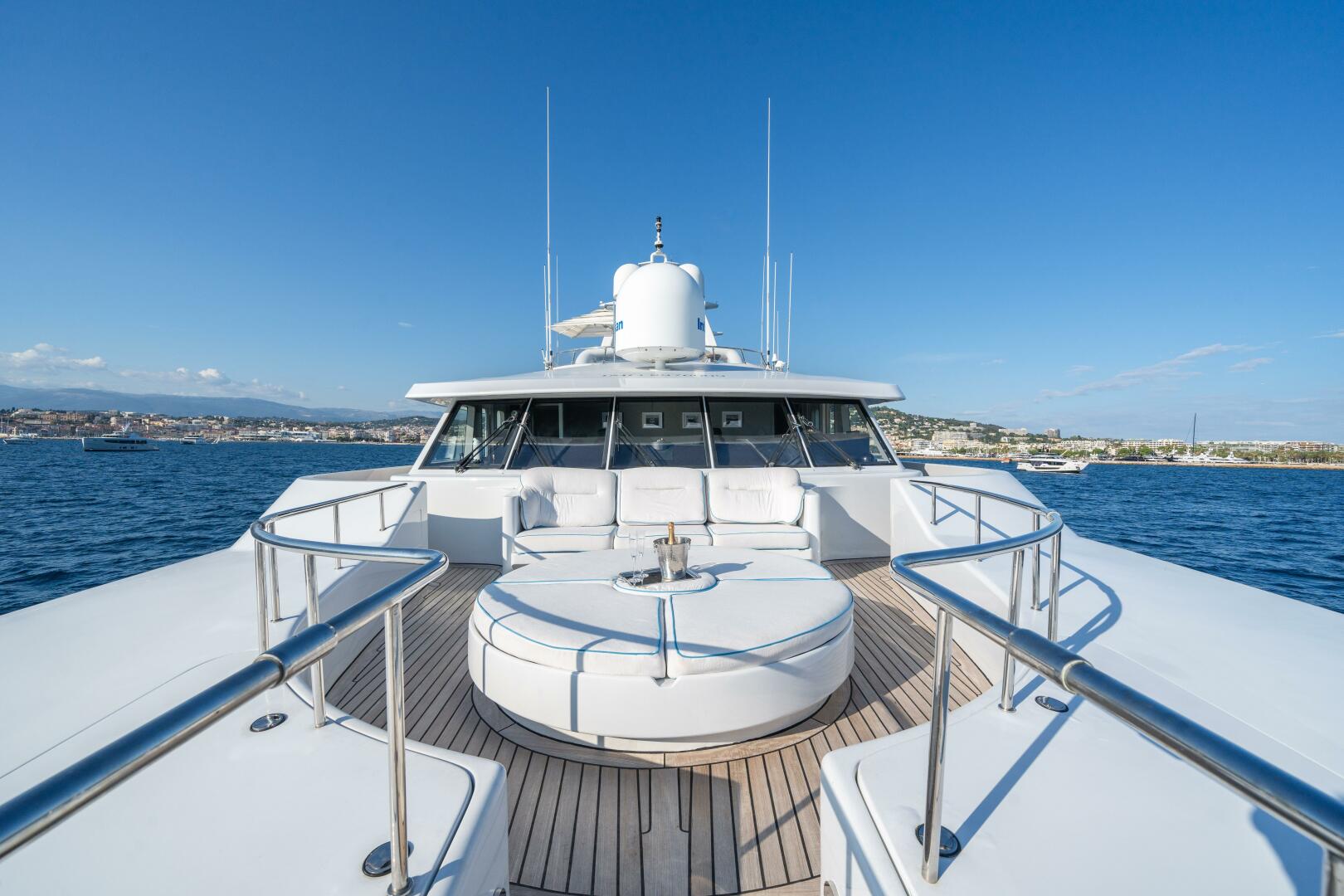

A standout feature of MOSAIQUE is her sundeck, where a whirlpool is surrounded by sun pads and loungers. This area also features a bar and two tables for informal alfresco dining, offering the perfect setting to enjoy fine cuisine and service in complete privacy. Guests can also take advantage of the gym equipment, which includes a treadmill, recumbent bike, training bench, and weights, all sheltered by a Bimini shade for added comfort.

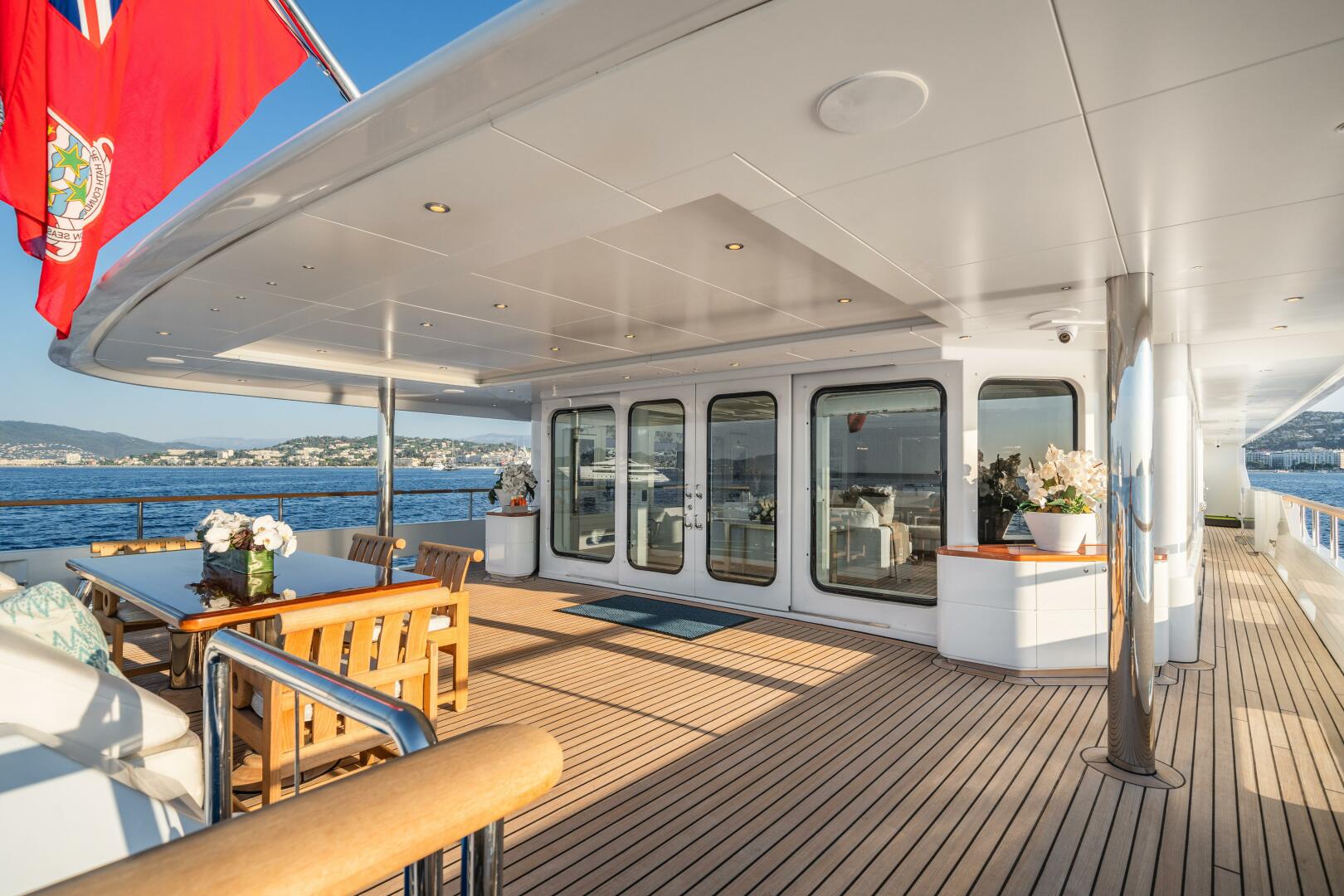

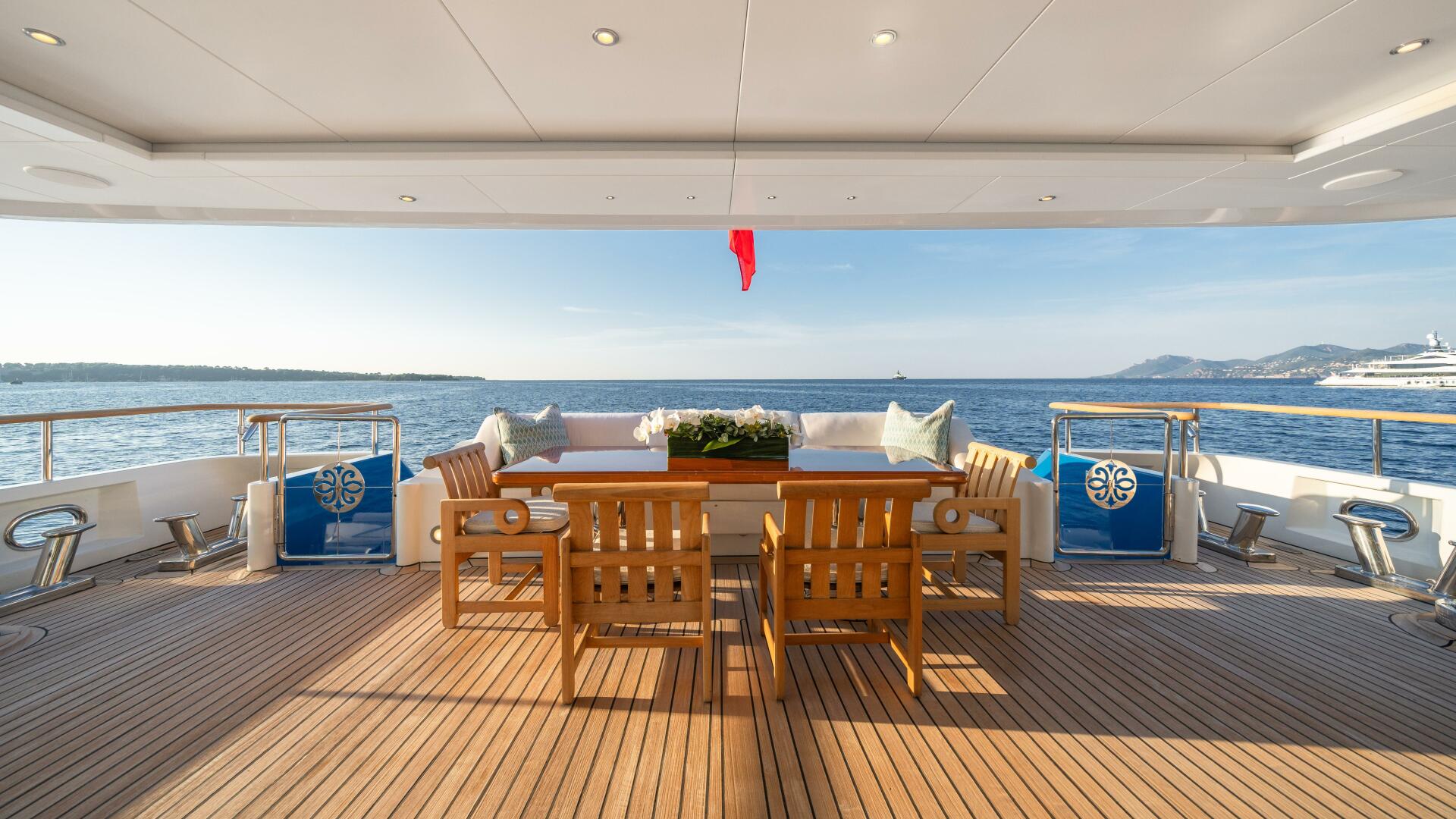

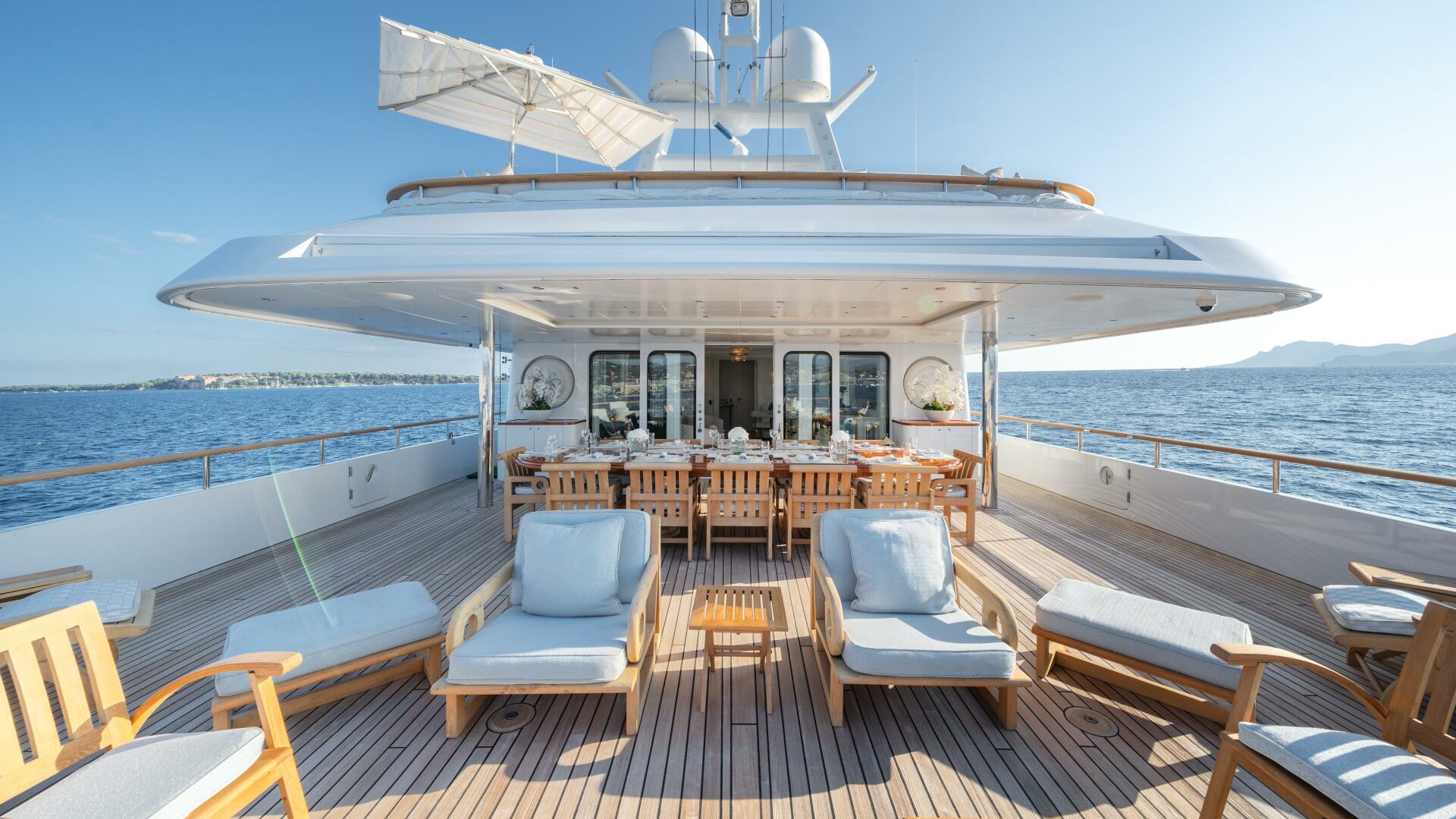

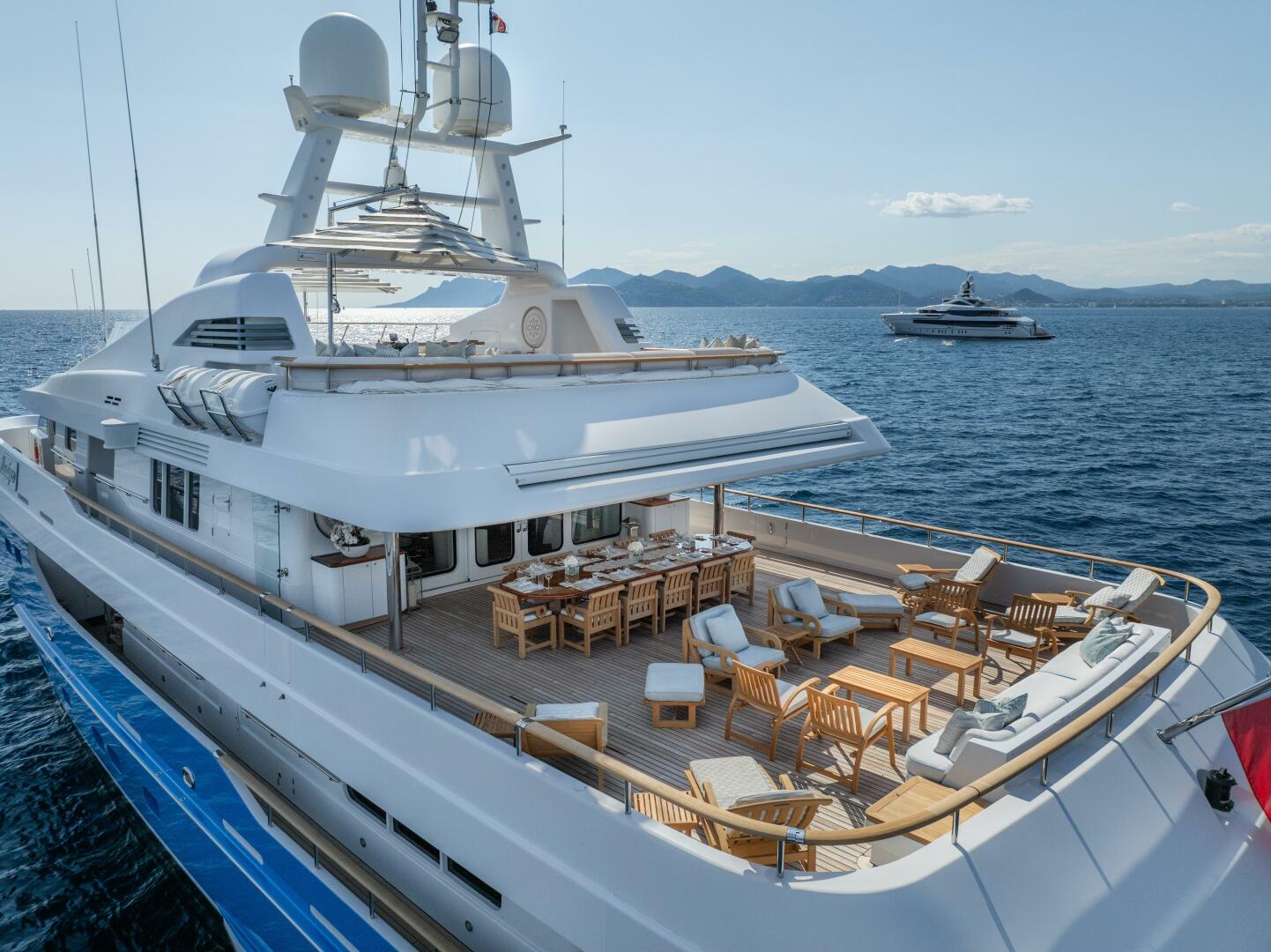

For alfresco dining, the bridge deck offers seating for up to 16 guests around a stunning oval teak table. The table’s removable leaves allow for a more intimate dining experience when desired.
MOSAIQUE is equipped with zero speed stabilizers for a smooth and comfortable experience both underway and at anchor. She has two tenders at the ready for trips ashore or water sports, as well as an impressive array of water toys.
KEY FEATURES:
- Timeless design by Dubois Naval Architects
- Light, Bright, Airy interior décor refreshed in 2023 provides accommodations for 12 guests in 6 staterooms including a main deck full beam master stateroom
- Whirlpool, Sun Pads, Exercise Equipment, Dining and Cocktail Bar
- A major refit in 2022/2023 included:
- o Major overhaul of the main engines and generators, covered by Caterpillar Platinum Extended Service
- o 20-year Lloyd's classification survey
- o Complete bottom sandblasting
- Quantum Zero Speed Stabilizers
- Transatlantic Capability
- 4,500 nm range at 14 knots
- Strong Charter Reputation
REFIT/ MAINTENANCE SUMMARY
2022/2023
- Hardwood Floors installed throughout the vessel
- 20-Year Lloyd’s Classification Survey Completed 2022
- Top End Overhaul on Maine Engines 2022Covered by Caterpillar Platinum Extended Service Cover (ESC)
- Full Rebuild on Generators 2022Covered by Caterpillar Platinum Extended Service Cover (ESC)
- Complete Bottom Paint Job 2022 (sandblasted down to bare metal)
- Interior Refresh 2023; soft goods, carpet, etc.
- Complete refurbishing of crew quarters
- Deckhead replacement throughout the vessel
- Various mechanical improvements
2021-2019
- (March 2021) Special Lloyds Class Surveys renewal of all certification
- "Blue Marlin" exterior paint Job 2020
- New Carpets, new interior refurbishment and upgrades
- Various mechanical improvements
2015/2014
- Total interior refurbishment with new soft furnishings
Overview from around the web 2002 Proteksan Full Displacement Oceangoing
Customers praise the 2002 Proteksan Full Displacement Oceangoing yacht for its exceptional build quality and robust full displacement hull, which ensures smooth and stable cruising even in challenging sea conditions
Many highlight the spacious and well-designed interior, offering comfort and luxury suitable for extended voyages. Owners appreciate the vessel's reliable performance, fuel efficiency, and ample storage capacity, making it ideal for long-distance ocean travel. Additionally, the craftsmanship and attention to detail in both exterior and interior finishes receive frequent commendation, reflecting the high standards of Proteksan shipbuilding. Overall, customers consider the 2002 model a dependable and elegant choice for serious voyagers seeking a combination of durability and comfort.
The Biggest Pros and Cons
The 2002 Proteksan Full Displacement Oceangoing offers a range of advantages and some considerations to keep in mind:
Pros
Full Displacement Hull: Designed for efficient long-distance cruising with excellent fuel economy and a smooth ride, even in rough seas.
Robust Construction: Built with high-quality materials and craftsmanship, ensuring durability and reliability for oceangoing voyages.
Spacious Layout: Generous interior and deck space provide comfort for extended trips, making it suitable for liveaboard or expedition purposes.
Seaworthiness: Stable and capable in a variety of sea conditions, enhancing safety and confidence during offshore passages.
Timeless Design: Classic styling combined with practical features appeals to traditional cruising enthusiasts.
Cons
Speed Limitations: As a full displacement vessel, it is generally slower compared to planing hull boats, which may affect travel time.
Maintenance Requirements: The robust build and systems may require regular upkeep, potentially leading to higher maintenance costs.
Initial Investment: Quality construction and features can translate into a higher purchase price compared to similar-sized vessels with different hull types.
Maneuverability: Larger displacement hulls can be less agile in tight docking situations, requiring experience and care when handling.
Made For
The 2002 Proteksan Full Displacement Oceangoing is designed for adventurous sailors and long-distance cruisers who seek a reliable, sturdy vessel capable of handling extended voyages across open waters. Its full displacement hull offers exceptional stability and comfort, making it ideal for those who prioritize safety and endurance on challenging ocean passages. Whether for serious offshore expeditions or comfortable liveaboard cruising, this boat caters to individuals and families looking for a durable, well-crafted yacht built to withstand diverse sea conditions.
