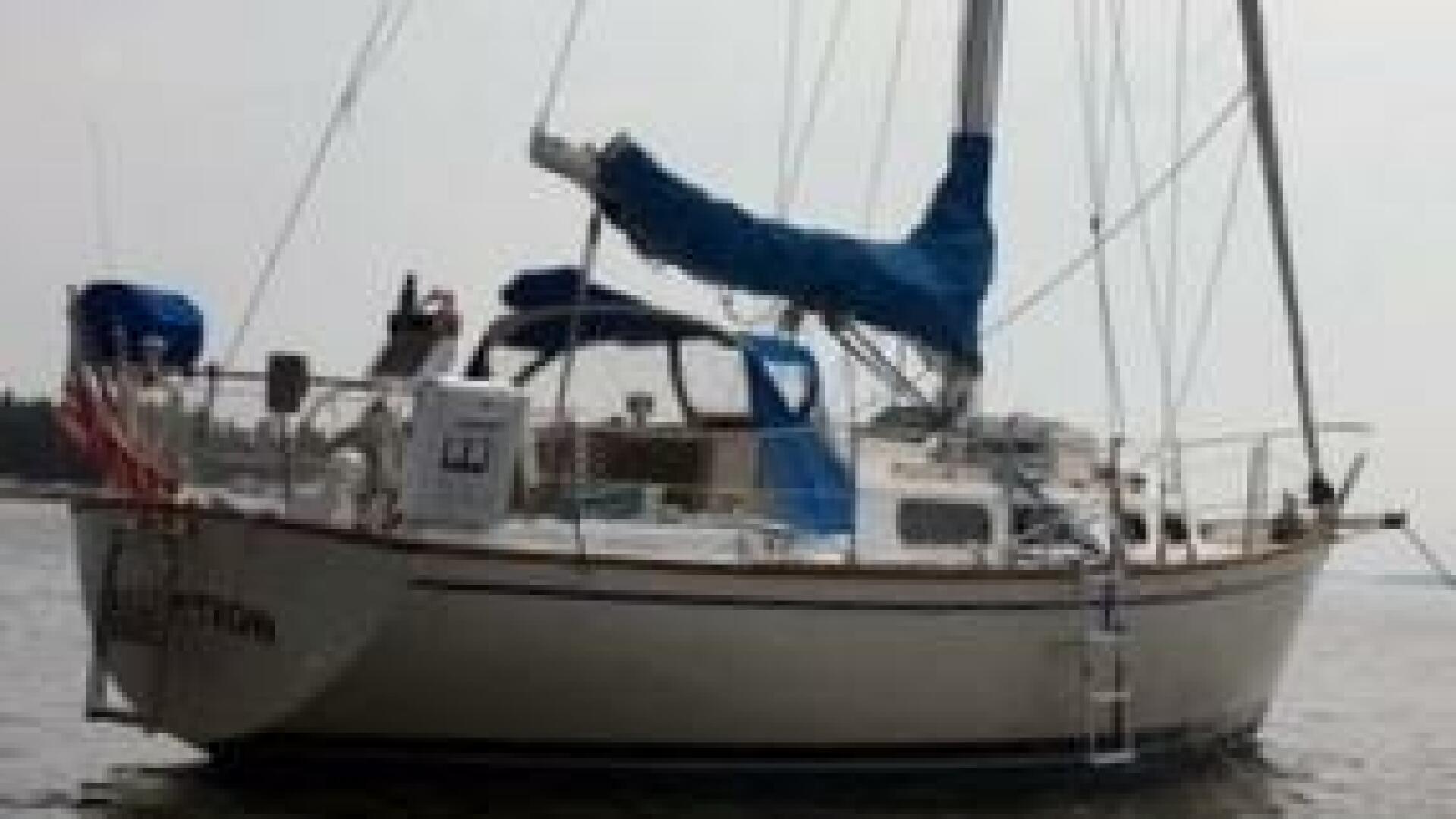

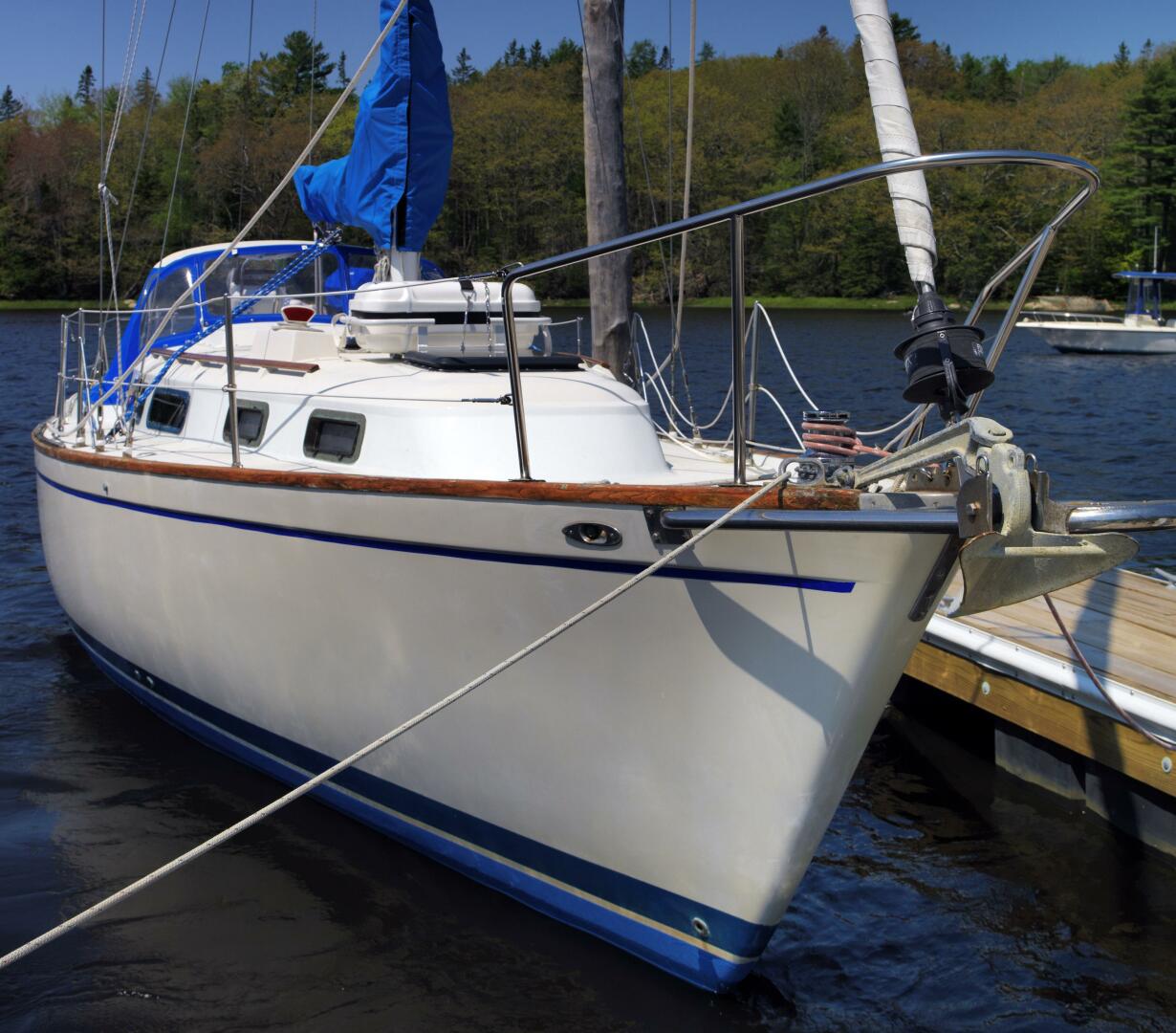

1981 Pearson 323 Sloop Sold Boat in Surry, ME 04684 US

Hull:

• Hull stripped and epoxy barrier‐coated 2022.
• All nylon thru hulls replaced with bronze thru hulls and ball valves.

Tankage:

Fuel: 18 gallons.

Holding: 18 gallons.

Water: approximately 80 gallons

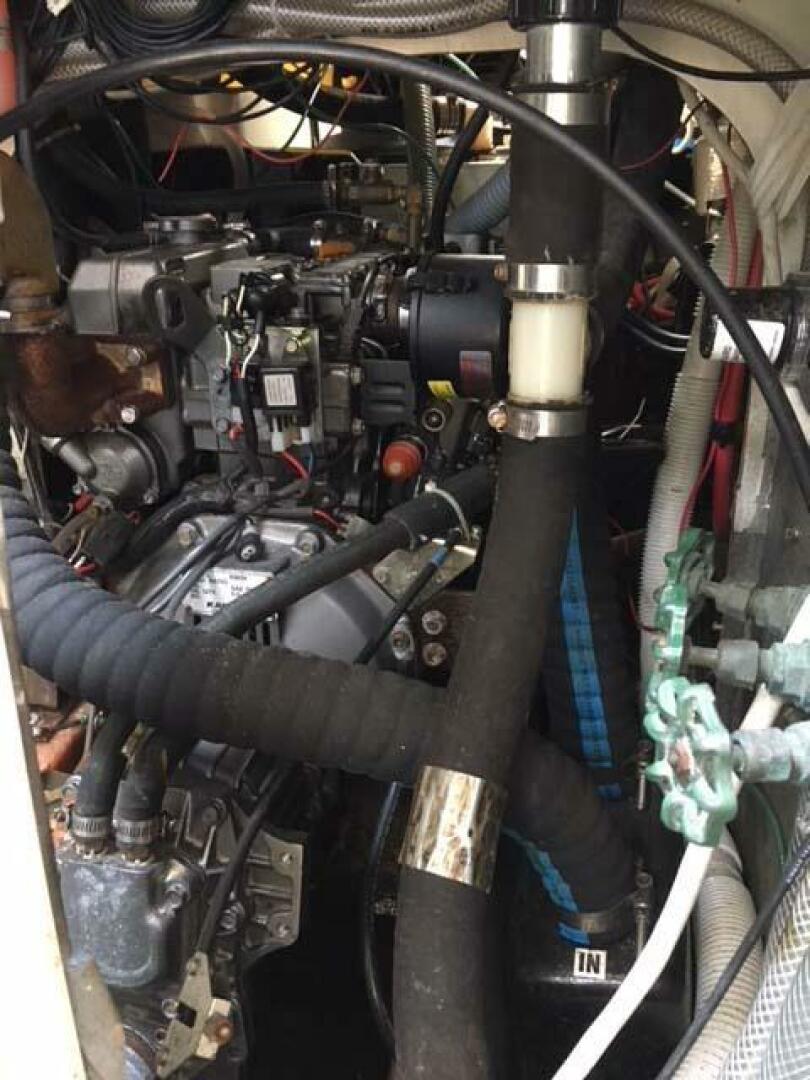

Engine and Drive Components:

• Yanmar 3YM30 (30 hp) with V‐drive transmission.
• 1‐1/8" stainless shaft.
• Engine fuel system check and compression test 2021.
• Transmission serviced 2022, shaft 2023.
• Propeller balanced and refurbished Cutlass (strut) bearing (2022).
• Stuffing box repacked 2022.

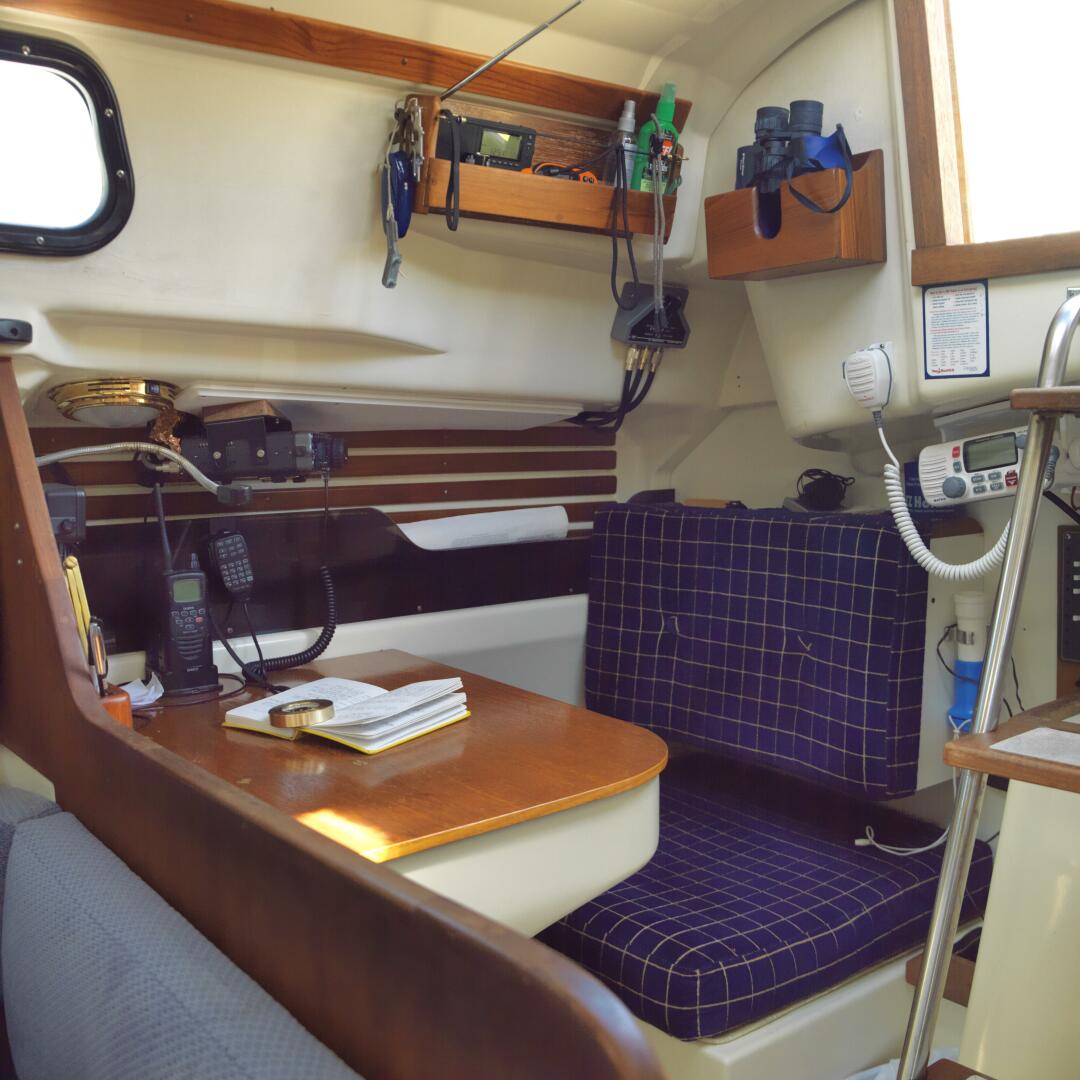

Electronics:

• Raymarine 18" Quantum radar (2022).
• Raymarine 9" Axiom chartplotter in Ocean Systems fiberglass housing at helm (2022).
• Raymarine wheel pilot autohelm with course computer.
• Raymarine knot meter/log and depth sounder with bronze Raymarine C‐80 chartplotter at nav station w/ external GPS.
• McMurdo EPIRB.
• Dynaplate 'Super ' copper external grounding plate.
• Standard Horizon VHF with GPS input.
• Depthsounder and speed log.
• Wired for NEMA 2000 and Seatalk2.

Sails, Spars and Rigging:

• Main and jib sails.
• Mast keel base ‐ iron base replaced with stainless steel Mast and boom, stripped to bare metal and epoxied. Edson radar mount on mast.
• Backstay isolated for HF/SSB antenna.
• LED lights.
• All running rigging replaced with New England Ropes Sta‐Set.
• Mid‐boom bail added to serve as down‐wind vang/preventer, 4‐part rigged.

Electrical System:

• All wiring replaced to ABYC gauge standards with Anchor marine wire 12V and 120V service panels.
• 1800 watt 120V true sine wave converter.
• Two independent battery banks with a combined 400 amp‐hours supply.

Plumbing, Water System:

• All piping replaced with reinforced PVC tubing.
• Raritan six‐gallon water heater ‐ engine or 120V.
• Jabsco piston water pump and pressure tank.
• Scandvik mixing faucets in galley and head.
• Seawater washdown system with pressure pump and outlet in anchor locker.
• V‐berth water tank replaced in 2021.
• Jabsco head, with holding tank ‐ all hoses replaced Macerater pump for offshore pumpout.
• Rule pumpout for head sink and shower.

Focsle:

• Starboard lockers replaced with bubinga faceplate and teak louvered doors.
• Outlets for 12V and 120V.
• Bug screen for hatch.
• Overhead dome white/red light.

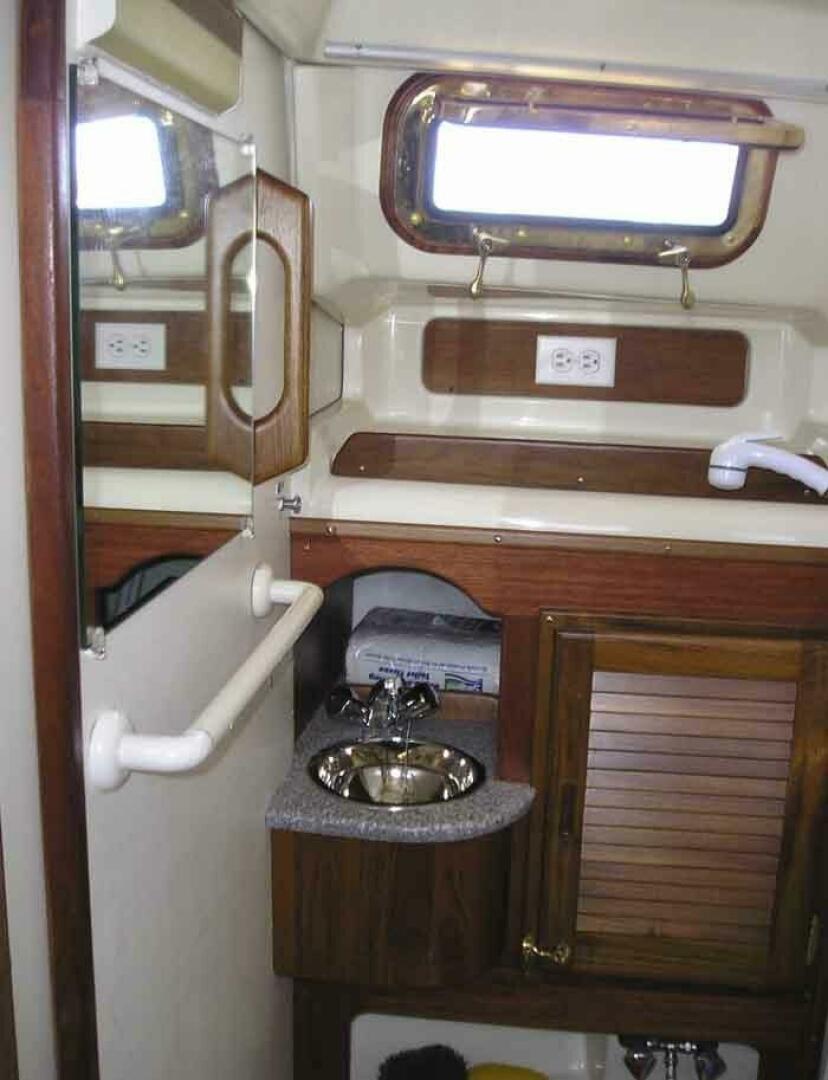

Head:

• "Swing‐out" sink replaced with round S/S sink set in Corian and contained in bubinga‐ and teak‐framed bulkhead with louvered teak door on starboard side.
• Port hanging locker plywood doors replaced by teak louvered doors set in bubinga face frame.
• Scandvik sink and shower fixtures.
• Overhead dome light.
• Main Cabin.

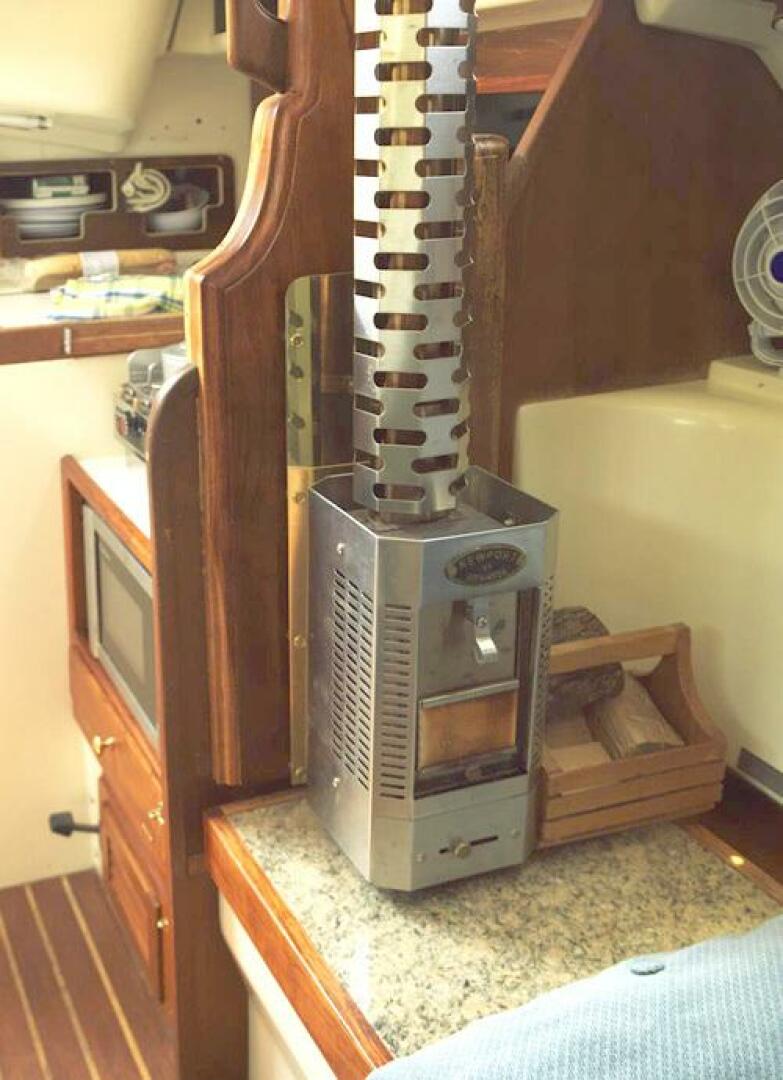

• Stainless steel solid fuel stove with guarded S/S flue pipe and thru deck fittings.
• Stove backed with brass shield on bubinga post.
• Granite hearth trimmed in bubinga.
• Brass wall lamp and anemometer Digital television with video disc player.
• Caframo fan.

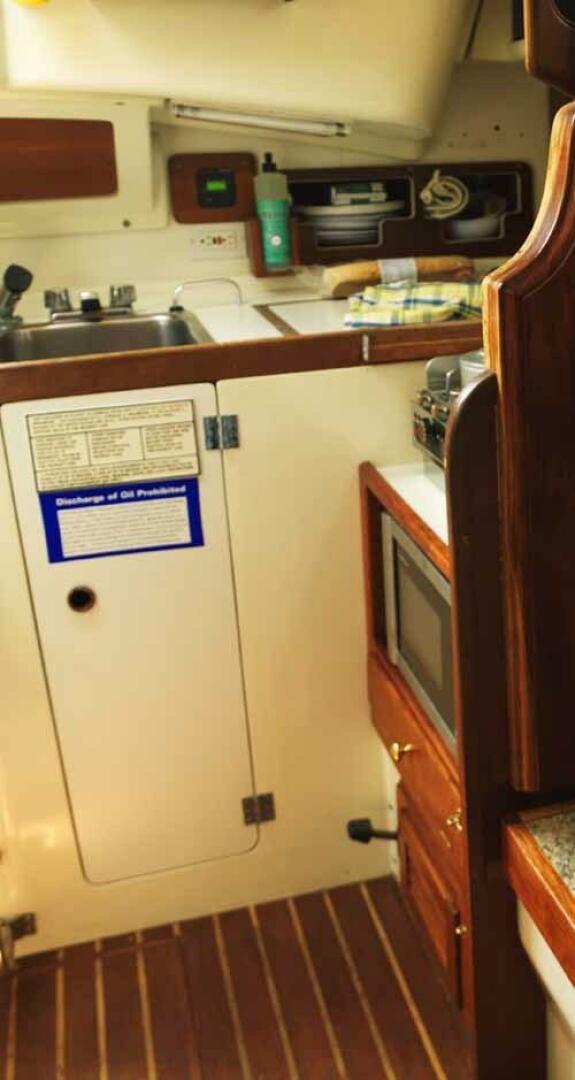

Galley:

• Original stove replaced with gimballed alcohol cooktop on Corian base.
• Microwave.
• S/S oven added.
• Bubinga faceplate with teak doors for oven and storage.
• Scandvik mixing faucet.

Equipment:

• 25# CQR anchor w/30' 5/16 chain and 280' 5/8" rode.
• Fortress aluminum Danforth-type anchor w/chain and rode.
• 7 jackstands.
• Fenders, dock lines, towing line, cushions.
• Fire extinguishers.
• Belts and filters.
• Electric and manual bilge pumps.
• Jacklines.
• Electric and oil cabin lights.
• Barometer.
