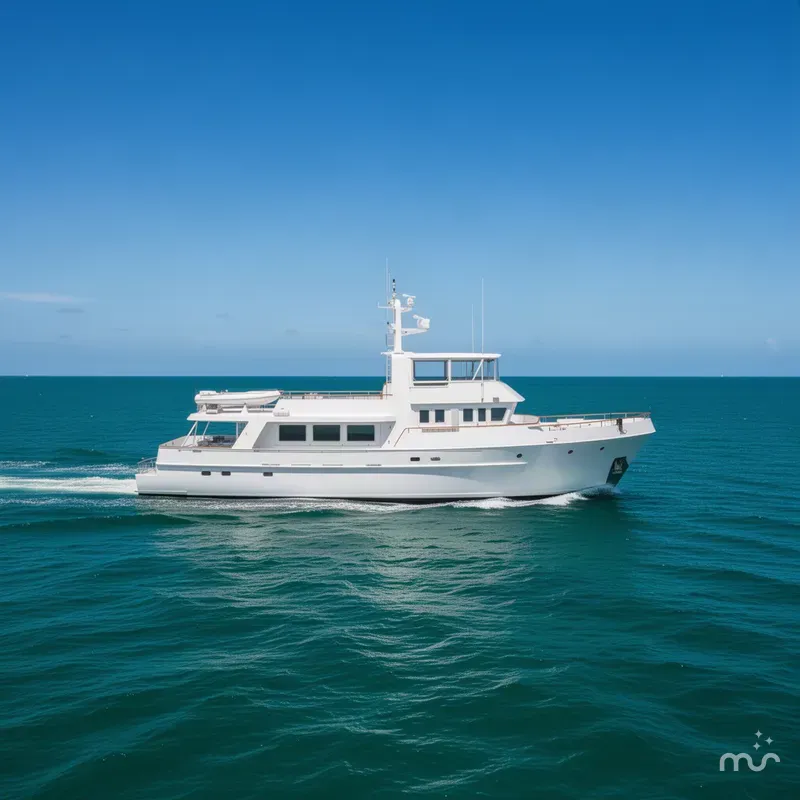

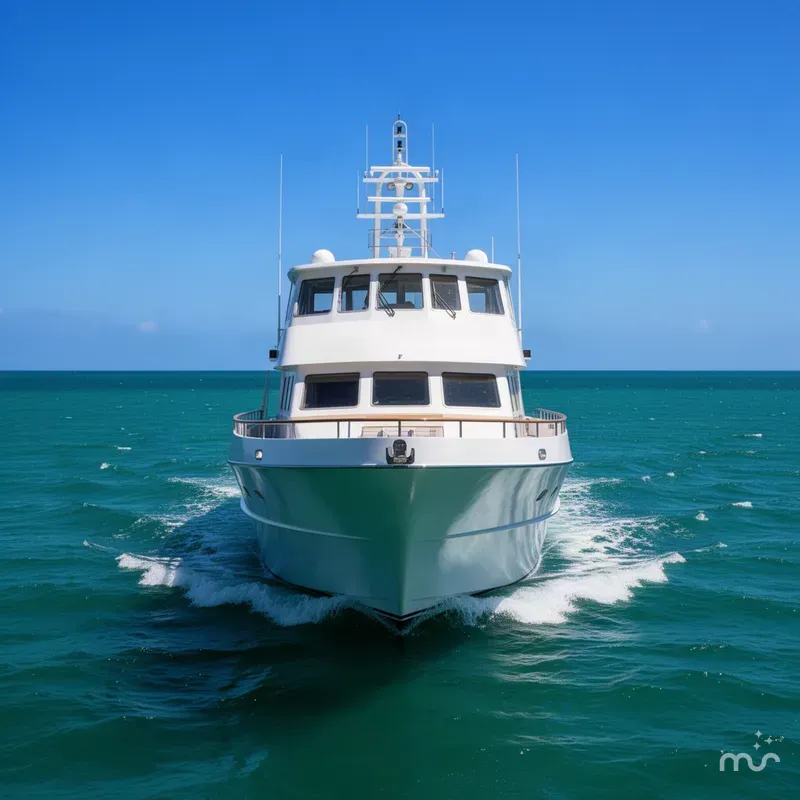

1992 Palmer Johnson VRIPACK DOGGERS BANK Boat in Indiantown, FL 34956 US

• Hull glass-blasted and finished with a minimum four-coat epoxy barrier system and four coats of bottom paint
• New paint from waterline to mast, with new non-skid decks throughout
• New Michigan propellers, with Propspeed on all running gear
• LED conversion across 200+ fixtures, including original brass fixtures modified to preserve their character, with all-new dimmers and drivers
• Main AC electrical distribution panel rebuilt, plus a refreshed DC panel with new breakers, fuses, meters, and battery displays
• All-new battery banks throughout, including eight 8D house batteries and new engine, generator, thruster, and flybridge batteries
• Two ASEA shore power converters, a new shore power selector, a galvanic isolator, and two new 100-amp, 100' shore cables
• New chilled-water plant with three 5-ton chillers, five new air handlers on the flybridge/sundeck and aft deck, and engine room air conditioning added
• Garmin glass bridge at both helms, all-new mast antennas, Starlink, Pepwave cellular, a new FLIR thermal camera, new VHFs and a new AIS system
• Two new 6-person life rafts, updated 24V emergency lighting, a rebuilt fire/bilge manifold, a new SeaXchange watermaker and Spotzero system
• Formal interior dining created in the salon, plus a new refreshment station with refrigerator, wine cooler and ice maker/freezer
• New cushions, isinglass, refrigeration and ice makers on the flybridge and aft deck
• All-new carpet throughout the salon and all accommodations
• New headliners overhead in staterooms and crew areas
• All-new Hunter Douglas blinds and window treatments throughout, including remote-controlled shades in the main salon
• All-new head systems throughout, with all soft plumbing replaced and new Dometic MasterFlush macerating heads

• Builder: Palmer Johnson
• Naval Architecture: Vripack (Doggersbank)
• Year: 1992
• Refit: 2024–2026, Indiantown Marine Center
• LOA: 90'
• Beam: 22' 1"
• Hull Material: Aluminum
• Cruising Speed: 10 knots
• Maximum Speed: 12 knots
• Range: Approx. 3,000 nm at cruising speed
• Main Engines: Twin Caterpillar D3406-B, 380 HP each
• Gearboxes: Twin Disc MG516, 2.06:1 ratio
• Generators: Two Northern Lights, 40 kW each
• Staterooms: 3 (sleeps 8), plus captain's cabin and crew quarters (sleep 4)
• Fuel: 5,800 US gal
• Fresh Water: 1,860 US gal
• Blackwater: 930 US gal
• Gray Water: Approx. 200 US gal

Master Stateroom

• Varnished teak stairway with non-skid treads leads down from the starboard aft corner of the salon to the private, full-beam master suite. The steps here, between the salon and galley, and from the pilothouse forward were custom-built at Front Street Shipyard.
• A teak-and-holly companionway leads to the master, with an egress leading to the engine room at the base of the steps.
• To port off the companionway is a utility room with a linen locker and access hatches to the aft fuel and gray water tanks.
• To starboard is a small study with a fold-down desk and seat, a safe, and storm port storage.
• Six opening port lights (two port, two starboard, and two larger ports in the aft bulkhead opening to the cockpit), with screens and deadlights
• King berth on centerline, flanked by built-in bureaus, cubbies and bookshelves
• Upholstered settee outboard to starboard, with cabinets and cubbies above
• Double-door hanging locker, and a built-in vanity with mirror and stool
• 55" Samsung TV on the forward bulkhead, with storage below
• Garmin C212 remote control unit

Master Head

• En suite, with direct access from the master stateroom
• Cherry joinery throughout, matching the stateroom
• Double vanity with Kohler undermount sinks set in a dark green countertop, with backsplash
• Gold-plated widespread faucets, towel bars, and hardware
• Full-width mirrored cabinets above the vanity, with recessed LED downlighting
• Walk-in shower with a glass door, stone-look tile walls with a mosaic accent band, a brass valve, and a combination rain and handheld showerhead
• Heated mosaic tile floor
• Two opening port lights for natural light and ventilation
• Cabinet storage beneath the vanity, plus a fiddle-railed shelf along the outboard side
• New Dometic MasterFlush macerating head

Guest Staterooms

• Teak steps lead from the starboard forward side of the pilothouse down to a teak-and-holly companionway, which serves two mirroring twin-berth guest staterooms and a full-length linen and storage closet.
• Each stateroom is paneled in cherry and has:
  • Twin berths with two deep drawers under each
  • A built-in night table with drawers
  • A full-length half locker, plus a double-door hanging locker with digital A/C controls
  • A 22" TV
  • Storage cubbies
  • Two opening port lights with Hunter Douglas shades
  • LED overhead and accent lighting, plus a smoke detector
  • A custom twin Pullman berth overhead
• Each stateroom has an en suite head with:
  • Tile floor and shower
  • Cherry vanity with a Corian countertop
  • Gold-plated fixtures
  • A medicine cabinet
  • An opening port light
  • An extractor fan
  • A Dometic MasterFlush macerating head

Captain's Cabin and Crew Quarters

• Captain's cabin with a Garmin C212 remote control unit
• The crew mess sits directly forward of the pilothouse stairway. It has an L-shaped settee with a hi-lo table and a small galley with a Thermador 2-burner cooktop, an Amana microwave and a Magic Chef refrigerator, plus a 22" TV, bookshelves and an opening port light.
• Single bunk beds in the crew cabin
• En suite captain and crew cabins, shared shower

Laundry

• Professional Miele washer and dryer
• Large stainless laundry sink
• Central vacuum system with three access points throughout the yacht
• Storage pantry and a cleaning supply cabinet
• Compact front-loading freezer

Main Salon

• Large windows with new Hunter Douglas remote-controlled shades
• Formal indoor dining area
• New refrigerator, wine cooler and ice maker to starboard
• New overhead LED rope lighting
• New 55" TV and a surround sound system, with Niles music control panels throughout the yacht
• Large L-shaped leather couch
• Two swivel chairs

Galley and Dinette

• Teak steps lead from the forward salon up to the galley and dinette, which can be closed off from the salon by a door.
• The re-varnished teak-and-holly sole leads to a galley set to port, with two large windows and new shades.
• Appliances include:
  • A Miele 5-burner glass cooktop with fiddle rail and warming zone
  • A Miele oven
  • A GE Profile convection/microwave
  • A KitchenAid dishwasher
  • A Sub-Zero full-size refrigerator
• Gray-and-white granite counters, a deep stainless sink and a new faucet
• The dinette sits to starboard, with a blue leather semicircular settee, a granite-top table and two stools with new cushions.

Mast

• All-new GPS, VHF, AIS and satellite radio antennas
• Starlink satellite internet
• Pepwave cellular data, with external Wi-Fi antennas for marina connectivity
• New FLIR thermal camera and a new weather antenna
• LED bulbs in the spotlight

Flybridge Helm

• Two Garmin GPSMAP 8617 displays
• Garmin GMR 1204xHD radar
• BlueNet 20 and BlueNet 30 gateway network, plus a Garmin GMI 20 instrument display
• Two Garmin GPS 24xd antennas (NMEA 2000)
• Garmin C212 controls
• New Icom IC-M510 VHF with command mic in the pilothouse
• Simrad AP50 autopilot
• ZF main engine controls, Simrad jog lever steering, Naiad stabilizer controls, and bow and stern thruster controls
• New switches, gauges, and dash panel
• Dedicated Victron charger and an Odyssey Thin Line AGM battery bank for the flybridge electronics

Pilothouse / Lower Helm

• Two Garmin 9219 19" MFDs, with the port display also serving the ship's computer
• Furuno radar, with video input to the Garmin network
• Garmin GSD 24 sounder module and MSC 10 satellite compass
• Two Garmin GMI 20 displays
• New VHF and new overhead main engine gauges
• New dash piece, layout and power distribution
• ZF electronic engine controls
• Simrad autopilot, tiller, jog lever and binnacle
• Thruster controls and Naiad stabilizer controls
• Annunciator alarm system for bilge, fire, running lights, day tank and sump tank
• Northern Lights generator start/stop and preheat panels
• Garmin dedicated charging station with USB
• HP desktop ship's computer

Communications

• Starlink satellite internet and Pepwave cellular and Wi-Fi data
• Modern onboard Wi-Fi network with five access points
• New VHF radios at both helms
• New AIS

• Twin Caterpillar D3406-B main engines, 380 HP each
• Twin Disc MG516 gearboxes, 2.06:1
• Two new Michigan Wheel 42-inch DynaQuad 4-blade bronze propellers
• Naiad stabilizers with new shafts, seals, and bearings
• SidePower 60 HP hydraulic bow thruster and SidePower 20 HP stern thruster
• Northern Lights generators, two 40 kW
• Chilled-water plant installed: three 5-ton chillers with new drives, cables, manifolds, plumbing, and controls; two new zones added
• Two ASEA shore power converters, 36 kVA output each, 72 kVA total
• New shore power selector and galvanic isolator
• New SeaXchange watermaker and new Spotzero water system
• Hydraulic system retained, with refurbished coolers
• New suction manifold and valves, and a new fuel transfer pump and plumbing
• Pumps:
  • Main A/C bilge/fire pump
  • Gilkes hydraulic fire/bilge pump
  • Two replacement DC bilge pumps
  • DC shower sump pump
• Two stainless water heaters with new elements
• Air compressor
• DeAngelo main exhaust system
• Engine room air conditioning and new overhead LED lighting
• Workshop with a Snap-On toolbox and hand tools, sliding worktops over the engine rails, a stainless sink and a vise

• 110V/240V AC and 24V DC
• Main AC distribution panel refurbished, with new breakers, meters, overlays, and generator/shore selector switches
• DC distribution panel with new fuses, breakers, and battery displays
• Subpanel in the pilothouse
• Two Mennekes 100-amp three-phase shore power inlets, forward weatherbreak and aft
• Two new 100-amp, 100' shore cables, with new connectors, plugs, adapters, and pigtail
• Batteries:
  • Eight new 8D house batteries
  • New main engine and generator batteries
  • New Odyssey AGM thruster batteries with a new box and hold-down
  • Odyssey Thin Line AGM flybridge bank
• Victron 24V 5,000W inverter/charger
• 200+ fixture LED conversion, with new dimmers, drivers, and low-voltage DC transformers
• Updated 24V emergency lighting

Flybridge and Sundeck

• Fixed anodized aluminum frame soft-top with new isinglass enclosure
• Three pedestal helm and companion chairs
• Three new air handlers: one 32,000 BTU and two 18,000 BTU
• Wet bar with a new sink, Corian countertop, faucet, and drain, plus a new refrigerator and ice maker
• New seating area with storage, and new cushions and covers throughout
• Integrated radar arch and folding mast
• The sundeck has painted non-skid, and a custom articulating dining table finished in Corian with varnished teak edges, plus eight folding chairs and two steamer chairs.
• Ventilated deck lockers with seat cushions and marine speakers
• New LED courtesy lighting, including the stairway from the helm to the flybridge
• Nautical Structures davit, 3,000 lb capacity with extension boom, with new motor wiring

Aft Deck

• Teak deck
• Updated seating
• Two new air handlers and new isinglass
• Newly built bar with a new ice maker and refrigerator, as well as a glass-backed storage cabinet for glassware
• Curved stairway with a varnished teak handrail up to the sundeck

Aft Cockpit and Lazarette

• Teak removed and refinished in non-skid
• New Corian countertop and faucet
• Re-varnished stair railing and doors
• New hinges and latches on storage and the lazarette, which houses the steering gear, spare props, and shaft

Swim Platform

• New 2" 316 stainless steel staple railing
• New non-skid and nameplate
• New hot and cold freshwater shower

Side Decks

• Painted non-skid
• Waist-high bulwarks with varnished teak handrails on stainless stanchions
• New recessed drain system with grille
• New LED courtesy lights, plus new overhead lights at the walkway and pilothouse door
• Wing doors from the aft deck, and engine room access via the starboard fiddley
• Bulwark boarding doors and a Tide Ride boarding ladder
• Two fuel fills and two water fills, with single-point CamLock fueling

Weatherbreak and Foredeck

• Built-in seating with storage, a pump-out fitting and a freshwater hookup
• Refinished dunnage boxes with new courtesy lights
• New covers throughout and new mesh window covers
• Freeman hatch to the chain locker and forepeak
• Maxwell 5000 windlass with two horizontal gypsies and a vertical warping capstan
• Two Pool-N 200 lb galvanized Navy stockless anchors in steel-lined pockets, with 300' of chain to starboard and 500' to port
• Spotzero clean-water washdown at the windlass, with fire hose and freshwater washdown hookups
• Stainless bollards, cleats and fairleads, and a ship's bell

• Two new 6-person life rafts with new cradles, hold-downs and hydrostatic releases
• Eight immersion suits, three EPIRBs and a fully equipped ditch bag
• Fifty Offshore Elite life jackets and four horseshoe life rings
• Flare kit, two first aid kits and two small oxygen tanks
• Five watertight bulkheads and a full set of porthole covers
• Halon 1301 engine room suppression with automatic shutdowns on mains, generators and fans
• Firefighting:
  • Rebuilt fire/bilge system with a new manifold and valves
  • Two fire mains and two freshwater fire mains
  • Sixteen handheld extinguishers
  • Smoke detectors throughout
• New AIS system
• CCTV with aft deck, engine room, and FLIR cameras

Specifications and details of this vessel are provided in good faith for informational purposes only. Data regarding the specifications, operating characteristics and condition of the vessel was obtained from sources believed reliable but is not guaranteed by owner or brokers. Buyer assumes responsibility to verify all speeds, capacities, consumptions and other measurements contained herein and otherwise provided and agrees to instruct his agent or surveyor to confirm such details prior to purchase. Vessel is offered subject to prior sale, price and inventory changes and withdrawal from market without notice.

Engine hours are as of the date of the original listing and are a representation of what the listing broker has been told by the owner and/or actual reading of the engine hour meters. The broker cannot and does not guarantee the true hours. It is the responsibility of the purchaser to verify engine hours, warranties implied or otherwise, and major overhauls as well as all other representations noted on the listing brochure.
