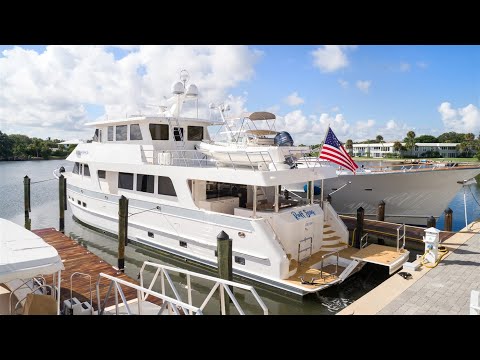

2017 Outer Reef 860 DBMY Sold Boat in Vero Beach, FL US

HULL CONSTRUCTION

• Hand laid-up FRP hull with PVC core sandwich construction above the waterline
• Solid laminate, commensurate for hull size, made in a female mold
• Vinylester barrier lamination for osmosis protection
• Simulated planked hull
• Full-length longitudinal engine stringers and athwartship stringers
• Gel coated finish above waterline
• Two (2) coats of black antifouling paint over five (5) coats of epoxy primer below the waterline
• Integrally molded rub rails with stainless steel capping
• The full-length keel extends below running gear
• Stainless steel rudders and struts with two (2) Seatorque shafts for C-18 engines, Evolution couplings, and engine mounts
• CE-approved stainless steel portlights
• Boat construction from only 3 major molds
• Divinycell PVC cored construction with cook gelcoat
• All deck and hull area hardware attachments are finished with solid lamination - no coring
• Bilge area finished smooth and coated with bright white epoxy paint
• Windows with 3/8" tempered safety glass in the salon and ½' tempered safety glass in the pilothouse
• Quiet Roll™ integrated spray rail system
• WheelHouse™ Technologies, Inc Marine Maintenance System with iPad
• Accent fashion stripe at the top of the hull and below sky lounge windows

AFT DECK AREA

• Aft deck with teak decking
• Built-in extended (12") swim platform with teak decking
• Armstrong 4 step dive ladder in transom
• 2" 316 stainless steel removable safety rails on the swim platform
• Two (2) stainless steel sockets on the swim platform for rail storage
• Stairway built-in to port and starboard side from swim platform to aft deck with wing doors
• Aft deck FRP U-shaped bench seating with storage beneath with Stamoid covers
• Sunbrella® furniture fabric for aft deck and foredeck seats
• Sliding aft deck table - teak with stainless steel bases; removable insert
• Portside 24" JennAir stainless steel two drawer refrigerator freezer with icemaker
• FRP built-in stairs from the aft deck to boat deck with sliding hatch and stainless steel rails
• Upgraded custom stainless steel sliding door entrance to the salon
• FRP weather tight door on the transom leading to the crew area
• Transom shower in recessed box with hot and cold water supply
• Freshwater wash down outlet
• Two (2) Glendinning 100 amp cable masters port and starboard with 75' of cable on transom
• Glendinning electronic engine controls via handheld remote with a connection on aft deck cabinet
• LED courtesy lights
• LED overhead lights
• 110v AC GFI outlets
• LED working lights with FRP covers on aft deck overhang to light swim platform
• 316 Stainless steel heavy duty cleats secured to stainless steel backing plates inside bulwarks
• Deck scuppers piped out through transom at boot stripe
• 316 Stainless steel handrail to and from the aft deck
• Additional 27,000 BTU self-contained air handler in aft deck cabinet
• Cabinets on port and starboard side for capstans and bollards
• Two (2) Maxwell capstans (port and starboard)
• Airtex premium 11' 8" mirror finished stainless steel passarelle with sensors and automatic handrail on one side

SIDE DECKS

• Molded with teak decking
• Stainless steel handrails alongside decks
• Weather-tight doors open into pilothouse port and starboard
• House side fixed windows with tinted tempered glass
• Two (2) sets of 316 stainless steel spring-line chocks per side
• Four (4) 316 stainless steel hawser holes with stainless steel cleats per side recessed in bulwarks
• Fuel fill fittings for tanks recessed into house side
• LED courtesy lights along with walkways
• LED overhead lights
• Life ring recessed in starboard house wall
• Webblon covers for galley windows

PORTUGUESE BRIDGE

• Portuguese bridge molded with teak decking
• Locker doors in aft face of Portuguese bridge providing access to the storage areas and electrical connections
• 316 Stainless steel handrail on top of the Portuguese bridge
• Hinged door through Portuguese bridge to foredeck
• Wash down system upgraded to include raw water pump and anchor/chain washing system
• ½" Clear tempered glass in forward-facing windshields
• Windows are fixed with FRP recessed frames - no FRP trim around for easy removal and installation of glass
• LED courtesy lights

FOREDECK

• Foredeck with colored non-skid surface
• Sunbed extension added to the foredeck seating with Stamoid covers
• 316 Stainless steel CE-approved skylight/emergency hatch from the VIP stateroom below
• 316 Stainless steel rail on bulwarks increasing in width going forward
• 316 Stainless steel stanchions to support the handrail
• Anchor chain
• Lockers forward either side of anchor platform finished in white epoxy paint
• Two (2) 316 Stainless steel anchor chutes/rollers at bow
• Two (2) 132 lb Ultra stainless steel anchors with swivel
• Two (2) Maxwell VWC-4000 Hydraulic windlasses with dual anchor rollers, 300' of 1/2" ht chain, stainless steel swivels, stainless steel pulpit protectors, 2nd chain locker; remote controls on the sky lounge command bridge panel. Stamoid covers for both windlasses and pulpit
• Chain stoppers, one (1) per windlass
• Saltwater washdown pump with outlet
• Freshwater wash down with the outlet
• Salt water and fresh water 316 stainless steel faucets inside foredeck lockers
• Two (2) 100 amp shore power inlets with individual select switches
• LED courtesy lights
• 110v AC GFI outlet inside settee
• Deck drains plumbed to boot-stripe to prevent black streaks
• Upsized bollards
• Stainless steel breastplate on the bow
• Fender holders for 4 F7 fenders (port and starboard)

BOAT DECK

• Deck with colored non-skid surface
• Two (2) deck boxes on the port side for storage
• Covered washbasin and U-line refrigerator behind FRP door
• SeaStar 30" gas built-in BBQ with two (2) 20 lb LPG tanks with regulator hoses and solenoid control panel
• 1000KGS/2200lb aluminum painted Sea Star davit with 4-way hydraulic control with rotating base, luff, lift, pendant switch, and a 13.7' retract/extension arm
• Removable stainless steel ladder from the boat deck to the hardtop
• 115 VAC GFI outlet with a recessed box on the end of the boat deck to maintain tender battery
• LED working lights with FRP covers on the radar arch
• Two (2) Ocean ISO 8-man life rafts (port and starboard)
• Custom-built 15' 2015 ArgosNautic tender with a 70hp Yamaha outboard

STAND UP ENGINE ROOM WITH EASY ACCESS TO ALL EQUIPMENT

• Acoustically insulated stand-up engine room lined with sound-absorbing material
• Edura beige coin dot flooring
• Twin Caterpillar C-18 Acerts (1136 bhp) diesel engines with electronic control boxes and ZF transmissions driving Seatorque drive shafts 1250 hours
• Fiberglass drip pans under engines
• Stainless steel removable workbenches installed over engines
• Two (2) Northern Lights 38kw (60hz) generators with sound shields (1500 hours)
• Two (2) Cruisair chilled water air conditioning systems - a total of 12 tons. Units have variable speed drives with soft start
• Additional 16,000 BTU self-contained air handler dedicated to engine room space
• Two (2) raw water cooling pumps with selector switch providing backup for critical AC systems
• Two (2) sea chests
• Oil change system for engines, transmissions, and generators
• Two (2) Charles 100amp iso-boost transformers with soft start technology
• Two (2) prop shaft brushes
• Two (2) Victron 5 kW inverters/chargers. AC transfer capacity 2X 100A; three-phase connectible
• Two (2) Racor 75/1000 max dual fuel filters with gauges for main engines
• Two (2) Racor 75/1000 max single fuel filters for generators
• Fuel polishing system by Reverso plumbed as an integral part of the fuel management system (take from any tank and return to any tank)
• Fireboy fire suppression system including both intake and outlet air shutdown system with aluminum louvers
• Four (4) automatic bilge pumps 24v DC and emergency bilge suction on engine
• Fire system and bilge high-water alarm system with a warning panel
• Freshwater hose connection
• Fresh cold water faucet and sink
• AGM (Absorbed Glass Matt) Batteries in FRP boxes:

1. Two (2) engine banks with two (2) 8D batteries for each bank
2. One (1) house bank with sixteen (16) 8D batteries with a total of 2040 amp-hours (24VDC)
3. Two (2) generator banks with one (1) battery each
4. Eight (8) additional AGM house batteries

• One (1) Victron 24v and one (1) Victron 12v battery charger
• Two (2) battery isolators
• Two (2) 20-gallon water heaters with heat exchanger off main engines
• Four (4) 24v DC blowers
• LED overhead lights
• 110v AC GFI outlets with waterproof covers
• 316 Stainless steel safety rails around engines
• Two watertight bulkheads
• Watertight aluminum engine room doors with sight windows

MECHANICAL

• ABT Trac 55hp (16") hydraulic bow and stern thrusters
• ABT Trac 300 Star Zero Speed system stabilizers with 9.0 sq. ft. fins and 15 hp 230 VAC hydraulic pump
• Northern Lights uplift quiet water separator exhaust
• Underwater main engine exhaust system with bypass and FRP mufflers
• Copper bonding system to all underwater fittings with zinc anodes
• Six (6) Aqualuma 6 series LED underwater lights on the transom
• Seatorque shafts, Evolution couplings, and engine mounts, and two (2) Nibral propellers
• Rigid fresh water pipes and color-coded copper fuel lines
• Stainless steel struts with bearings
• Two (2) Headhunter 24v DC fresh water pumps with accumulator tank
• 115 VAC hot water circulation pump
• Webasto diesel heating system with vents throughout the vessel
• Two (2) 24v DC automatic shower sump systems with an external pump
• Additional bilge blower under accommodation space
• Winterizing package including drain downs at all exterior plumbing connections

TANKAGE

• One (1) holding tank with a max capacity of 250 US gallons (946 liters) with two (2) macerator/discharge pumps providing backup redundancy
• One (1) stainless steel water tank with a max capacity of 500 US gallons (1893 liters)
• Three (3) aluminum fuel tanks with a total capacity of 3,500 US gallons (13249 liter)
• One (1) grey water tank with two (2) sewage pumps and tank gauge with a max capacity of 200 US gallons (757 liters)
• Lexan sight gauges on all fuel tanks
• Inspection and cleaning ports on all tanks
• Fuel fills built into house sides in FRP cabinet
• FCI 1800 GPD Max Q water maker

INTERIOR IN GENERAL

• LED overhead lights with switching as required
• 110v AC outlets
• USB port with AC outlets
• Clear 1/2 inch tempered glass in forward-facing windshields
• Windows are fixed with FRP recessed frames - no FRP trim for easy removal and replacement
• Vinyl headliner
• Cruisair air conditioning control panels in each accommodation space
• Phantom screens for all exterior main deck and sky lounge doors
• Teak sole with holly border
• AC air handlers and vents
• Kabola diesel heating system outlets in all areas with thermostats and controls
• Accessible wiring raceway throughout
• Fixed windows in the house and sky lounge sides with 3/8" tinted tempered safety glass
• Teak valances over windows with LED lighting
• Decorative overheads with courtesy lights and stainless steel railing in the sky lounge, salon, and galley
• Teak cabinetry and lockers
• Teak wall panel with a satin finish
• Push latches on all drawers and cabinets
• Transitional square shaped stainless steel hardware throughout
• Stone countertops in all heads, galley, and bar
• Cantalupi reading lights with bedside controls
• Wallcovering
• Nutone central vacuum system outlets
• Access doors to staterooms with safety latches to hold open
• 7" layered foam mattresses
• Drawer storage under the berths
• Automatic interior lights in lockers
• Television sets wired for DirecTV or Dish system in all staterooms, galley, salon, and sky lounge
• Cedar lined closets
• Drawers with full extension guides and push-button latches
• Doorstops and holders
• All shower doors are frosted with rectangular squares
• All shower portlights are frosted
• All sinks and showers have Grohe or Kraus hardware
• Wiring raceways to facilitate any additional installations as may be desired
• 316 stainless steel handrails
• Stamoid covers for anchor pulpit, tender, BBQ grill, aft deck seating, foredeck lounge
• Headhunter 24v electric white toilets with a sanitary hose for all discharge plumbing in all spaces plus Tecma Marine heads in crew quarters

SKY LOUNGE COMMAND CENTER ON UPPER DECK

• Full beam-width Skylounge command center
• L-shaped settee on a raised platform on the port side
• A desk on the port side forward
• Teak end table with two drawers next to settee on the port side
• Teak cocktail table
• Large lounge area opposite settee with sink, Jenn-Air ice machine, two Jenn-Air drink coolers, Miele coffee, and cappuccino machine
• One (1) red and white chart light
• LED red and white bridge lights
• Two (2) Stidd helm seats with Ultraleather upholstery, chrome bases, and drink holders
• Skylounge Surround Sound System with Samsung Smart TV, Control4 AV management system consisting of 5 Niles overhead speakers plus subwoofer under the settee, Yamaha receiver, SonyBlu-Ray, iPhone docking station, DirecTV receiver, and an ETN UPSsystem
• Teaks stairway down to the country kitchen with Bolon treads, LED courtesy lights, and custom brushed stainless steel railing
• Weathertight doors opening to the boat deck and port and starboard sides of the Portuguese bridge

OVERHEAD ELECTRONICS CONSOLE

• 2 Icom VHF's
• Alarm and advisory panel with bilge pump controls
• Cruisair Tempered Water Logic control (same as engine room)
• Tank tender for water and fuel tanks
• Headhunter black water tank Sentry and alarm
• Headhunter gray water tank Sentry and alarm
• ABT TRAC stabilizer digital control head
• ABT pump selector switches
• RAW water alarm
• Fireboy alarm and shutdown
• Victron energy inverter monitor
• Alarm and advisory panel

MAIN HELM ELECTRONICS CONTROL PANEL

• Custom Outer Reef stainless steel wheel at the helm
• Two (2) Furuno TZT back box systems
• Furuno NavPilot 700 autopilot system
• UHD digital radar array for NavNet,12kW with 6.5' digital radar antenna plus second 4' UHD digital radar array for NavNet, 6kW, 64n.m.
• Bridge Command control system with three Bridge Command 24" MFD's
• Caterpillar's newest colored digital engine display unit
• Controls for the five (5) stainless steel Exalto dual-speed (intermittent) self-parking windshield wipers with a wash down system
• Carlisle & Finch NightFINDER 200 series spotlight with integrated FLIR 320 x 240-pixel thermal camera providing the best of night vision with a 15 million candlepower Xenon spotlight capability
• Controls for bow and stern thrusters
• Furuno GP 33 color GPS
• Two 38kw Northern Lights generator digital control panels
• Kahlenberg dual trumpet air horn
• Windless control switches for both anchors
• AIRMAR Smart Transducer for separate depth into RD 33's
• Furuno Sirius/XM weather RX black box

SALON

• Custom stainless steel sliding door entrance from the aft deck
• Access hatches to allow for engine removal
• L-shaped built-in settee
• Area carpet
• One (1) fixed end table with drawers
• Coffee table
• Two (2) chairs
• Custom bar port side aft with Jenn-Air ice maker, glass storage, and cabinets for bottles and miscellaneous storage
• Three (3) hi-lo moveable bar stools
• Entertainment center cabinet to starboard with storage shelves and drawers plus Smart Samsung TV on a power lift

SURROUND SOUND SYSTEM CONSISTING OF THE FOLLOWING:

• Control4 System for wireless audio and video control. It can be operated from iPhone or iPad plus Android devices
• Yamaha AC 9.2 channel network receiver
• Sony Blu-Ray
• Five (5) Niles overhead loudspeakers with pivoting tweeter
• Sub-Woofer located under the settee
• iPhone docking station
• DirecTV HD receiver
• ETN power management UPS
• Middle Atlantic pull out rack houses all components

COUNTRY KITCHEN - GALLEY

• Large country kitchen with center island
• Large settee by forward windows with 78" by 40" dining table
• Large 38" by 78" center island with three (3) hi-lo moveable stools
• Stone countertops with stainless steel under-mount sink with Insinkerator
• Drawer for soap and sponges in front of the sink
• 32" Samsung TV on the adjustable arm with DirecTV receiver and Sony Blu-Ray

APPLIANCES:

• 36" LG french door refrigerator with freezer below. Ice and water dispenser indoor
• 30" Jenn-Air digital convection oven
• 30" KitchenAid cooktop
• 30" KitchenAid microwave with 4-speed exhaust fan
• 24" Jenn-Air dishwasher
• 24" Jenn-Air dual temp wine cooler
• 15" Jenn-air trash compactor

DAY HEAD (STARBOARD IN GALLEY)

• Stone countertop with Kraus Vessel glass sink and faucet on countertop
• Headhunter 24v electric white toilet with a sanitary hose for all discharge plumbing
• Ventilator blower
• Stone deck

LOWER HALLWAY TO GUEST ACCOMMODATIONS

• Curved teak stairway from the country kitchen with Bolon inserts, LED courtesy lights, and brushed stainless steel custom stair railing
• Padded wall covering with glossy teak accents in stairwell and hallway
• GE washer and dryer with storage cabinet for laundry supplies
• Storage under the first two steps of the stairwell below
• Access hatches to water systems, gray water, and black water systems

FULL BEAM MIDSHIP MASTER STATEROOM

• King size berth with Pratsea bed linens
• Two (2) cedar lined closets
• Digital safe in the port closet
• Built-in vanity desk on the port side of the stateroom with drawers
• Cantalupi combination chrome reading/bed lights
• Four (4) CE-approved 10" by 24" oversized portlights with removable insect screens
• Shoji screens
• Nightstands with stone tops and drawers
• Furuno RD 33 digital display on the port side of the bed
• Area carpets
• Surround Sound System with Samsung Smart TV, Control 4 AV management system consisting of 5 Niles overhead speakers, Yamaha receiver, Sony Blu-Ray, DirecTV receiver, and an ETN UPS system

HIS AND HERS MASTER BATH

• Separate "His" and "Her" baths with adjoining walk-through shower
• Rectangular frosted tempered glass shower door with towel bar
• Molded white FRP shower walls with two stone shelves for bath accessories
• Stone countertop with white Kraus Vessel sinks in "His" and "Her" bath areas
• Quiet ventilator fans in each bath
• Teak framed mirror on the back of each door
• Glass doors on medicine chests in each bath with safety latches
• Storage cabinet and side drawers under sink

VIP STATEROOM FORWARD

• Stainless steel CE-approved skylight
• Tapered queen-size berth
• Two steps on each side of the berth for easy access
• Two (2) cedar-lined hanging lockers with automatic interior lights
• Two (2) Cantalupi chrome reading lights
• Teak framed mirror on the back of bath door
• Cruisair air conditioning control panel
• Samsung 23" TV with Sony Blu-Ray and DirecTV receiver

VIP HEAD

• Ensuite head with shower
• Rectangular frosted shower door with towel bar
• Molded white FRP shower wall with stone shelf for bath accessories
• Stone countertop with white Kohler under-mount sink
• Mirror with medicine chest behind with safety latches
• Stone sole

QUEEN GUEST STATEROOM PORT

• Two (2) CE-approved portlights with removable insect screens
• Queen berth with storage drawers underneath
• Built-in nightstand with drawers
• Two (2) Cantalupi chrome reading lights
• Samsung 23" TV with Sony Blu-Ray and DirecTV receiver

PORT HEAD

• Ensuite head with shower
• Rectangular frosted shower door with towel bar
• Molded white FRP shower walls with stone shelves for bath accessories
• Mirror with medicine chest behind with safety latches
• Stone sole

TWIN GUEST STATEROOM STARBOARD

• Two (2) twin berths with storage drawers underneath the lower berth
• Cedar lined hanging locker with automatic light
• Samsung 23" TV with Sony Blu-Ray and DirecTV receiver

CREW GALLEY

• NOTE: This area and the crew staterooms are finished to the same level as the country kitchen and guest staterooms
• L-shaped settee on a raised platform
• Teak table with single 316 stainless steel pedestal
• Stone countertops with stainless steel under-mount sink with cabinets above and below
• 24" GE cooktop
• 24" Jenn-Air under counter refrigerator
• 30" KitchenAid convection microwave with variable speed exhaust fan
• Furuno RD33 digital display

QUEEN STARBOARD CREW CABIN

• CE-approved portlight with removable insect screens
• Queen-size berth with storage drawers underneath
• Hanging locker with teak-faced doors and automatic interior lighting
• Samsung 24" TV on the adjustable arm with DirecTV and Sony Blu-Ray

CREW HEAD (ENSUITE TO QUEEN CABIN)

• Rectangular frosted glass shower door with towel bar
• Molded white FRP shower with stone shelf for bath accessories
• CE-approved portlight with removable insect screen
• Stone countertop with white Kohler under-mount sink
• Mirrored medicine chest

SECOND CREW CABIN WITH ENSUITE HEAD

• Single twin-sized berth
• Hanging locker with automatic interior lighting
• Samsung 23" TV with Sony Blu-Ray and DirecTV
• Bath with Vessel sink and Tecma Marine head
• Hand-held shower with a deck drain
• Stand up freezer by Danby

RECAP OF ELECTRONIC AND ENTERTAINMENT EQUIPMENT

• Furuno TZT black box
• 24" Glass Bridge 1000 Nit Touch pilothouse monitor
• Bridge Command Multi Display Controller
• GP330B GPS/WAAS NMEA 2000 sensor
• GP 33 Color GPS with 0183 output
• UHD Digital Radar Array for NavNet, 12kW
• 6.5' Digital Radar Antenna
• 4' UHD Digital Radar Array for NavNet, 6kW, 64 n.m.
• Furuno NavPilot 700 Autopilot System
• 0-3.5 CU IN/SEC ADJ PUMP 24v
• Furuno Nav Pilot 700 Series Power Steering Module
• 25W VHF w/25W hailer BLACK rear Mic
• 23' Comrod VHF Antenna w/Rupp Collar
• Furuno RD33 Digital Display ((2) pilothouse, (1) Master stateroom and Crew Lounge)
• AIRMAR Smart Transducer for separate depth into RD33's
• Furuno Sirius/XM weather RX Black Box
• DFF1 600W Multi Transducer w/fairing block
• Furuno Ultrasonic Weather Station
• AIS Class B Black Box RX
• AV60BI8 2.45m. (8'), 6dB, BI mount 1"x14, 156-162MHz
• DFF1 Network sounder with Furuno Digital Filtering (NavNet1 & vX2)
• Icom OPC-1000 Rear Mike Cable w/Mounting Base
• Icom MB75 flush mount kit
• Shakespeare AM/FM VHF Band Separator
• Off Air TV Antenna
• Carlisle and Finch Nightfinder 200 Spotlight with integrated FLIR night vision camera

SATELLITE TELEVISION SYSTEM

• Intellian i6W Global 24" TV System
• Intellian Multi Switch
• Powerware 5110 Model 1000 - UPS - AC 120 V - 60
• Low-profile Sat Dome Mount, 24" domes
• Low-profile Sat Dome Wedge, 0-12°
• Matching Empty i6W Dome

CAMERAS

• 10X Optical Zoom PTZ Camera w/white Bezel (2X E/R & Aft Deck)
• 8 x Output Video Matrix
• PTZ Camera Controller (Pilothouse )
• 2 Input X 4 Output RS 485 Data Expander
• Wiring for port and starboard cameras on side decks

WIRELESS CELL AMP SYSTEM

• Wilson Electronics 801280 75dB 850Mhz or 1900 Mh Cellular amplifier
• Panel Interior Directional Antenna
• Diplexer 2x1
• AC16 BI-8 - 8ft Dual Band Cellular (824-894MHz, 1850-1990Mhz)
• 220v to 110v step down continuous heavy-duty transformer

WAVE WIFI HOTSPOT SOLUTION

• EC-HP HotSpot Amplifier 1000mW
• AV55BI Wifi Antenna 8ft 2400-2480MHz
• Enterprise-class, Ultra High Range & Throughput In-Ceiling Wireless-N Access Point
• Allied Telesis AT FS705EFC/SC Switch- 4 ports - Desktop
• L-COM BT-CAT5-P1 Single-Port Passive Injector w/48w power supply
