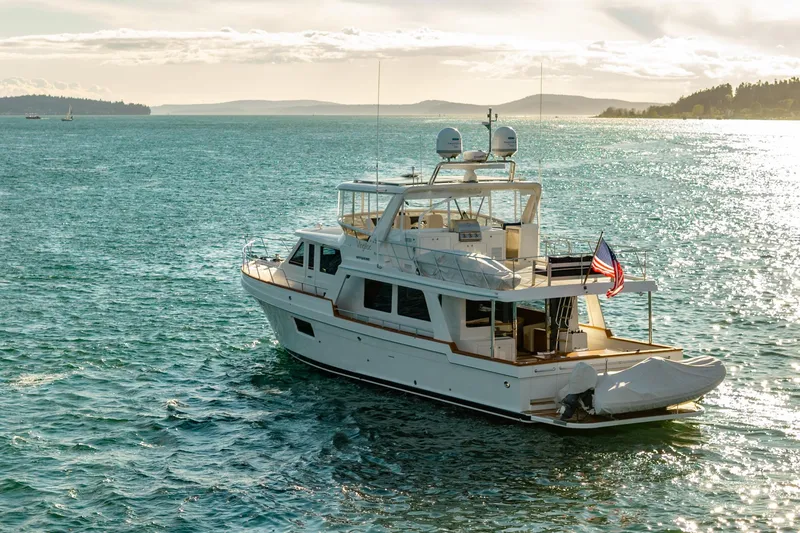

2023 Offshore 64 ELV Boat in Anacortes, WA 98221 US

PROPULSION SYSTEM

• Twin Cummins 715 hp with ZF 305A 1.964:1 gears
• Two 24V alternators start banks
• 316 stainless (w/316-L rod) exhaust risers with zinc plugs connecting to FRP underwater exhaust system w/bypass pipes to Aqua Quiet mufflers
• Seatorque M4-250 enclosed shaft system with Aquamet 22 HS shafts
• Bronze V struts
• Expanded ratio, computer-designed NIBRAL propellers
• 54" trim tabs with controls at the pilothouse and flybridge
• Hydrodynamic 316 stainless steel rudders
• Tides rudder shaft seal and bearings
• American Bow Thruster Trac 220/6' hydraulic stabilizer system with pto
• American Bow Thruster 25 hp hydraulic bow/stern thruster system with pto
• Proportional ABT thruster controls
• 3 Station ZF Smart Command electronic controls
• ZF Joystick Maneuvering System with i-anchor and 3 joysticks
• Optimus EPS electronic power steering
• Engine room start & stop panels with engine gauges

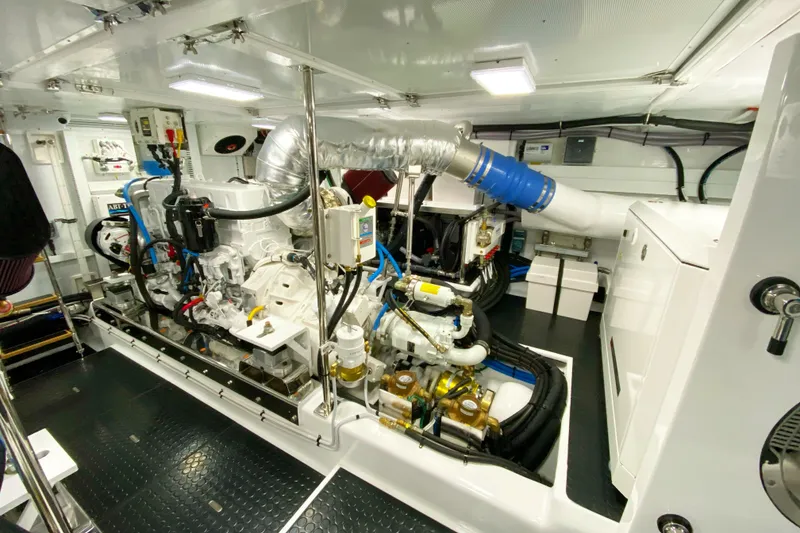

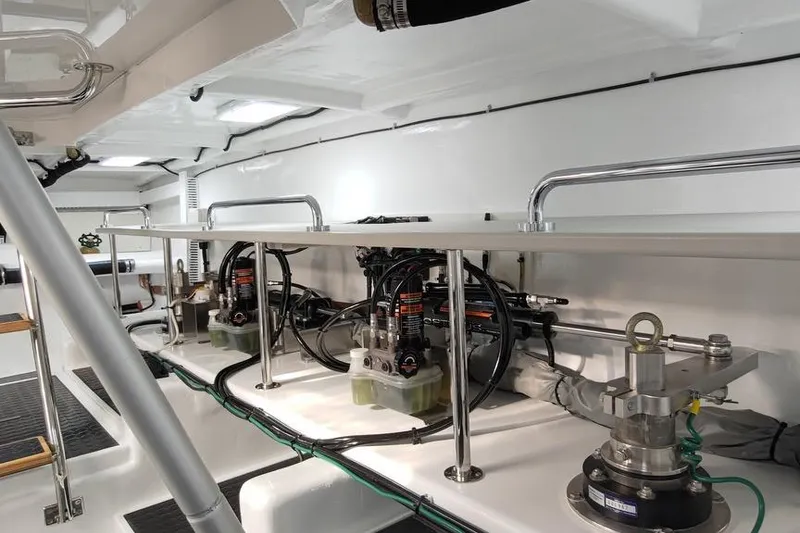

ENGINE ROOM AND BILGE

• White aluminum perforated covering on overhead, side, fwd, aft engine room bulkheads covering multiple layers of the latest technology sound dampening & insulation
• Floorboards covered with non-skid vinyl
• Smooth finish polyester painted bilges
• High-polished welded stainless engine beds bedded in chockfast
• Three marine-grade aluminum fuel tanks, epoxy-painted, interconnected
• Aluminum fuel tanks are insulated to minimize condensation and noise transfer
• Fuel manifold system for supply & return management with 2" crossover for port or starboard fuel fill
• Sight gauges (marine grade w/protective guard) at fwd bulkhead fuel tanks
• Copper fuel system plumbing with shut-off valves at all tank supply fittings
• Marine-grade bronze sea cocks for through-hull skin fittings, labeled
• Groco sea strainers at all raw water intakes
• Main seawater intakes plumbed for emergency bilge pump use
• Full flow stainless ball valves for all piping systems
• Dual Racor marine filter system with vacuum gauge for main engines
• Single Racor marine filter system with vacuum gauge for generator
• Two high-output 24V sump pumps with Rule super switches
• Six high-output 24V bilge pumps with Ultra Systems automatic switches and check valves
• Ultra Systems high water bilge alarm with warning lights at the pilothouse
• High-output Whale 40 manual bilge pump
• 4  Delta T engine air intakes to control water induction
• Two 11" 24v DC engine room blowers
• 24v DC LED lights in the engine room & bilges
• Fire Boy automatic fire extinguishing system with engine shut-down system
• CO/smoke detectors
• Fresh water wash down faucet in the engine room
• Trident blue silicone exhaust hose
• Multiple layer insulation at fore & aft engine room bulkheads & overhead
• Heavy-duty aluminum dog down engine room door
• Labeled through hulls
• Rise brand sealant for bulkhead penetrations at the fwd eng room and overhead
• Rudder storage shelf

EQUIPMENT

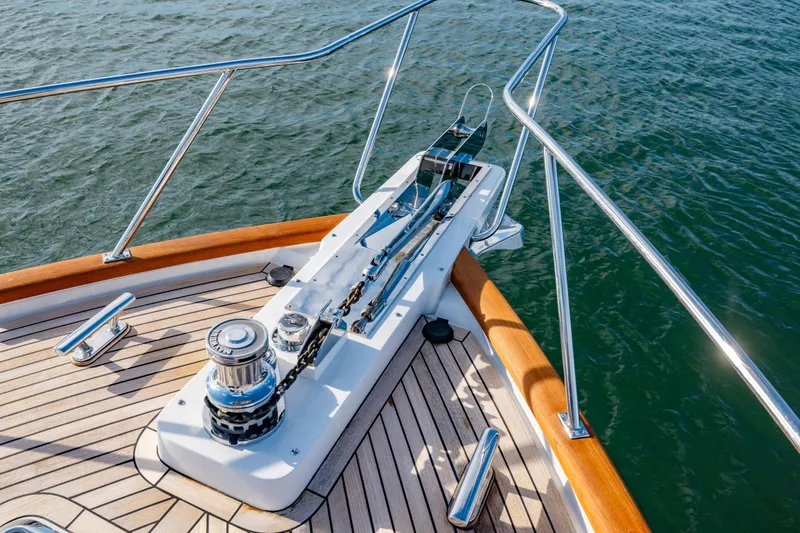

• Maxwell 3,500 lb windlass, dual direction, 3 station control, chain stopped & anchor roller.
• Single 316 stainless 120lb Ultra bow anchor with 400 ft 3/8" high test grade 43 chain and chain stopper
• Marine Air 65,000 BTU A/C system with four compressors, six air handlers
• Emergency tiller
• Buel dual low-profile air horns w/120v compressor, compressor outlets @ lazaret & engine room
• Exalto stainless articulating windshield wipers with a washer system
• 3 Tecma silent flush heads
• Ventilation system at each head
• 2 Sealand macerator pumps
• 2 holding tank vents with filters
• Deck discharge for holding tank
• Stainless ball valve at each watertight structural bulkhead
• Headhunter Mach V 120v fresh water pressure pump with filter and accumulator tank
• Headhunter 24v standby water pressure pump
• Torrid 30-gallon stainless steel 220V water heater
• Easy access clean-outs on all tanks
• Stainless lazarette water tanks
• Water maker
• Flojet saltwater washdown system with seawater strainer
• FRP under the forward sole water tanks & holding tank
• All high-grade fresh water plumbing with brass fittings
• High water sensors on the fwd  & master bulkheads and the laz bulkhead
• Water/gas separator for generator exhaust
• Asko washer & dryer (110v/220v)
• Washer & dryer overflow drain to bilge
• Two shower sump tanks are designed for convenient access
• Bilge pumps set in bilge wells
• Dockside water pressure connection
• Central drain system minimizes through-hull fittings
• Electric assist shocks for lazarette

ELECTRICAL SYSTEM:

• Northern Lights 20 kW diesel generator, 24v start with sound shield & gas/water exhaust separators and E-A-R anti-vibration mounts
• Four Lifeline 8D glassmat main engine start batteries (24v)
• One Lifeline 4D glassmat generator start battery (24v)
• Five Mastervolt Lithium batteries for the ship's 24V system
• Battery crossover for main engines and generator batteries
• ANG 12.5 KVA 50 amp isolation transformer
• Mastervolt Mass Combi 24/3000, 120/240v 60 HZ inverter charger with interface cable and high temp shut down with remote panel at the pilothouse
• Mastervolt battery systems charger - 24/60-3
• Mastervolt engine start battery charger - 24/20-3
• Battery Mate 1602 @ each main engine
• 24v & 12v LED back-lit distribution/circuit breaker panels with amp & volt meters
• 120v & 240v led back-lit distribution/circuit breaker panels with amp & volt meters
• Two 50-amp Mastervolt 24V to 12V converters
• Glendinning Cablemaster with 75' cord

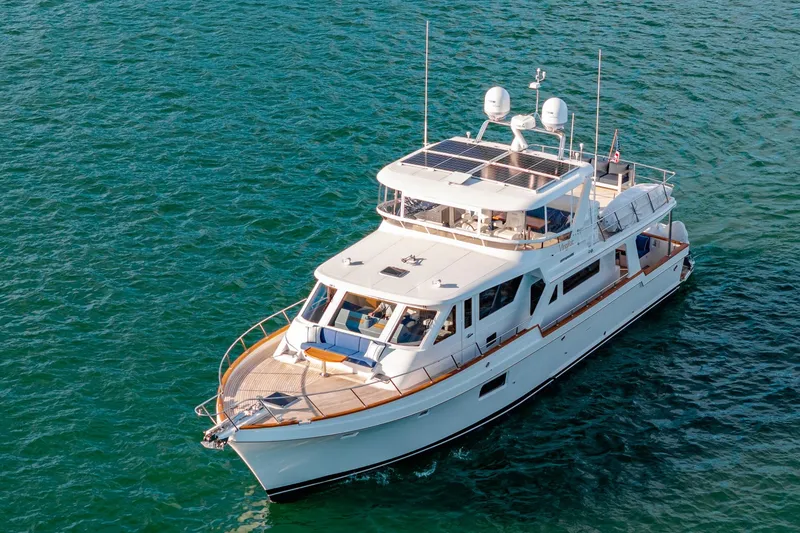

• (6) Solar panels on the hard top
• Marinco Shore power 125/250v-50A inlets port & stbd side (or fore & aft)
• ELCI breakers at shore power inlets
• IMTRA 24v LED overhead lighting throughout the interior
• IMTRA 24v LED overhead lighting throughout the exterior
• 24v LED interior safety lights
• 24v LED exterior safety lights
• Vimar interior switches, dimmers, and outlets
• GFI breaker protection as appropriate @ deck, galley, heads, engine room & lazarette
• Electrolysis bonding & grounding system with two sacrificial zinc plates
• Tinned, UL-approved, high-temperature wiring
• LED dome lights in the bow thruster compartment
• Hella LED navigation lights
• Cameras located in the engine room and cockpit
• NEMA 2000 cable installed

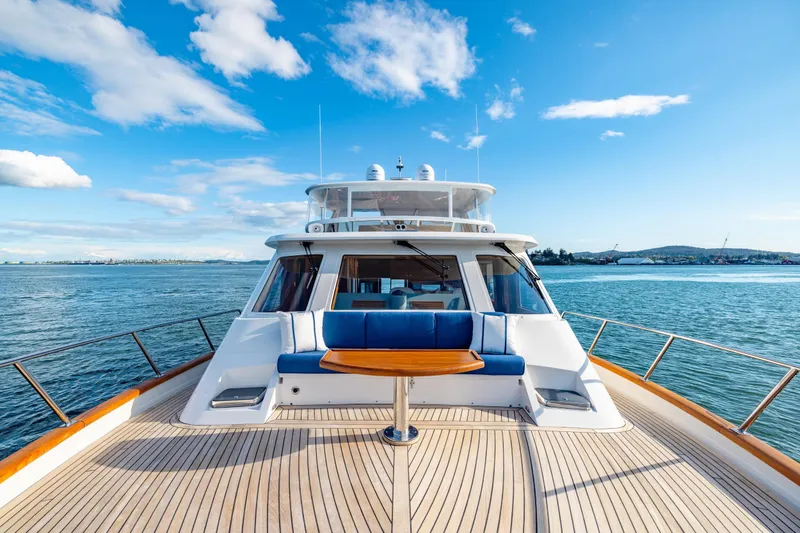

MAIN DECK

• Walkaround decks with high midship bulwarks
• Two-tone non-skid @ all decks.  White non-skid @ pilothouse roof
• Molded in multiple facet & plank lines for appearance and strength
• Exterior 316 stainless screws, bolts & nuts, welds ground & polished
• 1 1/4" 316 stainless steel handrails with welded joints @ forward deck & boat deck.

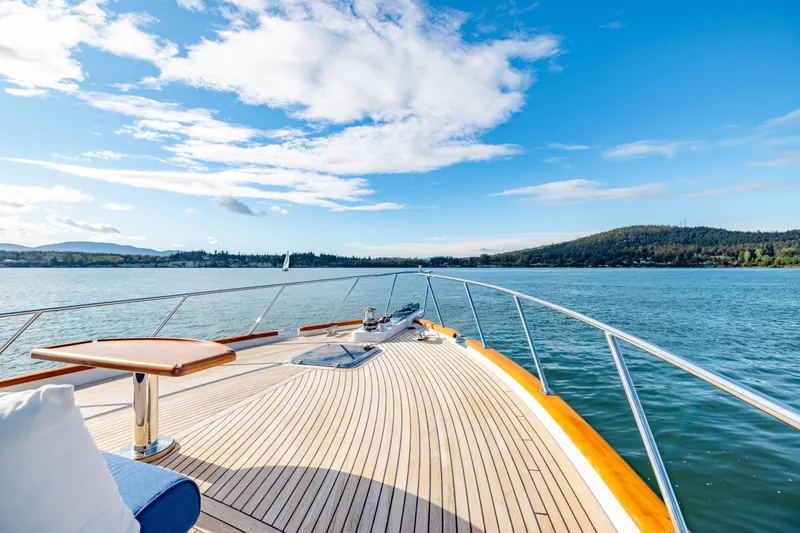

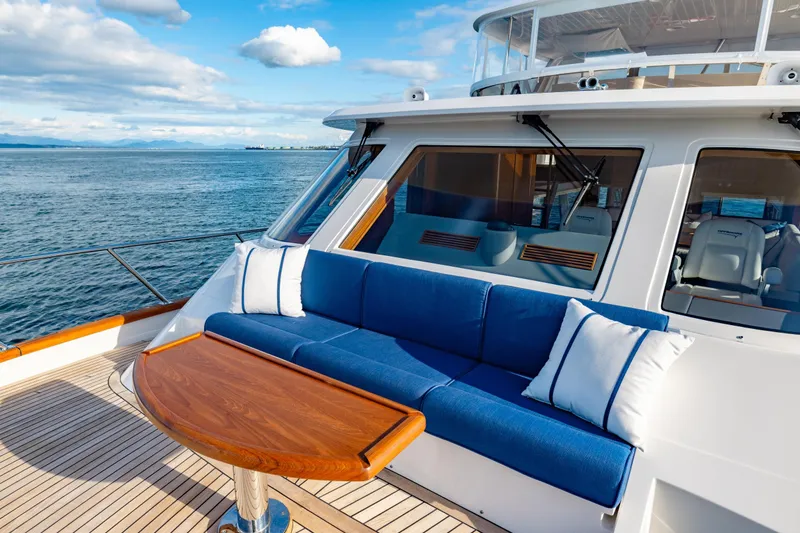

• Molded foredeck seat with storage and a custom Teak table
• Port and starboard bulwark doors
• Manship overhead hatches with Oceanair sliding screens & shades
• Manship 316 stainless port lights
• 316 stainless hawse holes with cleats, bow chocks & deck cleats
• Aluminum-reinforced exterior doors, exterior covered w/FRP & gel coated, interiors covered with matching interior wood, stainless steel door frames
• Bow & stern flag staffs with 316 stainless sockets
• Rode locker for optional 2nd anchor
• Provision for 2nd anchor with dual 316 stainless channels and rollers
• Forward deck hatches at the bow
• Fresh and saltwater wash downs at the bow
• Stainless latches at all exterior cabinet doors

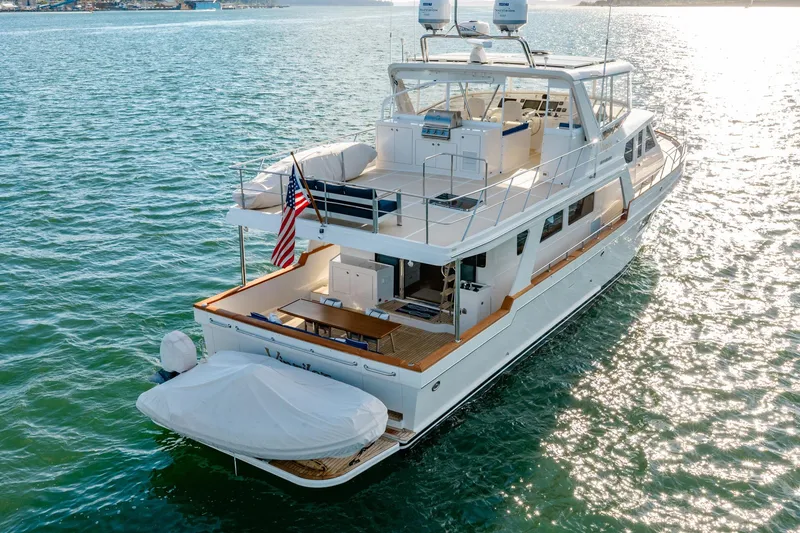

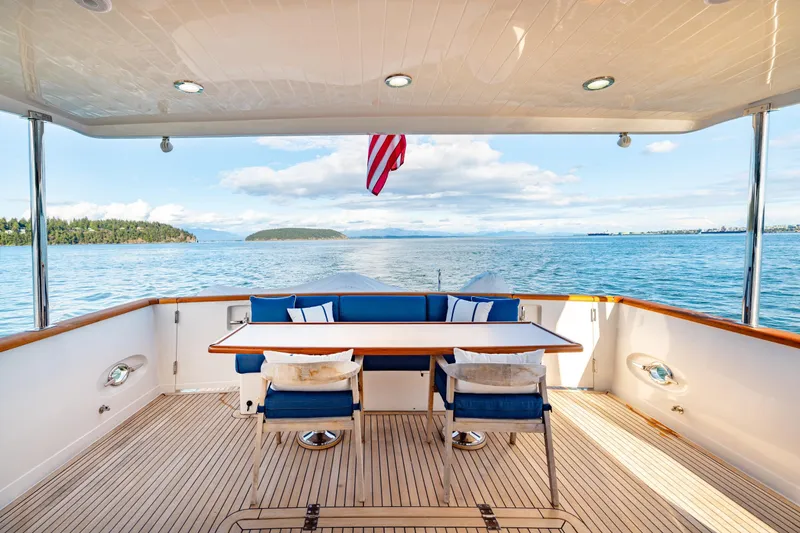

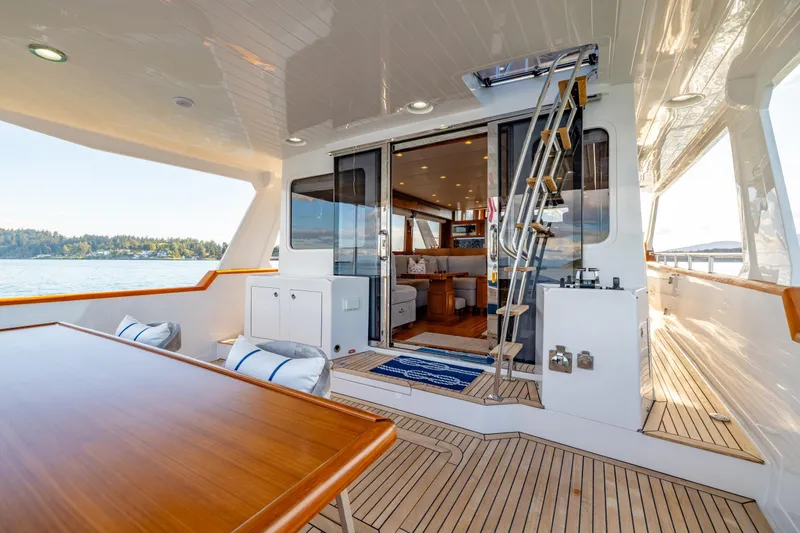

COCKPIT & SPORT DECK

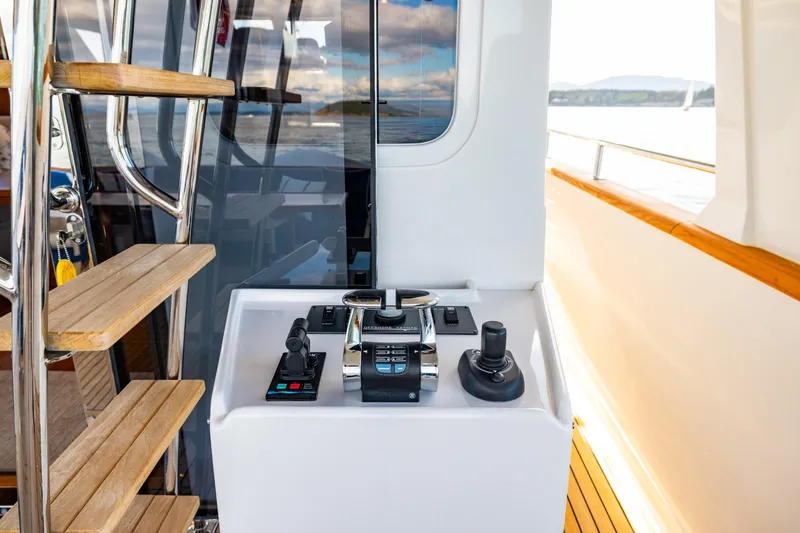

• Cockpit engine & thruster controls, JMS joystick, rudder indicator with engine start-stop switches
• Starboard cabinet with a lift top to cover engine controls, thruster, and JMS joystick
• Port aft deck storage cabinet with covered sink
• Ventilation grates for exterior cabinets
• 316 Stainless cockpit to boat deck ladder with 316 stainless Manship hatch
• Lazarette access hatch with electric/hydraulic lift and ladder
• Handheld shower @ cockpit
• Fresh water wash down @ cockpit
• Salt water wash down @ cockpit
• TNT hydraulic Swim platform/Tender lift
• Rope ladder @ sport deck for emergency re-boarding
• Dockside fresh water connector & regulator
• Dual transom doors
• Two LED 24V cockpit flood lights
• Cockpit storage bins w/drains
• Custom pop-up Quickmarine lights at the cockpit corners

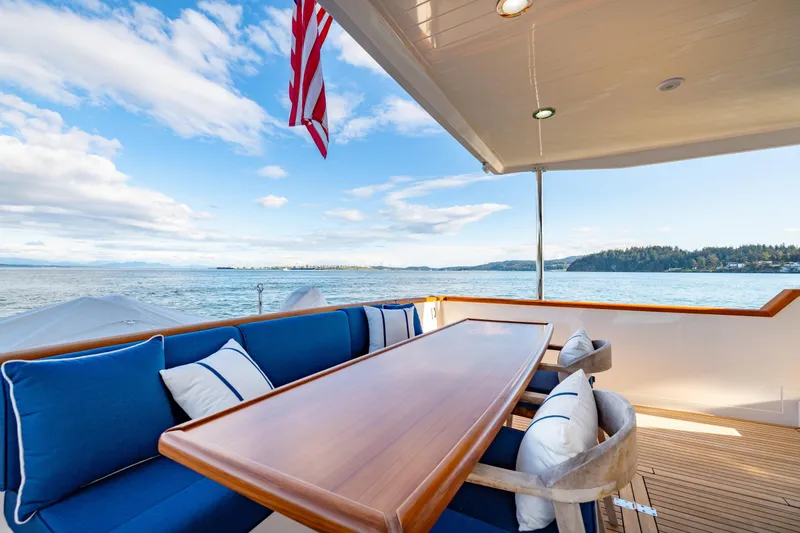

• Custom extended cockpit with built-in seating and a custom table

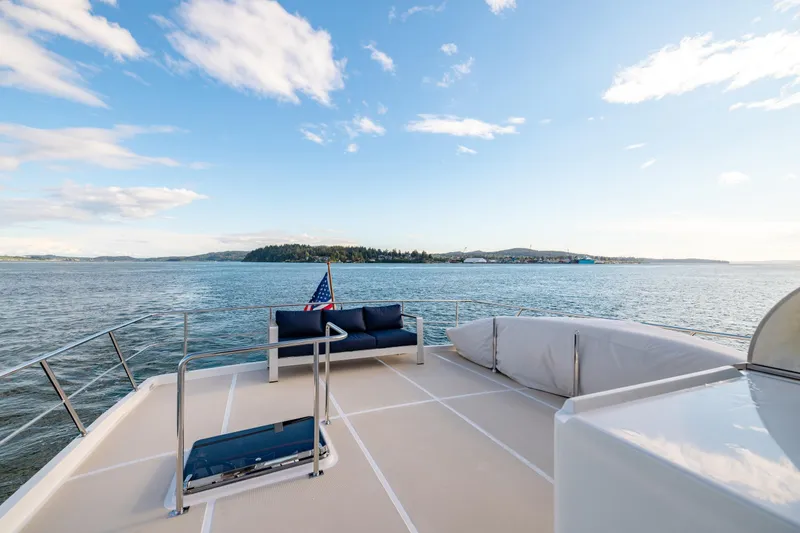

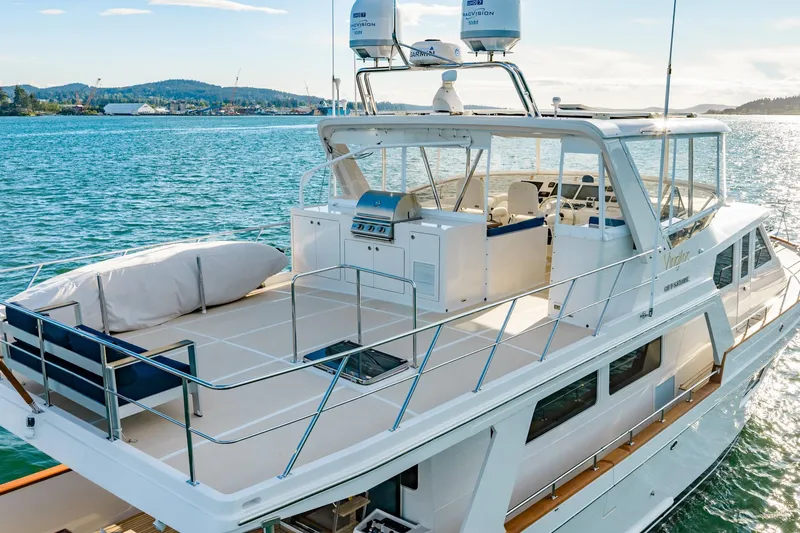

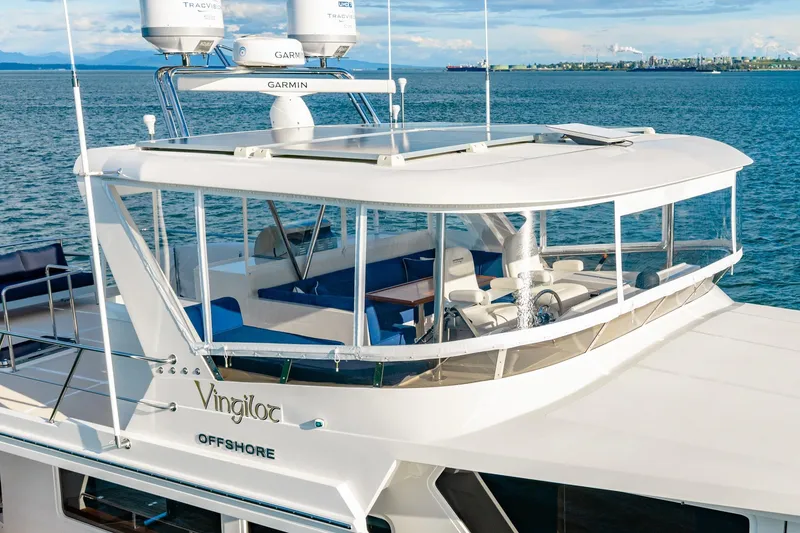

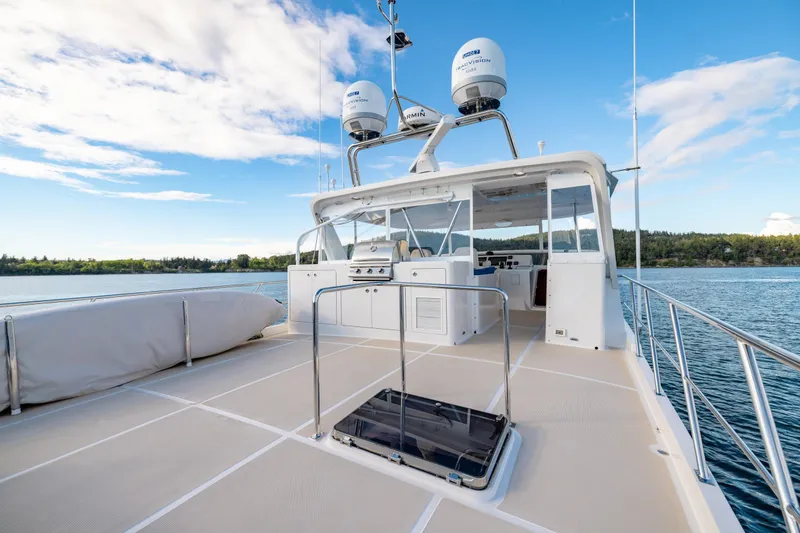

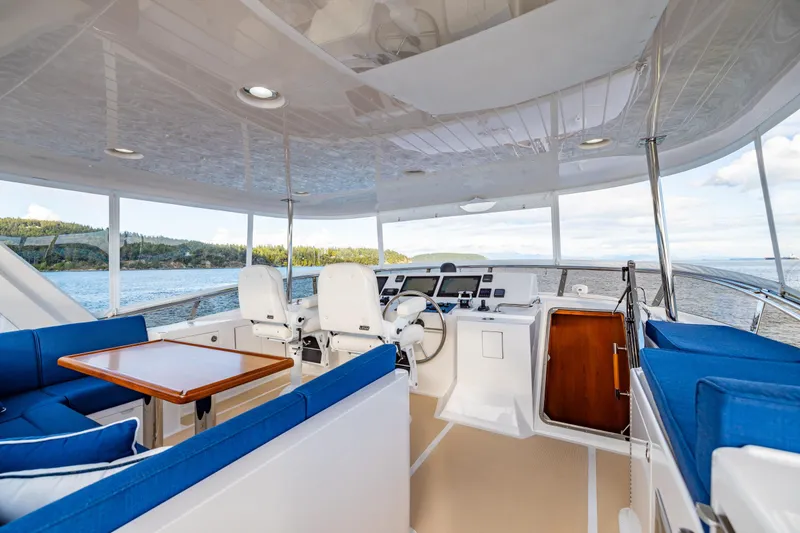

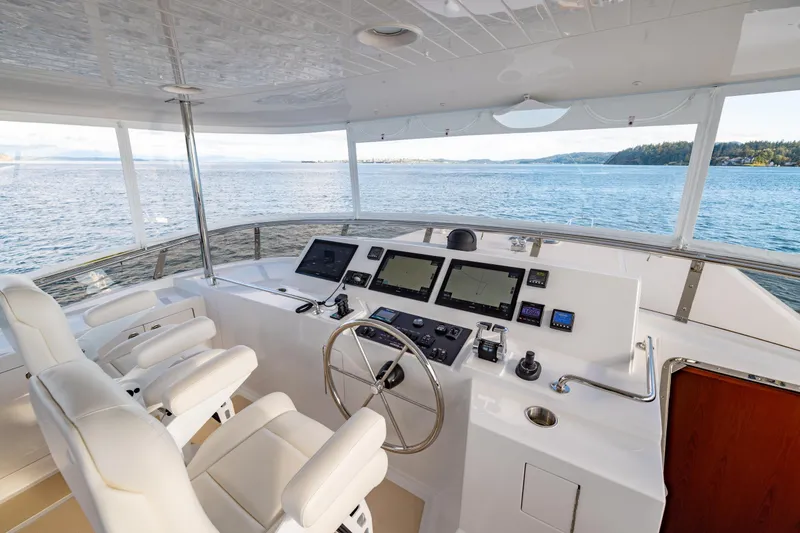

FLYBRIDGE AND BOAT DECK

• New Offshore flybridge design
• An extended boat deck and flybridge for more space

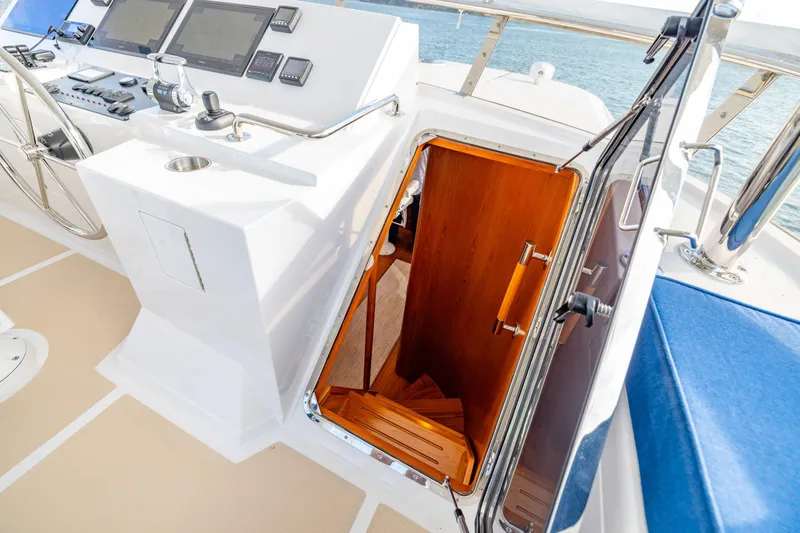

• Manship hatch access to & from the pilothouse
• Helm station with complete engine instrumentation, function alarms & rudder indicator
• Stainless destroyer-type wheel
• Venturi windshield with 316 stainless frame
• Two Stidd Helm chairs with stainless bases

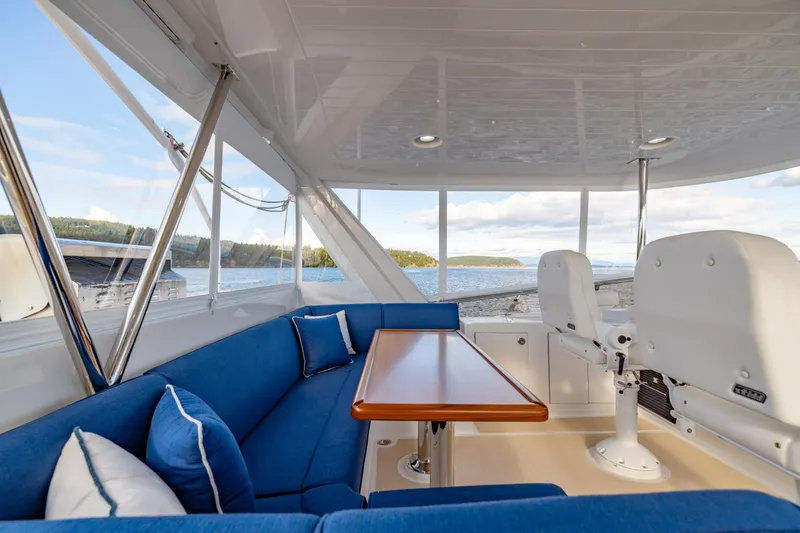

• FRP “U” settee with storage underneath
• Custom table with 316 stainless support post
• Starboard cabinets with sink, stainless steel Isotherm 85 refrigerator, and Icemaker

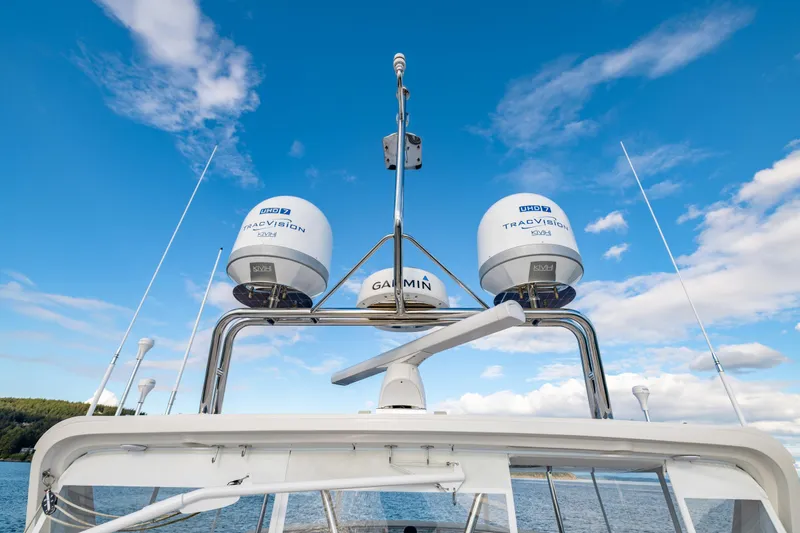

• FRP radar arch with down lights
• Boat deck drained to waterline with integral drains and scuppers
• 1 ¼” 316 stainess handrails @ boat deck w/welded s/s life lines
• Manship s/s hatch and s/s ladder to cockpit with s/s safety rail
• Fresh water wash down outlet
• AFI dual air horn
• SS under-counter refrigerator
• SS full height Ice Maker

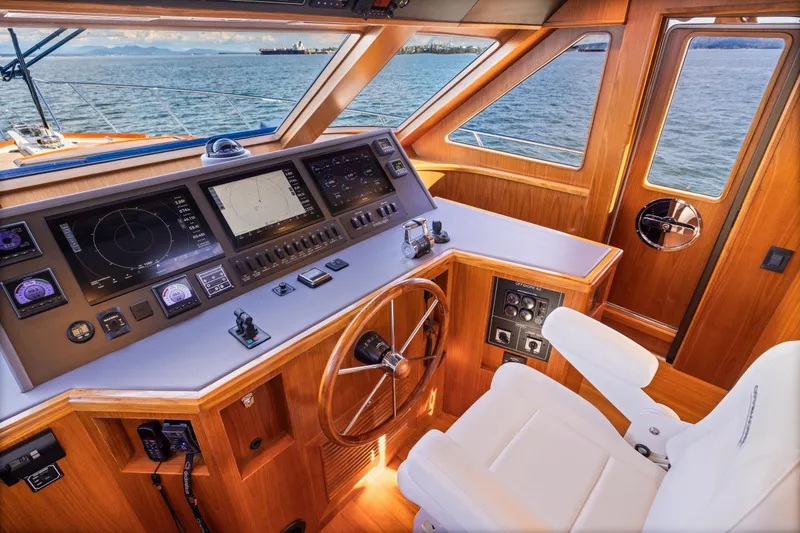

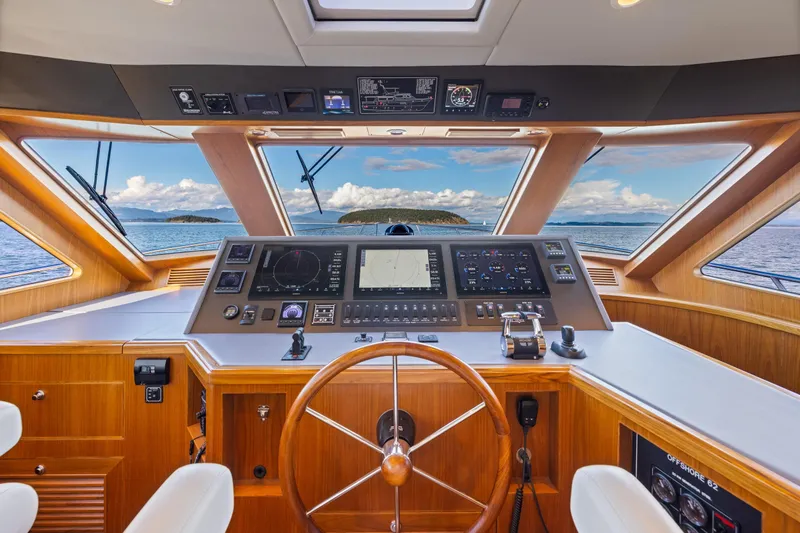

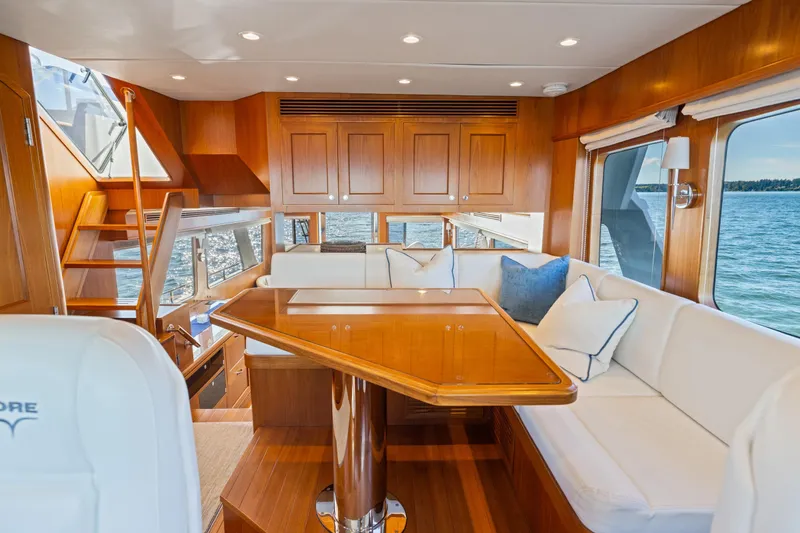

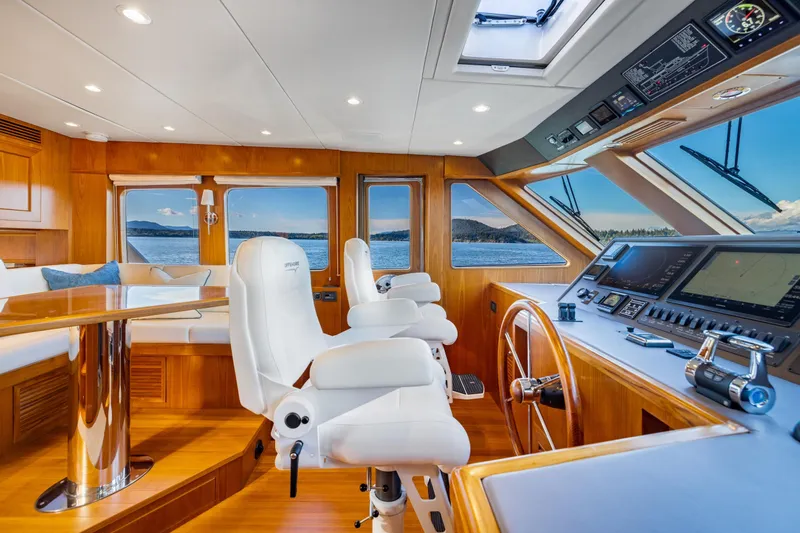

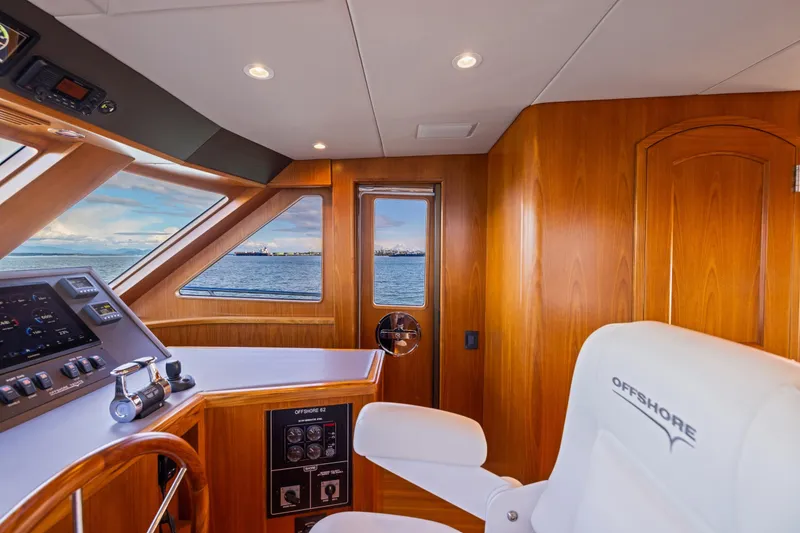

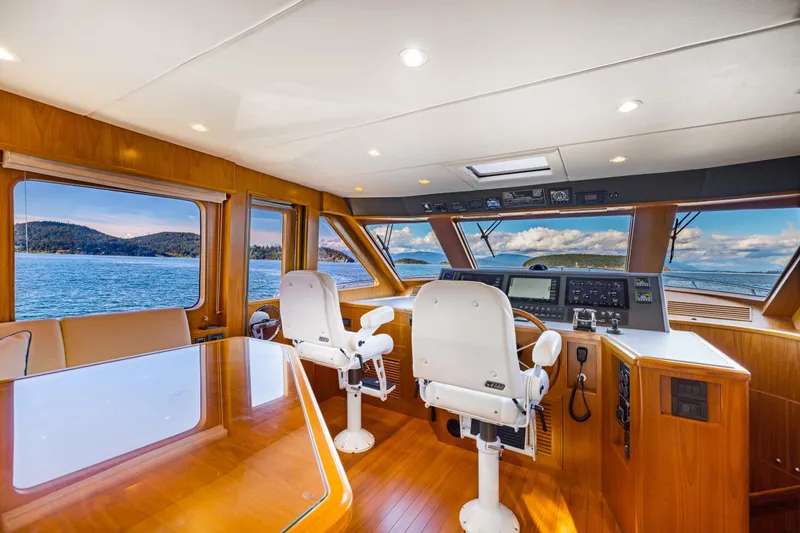

PILOTHOUSE

• Three extra-large 12mm clear-view forward windows
• Helm station with complete engine instrumentation, function alarms & rudder indicator
• Teak & stainless steel destroyer-type wheel
• Pilothouse indicator panel for systems readiness
• Maretron tank indicator sensors for fuel, water, and holding tanks 5.7" monitor
• Back-lit AC & DC distribution/breaker panels
• Rocker switches with indicator lights for bilge pumps, lighting & other functions.
• Three stainless Exalto articulating windshield wipers with a washer system

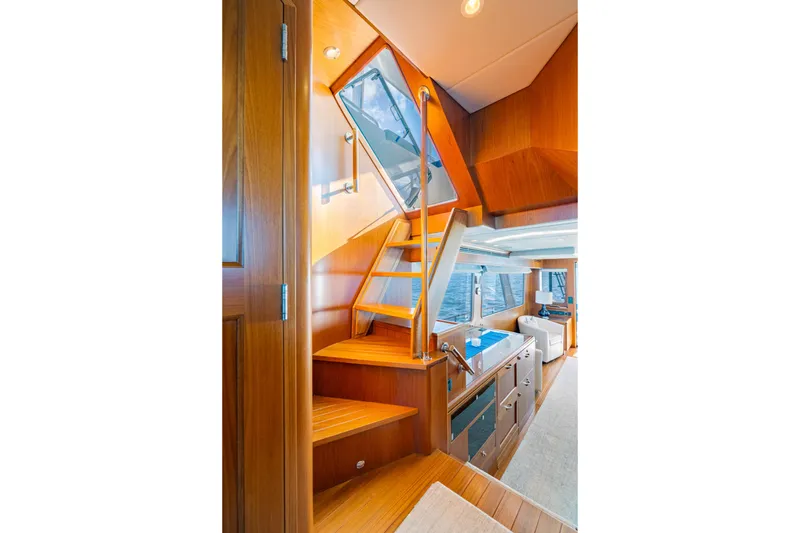

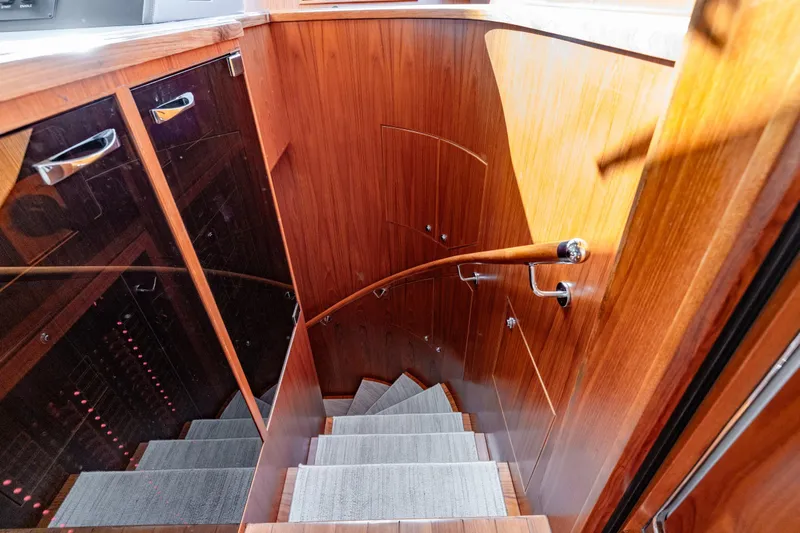

• Interior stairway to flybridge with 316 stainless steel Manship hatch
• Port and stbd FRP doors with 316 stainless frames
• One ventilation overhead hatch with “Oceanair” sliding screen/shade
• Two Stidd 500-200 helm chairs upholstered in Ultraleather and matching powder-coated bases
• Raised “L” settee with manual high-low table
• Upper storage cabinets above the settee
• Padded vinyl at the forward helm console counter top
• Engineered hardwood sole
• UV protectant varnish on all console veneers
• Padded soft vinyl removable headliner
• Custom starboard day head
• Solid wood compass base
• Custom glass insert at PH table

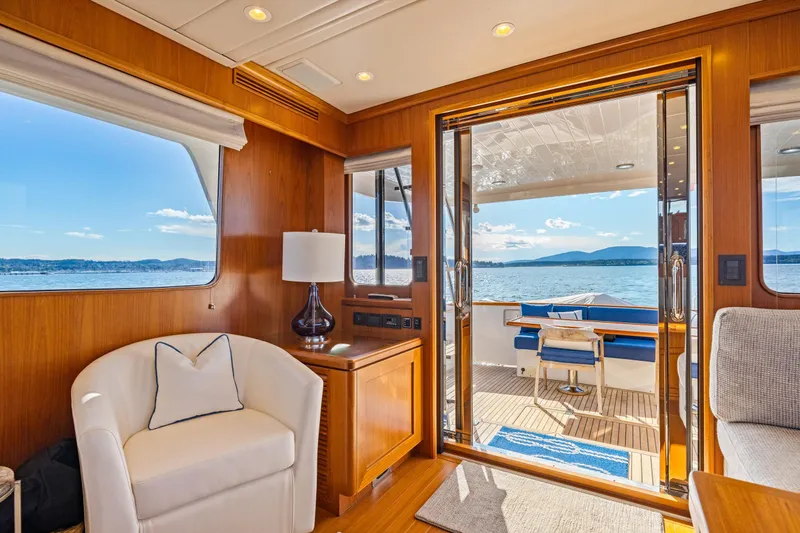

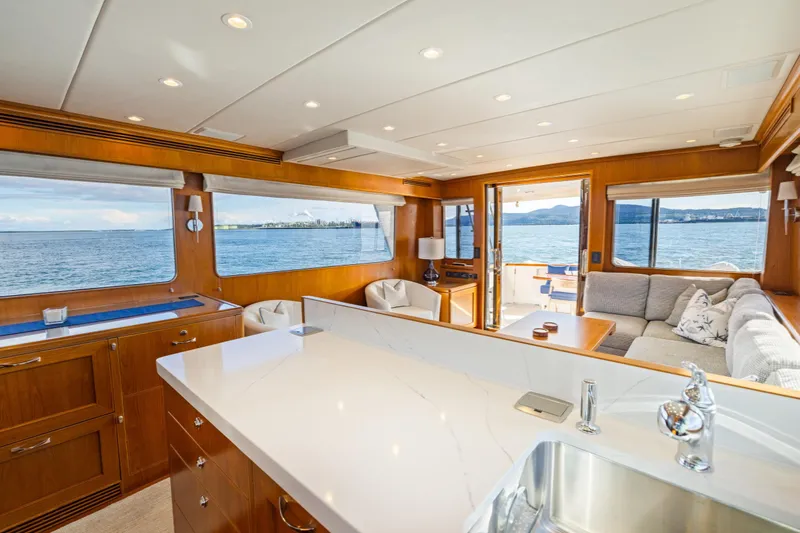

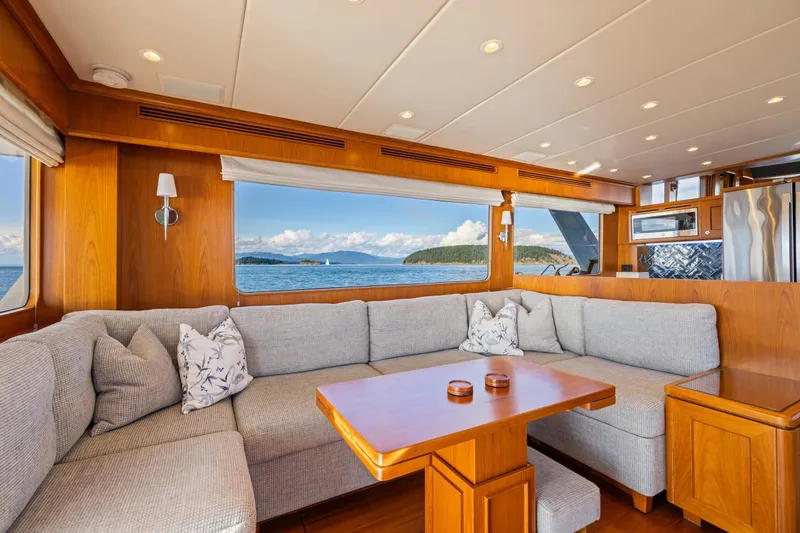

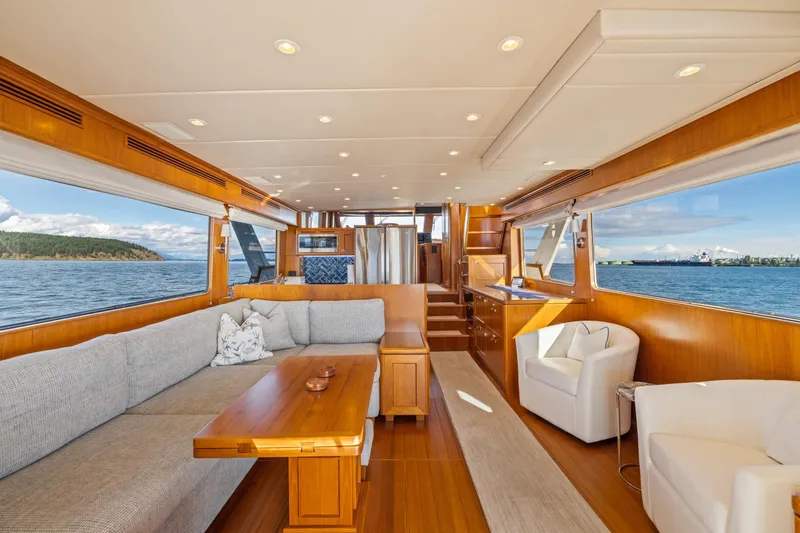

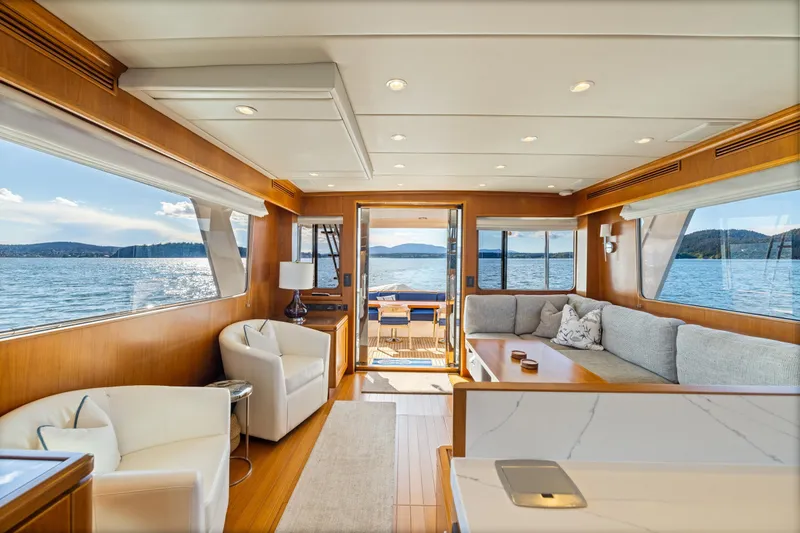

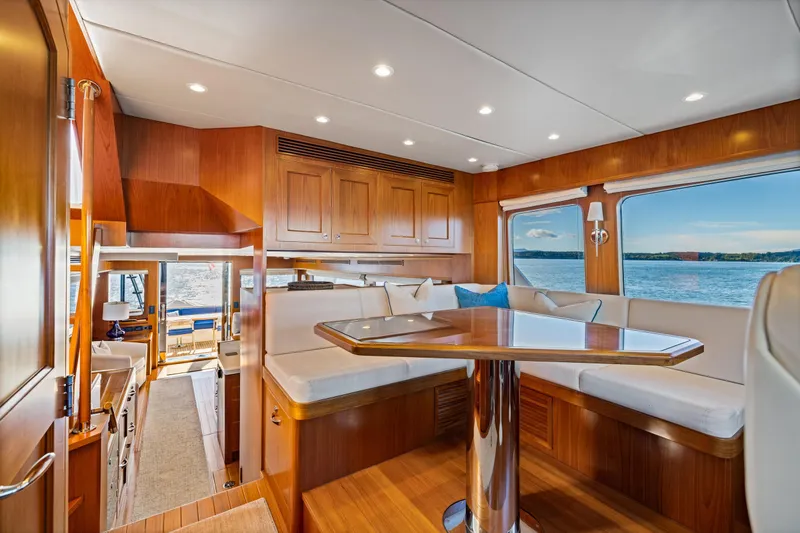

SALON:

• Upgraded SS large aft salon sliding doors with full-height glass panel
• Low/large windows for sit-down visibility
• "U" settee in salon
• Electric high-low table with leaves
• 50" custom fold-down LED TV
• Solid wood crown molding surrounds the salon
• Padded soft vinyl removable headliner
• Secondary engine room access from galley hatch/ladder
• Custom glass inserts at cabinets to protect the wood

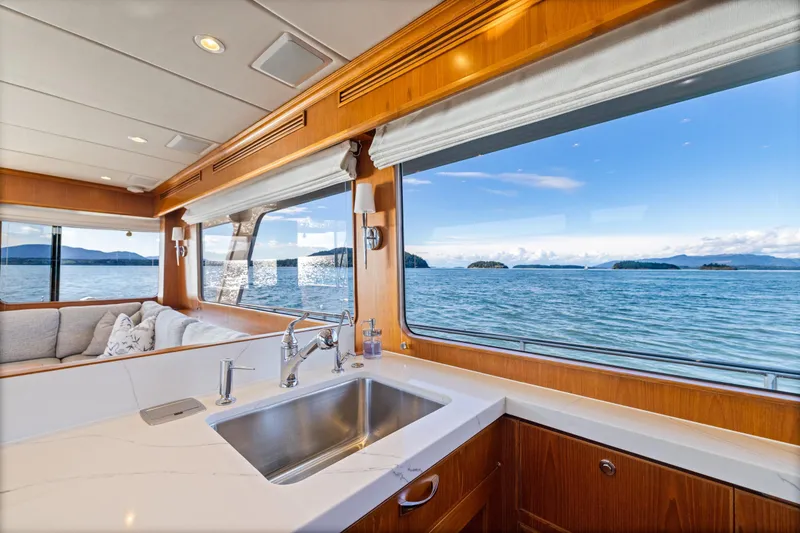

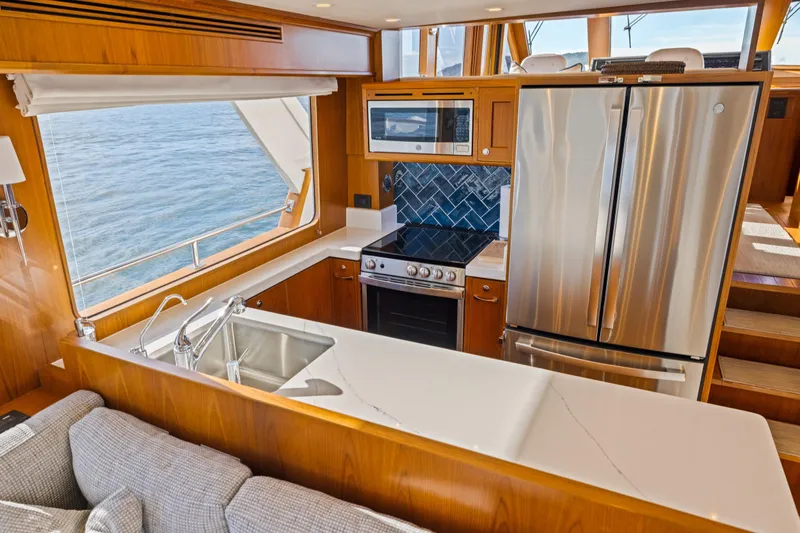

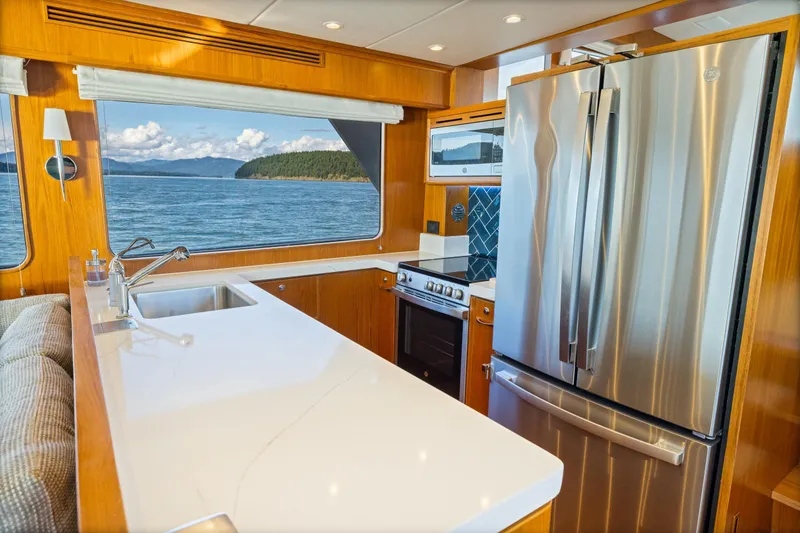

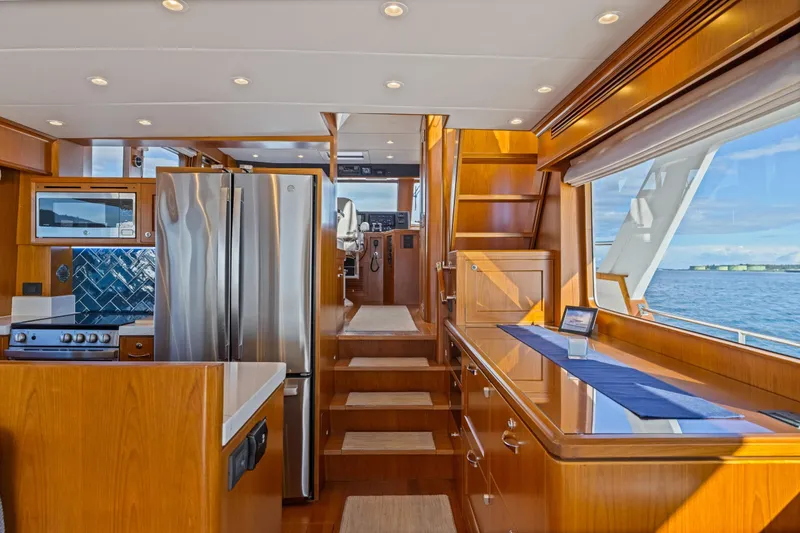

GALLEY AND APPLIANCES:

• Quartz countertops with overhead storage cabinets
• Single basin Franke PRX11021
• Grohe sink faucet
• InSinkErator 1hp stainless steel garbage disposal with top switch
• GE full-size refrigerator/Freezer with SS doors
• (2) U-line refer drawer with teak face to starboard
• Force 10 65336 220V oven/cooktop
• GE trash compactor
• GE stainless microwave/convection oven with cooktop exhaust
• Drawers & cabinets fitted with push lock latches & lined with Formica
• Padded soft vinyl removable headliner
• Engineered hardwood sole
• Custom glass top on the starboard galley cabinet to protect the surface

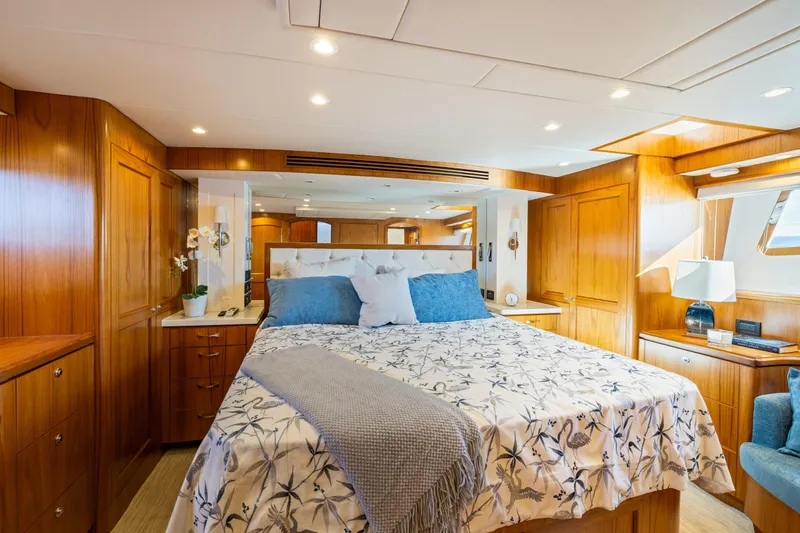

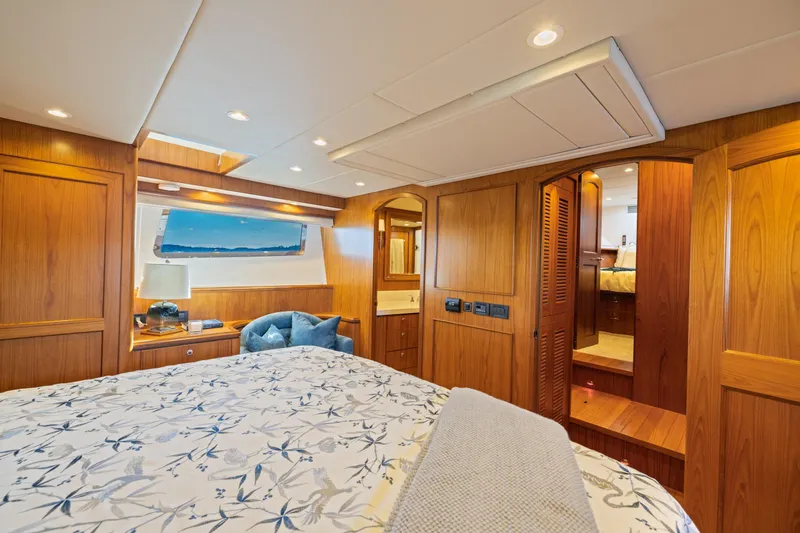

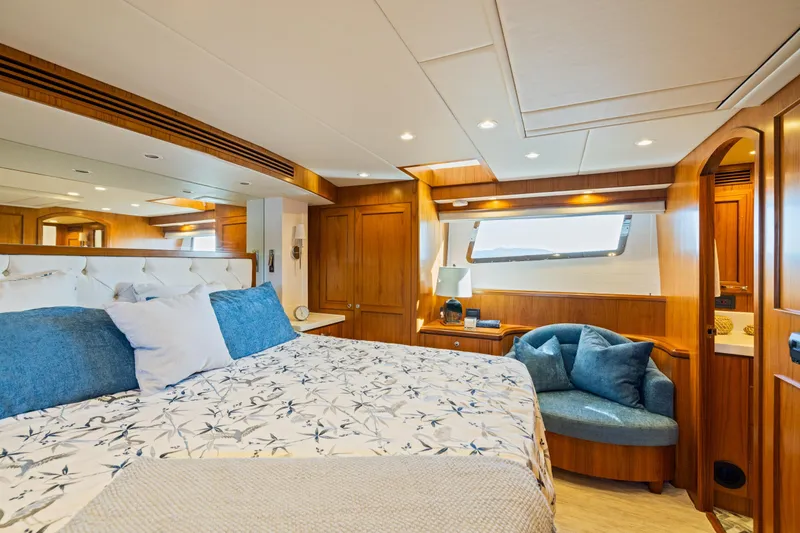

OWNER'S STATEROOM & HEAD:

• Custom “full beam” master cabin
• King-size walk-around bed with drawers & lockers under
• Cedar-lined hanging lockers with automatic lighting
• Custom LED fold-down TV
• Two LED reading lights over the berth with dimmers
• Safety escape hatch at overhead
• Padded soft vinyl removable headliner
• Xtra large view window port and starboard
• Full-length mirror

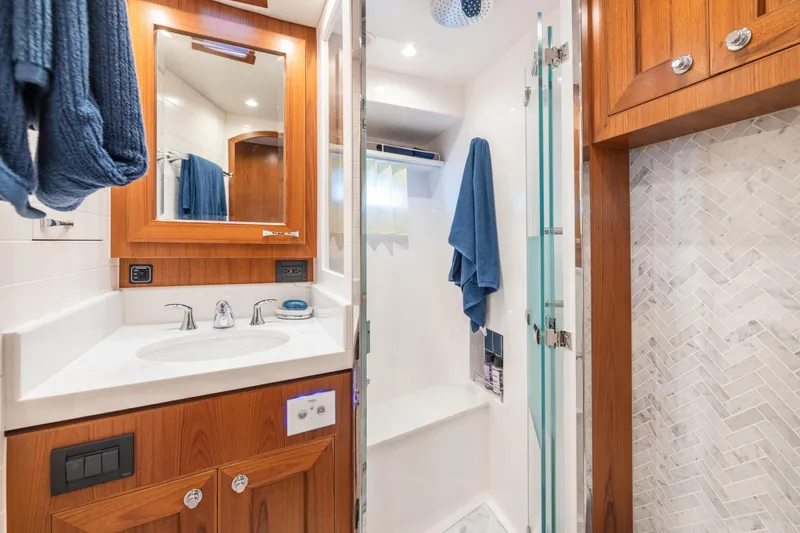

• Grohe faucets, towel bars, and towel rings
• Shower with a frameless glass door and an integrated towel bar
• Head ventilation blower

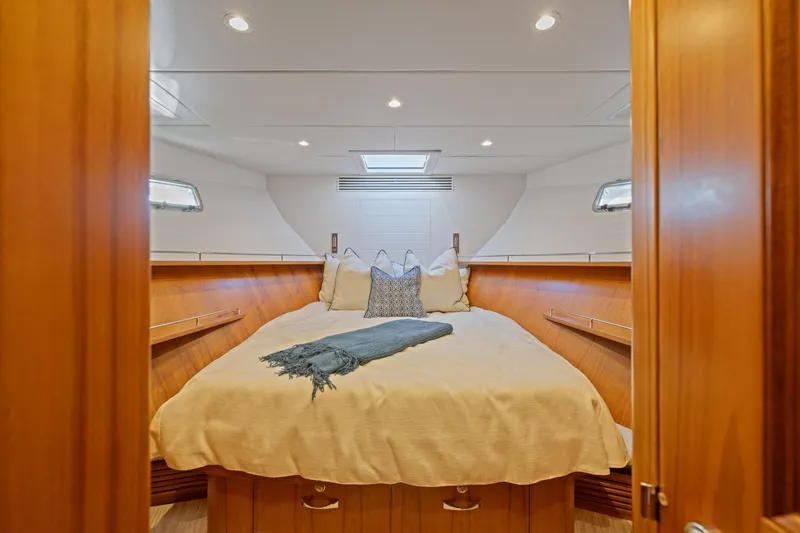

FORWARD GUEST STATEROOM & HEAD

• Queen-size berth, hinged for storage and drawers below
• Cedar-lined hanging lockers with automatic lighting
• 24” LED TV
• Two LED reading lights over the berth with a dimmer
• Opening 316 stainless port lights
• Padded soft vinyl removable headliner
• Grohe faucets and towel rings
• Shower with a frameless glass door and an integrated towel bar
• Full-length mirror
• Head ventilation blower
• One Manship overhead ventilation/escape hatch with Oceanair sliding screen

UPGRADES

• Twin Cummins QSM11 engines
• 20Kw Northern Lights generator to replace the Std 12Kw
• "Extended Stay Package" Upgrade to 5 Mastervolt MLI Duty-Extreme lithium batteries, Mastervolt battery management system, and 80amp Delstar 24v/200A alternator
• 2nd Mastervolt Charger
• Extended Cockpit with built-in seating
• Extended Salon and galley
• Extended Pilothouse
• Extended Boat deck
• Custom Kayak lift at the Boat Deck
• TNT tender lift/ Swim platform
• Hard top with full enclosure
• (6) Solar panels
• Kabola diesel heating system
• Reverse cycle heat and air
• (4) Stidd Helm seats (2 PH and 2 FB)
• Day Head in the Pilothouse
• Flybridge BBQ cabinet
• Spectra 24v Watermaker (42GPH)
• Reverso oil change system
• QuickKutters shaft cutters
• SeaTorque shaft system
• ABT Stabilizers
• ABT hydraulic bow and stern thrusters
• JMS joystick controls at three stations with iAnchor
• Dockmate remote docking system
• Electric roman shades throughout
• Starlink system
• 24V Spectra 45 GPH watermaker
• High-pressure fresh water washdown system
• (2) Hobi foot pedal kayaks
• 13.5' Naudica "wide Body" tender with a 60hp Yamaha

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
