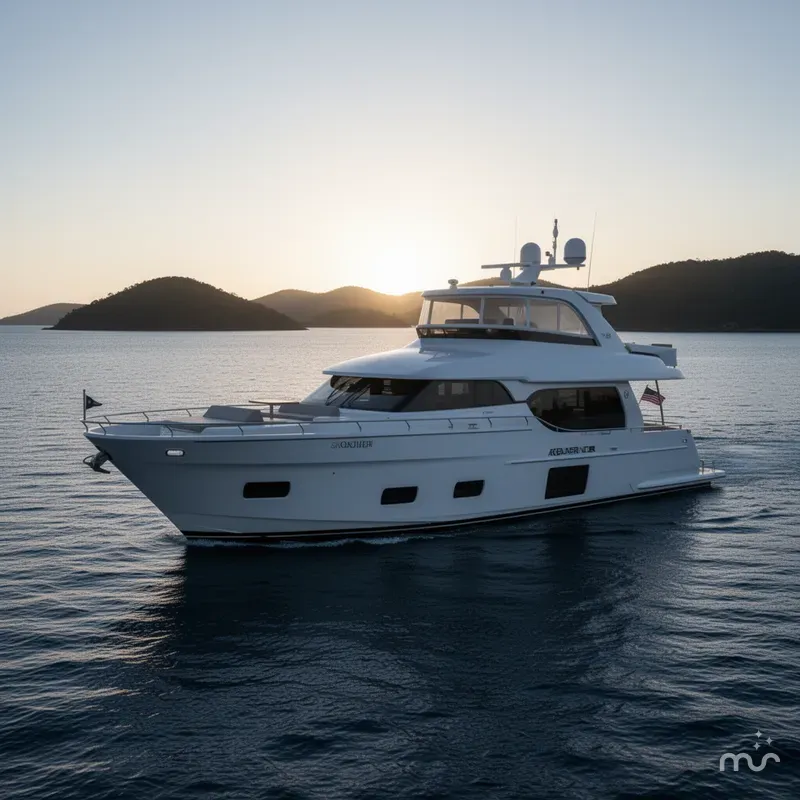

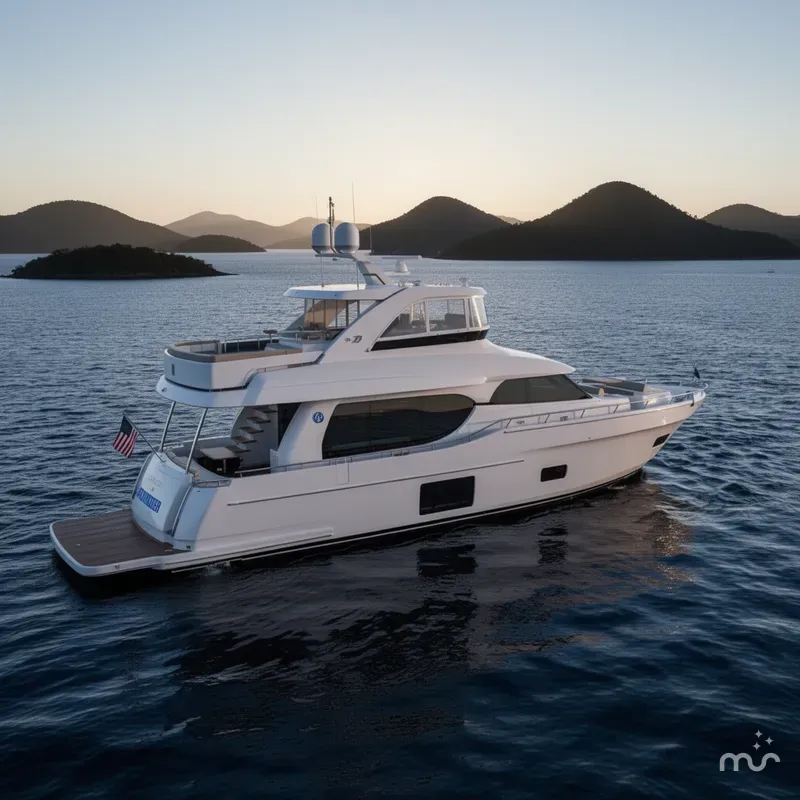

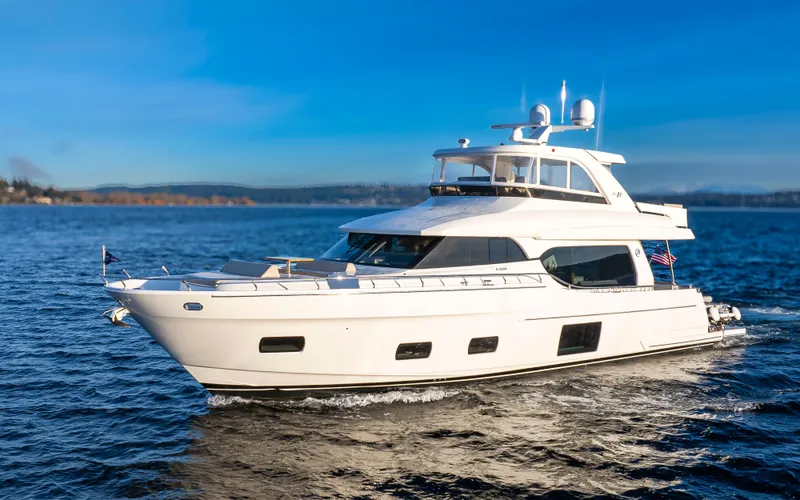

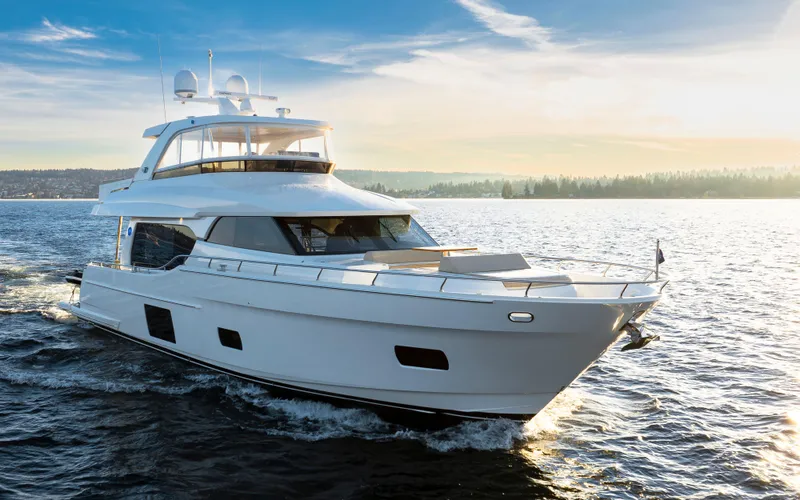

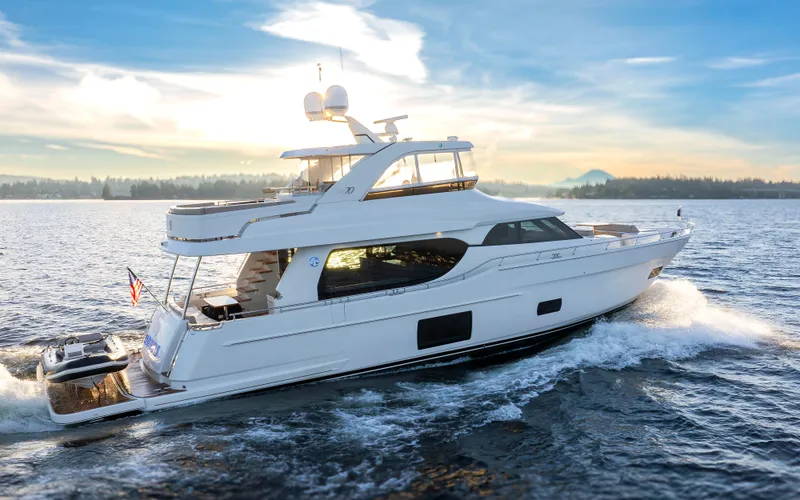

2020 Ocean Alexander 70E Motoryacht Sold Boat in Seattle, WA 98109 US

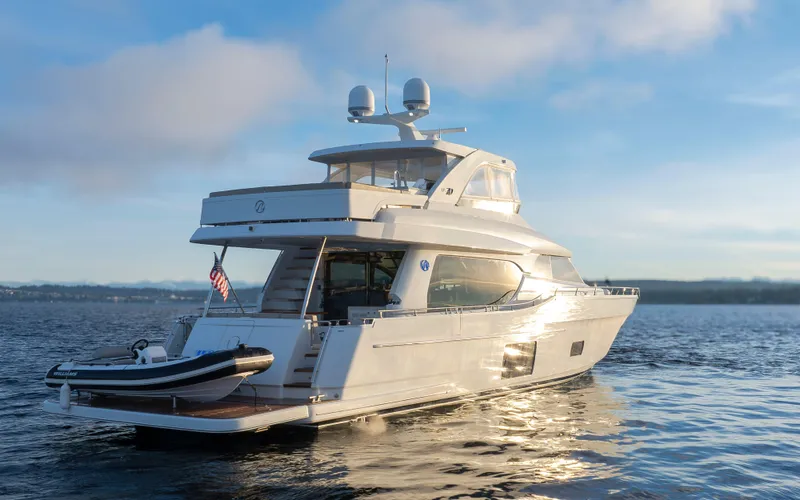

Beneath the 70e’s striking new exterior is solid Ocean Alexander engineering — made in America. The 70e’s fresh look makes it clear “e” stands for evolution. You’ll fall under the spell of a clear sight line throughout the main deck and big views from expansive windows. Everywhere you look, you’ll see our deep dedication to craftsmanship and know why we’ve earned a sterling reputation for safety, performance and fine engineering.

CONSTRUCTION

Vinylester resin with marine grade structural foam. High density allows for high temperature resistivity and particular advantage in thermal and acoustic insulation. Reinforced collision bulkhead. Fiberglass with infusion lamination manufacturing technology

Painted exterior surface with professional grade Alexseal polyurethane paint and epoxy based primers. Highest gloss and color retention compared with gelcoat or other paint brands. Guarantee color match by Alexseal. No fading, yellowing and minimum maintenance with no annual compounded necessary on exterior paint. (Unique OA standard feature, not an optional up-charge like competitors).

 2” elliptical 316L Stainless steel handrails & stanchions, main deck. 1-1/2” on FB. Elliptical conforms better to human grip than traditional round rails. Provides greater “grip strength” for safety and comfort (Unique OA feature) • All exterior hardware to be S/S 316 or to manufacturer requirements.

Ocean Alexander employs various techniques to reduce sound and vibration. Focusing on providing a quiet and comfortable yachting environment through various proprietary techniques of controlling sound and noise transmission. Some of these techniques include multiple insulation barriers including reflective materials, absorptive materials, dampening materials, air pockets, flexible isolation mounts. Ultimately resulting in vibration/sounds levels that are industry leading and at times 1/2 to 1/10 of ISO-6954 sound levels (Unique OA feature).

Weather-tight bulkheads with further sound and temperature insulation • Marine grade aluminum beam. Provides greater rigidity, reduces movements and “abrasive” sounds while underway. Also allows for one of the largest uninterrupted glass/window spans in the industry. (Unique OA feature)

HULL / BOTTOM:

Rub rail with S/S insert • Three coats of Pettit primer, hi-build epoxy barrier coat and covered with three coats of Pettit self-polishing bottom paint (Unique OA feature, optional on competitors) • Bronze through-hull fittings DECK / PILOTHOUSE: • Chain locker in bow with hinged access • Removable swimming ladder • White non-skid fiberglass decks • Port and starboard boarding gates • Ventilation hatch fwd. trunk top • Fiberglass staircase from deck to Flybridge • Fiberglass swim platform • Composite hardtop with aluminum beam support (OA standard feature, often a $100,000 competitive option)

MECHANICAL:

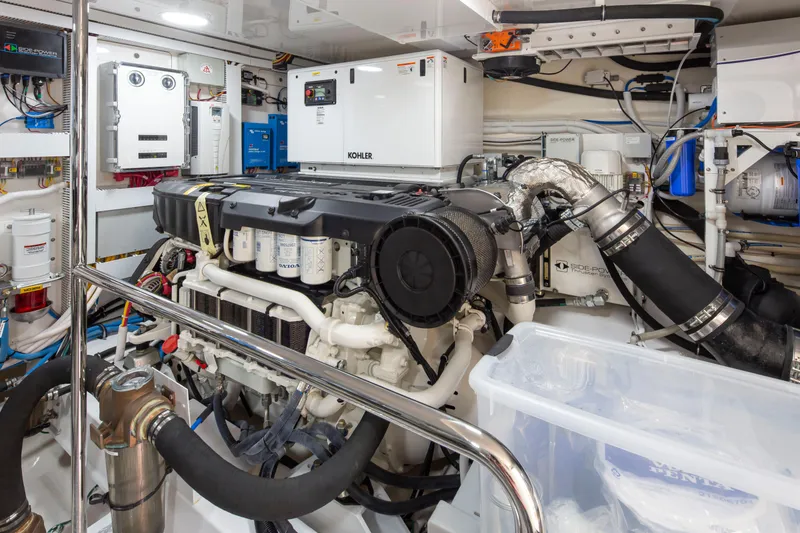

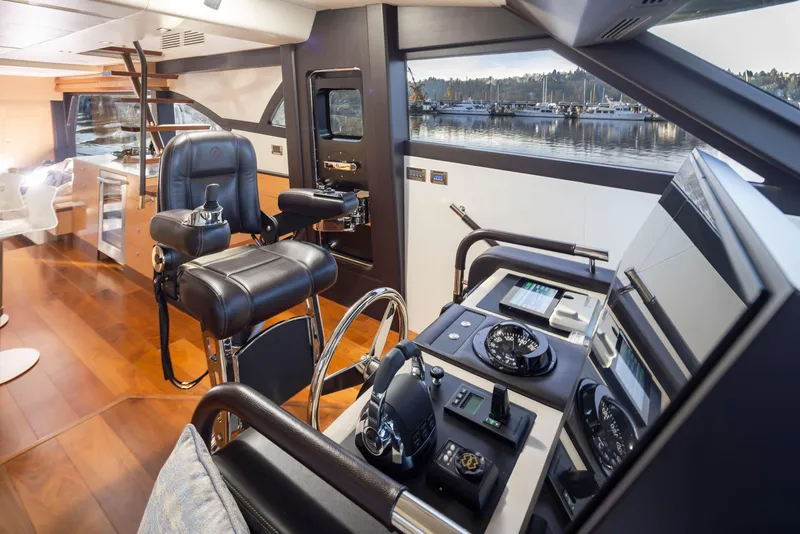

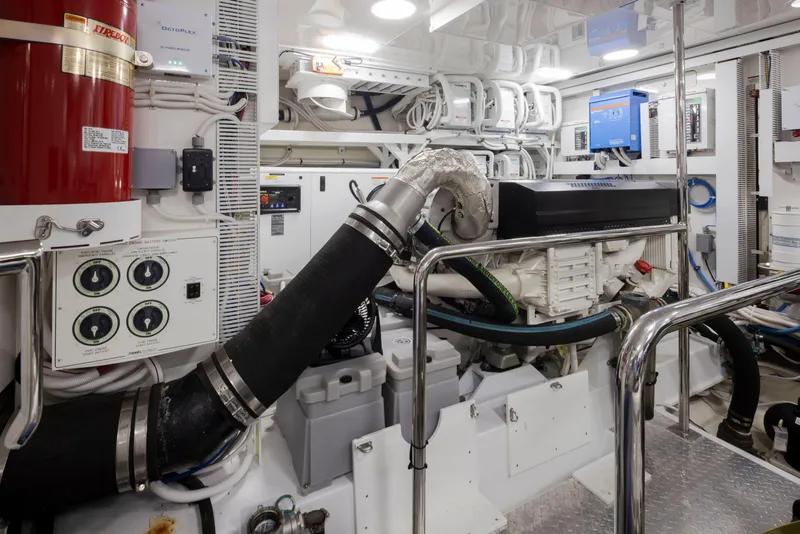

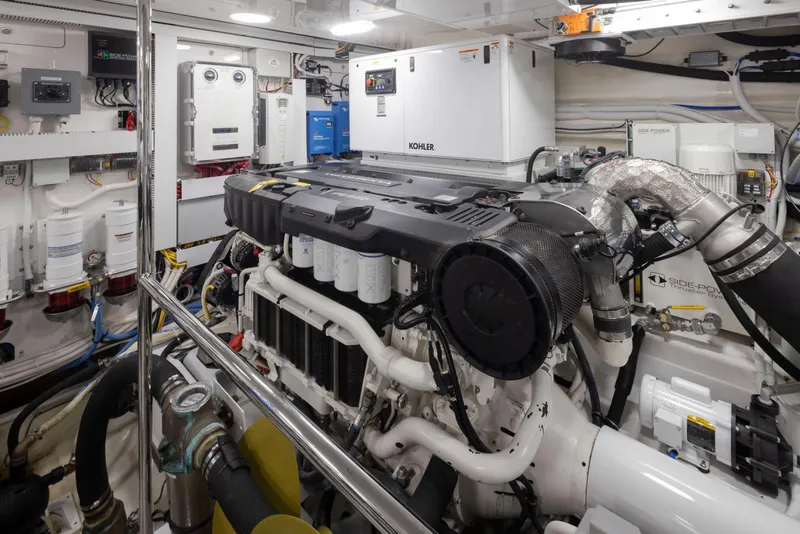

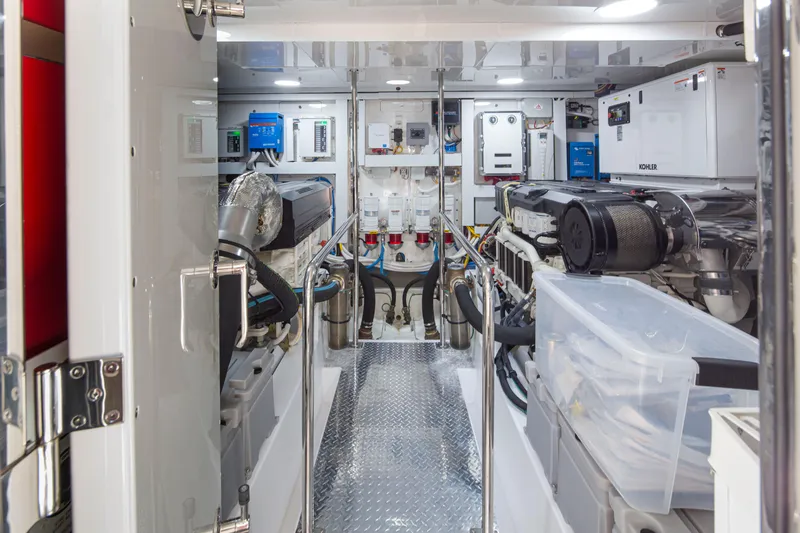

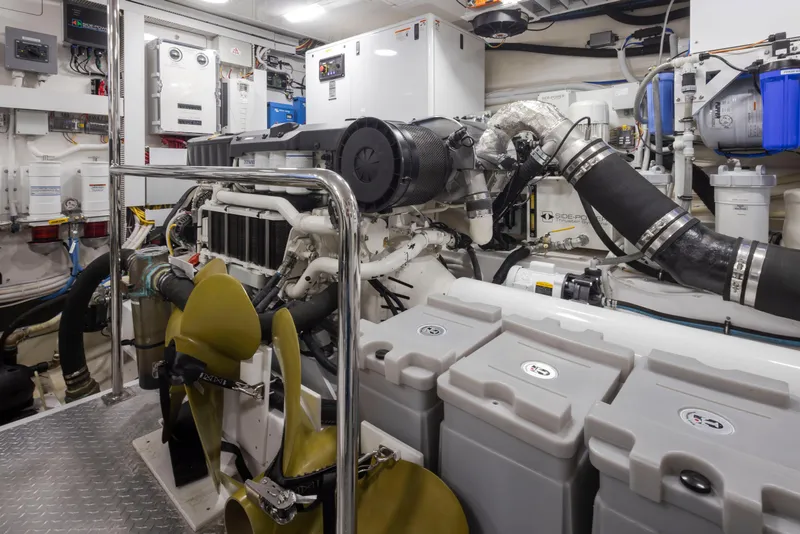

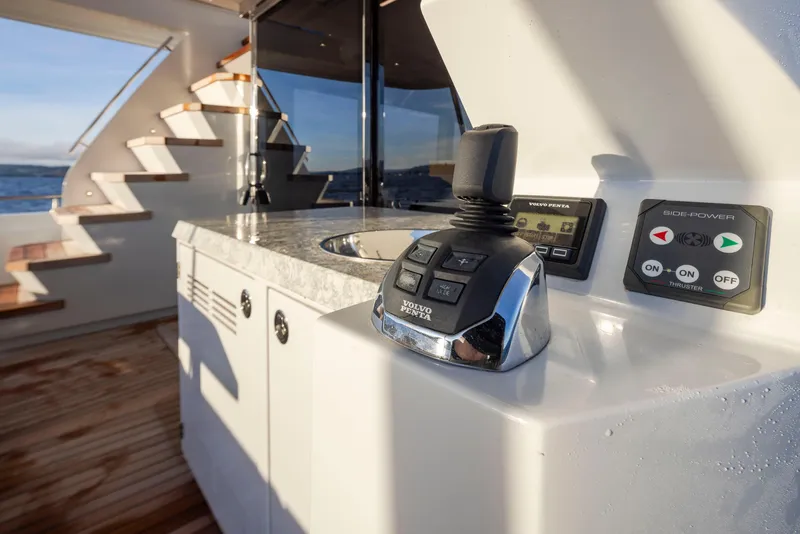

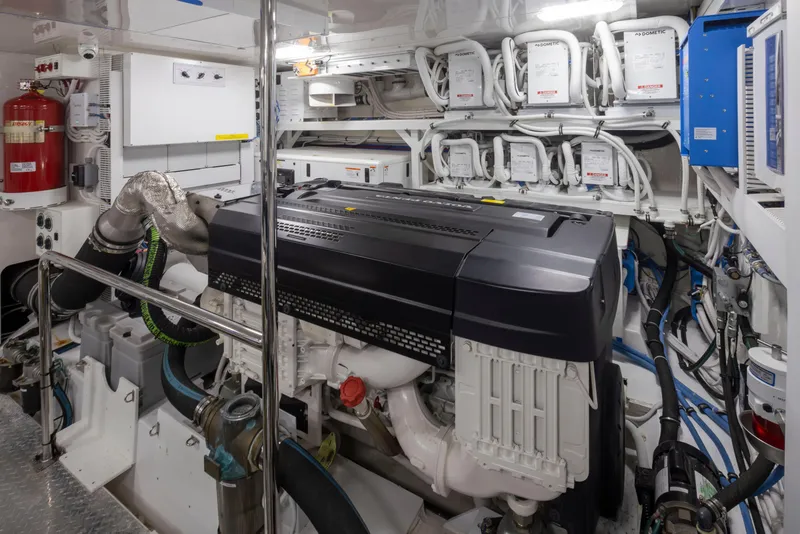

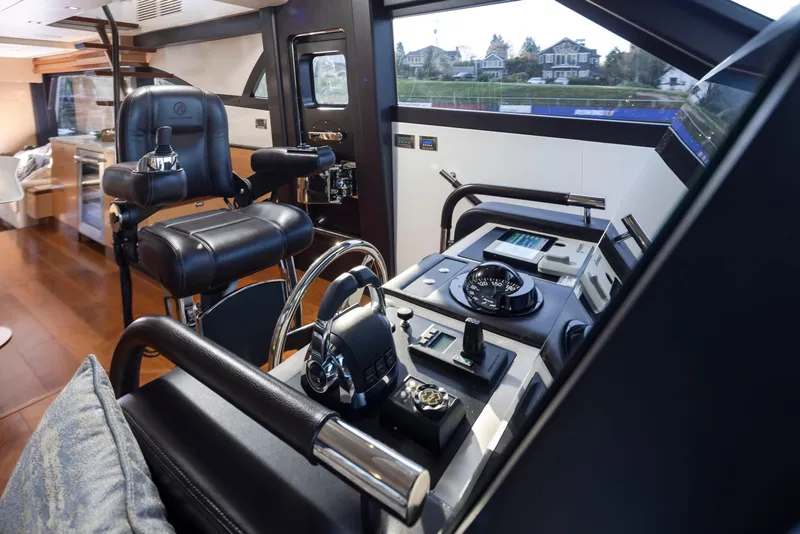

MAIN ENGINES: • Twin Volvo IPS1350 engines with Volvo Penta warranty good until August 2025, Two control stations: FB & PH, with complete engine instrumentation • Electronic engine controls at PH and FB • UPGRADE: Volvo IPS Dynamic Positioning w/ Joystick- Includes 3rd station joystick- Clear wake exhaust- Built-in line cutter- "Prop Speed" on props- Joystick driving

FUEL SYSTEM: • Aluminum fuel tank with sight gauges and tested to International Standards 33CFR 510(a) w/ high and low fuel level alarm system • Filler for fuel tanks on both sides. (Unlike others where fueling is only possible on 1 side. This unique OA feature allows for concurrent and faster fueling & negates need to move boat to complete fueling).

BOW THRUSTER: • UPGRADE: Electric Bow Thruster with variable speed

WINDLASS / MOORING: • Electric windlass, RC12 • Vertical electrical rope winches at aft deck •UPGRADE: 200' Chain (Upgrade from 150') + Ultra Anchor (Patented design w/400% more holding power) • Chain counter

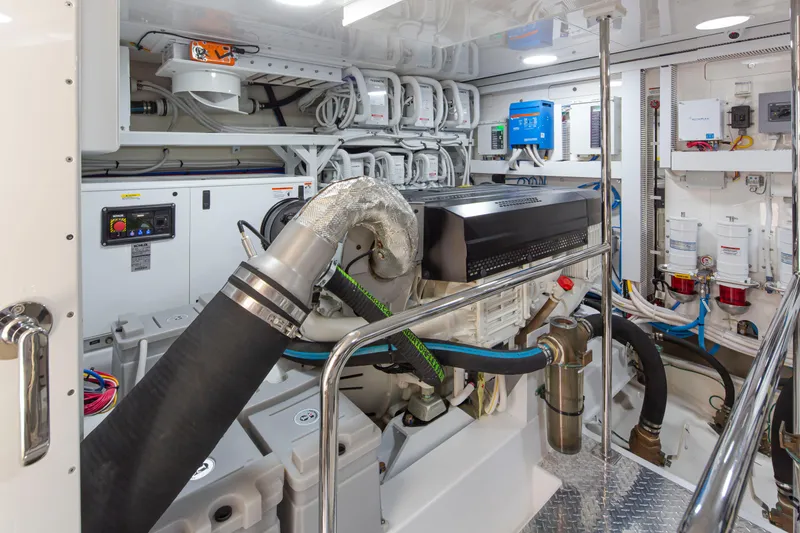

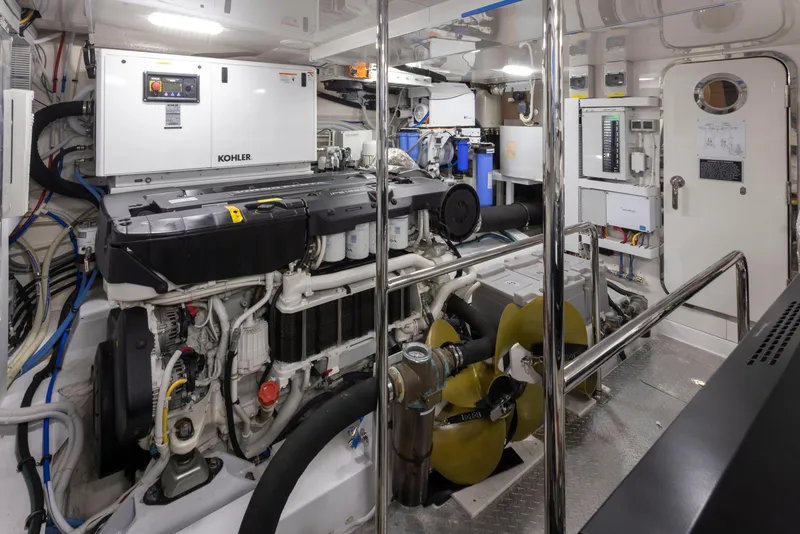

GENERATOR: • UPGRADE: (2x) Kohler 23KW generator • Generator set resiliently mounted and installed with sound shield & vibration dampener (Unique OA feature) • Generator exhausts with fuel/ water and gas/ water separator • Generator exhausts to be water-drop type per “Centek”, Marine Exhaust Co.” or equal. Reduces noise & vibration.

• Volvo Penta Interceptor Electronic Vessel Control w/automatic TRIM ASSIST for fully automatic ride control • Stainless steel rails on sides of engines • Fire extinguisher system with engine-shutdown feature • Manually controlled adjustable Delta-T® fans for engine exhaust located on superstructure instead of hull side.

• UPGRADE: Hydraulic "Zero Speed" Stabilizer • Intake/ exhaust fans with de-mister to eliminate moisture from the intake airflow to keep dry in machinery spaces. • Pantograph windshield wipers & washers w/ intermittent function • Kahlenberg™ heavy duty air horn •

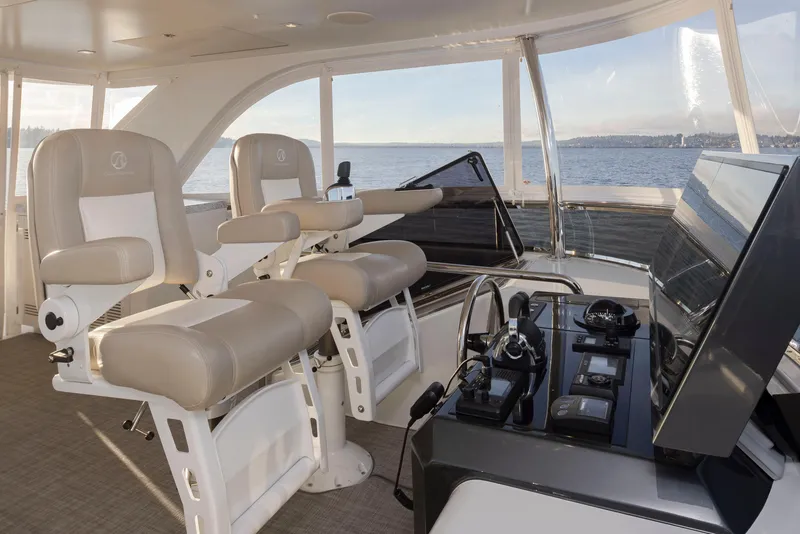

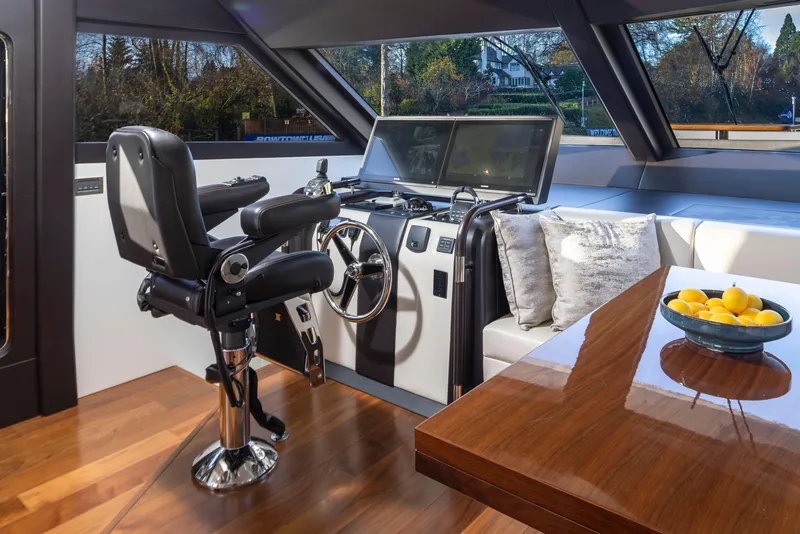

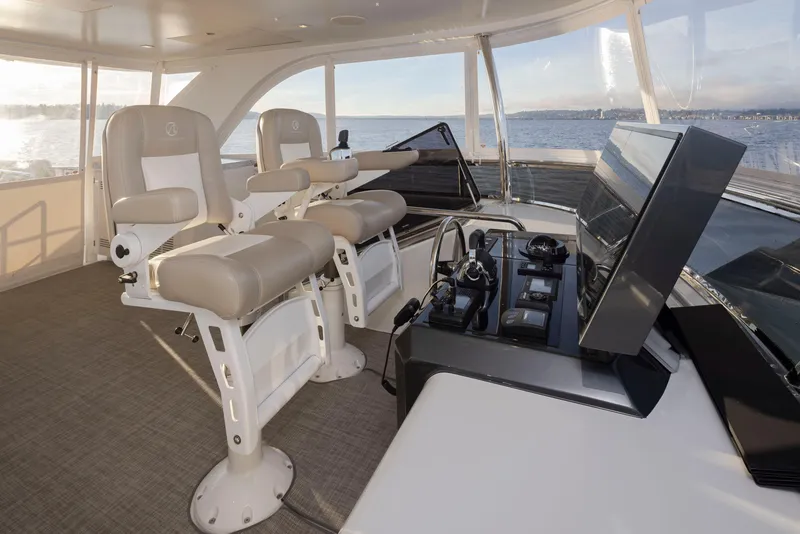

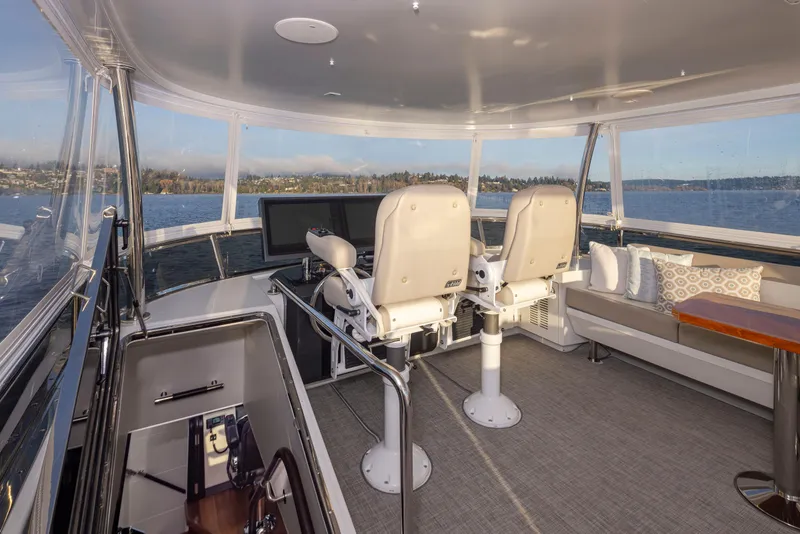

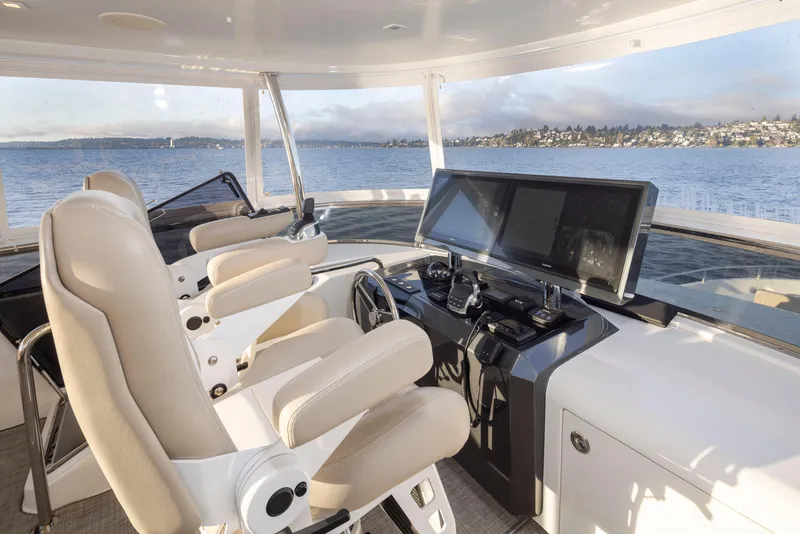

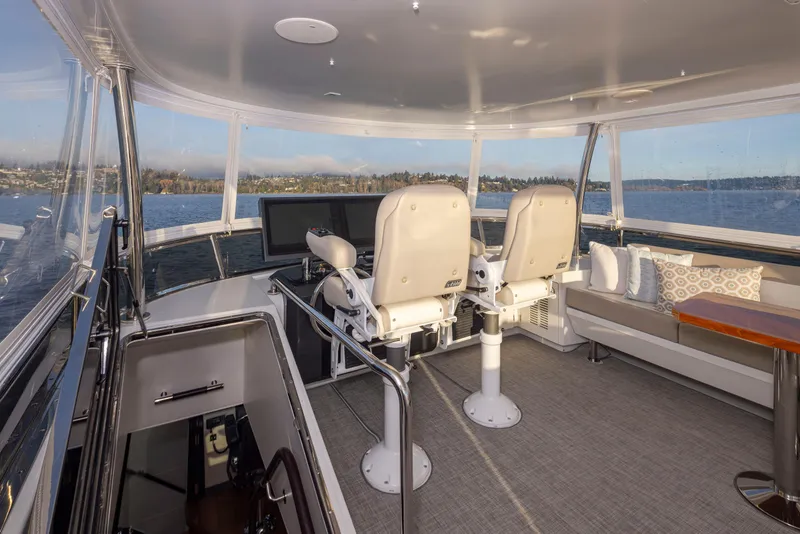

• UPGRADE: •Two Stidd™ mechanical helm seats on F/B, One electrical helm seat in Pilothouse in lieu of mechanical helm seat • Pantograph door on port and electric salon door

• Teak decked custom fiberglass swim platform with remote operated 1500 lbs. capacity 316L Stainless Steel hydraulic lift

PLUMBING FRESH WATER SYSTEM:

Stainless Steel water tank • Fresh water wash down, at bow & stern • Dockside water connection

• UPGRADE: Dockside water filtration to eliminate taste & odors from Marina water supply • One 28-gallon high efficiency water heater with high density fiberglass insulation

• UPGRADE: Sea Recovery 450 GPD water maker

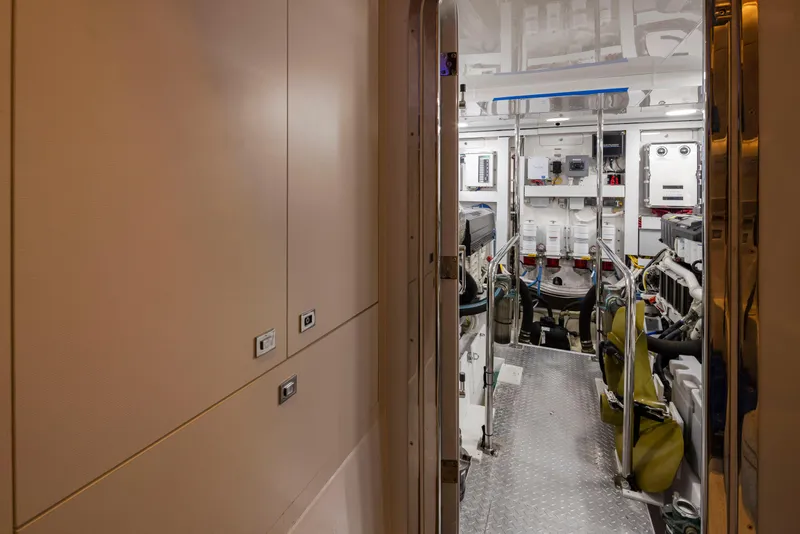

BILGE / DISCHARGE: • 24V shower sump pumps • Lighted engine compartment • Automatic bilge pump - with manual and automatic switches including high water alarms • Lighted bilge (Unique OA Feature) • Common drainage system for bar sink, shower, bilge & exterior deck

ELECTRICAL / NAVIGATION PACKAGE:

UPGRADE: Garmin 8600 Series Black Box upgraded with 24”screens (compared to standard 17").Two screens - lower station, Two screens - upper station. • Garmin GRID remote input device at Stidd® Helm (FB and PH) • Garmin 12KW Open Array Radar • Garmin Autopilot GHP Reactor • Card Reader • Garmin VHF at Helm (FB and PH) • Garmin AIS with NMEA GPS • Garmin Sonar Module with Transducer • Garmin Marine Camera (2x engine room, 1x aft deck) • KVH TracVision HD7 with DIRECTV® receivers • Ritchie Compass 5"

AC / DC SYSTEM: • AC outlets 120V • AC distribution panels with remotely operated hydraulic- magnetic circuit breakers • DC distribution panels with electronically programmable • circuit breakers • AGM Batteries with -15C to 40C operating temp and low 3% per month self-discharge rates • Battery paralleling system switch between service and engine • Service battery switches

BATTERY CHARGERS: • UPGRADE: INVERTER PACKAGE. Upgrade from standard 60AMP house bank charger to inverter/ charger (5000W/120AMP) + Blue-Power full function programmable controller • 30 AMP for engine • 30 AMP for bow thruster w/option

BONDING SYSTEM: • Bonding system • The vessel's bonding and grounding systems shall include copper straps secured to the hull and running the full length of the vessel parallel to centerline. Engines, generators, metallic through hulls, strainers, and pump bodies connected to the bonding strap LIGHTING: • 24V LED lights (Specially tuned color temperature for Ocean Alexander) • Engine battery isolation switches with paralleling • Generator battery isolation switches with paralleling • GFI (120V) AC outlets in potential “wet” areas. In addition, entire boat is dual protected via ELCI Octoplex breakers.(OA is unique in the industry to provide dual protection GFCI & ELCI) • Shore power receptacle at transom w/90’ cable master with Iso-Boost 100A transformer (OA is unique in making this a standard vs. optional to clean & boost questionable shore power to better protect sensitive equipment onboard.)

• Octoplex NMEA 2000 Network electrical control system. Based on aerospace technology for remote activation, control and status reporting of AC and DC breakers. Monitors power sources (AC and DC) for voltage, frequency and amperage abnormalities and provide visual and audio alerts. Includes enhanced circuit breaker functionality with no-load indication and usage information with touch screen monitor that is user reconfigurable. Brown-out configurable control through auto load shedding is included where designated equipment (e.g. navigation and other essential systems) remains powered-on while automatically switching other systems off. Octoplex NMEA 2000 Vessel system monitors main access doors, tank level, bilge level and battery current, voltage and temp. (Unique OA standard feature, not an optional up-charge like competitors)

AIR CONDITIONING:

Dometic® systems throughout, rated for “Extreme Tropical Climates” • Refrigerant type is accepted worldwide under the Montreal Protocols • Where possible A/C exits from custom made ceiling panels hidden from view. Shortens A/C ducting thus improving efficiency and speed of cooling by over 20%. Also reduces dB reading by over 7 dB (Design cues from OA120)

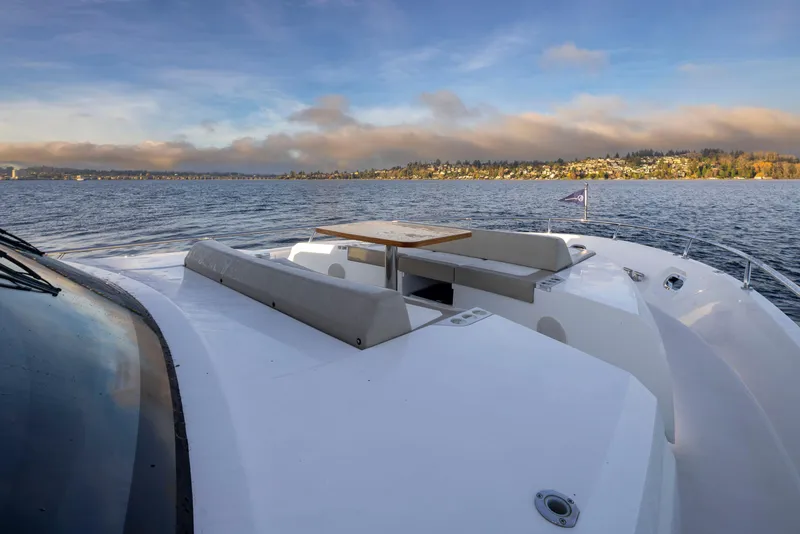

OTHER: • Labeled Vimar™ switches and outlets • Custom designed fender storage in lazarette • Oversized Bow storage area under sunpad.

ACCOMMODATIONS/INTERIORS,

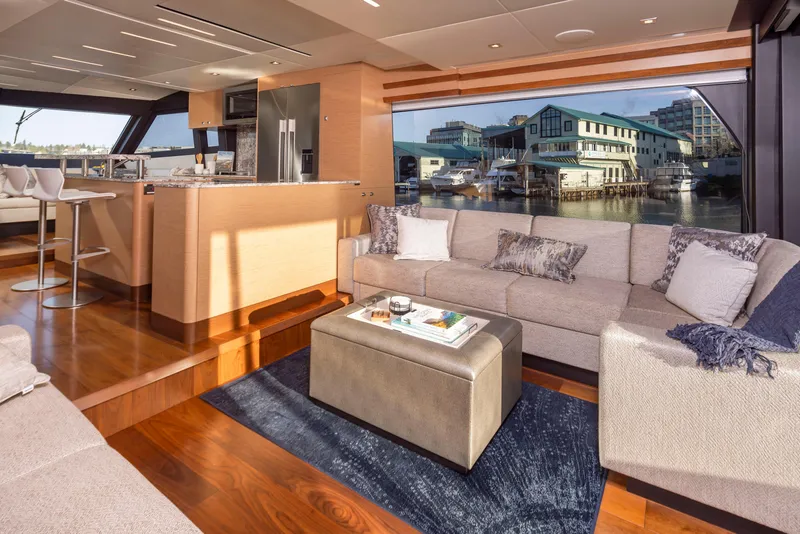

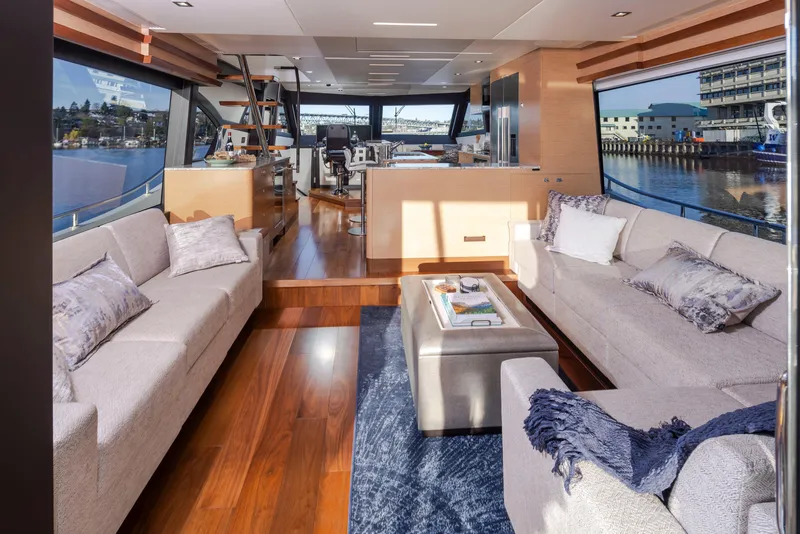

AUDIO/VIDEO SALON: • Evan K Marshall custom design salon furniture and sofa. Sofa includes concealed drawers for intelligence use of space and increase storage • Removable ceiling panels • Wood paneling and cabinetry • Enlarged windows in salon with custom engineered solution allowing for industry leading window expanse. Incorporate (where possible) aircon outlet from ceiling, provides unobstructed view to outside. • UPGRADE: 50" LED TV with DVD, Satellite receiver, amplifier system w/sub-woofer and Sonos music streaming system

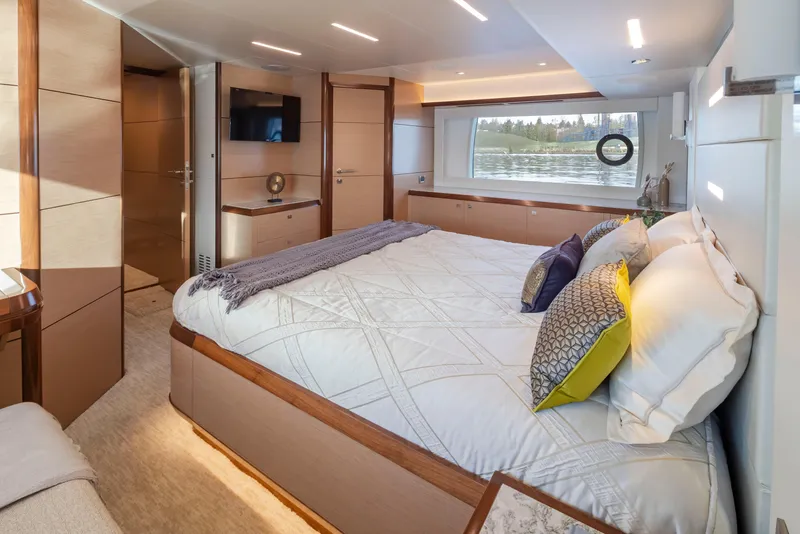

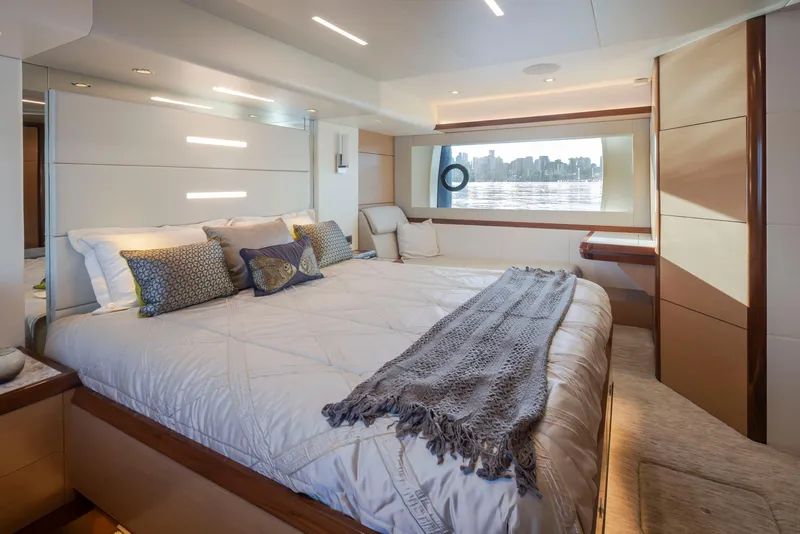

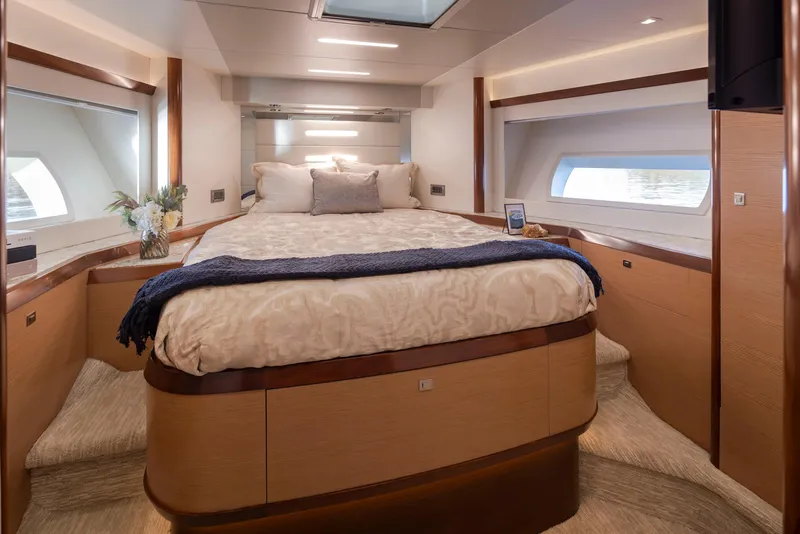

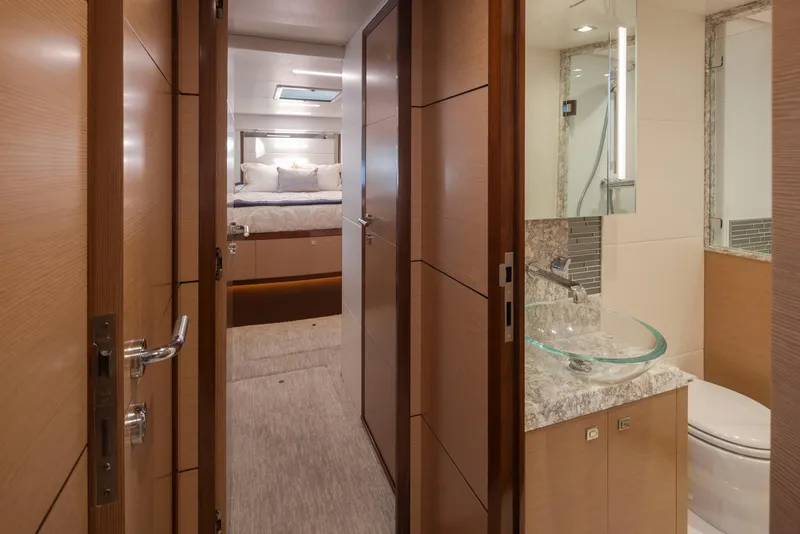

MASTER STATEROOM: • King-sized berth with upholstered headboard • Two nightstands • Chaise lounge on port side with vanity • Private head with stall shower • Safe in master stateroom • Cedar-lined, full-height hanging locker w/ auto lighting • Enlarged windows with custom engineered solution incorporating composite beams and “sandwiched glass” construction technique from classed vessels. Allows of 38% greater visibility and incoming light • UPGRADE: 32" LED TV with DVD, Satellite receiver, amplifier system w/sub-woofer and Sonos music streaming system

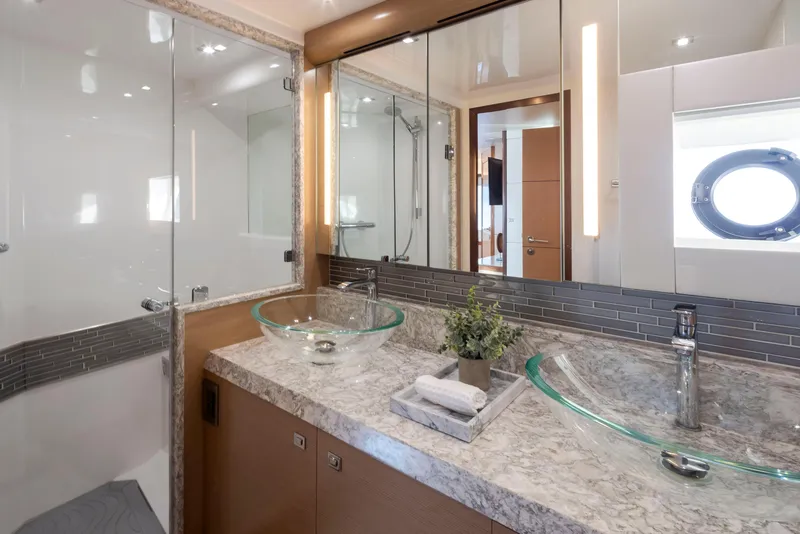

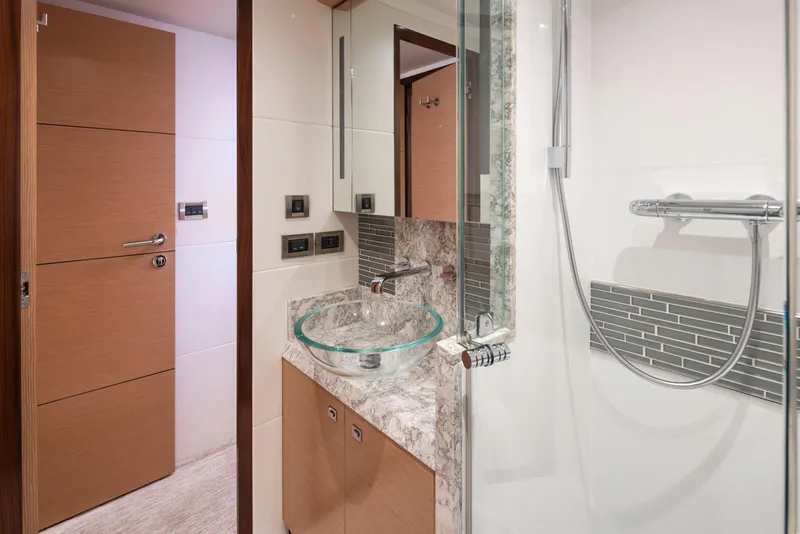

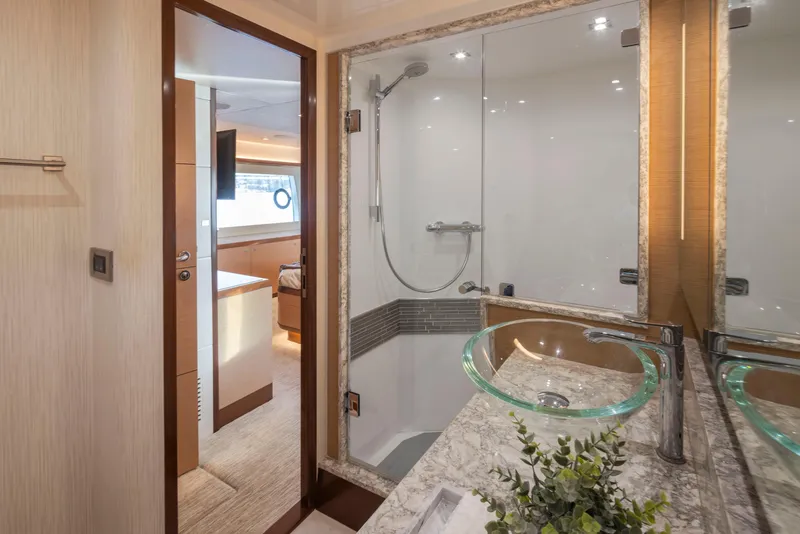

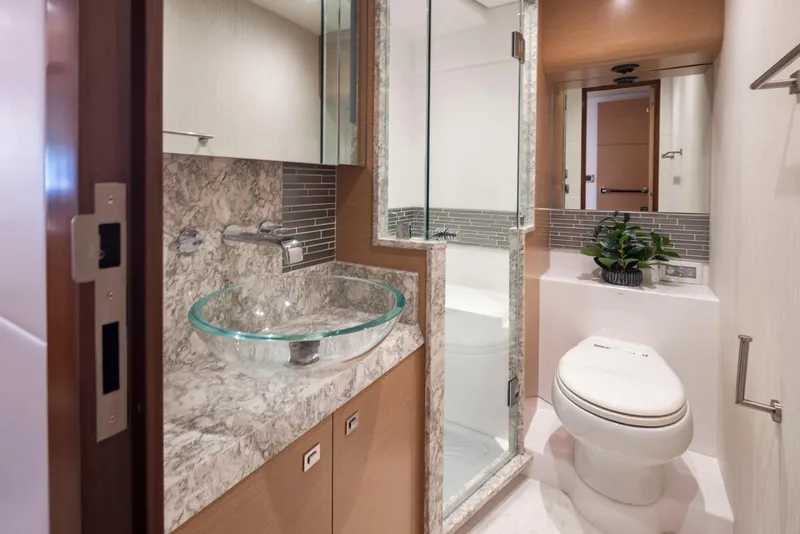

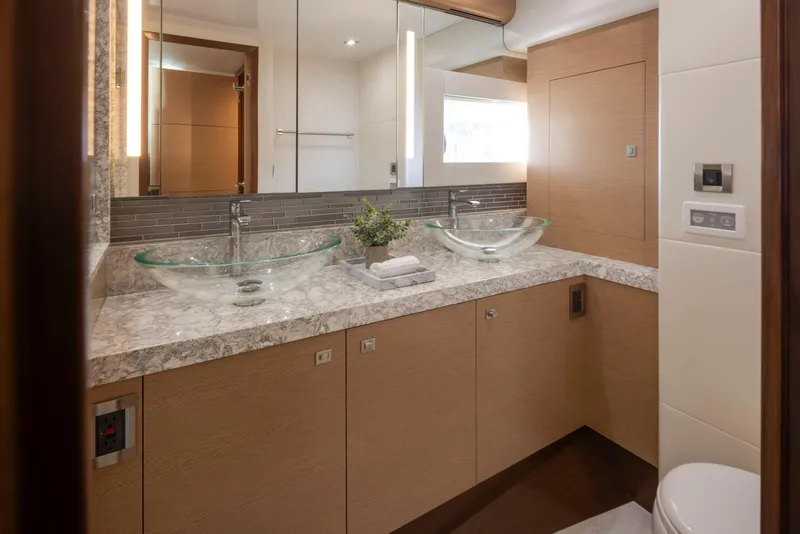

• UPGRADE: Heated Master head floor HEADS: • HansGrohe™ faucets for sink and shower • Fiberglass stall shower w/ one-piece glass door. Industry leading seamless one-piece shower stall design provides long term protection against moisture, water intrusion behind the shower panels that can cause foul odors and water damage. • Planus™ toilet system throughout • UPGRADE: Cambria floor in heads in lieu of Amtico GALLEY: • Wood panel and cabinetry with positive-latch doors Provides containment of stored objects while underway • Storage cabinets with fully dovetailed solid wood drawer construction

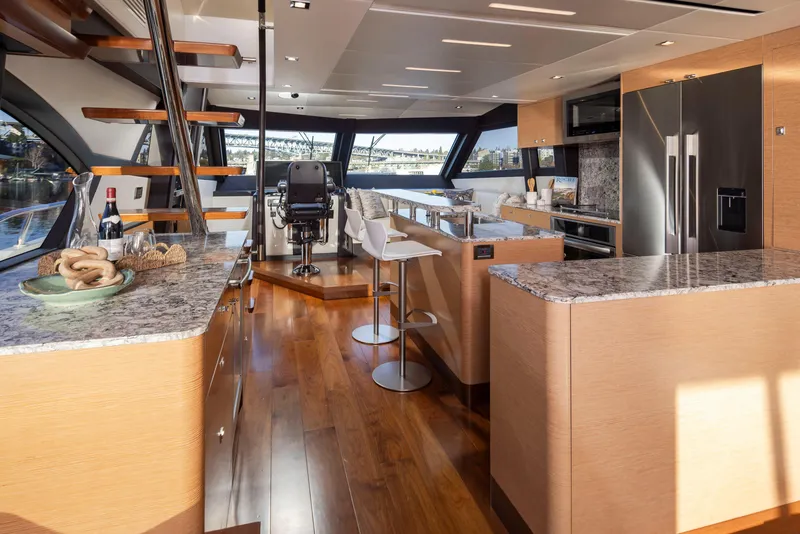

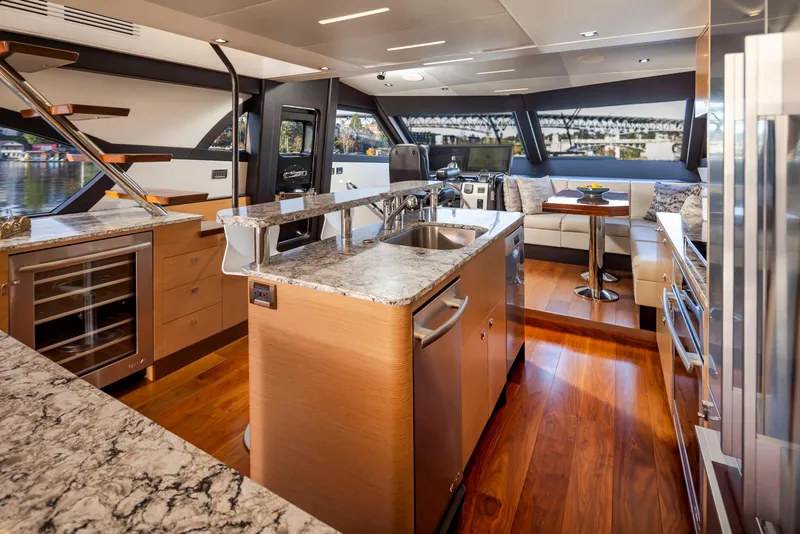

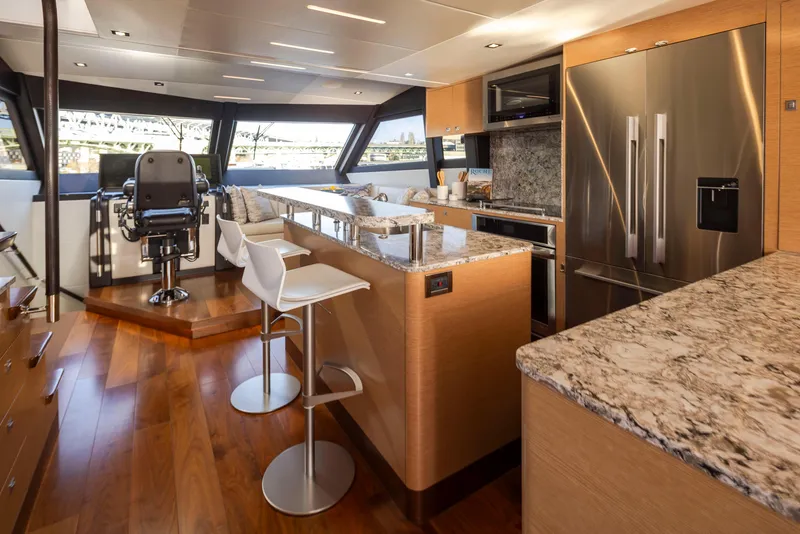

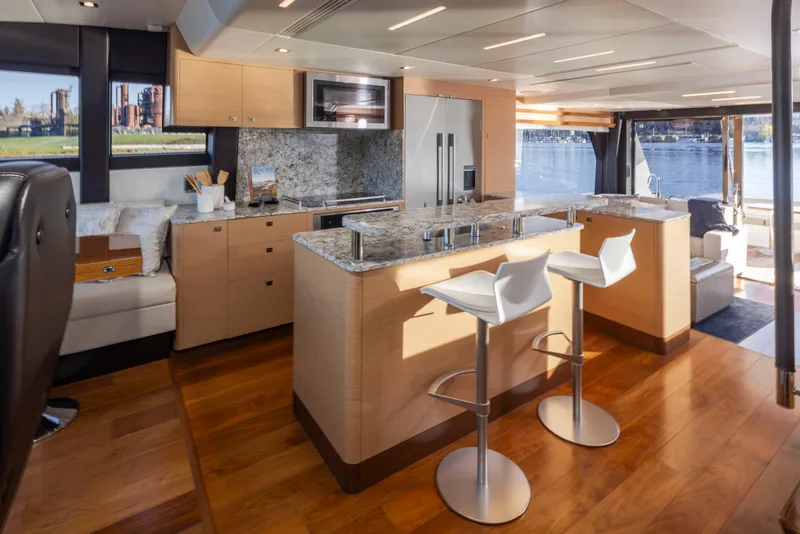

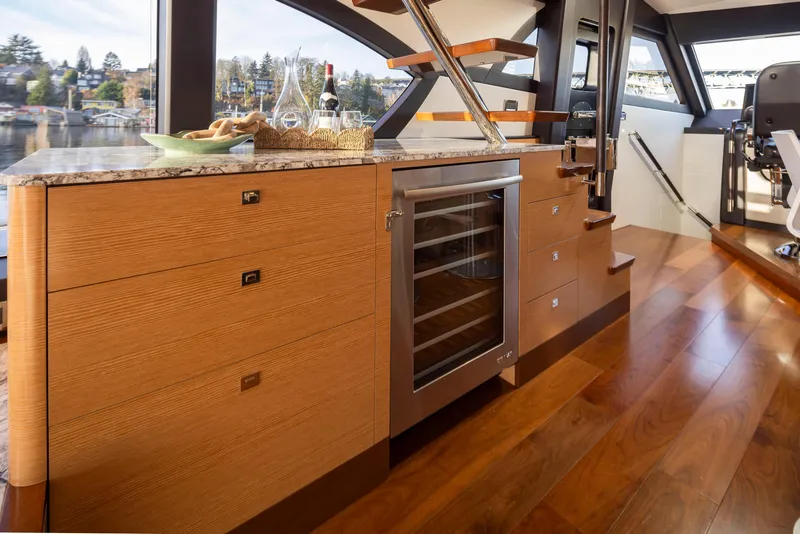

• UPGRADE: Wine Cooler in lieu of Storage • Franke® Sink with Franke® Pull out faucet • Fisher Paykel® Refrigerator • 30" Jenn-Air® Microwave • 30” Jenn-Air® electric induction cook top • Whirlpool® garbage disposal • 30” Jenn-Air® electric convection oven • Bosch® dishwasher • 15” Jenn-Air® Trash compactor • UPGRADE: Seagull water purifier ( ADEX design award winner w/filtration to 0.1 microns & EPA certification) for Galley sink and ice-makers

INTERIOR DÉCOR:

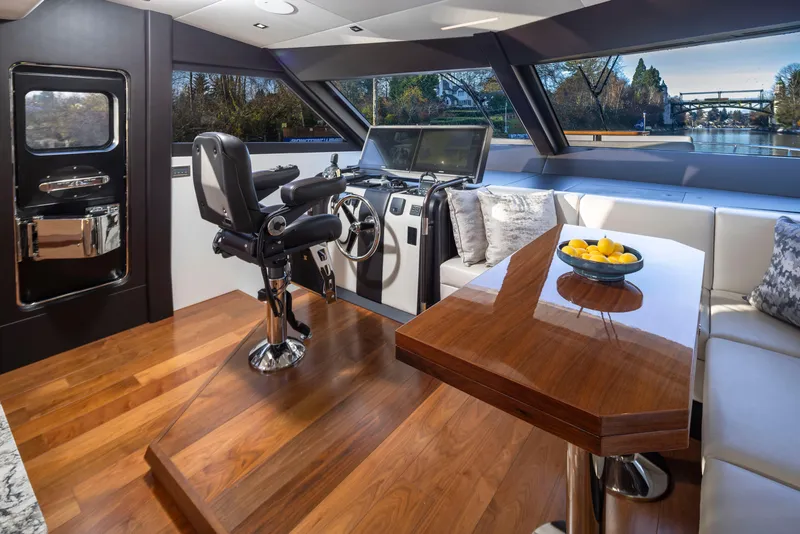

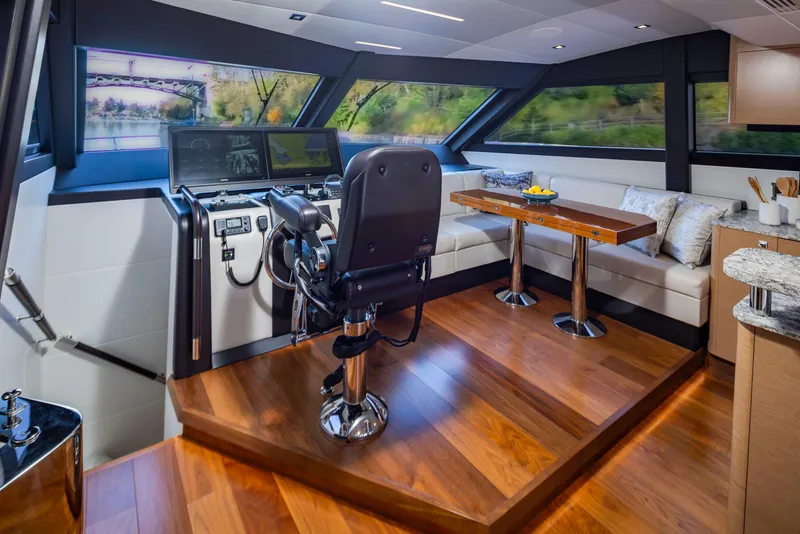

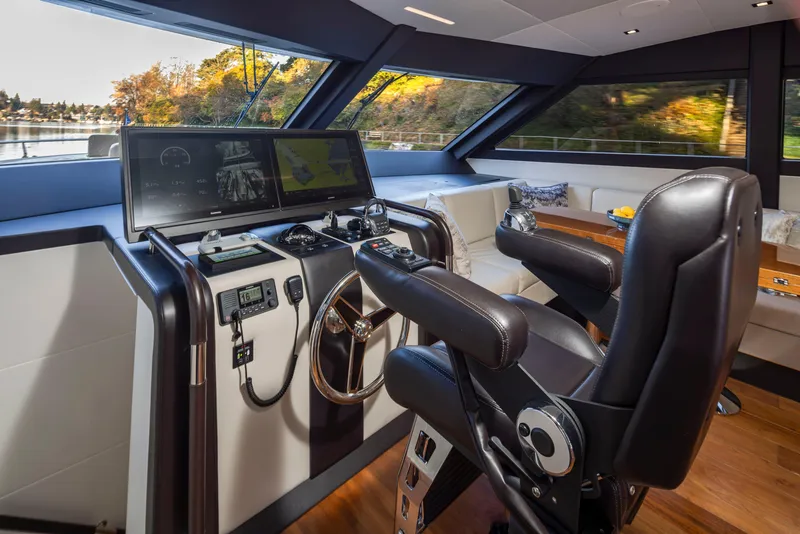

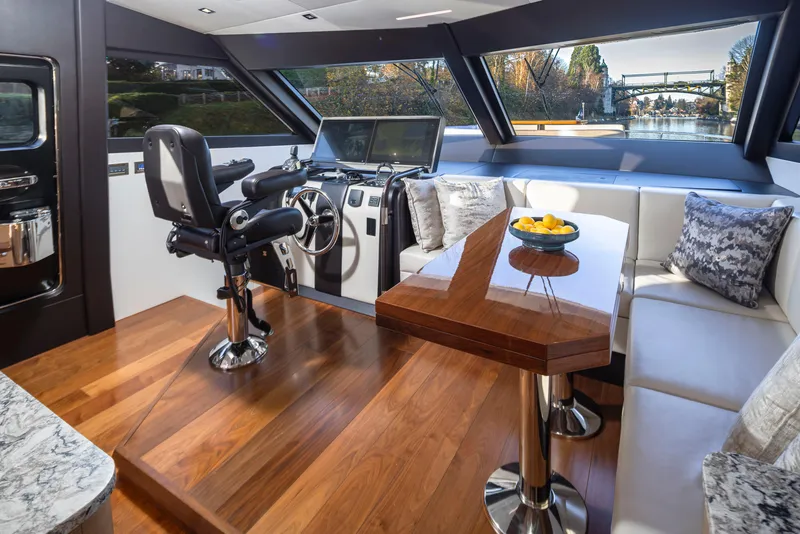

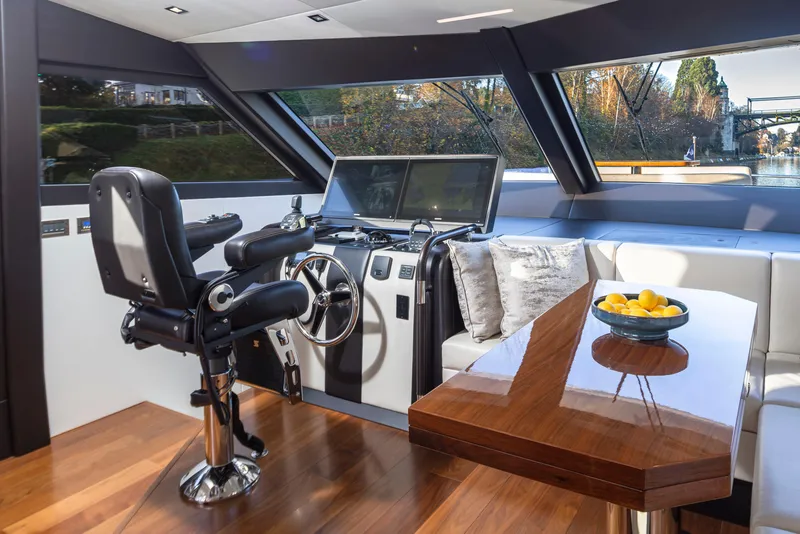

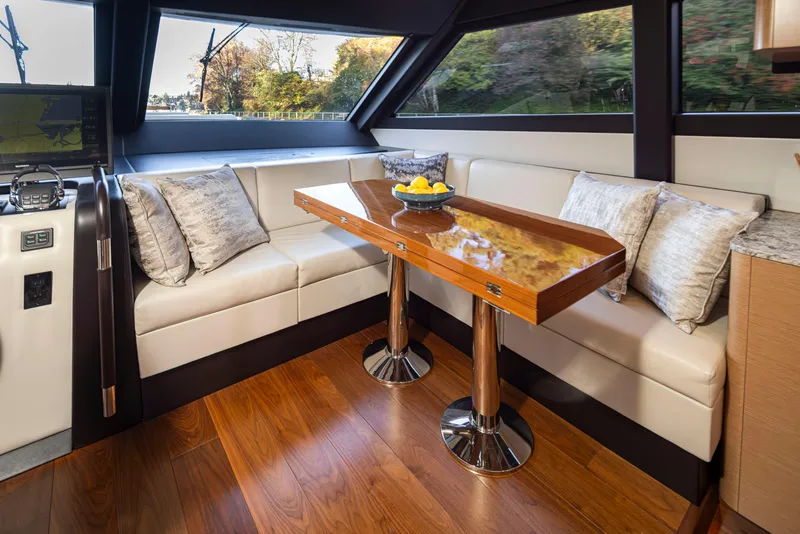

Interior Color Scheme: Oak •Stone Package: Light Stone •Evan Marshall designed interior pilot station and display pods with matching wood and designer fabrics. Ergonomically designed and laid out to enhance pilot experience/performance •Stained wood paneling and cabinetry •European door handle •Stainless steel hardware •Satin varnish for interiors •Positive latch drawers & cupboards •Fabric covered walls •Oversized hanging lockers •European washer/ dryer •Air extraction in each head

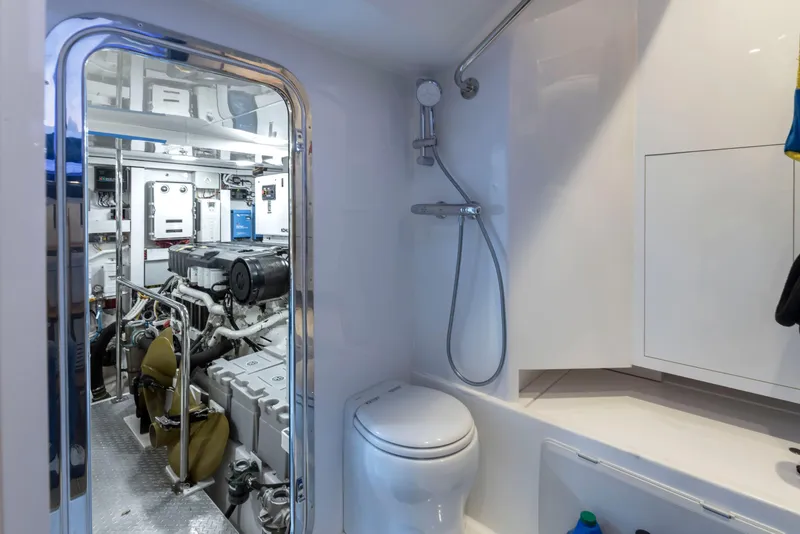

•UPGRADE: Crew quarters with dedicated bunk and walk in wet head and electric toilet

•UPGRADE: Wood flooring in Salon in lieu of carpet.

•UPGRADE: 6 zone Sonos system allowing streaming music and stereo sound for zones with TV. Includes these areas: Salon, Master, Flybridge, Galley, Aft Cockpit, and Bow seating area •UPGRADE: Onboard Intranet, driven by commercial-grade 4G SIM-card capable Wi-Fi router

EXTERIOR: • Hardtop with dedicated custom S/S ladder • Windows all fixed and flush • Venturi • Flip open hatch, bridge to pilothouse • Electric Stainless sliding salon door with safety light curtain that senses obstruction. Also includes “foot kick button” control for operation when both hands full with food trays/other items. • Largest Flybridge area in its class with Ocean Alexander’s “cab-fwd” design, the Flybridge steering station is moved fwd to allow for better visibility and lengthens the total Flybridge area available for entertaining. • Nonskid deck throughout • Teak tables at Aft deck/FB/Bow seating areas • Boarding gates on Port & Stbd sides • Backlit OA logo • Flip Open Hatch for Aft deck to FB • Teak decking on swimstep and swimstep deck steps • Flybridge Wet bar with sink and refrigerator/ice maker

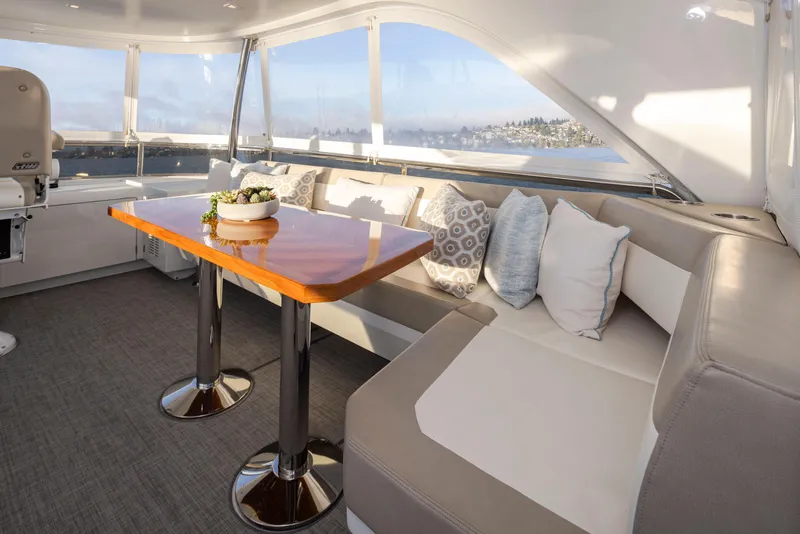

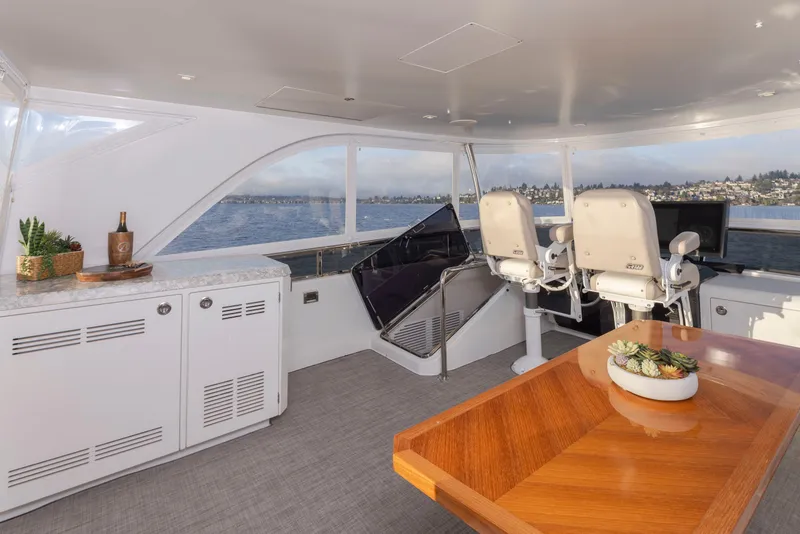

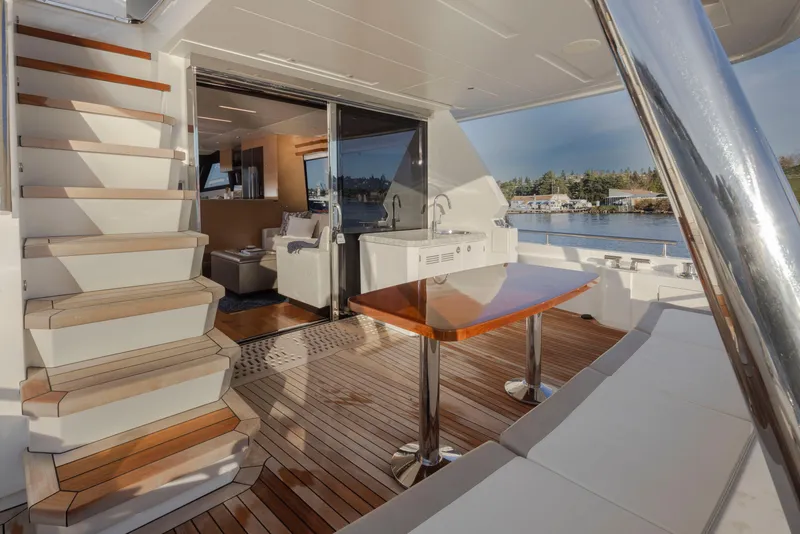

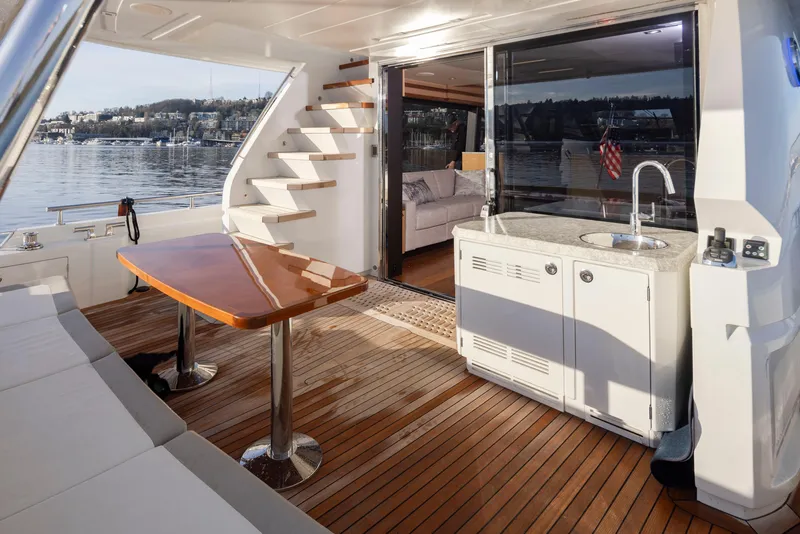

• UPGRADE: FB Heat & Air-conditioning 24,000 BTU, • UPGRADE: Teak decking package- main deck ( aft deck to midship first step)- steps from aft deck to Flybridge • UPGRADE: Flybridge rear seating w/custom high-low table convertible to sunpad.

• UPGRADE: Flybridge - manual awning w/custom SS poles and marine-grade mesh fabric. Includes built in storage for poles • UPGRADE: Bow - manual awning w/custom SS poles and marine-grade mesh fabric. Includes built-in storage for poles • UPGRADE: Aft deck custom fiberglass cabinetry with sink and refrigerator/ ice-maker • UPGRADE: High output underwater lights ( Three at stern, two on each side at Master)

• UPGRADE: Aft deck - custom flip down from ceiling 32" LED TV • UPGRADE: Flybridge deck - custom flip down from ceiling 32" LED TV • UPGRADE: Custom Port storage cabinet on Flybridge deck with refrigerator and dedicated ice-maker • UPGRADE: ACR searchlight 1M and recessed rear flood lights on radar arch and aft cockpit

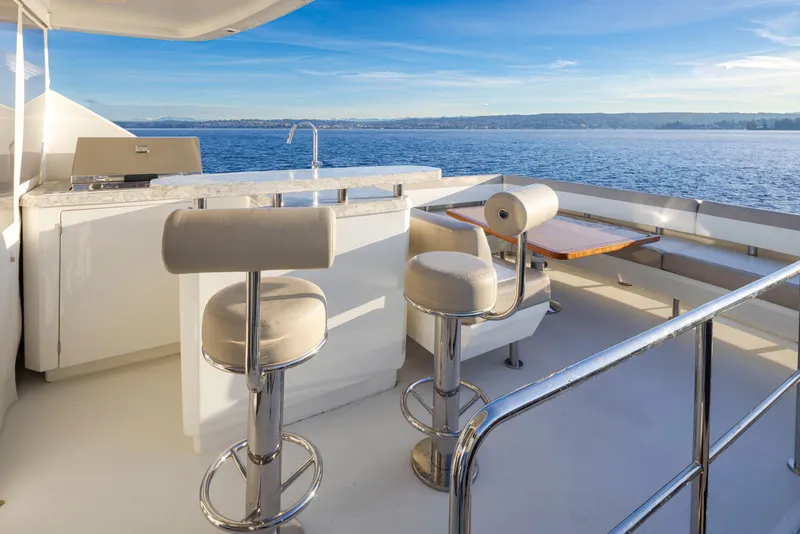

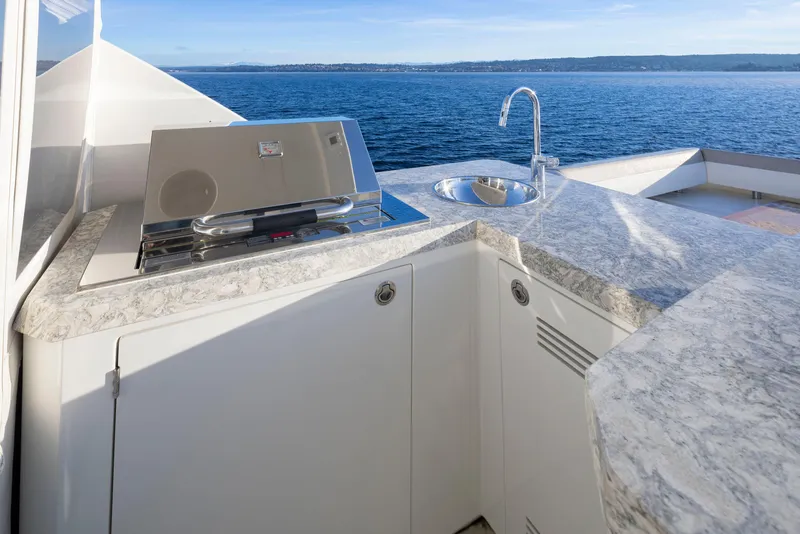

• UPGRADE: Custom exterior protection canvas and windshield mesh cover and mesh screens added to all opening port lights throughout the vessel • UPGRADE: Two bar stools and 24" Electri-Chef BBQ on Flybridge deck • UPGRADE: S/S transom gates from aft deck to swim step.

The spare set of props in some of the photography is not included with the vessel.

Exclusions:

All personal property is excluded unless specifically identified and included in the sale agreement and listing specifications. Personal property refers to all items not permanently attached to the vessel including but not limited to: artwork, furnishings, and recreational or entertainment items. Advertisements, marketing materials, and/or other photography may depict the vessel with personal property, however, such personal property is excluded unless otherwise specifically included as provided herein.

Disclaimer:

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
