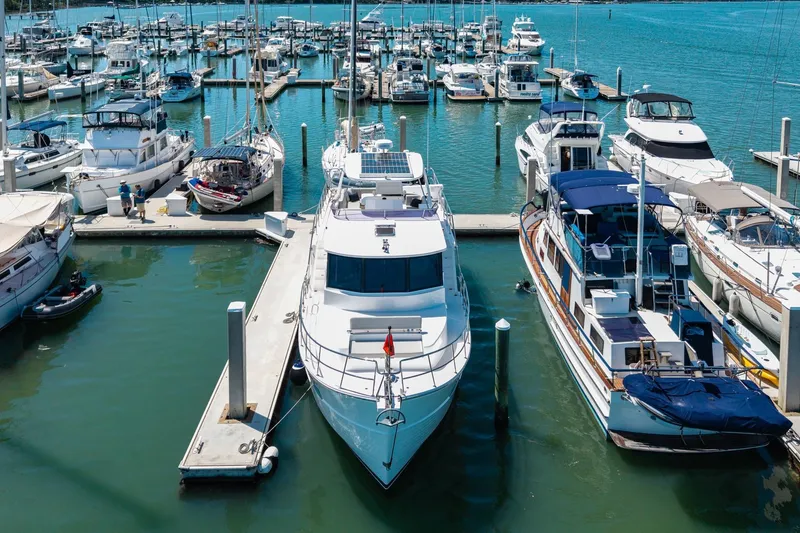

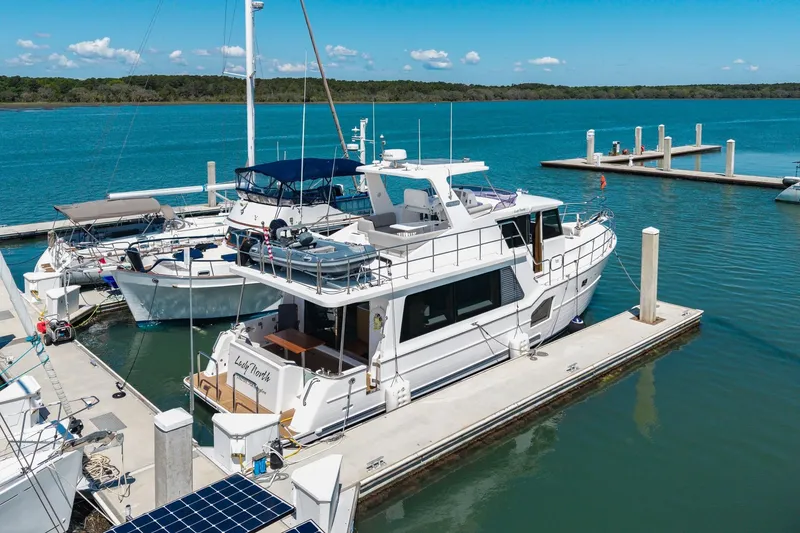

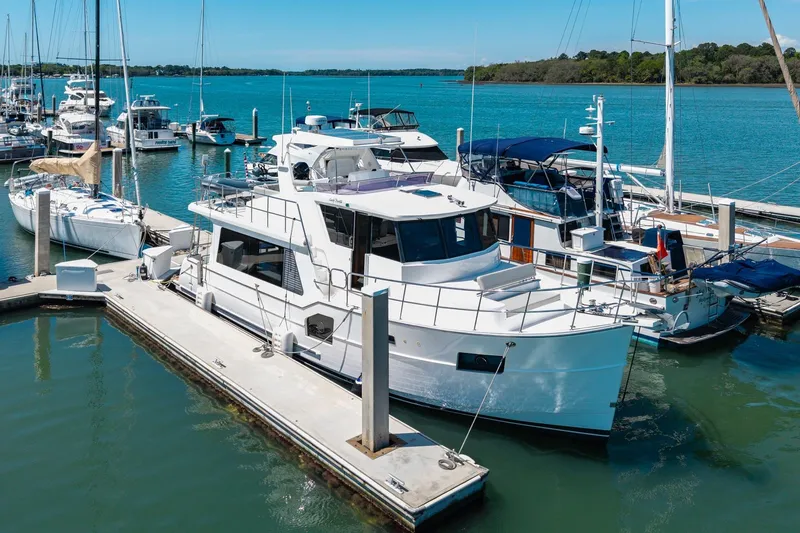

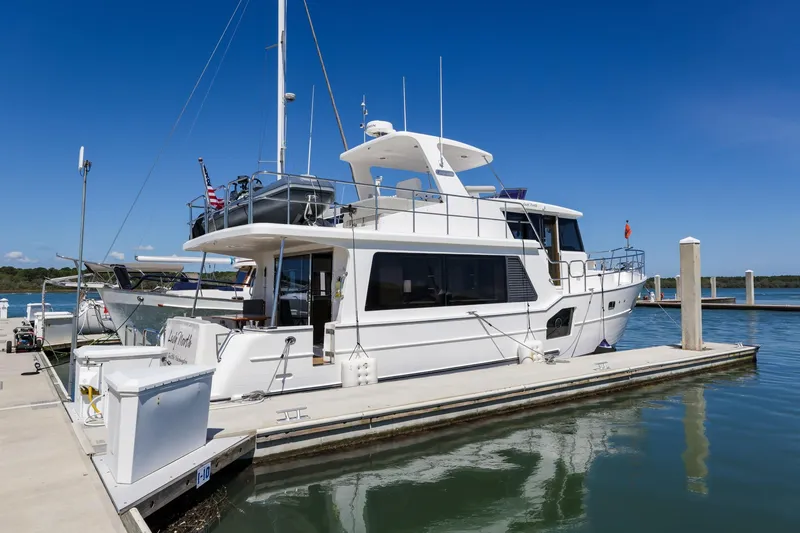

2023 North Pacific 49 Euro Boat in Hilton Head Island, SC 29928 US

DON'T MISS THIS 2023 NORTH PACIFIC 49 EURO PILOTHOUSE! EXCEPTIONALLY WELL EQUIPPED AND VERY WELL MAINTAINED!

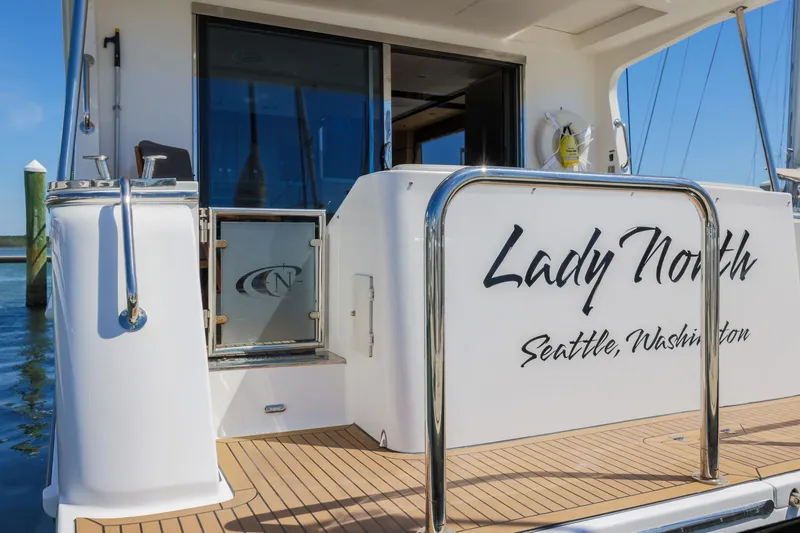

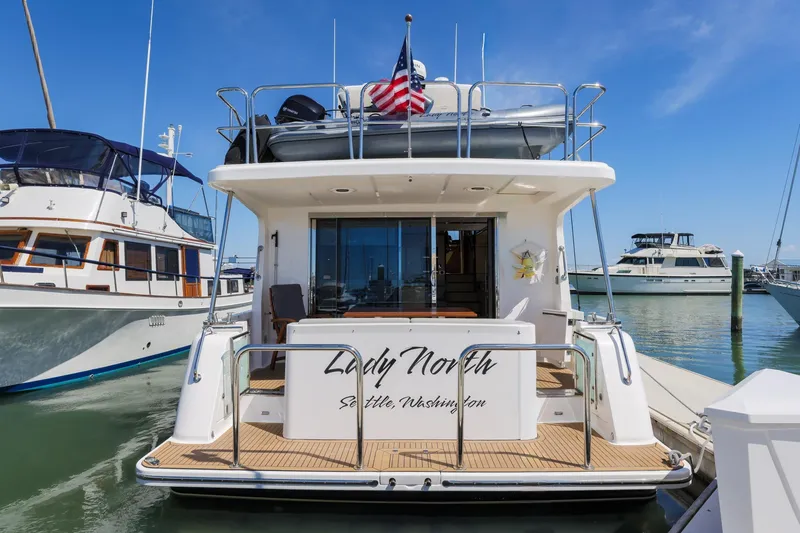

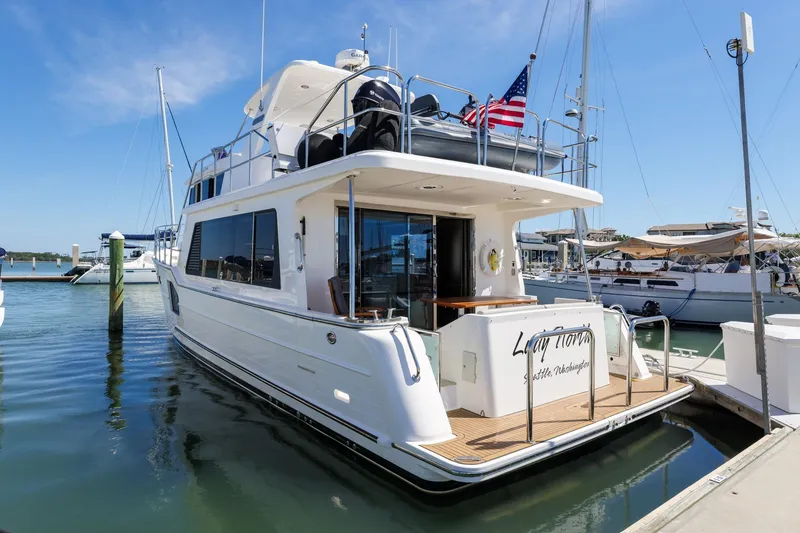

Lady North is a beautiful example of the North Pacific 49 Euro model with the most popular layout and equipment. The NP49E was built on the same hull as the Traditional NP49, but reworked for a more modern feel. She has the trawler quality with a more modern feel. From the moment you step aboard Lady North, you'll notice the spacious interior, beautiful finishes, and thoughtful design. Lady North is in excellent condition and ready to cruise, having just completed the 2000hr Cummins service, Northern Lights generator service, new bottom paint, and detailing. Cruise north to Maine this summer and spend the holidays in the Bahamas! Also capable of the Great Loop.

The NP49E offers living space that rivals many larger vessels and spaces are enhanced by large windows and high ceilings throughout. The galley is aft with a large sliding glass door effectively combining inside and outside living spaces. A large L settee and comfortable recliner are forward of the galley. The raised pilothouse features a comfortable double helm seat and L-bench seat with great visibility for all. One of the most impressive features of the NP49E is the mid-ship master stateroom. The stateroom utilizes the full beam and has a large window on each side. There is plenty of storage and a centerline queen bed as well as an ensuite head and shower. The VIP stateroom is forward and features an easy to access island queen bed, two large hull windows and plenty of storage. There's also a guest head and shower.

A hardtop flybridge is standard on the NP49E where there is a second helm station, full function hydraulic davit, nice RIB dinghy and plenty of seating.

The NP49 is built on a proven semi-displacement hull intended for long-range coastal cruising and island hopping. In addition to the stability offered by the hull, Lady North is equipped with a Seakeeper SK9 gyro stabilizer. Lady North also has an upgraded Cummins QSC600hp engine allowing for comfortable cruise speeds between 7 and 10 knots, top speed will be around 13 knots. At 7 knots, the range is approximately 1600nm.

Note: Video shown is for a 2021 sistership.

Main Equipment:

Cummins QSC 8.3L 600hp- 1,960 hrs (serviced April 2026)

Northern Lights 16kw Genset- 870 hrs (serviced April 2026)

ZF286A transmission

Electronic throttle controls

Seakeeper SK9 stabilizer (with extended warranty)

FCI MaxQ fully automated 240v watermaker- 72 Gallons per hour

Sleipner 24v SEP170 electric variable speed bow and stern thrusters with remote control

800amp/hr AGM house battery bank

Magnum 2,800w inverter charger

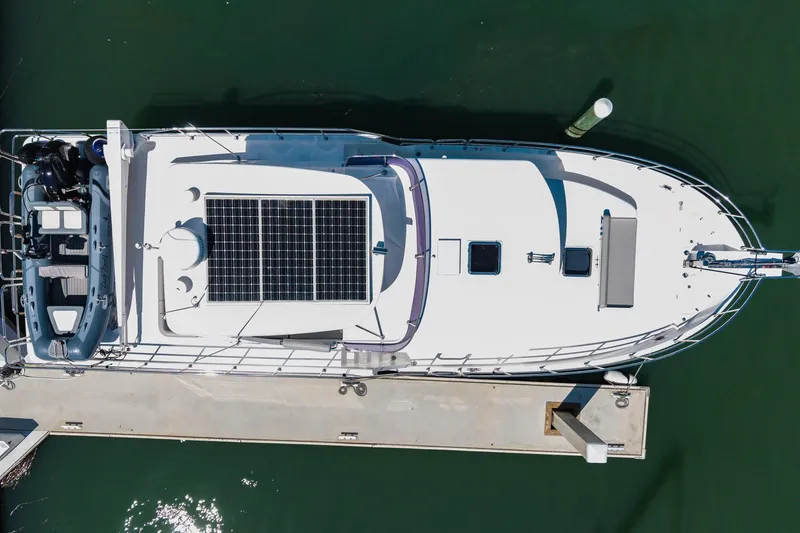

Factory installed solar panels (3, 200w panels and MPPT charger controller).

240v Dometic chilled water air con/ reverse cycle heating- Equipped with dual compressors

Fuel polishing system

Oversized Nick Jackson power rotation hydraulic davit crane with extended boom

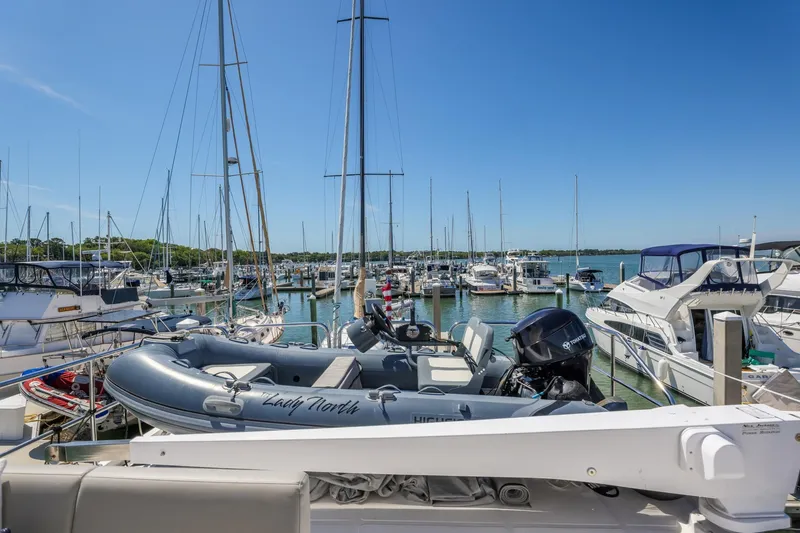

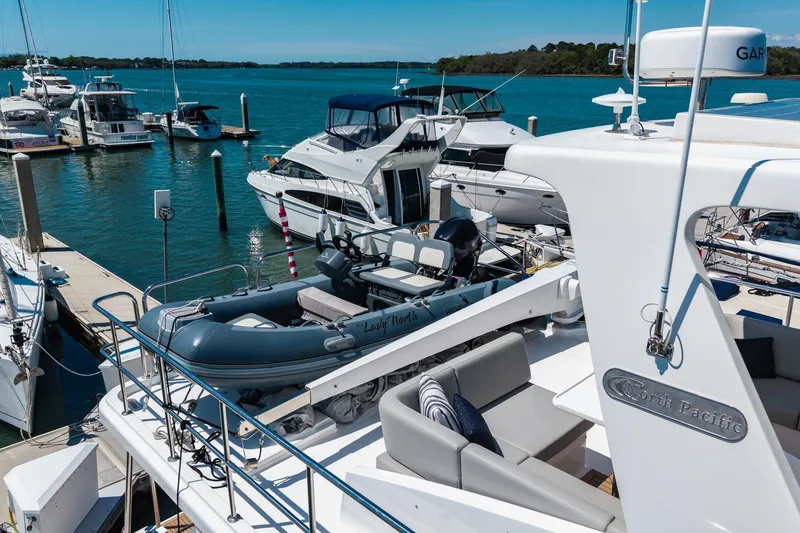

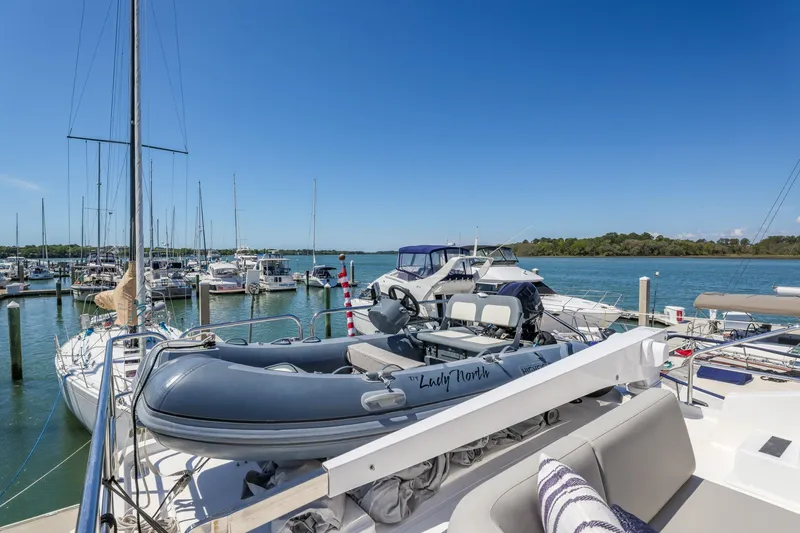

Highfield 360LS tender with 25hp Tohatsu. (Hypalon tubes, Garmin MFD, underwater lights!)

Starlink

Viking 6-person life raft (recertified 4/22/2025)

Water Heater- 20 gal

Fuel- (2 x 480 gal) FRP

Water- (1 x 200 gal) FRP

Holding- (1 x 65 gal) FRP

Full equipment List:

Solid, hand-laid fiberglass hull. Outer two layers are vinyl ester resin

Superstructure cored primarily with closed-cell foam - Marine plywood & rigid PVC squares where required

Pure White high UV Gelcoat

Ultra 2, hard bottom paint (April 2026)

#316L, high polished (no visible welds) stainless steel railings (1.5" top rail) & stanchions bolted into aluminum backing plates

FRP no-skid deck on deck surfaces. Flexiteek in select areas specified below

Aluminum sliding exterior doors for the PH with SS threshold, lock & ash interior

Custom made stainless steel and glass, almost full beam sliding salon door - 2 panel (opens from both directions)

SS heavy mooring cleats and hawsehole/cleats (12) - 4 in cockpit, 6 midship, 2 at the bow

SS fuel, water and waste tank deck fittings

Hull windows with opening ports (4), large SS portholes (3)

Tempered glass tinted windows

Bonded glass windows with black engine room vents and black gelcoat

Emergency tiller

Major Mechanical:

Cummins 600 QSC diesel engine with 160 amp alternator, ZF305-3A transmission (serviced April 2026)

2.5" Stainless steel shaft - Aqua 17

Tides SureSeal dripless shaft seal, with spare lip seal (replaced April 2026)

Johnson shaft bearings

Precision 4 blade propeller (new prop speed April 2026)

Hynautic 2 station hydraulic steering

FRP rudder platform & tube with stainless steel bearing

Cummins ETS (electronic throttle & shift) control module

Underwater exhaust system

Sea cocks & strainers for engine, genset, Seakeeper, and aircon raw water intakes

Oil change pump for engine, transmission & generator

Engine room with 2" sound insulation

Seafire automatic engine shutdown and automatic fire extinguisher

Aluminum non-skid plate floors with custom foam padding

Polished stainless steel engine mounts

6 - LED Engine room lights

Dometic chilled water air-conditioning system (two compressors, 5 air handlers)

Bennett 5412 trim tabs with a control in the pilothouse

Seakeeper SK9 in the lazarette with extended warranty

Spare macerator and spare shower sump pump

Water Fuel & Holding Systems

Dual Racor 900 fuel filters

KTI Commander BOSS fuel polishing system

Automatic bilge pump (3) - Rule

Manual bilge pump (1)

Fiberglass fuel tanks; fuel lines for engine 1/2 ID; Acrylic sight gauges with shutoff valves

Holding tank (65 GAL) w/ Whale Black Water diaphragm pump and Trident Premium sanitation hose

Whale sump pump for showers - 320IC

Whale 1815 sea water washdown pump to stern and bow

1 x 200 gal fiberglass water tank

Fresh water system with dual variable speed pumps and accumulator tank (new February 2026)

20 gallon 240v water heater in engine room

FCI 240V Max Q 1850 GPD water maker in the lazarette (1.3 gallons per minute!) New membranes Dec 2025

Yachtmate water softener and 2-stage filter system

Electrical:

16Kw Northern Lights genset w/ sound shield and water/gas separator (serviced April 2026)

Side-Power SEP170 24v bow proportional thruster

Side-Power SEP170 24v Stern proportional thruster

2-AGM dedicated battery banks (new bow thruster batteries 2x 12v Feb 2026)

Victron DC-DC battery chargers (2) for thruster batteries with bluetooth

Remote control for bow and stern thrusters

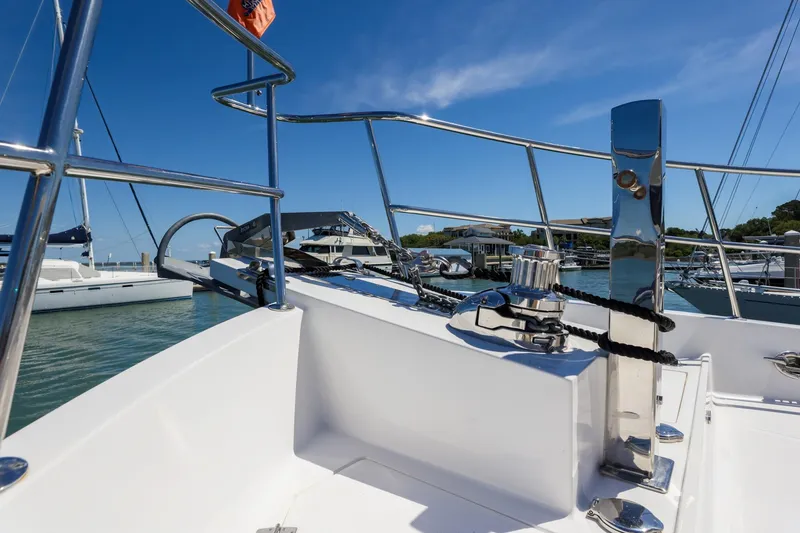

Maxwell RC12-10 24v Windlass with capstan

Hella LED Navigational lighting

KUS Gauge & sensors for water & fuel tank level

Engine room blower

Batteries: 4 House - 12v/200Ah AGM batteries in box (with Victron monitors with Bluetooth), 1 engine start, 1 generator start

Magnum MS2812 2800W inverter/charger (pure sine wave) with ARC50

Bonded electrical system

50 amp 125/250v SmartPlug shore power connection and cord, with ELCI at bow

Glendinning power cable retractor and 50amp 125/250v cord with ELCI at stern

Master control panel (AC/DC circuit breakers) with Blue Sea Magnetic Relays for primary low voltage systems

Engine Room & Lazarette light switches at entrances

12v LED ceiling & rope lighting throughout interior

12v LED courtesy lights throughout interior and exterior

Fusion MS-AV755 Stereo System - Mounted in salon; 2 Fusion FM-F65RW speakers each in the salon and pilothouse; Fusion MS-CL602W speakers on the flybridge. Fusion MS-AM402 2-channel amplifier for salon speakers; new HDMI output from Fusion to TV for use as a DVD player

3 - 200 watt solar panels with MPPT charge controller

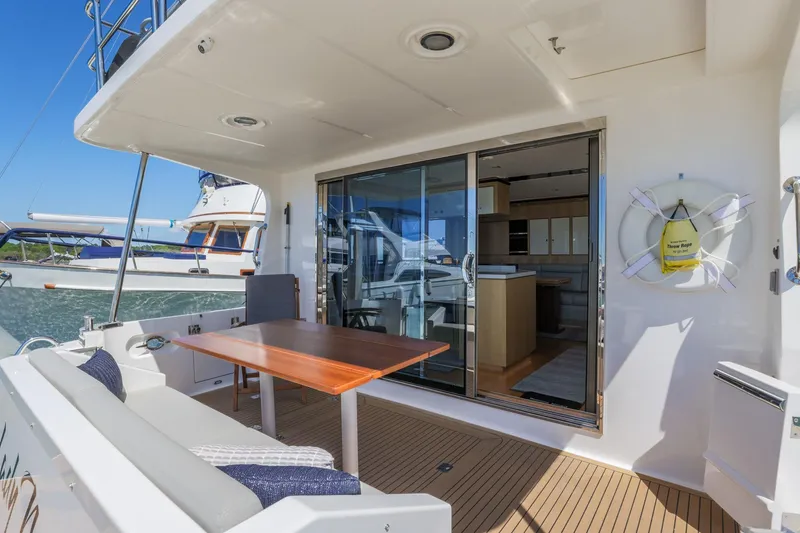

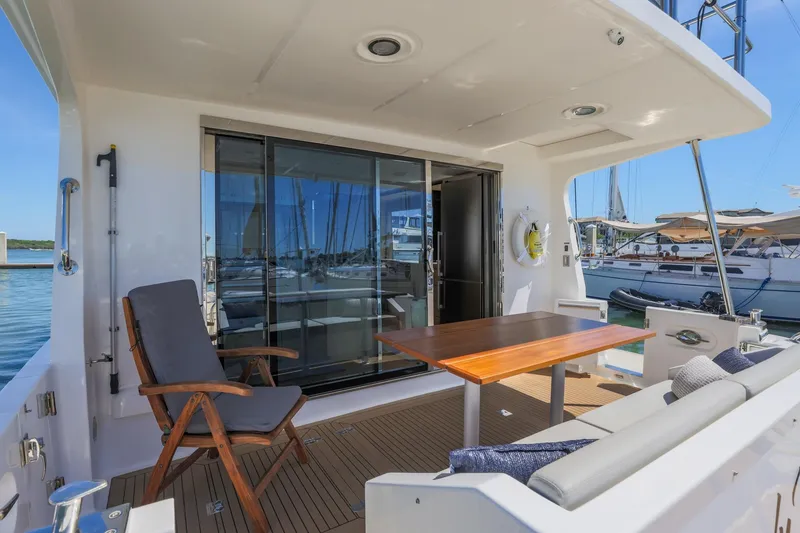

Cockpit & Swim Platform:

LED Lighting in cockpit and on swim platform

Hatch to access lazarette - gas assisted

Stainless steel handrails on aft salon wall

Stainless steel and frosted glass transom door (2)

FRP Bulwark gate doors on port and starboard side

Almost full beam custom made glass/stainless steel sliding aft door for salon entry with screen

Port swim platform locker with fresh/sea water wash-down outlet & notched door

Starboard swim platform locker with Glendinning power cable retractor and 65' cable, & notched door

Aft deck freshwater shower

Sole drains (2)

Fully integrated swim platform with flip-up cleats at outer corners

Swim platform rub rail - around circumference

Swim ladder

SS Lazarette ladder w/ teak steps

3 - LED Lazarette lights

Fiberglass platform to mount steering mechanism

Dripless rudder bearing

Flexiteek 2G deck on swim platform and cockpit floor

2" Folding Staple Rails on swim platform

Lumitec Seablaze X Underwater Light (2)

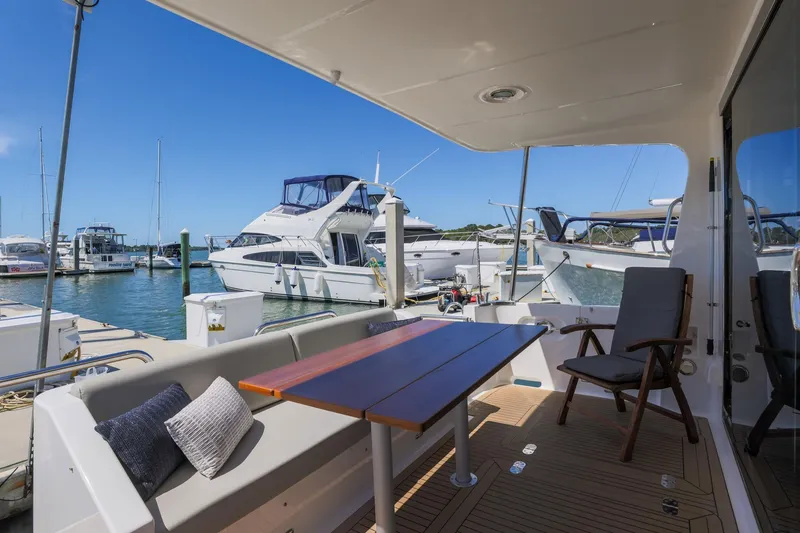

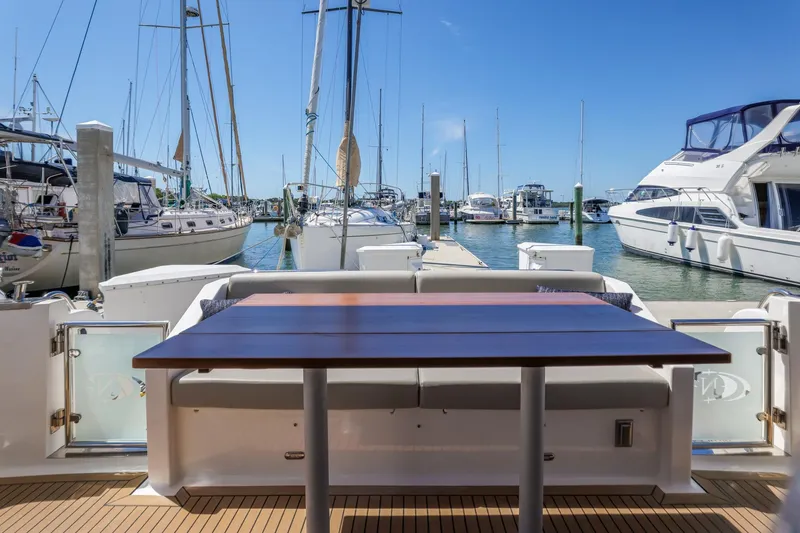

Built-in cockpit seating with high gloss teak table

Extra AC outlets in the lazarette

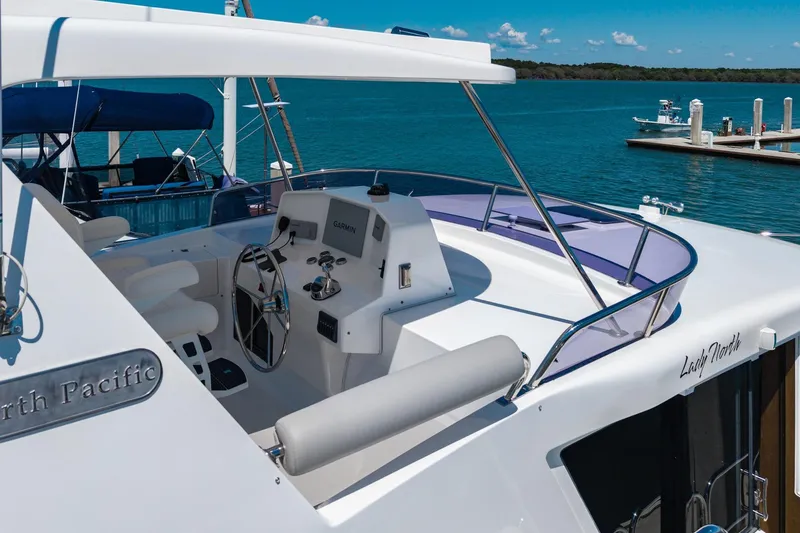

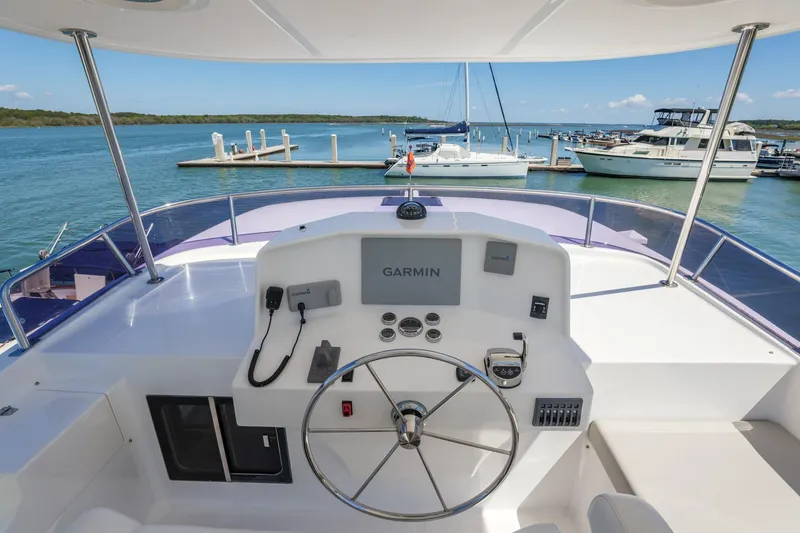

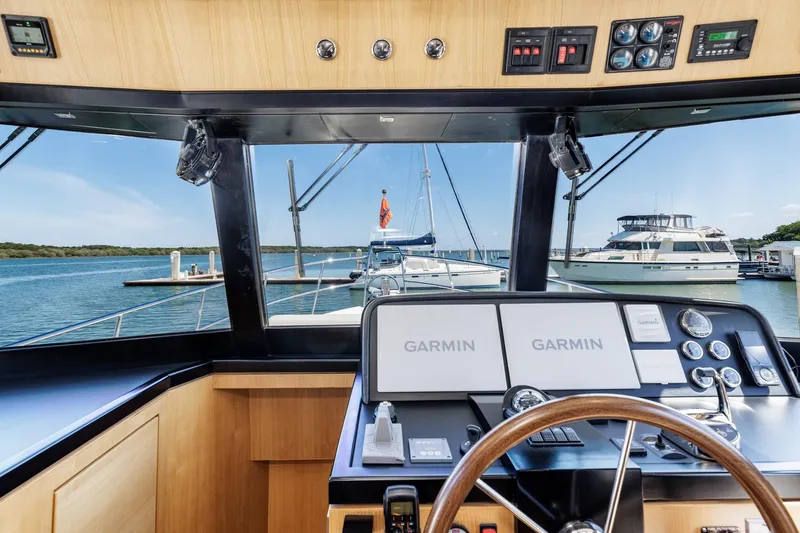

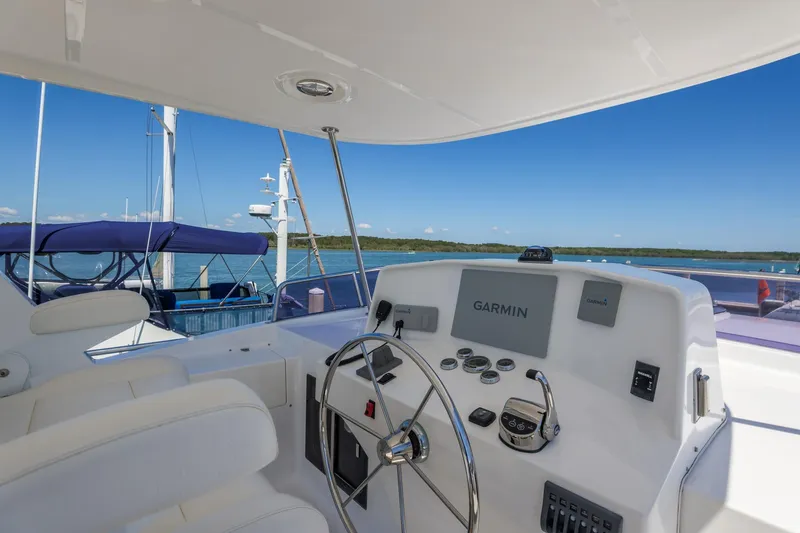

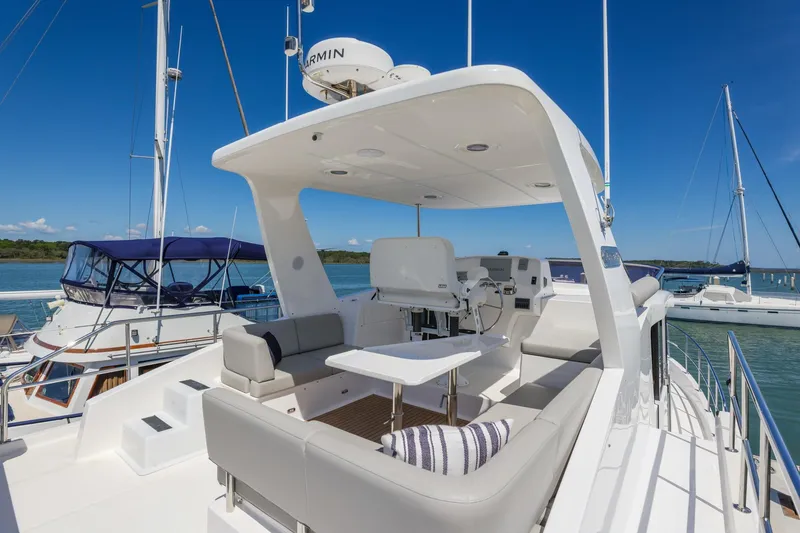

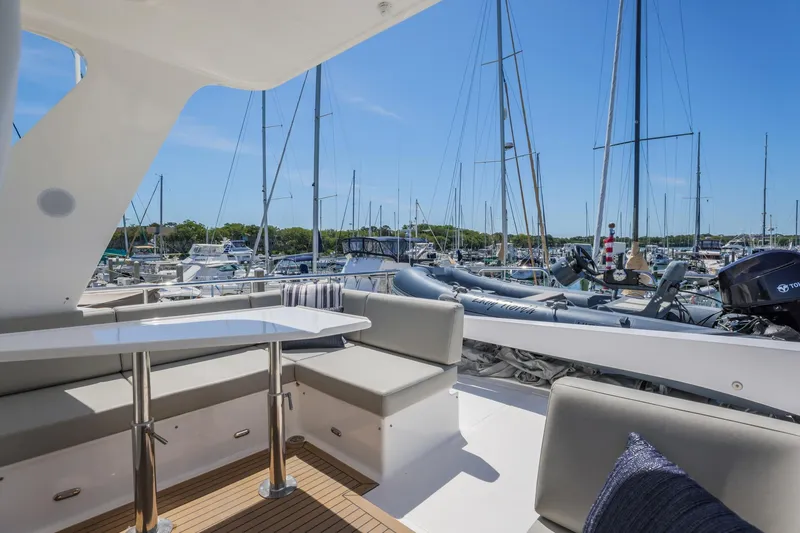

Flybridge:

Stidd 1200 white bench seats for two people

Stainless steel steering wheel

Engine gauges, VHF radio

Cummins single lever ETS control

Windlass control

Bow & stern thruster control

Helm Compass

Hardtop with 4 overhead lights

Flybridge windscreen

Fused 12V switches to control systems and lights on flybridge

Courtesy lights

D/C outlet (1)

GFI AC outlet on starboard side (1)

Anchor light - LED

Hella NaviLED LED navigation lights

Dual trumpet air horn

Stainless Steel North Pacific Yachts nameplates (2)

Stainless steel flag base

Stainless steel perimeter railings with aluminum backing plates

Storage cabinet/propane locker on port side of helm seat

Boat deck drains, plumbed to the waterline (2)

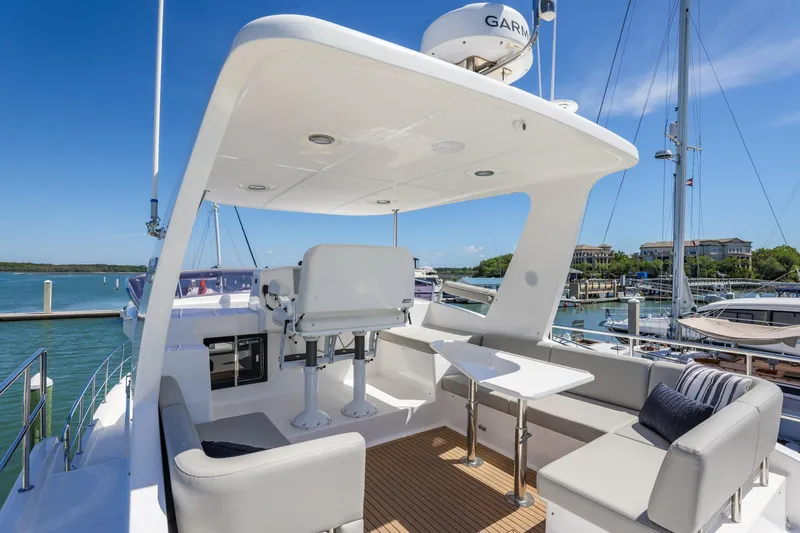

Sunbrella-covered guest seating with SS/cushioned seatbacks with storage underneath

Sunbrella canvas cover for dual helm seat, instrument console, all seating - Sunbrella

FRP table and stainless steel stanchions

L bench seating across from straight bench

Flexiteek between bench seats

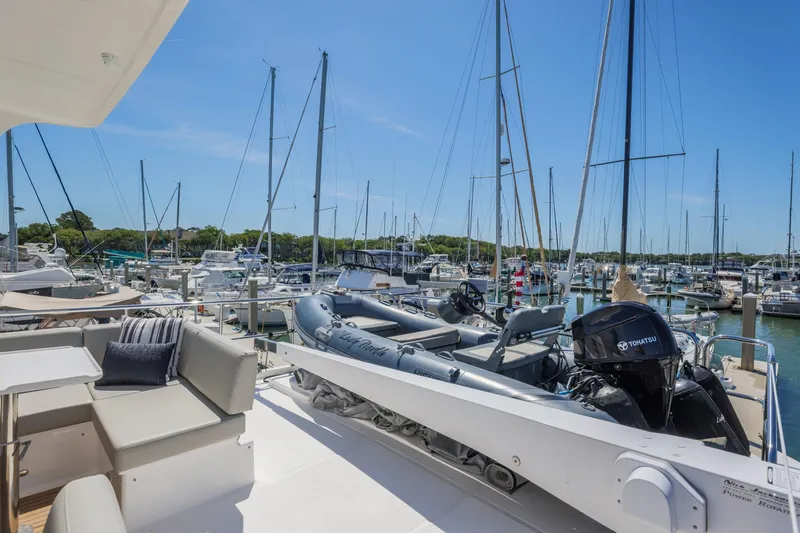

Nick Jackson hydraulic davit, #1000 - Upgrade to power rotation - Extended length boom

Removable Staples railings along aft edge

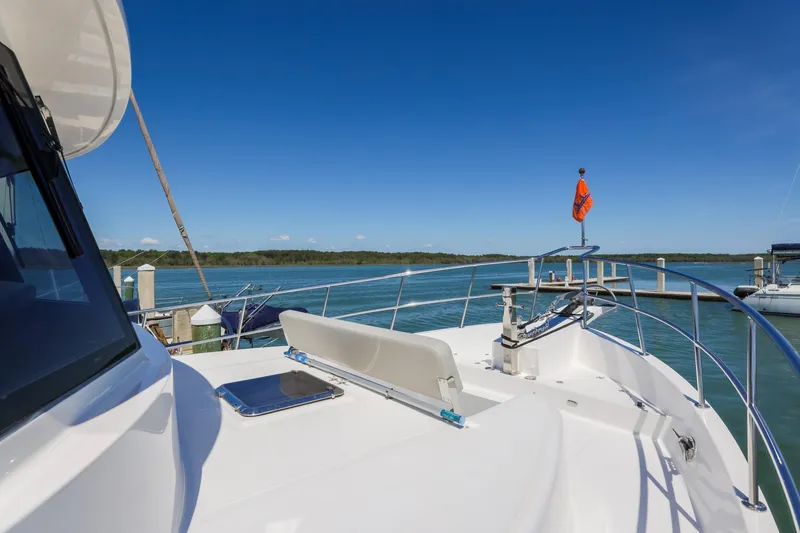

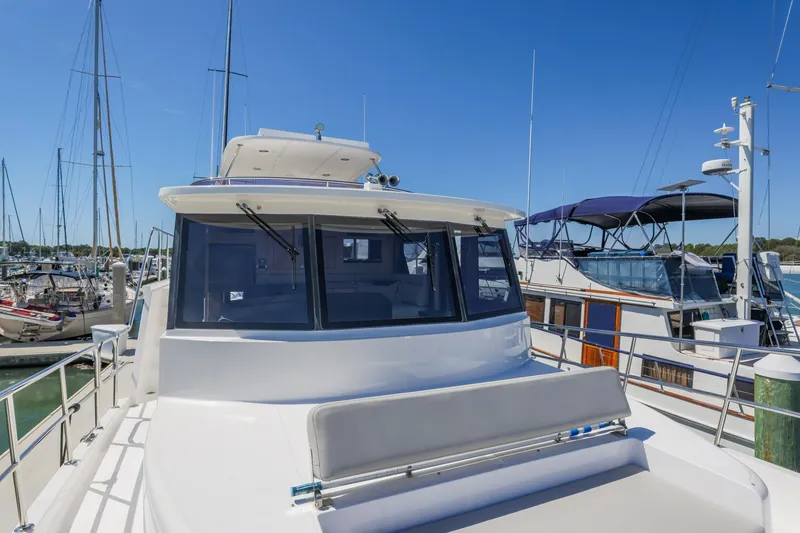

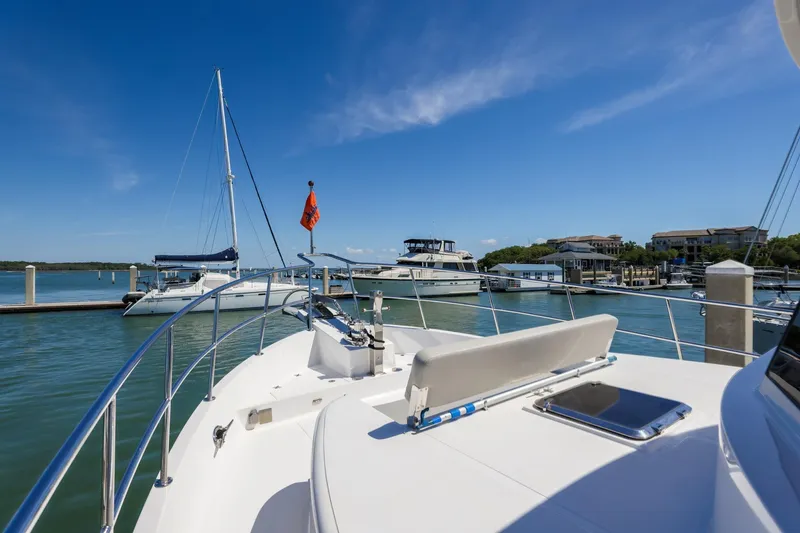

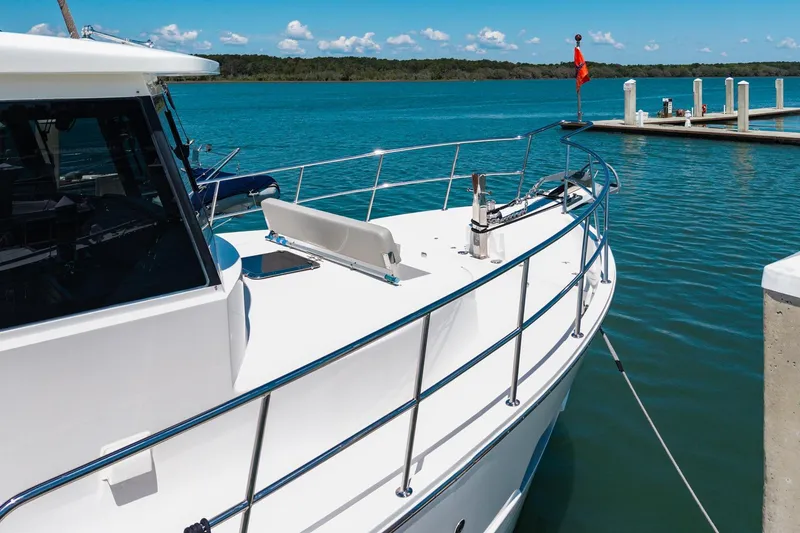

Forward Walk-Around:

Courtesy lights

50amp 125/240v SmartPlug Shorepower inlet with ELCI

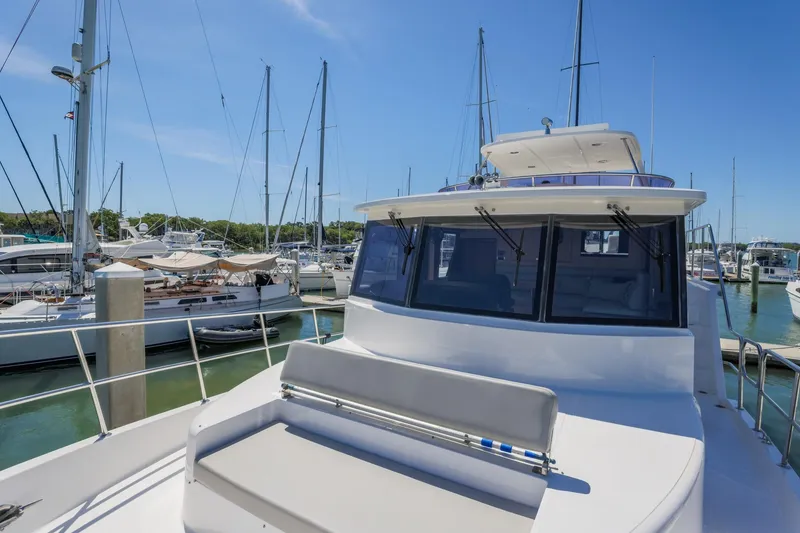

Foredeck settee with moulded seat cushions, and Taco Hinge fold-down seatback

Sunbrella canvas seating cover

FRP Bow Pulpit with anchor guide, guide lines and rub strakes

Rocna 40 (88#) anchor

280 ft. of 3/8" high-test galvanized anchor chain

Chain locker, divided in half, with SS drain tubes

Stainless-steel windlass foot switch covers

Fresh & sea water wash-down with hose connector

Large diameter stainless steel Sampson Post

Stainless steel eye at the bow near the waterline

Taylormade rafting fenders (2) rounds (2), and cylinders (4)

Mantus bridal, chainhook, swivel, shackle and waterline eye-bolt, and snubber

Interior:

Solid oak plank flooring throughout

Ash wood paneling and cabinetry throughout with 7+ coats of poly urethane for a smooth finish

Accent wenge wood, black wood and fabric panels, wenge gaps in select walls

Lacquered painted select cabinet doors and wood panels

Square push buttons on all cabinet doors and drawers

Dovetailed drawers

Full extension slides - soft close in the galley

Chrome light fixtures, push buttons & cabinet pulls

Cedar lining in all hanging lockers

Window Valences installed throughout boat

Screens on all sliding windows

Soft vinyl headliners - attached with Velcro

Ultraleather fabric for interior cushions

Hunter Douglas Duette shades throughout

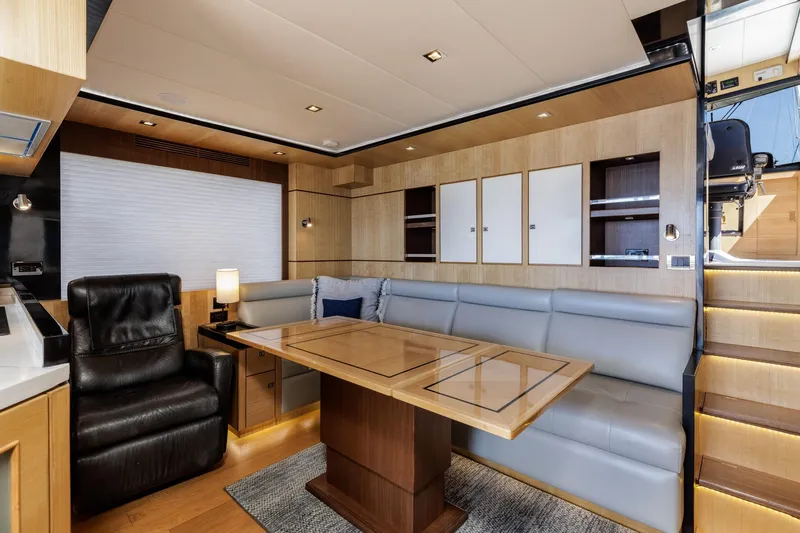

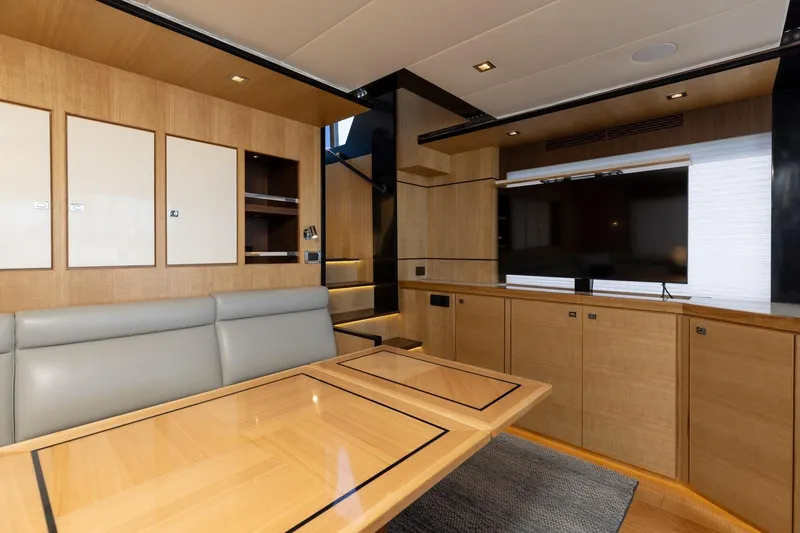

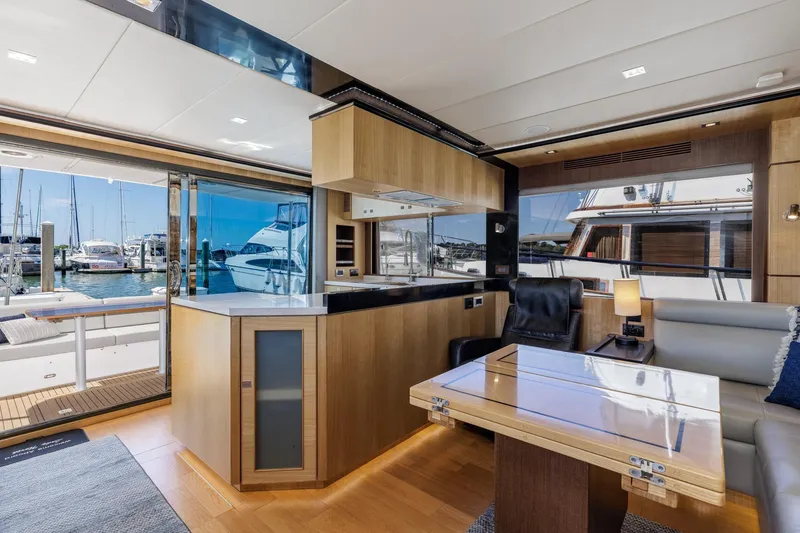

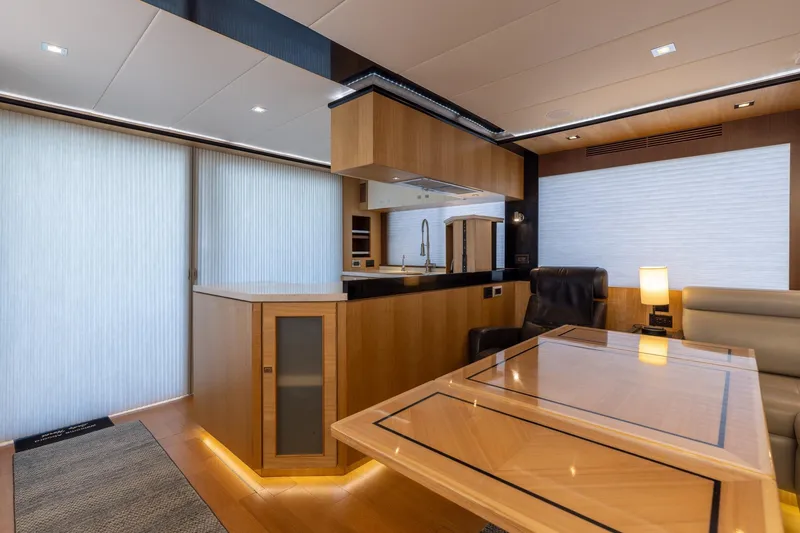

Salon & Dinette:

LED downlighting & rope lighting throughout

A/C outlets with USB - standard

Engine room hatches (4) with hinged/gas strut support for primary entrance

AC power outlet inside Small Cabinet: Back wall, near the floor

Reading lights

CO Detector

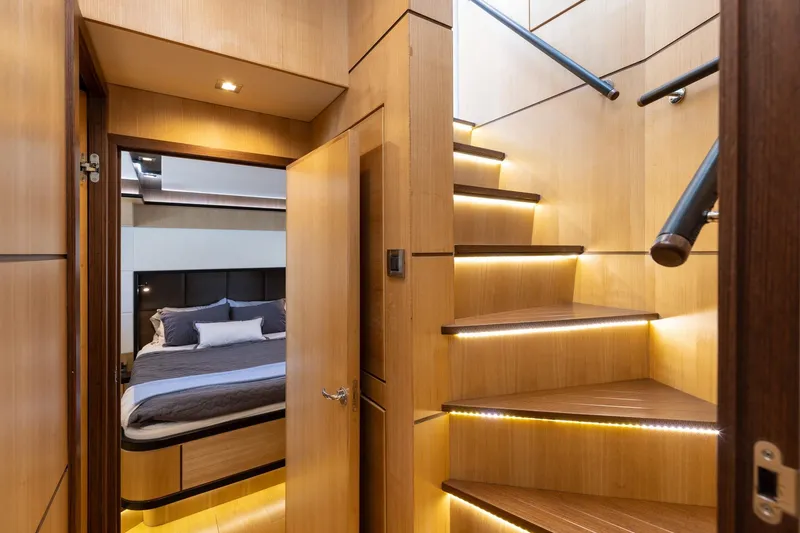

Wenge wood stairs to Pilothouse, with two under-tread storage drawers

HDMI TV input jack near port side settee

Port side forward of galley, room for a chair on the port side with side table

Folding high/low, high gloss coffee table/dining table- Freestanding

Starboard side cabinets

Cabinetry along starboard side of salon

Starboard side 50" HD LCD TV with under counter electric lift

Liquor cabinet with glass door forward of galley counter

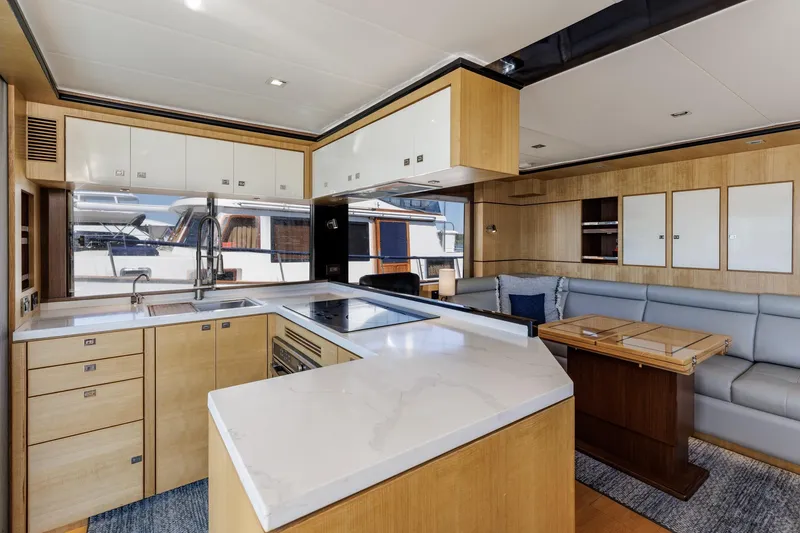

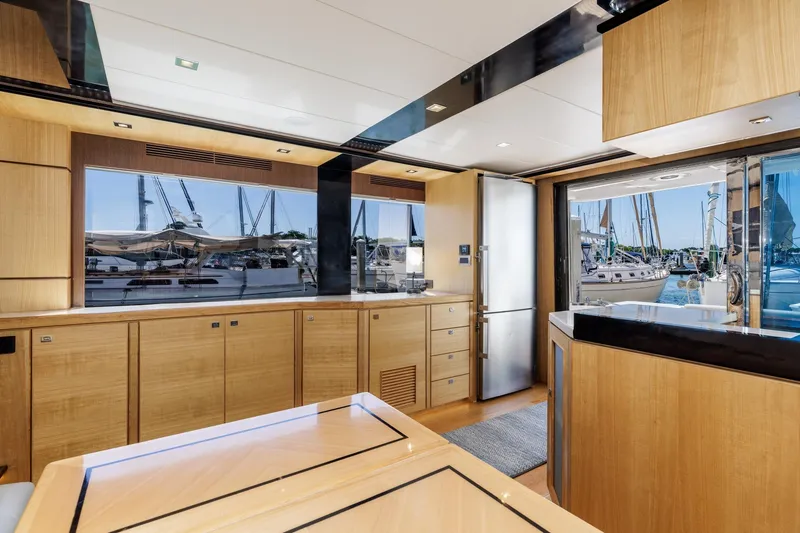

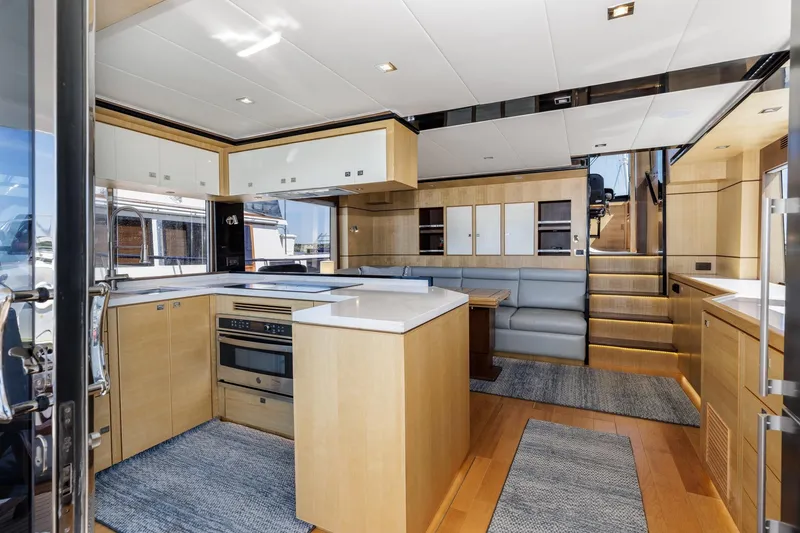

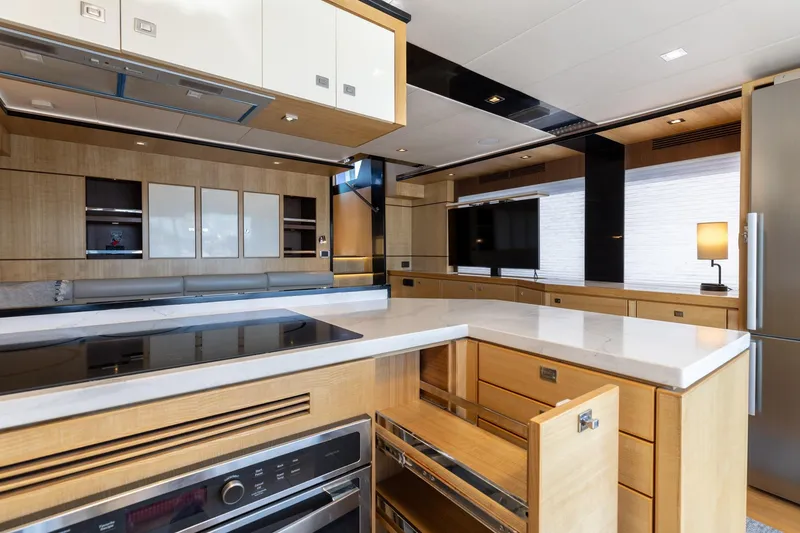

Galley:

LED downlighting throughout

Solid-surface countertop with raised edge along forward section

23" single stainless sink on port side of galley near the window- with garbage disposal

Faucet with pullout spout

Seagull filter with spigot next to sink

Electric pop up coffee cabinet port side of galley

Range hood vented outside

GE electric Profile induction cooktop 240v

GE Advantium oven - 240v

Cabinet above galley countertop w/ lacuqered doors

Summit stainless steel 17 cu.ft fridge/freezer starboard side across from the galley

Galley AC outlets with USB

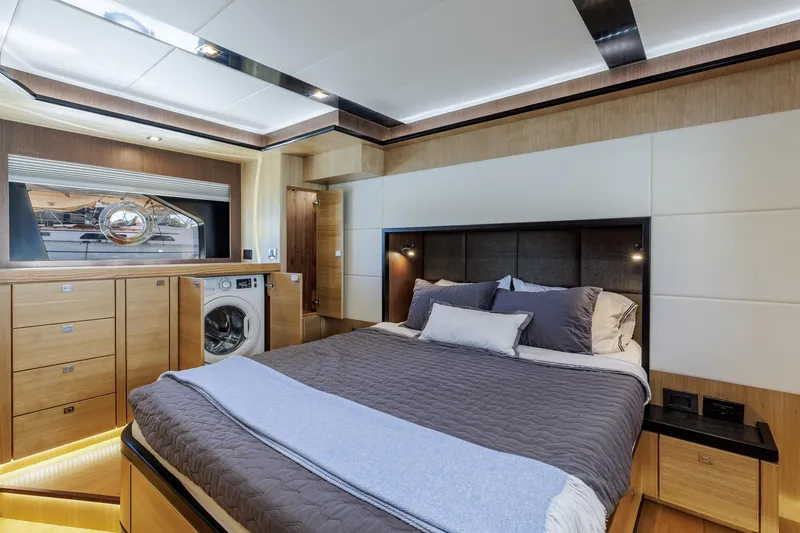

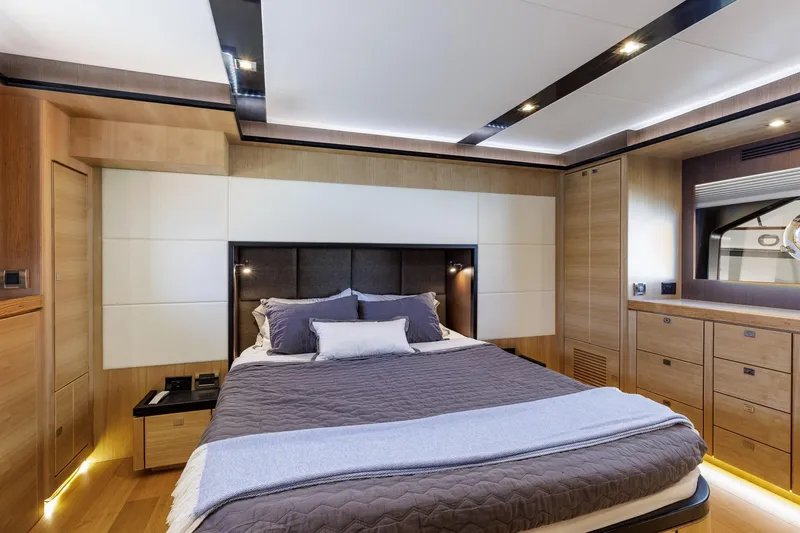

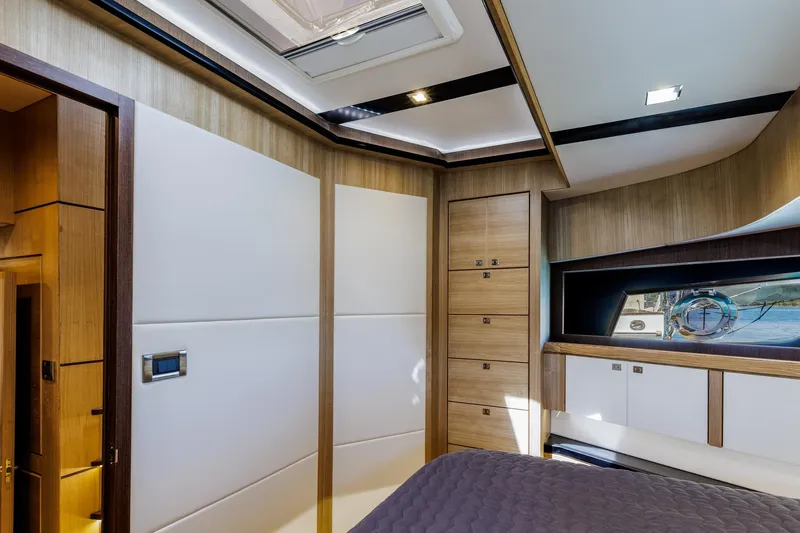

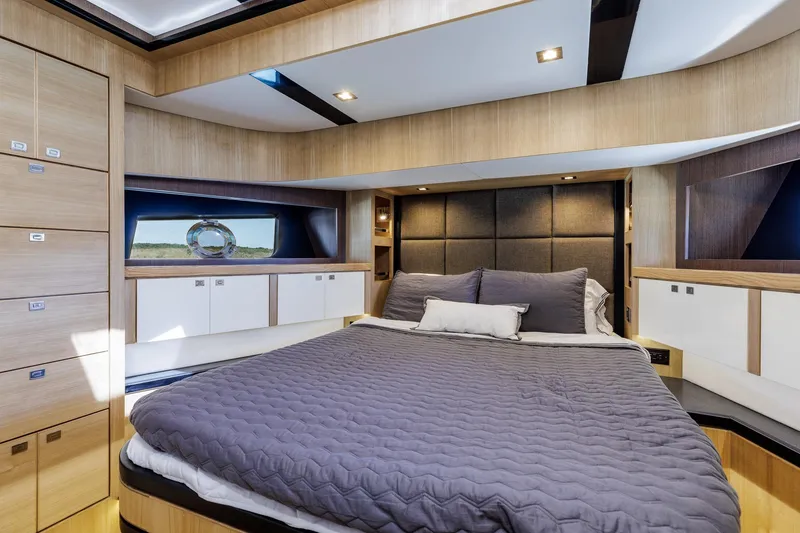

Master Stateroom: Midship master layout

LED downlighting & rope lighting throughout

LED reading lights (2)

A/C outlets with USB (2)

Center queen island bed with hydraulic lift to access storage area below - drawers underneath

5" thick fabric covered foam mattress with mattress topper

Fabric headboard with black and wenge trim

Small bedside cabinet on each side of the bed with meganite top

Large hanging cedar-lined lockers (2)

Drawers

Samsung frame TV on forward wall

CO Detector

Large hull windows with opening port (2) - and screens

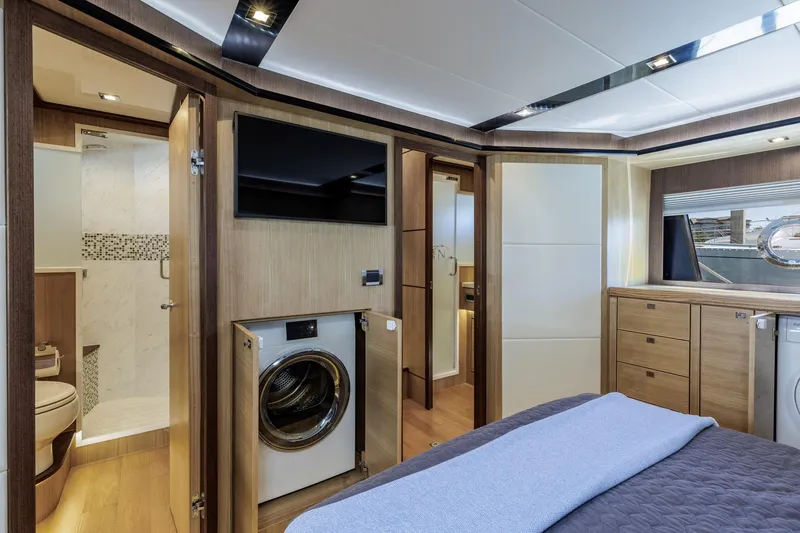

Washer, dryer - dryer 240v, separate

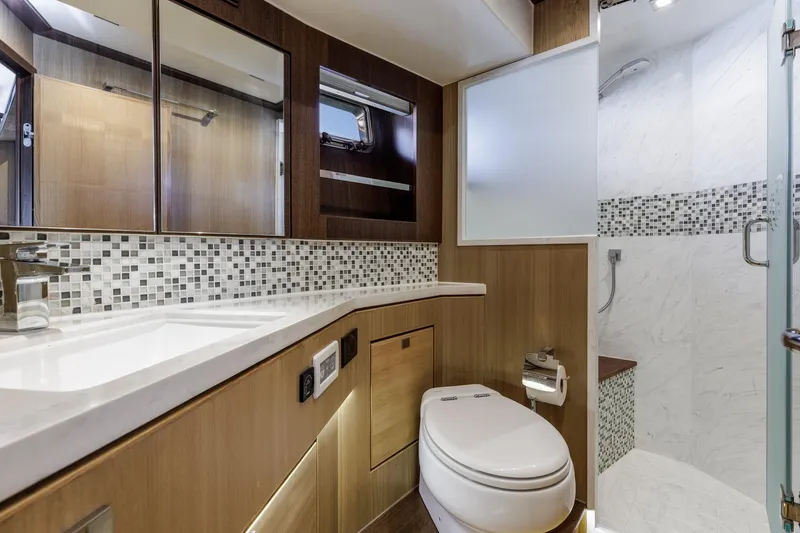

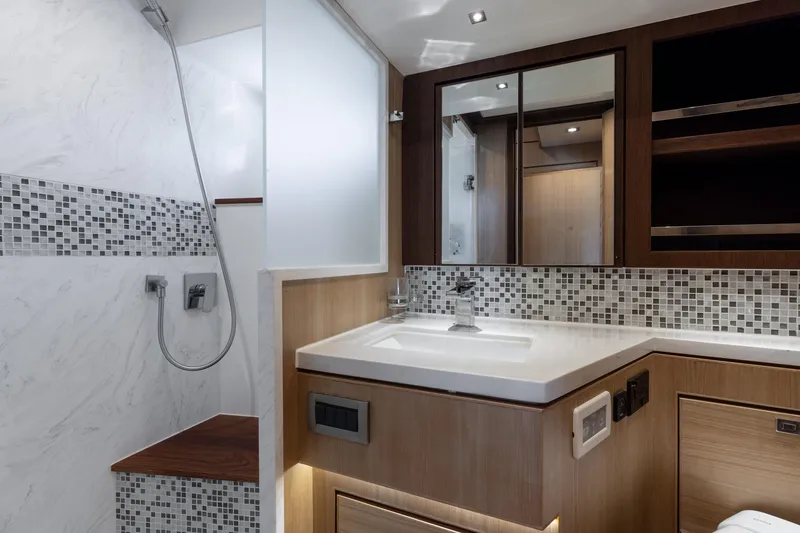

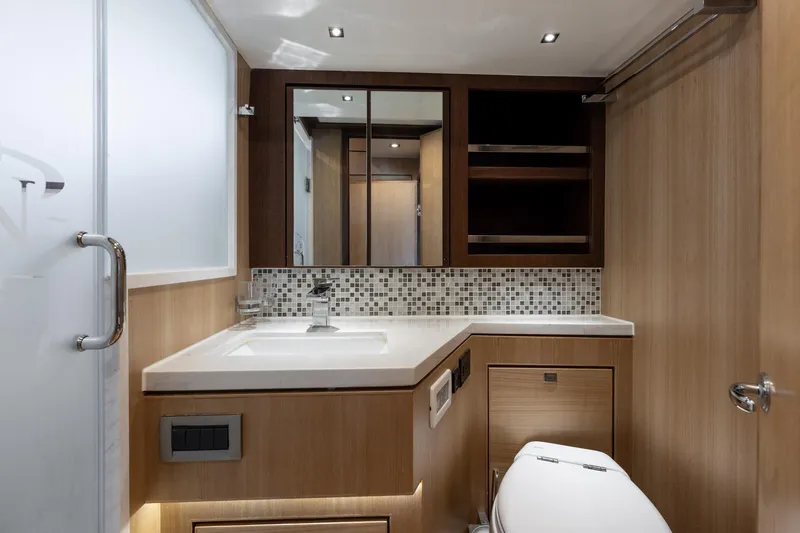

Master Head:

LED downlighting & rope lighting throughout

A/C outlet (1)

Upgraded Tecma toilet with fresh water flush

Mirror

White ceiling

Ceramic sink undermount and chrome faucet

Shower stall - with exhaust fan

Mosaic tile and meganite walls as well as fiberglass - teak shower seat

Shower control and nozzle

Opening frosted shower glass door with NP logo

Solid Surface or granite countertop - color and material TBD

Opening, screened porthole window (2)

Holding tank level gauge with exterior tank sensors

Trident Premium sewage hose

Towel racks and other hardware

Shower drains to automatic sump pump - Whale Gulper diaphragm pump 320IC

Guest Head:

LED downlighting & rope lighting throughout

A/C outlet (1)

Upgraded Tecma toilet with freshwater flush

Mirror

White ceiling

Ceramic undermount sink and chrome faucet

Shower stall - with exhaust fan

Mosaic tile and meganite walls as well as fiberglass - teak shower seat

Opening frosted shower glass door with NP logo

Opening, screened porthole window (1)

Trident Premium sewage hose

Towel racks and other hardware

Shower drains to automatic sump pump - Whale Gulper diaphragm pump 320 IC

Holding tank level gauge - Scad Tec with exterior tank sensors

VIP Stateroom:

LED light (4) plus accent rope lighting

A/C outlet (2)

Reading light (2)

Queen island bed with access on each side

5" thick fabric covered foam mattress with mattress topper

Fabric headboard

Cedar lined hanging locker

Meganite counter tops on each side

Large hull window with opening port (2) - screens for opening port

Overhead hatch with Hunter Douglas blackout shade

AC outlets USB in this room

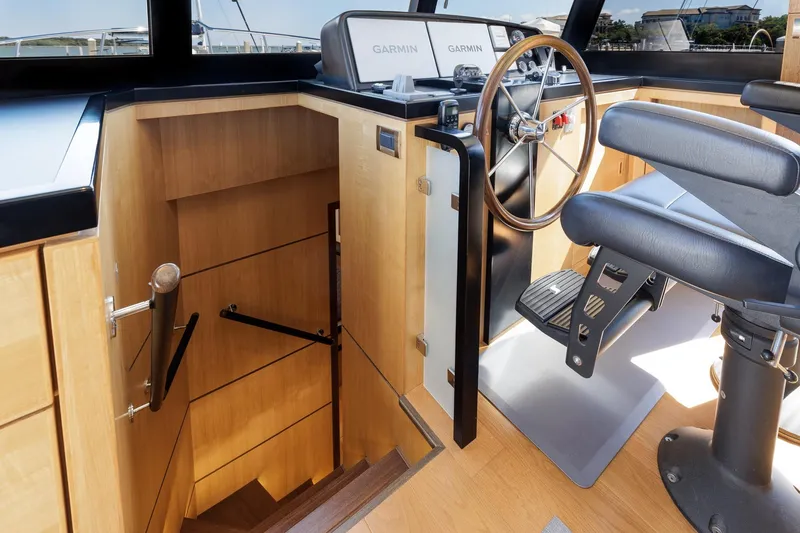

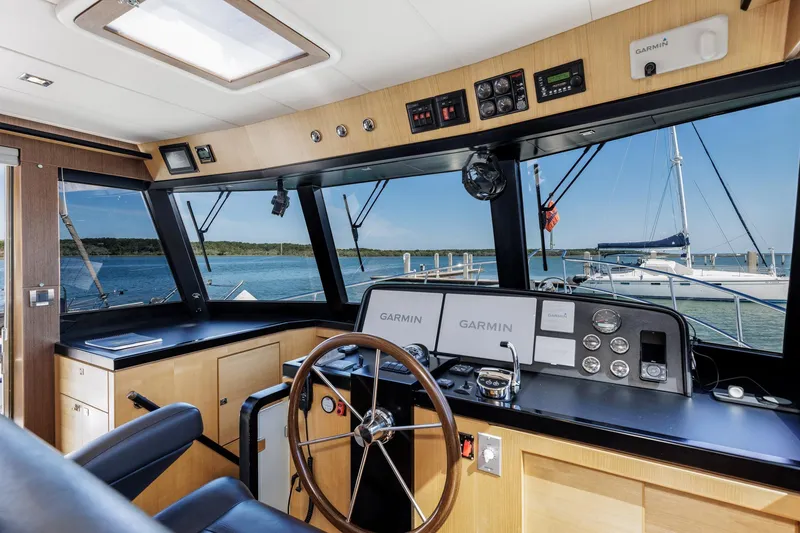

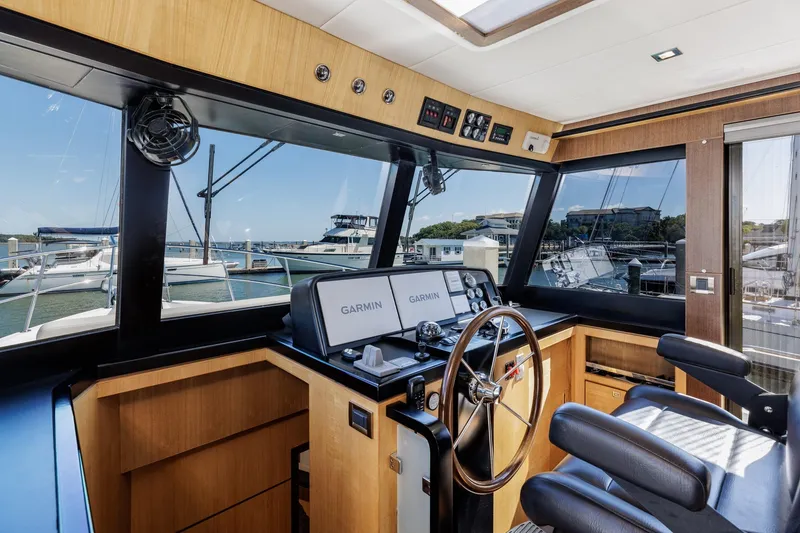

Pilothouse:

LED downlighting & rope lighting throughout

A/C outlets with USB (2), DC outlet (1)

AC & DC electrical panels - Blue Sea

Helm Compass (HF-743)

Stidd 1200 dual helm seat - Black

Hella Turbo fan (2)

Dash area covered with Ultraleather as well as area between windows and fwd ceiling above the helm

Cummins single lever ETS control

Bow & Stern thruster control

Windlass control with AA150 chain counter

Horn control

Electric fuel and water gauges

Analog engine gauges & Garmin Gateway

Wenge steering wheel

Intermittent Windshield wipers (3)

Windshield washer (3)

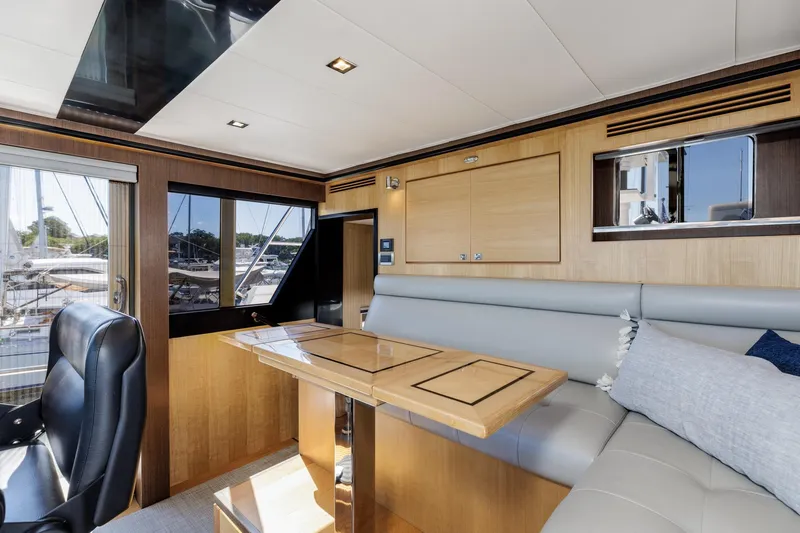

L shaped bench seat with folding table and SS support

AC/USB outlet near bench seat table

Storage cabinets and drawers

Reading light above bench seat (2)

Aft window and aft side windows opening and screened

Spotlight with dual station controls

Hatch with screen in pilothouse ceiling

Plisse screen for each pilothouse door

Map light forward port side

Garmin Package:

Pilothouse:

(1) GPSMap 8616xsv multifunction display w/ fishfinder module

(1) GPSMap 8616 multifunction display

(1) GHC20 autopilot control

Garmin handheld autopilot remote

Vesper AIS Cortex radio

Flybridge:

(1) GPSMap 8614 multifunction display

(1) GHC20 autopilot control

(1) VHF 215 radio

Other Electronics:

GMR24XHD - Radar antenna

B260 transducer

Reactor corepack with Smart Pump (autopilot)

GC12 reverse image camera - Mounted to hardtop looking aft and second camera at aft end of upper deck looking aft

(2) VHF antenna

AM/FM Stereo Antenna

Wifi/ cell booster (Pepwave Dual-sim router, Access Point, 5g antenna, Alexa)

Digital HD TV antenna
