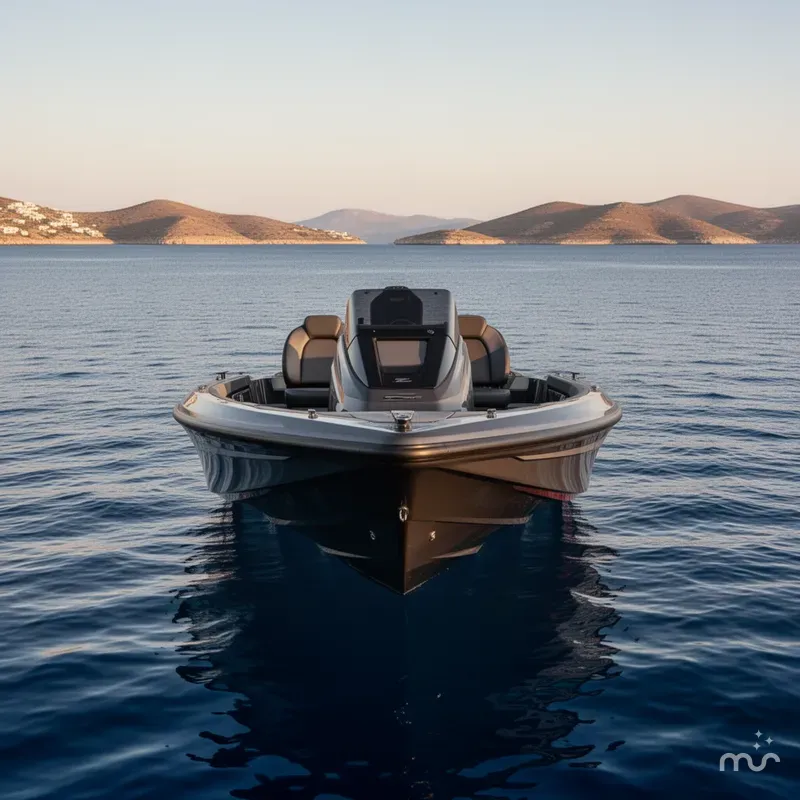

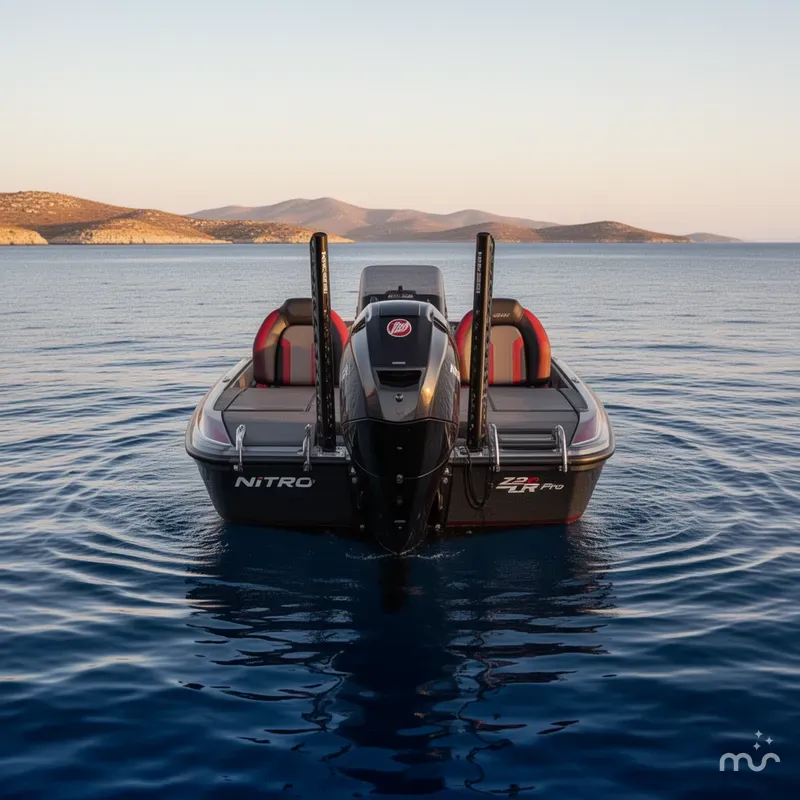

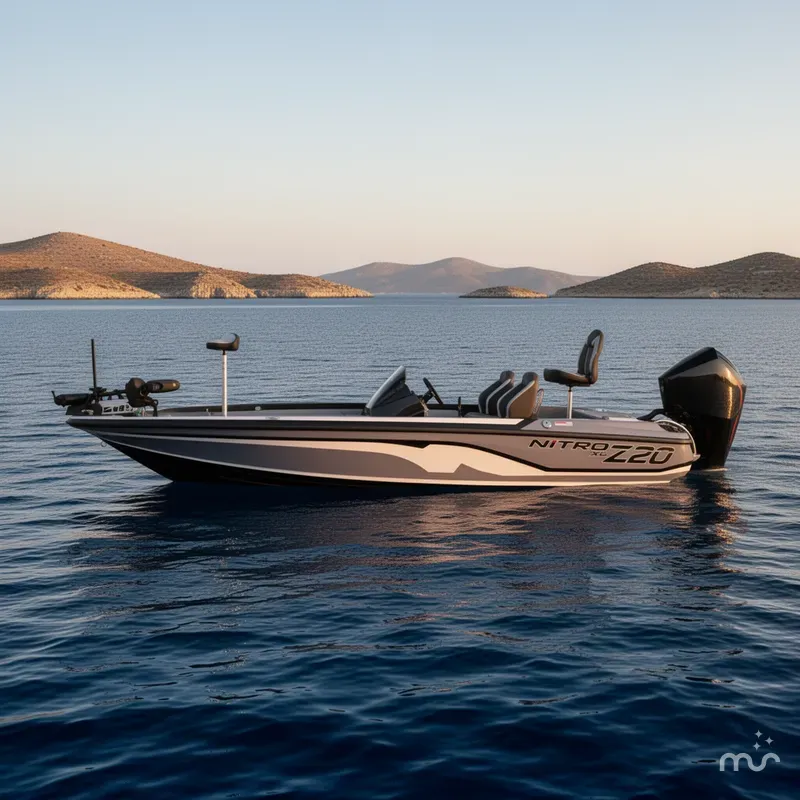

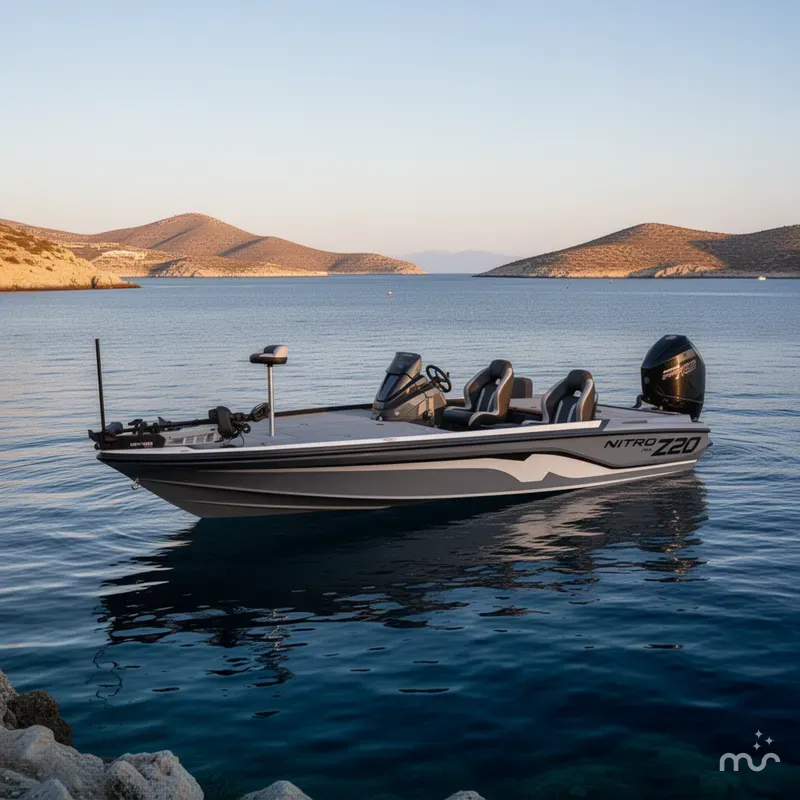

2025 Nitro Z20 XL Pro

Additional Specs

• Length:20' 2"

• Beam: 7' 10"

• Bottom Width: 6' 3"

• Max. Recommended HP: 250 HP

• Fuel Capacity: 50 gal.

• Max. Person Capacity: 4 persons

• Max. Person Weight: 575 lbs.

• Max. Person, Motor & Gear Weight: 1750 lbs.

• Interior Depth: 18"

• Transom Height: 22"

• Deadrise: 16 degrees

• Draft: 16"

• Average Dry Weight: 2000 lbs.

• Average Package Weight: 4050 lbs.

• Package Height: 6' 1"

• Package Width: 8' 6"

• Towing Length: 27' 0"

• Storage Length: 23' 8"

PRO

• Bow Garmin® ECHOMAP™ UHD2 9” (22.86 cm) sv gimbal-mounted fishfinder w/LiveScope™ Plus System

• Console Garmin® ECHOMAP™ UHD2 9” (22.86 cm) sv flush-mounted fishfinder

• Minn Kota® Ultrex™ 36V, 112-lb. (50.8 kg) thrust, 45” (1.14 m) shaft trolling motor w/Dual Spectrum CHIRP™

• NMEA network for fishfinders & trolling motor to sync equipment

• Power-adjust pneumatic lumbar support for driver’s seat

• Livewell culling system

• Factory-applied keel protector

• 1 standard & 1 automatic bilge pump

• Hot Foot® throttle

• Pro-Trim lever

• 4-bank, 40-amp battery charger

• 1 extra trolling battery

Comfort, Convenience & Peace of Mind

• NMMA® certified

• Flotation meets or exceeds NMMA® & U.S. Coast Guard requirements

• EPA-compliant fuel system

• Anti-fatigue, padded comfort bow deck

• Digital Camo non-skid bow & stern mats

• Low-profile gunnels to maximize deck size & for easier casting

• Integrated fold-down stainless steel reboarding ladder, angled for allowing optional shallow-water anchor

• 5 stainless steel pull-up cleats, including cleat at driver seat

• 4 grab handles (1 at each seat)

• Fire extinguisher

• Horn

• Paddle

Livewell System

• 2 aft 19-gal. (71.92 L) insulated, rotomolded GUARDIAN™ livewells w/digital timers & rounded corners

• 500 GPH (1,892.71 LPH) aerator/fill pump

• 750 GPH (2,839.06 LPH) livewell recirculation/pump-out system

• Livewell control valve

• Dual remote drain controls

Trolling Motor

• Trolling motor pedal recess

Console

• Modular, aerodynamic console design w/expanded leg clearance & large fishfinder surface

• Removable acrylic, tinted plexiglass windscreen

• 5" (12.7 cm) digital touchscreen control

• Veethree® multifunction instrumentation w/speedometer/fuel gauge, tach/trim gauge, voltmeter gauge & water pressure gauge

• Dash light dimmer

• Tilt hydraulic steering

• Below-console RAM® X-Grip® phone holder & 12V outlet

• LED courtesy light

• Ready to accept optional removable port console

Interior

• 42.5-sq.-ft. (4.0-sq.-m) anti-fatigue, padded bow deck for comfort & casting mobility

• Bike seat w/pedestal

• Folding fishing seat w/composite frame

• Z-CORE™ seating system w/Force Flex suspension & contoured, rotomolded frame for driver & passenger seats

• Low driver & passenger flat seat mounting

• Bow tool/drink holder

• Bow port & starboard rod hold-down straps

• Molded-in drainage channels around bow storage compartments

• Oversized, lockable bow port & starboard rod lockers w/lift assists for rods up to 8' (2.44 m)

• Rod organizer in bow port rod locker

• Oversized lockable bow center storage locker w/TACKLE MANAGEMENT SYSTEM™

• Step to bow deck w/62-qt. (58.67 L) insulated cooler, removable trash receptacle & snap-in sandwich tray

• Partner rod ramp w/rod handle organizer & hold-down strap

• Footrest w/non-skid mat under console(s)

• Step to aft deck w/lockable storage & removable tub

• Designated net storage behind seating

• Built-in tournament ruler & holder

• 2 lift-out, molded aft storage boxes that will each accept seven 3700 tackle trays

• Molded utility rigging compartment for easy access to batteries & pumps & easy cleanup

• Lift-out tool/rope storage tray in rigging compartment

• Insulated aluminum lids w/welded corners

• 16-oz. (.45 kg) plush, marine-grade cut pile carpet on decks & floor

• Stainless steel lockable slam latches

Exterior

• NITRO VORTEX TECHNOLOGY™ (NVT™) hull for a smoother, drier ride

• RAPID PLANING SYSTEM™ (RPS™) for quicker holeshots & maximized speed

• 12" (30.48 cm) adjustable jack plate—Black

• Rigging tube for organized wiring & abrasion resistance

• Stainless steel propeller

Construction & Exterior

• 100% composite deck core w/superior thermal stability & strength-to-weight ratio

• Deck & hull chemically bonded & mechanically fastened w/stainless steel fasteners every 2" (5.08 cm)

• Gelcoated stringer/liner system

• Foam-filled hull for optimal buoyancy & safety

• Full-width fiberglass-encapsulated composite transom

• Splashwell protective film

• Black hardware

Electrical

• Angled bow panel w/trolling motor receptacle, anchor/light switch, trim switch & capability to flush mount most 12" (30.5 cm) fishfinders

• LED console courtesy light

• Manual LED-lighted bow gear storage

• Automotive-style labeled fuse panel w/cover

• Interstate® cranking battery

• 2 heavy-duty Interstate® trolling batteries

• NOCO® GB40 jump starter pack

• 6-gauge trolling motor wiring w/50-amp circuit breaker

• Master power switch

• Waterproof Deutsch connectors on gauges

• Water- & abrasion-resistant connectors

Trailer

• Custom-fit, tandem-axle steel NITRO® trailer w/enhanced stability & performance

• 7-pin connector

• 14" (35.56 cm) aluminum wheels w/radial tires

• Surge disc brakes on both axles

• Hub system w/1-year limited warranty

• Spare tire carrier w/matching spare

• All-welded rectangular GALVASHIELD® frame

• Space-saving swing-away tongue to reduce storage length

• Fold-away tongue jack

• Heavy-duty winch w/nylon strap & bow safety strap

• Integrated winch stand step w/safety handle for easier boarding/reboarding at bow while boat is on trailer

• Outboard motor support to reduce hull & transom stress while towing

• Carpeted bunks & fender boards to protect hull

• 6" (15.24 cm) oval LED tail lights w/integrated back-up lights

• Retractable transom tie downs

• Safety cables
