2024 Nitro Z20 Boat in San Antonio, TX 78257 US
Built in 2024
Z20
1 Engine (--)
20.2 feet
Gas
Fiberglass/Reinforced
Many professional tournament anglers choose the NITRO® Z20 because it competes with larger boats in regard to speed but is compact enough for probing docks and shallower water. The basis of the Z20 is the NITRO VORTEX TECHNOLOGY™ (NVT™) hull-a design that uses a series of parabolic curves for quicker holeshots, more lift while on plane and improved handling.
The Z20 is optimized for tournament angling with a Lowrance® fishfinder, two massive 8' bow rod lockers and an enormous center tackle storage compartment with the NITRO-exclusive TACKLE MANAGEMENT SYSTEM™. It comes fully rigged with a custom-matched, tandem-axle trailer with GALVASHIELD® Impact protection.
Length:20' 2"
Beam: 7' 10"
Bottom Width: 6' 3"
Max. Recommended HP: 250 HP
Fuel Capacity: 50 gal.

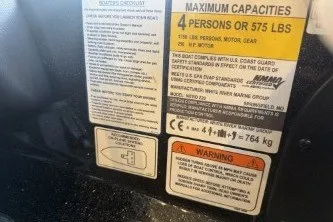

Max. Person Capacity: 4 persons
Max. Person Weight: 575 lbs.
Max. Person, Motor & Gear Weight: 1750 lbs.
Interior Depth: 18"
Transom Height: 22"
Deadrise: 16 degrees
Draft: 16"
Average Dry Weight: 2000 lbs.
Average Package Weight: 4050 lbs.
Package Height: 6' 1"
Package Width: 8' 6"
Towing Length: 27' 0"
Storage Length: 23' 8"
Comfort, Convenience & Peace of Mind
- NMMA® certified
- Flotation meets or exceeds NMMA® & U.S. Coast Guard requirements
- EPA-compliant fuel system
- Anti-fatigue, padded comfort bow deck
- Non-skid bow & stern mats
- Low-profile gunnels to maximize deck size & for easier casting
- Integrated fold-down stainless steel reboarding ladder, angled for allowing optional shallow-water anchor
- 5 stainless steel pull-up cleats, including cleat at driver seat
- 4 grab handles (1 at each seat)
- Fire extinguisher
- Horn
- Paddle
Livewell System
- 2 aft 19-gal. (71.92 L) insulated, rotomolded GUARDIAN™ livewells w/digital timers & rounded corners
- 500 GPH (1,892.71 LPH) aerator/fill pump
- 750 GPH (2,839.06 LPH) livewell recirculation/pump-out system
- Dual remote drain controls
Trolling Motor

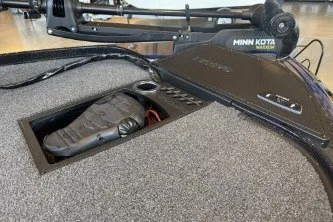

- Minn Kota® Maxxum® 24V, 70-lb. (31.75 kg) thrust, 42" (1.07 m) shaft, foot-control trolling motor w/mount
- Trolling motor pedal recess

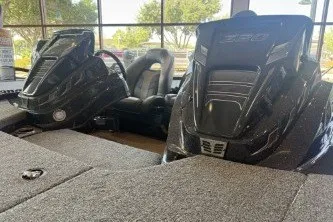

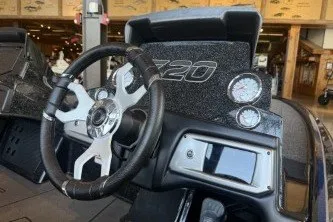

Console
- Modular, aerodynamic console design w/expanded leg clearance & large fishfinder surface
- Removable acrylic, tinted windscreen
- Lowrance® HOOK Reveal 5C flush-mounted fishfinder
- 5" (12.7 cm) digital touchscreen control
- Veethree® multifunction instrumentation w/speedometer/fuel gauge, tach/trim gauge, voltmeter gauge & water pressure gauge
- Dash light dimmer
- Tilt hydraulic steering
- Below-console RAM® X-Grip® phone holder & 12V outlet
- LED courtesy light
- Ready to accept optional removable port console
Interior
- 42.5-sq.-ft. (4.0-sq.-m) anti-fatigue, padded bow deck for comfort & casting mobility
- Bike seat w/pedestal
- Folding fishing seat w/composite frame
- Z-CORE™ seating system w/Force Flex suspension & contoured, rotomolded frame for driver & passenger seats
- Low driver & passenger flat seat mounting
- Bow tool/drink holder
- Bow port & starboard rod hold-down straps
- Molded-in drainage channels around bow storage compartments
- Oversized, lockable bow port & starboard rod lockers w/lift assists for rods up to 8' (2.44 m)
- Rod organizer in bow port rod locker
- Oversized lockable bow center storage locker w/TACKLE MANAGEMENT SYSTEM™
- Step to bow deck w/62-qt. (58.67 L) insulated cooler, removable trash receptacle & snap-in sandwich tray
- Partner rod ramp w/rod handle organizer & hold-down strap

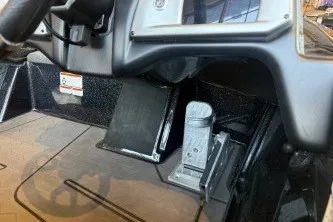

- Footrest w/non-skid mat under console(s)
- Step to aft deck w/lockable storage & removable tub
- Designated net storage behind seating
- Built-in tournament ruler & holder
- 2 lift-out, molded aft storage boxes that will each accept seven 3700 tackle trays
- Molded utility rigging compartment for easy access to batteries & pumps & easy cleanup
- Lift-out tool/rope storage tray in rigging compartment
- Insulated aluminum lids w/welded corners
- 16-oz. (.45 kg) plush, marine-grade cut pile carpet on decks & floor
- Lockable latches
Performance
- NITRO VORTEX TECHNOLOGY™ (NVT™) hull for a smoother, drier ride
- RAPID PLANING SYSTEM™ (RPS™) for quicker holeshots & maximized speed
- 12" (30.48 cm) adjustable jack plate—Black
- Rigging tube for organized wiring & abrasion resistance
- Stainless steel propeller
Construction & Exterior
- 100% composite deck core w/superior thermal stability & strength-to-weight ratio
- Deck & hull chemically bonded & mechanically fastened w/stainless steel fasteners every 2" (5.08 cm)
- Gelcoated stringer/liner system
- Foam-filled hull for optimal buoyancy & safety
- Full-width fiberglass-encapsulated composite transom
- Splashwell protective film
Electrical
- Angled bow panel w/trolling motor receptacle, anchor/light switch, trim switch & capability to flush mount most 12" (30.5 cm) fishfinders
- LED console courtesy light
- Manual LED-lighted bow gear storage
- Automotive-style labeled fuse panel w/cover
- Interstate® cranking battery
- 2 heavy-duty Interstate® trolling batteries
- NOCO® GB40 jump starter pack
- 3-bank, 30-amp onboard battery charger w/exterior receptacle
- 6-gauge trolling motor wiring w/50-amp circuit breaker
- Master power switch
- Waterproof Deutsch connectors on gauges
- Water- & abrasion-resistant connectors

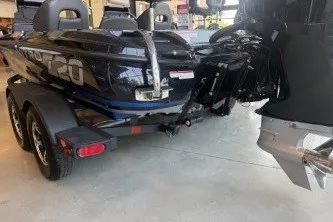

Trailer
- NEW custom-fit, tandem-axle NITRO® steel trailer w/enhanced stability & performance
- 7-pin connector

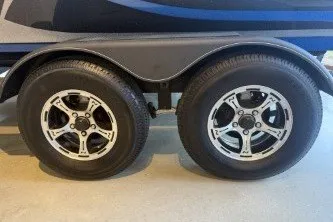

- 14" (35.56 cm) custom aluminum wheels w/radial tires
- Surge disc brakes on both axles
- Hub system w/1-year limited warranty

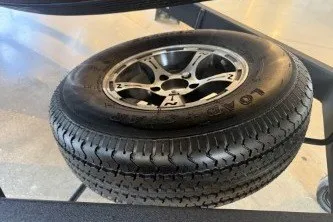

- Spare tire carrier w/matching spare
- All-welded rectangular GALVASHIELD® frame
- Space-saving swing-away tongue to reduce storage length
- Fold-away tongue jack
- Heavy-duty winch w/nylon strap & bow safety strap
- Integrated winch stand step w/safety handle for easier boarding/reboarding at bow while boat is on trailer
- Outboard motor support to reduce hull & transom stress while towing
- Carpeted bunks & fender boards to protect hull
- Submersible LED lights
- Retractable transom tie downs
- Safety cables
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice. All sales are final. No returns accepted.
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice. All sales are final. No returns accepted.
2024 Nitro Z20 Video Tours
Boattest.com Review
Overview
The Nitro Z20 is a tournament-level bass boat engineered to deliver rapid transit to fishing locations while providing amenities typically found on higher-end models. Designed with performance and angler functionality in mind, the Z20 offers a balance of speed, handling, and fishing features that appeal to serious bass anglers.
Power and Performance
The Z20 is available with either a standard Mercury 225 Pro XS four-stroke engine or an upgraded Mercury 250 Pro XS four-stroke, the latter fitted on our test boat with a manually adjustable 12-inch jack plate. Measuring 20 feet 2 inches in length with a 7 foot 10 inch beam and a hull draft of 16 inches, the boat's empty weight is approximately 2,000 pounds. During testing, with two passengers, 30 gallons of fuel, and equipment aboard, the estimated weight was 3,105 pounds. Powered by the 250-horsepower Mercury engine paired with a 14 by 24 inch stainless steel three-blade Fury propeller, the Z20 achieved a top speed of 76.6 miles per hour at 6,200 RPM. Its optimal cruising speed was 26.3 miles per hour at 3,000 RPM, delivering a fuel consumption of 5.3 gallons per hour and an effective range of 223 statute miles while maintaining a 10% fuel reserve from its 50-gallon capacity. Acceleration tests demonstrated rapid planing capabilities, reaching planing in 3.8 seconds, 20 mph in 5.3 seconds, and 30 mph in 7.7 seconds. The boat's mid-range acceleration is robust, providing a firm ride without water washing over the transom during deceleration. Handling characteristics reflect its bass boat design, with the hull climbing onto the pad quickly and maintaining precise line-holding in arcing turns, even over wakes and choppy water. The Nitro Vortex Technology (NVT) hull features six full-length parabolic strakes and a keel pad that enhances stability and smoothness at speed. Construction employs hand-laid fiberglass with reinforced layers in high-stress areas, a 100% composite chemically bonded transom, and a one-piece stringer grid molded integrally with some storage compartments for added space and strength.
Cockpit and Helm Features

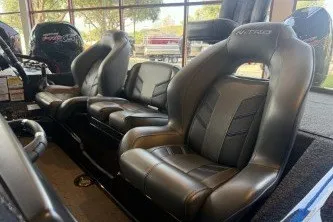

The cockpit is equipped with twin Z-Core bucket seats featuring force flex suspension and contoured frames, designed in collaboration with professional angler Kevin Van Dam to provide comfort and support even at high speeds approaching 75 miles per hour. An optional second console is positioned forward of the port seat for anglers who prefer to fish alongside the driver at speed. This console includes a locking glove box with a 16 by 6 inch opening and convenient grab handles. The helm console is outfitted with V3 analog gauges, including a tachometer with integrated trim indicator, speedometer with fuel gauge, and instruments for water pressure and voltage. Standard electronics include a Lowrance Hook 2 5 fish finder, with options for additional devices. Controls are logically arranged with master power and ignition switches to the port of the tilt steering wheel, and a switch panel on the starboard side managing navigation and anchor lights, bilge pumps, and livewell functions. The stereo remote and conventional shift-throttle controls are located outboard on the starboard side. Hydraulic steering is standard, and optional upgrades include a foot throttle and turn signal-style trim switches to facilitate hands-on wheel control at high speeds.
Deck Layout and Fishing Amenities
Access to the forward casting deck is via steps located between the consoles, flanked by cup holders and tool racks. Beneath a hinged step lies a 62-quart cooler equipped with a removable wastebasket and sandwich tray. The bow casting deck spans 42.5 square feet and is covered with an anti-fatigue paddock mat. Bungee cords on each side secure rods during transit. Standard equipment includes a Minn Kota 24-volt trolling motor delivering 70 pounds of thrust with a 42-inch shaft. The bow panel accommodates optional fish finders up to 12 inches and houses switches for navigation lights and outboard trim. Additional features include tool racks, cup holders, and a trolling motor foot pedal. Storage is abundant with three lockable, gas-strut-assisted lockers: a port rod locker capable of holding ten rods up to eight feet long, a lighted center locker with removable dividers and integrated cup holders, and an open starboard locker with clips for paddles and a fire extinguisher. Four-inch pull-up cleats on each side facilitate docking and fender attachment.
Aft Deck and Livewell System
The aft fishing deck measures 82 inches wide by 46 inches fore to aft and includes a 22-inch wide step between the cockpit seats. Under a non-skid hatch is a shallow storage tray, with additional storage for nets above the seats and a removable catch ruler integrated into the deck. A boarding ladder folds neatly into the aft port corner, complemented by a padded grab handle. Four hatches in the aft deck provide access to twin 19-gallon Guardian livewells featuring digital timers, 750-gallon power pumps, a recirculating system, and rounded corners for fish safety. Removable tubs with slots for seven Plano 3700 tackle trays flank the livewells. Behind these, a large hatch grants access to the battery switch, charger, and mechanical components. The electrical system includes dual trolling batteries and a dedicated engine start battery. A hinged panel reveals bilge and livewell pumps, and a removable tray above the batteries offers additional storage.
Trailer and Final Assessment
The Nitro Z20 is delivered on a custom-made trailer featuring a swing-away tongue for ease of transport and storage. Overall, the Z20 presents as a tournament-quality bass boat that combines strong performance with thoughtfully integrated fishing amenities. The incorporation of the new Mercury four-stroke outboard maintains its competitive edge in speed and handling, making it a compelling choice for serious anglers seeking a balance of power, comfort, and functionality.
Overview from around the web 2024 Nitro Z20
Customers are raving about the 2024 Nitro Z20 for its exceptional performance and cutting-edge features
Many highlight the boat’s powerful Mercury Pro XS engine, which delivers impressive speed and acceleration ideal for competitive bass fishing. The spacious deck layout and ergonomic design receive praise for providing ample room and comfort during long days on the water. Anglers appreciate the advanced electronics package, including the latest fish-finding and navigation technology, which enhances their fishing experience. Overall, users commend the Nitro Z20 for combining innovative design with reliability, making it a top choice for serious fishing enthusiasts.
The Biggest Pros and Cons
The 2024 Nitro Z20 offers a range of advantages and a few considerations to keep in mind:
Pros
High Performance: Equipped with a powerful engine and advanced hull design, the Z20 delivers exceptional speed and handling, perfect for competitive fishing and fast cruising.
Spacious Layout: The boat features ample deck space and smart storage solutions, providing comfort for anglers and plenty of room for gear.
Cutting-Edge Technology: Integrated with the latest fish-finding electronics and navigation systems, the Z20 enhances your fishing experience with precision and ease.
Durable Construction: Built with high-quality materials, this model ensures long-lasting durability and reliability on the water.
Comfort Features: Ergonomic seating and adjustable consoles contribute to a comfortable ride during long days on the lake.
Cons
Price Point: The advanced features and premium build come at a higher price, which may be a consideration for budget-conscious buyers.
Size: While spacious, the Z20’s larger size may require a more substantial tow vehicle and might be less convenient for smaller boat ramps.
Learning Curve: The sophisticated electronics and controls may require some time for new users to fully master.
Made For
The 2024 Nitro Z20 is designed for serious anglers who demand top performance on the water. Ideal for competitive bass fishermen and avid fishing enthusiasts, this boat combines cutting-edge technology, superior speed, and exceptional handling to help you dominate any tournament or fishing adventure. Whether you're navigating tight spots or cruising open waters, the Nitro Z20 delivers the power and precision you need to elevate your fishing experience.
