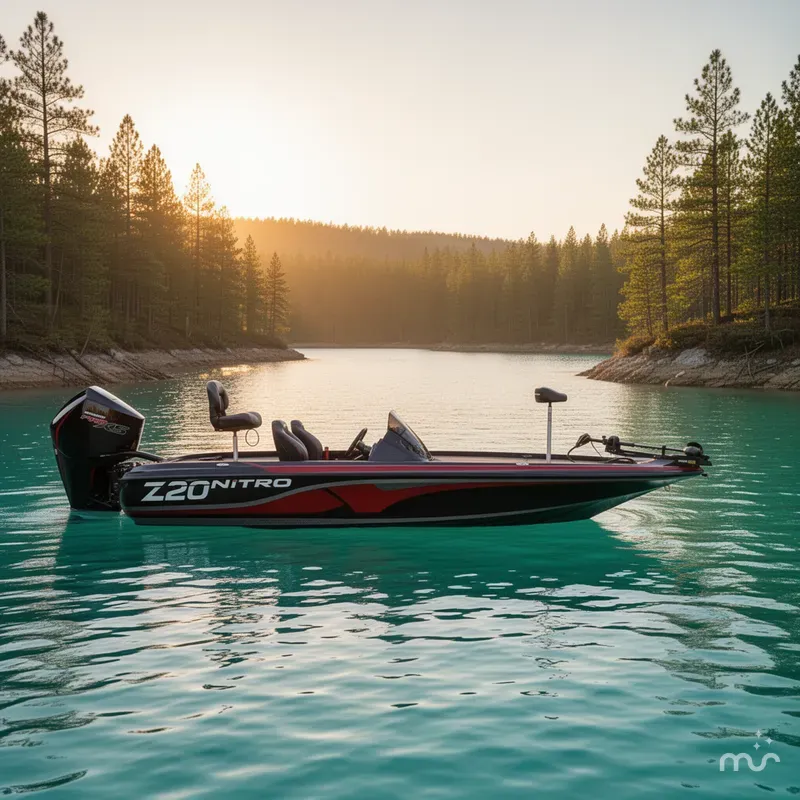

2022 Nitro Z20

Length: 20' 2" Beam: 7' 10" Bottom width: 6' 3" Max. Recommended HP: 250 HP Fuel Capacity: 50 gal. Max. Person Capacity: 4 persons Max. person weight: 575 lbs. Max. person, motor & gear weight: 1750 lbs. Interior depth: 18" Transom height: 22" Deadrise: 16 degrees Draft: 16" Average dry weight: 2000 lbs. Average package weight: 4050 lbs. Package height: 6' 1" Package width: 8' 6" Towing length: 27' 0" Storage Length: 23' 8"

Comfort, Convenience & Peace of Mind NMMA® certified Flotation meets or exceeds NMMA® & U.S. Coast Guard requirements EPA-compliant fuel system Anti-fatigue, padded comfort bow deck Non-skid bow & stern mats 5 drink holders 4 stainless steel pull-up cleats 4 grab handles (1 at each seat) Fire extinguisher Horn Paddle Livewell Systems 2 aft 19-gal. (71.92 L) insulated GUARDIAN™ livewells w/digital timers 750 GPH (2,839.06 LPH) livewell recirculation/pump-out system 500 GPH (1,892.71 LPH) aerator/fill pump Dual remote drain controls Rotomolded w/rounded corners Trolling Motor Minn Kota® Maxxum® 24V, 70-lb. (31.75 kg) thrust, 42" (1.07 m) shaft, foot-control trolling motor Trolling motor pedal recess Console Modular, aerodynamic console design w/expanded leg clearance & large fishfinder surface NEW Lowrance® HOOK Reveal 5C flush-mounted fishfinder Hydraulic steering w/tilt Removable acrylic, tinted windscreen Ready to accept optional removable port console Veethree® multifunction instrumentation w/speedometer/fuel gauge, tach/trim gauge, voltmeter gauge & water pressure gauge Dash light dimmer Waterproof, capacitive touch digital keypad LED courtesy light 12V outlet Interior 42.5-sq.-ft. (4.0-sq.-m) anti-fatigue, padded bow deck for comfort & mobility Bike seat w/pedestal Folding fishing seat w/composite frame Z-CORE™ seating system w/Force Flex suspension & contoured, rotomolded frame for driver & passenger seats Low driver & passenger flat seat mounting Bow port & starboard rod hold-down straps Molded-in drainage channels around bow storage compartments Oversized, lockable bow port & starboard rod lockers w/lift assists for rods up to 8' (2.44 m) Rod organizer in port rod locker Oversized lockable bow center storage locker w/TACKLE MANAGEMENT SYSTEM™ Step to bow deck w/62-qt. (58.67 L) insulated cooler & removable trash receptacle Partner rod ramp w/rod handle organizer & hold-down strap Footrest w/non-skid mat under console(s) Step to aft deck w/lockable storage & removable tub Designated net storage behind seating Built-in tournament ruler & holder 2 lift-out, molded aft storage boxes that will each accept seven 3700 tackle trays Molded utility rigging compartment for easy access to batteries & pumps & easy cleanup Lift-out tool/rope storage tray in rigging compartment Insulated aluminum lids w/welded corners 16-oz. (.45 kg) plush, marine-grade cut pile carpet on decks & floor Lockable latches Performance NITRO VORTEX TECHNOLOGY™ (NVT™) hull for a smoother, drier ride RAPID PLANING SYSTEM™ (RPS™) for quicker holeshots & maximized speed 12" (30.48 cm) adjustable jack plate Rigging tube for organized wiring & abrasion resistance Stainless steel propeller Construction & Exterior 100% composite deck core w/superior thermal stability & strength-to-weight ratio Deck & hull chemically bonded & mechanically fastened w/stainless steel fasteners every 2" (5.08 cm) Gelcoated stringer/liner system Foam-filled hull for optimal buoyancy & safety Full-width fiberglass-encapsulated composite transom Low-profile gunnels to maximize deck size & for easier casting Integrated fold-down stainless steel reboarding ladder, angled for allowing optional shallow-water anchor Electrical Angled bow panel w/trolling motor receptacle, anchor/light switch, trim switch & capability to flush mount most 12" (30.5 cm) fishfinders LED console courtesy light Manual LED-lighted bow gear storage Automotive-style labeled fuse panel w/cover Interstate® cranking battery 2 heavy-duty Interstate® trolling batteries 2-bank, 8-amp battery charger w/exterior receptacle 6-gauge trolling motor wiring w/50-amp circuit breaker E-Start emergency jump start system Master power switch Waterproof Deutsch plugin gauge connectors Water/abrasion-resistant connectors Trailer Custom-fit, tandem-axle NITRO® trailer powder-coated w/GALVASHIELD® Impact corrosion & chip protection for improved durability 7-pin connector 14" (35.56 cm) custom aluminum wheels w/radial tires Surge disc brakes on both axles No Touch Vortex hub lubrication system w/6-year, 100,000-mile (1,609.34 km) limited warranty Spare tire carrier w/matching spare All-welded rectangular GALVASHIELD® frame Space-saving swing-away tongue to reduce storage length Fold-away tongue jack Heavy-duty winch w/nylon strap & bow safety strap Integrated winch stand step w/safety handle for easier boarding/reboarding at bow while boat is on trailer Outboard motor support to reduce hull & transom stress while towing Carpeted bunks & fender boards to protect hull Submersible LED lights Safety cables

 .
