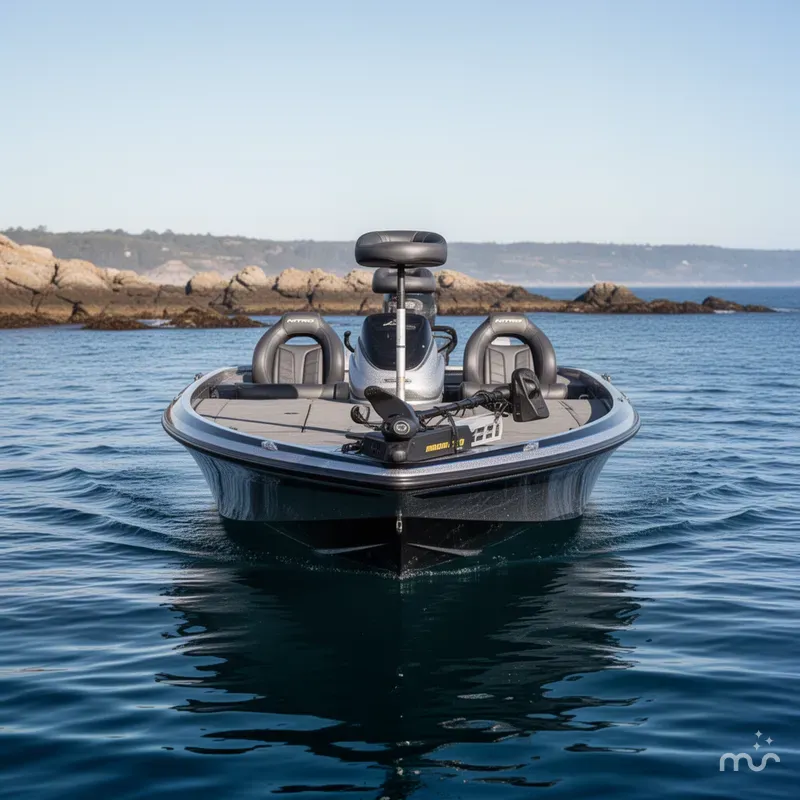

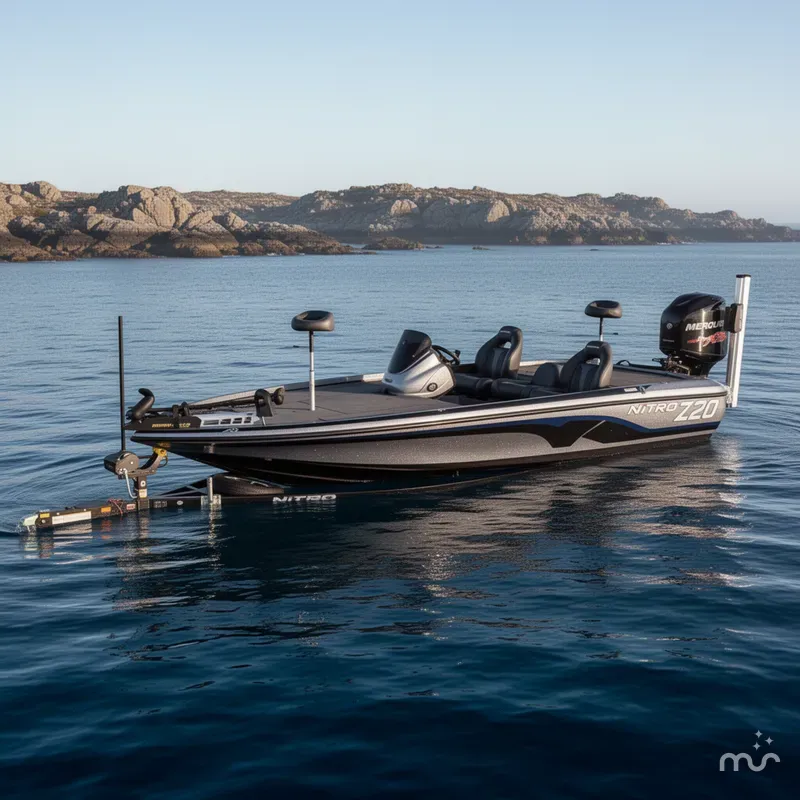

2017 Nitro Z20 Boat in White Bluff, TN 37187 US
Built in 2017
Z20
1 Engine (Mercury)
20.2 feet
Gas
Fiberglass/Reinforced
A fast fishing machine that will get your adrenaline pumping, the 2017 NITRO® Z20 is built to win. The basis of the Z20 is our NITRO® Vortex Technology™ (NVT™) hull-a design that uses a series of parabolas instead of traditional strakes, resulting in a hull that's faster, gives more lift while on plane and improves handling.
In the Z20, scorching speed and optimized fishability keep you ahead of the competition and at the top of the leaderboard. And it rides on a custom-matched, tandem-axle trailer with GALVASHIELD® Impact corrosion protection.
- NITRO Vortex Technology Hull
- NITRO® Vortex Technology™ (NVT™) hull w/Rapid Planing System™
- 38-sq.-ft. (3.5-sq.-m) bow deck
- Unitized hull, foam-filled stringer system & deck for superior durability & flotation
- Room at the bow & console for flush-mount 12" fishfinders
- Step to bow deck w/74-qt. (70 L) insulated cooler, trash receptacle & sandwich tray
- Oversized, lockable port & starboard bow rod lockers w/lid assists for rods up to 8'
- Large, lockable center bow storage locker w/Tackle Management System
- 2 insulated aft 19-gal. Guardian™ aerated, divided livewells w/timers
- Optional removable passenger console for versatility & added comfort
- Factory rigged w/a Mercury® outboard, Minn Kota® trolling motor, Lowrance® fishfinder & custom-fit trailer w/NEW GALVASHIELD® Impact corrosion protection for improved durability
- Length:20' 2"
- Beam: 96'
- Bottom width: 75'
- Max. recommended HP: 250 HP
- Fuel capacity: 55 gal.
- Max. person capacity: 4 persons
- Max. person weight: 600 lbs.
- Max. weight capacity : 1525 lbs.
- Interior depth: 18'
- Transom height: 22'
- Deadrise: 16 degrees
- Draft: 16'
- Approx. weight: 2000 lbs.
- Approx. package weight: 4050 lbs.
- Package width: 8' 6"
- Storage length: 23' 8"
Comfort, Convenience & Peace of Mind
- NMMA Certified
- Flotation meets or exceeds NMMA & U.S. Coast Guard requirements
- EPA-compliant fuel system
- Anti-fatigue, padded comfort bow deck
- Non-skid mats bow & stern
- Spare prop holder
- 5 drink holders
- 4 stainless steel pull-up cleats
- Integrated fold-down stainless steel reboarding ladder
- Passenger grab handle(s)
- NEW 4 grab handles (1 at passenger, 2 at center seat, 1 at transom)
- Built-in tournament ruler & holder
- Fire extinguisher
- Horn
- Paddle
Console
- Flush-mounted Lowrance® HOOK-5x fishfinder w/480x480 pixel display, surface temperature & down imaging
- Hydraulic steering w/tilt
- Removable acrylic, tinted windscreen
- Ready to accept optional removable port console
- Custom-molded modular console w/2-tone gelcoat
- Veethree® multi-function instrumentation w/speedometer/fuel gauge, tach/trim gauge, water pressure gauge & oil level indicator
- Digital switch panel w/blue backlight & soft-touch shroud
- Dash light dimmer
- Soft-touch waterproof digital switches
- LED courtesy light
- Below-console 12V outlet
Construction & Exterior
- Deck & hull chemically bonded & mechanically fastened w/stainless steel fasteners
- Gelcoated stringer/liner system
- Foam-filled hull for optimal buoyancy & safety
- Full-width fiberglass-encapsulated composite transom
- 24-oz. (.68 kg) plush, marine-grade cut pile carpet on deck & floor
- Low-profile gunnels to maximize deck size & for easier casting
Electrical
- E-Start emergency jump start system
- Bow panel w/trolling motor receptacle, anchor/light switch, trim switch & capability to flush mount 12" (30.5 cm) graph
- 1,600 GPH (6,057 LPH) bilge pump
- LED console courtesy light
- Bow navigation lights integrated into gunnels w/stowable stern light
- Automatic LED-lighted bow storage
- Automotive-style labeled fuse panel w/cover
- Interstate® cranking battery
- 2 heavy-duty Interstate® Series 29 trolling batteries
- 2-bank (8 amps total) battery charger w/exterior receptacle
- 6-gauge trolling motor wiring/w 50-amp circuit breaker
- Master power switch
- Ventilation fan system in bow storage
- Waterproof Deutsch plugin gauge connectors
- Water/abrasion-resistant connectors
Interior
- 38-sq.-ft. (3.5-sq.-m) bow deck
- Step to bow deck w/74-qt. (70 L) insulated cooler, removable trash receptacle & snap-in sandwich tray
- NASCAR®-inspired helm & passenger bucket seats, helm only w/adjustable seat slide
- Bike seat w/pedestal
- Folding fishing seat w/composite frame
- Designated net storage behind seating
- Trolling motor pedal recess for Minn Kota® & MotorGuide® trolling motors
- Oversized, lockable port & starboard bow rod lockers w/lift assists for rods up to 8' (2.44 m)
- Molded-in drainage channels around bow storage compartments
- Port & starboard bow rod hold-down straps
- Oversized lockable center bow storage locker w/Tackle Management System
- Rod organizer in port rod locker
- Partner rod ramp w/rod handle organizer & rod holder strap
- 1 lift-out, molded aft port storage box that will accept four 3700 tackle trays w/propeller under storage
- 1 lift-out, molded aft starboard storage box that will accept seven 3700 tackle trays
- Molded utility rigging compartment for easy access to batteries & pumps & easy cleanup
- Stainless steel lockable compression latches
- Footrest w/non-skid mat under console(s)
- Insulated aluminum lids w/welded corners
Livewell System(s)
- 2 insulated aft 19-gal. (72 L) Guardian™ livewells w/digital timers
- 750 GPH (2,840 LPH) livewell recirculation/pump-out system
- 500 GPH (1,893 LPH) aerator/fill pump
- Dual remote drain controls
- Rotomolded w/rounded corners
Performance
- NITRO® Vortex Technology™ (NVT™) hull for a smoother, drier ride
- Rapid Planing System™ for quicker holeshots & maximized speed
- 8" (20.0 cm) adjustable jack plate (Verado® only)
- 12" (30.5 cm) adjustable jack plate (OptiMax® only)
- Rigging tube for organized wiring & abrasion resistance
- Stainless steel propeller
Trailer
- Custom-fit, factory-matched, tandem-axle NITRO® trailer w/powder-coat finish & NEW GALVASHIELD® Impact corrosion protection for improved durability
- Surge disc brakes on 1 axle
- Inside the frame brake line system w/1-point bleed
- 14" (35.6 cm) custom aluminum wheels w/radial tires
- No Touch Vortex hub lubrication system w/6-yr. 100,000-mile limited warranty
- Spare tire carrier w/matching spare
- All-welded rectangular GALVASHIELD® frame
- Space-saving swing-away tongue to reduce storage length
- 1,200-lb. (544 kg) swing-up locking jack w/swivel wheel
- Heavy-duty winch w/nylon strap & bow safety strap
- Integrated winch stand step w/safety handle for easier boarding/reboarding at bow while boat is on trailer
- Outboard motor support to reduce hull & transom stress while towing
- Carpeted bunks & fender boards to protect hull
- Submersible LED lights
- Safety cables
Trolling Motor
- Minn Kota® Maxxum® 24V, 80-lb. thrust, 42" (1.07 m) shaft, foot-control trolling motor
2017 Nitro Z20 Video Tours
Boattest.com Review
Overview
The Nitro Z20 is a tournament-level bass boat engineered to deliver rapid transit to fishing locations while providing amenities typically found on higher-end models. Designed with performance and angler functionality in mind, the Z20 offers a balance of speed, handling, and fishing features that appeal to serious bass anglers.
Power and Performance
The Z20 is available with either a standard Mercury 225 Pro XS four-stroke engine or an upgraded Mercury 250 Pro XS four-stroke, the latter fitted on our test boat with a manually adjustable 12-inch jack plate. Measuring 20 feet 2 inches in length with a 7 foot 10 inch beam and a hull draft of 16 inches, the boat's empty weight is approximately 2,000 pounds. During testing, with two passengers, 30 gallons of fuel, and equipment aboard, the estimated weight was 3,105 pounds. Powered by the 250-horsepower Mercury engine paired with a 14 by 24 inch stainless steel three-blade Fury propeller, the Z20 achieved a top speed of 76.6 miles per hour at 6,200 RPM. Its optimal cruising speed was 26.3 miles per hour at 3,000 RPM, delivering a fuel consumption of 5.3 gallons per hour and an effective range of 223 statute miles while maintaining a 10% fuel reserve from its 50-gallon capacity. Acceleration tests demonstrated rapid planing capabilities, reaching planing in 3.8 seconds, 20 mph in 5.3 seconds, and 30 mph in 7.7 seconds. The boat's mid-range acceleration is robust, providing a firm ride without water washing over the transom during deceleration. Handling characteristics reflect its bass boat design, with the hull climbing onto the pad quickly and maintaining precise line-holding in arcing turns, even over wakes and choppy water. The Nitro Vortex Technology (NVT) hull features six full-length parabolic strakes and a keel pad that enhances stability and smoothness at speed. Construction employs hand-laid fiberglass with reinforced layers in high-stress areas, a 100% composite chemically bonded transom, and a one-piece stringer grid molded integrally with some storage compartments for added space and strength.
Cockpit and Helm Features
The cockpit is equipped with twin Z-Core bucket seats featuring force flex suspension and contoured frames, designed in collaboration with professional angler Kevin Van Dam to provide comfort and support even at high speeds approaching 75 miles per hour. An optional second console is positioned forward of the port seat for anglers who prefer to fish alongside the driver at speed. This console includes a locking glove box with a 16 by 6 inch opening and convenient grab handles. The helm console is outfitted with V3 analog gauges, including a tachometer with integrated trim indicator, speedometer with fuel gauge, and instruments for water pressure and voltage. Standard electronics include a Lowrance Hook 2 5 fish finder, with options for additional devices. Controls are logically arranged with master power and ignition switches to the port of the tilt steering wheel, and a switch panel on the starboard side managing navigation and anchor lights, bilge pumps, and livewell functions. The stereo remote and conventional shift-throttle controls are located outboard on the starboard side. Hydraulic steering is standard, and optional upgrades include a foot throttle and turn signal-style trim switches to facilitate hands-on wheel control at high speeds.
Deck Layout and Fishing Amenities
Access to the forward casting deck is via steps located between the consoles, flanked by cup holders and tool racks. Beneath a hinged step lies a 62-quart cooler equipped with a removable wastebasket and sandwich tray. The bow casting deck spans 42.5 square feet and is covered with an anti-fatigue paddock mat. Bungee cords on each side secure rods during transit. Standard equipment includes a Minn Kota 24-volt trolling motor delivering 70 pounds of thrust with a 42-inch shaft. The bow panel accommodates optional fish finders up to 12 inches and houses switches for navigation lights and outboard trim. Additional features include tool racks, cup holders, and a trolling motor foot pedal. Storage is abundant with three lockable, gas-strut-assisted lockers: a port rod locker capable of holding ten rods up to eight feet long, a lighted center locker with removable dividers and integrated cup holders, and an open starboard locker with clips for paddles and a fire extinguisher. Four-inch pull-up cleats on each side facilitate docking and fender attachment.
Aft Deck and Livewell System
The aft fishing deck measures 82 inches wide by 46 inches fore to aft and includes a 22-inch wide step between the cockpit seats. Under a non-skid hatch is a shallow storage tray, with additional storage for nets above the seats and a removable catch ruler integrated into the deck. A boarding ladder folds neatly into the aft port corner, complemented by a padded grab handle. Four hatches in the aft deck provide access to twin 19-gallon Guardian livewells featuring digital timers, 750-gallon power pumps, a recirculating system, and rounded corners for fish safety. Removable tubs with slots for seven Plano 3700 tackle trays flank the livewells. Behind these, a large hatch grants access to the battery switch, charger, and mechanical components. The electrical system includes dual trolling batteries and a dedicated engine start battery. A hinged panel reveals bilge and livewell pumps, and a removable tray above the batteries offers additional storage.
Trailer and Final Assessment
The Nitro Z20 is delivered on a custom-made trailer featuring a swing-away tongue for ease of transport and storage. Overall, the Z20 presents as a tournament-quality bass boat that combines strong performance with thoughtfully integrated fishing amenities. The incorporation of the new Mercury four-stroke outboard maintains its competitive edge in speed and handling, making it a compelling choice for serious anglers seeking a balance of power, comfort, and functionality.
Overview from around the web 2017 Nitro Z20
Customers praise the 2017 Nitro Z20 for its powerful performance and sleek design, highlighting its excellent handling and smooth ride on various water conditions
Many appreciate the spacious layout and quality craftsmanship, making it ideal for both fishing and recreational use. Users also commend the boat's advanced features and reliable engine, noting it delivers great value for the price. Overall, the 2017 Nitro Z20 is celebrated for combining functionality with style, earning high marks from boating enthusiasts.
The Biggest Pros and Cons
The 2017 Nitro Z20 is a high-performance bass boat designed for serious anglers. Here are some of the pros and cons of this model:
Pros
Powerful Performance: Equipped with a strong engine and advanced hull design, the Z20 delivers excellent speed and handling on the water.
Spacious Casting Deck: Offers ample room for fishing, allowing anglers to move comfortably and access equipment easily.
Quality Construction: Built with durable materials and attention to detail, ensuring longevity and reliability.
Advanced Electronics: Comes with integrated fish-finding and navigation systems to enhance the fishing experience.
Comfort Features: Includes ergonomic seating and storage compartments for convenience during long fishing trips.
Cons
Fuel Consumption: The powerful engine can lead to higher fuel usage compared to smaller, less powerful boats.
Price Point: Positioned at a premium price, which may be a consideration for budget-conscious buyers.
Size and Weight: Its larger size and weight might make trailering and launching more challenging without the proper equipment.
Limited Seating Capacity: Primarily designed for fishing, so it may not accommodate larger groups comfortably.
Made For
The 2017 Nitro Z20 is designed for serious anglers who demand high performance and advanced features in a bass fishing boat. Ideal for both competitive tournament fishermen and passionate weekend anglers, this boat offers a perfect blend of speed, stability, and cutting-edge technology to enhance every fishing experience. Whether you're navigating shallow waters or cruising open lakes, the Nitro Z20 provides the power, precision, and comfort needed to elevate your time on the water.
