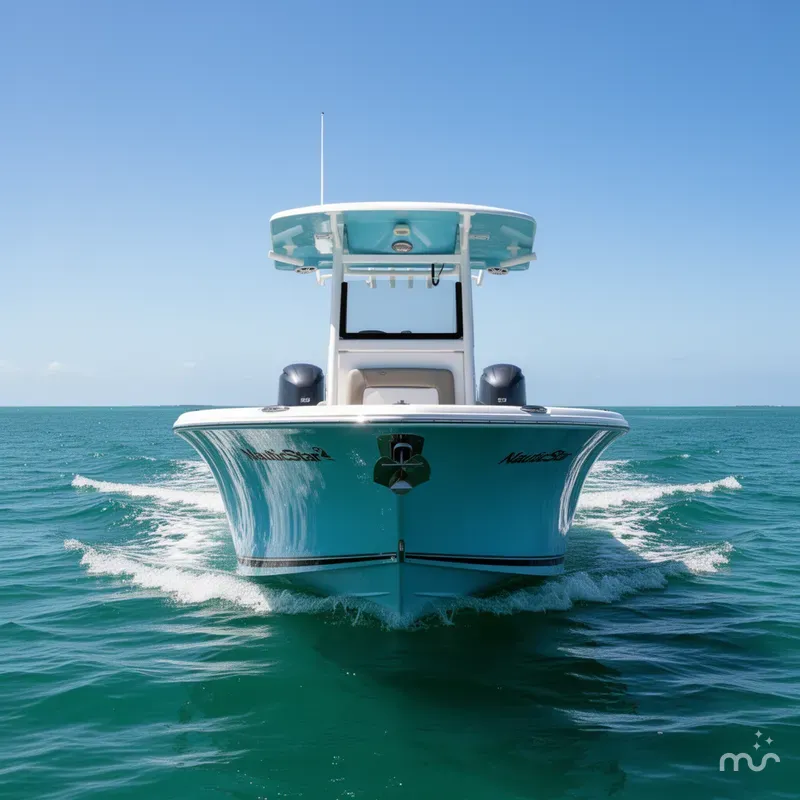

2025 NauticStar 292 Legacy Sold Boat in Key Largo, FL 33037 US

NauticStar's 292 Legacy meets the demands of serious offshore fishing. A 50-degree deadrise at the bow means a soft ride, and reverse chines get you up on plane quickly, providing extra lift. Plus, the extreme bow flair slices through the chop and diverts water.

The 292 Legacy is highly entertainment-friendly and comes standard with comfortable fold-down aft seats, and plush, wraparound seating at the bow. Take friends for a dockside dinner, head out on a dive excursion, or load up the family for a beach day at a barrier island. Everyone will have a comfortable, fun, and dry ride.

specifications

LENGTH: 28' 4" / 8.64 m

BEAM: 9' 8" / 2.95 m

MAXIMUM HP - TWIN: 700 HP / 521 kW (twin 350 HP / 261 kW)

TRANSOM HEIGHT: 30" (at center line) / 0.76 m

APPROXIMATE DRAFT: 20" / 0.51 m

DEADRISE @ TRANSOM: 23.2°

DEADRISE @ ENTRY: 41.6°

BRIDGE CLEARANCE (W/ FIBERGLASS T-TOP): 8' 2" / 2.49 m

APPROXIMATE BOAT WEIGHT: 5850 lbs. / 2654 kg

*FUEL CAPACITY: 200 gal. / 757 l

BOW FISH BOXES (2): 30 gal./Ea. / 114 l

AFT FISH BOX: 80 gal. / 303 l

AFT PORT BAITWELL: 25 gal. / 95 l

LEANING POST BAITWELL: 22 gal. / 83 l

FRESH WATER CAPACITY: 13 gal. / 49 l

PERSONS/TOTAL WEIGHT: Yacht Certified

MAX WEIGHT CAPACITY: Yacht Certified

FEATURES

COMFORT & CONVENIENCE

• Stainless Steel 4-Step Ladder

• Stainless Steel Drink Holders - 10

• Pressurized Fresh Water Sink & Shower - 13 gal.

• Helm Anti-Fatigue Matt

• China Toilet w/ Holding Tank & Discharge

• Premium Dual Captain's Seating w/ Bolsters & Armrests

• Dual Forward Console Seating w/ Arm Rests

• Bow Seating w/ Cushions & Bolsters

• Flip Out Bow Back Rests

• Recessed Folding Aft Seating

• Cockpit Bolsters

• Sink w/ Cutting Board

• 65 qt. Yeti Cooler w/ Slide-Out System

• Midship Bolsters

• Enclosed Head w/ LED Lighting, Sink, & Mirror

• Fresh Water Kit

• Bow Table/Filler w/ Cushion

CONSOLE & HELM

• Stainless Steel Schmitt Steering Wheel w/ Power Knob

• Flush Mount Compass

• Fusion Stereo w/ Bluetooth & 4 Speakers

CONSTRUCTION

• Wood Free Construction

• Limited Lifetime Hull Warranty

• Vinyl Ester Barrier Coat

• One Piece Fiberglass Stringer Grid System

• RTM Fiberglass Lids

• Recessed Gunnel Rod Storage with Stainless Steel Toe

Rail

• Vented Window in Console

• Stainless Steel Thru Hull Fittings

• Molded Anchor Storage

FISHING FEATURES

• Aft Insulated fish Box - 80 gal.

• Dual Insulated Bow Fish Boxes w/ Overboard Drains - 30

gal./Side

• Stainless Steel Rod Holders - 6

• Powder Coated Rocket Launcher Rod Holders - 8

• Aft Bait Well - Brass Thru-Hull High Speed Aerator Pick-

ups

• Aft Baitwell - Recirculation Pump - 500 GPH, Aerator

Pump - 800 GPH w/ Timer

• Bait Prep Station w/ Baitwell w/ Recirculation & Light

• Tackle Storage Systems - 2

• Knife and Pliers Storage

• Livewell & Sink w/ Leaning Post

• Add Aft Livewell - Plumbed for Offshore

HARDWARE

• Syntec Vinyl w/ Nano-Block Stain Protection

• Raw Water High Pressure Washdown

• Transhield Shipping Wrap

• Stainless Steel Latches

• Powder Coated Recessed Stainless Steel Bow Rails

• Stainless Steel Rub Rail

• 8" Stainless Steel Pull Up Cleats - 6

• Brass Shutoff Ball Valves

• Windlass

• Auto Bilge Pump - 1100 GPH

• Trim Tabs w/ LED Switch

• Stainless Steel Propeller

• Top - Fiberglass White

• Engine Rigging

• Anchor w/ 15 ft of Chain & 20ft of Rope

• Manual Bilge Pump 1100 GPH

• Stainless Steel Floor Drains

MARINE GRADE ELECTRICAL SYSTEM

• Deutsch Electrical Connectors

• Battery Trays for 3 Batteries

• LED Navigation and Courtesy Lights

• LED Underwater Lights

• LED Livewell Ligh

Dealer Added Options:

• Dual Yamaha 300 intergrated steering 25in (white)
• Hull Color- Upper-Carolina
• hull Color- Lower-white
• Nauticstar Logo Package - Chrome
• White Powder Coat
• Top- Fiberglass Hull Upper Match - Powder Coat
• Anti-fatigue Helm Mat
• Leaning Post - Fiberglass w/ Livewell, Sink
• LeBroc Seat W/ Flip up Arms, & Bolsters
• Quited Upholstery - Shale Harbour
• Simrad - RS20 VHF Radio
• MFDD Direct Gauge Package
• Simrad - NSS12 EVO 3 - 12" Screen - Dual w/ Blackout

Trailer not included, new trailer quotes available separate.

Financing and nationwide delivery also available, all 2005 and newer model year trades considered.

Call for special dealer pricing and demo scheduling.
