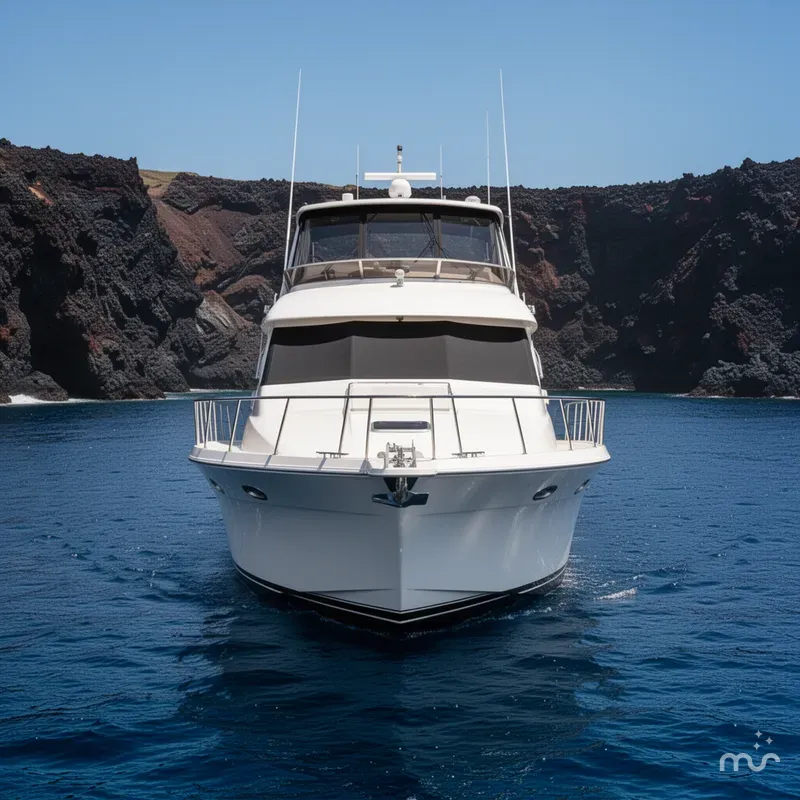

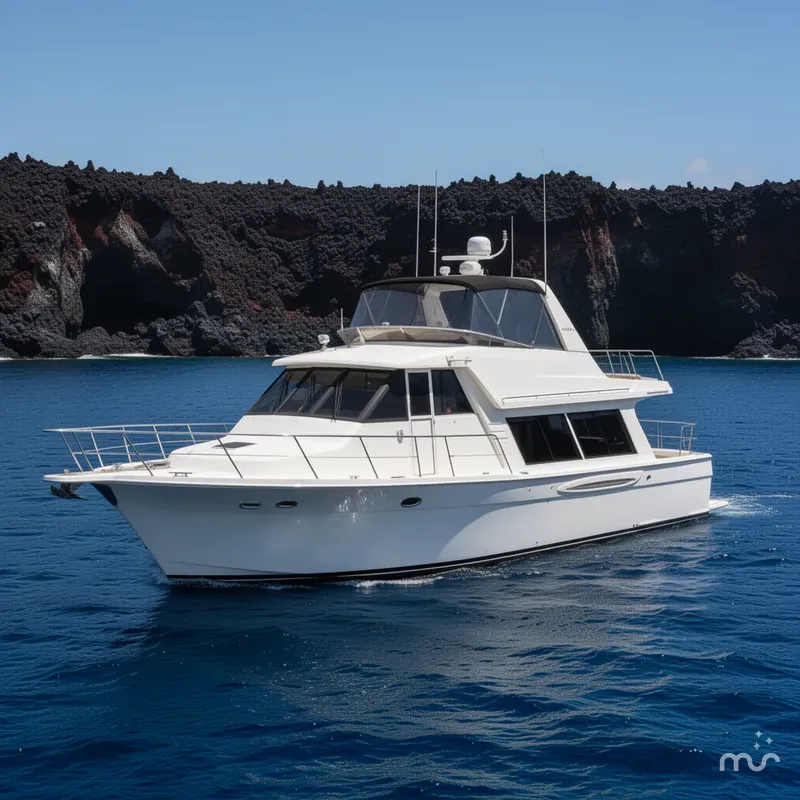

2005 Meridian 490 Pilothouse
$295,000
$315,000
Boat in Seattle, WA 98109 US
Built in 2005
490 Pilothouse
2 Engines (2x Cummins)
49 feet
Diesel
Fiberglass/Reinforced
Local fresh water kept, new Garmin electronics, new tender, clean as a whistle. Sidepower bow & stern thrusters with separate batteries and chargers.
Description from Power Boat Guide: One of the first Meridian yachts to be introduced, the 490 Pilothouse wasn't really a "new" model; she was originally marketed as the Bayliner 4788 Pilothouse. She became the Meridian 490 in 2003 when Bayliner went out of the big-boat business and Meridian Yachts was formed. The 490 was already a huge sales success before Meridian took over, having found the sweet spot in the market where price and value intersect. She continued her popularity as the 490 Pilothouse, remaining in production with Meridian for another six years before being retired from the fleet. Whether sold as a Bayliner or Meridian, the price of this yacht was always affordable when compared with competitive models. Her three-stateroom cherrywood interior features a spacious full-beam salon, big U-shaped galley, two full heads, and a raised pilothouse with flybridge access. The third stateroom, accessed from master stateroom, has a settee with hinged upper/lower berths allowing it to double as a dressing room. Note the companionway washer/dryer location. The extended flybridge easily stows a dinghy. Cruise at 20 knots with Cummins 330hp diesels.
- Anchor Windlass: Electric deck winch / Muir Courgar / 12VDC
- Anchor Details: New Rocna galvanized steel fluke type
- Anchor Chain & Rode: Galvanized steel chain & nylon anchor rode
- Dinghy/Tender: New 2025 AB 11’ RIB / Rigid Inflatable tender / Aluminum hull bottom w/ inflatable hull sides
- Dinghy/Tender Electronics: Garmin 400C Depth sounder / GPS / Plotter / Fishfinder / 12VDC
- Davit Description: Flybridge mounted 800 lb crane powered by 12VDC electric winch
- All-new Sunbrella exterior cushions and canvas
- Number of Engines: 2
- Engines Manufacturer: Cummins
- Engine(s) Model: 6BTA5.9-M3
- Engine(s) Description: 6 cylinder / turbocharged / aftercooled
- Engine(s) Displacement: 5.9L each
- Engine Hours: 1,150 each
- Fuel Type: Diesel
- Fuel Capacity: 444 gal
- Horsepower: 330
- Total Horsepower: 660
- Cooling: Fresh water cooling system
- Exhaust: Wet exhaust system
- Description: Straight-drive reduction gear transmission
- Gear Make: ZF Hurth Marine / ZF 80 A - 2.0
- Gear Ratio: 1.96 : 1
- System Type: Hydraulic propulsion control system
- Description: Four lever system / two stations
- Make: Hynautic
- Prop Type: 2X four-blade bronze
- Prop Rotation: Counter rotating / Rotation outboard
- Prop Size: Diameter 24” x Pitch 24”
- Shaft Type: 2” stainless steel
- Shaft Seal Type: PYI PSS / Dripless type
- Type: Hydraulic / Sea Star / 2 stations
- Rudders: 2X bronze spade type
- Rudder Seal: Packing gland type shaft seal
- Fuel Type: Diesel
- Fuel Tanks: 2X Aluminum
- Fuel Capacity: 444 gal total
- Tank Level Gauge: 2X analog tank level gauge / 12VDC
- Port Engine Fuel Filter: Racor 900 MA
- Stbd Engine Fuel Filter: Racor 900 MA
- Genset Fuel Filter: Parker Racor R12P
- Tanks Description: 2 tanks total - 1 plastic & 1 aluminum
- Fresh Water Capacity: 200 gal
- Tank Level Gauge: Analog / BEP Marine / 12VDC
- Fresh Water Pump: Electric / Flojet / 12VDC
- Water Heater: Electric / Whale / 120 VAC / 20 gal
- Description: USCG-approved Type III Marine Sanitation Device (MSD) black water holding tank system
- Tank Details: Plastic / E/R bilge
- Black Water Capacity: 48 gal
- Tank Level Gauge: Analog / BEP Marine / 12VDC
- Toilet Description: 2X Vacuum Flush / Fresh water / Vacuflush / 12VDC
- Electric Bilge Pump: (6 total) - 2X fwd bilge, 2X mid bilge, 2X aft bilge / 12VDC
- Gray Water Pump 1: Electric sump pump / grey water / Johnson / 12VDC
- Gray Water Pump 2: Electric diaphragm pump / grey water / Jabsco / 12VDC
- Deck Washdown Pump: Electric water pump, fresh water, Flojet, 12VDC
- Black Water Pump: Electric macerator pump / black water / Jabsco / 12VDC
- Heater Coolant Pump: Electric water pump / Coolant / MP Pumps / 12VDC
- System Voltage: 12VDC systems
- Battery Quantity: 13 total
- 12V Engine Start Batteries: (4 total) AGM
- 12V Generator: 1X 12V AGM
- 12V House: 8X 6V Interstate / Group GC2 / AGM / 896 amp hours
- Battery Charger: Xantrex XC5012 / Charger Function: 50 amp 12VDC
- Charger / Inverter: Outback Power Systems / Charger Function: 12VDC / Inverter Function: 120VAC
- System Voltage: 120VAC 60Hz
- Shore Power Inlet: 50A 125/250V shore power inlet receptacle / Marinco
- Shore Power Cable: 50A 125/250V Marine shore power cable / Marinco
- Power Distribution: 120VAC 60Hz circuit breaker panel
- Alternators: 2x 160 amp
- Diesel Furnace: Webasto SG 1553 12V hydraulic system
- Fuel Type: Diesel
- Make / Model: Onan / Cummins Power Generation
- Power Output: 9kW 120/240VAC 60Hz / 12VDC start voltage
- Engine Hours: 534
- GPS/Plotter: Garmin 1243xsv
- Garmin 7612
- Auto-Pilot/Depth Sounder/Heading: Garmin
- Magnetic Compass: 2X Danforth
- GPS Chart / Depth: Garmin GPSmap 12VDC
- Garmin 7616
- Garmin 7612
- Digital Depth: Garmin 12VDC
- Marine Radar: Garmin 12VDC
- Plotter/Radar: Garmin 1643xsv & Garmin 1243xsv
- VHF Radio: Standard Horizon 12VDC w/ new speaker
- Searchlight: Jabsco 12VDC
- Autopilot: Garmin Reactor 40 Hydraulic
- New refrigerator on flybridge
- Galley Refrigerator & Freezer: Norcold 12VDC or 120 VAC
- Galley Stovetop & Oven: Princess 120VAC
- Microwave: GE 120VAC
- Trash Compactor: GE Profile 120VAC
- Hydronic Heater: Webasto 12VDC + diesel
- Electric Heater: 4X King 120VAC
- Ice Maker (Salon): U-Line 120VAC
- Refrigerator & Ice Maker (Flybridge): U-Line 120VAC
- Washer & Dryer: New Splendide 120VAC
- Portable Refrigeration: Whynter 12VDC or 120VAC
- Staterooms: 3
- Heads: 2
- TV: Samsung smart TV 120VAC
- Stereo 1 (Salon): Bose with surround sound 120VAC
- Stereo 2 (Pilothouse/Flybridge/Back Deck): Clarion with new speakers 12VDC
- Starlink (hard wired)
- Personal Floatation Devices:
- 6X USCG Approved Type II PFD (Adult)
- 6X USCG Approved Type III PFD (Adult)
- Throwable PFD: 1X USCG Approved Type IV throwable PFD
- Handheld Fire Extinguishers: 5X Type A B C handheld fire extinguisher
- Sound Signaling Device: Electric horn 12VDC
- Emergency Distress Signals:
- 1X USCG Approved SOS distress signal light / night / battery-powered
- 1X USCG Approved orange distress signal flag / day / new condition
- 8X USCG Approved handheld distress signal flares / day & night
- 8X USCG Approved aerial distress signal flares / day & night
- Navigation Lights:
- Port sidelight / Color RED fwd facing / 12VDC
- Stbd sidelight / Color GREEN fwd facing / 12VDC
- Masthead light / Color WHITE fwd facing / 12VDC
- Stern light / Color WHITE aft facing / 12VDC
- Anchor Light / Color WHITE all-round / 12VDC
- Reboarding ladder: Swim platform mounted
- Carbon Monoxide Alarm: 3X / Safe-T-Alert / 12VDC
- Fire alarm system
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
Price History
| Date | Event | Price |
|---|---|---|
| 5/11/26 | Price decreased | $295,000(-6.3%) |
| 5/3/26 | Initial price | $315,000 |
2005 Meridian 490 Pilothouse Video Tours
Overview from around the web 2005 Meridian 490 Pilothouse
The 2005 Meridian 490 Pilothouse has garnered positive feedback from many boat enthusiasts and owners
Customers frequently praise its spacious layout, highlighting the comfortable living spaces that provide a home-like atmosphere on the water. The large windows in the pilothouse offer stunning views and ample natural light, making it an enjoyable environment for relaxing or navigating. Owners appreciate the functionality of the design, noting the well-equipped galley that features modern appliances, perfect for entertaining guests. The pilothouse's helm station is often described as user-friendly, with clear visibility and easy access to controls, enhancing the overall boating experience. Additionally, many reviews commend the boat's performance. Powered by twin diesel engines, the Meridian 490 Pilothouse provides a smooth and efficient ride, making it suitable for both leisurely cruising and more active boating adventures. The stability and handling characteristics are also noted as strong points. Durability and build quality are recurring themes in customer feedback, with many expressing confidence in the construction of the vessel. Overall, the 2005 Meridian 490 Pilothouse is celebrated for its combination of luxury, comfort, and performance, making it a popular choice among both new and experienced boaters.
Made For
The 2005 Meridian 490 Pilothouse is designed for boating enthusiasts who appreciate the perfect blend of luxury, performance, and functionality. Ideal for both seasoned mariners and newcomers to the cruising lifestyle, this vessel caters to those who value spacious and well-thought-out living spaces while navigating waterways in comfort. Those who enjoy long-distance cruising will find the 490 Pilothouse particularly appealing, thanks to its robust construction and efficient engine performance. The pilothouse design provides excellent visibility and protection from the elements, making it suitable for year-round boating in various weather conditions. Families and groups who love to entertain will appreciate the generous layout, featuring multiple social areas, including a large salon, expansive galley, and comfortable staterooms that ensure everyone has their own space. The exterior deck offers ample room for lounging and gathering, allowing for memorable experiences at sea. Lastly, this vessel is perfect for those who seek a sense of adventure while still enjoying the luxury of a well-appointed yacht. With its blend of elegance and practicality, the 2005 Meridian 490 Pilothouse invites you to explore new horizons with confidence and style.
Finance your dream boat!
Finance your dream boat!
Be the first to know when similar boats hit the market
Get notified when new boats become available
Boats For Sale in Washington, United States Similar to the 2005 Meridian 490 Pilothouse
Compare with similar boats and find the perfect one for you.
 2005 Meridian 490 Pilothouse | |||||
|---|---|---|---|---|---|
| $295,000 | $285,000 | $269,000 | $269,000 | $265,000 | $339,000 |
| Seattle | Seattle | Seattle | Shelton | Seattle | Seattle |
| 49' | 46' | 49' | 41' | 49' | - |
| 3' | - | - | - | - | - |
| Cummins | Cummins | Cummins | Cummins | Cummins | Volvo |
| 330 hp | 420 hp | 330 hp | 370 hp | 330 hp | 310 hp |
| 289 | 104 | 386 | 42 | 408 | 6 |

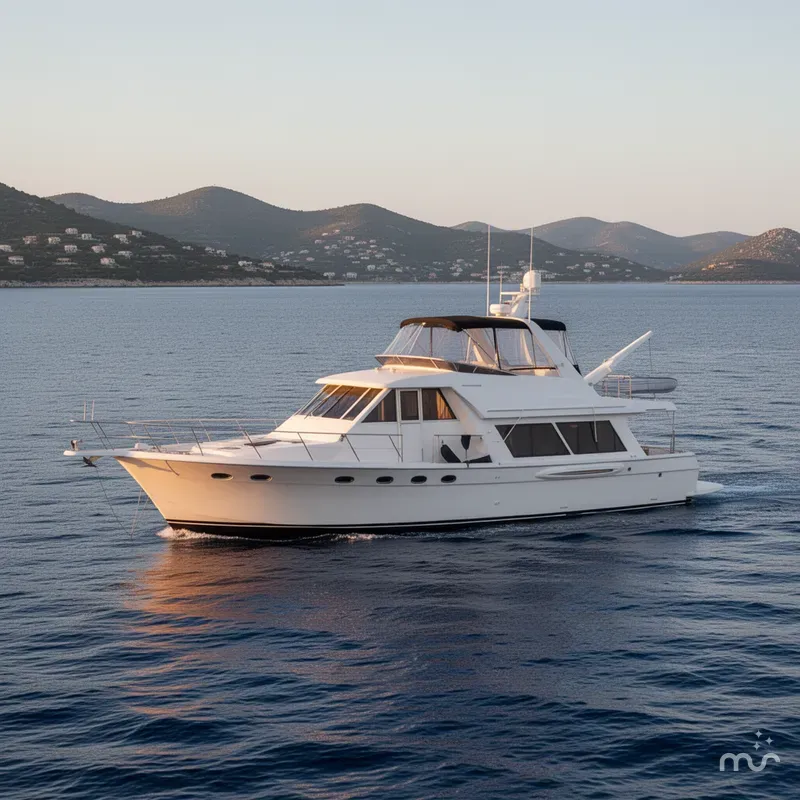

Other Meridian 490 Pilothouse boats for sale in Washington, United States

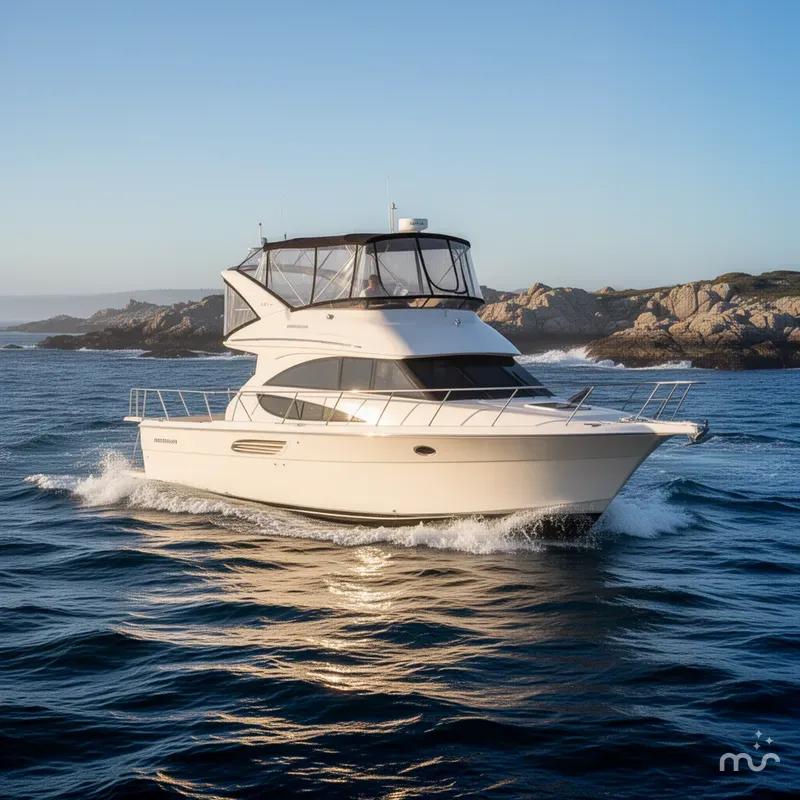

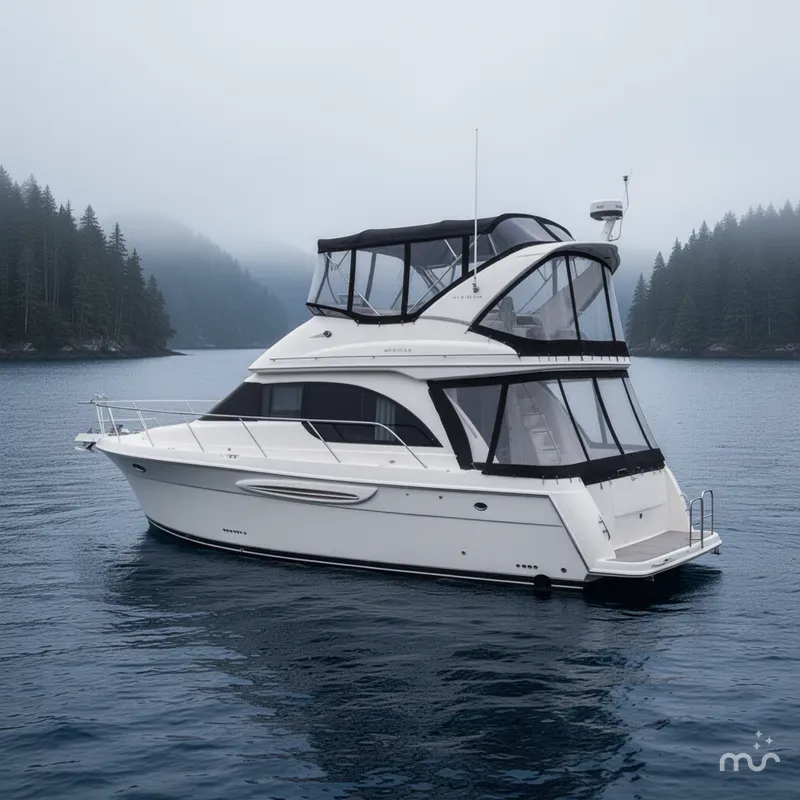

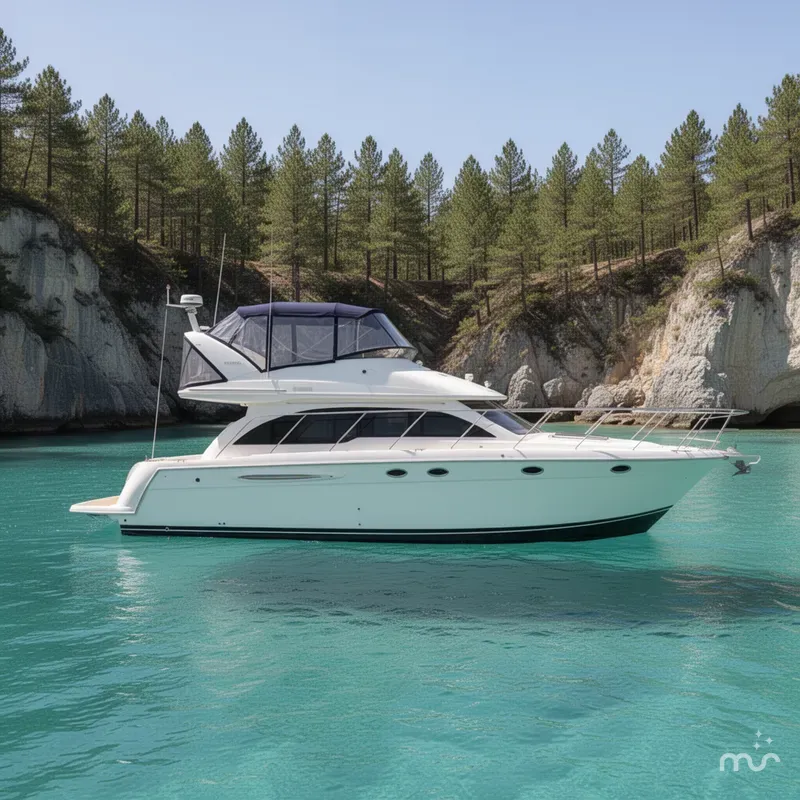

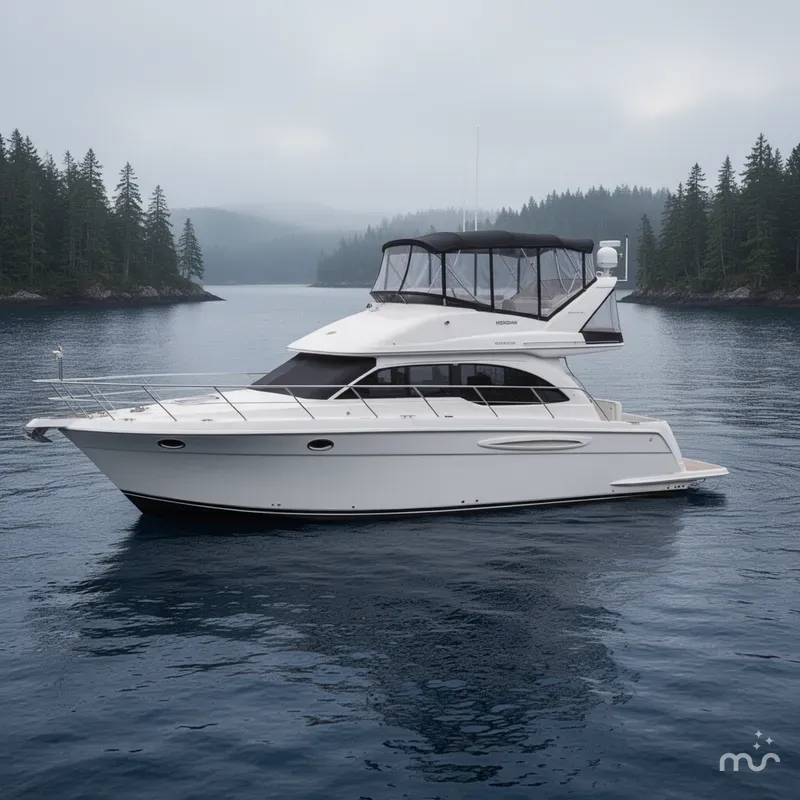

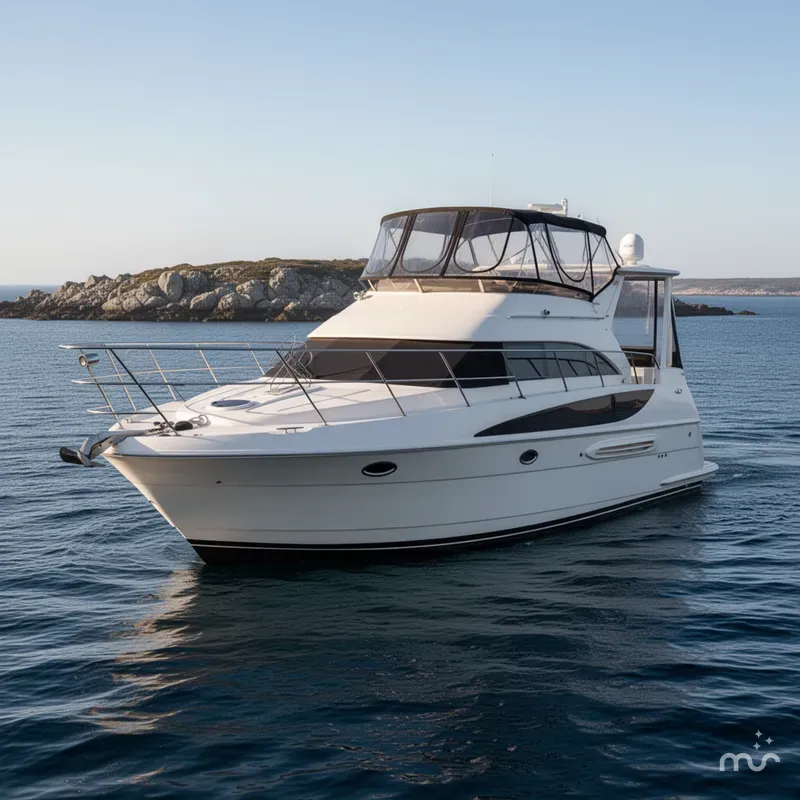

Other Meridian boats for sale in Washington, United States
