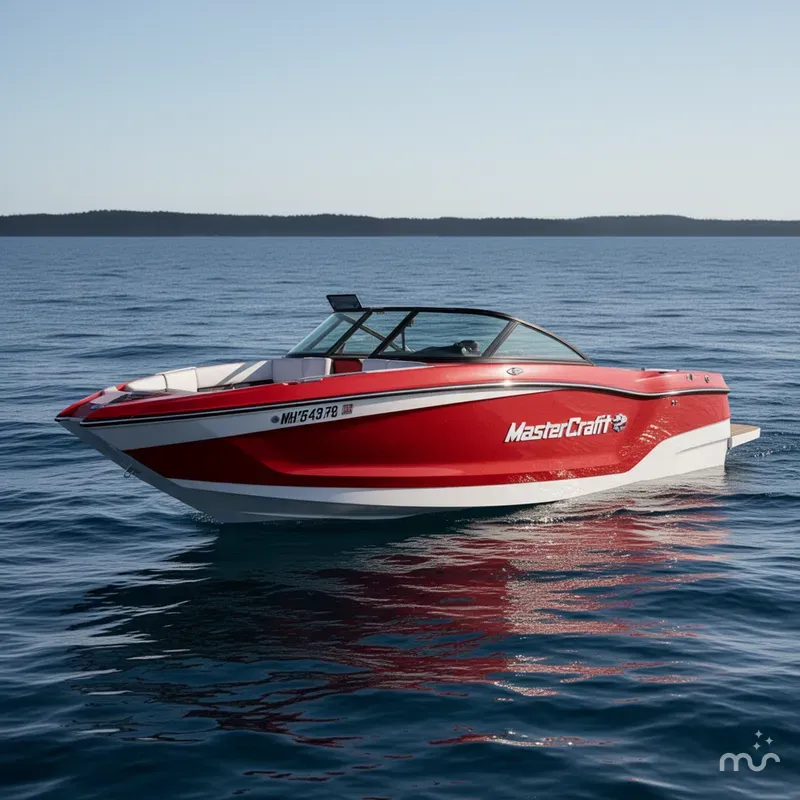

2020 MasterCraft X26 Sold Boat in Laconia, NH 03246 US
Built in 2020
X26
1 Engine (--)
26.4 feet
Gas
Fiberglass/Reinforced
Other MasterCraft boats for sale in New Hampshire, United States
This Beautiful 2020 Mastercraft X26 is powered by a 430hp Ilmore engine with low hours. This boat is loaded with a power ski tow tower, sea decking throughout, fridge, Simard GPS screen, heat vents, tower speakers, wake board racks, and many more options. This boat has a ton of seating for all your friends and family. The boat can be seen at our Laconia location.
2020 MasterCraft X26 Video Tours
MasterCraft X26: BoatTEST Review
Overview
The Mastercraft X26 represents the flagship and largest model in Mastercraft's X-Series lineup, designed as a luxury surf boat with yacht certification. Engineered with input from professional athletes, the X26 caters to wake riders of all skill levels by producing customizable waves suited for everyone on board. It features an advanced Gen 2 ballast system, enhanced power and control, multiple seating configurations, and an optional onboard head, making it well-equipped for extended wake riding sessions.
Ballast and Wake Technology
At the heart of the X26's wake performance is Mastercraft's Gen 2 ballast system, which includes five ballast tanks: hard tanks on the port and starboard sides, soft tanks also on both sides at the back, and a central switchback tank that allows water to flow evenly across the boat’s centerline. This design ensures balanced ballast distribution even while the boat is moving, producing consistently symmetrical wakes. The system adds over 4,000 pounds of ballast—equivalent to the weight of two Chevrolet Tahoes—significantly enhancing wake shaping capabilities. The ballast tanks are positioned close to the boat’s center of gravity, eliminating the need for bow tanks and allowing innovative design features in the bow area. Filling the ballast is managed by a fast fill system comprising six Johnson pumps, each delivering 30 gallons per minute, enabling a full fill in approximately four minutes. Complementing the ballast are surf devices (trim tabs) and a helm touchscreen for precise wave shaping, with six factory preset wake profiles including surf left or right (mellow and steep), max push, and kids waves.
Power and Performance
The X26 is powered by a newly introduced 430-horsepower Ilmor 6.2-liter GDI V8 marine engine paired with a 17.5 by 16.5-inch propeller. The boat measures 28 feet 5 inches in length overall, with a beam of 8 feet 6 inches and a draft of 2 feet 6 inches. During testing, the boat demonstrated a top speed of 37.3 miles per hour at 5,600 RPM. Fuel endurance was evaluated at three speeds relevant to wake sports: at 18.7 mph (3,500 RPM), endurance was 8.2 hours; at 12.7 mph (3,000 RPM), 11.3 hours; and at 10.6 mph (2,500 RPM), 16.8 hours. The most economical cruise speed was 25.7 mph at 4,000 RPM, achieving 1.8 miles per gallon. Handling tests conducted with an empty ballast system showed the X26 to be responsive and stable during slow and hard turns, with smooth wake crossing and minimal hull shock even in choppy conditions. Freeboard measurements were 2 feet 10 inches at the bow, 3 feet 3 inches amidships, and 2 feet 9 inches at the transom, with a 16-inch rudder contributing to precise maneuverability.
Exterior Design and Deck Layout
The elimination of bow ballast tanks enabled Mastercraft to innovate the bow design, featuring a portside walkthrough and a distinctive pickle fork bow shape. This configuration creates a spacious C-shaped seating layout with a large bow sun pad formed by an optional filler cushion. The bow area includes integrated speakers, drink holders, grab rails, ample storage beneath the seats, and a dedicated anchor locker beneath the front cushion. The bow also serves as an additional entry and exit point, with inputs installed for an optional canopy. The cockpit area benefits from yacht certification with abundant seating, including a convertible companion seat that transitions into an aft-facing chaise and an aft bench that converts into a spotter seat. The flooring is finished with Mastercraft’s Decadence material, and the swim platform is treated with SeaDec for durability and features built-in handholds for water access.
Helm and Controls
The helm is positioned on the starboard side with a simplified, ergonomic design. It features a digital instrumentation panel and a portrait-style dual touchscreen display that provides information tailored to five driving profiles: drive, surf, wake, ski, and chill. Each profile changes the display’s theme and data readout, including speed, ballast status, air and water temperatures, and rear camera views. The helm includes a tilt-mounted, rubberized steering wheel, an anti-glare vinyl dashboard, and conveniently located controls such as the engine start button, bow thruster, and ballast and trim tab management. The throttle arm is mounted to starboard, and the helm chair is fully adjustable and comfortable. Additional features include an adjustable rearview mirror and a walkthrough wind dam on the port side.
Interior Amenities and Audio
Mastercraft has paid close attention to detail and ergonomics throughout the X26. Seating surfaces are upholstered with cool-feel vinyl featuring a unique custom-stitched pattern exclusive to the X-Series. Storage compartments are strategically placed beneath seats, and the cockpit includes a refrigerator drawer and a cooler. The boat is equipped with a premium plus audio system comprising 14 speakers, including four mounted on the collapsible tower. The tower also features swiveling and clamping board racks, a tow pylon with a swiveling GoPro mount for capturing action shots, and an integrated aft-facing camera viewable from the helm.
Private Accommodations and Additional Features
A notable innovation in the X26 is the inclusion of an optional head compartment located to the left of the helm. By removing the centerline walkthrough and forward ballast sacks, Mastercraft created space for a comfortable head featuring a vacu-flush toilet, sink, counter space, and 4.5 feet of headroom. Engine access is provided beneath the aft hatch, with the engine centrally located and ballast bags positioned on either side. A unique feature for colder days is a PFD warmer that uses engine heat to warm life jackets. Fuel fills are located midships on both sides. Optional transom lounge seats enhance comfort and functionality at anchor or when staging, each with individual headrests and grab handles. The Gen 2 ballast bags are accessible beneath these seats, and a step with drink holders and audio controls is situated between them.
Conclusion
The Mastercraft X26 combines innovative ballast technology, powerful performance, and thoughtful design to deliver a versatile and luxurious wake boat experience. Its unique bow layout and spacious seating provide a dayboat feel, while its advanced wake-shaping systems cater to riders of all skill levels. Premium materials and attention to ergonomic details throughout the boat enhance comfort and usability. With its yacht certification and comprehensive feature set, the X26 stands out as a serious contender in both the wake boat and dayboat markets, appealing to customers seeking high performance and luxury in one package.
Overview from around the web 2020 MasterCraft X26
The 2020 MasterCraft X26 has received enthusiastic feedback from customers for its exceptional performance, luxurious features, and innovative design
Owners often highlight the boat's versatility, noting it excels in a variety of activities, from wakeboarding and waterskiing to cruising with family and friends. The powerful engine delivers impressive speed and smooth handling, making it a favorite for thrill-seekers and leisure boaters alike. The spacious interior is another standout feature, providing ample seating and storage for gear, making it ideal for long days on the water. Customers appreciate the high-quality materials and attention to detail found throughout the boat, enhancing both comfort and aesthetics. Many users also commend the user-friendly technology and controls, which make operating the boat a breeze, whether you’re a seasoned pro or a newcomer to boating. The advanced sound system adds to the overall experience, allowing for unforgettable days spent on the water with your favorite tunes. Overall, the 2020 MasterCraft X26 consistently garners positive reviews for its blend of performance, comfort, and style, making it a top choice for those seeking an exceptional boating experience.
Made For
The 2020 MasterCraft X26 is designed for those who seek the ultimate in performance and comfort on the water. Whether you're a serious wakeboarder, a waterskiing enthusiast, or someone who simply enjoys luxurious days spent on the lake, the X26 caters to all. Its spacious layout accommodates families and groups, making it perfect for social gatherings or family outings. With advanced technology and innovative features, the X26 is ideal for those who appreciate precision and quality in their boating experience. Its powerful engine and superior hull design ensure an exhilarating ride, whether you're carving through waves or enjoying a smooth cruise. The integrated audio system and versatile seating configurations enhance relaxation and entertainment. If you value craftsmanship, versatility, and top-notch performance, the 2020 MasterCraft X26 is the perfect vessel for creating unforgettable memories on the water.
