2017 MasterCraft X26
$115,000
$119,500
Boat in Issaquah, WA 98027 US
Built in 2017
X26
1 Engine (ILMOR)
26 feet
Gas
Fiberglass/Reinforced
Price History
| Date | Event | Price |
|---|---|---|
| 5/11/26 | Price decreased | $115,000(-3.8%) |
| 3/8/26 | Price decreased | $119,500(-0.4%) |
| 3/7/26 | Price decreased | $119,963(-1.7%) |
| 1/22/26 | Price increased | $122,000(+1.7%) |
| 1/21/26 | Price increased | $120,000(+1.7%) |
| 11/16/25 | Price decreased | $118,000(-4.1%) |
| 11/8/25 | Price increased | $123,000(+2.5%) |
| 11/7/25 | Price decreased | $120,000(-7.7%) |
| 11/2/25 | Price decreased | $129,990(-3.7%) |
| 10/20/25 | Price decreased | $134,990(-3.4%) |
| 8/24/25 | Price increased | $139,700(+3.5%) |
| 7/13/25 | Price decreased | $135,000(-2.9%) |
| 6/28/25 | Initial price | $139,000 |
Videos from Union Marine (Issaquah Store) on this 2017 MasterCraft X26
2017 MasterCraft X26 Video Tours
Boattest.com Review
Overview
The Mastercraft X26 represents the flagship and largest model in Mastercraft's X-Series lineup, designed as a luxury surf boat with yacht certification. Engineered with input from professional athletes, the X26 caters to wake riders of all skill levels by producing customizable waves suited for everyone on board. It features an advanced Gen 2 ballast system, enhanced power and control, multiple seating configurations, and an optional onboard head, making it well-equipped for extended wake riding sessions.
Ballast and Wake Technology
At the heart of the X26's wake performance is Mastercraft's Gen 2 ballast system, which includes five ballast tanks: hard tanks on the port and starboard sides, soft tanks also on both sides at the back, and a central switchback tank that allows water to flow evenly across the boat’s centerline. This design ensures balanced ballast distribution even while the boat is moving, producing consistently symmetrical wakes. The system adds over 4,000 pounds of ballast—equivalent to the weight of two Chevrolet Tahoes—significantly enhancing wake shaping capabilities. The ballast tanks are positioned close to the boat’s center of gravity, eliminating the need for bow tanks and allowing innovative design features in the bow area. Filling the ballast is managed by a fast fill system comprising six Johnson pumps, each delivering 30 gallons per minute, enabling a full fill in approximately four minutes. Complementing the ballast are surf devices (trim tabs) and a helm touchscreen for precise wave shaping, with six factory preset wake profiles including surf left or right (mellow and steep), max push, and kids waves.
Power and Performance

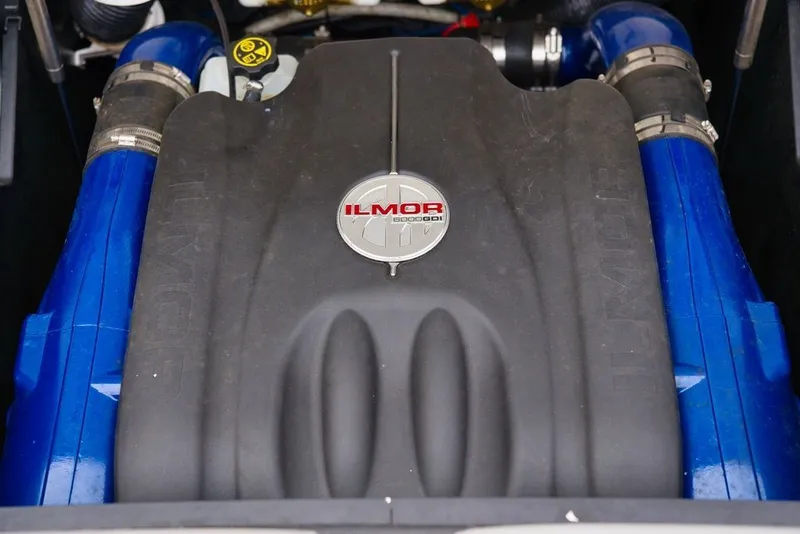

The X26 is powered by a newly introduced 430-horsepower Ilmor 6.2-liter GDI V8 marine engine paired with a 17.5 by 16.5-inch propeller. The boat measures 28 feet 5 inches in length overall, with a beam of 8 feet 6 inches and a draft of 2 feet 6 inches. During testing, the boat demonstrated a top speed of 37.3 miles per hour at 5,600 RPM. Fuel endurance was evaluated at three speeds relevant to wake sports: at 18.7 mph (3,500 RPM), endurance was 8.2 hours; at 12.7 mph (3,000 RPM), 11.3 hours; and at 10.6 mph (2,500 RPM), 16.8 hours. The most economical cruise speed was 25.7 mph at 4,000 RPM, achieving 1.8 miles per gallon. Handling tests conducted with an empty ballast system showed the X26 to be responsive and stable during slow and hard turns, with smooth wake crossing and minimal hull shock even in choppy conditions. Freeboard measurements were 2 feet 10 inches at the bow, 3 feet 3 inches amidships, and 2 feet 9 inches at the transom, with a 16-inch rudder contributing to precise maneuverability.
Exterior Design and Deck Layout

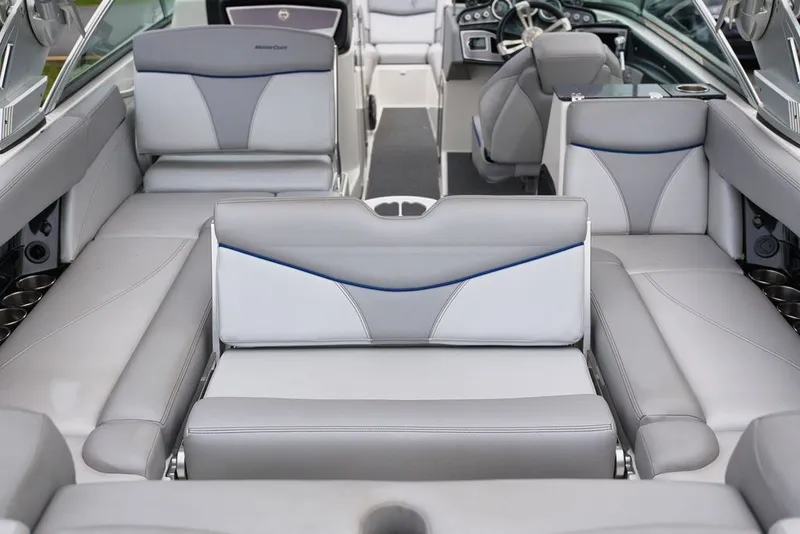

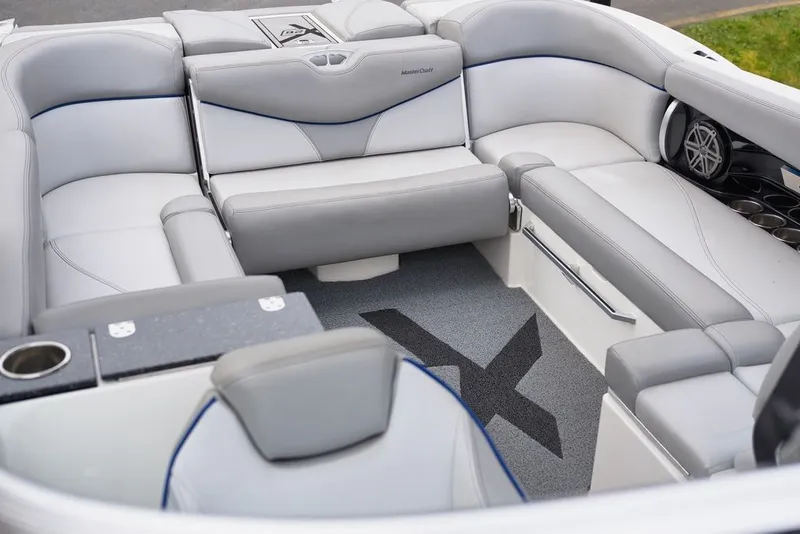

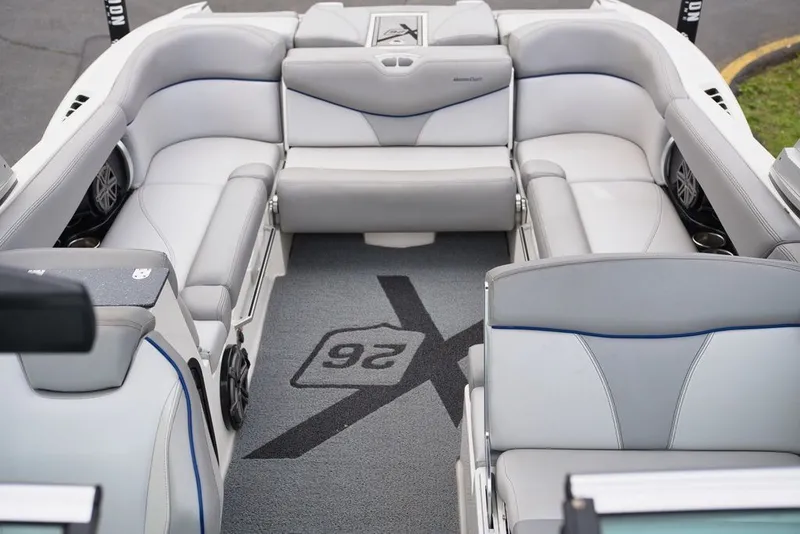

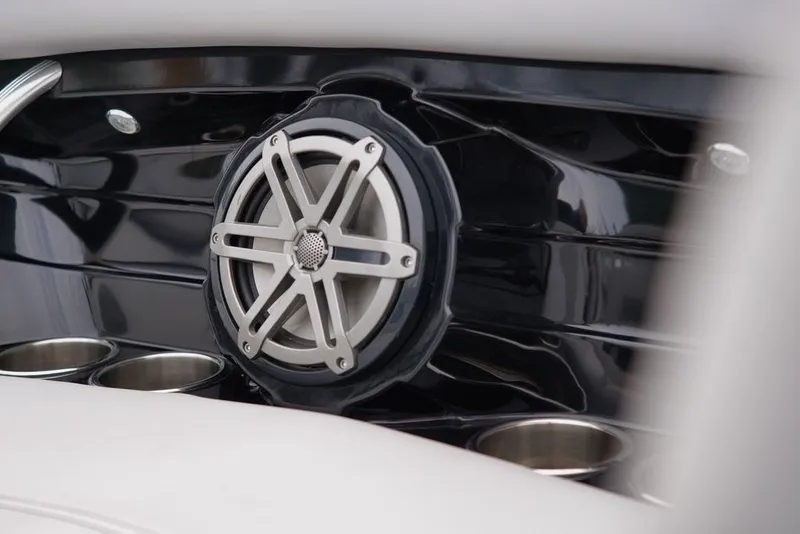

The elimination of bow ballast tanks enabled Mastercraft to innovate the bow design, featuring a portside walkthrough and a distinctive pickle fork bow shape. This configuration creates a spacious C-shaped seating layout with a large bow sun pad formed by an optional filler cushion. The bow area includes integrated speakers, drink holders, grab rails, ample storage beneath the seats, and a dedicated anchor locker beneath the front cushion. The bow also serves as an additional entry and exit point, with inputs installed for an optional canopy. The cockpit area benefits from yacht certification with abundant seating, including a convertible companion seat that transitions into an aft-facing chaise and an aft bench that converts into a spotter seat. The flooring is finished with Mastercraft’s Decadence material, and the swim platform is treated with SeaDec for durability and features built-in handholds for water access.
Helm and Controls
The helm is positioned on the starboard side with a simplified, ergonomic design. It features a digital instrumentation panel and a portrait-style dual touchscreen display that provides information tailored to five driving profiles: drive, surf, wake, ski, and chill. Each profile changes the display’s theme and data readout, including speed, ballast status, air and water temperatures, and rear camera views. The helm includes a tilt-mounted, rubberized steering wheel, an anti-glare vinyl dashboard, and conveniently located controls such as the engine start button, bow thruster, and ballast and trim tab management. The throttle arm is mounted to starboard, and the helm chair is fully adjustable and comfortable. Additional features include an adjustable rearview mirror and a walkthrough wind dam on the port side.
Interior Amenities and Audio

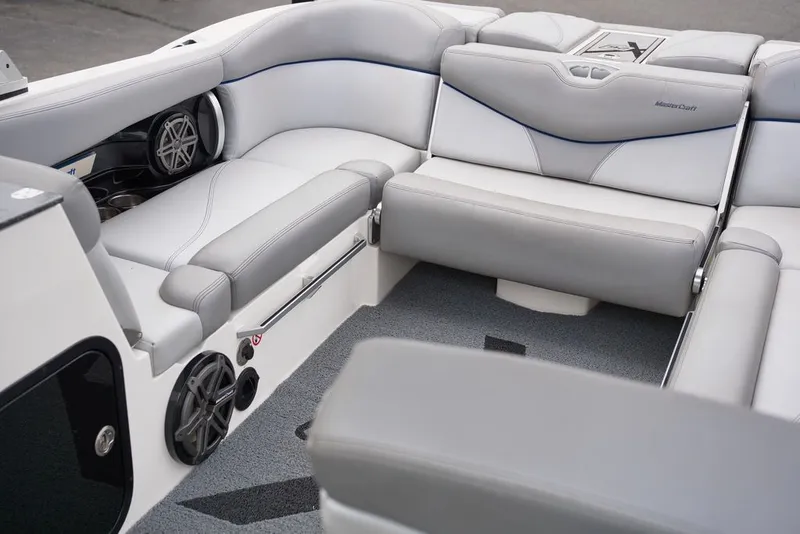

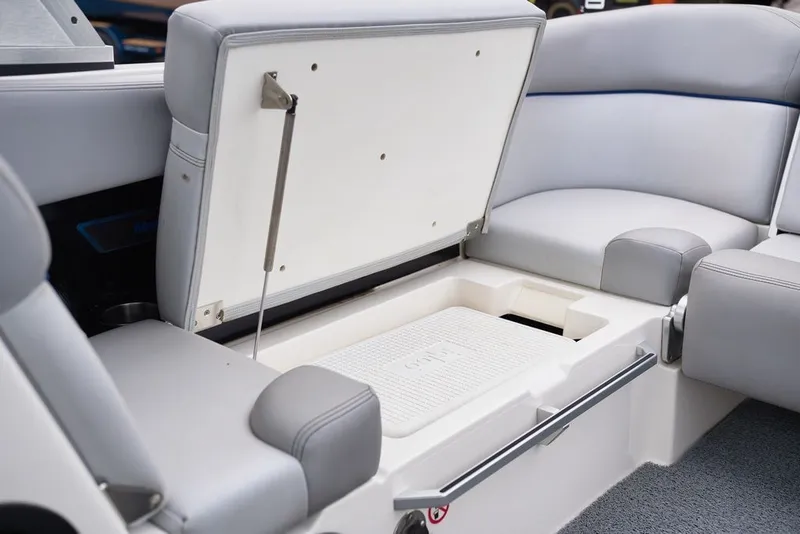

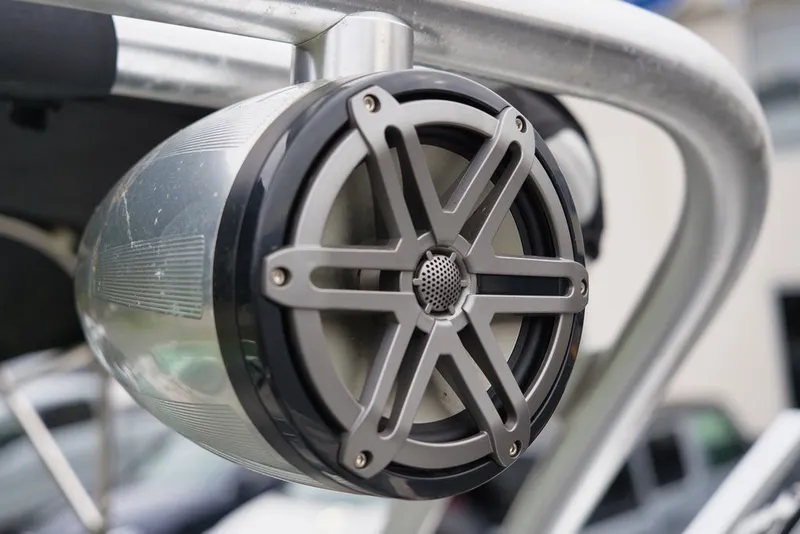

Mastercraft has paid close attention to detail and ergonomics throughout the X26. Seating surfaces are upholstered with cool-feel vinyl featuring a unique custom-stitched pattern exclusive to the X-Series. Storage compartments are strategically placed beneath seats, and the cockpit includes a refrigerator drawer and a cooler. The boat is equipped with a premium plus audio system comprising 14 speakers, including four mounted on the collapsible tower. The tower also features swiveling and clamping board racks, a tow pylon with a swiveling GoPro mount for capturing action shots, and an integrated aft-facing camera viewable from the helm.
Private Accommodations and Additional Features

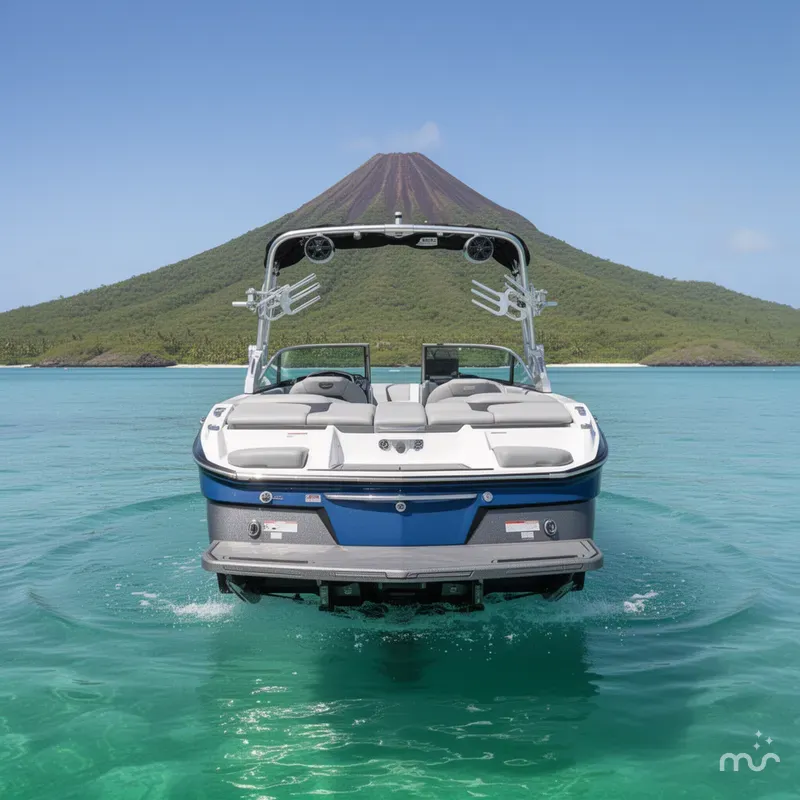

A notable innovation in the X26 is the inclusion of an optional head compartment located to the left of the helm. By removing the centerline walkthrough and forward ballast sacks, Mastercraft created space for a comfortable head featuring a vacu-flush toilet, sink, counter space, and 4.5 feet of headroom. Engine access is provided beneath the aft hatch, with the engine centrally located and ballast bags positioned on either side. A unique feature for colder days is a PFD warmer that uses engine heat to warm life jackets. Fuel fills are located midships on both sides. Optional transom lounge seats enhance comfort and functionality at anchor or when staging, each with individual headrests and grab handles. The Gen 2 ballast bags are accessible beneath these seats, and a step with drink holders and audio controls is situated between them.
Conclusion
The Mastercraft X26 combines innovative ballast technology, powerful performance, and thoughtful design to deliver a versatile and luxurious wake boat experience. Its unique bow layout and spacious seating provide a dayboat feel, while its advanced wake-shaping systems cater to riders of all skill levels. Premium materials and attention to ergonomic details throughout the boat enhance comfort and usability. With its yacht certification and comprehensive feature set, the X26 stands out as a serious contender in both the wake boat and dayboat markets, appealing to customers seeking high performance and luxury in one package.
Overview from around the web 2017 MasterCraft X26
Customers praise the 2017 MasterCraft X26 for its exceptional performance and versatility on the water
Many highlight its powerful engine and innovative Surf System, which creates perfect waves for wakeboarding and surfing enthusiasts. The spacious and comfortable interior, combined with high-quality materials and thoughtful design, receives positive remarks for accommodating families and groups with ease. Users also appreciate the advanced technology features, such as the intuitive touchscreen controls and premium audio system, which enhance the overall boating experience. Overall, the 2017 MasterCraft X26 is celebrated for delivering a smooth, exhilarating ride with top-notch craftsmanship and style.
The Biggest Pros and Cons
The 2017 MasterCraft X26 is a high-performance luxury wake boat known for its innovative features and exceptional ride quality. Here are some of the pros and cons of this model:
Pros
Outstanding Wake and Surf Quality: The X26 is designed with MasterCraft’s patented Surf System, allowing for customizable wake shapes and sizes, ideal for wakeboarding, wakesurfing, and other water sports.
Powerful Engine: Equipped with a robust inboard engine delivering plenty of horsepower, the X26 offers strong acceleration and excellent top-end performance.
Luxurious and Spacious Interior: The boat features premium materials, comfortable seating, and ample space for passengers, making it great for entertaining and family outings.
Advanced Technology: Comes with a user-friendly touchscreen control system for managing ballast, surf settings, audio, and other onboard features.
Smooth Ride: The hull design and advanced suspension system provide a smooth and stable ride even in choppy water conditions.
Customization Options: Offers various customization packages, including upgraded audio systems, color schemes, and additional comfort features.
Cons
Price Point: The X26 is positioned in the premium market segment, which means a higher purchase price compared to some competitors.
Fuel Consumption: Due to its powerful engine and size, the boat can be less fuel-efficient, leading to higher operating costs.
Size and Maneuverability: Its larger size may make docking and maneuvering in tight spaces more challenging for less experienced boaters.
Maintenance Costs: Luxury features and advanced technology can lead to higher maintenance and repair expenses over time.
Made For
The 2017 MasterCraft X26 is designed for serious water sports enthusiasts who demand top-tier performance, luxury, and versatility. Ideal for wakeboarders, wakesurfers, and skiers looking to elevate their experience, this boat offers advanced technology, powerful engine options, and customizable features to create the perfect wake. Whether you're a competitive athlete or someone who enjoys spending quality time on the water with family and friends, the X26 delivers exceptional comfort, style, and cutting-edge innovation to meet your boating and watersports needs.
