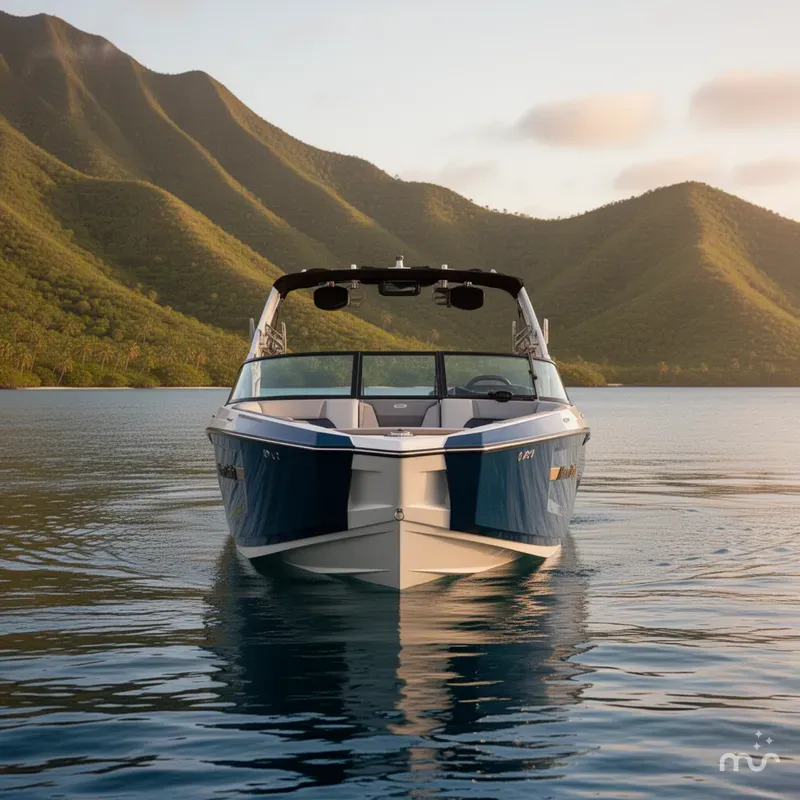

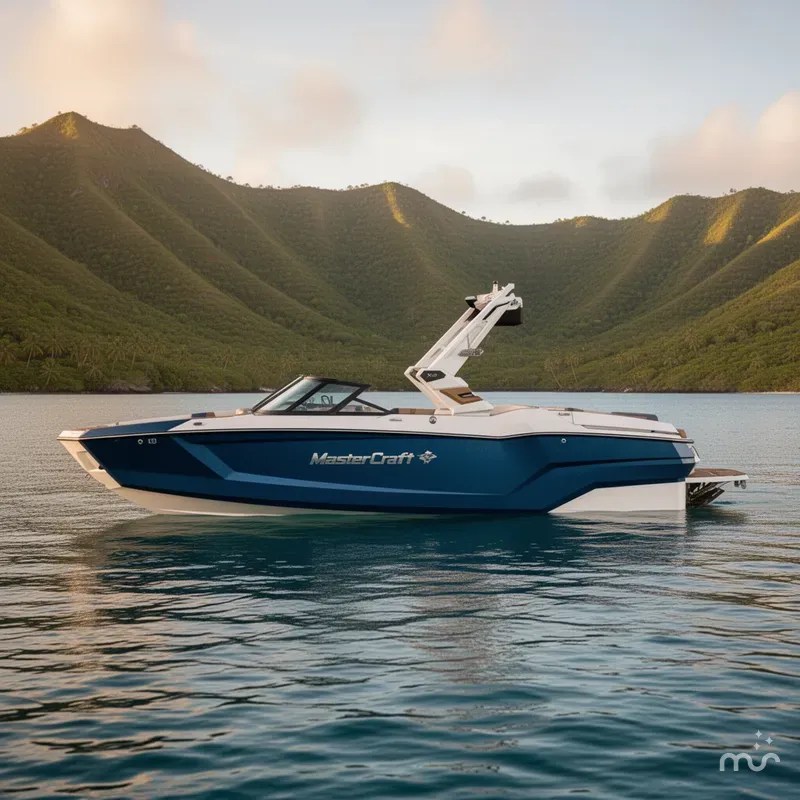

2026 MasterCraft X24
Price on request
Boat in Wolfeboro, NH 03894 US
Built in 2026
X24
1 Engine (--)
24 feet
Gas
Other
2026 MasterCraft X24 Video Tours
Boattest.com Review
Overview
The Mastercraft X-24 is a premium towboat that represents the first model in the company's redesigned X-Series, evolving from the award-winning X-23. This new series features a comprehensive overhaul in terms of features, functionality, hull design, and wake performance, aiming to deliver versatile wave characteristics suitable for both elite athletes and beginners.
Wake and Ballast System
Central to the X-24's performance is its advanced Gen 2 surf system, which includes a six-ballast fast fill configuration. This system comprises one forward hard ballast tank, two aft hard tanks, two aft bags positioned above those tanks, and an innovative switchback tank that enables lateral ballast distribution for symmetrical wake formation. The ballast is managed by seven Johnson pumps, each capable of pumping 30 gallons per minute, allowing the boat to add approximately 4,300 pounds of ballast in under four minutes. Adjustable surf tabs at the stern control the wake profile, with independent left and right settings and a central attitude adjustment tab to manage bow rise, compensating for internal weight variations. All ballast and surf settings, along with GPS speed, are controlled via a seven-inch touchscreen at the helm, allowing operators to select from factory presets or customize wake parameters for specific riders with ease.
Power and Performance
The X-24 is powered by a single 430-horsepower Ilmor 6.2-liter GDI V8 engine. Its dimensions include a length overall of 26.2 feet, a beam of 8 feet 6 inches, and a draft of 2 feet 6 inches. The hull geometry has been refined to provide a deeper water entry, enhancing wake size. Performance testing revealed an endurance ranging from approximately 6.9 hours at 21.8 miles per hour (3,500 RPM) to 13.2 hours at 10.6 miles per hour (2,500 RPM). The top speed recorded was 38.2 miles per hour at 5,600 RPM, with the most economical cruising speed at 27 miles per hour (4,000 RPM). Acceleration was brisk, with a time to plane of 3.2 seconds, 0 to 20 mph in 4.8 seconds, and 0 to 30 mph in 7.2 seconds. Handling was responsive and smooth, with a three and a half turn lock-to-lock steering ratio and a 16-inch rudder, providing stable and predictable maneuvering even with full ballast.
Exterior Design and Deck Layout
The X-24 features a U-shaped bow finished in a tritone color scheme, complementing its modern aesthetic. The cockpit and deck areas continue the tri-tone vinyl upholstery theme with custom hand-stitching unique to the X-Series. Seating is abundant and versatile, accommodating up to 18 passengers with forward-facing chaise seats at the bow and wraparound corner seats in the cockpit that convert to aft-facing chaise lounges. Storage is ample, including a 62-inch compartment under the port-side seating for longer boards and a 36-quart cooler beneath the starboard bench. The cockpit flooring options include C-deck or color-matched decadence flooring. The swim platform is also C-deck treated and features built-in handholds and a 22-inch retractable swim ladder for easy water access. The premium tower includes an integrated bimini, two hanging speakers, clamping board racks, and a center tow pylon, with an optional camera mount available.
Helm and Controls
The helm is positioned to starboard and features a vinyl-wrapped dash with a tilt-mounted steering wheel. Instrumentation includes recessed analog gauges set in billet aluminum, complemented by a 7-inch touchscreen interface for controlling ballast, surf settings, and other boat functions. Manual switches provide redundancy in case of touchscreen failure. Additional helm amenities include a phone holder, drink holders, engine key, and shifter. The main battery shutoff and breaker panel are conveniently located to the left of the helm. The boat incorporates Mastercraft's BTS windshield design, favored by water sport enthusiasts for improved communication with individuals in the water and ease of docking. The windshield sides are rounded and finished with aluminum billets that double as grab handles, and a securely fitting wind dam is included.
Interior and Storage Features
The interior layout maximizes space through a pickle fork design, providing larger seating areas and storage compartments. Forward compartments include dedicated anchor storage, while the cockpit houses multiple storage areas beneath seating. The top storage locker creatively functions as a personal flotation device warmer by utilizing engine heat. The aft-facing bench converts into a spotter seat or a large lounging area with an optional filler cushion, and a tow pylon can be installed in this area. Additional storage and utility spaces beneath companion seating accommodate batteries, a fire extinguisher, a trash receptacle, and the tow pylon base.
Conclusion
The Mastercraft X-24 is a thoughtfully engineered towboat that blends advanced ballast and wake-shaping technologies with refined power and handling characteristics. Its versatile wake profiles cater to a wide range of water sport enthusiasts, from beginners to professional athletes. The spacious and well-appointed interior, combined with practical storage solutions and premium exterior features, make the X-24 well-suited for extended days on the water. Overall, it delivers a compelling package for those seeking high performance and comfort in a modern towboat.
Overview from around the web 2026 MasterCraft X24
Customers are raving about the 2026 MasterCraft X24, highlighting its exceptional combination of performance, comfort, and innovation
Many users appreciate the spacious and luxurious interior, which offers ample seating and storage, making it perfect for families and groups. The versatility of the X24 is also a frequent topic of praise, with enthusiasts noting its excellent wakeboarding and surfing capabilities, thanks to advanced hull design and customizable wake features. Boat owners have also commended the intuitive controls and cutting-edge technology, like the advanced infotainment system and customizable touchscreen displays, which enhance the overall boating experience. The powerful engine options and responsive handling are frequently mentioned, allowing for thrilling rides while ensuring stability on the water. Overall, customers are impressed with the attention to detail and craftsmanship that MasterCraft has put into the X24, making it a standout choice for those seeking a premium boating experience.
Made For
The 2026 MasterCraft X24 is designed for those who crave adventure and demand versatility on the water. This boat is perfect for families and friends who enjoy spending time together, whether it be wakeboarding, waterskiing, or simply cruising in style. With its spacious seating capacity, luxurious finishes, and advanced technology, the X24 caters to both novice and experienced boaters alike. For thrill-seekers, the powerful engine options and cutting-edge surf system deliver exhilarating performance and impressive wave creation, making it an ideal choice for serious wake surfers. Additionally, the X24’s user-friendly controls and customizable settings allow everyone from beginners to experts to tailor their ride to their individual preferences. Whether you're planning an action-packed day on the lake or a relaxed sunset cruise, the 2026 MasterCraft X24 is built for those who demand nothing but the best from their boating experience. Its perfect blend of performance, luxury, and technology ensures unforgettable moments on the water for everyone onboard.
