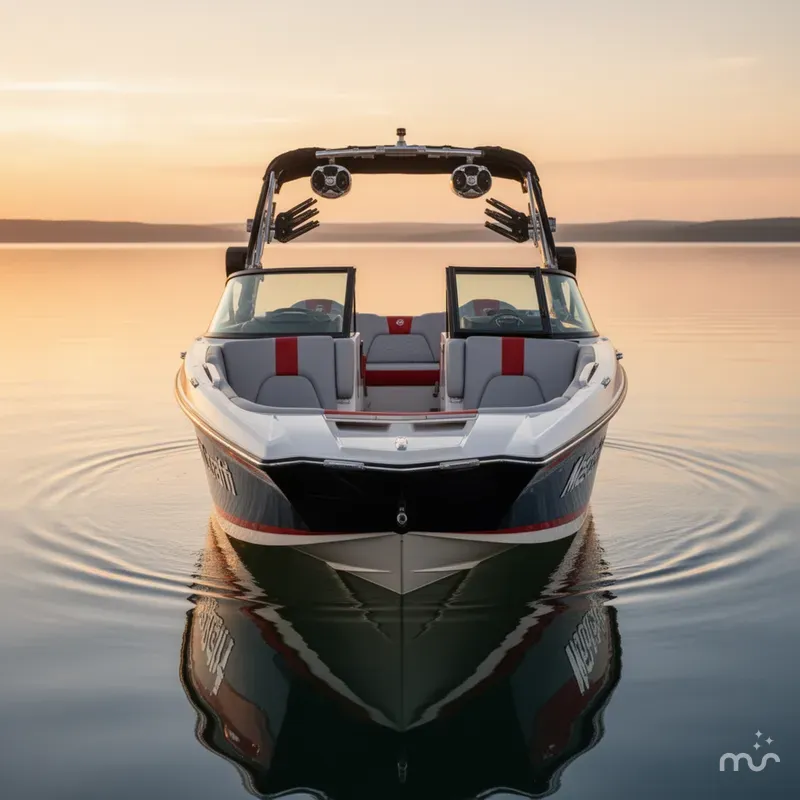

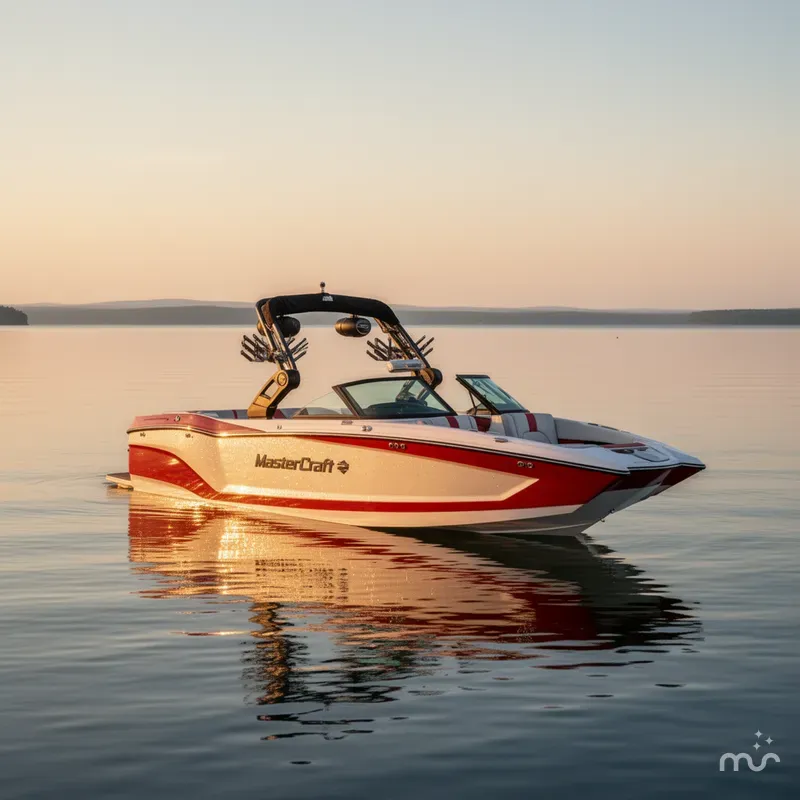

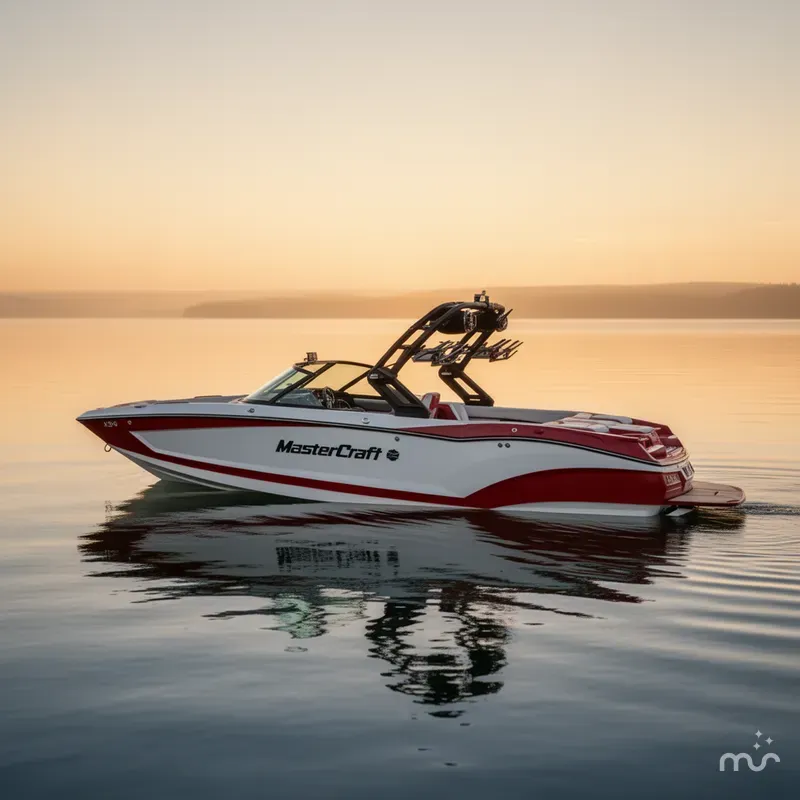

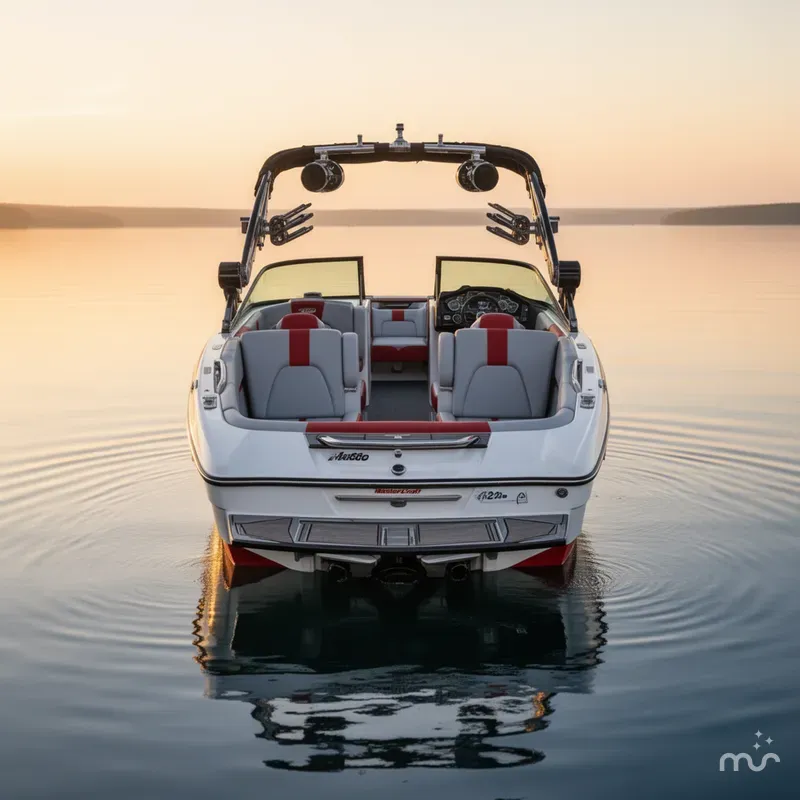

2024 MasterCraft X24 Boat in Osage Beach, MO 65065 US
Built in 2024
X24
1 Engine (Ilmor)
24.2 feet
Gas
Fiberglass/Reinforced
The X24-where power and performance meet refinement and poise. From bow to stern, the X24 offers only the best. From world-class wakes and waves to the most plush and premium comfort and an unrivaled fit-and-finish, the X24 is the most premium 24' model in the industry. Offering plenty of room for 18 people, an available Supercharged 6.2L engine, and 4,300 pounds of ballast, the X24 is loaded up to entertain, impress, and outperform on every level.
Features may include:
STUNNING STYLE
- Experience the exceptional level of fit-and-finish that is synonymous with MasterCraft. With our signature pickle fork bow, higher freeboard, and stunning style lines, the X24 provides the smoothest ride in its segment with eye-catching design details. And with CoolFeel, you can opt for rich colors like Jet Black or Coconut Brown and keep up to 30% cooler than traditional upholstery even on the hottest days.
DYNAMIC PERFORMANCE
- The X24 can be optioned with the world's most powerful towboat engine. With 630hp and 665 ft-lb of torque, the Ilmor Supercharged 6.2L Engine delivers more horsepower and torque than you'll find in any other towboat. Not only does the X24 boast powerful performance behind the wheel and behind the boat, it also comes standard with underwater exhaust, to reduce engine noise and elevate the on-water experience.
LUXURIOUS AMENITIES
- The X24 is packed with luxurious amenities including an elevated captain's experience. From the ease and convenience of the power helm seat to the industry's most powerful stern thruster, the experience behind the wheel of an X24 is-simply put-premium. Plus, with plush transom lounge seats, new power board racks, and crystal clear Klipsch audio, your crew's experience is guaranteed to be nothing short of premium.
STERN THRUSTERRider pick-ups, putting your boat on the trailer, and docking are easier than ever with the most intuitive and most powerful stern thruster on the market. MasterCraft's stern thruster control is completely integrated into the throttle allowing you to spin 360 degrees in under 30 seconds. Available on all X Family models and the XStar S.
DOCKSTAR
- DockStar gives drivers of any ability a boost of confidence by making tight spots like docks and marinas easier to navigate. Comprised of two flanking rudders in the front of the prop to direct water flow in reverse, DockStar makes reversing and maneuvering easier than ever. Available on all models with the exception of the ProStar.
UNDERWATER EXHAUST
- MasterCraft's underwater exhaust substantially reduces noise in and behind the boat so you can better enjoy good music and great conversations. Now standard on all XT and X models and the XStar S.
7" SCREEN
- Standard XT and X dash featuring a full 7" screen and analog dash gauges.
DUAL SCREEN
- Upgraded dash for XT and X families, standard on XStar S. Includes one 11" touchscreen and one 12" display screen with a rear-facing camera.
PROSTAR DASH
- Standard ProStar dash featuring a 10" touchscreen with the most intuitive slalom, trick, and jump software.
ADVANCED AUDIO
- Four or six Klipsch speakers, one 10" subwoofer and DSP. Standard on all X, XT, and NXT models. Six speakers standard only on 22'+ boats.
PREMIUM AUDIO
- Four or six Klipsch speakers, two additional 7" dash speakers, and a total of two 10" subwoofer and DSP. Standard on the XStar S. Available as an upgrade on all X and XT models. Six speakers standard only on 22'+ boats.
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
Price History
| Date | Event | Price |
|---|---|---|
| 7/2/26 | Initial price | $274,900 |
MasterCraft X24: BoatTEST Review
Overview
The Mastercraft X-24 is a premium towboat that represents the first model in the company's redesigned X-Series, evolving from the award-winning X-23. This new series features a comprehensive overhaul in terms of features, functionality, hull design, and wake performance, aiming to deliver versatile wave characteristics suitable for both elite athletes and beginners.
Wake and Ballast System
Central to the X-24's performance is its advanced Gen 2 surf system, which includes a six-ballast fast fill configuration. This system comprises one forward hard ballast tank, two aft hard tanks, two aft bags positioned above those tanks, and an innovative switchback tank that enables lateral ballast distribution for symmetrical wake formation. The ballast is managed by seven Johnson pumps, each capable of pumping 30 gallons per minute, allowing the boat to add approximately 4,300 pounds of ballast in under four minutes. Adjustable surf tabs at the stern control the wake profile, with independent left and right settings and a central attitude adjustment tab to manage bow rise, compensating for internal weight variations. All ballast and surf settings, along with GPS speed, are controlled via a seven-inch touchscreen at the helm, allowing operators to select from factory presets or customize wake parameters for specific riders with ease.
Power and Performance
The X-24 is powered by a single 430-horsepower Ilmor 6.2-liter GDI V8 engine. Its dimensions include a length overall of 26.2 feet, a beam of 8 feet 6 inches, and a draft of 2 feet 6 inches. The hull geometry has been refined to provide a deeper water entry, enhancing wake size. Performance testing revealed an endurance ranging from approximately 6.9 hours at 21.8 miles per hour (3,500 RPM) to 13.2 hours at 10.6 miles per hour (2,500 RPM). The top speed recorded was 38.2 miles per hour at 5,600 RPM, with the most economical cruising speed at 27 miles per hour (4,000 RPM). Acceleration was brisk, with a time to plane of 3.2 seconds, 0 to 20 mph in 4.8 seconds, and 0 to 30 mph in 7.2 seconds. Handling was responsive and smooth, with a three and a half turn lock-to-lock steering ratio and a 16-inch rudder, providing stable and predictable maneuvering even with full ballast.
Exterior Design and Deck Layout
The X-24 features a U-shaped bow finished in a tritone color scheme, complementing its modern aesthetic. The cockpit and deck areas continue the tri-tone vinyl upholstery theme with custom hand-stitching unique to the X-Series. Seating is abundant and versatile, accommodating up to 18 passengers with forward-facing chaise seats at the bow and wraparound corner seats in the cockpit that convert to aft-facing chaise lounges. Storage is ample, including a 62-inch compartment under the port-side seating for longer boards and a 36-quart cooler beneath the starboard bench. The cockpit flooring options include C-deck or color-matched decadence flooring. The swim platform is also C-deck treated and features built-in handholds and a 22-inch retractable swim ladder for easy water access. The premium tower includes an integrated bimini, two hanging speakers, clamping board racks, and a center tow pylon, with an optional camera mount available.
Helm and Controls
The helm is positioned to starboard and features a vinyl-wrapped dash with a tilt-mounted steering wheel. Instrumentation includes recessed analog gauges set in billet aluminum, complemented by a 7-inch touchscreen interface for controlling ballast, surf settings, and other boat functions. Manual switches provide redundancy in case of touchscreen failure. Additional helm amenities include a phone holder, drink holders, engine key, and shifter. The main battery shutoff and breaker panel are conveniently located to the left of the helm. The boat incorporates Mastercraft's BTS windshield design, favored by water sport enthusiasts for improved communication with individuals in the water and ease of docking. The windshield sides are rounded and finished with aluminum billets that double as grab handles, and a securely fitting wind dam is included.
Interior and Storage Features
The interior layout maximizes space through a pickle fork design, providing larger seating areas and storage compartments. Forward compartments include dedicated anchor storage, while the cockpit houses multiple storage areas beneath seating. The top storage locker creatively functions as a personal flotation device warmer by utilizing engine heat. The aft-facing bench converts into a spotter seat or a large lounging area with an optional filler cushion, and a tow pylon can be installed in this area. Additional storage and utility spaces beneath companion seating accommodate batteries, a fire extinguisher, a trash receptacle, and the tow pylon base.
Conclusion
The Mastercraft X-24 is a thoughtfully engineered towboat that blends advanced ballast and wake-shaping technologies with refined power and handling characteristics. Its versatile wake profiles cater to a wide range of water sport enthusiasts, from beginners to professional athletes. The spacious and well-appointed interior, combined with practical storage solutions and premium exterior features, make the X-24 well-suited for extended days on the water. Overall, it delivers a compelling package for those seeking high performance and comfort in a modern towboat.
Finance your dream boat!
Finance your dream boat!
Be the first to know when similar boats hit the market
Get notified when new boats become available
Boats For Sale in Missouri, United States Similar to the 2024 MasterCraft X24
Compare with similar boats and find the perfect one for you.
 2024 MasterCraft X24 | |||||
|---|---|---|---|---|---|
| $274,900 | $249,742 | $229,900 | $220,539 | $189,997 | $189,997 |
| Osage Beach | Osage Beach | Osage Beach | Osage Beach | Osage Beach | Lake Ozark |
| 24' | 24' | 23' | 22' | 27' | 27' |
| 3' | - | - | - | - | - |
| Ilmor | ILMOR | Ilmor | ILMOR GM | ILMOR | ILMOR |
| 430 hp | 383 hp | 380 hp | 380 hp | 430 hp | - |
| 4 | 12 | 29 | 254 | 78 | 563 |
