2023 MasterCraft X24 Boat in Visalia, CA US
Built in 2023
X24
1 Engine (--)
24 feet
Gas
Other
156 hours Length Overall: 24 ft. 2 in. (7.37 m)
Beam: 102 in. (2.59 m)
Draft: 30 in. (.76 m)
Dry Weight: 6,100 lb. (2,767 kg)

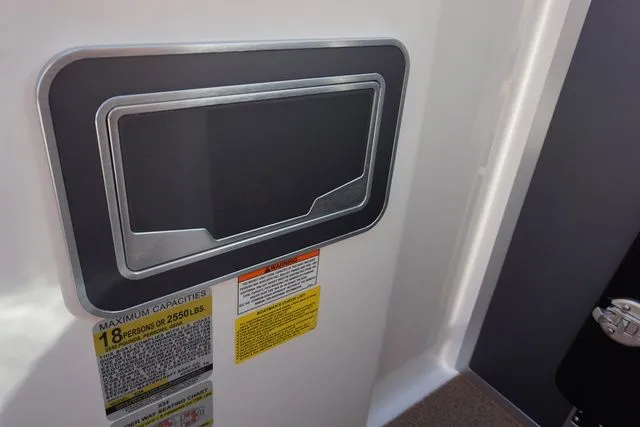

Max Person Capacity: 18 persons
Fuel Capacity: 85 gal. (322 L)
Max Carry Load: 2,550 lb. (1,157 kg)
Price History
| Date | Event | Price |
|---|---|---|
| 4/28/26 | Price decreased | $219,995(-2.2%) |
| 3/29/26 | Initial price | $224,995 |
2023 MasterCraft X24 Video Tours
Boattest.com Review
Overview
The Mastercraft X-24 is a premium towboat that represents the first model in the company's redesigned X-Series, evolving from the award-winning X-23. This new series features a comprehensive overhaul in terms of features, functionality, hull design, and wake performance, aiming to deliver versatile wave characteristics suitable for both elite athletes and beginners.
Wake and Ballast System

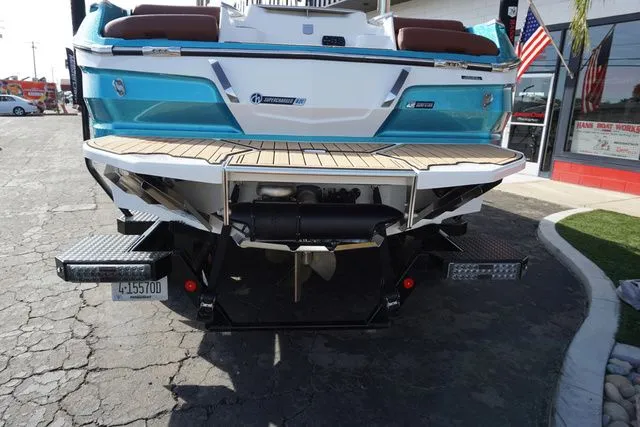

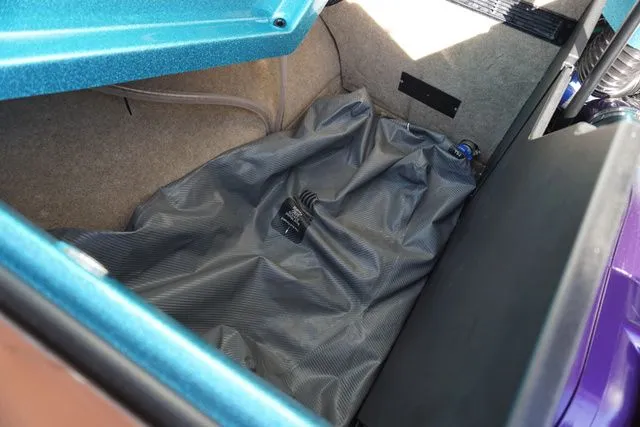

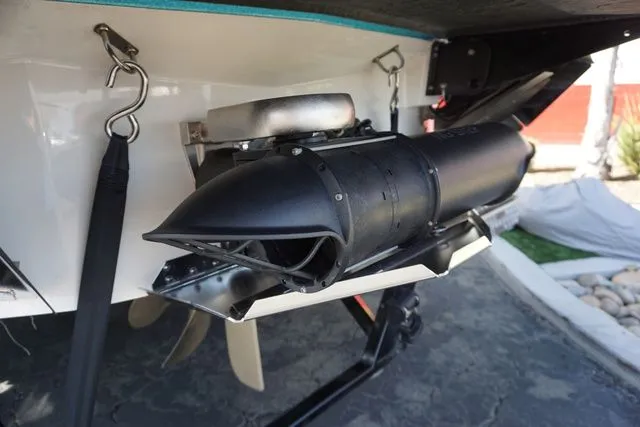

Central to the X-24's performance is its advanced Gen 2 surf system, which includes a six-ballast fast fill configuration. This system comprises one forward hard ballast tank, two aft hard tanks, two aft bags positioned above those tanks, and an innovative switchback tank that enables lateral ballast distribution for symmetrical wake formation. The ballast is managed by seven Johnson pumps, each capable of pumping 30 gallons per minute, allowing the boat to add approximately 4,300 pounds of ballast in under four minutes. Adjustable surf tabs at the stern control the wake profile, with independent left and right settings and a central attitude adjustment tab to manage bow rise, compensating for internal weight variations. All ballast and surf settings, along with GPS speed, are controlled via a seven-inch touchscreen at the helm, allowing operators to select from factory presets or customize wake parameters for specific riders with ease.
Power and Performance

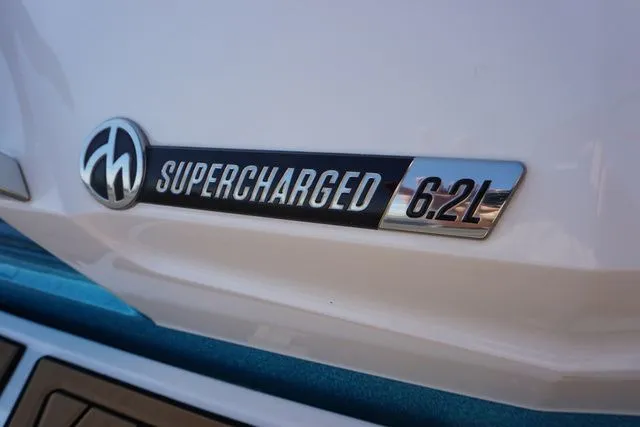

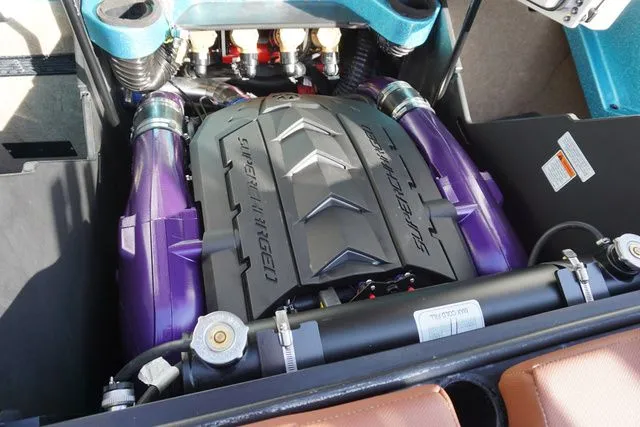

The X-24 is powered by a single 430-horsepower Ilmor 6.2-liter GDI V8 engine. Its dimensions include a length overall of 26.2 feet, a beam of 8 feet 6 inches, and a draft of 2 feet 6 inches. The hull geometry has been refined to provide a deeper water entry, enhancing wake size. Performance testing revealed an endurance ranging from approximately 6.9 hours at 21.8 miles per hour (3,500 RPM) to 13.2 hours at 10.6 miles per hour (2,500 RPM). The top speed recorded was 38.2 miles per hour at 5,600 RPM, with the most economical cruising speed at 27 miles per hour (4,000 RPM). Acceleration was brisk, with a time to plane of 3.2 seconds, 0 to 20 mph in 4.8 seconds, and 0 to 30 mph in 7.2 seconds. Handling was responsive and smooth, with a three and a half turn lock-to-lock steering ratio and a 16-inch rudder, providing stable and predictable maneuvering even with full ballast.
Exterior Design and Deck Layout

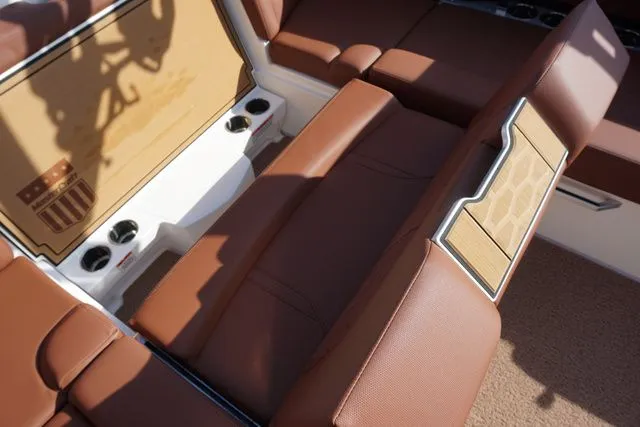

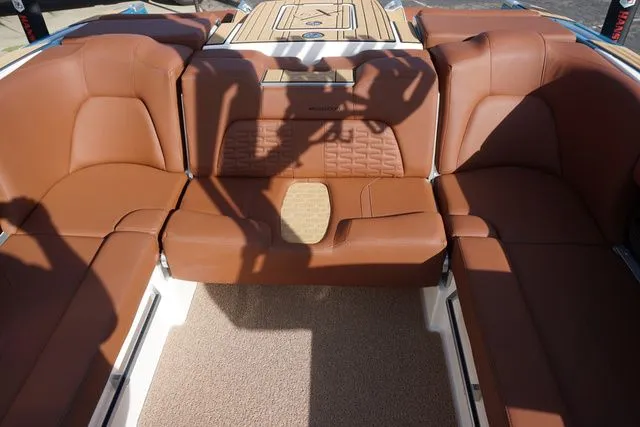

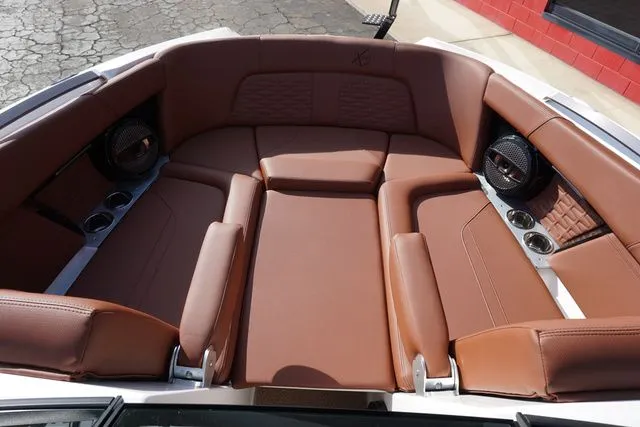

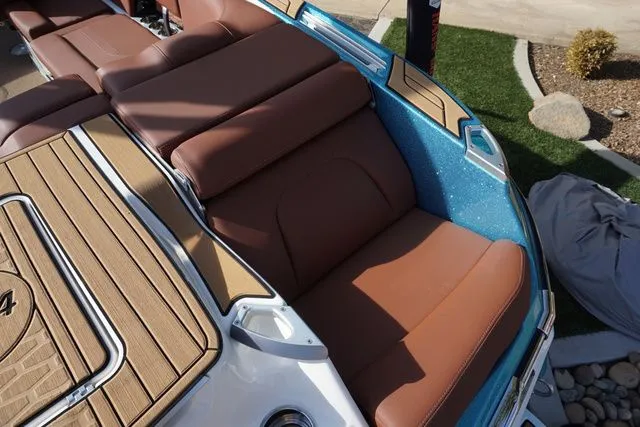

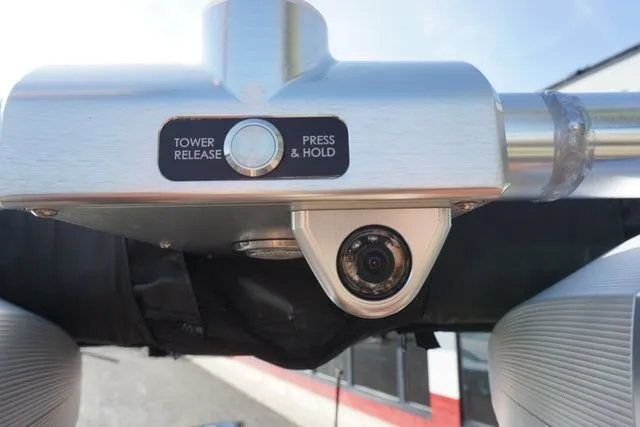

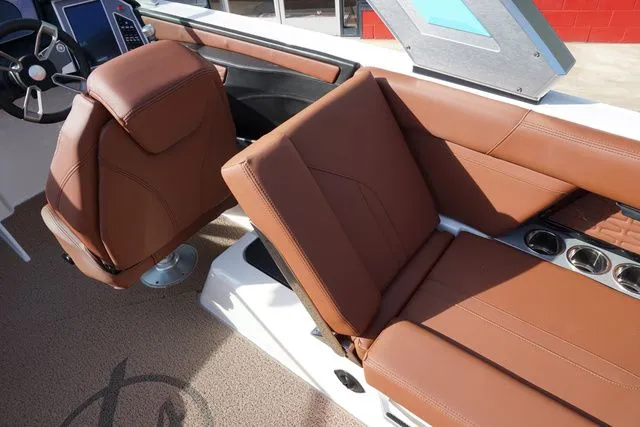

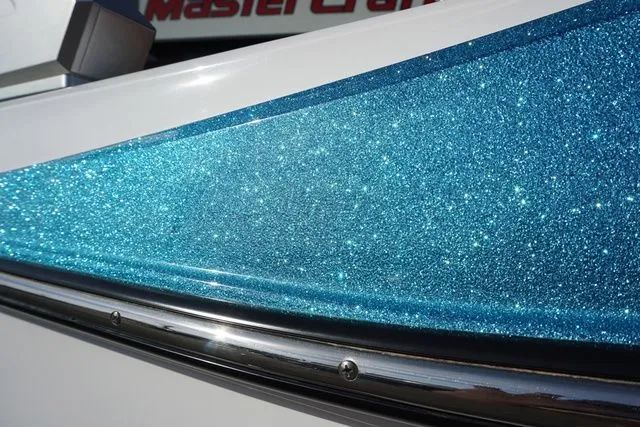

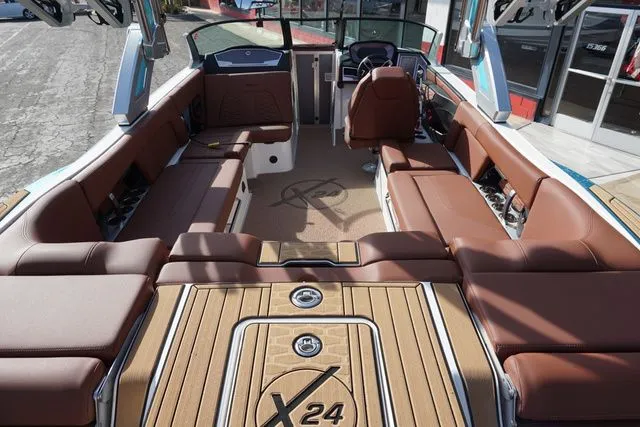

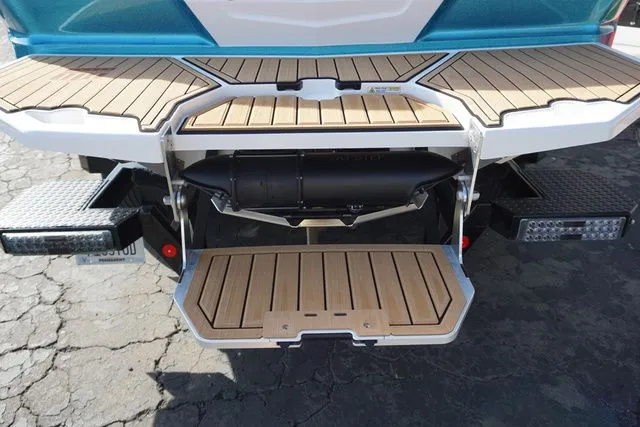

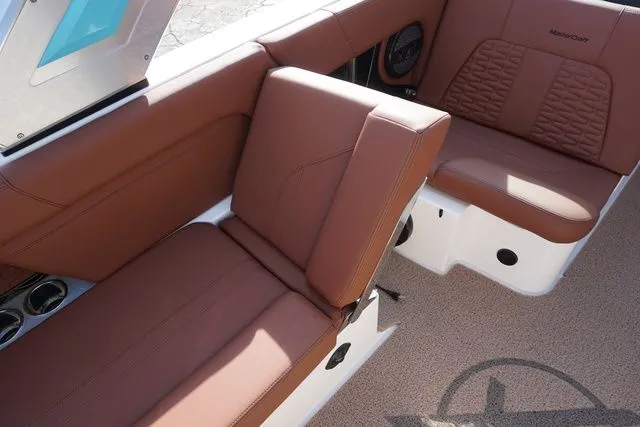

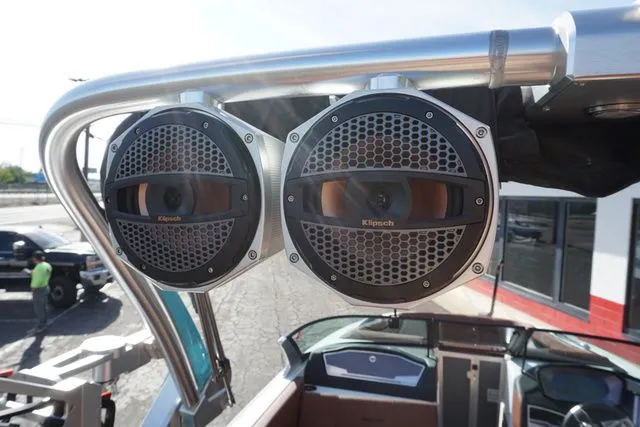

The X-24 features a U-shaped bow finished in a tritone color scheme, complementing its modern aesthetic. The cockpit and deck areas continue the tri-tone vinyl upholstery theme with custom hand-stitching unique to the X-Series. Seating is abundant and versatile, accommodating up to 18 passengers with forward-facing chaise seats at the bow and wraparound corner seats in the cockpit that convert to aft-facing chaise lounges. Storage is ample, including a 62-inch compartment under the port-side seating for longer boards and a 36-quart cooler beneath the starboard bench. The cockpit flooring options include C-deck or color-matched decadence flooring. The swim platform is also C-deck treated and features built-in handholds and a 22-inch retractable swim ladder for easy water access. The premium tower includes an integrated bimini, two hanging speakers, clamping board racks, and a center tow pylon, with an optional camera mount available.
Helm and Controls

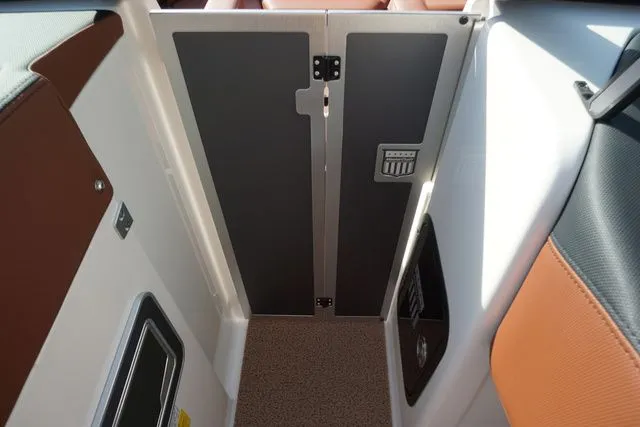

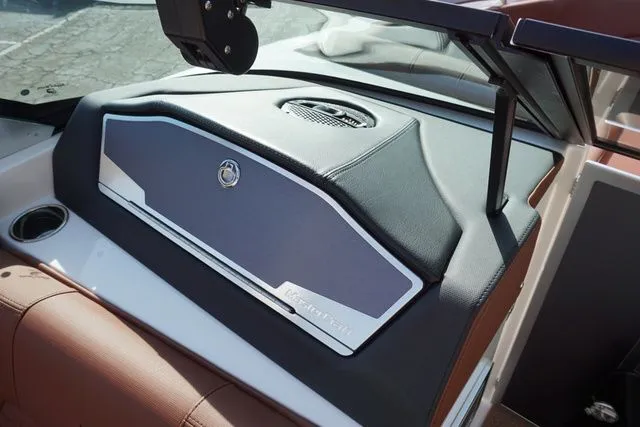

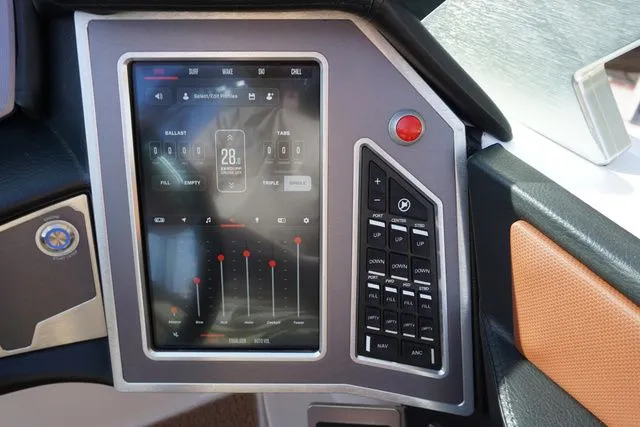

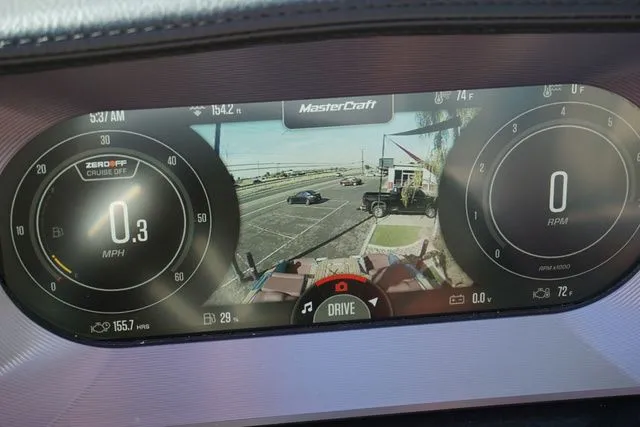

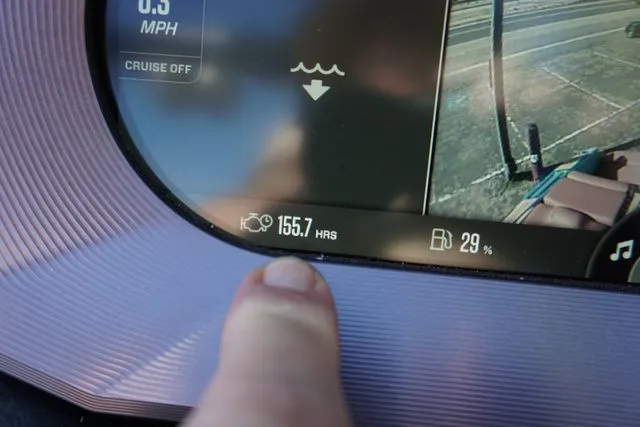

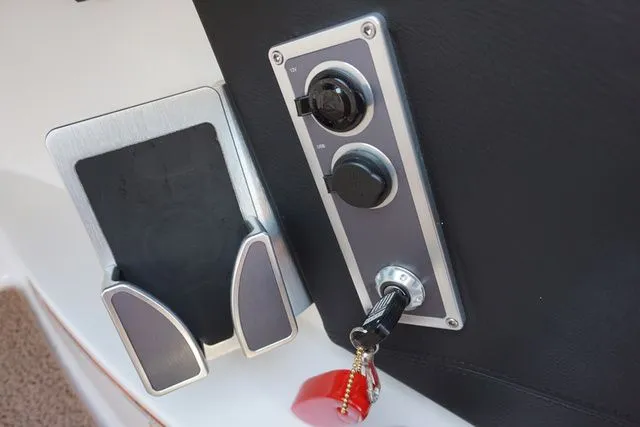

The helm is positioned to starboard and features a vinyl-wrapped dash with a tilt-mounted steering wheel. Instrumentation includes recessed analog gauges set in billet aluminum, complemented by a 7-inch touchscreen interface for controlling ballast, surf settings, and other boat functions. Manual switches provide redundancy in case of touchscreen failure. Additional helm amenities include a phone holder, drink holders, engine key, and shifter. The main battery shutoff and breaker panel are conveniently located to the left of the helm. The boat incorporates Mastercraft's BTS windshield design, favored by water sport enthusiasts for improved communication with individuals in the water and ease of docking. The windshield sides are rounded and finished with aluminum billets that double as grab handles, and a securely fitting wind dam is included.
Interior and Storage Features

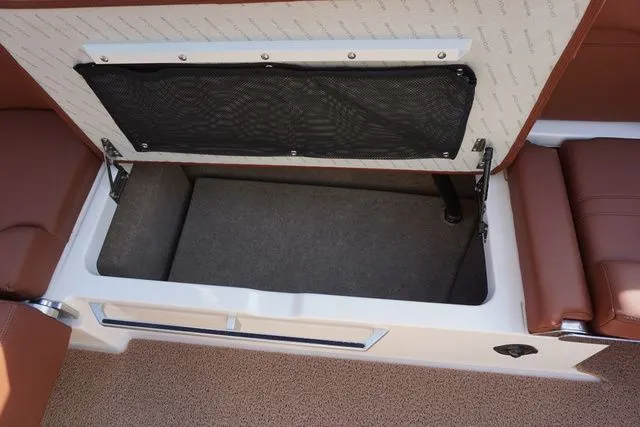

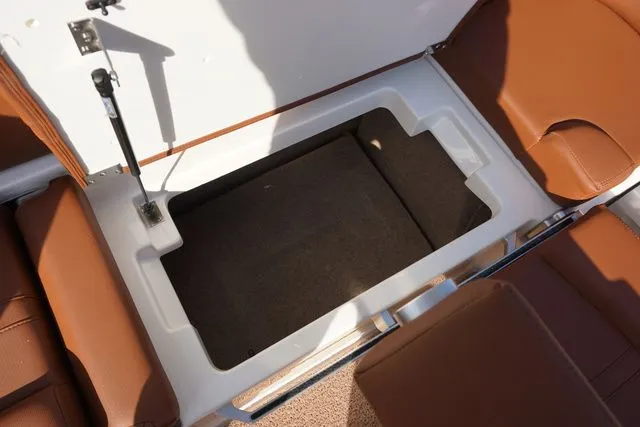

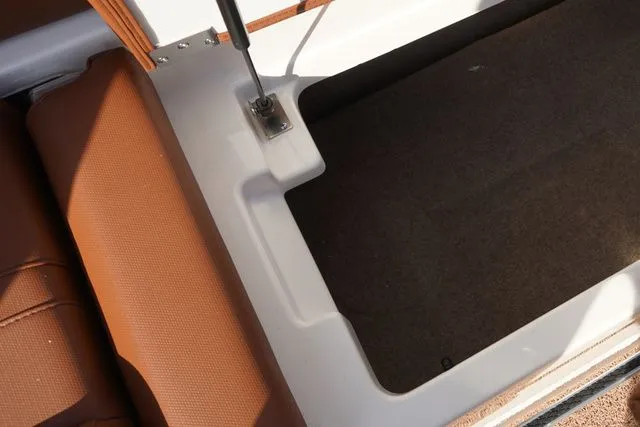

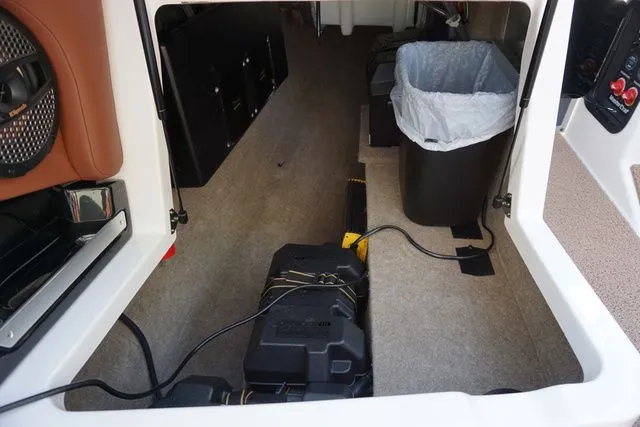

The interior layout maximizes space through a pickle fork design, providing larger seating areas and storage compartments. Forward compartments include dedicated anchor storage, while the cockpit houses multiple storage areas beneath seating. The top storage locker creatively functions as a personal flotation device warmer by utilizing engine heat. The aft-facing bench converts into a spotter seat or a large lounging area with an optional filler cushion, and a tow pylon can be installed in this area. Additional storage and utility spaces beneath companion seating accommodate batteries, a fire extinguisher, a trash receptacle, and the tow pylon base.
Conclusion
The Mastercraft X-24 is a thoughtfully engineered towboat that blends advanced ballast and wake-shaping technologies with refined power and handling characteristics. Its versatile wake profiles cater to a wide range of water sport enthusiasts, from beginners to professional athletes. The spacious and well-appointed interior, combined with practical storage solutions and premium exterior features, make the X-24 well-suited for extended days on the water. Overall, it delivers a compelling package for those seeking high performance and comfort in a modern towboat.
Overview from around the web 2023 MasterCraft X24
Customers praise the 2023 MasterCraft X24 for its exceptional performance and versatility on the water
Many highlight its powerful engine and smooth handling, making it ideal for wakeboarding, wakesurfing, and waterskiing. Users appreciate the innovative design features, such as customizable ballast systems and advanced surf technology, which create perfectly shaped wakes and waves. The spacious and comfortable interior receives positive remarks for accommodating family and friends with ease, while the high-quality materials and craftsmanship stand out for durability and style. Overall, owners commend the X24 for delivering a premium boating experience that combines luxury, functionality, and cutting-edge technology.
The Biggest Pros and Cons
The 2023 MasterCraft X24 offers a range of advantages along with a few considerations to keep in mind:
Pros
Exceptional Wake and Surf Performance: Designed with MasterCraft’s innovative Gen 2 Surf System and the patented Perfect Pass, the X24 delivers consistently high-quality wakes and waves for both wakeboarding and surfing enthusiasts.
Luxurious and Spacious Interior: The boat features a premium, comfortable cabin with ample seating, high-quality materials, and customizable options to enhance the onboard experience.
Powerful and Efficient Engine: Equipped with a robust V8 engine, the X24 provides plenty of power for thrilling water sports while maintaining efficient fuel consumption.
Advanced Technology: The boat includes an intuitive touchscreen display, integrated ballast systems, and customizable ride settings, allowing for easy control and personalization.
Versatility: With configurable seating and storage, the X24 accommodates family outings, group activities, and various water sports with ease.
Cons
Price Point: The high level of technology, luxury, and performance comes with a premium price, making the X24 a significant investment.
Size and Weight: Being a larger, heavier boat, it may require a substantial tow vehicle and more storage space.
Learning Curve for Features: Some advanced systems and controls might take time for new owners to fully understand and utilize.
Made For
The 2023 MasterCraft X24 is designed for water sports enthusiasts who demand top-tier performance, versatility, and luxury. Ideal for wakeboarders, wakesurfers, and skiers of all skill levels, this boat delivers an exceptional wake experience with customizable wave settings and advanced ballast systems. It's perfect for families and groups looking to enjoy a premium, comfortable day on the water with spacious seating, cutting-edge technology, and stylish design. Whether you're a competitive athlete or simply love spending time on the lake, the MasterCraft X24 offers unmatched performance and enjoyment.
