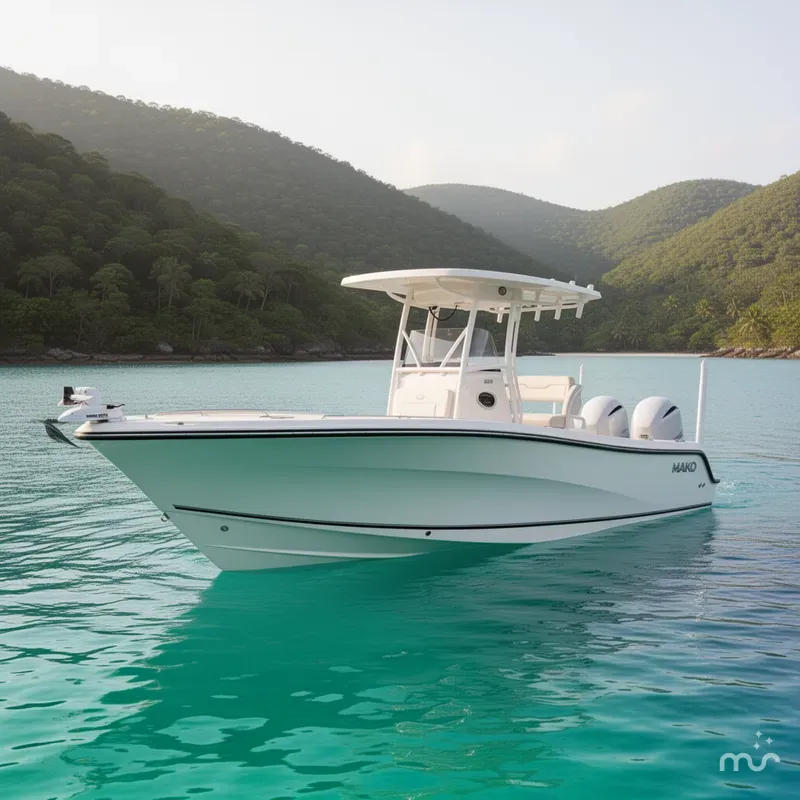

2020 Mako 234 Center Console

• Length:23' 4"
• Beam: 8' 6"
• Bottom width: 6' 10"
• Max. recommended HP: 350 HP
• Fuel capacity: 136 gal.
• Max. person capacity: 11 persons
• Max. person weight: 2040 lbs.
• Max. person, motor & gear weight: 3375 lbs.
• Interior depth: 32"
• Transom height at center line: 30"
• Deadrise: 21 degrees
• Draft: 18"
• Dry weight: 5010 lbs.
• Average hull weight: 4100 lbs.
• Average package weight: 7200 lbs.
• Package height w/T-top or hardtop: 12' 0"
• Storage length: 32' 10"

Certification & Safety

• Backed by the MAKO® Assurance 5+Life—the best factory warranty in saltwater boats
• NMMA® certified
• Factory leak tested for hull, plumbing & fitting integrity
• Horn
• Flush-mounted Ritchie Navigation® Voyager compass

Console

• Garmin® GPSMAP® 8610 chartplotter MFD w/Mercury® SmartCraft® digital gauges
• Digital switching through multifunction displays
• Custom anodized aluminum steering wheel w/knob
• Binnacle-mounted motor control(s)
• Dual-cylinder hydraulic steering
• Trim tab switches w/position indicator lights & auto retract
• Powdercoated aluminum battery switch panel w/labels, main power shutoff, emergency parallel switch, removable knobs & voltage sensing relays (VSR)
• Switch panel w/manual reset circuit breakers & illuminated switches
• Easy access to helm electronics, instruments & switches
• FUSION stereo w/4 lighted speakers
• Integrated forward-console seat w/52-qt. (49.21 L) insulated, drained cooler
• Integrated full-width fiberglass footrest w/non-skid surface
• Tempered safety glass windshield w/aluminum frame
• Marine-grade tinned wiring w/submersible connectors
• Lockable, sealed glovebox
• Portlight
• Extra-large electronics mounting surface
• 2 console drink holders
• 12V DC outlet & dual USB ports

Leaning Post

• Custom aluminum leaning post
• Flip-up bolster
• 84-qt. (79.49 L) cooler below leaning post
• Rod holders

T-Top or Hardtop

• Canvas T-top
• .25" (6.35 mm) aluminum backing-plate reinforcement for T-top
• Electronics box

Head

• Gelcoat-finished surface, wiring access hatches, battery switch panel & 6' (1.83 m) head room

Interior

• Anchor locker
• 2-tone high-density marine-grade vinyl upholstery w/stain-resistant coating & composite substrates on seats
• Port & starboard forward seats w/247-qt. (233.75 L) insulated storage below w/gravity overboard drainage
• 278-qt. (263.09 L) bow center in-deck storage compartment
• Low-profile powder-coated aluminum bow rails
• Self-bailing cockpit w/transom valves
• 2 port & 2 starboard gunnel-mounted rod holders
• Port & starboard under-gunnel rod racks for 6 rods up to 7' (2.13 m) long
• Freshwater shower w/pull-out spray head
• Tuna/dive/boarding door w/hinged gate & stainless steel ring
• Flush-folding, cushioned center transom jump seat
• 135-qt. (127.76 L) aft port & starboard in-deck fishboxes w/gravity drains & diaphragm pump
• 4 transom-mounted rod holders
• 2 aft 22-gal. (84.23 L) rounded livewells w/angled fills & friction-hinged acrylic lids
• Aft starboard recessed tool & leader holder
• Molded non-skid surfaces throughout
• Bilge access hatch
• Aft port & starboard coaming bolsters
• 360° coaming bolsters
• Six 8" (20.32 cm) stainless steel, anti-rattle pop-up cleats
• 2 bow drink holders

Performance

• Legendary dry-riding MAKO® hull
• Aggressive deep V hull design
• Performance lifting strakes
• Recessed electric trim tabs
• Factory-matched stainless steel propeller(s)

Construction & Exterior

• Color: MAKO® Bone White gelcoat
• Ring deck design for more usable interior space
• 100% composite construction
• Coosa® Bluewater 100% composite transom core
• Heavy-duty, fiberglass-encapsulated transom w/2" (5.08 cm) fiberglass-impregnated, high-density composite core
• Hull/deck joint chemically sealed & bonded 360° & mechanically fastened every 6" (15.24 cm) w/316 stainless steel fasteners
• 1-piece molded fiberglass stringer grid w/integrated transom knee supports & gelcoat finish
• Closed-cell foam-injected stringer grid for USCG-approved flotation
• Heavy-duty rub rail w/stainless steel insert
• Premium marine-grade stainless steel hardware & fasteners for corrosion resistance
• Heavy duty extra thick, closed-molded hatch covers w/finished undersides & integrated gaskets
• Aluminum backing plates for cleats & chocks
• 3-step, stowable dive ladder
• Port & starboard molded-in swim platforms
• Recessed, pull-out, telescoping boarding ladder

Electrical, Mechanical & Plumbing Systems

• Portable toilet
• Sea Chest keeps 3 pumps submerged for cooler running & longer life
• Automatic 2,000 GPH (7,570.82 LPH) bilge pump
• 1,100 GPH (4,163.95 LPH) livewell pump
• Pressurized raw water washdown pump
• High-speed raw water intake
• Transom w/freshwater washdown
• Pressurized freshwater pump
• 6-gal. (22.71 L) freshwater tank
• USCG-compliant navigation lights
• 2 cockpit courtesy lights & 1 head light
• 1 cranking battery per outboard
• Dual battery rigging w/voltage sensitive relay (VSR) & emergency parallel switch
• Marelon® corrosion-free seacocks on all below-water thru-hull fittings
• Labeled, tinned-copper wiring for easy maintenance & protection in a marine environment
• Pre-wired for optional anchor windlass

Optional Trailer

• OPTIONAL tandem-axle EZ Loader® aluminum trailer available.
• NMMA® certified.
• DOT approved.
• Tandem-axle brakes.
• 14" (35.56 cm) radial tires w/galvanized V5 wheels.
• Oil bath hubs.
• Leaf spring suspension.
• Heavy-duty winch w/nylon strap & safety strap.
• Stainless steel hardware.
• Galvanized steel components.
• LED lighting.
• LED marker lights.
• PVC loading guides.
• Galvanized fenders.

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
