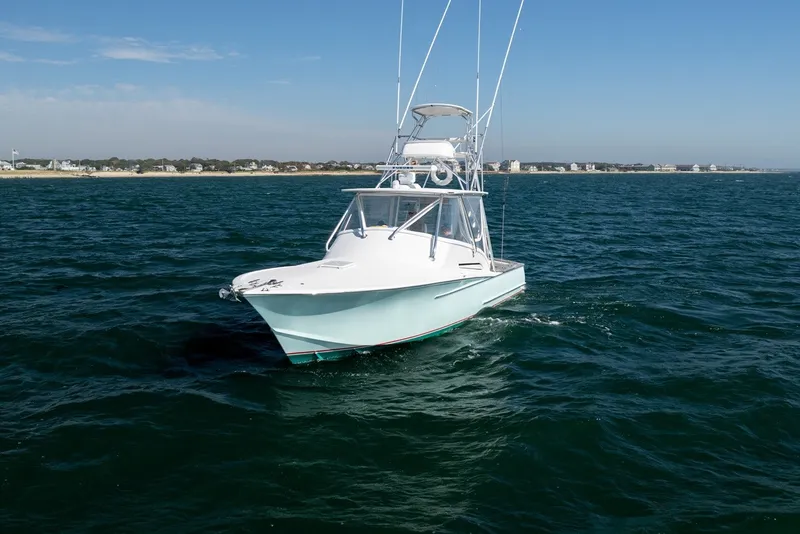

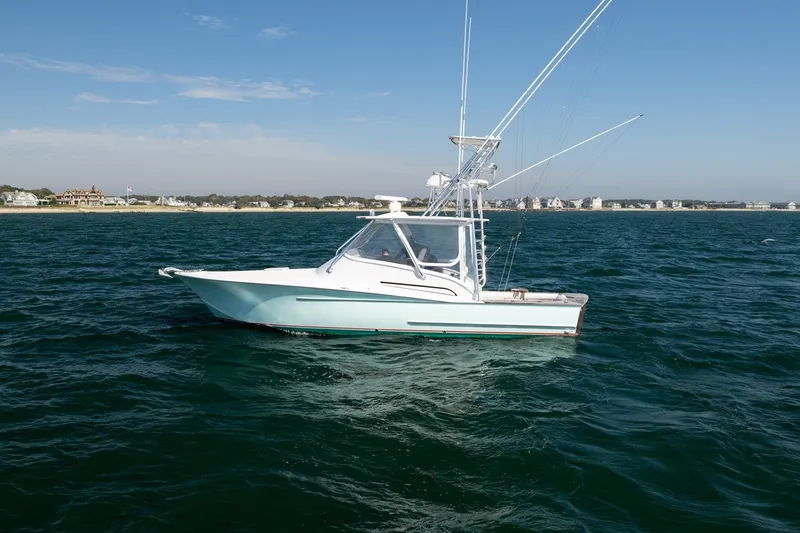

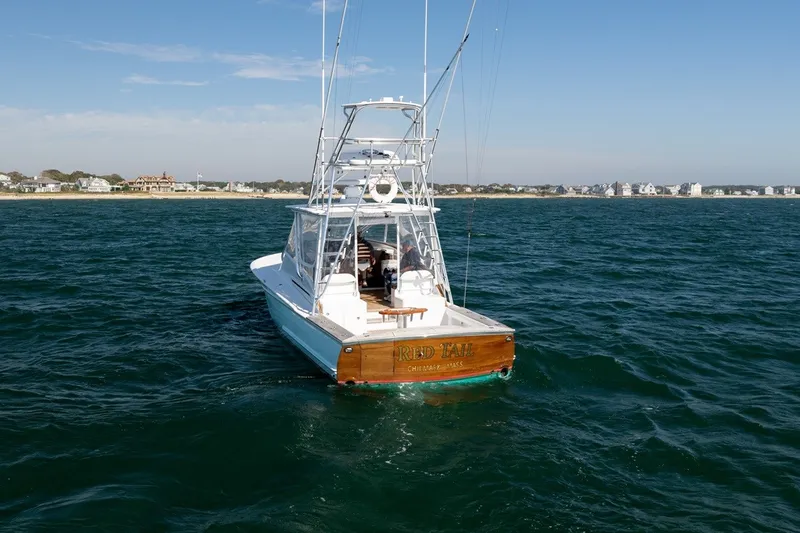

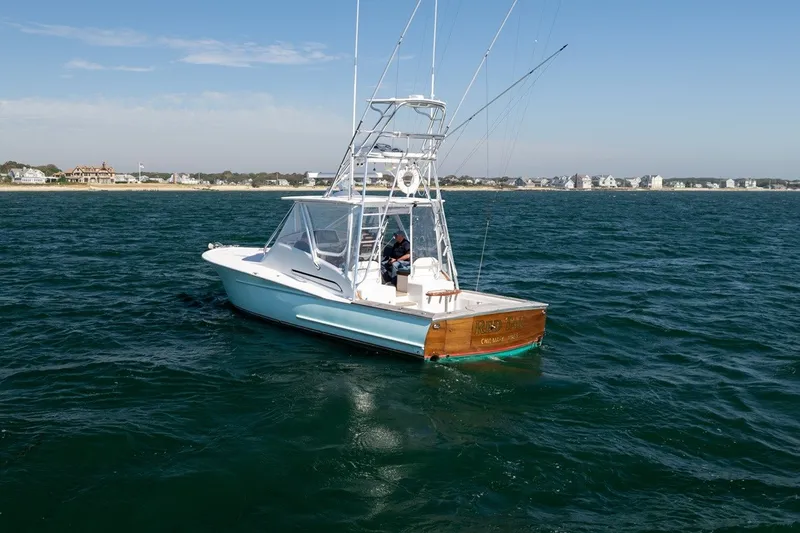

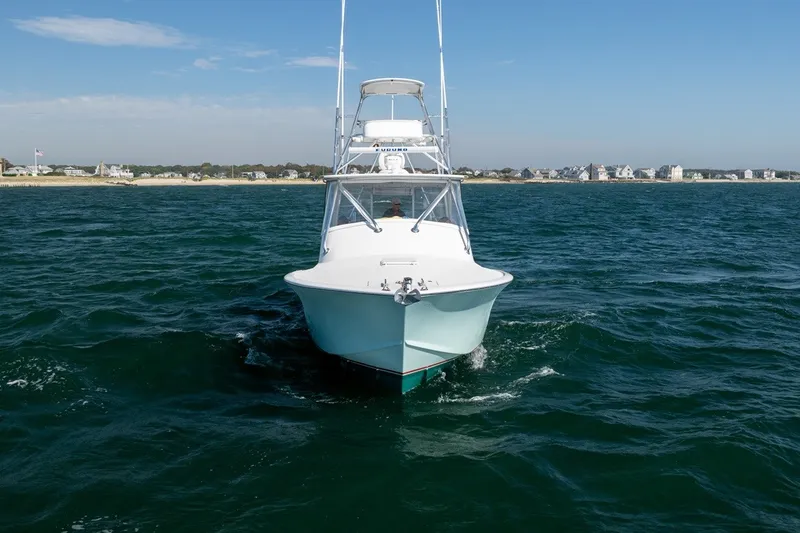

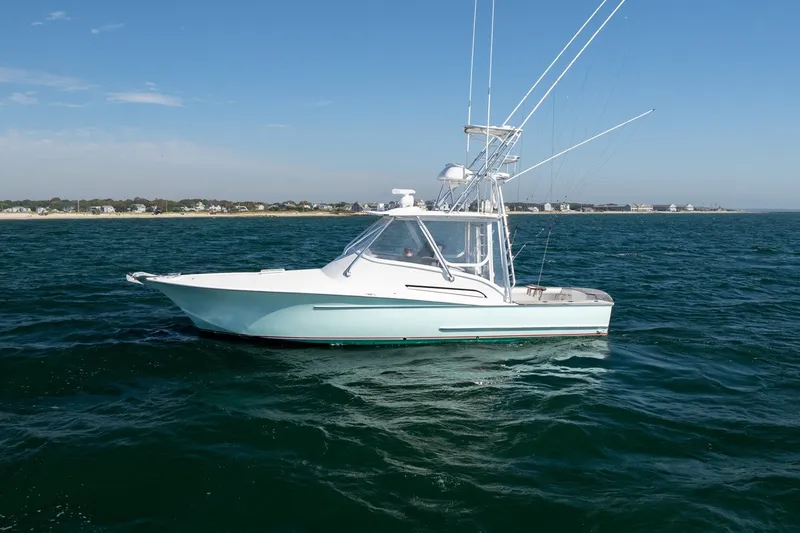

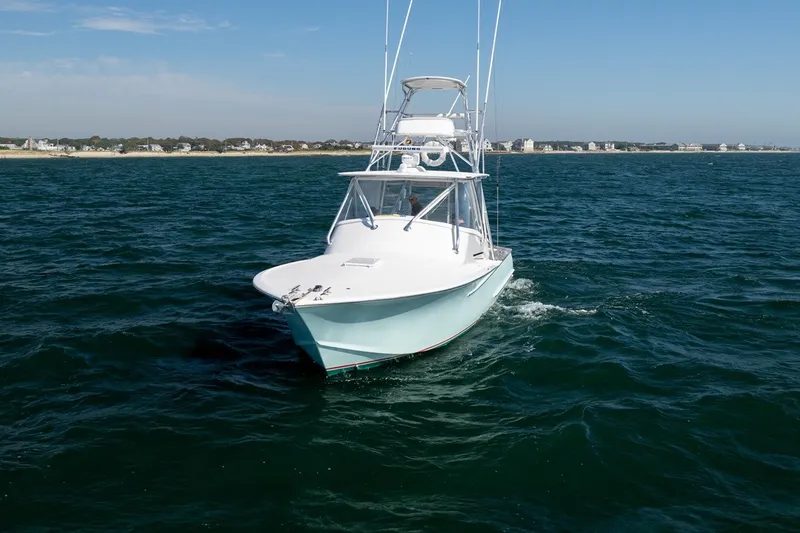

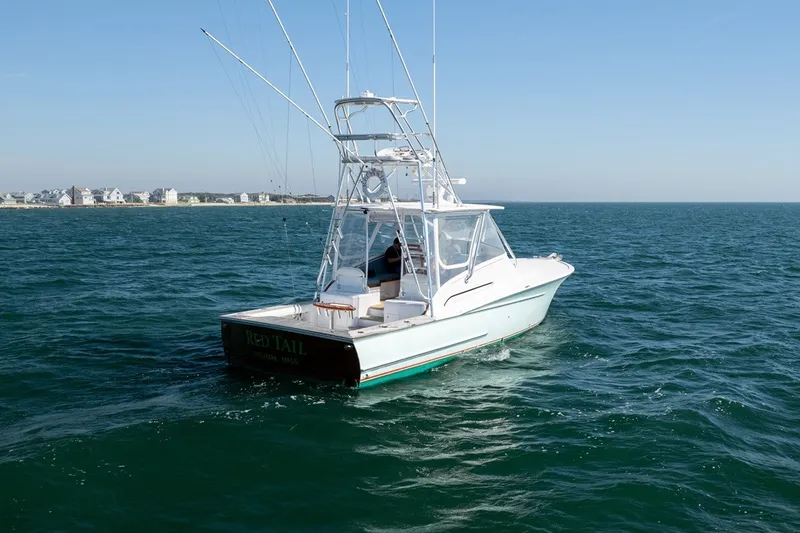

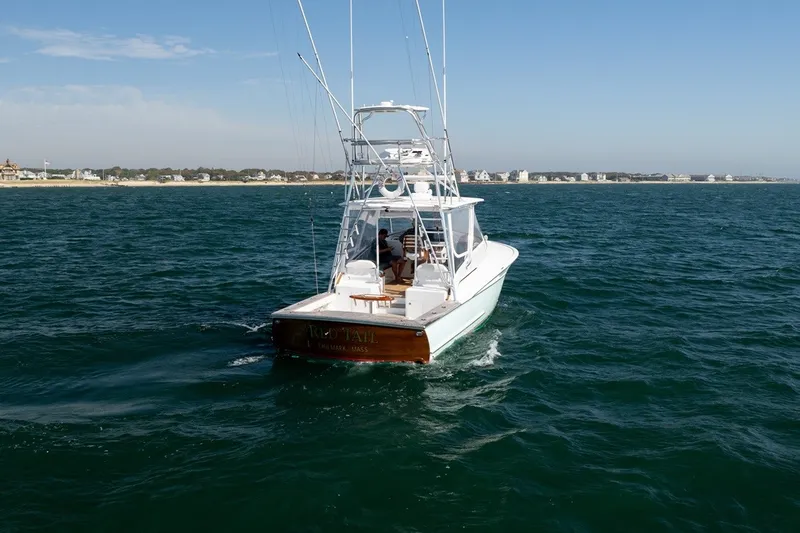

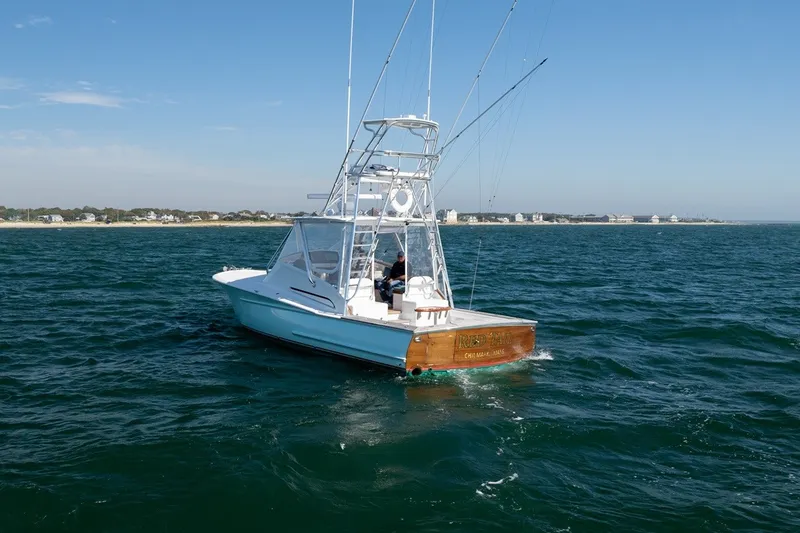

2017 Lightning Custom Yachts 37 Express Sportfish Boat in New Bedford, MA 02745 US

Hull:

Hand laid cold molded epoxy fully encapsulated wood composite hull with Coosa core

in transom and high stress locations under cleats, anchor windlass

All through hull fittings have solid glass mounting points

Kevlar fabric inner layer on bottom

All wood trim and transom are straight grain old growth teak that has been finished with

10 coats of clear epoxy and 10 coats of clear Alexseal LP

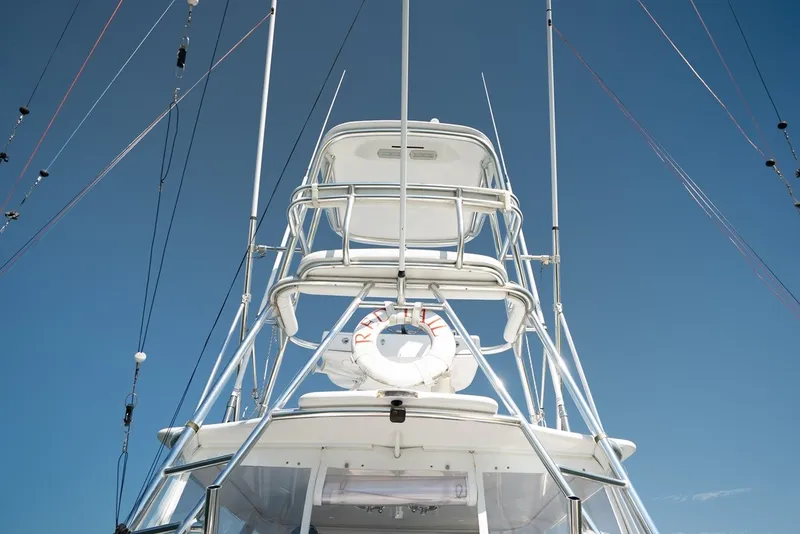

Pipewelders custom marlin tower with three welded on rod holders on each leg, tower

electronics box, bicolor red/white helm lights, LED spreader lights and built in recessed

LED navigation lights

Rupp tower mounted stainless outrigger bases with self-latching

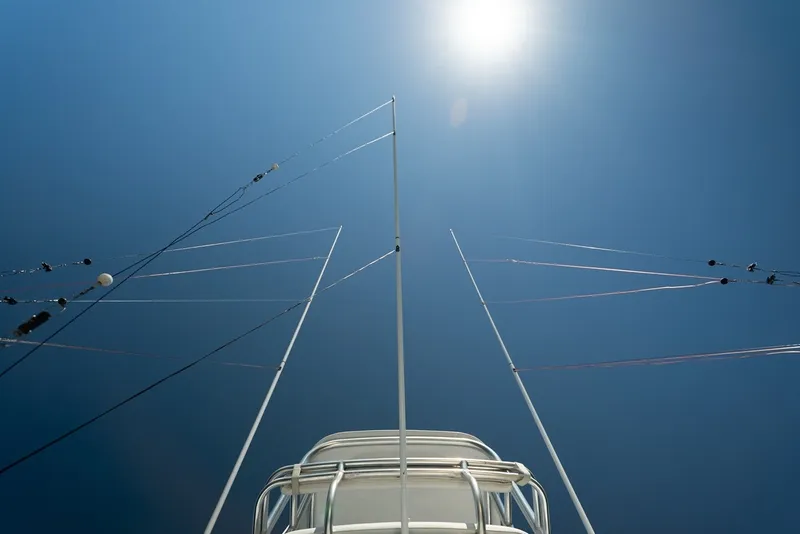

Gemlux 22’ triple rigged carbon fiber outrigger poles

Gemlux 15’ carbon fiber dual rigged center rigger

Engines:

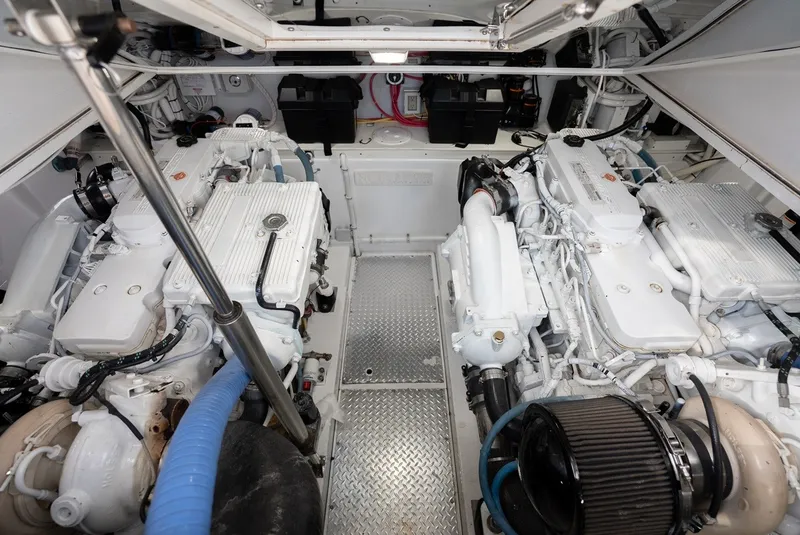

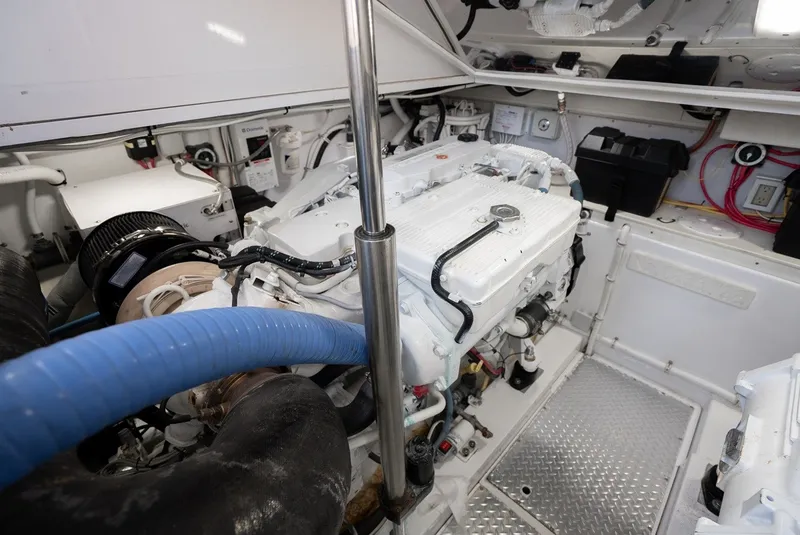

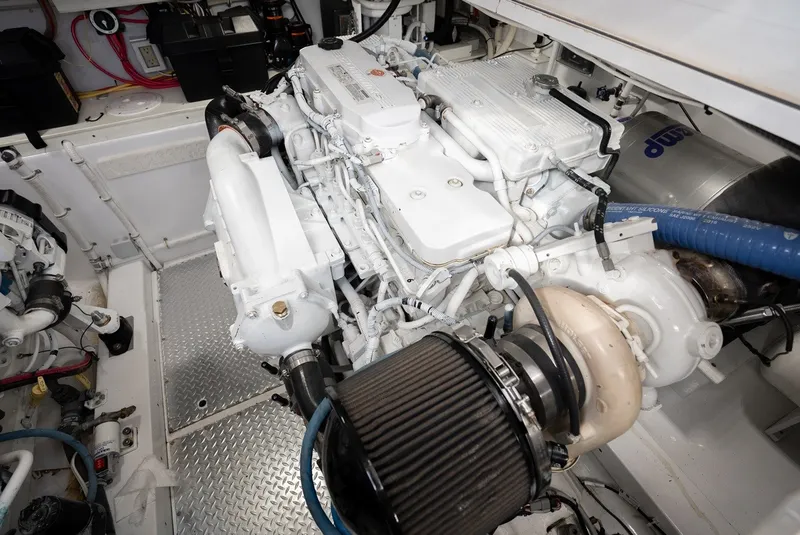

Twin Cummins QSB 6.7 550hp

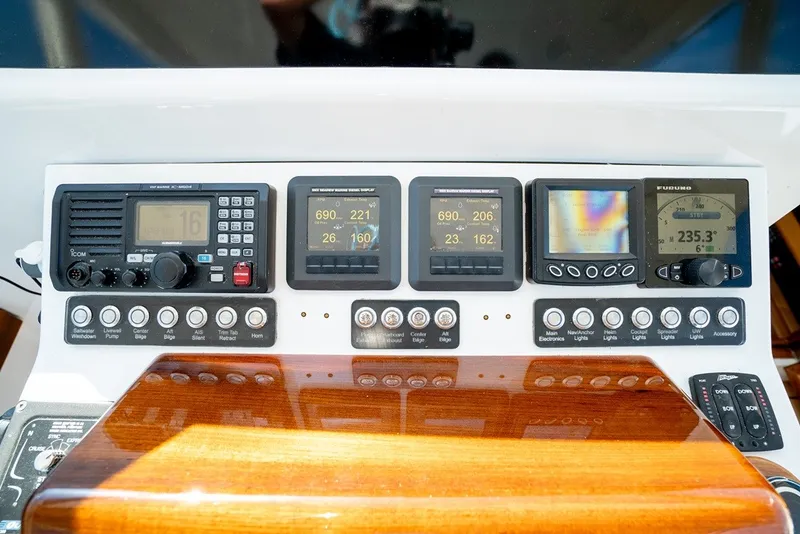

Dual SMX digital engine gauges

Custom stainless exhaust risers with fiberglass surge tubes

Fresh water engine flush system both engines

Emergency crash pump plumbing on port engine

Twin Disc display

Warning lights and horn for exhaust riser overheat and bilge high water

Twin Disc Quickshift MGX-5065A reverse gears 2.04:1 ratio with trolling function

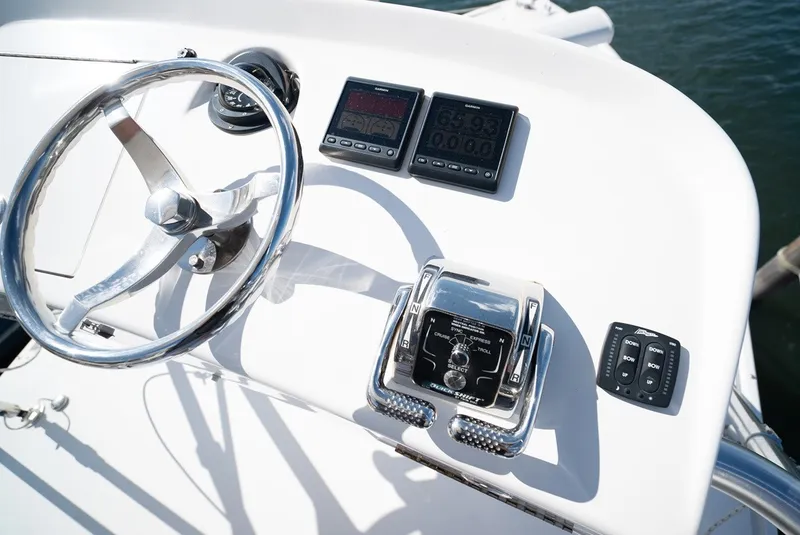

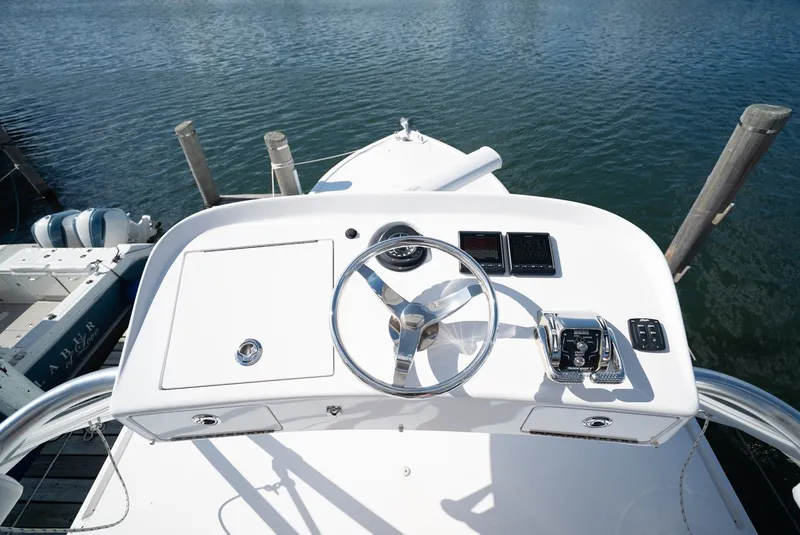

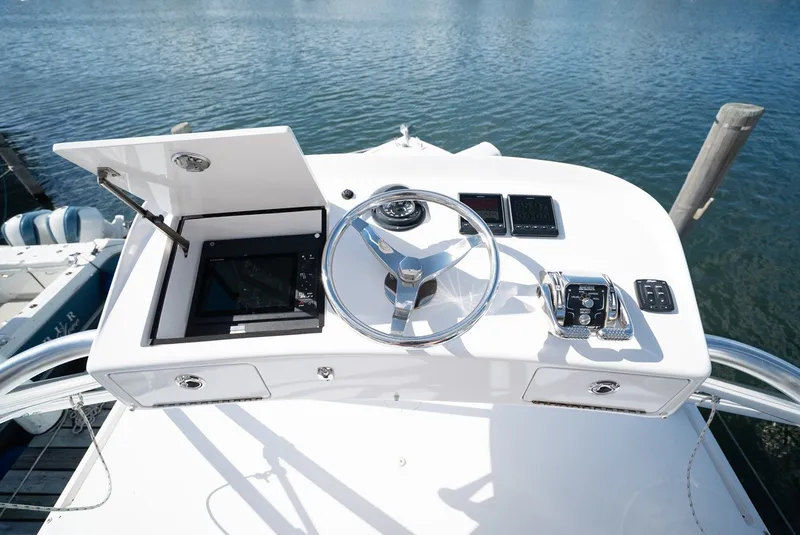

Palm Beach style teak helm pod with polished stainless shift levers

2” Aquamet 22HS shafts

Two pairs of propellers: Acme 4 blade and Veem 5 blade 22x34

Engine compartment sound insulated with two inches of Sounddown

Hydraulic lift for helm deck to access engine compartment

Tankage:

Two 270 gallon Diesel tanks port and starboard for 540 gallon total fuel capacity

150 gallon fresh water

30 gallon holding tank with Y valve and macerator pump

Generator:

Northern Lights M673 6kW 120V/60 cycle with full sound shield enclosure - 302 hours

Electrical:

Dual 30A shore power connections

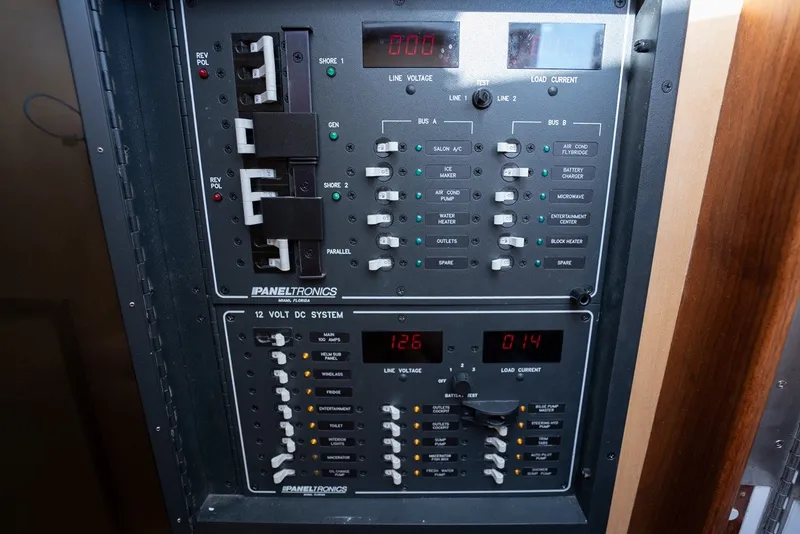

Custom Paneltronics AC/DC breaker panel

Blue Seas P40 three bank 40A battery charger

Four Group 31 AGM batteries

Three high capacity bilge pumps with Ultra Safety Systems float switches and high

water alarms

HVAC:

Dometic reverse cycle heat/air conditioning units (two) for salon and helm

Isotherm hot water heater dual mode engine coolant /110V AC

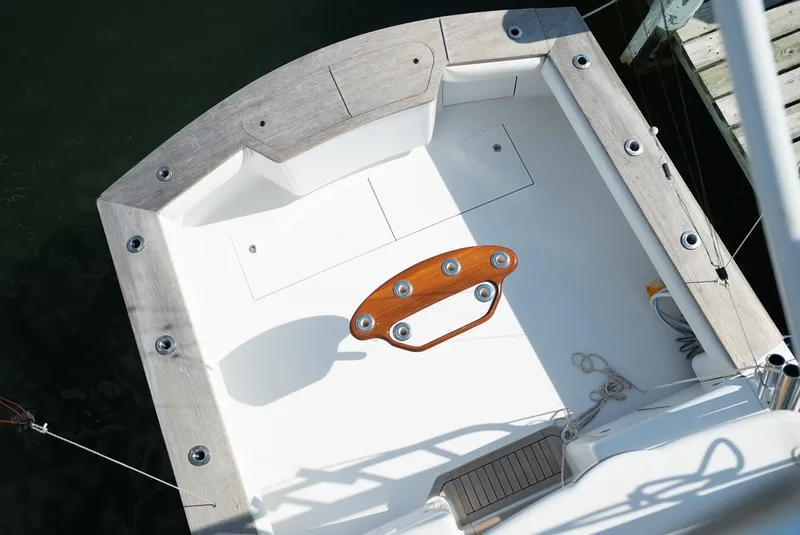

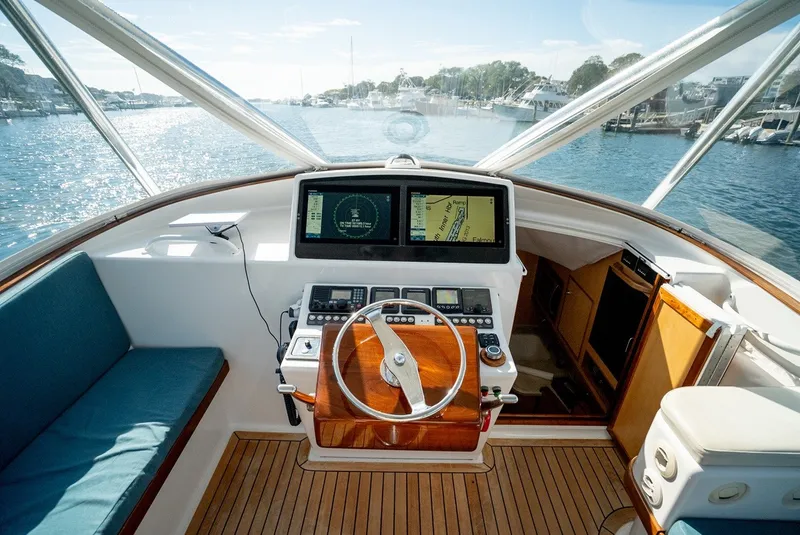

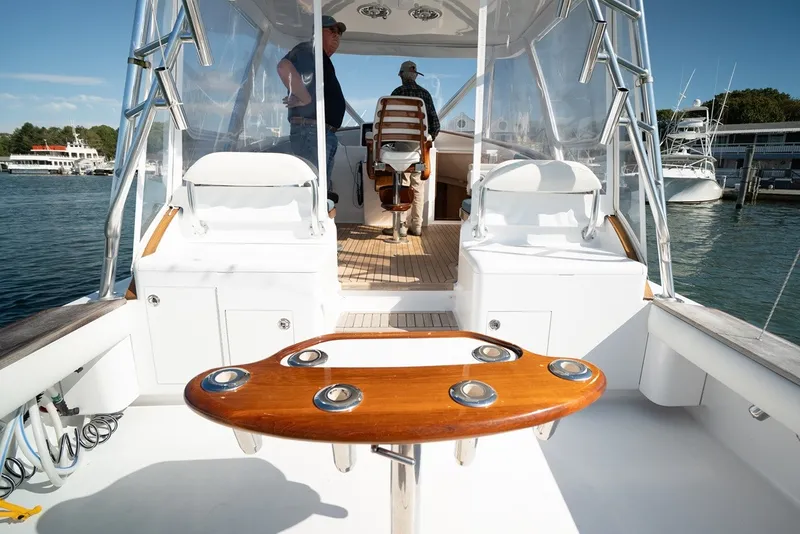

Helm Deck/Cockpit:

Teak and holly sole in helm area

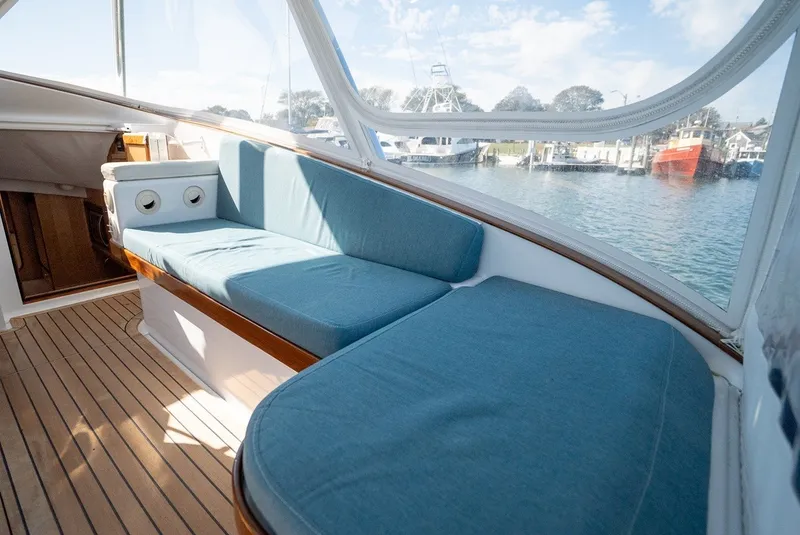

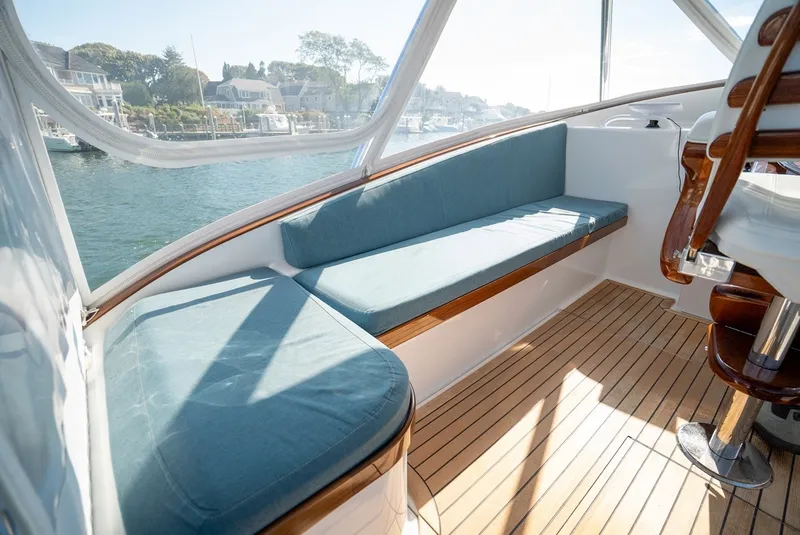

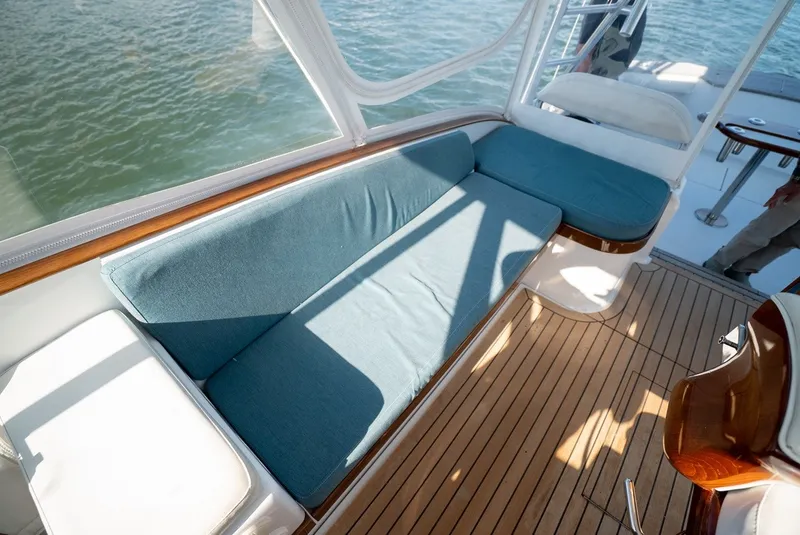

Port and starboard settees comfortably accommodate eight passengers

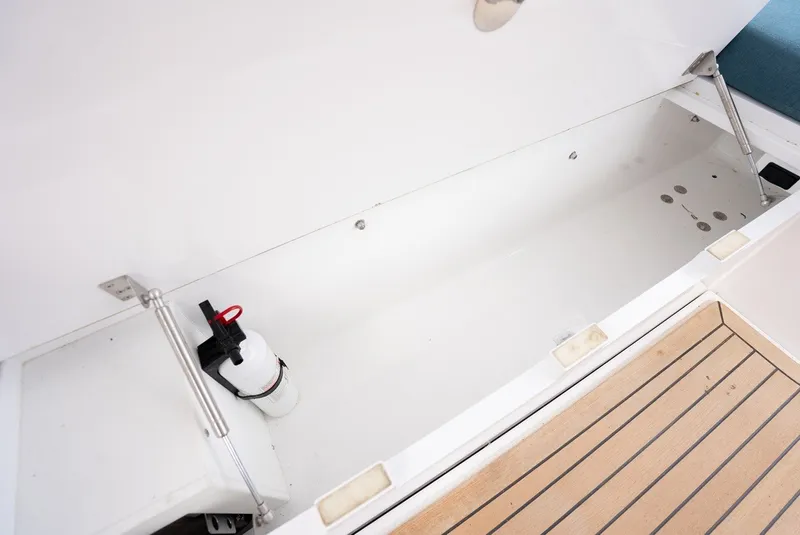

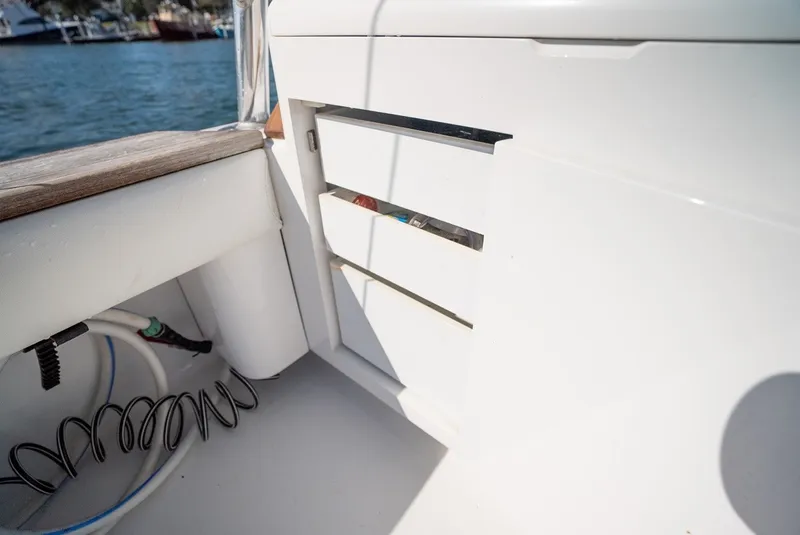

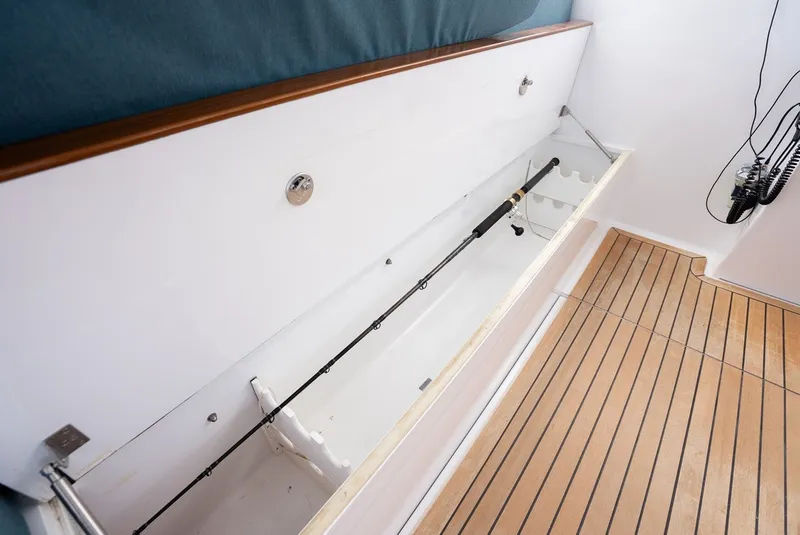

Cushioned storage lockers in cockpit seat two facing aft with large storage drawers,

cabinet, and sink

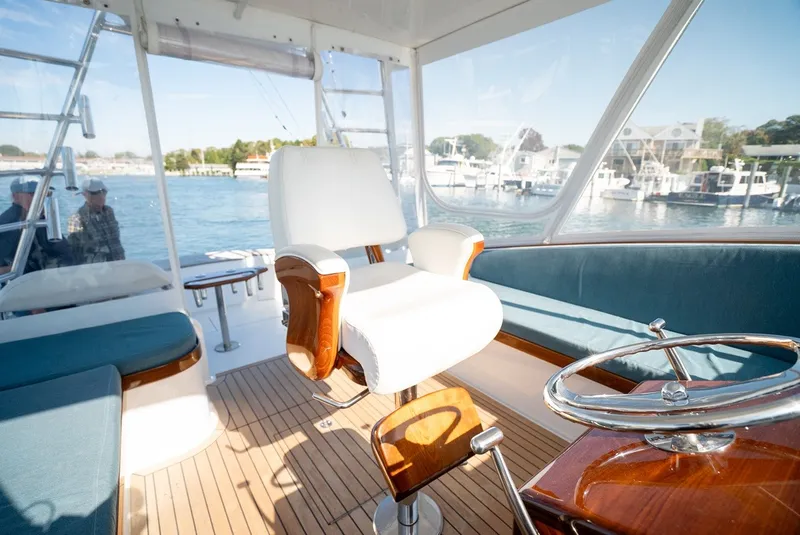

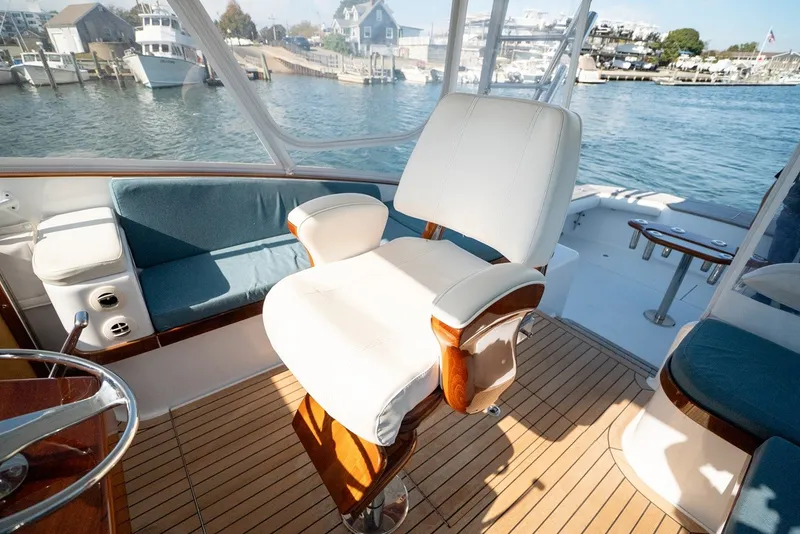

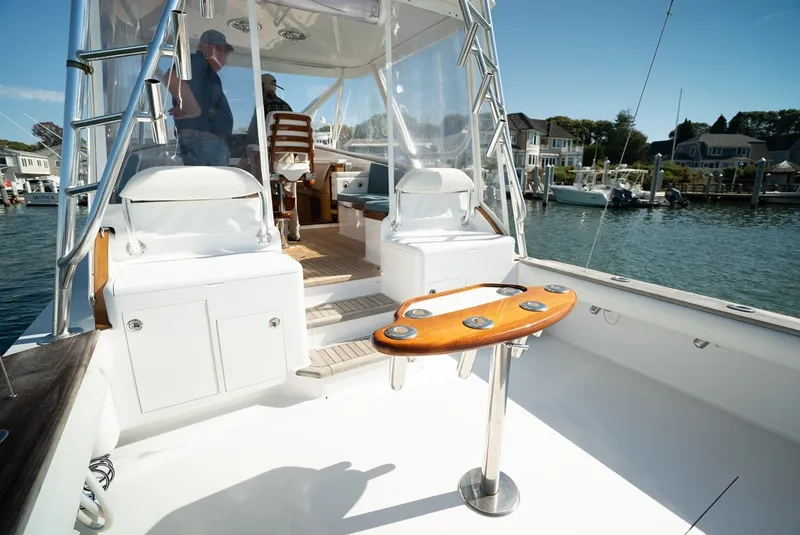

Release Marine ladder back teak helm seat with teak footrest

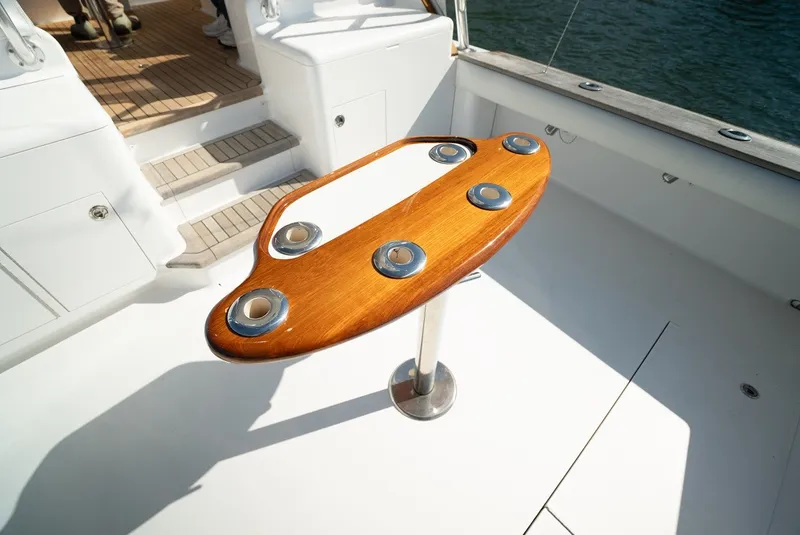

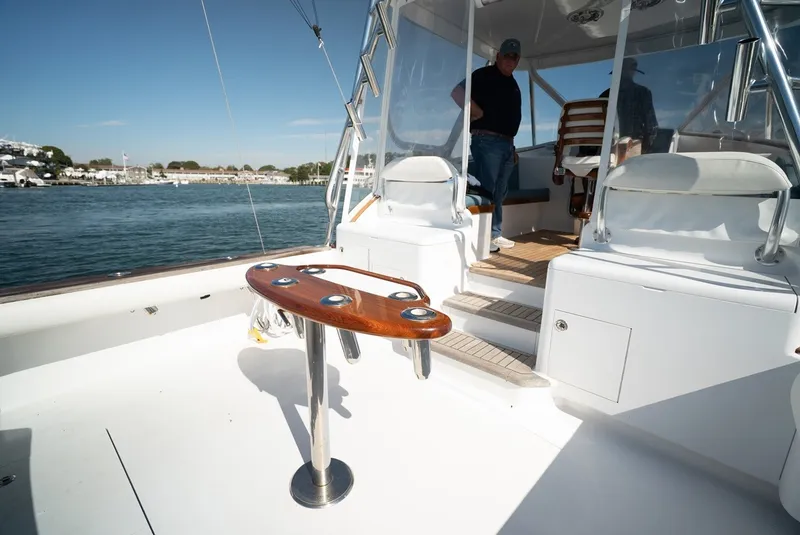

Release Marine teak six rod rocket launcher with stainless pedestal

Fresh and saltwater washdown

Coaming pads

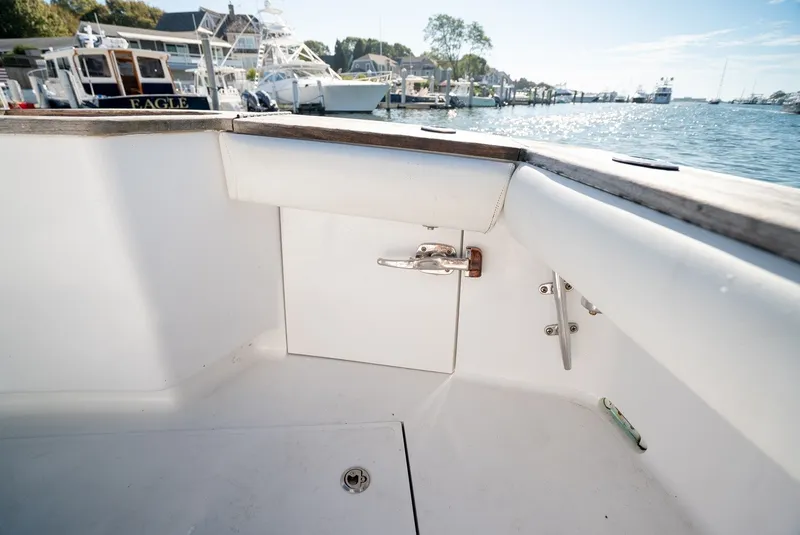

Transom door with heavy duty Schaefer latch

Under gunwale storage for two gaffs, boat hook, and deck brush pole

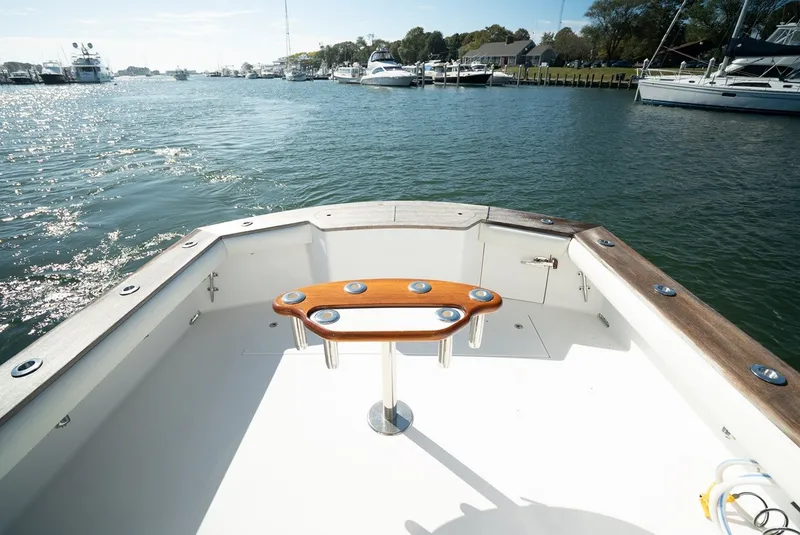

Eight Gemlux no-bolt stainless rod holders including two 30 degree each side, one

heavy duty vertical swivel base each side, and two 15 degree in transom corners

Large insulated in deck fish box with 6’ inside length with macerator pump

Eskimo Ice 540D icemaker fed directly to fish box

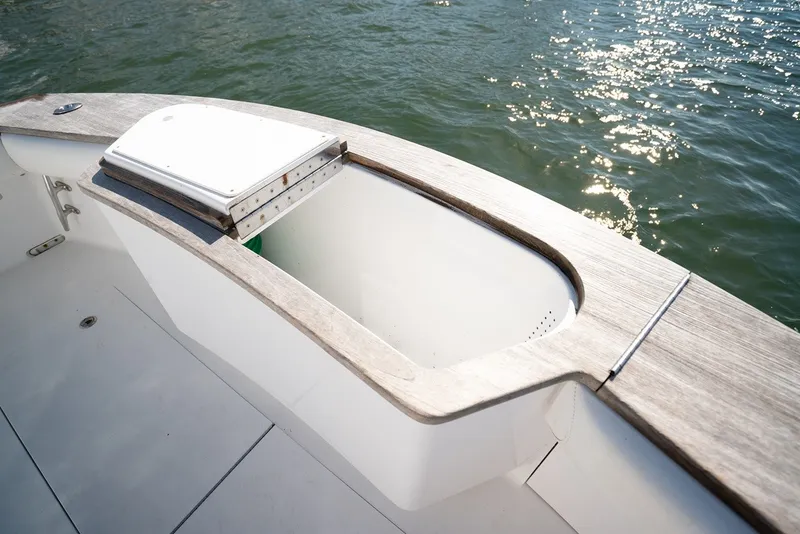

Large insulated transom livewell that can also be used as fish box
