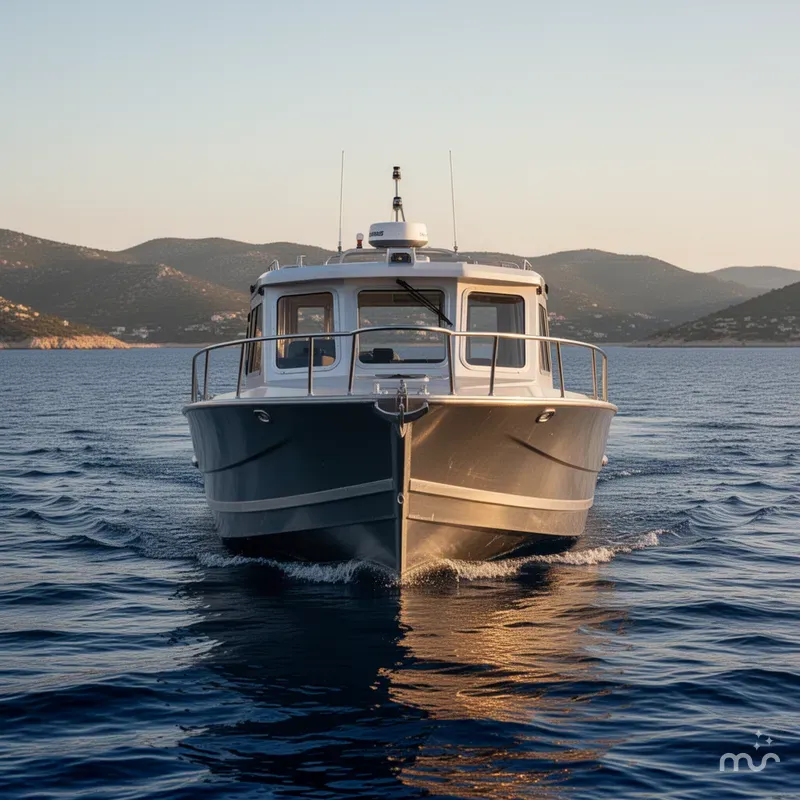

2026 Kingfisher 2825 Coastal Express

2026 KingFisher 2825 Coastal Express

Limit Out Performance

The KingFisher 2825 Coastal Express is a heavy-gauge welded aluminum pilot house fishing boat engineered with direct input from fishing guides and serious anglers who fish to limit out. At 29' with an 8'6" beam and up to 400HP, the 2825 Coastal Express delivers the power, deck space, and fishability you need to pursue bigger fish in coastal and open-water conditions no matter what the forecast says.

At the heart of every 2825 Coastal Express is KingFisher's proprietary Pre-Flex® hull technology. This trademarked process creates a stronger, lighter hull with a variable 16° deadrise that cuts through chop and delivers a smooth, fast-planing ride even in demanding coastal conditions. Combined with heavy-gauge all-welded aluminum construction, a 0.190 bottom thickness, and 0.160 sides, the 2825 Coastal Express is built to handle serious water without compromise.

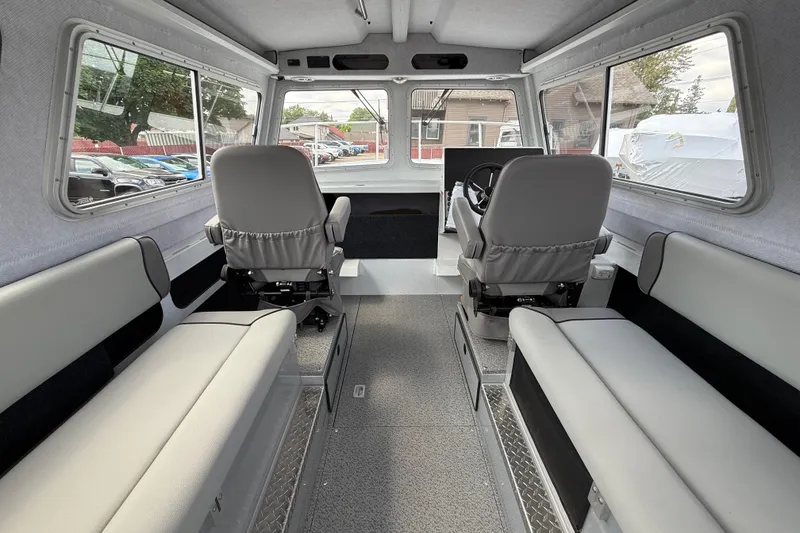

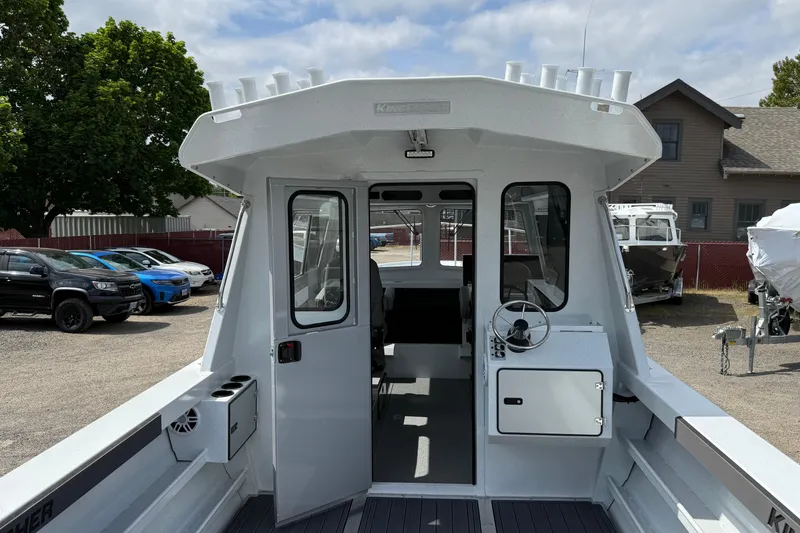

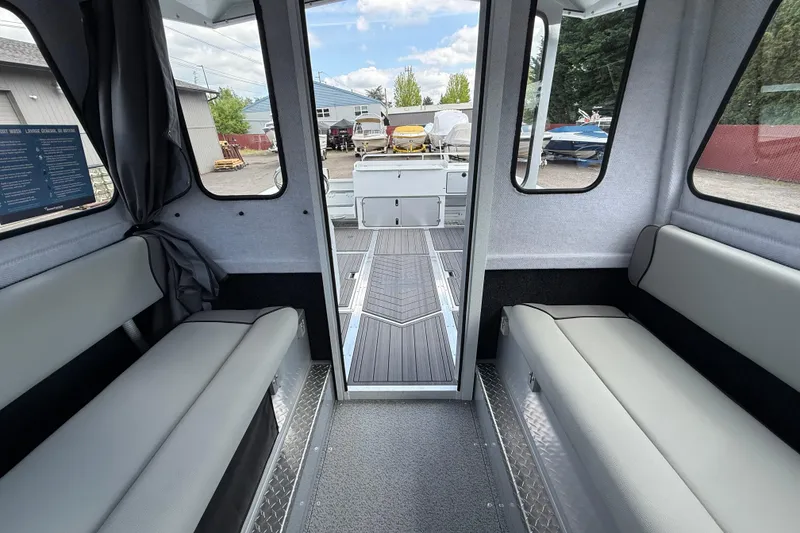

The 2825 Coastal Express's extended transom pilot house design sets it apart from conventional hardtop fishing boats. With 8' of cabin length and 6'2" of headroom, there's genuine standing room inside - enough space to run comfortably to the grounds, stay protected in changing weather, and arrive ready to fish. High sides and a 3'1" side height provide the security and confidence you need when conditions get serious.

Purpose-built for anglers who fish to the limit, the 2825 Coastal Express features an 83 USG cockpit floor fish locker, a 35 USG transom fish locker, and an 11' aft cockpit purpose-designed for working the deck efficiently. With an 85 USG fuel capacity for long runs to remote fishing grounds, an approximate dry weight of 4,050 lbs, and a 7' bottom width delivering exceptional stability at anchor and while fighting fish, this boat was built for one thing - to catch bigger fish.

The KingFisher 2825 Coastal Express is backed by a lifetime hull warranty.

Specifications
Series: Coastal
Model: 2825 Coastal Express
Length Overall: 29'
Beam: 8' 6"
Maximum HP: 400
Cabin Length: 8'
Cabin Headroom: 6' 2"
Transom Fish Locker: 35 USG
Transom Weight Limit: 1200 lbs
Aft Cockpit length: 11'
Cockpit Floor Fish Locker: 83 USG
Approx Dry Weight: 4050 lbs
Deadrise: Variable 16°
Fuel Capacity: 85 USG / 322 L
Side: 0.160"
Side Height: 3' 1"
Bottom: 0.190
Bottom Width: 7'

Standard Features

Standard Hull Features

Exclusive Pre-Flex® hull technology

Full length performance HD delta keel

Engineered full length reverse chines

Performance fully welded lifting strakes and heavy duty keel guard

Formed compound angle box stringers / full length

Single piece hull sides integrated into the swim platform with upswept bow and wide formed flat gunnels

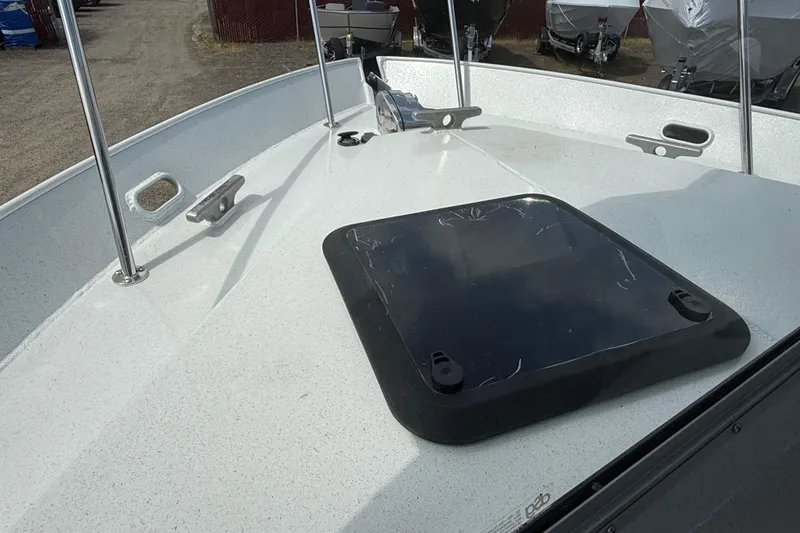

Bow anchor rope locker with hawse pipe and welded aluminum anchor roller

Foul weather bow coamings

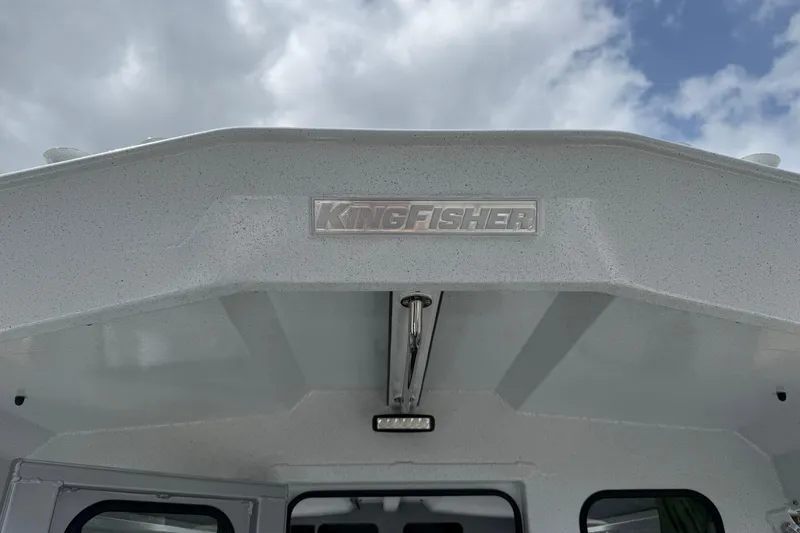

Welded aluminum hard top with overhead forward & side storage trays

Forward sloping windshield with aluminum framed tempered glass front windows, 2 aluminum framed sliding side windows with screens plus 2 fixed aft side windows

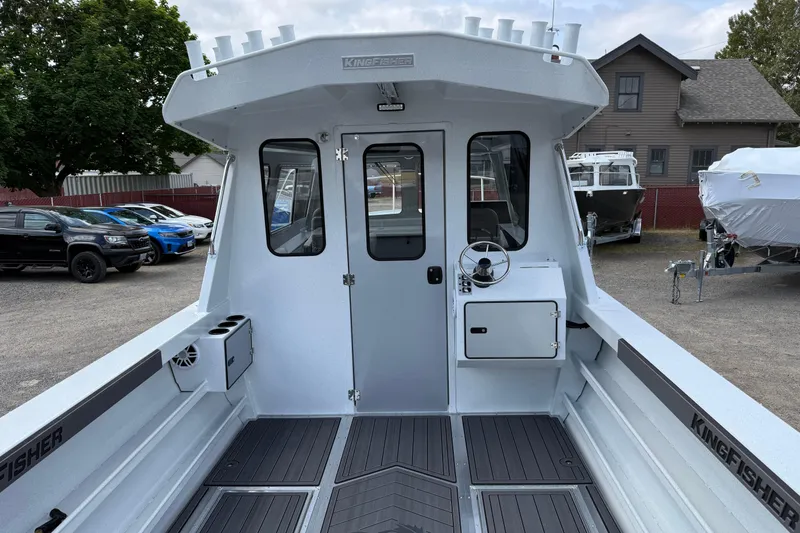

Welded aluminum 3 window cabin bulkhead with locking door

Integral aluminum cockpit roof extension

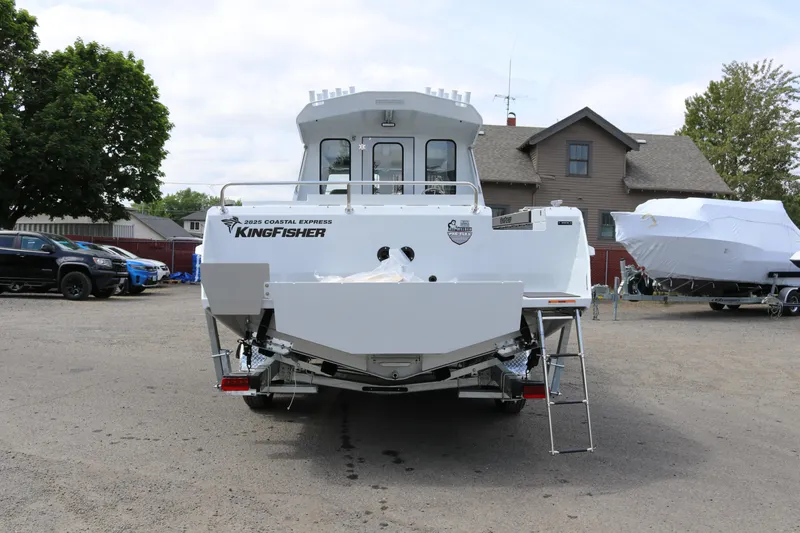

Full width integrated external motor bracket with transom platform

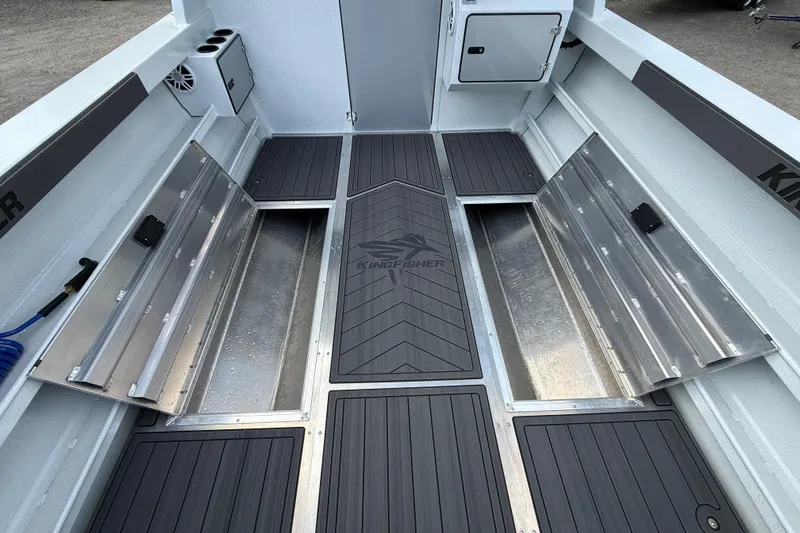

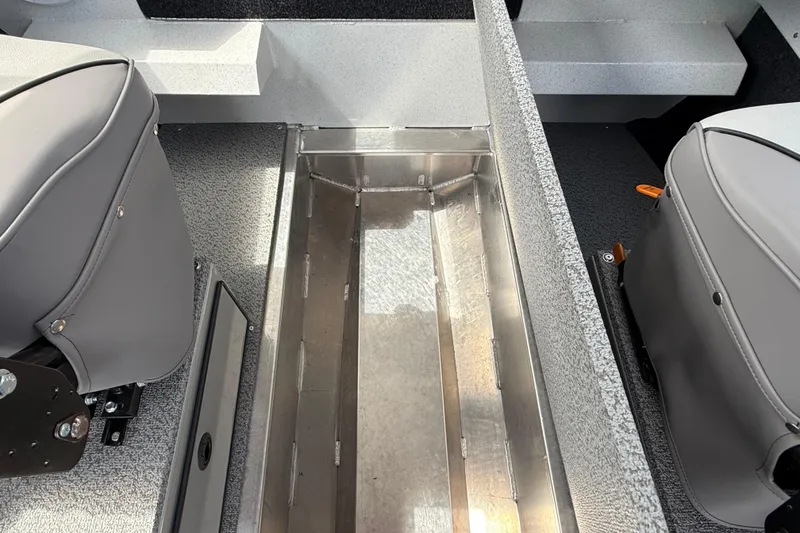

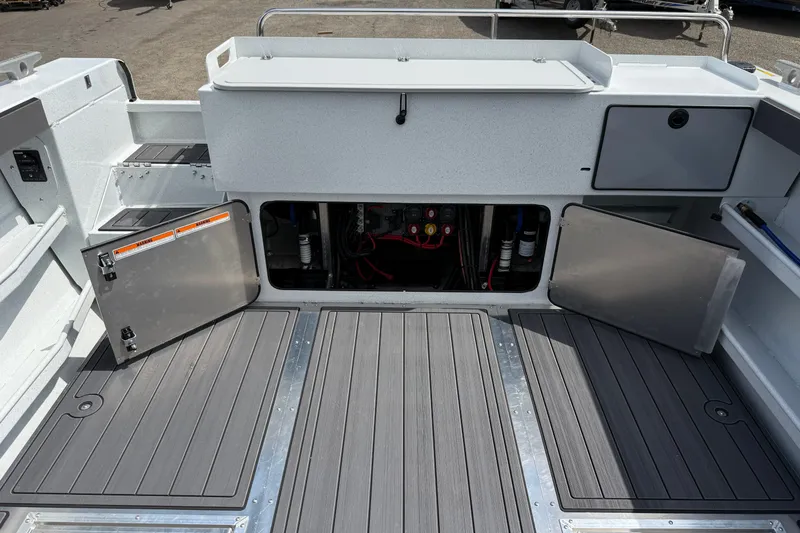

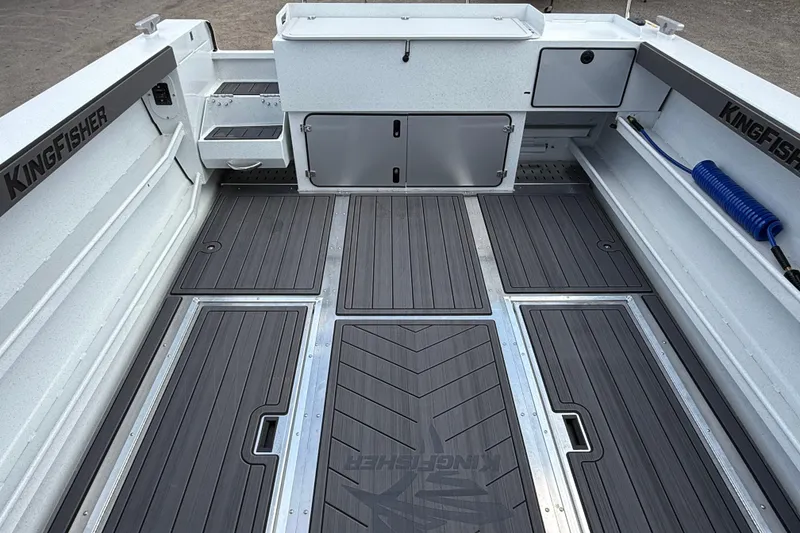

2 aft cockpit floor fish lockers with pump outs

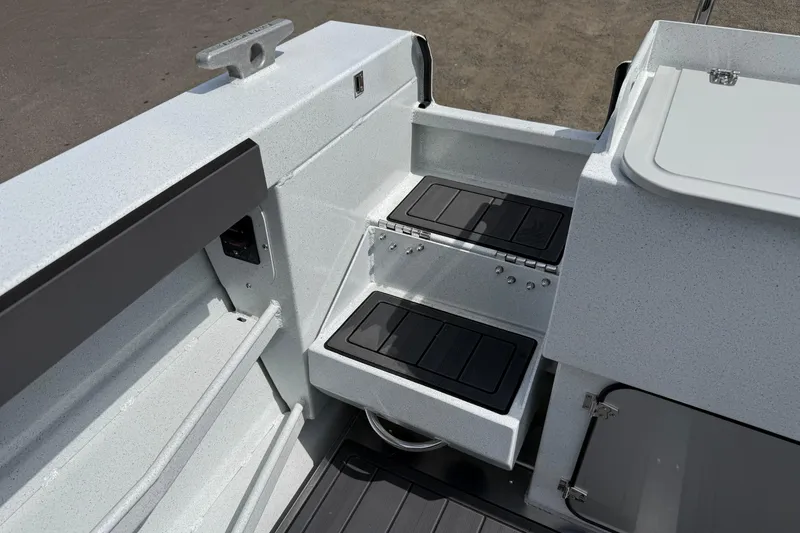

Folding transom step-thru

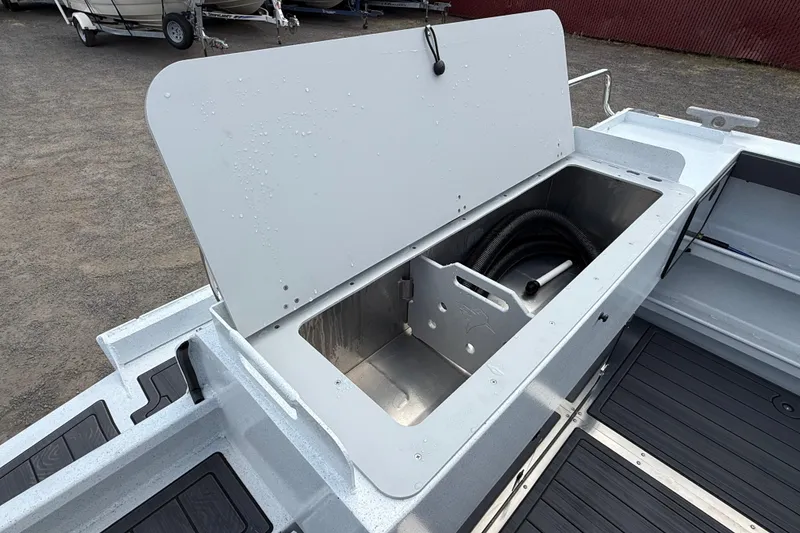

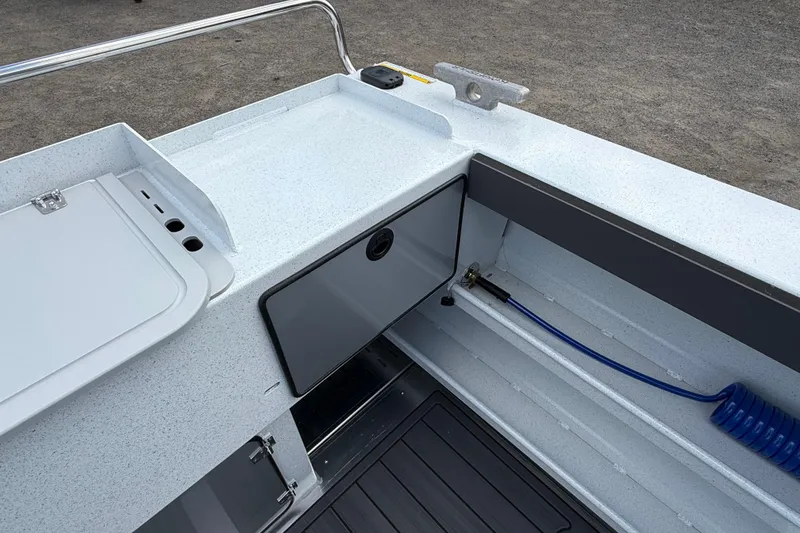

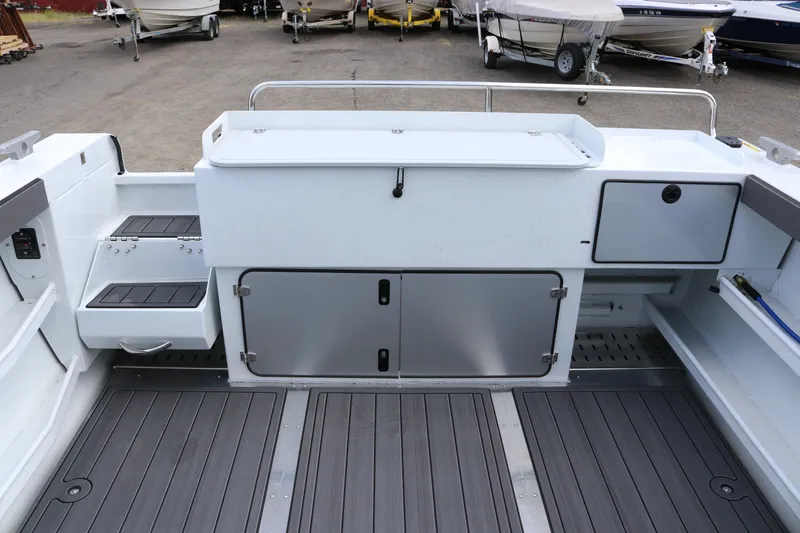

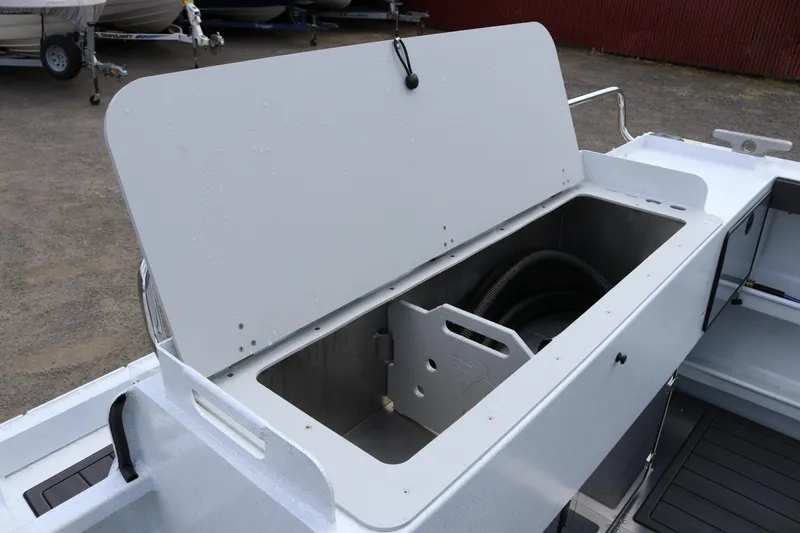

Transom fish locker with cutting board and fish rail

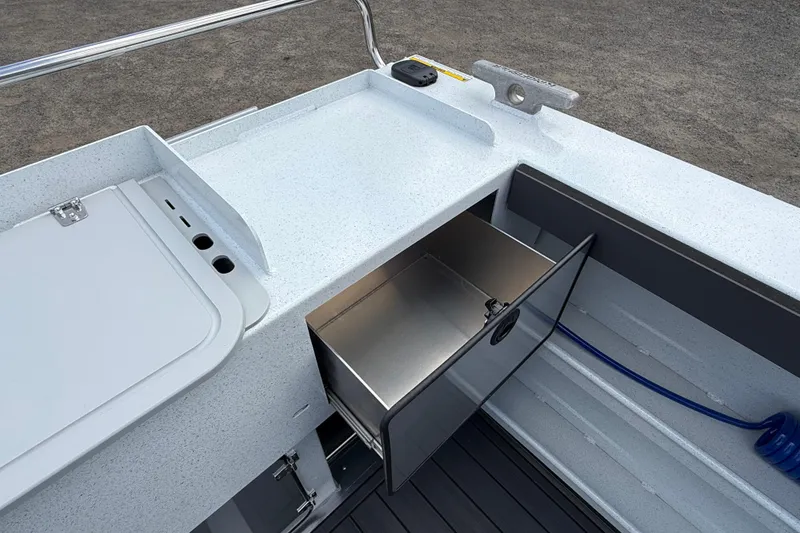

Aft cockpit tackle drawer

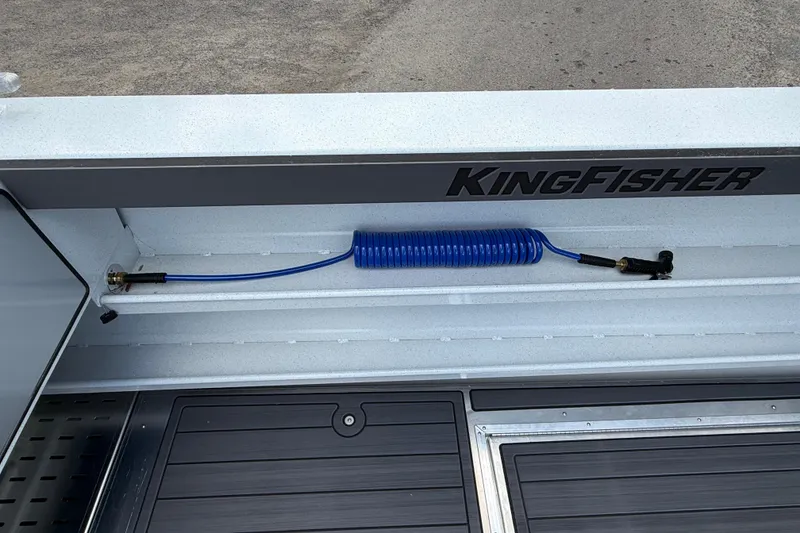

4 full length cockpit side storage trays

Welded bow eye with stainless sleeve and 2 welded aluminum stern eyes

5 x 9" heavy duty welded bow and stern cleats

Welded transducer mounting brackets

Closed cell polyurethane foam for sound dampening

Trailer / Standard with Boat Package

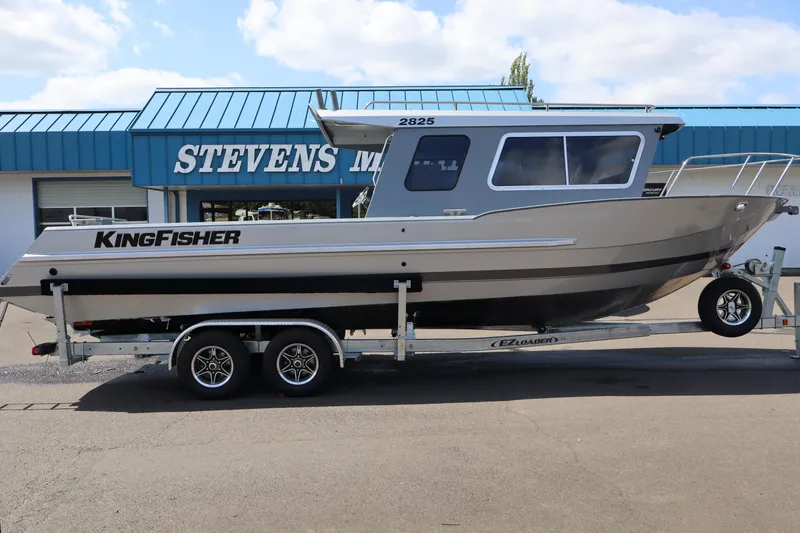

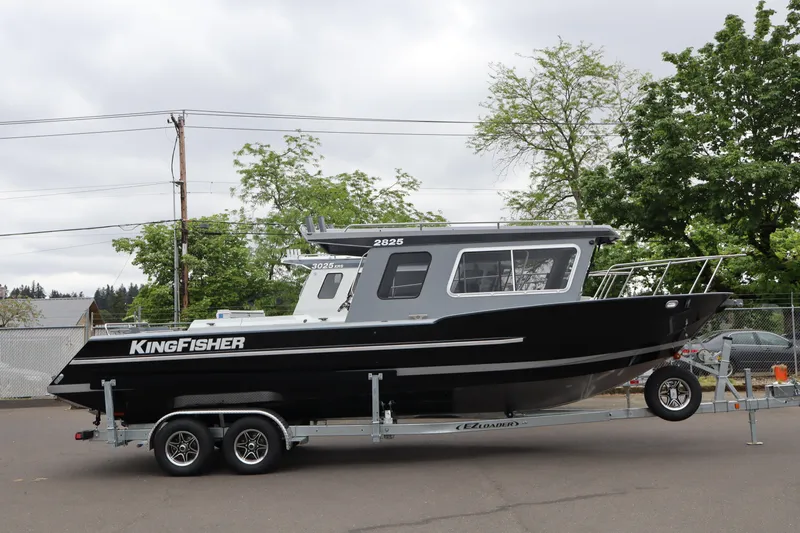

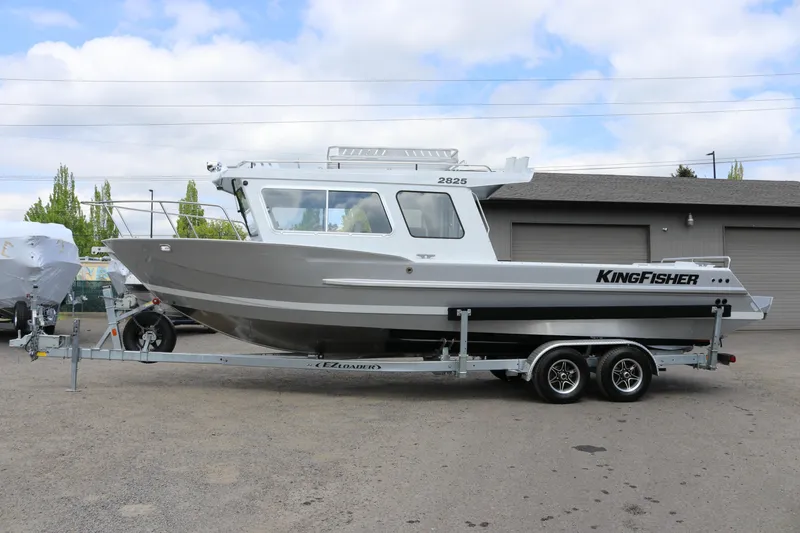

7500 lb galvanized tandem-axle bunk trailer, surge disc brakes, alum wheels

Standard Paint & Graphics

Speckle painted gunnels, cabin walls & interior with color matched painted roof accent

Exterior full side paint color choice with KingFisher standard decal

Standard Exterior Features

Stainless offshore bow rail & aft cockpit grab rails

Bolt on sacrificial hull anodes

Shipping protection cover

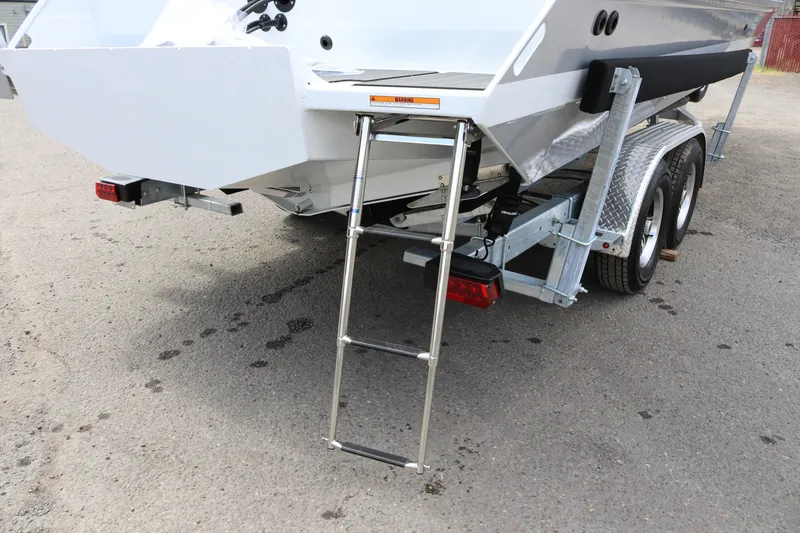

Heavy Duty Stainless steel reboarding ladder

Standard Interior Features

Easy care marine vinyl floor

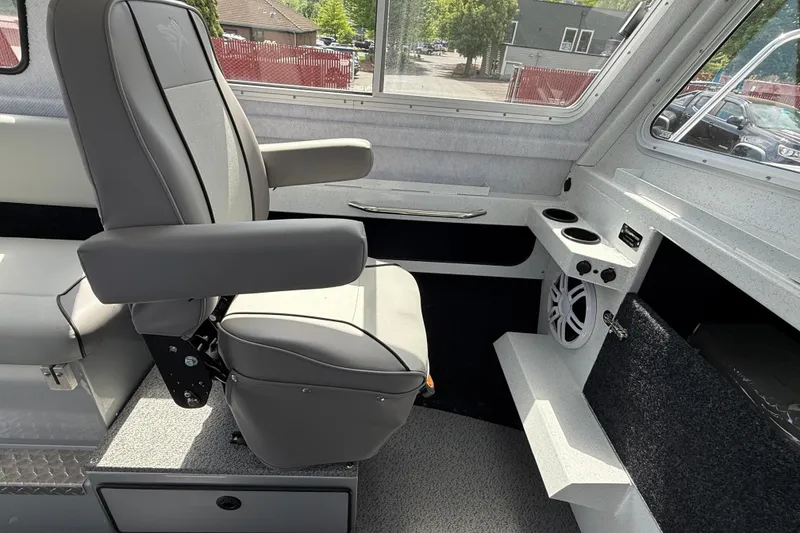

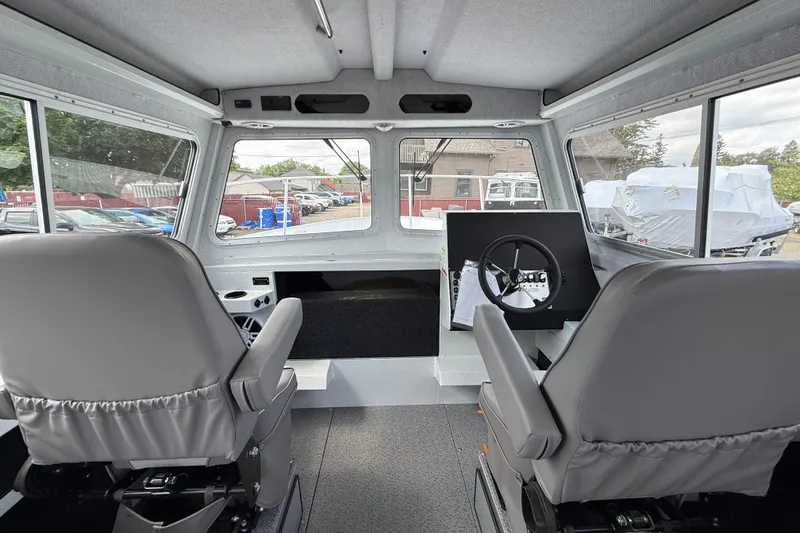

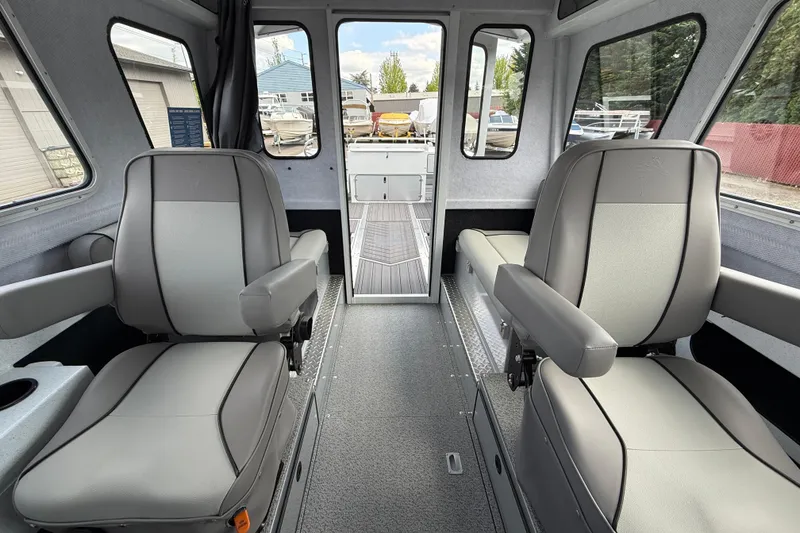

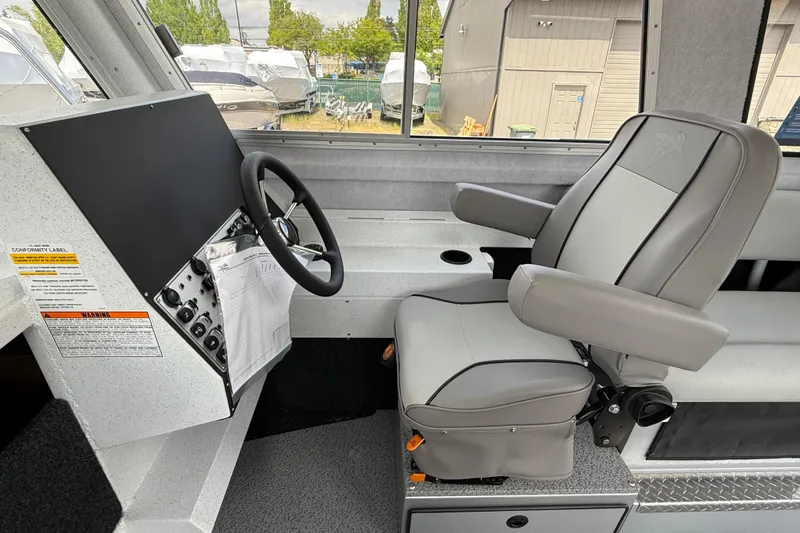

2 Fishmaster XL seats on Silver painted aluminum

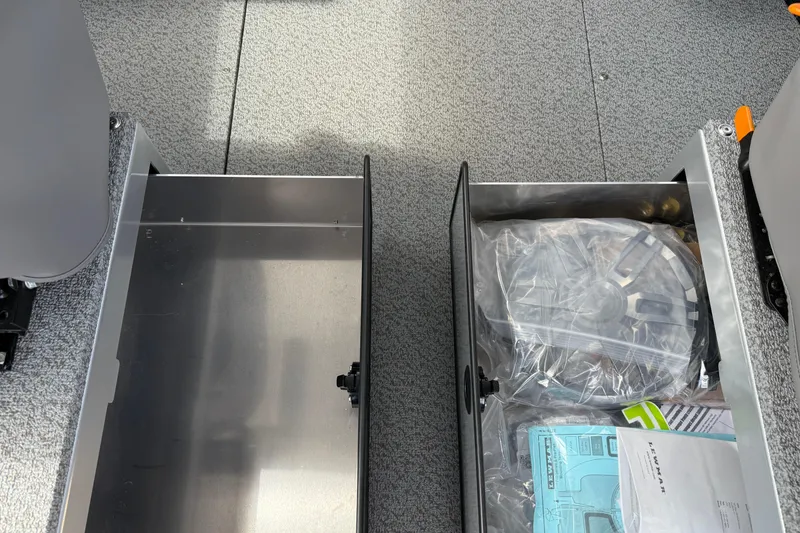

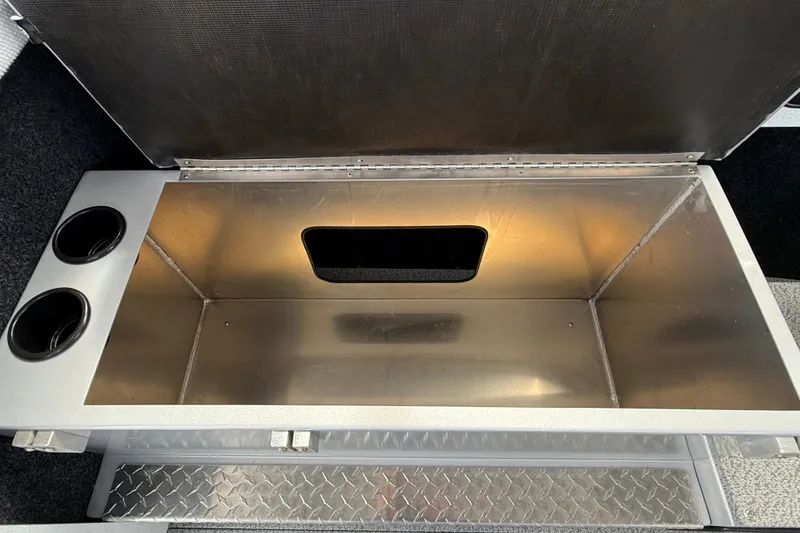

storage boxes with drawers

Speckle painted interior with carpeted lower hull sides

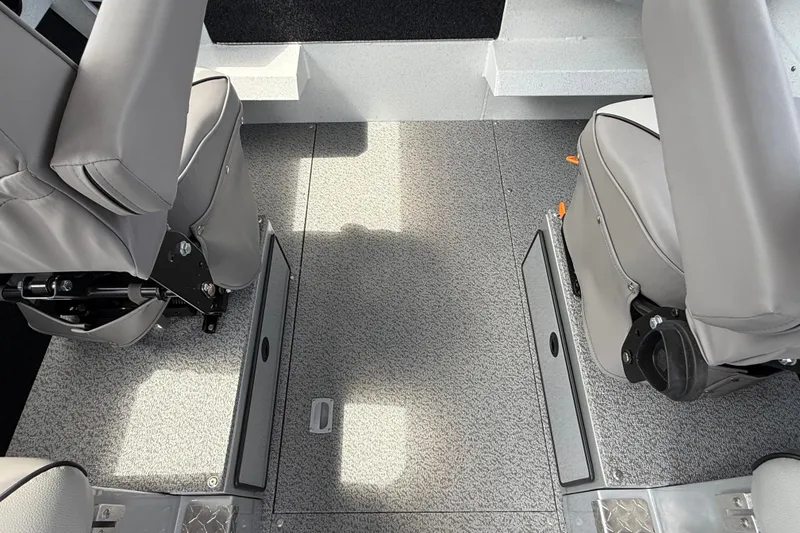

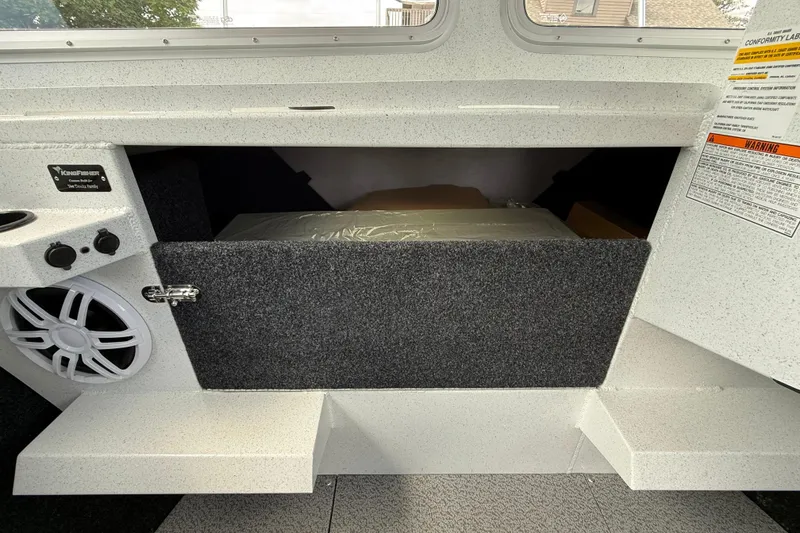

Cabin in-floor storage locker

Standard Systems Features

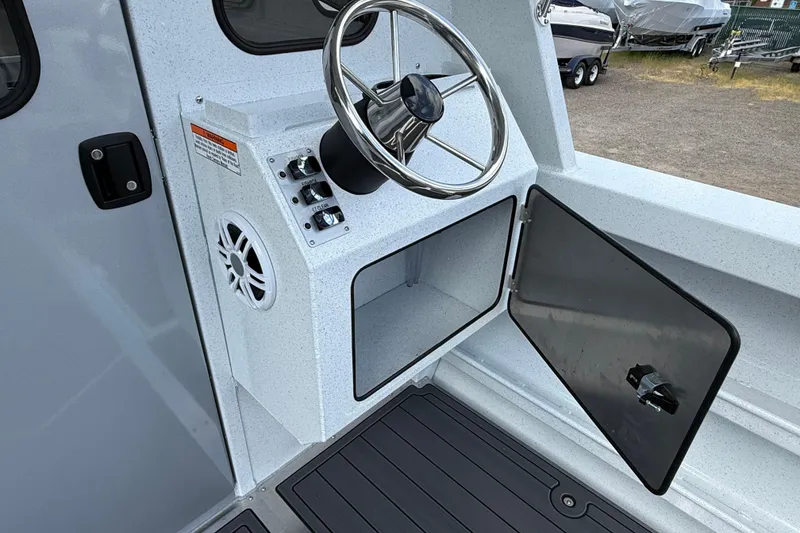

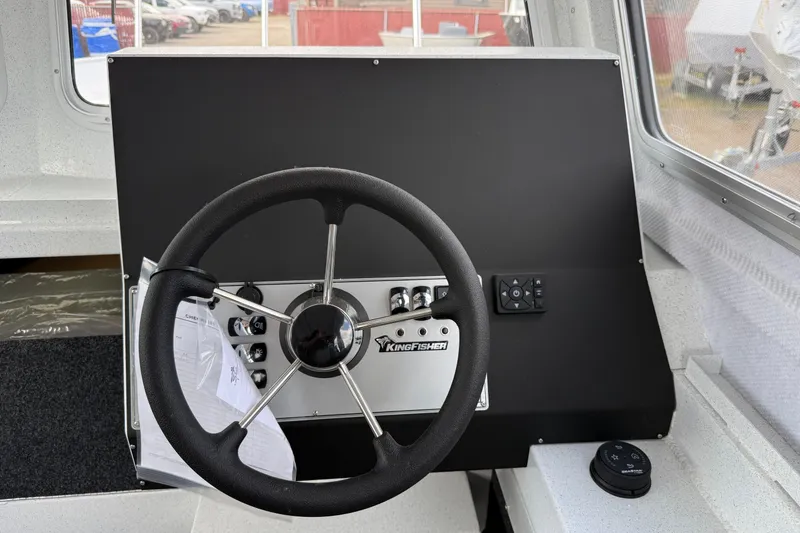

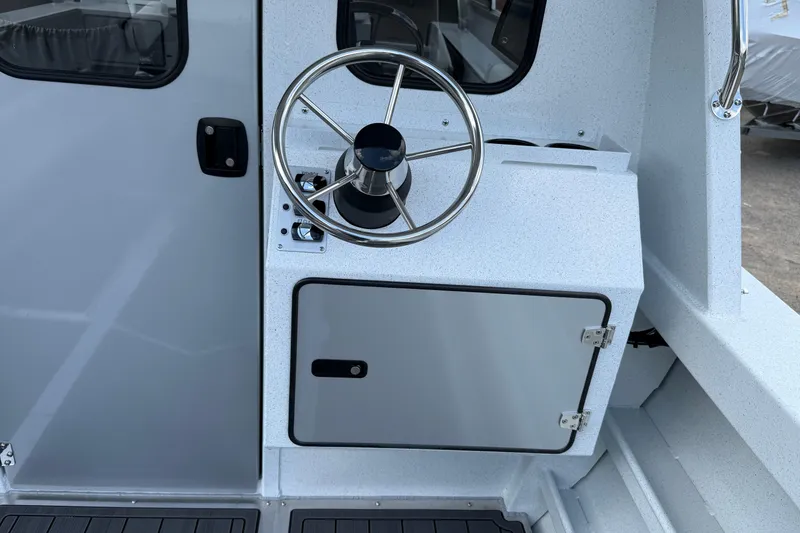

Hydraulic steering with stainless steel wheel

Electric fuel gauge

12V power point & dual USB outlet

Navigation lights package

Electric horn

Battery isolator switch with buss bar & battery trays

2 Electric 1100 gph bilge pumps with auto switch

Premium dash switch panel with resettable circuit breakers

Interior cabin lighting

Heavy duty color coded wire harness with water tight connections

9" x 10" Aluminum trim tabs with indicators

Port and Starboard Pantographic windshield wipers
