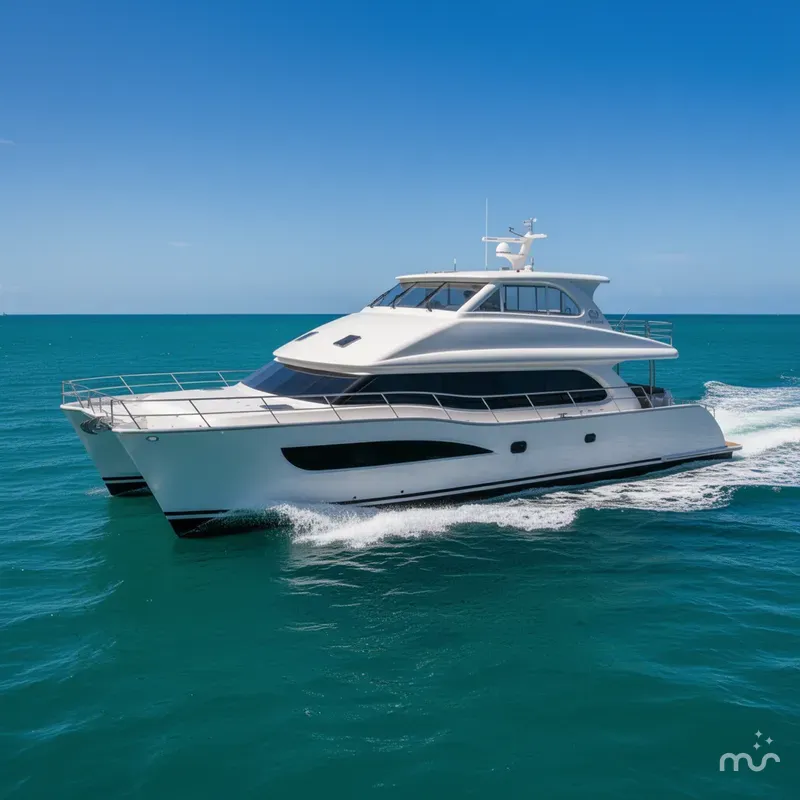

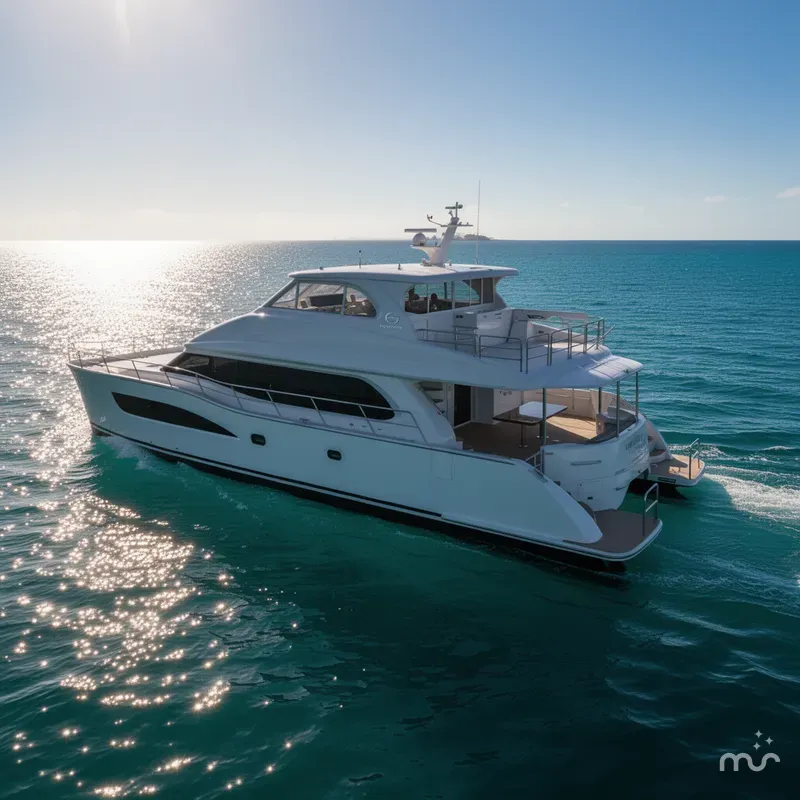

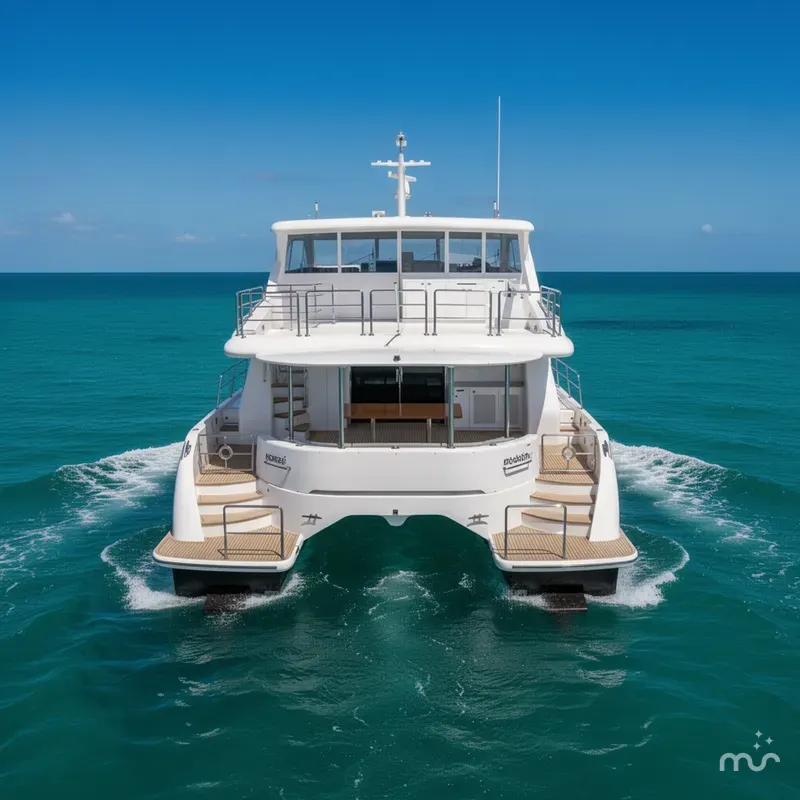

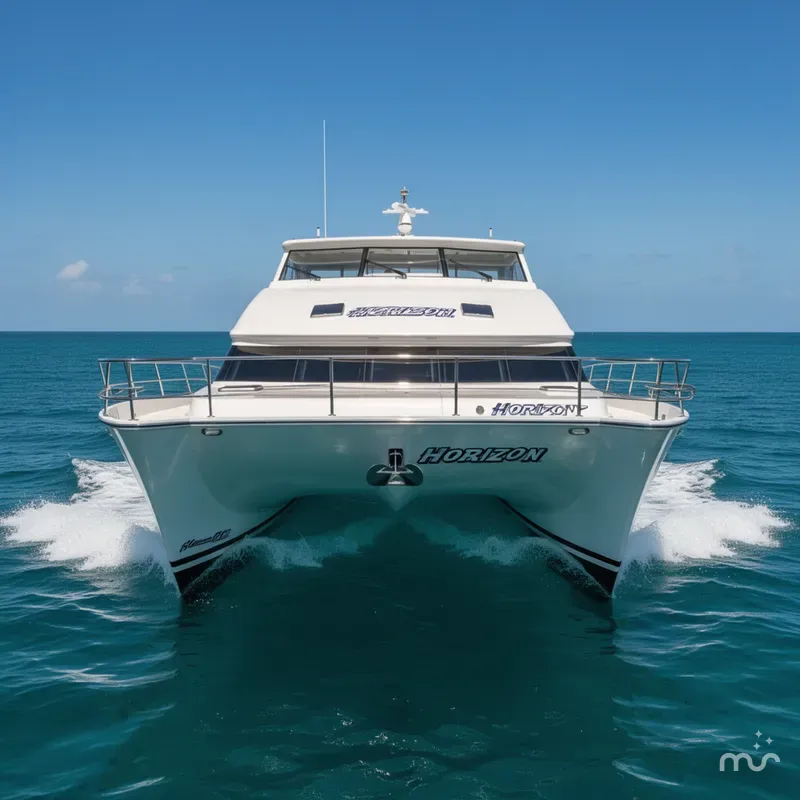

2019 Horizon PC60 Boat in Fort Lauderdale, FL 33312 US

Hull and Main Structure

1. ABS/DNV type approved fiber/resin & sandwich core material applied.
2. White gelcoat finish for hull above water line, exterior decks and furniture.
3. One piece hull SCRIMPTM cored lamination w/ deep skeg and longitudinal girders.
4. Hull, deck & superstructure are built with licensed process SCRIMPTM for improved strength and less weight.
5. Fiberglass solid hull bottom.
6. High-density Divinycell or equivalent foam cored hull sides, decks and superstructure.
7. Stringers with high density foam coring.
8. Interior structural components all properly bonded to hull.
9. Strong collision bulkhead structure for extra safety.
10. International® anti-fouling bottom paint, w/ anti-osmosis treatment.
11. PropSpeed/PropGold metal paint for underwater appendages
12. Tunnels for reduced draft.

Exterior Deck and Equipment

1. Gunwale with external rub rail.
2. Fiberglass cap rail.
3. Mooring cleats with hawse pipes in gunwale.
4. Locker for 24V anchor windlass with foot switches.
5. Anchor control at flybridge.
6. Roller and S/S chain stopper for anchor.
7. Heavy-duty S/S handrail. Top rail 1-1/2", stanchions 1-1/4" and mid rail 1".
8. Pulpit seats at bow.
9. Deck hatch for access to 63kg S/S anchor 175 ft of high tensile 3/8” chain plus 100ft mooring rope.
10. Fresh water at chain locker.
11. Bow storage lockers (x2) with access through flush deck hatches.
12. Opening portlights (x6).
13. Hull side frameless and flush mounted seam windows tinted and tempered glass for master & VIP cabin.
14. Deck hatches (x2) with blinds & screens.
15. Stainless steel framed salon door with 6FT opening.
16. Port and starboard sides boarding door.
17. Non-skid deck.
18. Aft deck remote wired engine control station at STBD.
19. Self draining aft deck.
20. FRP curved seat with cushions.
21. Large, solid satin finished fixed height wood cockpit table.
22. Large curved steps (x2) down to large dive/swim platform.
23. Manual swim ladder (x2).
24. Cockpit lockers for storage.
25. Cockpit LED down lights.
26. Courtesy lights.
27. Hot and cold fresh water shower (x2) recessed into aft coaming.
28. Fresh water deck wash tap and dock inlet at portside.
29. Canvas covers for helm console, Stidd helm chair, FRP lounge seating & table, aft cockpit seating, and special padded cover for aft cockpit table.
30. Comfortable curved stairway with teak treads up to flybridge from aft deck.
31. Recessed fuel and water inlets.
32. Swim platform with S/S rails one on each hull.
33. Burnewiin universal mount for rod holders, extra cleats, etc (5x)
34. Blue underwater lights (4x)
35. 32" TV on aft deck
36. FRP bar counter with Dometic Fridge and Scotsman Ice maker

 Flybridge and Boat Deck

1. Non-skid flybridge cambered deck with ample drainage.
2. Ample locker space for storage.
3. Wet bar with sink, hot and cold water, Dometic fridge
4. Indirect lighting under bar counter.
5. Luxurious lounge seating.
6. Satin finished teak coffee table.
7. Helm station with S/S wheel.
8. Stidd pilot chair (x1).
9. Instrument console with engine controls, chart plotters instrument monitors and panels, fuel tank monitoring system.
10. Bilge pump monitors and controls.
11. Compass.
12. Comfortable stairs for access to aft deck with stainless handrails.
13. Hard top ceiling lights.
14. Hardtop reinforced for Nav gear to be mounted on top.
15. Steelhead E1000 hydraulic crane for tender on flybridge.
16. S/S flag pole on stern.
17. Custom made swivel bar stools with S/S post (3x)
18. Dometic AC on Flybridge
19. Pre-wire for backlight LED stern nameplate

 Engine Propulsion & Steering System

1. Cummins QSM11 705 HP engines.
2. Dual Racor filters in each engine room.
3. S/S shafts AQUAMET HS 22# or equivalent.
4. High performance S class 4 blade propellers in NiAlBr.
5. Bronze P bracket.
6. Shaft and rudder packing glands with maintenance free Tides seals.
7. Stainless rudder with zinc plates.
8. Elec. bow thruster.
9. Power steering system.
10. Underwater exhaust system with bypass and mufflers.

 Engine Room and Equipment

1. Sound and heat insulated compartments.
2. Ventilation system with moisture eliminators.
3. 17 kW (60Hz) Onan generator with sound shield and air water separator.
4. Engine access through deck hatches in cockpit floor.
5. DC Lights.
6. Automatic fire extinguisher outlets.
7. High water bilge pumps with alarms.
8. Oil change pump system for engines gears, and generators.
9. Marine Air – central air conditioning for each cabins and salon. (Exact same spec. and tons as PC52).
10. *Air conditioning self cleaning system.

 Electrical System

1. 110V or 220V electrical supply from generator/shore power.
2. Shore power connector 50amp inlet*2.
3. Single 50 AMP shore cord on Glendenning 75ft
4. Automatic transform switch for AC power supply.
5. Color-coded wiring for easy identification.
6. Premium DC distribution board with switches, voltmeter and amp meter.
7. Remote panel for generator.
8. Four 210Ah AGM batteries for ship‘s DC 24V service power.
9. Premium AC panel with switches 110/220VAC, 50A dock inlet
10. Fresh, black water & diesel tank gauges.
11. Four 210Ah AGM start batteries for engines/generator.
12. 3KW inverter*1.

 Navigation & Instrumentation

1. Garmin GPS.
2. Garmin 48” 48mile open array radar system.
3. Garmin 15.5" (x2) multifunction displays.
4. Garmin Autopilot System.
5. Garmin Wind/Speed/Temp/Depth transducers.
6. Garmin VHF at flybridge (with built-in loudhailer) and interior navigation station.
7. Garmin AIS.

 Mechanical System

1. Electric fresh water flush toilets.
2. Washer and separate dryer including laundry cabinets and iron board.
3. 75 Gallon holding tanks (x2), Y valve for overboard discharge or dock side pump out.
4. 250 Gallon water tank.
5. Water and black tank integral to hull.
6. Electric 24V bilge pumps (x6).
7. Marine grade lines for fresh water system.
8. 20 Gallon hot water heater to genset.
9. Fuel transfer pumps.
10. High volume AC fresh water pump.

Interior Design and Equipment

Interior Layout – Salon

1. Hardwood flooring.
2. Tempered safety glass windows.
3. Luxurious salon sofa covered in fabric.
4. Soft furnishings including roman blinds.
5. Fabric headliner with recessed down lights.
6. Window valance.
7. Side tables with storage.
8. Satin varnish wood coffee table.
9. Satin wood finish on vertical and horizontal surfaces.
10. LED Ceiling lights.
11. Custom made swivel stools w S/S post (x4)
12. Custom folding salon table

Galley

1. Corian counter tops and back splashes.
2. Electrolux 5 burner propane cooktop w/ solenoid shut off valves
3. GE oven.
4. GE stainless steel refrigerator with freezer.
5. Fisher Paykel Drawer Dishwasher
6. Cutlery & crockery drawers.
7. Pot and pan drawer & spice cupboard.
8. Additional storage drawers and cupboards.
9. Double sinks with garbage disposal.
10. Under counter trash drawer.
11. Summit wine cooler

 Telephone and Stereo System

1. Flybridge Fusion Marine Stereo (x1) and speakers (x4).
2. Salon 40" LCD TV with Sonos Sound System
3. Aft deck Fusion Marine Stereo (x1) and speakers (x2).
4. Master cabin 32" LCD TV with Fusion Marine Stereo (x1) and SM speakers (x2).
5. VIP cabin 19" LCD TV with Fusion Marine Stereo (x1) and SM speakers (x2).
