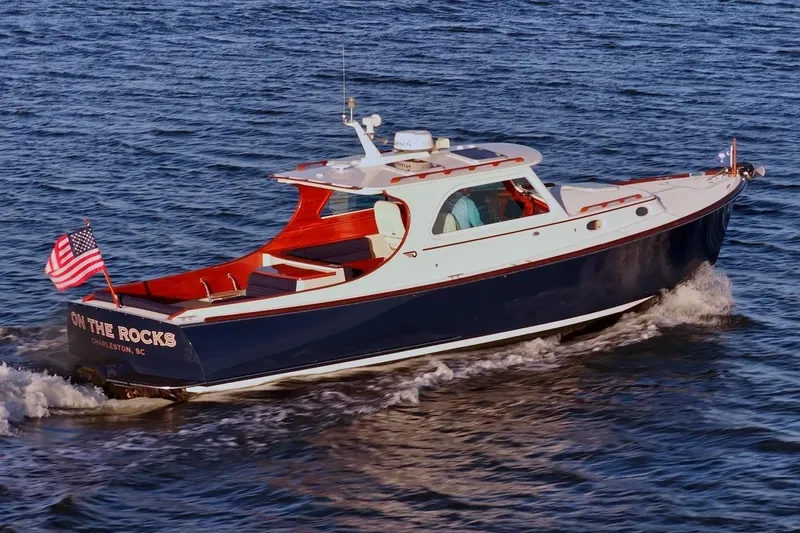

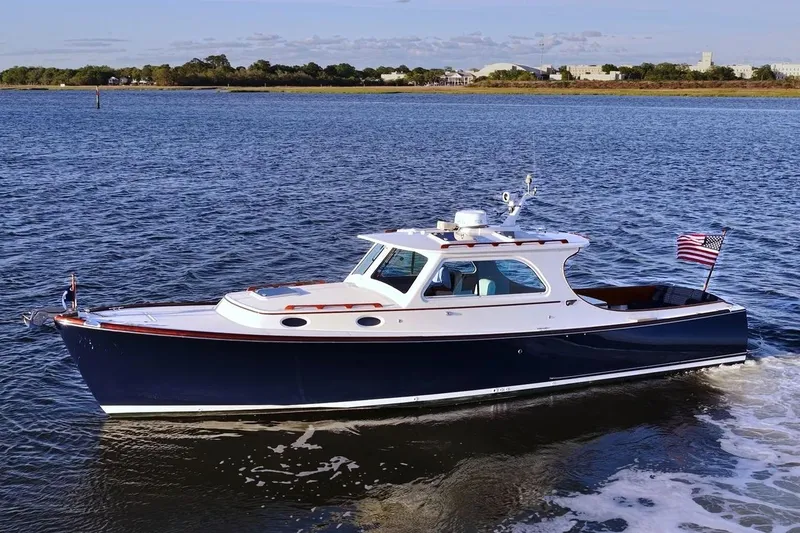

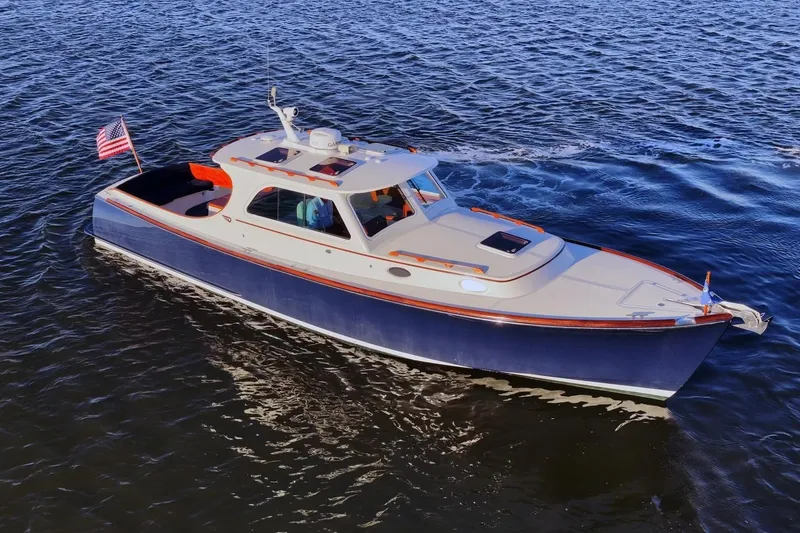

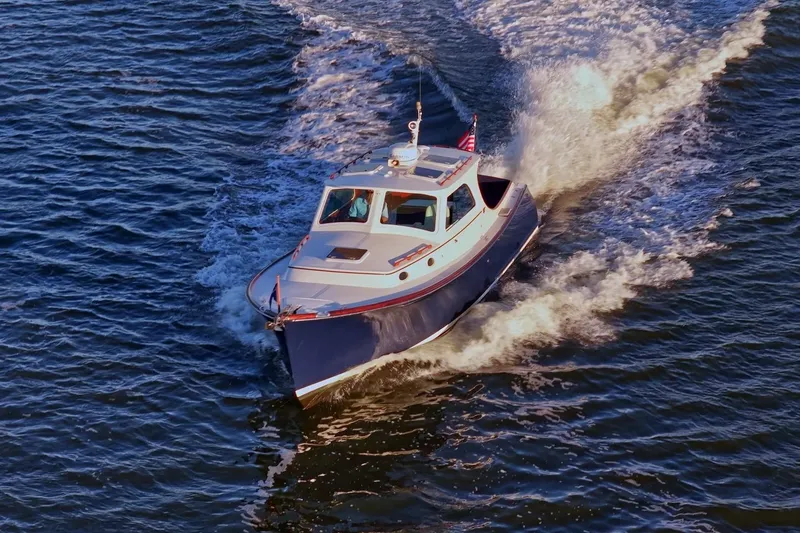

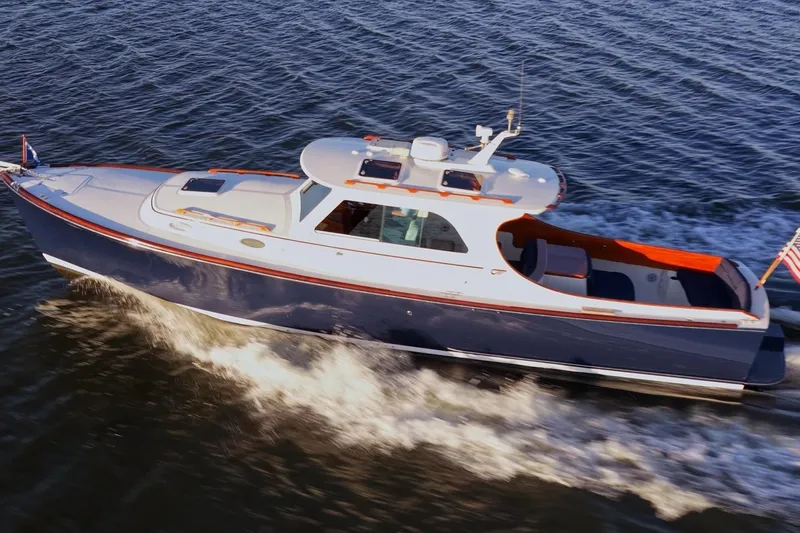

2004 Hinckley Yachts Picnic Boat 36 EP

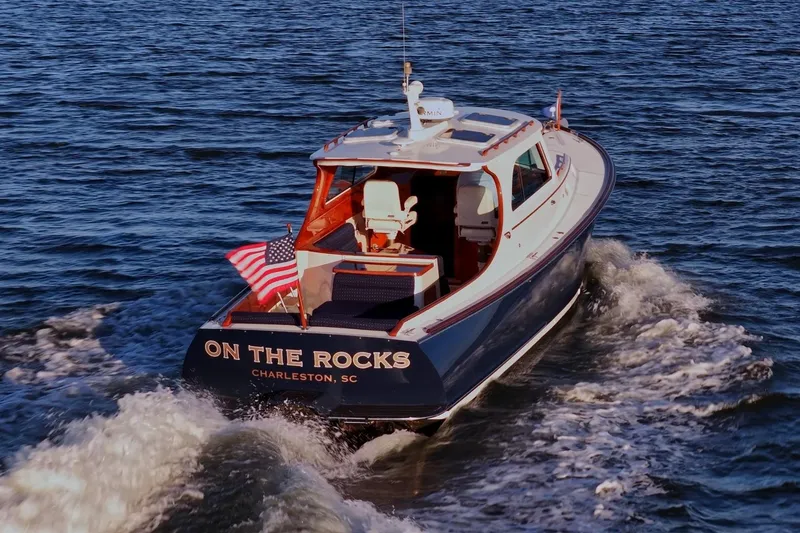

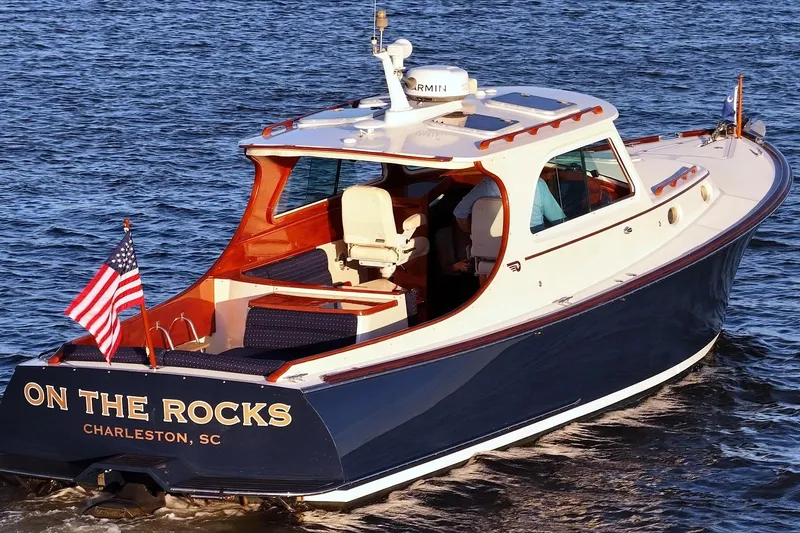

ON THE ROCKS is a beautifully appointed 2004 Flag Blue Hinckley Picnic Boat EP that turns heads in any harbor. Heavily optioned when new, this boat shows the care and attention of a discerning owner - with Stidd helm and passenger seats, Corian countertops, Garmin electronics, Fusion Bluetooth stereo, Espar diesel heater, air conditioning, custom varnished teak throughout, and the added bonus of a pilothouse berth that gives the boat a three-person sleeping capacity. The brightwork has been recently varnished and the boat presents beautifully. Located in Charleston, SC.

ON THE ROCKS significant features include

• 2004 Yanmar 6LY2-STP 440-hp diesel - engine rebuilt October 2013; 491 hours on rebuilt meter (approx. 2,091 total)
• Garmin GPSMAP 8610xsv 10" Multifunction Display Chartplotter with Garmin GMR 24 xHD radar
• Garmin GNX 20 Marine Instrument Display
• Fusion MS-AV755 Bluetooth stereo tied into Garmin chartplotter
• MasterVolt MassCombi 12/2500-100 Inverter/Battery Charger
• Stidd helm and passenger seats in Ultraleather Ermine #291-5805
• Pilothouse table with removable pedestal converts to small guest berth with matching cushion - sleeps three total
• Espar D3L diesel heater
• Single 12,000 BTU air conditioning (shore power)
• Additional rope lighting under side decks on dimmer
• Upgraded pilothouse LED lighting on dimmers
• Varnished teak on lower helm station face, port dash face, and horizontal teak base strip
• Full Flag Blue Sunbrella cockpit cover
• Full boat cover weighted just below the rub rail
• Recently performed varnish work throughout

DECK AND HULL

• Flag Blue Awlgrip Topsides (#G5002)
• Off White W115 Gelcoat cabin house and deck
• Single Off White Awlgrip Bootstripe (#G8010)
• Black bottom paint
• Hull construction: Kevlar E-glass hybrid outer skin with balsa and Corecell core carbon fiber inner skin, SCRIMPed with vinylester resin
• Deck and cockpit: E-glass and balsa core, SCRIMPed with vinylester resin
• Molded-in nonskid deck sole
• Marelon ball-valve seacocks with thru-hulls below waterline; Marelon thru-hulls above waterline
• Stainless steel half round on fiberglass molded rub rail
• Heavy-duty fiberglass swim platform with teak insert treads, stainless steel bracket and half round
• Stainless steel telescoping 3-step folding swim ladder - stores under platform

DECK FEATURES

• Flush foredeck anchor locker
• Rounded, tapered, varnished teak toe rail with Hinckley profile
• Varnished teak eyebrow molding around cabin top
• Stainless steel cabin top handrails and wrap-around stainless steel handrail on pilothouse top
• Four (4) elliptical ports on house sides - all opening with screens
• Hinckley pilothouse mast with spotlight and radome painted to match deck
• (5) Low profile opening aluminum hatches with screens
• Custom Hinckley 316L stainless steel bow chocks
• Bow, stern and springline 316L stainless steel mooring cleats - mid-rail easily reached from cockpit
• Padeyes with chafe strips to hang fenders
• Full boat cover weighted just below the rub rail to protect varnish

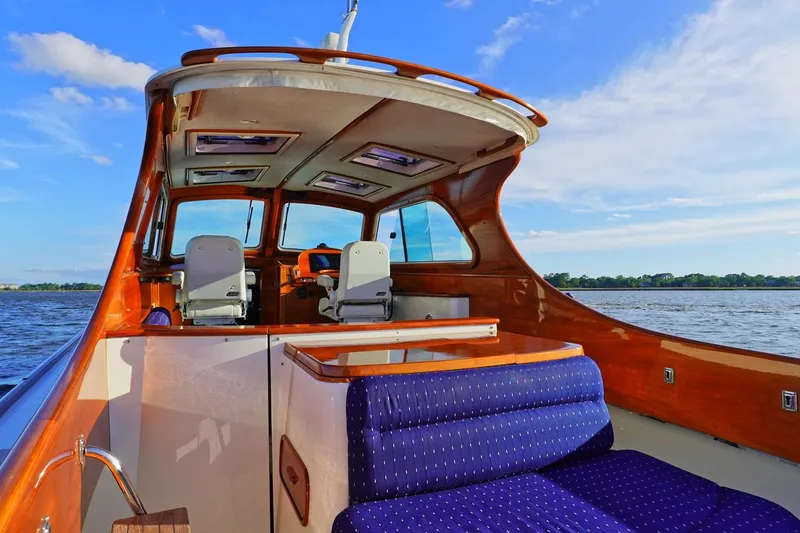

PILOTHOUSE

• Extended pilothouse style
• (4) Tinted pilothouse windows: (2) sliding side windows and (2) fixed forward windows
• Heavy duty self-parking intermittent windshield wipers with fresh water washers
• Molded-in non-skid pilothouse sole
• Teak trimmed pilothouse windows and shelves
• Insulated white overhead with four (4) acrylic opening hatches and Sky Screens
• Upgraded LED overhead lighting on dimmer switches
• (2) Hella fans mounted on the forward valence port and starboard
• (4) Hella fans throughout - two in main cabin and two in pilothouse
• Sky Screens on all four pilothouse hatches and V-berth hatch
• Storage locker under pilothouse settee
• Air conditioning duct outlet in pilothouse
• (5) Cup holders
• Varnished teak locking companionway door
• Two varnished teak handrails under aft outboard ends of pilothouse cabin top
• Varnished teak handrail runs centerline length of pilothouse overhead
• White Stamoid drop curtains with windows - fully enclosed pilothouse
• White Stamoid interior window sun covers for all four pilothouse windows
• Rope lighting under side decks port and starboard on dimmer
• Additional rope lighting under side decks on dimmer

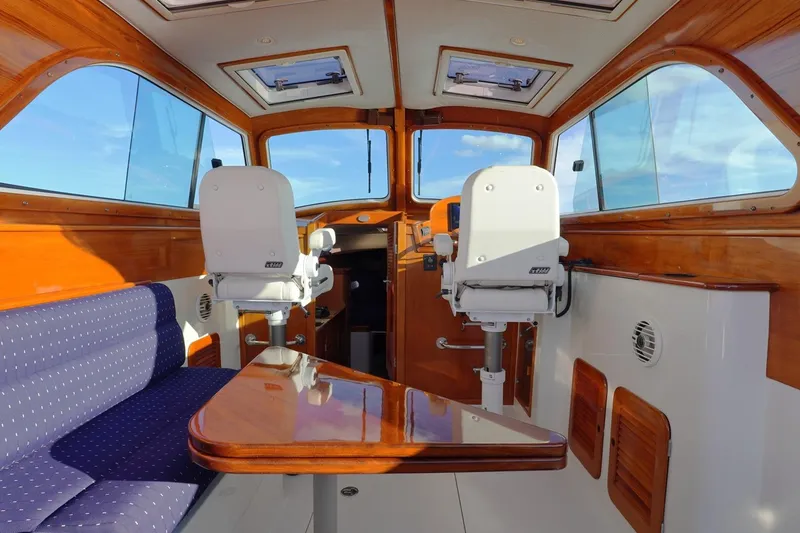

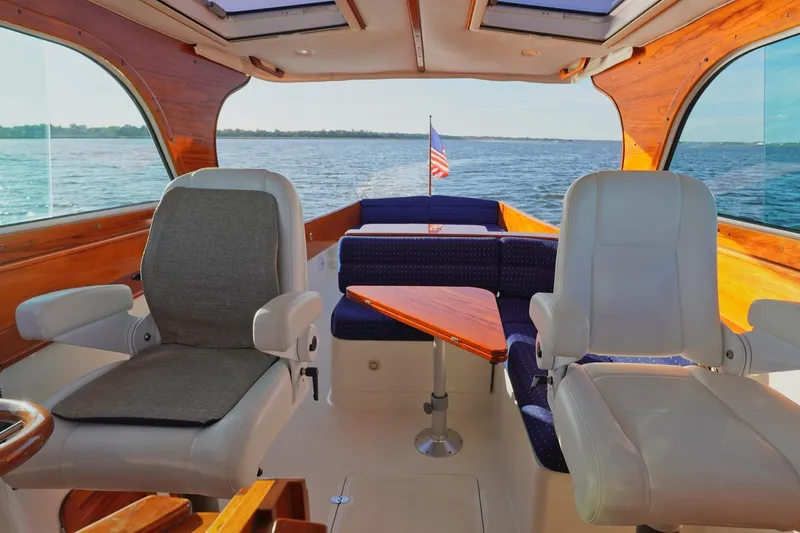

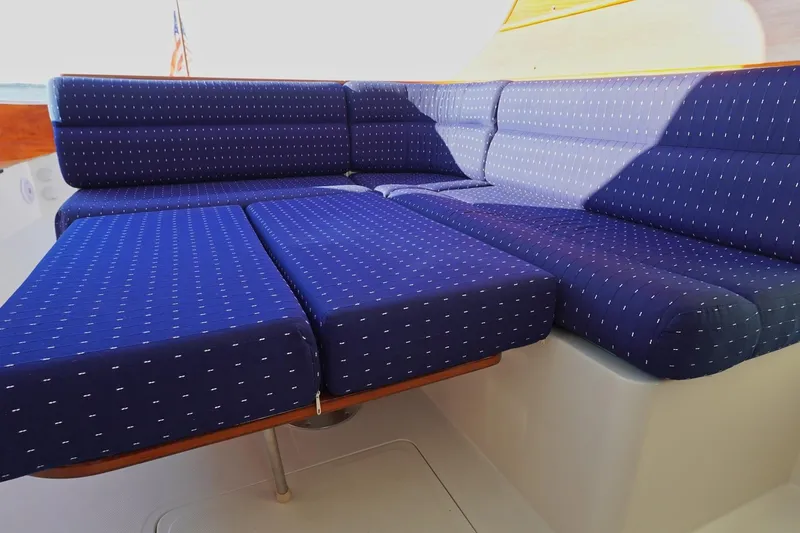

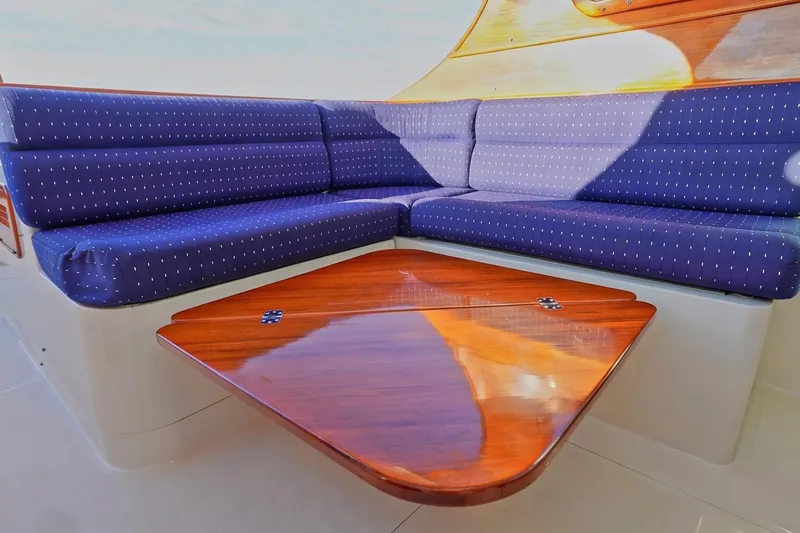

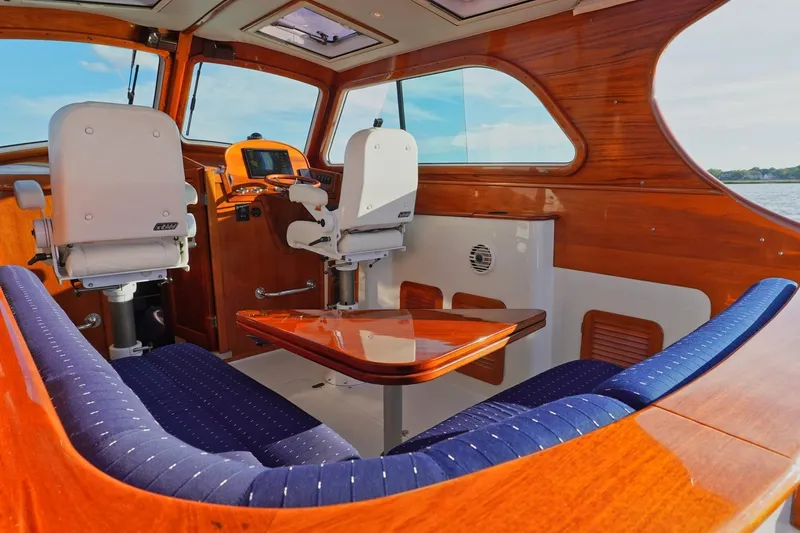

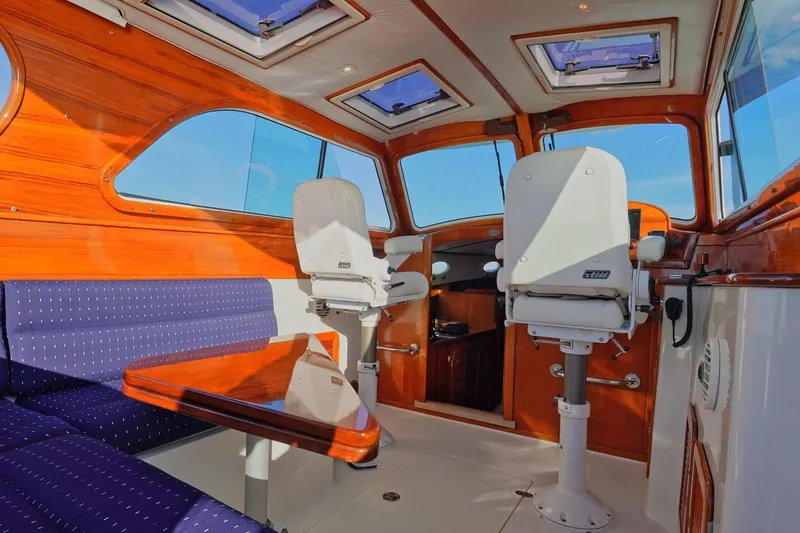

AFT PILOTHOUSE SEATING

• L-shaped settee with varnished teak shelf rim to port - faces inboard and forward
• Back and bottom cushions covered in Dibble Hello Sailor P200-90 fabric
• Locker stowage beneath settee
• Pilothouse table with removable pedestal - converts to small guest berth with matching cushion
• Two opening hatches with shades/screens over aft pilothouse area
• Two cup holders
• Stidd helm and passenger seats on powder-coated pedestals - height, forward, and aft adjustable; swivel to face aft; stainless steel footrests
• Seats finished in Ultraleather Ermine #291-5805

FORWARD PORT

• Varnished teak integral handrail/cup holder on forward bulkhead
• Stainless steel footrest below handrail
• Air conditioning controls outboard
• Louvered door locker outboard of navigator seat pedestal

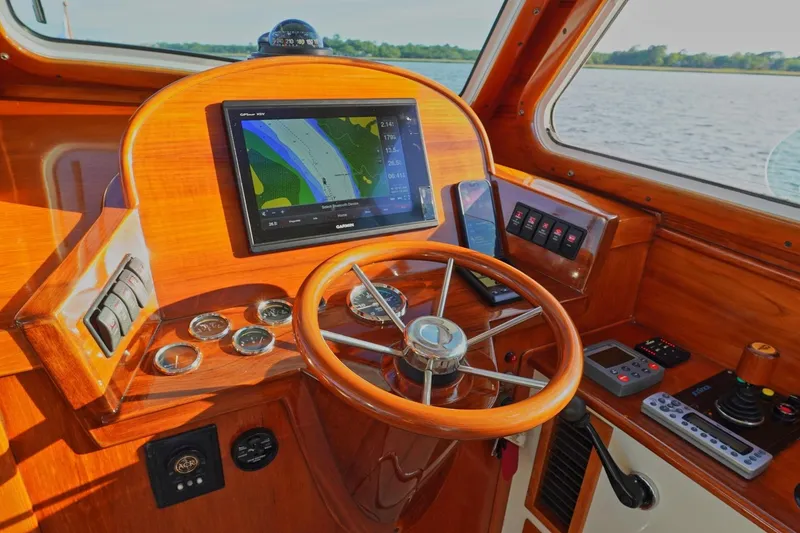

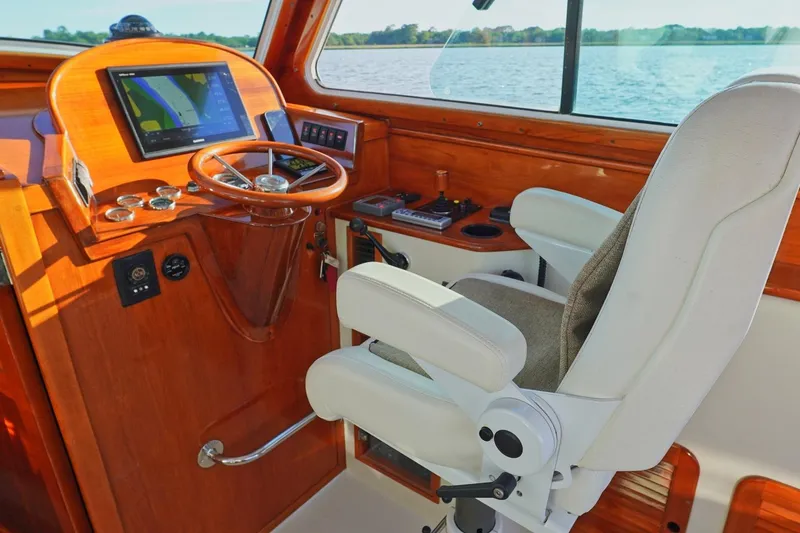

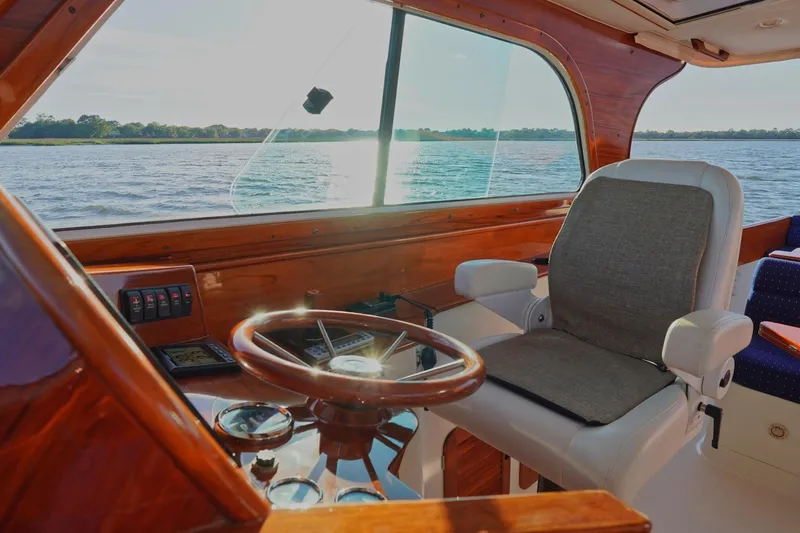

HELM STATION

• Varnished teak on the forward lower helm station face (below pod) and lower forward face of port dash, covering exposed fiberglass areas. A horizontal varnished teak strip, matching in width and thickness with the vertical teak strips at the outside edges, runs across the full width 1/2" up from the fiberglass sole, with the teak faces running down to meet it.
• Varnished teak custom instrument pod
• Stainless steel 14" steering wheel with varnished wood rim
• Hinckley "Jet Stick" with bow thruster integration
• Engine gauges: tachometer with hour meter, oil pressure, water temperature, nozzle indicator
• Top-opening locker with chart storage
• 12-volt outlet in chart pocket
• Two cup holders

HELM ELECTRONICS & NAVIGATION EQUIPMENT

• Garmin GPSMAP 8610xsv 10" Multifunction Display Chartplotter with Garmin GMR 24 xHD Radar
• Garmin GNX 20 Marine Instrument Display - depth, water temperature, speed
• Raymarine Autopilot with rate sensor
• Icom M402 VHF Radio with DSC interfaced to GPS
• Ritchie compass

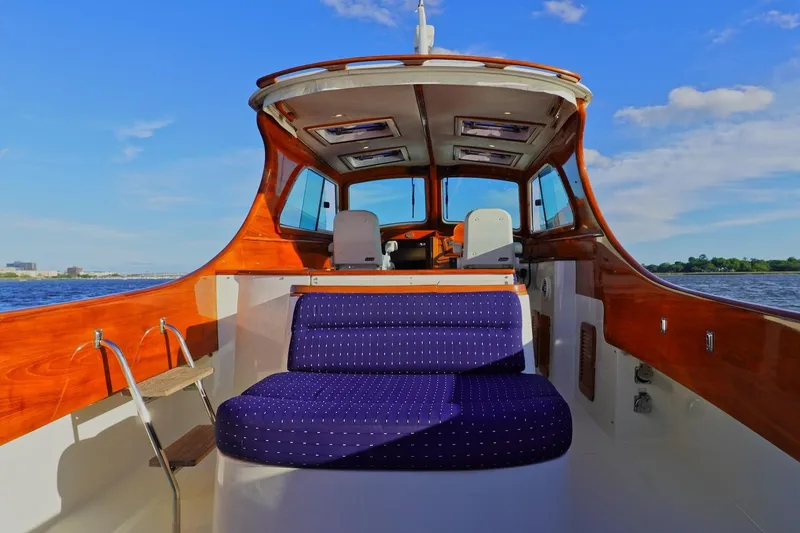

COCKPIT

• Teak capped cockpit coaming
• Cockpit sole with molded-in nonskid and direct overboard drainage scuppers
• Courtesy lights under side decks port and starboard
• Cockpit lockers with varnished louvered teak doors
• Cockpit shower with mixing valve located in forward face of stern seat

COCKPIT ENTRY

• Stainless steel cockpit step with teak treads - mounts port or starboard
• Teak boarding step for port or starboard side deck

ENGINE BOX / WET BAR

• Forward cockpit seat on engine box - aft-facing cushioned seat finished in Dibble Hello Sailor P200-90 fabric
• Wet bar with molded sink, foldaway faucet, hot and cold pressure water, insulated self-draining icebox, and storage drawer - varnished teak sink/cooler cover
• Engine box/wet bar hinged on aft end with electric lift for easy engine access

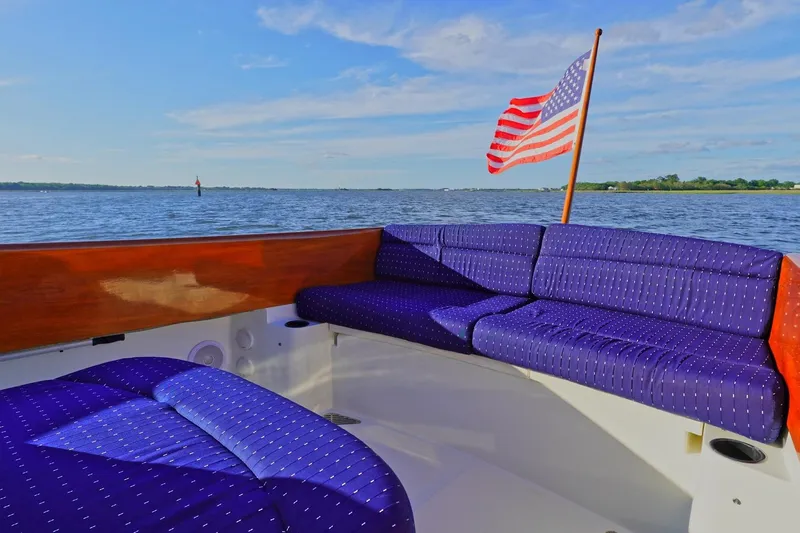

AFT SETTEE

• Full-width aft settee with back and seat cushions finished in Dibble Hello Sailor P200-90 fabric
• Two hinged lids under cushions - access to removable storage tubs and bilge areas
• Port and starboard cup holders just forward of cushions
• Full Flag Blue Sunbrella cockpit cover attaches to pilothouse with snaps around cockpit coaming

INTERIOR BELOW

• Interior finished in satin-varnished cherry including sheathing
• Cabin sole: varnished teak and holly with custom cabin sole cover
• Opening overhead hatch and four opening ports below
• All opening ports and hatches have removable screens

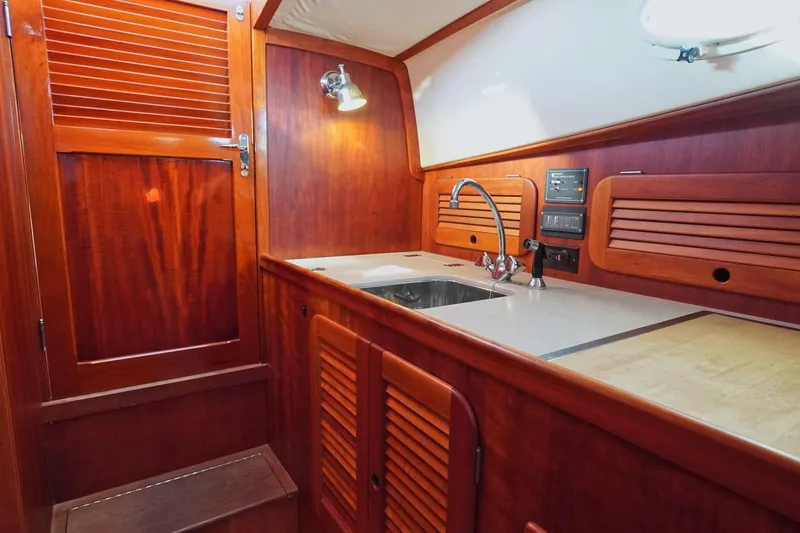

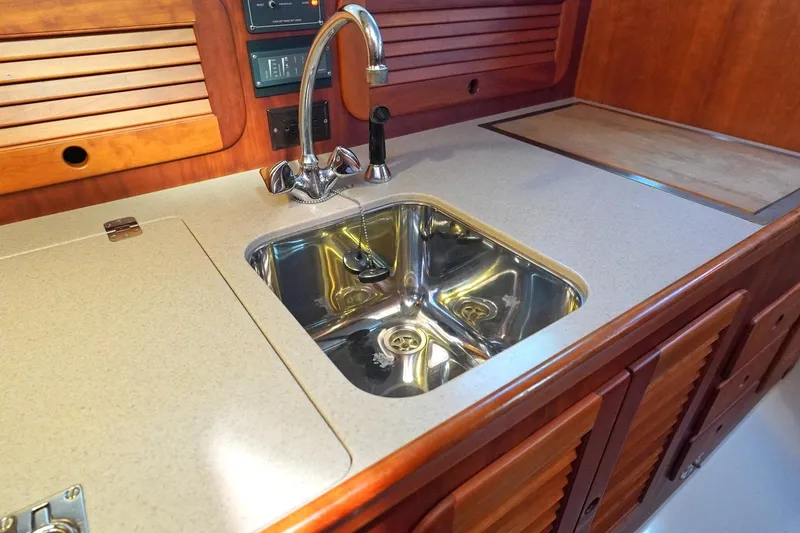

GALLEY

• Corian countertop, color Beach, with cherry fiddle and polished stainless steel undermount sink
• Hot and cold pressure water
• Adler Barbour refrigeration - 12-volt cold plate refrigerator in self-draining box
• Force 10 two-burner stainless steel stove with remote propane shut-off and custom wood cover/cutting board
• Louvered locker door in microwave space (microwave not installed)
• 110-volt outlet
• Pullout under-counter garbage receptacle
• (3) Cherry pullout drawers
• Red step light in galley
• LP gas sniffer and propane shut-off valve
• Opening port with screen
• Additional storage outboard and under galley sink
• "Pantry" locker with louvered door and shelves between galley and V-berth area - dish stowage bin above

ACCOMMODATIONS

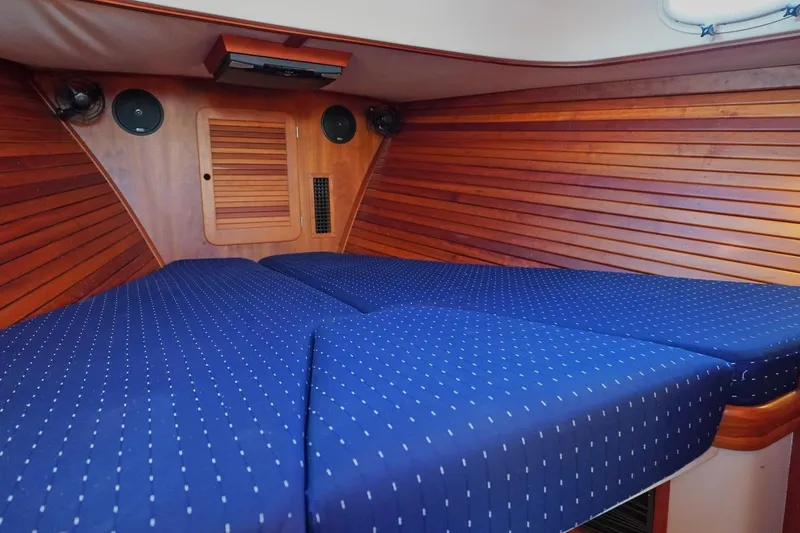

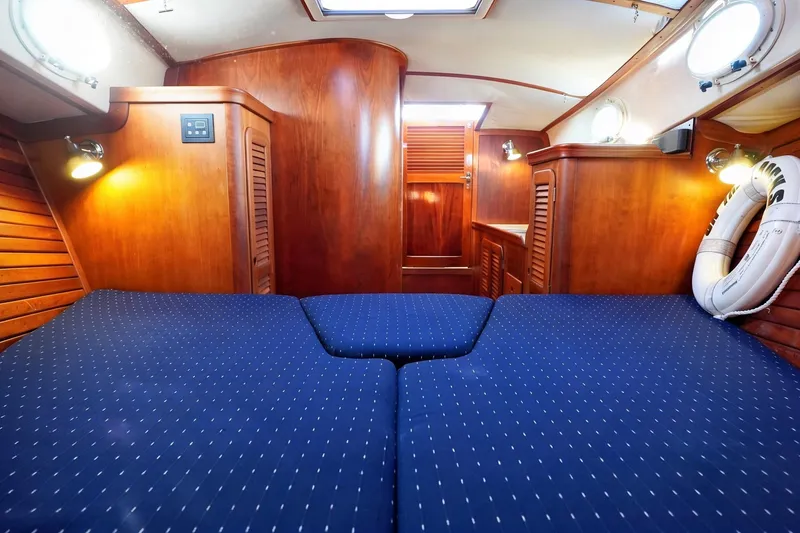

• V-Berth (Forward)
• Double berth with V-berth insert and matching cushion
• Cushions upholstered in Dibble Hello Sailor P200-90 fabric
• Storage locker under V-berth with shelf and easy-access cherry drop-front door to port
• Air conditioning unit and duct under starboard berth
• Storage in forepeak behind louvered cherry door
• Cedar-lined hanging locker just aft of V-berths to starboard
• (2) Stereo speakers mounted port and starboard on forward bulkhead
• (2) Hella fans - port and starboard bulkhead, facing aft
• Overhead opening hatch with Sky Screen
• Pilothouse table with removable pedestal converts to small guest berth with matching cushion - sleeps three total with V-berth forward

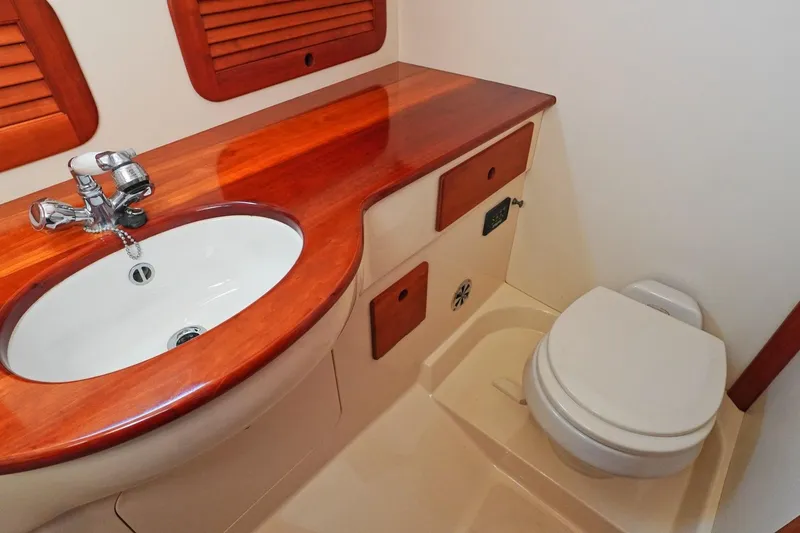

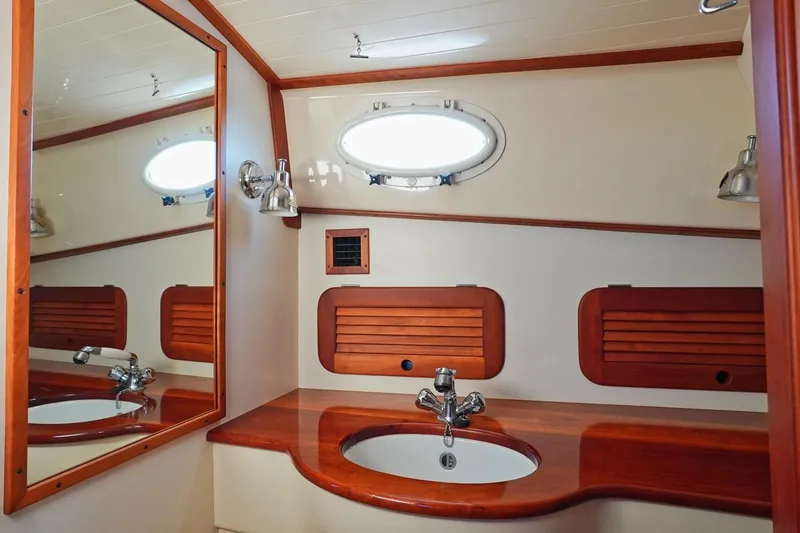

HEAD / HEADS

• Solid cherry paneled door
• Molded fiberglass sole for easy cleaning

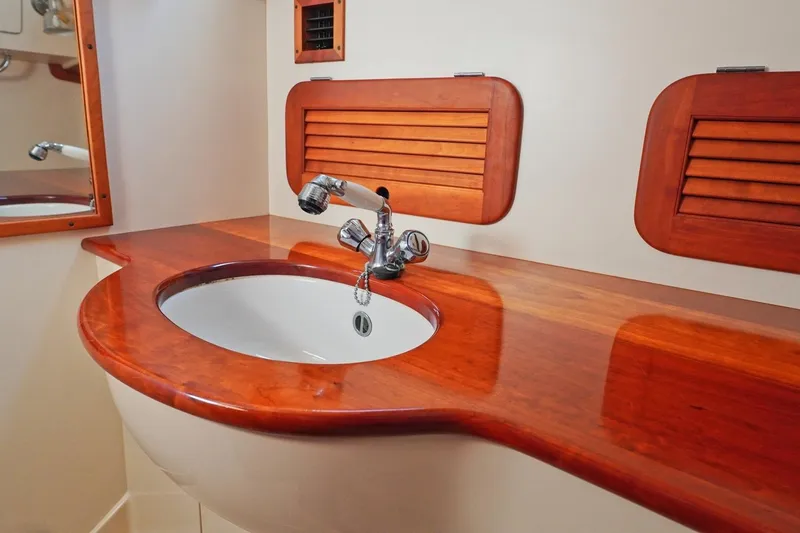

• Cherry countertop with undermounted porcelain sink
• Grohe faucet/handheld shower - hot and cold pressure water, custom mount on bulkhead
• Sealand Vacu-Flush electric marine head plumbed to 27-gallon holding tank with overboard discharge
• Mirror on forward bulkhead with cherry frame
• Cherry faced lockers above and outboard the vanity; drawer with cherry face beside marine head; locker under vanity
• 110-volt outlet
• Hella fan
• Opening port with screen and forced ventilation

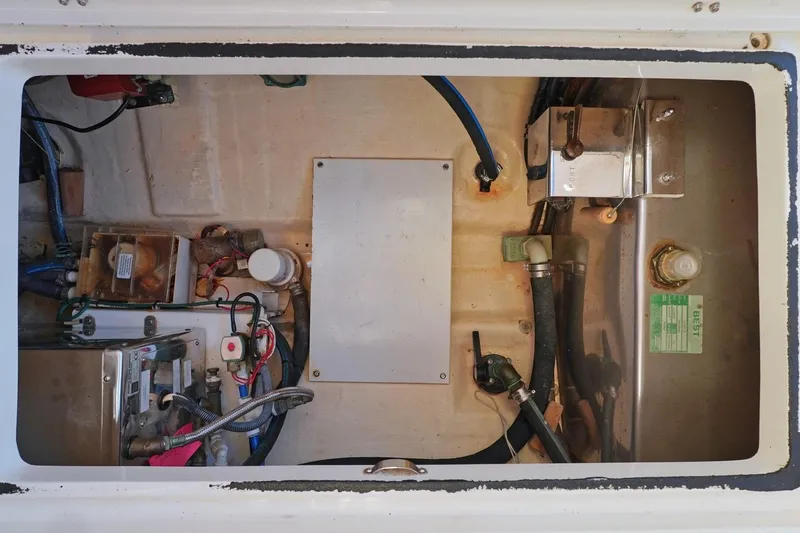

MECHANICAL EQUIPMENT

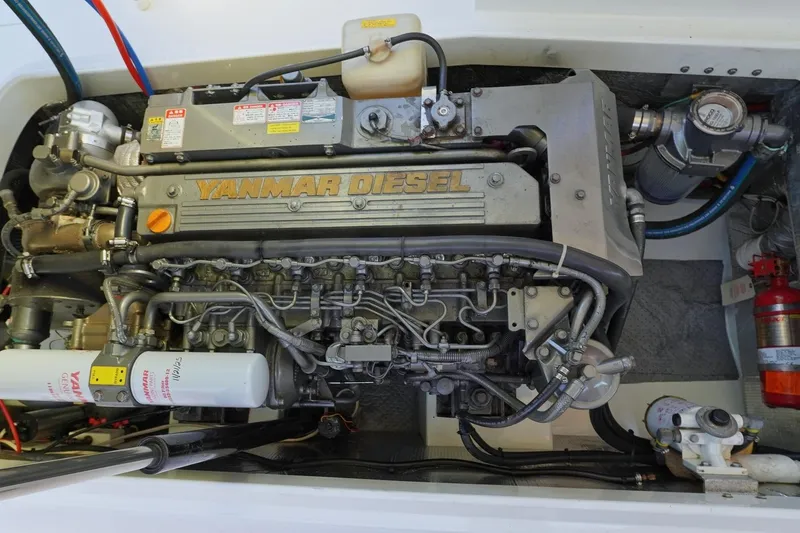

• 2004 Yanmar 6LY2-STP 440-hp diesel engine - rebuilt October 2013
• Hamilton 292 Jet Drive
• ZF IRM220PL reduction transmission
• Vetus 7" 12-volt bow thruster
• Hinckley custom "Jet Stick" control system integrated with bow thruster
• Yanmar fuel filter/water separator
• Custom wet exhaust muffler system
• Oil transfer pump for engine and transmission
• Manual hydraulic steering pump
• (2) Electric 1,500-GPH 12-volt bilge pumps with float switches
• Whale emergency bilge pump mounted in cockpit locker
• In-line 12-volt automatic shower sump pump
• Aluminum 27-gallon holding tank with overboard discharge
• Stainless steel 6-gallon hot water heater - shore power and engine heated
• (2) Heavy gauge aluminum fuel tanks - total 160 gallons
• Acoustic lined foam engine box insulation with double gaskets and electric riser
• Engine box exhaust fan
• Fireboy engine compartment fire suppression system

ELECTRICAL SYSTEM

• Low resistance, heavy copper and sacrificial zinc anode electrical bonding system

12-VOLT DC

• (3) 12-volt batteries - total 540 amps
• 80-amp battery alternator on engine
• Heavy duty battery parallel switch - also allows emergency starting

110-VOLT 30-AMP AC

• AC electrical distribution panel with volt and amp meters and DC sub-panel
• 110-volt shore power inlet, relay and shore power cord
• MasterVolt MassCombi 12/2500-100 Inverter/Battery Charger
• Thermo-magnetic breakers, volt and amp meter

ENTERTAINMENT ELECTRONICS

• Fusion MS-AV755 Stereo tied into Garmin chartplotter with Bluetooth
• ASA 15" fold-down flat panel screen - mounted midway on overhead over V-berth
• (3) Pairs of speakers mounted in aft cockpit footwells, facing each other
• (2) Stereo speakers in V-berth on forward bulkhead
• UFO antenna on pilothouse roof
• Additional 12-volt outlet forward of stereo head location

PLUMBING

• Hot and cold pressure water throughout
• Cockpit shower with mixing valve
• Deck shower/water outlet with hot and cold mixing valve
• Sealand Vacu-Flush electric head to 27-gallon holding tank with overboard discharge
• In-line 12-volt automatic shower sump pump
• Stainless steel 6-gallon hot water heater - shore power and engine heated
• Force 10 propane stove with LP gas sniffer and remote propane shut-off valve

SOUND REDUCTION

• Acoustic lined foam engine box insulation with double gaskets
• Custom wet exhaust muffler system

SAFETY EQUIPMENT

• Fireboy engine compartment fire suppression system
• (3) 2.5 lb dry chemical fire extinguishers
• Life jackets
• Hand held flare kit
• 12-volt trumpet air horn with dash switch
• Masthead and running lights
• ACR masthead mounted spotlight with helm mounted electric remote control

ADDITIONAL EQUIPMENT

• Muir electric windlass - flush foredeck anchor locker with Delta 22 lb anchor, 15' SS chain and 150' anchor rode, and stainless steel bow roller; operable from helm or handheld remote
• Bow varnished burgee pennant staff with flush socket
• Stern mounted 4 ft. varnished teak ensign pole and socket
• Boat hook mounted under side deck
• Brass 6" Bell
• Dock lines and fenders
