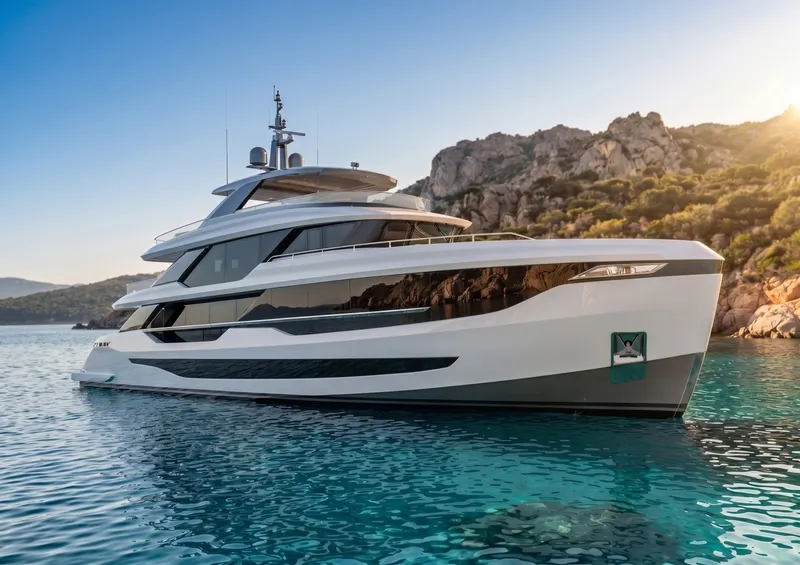

2028 Hargrave Signature E Series Tri-Deck By Teruzzi Boat in Fort Lauderdale, FL 33315 US
Built in 2028
Signature E Series Tri-Deck By Teruzzi
2 Engines (2x Caterpillar)
125 feet
Diesel
Other
The Signature E-Series Tri-Deck by Teruzzi applies the design language of Gabriele Teruzzi to Hargrave's proven E-Series Tri-Deck platform. The hull form and core engineering below the tank deck remain unchanged: the same Jack Sarin-engineered foundation carried across more than 30 E-Series yachts built and in service, developed for volume, stability, and long-range use.
Above the tank deck, the yacht takes on Teruzzi's signature direction. The general arrangement follows Hargrave's established standards, minimum seven-foot ceiling heights, generous cabin volumes, and layouts intended for extended stays onboard, while the exterior profile and interior treatment reflect a distinct contemporary vision.

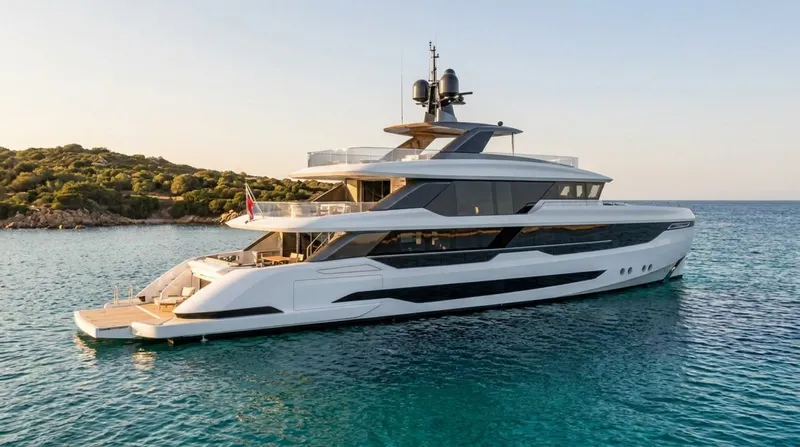

The design is offered in two configurations. A Veranda Deck option extends the living space outboard for sheltered exterior use, or a Beach Club option opens the aft and side areas to the water in place of the veranda deck. Each configuration reflects a different way of living aboard, and both are built on the same underlying platform.
Presented here as a concept, the Signature E-Series Tri-Deck by Teruzzi remains fully Owner-Driven. The design can be developed as shown, adapted in collaboration with the studio, or taken in an entirely individual direction, always anchored to the platform's engineering and buildability.

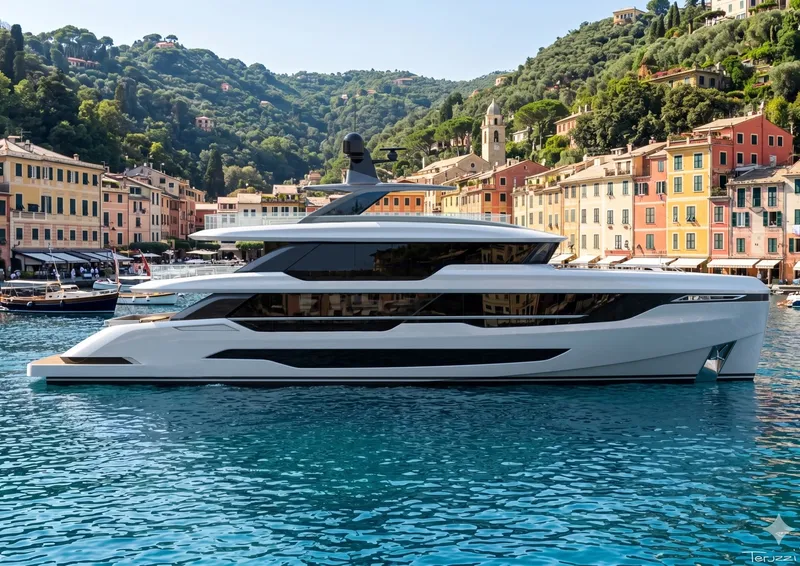

Available Sizes: 108ft (33m) - 115ft(35m) - 125ft (38m) and 132ft (40m)
HARGRAVE SUPERYACHTS DIVISION
SIGNATURE E SERIES TRI-DECK
Teruzzi Signature | Gabriele Teruzzi Design | 105ft (32m) - 115 (35m) - 125ft (38m) - 132ft (40m)
Tri-Deck Motor Yacht -Short Specification
MAIN CHARACTERISTICS
Builder: Hargrave Superyachts Division
Designer: Gabriele Teruzzi Yacht Design Trieste
Accommodation: 10 guests in 5 staterooms + 7-8 crew
Classification: RINA or ABS Pleasure REG Yacht Code Part A C HULL Mach Y, unrestricted navigation
Length overall: 38.0 metres / 125 feet
Length waterline: 37.0 metres
Beam: 7.92 metres
Draft: 1.98 metres
Displacement, light ship: 180 tonnes
Displacement, full load: 210 tonnes
Gross tonnage: 299 GT (approx.)
Maximum speed: 24 knots
PROPULSION
Main engines: 2 x CAT C32, 2,200 HP at 2,300 RPM
Gearbox: ZF 3050 series, 2.98:1
Engine control: Glendinning (1 main + 2 remote stations)
Generators: 2 x CAT C4.4, 75 kW
Shaft & propeller: CJR (UK) 4.5 inch Marinemet 25 shaft, 5-blade Class S propellers
Bow thruster: Sleipner
Stabilizers: Sleipner at-rest stabilizers with power pack
Steering: Wills Ridley hydraulic steering
ELECTRICAL
Main service: 120 / 208 VAC, 3 phase, 60 Hz (Optional 50hz)
DC service: 24 VDC service and engine start system
Shore power: ASEA 75 kVA converter, 2 x Glendinning CM9 Cable Master
Batteries: Victron (service, emergency, radio, start, fire pump banks) with chargers
Alarm & monitoring: Wago / Advantech
TANK CAPACITIES
Diesel oil
20,800 litres / 8,000 gallons
Fresh water
4,000 litres / 1,000 gallons
Black water
2,000 litres / 500 gallons
Grey water
2,700 litres / 700 gallons
CONSTRUCTION
Hull & superstructure
Carbon reinforced E-glass epoxy composite sandwich
Open decks
Hand-laid Burmese teak or non-skid paint
Paint system
Awlgrip
Insulation
Unifrax B15 engine room, B0 galley; Rockwool thermal cabin insulation
GENERAL ARRANGEMENT (Teruzzi layout)
Lower deck: Tender garage with side and transom shell doors housing the main tender and a jet ski with toys, launching room, four guest staterooms amidships (two with island berths, two twin or convertible), crew accommodation forward.

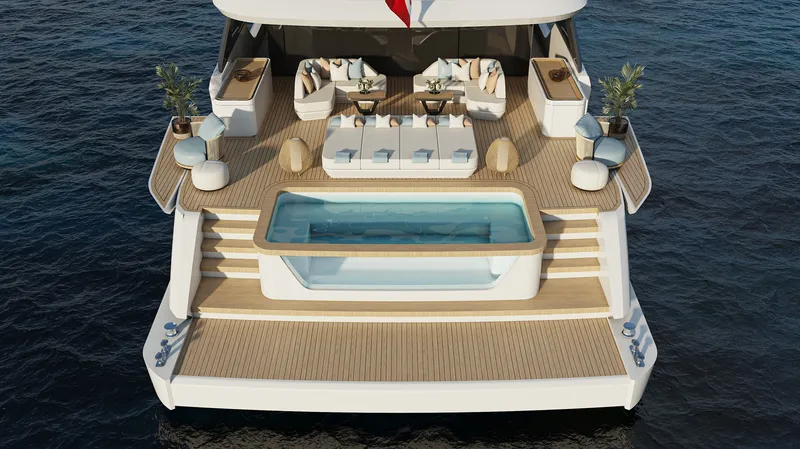

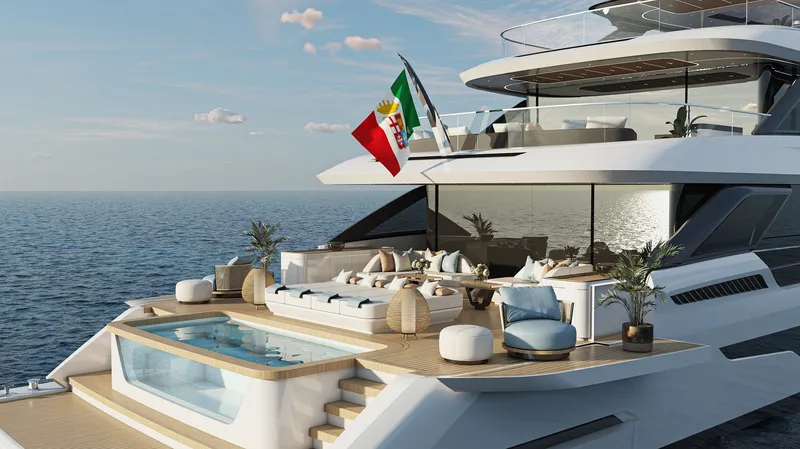

Main deck: aft beach club with plunge pool, main saloon and formal dining, full-beam private stateroom forward with lounge, galley and day facilities to starboard, central lobby and stair.
Upper deck: aft exterior deck, upper saloon (sky lounge) with bar, captain's cabin and pantry, wheelhouse forward with helm and bridge wings.
Sun deck: jacuzzi and sunpads aft, wet bar, alfresco dining, sun awning under the radar arch mast.
KEY EQUIPMENT
Air horn: Kahlenberg
Windlasses & capstans: 2 x Maxwell VWC6000 hydraulic windlass, VC4000 electric capstans
Anchors & chain: 2 x 200 kg 316L Pool anchors, 2 x 110 m (360 ft) 14 mm Grade 3 studlink chain
Windscreen wipers: 4 x Speich
Audio / video: RTI
Engine room ventilation: Delta T System
Fuel oil filters: Racor
HVAC: Technicold, 3 x 120,000 BTU chiller assemblies
Navigation & communication: Garmin and Furuno
Pumps: Headhunter and Feit
Sewage & toilets: Headhunter treatment and toilet system
Water heaters: Torrid, 2 x 50 gallon, 6 kW
DECK EQUIPMENT
Swim ladder: 316L stainless steel
Deck crane: Hydraulic deck crane, 1,000 kg
Passerelle: Opacmare or equal, 15 ft hydraulic gangway
Handrails: 316L stainless steel
Pantograph doors: 4 x pantograph door
Sliding doors: 2 x Electric main and upper deck saloon doors
Aft beach shell door (Not Applicable at the Veranda Deck): Hydraulic carbon composite watertight door
2 Side wings shell doors (Veranda Deck only): Hydraulic carbon composite door
Side garage shell door: Hydraulic carbon composite watertight door
Bow Jet Ski Storage hatch door: Hydraulic carbon composite watertight door
SAFETY EQUIPMENT
Life rafts: 2 x 16 persons
Fire protection: FM200 engine room fire protection
Fire & general alarm: HAES UK
Hargrave Superyachts, a division of Hargrave Custom Yachts, Fort Lauderdale, Florida . www.hargrave-superyachts.com
Specifications preliminary and subject to development. Signature E Series Tri-Deck.
Biography
Born in Milan in 1988, Gabriele Teruzzi graduated in Yacht Design from the Istituto Europeo di Design (IED) in Turin. After his studies, he collaborated with AM Yacht Design, contributing to projects for prestigious brands including Mangusta, Dominator, Azimut, and Fairline.
In 2016, he founded Gabriele Teruzzi Yacht & Design, now based in Trieste, Italy. Since then, the studio has collaborated with some of the world's leading yacht builders, including Fincantieri Yachts on projects in the 65–80 metre range and Lürssen Yachts on a 110-metre concept, among other prestigious collaborations.
Today, the studio specializes in the design of custom superyachts, creating distinctive projects where timeless Italian elegance, innovation, and meticulous attention to proportion come together to deliver a truly unique owner experience.
Their Approach
Teruzzi's design language finds inspiration in classical music, where beauty emerges from harmony, rhythm, and perfect proportion. Guided by these same principles, every yacht is conceived as a carefully composed work—balancing discipline with emotion, precision with creativity.
The Signature Tri-Deck reflects that philosophy: a profile that is controlled and refined on the exterior, yet generous with light and volume on the interior. Italian materials, meticulous craftsmanship, and a layout designed around the way owners truly live create a yacht that is both timeless and deeply personal.
