2027 Hanse 410 Boat in San Diego, CA 92106 US

LOA                       12.55 m   41' 2''
Hull length             11.99 m   39' 4''
LWL                       11.55 m   37' 11''
Beam                      4.29 m   14' 1''

Draft
L-keel, medium      2.10 m   6' 11"

Displacement
L-keel, medium approx. 9.68 t   21,341 lbs

Engine Diesel
Standard approx.   39.00 hp
Option approx.       56.00 hp
Fuel tank approx.     160 l   42 gal
Fresh water approx. 295 l  78 gal

CE Certifcate A - 10

Mast length above WL approx. 19.99 m   65' 7''

Total sail area approx. 84.00 Sqm   904 sq ft
Main sail
standard approx.           49.00 Sqm 527 sq ft
furling approx.               46.00 Sqm 495 sq ft
Self-tacking jib approx. 35.00 Sqm 376 sq ft
Genoa approx.             43.00 Sqm 462 sq ft
Crossover approx.       74.00 Sqm  796 sq ft

These are the standard Specs  (See factory option for changes /upgrades/add ons)

HULL
- 8 hull windows (4 each side)
- GRP hull, isophthalic gelcoat, colour: Signal White (similar RAL
  9003), 1st layer vinyl ester resin and balsa sandwich laminate
- Waterline, isophthalic gelcoat, colour: Dark Grey (similar RAL 7043)

KEEL
- L-keel, cast iron, draft: 2.10 m. 6'11"
- GRP rudder with sea-water resistant aluminium shaft and selfaligning bearings

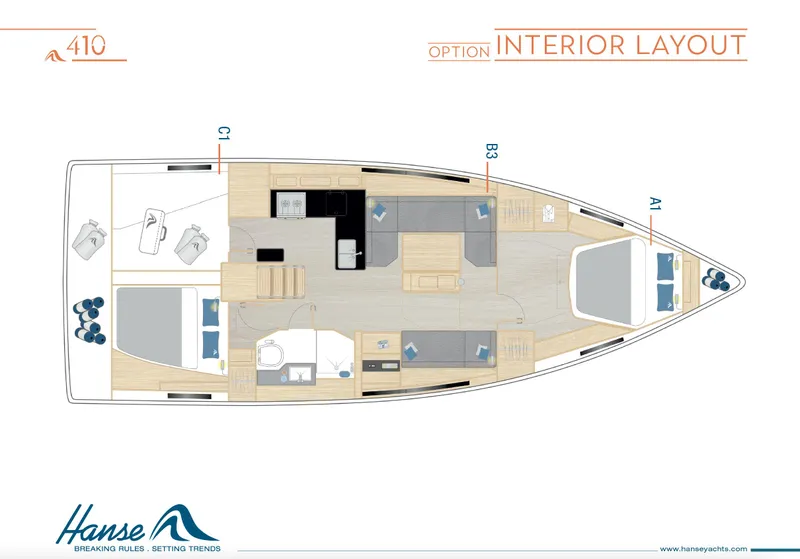

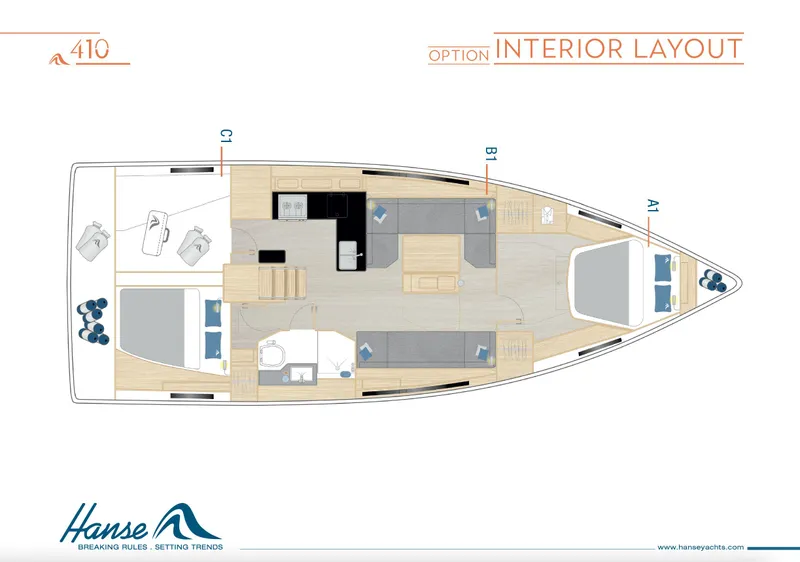

LAYOUT & INTERIOR

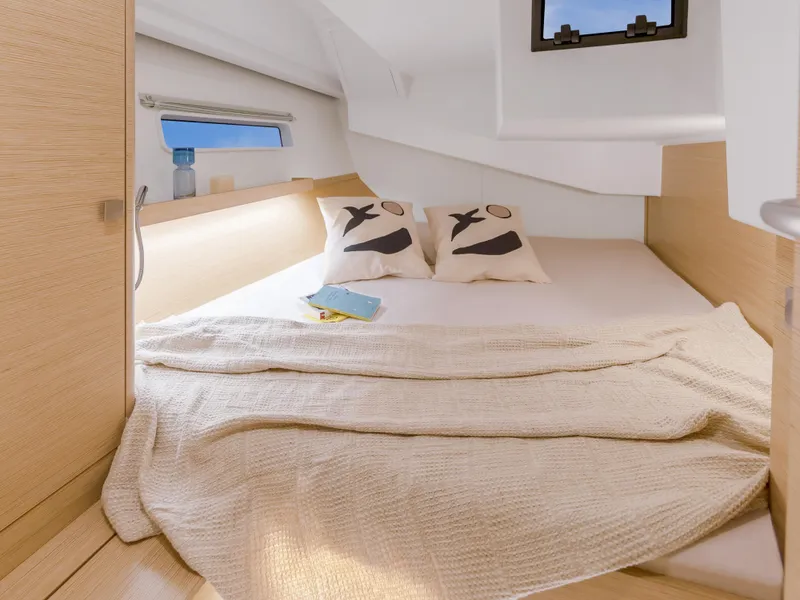

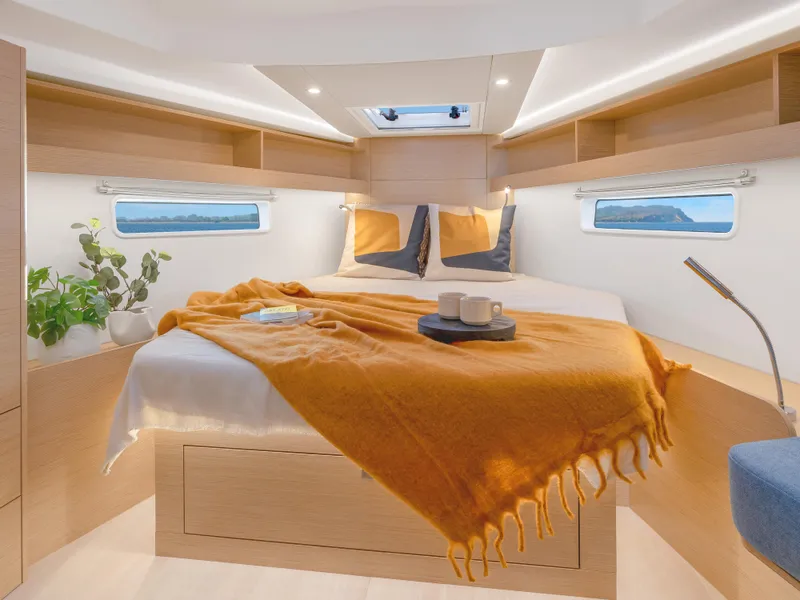

- A1: Master cabin with island double berth and storage space

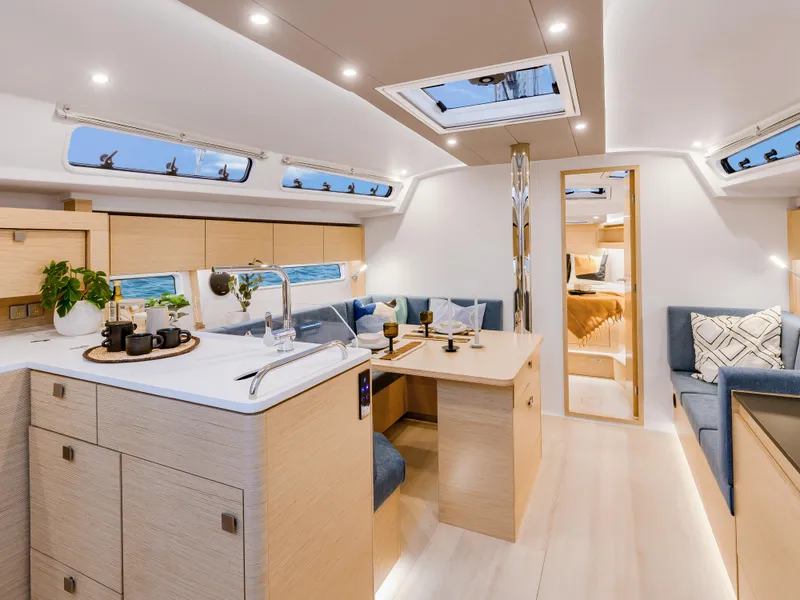

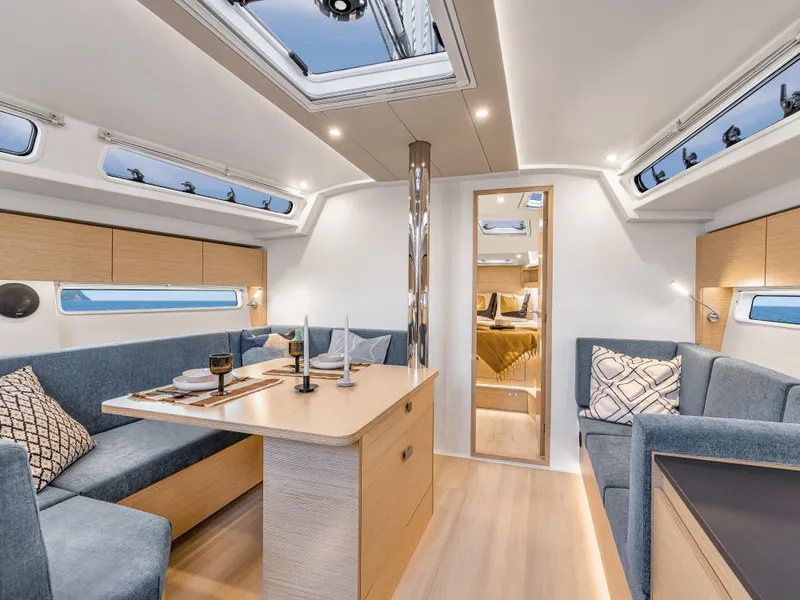

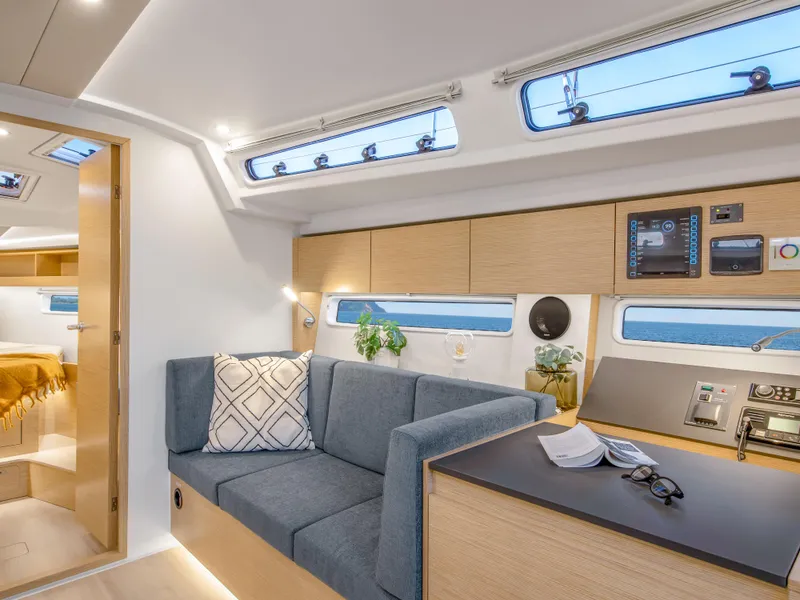

- B1: Saloon with large dining area on port and sofa on starboard

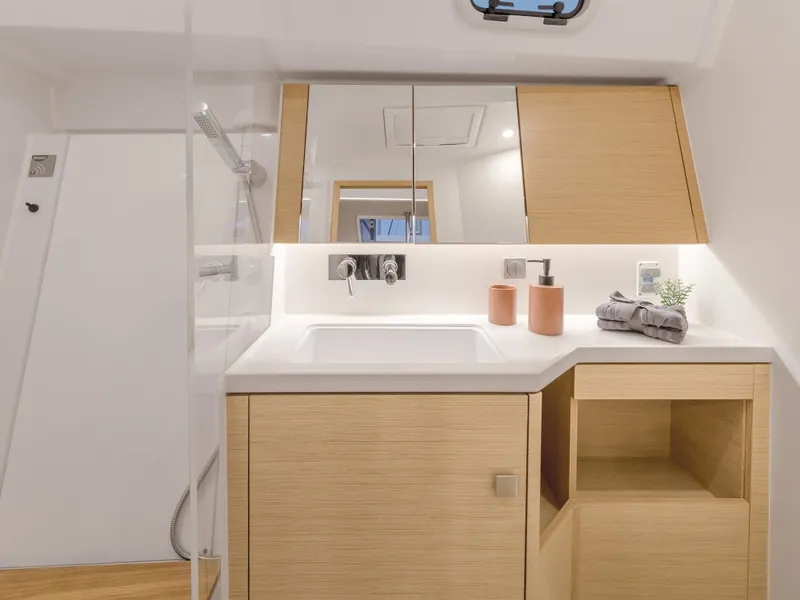

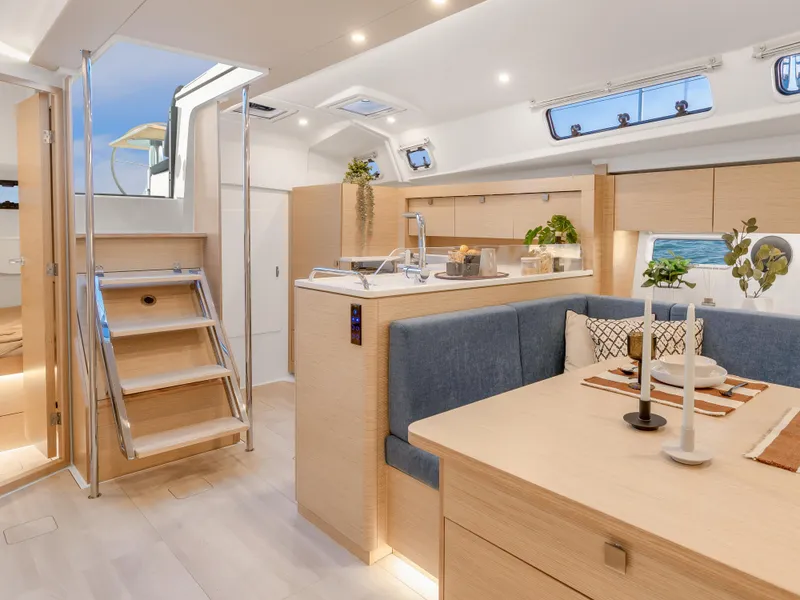

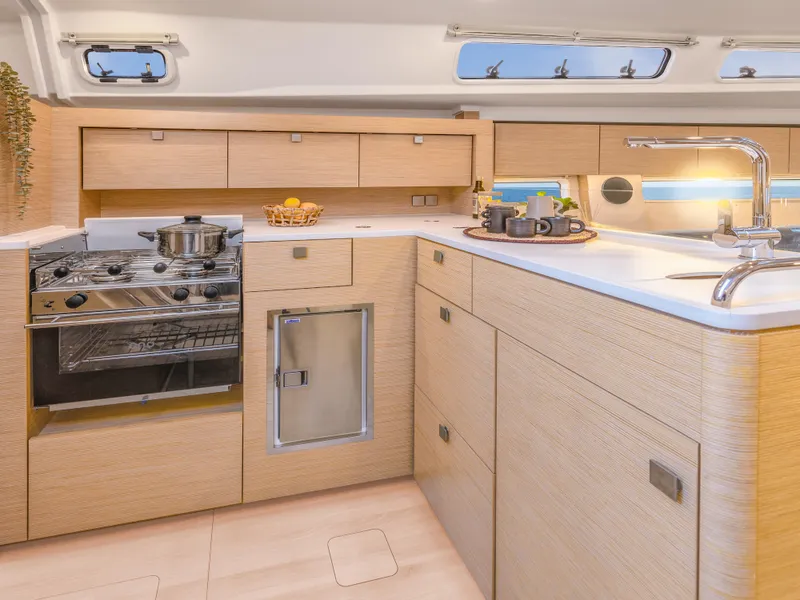

- C1: Large L-galley and storage space on port. Head with separate
  shower stall, aft cabin with double berth, locker and storage on starboard
- 2-burner gas stove with oven, waste bin, 12 V fridge approx. 135 l,
  double stainless steel sink with mixing tab
- Interior furniture in high quality marine plywood, Satin Varnish
- Hanse cascading companionway closing system
- Saloon table, fixed with integrated storage
- Worktop in galley and heads - Black Quartz

WOOD (FURNITURE, FLOORBOARD)
- Furniture - Mahogany Style, Satin Varnish
- Floorboard - Acacia

UPHOLSTERY
- Mattrases for all berths
- Upholstery - Monte Carlo, color: Cream

DECK & OUTSIDE EQUIPMENT
- GRP deck with antislip surface, isophthalic gelcoat, color: Signal
White (similar RAL 9003), 1st layer vinyl ester resin with balsa
sandwich core. 1 cockpit locker, 1 space for life raft (only without
wetbar), 2 stern lockers, stowage for running rigging at helm
position, anchor locker at bow.

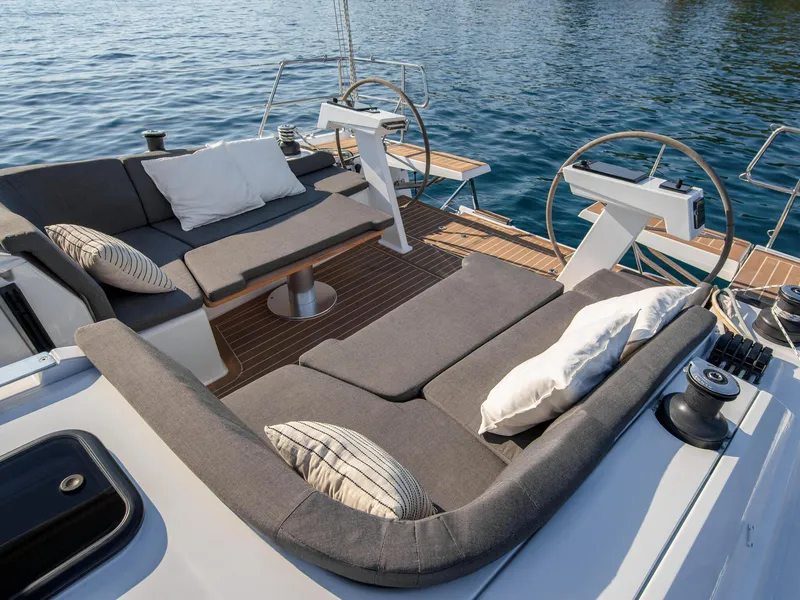

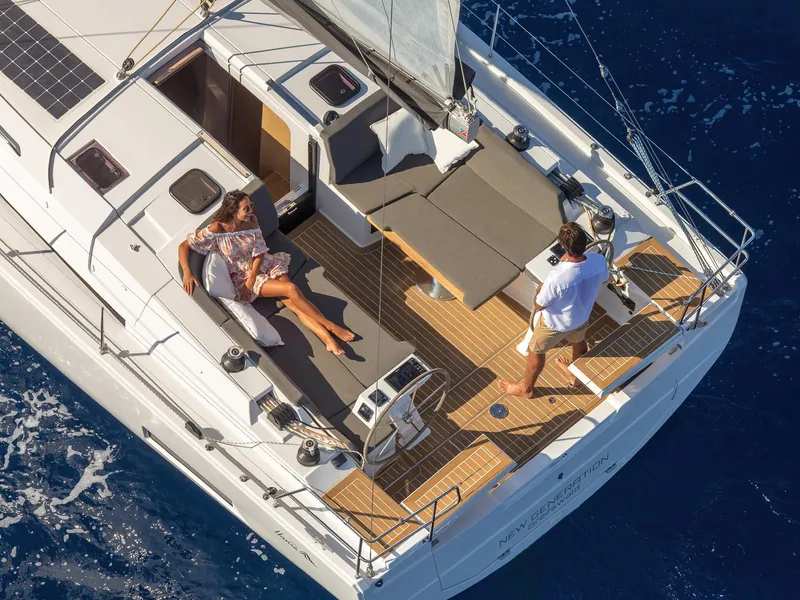

- Twin wheel steering system with emergency tiller
- 2 stainless steel steering wheels with leather cover
- 2 cockpit tables, stainless steel with folding teak tops
- Pulpit and pushpit, stainless steel
- Railing, incl. stanchions and stainless steel wire
- Covered halyards and control lines lead to cockpit helm position,
   organizers and jammers, 4 mooring cleats, handrails on coach roof
- 2 LEWMAR 45 ST EVO manual halyard winches
- Bathing platform, manual fold-out with swimming ladder
- Composite bowsprit with integrated anchor and forestay fitting
- Self tacking jib system
- German Style split Mainsheet system

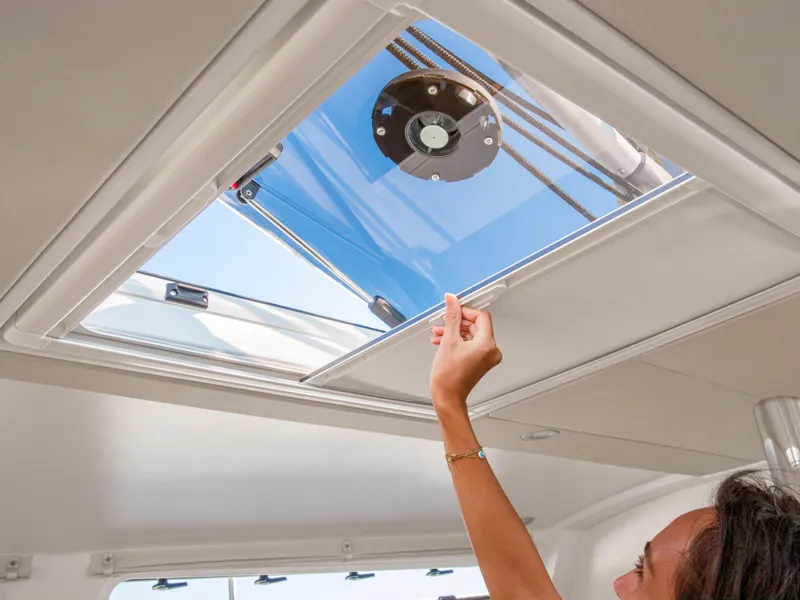

- 4 large and 6 small deck hatches - openable, anchor locker hatch
- 4 large coach roof side windows - openable, 3 portlights in coach
  roof

RIG & SAILS
- SELDEN Rig, anodized aluminium, deck stepped, with kicker, standing and
   running rigging and 2 reefs
- Manual jib furler
- ELVSTRØM Dacron sails - full battened, main and jib

NAVIGATION & INSTRUMENTS
- Illuminated compass in cockpit
- Navigation lights - LED

PROPULSION
- Fuel tank, approx. 160 l. 42 us gal
- Engine (Diesel, approx. 39 hp) - saildrive, 2-blade fix propeller
- Throttle control at helm position, starboard

EQUIPMENT
- 12 V and 230 V electric system with main panels and 230 V shore
  power and sockets in cabins and heads
- AGM battery set, capacity: 1x 90 Ah + 1x 160 Ah AGM
- Country Version: EU / AUS
- Battery charger 35 A
- Manual toilet with sea water flush - cabin layout C
- LPG gas system, stowage for 1 gas bottle
- Black water system (appr. 54 l each bathroom) with deck extraction
  seacock for head, electric and manual bilge pump
- Fresh water system with electric pump and 22 l hot water, heated
  also by main engine
- Fresh water tank, appr. 295 l

ACCESSORIES
- Mast steps

CERTIFICATION
- CE - Certificate cat. A - 10, B - 12, C - 14

ADDED OPTIONS / UPGRADES

This boat has not been spec'd out at this time

Call for List of Factory Options
