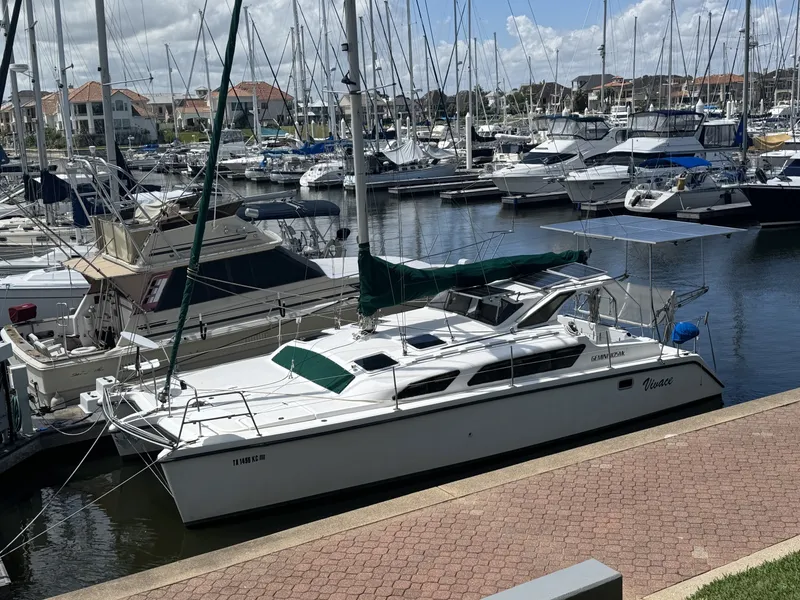

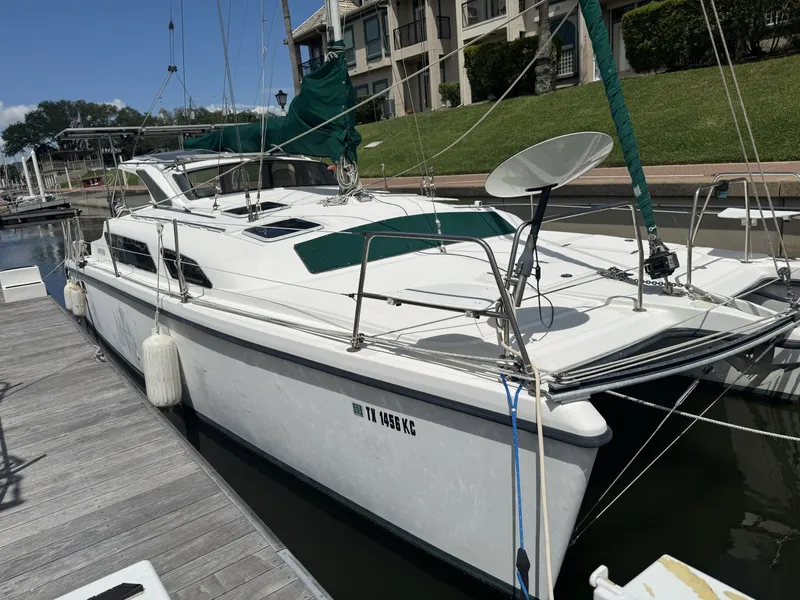

2004 Gemini 105MC

General Description and or Manufacturer's description.

From BlueWaterBoats.org:

After a 2008 Pacific crossing, the owner of a Gemini exclaimed, “the catamaran hull performs flawlessly in open blue water as well as the light winds of the Kona coast … the forward stateroom is queen sized .. the main cabin seats six … plenty of height in the full head with shower.” Great sailing and lots of living space – what’s not to like?

The Gemini is the most popular cruising catamaran in the world with more than 1000 hulls manufactured over nearly 30 years. While most of those hulls are in service as coastal cruisers, many have crossed the oceans. In 2001 the owner, designer and builder of the Gemini catamaran series, Tony Smith, sailed a new Gemini 105Mc across the Atlantic Ocean for a delivery to Southampton, England topping out at 18 knots of speed (surfing down the face of heavy seas). Many more of these adventures are chronicled in the Gemini Gems magazine (print and electronic versions) or the very active Gemini Yahoo forum.

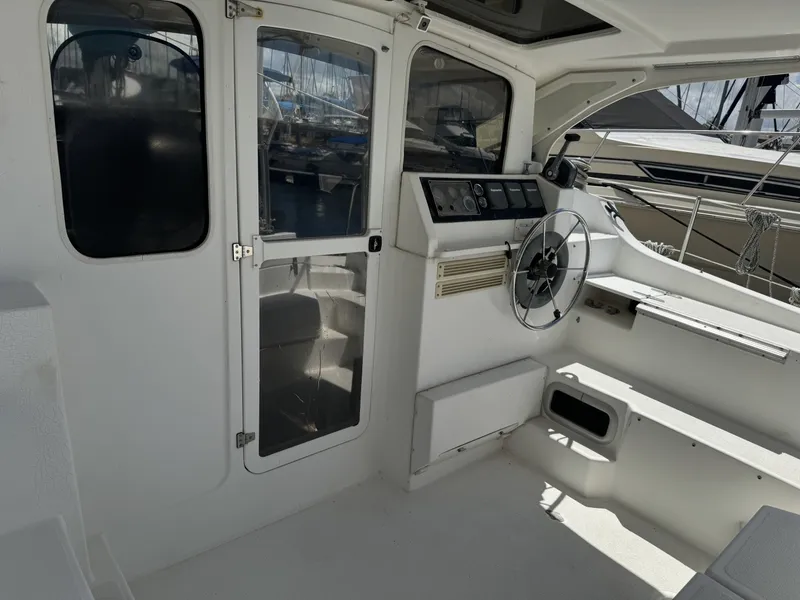

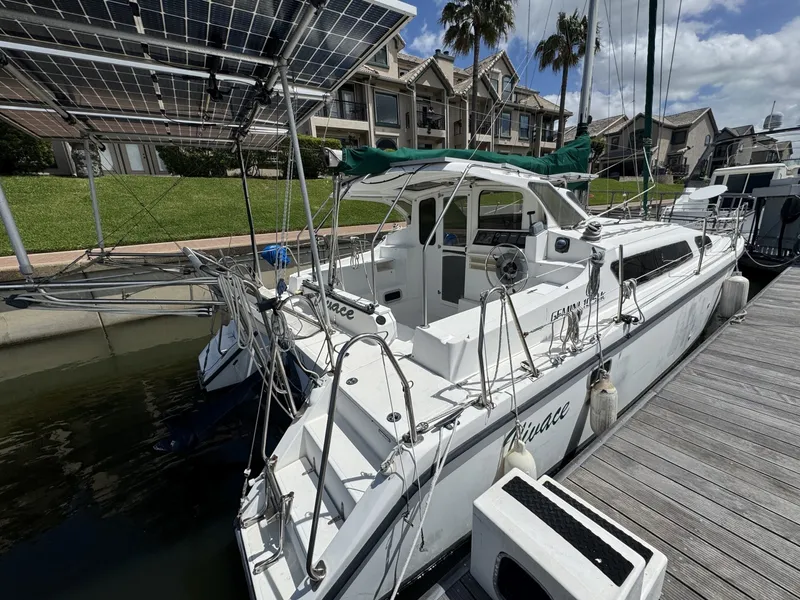

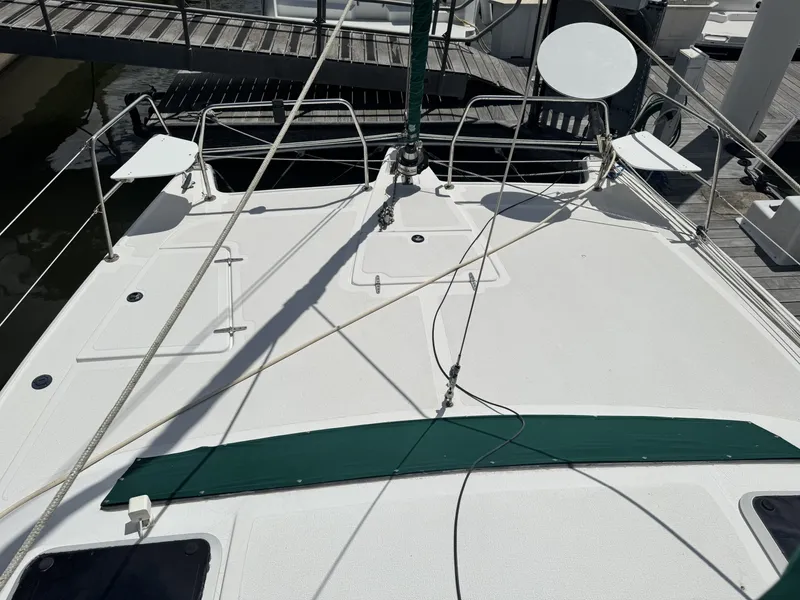

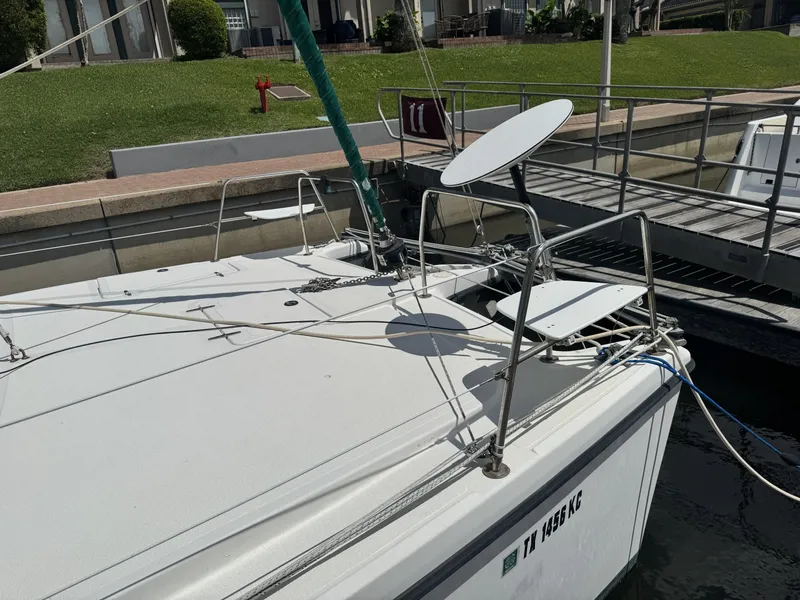

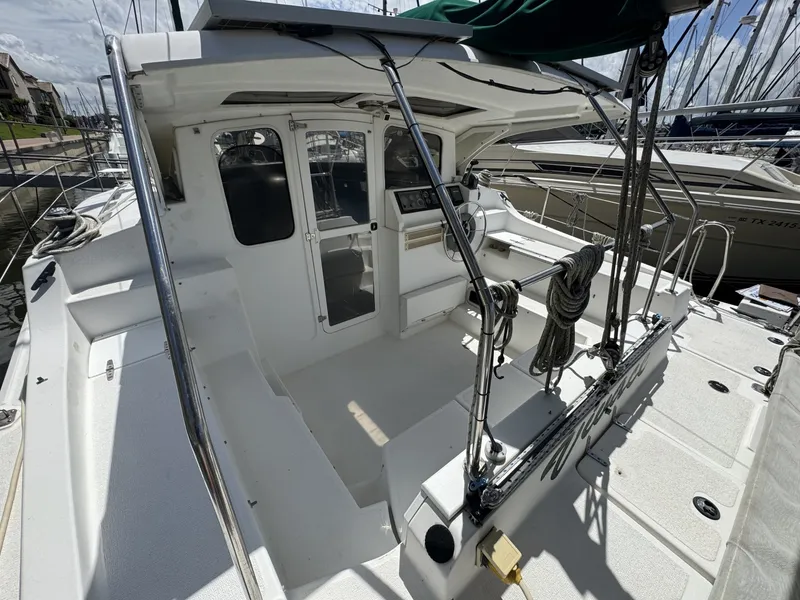

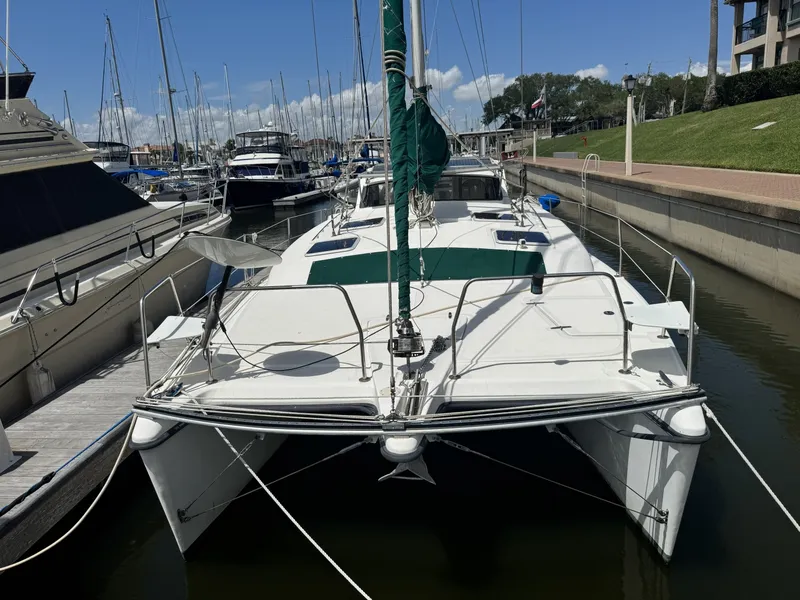

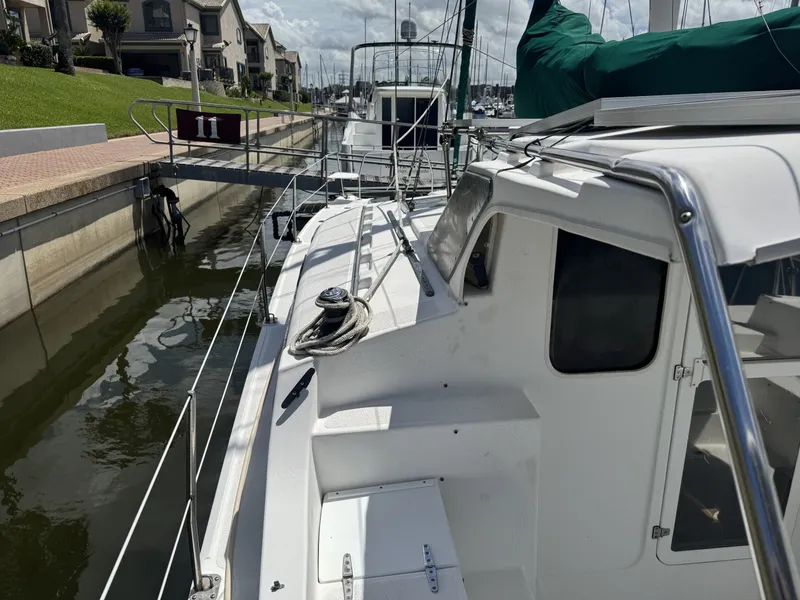

A large cockpit with wheel steering and plenty of room for an afternoon picnic greets the sailor ascending the aft stairs. A generous, hard foredeck is surrounded by a stainless pulpit for the entire bow and lifelines running along the somewhat narrow side decks. With only about 8000 pounds of displacement, the anchor chain and rode need not be overly heavy. Sailing a boat with such light displacement across the ocean requires careful consideration of heeling angles and reefing. Anything above seven degrees of heel means it’s time to reduce sail.

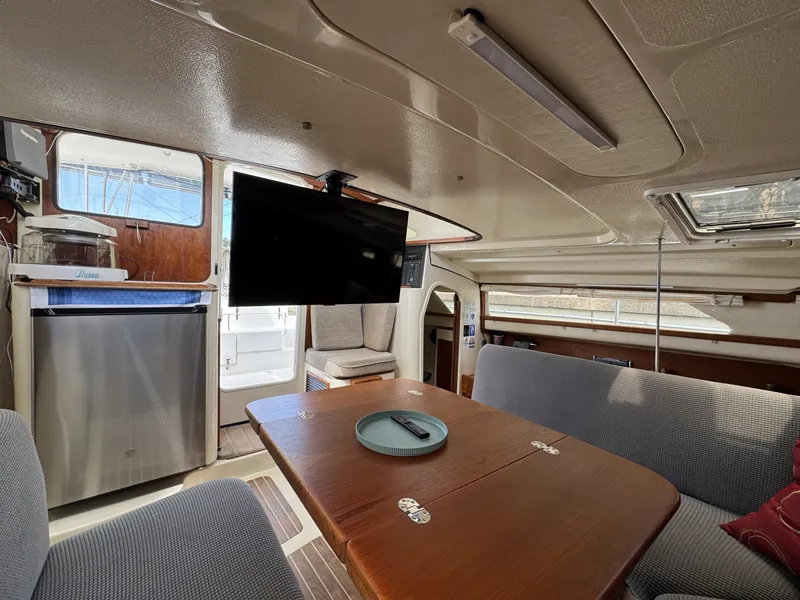

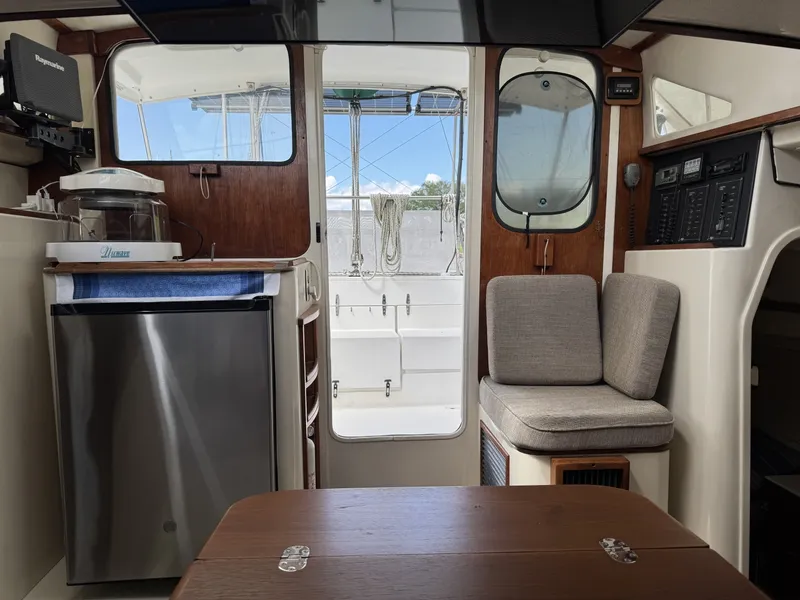

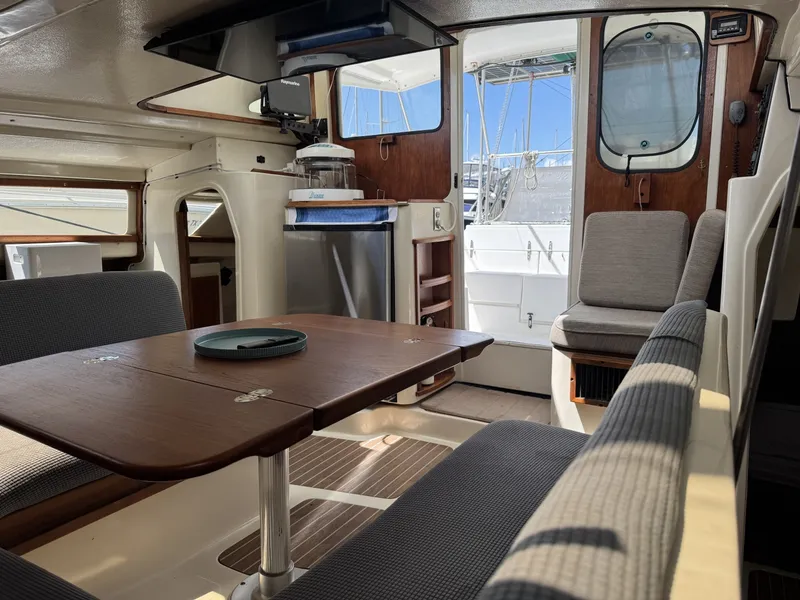

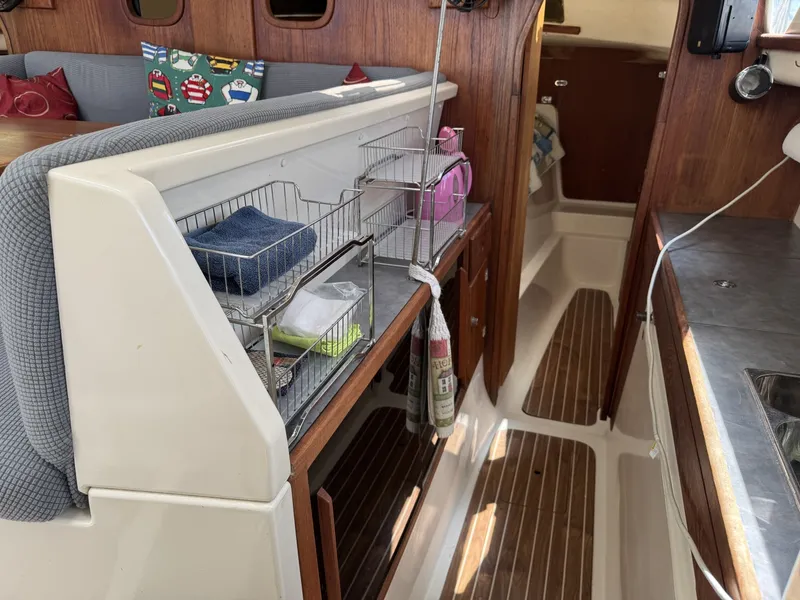

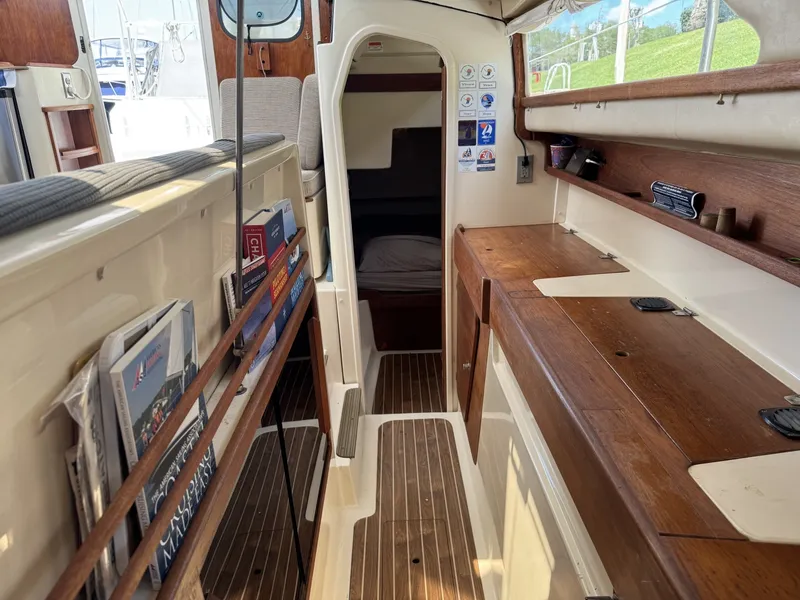

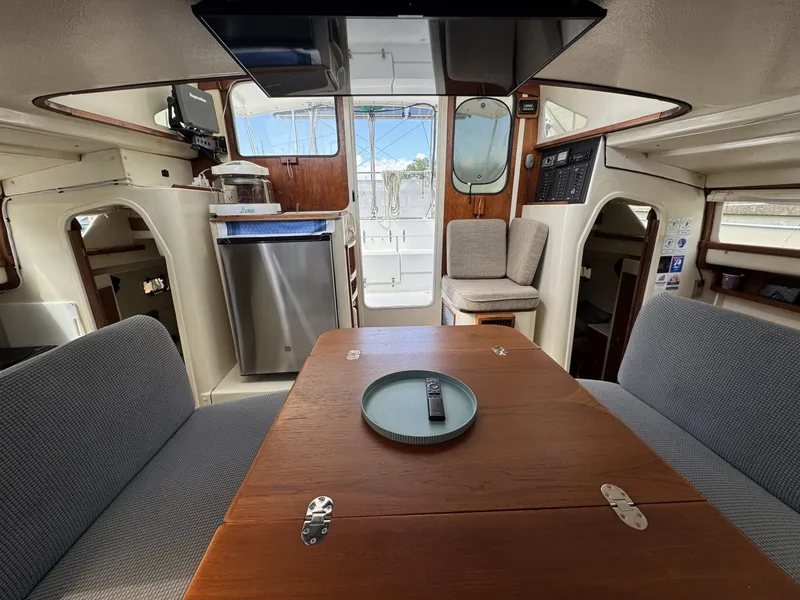

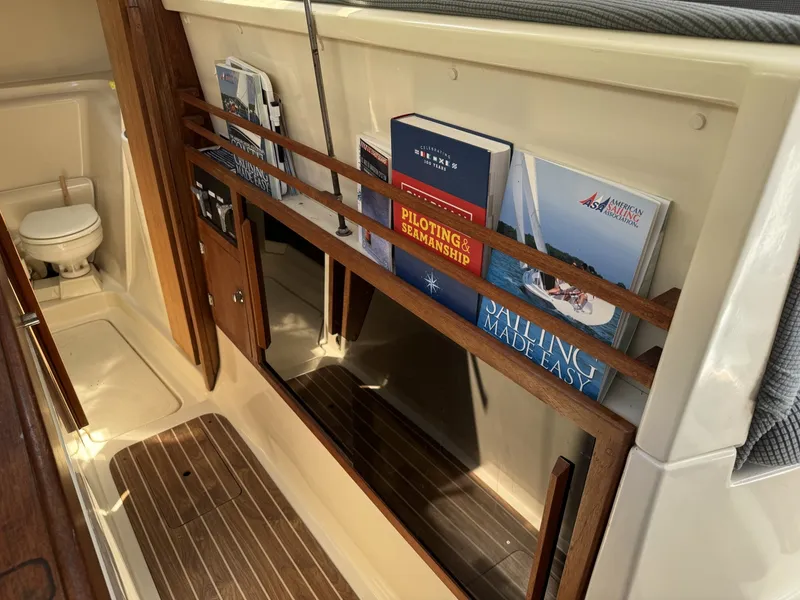

Returning to the cockpit allows the sailor access to the interior. Starting at the same level as the cockpit sole, immediately one is greeted by a salon table that comfortably seats four and even eight in a squeeze. Descending a few steps to the left and moving forward is found the head and shower. Hot water is provided by a propane driven instant heater, like an RV or many European homes. The big advantage is that if you have water in the two 35 gallon fresh water tanks, then you can have hot water.

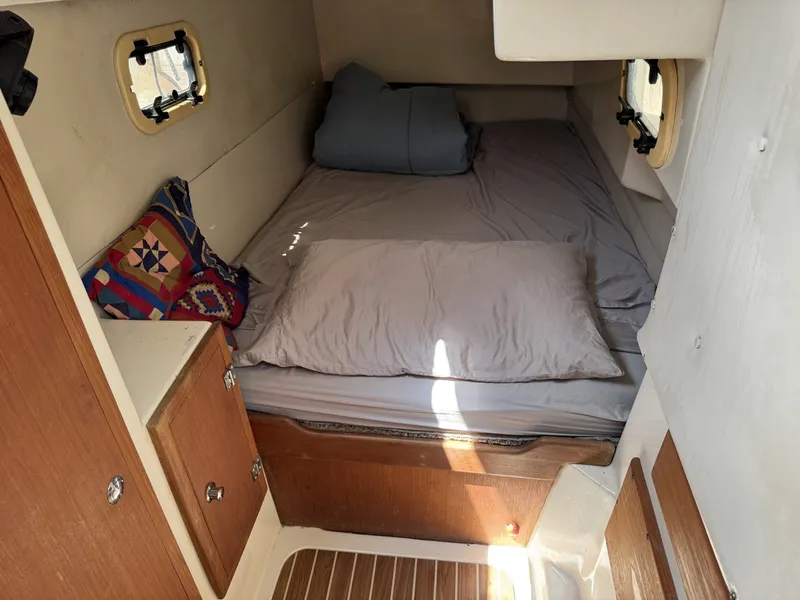

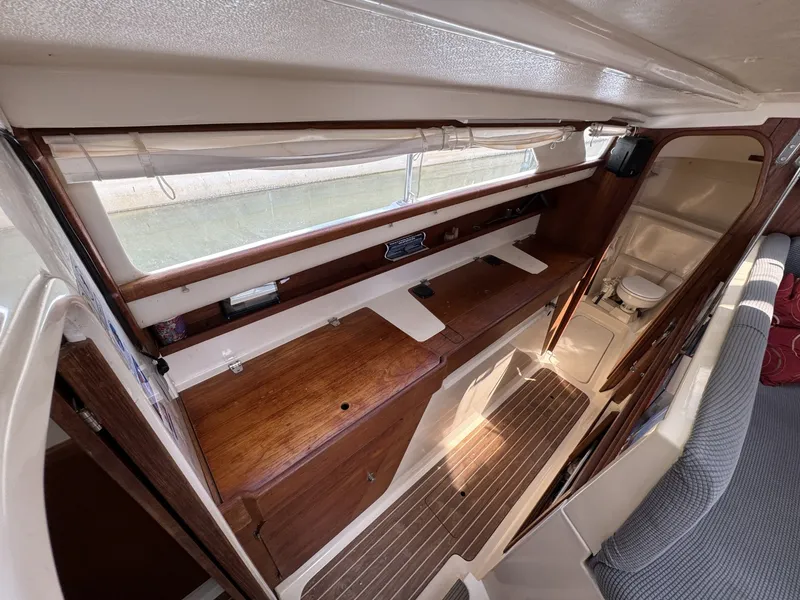

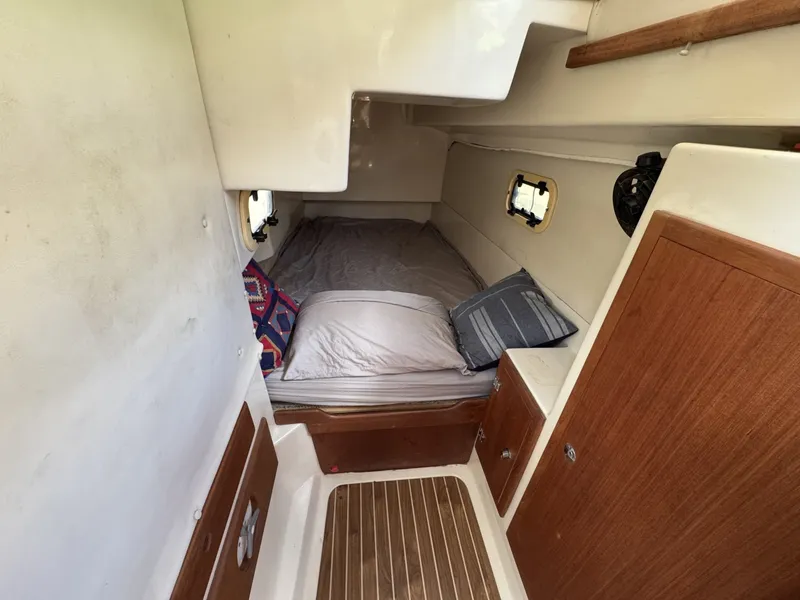

In the aft part of both hulls are two births. The master cabin is in the starboard hull forward, featuring a queen sized bed. There is a tremendous amount of storage for dry goods in the galley and a propane driven refrigerator (using the ammonia cycle instead of a compressor).

The Gemini is mainly driven by the roller furled genoa and somewhat small main, though many sailors add screechers, asymmetrical spinnakers and jibs to their sail lockers. Each hull has a cable driven, hand-cranked centerboard that can be completely tucked into a trunk in the hull, reducing the draft (assuming the rudders are likewise raised), or dropped three feet into the water, dramatically improving upwind performance. While most sailing and motoring can be accomplished with both boards let half-way down, the ability to adjust the boards to wind, current, sailing or anchoring conditions is one of the Gem’s great strengths.

The 105 and 105MC are driven by a 27 HP Westerbeke diesel engine driving a Sillette tilting sail drive.

The hull is solid GRP, laminated from woven roving and mat with isophthalic polyester resin. An outer layer of polyester resin and gel coat protects against osmosis. The decks and cockpit sole are GRP sandwich with balsa wood cores.

ACCOMODATIONS

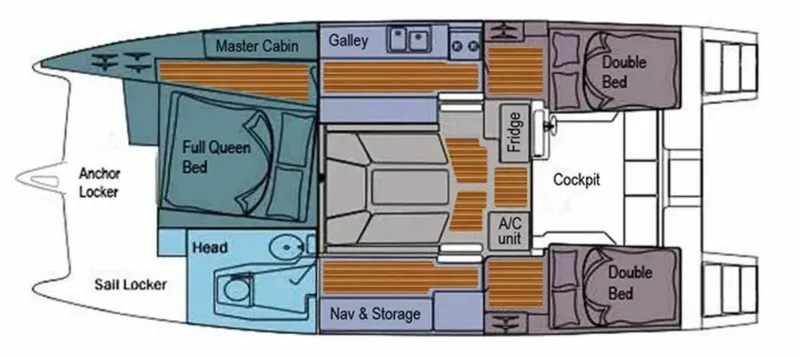

• Layout: Three Cabins / One Head Layout, see attached drawing
• Air Conditioning: Cruisair 10K BTU Reverse Cycle
• Micro Air Easy Start for the Air Conditioner.
• Fans: Yes, 12v
• Ports: Various throughout.
• Hatches: Four Opening Deck Hatches
• Cabin Sole: No maintenance, synthetic laminate

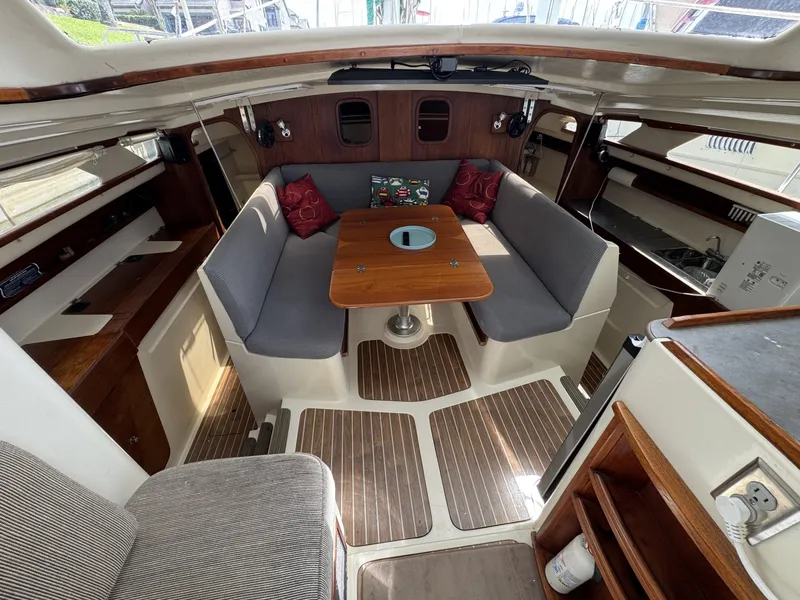

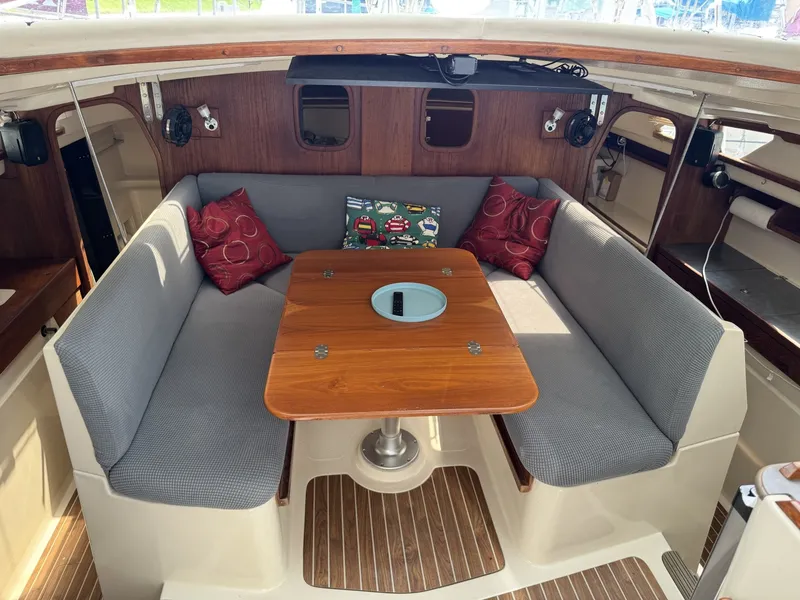

• Dinette Table: Convertible dinette table
• Settee(s): U-shaped dinette seating
• Cushions: Gray

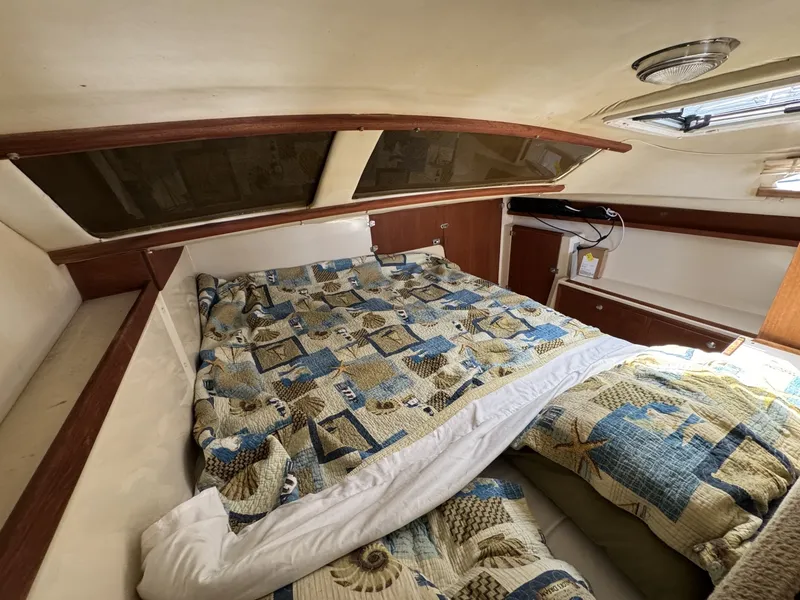

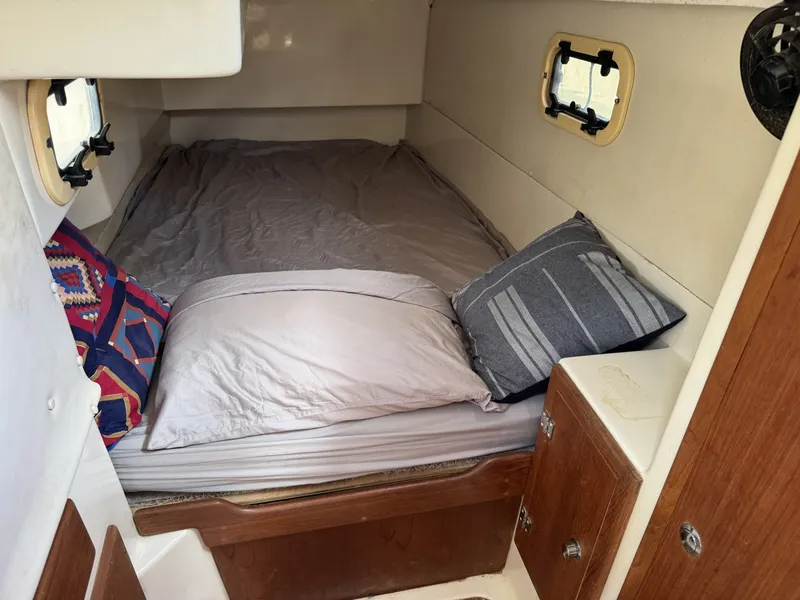

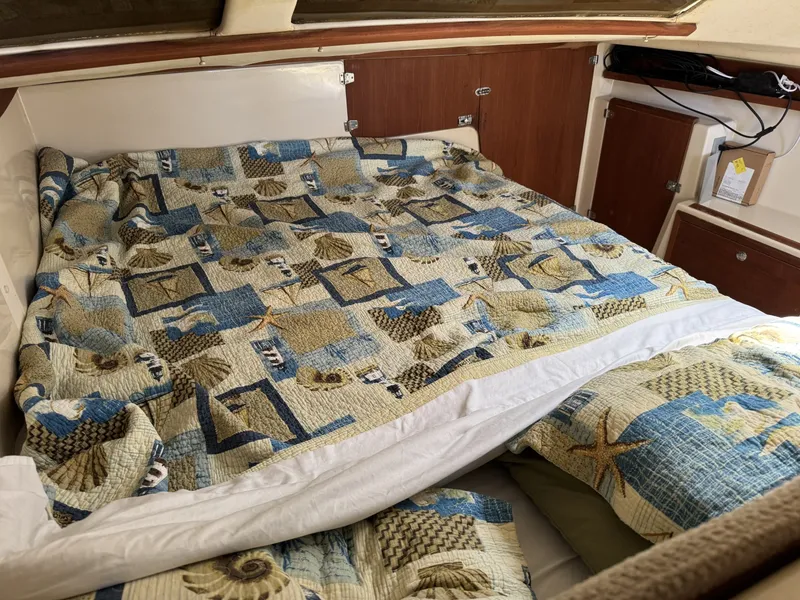

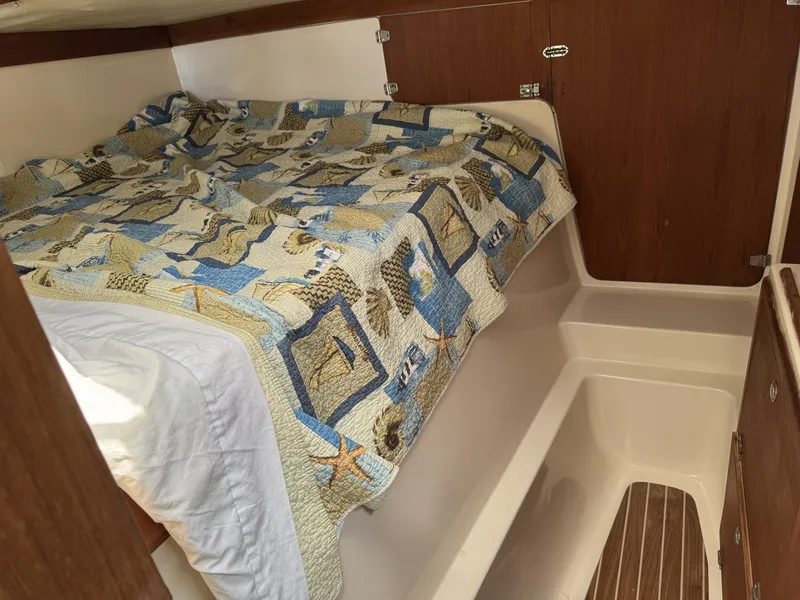

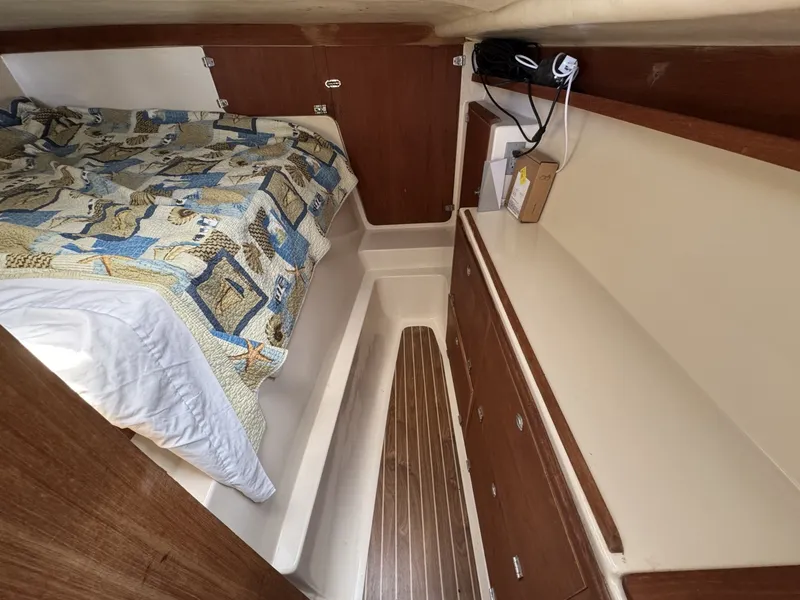

• Master Cabin: Forward with large Berth

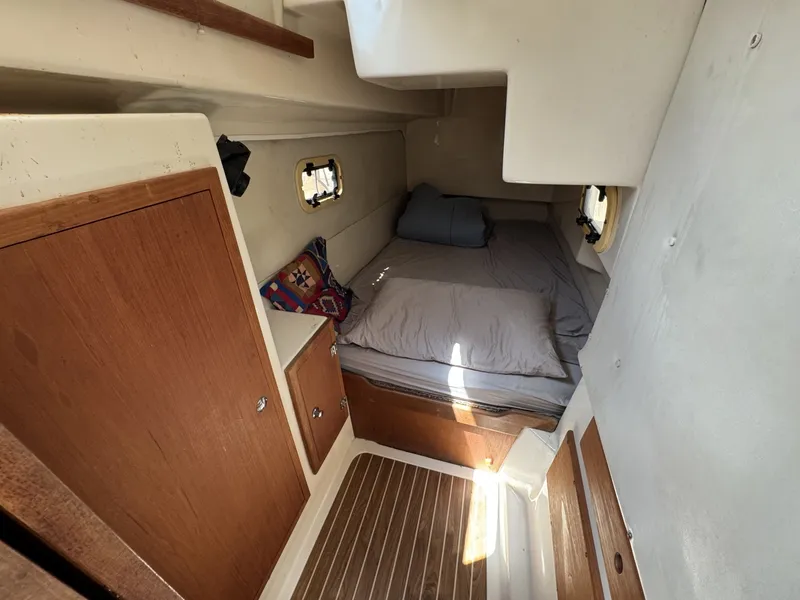

• Guest Cabins: (2) Aft Cabins
• Headroom: 6’

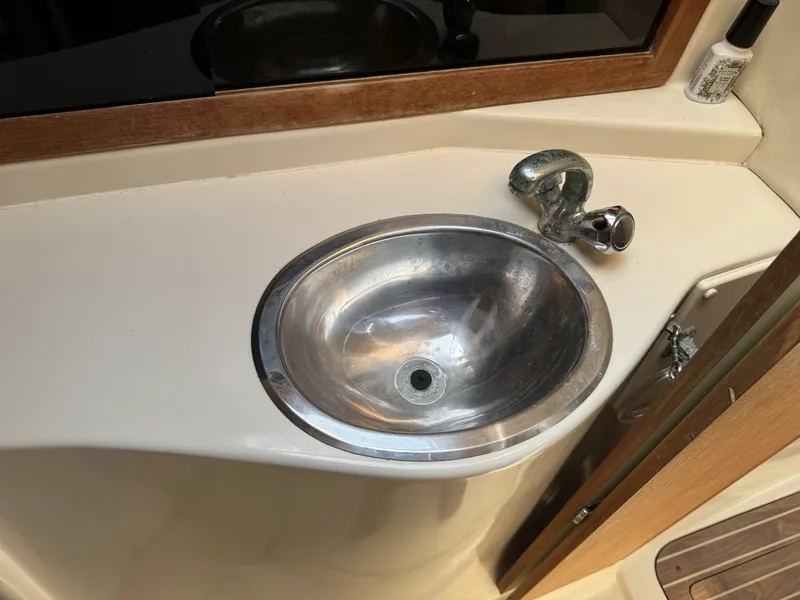

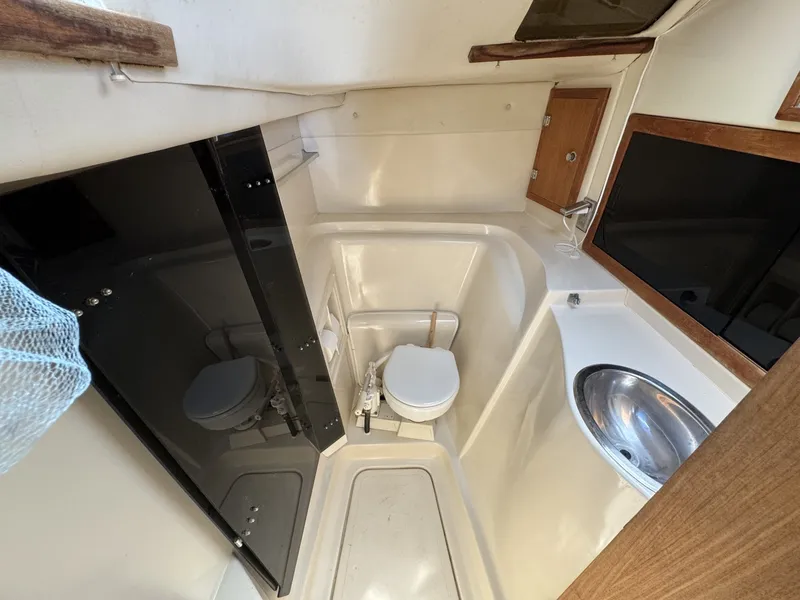

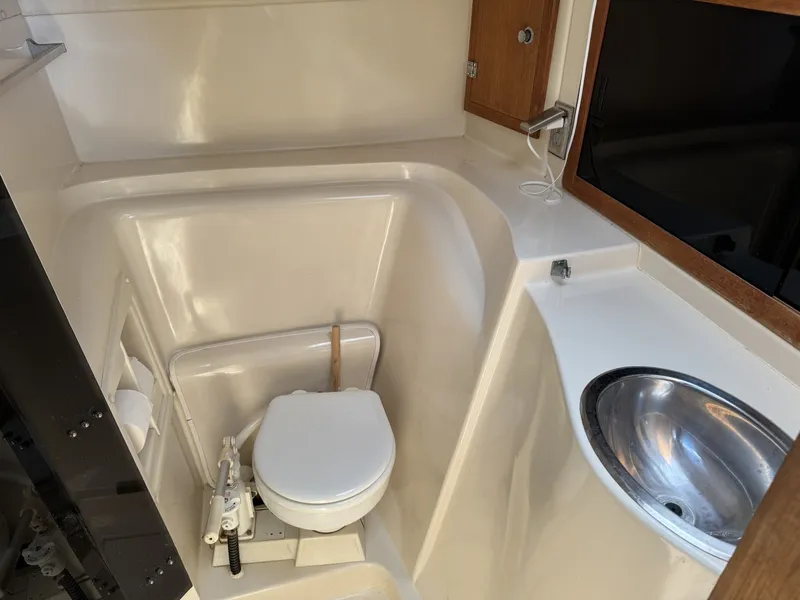

• Head: Manual head, sink & shower

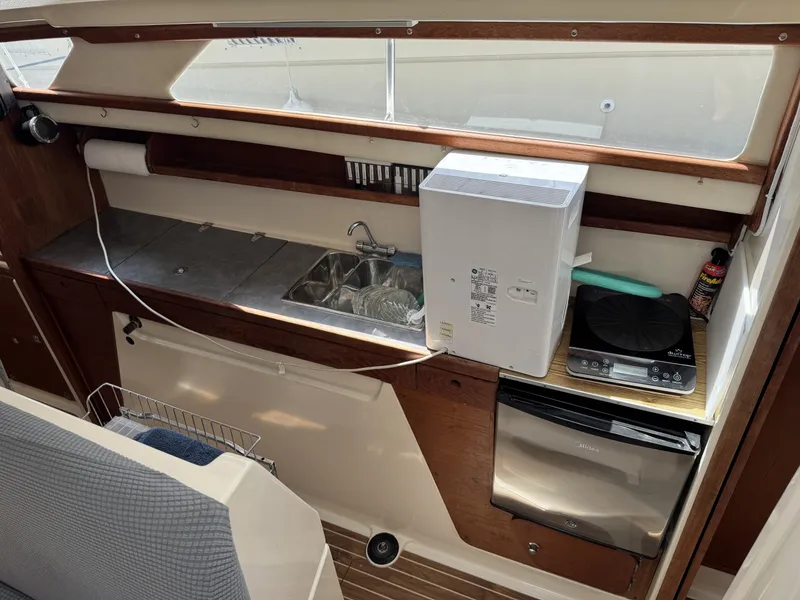

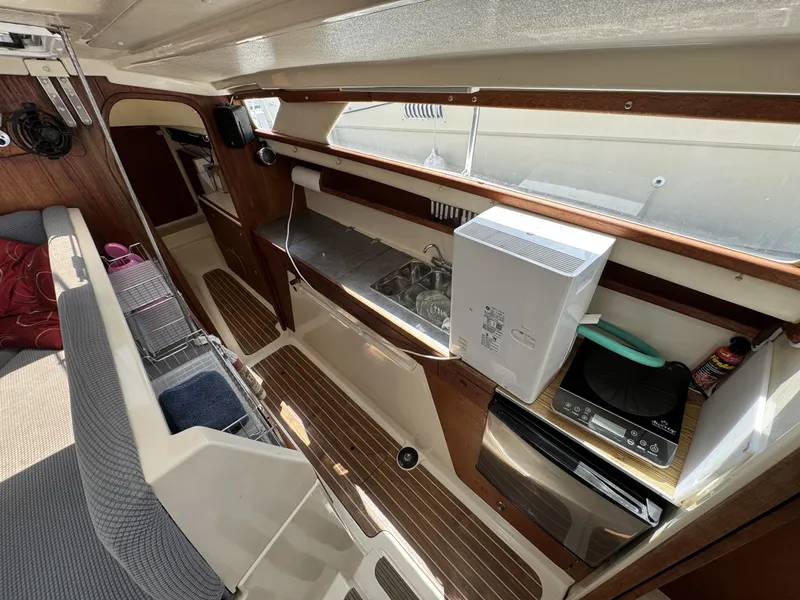

GALLEY

• Stove/Oven: Duxtop 9600 induction cooktop
• Nuwave Infrared Oven

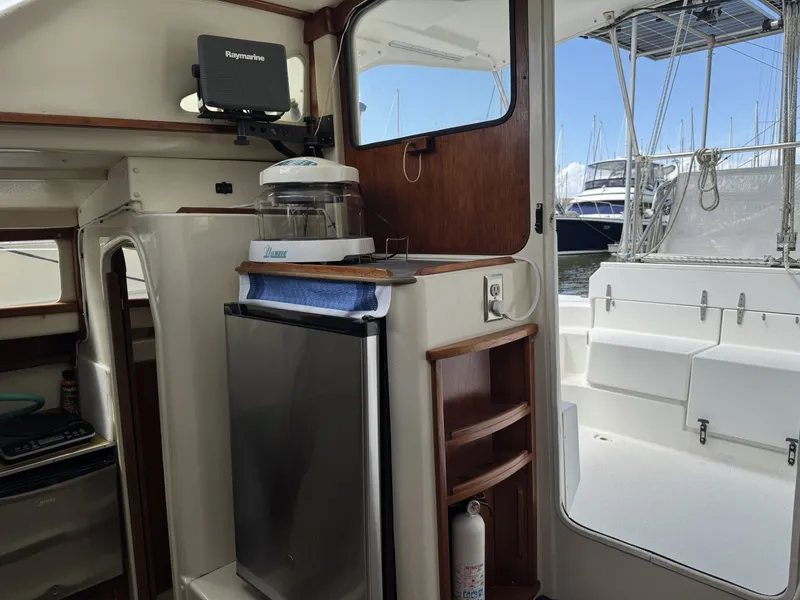

• Refrigeration: GE 110v
• Sink: Double stainless steel
• Water: Hot and Cold Pressure water

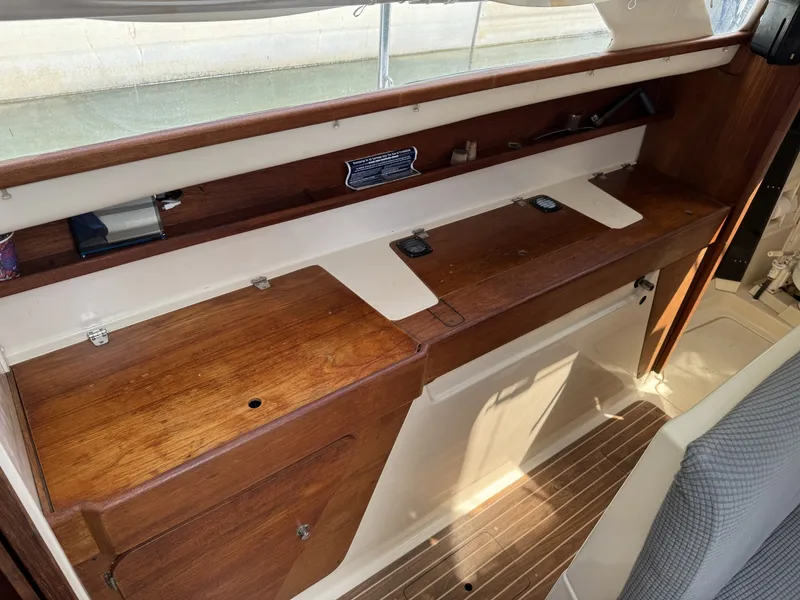

• Cabinets: Various Throughout

ELECTRONICS

• Plotter: Raymarine A97 Chart Plotter
• Autopilot: Raymarine with Updated Controller
• Depth: To Port: DownVision CHIRP fish finder/sonar
• Depth: Starboard also has a transducer so you can follow a narrow channel.
• Speed: Raymarine
• Wind: Raymarine
• VHF: Raymarine Ray53 DSC VHF
• Stereo: Sony DSX-A415BT
• 32" ultra-thin Samsung 4K HDR smart TV

ELECTRICAL

• 12v system: Low voltage system: (12v) 40 amp by way of (2) Victron Orion-Tr 24/12-20 DC-DC converters. (24v) 100 amp fuse panel x 2
• 110v system: Yes
• Battery Charger
• (2) Victron Orion DC-DC converters
• Victron Multiplus 24/3000 inverter /w CerboGX & Screen
• Batteries: (4) Weize 100ah LiFePO4 Lithium-Iron Batteries wired 2S2P for a 24v bank warrantied by Weize until 2032
• Engine Start Battery
• Shore Power: 30amp service
• Interior Lights: 12v upgraded to LED
• Nav Lights: 12v
• 12v Outlet(s): Multiple

SAILS & RIGGING

• Main: Dacron, fully battened, UK Sails 2017
• Mainsail cover in 2023
• Genoa: Dacron, roller furling, UK Sails 2017
• Screecher with roller furling 2018
• Factory Screecher Track on bow
• Asymmetric Spinnaker 2007
• Mast: Deck stepped
• Primary Winches: (2) Lewmar #40 self-tailing winches
• Halyard Winch: (2) Lewmar #7 mast winches
• Steering Lines replaced in 2024
• Mast Height: 49'

DECK & HULL

• Hull Color: White
• Deck Color: White
• Draft: Centerboards, 1.5’ to 5.5’ draft
• Rudder: Twin rudders, retractable
• Canvas: Hard top

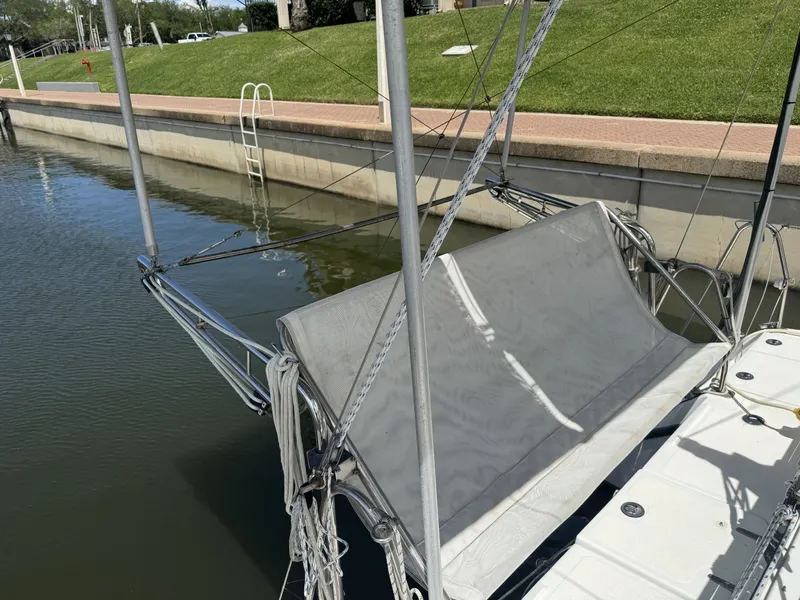

• Aft Hammock Seat
• Swim Platform: Sugar Scoops with swim ladder

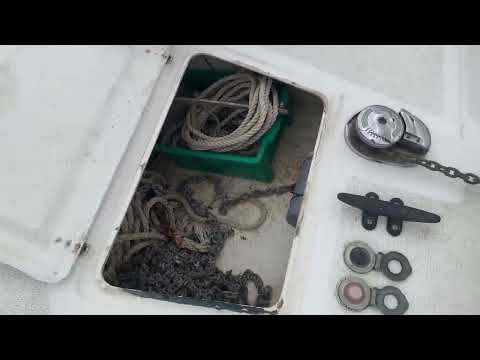

• Anchor: Delta
• Dinghy Davits
• Locker(s): Cockpit, deck and anchor lockers
• Bottom: Painted July, 2023 (Petit Trinidad Pro)

MECHANICAL

• Engine: Westerbeke 30B 27hp with 992 hrs.
• Air Conditioning: Dometic Cruisair 10,000 btu reverse cycle with digital controls
• Steering: Wheel
• Water Heater: Yes
• (2) Rule 21R 800gph automatic bilge pumps with external Seaflo float switches.
• Whale Gusher Urchin manual bilge pump with enough hose to pump out any compartment
• Steering Lines replaced in 2024
• Head: Manual Raritan

The asking price accounts for the following systems that are inoperable or in need of attention:

• The Autopilot is inoperable at this time
• The Deck has Crazing throughout as is common on Gemini Catamarans

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
