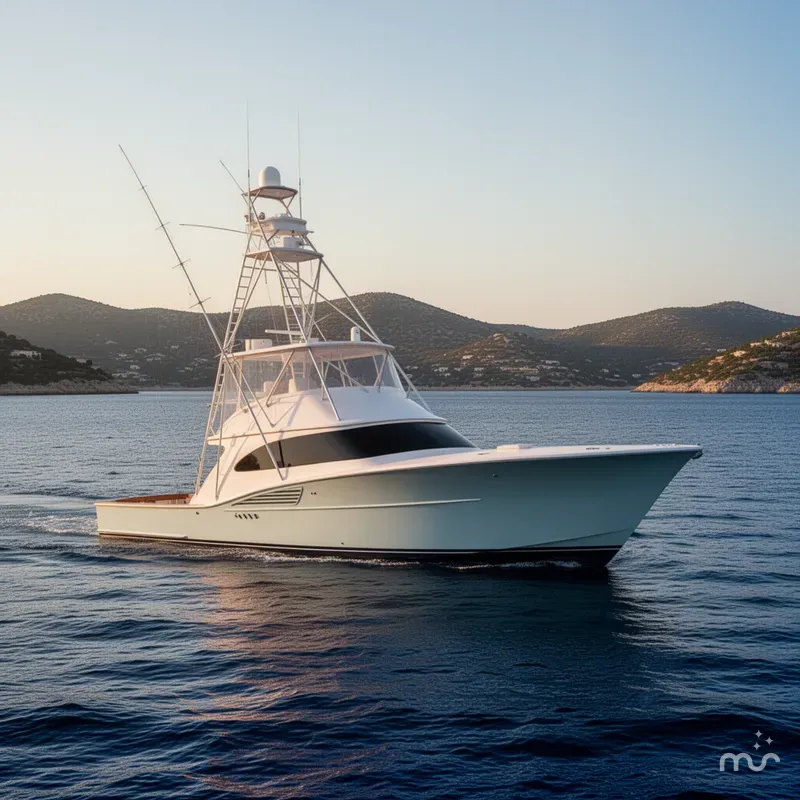

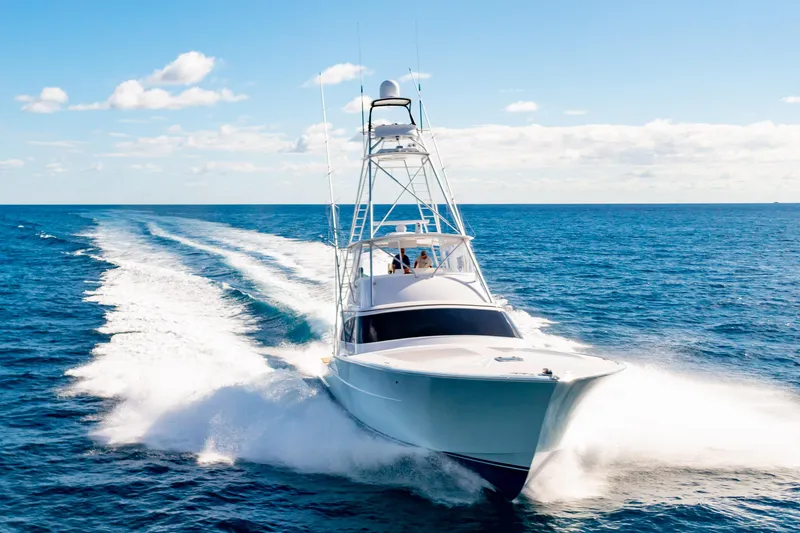

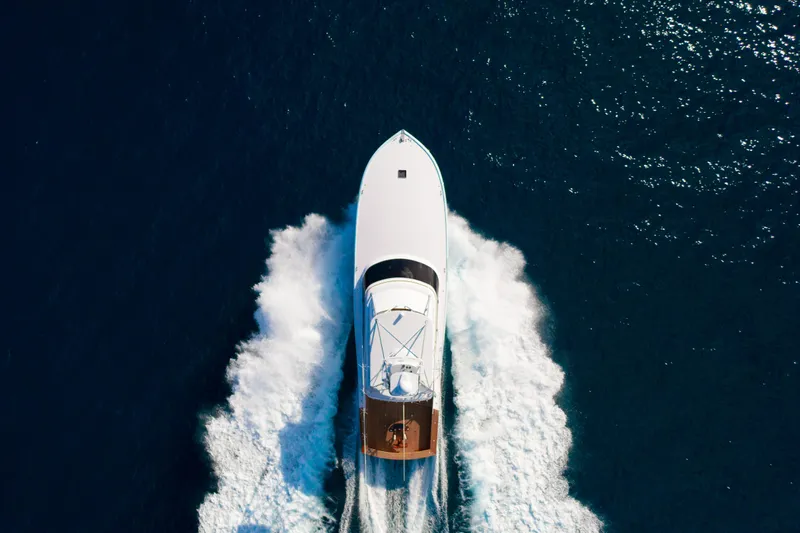

2026 Garlington 71' Flybridge

NEW UNDER CONSTRUCTION GARLINGTON 71' FLYBRIDGE AVAILABLE, DELIVERY FALL 2025.

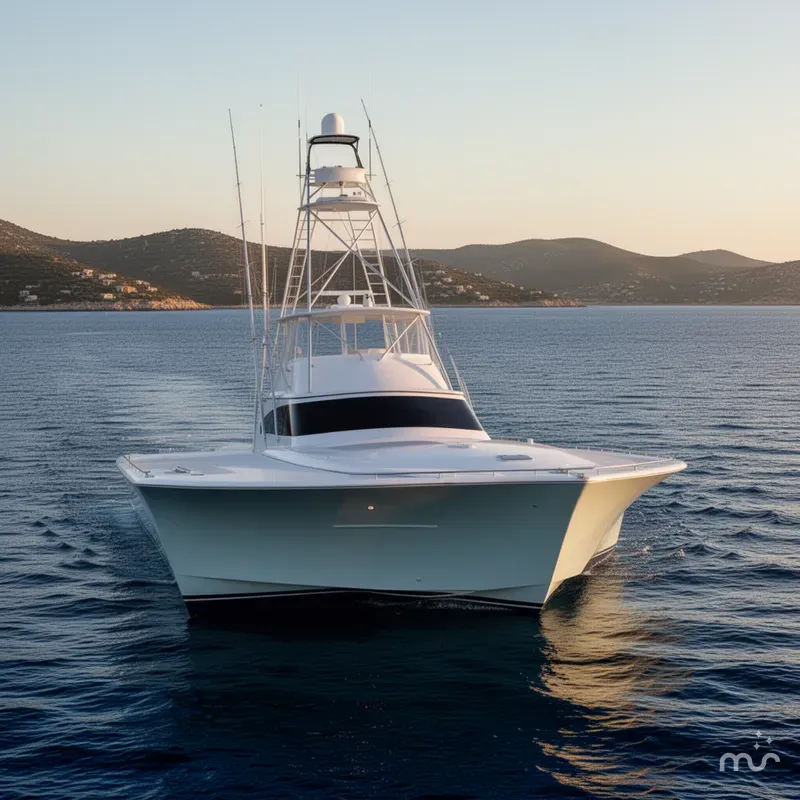

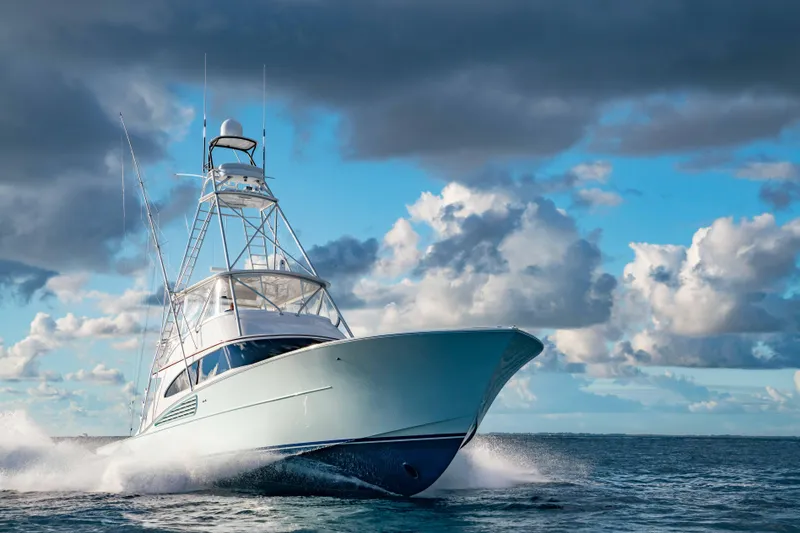

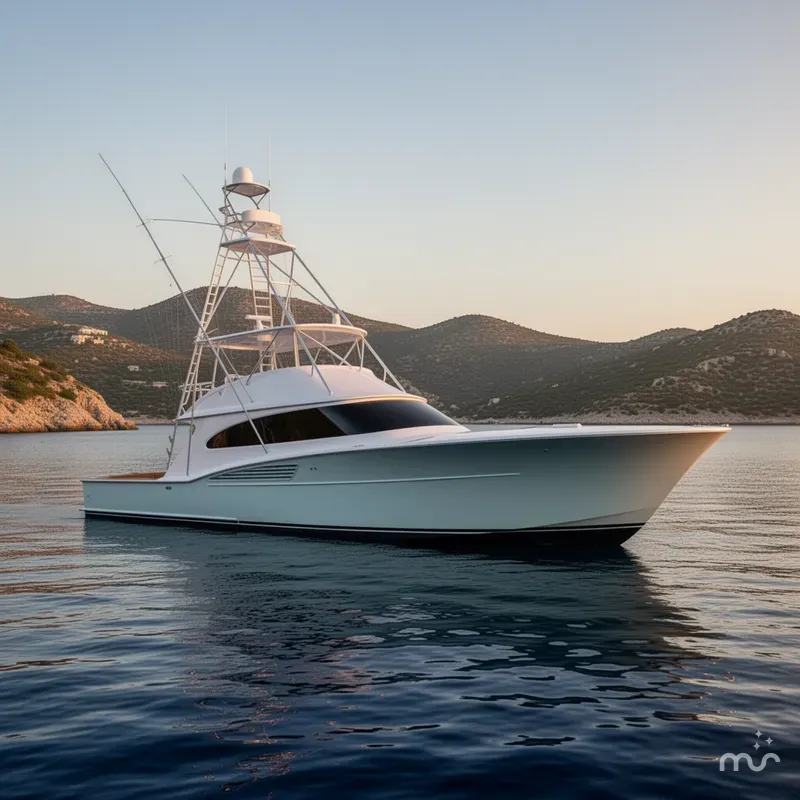

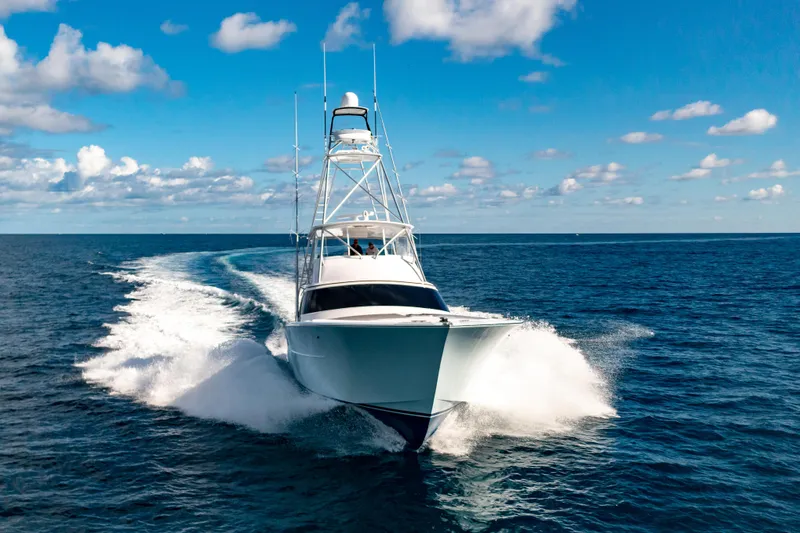

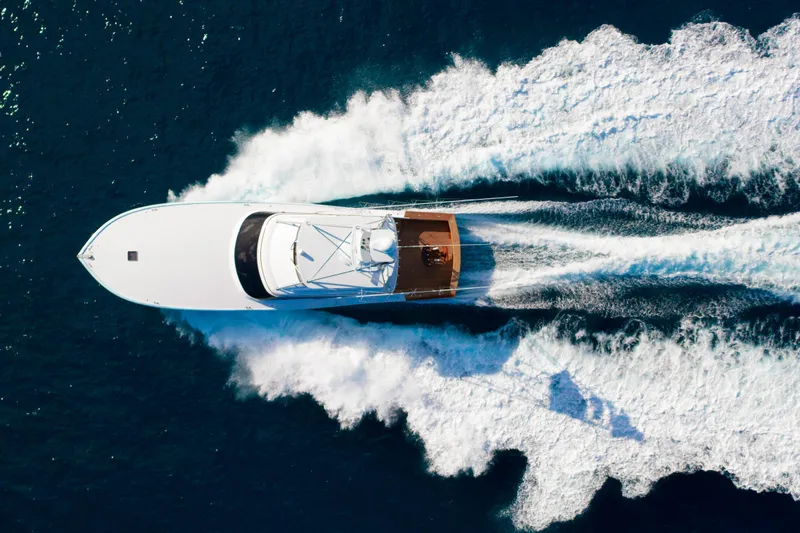

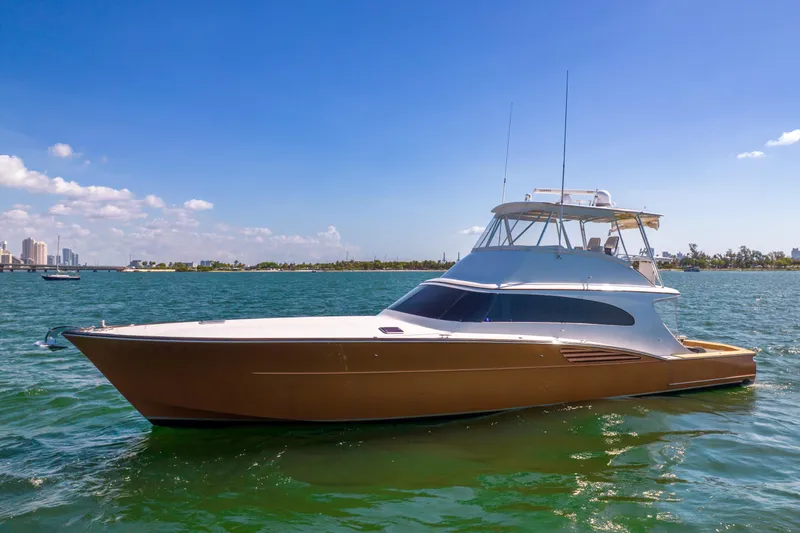

Listing photos are NOT this exact 71' Flybridge.

(KEY) FEATURES:

• MTU V16 2000

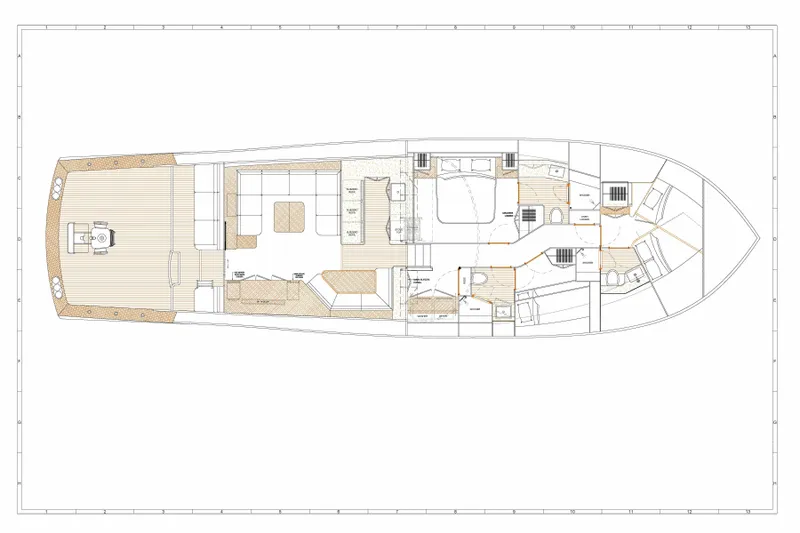

• 3 Head + 3 Stateroom layout + Tackle / Laundry room: (as in Listing GA)
• Teak interior woodwork
• 2 gyro Seakeepers: (1 x 18, 1 x 9)
• Garmin Displays
• Furuno CSH 10L Omni Sonar
• Palm Beach Towers
• Teak Aft Bulkhead + Transom
• Hull Color: to be decided
• 3,875 Gal Fuel Tank

SPECIFICATIONS:

Deck and Exterior

• Anchor: Fortress FX-125
• Anchor Line: 7/8" x 300' twisted nylon, white
• Anchor Locker: Accessible through foredeck hatch
• Cleats: 15" stainless steel (2 bow, 6 spring, 2 stern)
• Foredeck Hatches: One Lewmar Ocean hatch, size 60
• Interior Hardware Options: Polished brass, satin nickel, polished chrome, or brushed chrome
• Hawse Pipes: 2 stainless steel corner hawse pipes
• Grab Rails: Port and starboard, painted exterior color on top of house
• Mooring Lines: Four ¾" x 50', two ¾" x 40' braided
• Bridge Sole: Non-skid with gloss border
• Foredeck: Non-skid walkway on center
• Windows: Gray light 14
• Rub Rail: Solid stainless steel, 1 1/4"
• Toe Rails: Composite, faux teak
• Half Round: Composite, faux teak
• Cap Rail: Composite, faux teak
• Windlass: Vetus 24V with foot switches at bow and control panel, removable anchor chute

Mechanical Systems

• Air Conditioning(Cruise Air, manual controls, 3-turn):
  • Salon: 4 x 12,000 BTU
  • Master Stateroom: 1 x 16,000 BTU
  • VIP Stateroom: 1 x 12,000 BTU
  • Guest Stateroom: 1 x 10,000 BTU
  • Crew Quarters: 1 x 10,000 BTU
  • Cockpit: 1 x 16,000 BTU
• Bilge Pumps: 4 Rule 2000, 1 Rule 3600, with Ultimate Float switches
• Blowers (Engine Room): Two 12" fans, 1200 CFM with thermostats
• Engine Cooling: Salt water

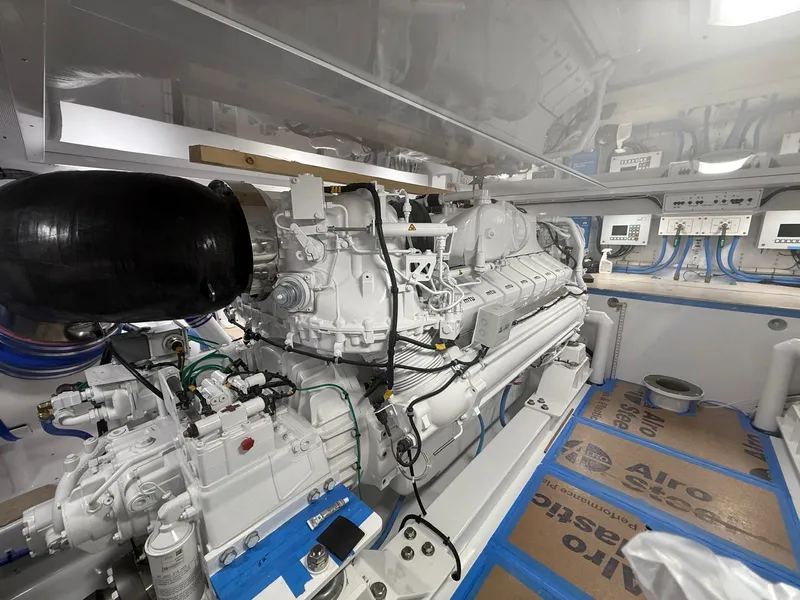

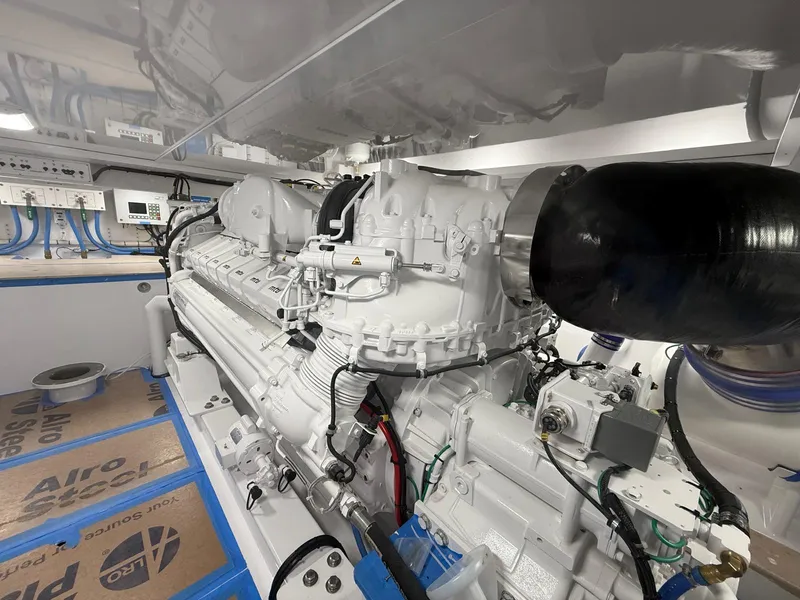

• Engines: 2 x MTU 2600 hp (V16 2000)
• Fresh Water System: 2 x 220V Stingray pumps by Headhunter
• Fuel Transfer Pump: 24VDC, transfers between forward and aft tanks
• Halon Fire Suppression: Sized for engine room
• Holding (Black) Tank: 125-gallon aluminum, overboard and deck pump-out
• Mufflers: Marine Exhaust fiberglass linear, oval exhaust tips
• Propellers: 2 x Nibral Props, CJR 5-blade Billfish Series
• Rudders: Custom stainless steel
• Shafts: 2 x 4" Aquamet-22 H.S.
• Steering: Seastar Optimus
• Struts: Custom stainless steel
• Sump Tanks: One below forward sole
• Water Heater: 20-gallon Torrid Marine
• Zincs: Two B12 recessed on transom
• Clearline: ElectroSea
• SpotZero Watermaker: Model XZ11 1800/2000
• Bow Thruster: Vetus BOW 220V, 485 lbf, 24V
• Gyro Stabilizer: 2 Seakeepers (1 x 18, 1 x 9)

Electronics

• Garmin Displays:
  • 2 x Garmin GPSMAP 9222: 4K resolution touchscreen chartplotter
  • 2 x Garmin GPSMAP 9219: 19" 4K resolution touchscreen chartplotter
  • 2 x Garmin TD-50


• Garmin CHIRP Echosounder:
  • 2 x Garmin GSD 28: CHIRP echosounder for deep-sea sportfishing, Speed Spectrum technology scans multiple frequencies, 2-6 times faster with Rapid Return, precise shallow-water target separation up to 10,000 ft
  • 1 x Airmar CM599 Wide Broadband CHIRP: No connector, D/T, high frequency range 150-250 kHz, constant 25° beam width, twice the coverage under the boat
  • 1 x Airmar PM411 Ultra Wide Broadband CHIRP: No connector, D/T, low-medium frequency range, constant 40° beam width on low, 8-10°
• Salon AV:
  • 1 x SONOS AMP
  • 1 x Apple TV: 32GB
  • 1 x SONOS Sub Mini: Black
  • 1 pair WetSound Venue Series Shallow Speakers: VS-SMC-65, clean look, low profile, 2.12" deep


• VIP Berth AV:
  • 1 x Apple TV: 32GB
  • 1 x SONOS Beam Gen 2 SoundBar: Black


• Furuno CSH 10L Omni Sonar: Full-circle scanning


• Furuno DRS25 NXT: 200W solid-state Doppler radar with 6' array
• Furuno NavNet 17touchXL Black Box: Multi-touch navigation system
• Furuno MCU006 NavNet Controller Keyboard: Compatible with NavNet
• Simrad AP44 Pilot Head: Compact autopilot
• Carlisle & Finch 200W NightStar Spotlight: 1 million candela, joystick remote
• FLIR M364C Premium Multispectral Thermal Camera: 640 x 512 HD, 30Hz
• Standard Horizon GX6000 VHF Radios: 2 units
• JL Audio:
  • 1 JL Audio MHD 600 Amplifier (24V) 4-Channel Class-D Full-Range Amplifier, 150 Watts x 4 (Bridge Stereo).
  • 2 pr JL Audio M6 Series 770 Marine Speakers (Bridge Stereo).
  • 1 pr JL Audio B80's Under Gunwale (Cockpit).
• Fusion:
  • 1 Fusion RA770 Apollo 3"
  • 1 Full-Function Wired Remote 770 Series (Cockpit).
• Starlink:
  • 1 Starlink Marine
• Other Speakers:
  • 2 pr Sonance VPXT6R Extreme Speakers (Salon AV).
  • 1 Proficient FRS 8" Subwoofer (Salon AV).
  • 2 pr Sonance VP8R XT Extreme Speakers (Cockpit).
  • 1 pr WetSound Venue Series Shallow Speakers: VS-SMC-65, clean look, low profile, 2.12"

Electrical Systems

• Batteries: Odyssey PC2250 AGM
• Battery Charger: Sentry
• Bilge Pump Warning Lights
• Bonding: Throughout
• Generators: 2 x 30 kW Northern Lights Model M864W3
• Isolators: Two shoreline, galvanic isolators
• Outlets (110V GFI):
  • 1 x engine room
  • 1 x each stateroom
  • 1 x salon
  • 2 x galley
  • 1 x cockpit (20 amp)
  • 1 x flybridge
• Hubbell Isoboost:
• Shorelines: Two 240V AC, 6-4, 50'
• Underwater Lights
• LP Electric Reel Plugs

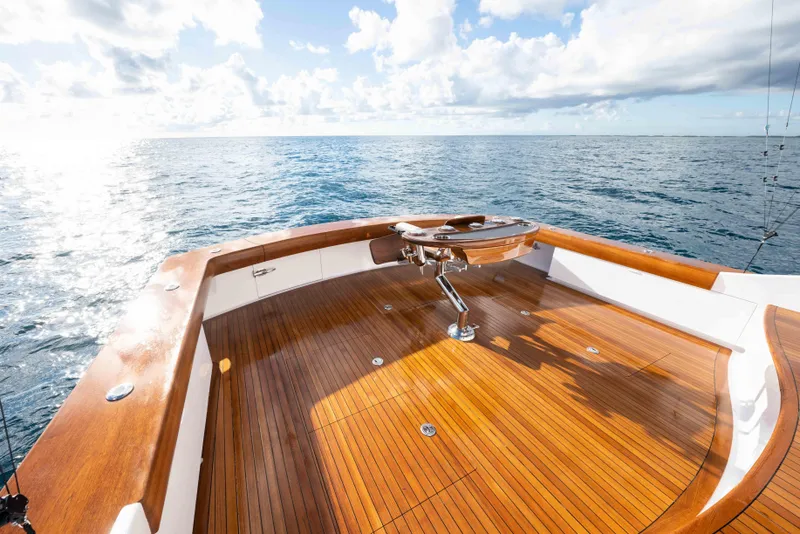

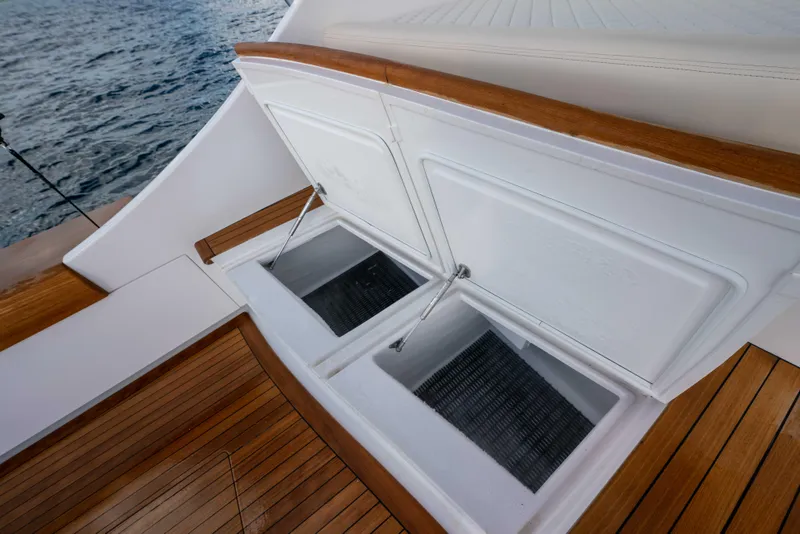

Cockpit

• Access: Engine room via cockpit steps
• Backing Plate: For fighting chair
• Covering Boards/Coaming: Teak with Gemlux HD rod holders
• Drink Box: Top-loading, starboard side in mezzanine deck
• Freezers/Refrigerators: Stainless steel, top-loading, port and starboard
• Ladder to Bridge: Aluminum with teak steps
• Rod Lockers: Port and starboard
• Stainless Steel Shocks on Hatches: Engine hatch, drink box lid, freezer lids
• Sole: Teak planking
• Transom Door: One-piece, 38 ½" through transom, no lift gate
• Teak Transom
• Wash Down: Fresh water only
• Deck Livewells: 2 fill, 2 drain fittings around fighting chair base
• Teak Aft Bulkhead
• Tuna Tubes: 18 x large in transom
• Pumps: 3 Pentair pumps on seachest with manifold

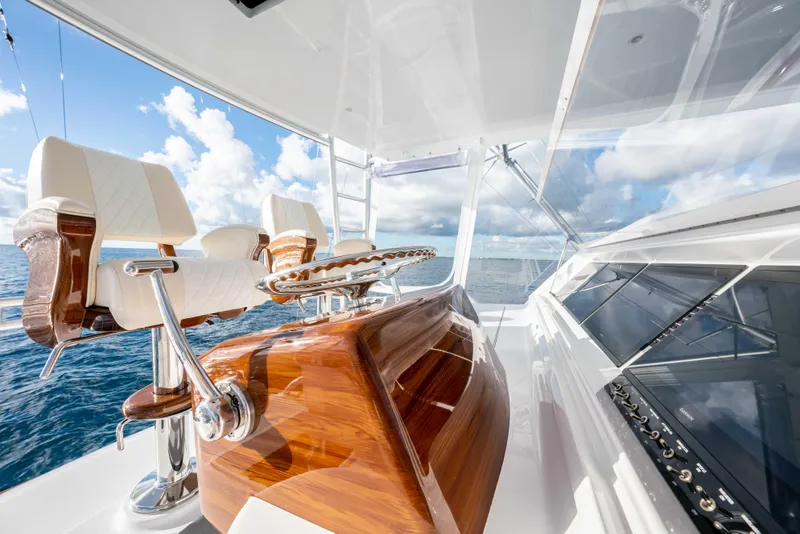

Flybridge

• Backing Plates: For three helm chairs
• Cap Rail: Composite, faux teak finish
• Compass: Weems & Plath
• Controls: One station, single-lever
• Electronics: Recessed on console with acrylic lift-up cover
• Helm Pod: Teak
• Instrumentation: As per MTU
• Seating: Three Release Marine helm chairs with covers, port and starboard bridge seating + Forward Lounge
• Steering Wheel: 15" stainless steel
• Storage:
  • Starboard: Sink
  • Port: Refrigerator/freezer
  • Lounge: Refrigerator/freezer

Tower

• Custom Molded Hardtop: Polished pipe, single perimeter rail, aft main legs mounted on side gunnels
• Hardtop Lights: Luminaire 14-Cold with fiberglass net canopy (not hooked up)
• Rod Holders: 5 x polished, welded to rail, PBT style
• Navigation Lights: 5 mil LED, installed on pole
• Enclosure: 3-sided to end of helm, EZ2CY
• Outriggers: 46' Rupp "Bigg Riggs," 4 spreaders
• Hydraulic System: Single action layout with hydraulic locks, 24V
• Rupp Rollers: Installed in place of eyebolts (2 units)
• Teaser Reels: Electric Miya EPOCH Super US9, 24V, high-speed #2 motor, white case, speed knob
• Drop Down Overhead Electronics Box: Power actuated
• Spot Lights: 2 x Molded 30' Rigid Low Profile LED, mounted on perimeter rail
• Teaser Line Grommets: Pair of stainless steel, mounted under side hardtop, each side teaser door
• Teaser Line Flare Fingers: 2 pairs, welded to side perimeter rail
• Teak Steps: Bridge ladder

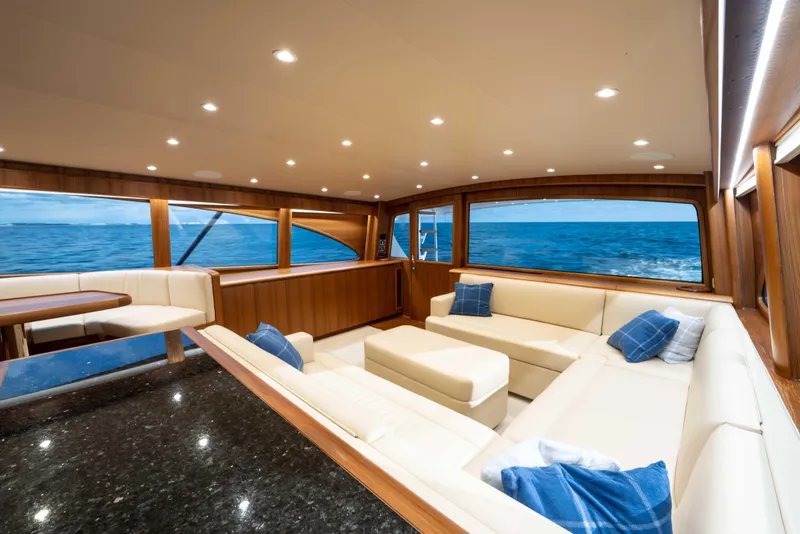

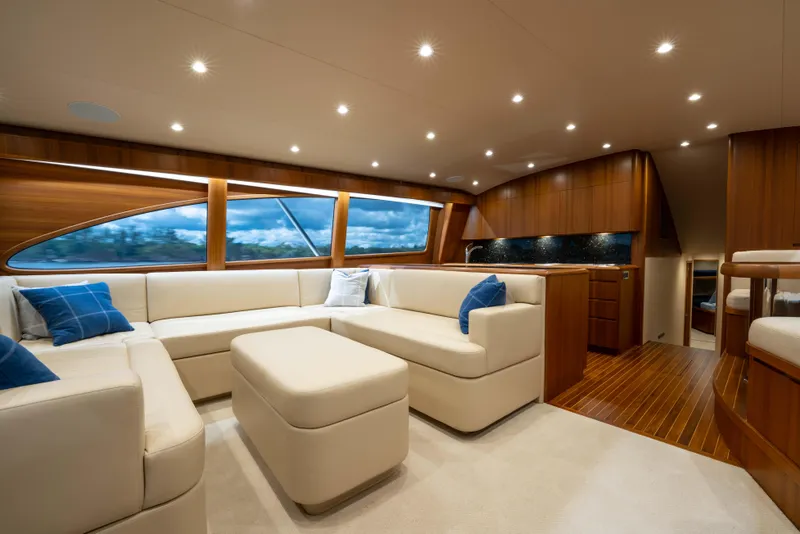

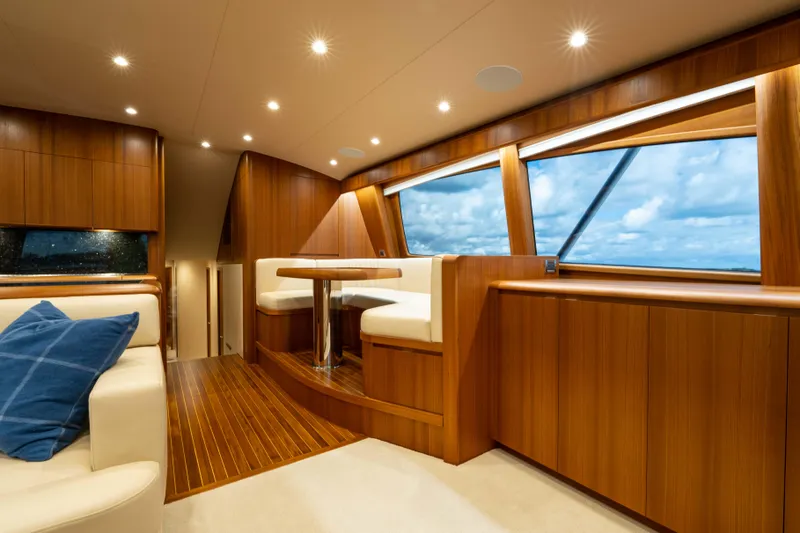

Salon

• Threshold: Teak
• Trim, Valances & Walls: Teak
• AC Exit: Via valance, port and starboard
• Door: Single
• Couch: U-shaped, port side

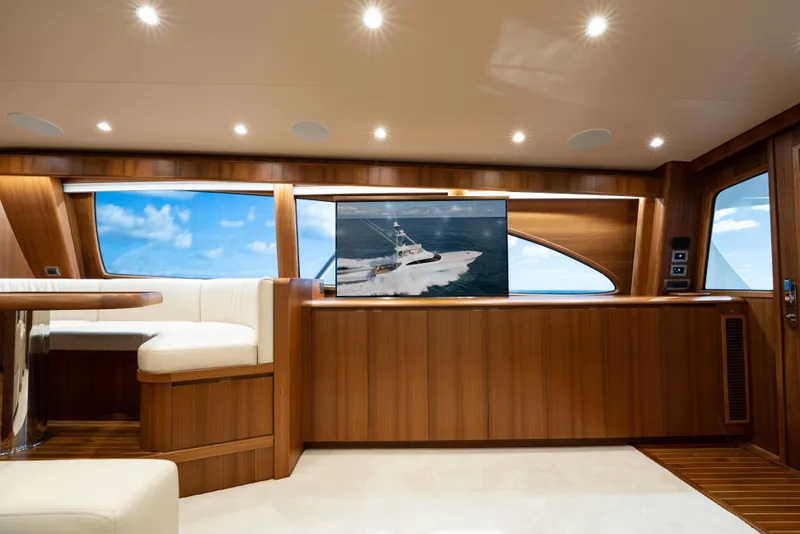

• Cabinetry: For 50" TV with lift
• Storage: Assorted drawers and lockers
• Ice Maker: Scotsman 15"
• Wine Chiller: SubZero 15"

Galley

• Access Hatch: To equipment shelf/engine room in galley sole
• Cooktop: 30" Wolf
• Countertop: Granite
• Faucet: Grohe
• Freezer/Refrigerator: 2 x SubZero 24" refrigerators, 1 x SubZero 24" freezer (all drawer-style)
• Sole: Teak
• Sink: Single stainless steel
• Trim & Cabinets: Teak
• Microwave: 24" Wolf Microwave/Convection

Companionway

• Access: To fresh water sump
• Doors: Teak veneer to all staterooms
• Trim & Steps: Teak
• Separate Washer and Dryer: with storage above

Master Stateroom (Port Aft)

• Berth: King size with storage underneath
• Hanging Lockers: Teak front, cedar-lined across aft bulkhead
• Dresser: With cabinet above
• Nightstands: Two, each with two drawers
• Storage: Starboard, below entertainment cabinet
• Trim & Cabinets: Teak

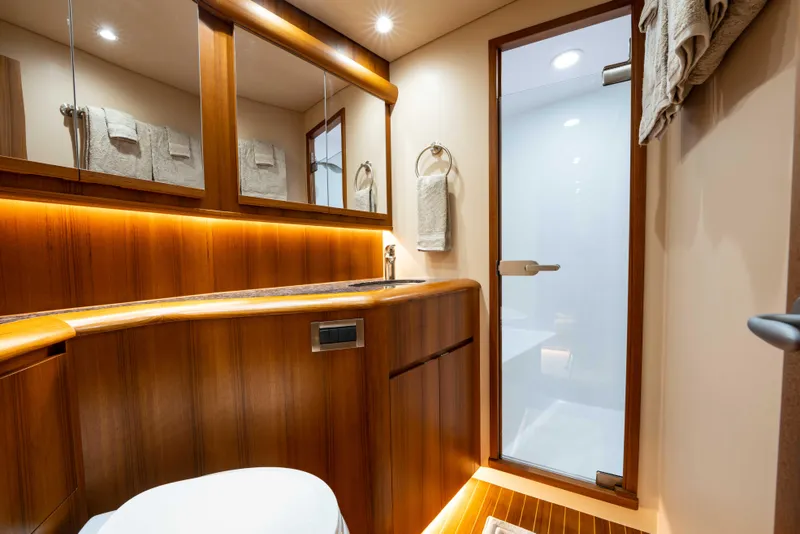

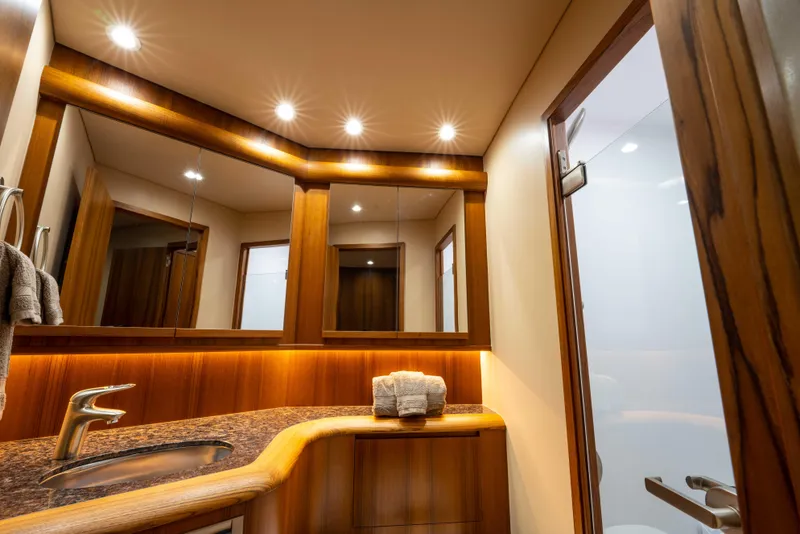

Master Head

• Exhaust Blower
• Head: Headhunter with fresh water flush, Espresso White
• Shower: Large with molded seat (white finish), glass door
• Sole: Teak
• Storage: Inside vanity and outboard lockers
• Trim & Cabinets: Teak
• Vanity Top: Granite
• Vanity Sink: Porcelain
• Vanity Faucet: Grohe

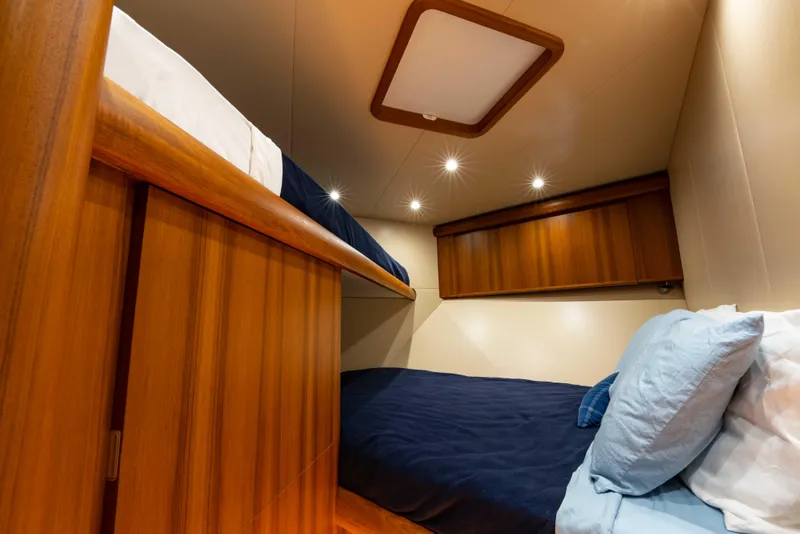

VIP Stateroom

• Berths: Two over/under bunks in "V" configuration
• Hanging Locker: Two cedar-lined with A/C unit underneath
• Trim & Cabinets: Teak

VIP Head

• Exhaust Blower
• Head: Headhunter with fresh water flush
• Shower: Medium (white finish), glass door
• Sole: Teak
• Storage: Inside vanity and outboard locker
• Trim & Cabinets: Teak
• Vanity Top: Granite
• Vanity Sink: Porcelain
• Vanity Faucet: Grohe

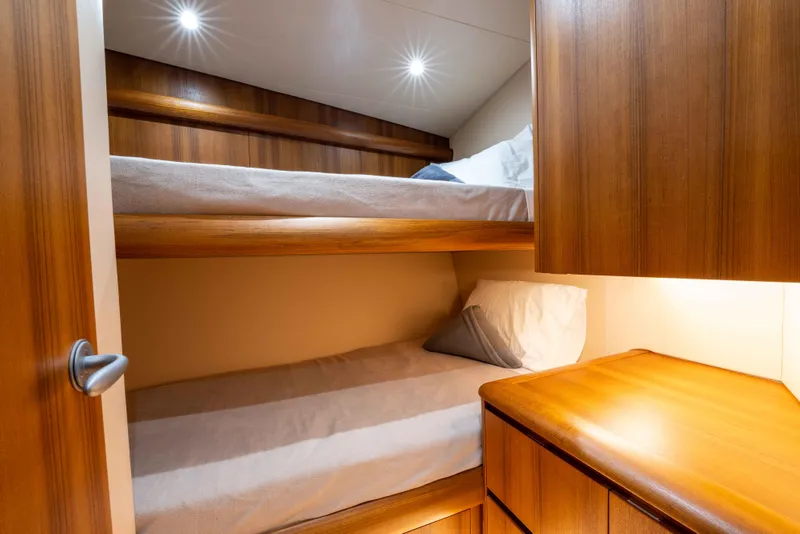

Crew Stateroom

• Berths: Over/under bunks
• Hanging Locker: One cedar-lined with drawers below
• Trim & Cabinets: Teak

Crew/Day Head

• Exhaust Blower:
• Head: Headhunter with fresh water flush
• Shower: White finish, glass door
• Sole: Teak
• Storage: Inside vanity and outboard locker
• Trim & Cabinets: Teak
• Vanity Top: Granite
• Vanity Sink: Porcelain
• Vanity Faucet: Grohe
