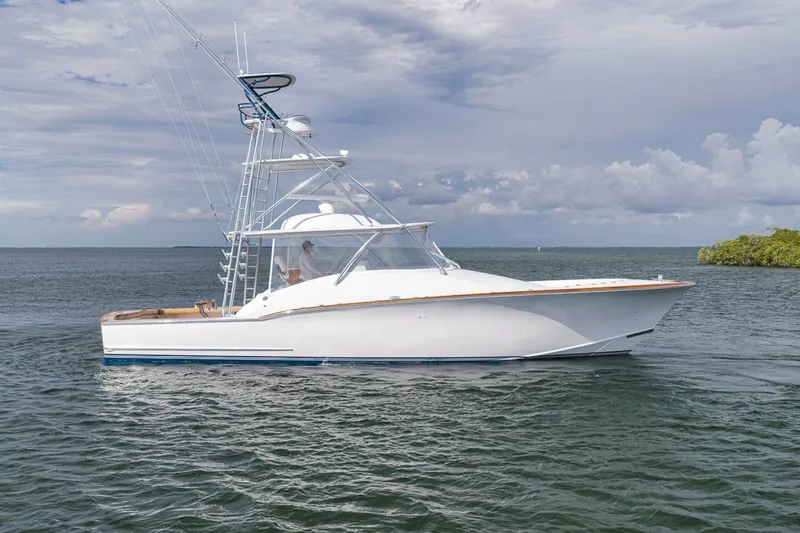

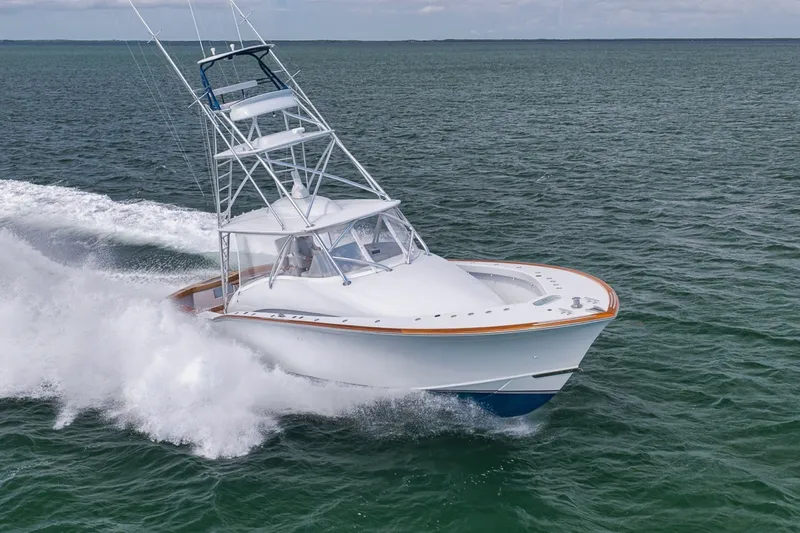

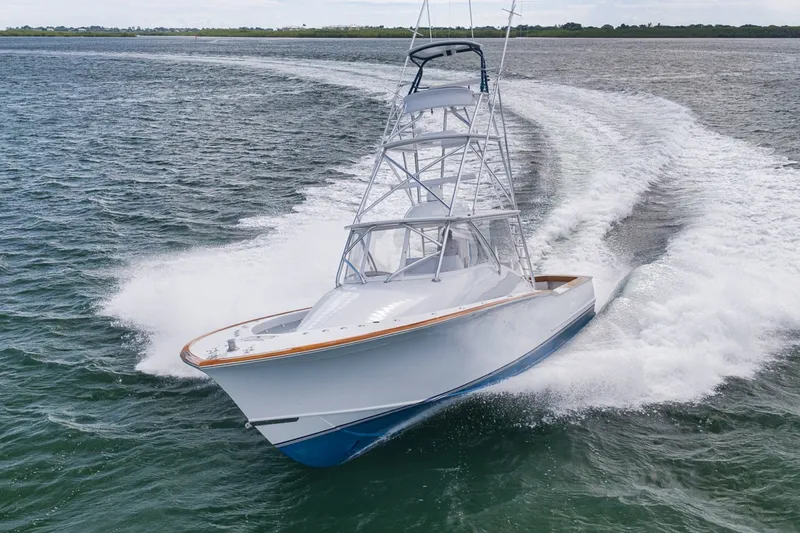

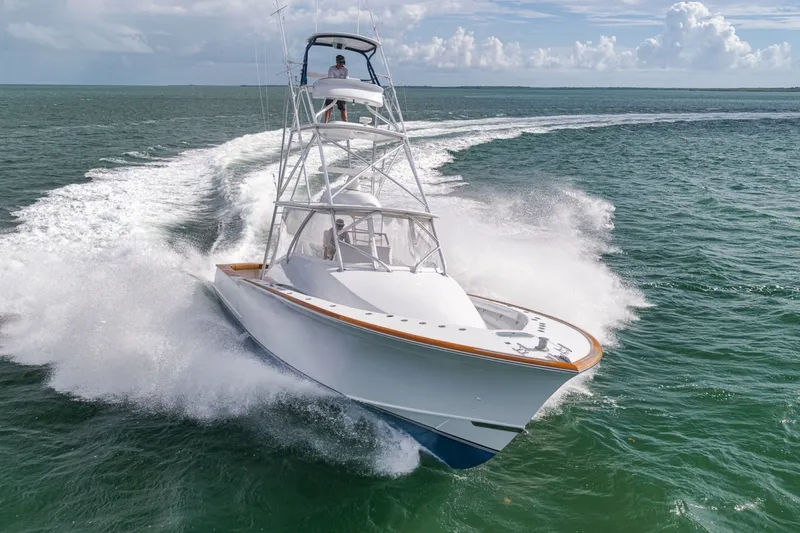

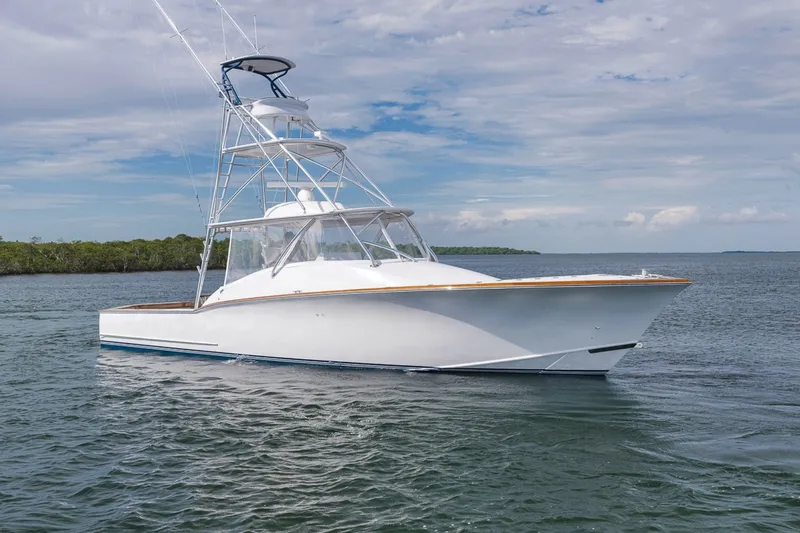

2014 F&S 45 Walkaround Boat in Key Largo, FL 33037 US

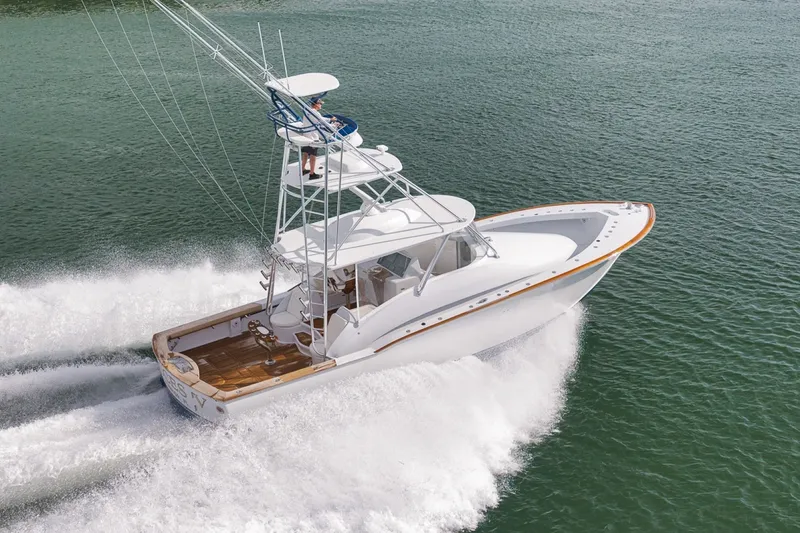

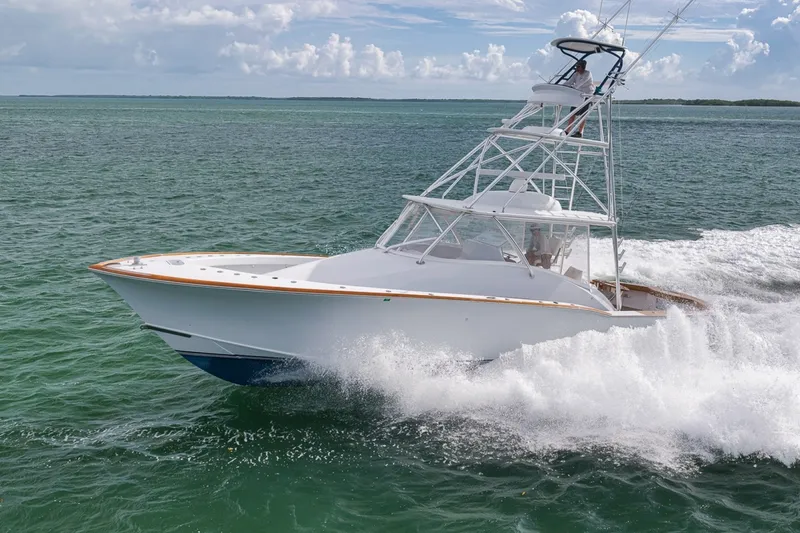

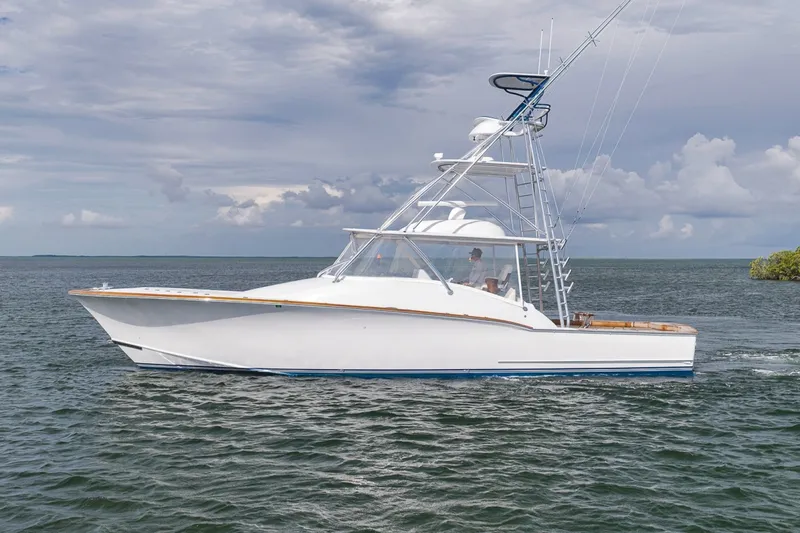

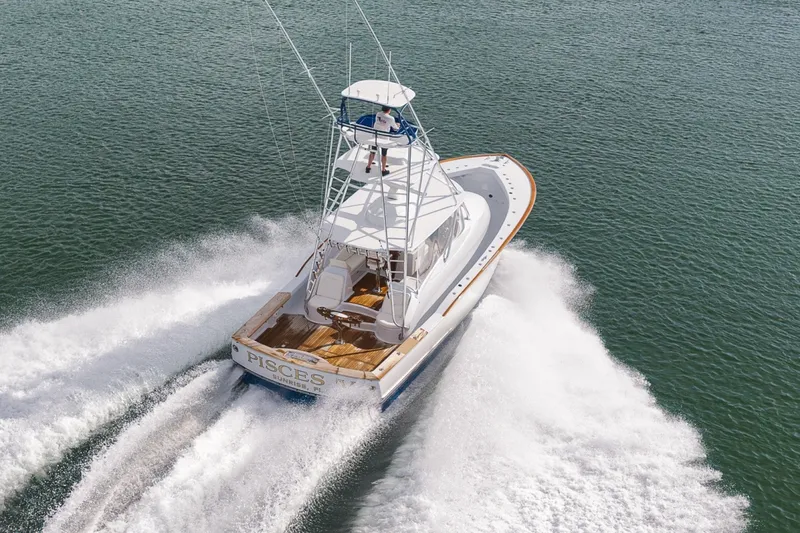

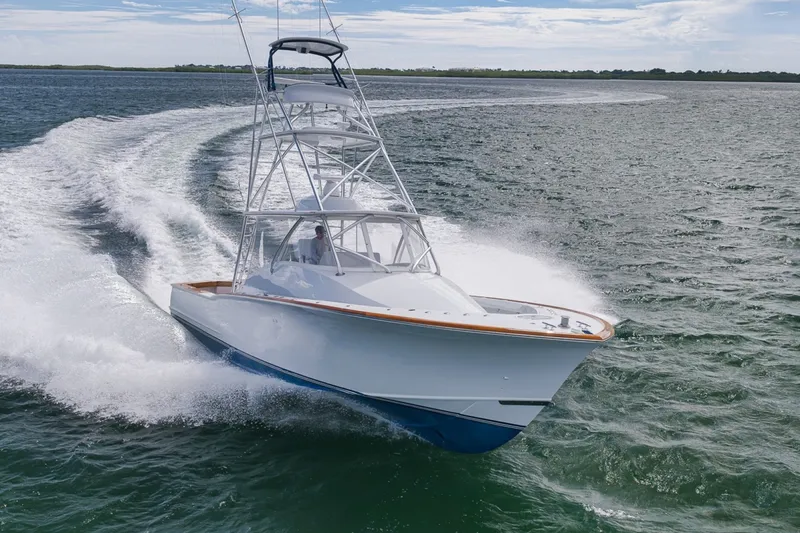

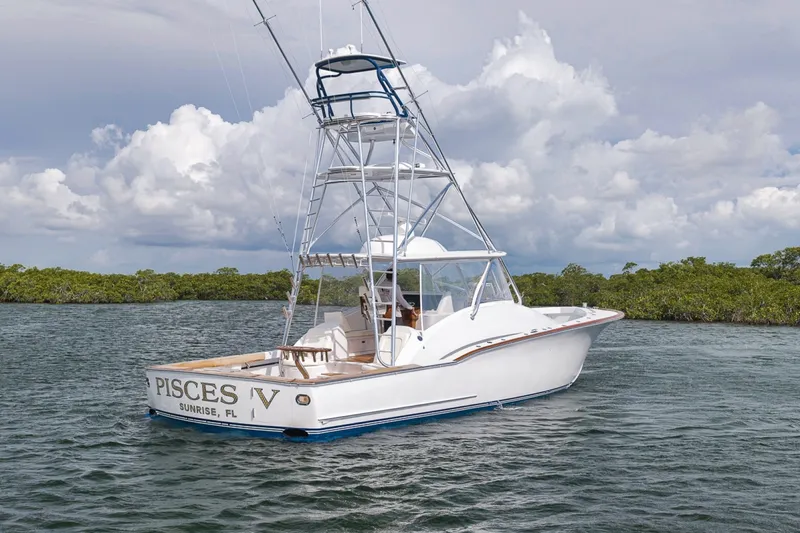

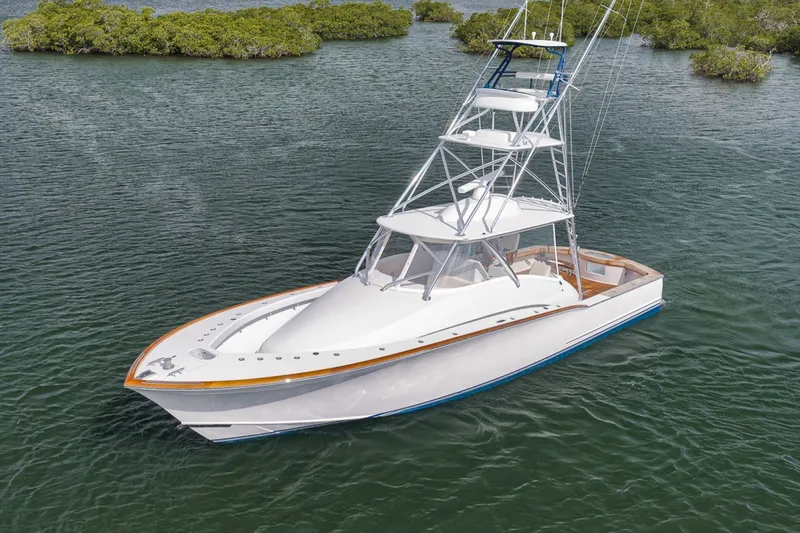

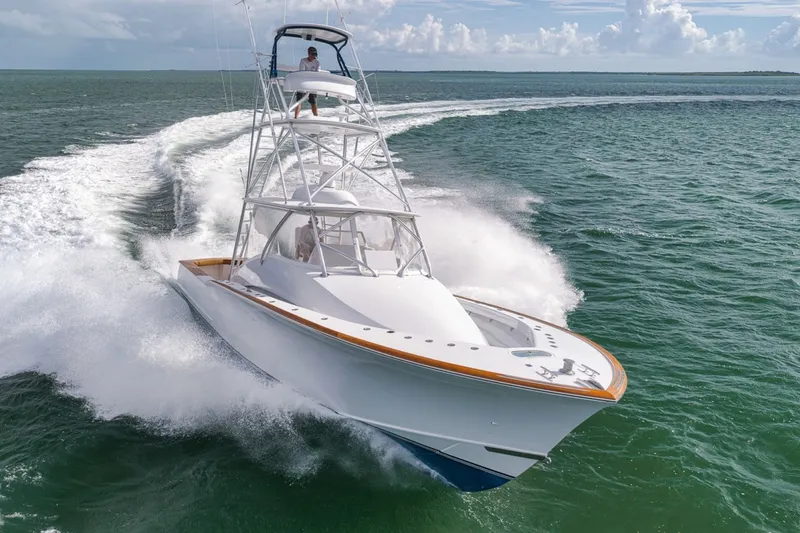

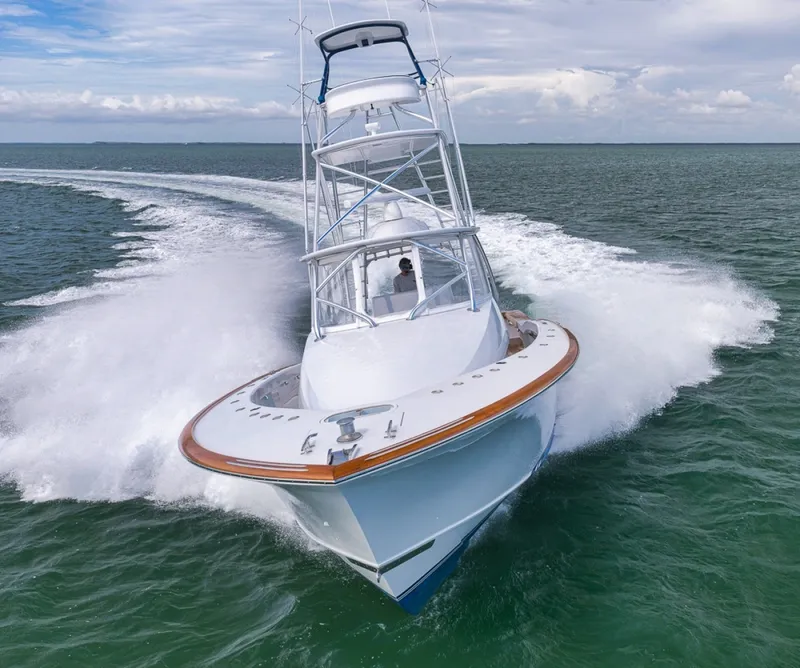

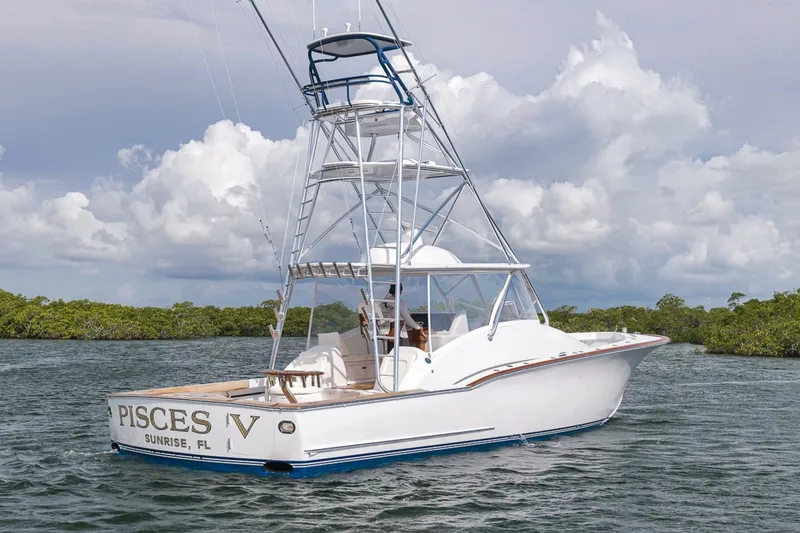

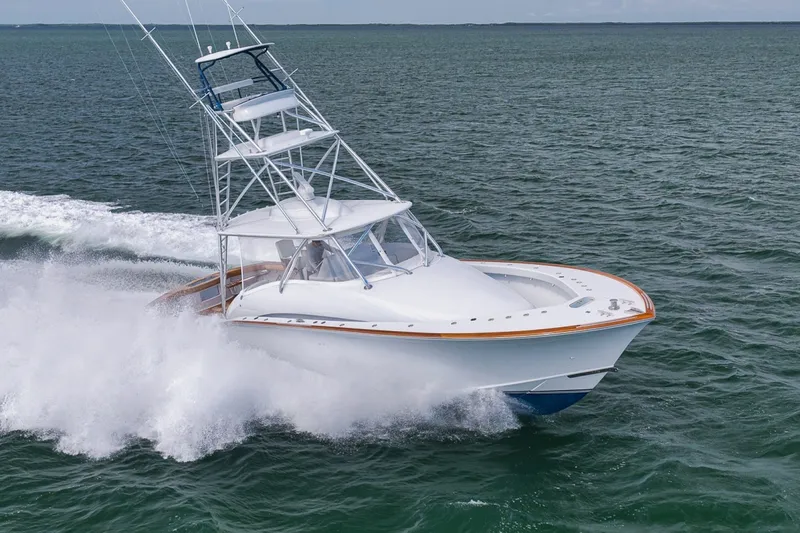

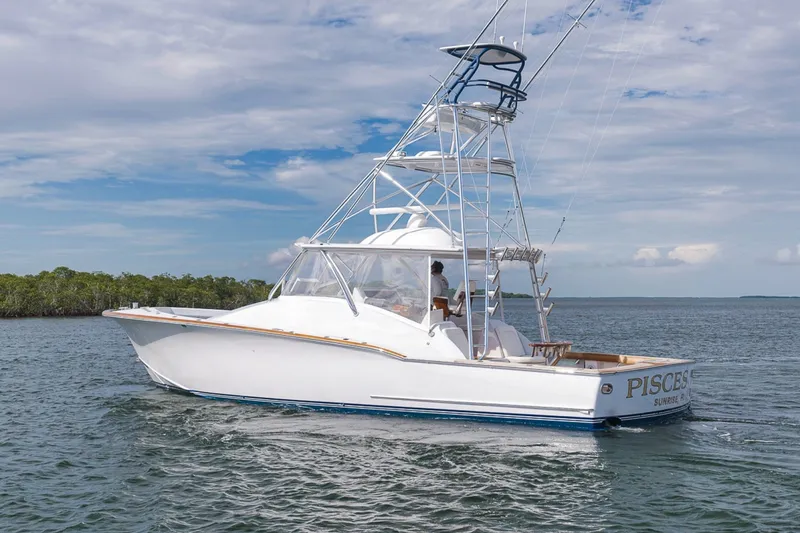

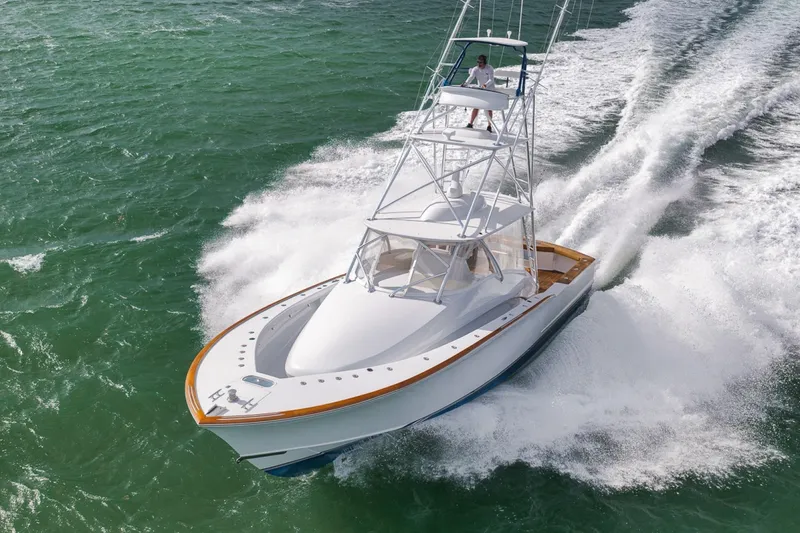

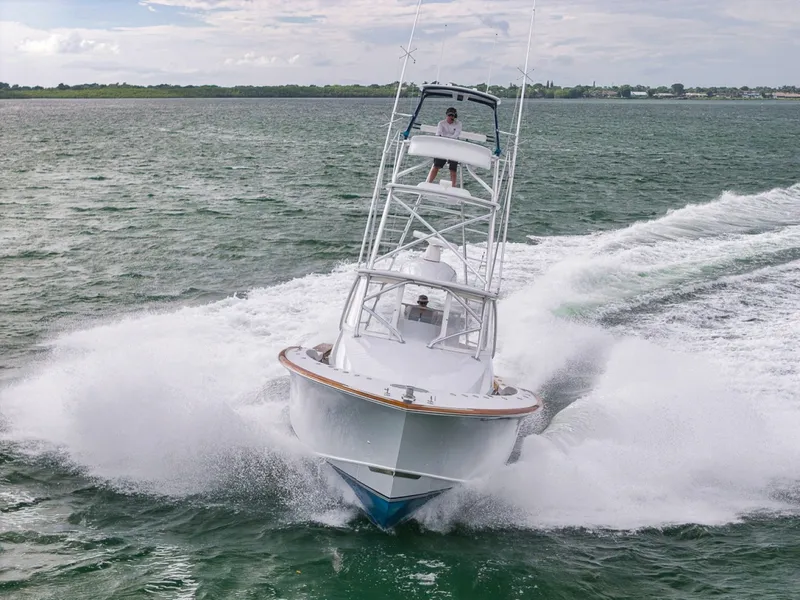

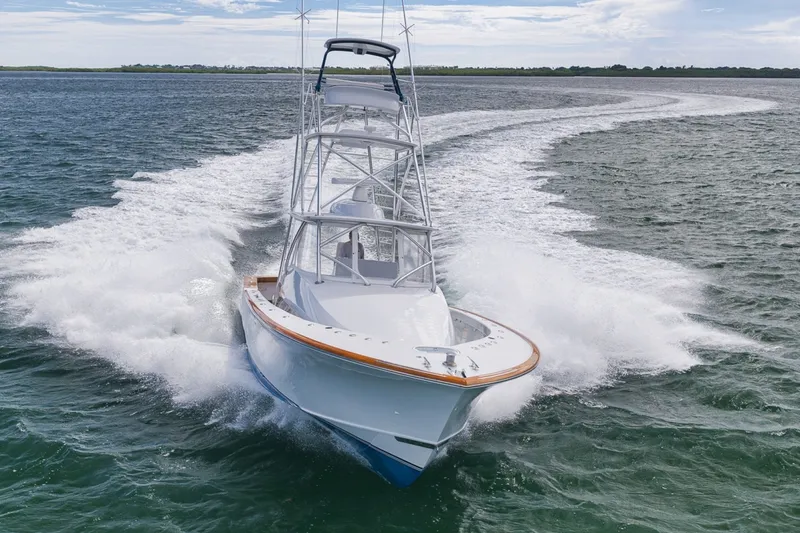

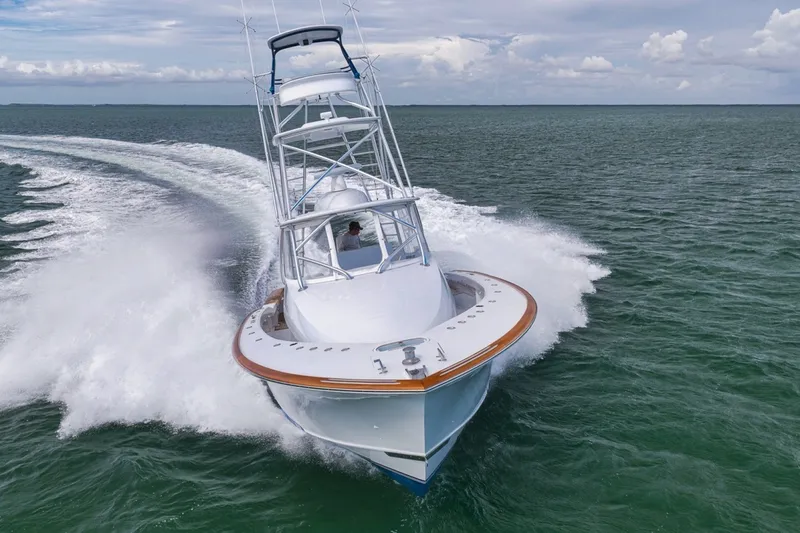

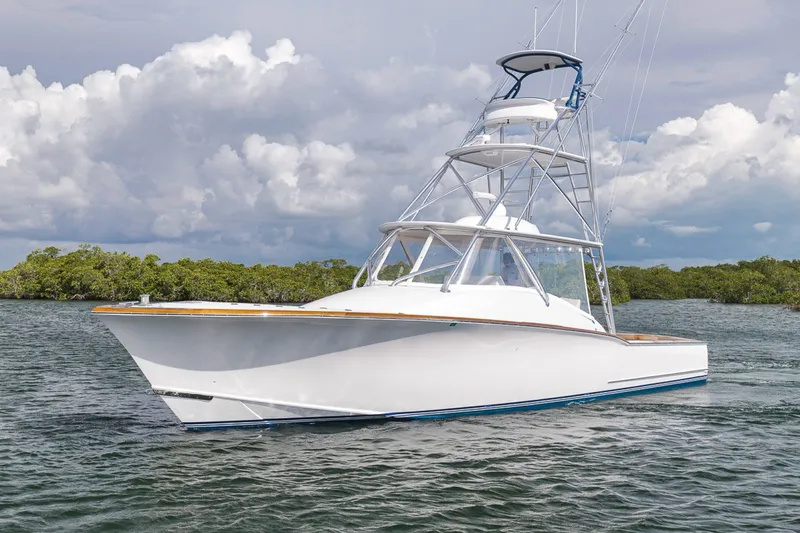

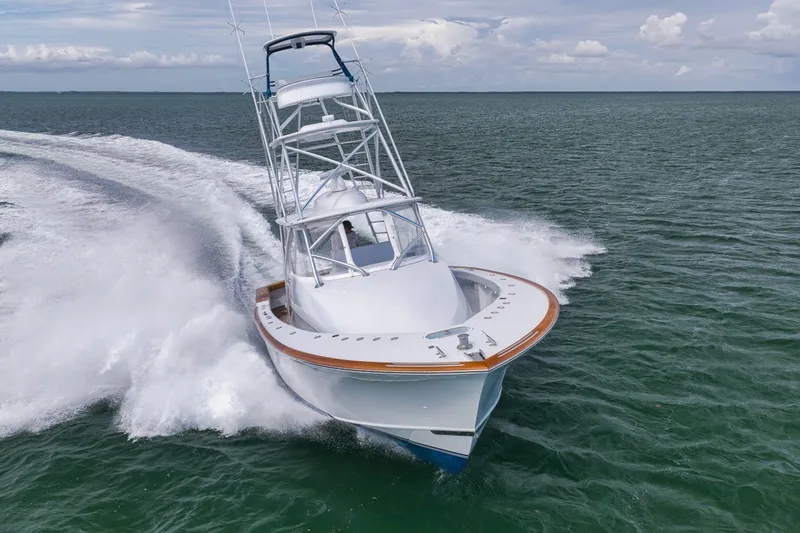

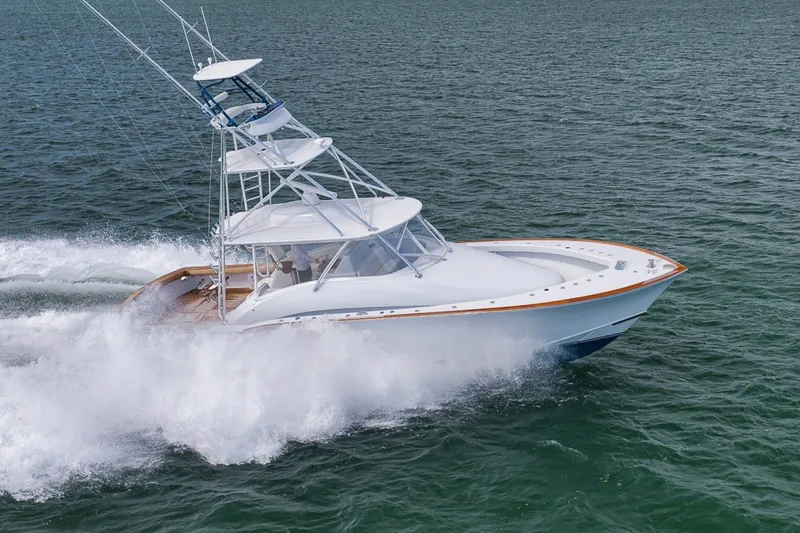

This 2014 F&S 45' Custom Walkaround Express combines distinctive custom craftsmanship with a thoughtfully equipped offshore fishing platform. Powered by twin 800 HP MAN diesels, she features a cold-molded hull with Kevlar reinforcement, a 14'6" beam, and 600 gallons of fuel capacity. Teak decks, a teak toe rail, and a Palm Beach-style teak helm pod complement her classic sportfishing profile.

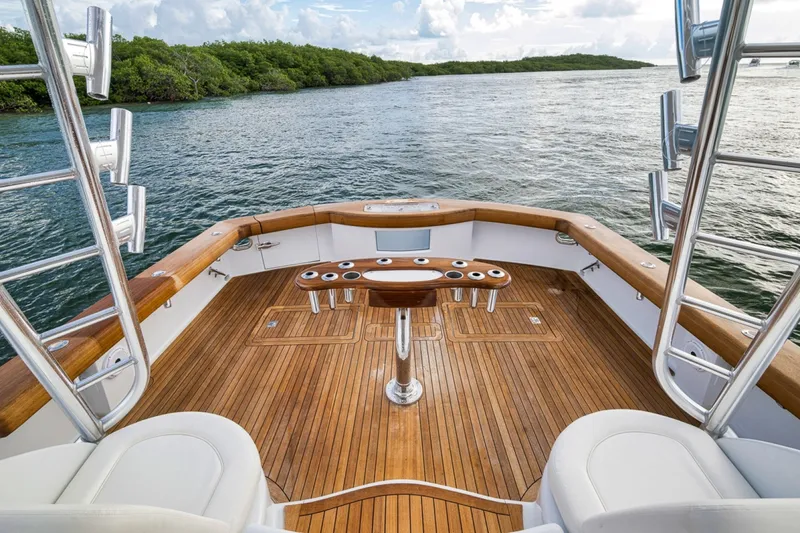

Designed for serious anglers, the cockpit features a teak Bluewater rocket launcher with six rod holders, a transom fishbox and livewell, a refrigerated in-deck fishbox with macerator, and an Eskimo ice maker. Four electric reel outlets-including two forward in the bow-support fishing throughout the walkaround layout, while an additional foredeck livewell keeps bait close at hand. Freshwater and saltwater washdowns and a transom door with a removable dive ladder add practical versatility.

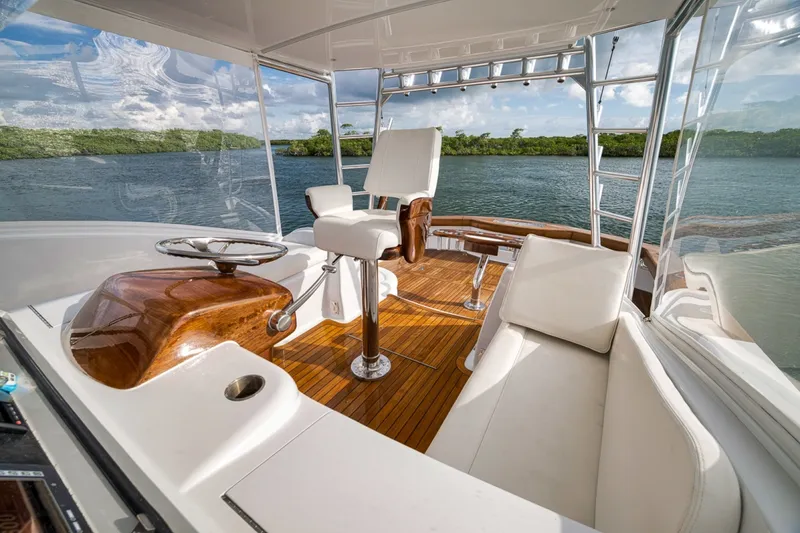

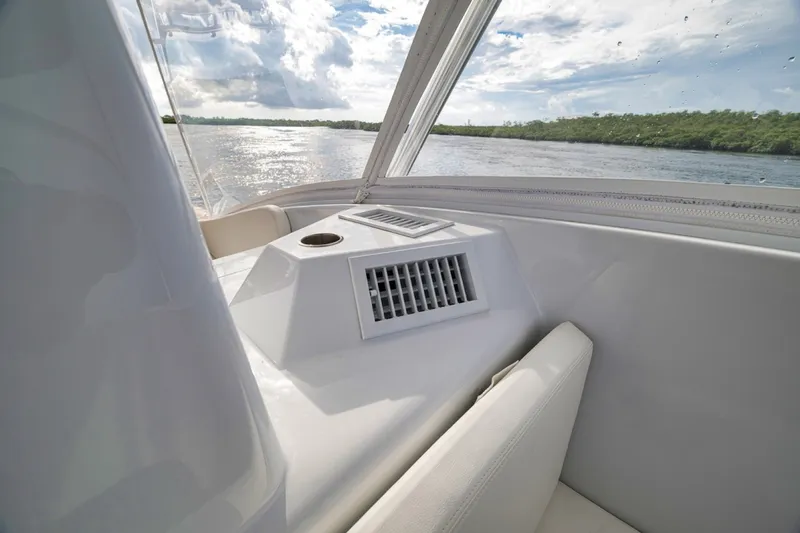

The helm offers a teak Bluewater captain's chair, Release Marine steering wheel and control handles, teak tackle storage, and a four-sided Costa Clear enclosure. Dedicated helm air conditioning provides added comfort, while a Side-Power bow thruster, power-assisted hydraulic steering, and trolling valves enhance handling and control.

Below deck, book-matched teak cabinetry, granite countertops, recessed LED lighting, and marine-grade Amtico flooring create a refined interior. The galley includes drawer-style refrigeration, a convection/microwave oven, and a stainless steel undermount sink. A forward V-berth with a custom mattress, hanging locker, and under-berth rod storage provides overnight accommodations, complemented by an air-conditioned head with a freshwater electric toilet and granite-topped vanity. A 12.5 kW Phasor Marine generator supports onboard systems away from the dock.

BEAM: 14'6"

ENGINES: TWO (2) MAN 800 HP

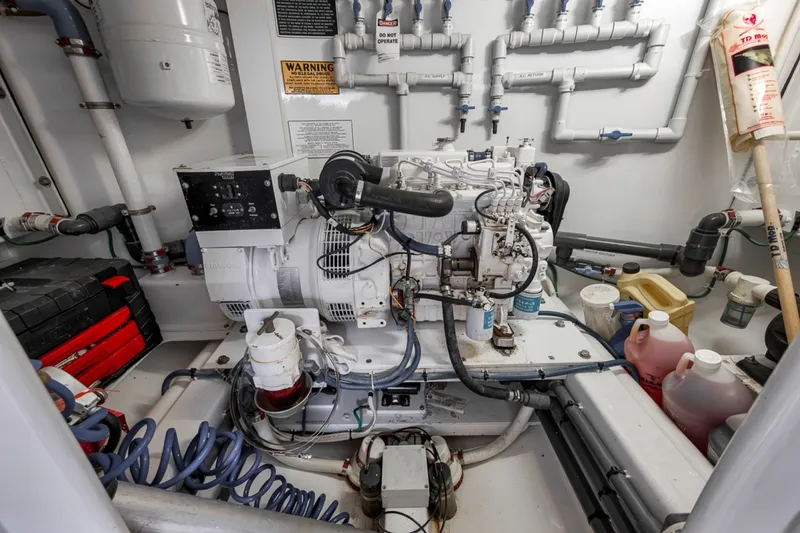

GENSET: 12.5KW PHASOR MARINE

DISP: 24,000 LBS.

FUEL: 600 GALLONS

WATER: 100 GALLONS

SALON - BELOW DECKS

• BUILT-IN CABINETRY (PER PLAN)

• BACKLIT ELECTRIC PANEL AND MISCELLANEOUS STORAGE

• LED RECESSED LIGHTING WITH TWO (2) DIMMERS

• WALL SURFACES AND HEADLINER TO BE WHISPER WALL

• ALL HARDWARE POLISHED STAINLESS STEEL OR BRUSHED FINISH

• ALL CABINETRY & INTERIOR DOORS TO BE FLUSH (CONTEMPORARY STYLE) WITH SELECTED VENEERS

• COUNTERTOPS THROUGHOUT TO BE GRANITE ON ALUMINUM HONEYCOMB WITH TEAK FIDDLES (WOOD BULLNOSE)

• INDIRECT LIGHTING

• AMTICO FLOORING, MARINE GRADE

• CARPETED FLOORING ON COMPANIONWAY STEPS

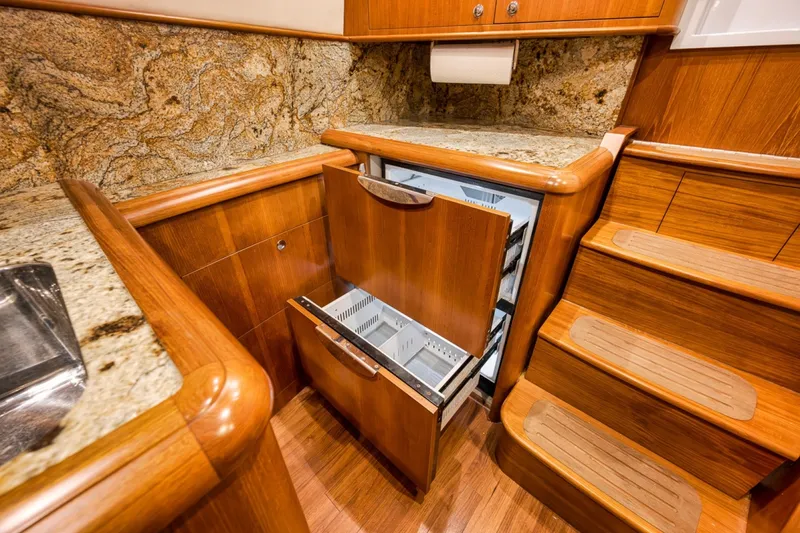

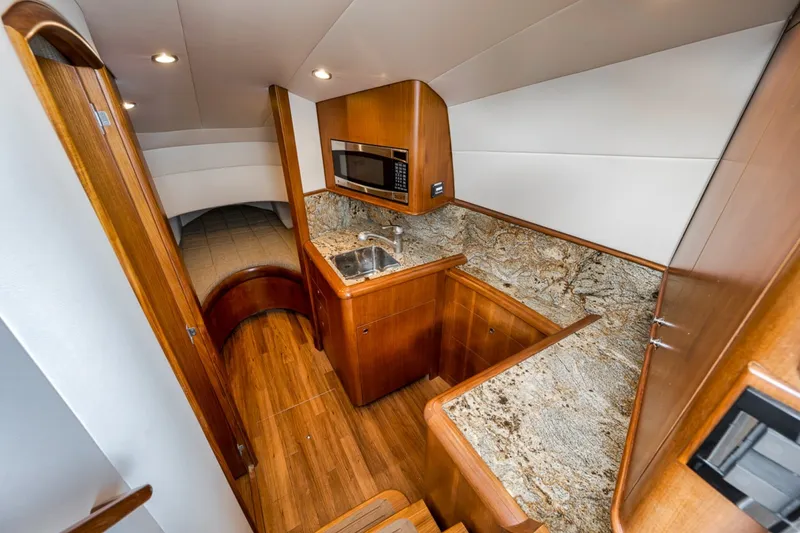

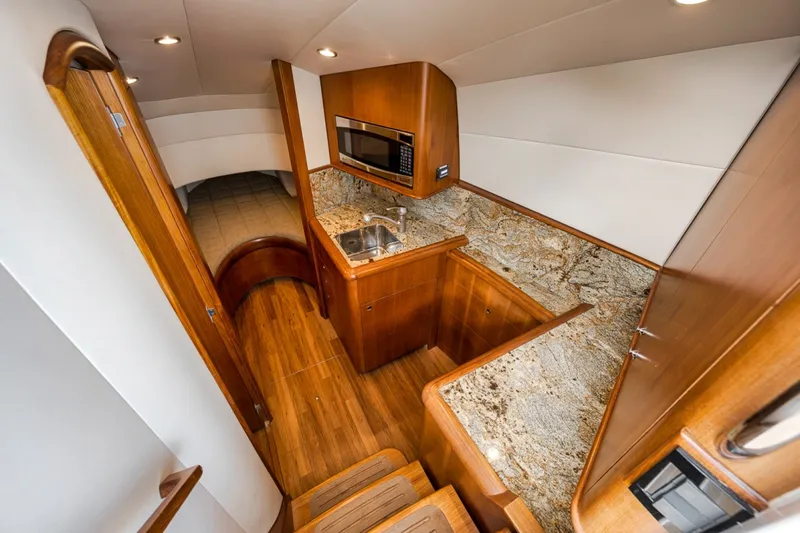

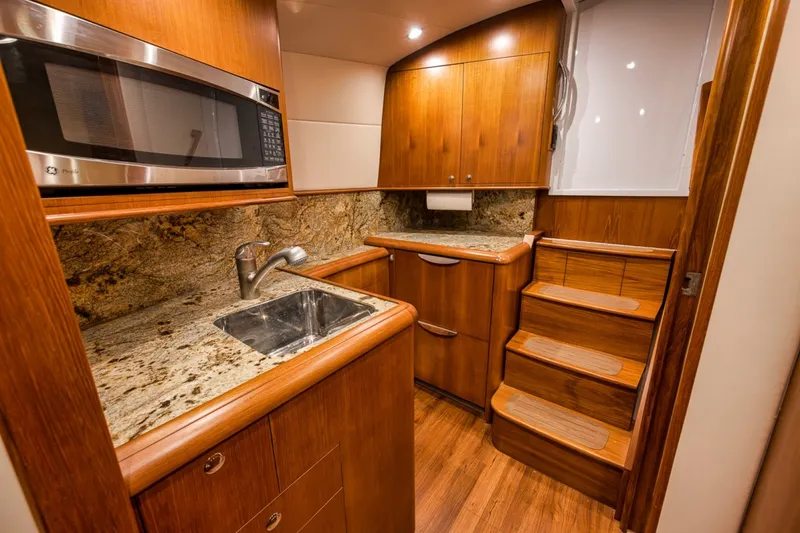

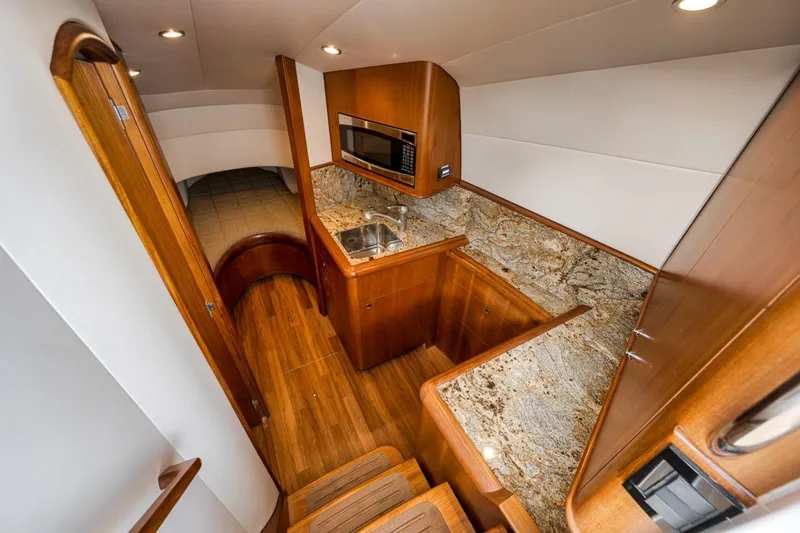

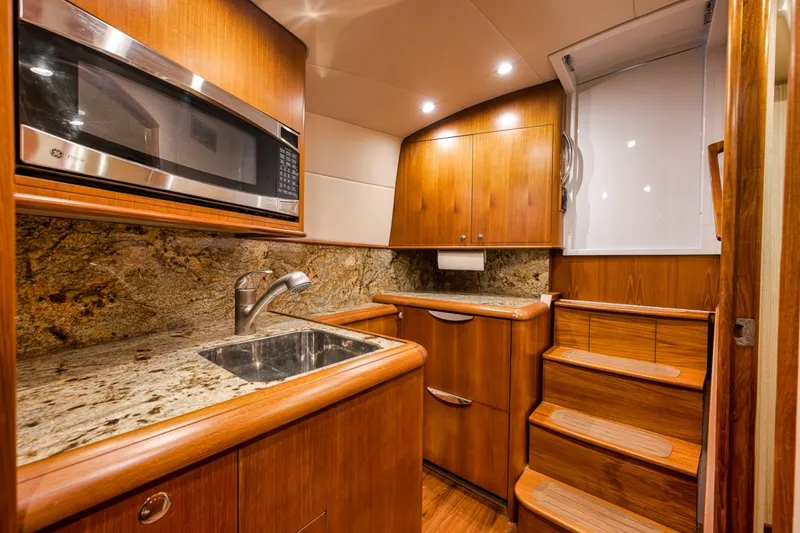

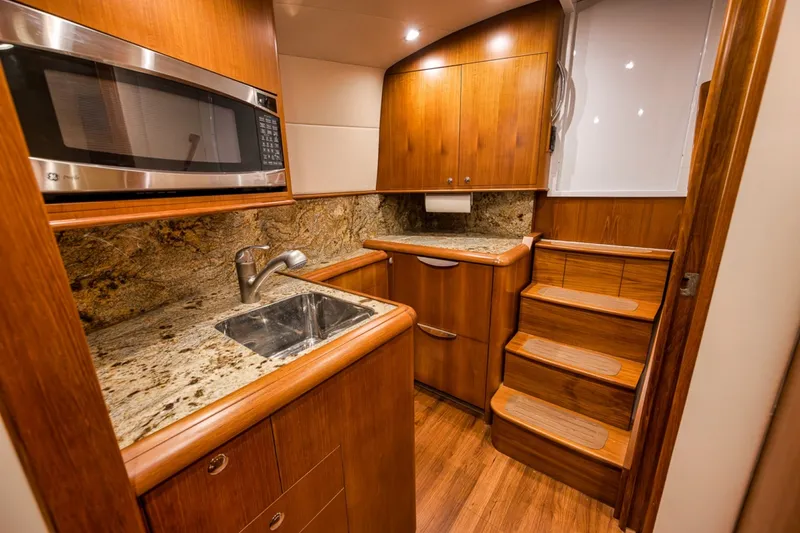

GALLEY

• UNDER COUNTER KITCHEN-AID OR SUB ZERO REFRIGERATOR (DRAWER STYLE)

• SINK BASE

• BULKHEAD CABINETRY TO INCLUDE:

o BASE STORAGE CABINETS BELOW

o CABINET ABOVE FOR STORAGE, MICROWAVE

o UPPER CABINETS TO HAVE ROLL OUT SHELVES

• LIGHT WEIGHT GRANITE COUNTERTOPS

• STAINLESS STEEL UNDERMOUNT SINK WITH SINGLE LEVER FAUCET

• AMTICO FLOORING, MARINE GRADE

• ALL CABINETRY AND INTERIOR DOORS TO BE FLUSH (CONTEMPORARY STYLE) WITH SELECTED VENEERS

• ALL HARDWARE POLISHED STAINLESS STEEL OR BRUSHED FINISH

• CONVECTION/MICROWAVE OVEN

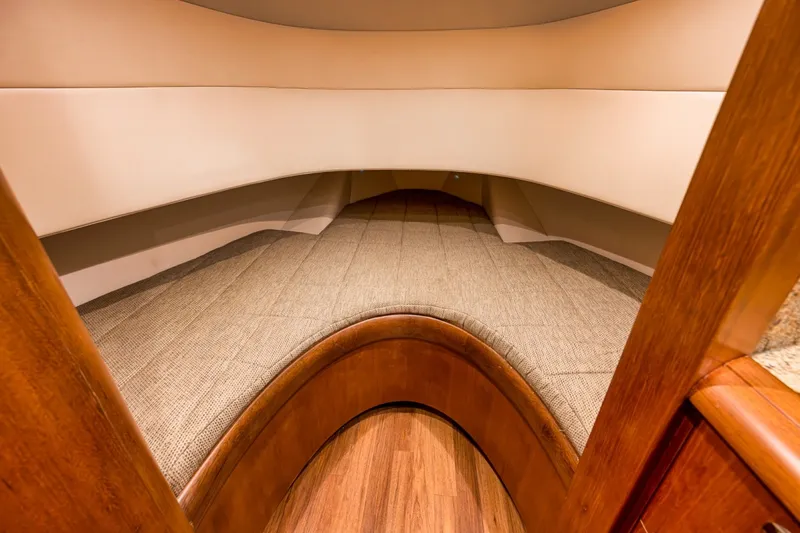

FORWARD BUNK AREA

• V-BERTH WITH CUSTOM MATTRESS UPHOLSTERED WITH FABRIC

• VINYL HEADLINER AND WALLS TO BE WHISPER WALL USING OWNER SELECTED MATERIAL

• ROPE LIGHTING UNDER TOE KICK

• ALL HARDWARE POLISHED STAINLESS STEEL OR BRUSHED FINISH

• ALL CABINETRY AND INTERIOR DOORS TO BE FLUSH (CONTEMPORARY STYLE) WITH SELECTED VENEERS

• HANGING LOCKER WITH STORAGE SHELF

• ROD STORAGE AREA UNDER V-BERTH

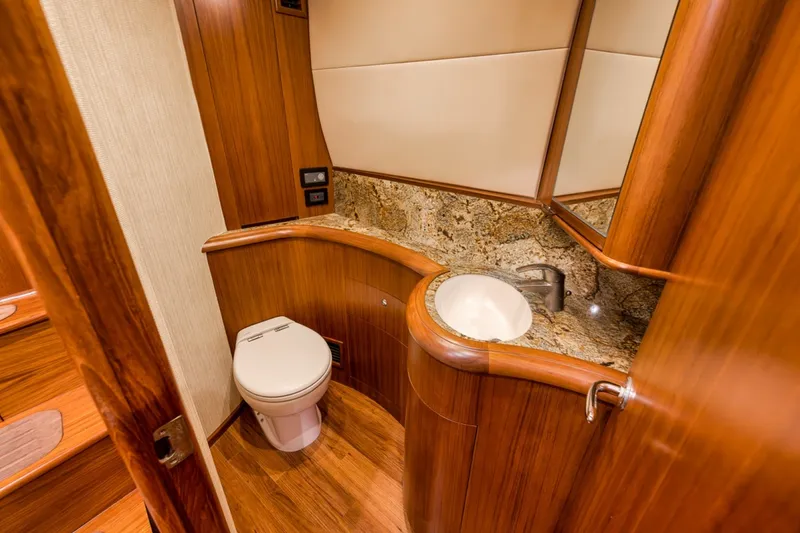

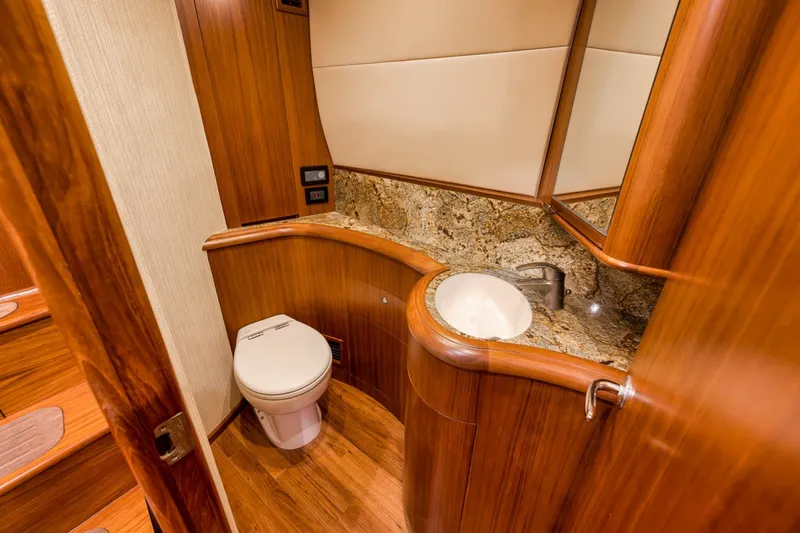

HEAD

• AMTICO FLOORING, MARINE GRADE

• EXHAUST FAN

• TECHMA FRESH WATER ELECTRIC TOILET

• WOOD VANITY WITH GRANITE COUNTERTOP AND UNDERMOUNT SOLID SURFACE BOWL

• SINGLE LEVER FAUCET

• AIR CONDITIONING SUPPLY

• GFI 110 VOLT OUTLET

• RECESSED LIGHTING

• MIRRORED WOOD MEDICINE CABINET

• ALL WALLS TO BE WALLPAPER

• ALL HARDWARE POLISHED STAINLESS STEEL OR BRUSHED FINISH

• STAINLESS STEEEL TOWEL BAR & RING

• ALL CABINETRY & INTERIOR DOORS TO BE FLUSH (CONTEMPORARY STYLE) WITH SELECTED VENEERS

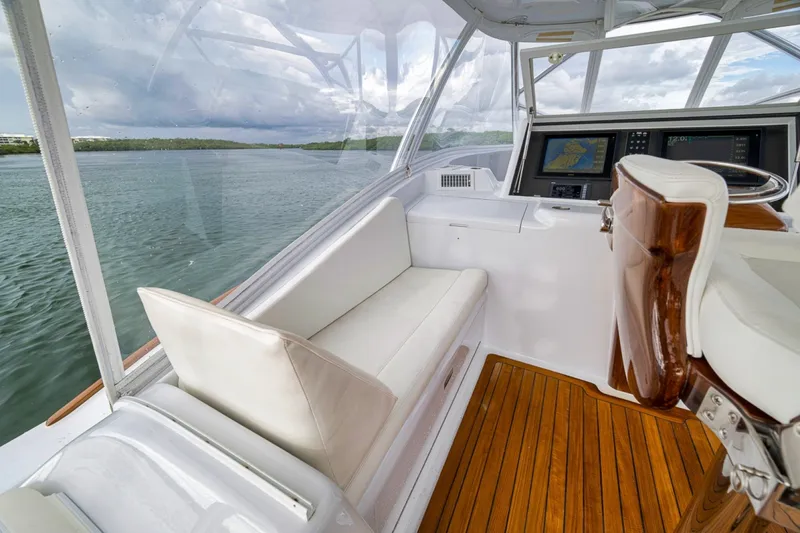

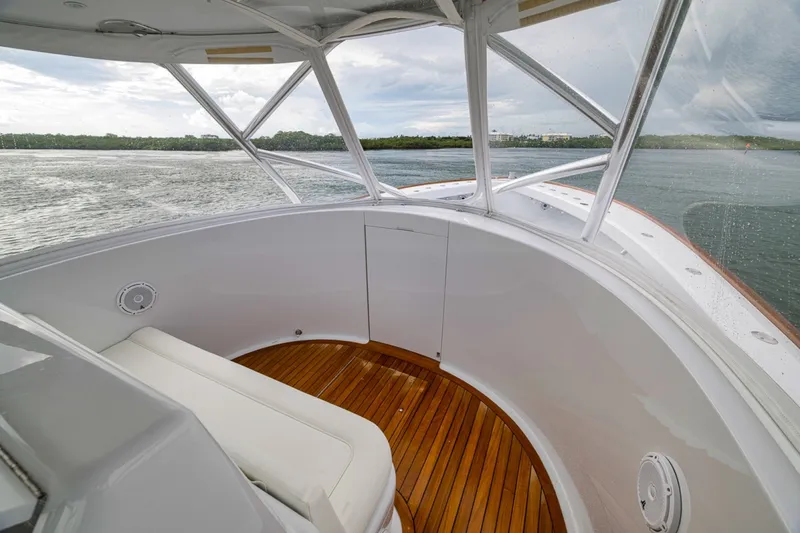

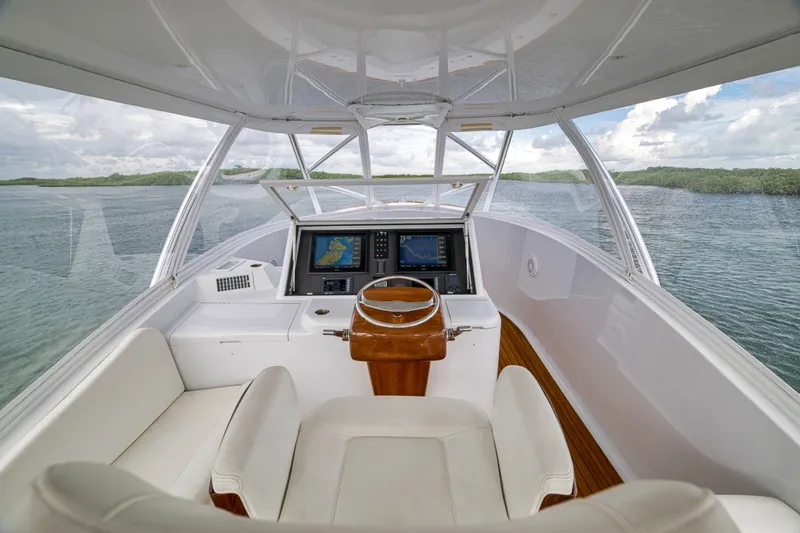

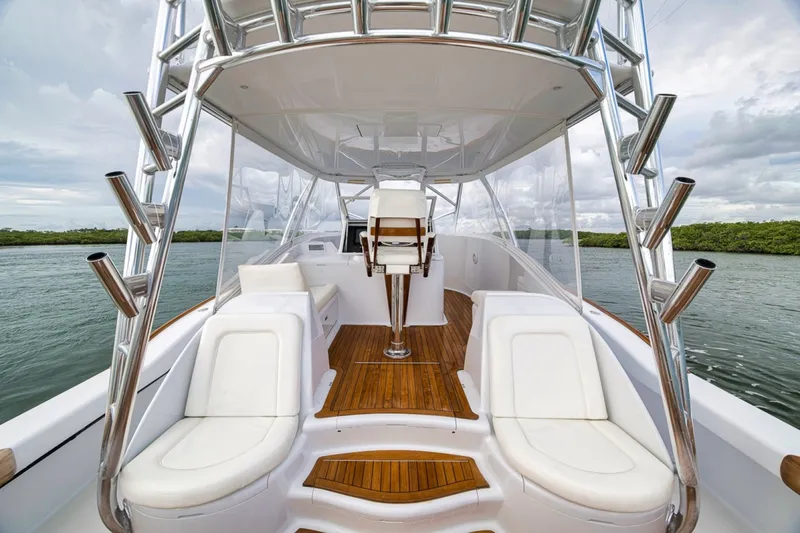

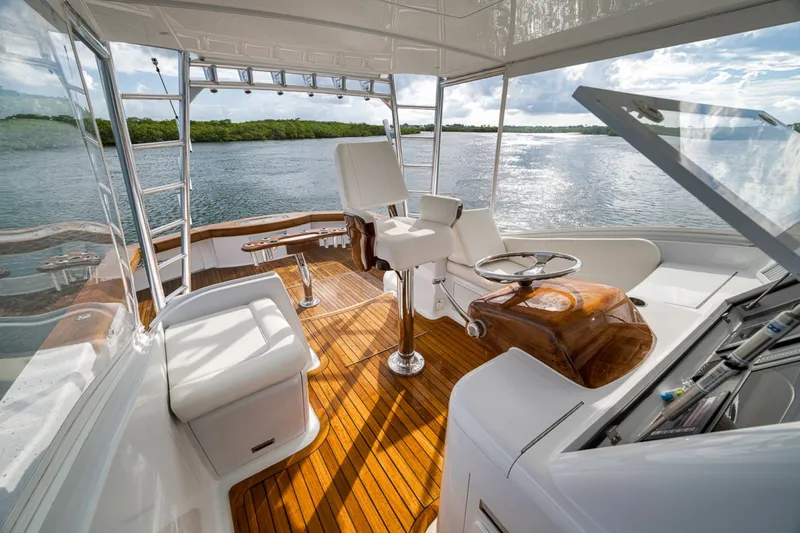

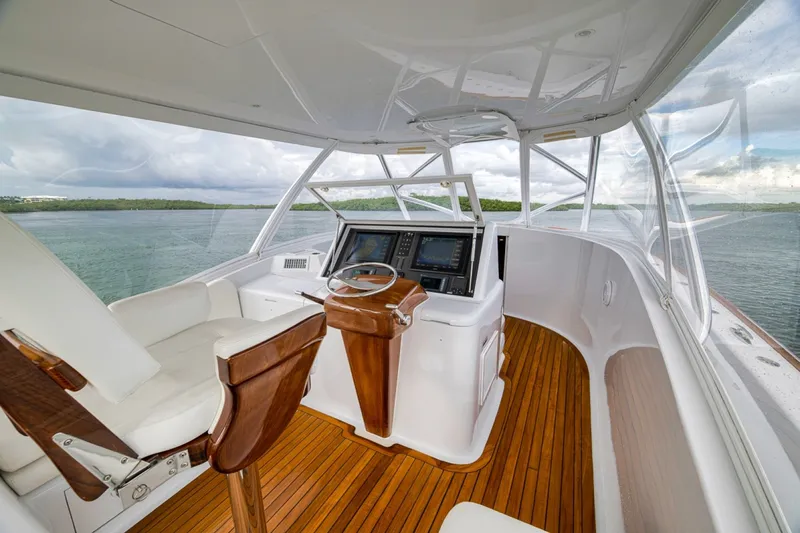

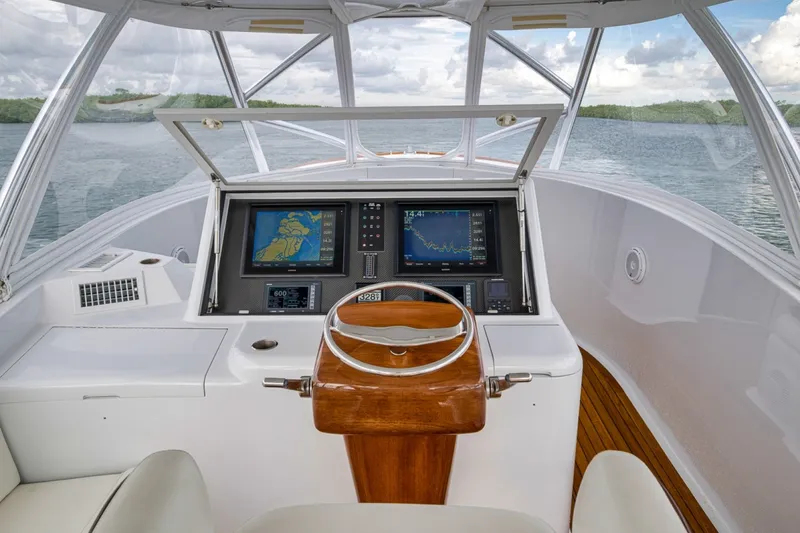

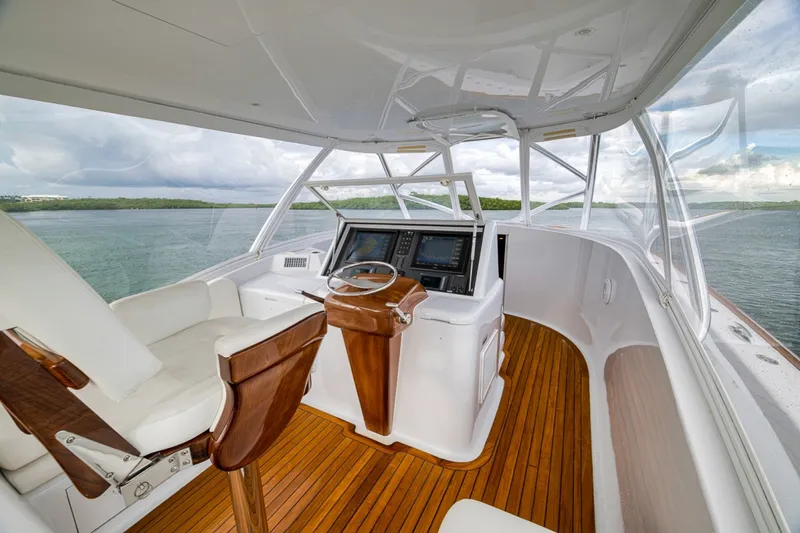

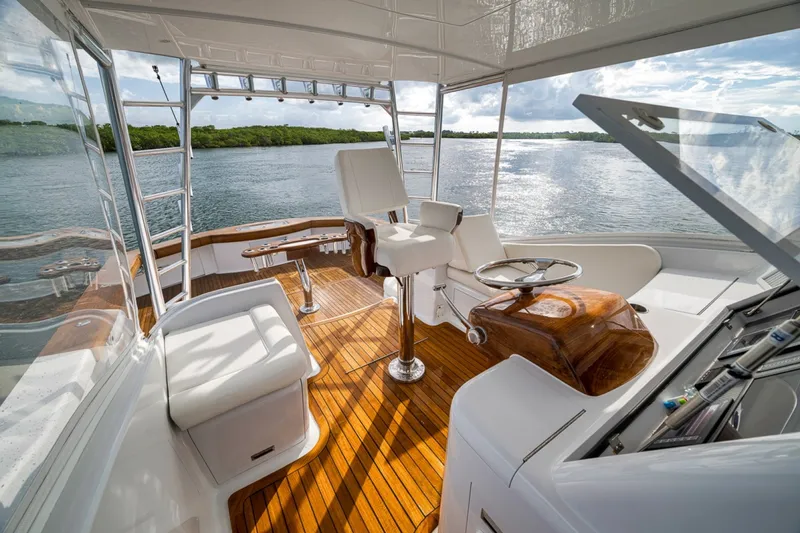

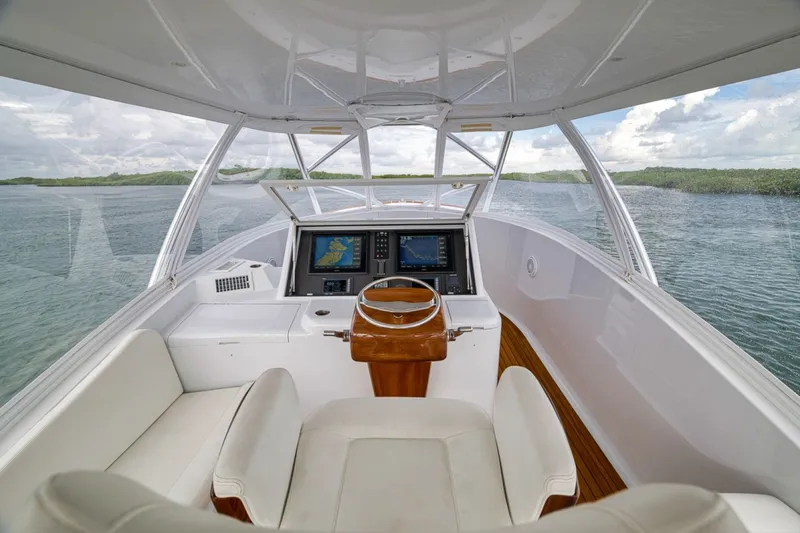

HELM

• CONSOLE TO BE DESIGNED

• SEATING WITH STORAGE BELOW, PER PLAN

• TEAK FLOOR

• TEAK TACKLE DRAWERS IN PORT SIDE SEAT BEHIND DOOR

• FOUR-SIDED HELM ENCLOSURE

• COMPANIONWAY DOOR ON CENTERLINE

• ELECTRONICS BOX (ELECTRONICS SUPPLIED BY OWNER, INSTALLED BY F & S BOATWORKS, NOT WIRED)

• RELEASE MARINE STEERING WHEEL

• RELEASE MARINE CONTROL HANDLES WITH BOW THRUSTER CONTROLS

• ONE (1) BLUEWATER HELM CHAIR, TEAK

• GENSET INDICATOR LIGHT

• 110 VOLT GFI OUTLET

• TEAK HELM BUBBLE (PALM BEACH STYLE)

• SIDE MOUNT ENGINE CONTROLS

• VINYL CUSHIONS WITH CLOSED CELL FOAM

• BRIDGE PANEL WITH 24 VOLT BREAKERS

• 24 VOLT POWER SUPPLY

• GRAB RAILS, OWNER TO SELECT PLACEMENT

• FORWARD EMERGENCY HATCH TO ENGINE ROOM IN FLOOR NEXT TO CONSOLE

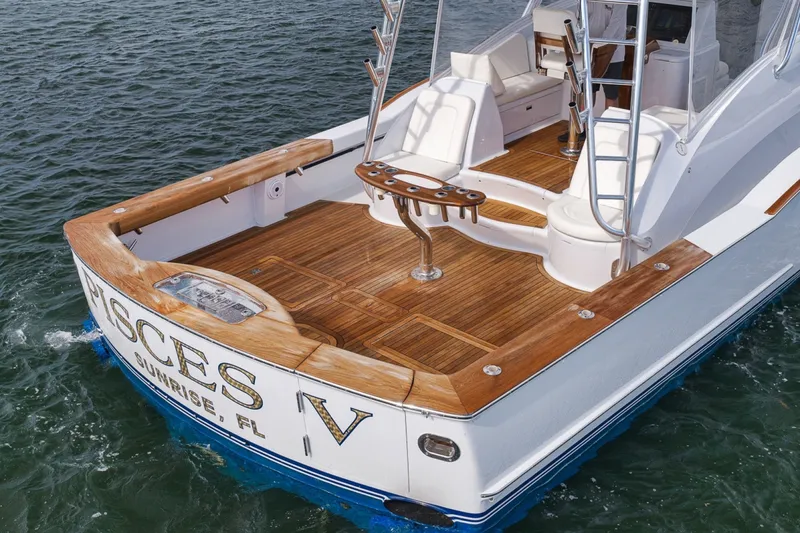

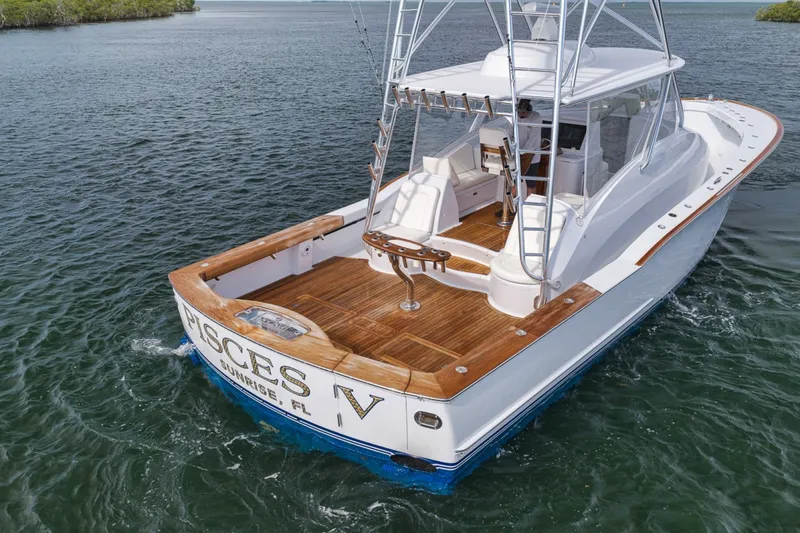

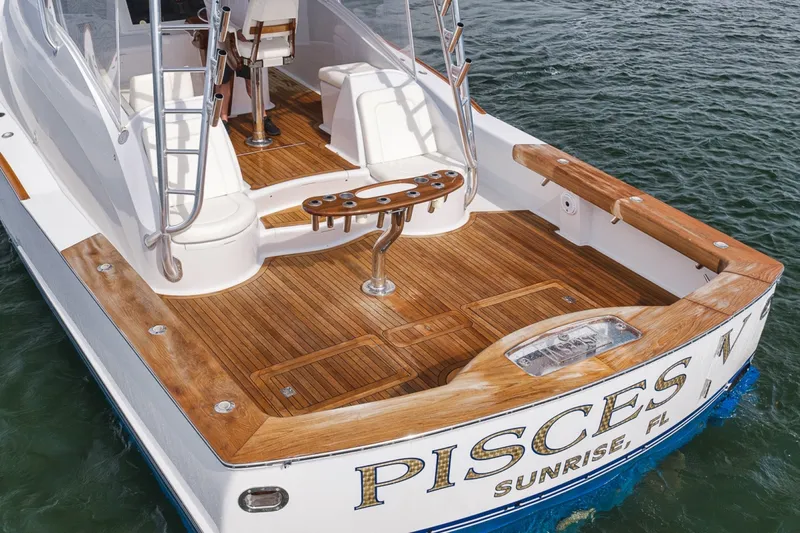

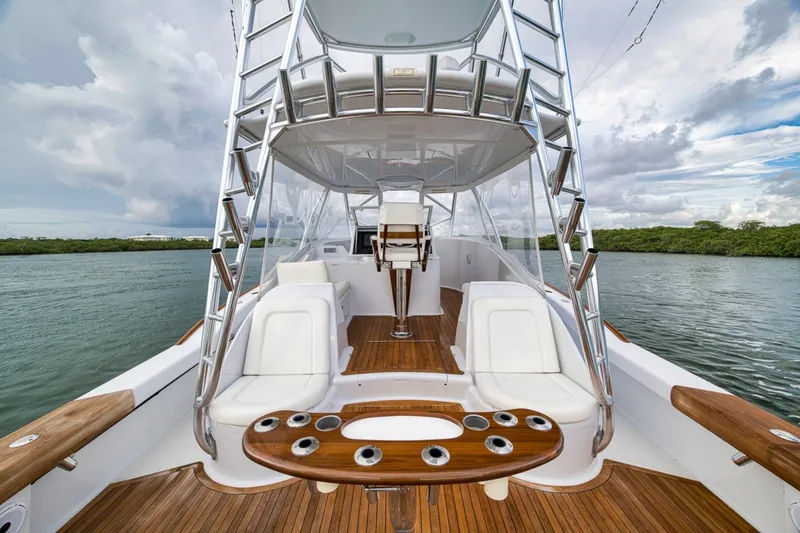

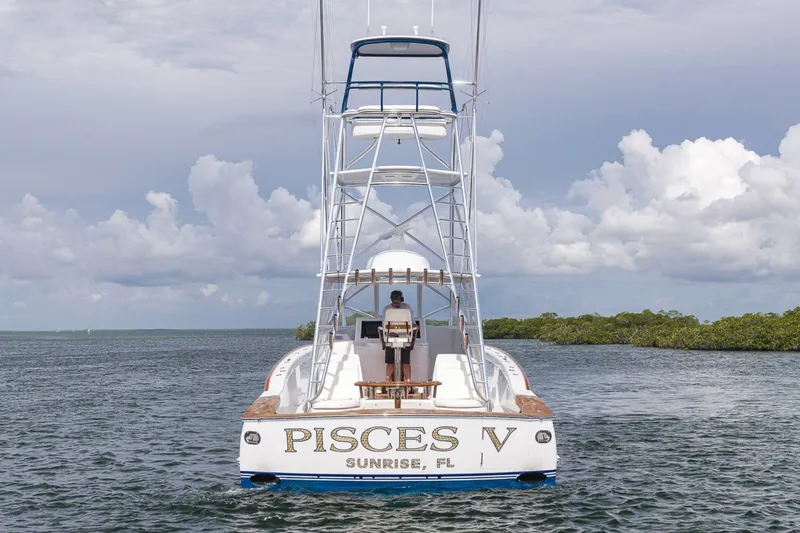

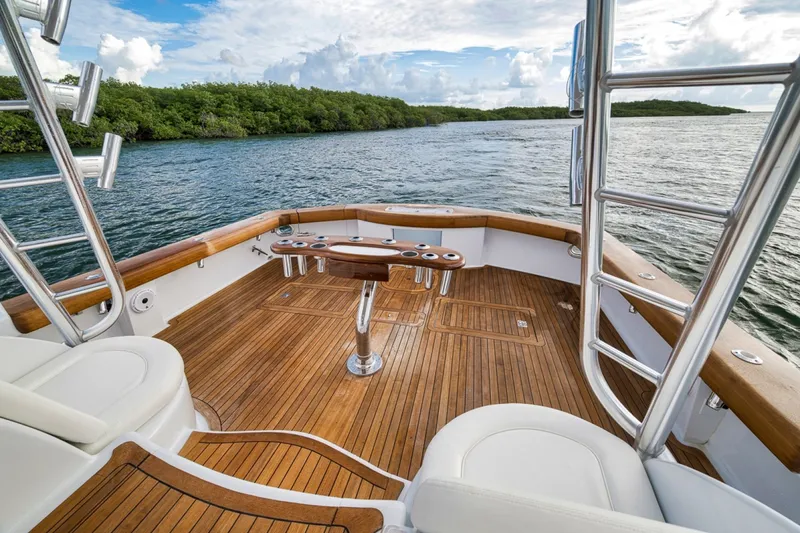

COCKPIT

• TEAK FLOOR

• FOUR (4) RELEASE STAINLESS STEEL ROD HOLDERS - OWNER TO DETERMINE POSITION

• WALK THROUGH TRANSOM DOOR WITH REMOVABLE DIVE LADDER AND MOUNTS

• TWO STERN CLEATS

• CORNER MOUNTED STAINLESS STEEL HAWSE PIPES

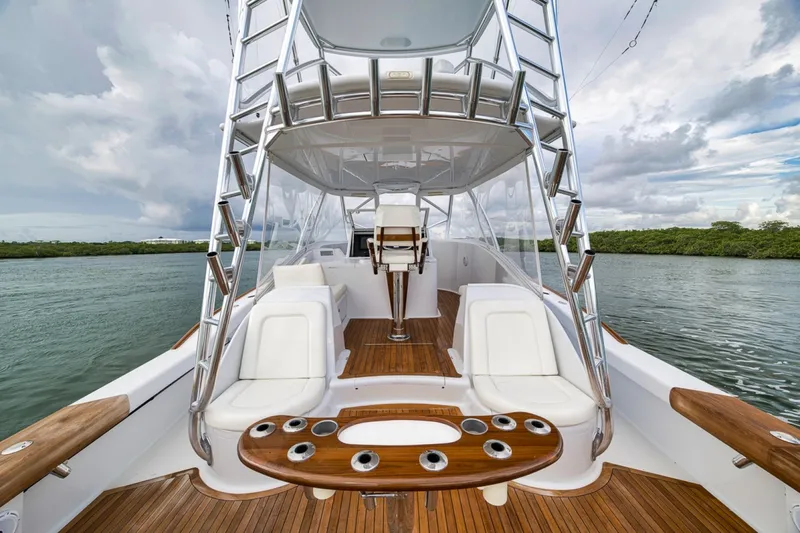

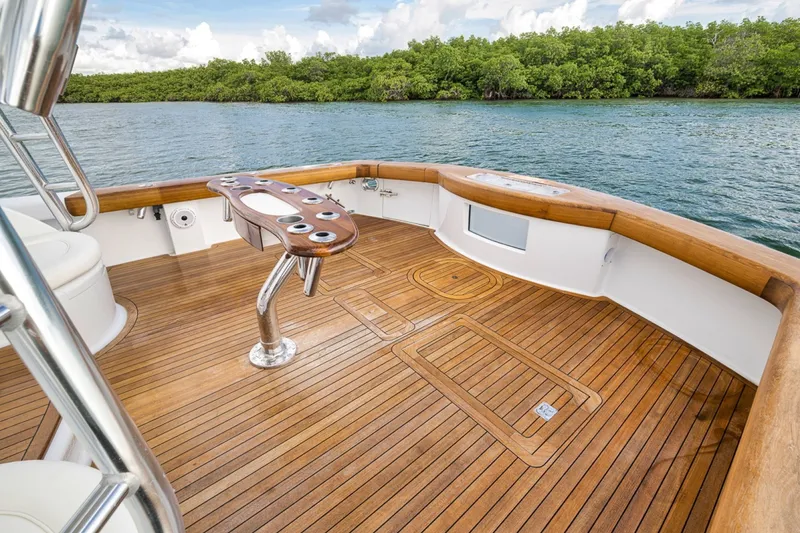

• BLUEWATER ROCKET LAUNCHER WITH SIX (6) ROD HOLDERS, TEAK

• FRESH AND SALT WATER WASHDOWN SYSTEMS

• SHORE WATER CONNECTION

• ENGINE ROOM ACCESS

• STORAGE FOR CLEANING SUPPLIES

• FOUR (4) ELECTRIC REEL OUTLETS (TWO LOCATED FORWARD IN BOW AREA)

• TRANSOM FISHBOX & LIVEWELL

• UNDER DECK FISH BOX, ON CENTERLINE, REFRIGERATED WITH MASCERATOR

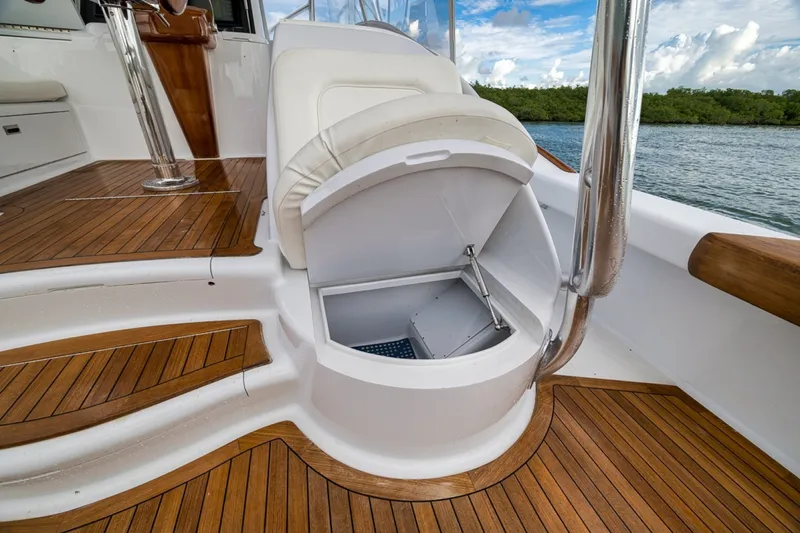

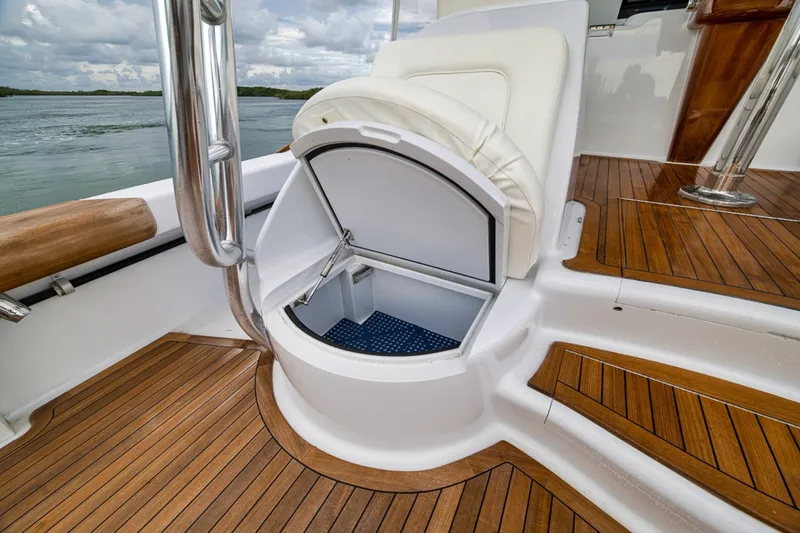

• ESKIMO ICE MAKER INSTALLED BENEATH STARBOARD SIDE FORWARD-FACING JUMP SEAT WITH DISCHARGE BENEATH STARBOARD SIDE AFT-FACING JUMP SEAT

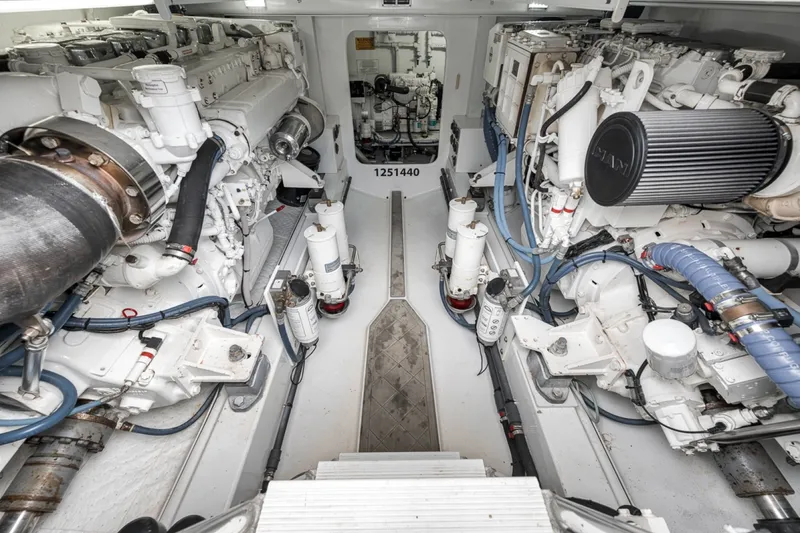

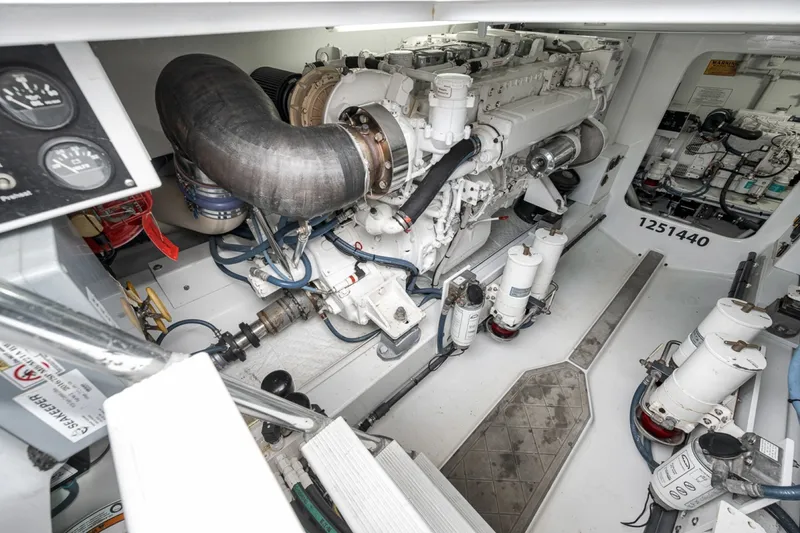

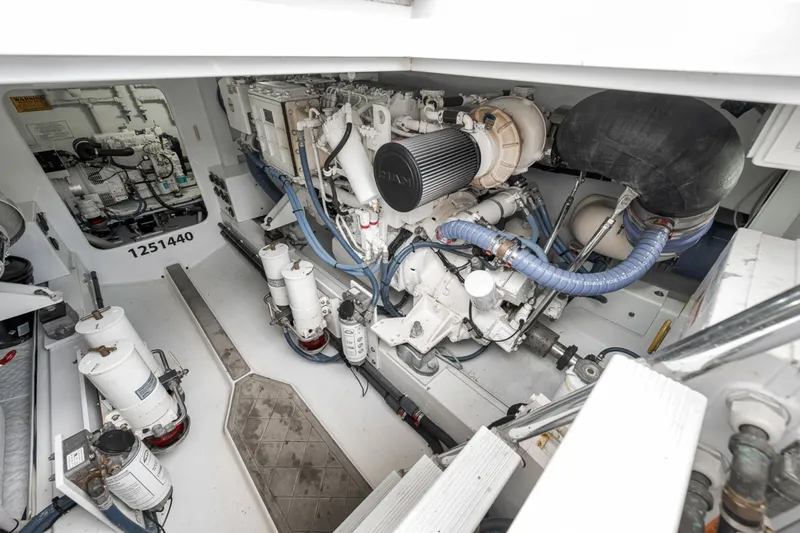

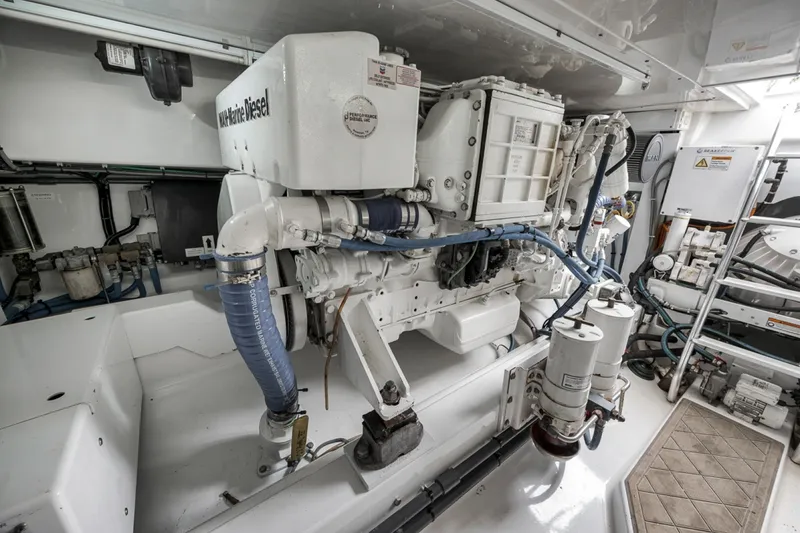

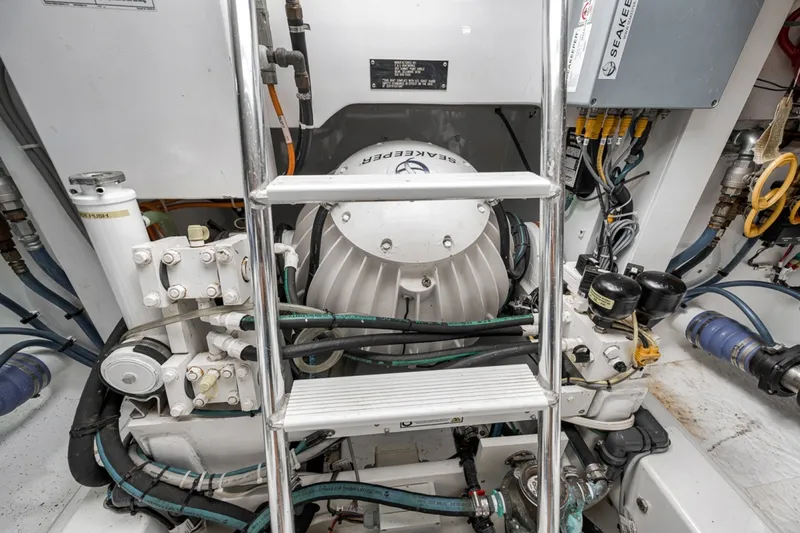

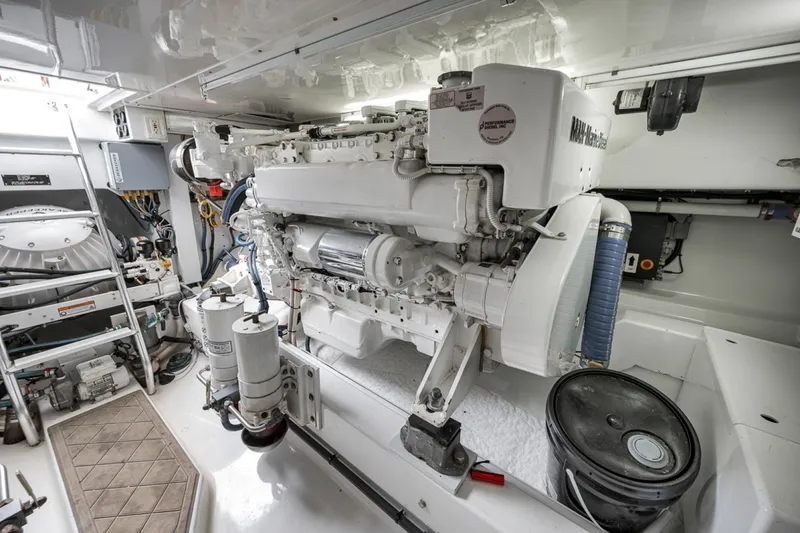

ENGINE ROOM

• BILGE PUMPS

o ONE (1) 1500 GPH IN FORWARD BILGE

o TWO (2) 1500 GPH IN FORWARD ENGINE ROOM

o TWO (2) 1500 GPH IN AFT ENGINE ROOM

o TWO (2) 3700 GPH IN LAZARETTE

 ALL PUMPS ARE TO BE CONNECTED TO HIGH WATER ALARM

 PUMP SWITCHES WIRED WITH SAFETY SYSTEMS ULTRA SWITCHS

• STAINLESS STEEL EXHAUST RISERS BY MARINE EXHAUST

• LINEAR MUFFLERS BY MARINE EXHAUST WITH TRADITIONAL THROUGH-TRANSOM DISCHARGE

• RACOR FUEL FILTERS, DUAL, PER ENGINE

• 120 VOLT DUPLEX OUTLETS

• MASTERVOLT BATTERY CHARGER

• BATTERY BANK (SHIP SERVICE)

• FIREBOUY FIRE EXTINGUISHING SYSTEM

• CUSTOM AIR BOXES WITH LIVOS TECHOLOGIES DEMISTERS

• 110 VOLT FRESH WATER PUMP- HEAD HUNTER WITH SPARE

• 110 VOLT SALTWATER WASH DOWN PUMP - HEADHUNTER

• ALUMINUM FRESH WATER TANK

• TWO (2) BATTERY BANKS (1 PER MOTOR)

• AIR CONDITIONER PUMP WITH CUSTOM MANIFOLD

• BRONZE THRU HULL FITTINGS - SPECIFICATIONS AGREED UPON BY OWNER & BUILDER

• ALUMINUM ENGINE BEDDING

• ENGINE ROOM SOUND BARRIER IN OVERHEAD

• 110 VOLT AND 24 VOLT LIGHTING

• FUEL SIGHT TUBES (ONE PER TANK) IN ENGINE ROOM WITH SHUT OFF VALVES

• HEAD HUNTER MECHANICAL FUEL GAUGES

• HEAD HUNTER MECHANICAL WATER GAUGE

• REVERSO OIL CHANGE SYSTEM

• FRESH WATER OUTLET IN ENGINE ROOM

PLUMBING

• 100 GALLON ALUMINUM WATER TANK

• GALLEY & HEAD FAUCETS TO BE SINGLE LEVER GROHE

• VACU-FLUSH HOLDING TANK WITH Y-VALVE

• SUMP PUMP FOR LOWER WASTE WATER

RUNNING GEAR

• TRANSMISSION GEARS AND TROLLING VALVES (PART OF ENGINE PACKAGE)

• TWO (2) FLUSH MOUNT STAINLESS STEEL STRUTS

• TWO (2) AQUAMET 22 SHAFTS RUNNING GEAR

• TWO (2) 4 BLADE VEEM PROPELLERS, SPORTFISH "C" MODEL WITH INTERCEPTOR

• STAINLESS STEEL RUDDER WITH DRIPLESS RUDDER PORTS BY TIDES MARINE

• DRIPLESS SHAFT SEALS BY TIDES MARINE

EXTERIOR FINISHES

• AWL-CRAFT 2000 PAINT COLOR PER OWNER

• AWL-GRIP BOOT STRIPE, COLOR OWNERS CHOICE

• PAINTED COVERING BOARDS

• TEAK TOE RAIL

• 1" SOLID STAINLESS RUB RAIL

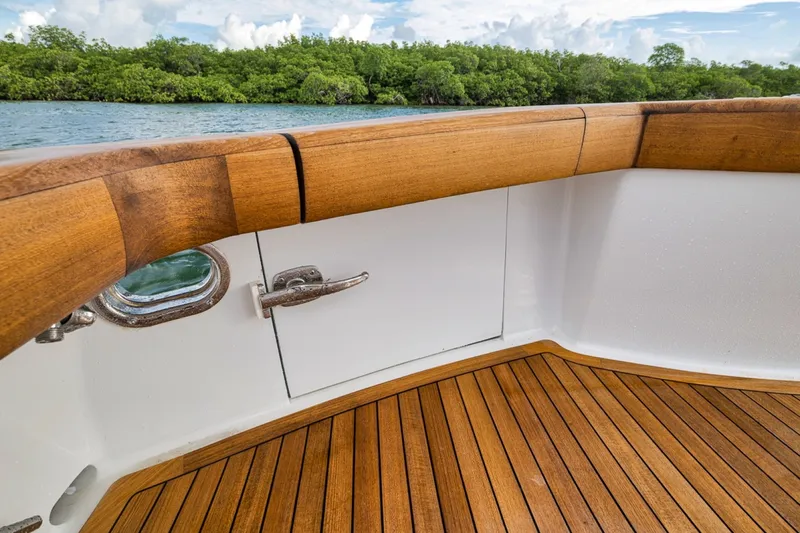

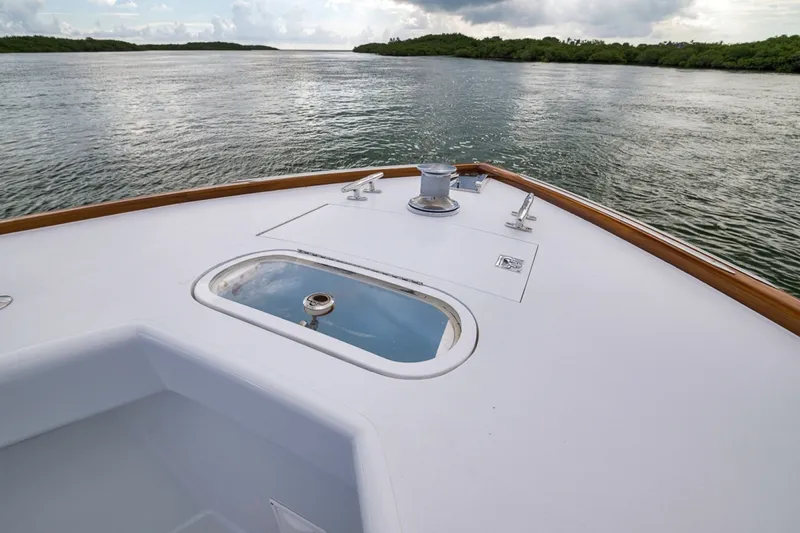

DECK

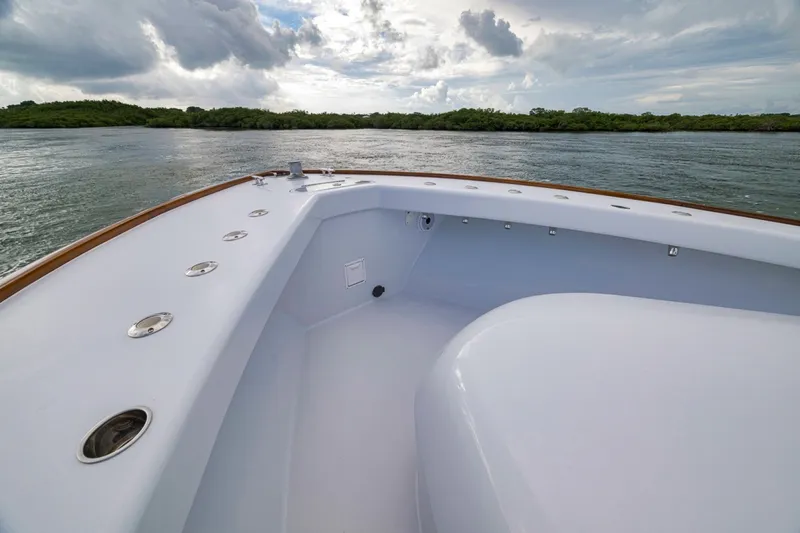

• FOREDECK TO BE FINISHED WITH NON-SKID

• TWO BOW CLEATS AND TWO SPRING CLEATS

• ANCHOR LOCKER WITH DRAIN AND FRESH WATER OUTLET

• MUIR WINDLASS WITH CAPSTAN, HELM & DECK MOUNTED CONTROLS

• BOW TRUSTER: SIDEPOWER SE100/185T-24V

• REMOVABLE STAINLESS STEEL BOW PULPIT BY CANVAS DESIGNERS

• CUSTOM STAINLESS STEEL TOWING BIT BY CANVAS DESIGNERS

• SMALL LIVE WELL IN DECK AFT OF ANCHOR LOCKER

GENERAL SPECIFICATIONS

• 50 AMP SHORE POWER SERVICE WITH AC / DC DISTRIBUTION PANEL

• RECESSED TRIM TABS WITH DOUBLE CYLINDERS AND COVERS

• 3/16" ALUMINUM FUEL TANKS

• POWER ASSIST HYDRAULIC STEERING

• ALL HARDWARE STAINLESS STEEL

• ZINC PROTECTION

• BOTTOM 5 COATS INTER PROTECT 2000 / 2 COATS BOTTOM PAINT, COLOR OWNERS CHOICE

• TRICELL HONEYCOMB INTERIOR WALLS

• INDIRECT AIR CONDITIONING SYSTEM WITH A TOTAL OF THREE (3) UNITS

o ONE (1) 12,000 BTU UNIT IN SALON - BELOW DECKS

o ONE (1) 24,000 BTU UNIT IN BRIDGE AREA

o ONE (1) 10,000 BTU UNIT IN BRIDGE AREA

• 24 VOLT EMERGENCY LIGHTING IN SALON, BUNK AREA, AND HEAD

UPHOLSTERY

• HELM CUSHIONS, COCKPIT SEATING CUSHIONS, AND FOUR SIDED HELM ENCLOSURE WITH ZIP VENTS (COSTA CLEAR) ARE INCLUDED IN TOTAL PRICE.
