2017 Damen YS 5009 Sold Boat in Palm Beach, FL 33480 US
Built in 2017
YS 5009
1 Engine (Caterpillar)
181.4 feet
Diesel
Steel
Boats For Sale in Florida, United States Similar to the 2017 Damen YS 5009
Compare with similar boats and find the perfect one for you.
 2017 Damen YS 5009 | ||||||
|---|---|---|---|---|---|---|
| Price | $14,900,000 | $15,000,000 | $14,500,000 | $15,450,000 | $14,200,000 | $15,900,000 |
| Location | Palm Beach | Apalachicola | Fort Lauderdale | Palm Beach | Fort Lauderdale | Pompano Beach |
| Nominal Length | - | 120' | 122' | 146' | 105' | 118' |
| Draft | 11' | - | - | - | - | - |
| Engine Make | Caterpillar | Cummins | Caterpillar | Caterpillar | CAT | MTU |
| Total Engine Power | 1499 hp | - | 2400 hp | 2250 hp | 1600 hp | 2400 hp |
| Days on Market | 2674 | 199 | 437 | 308 | 2408 | 168 |
| Get in touch |

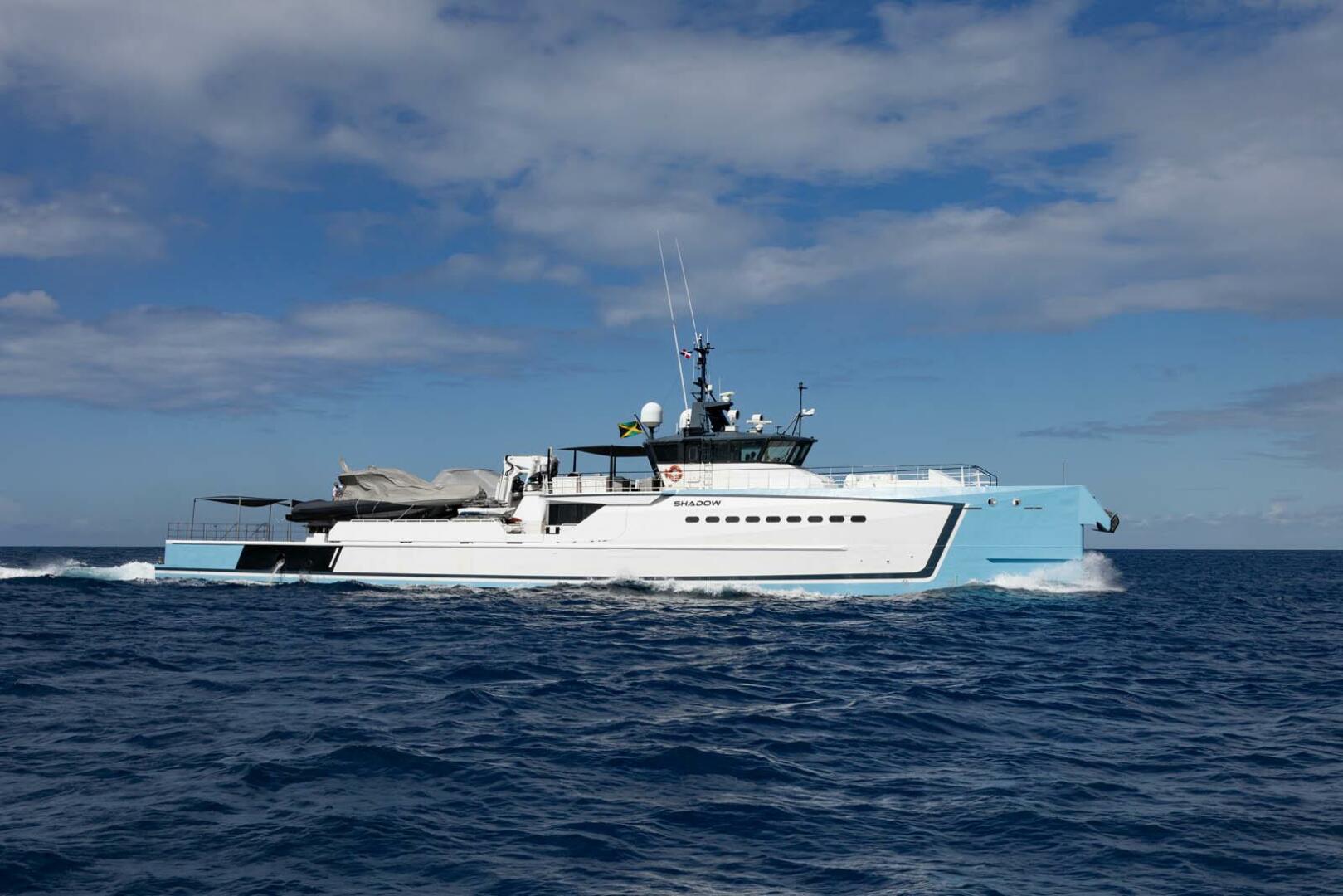

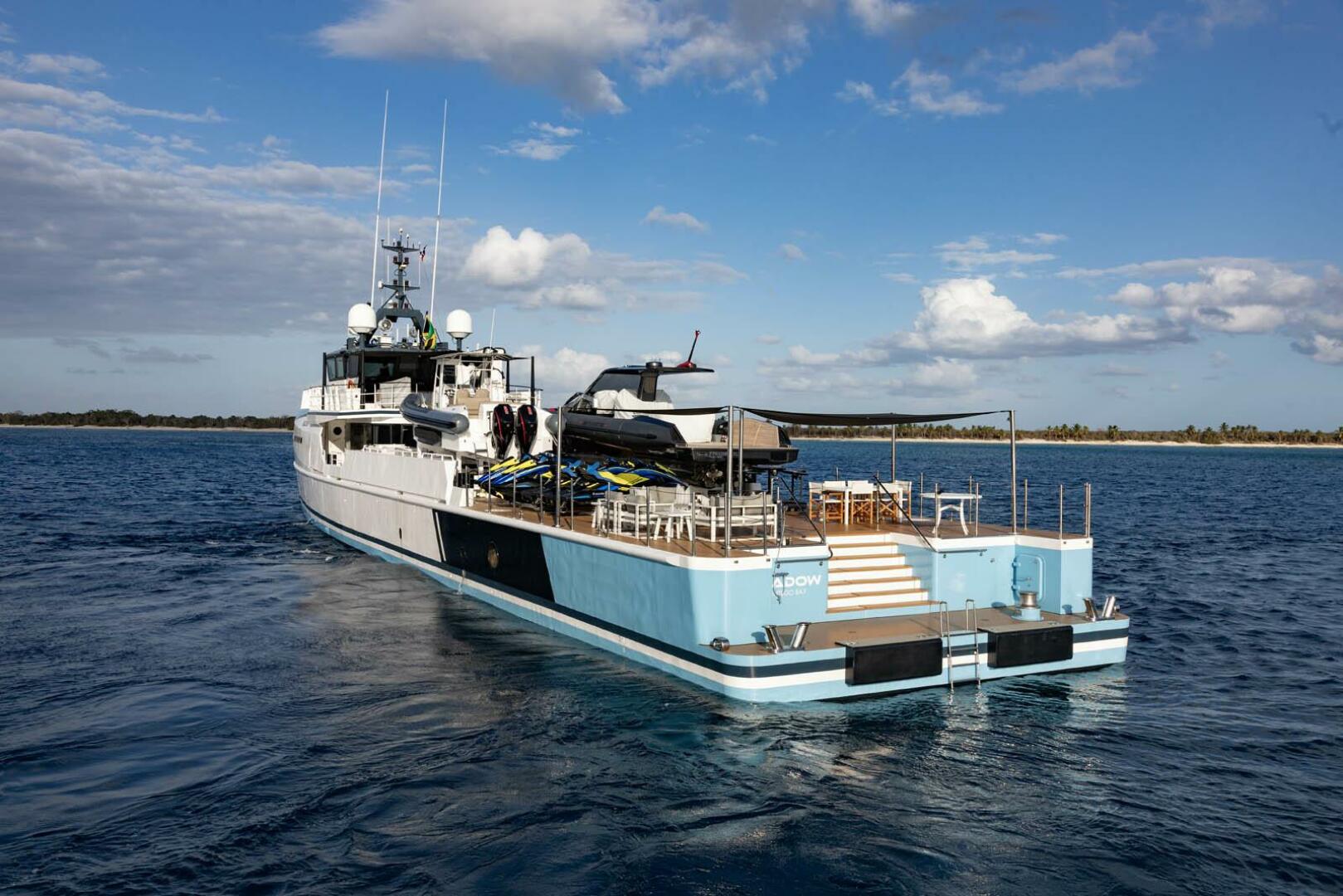

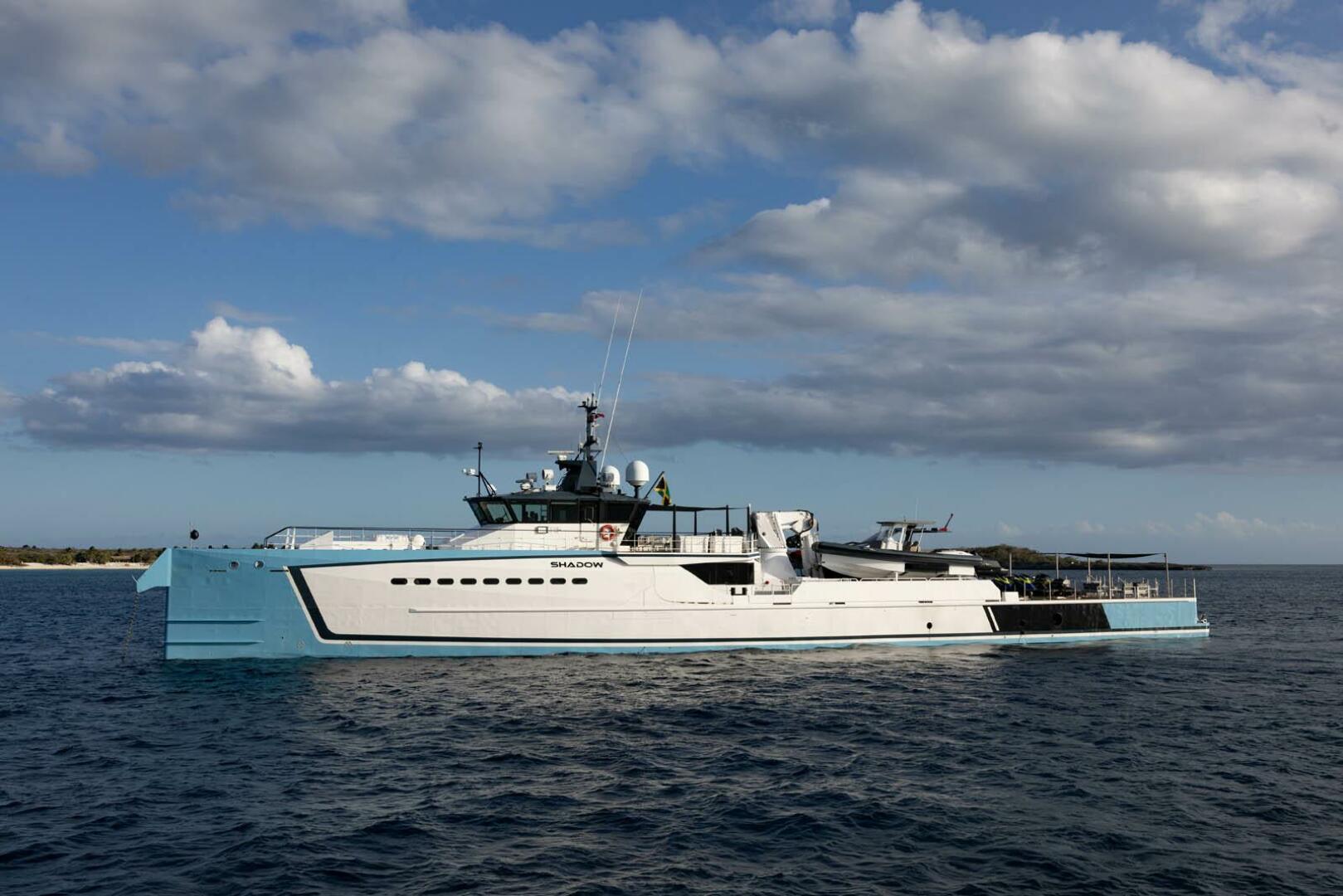

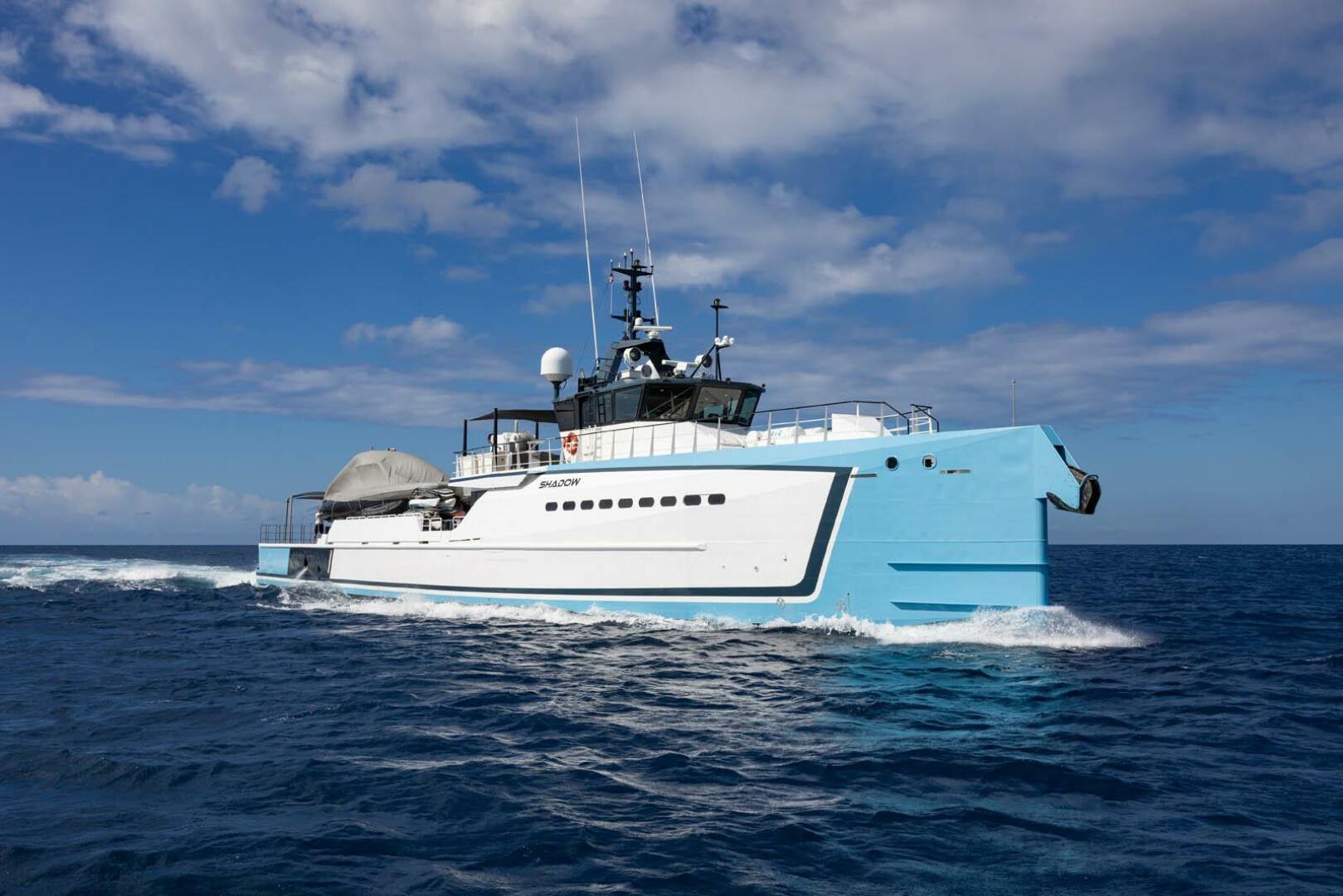

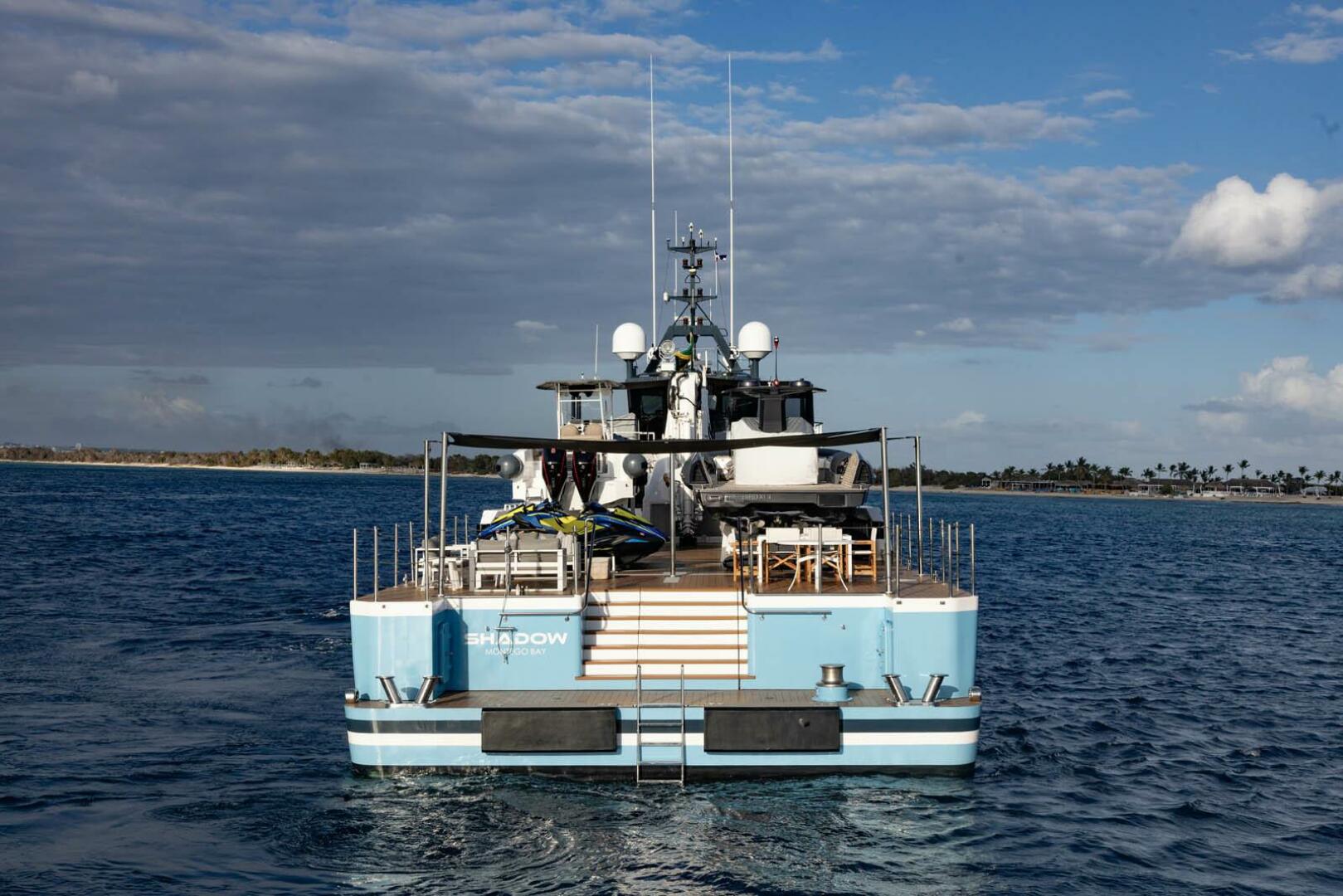

SHADOW is a 2017 / 2023 Damen Yacht Support vessel. She is the first Yacht Support vessel with dedicated owner and guest accommodations, plus a host of yachting enhancements that distinguish it from its predecessors. Originally delivered in 2017, this updated design takes her owner into new territory with a combination of adventure and superyacht support functions.

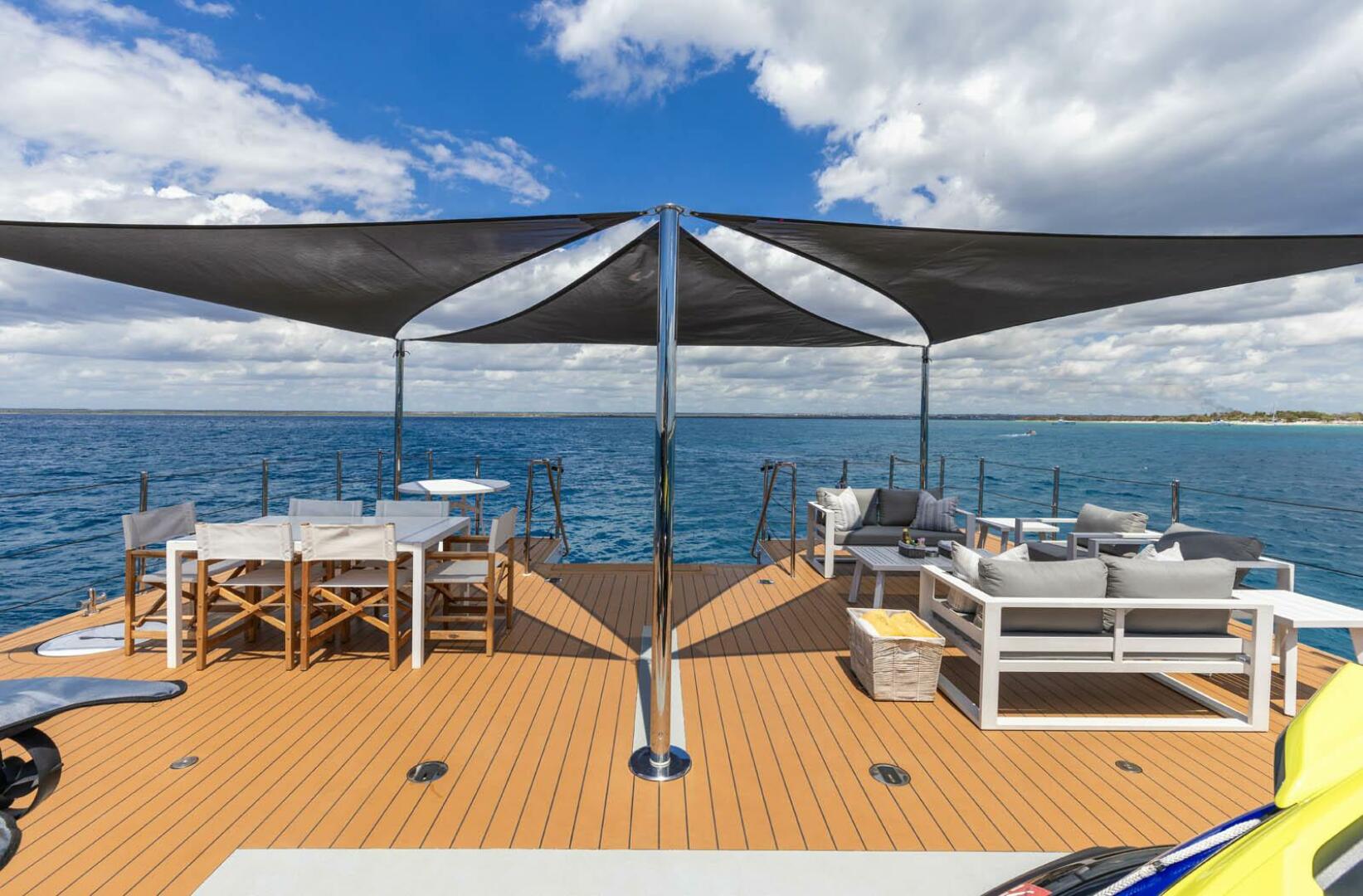

For spontaneous weekend adventures away from the mother yacht, SHADOW accommodates up to 6 guests or support staff who can enjoy the main deck lounge or relaxation and dining on the sun deck.
Since being delivered, SHADOW has had numerous upgrades, including a Nitrox Diving Center. Equipped with a 2980 Litre / 787 US Gallon petrol fueling station, she is more than ready to support her next owner's yachting adventures.
MAIN SPECIFICATIONS
Length Overall: 55.3m (181’5”)
Length at Waterline: 55.3 m (181’5”)
Beam: 9.25m (30’5”)
Draft: 3.30m (10’10”)
Year Completed: 2017
Model Year: 2017
Refit: 2023
Type: Yacht Support Vessel
Tonnage: 489 GT / 146 NT
Displacement: 346 Tonnes
Hull Config: Displacement with Axe Bow
Guests: 6
Crew: 11
CONSTRUCTION
Builder: Damen
Naval Architect: Damen Yachting
Exterior & Interior Design/Stylist: Damen Yachting
Hull Material: Steel
Superstructure: Aluminum Deck Material: Bolidt
Classification: Bureau Veritas
SPEED
Maximum: 21 kts
Cruising: 14.5Kts
Economical: 10 kts
Range: 5,000NM
Consumption @ Cruising: 466 lph (123 gph) @1200 RPM @ 14.5kn.
CAPACITIES
Fuel: 168,099 L / 44,407 US Gallons
Water: 28,996 L / 7,660 US Gallons
Technical Fresh Water: 31000 L / 8,179 US Gallons
Black Water: 30000 L / 7,925 US Gallons
Lube Oil Capacity: Engine Oil – 1,048 L / 277 US Gallons
Hydraulic Oil – 247L / 65 US Gallons
Gear Oil – 247 L / 65 US Gallons
Waste Oil Capacity: 1360 L / 360 US Gallons
Bilge Water Tank: 1360 L / 360 US Gallons
Fueling Station: 2980 L / 787 US Gallons
CLASSIFICATION & CERTIFICATIONS
Flag: Jamacia
Classification: Bureau Veritas

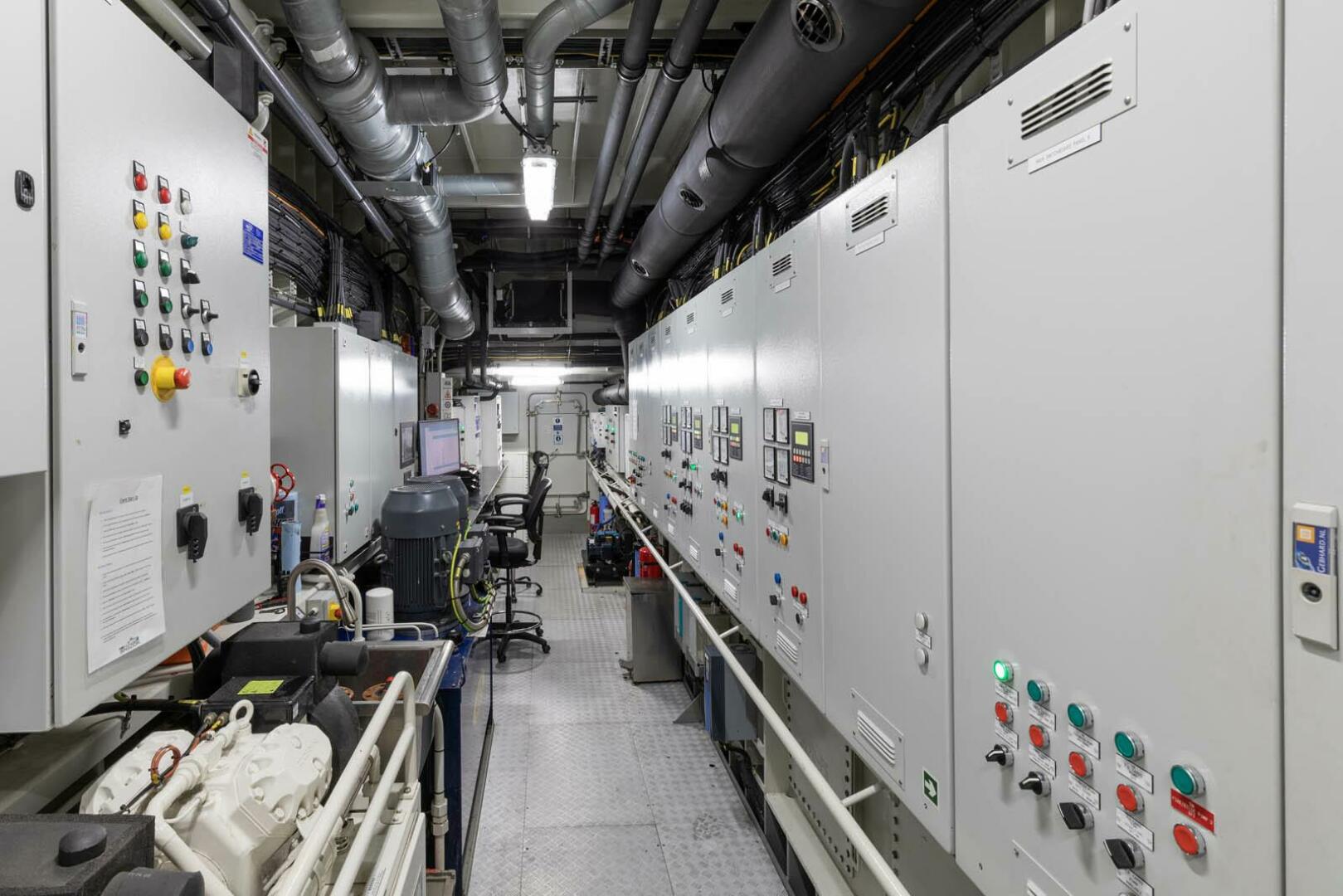

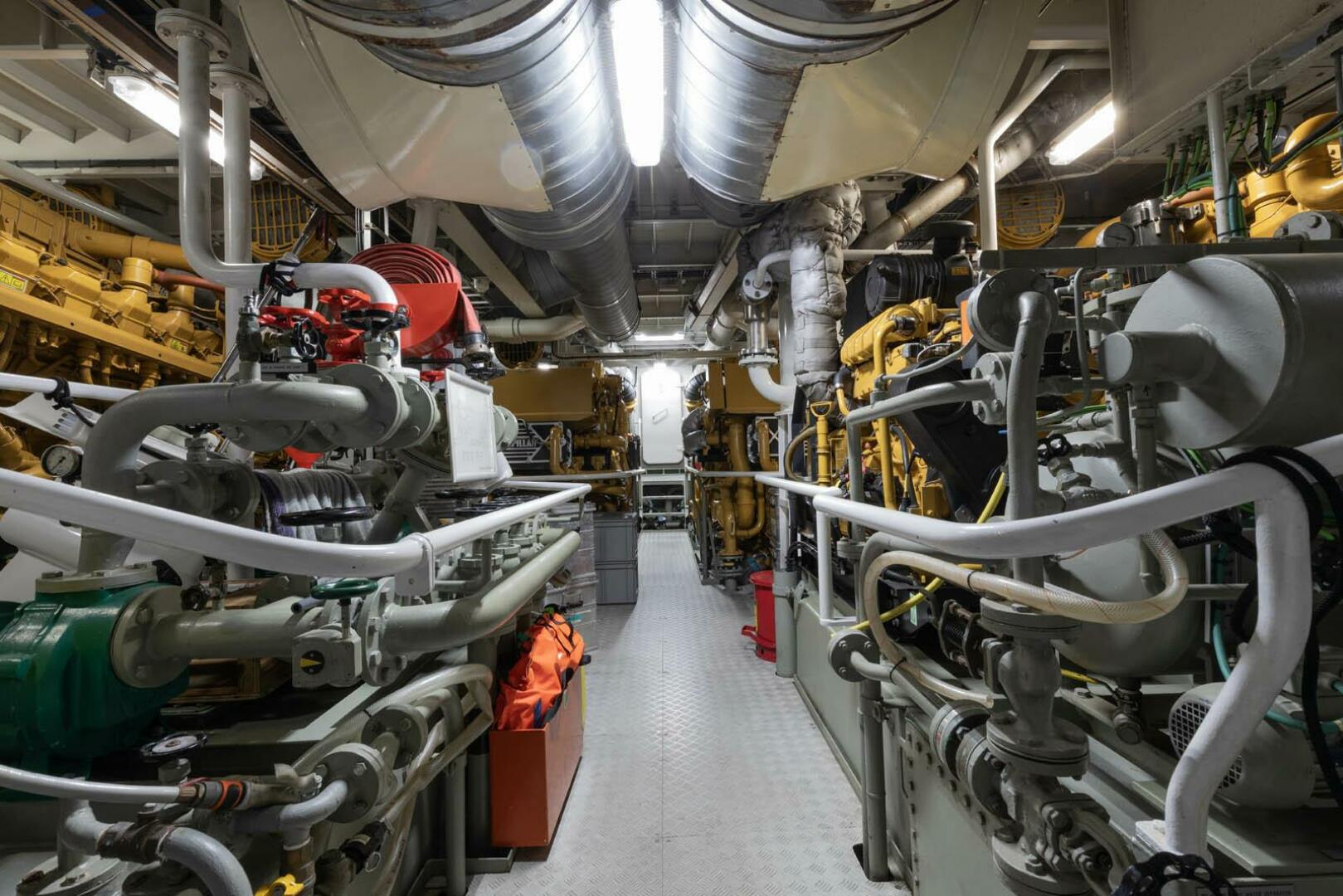

MACHINERY

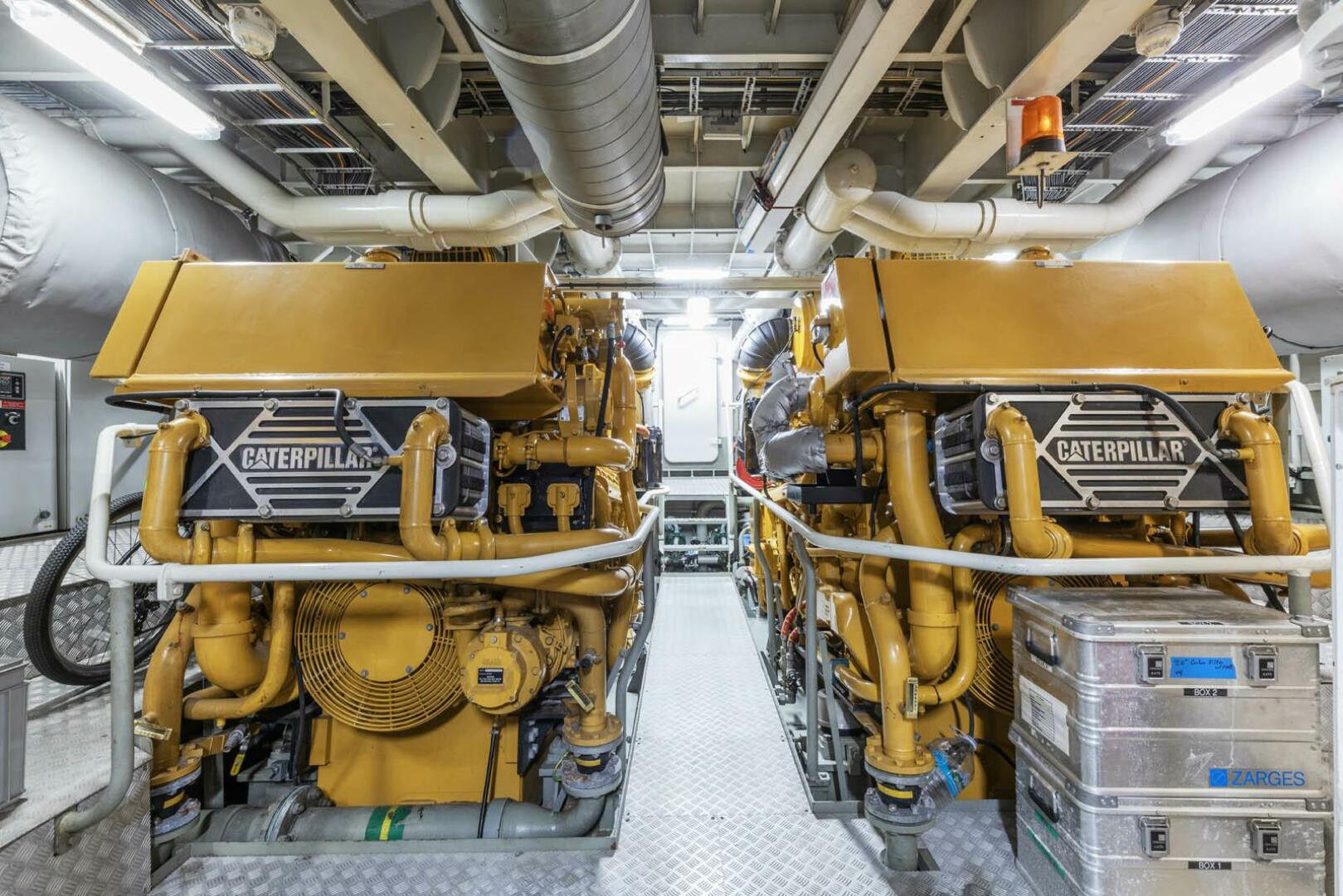

MAIN ENGINES
Engine Type: 4 x Cat 3512c main engines 1118kW@1800rpm
Horsepower: 6000 HP
Engine Serial Numbers: PXC 00221/PXC 00222/PXC 00223/PXC 00224
Main Engine Hours (Port): 5,939, 5,771 as of 5/31/24
Main Engine Hours (Stbd): 5,873, 5,954 as of 5/31/24
GENERATORS & ELECTRICITY
Output: 300kW
Generators: 3 x Cat C4.4 Generators 100kW
Generator Fuel Consumption: 20 l/H
Port Generator Hours: 12,082 as of 5/31/24
Center Generator Hours: 10,834 as of 5/31/24
Starboard Generator Hours: 9,657 as of 5/31/24
Shore power: Eekels/Marpower SPC 415/0150EW Shore power convertor 150 kVA (2 shore leads)
Generator Starting: Electric
BATTERIES
Service/House Batteries: 24VDC/230Ah
Generator Starting: 24VDC/160Ah
Main Engine Starting: 24VDC/240Ah
Emergency/GMDSS: 24VDC/200Ah
PROPULSION & STEERING
Drive: 4 Prop shaft & 5 Blade Fixed Pitch Prop
Gearboxes for Main Engines: Reintjies - ZWVS 730/1 (K21A)
Stabilizer: 2 x Quantum QC-2200 HD Zero Speed
Stabilizer Underway: YES
Stabilizer at Anchor: YES
Steering System: Sperry Marine – Model: 190481-0100D
OTHER MACHINERY
Water Makers: Water makers Inc. Model WMSQ-7500 28,390L
Water Softeners: Portable Wet Spot Water Softener
Bow Thruster: 2x Veth 85kW – Model VT80-e
Fuel Separator and Filtration: Westfalia – Model: OTC 3-02-137
Sewage System: Hamann HL-Cont PLUS 025
Fresh Water System: JOWA Silver Sterilizer -Model J30005-00010 / 3 Daalderop , Hot Water Calorifier 5.2Kw / Wyckomar Inc UV Purification / 2 Water Pump and Accumulator
Oily Water Separator: Facet International Bilge Water Separator – Model CPS- 2,5B MK III + EBM14X1 + BilgMon488
Air Compressor: Powerex Air Compressor – Model -SBS10B7S0022401

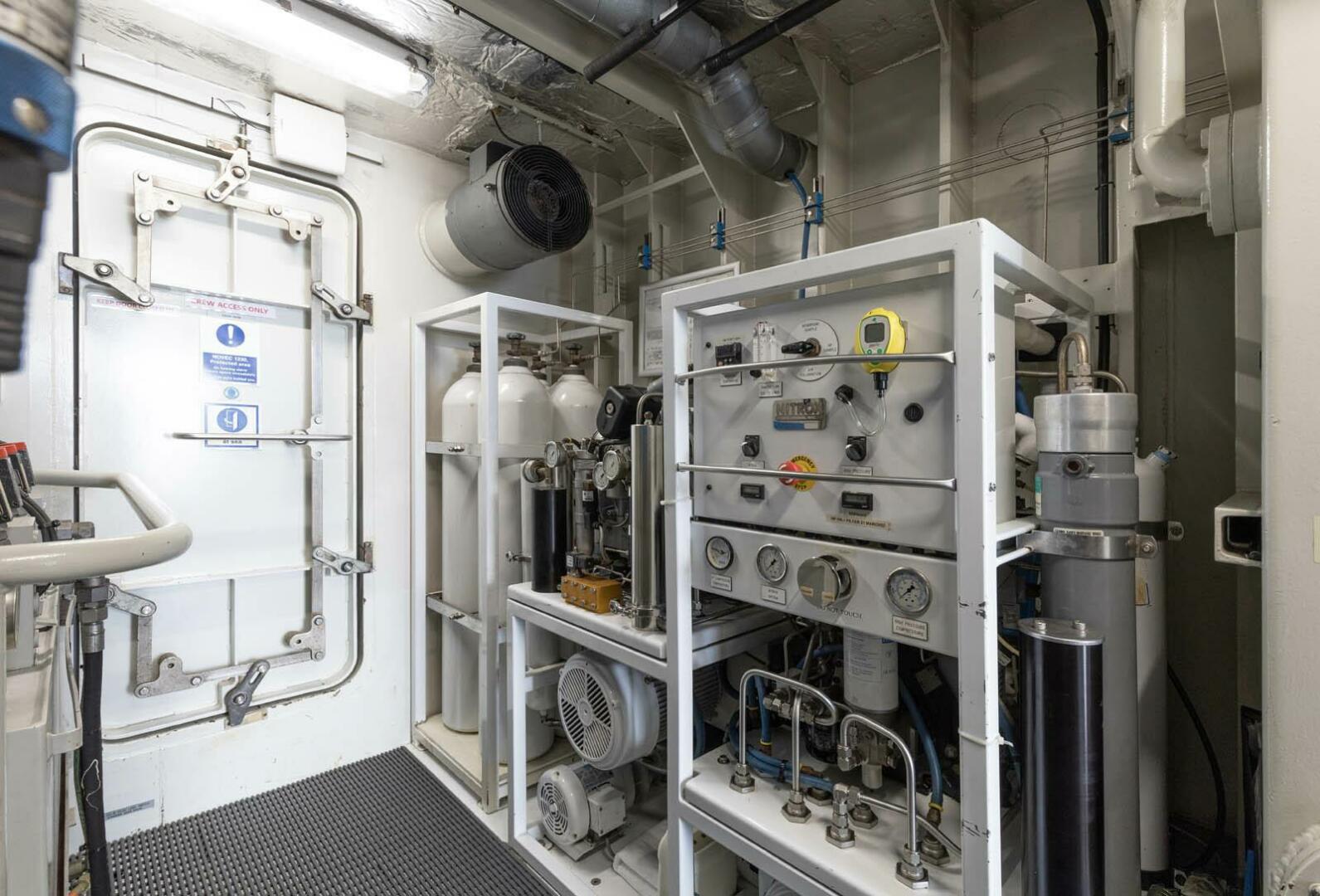

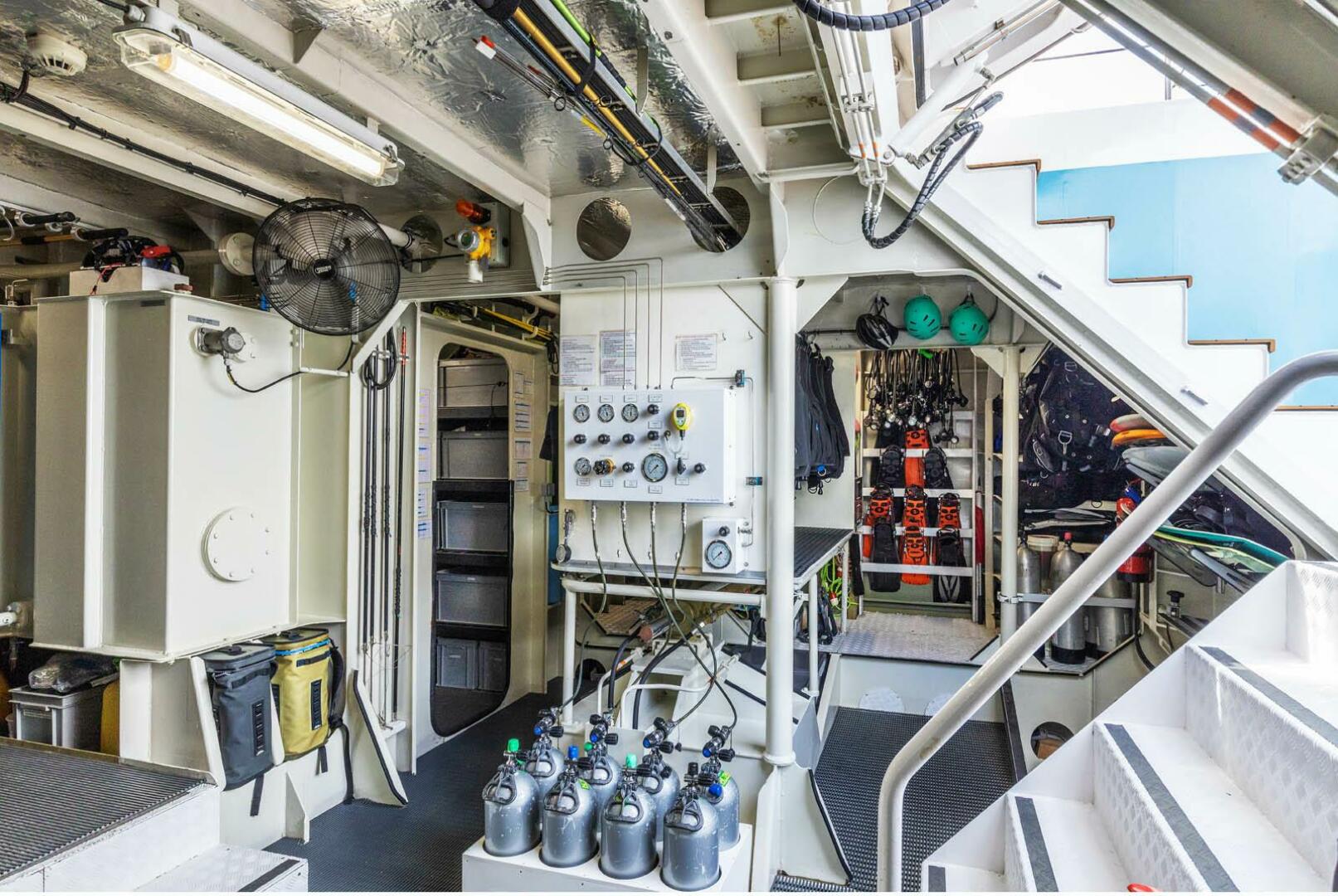

Dive Compressor: Bauer - JRII-E3Y/208
Nitrox Dive System: Nitrox Solutions Inc – NS -750 - WC
Air Conditioning: Heinen and Hopman – HVAC Plant 2 Dorin Compressors, condensers, evaporators- Model 2x H2500CC with 120Kw cooling capacity, 1 Fresh Air Make up Unit – Salor – 2000m3/hour & 41Kw cooling capacity
COMMUNICATION AND NAVIGATIONAL EQUIPMENT

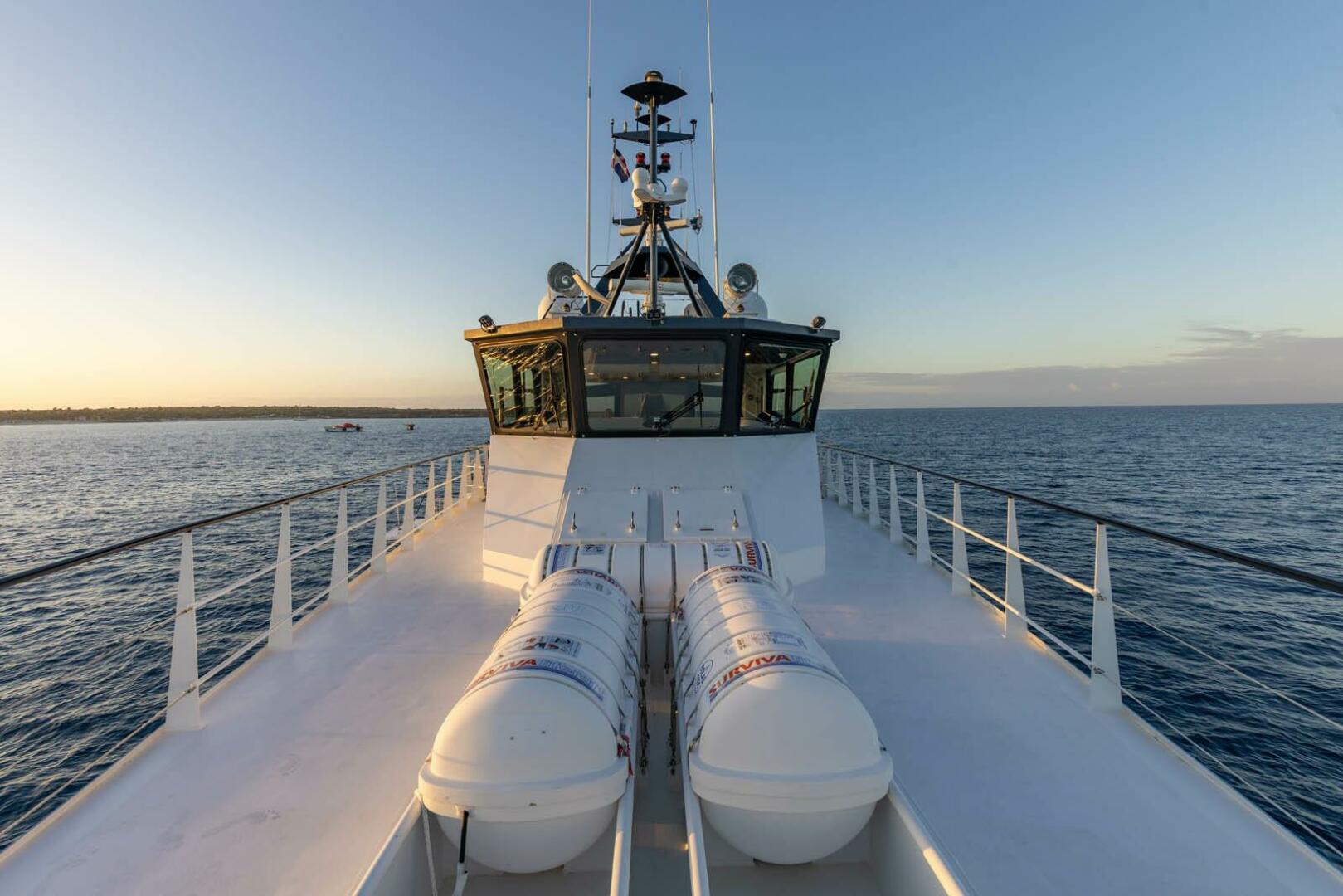

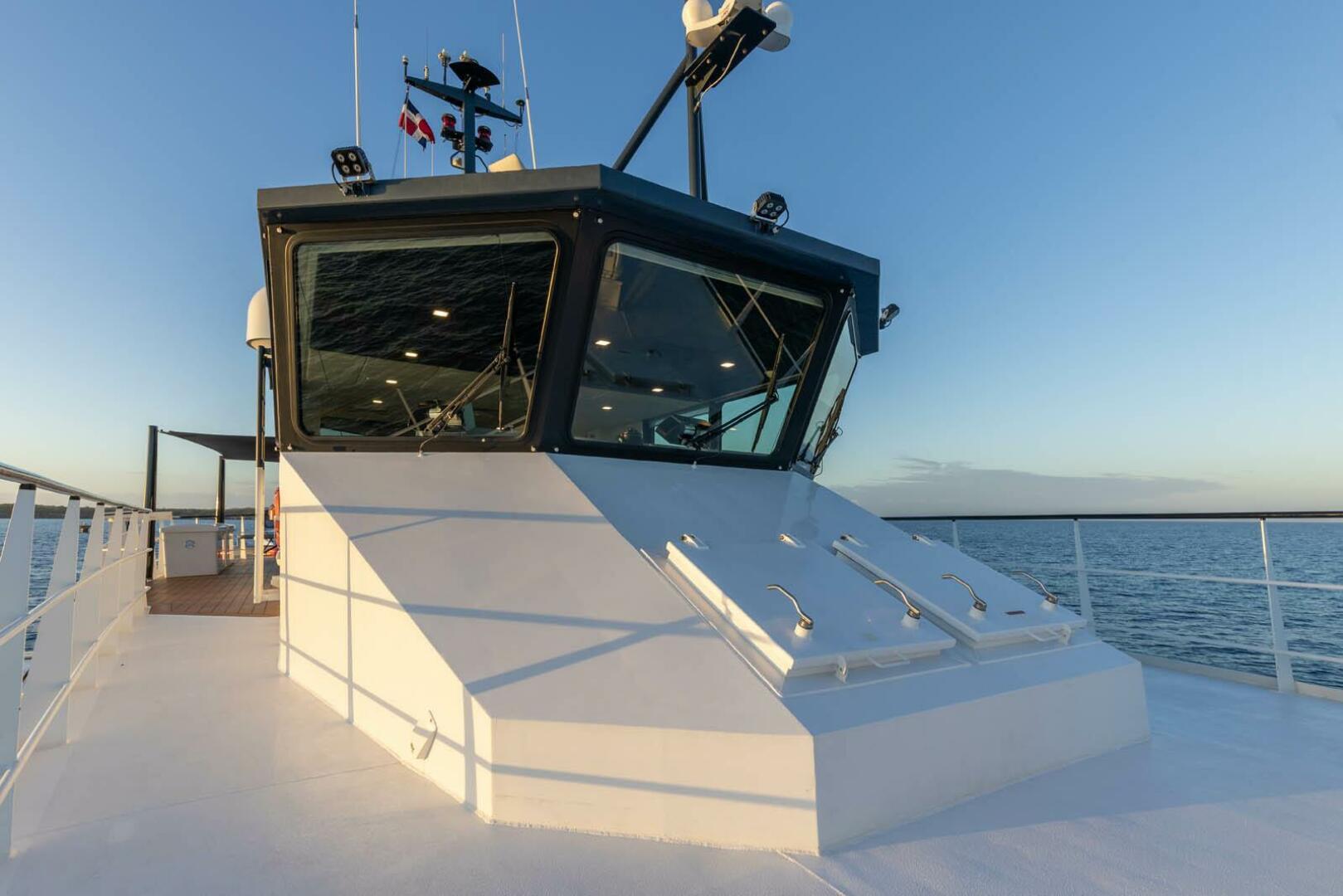

PILOTHOUSE
SAT COM: Cobham Sat Phone.
Telephone System: Spectralink.
VHF: 2 x Sailor 6222 GMDSS
Intercom: Alphacall
Navtex: JRC NCR 333 Navtex receiver and printer.
Inmarsat C: 2 X Sailor 6006 Message Terminal

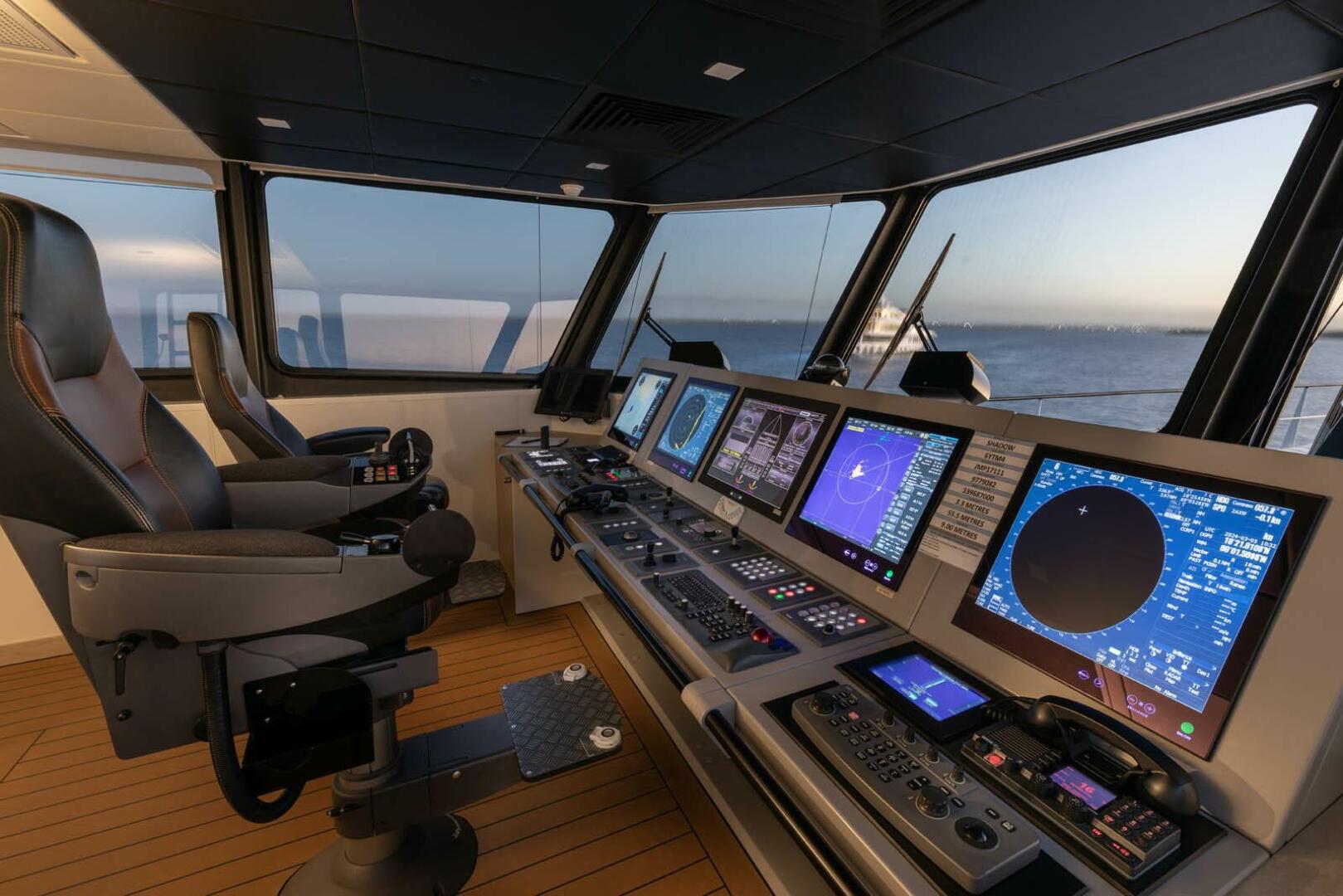

NAVIGATION SYSTEMS
Radar: 2 X JRC X Band.
Gyrocompass: Anschutz Digital Gyro Standard 22NX
Magnetic Compass: Cassens and Plath Magnetic compass.
Auto Pilot: Alphasea Pilot MFC
GPS: JRC NWZ 4610 GPS
Ships Computer: Lenovo Ultrabook.
Electronic Charts: Transas and Time Zero
Wind/Speed Log: Airmar
ENTERTAINMENT SYSTEMS
VSAT1: Intellian v80G
VSAT2: Intellian v80G
Starlink: Marine and RV
GALLEY & LAUNDRY EQUIPMENT

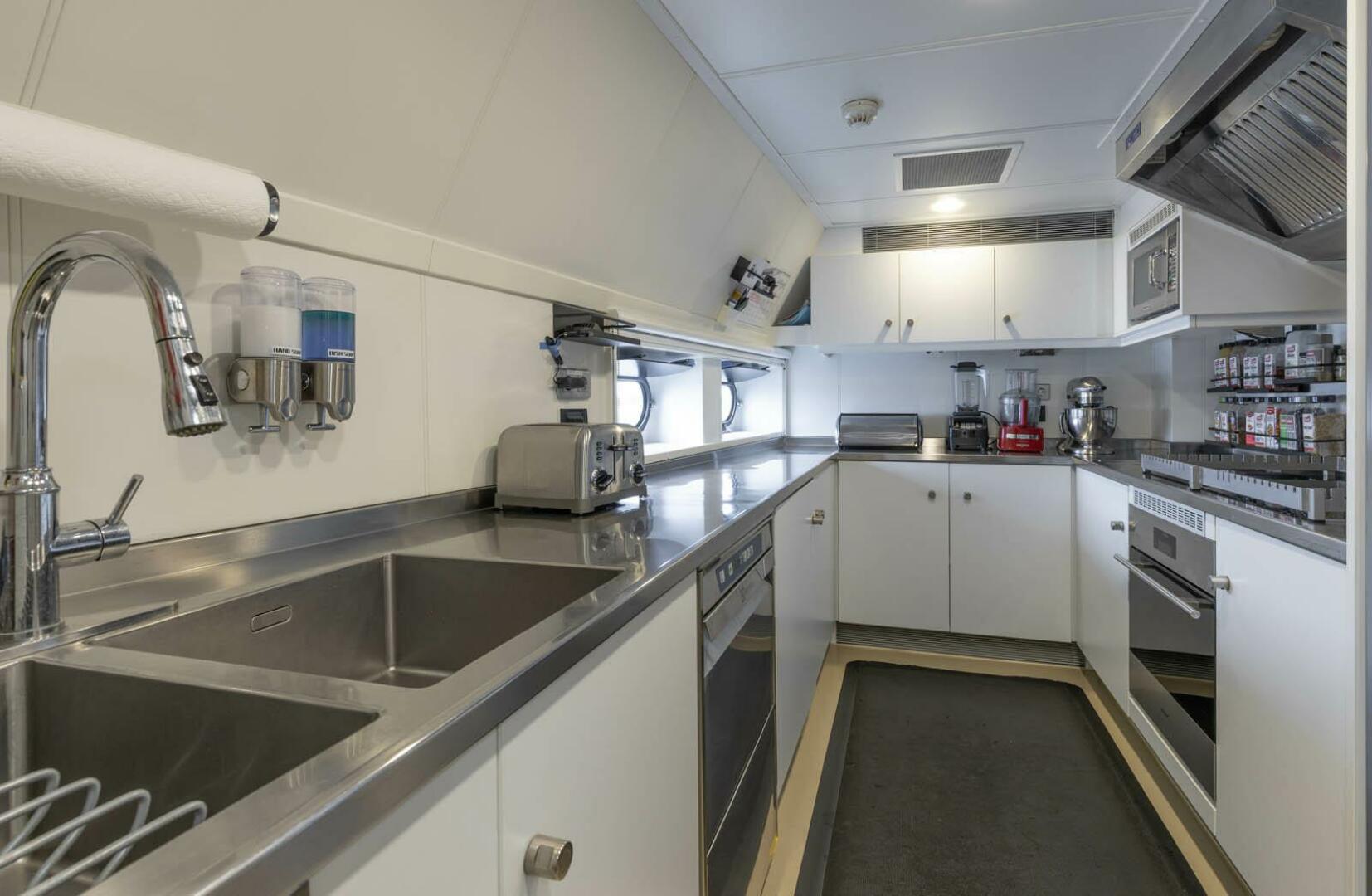

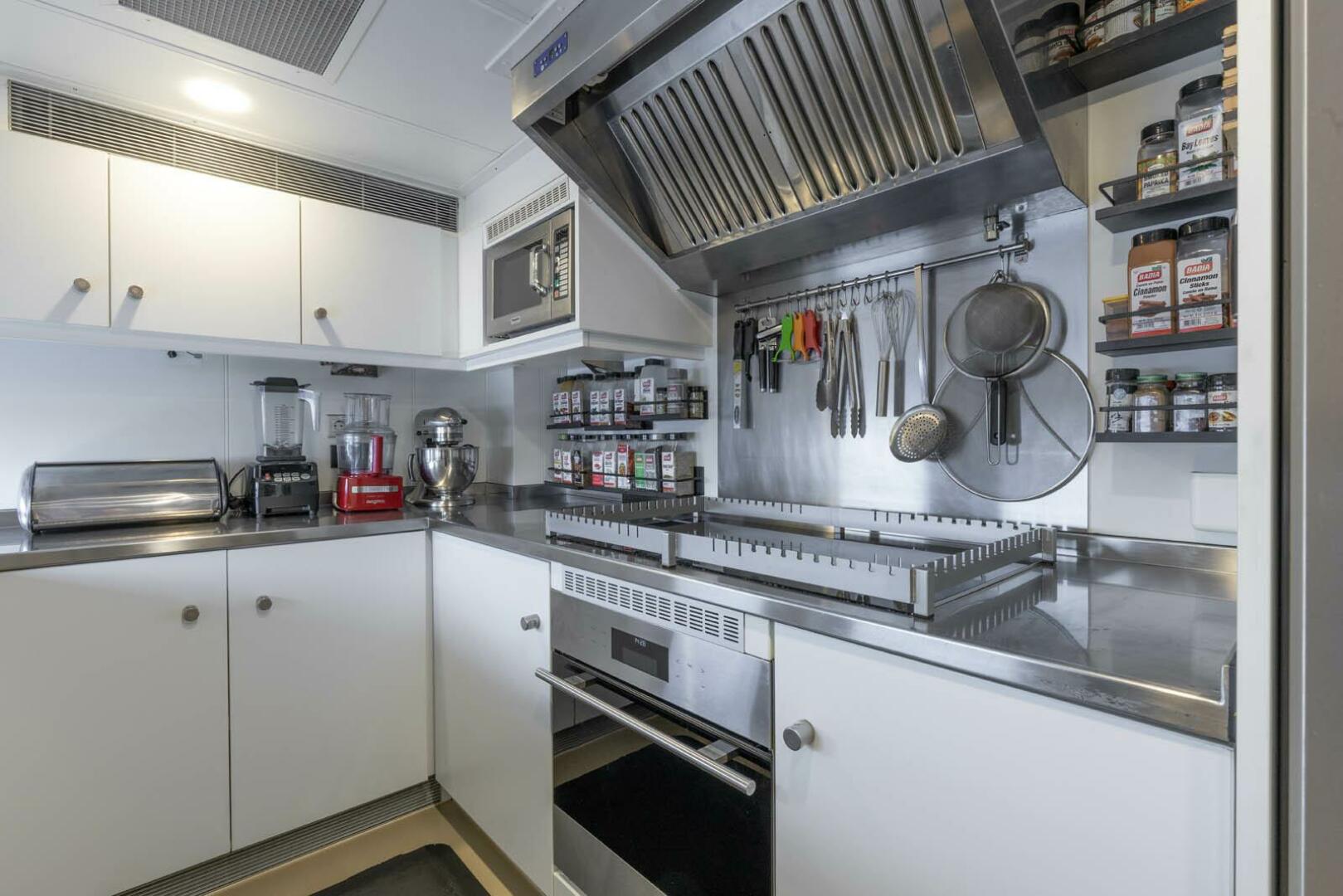

MAIN GALLEY EQUIPMENT
Cooktop Main Galley: Siemens Induction Cooktop – Model: HMIV0IE
Oven: Wolf 24" E series Oven -Model: SO24TE/S/TH
Microwave: Panasonic - Model 1037

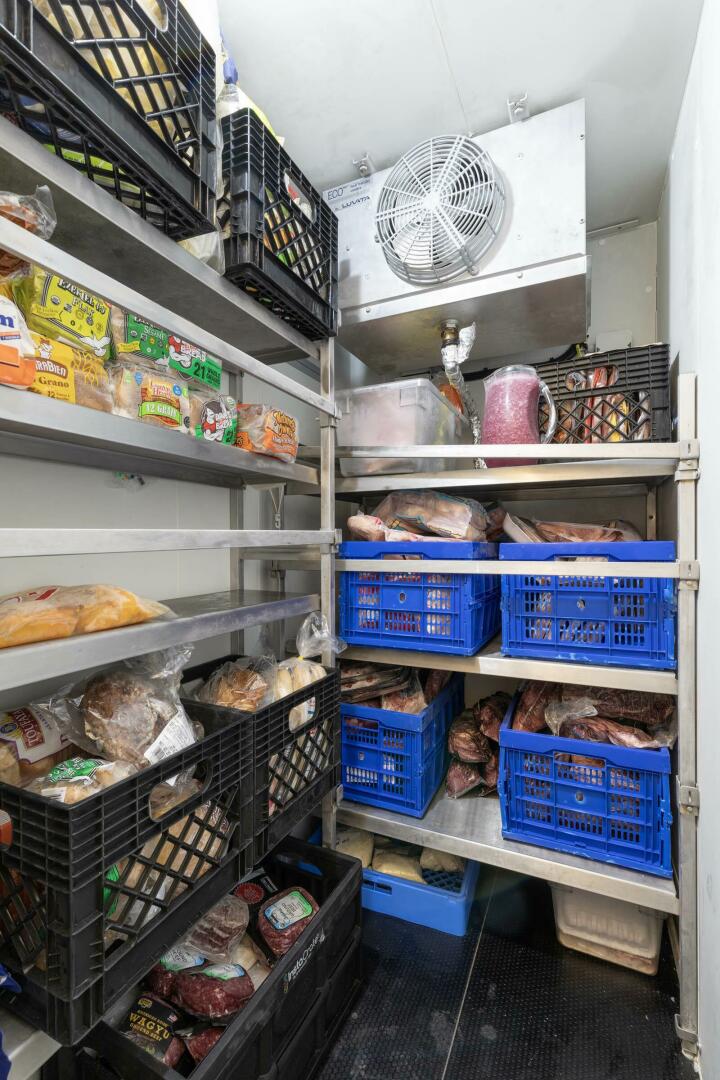

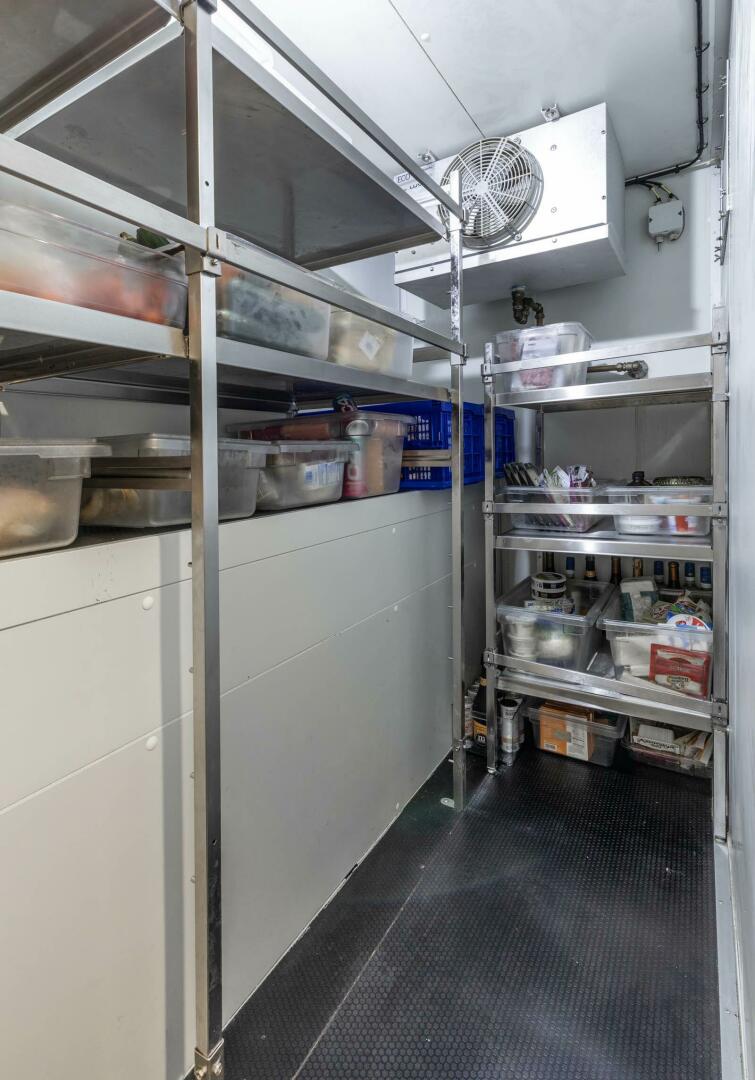

Walk In Refrigerator/ Freezer: Heinen and Hopman- L’Unite Hermetique/Tecumseh; Cool Room / Fridge - 0.8Kw Cooling Capacity; Freezer - 1Kw Cooling Capacity
Galley Refrigerator: Liebherr
Galley Freezer: Liebherr
Dishwasher: Electrolux - Model: 502316 (WT30H240DU)

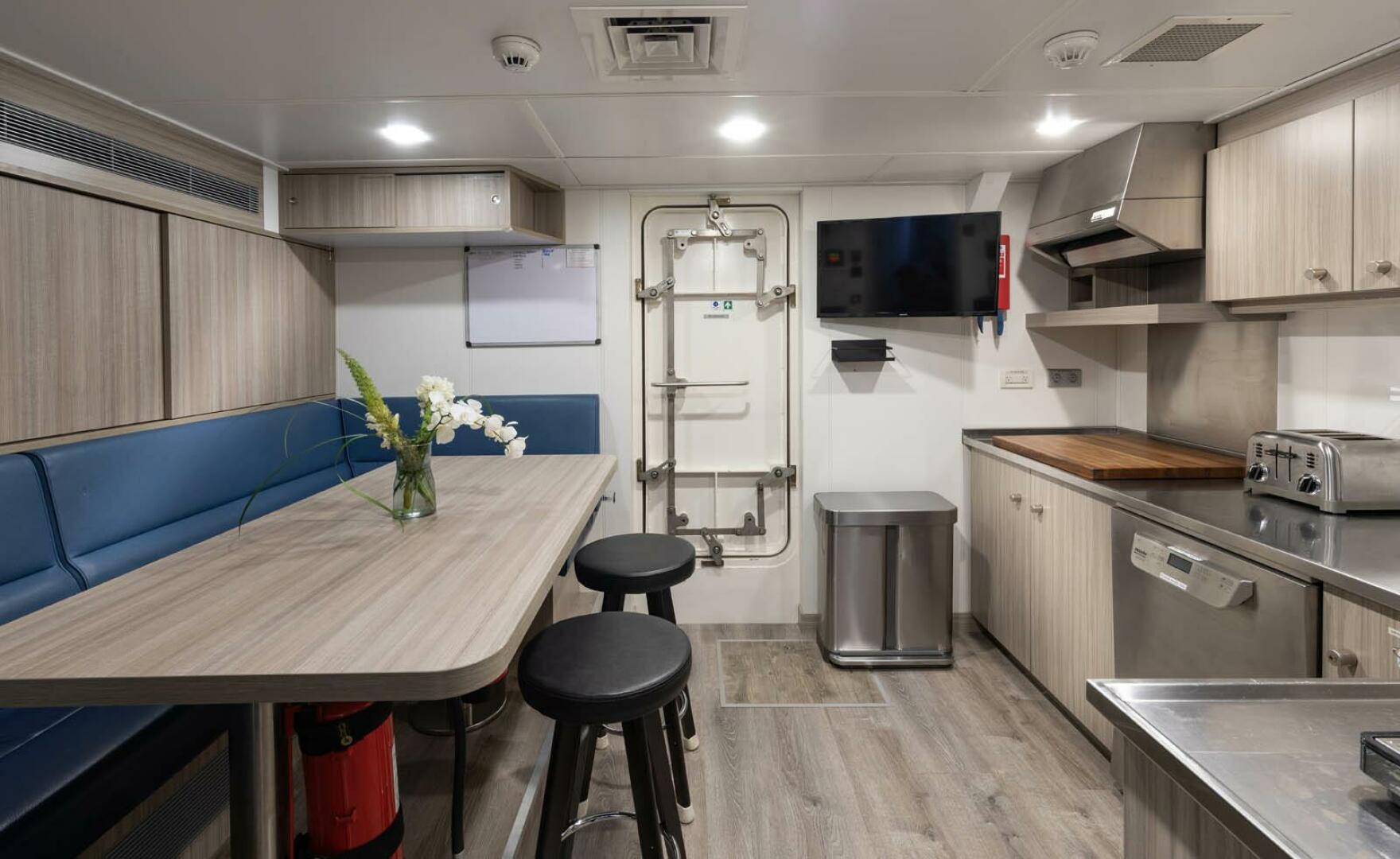

CREW GALLEY/ MESS
Fridge: Liebherr
Dishwasher: Miele Professional offshore.

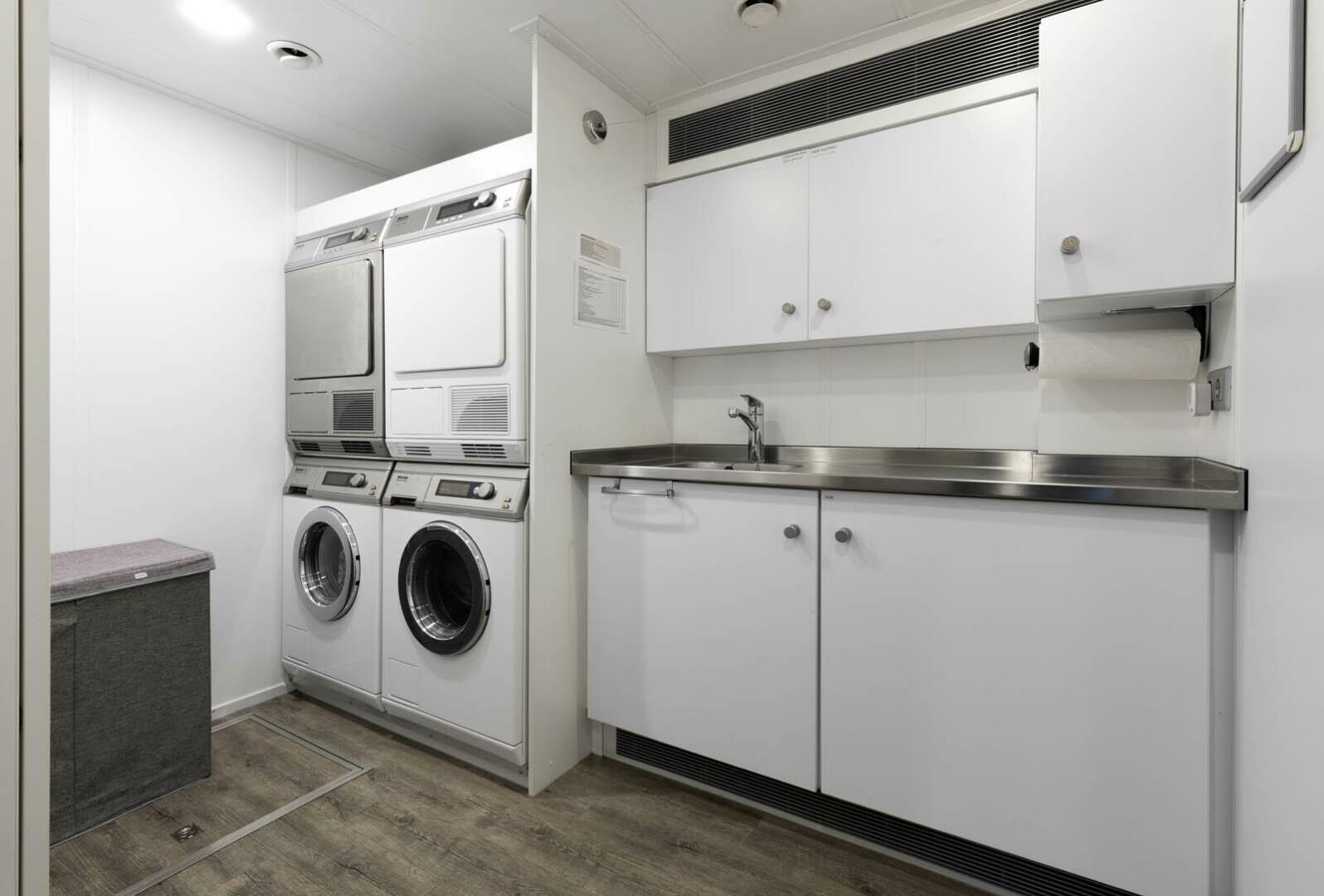

LAUNDRY
Washing Machines: 2 X Miele Professional 6065
Dryers: 2 X Miele Professional PT7135C Vario
DECK EQUIPMENT
Dynamic Positioning Alphatron Dynamic Positioning.
Anchor Windlass: Kemp Windlass
Aft Warping Capstans: MCE 10Kn (10.6KN Pull, 35KN break)
Anchors: 1 X 320 KG Bruce twin Shank.
Anchor Chain: 6 x 27.5 m , 20.5 mm dia Galvanised chain.

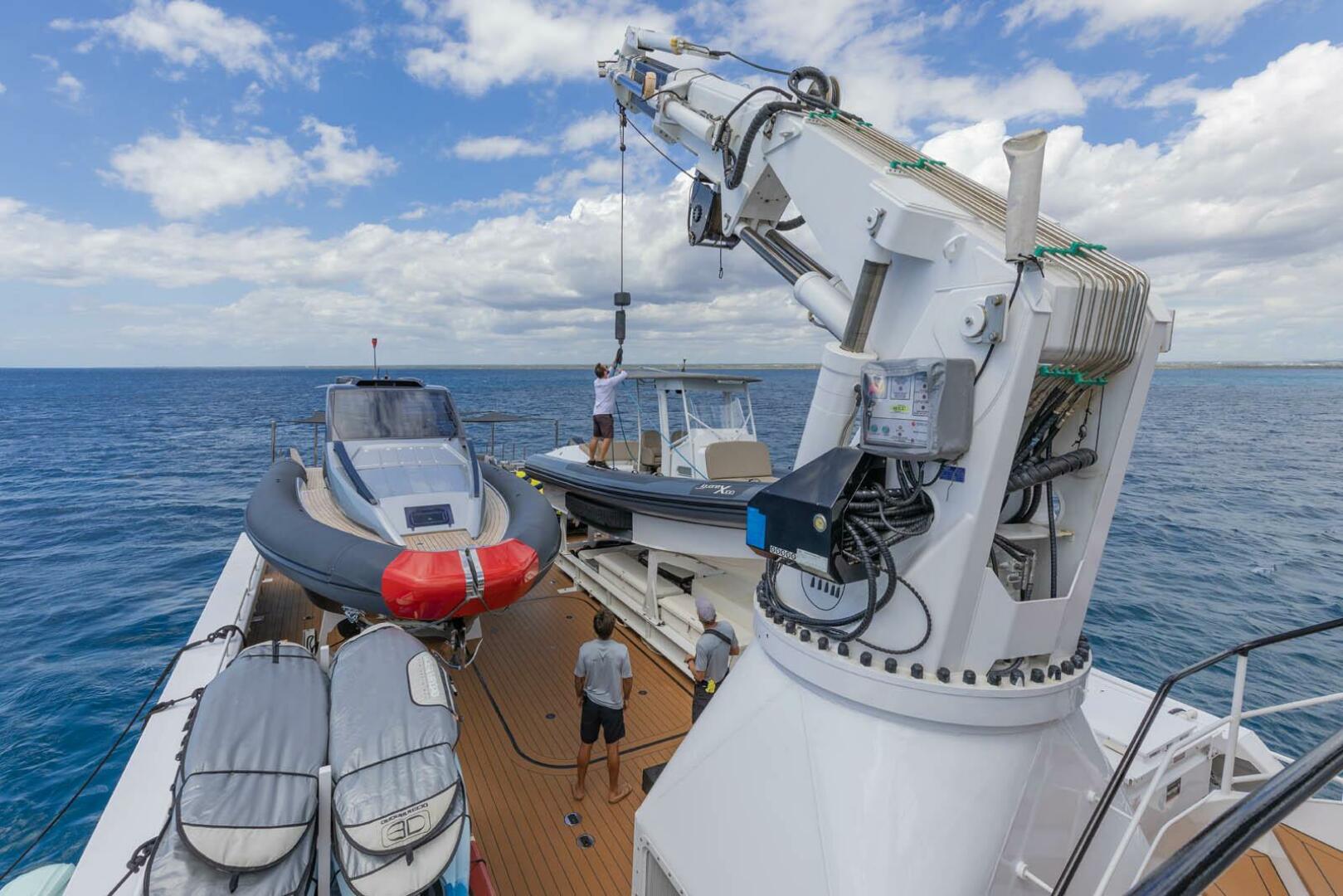

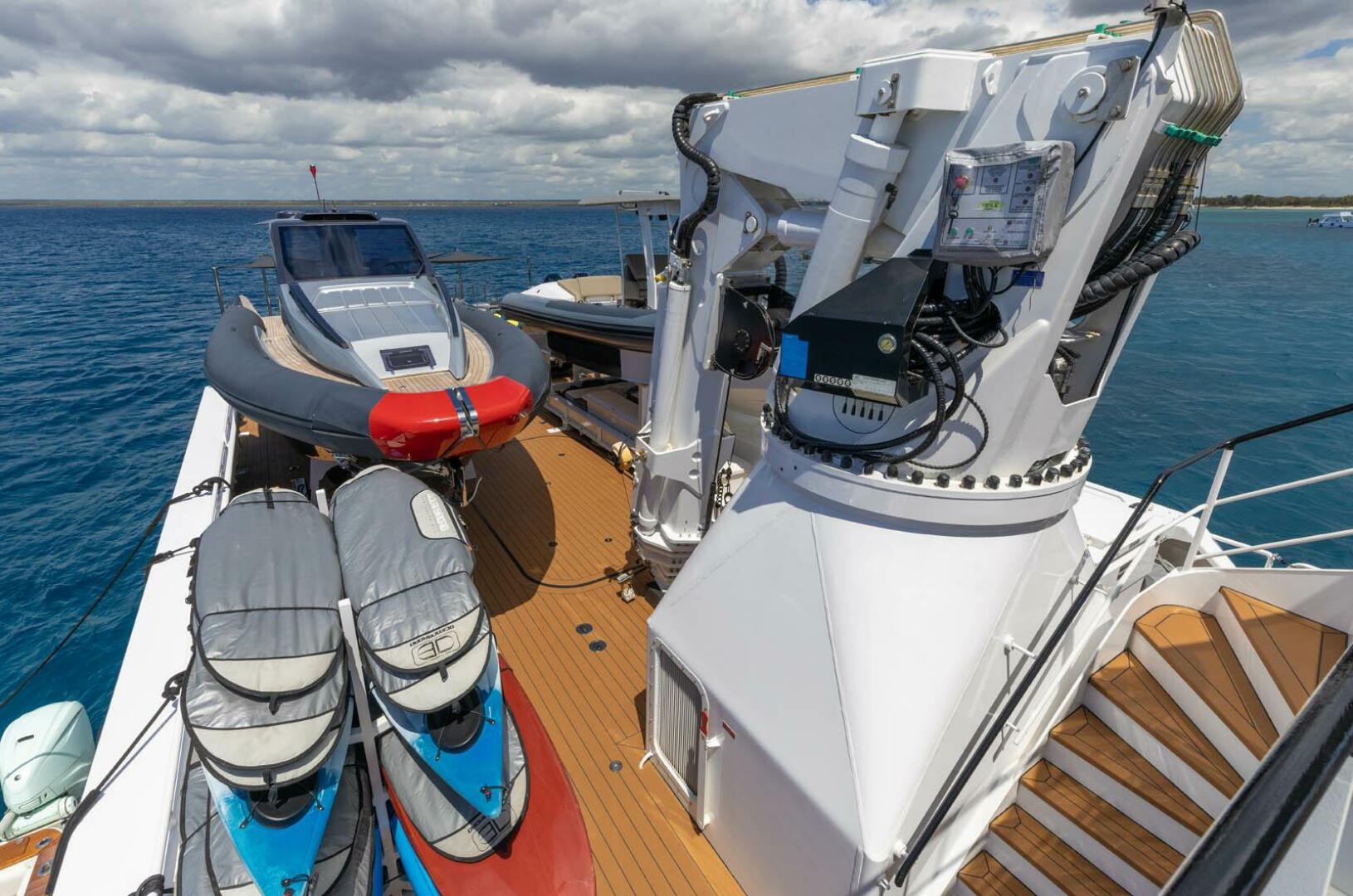

Boat Crane and Davits: Heila HLRM 140-6S knuckle boom crane 12 tons @ 5m / 6 tons @ 11.5m
Fueling System: 2980 Ltr /787 US Gallon Petrol fueling station
Passarelle: Type A30 deg Shala gangway 6mtr, 4 mtr.
Helicopter Deck: Max take-off weight 3.7 tons
FIRE FIGHTING AND SAFETY EQUIPMENT
FIRE FIGHTING EQUIPMENT
Fire Control System: Kidde Fire Protection Novec.
Fire Extinguishers: See Fireplan
Alarms: Praxis Montoring Panel
SAFETY EQUIPMENT
Life Rafts: 3 X Surviva MKIV 25 Persons
Life Rings: 2x Light and smoke, 2 x Light.
EPIRBS: 1 X McMurdo Smartfind 406 G8+AIS.
Flares: As Required.
Medical Equipment: Full MSOS Ocean going Kit.
ACCOMMODATION AND LAYOUT
Guest cabins: 3x sleeping 6 guests total
Crew Cabins: 5x including Captain sleeping 11
Engine hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing brochure.
The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
Overview from around the web 2017 Damen YS 5009
Customers have praised the 2017 Damen YS 5009 for its exceptional performance and build quality
Many have highlighted its sleek design and efficient fuel consumption, making it both stylish and economical for long voyages. Reviewers appreciate the spacious interior layout, which provides ample comfort and luxury. The vessel's advanced technology features have also received accolades, allowing for smooth navigation and enhanced safety. Additionally, clients frequently mention the versatility of the YS 5009, noting its suitability for a variety of uses including private charters and commercial applications. The crew accommodations and high-end amenities further contribute to positive feedback, ensuring a premium experience on the water. Overall, the 2017 Damen YS 5009 stands out as a reliable and sophisticated choice for discerning yacht enthusiasts.
The Biggest Pros and Cons
The 2017 Damen YS 5009 is a versatile and well-designed vessel known for its exceptional performance and quality. Here are some pros and cons to consider:
Pros
Robust Construction: Damen is renowned for its high-quality engineering and construction standards, ensuring durability and reliability in various marine conditions.
Versatile Design: The YS 5009 is suitable for a range of operations, including support roles for larger vessels, patrol duties, and commercial applications, making it a flexible choice for different missions.
Efficient Performance: Equipped with powerful engines, the vessel offers impressive speed and fuel efficiency, contributing to reduced operating costs over time.
Advanced Technology: The vessel incorporates modern navigation and safety systems, ensuring enhanced operational control and safety for crew and passengers.
Spacious Layout: With a well-thought-out interior design, the YS 5009 provides ample space for crew accommodations and operational equipment, allowing for comfort during long missions.
Maneuverability: Its design allows for excellent maneuverability, making it easy to handle in tight spots or challenging waters.
Cons
Initial Cost: Like many high-quality vessels, the initial purchase price may be on the higher side, which could be a barrier for some buyers.
Maintenance Requirements: The advanced systems and robust construction may require specialized maintenance and servicing, which could increase the ongoing costs compared to simpler vessels.
Crew Training: Operating the advanced technology on board might necessitate additional training for the crew, adding to operational expenditures.
Availability of Parts: Depending on the location, sourcing specific parts for repairs or upgrades may take time, affecting maintenance schedules.
Size Limitations: While well-suited for a variety of operations, its size may limit certain capabilities or applications compared to larger vessels.
Made For
The 2017 Damen YS 5009 is designed for discerning owners seeking a robust and reliable support vessel. Its versatility makes it ideal for a range of operations, including private yacht support, research missions, and offshore activities. With a sleek design and impressive capabilities, this vessel is perfect for those who prioritize performance and efficiency. The YS 5009 caters to both the leisure and commercial sectors, making it suitable for yacht owners looking for additional storage and logistical support, as well as companies in need of a durable and well-equipped workboat. Safety and ease of operation are paramount, making it an excellent choice for both experienced mariners and those new to the yachting world. With spacious accommodations and advanced technology, the Damen YS 5009 ensures a comfortable and functional experience on the water.
