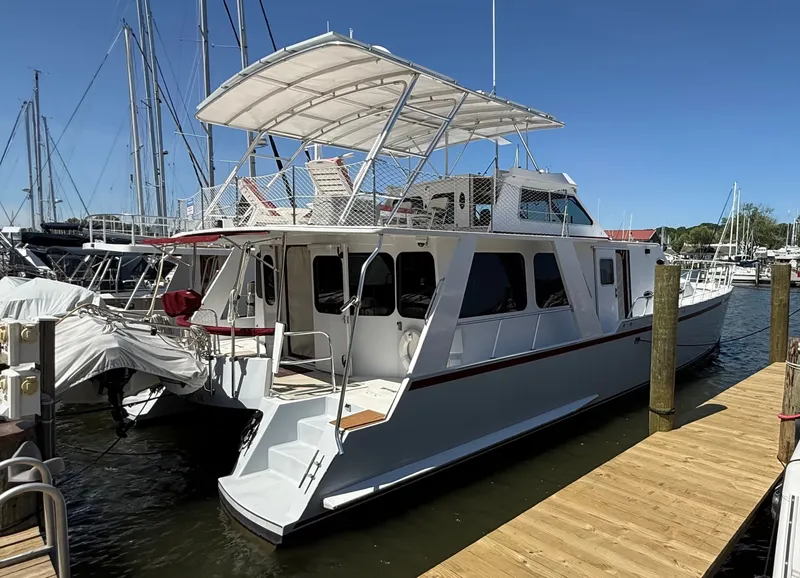

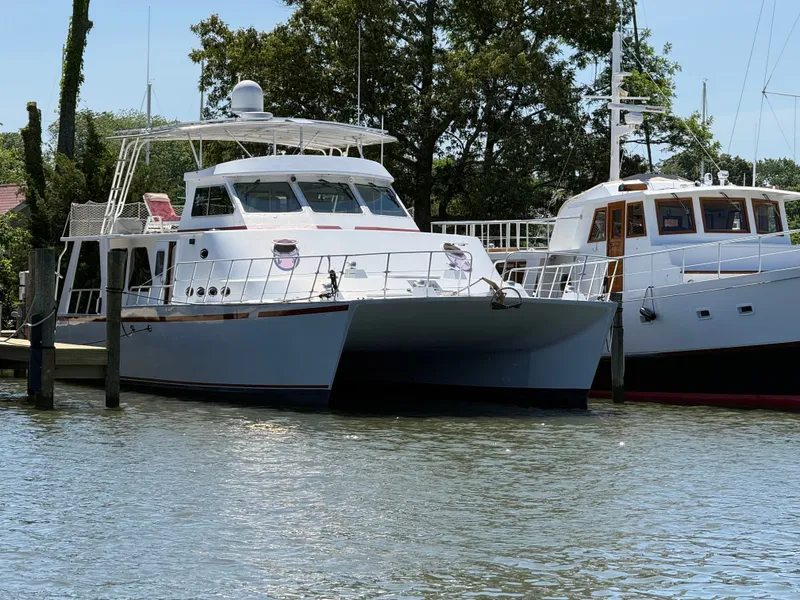

2001 Crosswater Passagemaker 49 Boat in Deale, MD 20751 US
Passagemaker 49
2 Engines (2x Yanmar)
49 feet
Diesel
Fiberglass/Reinforced

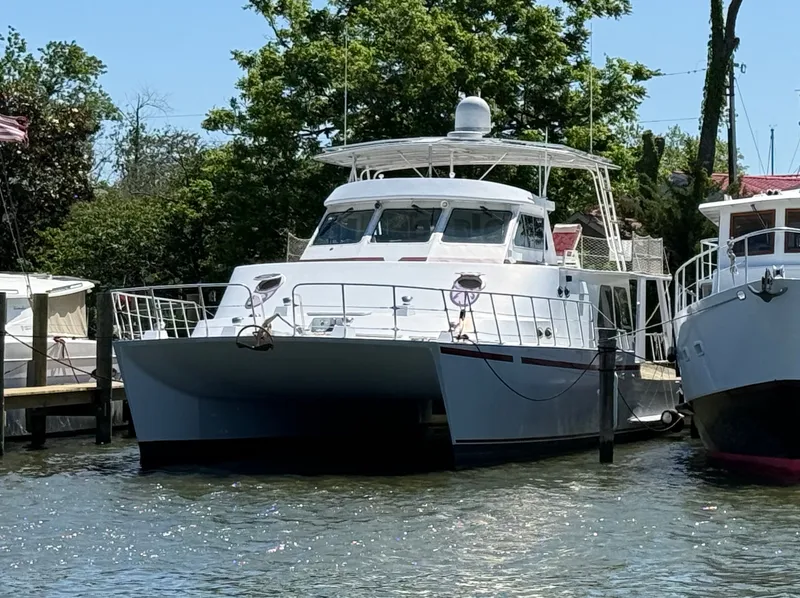

An economical power catamaran passagemaker. With a range capability of 5000 nautical miles at 8 knots, Crosswater exemplifies the qualities of a true "passage-maker".

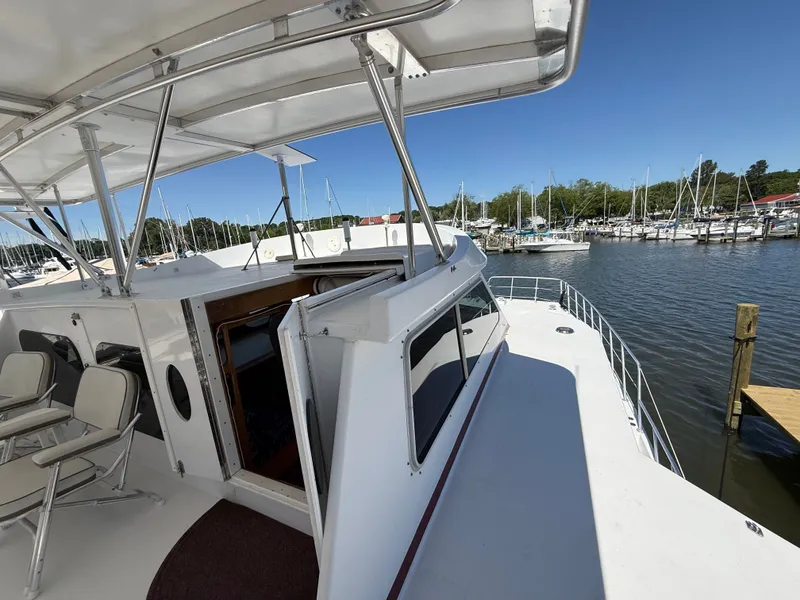

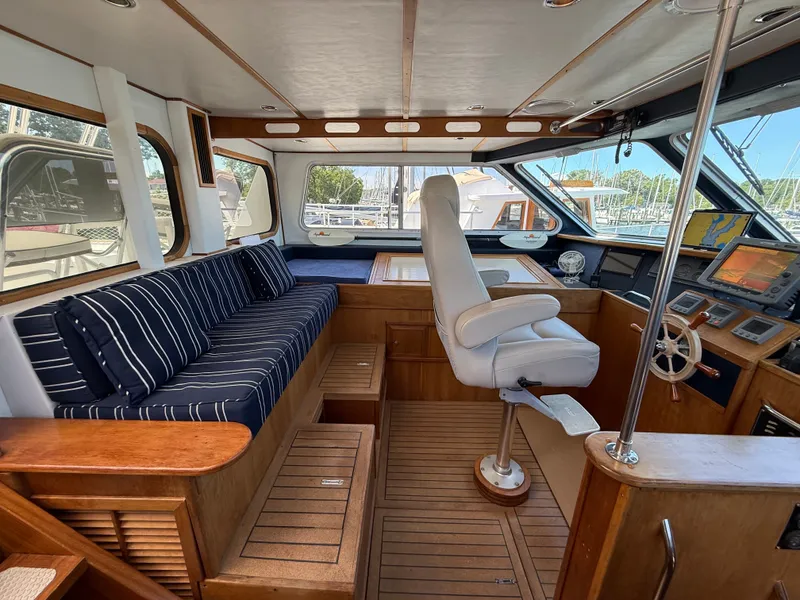

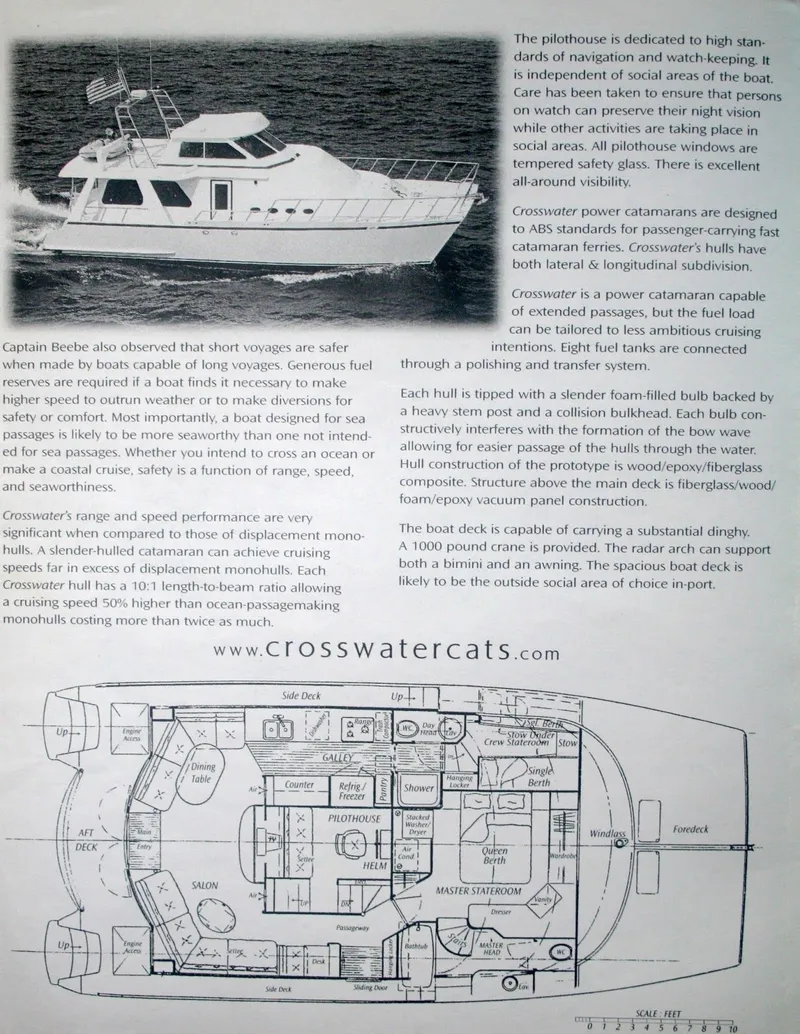

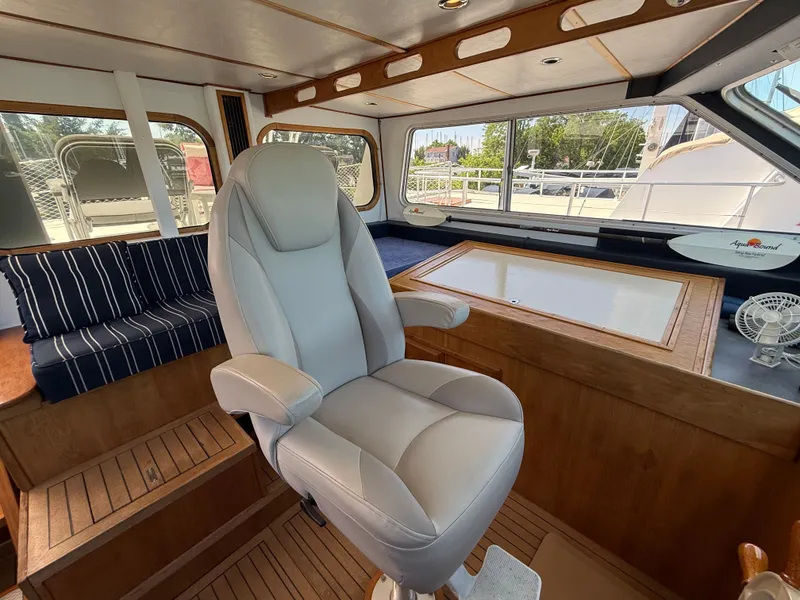

The pilothouse is dedicated to high standards of navigation and watch-keeping. It is independent of social areas of the boat. Care has been taken to ensure that persons on watch can preserve their night vision while other activities are taking place in social areas. All pilot house windows are tempered safety glass, there is excellent all-around visibility.
Crosswater is a power catamaran capable of extended passages, but the fuel load can be tailored to less ambitious cruising intentions. Eight fuel tanks are connected through a polishing and transfer system. This system can provide the two rear most tanks wit fuel for the engine on each side.

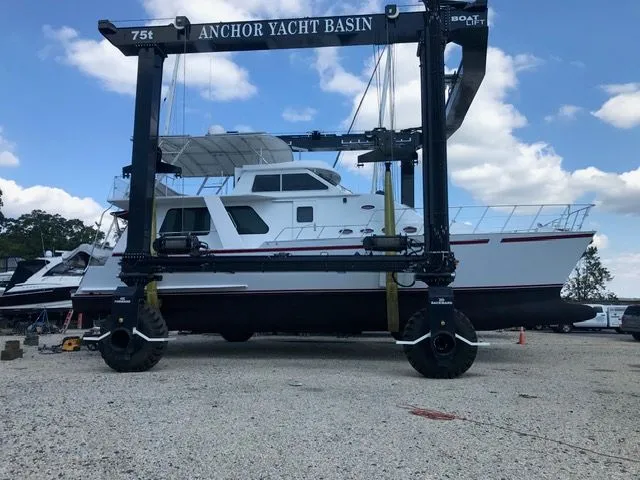

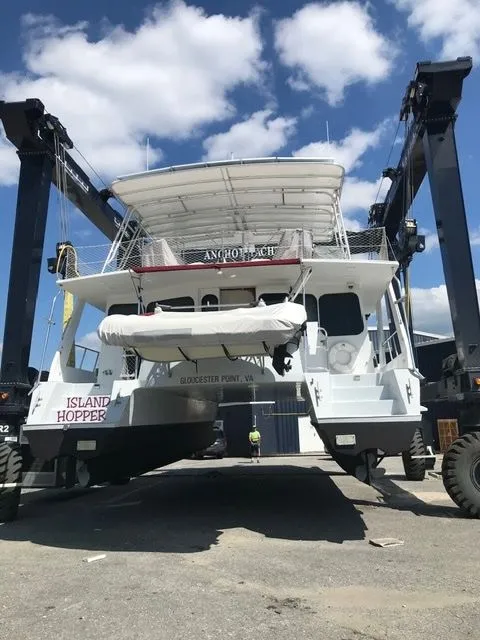

Each hull is tipped with a slender foam-filled bulb backed by a heavy stern post and a collision bulkhead. Each bulb constructively interferes with the formation of the bow wave allowing for easier passage of the hulls through the water. Hull construction is wood/epoxy/fiberglass composite. Structure above the main deck is fiberglass/wood/foam/epoxy vacuum panel construction.

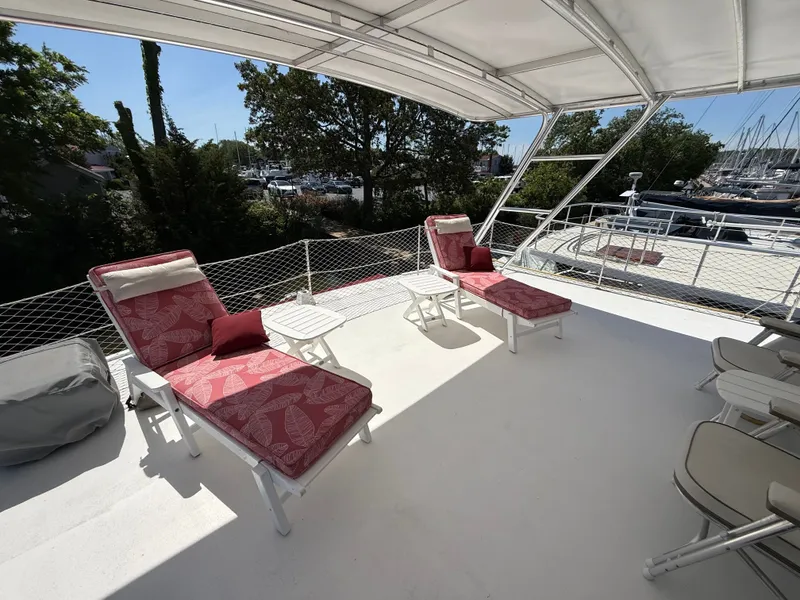

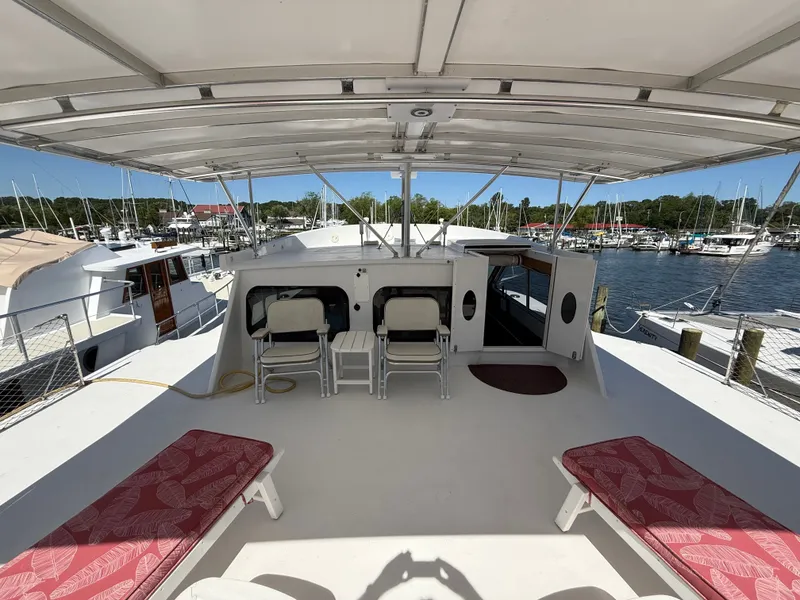

The boat top deck supports Atlantic Towers fiberglass and aluminum top, carrying 10 solar panels, radar and KVH HD7 dish. The spacious boat deck is likely to be the outside social area of choice at anchor or in port.
Key Features
- Built for the Long Haul: The vessel features exceptional fuel capacity (up to 2,260 gallons), allowing for incredible long-distance endurance.

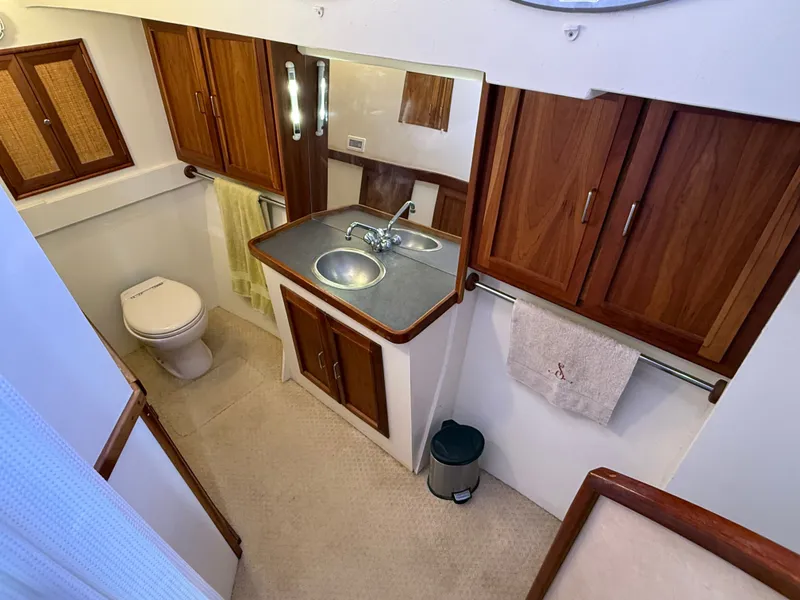

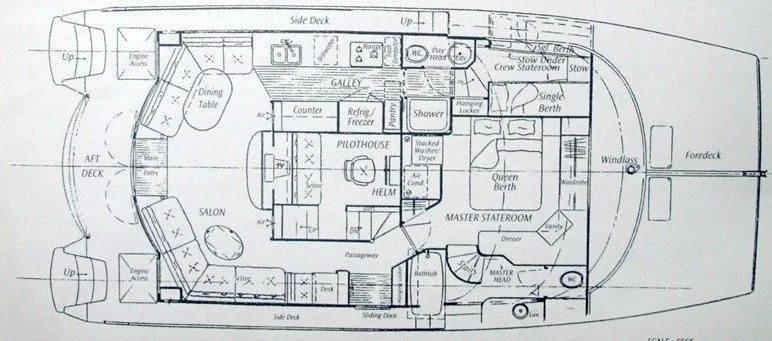

- Layout: Typically configured with 2 staterooms and 2 heads, including an owner's master suite with a queen-sized bed, ensuite head, tub, and shower, as well as a convertible guest stateroom.
- Mechanical: Powered by twin Yanmar 4LHADTE diesels (190 hp each) and often customized with heavy-duty off-grid features like large solar arrays (up to 3,000 watts) and 12.5 kW generators.
- Design: Each hull features a foam-filled bulb that constructively interferes with the bow wave, greatly increasing the boat's hydrodynamic efficiency.
Dimensions
- Overall Length: 49 ft 11 inches
- Beam (Width): 23 ft
- Draft: 3 ft
- Displacement: 40000 lbs
- Heads (Bathrooms): 2
- Staterooms: 2
- Berths: 5
- Cruise Speed: 9 knots
- Max Speed: 12 knots
- Fuel Capacity: 2260 gal
- Water Capacity: 220 gal
- Holding Tank: 20 gal
- Hull Material: Composite
Additional Information

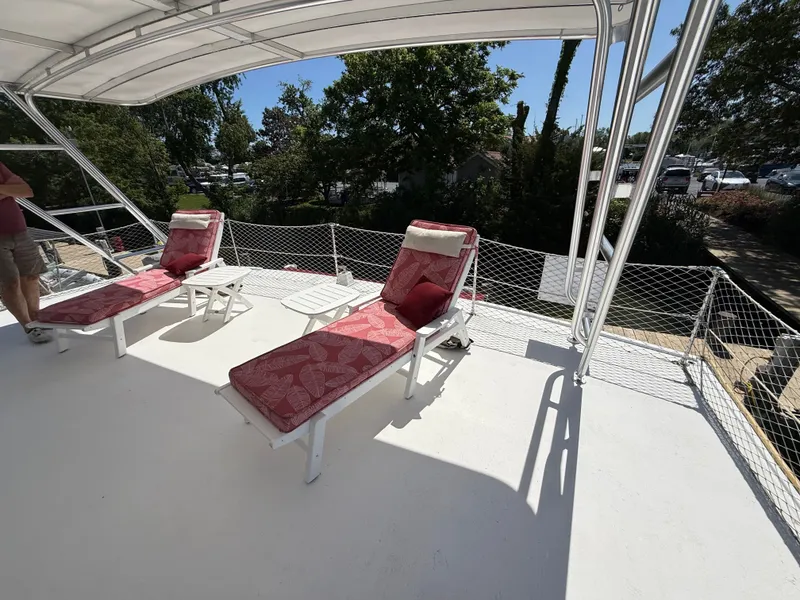

- Top deck lounge chairs with pads and covers
- West Marine folding lounge chairs
- Floating lounge mats
- 2 person inflatable towable with rope
- Air draft is 20' 7" to the top of the KVH satellite dish; 18' 4" with the KVH dish removed - important for bridge clearance on Great Loop cruising
- 2019 Highfield

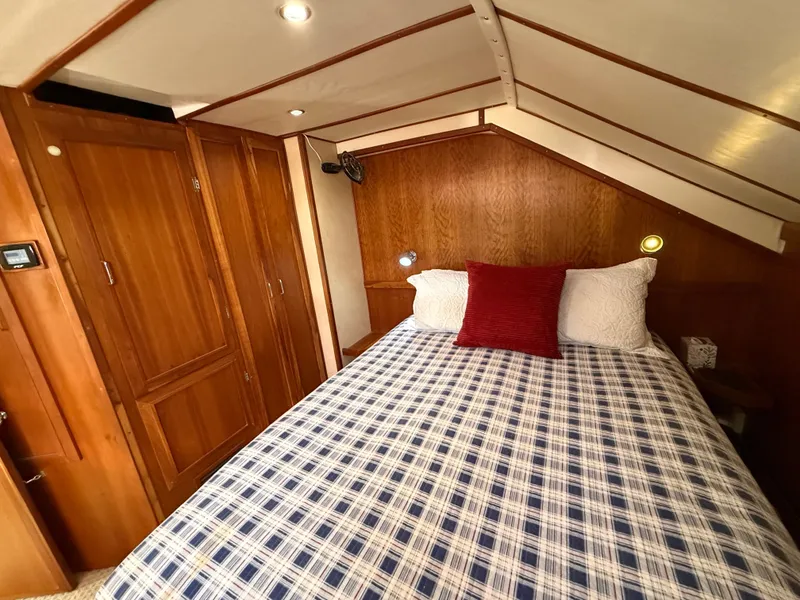

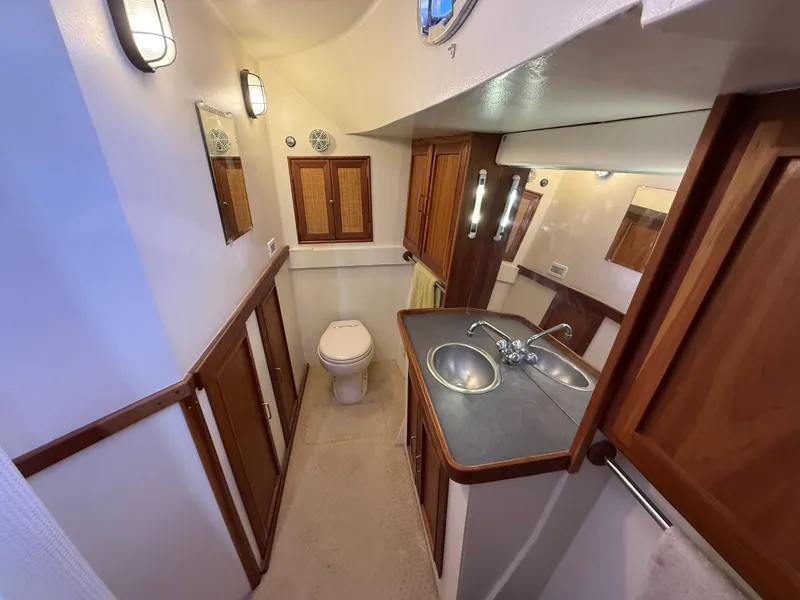

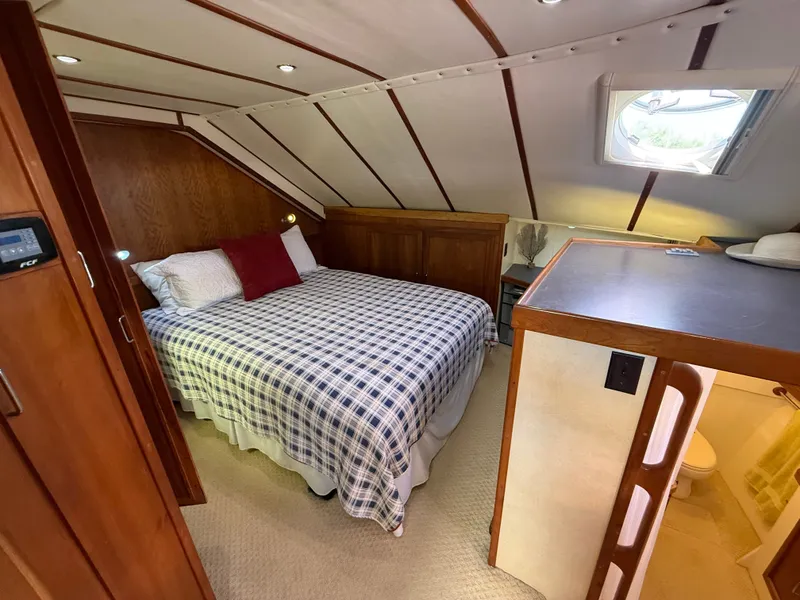

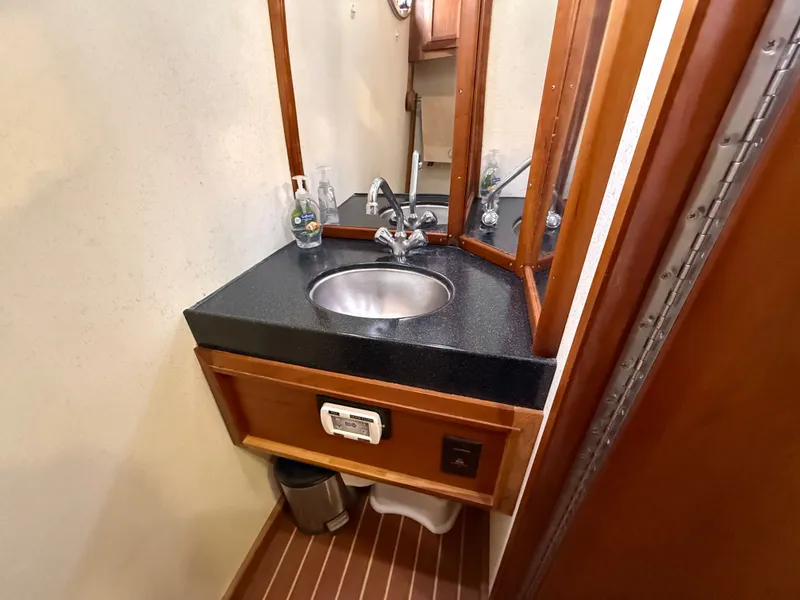

- Queen-size Select Comfort bed, ensuite head, tub & shower

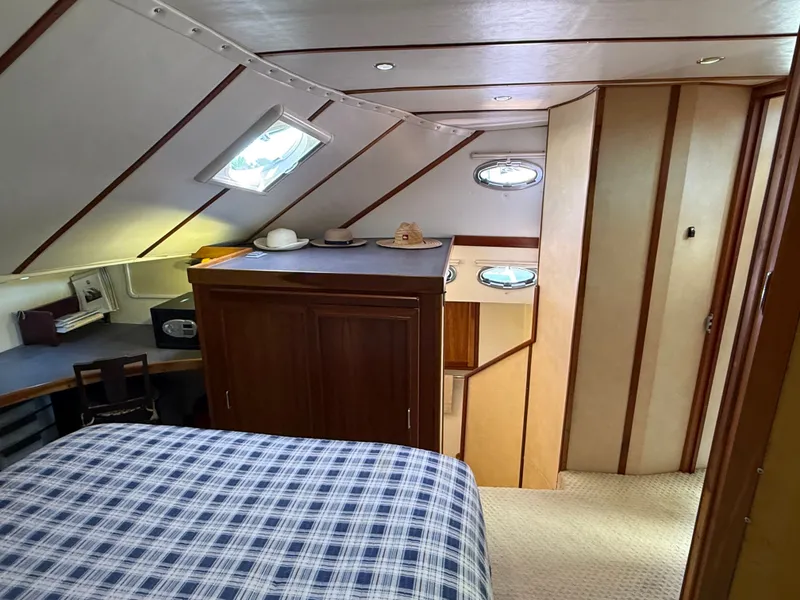

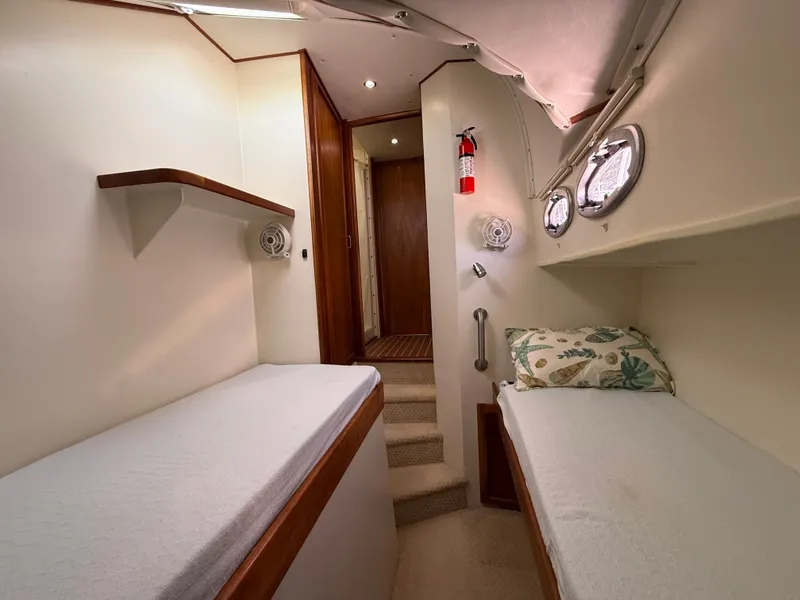

Guest Stateroom

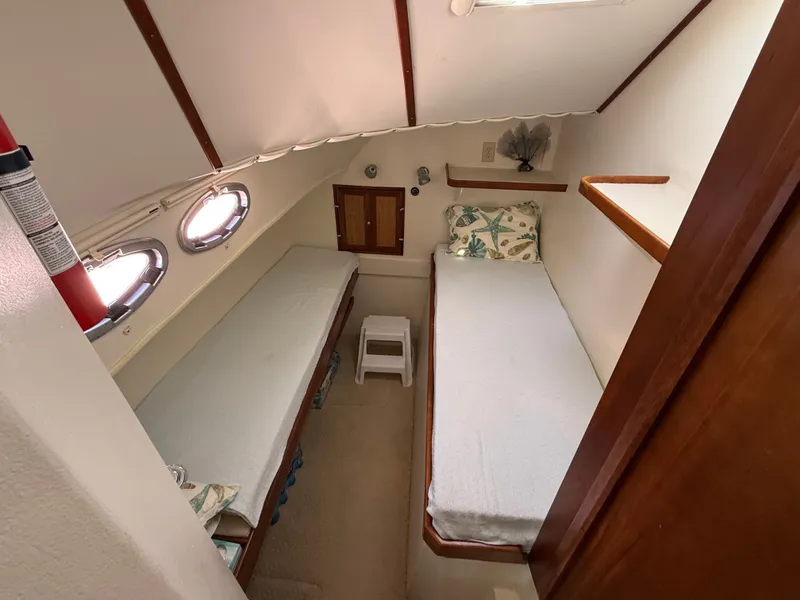

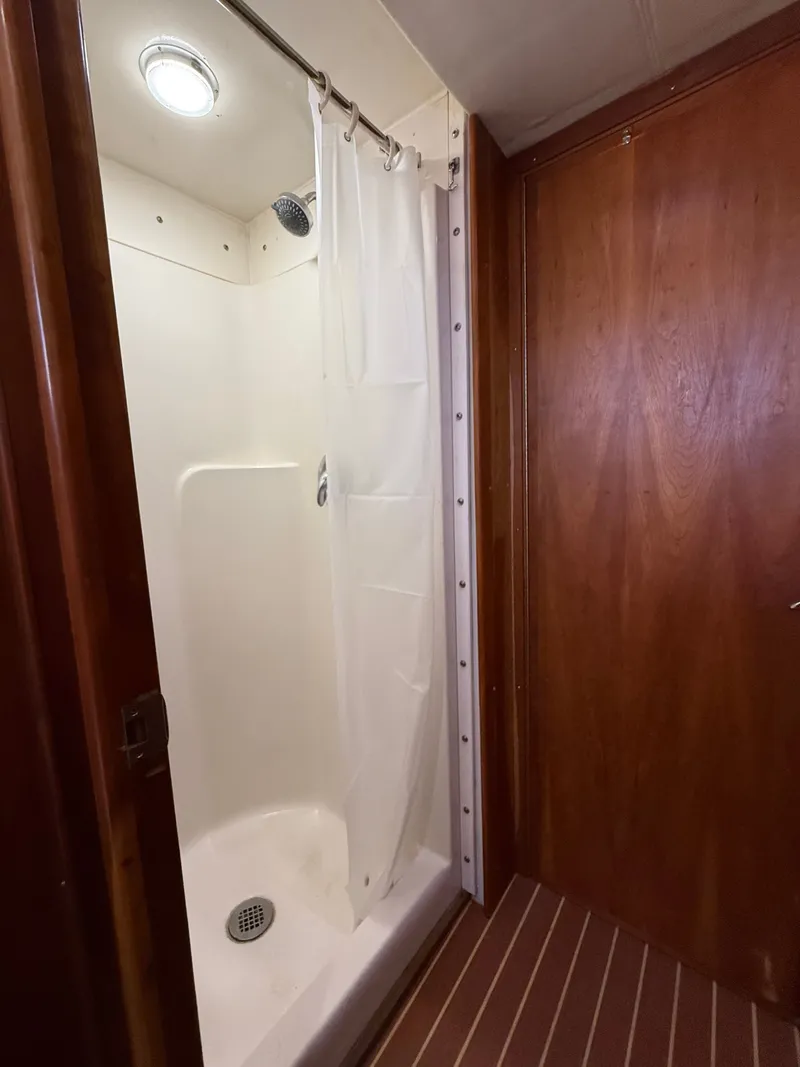

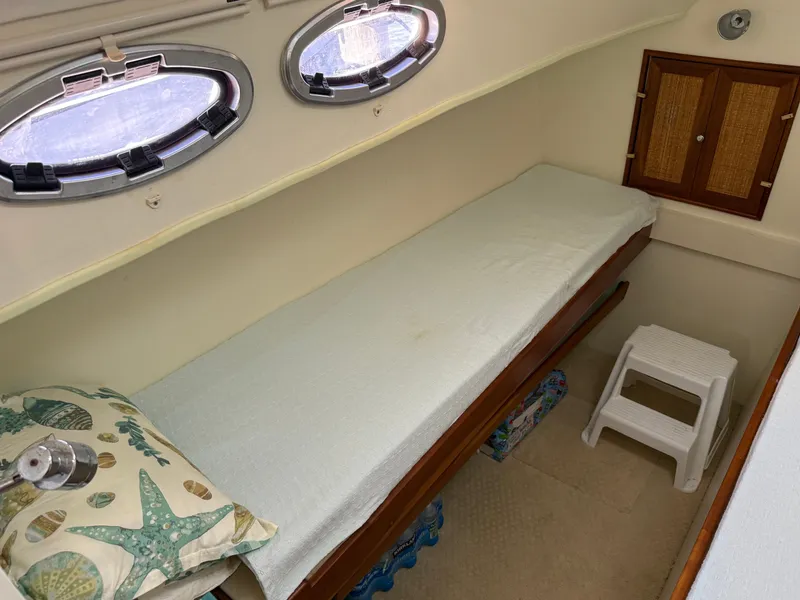

- 2 single berth converts to queen size ensuite head & shower

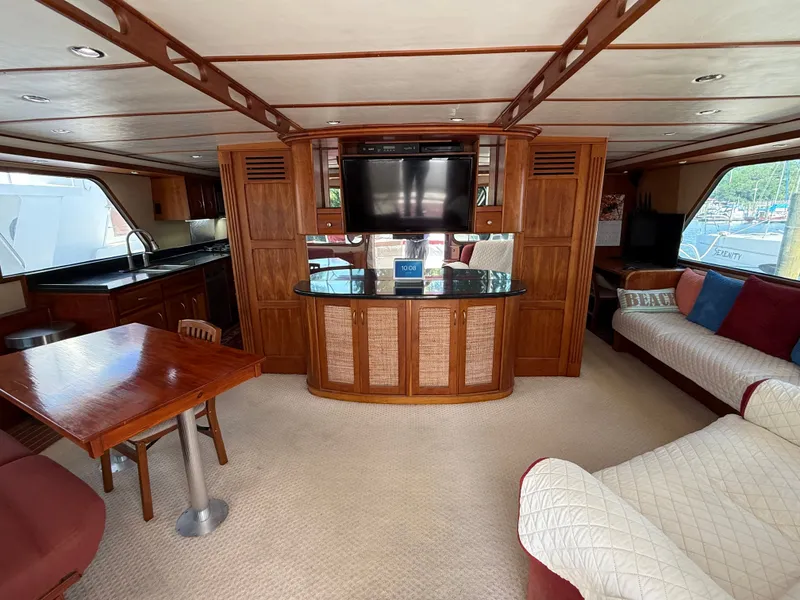

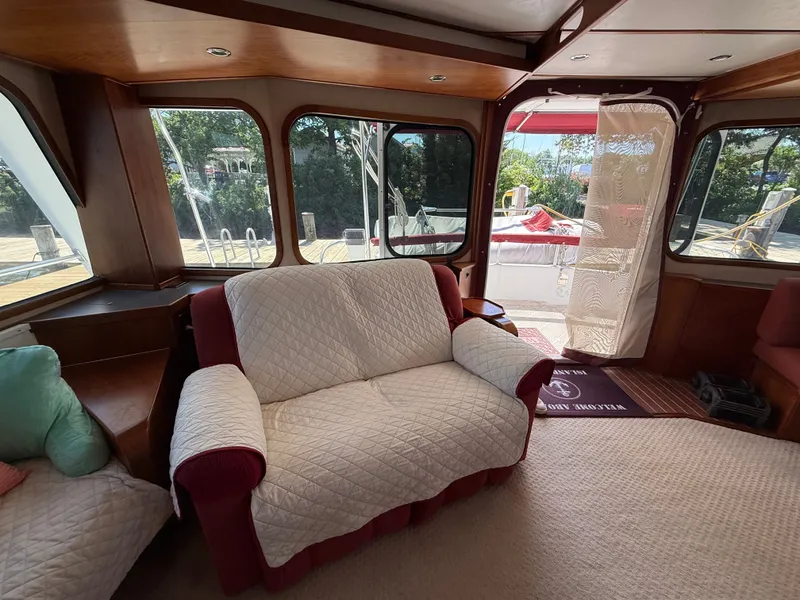

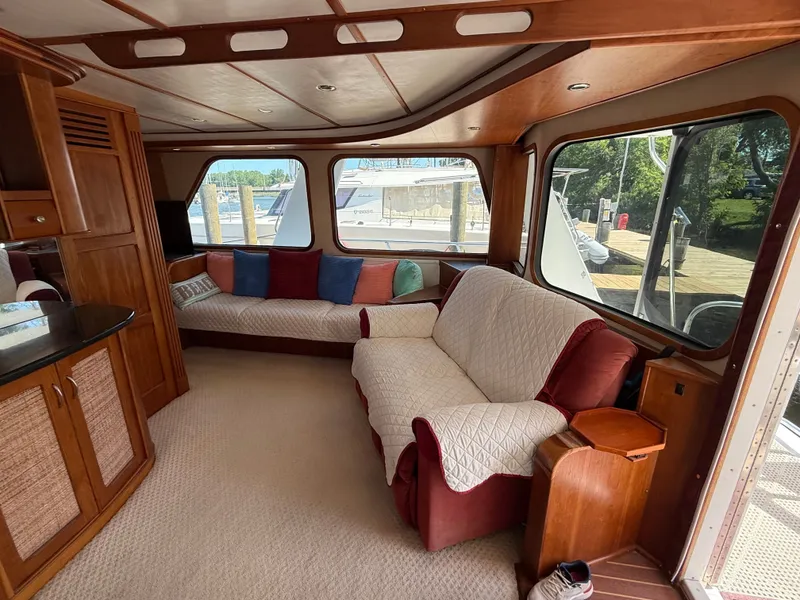

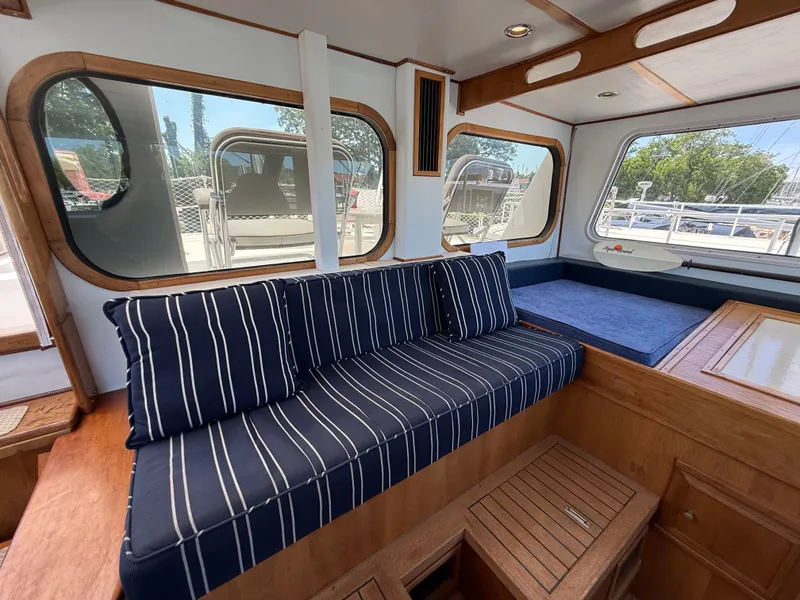

Additional berth on couch in salon
- GE dryer and Panda washer
- GE trash compactor

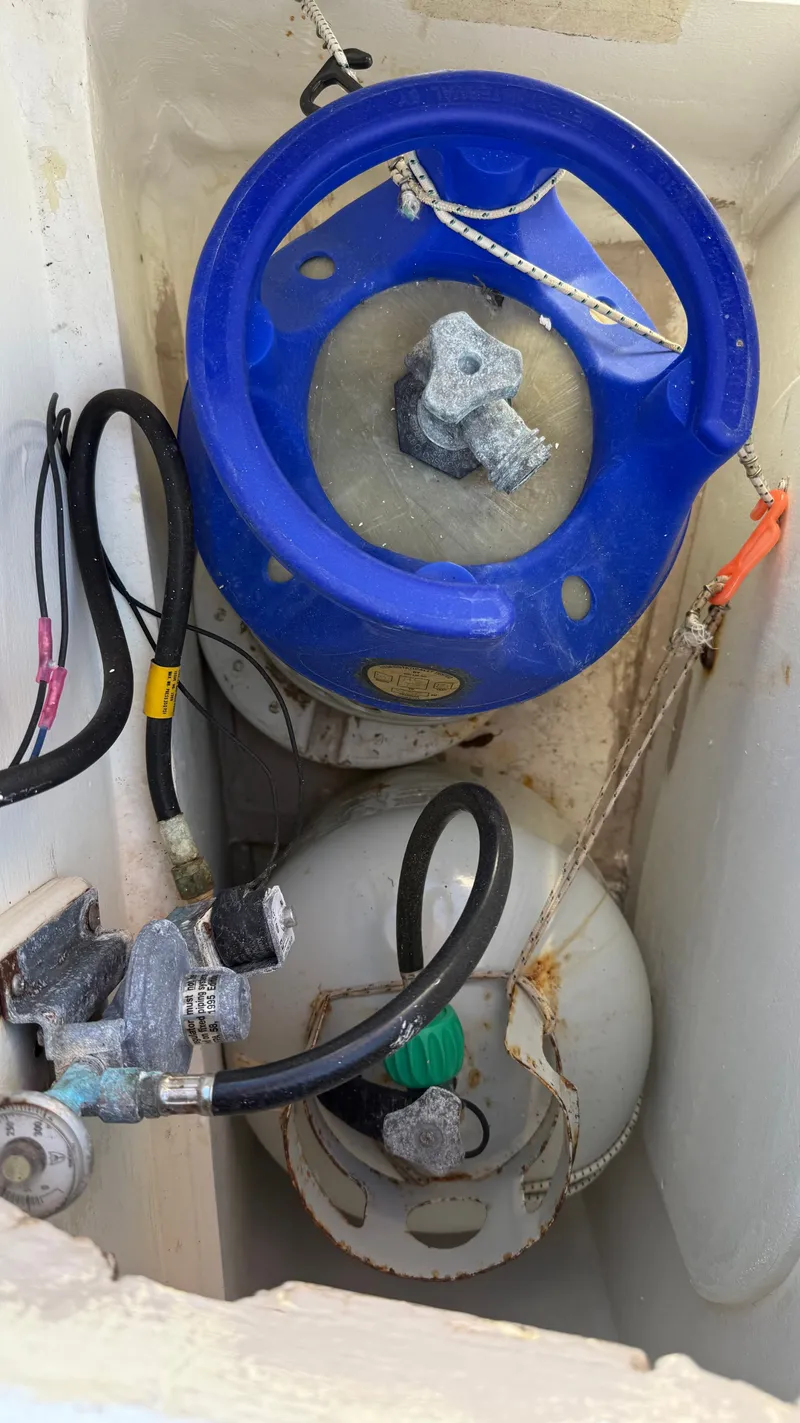

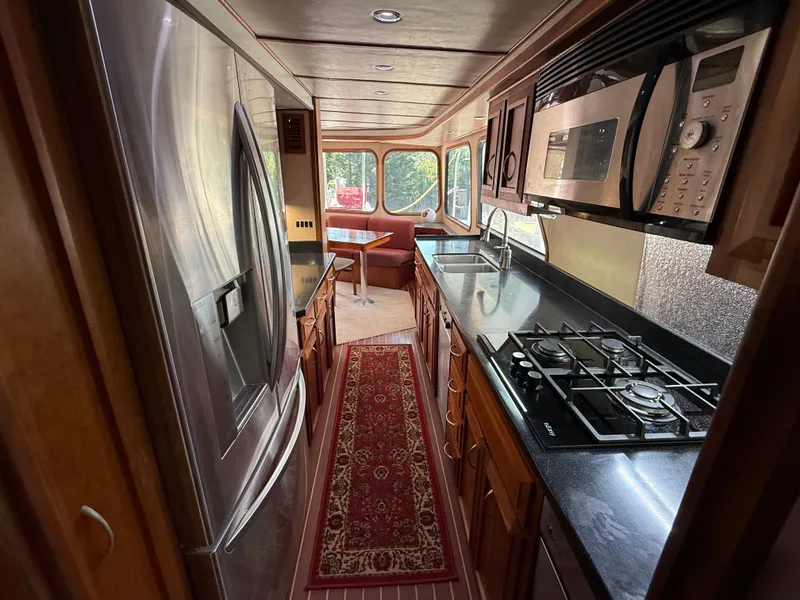

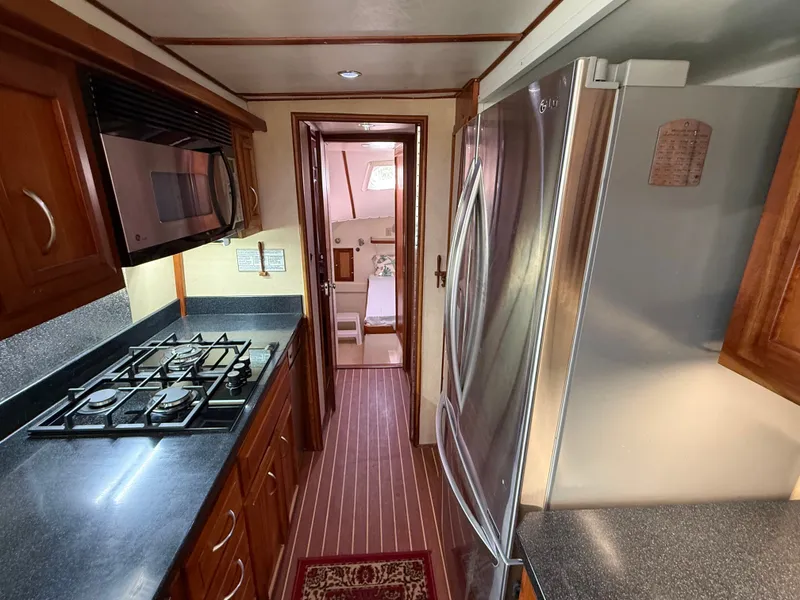

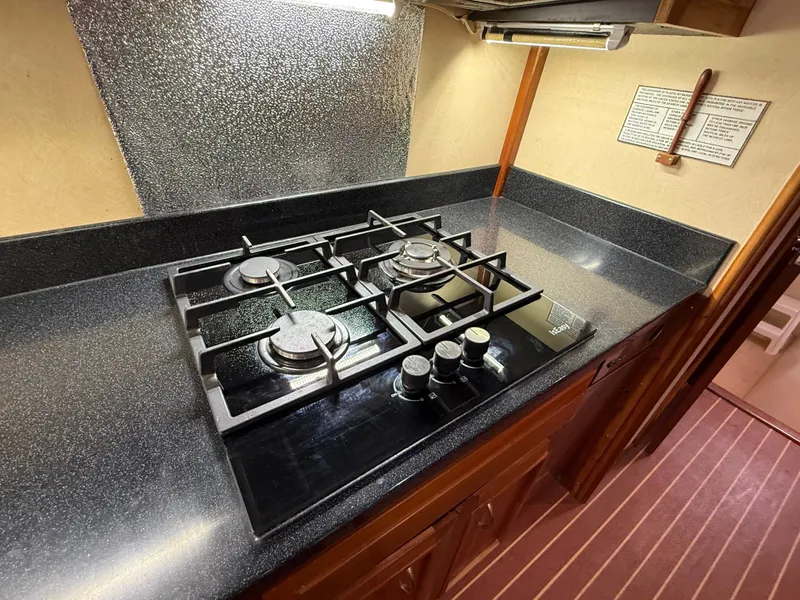

- IsEasy 3-burner propane cooktop with 2 - 20lbs propane tanks
- GE Advantium 120 microwave/convection oven

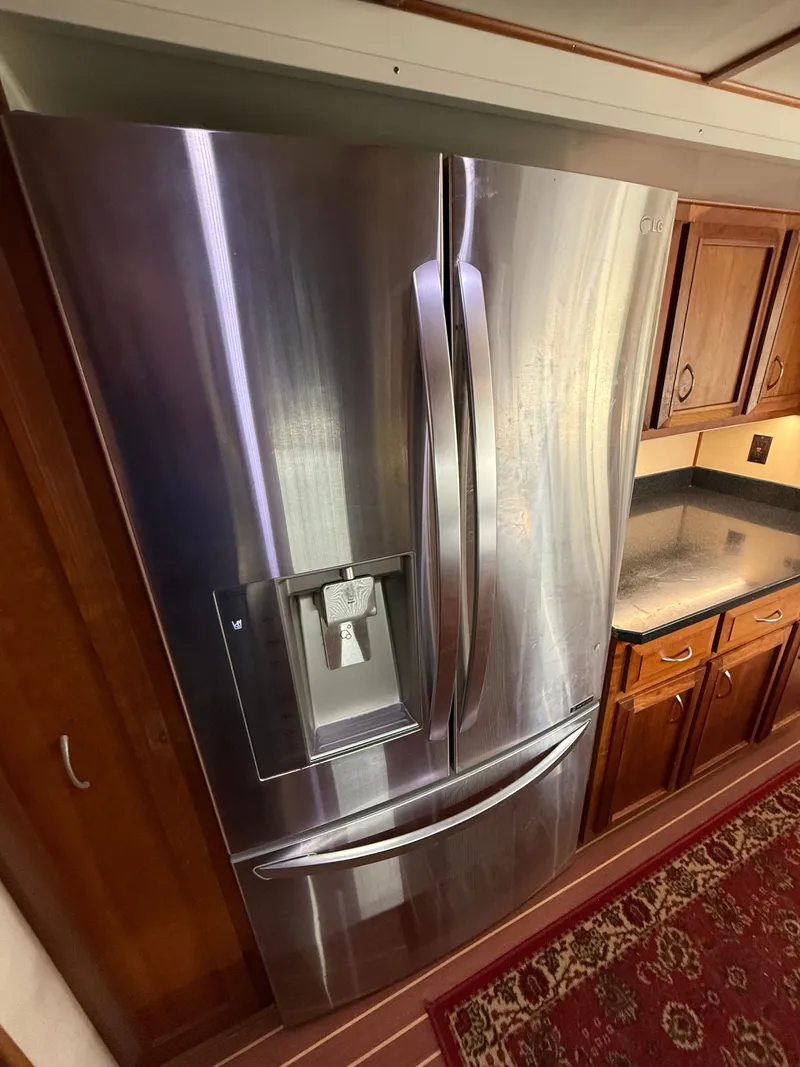

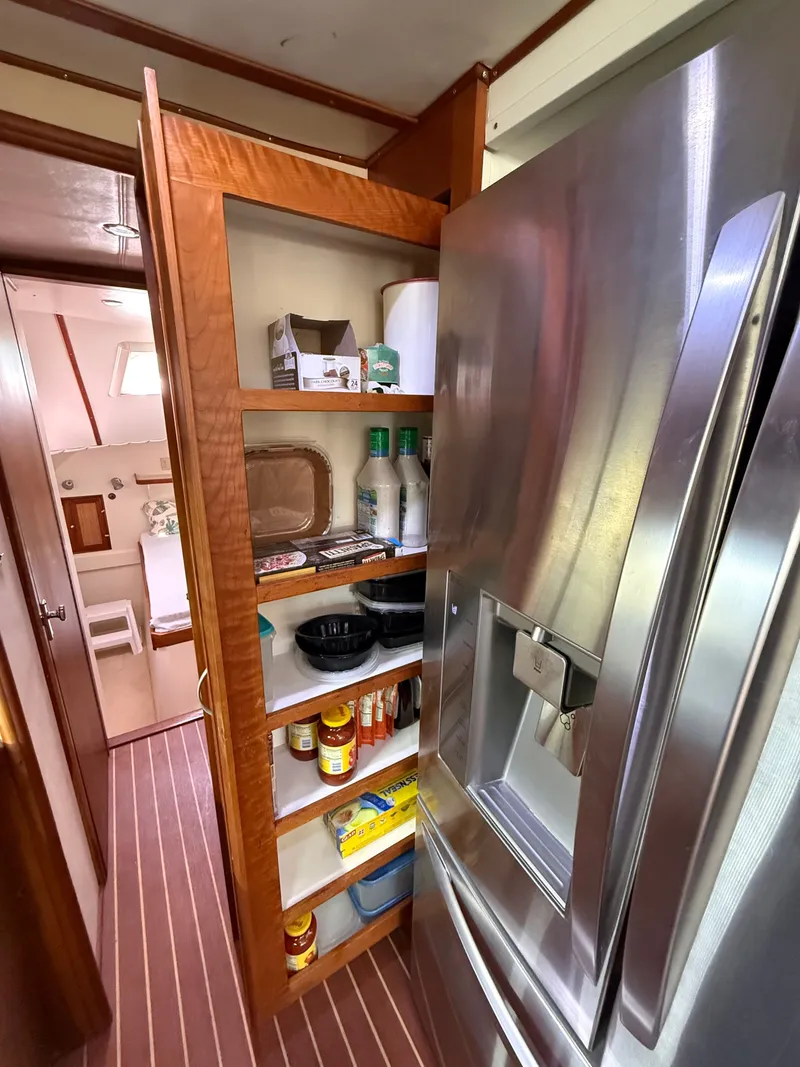

- LG 23 cu. ft. French door refrigerator/freezer with ice maker
- Miele dishwasher
- Magma outdoor grill with 20bls propane tank

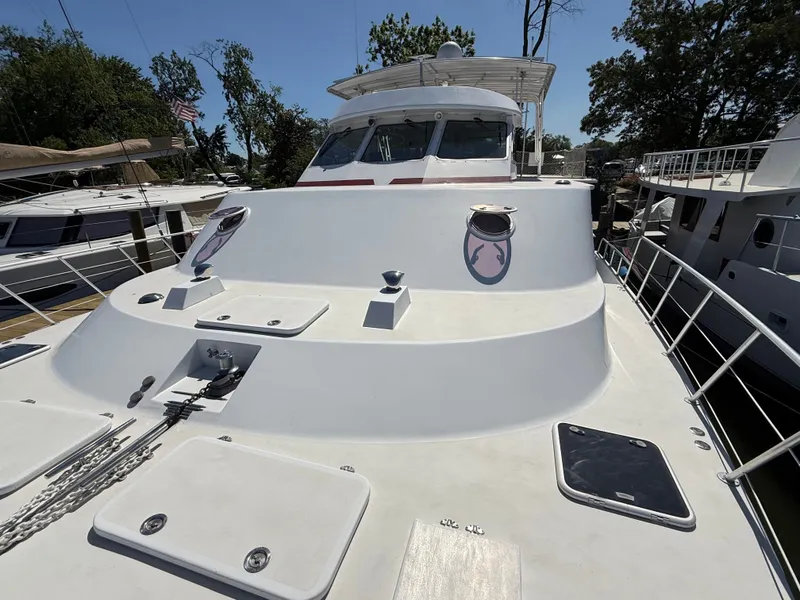

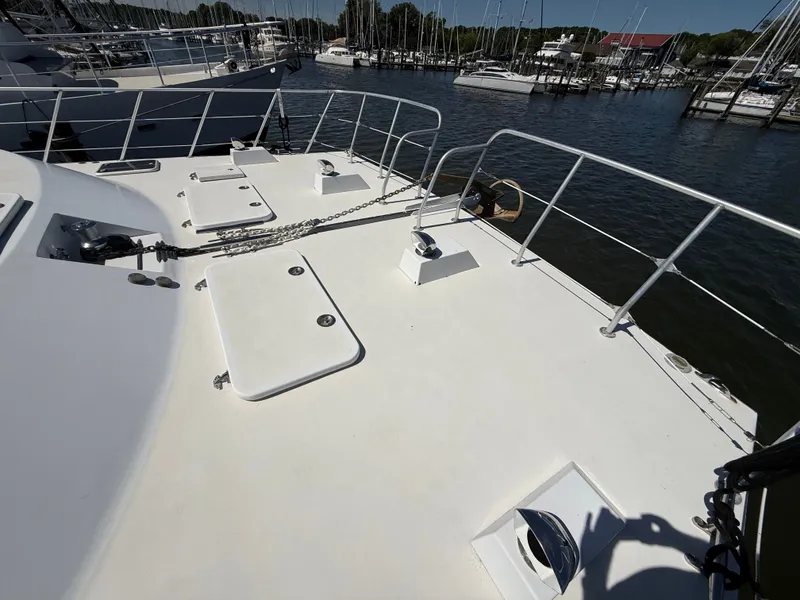

- (10) heavy duty stainless steel cleats (15" & 18")

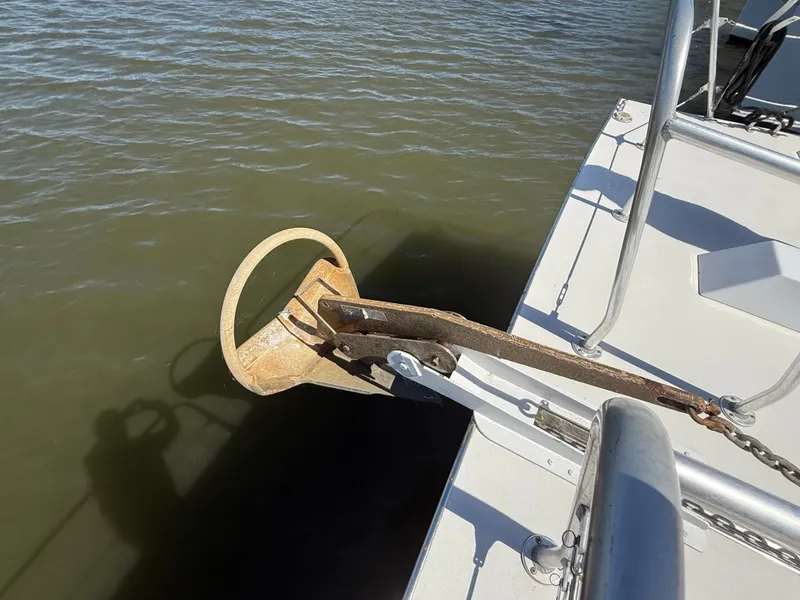

- 88 # Rocna anchor on tilting bow roller
- 200 feet of 3/8" chain
- Fortress 55 anchor w/ 50' chain and 200' nylon rode

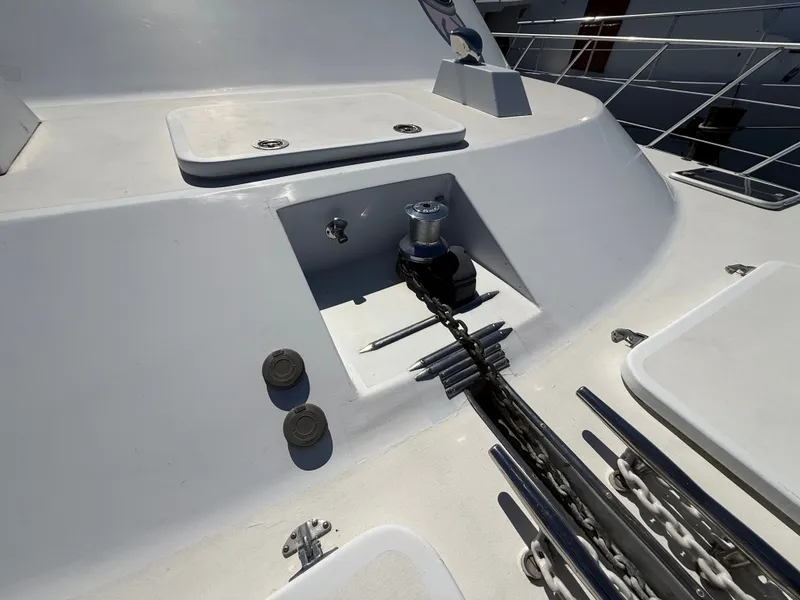

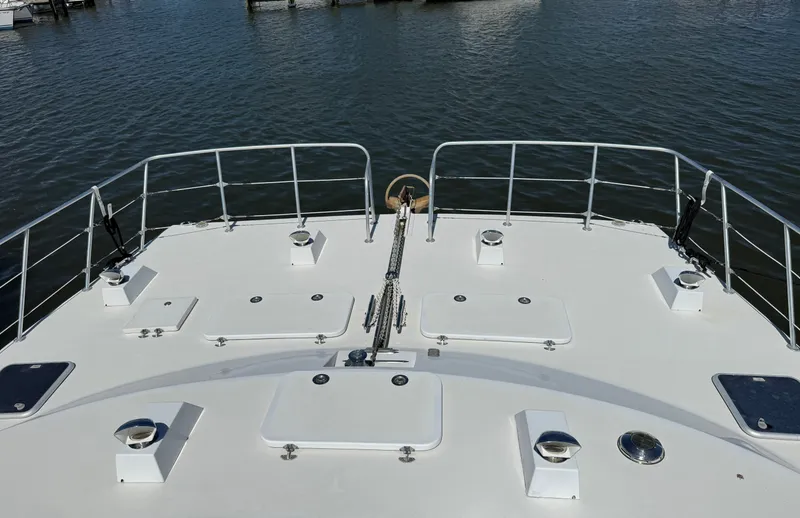

- Lewmar Concept 3 vertical axis anchor windlass

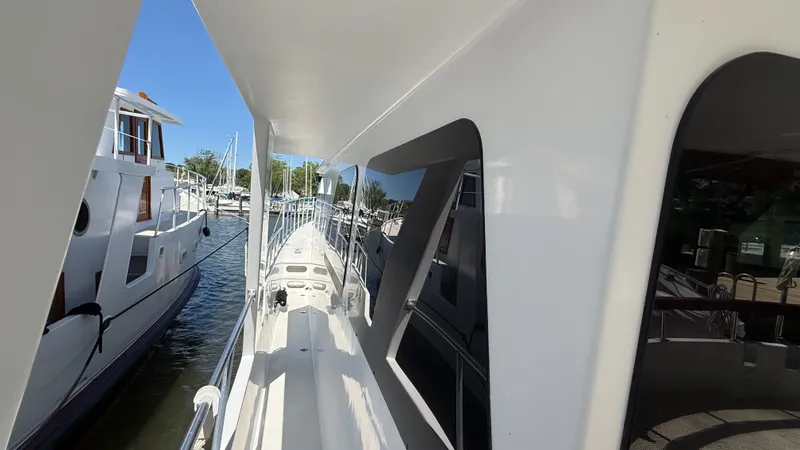

- Bow rails and side rails with safety lines
- Safety lines across aft steps to swim platform
- Mooring lines and fenders

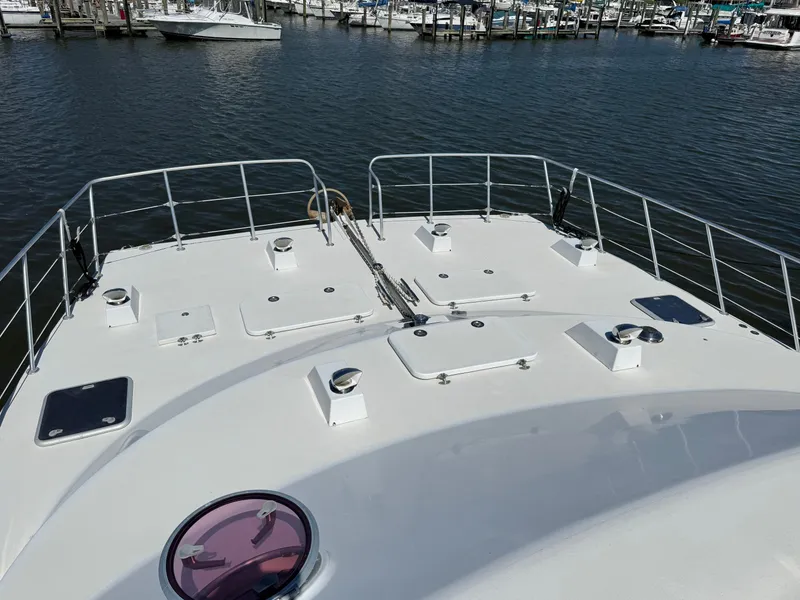

- (3) large storage lockers in fore deck for mooring lines, fenders, spare anchor, and gas can for dinghy
- Winslow Inflatable Life Raft, Model 60SL/0
- (6) life jackets
- EPIRB

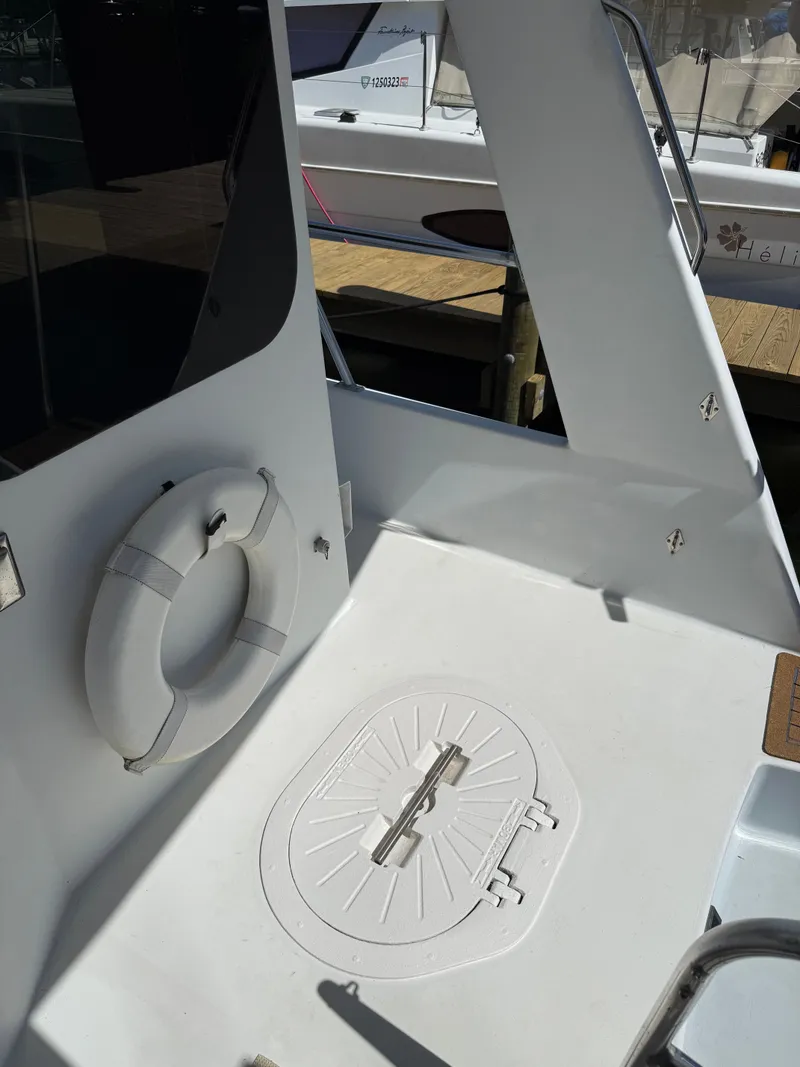

- Life ring
- Jim Buoy horseshoe life ring
- ACR Strobe light
- Flares/bell/horn
- Ditch Bag
- First aid Bag
- Manual bilge pump

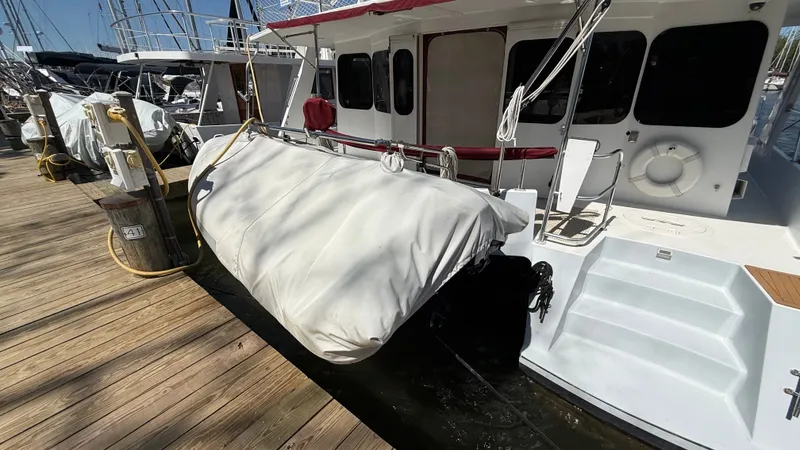

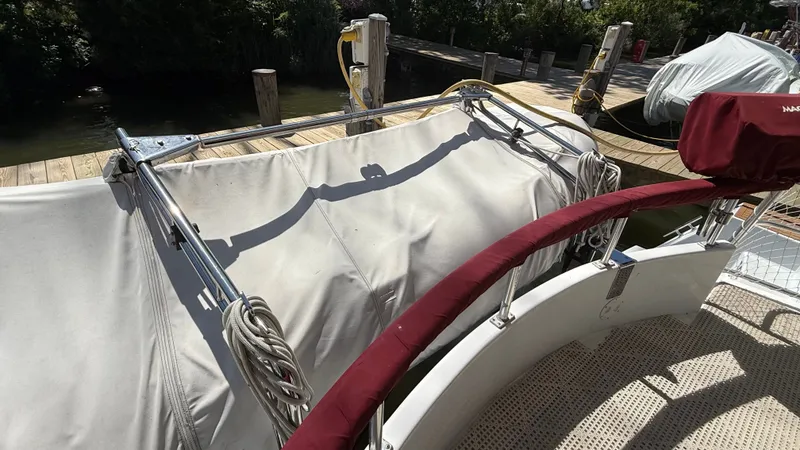

- 2019 10' Highfield
- 2019 15 hp Tohatsu 4-stroke engine with transom lift
- Lifting Sling
- Anchor

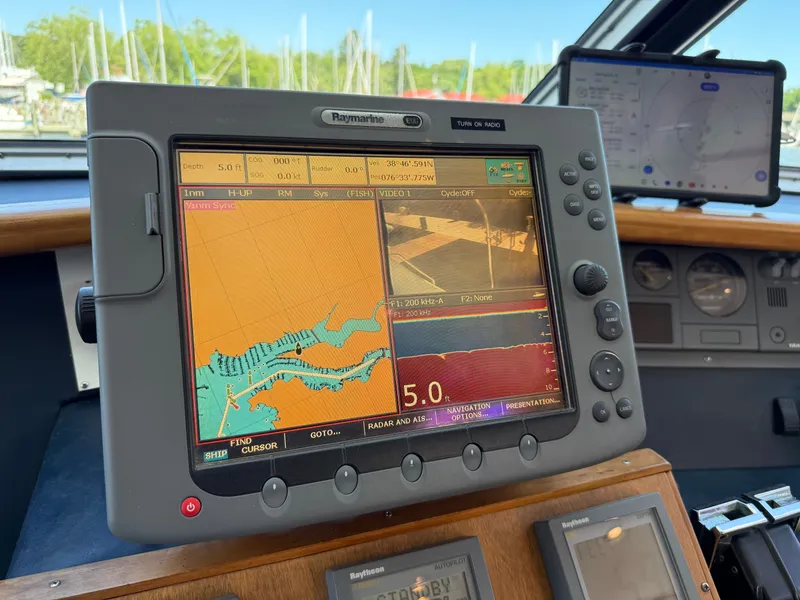

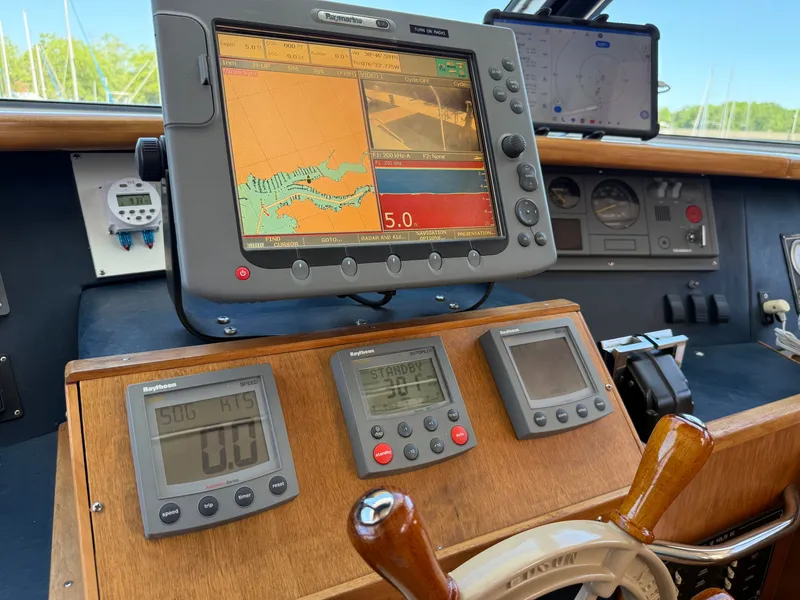

- Raymarine E120 Classic Plotter
- Raymarine 4 kw radar with 24" radome
- Raymarine ST6000 Autopilot with remote
- Raymarine Depthfinder x 2
- Raymarine ST60 Speed
- Raymarine GPS
- ICOM VHF Radio x 2
- ICOM IC-M88 Handheld Radio
- Compass

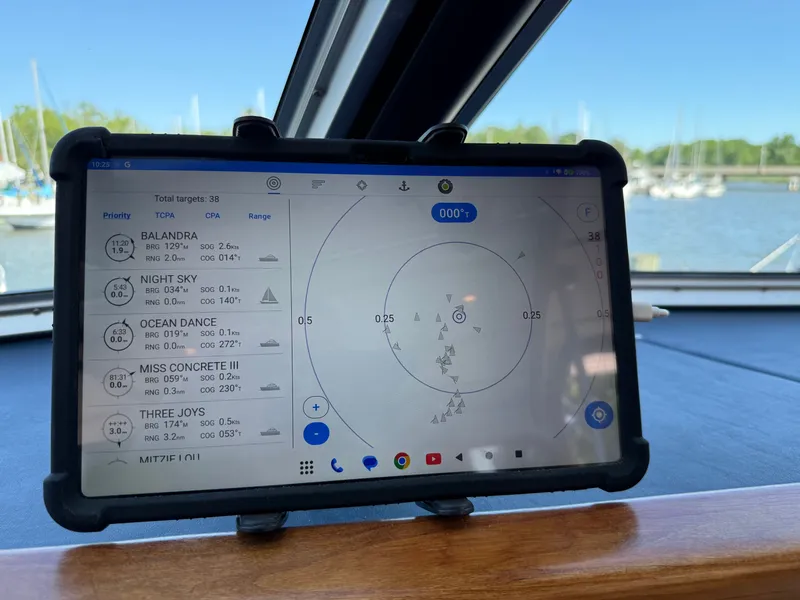

- Vesper Watchmate XB-8000 Class B AIS with Monitor, GPS and VHF AIS Antenna
- Horn
- PA Horn
- Flood Lights x 2
- Starlink Gen 3
- MOFI cellular modem
- Aigean WIFI extender modem
- Raymarine LifeTag Man-Overboard Alarm System

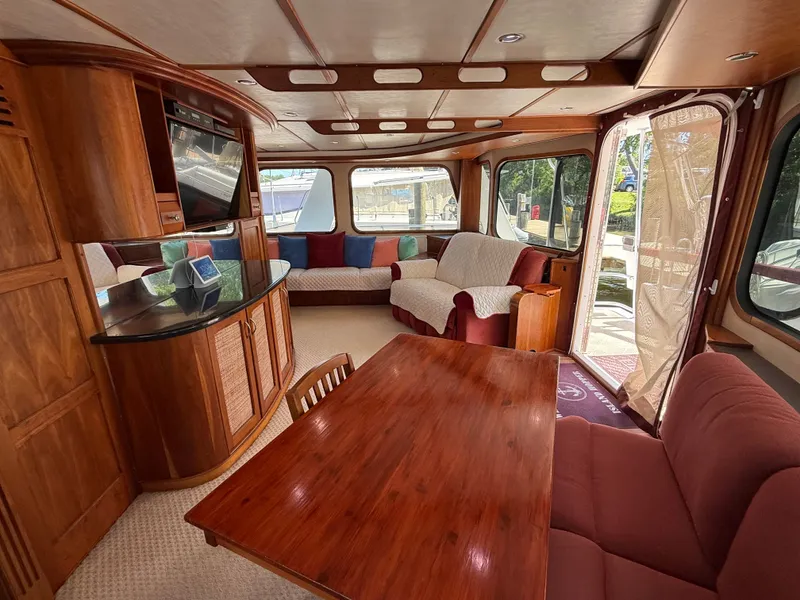

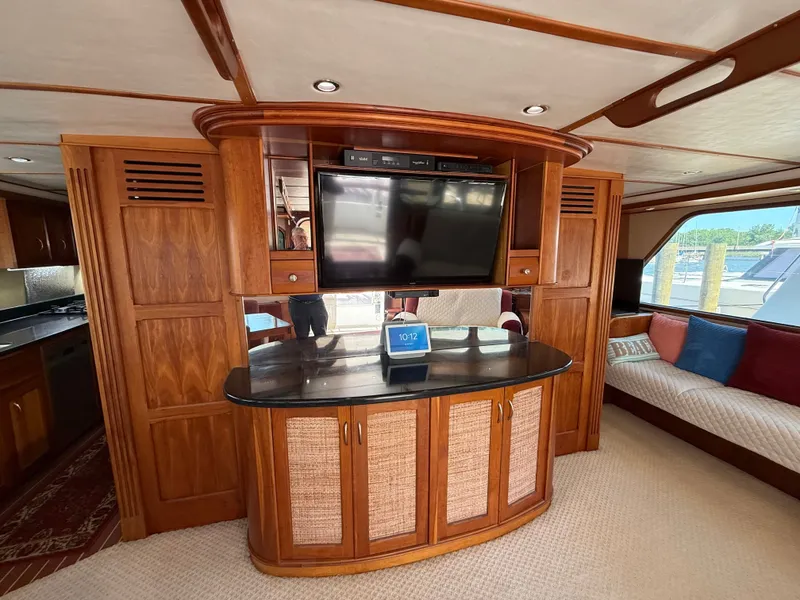

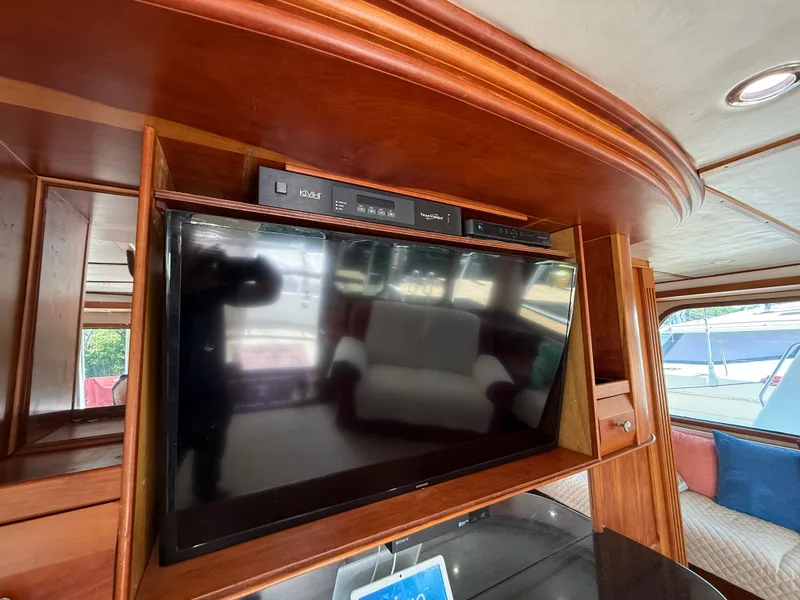

- Main Salon: 40" Samsung smart TV w/ Sony DVD player
- KVH HD7 TrackVision with DirecTV satellite TV receiver

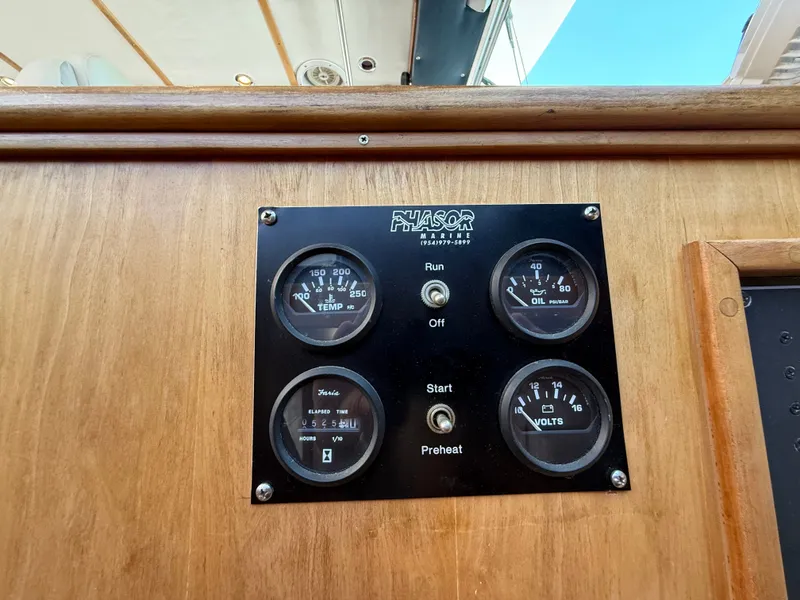

- Genset -Diesel: 12.5 kw Phasor with sound cover
- Solar: 3000w - (4) 450w panels, (6) 200w panels

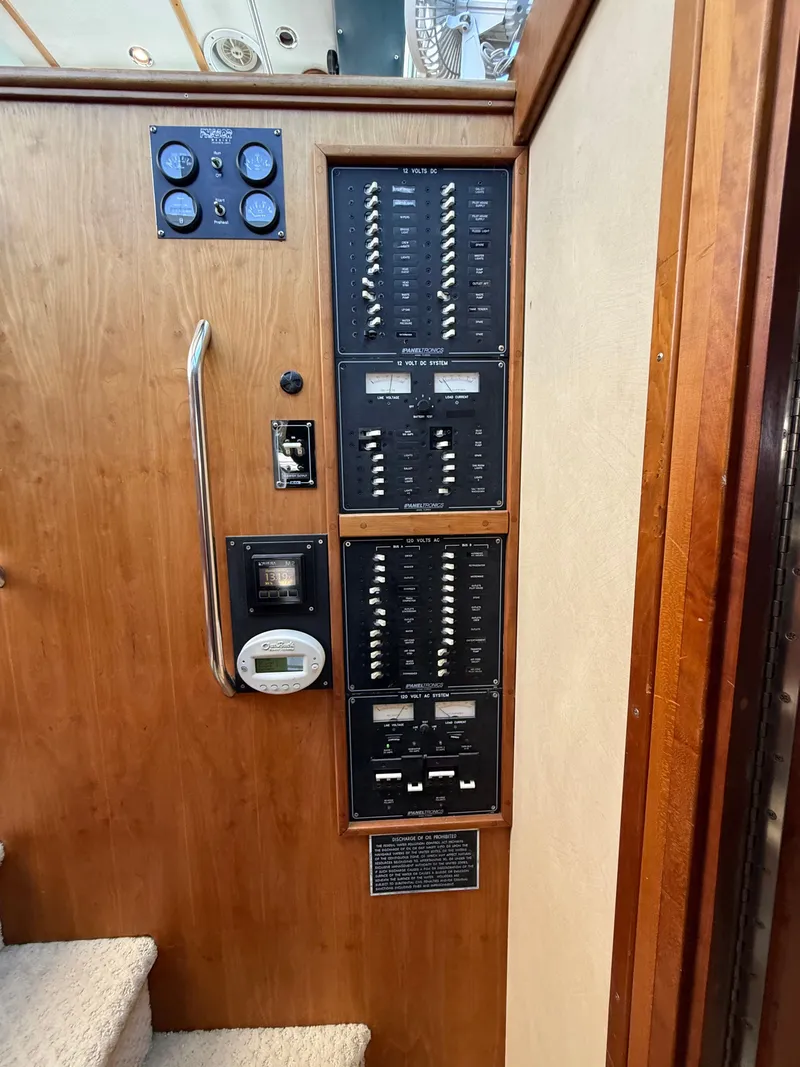

- (7) Victron charge controllers, Victron CerboS

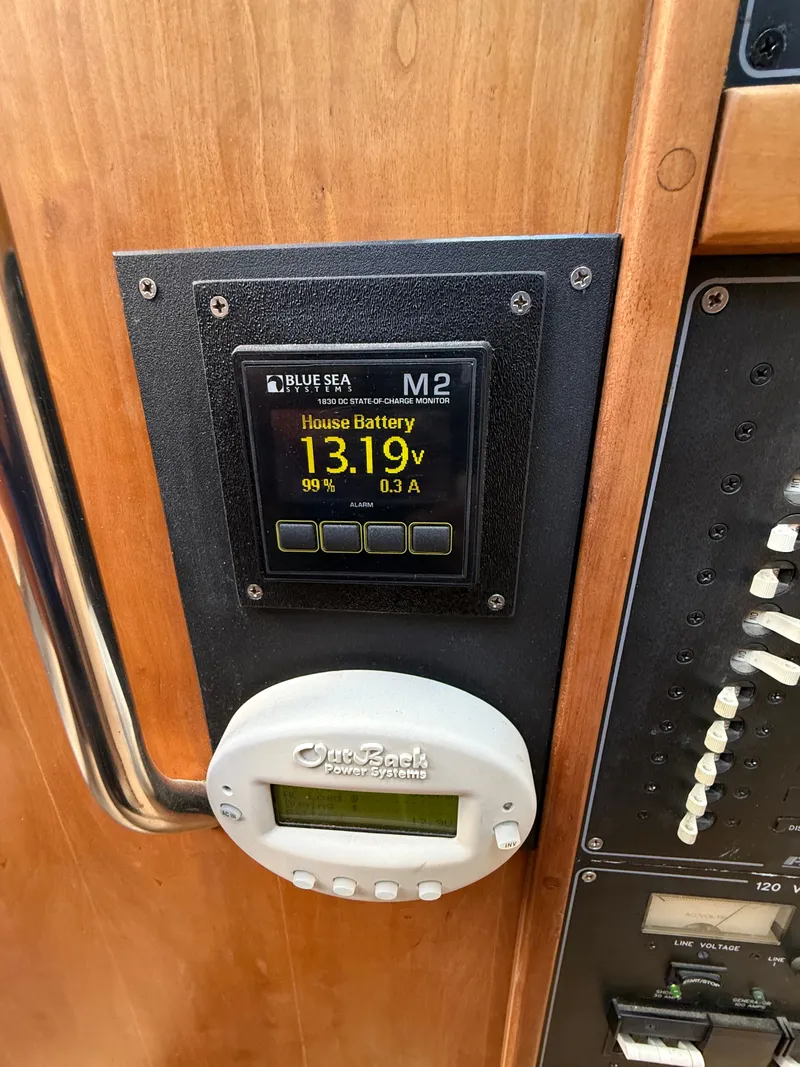

- Inverter/Charger: Outback 2800w with remote panel
- House Batteries: 1200 amp-hrs at 12v with (6) L16 Lifeline AGM
- Engine Start: (2) Group 24 Batteries AGM with Victron Smart Sense Monitors,
- Balmar Duo Charge, Balmar Max Charge MC-614
- Shore Power: 50 amp, 220 v with 50 ft cable/connections, spare 50 amp and 30 amp cables
Air Conditioning & Heating:
- Four reversible heat pumps totaling 64,000 btu
- Tankage: Total of 220 gallons in 4 tanks
- Water Heater: 20 gallon

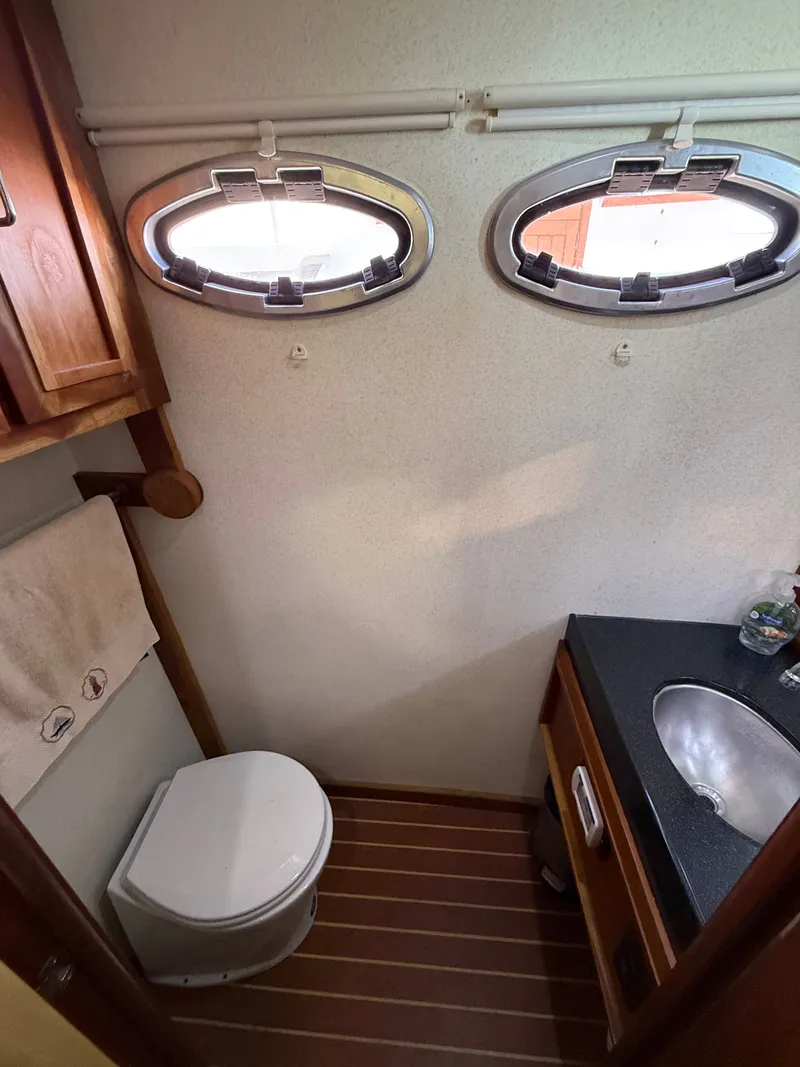

- Commodes: (2) electric fresh water plumbed directly to waste tanks
- Black Water Tanks: (2) 35 gallon tanks with deck pumpout & lockable overboard discharge
- Gray Water Tanks: (2) 52 gallon tanks with deck pumpout & pumped overboard discharge

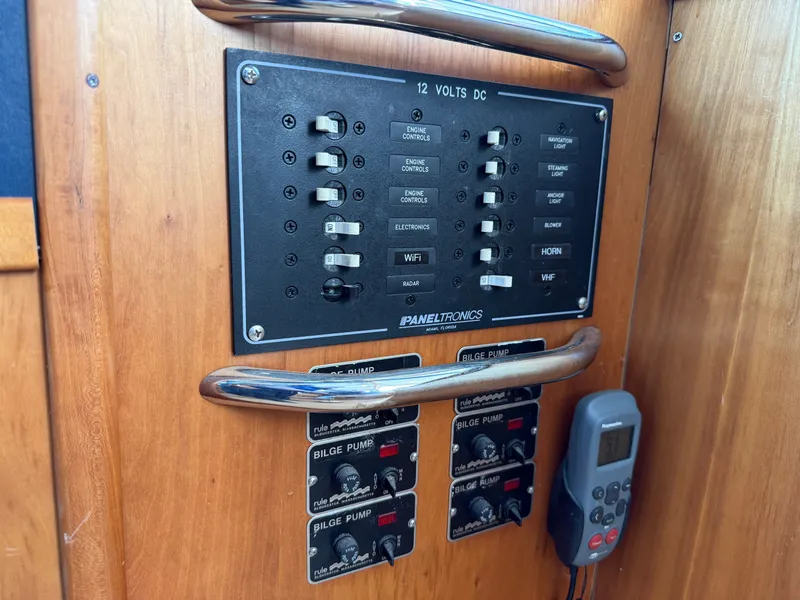

- (4) 2000 gph bilge pumps
- (2) shaft sumps with pumps

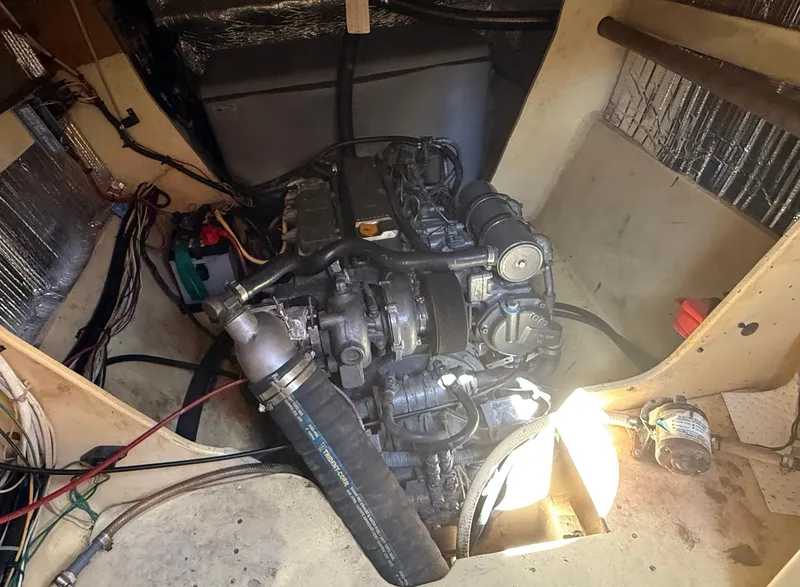

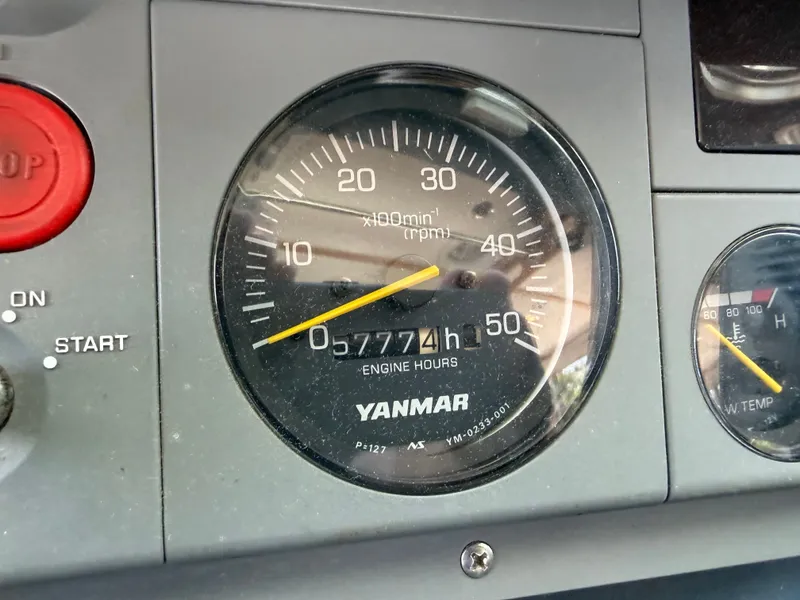

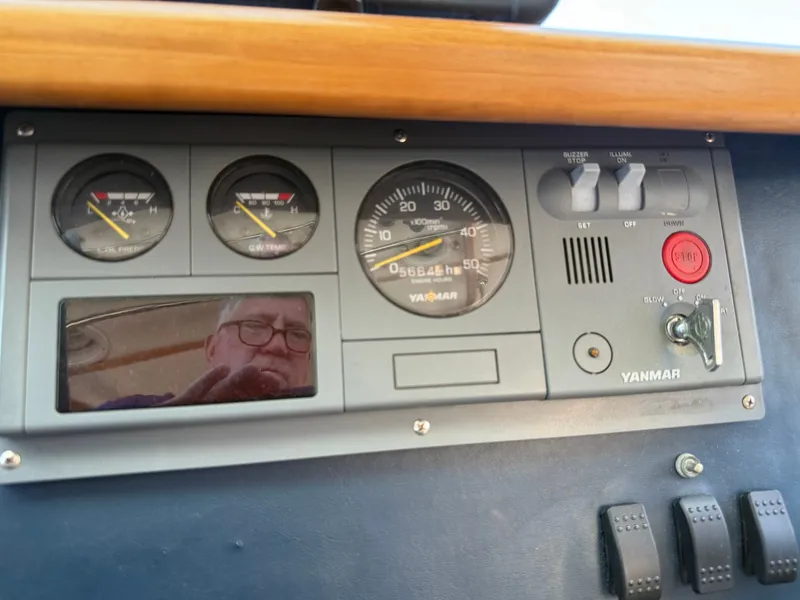

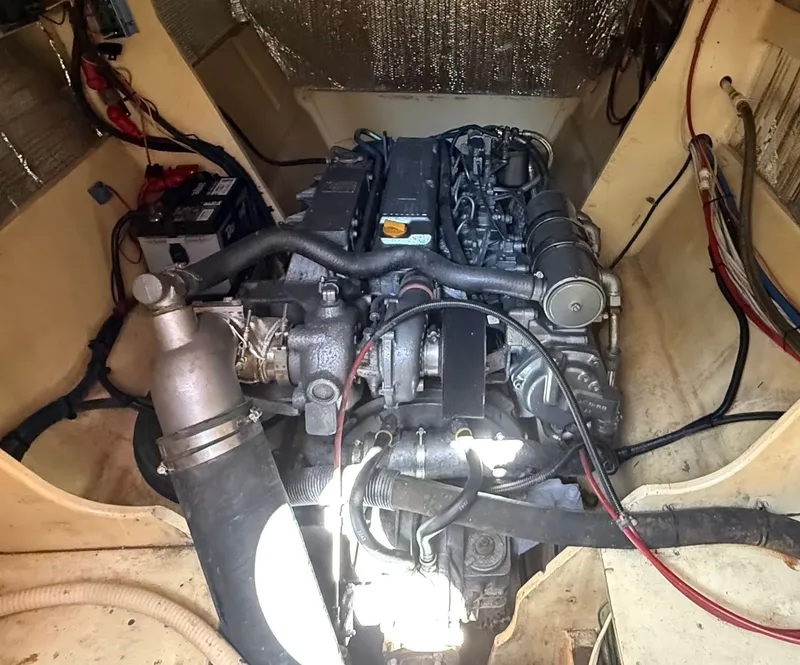

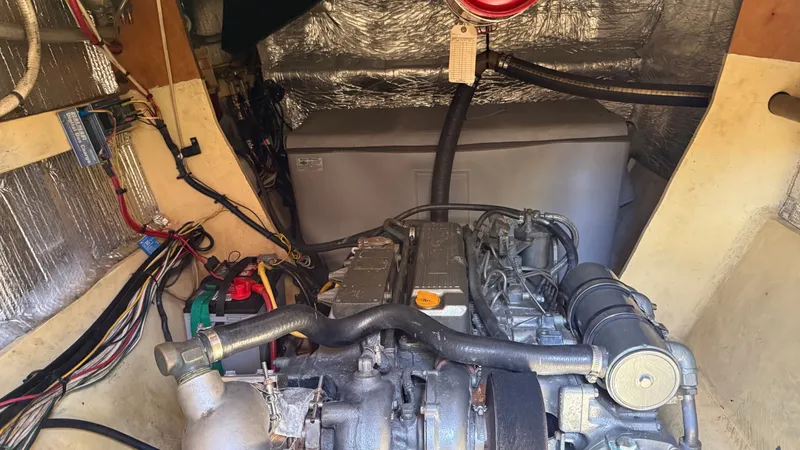

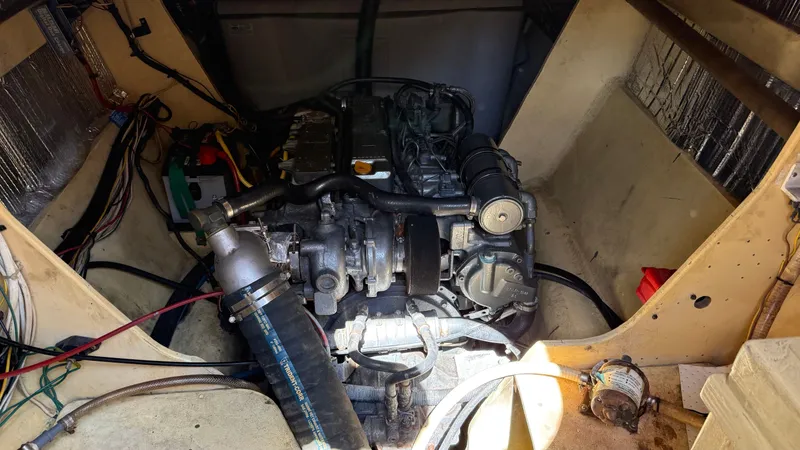

- Twin Yanmar 4LHADTE Diesels (190 Hp each)

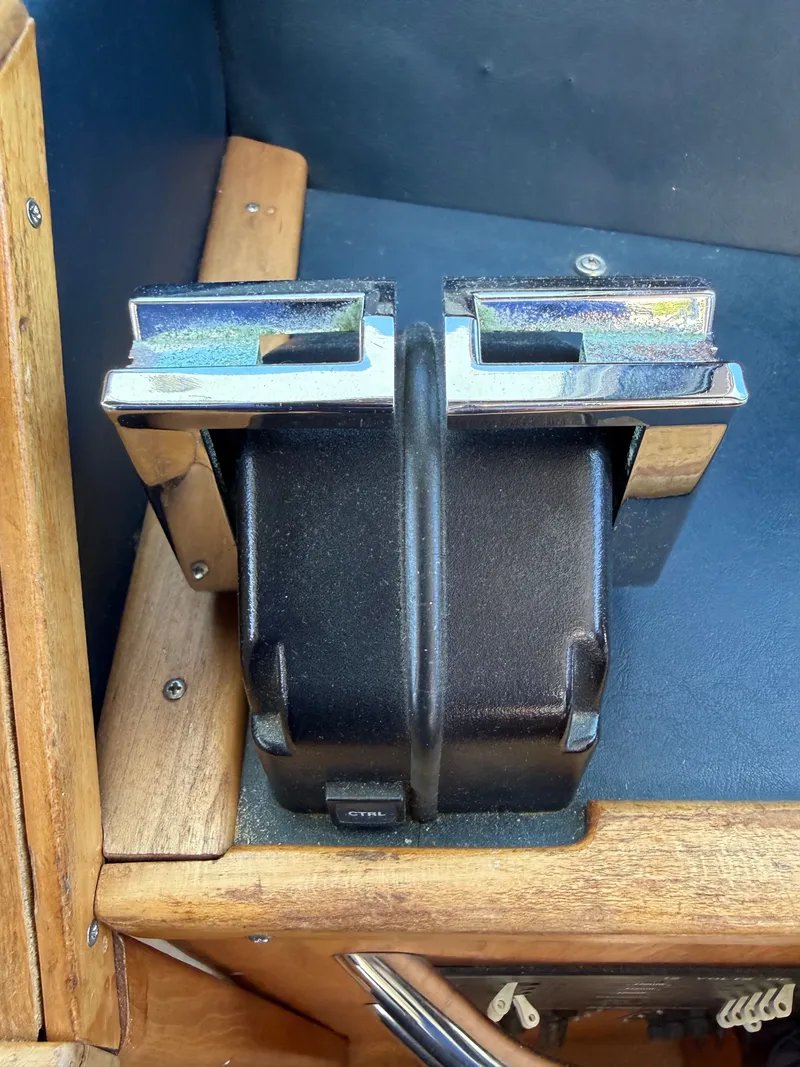

- ZF Mathers MicroCommander control station

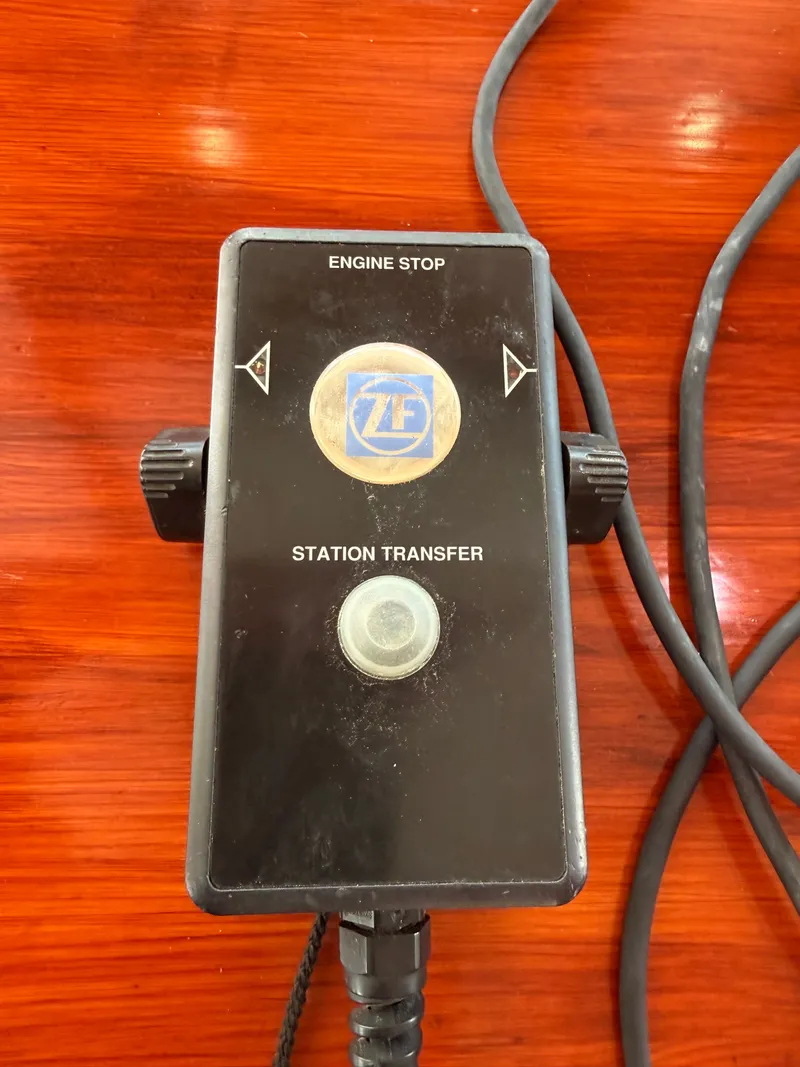

- Four remote control input stations for ZF Mathers wired remote control.
- PSS Shaft Seals
- Hynautic Hydraulic Steering
Fire Protection
- Engine Rooms: Automatic fire suppression system
- Living Spaces: (5) fire extinguishers
Fuel System
- Fuel Capacity: 2260 gallons
- Tankage: (4) 430 gallon tanks, (4) 135 gallon tanks
- Tank Construction: .25 inch aluminum baffled with sumps
- Fuel Cleaning/Polishing System: Centrifugal filter and permanent magnet
- Fuel Transfer System: Any tank to any tank through the polishing system
- Final Fuel Filtering: Racor filters in engine room
Price History
| Date | Event | Price |
|---|---|---|
| 10/30/26 | Price decreased | $324,900(-6.9%) |
| 5/30/26 | Initial price | $349,000 |
Overview from around the web 2001 Crosswater Passagemaker 49
The 2001 Crosswater Passagemaker 49 has garnered positive feedback from customers, highlighting its exceptional craftsmanship and performance
Owners appreciate its sturdy construction, designed for long-distance cruising, and its seaworthiness in various conditions. The spacious interior is frequently mentioned, with many noting the comfortable living quarters and well-organized layout that makes extended trips enjoyable. Customers often commend the boat’s efficient fuel consumption and reliable engine performance, making it a favorite for those seeking a capable passagemaking vessel. The quality of the woodwork and attention to detail in the design are also frequently praised, adding to the overall charm of the boat. Safety features, including its stability and handling, have been emphasized as reassuring for both experienced and novice boaters. Additionally, the versatility of the Passagemaker 49 is appreciated, as it can serve as both a luxurious liveaboard and a practical cruiser. Overall, owners of the 2001 Crosswater Passagemaker 49 express satisfaction with their purchase, highlighting its combination of comfort, performance, and durability.
The Biggest Pros and Cons
The 2001 Crosswater Passagemaker 49 is a noteworthy vessel in the world of long-distance cruising and liveaboard boating. Here’s a look at some of its pros and cons:
Pros
Spacious Layout: The Passagemaker 49 offers a generous interior space, making it ideal for families or those looking to spend extended periods on the water. With multiple cabins and heads, it provides comfort and privacy.
Solid Build Quality: Known for its sturdy construction, the Crosswater Passagemaker features a durable hull designed to withstand various sea conditions, ensuring safety and reliability on long voyages.
Efficient Cruising: The boat is designed for efficiency, boasting excellent fuel economy during long-range cruising. With its efficient engine setup, it can cover significant distances without excessive fuel consumption.
Stabilized Performance: Many models are equipped with stabilizers, offering a smoother ride in choppy waters. This feature enhances comfort for those on board during longer trips.
Versatile Design: The layout can be customized to meet different needs, such as incorporating additional storage or workspace, making it suitable for diverse cruising lifestyles.
Long Range Capabilities: With a well-designed fuel system, the Passagemaker 49 can travel considerable distances without frequent stops for refueling, making it perfect for remote explorations.
Cons
Maintenance Costs: As with many boats of this size and age, maintenance can be expensive. Older models may require more frequent upkeep or upgrading of systems to remain reliable.
Speed Limitations: While designed for efficiency, the Passagemaker 49 may not be the fastest vessel in its class. Those looking for high-speed cruising might find this model too slow for their tastes.
Older Electronics: Depending on the specific vessel and its updates, the electronic systems may not be as advanced as newer models. Upgrading navigation and entertainment systems could be necessary.
Maneuverability: Due to its size, maneuvering in tight spaces or docking can be challenging for inexperienced boaters. Adequate training and practice are essential for optimal handling.
Weight: The heavy build that contributes to its durability can also be a downside, as it may limit some aspects of performance compared to lighter, more modern boats.
Resale Value: As a vessel ages, its resale value may decline, and it can be more challenging to find potential buyers for older boats, especially if they require significant updates.
Made For
The 2001 Crosswater Passagemaker 49 is an ideal choice for experienced boaters and adventurers who seek a perfect blend of comfort and functionality on the water. Designed for long-range cruising, this vessel is well-suited for those who appreciate the finer points of boating while valuing safety and reliability. With its spacious layout, the Passagemaker 49 accommodates families or groups of friends, making it perfect for weekend getaways or extended voyages. The thoughtful design includes multiple living areas, a well-equipped galley, and comfortable sleeping quarters, ensuring that everyone on board can relax in style. Equipped for both stability and performance, this trawler-style yacht appeals to those interested in leisurely exploration and the freedom to venture off the beaten path. Whether you're cruising coastal waters or venturing into more remote destinations, the Crosswater Passagemaker 49 offers the seaworthiness and amenities that make it an excellent choice for those who are passionate about the cruising lifestyle.
