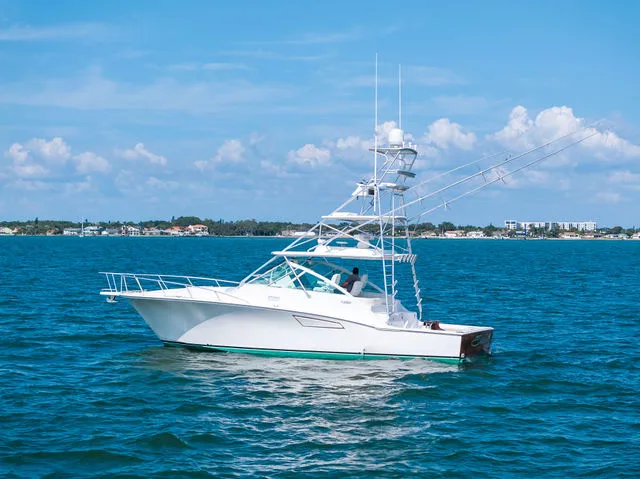

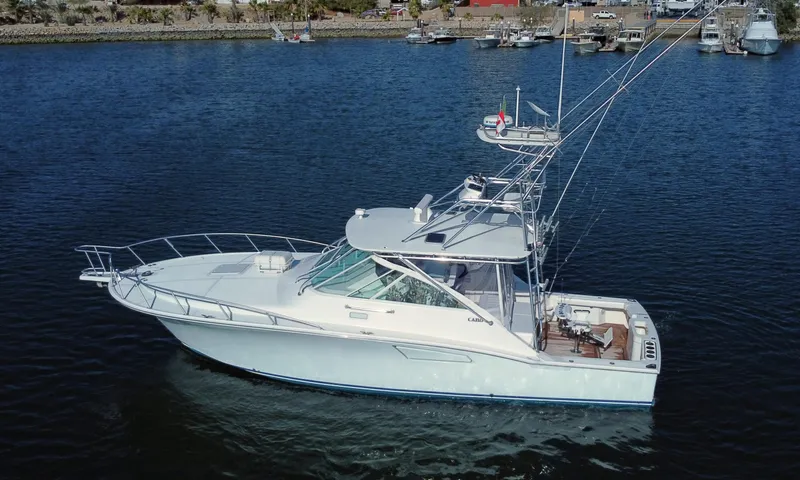

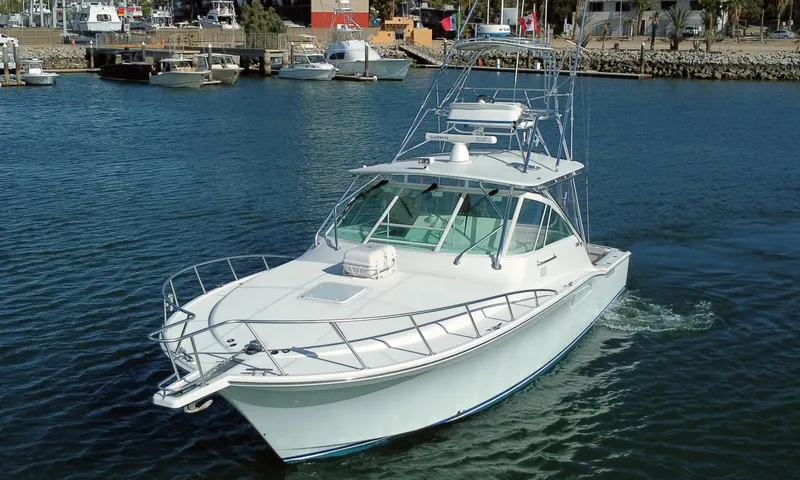

2005 Cabo 40 Express
$399,000
Boat in Dana Point, CA 92629 US
Built in 2005
40 Express
2 Engines (2x CAT)
42.8 feet
Diesel
Fiberglass/Reinforced

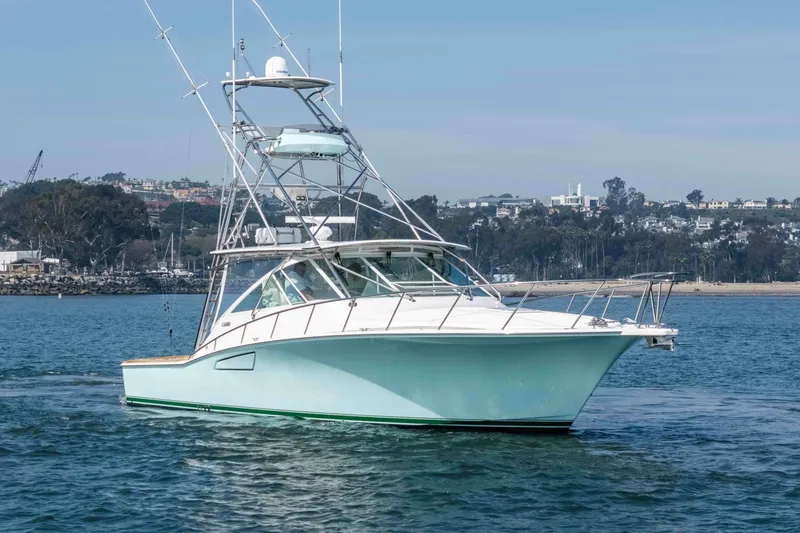

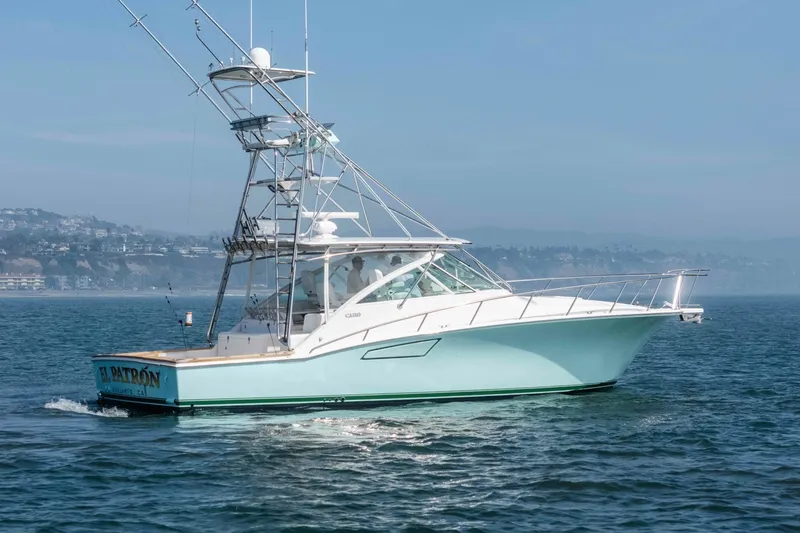

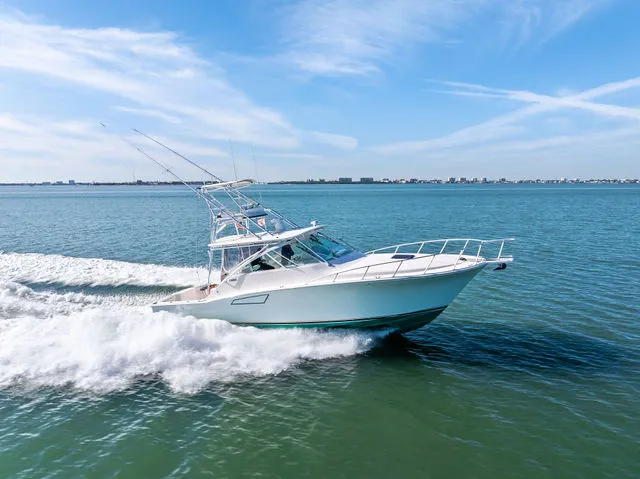

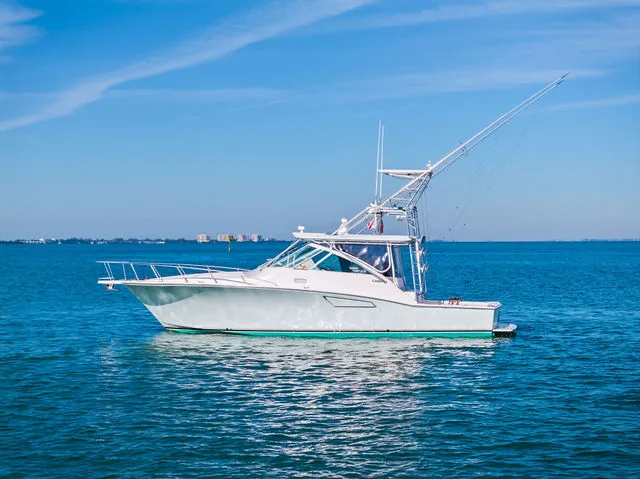

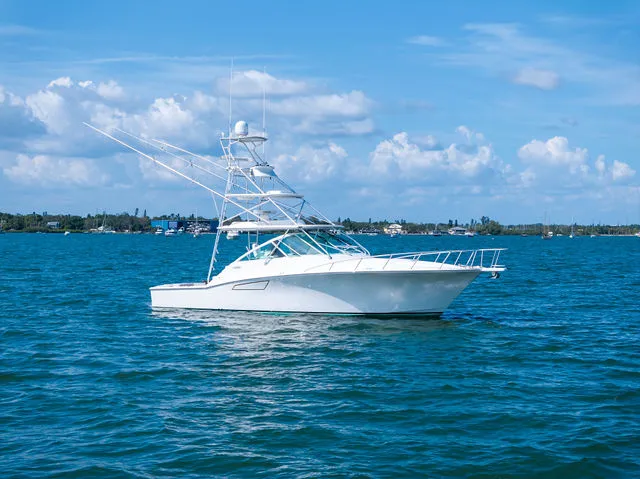

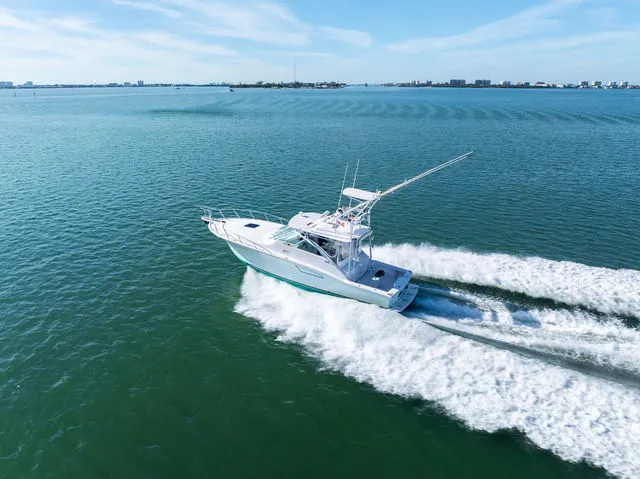

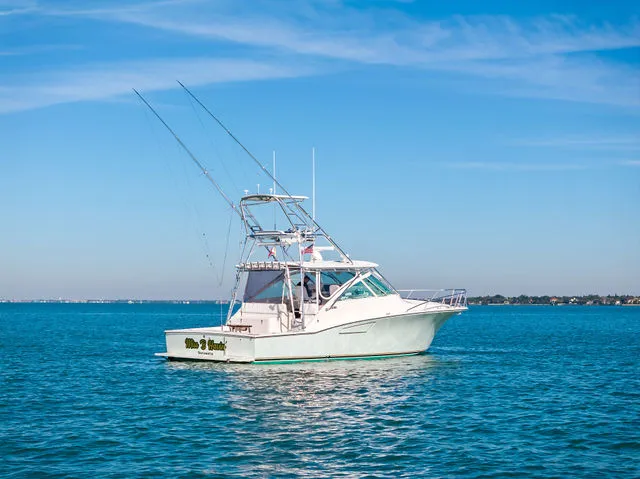

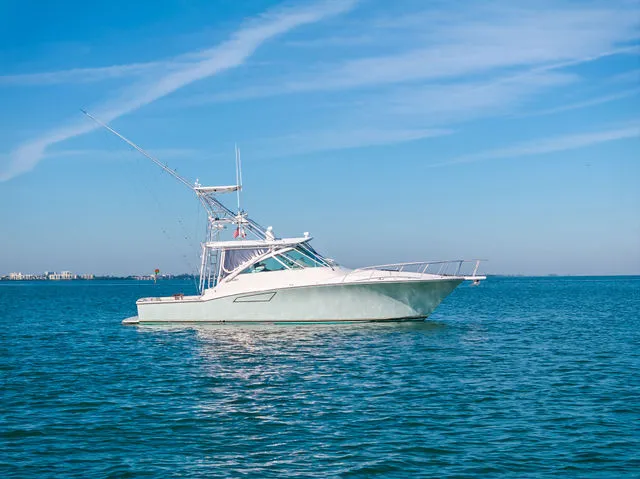

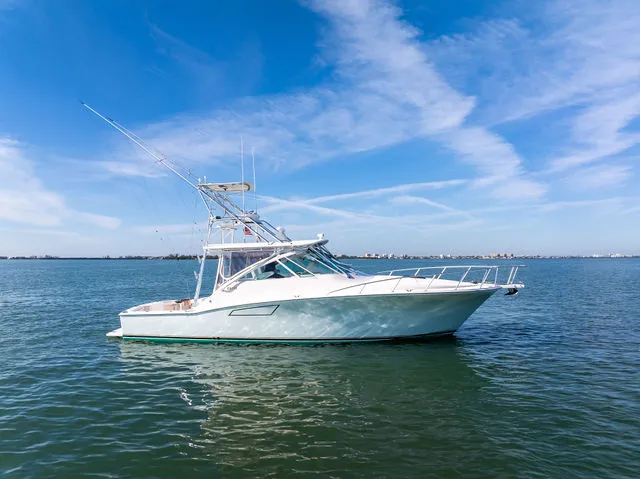

The 2005 40 Cabo Express Boat - "El Patron" represents a purpose-built offshore fishing machine designed for anglers who appreciate performance, precision rigging, and thoughtful craftsmanship. Powered by twin Caterpillar C12 engines producing 700 horsepower each, delivering exceptional torque and reliability through their turbocharged-aftercooled design, this Cabo provides the strength and efficiency needed for serious offshore pursuits. The cockpit is fully equipped with premium fishing features including an offshore cockpit bait tank, oversized transom bait tank, three recessed transom tuna tubes, Rupp double spreader outriggers, and a fighting chair, giving anglers a highly capable and efficient fishing platform. With custom West Coast stainless steel bow rails and extensive attention to rigging detail, "El Patron" truly is a standout Cabo 40 Express.
- Nova-Kool RFS6100 Refrigerator/Freezer
- Panasonic NN-T888S Microwave/Convection oven
- Kenyon 2-Burner electric cooktop
- Corian countertops
- (2) AC Electrical outlets
- Complete vinylester resin construction

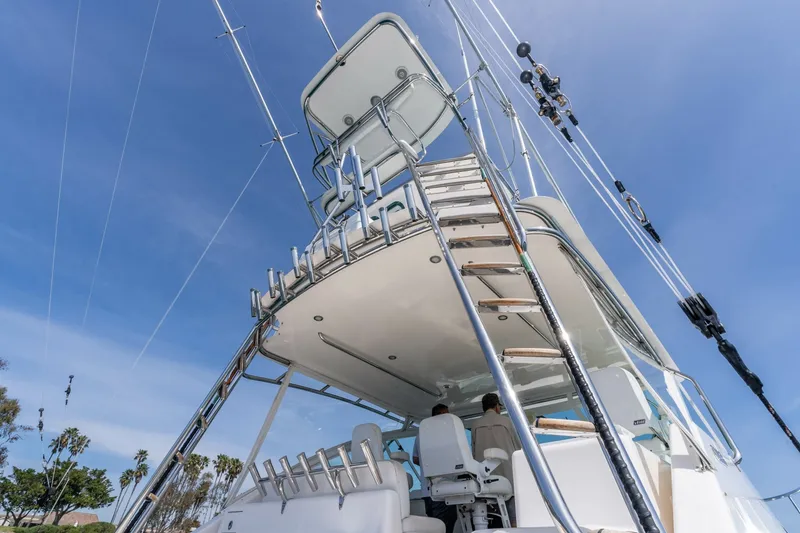

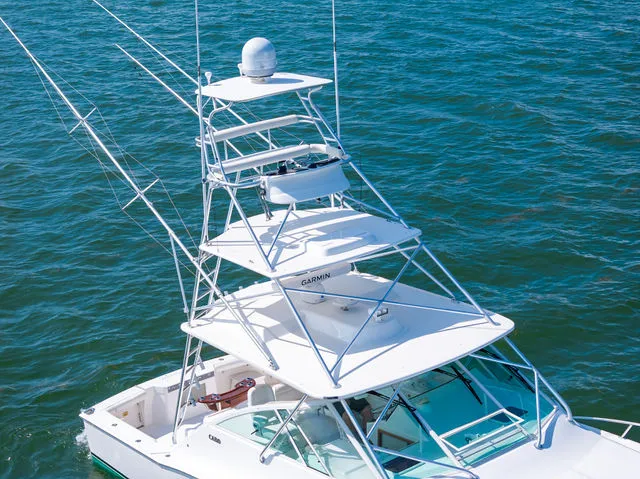

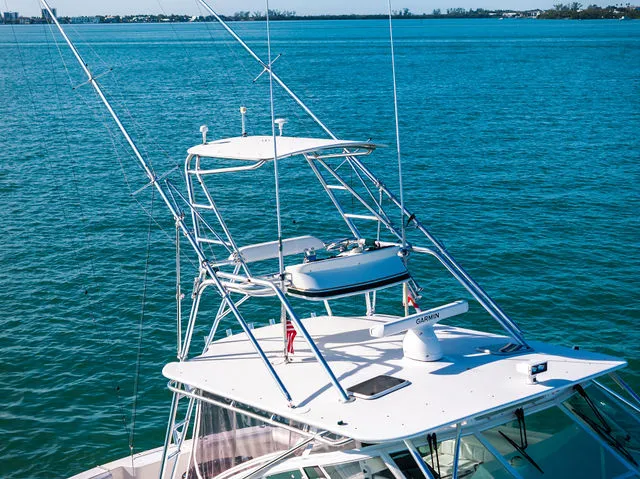

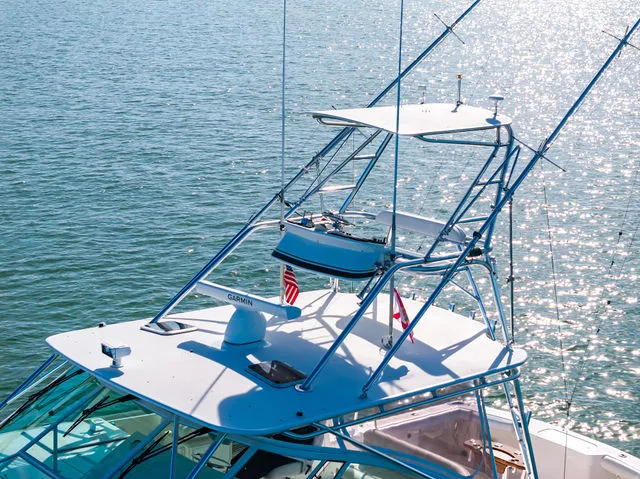

- C-Fab Stainless steel tuna tower
- Custom stainless steel West Coast bow rails
- Stainless steel cleats and stern hawse pipes
- (3) Stidd Helm Chairs
- L-shaped lounge at helm deck
- Increased sound insulation
- Helm deck on hydraulic lift for engine room access
- Helm deck carpeting
- Fiberglass tackle lockers to starboard
- (2) In deck fish boxes - (1) with Glacier Marine freezer plate
- Tackle center cockpit freezer
- Bait-prep station w/sink
- Insulated drink box
- Underwater lights
- Glendinning Cablemaster
- Lewmar vertical windlass w/75' high test chain and 250' rode
- Furuno 6kW Radar
- Furuno TZ
- Simrad Autopilot with AP-20 control head (lower helm)/AP-22 control head (Tower)
- Furuno CH-270 Searchlight sonar w/Furuno display
- Icom M-602 VHF Radio w/Command Mic
- Icom M-504 VHF Radio (Tower)
- (2) Furuno RD-30 Digital display (Upper and lower)
- ACR RCL-100D Spotlight with upper and lower remote
- Sea-Tel Satellite TV
- Exalto digital wiper control
- Caterpillar digital engine instruments
- Furuno TZT 14X2 on helm
- B275LHW wide beam chirp airman transcender
- Offshore cockpit bait tank
- Oversized transom bait tank
- (3) Recessed transom tuna tubes
- Rupp double spreader outriggers
- Custom West Coast stainless steel bow rails
You'll find plenty of examples of fine engineering aboard this Cabo, but one benchmark example is the electrical distribution panel. It has great easy access that allows you to swing the panel open to display the fine craftsmanship that Cabo was known for.
- 24V DC and 120V AC Power distribution panel
- 50A 125V Shorepower inlet w/Glendinning Cablemaster
- Vanner 60A 65-60 Battery Equalizer
- Newmar PT-24-45F Battery Charger
- Newmar PT-24-20 CE Battery Charger
- Vanner VLT24-1000 Pure Sine Wave Inverter
- Engine room AC power outlets
- Kohler AEKOZD 8.5 kw Generator (New 2018)

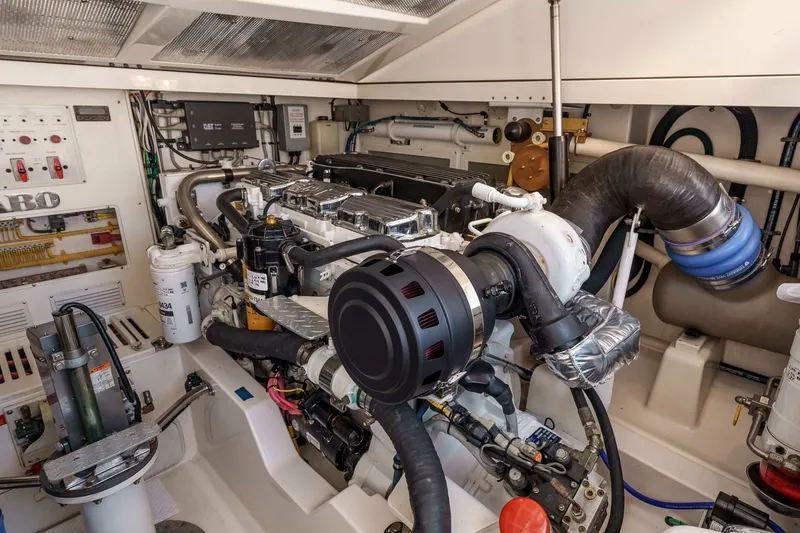

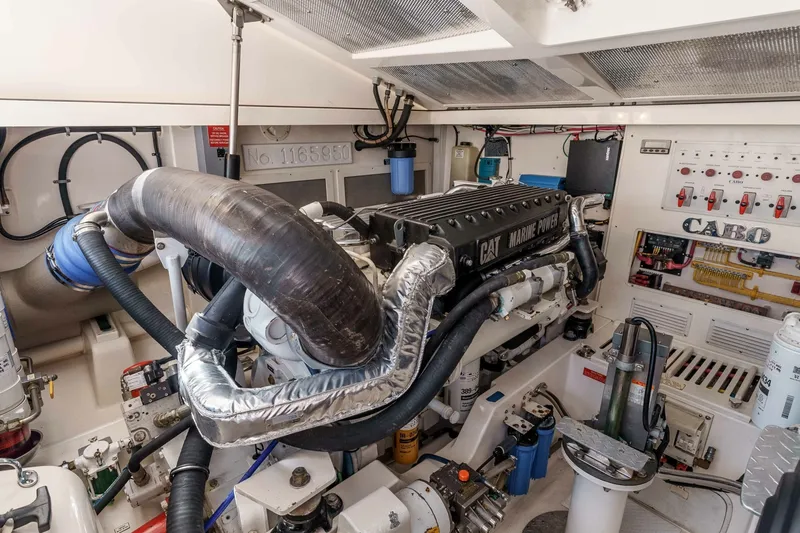

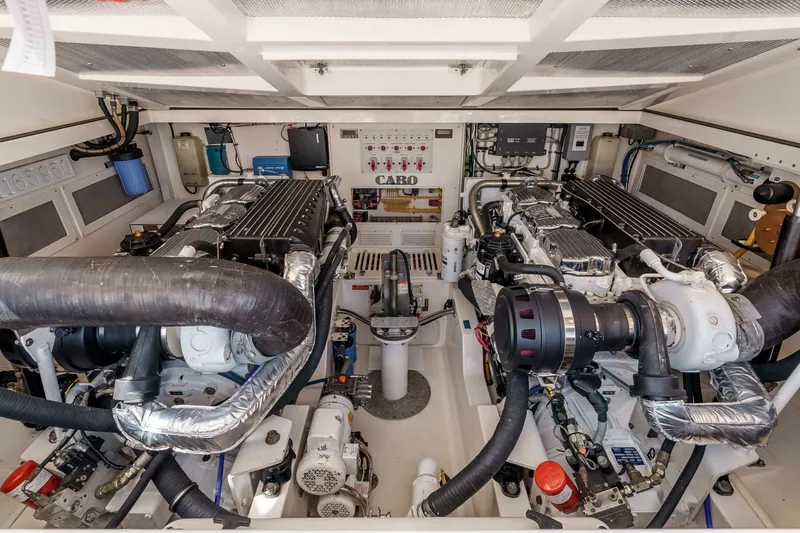

The Caterpillar C12 is an inline, six-cylinder, four-stroke engine with a total piston displacement of 12 liters, or 732 cubic inches. Maximum horsepower output is 700 brake horsepower at 2,300 rpm while producing a maximum torque of 2,227 ft/lbs @ 1600 RPM. The aspiration system uses a turbocharged-aftercooled design. Standard equipment features a cooling system with a self-priming sea water pump featuring a rubber impeller, gear-driven jacket water pump, titanium plate with integral expansion tank with thermostat housing. The exhaust system features a water-cooled manifold and turbocharger.
- 700 BHP @ 2300 RPM producing a max torque of 2,227 ft/lbs @ 1600 RPM
- Total bore and stroke is 5.1 x 5.9 inches (130 mm x 150 mm)
- ZF/325-1A Transmissions with 1.485:1 reduction ratio
- Turbocharged and aftercooled
- Electronic governor
- Dual Racor primary fuel filters
- Capacity for Liquids: Cooling System – 11.9 Gal/Lube Oil System – 7.4 Gal
- Caterpillar electronic displays w/fuel flow meters
- Glendinning Engine Synchronizer
- Reverso oil change system
- Reverso fuel priming system

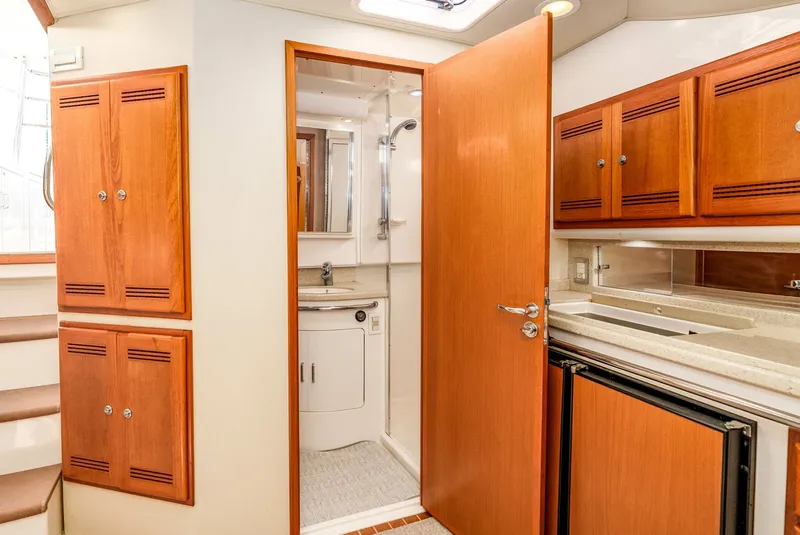

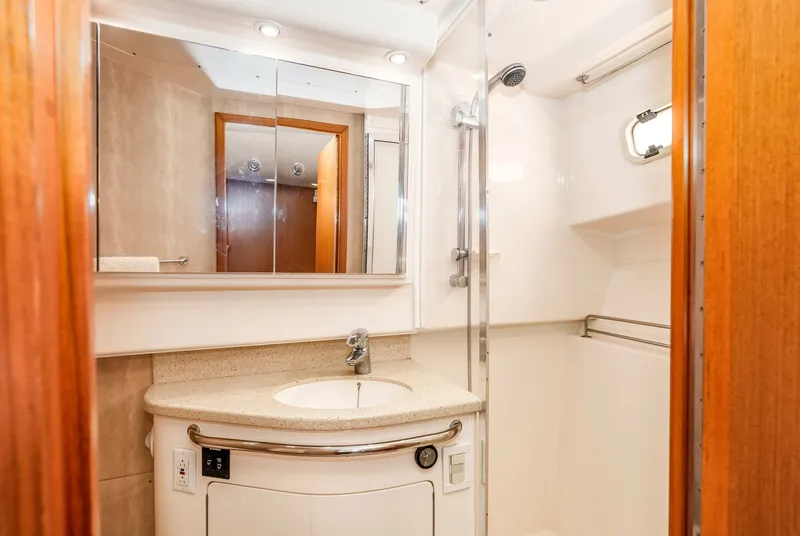

- Stall shower w/Grohe fixture
- Dometic electric head
- Sealand macerator w/overboard discharge
- Tankwatch holding tank indicator
- VDO Fresh water tank gauge
- Saniguard holding tank vent filter
- Vanity with Corian countertops and storage
- Overhead LED lighting
- Exhaust fan
- (2) GFCI AC electrical outlet
- Starlink
- Sea Recovery Aqua Whisper Watermaker
- Glacier Marine referigeration systems
- Seward S-1250-E 11 Gal Water heater
Price History
| Date | Event | Price |
|---|---|---|
| 3/11/26 | Initial price | $399,000 |
Boattest.com Review
Overview
The Cabo 40 Express is a meticulously crafted fishing yacht designed for serious anglers who demand both performance and comfort. Owned by experienced fisherman Nat Kramer, this vessel combines rugged offshore capability with the amenities necessary for extended trips. Its nearly 43-foot length and 15-foot 9-inch beam provide a spacious platform that balances stability, speed, and seaworthiness, making it well suited for long runs to offshore fishing grounds such as the canyon 70 miles out.

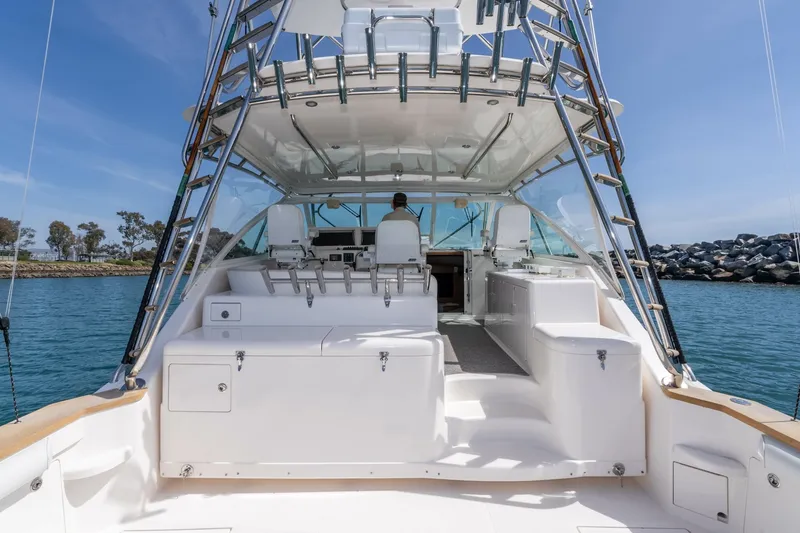

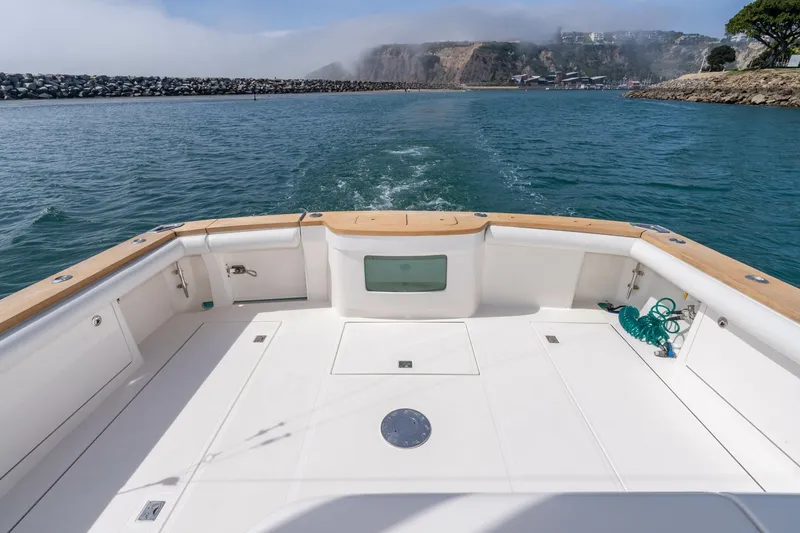

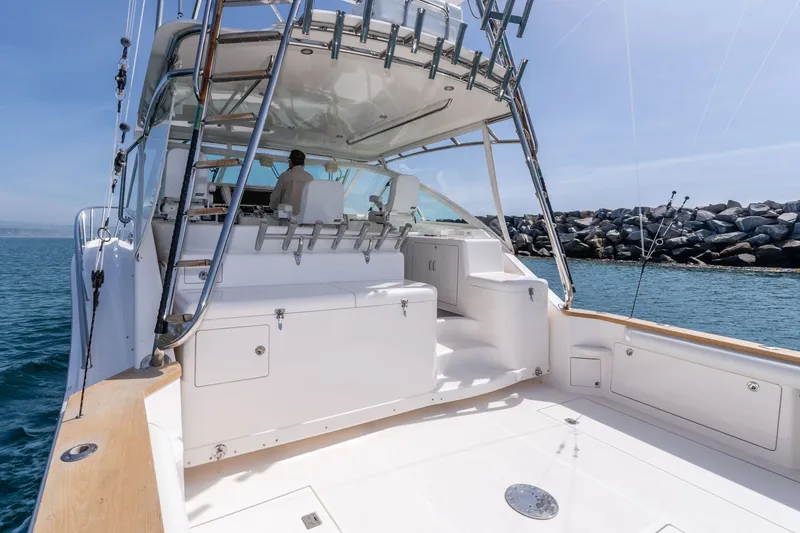

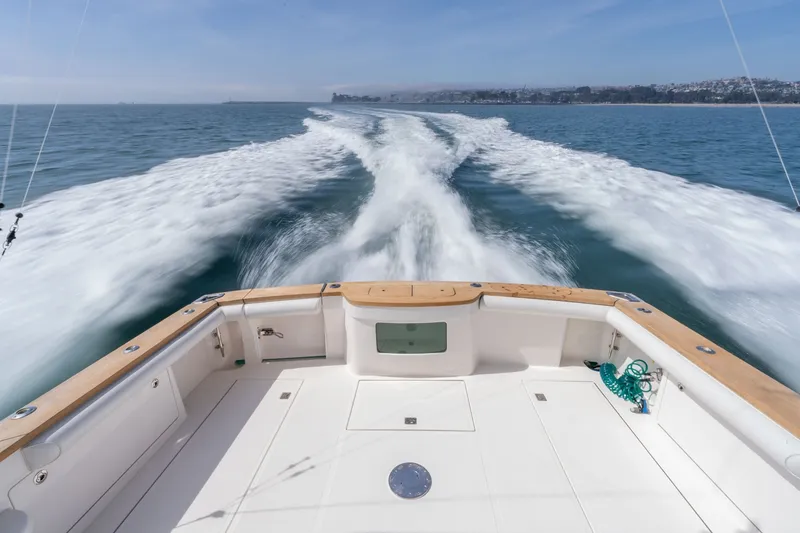

Exterior Design and Cockpit Features

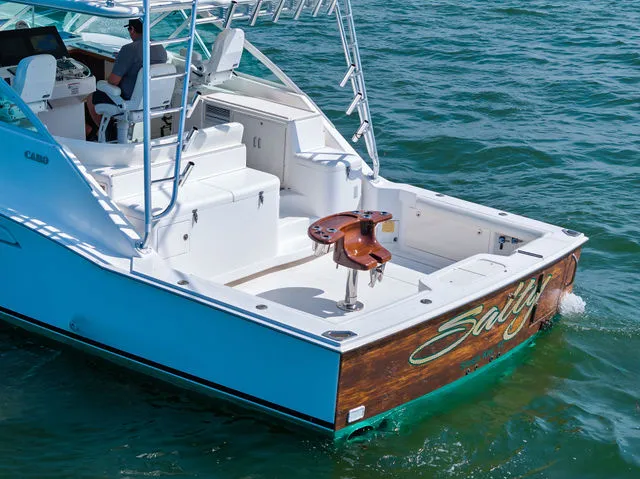

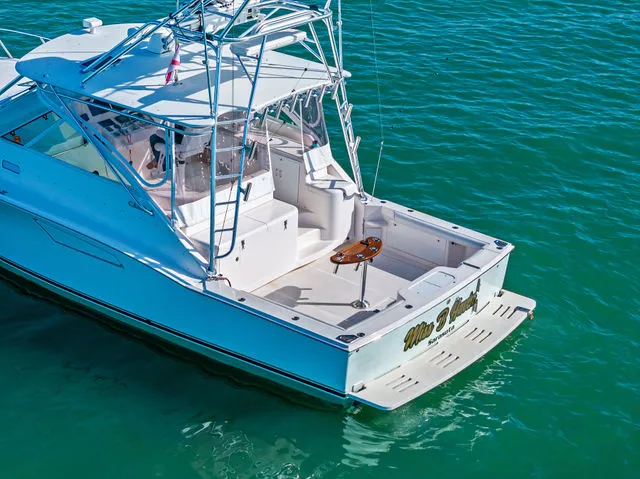

The exterior of the Cabo 40 Express emphasizes durability and functionality, beginning with a robust transom door that grants access to a large, uncluttered cockpit. Attention to detail is evident in the stainless steel hardware and uniformly oriented bolt heads, reflecting high-quality workmanship. The cockpit is lined on three sides with removable bolster cushions for comfortable stand-up fishing. Storage is abundant, including two large insole fish boxes that are guttered, gasketed, and self-draining, as well as a lazarette locker aft center providing direct access to fuel shut-off valves and rudder posts, all clearly labeled. A 48-gallon circulating live well is positioned waist-high along the transom, complemented by multiple rod storage options including in-whale rod lockers and a locker beneath the bridge deck seating. Forward in the cockpit, the fishing console to port features an optional freezer locker with cold plates, a freshwater sink, and a cutting surface, while the starboard side houses an insulated, self-draining beverage locker. The entire bridge deck raises hydraulically on two large rams for full engine access, though the activation button is somewhat inconveniently located in the starboard rod locker.

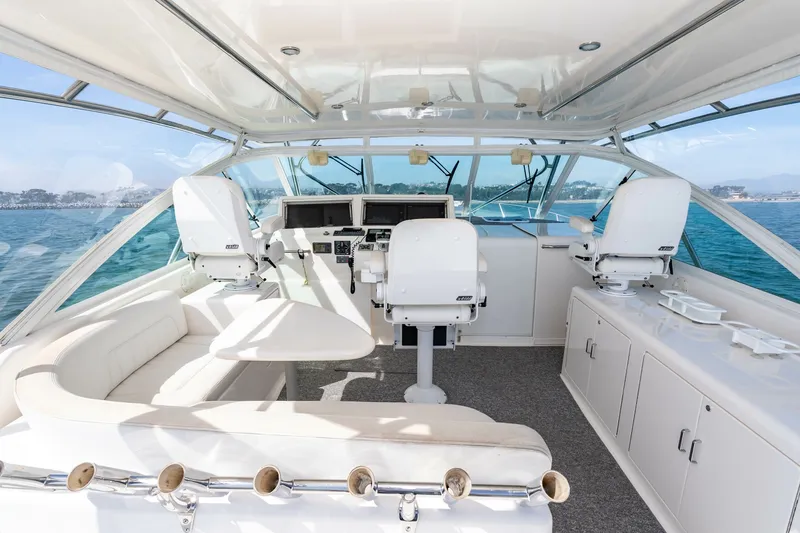

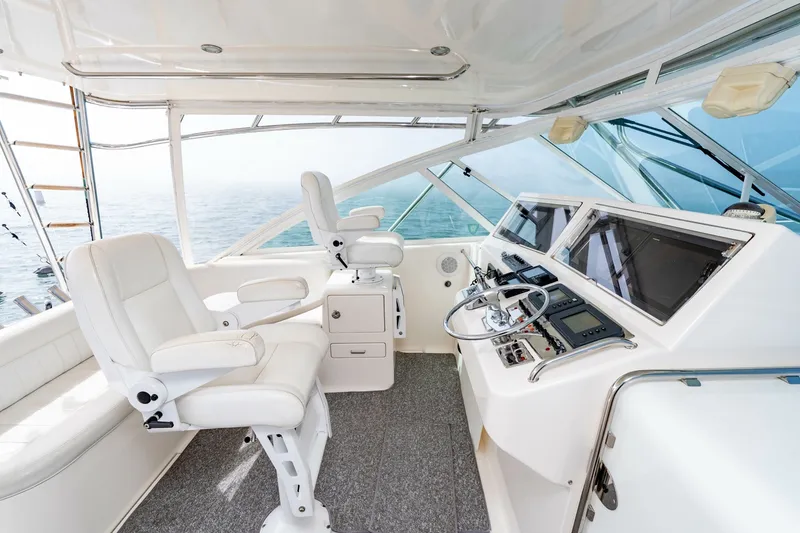

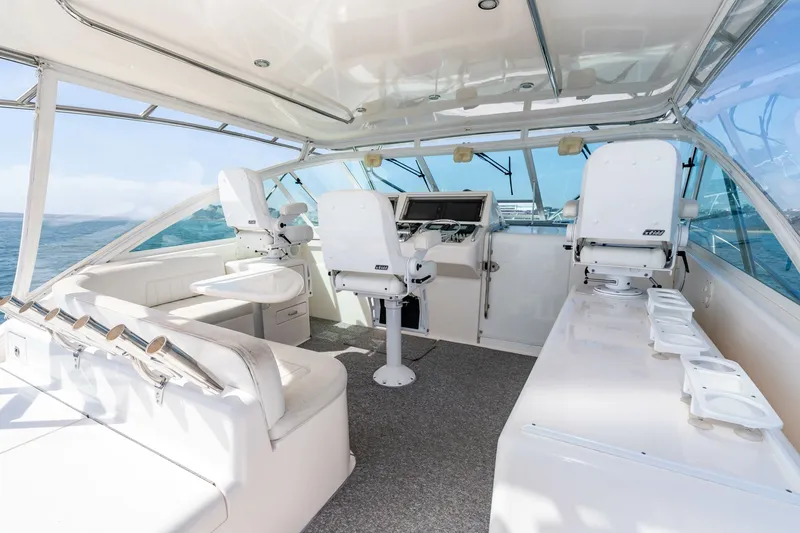

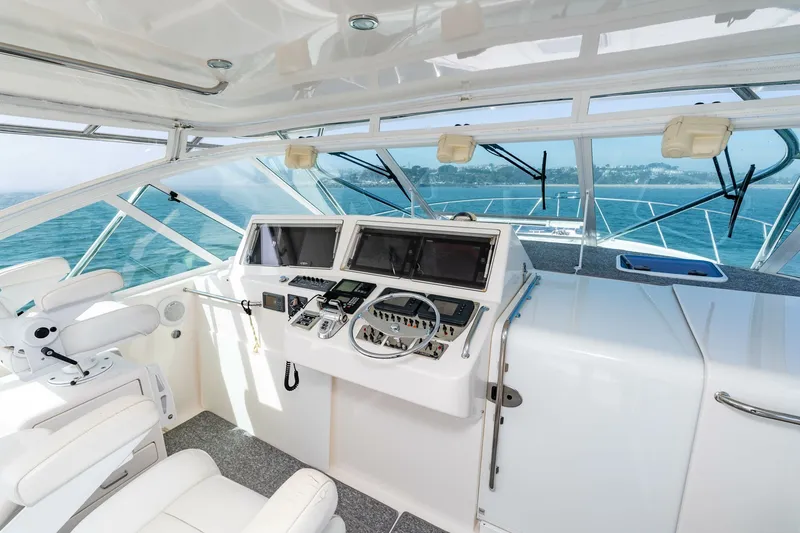

Bridge Deck and Helm
The helm station of the 40 Express is designed in a Palm Beach style with a centerline position, providing excellent visibility and control. It features single-lever electronic engine controls and classic-style gauges paired with ample space for modern electronics. The windshield is notably tall and rugged, equipped with a vent window that opens electronically for ventilation. The half tower, though requiring some agility to climb, offers expansive views both forward and aft, enhancing fishing operations. Seating on the bridge deck includes an L-shaped lounge accommodating four guests with storage beneath, plus a priority seat atop the starboard console that doubles as tackle storage, a dry locker, and houses an air conditioning vent. The captain enjoys a centerline stidd chair, a feature typically reserved for much larger yachts.

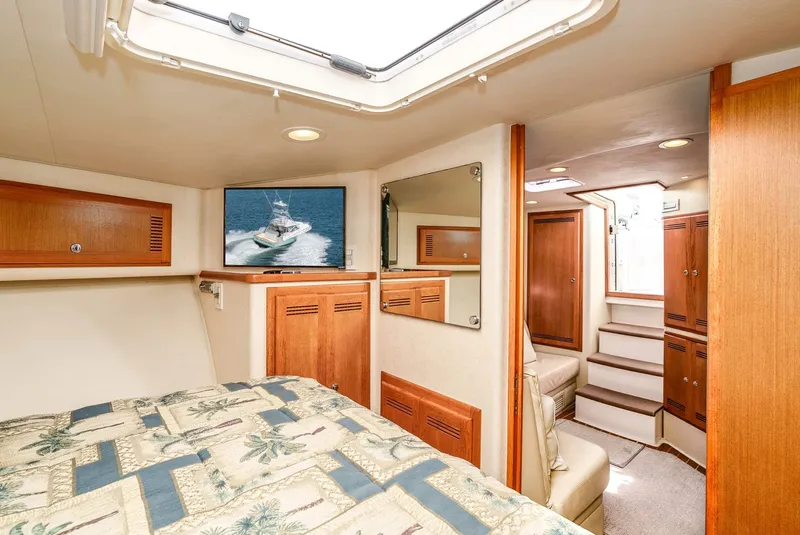

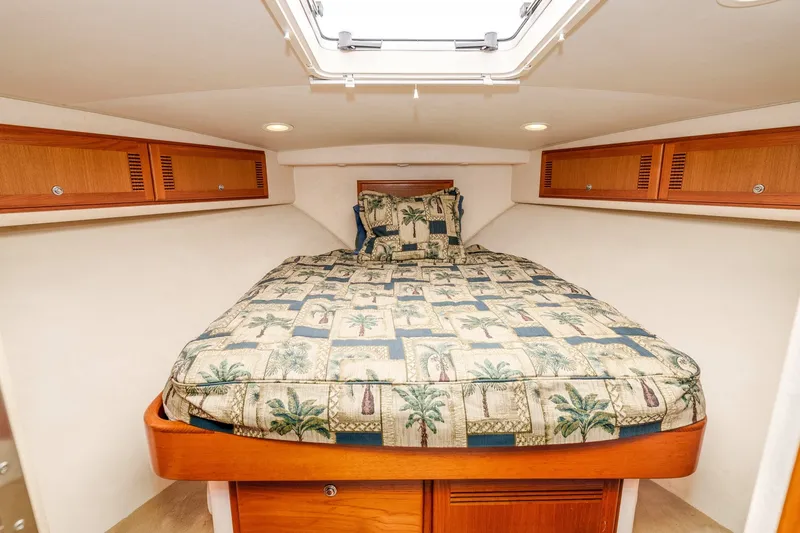

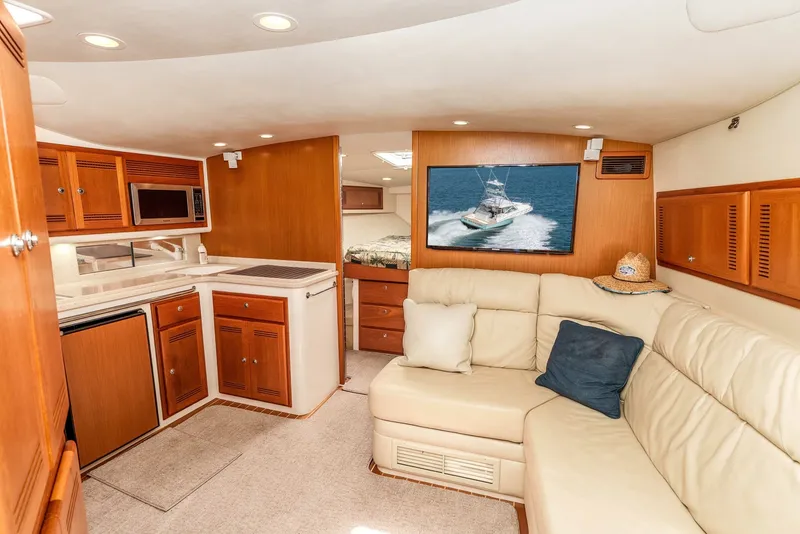

Interior Living Spaces

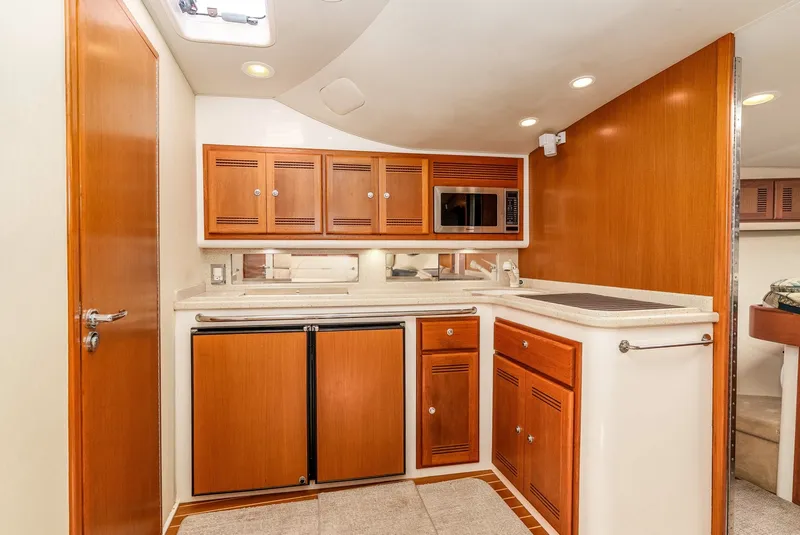

Below deck, the Cabo 40 Express offers comfortable accommodations with a well-appointed galley located to port. The galley is L-shaped and equipped with modern conveniences such as two under-counter refrigerators and a Panasonic microwave oven. Opposite the galley on the starboard side is an L-shaped ultra-leather lounge that converts into a large double berth via a pull-out mechanism. Forward lies the owner's stateroom, which features a centerline double berth, twin hanging lockers, and a built-in flat-screen television that complements another TV in the main salon, providing entertainment options for extended stays aboard.
Power and Performance
The Cabo 40 Express is a substantial displacement vessel weighing nearly 14 tons, yet it delivers impressive speed and handling. Its transom dead rise of 16.5 degrees creates a broad, relatively flat aft surface that enhances stability both underway and at rest. During sea trials off Montauk Point, New York, the boat achieved a top speed of 36.7 miles per hour, with a comfortable cruise speed of 29.1 miles per hour at 1750 RPM. This efficient cruising speed affords a range of approximately 316 miles from the 600-gallon fuel tank. The boat demonstrated a dry, soft ride in rough conditions and excellent stopping power when backing down on fish, never shipping water during aggressive maneuvers.
Conclusion
The Cabo 40 Express stands out as a high-quality, well-designed fishing yacht that meets the demands of serious offshore anglers. Its combination of solid construction, thoughtful details, spacious and comfortable living areas, and strong performance make it a compelling choice for those seeking a reliable and capable vessel for extended fishing adventures. The boat’s ability to deliver speed, stability, and comfort simultaneously underscores why it is gaining recognition as a flagship model within the Cabo Yachts lineup.
Overview from around the web 2005 Cabo 40 Express
Customers praise the 2005 Cabo 40 Express for its exceptional build quality and reliable performance, making it a favorite among serious anglers and boating enthusiasts
Many highlight its spacious cockpit layout, which provides ample room for fishing and entertaining. The boat's powerful engines deliver impressive speed and smooth handling, even in challenging sea conditions. Additionally, users appreciate the comfortable cabin accommodations, including a well-equipped galley and cozy sleeping quarters, making it suitable for extended trips. Overall, the 2005 Cabo 40 Express is recognized for combining rugged durability with thoughtful design, offering both functionality and comfort on the water.
The Biggest Pros and Cons
The 2005 Cabo 40 Express is a popular sportfishing yacht known for its blend of performance, comfort, and fishing capabilities. Here are some of the pros and cons to consider:
Pros
Performance: Equipped with powerful engines, the Cabo 40 Express delivers impressive speed and handling, making it ideal for offshore fishing and cruising.
Build Quality: Cabo boats are renowned for their solid construction and durability, ensuring reliability in various sea conditions.
Fishing Features: The 40 Express offers a spacious cockpit, rod storage, live wells, and fish boxes, all designed to enhance the sportfishing experience.
Comfortable Interior: The cabin includes comfortable accommodations with a well-appointed galley, salon, and sleeping quarters suitable for extended trips.
Classic Design: The timeless styling combines functionality with a sleek profile, appealing to traditional sportfishing enthusiasts.
Cons
Fuel Consumption: Due to its size and powerful engines, fuel efficiency can be on the higher side, which may increase operating costs.
Maintenance: As with many older performance boats, maintenance and upkeep can require significant time and investment.
Limited Cabin Space: While comfortable, the interior space may feel compact compared to larger yachts, especially for extended stays.
Age Considerations: Being a 2005 model, some systems and electronics may be outdated unless upgraded by previous owners.
Made For
The 2005 Cabo 40 Express is designed for serious anglers and boating enthusiasts who want a versatile and reliable sportfishing yacht. It is ideal for those who enjoy offshore fishing adventures but also appreciate comfortable accommodations and stylish design. With its powerful performance, spacious cockpit, and well-appointed interior, this boat suits families or groups seeking both exciting fishing experiences and enjoyable cruising. Whether you’re an experienced fisherman or someone looking to step up your boating game, the Cabo 40 Express offers the perfect blend of functionality, luxury, and durability.
