2019 Azimut 77S Boat in Miami, FL 33180 US
Built in 2019
77S
3 Engines (Volvo Penta, 2x Volvo)
77 feet
Diesel
Fiberglass/Reinforced

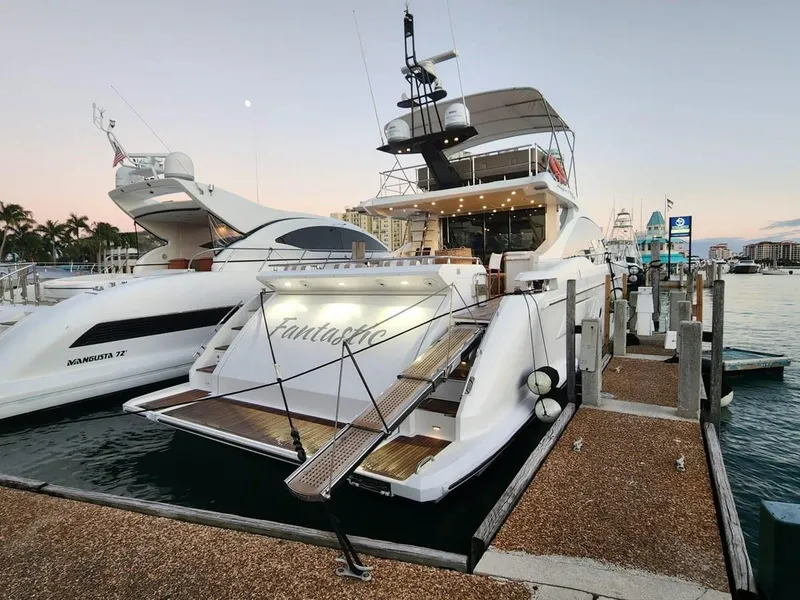

FANTASTIC is, without a doubt, the cleanest and best-priced 77S on the market. The S Collection blends a sporty look with elegance, achieved through innovative high-tech solutions and high-performance materials - creating highly desirable, technological yachts. The stylistic high point of the collection is the dynamic bow cap, while the huge open spaces create a sense of constant dialogue between the interior and exterior, delivering unrivaled comfort and luxury.
FANTASTIC is hull # 44 of the 77S Series. She features a composite fiberglass cored hull, deck and superstructure with a raked bow. The open main deck includes teak-laid walk-around side decks stepping forward to the foredeck, while the transom stern incorporates a watertight door. The top level is a bridge deck equipped with a full electronics arch.

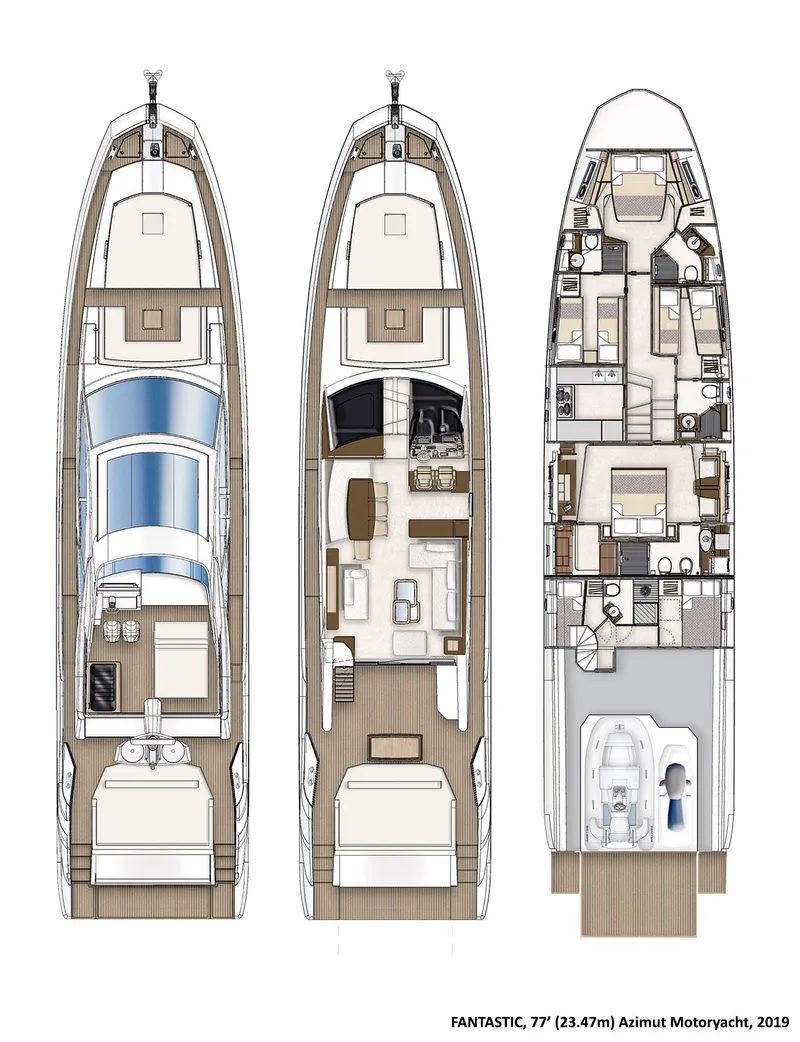

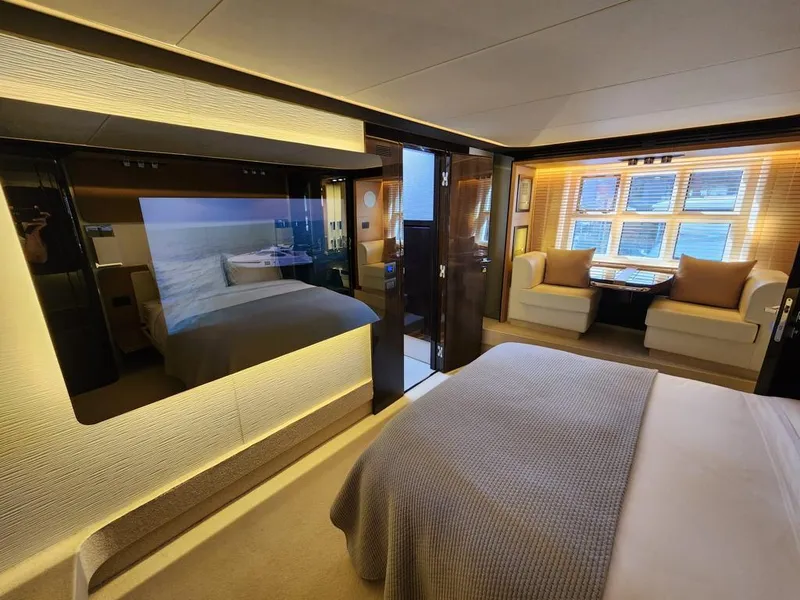

Accommodations include a four (4) stateroom layout on the lower deck. The crew quarters are positioned aft with cockpit access and two (2) cabins.
This yacht is well equipped for both comfort and functionality. Some features are:

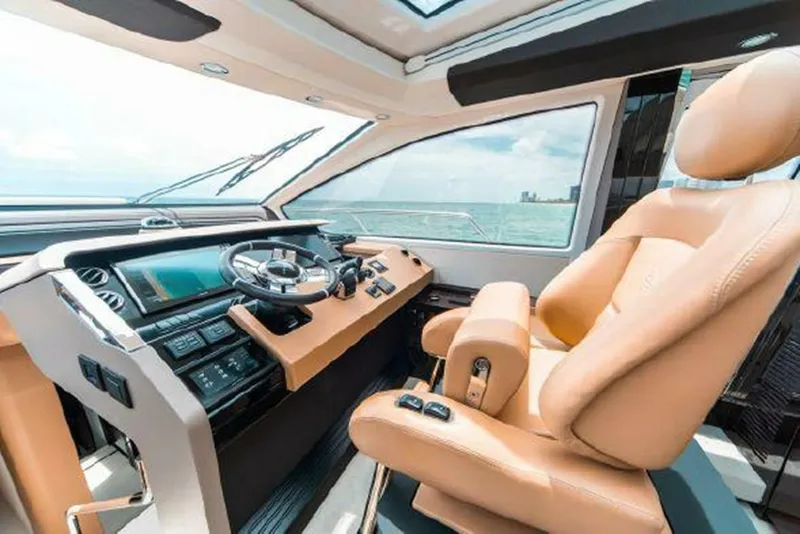

• Sliding sport roof over lower helm
• Satellite for TV and internet
• Hauling-launching system for tender and jet ski
• Teak on side decks

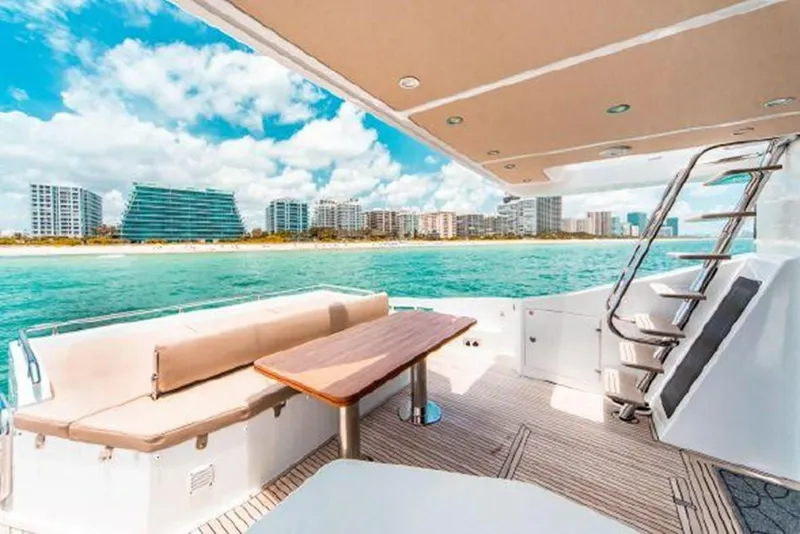

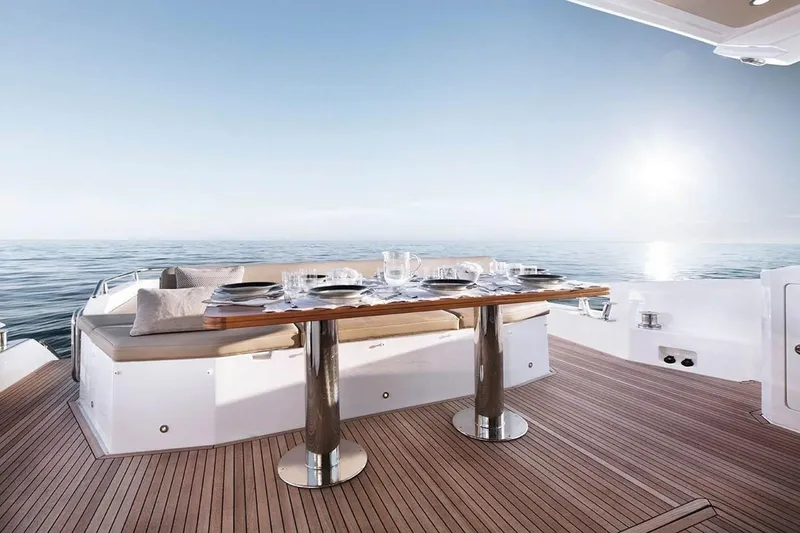

• Barbecue on aft deck
• Electric awning tent in the cockpit

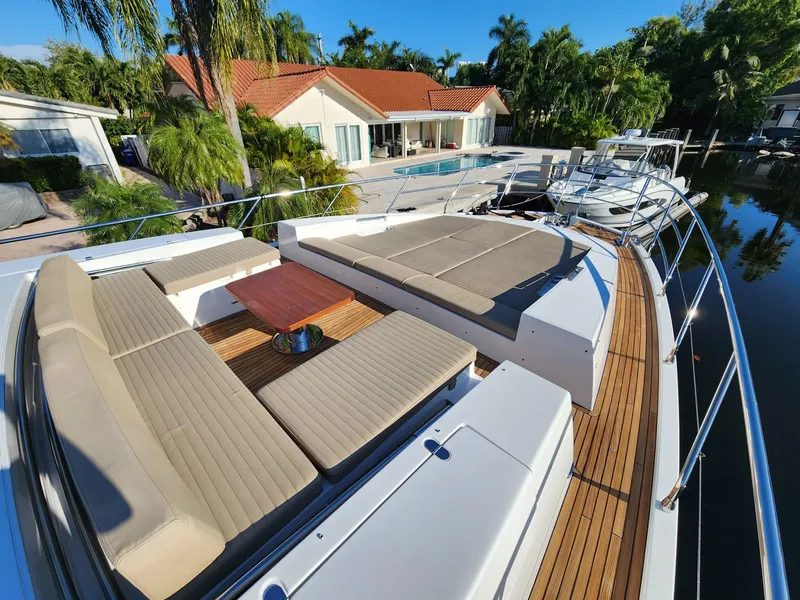

• Automatic sunshade on bow
• Table on bow

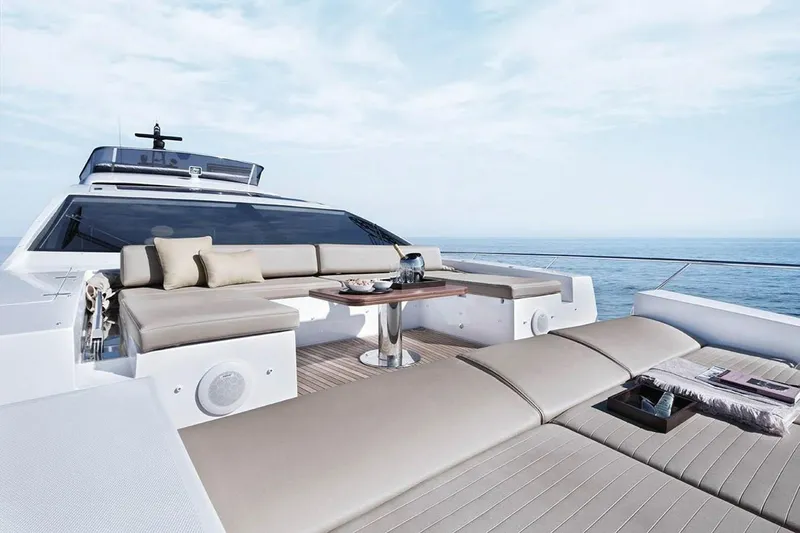

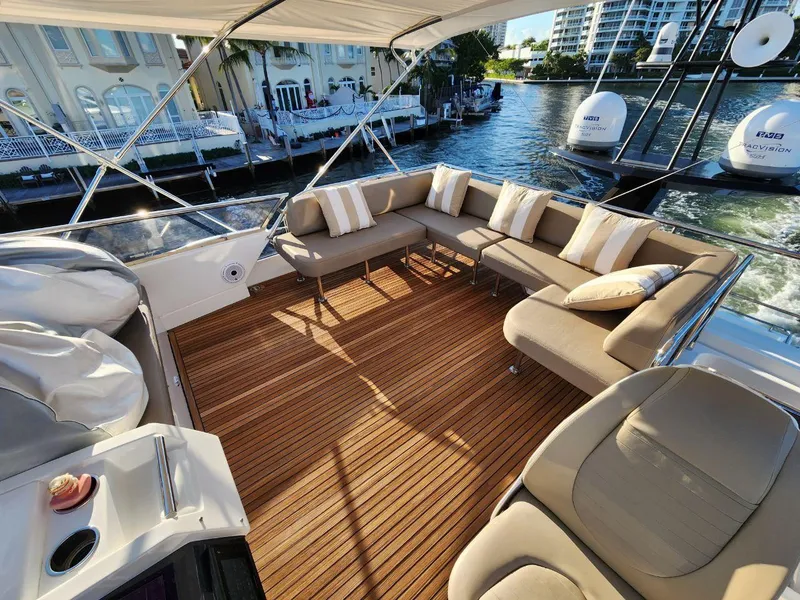

• Teak with custom seating and automatic Bimini top on flybridge
• Cover for garage door
• Dimmer for lights throughout the lower deck
- Hull Material: FRP with PVC core sandwich and carbon fiber reinforcements
- Engine Beds: FRP with laminated steel reinforcement
- Decking: teak covered floor
- Superstructure: Open fly-bridge
- Hull/Deck Joint: “shoe box” type with chemical and mechanical bonding
- Cockpit: Aft with teak-covered floor
- Bottom: Antifouling bottom paint, black color
- Hull number: AZ177S44819
- Official number: 749619

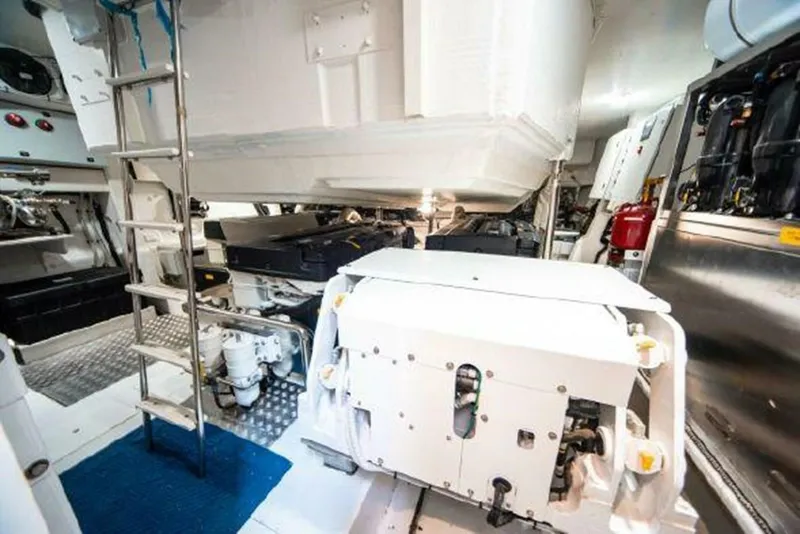

MAIN ENGINES:
Location: Port
Manufactured: Volvo Penta
Model: D13-IPS1350
Engine Type: In-line 6-cylinder Diesel
Serial/Number: 2013774439
Rated HP: 1,000 Hp (735 kW)
Gear Mfg.: Volvo Penta
Gear Model No.: IPS30D
Hours: 1,574 Hrs. (02/20/2026)
Location: Center
Manufactured: Volvo Penta
Model: D13-IPS1350
Engine Type: In-line 6-cylinder Diesel
Serial/Number: 2013774440
Rated HP: 1,000 Hp (735 kW)
Gear Mfg.: Volvo Penta
Gear Model No.: IPS30D
Hours: 1,574 Hrs. (02/20/2026)
Location: Starboard
Manufactured: Volvo Penta
Model: D13-IPS1350
Engine Type: In-line 6-cylinder Diesel
Serial/Number: 2013773286
Rated HP: 1,000 Hp (735 kW)
Gear Mfg.: Volvo Penta
Gear Model No.: IPS30D
Hours: 1,574 Hrs. (02/20/2026)
Engine Controls:
- Volvo Penta electronic control and joy-stick. Main control is in wheelhouse. Secondary controls at fly-bridge station. Docking joy-stick located at cockpit stbd pilaster.
Engine Cooling System:
Two separate cooling circuits:
- Engine coolant
- Raw water with dedicated raw water intake (one per engine) with strainer.
- Coolant cooling by raw water-cooled plate-core heat exchanger
Ventilation and Blower:
- (4) Aspirating blower on E/RSTBD side vents located on E/R hull sides

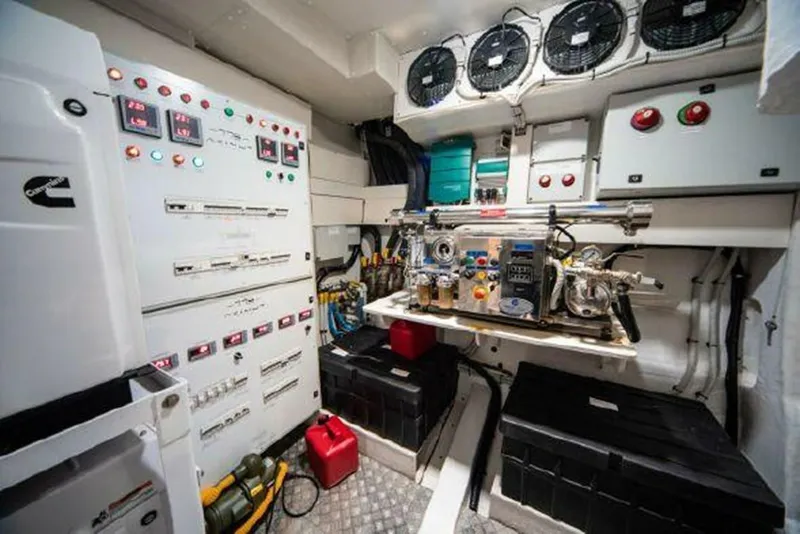

GENERATORS
- No of sets: (2) Generators
- Manufacturer: ONAN ONAN
- Model: 27MDKDU-8208A 27MDKDU-8208A
- Serial No.: K170261426 D170177358
- Hours: 3632 (02/20/2026) 3625 (02/20/2026)
- Rating: 27kVA @50Hz - 115/230V - 1Ph
AIR CONDITIONING
• Chilled water system
• (4) Dometic compressors
• Model: Condaria PCWM36004co1.16
• Circulating pump: Calpeda
• Model: NMM25/12A/A- R
• Raw water pump Gianneschi
• (2) Salon air handlers
• (1) Helm-station air handler
• (1) Port crew cabin air handler
• (1) Stbd. crew cabin air handler
• (1) Port guest stateroom air handler
• (1) Stbd. guest stateroom air handler
• (1) VIP guest stateroom air handler
• (2) Master stateroom air handlers
• Galley air handler
HEATING SYSTEM
• Reverse A/C system
FUEL SYSTEM
• Fuel Lines: Predominantly fire-insulated flexible hoses with copper fittings
• Tanks: (1) FRP tank laminated forward in bilge FWD of E/R.
• Total capacity is 4,000 Liters (1,056 US Gal.) (Diesel) mechanical indicator at valves in crew bilge
• Filtration: (6) Total Volvo Penta - (2) per engine
• Model: 877770 filters, 1 Parker Racor
• Model: 2 R12T filters for each generator
• Shut-off Valves: (5) Total
• (1) Shut of electro-valve per line located on top of the tank in the crew bilge
RUNING GEAR
• Steering: Electro-hydraulic system 24Vdc by Volvo Penta
• Rudders: (3) IPS pods
• Propellers: (6) Total
• (4) Volvo Penta – (2) on each drive
• (1) Four-blades
• (1) Three-blades
• Trim Tabs: Interceptor-style by Volvo Penta
• Bow Thrusters: Side Power 24Vdc
• Model: SP240TCi
• Serial Number: 1736408
PUMPS
E/R
• (3) Whale 3000GPH 24V automatically operated by an electronic switch
• (3) Whale manual pump – located in cockpit port side pilaster Emergency engines crash pump from center engine raw water intake valve
Crew Quarters
• (2) Whale 3000GPH 24V automatically operated by electronic switch
• (1) Whale manual pump – located under Stbd. crew bunk
Fwd. Bilge
• (1) Whale 3000GPH 24V automatically operated by electronic switch
COMMUNICATION SYSTEMS
• Satellite internet
• Marine Radio:
• Helm-station: Raymarine
• Flybridge: Raymarine
NAVIGATION SYSTEMS

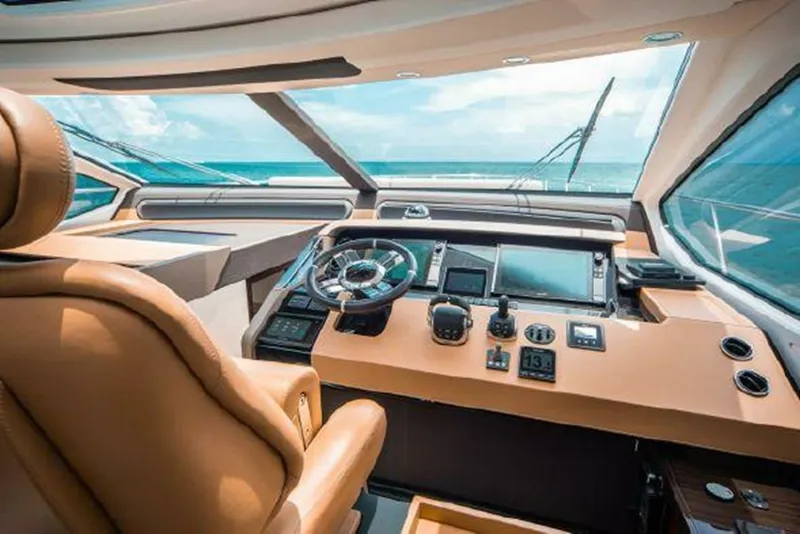

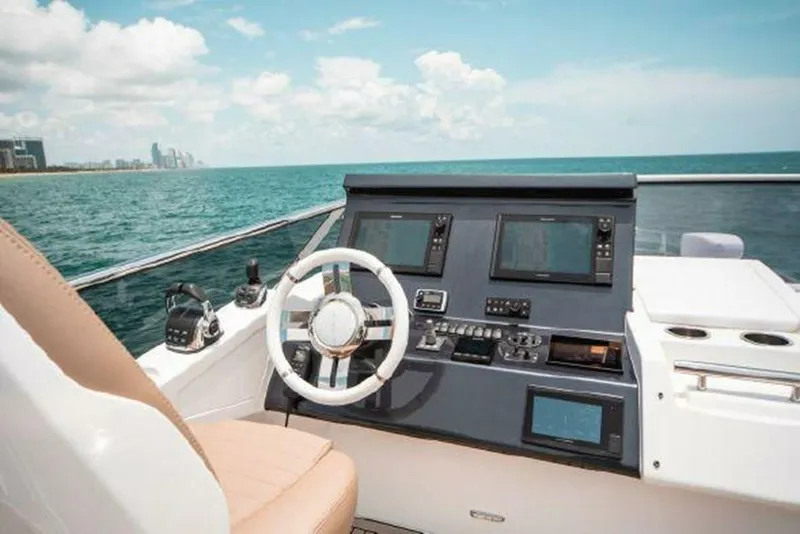

• Chart Plotter:
• Helm-station: (2) Raymarine Axiom Pro 16S - 16” touchscreens
• Flybridge: (2) Raymarine Axiom Pro 12S - 12” touchscreens
• Raymarine gold package
• Raymarine automatic identification system - AIS650 transceiver
• Radar: Raymarine 4kW HD Color Array
• Depthsounder: Airmar transducer
• Compass: Helm-station - Ritchie
• Speed Log: Airmar sensor
• Autopilot: Volvo Penta integrated
• Wipers: (2) Wipers blades
• Spotlight: ITT Jabsco operable from wheelhouse and flybridge
• Monitoring System: Naviop system at helmstation and F/B station
ENTERTAINMENT SYSTEMS

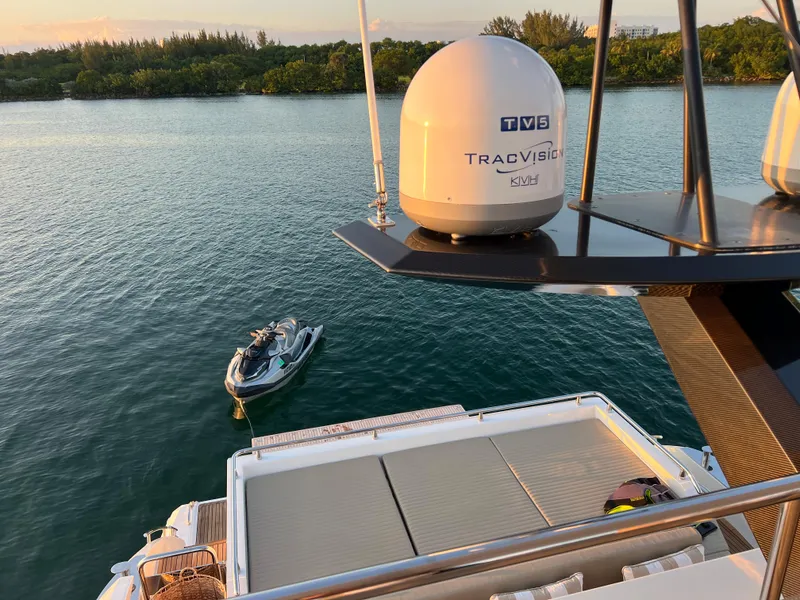

• Satellite antenna
• Salon: TV LG 50'' retractable
• Master Stateroom: Radio Fusion
• Model MS-RA70
AC Systems:
- AC Panel: Main AC 240V-50HZ (Panel located in E/R – secondary panel in companion way landing)
- Outlets: 110V throughout boat
Battery chargers:
- (1) MASTERVOLT model: CHARGERMASTER 24/12-3 - 24V battery charger for engine battery bank
- (1) MASTERVOLT model: CHARGERMASTER 24/60-3 - 24 V for service battery bank
- (1) MASTERVOLT 12V battery charger for generator batteries
Source:
- (2) 50 amp shore power inlets
- (2) ANG Converter model: SPC16 (Converts 50HZ to 60HZ)
DC System:
- DC Panel: Main DC 24V panel is located E/R – secondary panel in companion way landing
- Battery Switches Port, center, Stbd engine and parallel
- Batteries: (10) URANIO model: SELENE VR900
Other Electrical:
- Additional electric conduits
• (5) Underwater lights on transom
• (1) Water-maker: IDROMAR
• Passerelle: Electro-hydraulic 24V OPACMARE
• Model1103.34.07.24
• S/N: 18B12-110334-RNNW
• Load capacity: 150Kg
• (1) Stabilizer: Seakeeper
• Model: NG16
• Serial Number: 445
• Cooling pump GIANNESCHI 230Vac
• Hard top: Sliding electric 24Vdc
• Garage: Electro-hydraulics 24Vdc garage door
• (2) Windlass 24Vdc
• Watermakers 55 liters/hour
Main Galley Equipment
- Refrigeration: Top/bottom refrigerator/freezer by Miele
- (2) Water Heater: Ariston 1500W – 230Vac
- Stove: (4) Ceramic burners cooktop by Miele
- (1) Oven by Miele
Crew Galley
- Washer: Bosh Ecosilent Drive
- Dryer: Miele Honeycomb Care T8822C
Cockpit
- Electric grill by Kenyon
- Refrigerator by Vitrifrigo
- Ice-maker by Vitrifrigo

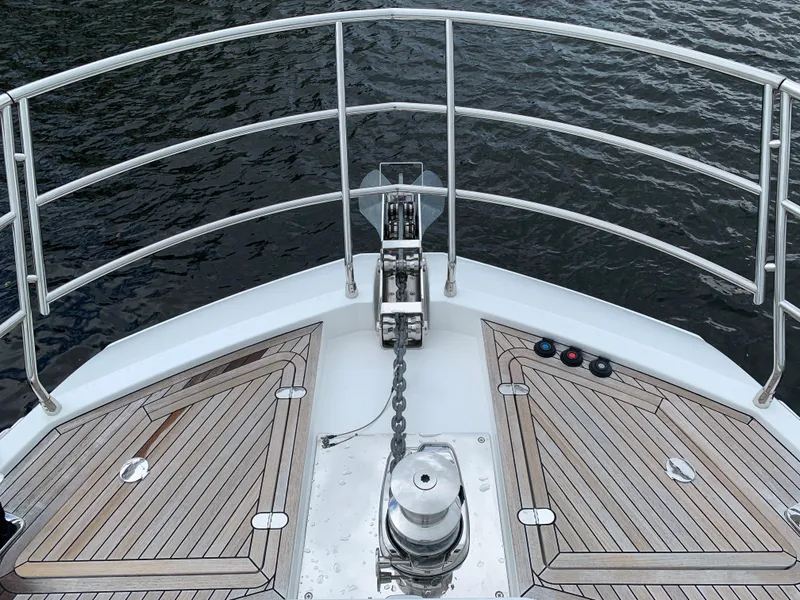

• Windlass: (1) Quick - 24V – 3500W
• Anchors: (1) Delta style – galvanized
• Rode: Chain
• Other Ground tackle/deck gear:
• Cleats:
• (2) At bow
• (4) At mid-ship - (2) per side
• (2) At aft cockpit - (1) per side
• (2) Swim platforms - (1) per side
• Hauling-launching system for tender and jet ski
- 1 Tender
- Length Overall: 10’ (3.05 meters)
- Manufacturer: Williams
- Model: Turbojet 325
- HIN #: WMRT2842I718
• International running light
• Adjustable search light
• Sound Signals: Horn
• (2) Bow control lights
Fire Suppression (Fixed)
• (1) 41.94Kg HFC-227 fixed tank in engine room
Fire Suppression (Portable)
• (1) 2Kg ABC powder fire extinguisher in the galley
• (1) 2Kg ABC powder fire extinguisher in the port guest stateroom
• (1) 2Kg ABC powder fire extinguisher in the VIP guest stateroom
• (1) 2Kg ABC powder fire extinguisher in the master stateroom
• (1) 2Kg ABC powder fire extinguisher in the port crew stateroom
• (1) 2Kg ABC powder fire extinguisher in the Stbd. crew stateroom
• (1) 1Kg ABC powder fire extinguisher in the cockpit
• Re-boarding Ladder

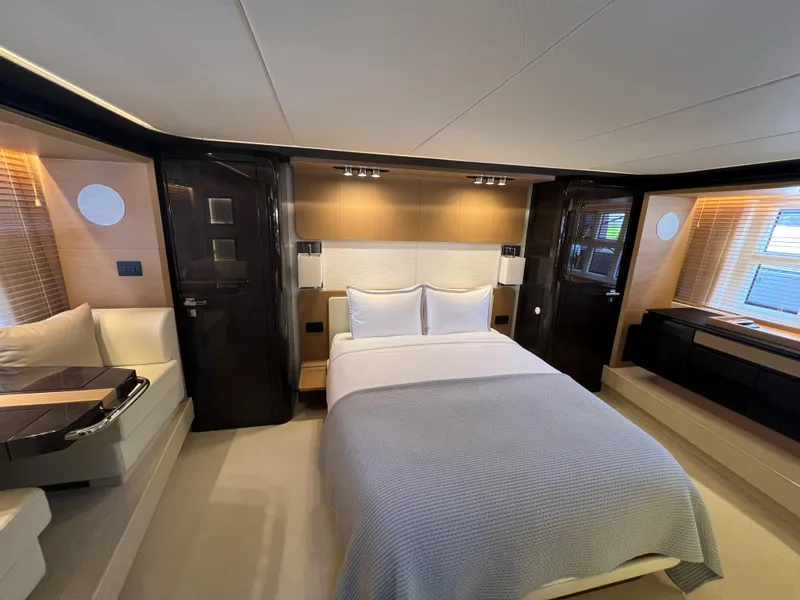

Accommodations include a four (4) stateroom layout on the lower deck, comprising a full beam aft master stateroom, port and starboard guest staterooms with two single berths, plus Pullman on starboard, and a forward VIP stateroom with a double berth. Each stateroom has its own en-suite head. The crew quarters are positioned aft with cockpit access and two (2) cabins: port Captain’s single and starboard two (2) single bunks, and one (1) head.
Notes:
• The total number of slip-on board is twelve (12)
• Folding bed in guest stateroom

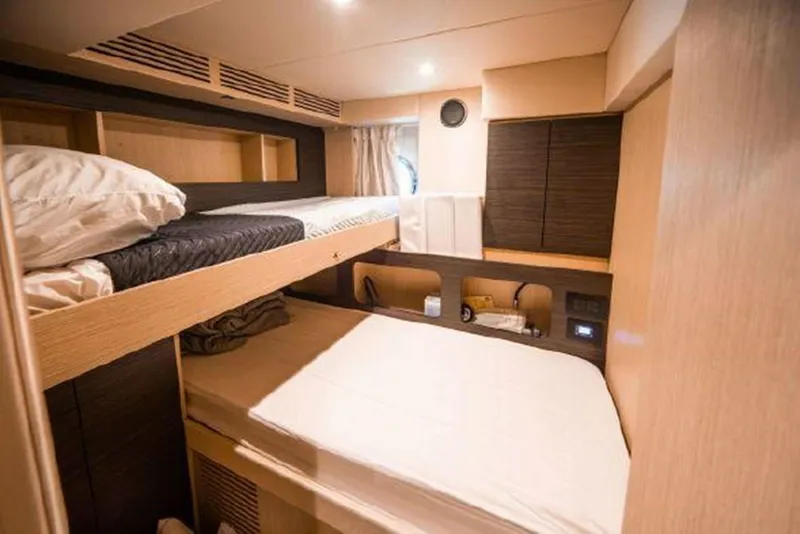

• Crew cabin third bed (folding bed)
Sanitation:

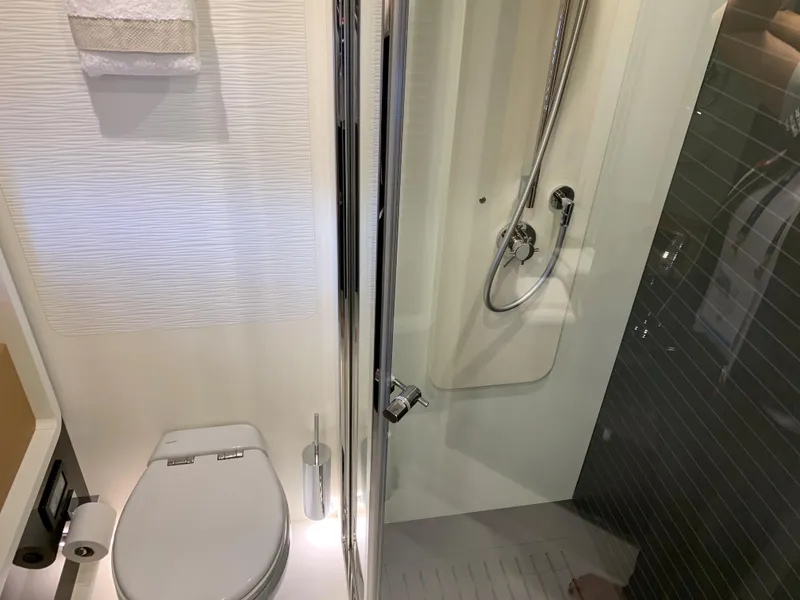

• (5) Heads. Tecma 24V fresh water flush system
Carbon-Tech Generation
The use of carbon fiber is a construction choice that allows volumes and surfaces to be increased in size while keeping the same weight, therefore maintaining excellent levels of dynamic stability.
Carbon fiber lamination is applied to:
- Superstructure
- Flybridge
- Mast
- Transom/platform
Triple IPS Propulsion
Triple Volvo IPS propulsion system installed on hydro-dynamically optimized hull shape
- Superior maneuverability
- Minimum noise and vibration level
- Best fuel efficiency (up to 25% reduction compared to shaft line)
Active Trim Control
Interceptor technology provides a smooth, precise auto mode that automatically takes care of all trim adjustments. It delivers trouble-free handling and a system without corrosion or leaking oil.
Naviop Advanced Monitoring System
State-of-the-art solution for displaying and controlling main onboard systems: engine data, fuel consumption, generators, trim, interceptor, navigation lights, batteries, air conditioning.

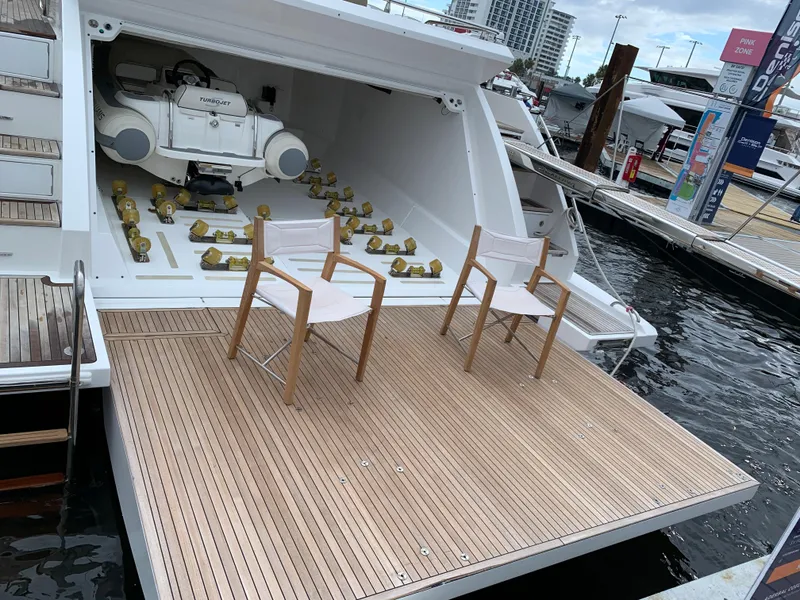

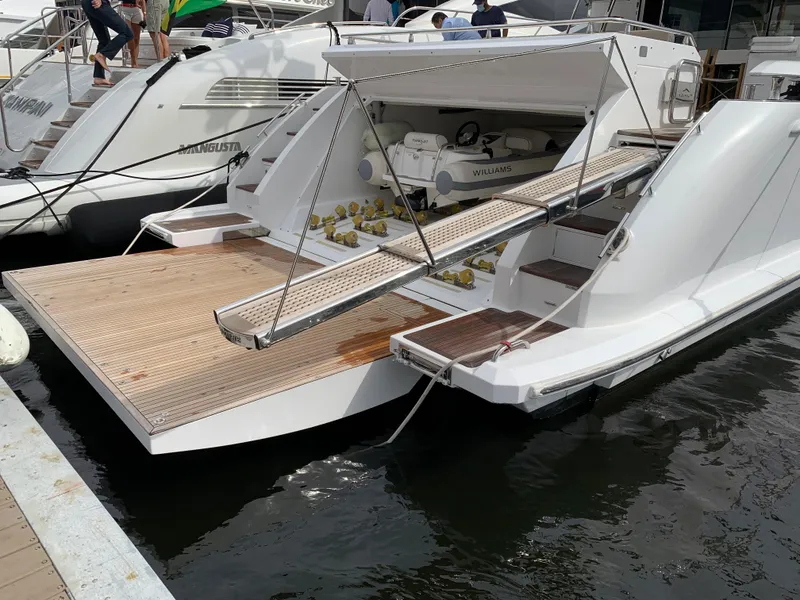

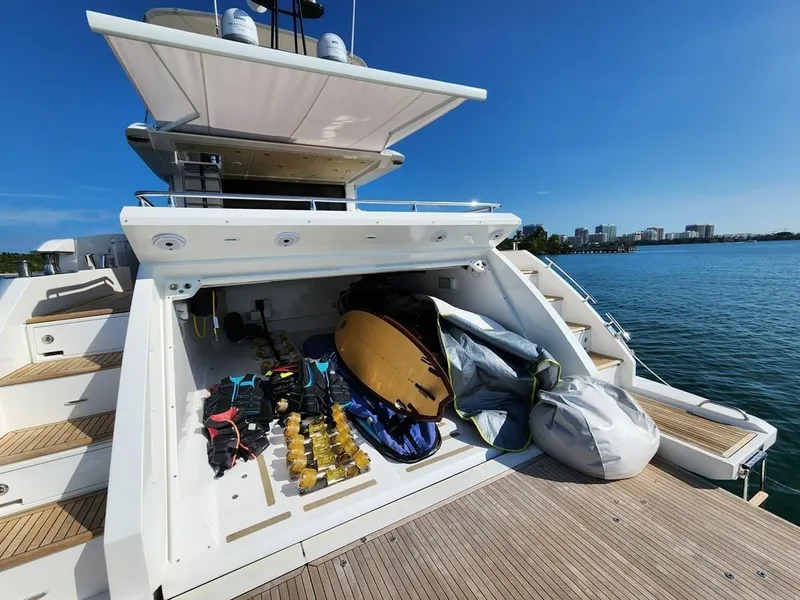

Aft Pivoting Platform and Garage
Innovative mechanism. Large beach area, garage for 385 tender and jet ski, easy launch mechanism.
HTS High Technical Standard Declaration
Azimut 77S has been designed and engineered according to the highest standards applied in the recreational industry for production boats. With CE Class A and NMMA Certification, the boat is in compliance with the two major safety codes for boats under 24 meters.
Joystick Driving
Joystick Driving offers an easy way to maneuver with precision and at the same time, it allows the driver to steer comfortably at all speeds with only one hand. When Joystick Driving is activated, the Autopilot turns on simultaneously.
The driver steers the boat by moving the Joystick. When the Joystick is released, the Autopilot is engaged and keeps a forward course.
2025
• Garage door: Rebuilt and reinforced
• Sunroof: Rebuilt
• IPS: Serviced
• Bottom: Painted
• Batteries: New
• New Bimini Top
• Some new ceiling and wall panels
2023 - July
• Chillers serviced, new raw water pump
• Seakeeper serviced @ 1689 hours
• Teak sanded and stained
• Entire vessel waxed
2023 - February
• New salon carpet
• Fire suppression system
• New window trim
• Bow table refinished
• New wall fabric
• A/C chillers serviced
• Seakeeper pump repaired
2022
• Sound system upgraded
• Updated interiors
• New custom seating on flybridge
• ANG power converter system repaired
• Completed new GL audio speakers, amps, and wiring with four (4) individual remote systems
• KVH TV
• All new custom seating on bridge
• (5) Underwater lights
• Engines serviced - June
- Jet ski
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
Price History
| Date | Event | Price |
|---|---|---|
| 7/13/26 | Price decreased | $1,795,000(-3.0%) |
| 4/2/26 | Price decreased | $1,850,000(-5.1%) |
| 2/18/26 | Initial price | $1,950,000 |
2019 Azimut 77S Video Tours
Overview from around the web 2019 Azimut 77S
The 2019 Azimut 77S has garnered impressive feedback from customers and enthusiasts alike, often praised for its exceptional design, performance, and luxury features
Many reviews highlight its striking exterior, which seamlessly blends sporty aesthetics with elegance, making it a standout on the water. The spacious and thoughtfully designed interior is a recurring point of admiration, with many noting the high-quality materials and attention to detail in each cabin and communal area. Customers frequently mention the advanced technology incorporated into the vessel, from cutting-edge navigation systems to entertainment options that enhance the overall experience aboard. The open-plan layout, complemented by large windows, allows for an abundance of natural light and stunning views, adding to the pleasure of cruising. Performance-wise, the Azimut 77S is often lauded for its powerful engine options and smooth handling, providing a thrilling yet comfortable ride. Owners appreciate the balance of speed and fuel efficiency, making it suitable for both leisurely outings and more spirited adventures. Overall, feedback from clients reflects a strong sentiment of satisfaction, underlining the Azimut 77S as a prestigious yacht that delivers on both form and function, catering to those who seek luxury, comfort, and impressive performance on the water.
Made For
The 2019 Azimut 77S is designed for discerning boaters who value luxury, performance, and style. This stunning motor yacht is perfect for those seeking a sophisticated escape on the water, whether for leisurely cruising, entertaining guests, or indulging in adventurous getaways. With its sleek lines and cutting-edge design, the Azimut 77S appeals to individuals who appreciate modern aesthetics and high-end finishes. Ideal for owners who desire a versatile yacht, the 77S offers ample space for relaxation, dining, and socializing, making it an excellent choice for family trips or gatherings with friends. Its powerful engines ensure impressive speed and agility, attracting enthusiasts who enjoy an exhilarating driving experience. Additionally, the customizable interiors and refined amenities cater to those who want to add a personal touch to their vessel, making it a true reflection of their lifestyle. Overall, the 2019 Azimut 77S is for those who seek a harmonious blend of luxury, performance, and elegance on the open water.
Finance your dream boat!
Finance your dream boat!
Be the first to know when similar boats hit the market
Get notified when new boats become available
Boats For Sale in Florida, United States Similar to the 2019 Azimut 77S
Compare with similar boats and find the perfect one for you.
 2019 Azimut 77S | |||||
|---|---|---|---|---|---|
| $1,795,000 | $1,850,000 | $1,650,000 | $1,599,000 | $1,449,000 | $1,449,000 |
| Miami | Miami | Miami | Fort Lauderdale | Pompano Beach | Hollywood |
| 77' | 77' | 70' | 66' | 77' | 77' |
| 5' | - | - | - | - | - |
| Volvo Penta | VOLVO PENTA | MAN | Caterpillar | VOLVO | VOLVO |
| 1000 hp | 1000 hp | - | 1150 hp | 1350 hp | 1350 hp |
| 158 | 147 | 1 | 249 | 430 | 319 |
Other 2019 Azimut 77S For Sale in Florida, United States
Other Azimut 77S boats for sale in Florida, United States
Other Azimut boats for sale in Florida, United States
Meet the Broker
Address
Boat Location
Contact Merle Wood & Associates about 2019 Azimut 77S
801 Seabreeze Blvd , Suite C, Fort Lauderdale, FL, 33316
Login with Google
