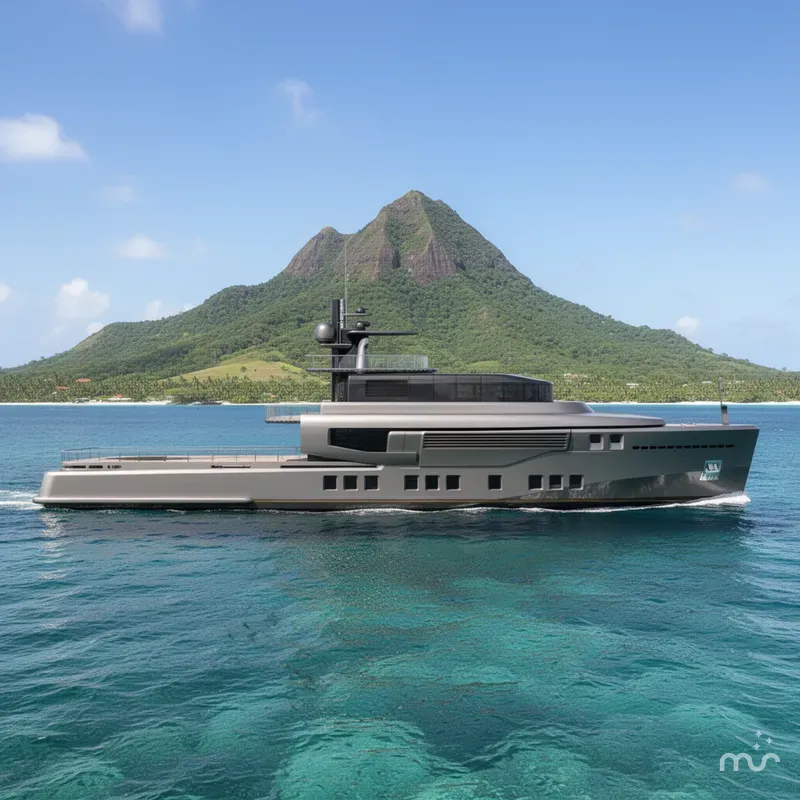

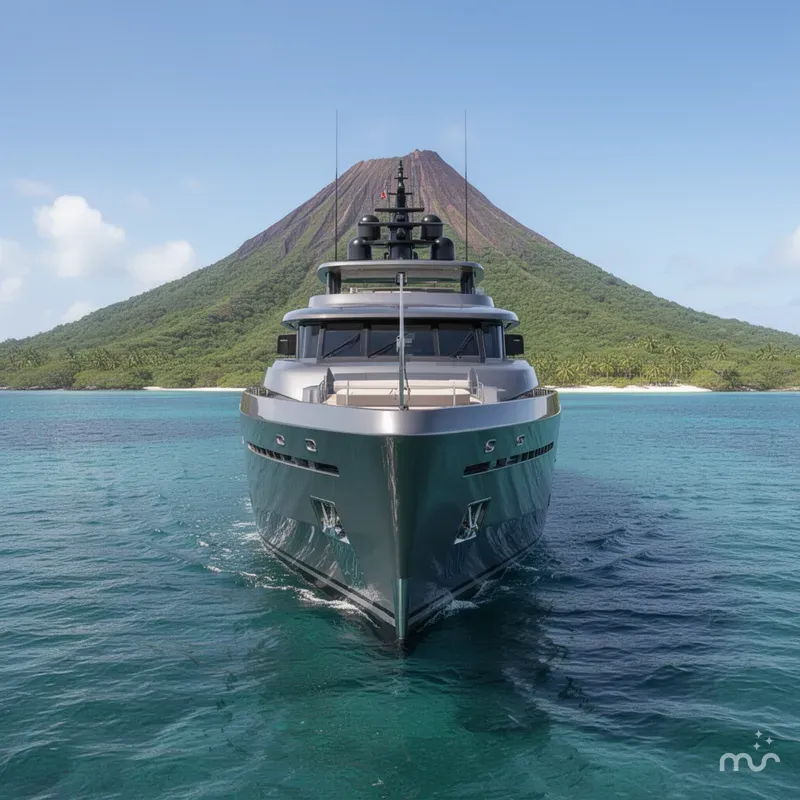

2026 Bray Yacht Design Ocean Explorer Motoryacht

Total Power: 900HP
Max Speed: Range 4000 miles at 14 knots

Holding: 1400 Us gal black & grey

Created with exceptional style by Ken Freivokh, this super fuel efficient, semi displacement steel hull form by Patrick Bray of Bray Yacht Design and Research with aluminum superstructure, has been extensively tank tested to ensure superior seakeeping and powering characteristics. It is conically projected, double chined hull with wide spray knocker and flared bow. The hull is longitudinally framed for maximum strength and ease of construction.

Advanced technology appendages, including a bulbous bow, midship bulbs, stern bulb, fixed/active stabilizers, and a bi-foil under each CP propeller, are the features that make this vessel unique. In addition to exceptional fuel economy, over 35% better than most, these features give the vessel superior seakeeping ability as well as double the range of stability of other vessels.

This vessel has an excess of a Trans-Atlantic range at 14 knots cruise as well as being capable of higher semi displacement speeds for fast local cruising.

06 knots: 2 x 45 Hp hybrid, comsumption 0 gal/hr range = 30 knt. miles
10 knots: 2 x 158 HP fuel consumption 15.2 gal/hr range = 8200 knt. miles
12 knots: 2 x 288 HP fuel consumption 26.4 gal/hr range = 5600 knt. miles
14 knots: 2 X 470 HP fuel consumption 42.2 gal/hr range = 4150 knt. miles
16 knots: 2 x 843 HP fuel consumption 74.3 gal/hr range = 2690 knt. miles

Stability (half loaded, intact estimated)
Positive righting arm to 160 degrees
Max righting arm @ 89 degrees
GM = 4.5 ft.
