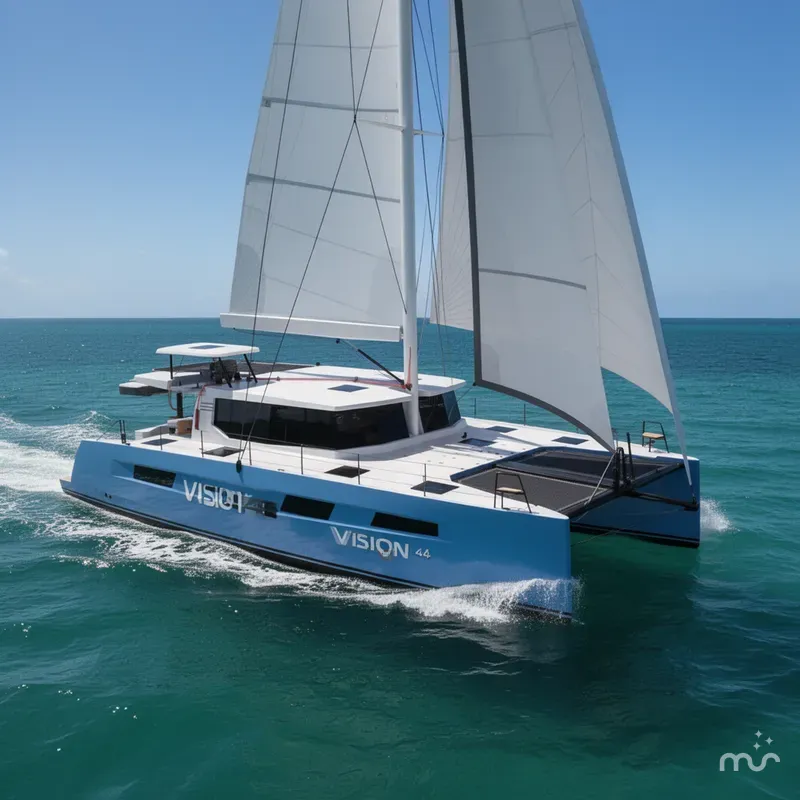

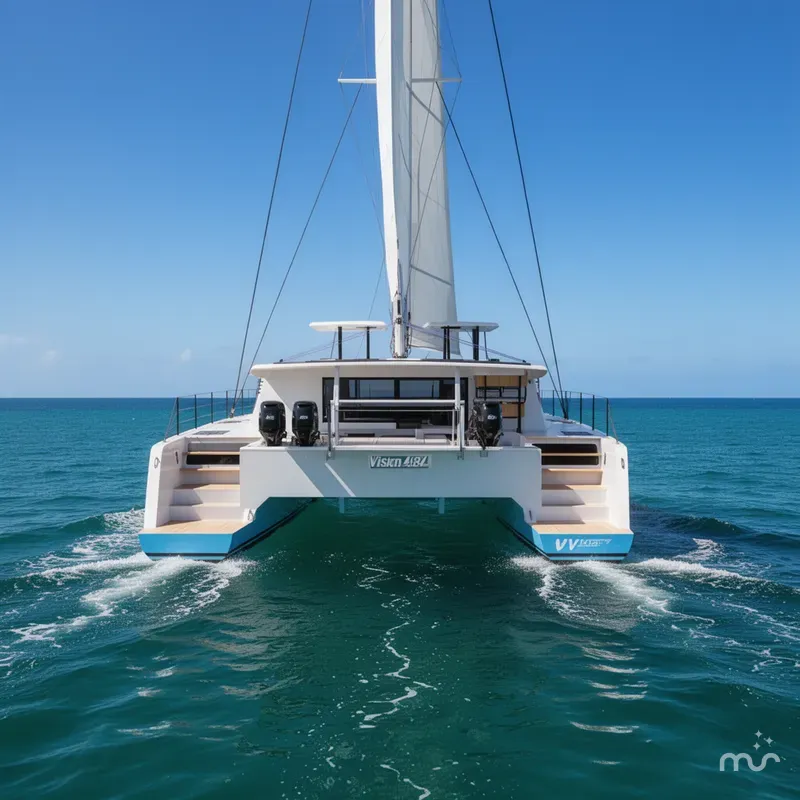

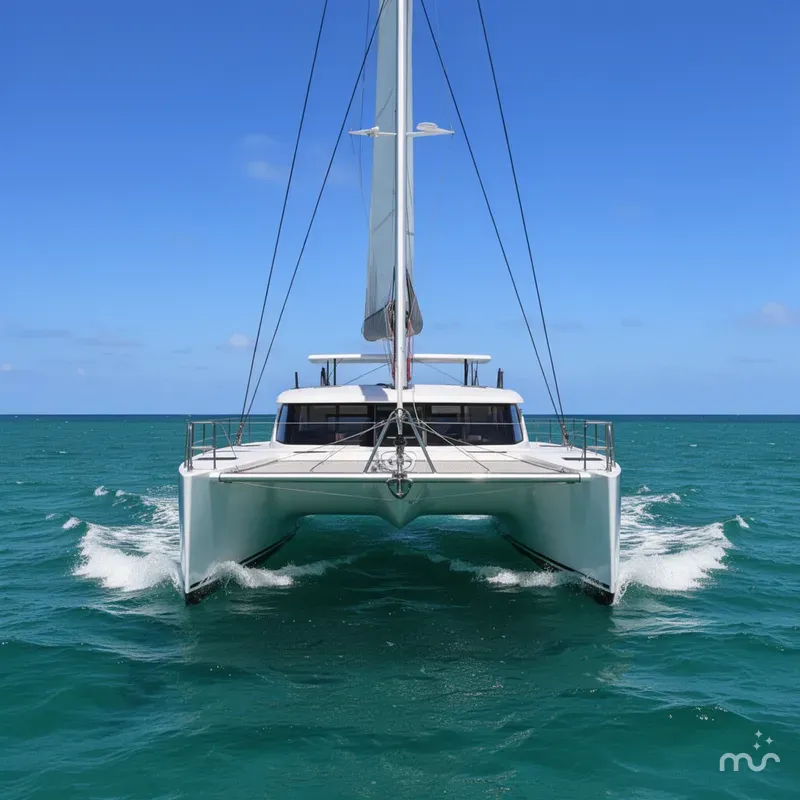

2027 Vision 484 Boat in Fort Lauderdale, FL 33316 US

• Hull, Deck, Bulkheads and Furniture  
• All components are vacuum resin infused  
• Crystic Vinyl Ester Epoxy resins used throughout Foam core infused  
• Hull and deck sprayed with high-quality two-part paint  
• Vacuumed foam sandwich furniture components  
• Furniture is structurally bonded to hull  
• All lockers painted out with grey Polyester topcoats  
• Steering System  
• Composite rudders Stainless steel rudder shafts, solid section through-hull   
• Vesconite rudder bushes  
• Tie bar connected steering - serviceable
• Vectran control lines linked to chain and sprocket steering 
• 1 X carbon composite three spoke steering wheel  
• Emergency tiller steering   
• Ackermann Angle in steering geometry ensures laminar flow at all steering angles  
• Propulsion    
• 2 X 50HP Nanni diesels with 48V 60-amp Belmar alternator house battery and 12V 120amp alternator starter battery   2 X Nanni diesel primers built-in  
• 2 X Nanni built-in engine oil extractor pumps   2 X SD20 sail drives with anodes  
• 2 X Gori feathering three blade propellers
• 2 X Engine room continuous rated blowers 
• 20 mm sound proofing sheets with gelcoat covers  
• 2 X Diesel filter / water separator system 
• 2 X Engine room lights  
• 2 X Bilge pumps  
• 2 X Remote fire extinguisher system  
• Easy access under bunks with support arm with work seat   
• Level floor in engine room  
• Tool kit

• Fuel   
• 2 X Composite fuel tanks  
• 2 X Fuel line gravity feed  
• 2 X Inspection hatches  
• 2 X Deck filler direct onto tanks  
• 2 X Available manual dip stick system  
• 2 X Top mounted tank access 
• 2 X Tank senders  
• Water  
• 2 X Composite water tanks  
• 2 X Water maker feed ports  
• 2 X Deck fillers  
• 2 X Inspection hatches  
• 2 X Water pumps   
• 2 X Wema tank senders  
• 2 X 40L Water heater 220V with engine heat exchanger connections  
• Glazing  
• Toughened glass with 2 X hatches in centre windows   Single leaf sliding cockpit window  
• Single leaf sliding saloon door with Vision 484 frosted logo  
• 8 X Perspex hull windows

• Winches  
• 4 X 50ST Electric winches  
• 4 X Winch handles
• 4 X Winch handle pockets 
• Main, Jib, Self-Tacking and Head Sail System  
• Main sheet bridle system  
• Halyard lock for spinnaker / code sails  
• 2 -1 Harken main sheet blocks lashed 
• 4 lashed boom blocks 
• 4 X Spinlock deck organizers  
• 10 X Spinlock clutches  
• 5 X Lashed mast base lead blocks 
• Harken jib traveller system  
• 5m Harken traveller track  
• 2 X Harken car stops  
• Harken block and car  
• Jib lashed clew board block 
• 2 X Bow pad eyes for blocks  
• 2 X Jib preventor pad eyes 
• 2 X Midship tweaker pad eyes 
• 2 X Aft pad eyes for head sails lead blocks 
• 1 X Storm jib attachment point and Dyneema complete sailing rig package   
• Mast   
• Mast steps 
• Hayrack boom   
• Antal batten car slider system  
• Standing rigging  
• Running rigging  
• Navigation lights  
• Steaming light  
• Tri-colour mast light  
• 2 x Spreader deck light  
• Courtesy flag halyards  
• VHF antenna  
• Windex  
• Radar bracket  
• Cross beam   
• Longeron with forward deployment anchor  
• Longeron 2:1 head sail line lead with two Spinlock clutches 
• Bikini tramps 
• Sails 
• Endurance Cross Cut Dacron fully battened main sail  
• Endurance Cross Cut Dacron roller furler jib with UV strip  
• Main sail stack pack with Vision 484 logo  
• Sail bags  
• 2 X Super Tramp trampolines  
• 2 x Super Tramp bikini trampolines  
• Dynema soft shackle package 

• Deck Gear  
• 12 X Horn cleats  
•  8 X Carbon stanchions with 5mm Dyneema guard rails 
• 11 x Deck pad eyes 
• 3 x Jackstay webbing straps 
• Windlass hause hole for longeron 2:1 foresail system  
• 4 X SZ 44 Hatches  
• 2 X SZ 70 Hatches  
• 3 X SZ 30 Hatches  
• 4 X Fore deck lazarette hatches  
• Light grey embossed EVA decking on all flat deck areas  
• Teak brushed EVA decking in cockpit and sugar scoops  
• 7 X Composite cockpit storage hatches  
• Electronics – B&G  
• Zues 12” chart plotter / radar at helm - 8-inch display
• HALO 24nm radar     
• B&G drive unit  
• Triton2 digital display + wind
• Triton2 pilot controller
• VHF V100-B system AIS+GPS 500
• Electrical  
• 4 x Victron 48V battery bank - TBD
• 2 X 12V 80Ah AGM starter batteries  
• LED exterior lighting  
• AC/DC circuit breakers  
• DC switching panel  
• Thermal breakers  
• Isolator switches  
• Dual voltage shore power system using Victron isolation transformer  
• 1 x 220v Victron 5kw invertor charger   
• Tin PVC wire with proper termination and coding  
• Courtesy lights on transom steps  
• Courtesy lights down interior stairs  
• Saloon red night lights 
• Red chart light 
• LED cabin lights  
• LED saloon lights  
•  LED strip mood lighting   
• 12V USB point in headboard  
• 1 X Single AC plug with USB port 
• 2 X Double AC plug 
• 3 x Single AC plug with double USB port 
• 5 x Single AC plug with switch 
• 3 x Triple AC multi-plug with switch  
• 1 x 12v Marinco socket at helm  
• 1 x 24v Marinco socket in cockpit 
• Dimmer light controls in saloon and cabins  
• 4 X Smoke detectors  

• Gas  
• BEP propane monitoring systems  
• Propane solenoids  
• Propane detectors  
• Propane pressure gauge  
• 1 X 9kg steel propane cylinders 
• Manual shut-off under stove  
• Plumbing  
• 3 X Marine electric toilets with salt or fresh water cross-over  
• 3 X 38mm Diaphragm waste removal pumps  
• 3 X Built-in toilet macerator pumps  
• 2 X Water pumps  
• 1 x Hot and cold transom shower  
• 1 X Saltwater deck wash system (starboard aft combing) 
• 1 x Freshwater wash system (port aft combing) 
• 1 x Freshwater anchor wash system (starboard forward locker) 
• 3 X Shower waste pumps  
• 2 X Black water tanks  
• 6 X Rule 1100Lphr bilge pumps  

• Interior   
• Modern contemporary design   
• Woca waxed oil finishes on all-natural oak solid and veneer wood surfaces  
• Two-part sprayed gloss units and white Doors  
• Upholstered headboards with reading lights   
• White Vinyl cladding on ceiling and vertical areas  
• Slightly textured French Chartreuse painted surfaces on walls  
• Various options for upholstery material and leather   
• Blind / screens on hatches  
• Como hard-wearing flooring  
• Port and Starboard Mid Ship Lockers  
• All pumps and through-hull and skin fittings located in this locker  
• Shelf  
• Black water tanks 
• Manual bilge pumps 
• Automatic bilge pumps  
• Water strainers  
• Tank breathers  
• Deck fillers  
• Non-return valves  
• Strum boxes  
• Plumbing manifolds  
• Salt to fresh cross-over valves  
• Water tight DB switch box for pumps and aircons 
• 1 x Port side pantry with five shelves and one door  
• Cabin Forward Port Side  
• 1 X Forward cabin  
• 1 x Queen size island bed   
• 1 x Upholstered headboard 
• 2 x Headboard reading lights 
• 2 x Ceiling LED down lights 
• White Vinyl ceiling & wall panels 
• White Staron counter tops with Staron fiddles 
• 1 x Single AC plug with single USB port at desk 
• 2 x C-type USB at FWD bed both sides above bed steps 
• 1 x Air conditioner outlet with louvered vent 
• 1 X Hanging cupboard with aircon through-hull fitting access  
• 5 x Clothes shelf cupboards  
• 1 X En-suite head sprayed two part white finish  
• 1 X Electric toilet  
• 1 x F22 slap light above toilet  
• 1 X Recessed basin with mixer faucet  
• 1 X Adjustable shower head with hot / cold lever control 
• 1 x Teak shower grating 
• 1 x Escape hatch in head 
• 1 x Glass shower door 
• 1 x Stainless steel hand / towel rail 
• 1 x Vanity cabinet with mirror  
•  2 x Fans 
• Cabin Aft Port Side  
• 1 x Aft cabin  
• 1 x Queen size bed   
• 1 X Upholstered headboard   
• 2 X Headboard reading lights  
• 2 x Ceiling LED down lights 
•  White Vinyl ceiling panels 
•  White Staron counter tops with Staron fiddles 
• 1 x Single AC plug with double USB port 
• 1 x Air conditioner outlet with louvered vent 
• 1 X Hanging cupboard   
• 2 X Clothes cupboards   
• 1 X En-suite head with two-part sprayed white gloss finish  
• 1 X Electric toilet  
• 1 X F22 slap light above toilet 
• 1 X Basin with faucet mixer  
• 1 X Shower head with hot / cold lever control  
• 1 x Teak shower grating 
• 1 x Vanity cabinet with mirror 
• 1 x Recessed wash basin with hot / cold mixer faucet 
• 1 x Stainless steel hand / towel rail 
• 1 x Aft-facing port light  
•  2 x Fans 
• Owners Cabin Starboard   
• 1 x Queen size bed   
• 1 x Upholstered headboard   
• 2 X Headboard reading lights  
• 2 x Ceiling LED down lights 
• White Vinyl ceiling panels 
• White Staron counter tops with Staron fiddles 
• 2 x Single AC plug with double USB port inboard at bed 
• 2 x Single AC plug with double USB port inside WIFI locker 
• 1 x Single plug & USB at desk 
• 1 X Air conditioner outlet with louvered vent  
• 2 x Midships cupboards  
• 3 x Clothes lockers 
• 1 x Privacy door between cabin and saloon   
• 1 x En-suite head sprayed with two-part white gloss finish   
• 1 X Electric toilet  
• 1x F22 slap light above toilet 
• 1 X Wash basin with hot / cold mixer faucet  
• 1 X Shower head with hot / cold control lever  
• 1 X Shower seat  
• 1 X Glass shower door  
• 1 x Vanity cabinet with mirror 
• 1 x F22 slap light above mirror cabinet inboard 
• 1 x Single plug & blank below mirror cabinet inboard 
• 1 x Electrical access door 
• 1 x Aft-facing port light 
• 2  x Fans 
• Starboard Forward Workshop 
• Workbench with bench vice  
• Heavy duty rubber worktop  
• 8 X Storage lockers   
• Heavy duty rubber flooring  
• 1 X 220V AC plug point  
• 1 X Escape hatch  
• 1 X Downlight in ceiling 

• Galley  
• 4 X Burner propane stove top  
• 1 X Propane oven  
• 1 X 160L Fridge with door 
• 1 X 160L Freezer with drawers
• 2 x Triple 220v plug points with switches (some clients do not want switches) 
• 2 x Single plug & two blanks in galley wall next to sink 
• 1 X Double black recessed sink  
• 1 X Hot / cold fresh water faucet   
• Galley counters with stainless steel railings   
• Sliding galley window to cockpit   
• Saloon  
• Saloon seating in leather  
• Batteries and Invertors under saloon seating  
• Natural oak wood grain finish saloon table on heavy duty drop-down pedestals   
• Forward facing navigation systems station   
• 1 x Single plug with c-type USB, 1 x standard USB & blank 
• 9 X LED down lights 
• 6 x LED mood lighting strips 
• 2 X Air conditioner outlets with louvered vents 
• Oversized electrical access door 
• 1 x Single AC plug with double USB ports, 1 x single plug with c-type USB & two blanks 
• 2 x single AC plug with two blanks in saloon seat 
• 2 x Fans 
• 1 x Fan at nav station  
• Helm Station  
• Bulkhead helm  
• Overhead compass   
• 2 X Rope bins  
• 2 X Person helm chair with fold down foot rest 
• 1 x Helm chair harness attachment point  
• Helm chair cushions  
• Composite helm shade top with stainless legs  
• Overhead helm window  
• 360 Helm enclosure with canvas borders with cutouts for access and ventilation
• 1x 12v Lighter socket for spotlight 
• Cockpit  
• 4 X Sliding safety bars in sugar scoops with screw locking   
• 2 x Transom wash boards  
• 1 x Fish filleting board plus BBQ stand  
• 1 x Teak table with canvas cover  
• 1 x Full cover hard top bimini  
• 1 x Sliding overhead hatch to port side cut-out  
• 5 x Cockpit drains 
• 1 x Large cockpit dump with teak grating  
• 1 x Set of saloon door washboards 
• 1 x Storage locker under helm seat 
• 1 x Weber aluminium gas BBQ with 5Kg steel gas cylinder  
• 1 x Cockpit cooler box built into seat   
• 1 X Heavy duty telescopic transom ladder  
• 1 x Full cockpit canvas and mesh enclosure  
• 1 x Set of cockpit cushions with back rests 
• 5x Down lights in cockpit ceiling 
• Teak brushed EVA decking in cockpit and transom steps

• Anchoring, Mooring   
• Lofrans 1800W windlass two-foot switches  
• Lofrans remote helm control and chain counter  
• Anchor 33kg Rocna original  
• Anchor bridle with Mantus swivel and Mantus chain hook  
• Anti-osmosis epoxy barrier coating – three coats  
• Three coats of Sigma Coatings anti foul  
• Prop Speed on sail drives and props  
• 120m Chain to suit windlass  
• 8 X Inflatable fenders  
• 4 X 6m Dock lines spliced  
• 4 X 10m Dock lines spliced  
• 1 X Carbon fibre crane dinghy davit system  
• Safety CAT A Equipment  
• 5 X Fire extinguishers and 2 x fireballs 
• Vinyl lettering and boat name (excluding custom graphics) 
• 1 x 8-man Viking life raft  
• 1 x Epirb 
• 2 X Manual hand-operated bilge pumps  
• Jon-buoy self-Inflating system                 
• 4 x Standard life jackets  
• 4 x Auto inflate PFD’s with built-in harness  
• Flashlight  
• Rigging cutting tool  
• Lifelines  
• Cockpit harness attachment points  
• 1 X Orange smoke flare  
• 4 X Red handheld flare  
• 4 X Red rocket flare  
• Radar reflector  
• Watertight capsize bottle  
• Space blankets  
• First aid kit  
• Spares   
• Tools  
• Orange ID sheet  
• Signalling mirror  
• Handheld compass  
• Sound signalling device  
• Code “N” & “C” flags  
• 2 X Black balls  
• Soft wooden bungs  
• Emergency nav lights  
• High visibility storm jib
• Launching, Commissioning, Hand Over   
• Launching at Knysna Yacht Club slipway  
• Stepping of mast by Sparcraft Masts  
• Commissioning of sails by sail manufacturer   
• Commissioning and calibration of components  
• Sea trials and training in and around Knysna  
• Hand over to client in Knysna  

Standard inventory is subject to change at the discretion of Vision Yachts

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
