The NYX 42C sailing under a blue mainsail and white jib, seen from above on the quarter, a white catamaran with long hull windows, solar panels on the flybridge roof and two people sitting up there
MarineSource NYX CatamaransWorld premiere

42C

A sailing catamaran offered with three cabin layouts, sleeping four to eight in double cabins.

Manufacturer statement
12.55 m
Length overall
6.75 m
Beam
1.50 m
Draft
12,000 kg
Displacement

Three cabin layouts, four to eight berths

NYX offers the 42C with three cabin layouts, sleeping between four and eight people in double cabins. The yard's claim for the arrangement is that there is somewhere quiet aboard whether four are sailing or twelve.

A helm set up to be sailed single-handed

Every control line, sheet and running rigging is brought to the helm station and kept reachable there. The self-tacking Solent jib is on a 2-to-1 sheet with a roller furler, which is the other half of sailing the boat alone.

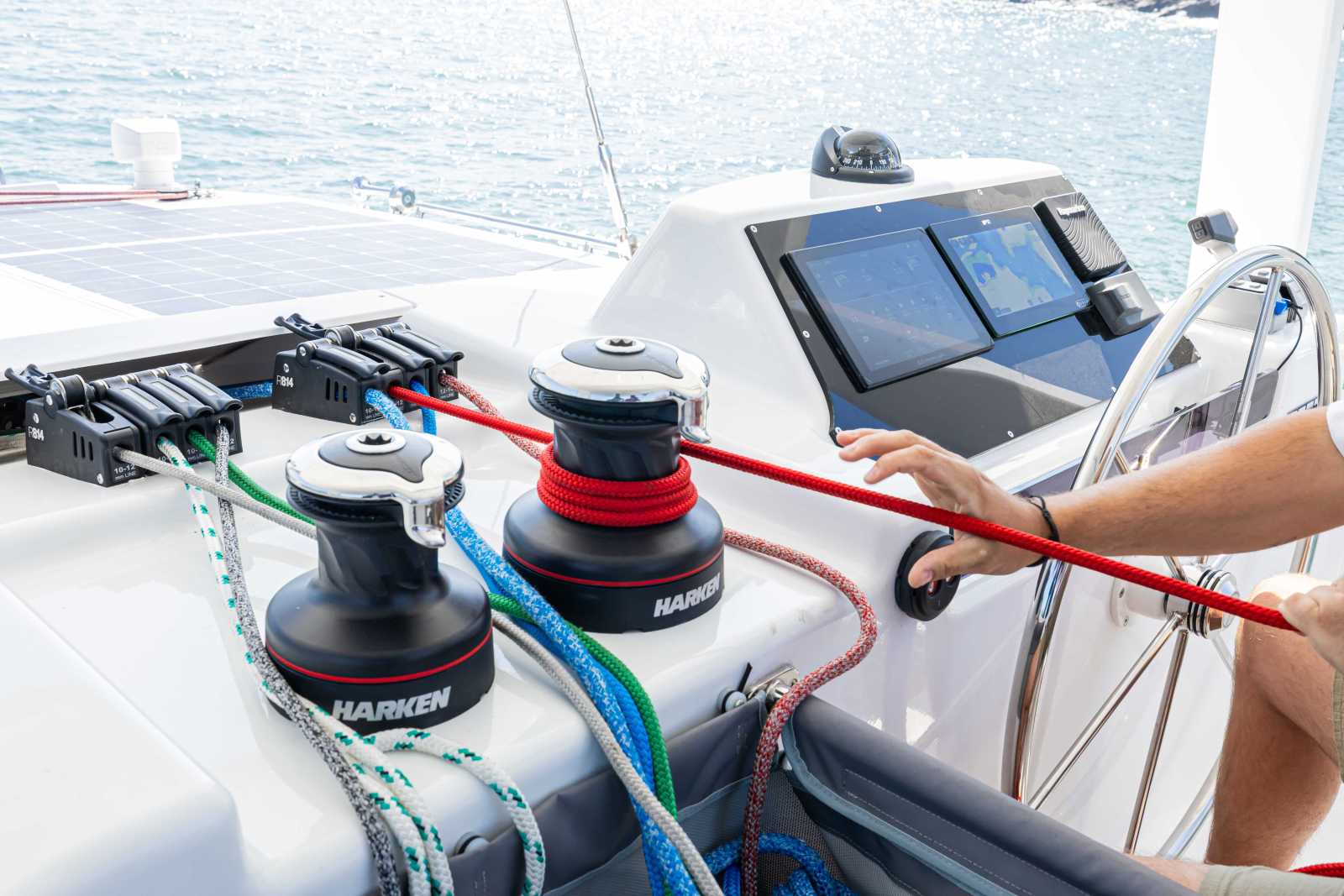

The helm station, with two Harken winches, coloured control lines led into a bank of rope clutches, a chartplotter screen and a hand on the wheel
Every line led to the helm.

A 56-square-metre mainsail, or 60 with the square top

The standard mainsail measures 56 square metres in NYX's specification table. An optional square-top mainsail is offered for more drive in light to moderate winds and easier handling when reefing.

A hull drawn by award-winning designers

NYX credits the hull to award-winning yacht designers and points at the curves and detailing as the evidence. The boat is offered across design categories A to D, with crew numbers of 12, 15, 20 or 25 to match.

Technical specifications

By the numbers

13 specifications, with a source linked on each row. Reference: www.nyx-catamarans.com.

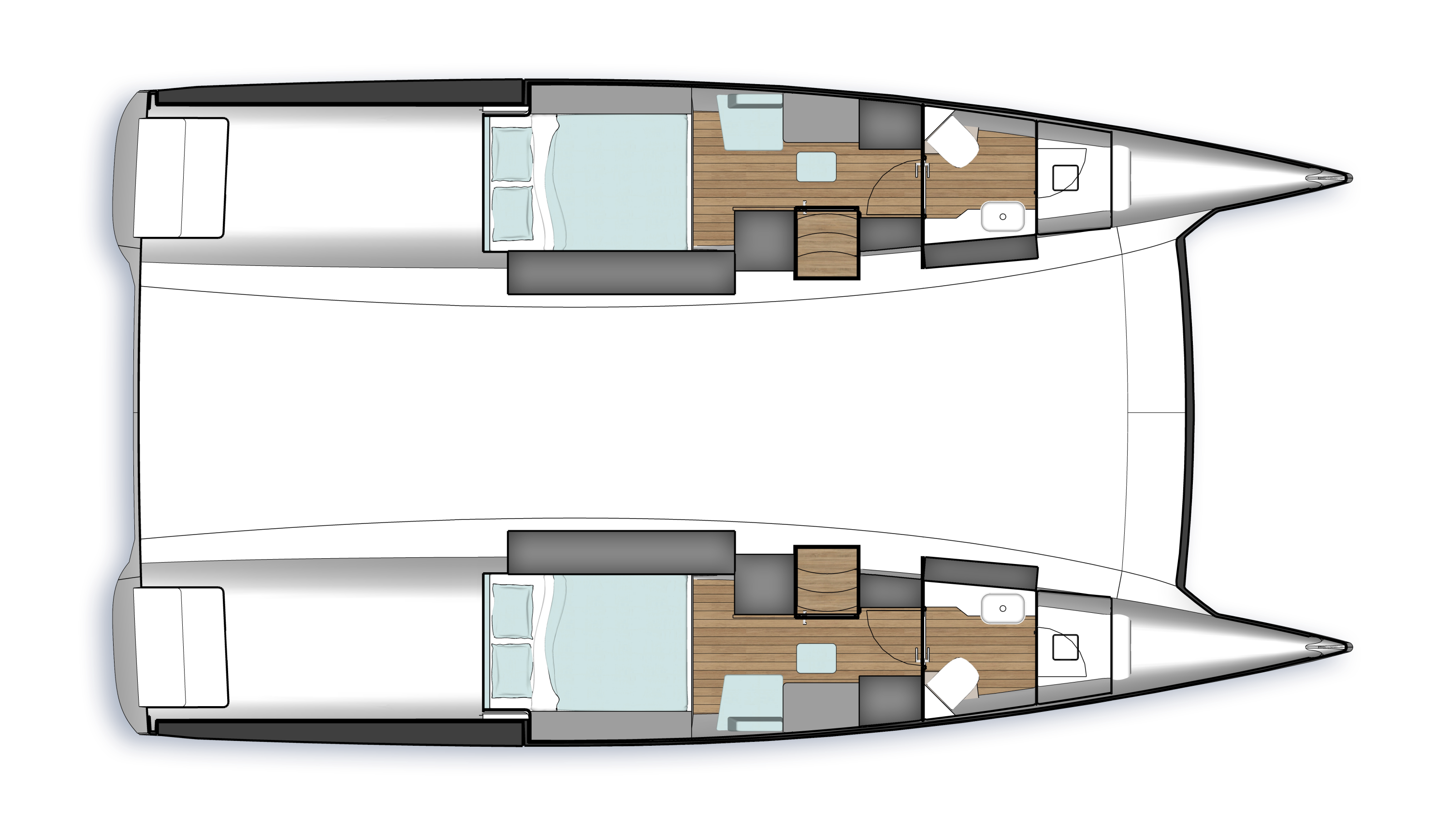

  • NYX's two-cabin plan for the 42C seen from above, one double cabin and one heads in each hull

    2 cabins

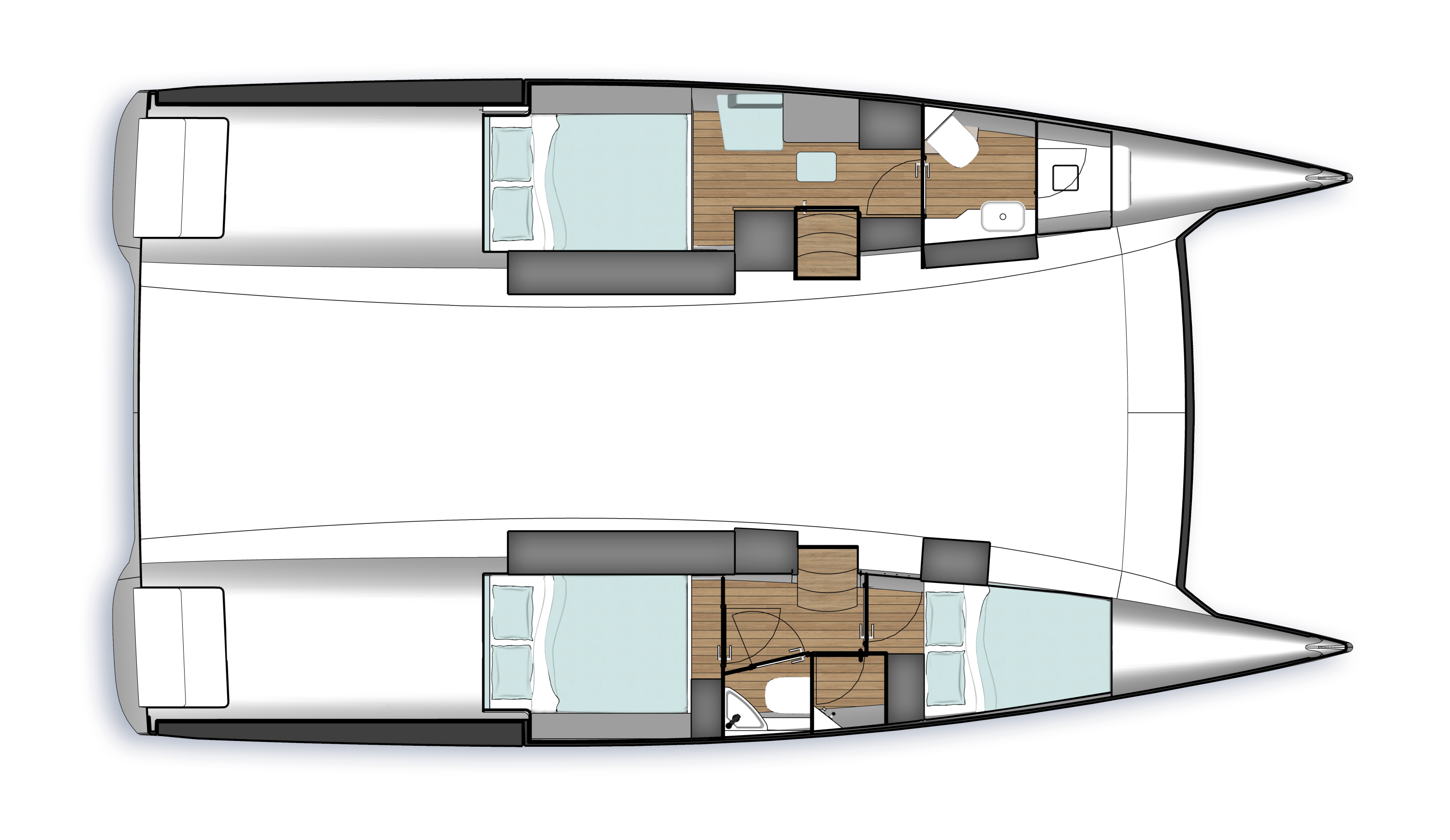

  • NYX's three-cabin plan for the 42C seen from above, one double in the port hull and two in the starboard hull

    3 cabins

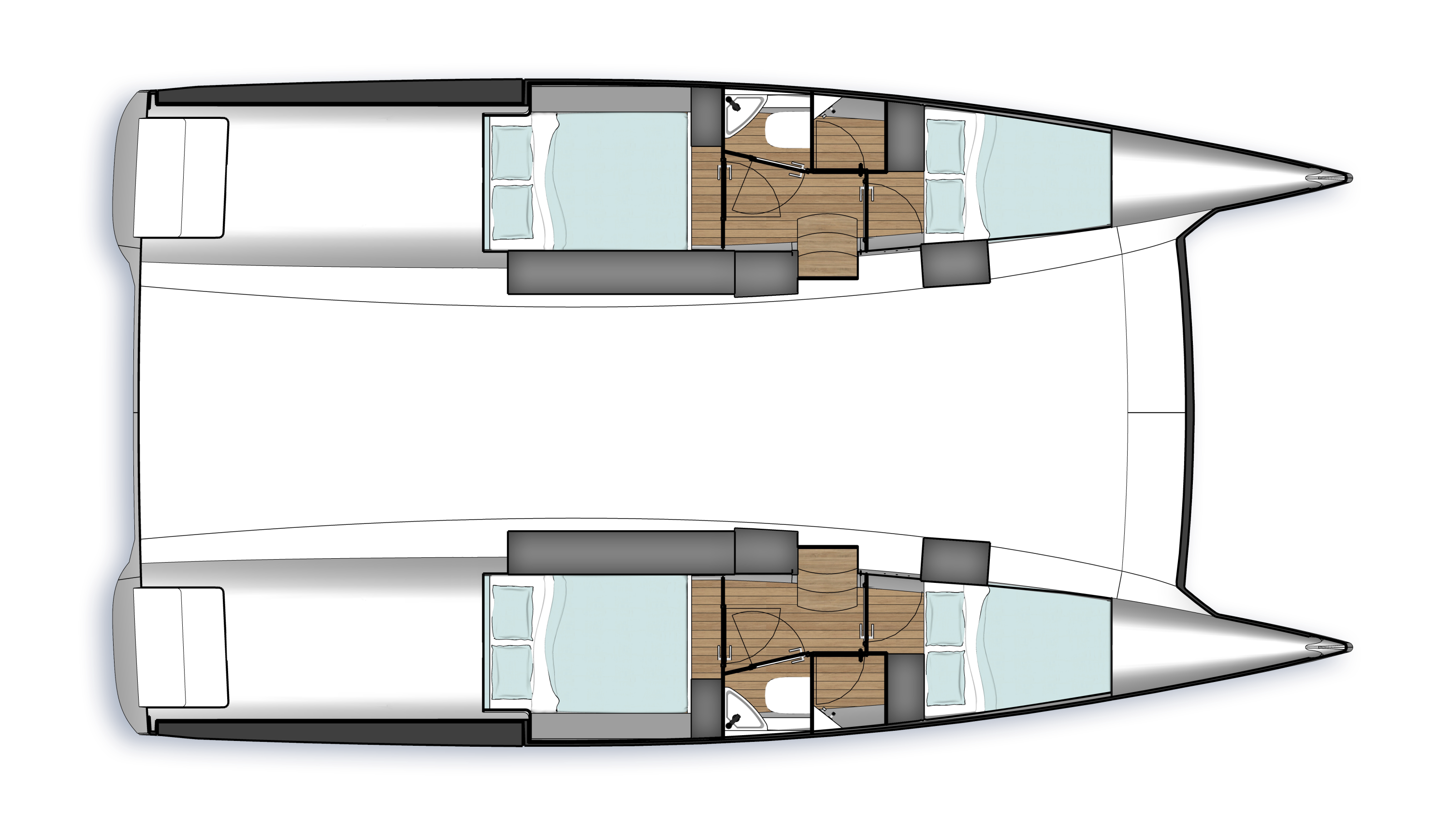

  • NYX's four-cabin plan for the 42C seen from above, two double cabins in each hull sharing a heads between them

    4 cabins

NYX Catamarans 42C specifications
Length overall12.55 m
Waterline length12.50 m
Beam6.75 m
Draft1.50 m
Hull typeMultihull
Displacement12,000 kg
Displacement, maximum18,000 kg
Mainsail, standard56 m²
Jib34 m²
Design categoryA, B, C or D
Crew number12, 15, 20 or 25
Engine power, standard2 x 28.4 hp
Fuel tank, standard2 x 200 L

Availability

Explore NYX Catamarans on MarineSource

Debut confirmed by nyx-catamarans.com.
