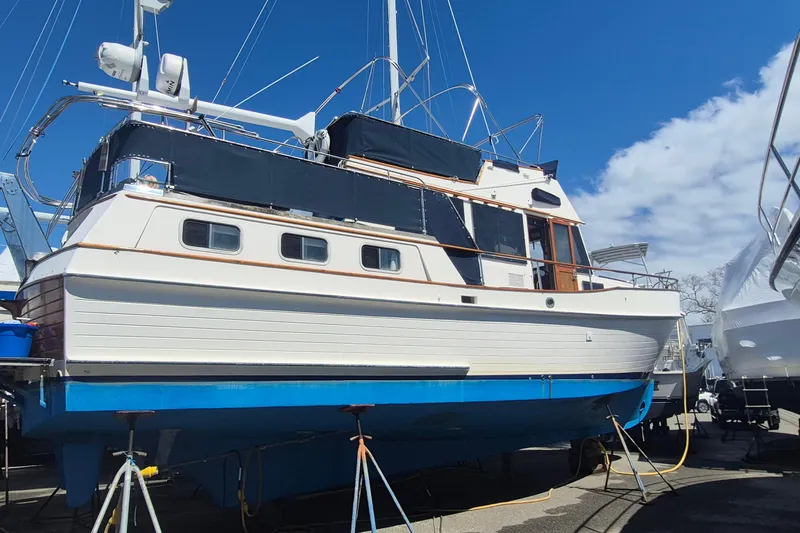

1983 Grand Banks 42 Motoryacht

HULL & DECK:

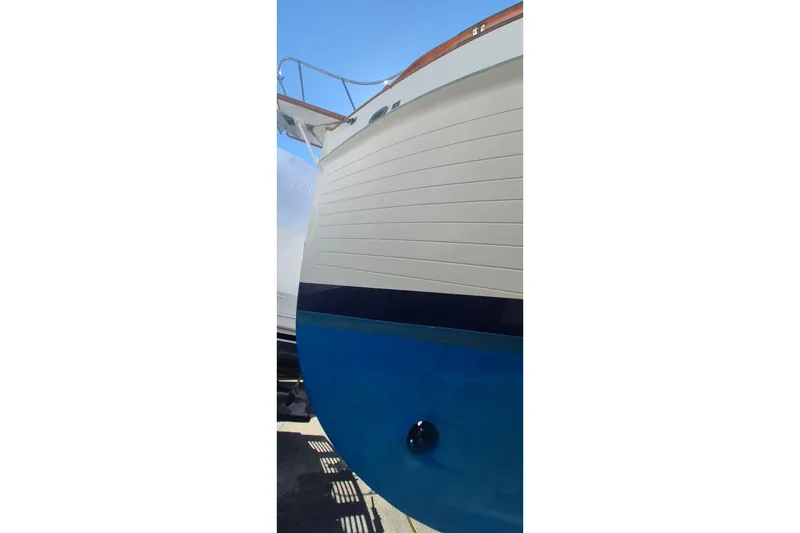

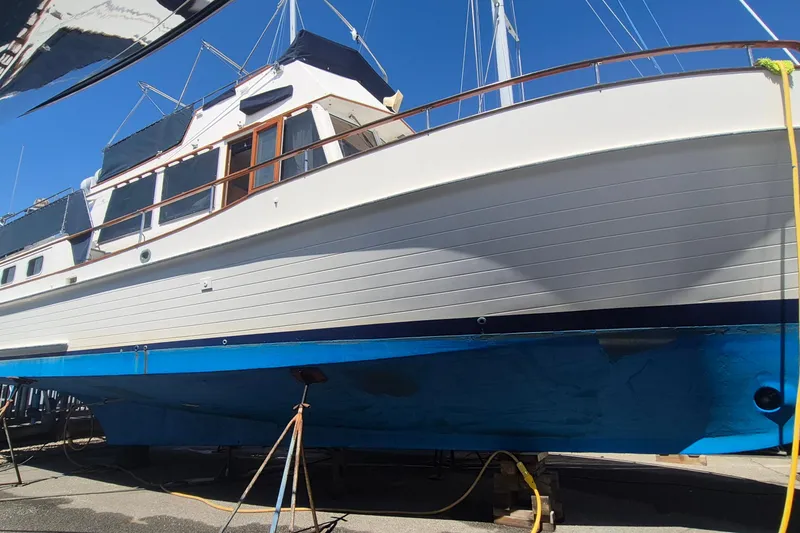

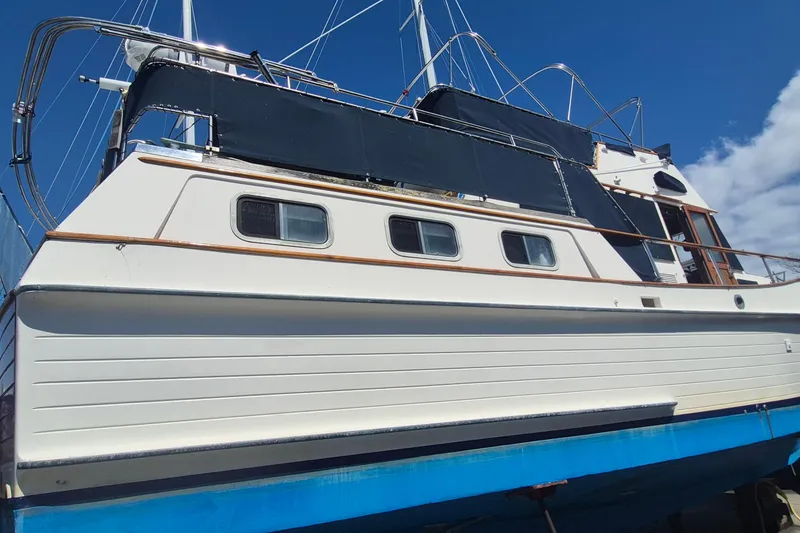

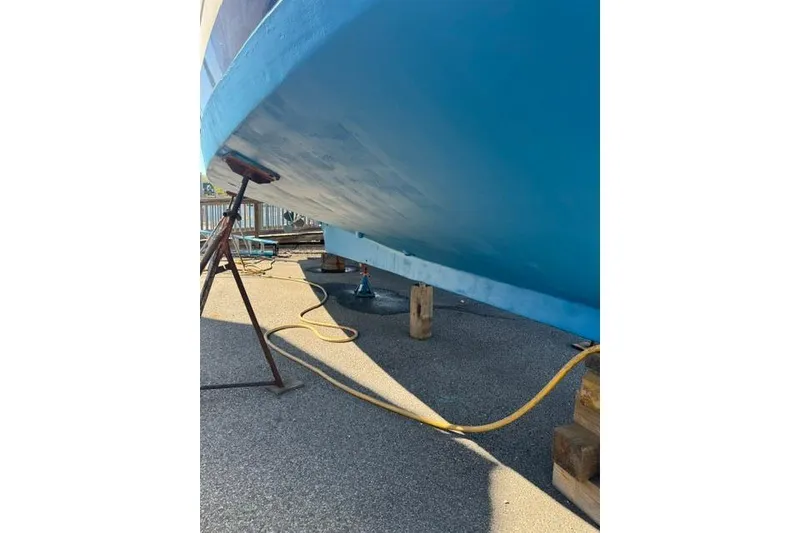

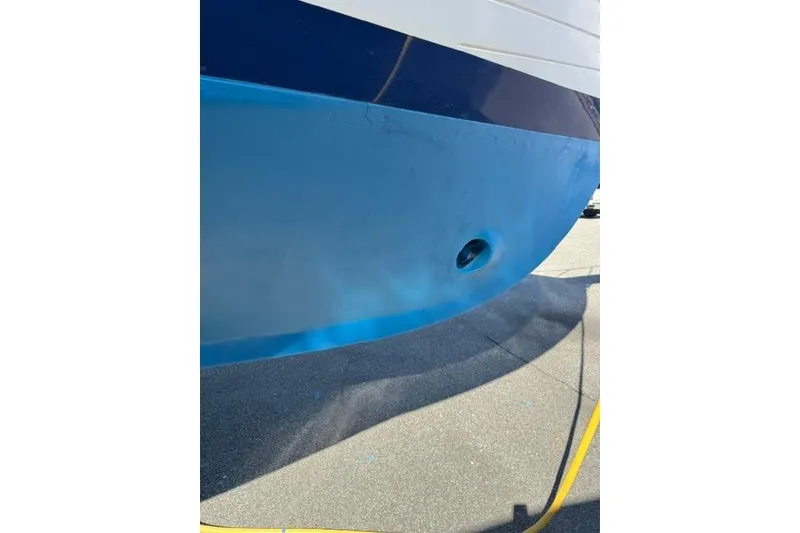

• White hull, dark blue boottop, blue bottom.
• 2020 new custom teak and mahogany swim platform with rubrail and S/S 4 run swim ladder.

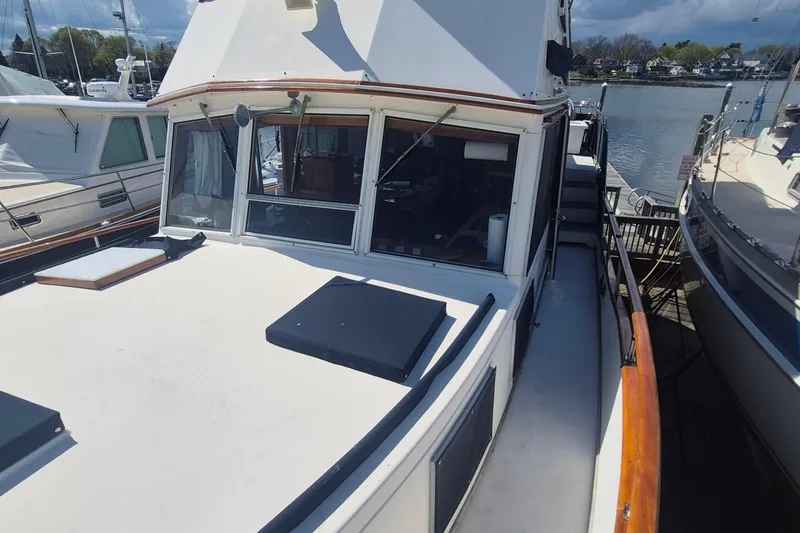

• All decks are fiberglass (teak decks were removed 2015).
• Teak anchor pulpit.
• The only traditional teak decking remaining is the windlass pulpit area and fore deck seat and all external steps.

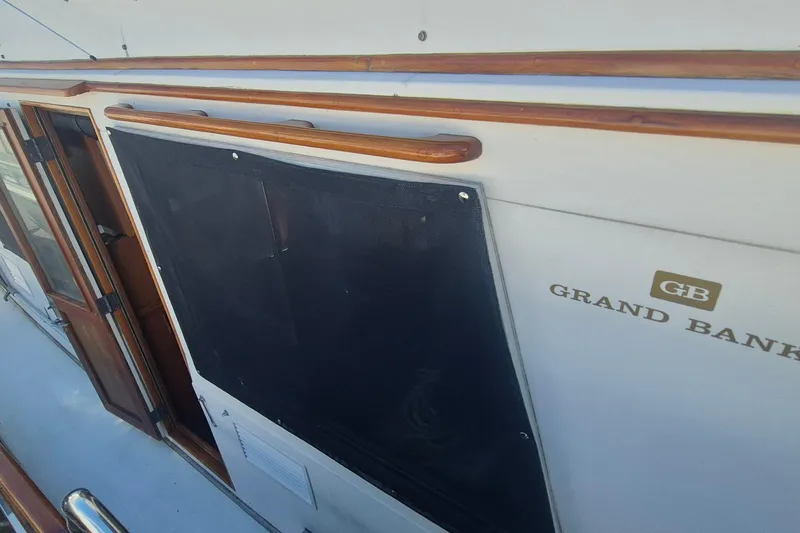

• All windows are protected by blue Sunbrella privacy covers.

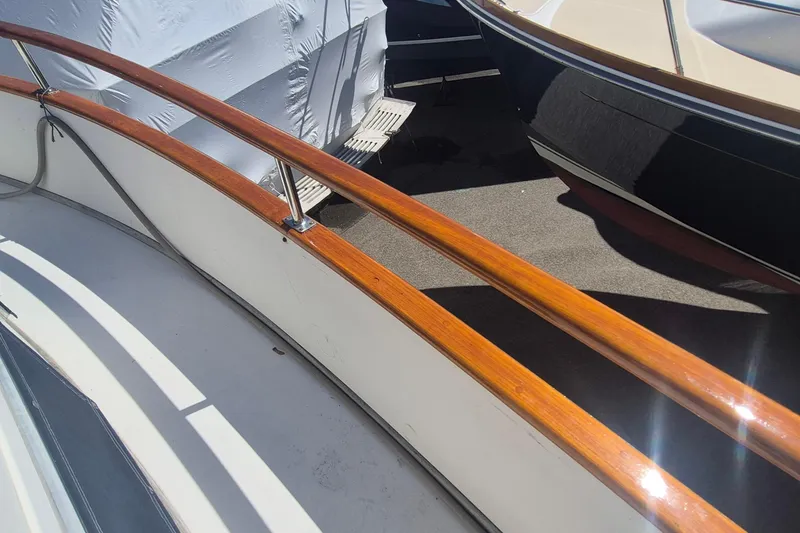

• The hand and toe rails are finished in bright varnish in excellent condition.
• All toe rails and hand rails have custom Sunbrella covers.

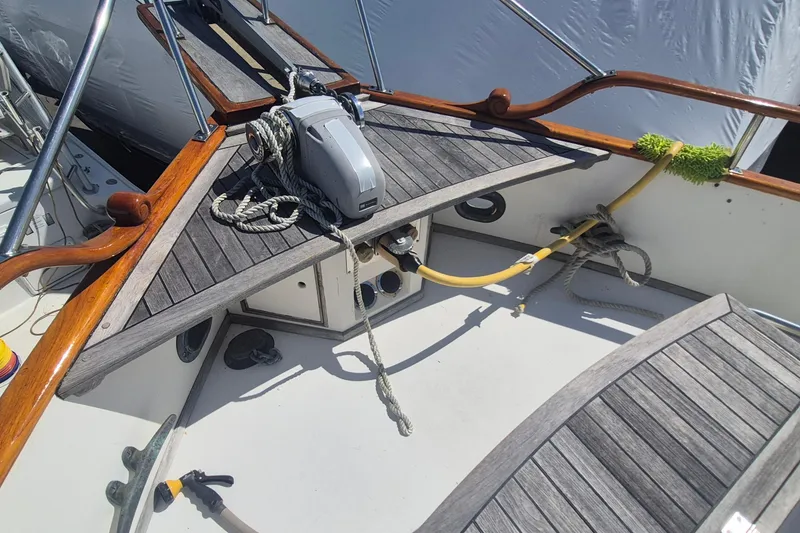

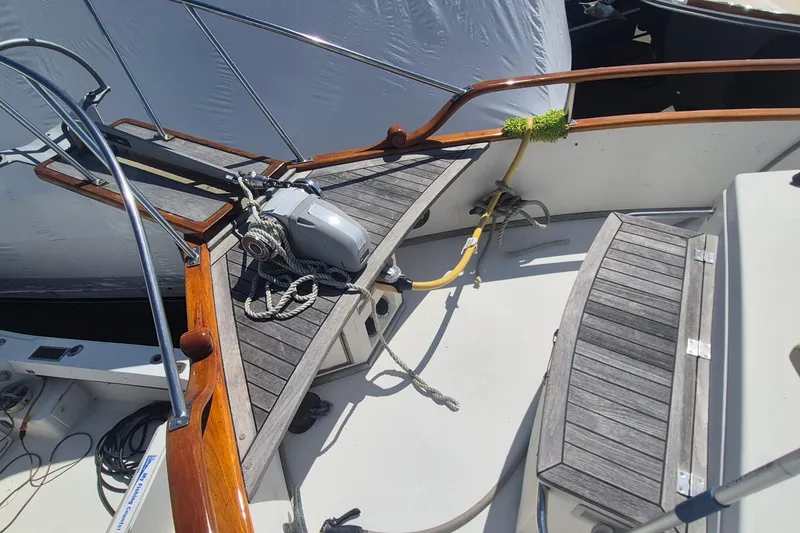

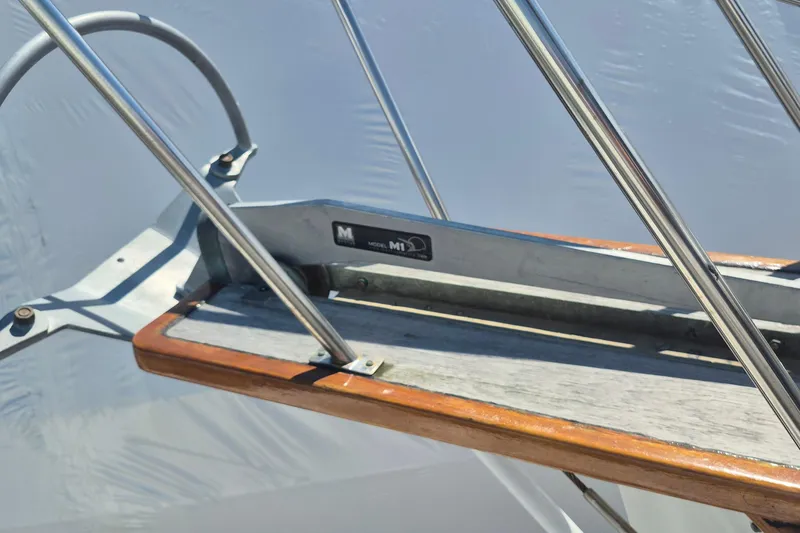

• The Maxwell Horizontal anchor windlass has foot controls at the bow as well as controls at the bridge.
• All deck hardware and fittings are bronze.
• S/S Simpson dinghy davits.
• There is a built-in dunnage box at the forward end of the house.
• Forward side rails are varnished teak and all other rails are S/S as is the bow rail.

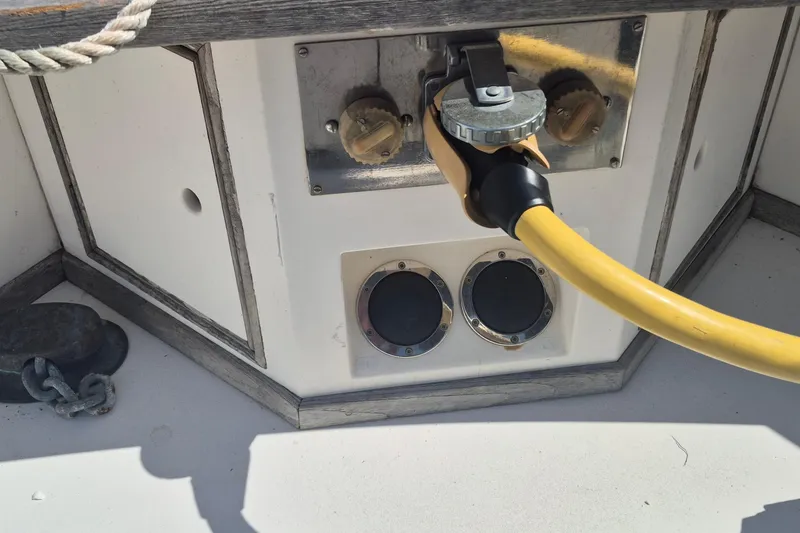

• Fresh water wash down on the aft deck transom, a forward 50/250 electrical inlet and phone/cable connections are provided.

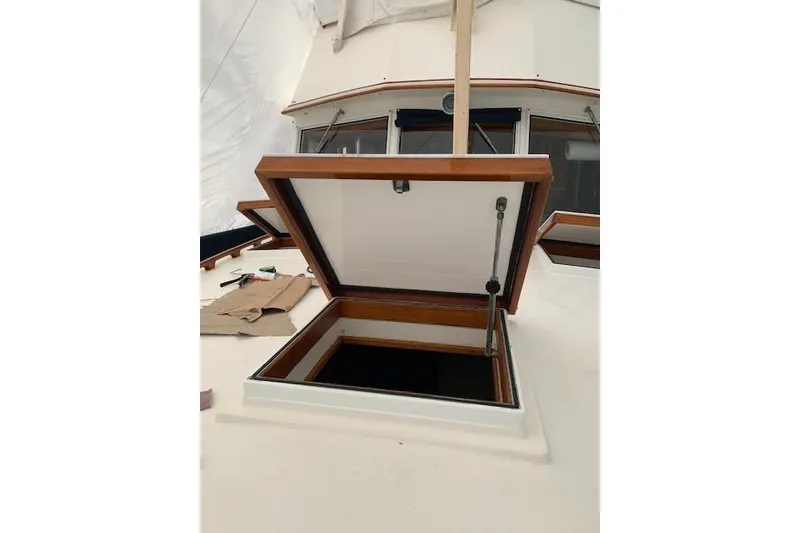

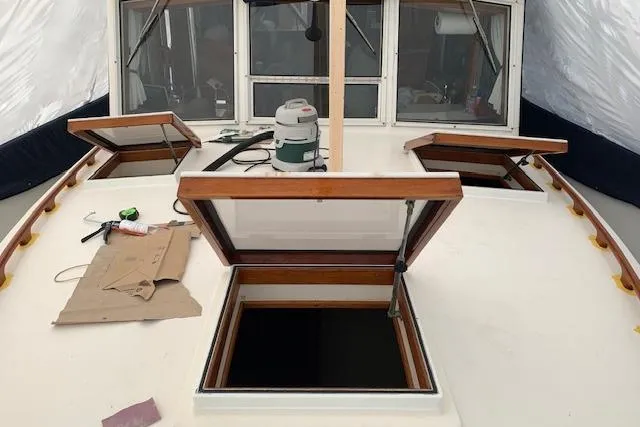

• 2021 All hatches removed and rebuilt with new hardware.

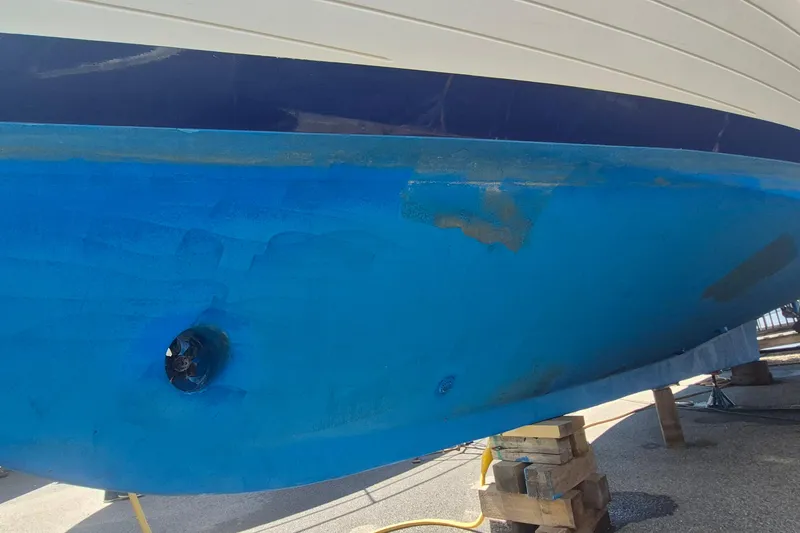

• 2021 Vetus bow thruster ( run by 2 Lithium-type batteries).

TANKAGE:

Fuel: 600 gallons in 2 tanks.

Water: 260 gallons in 3 tanks.

Holding: 50 gallons.

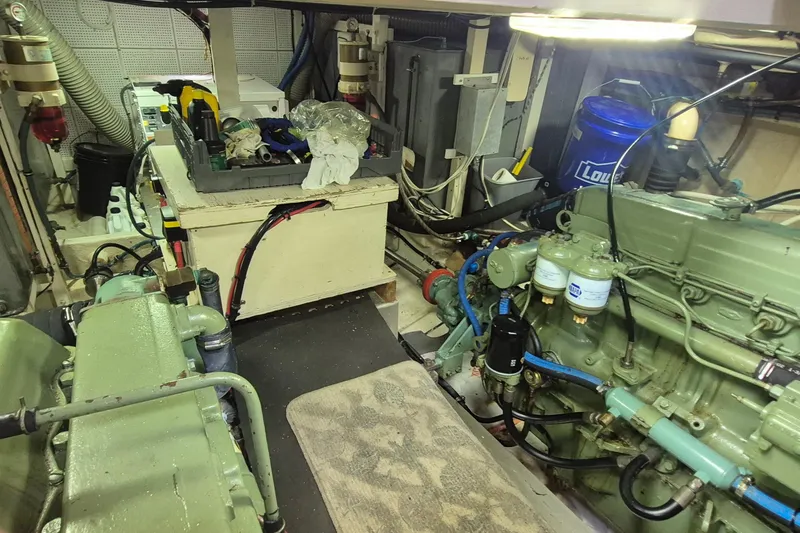

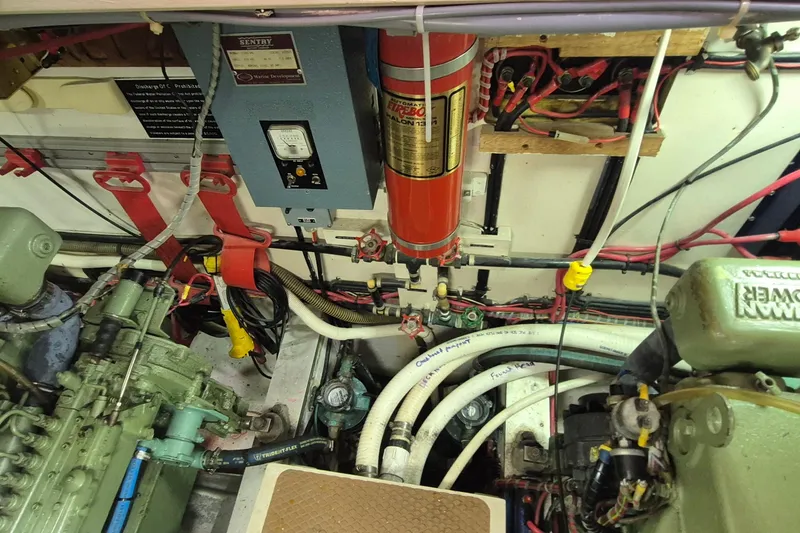

ENGINE & MECHANICAL:

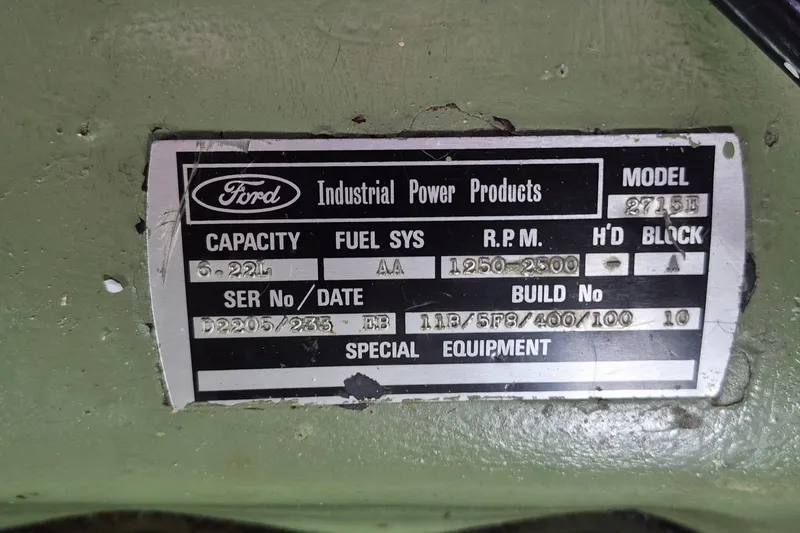

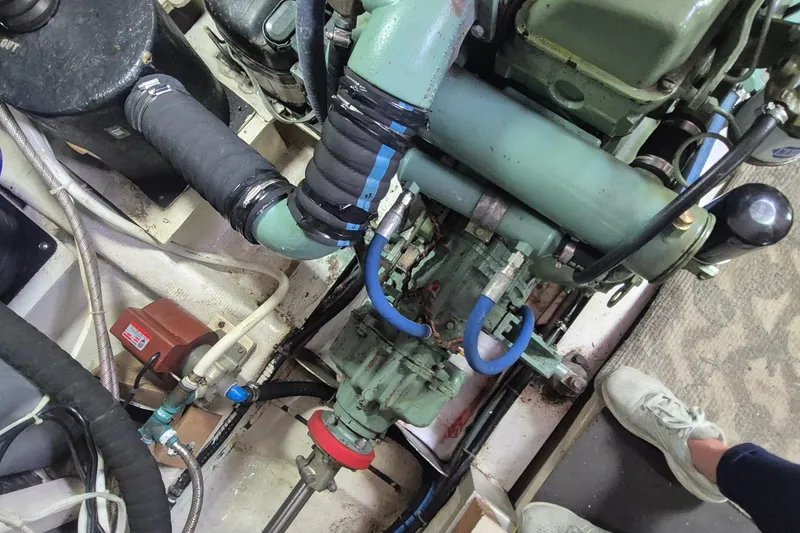

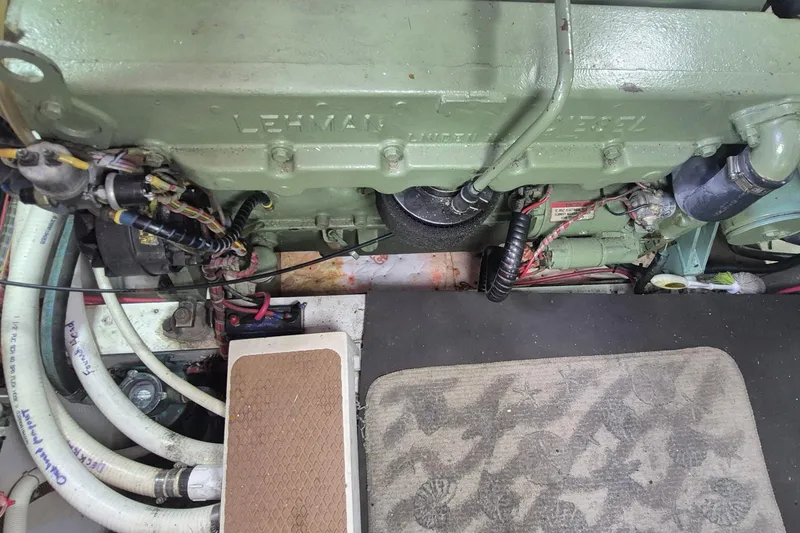

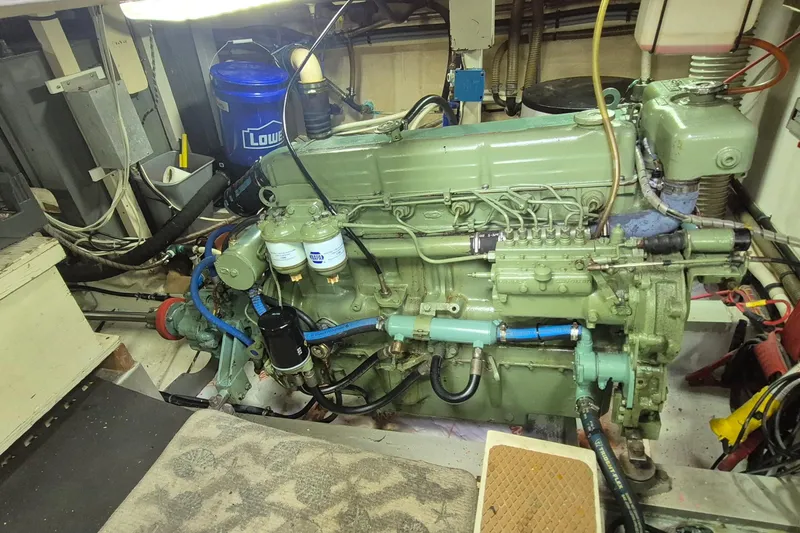

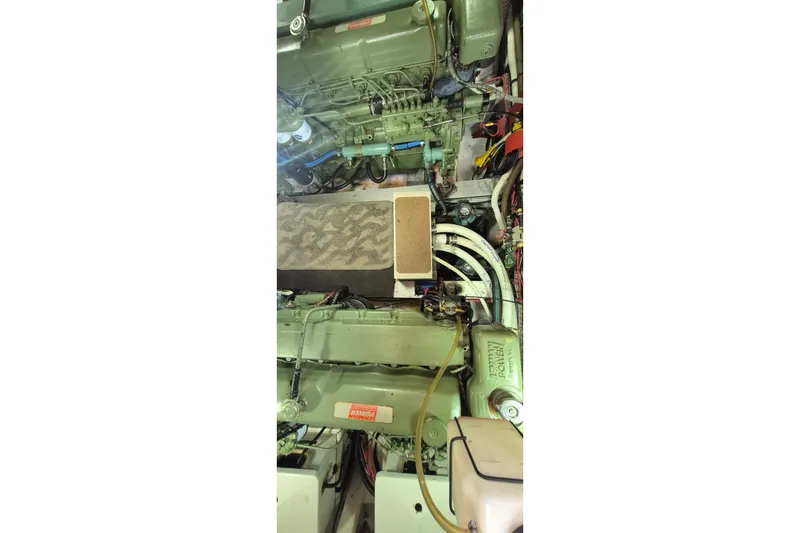

• Twin 120 HP, 6 cylinder Ford Lehman Diesels.
• Replaced: (hoses, oil coolers, circulation pumps, valve cover gaskets, heat exchangers cleaned and painted, and new exhaust manifold assembly on port engine).
• Approximately 2800 hours on engines.
• Cruising speed: 7-9 knots; Max speed: 10.
• Borg Warner 2:1 Reduction Transmissions (both professionally rebuilt).
• 3.5 - 4.0 GPH cruising @ 8 knots.
• Full Service Logs Available.
• Racor # 900 Filters.
• Auto Oil Changer.
• Holding Tank located between Engines.

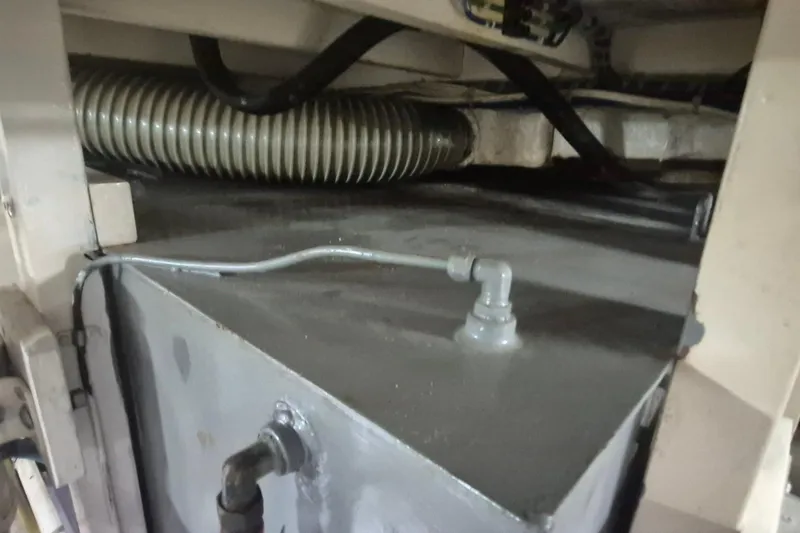

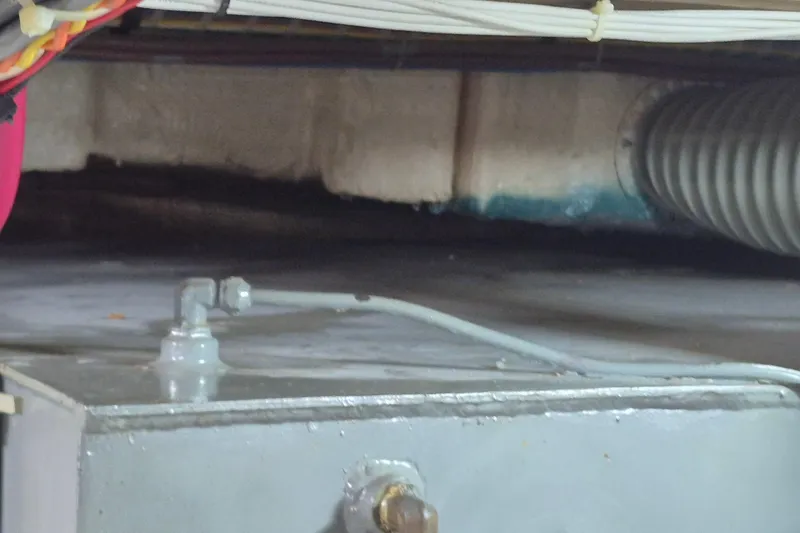

• Fuel Tanks Tested and Painted.

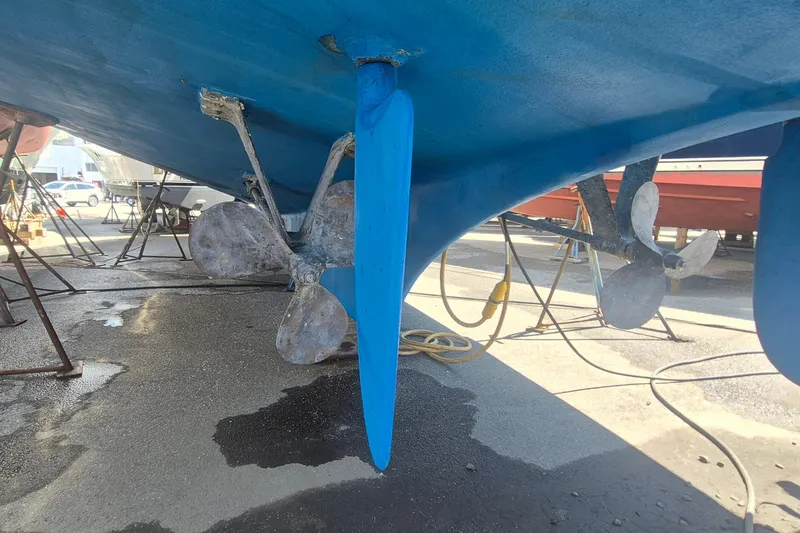

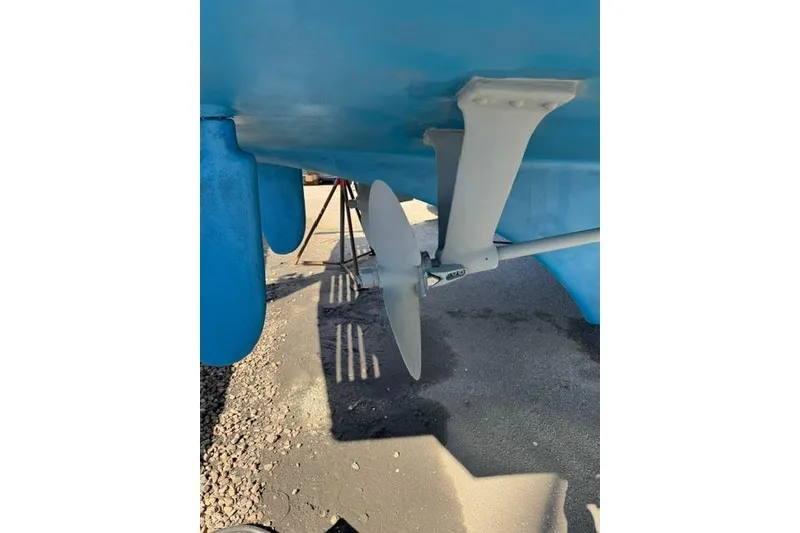

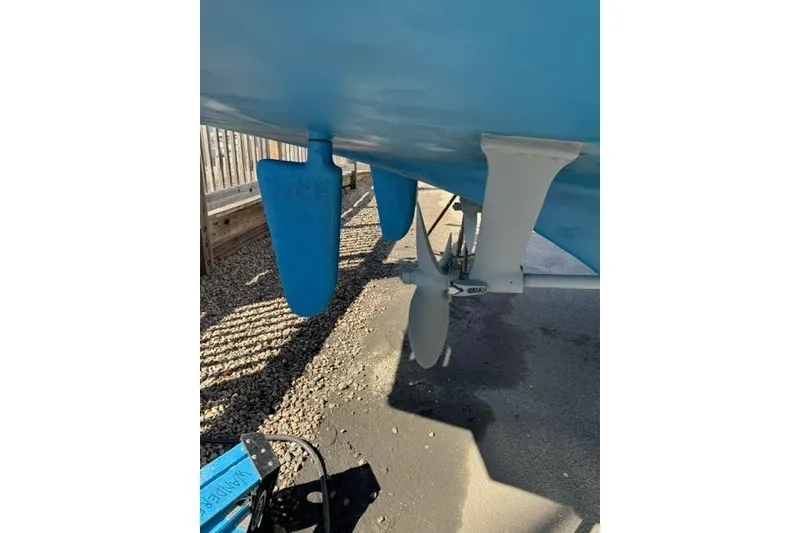

• 3 blade bronze 23" x 20" props.
• S/S shafts.
• PSS Dripless shaft logs.
• Multiple Automatic Bilge Pumps; Engine room contains two separate pumps at two bilge levels.
• Fire Buoy 1301 Fire Extinguishing System.
• Shaft saver couplings.
• 2020 new centerline Rule 1500 bilge pump and float switch.

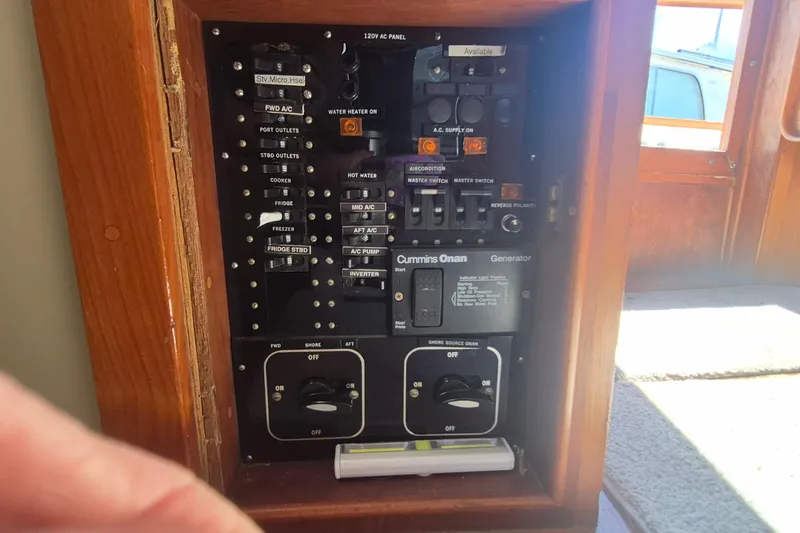

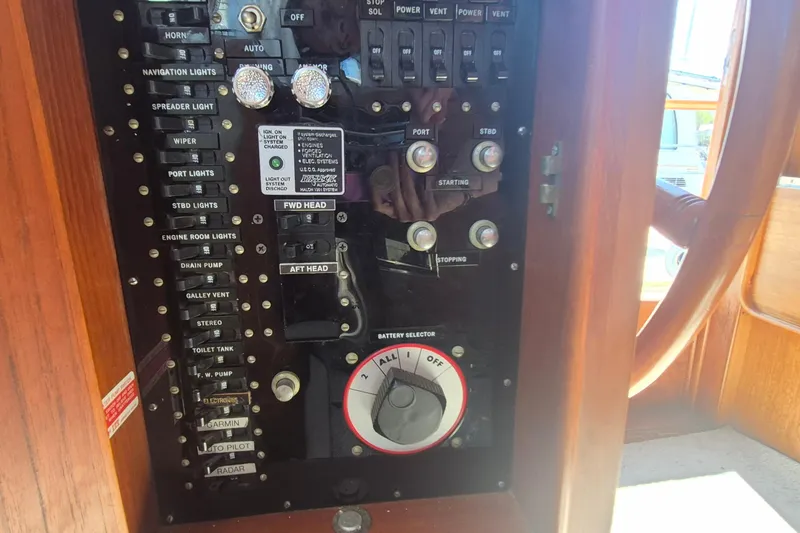

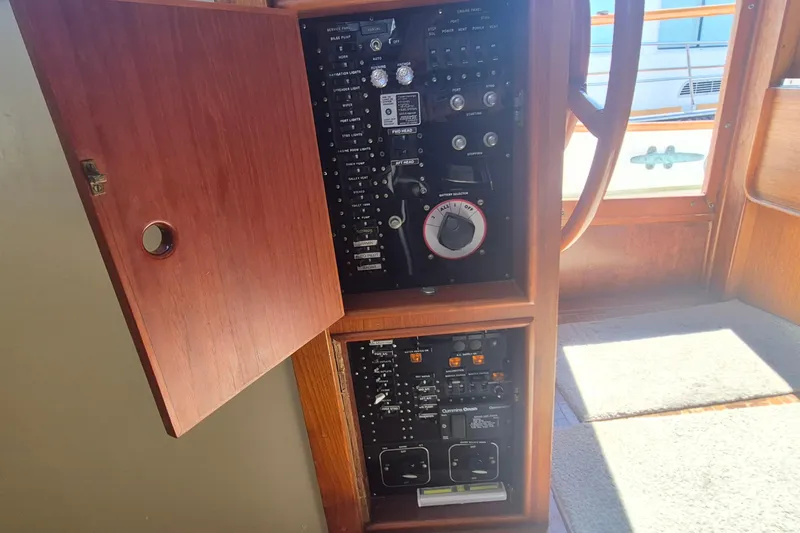

ELECTRICAL:

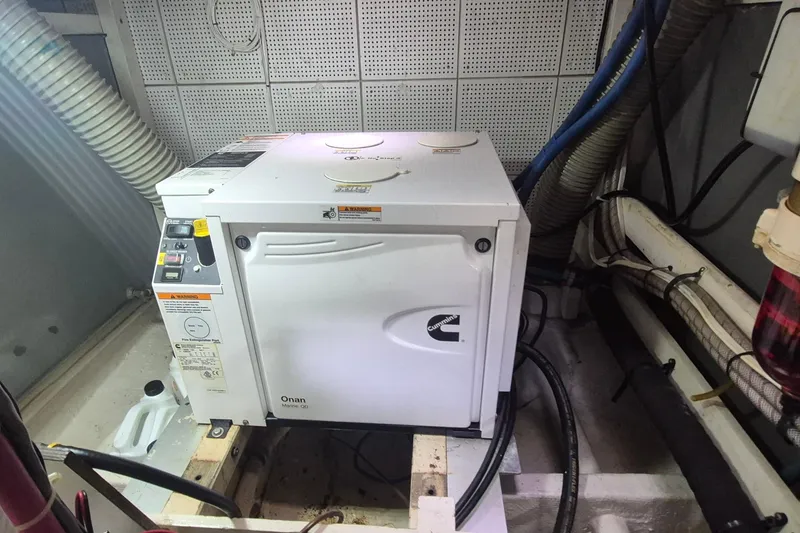

• 2018 7.5 Onan generator in Sound shield with 450 hrs...can run all ships systems at once.
• 2026 2-8D engine start batteries.
• 2022 6-12V Deep cycle house/inverter batteries, 100 amp hour each.
• 2025 4D battery for generator.
• 1-50 amp 250' shore power cord forward.
• 2-30 amp shore power cords.

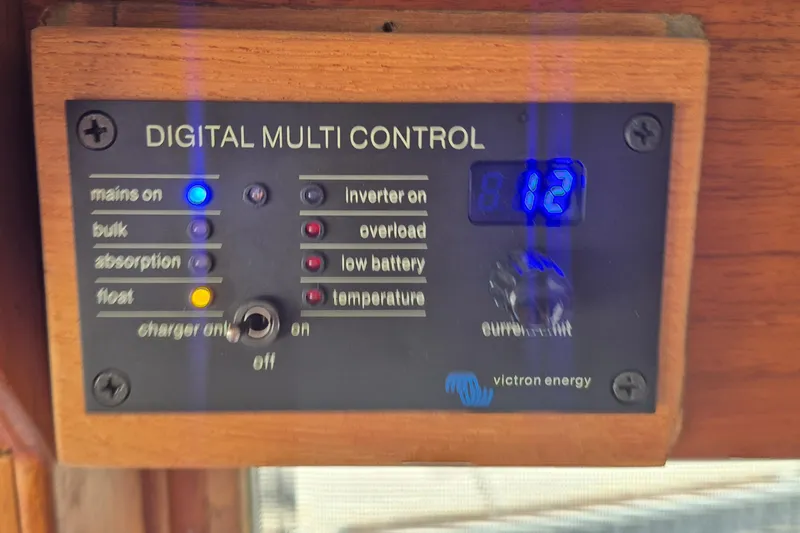

• 2022 new Victron charger/inverter.
• 3 Zone Marine Cruiseair air-conditioning with electronic controls (12k Fwd, 16k Salon, &10K BTUs); 2 air conditioners recently replaced in 2014).
• 12 Gallon Raritan 120V hot water heater also circulates through main engines.

VESSEL WALKTHROUGH:

Galley-up configuration with the rare third stateroom amidship. Forward and down three steps is the large vee berth with a vanity table to port and hanging locker starboard. Amidship and to port is a guest stateroom with head and stall shower opposite to starboard. The main salon is up three steps and includes the lower helm, galley, bar and L-shaped dinette. The full beam master stateroom is aft, down three steps, and features a centerline queen berth, split head and shower, vanity/desk and almost limitless storage.

ACCOMMODATIONS:

• Comfortably sleeps 6 owners and guests in 3 staterooms with 2 heads.
• The forward guest stateroom features a large vee berth with an overhead hatch for ventilation and a separate air conditioner.
• The second guest cabin includes a large single berth and offers accommodations rarely found and often desired in a 42' yacht.
• The cabin can be converted easily to serve as an office or other utility function.
• The master stateroom is one of the largest to be found in any 42 ft. yacht.
• There is a full size island queen berth against the aft bulkhead near centerline.
• The master head is at the forward port corner and a separate shower is located at the forward starboard corner of the stateroom.
• The owner's suite is elegantly furnished in teak.
• The cabin has a dedicated stereo and air conditioner, and an overhead opening hatch.

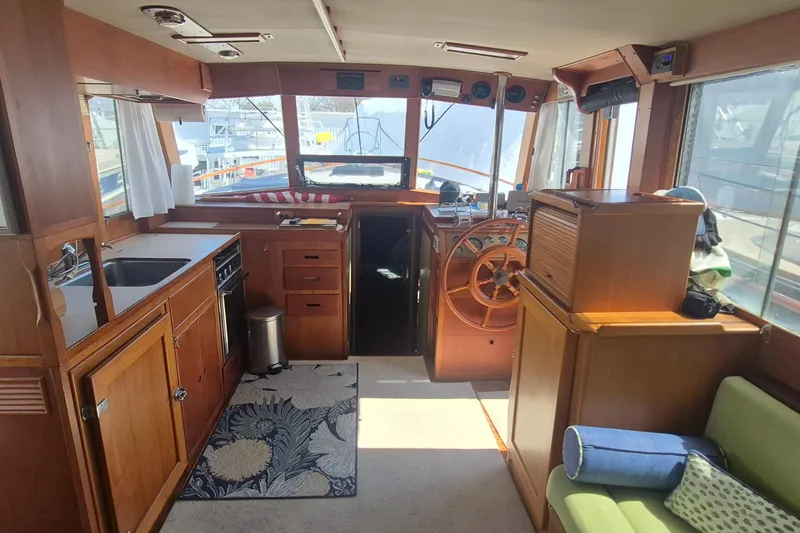

• The salon is large and serves as the center of activity.
• It includes galley and entertainment center to port and the lower helm, settee and dining table starboard.

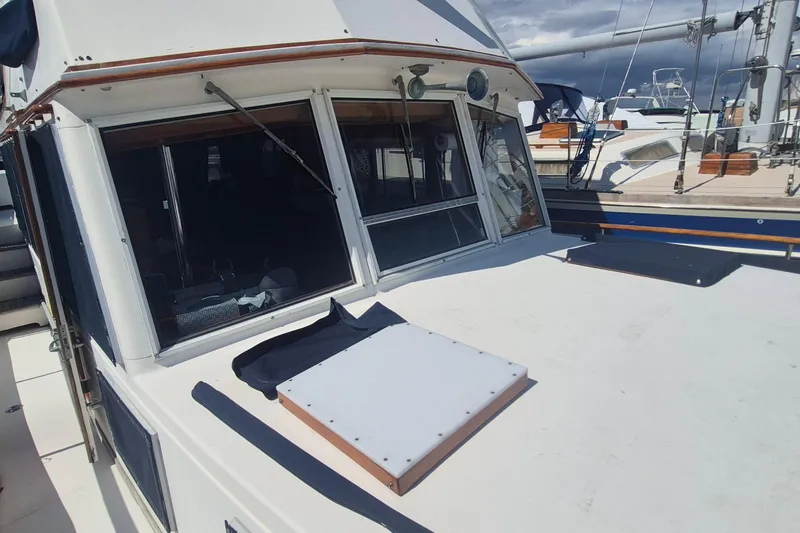

• In 2020 all windows throughout removed, cleaned tracks and drains, rebedded with new felt trim and replaced S/S vertical edging.

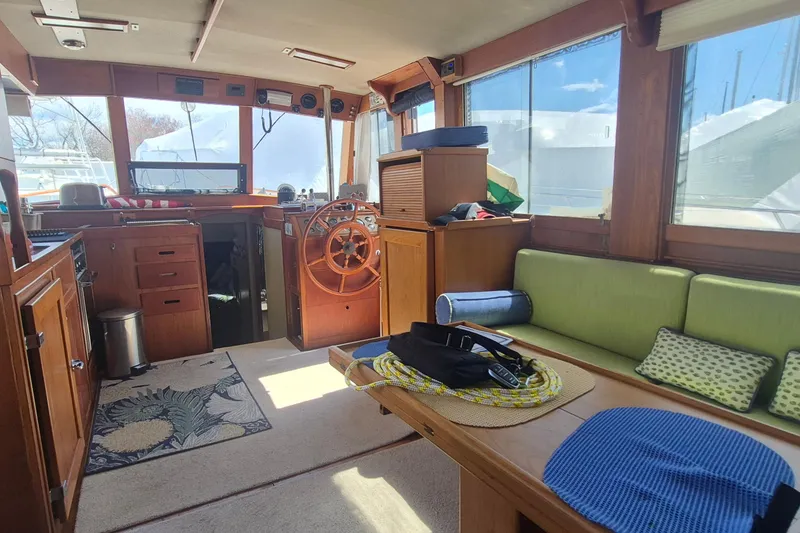

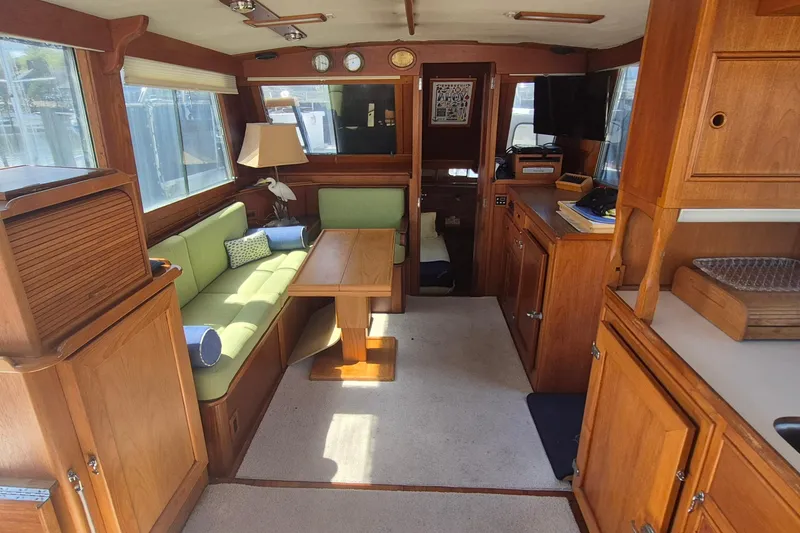

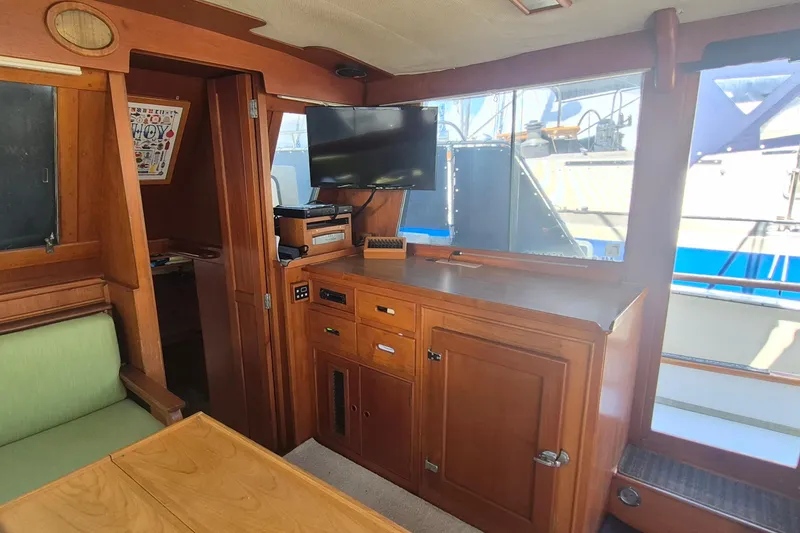

MAIN SALON:

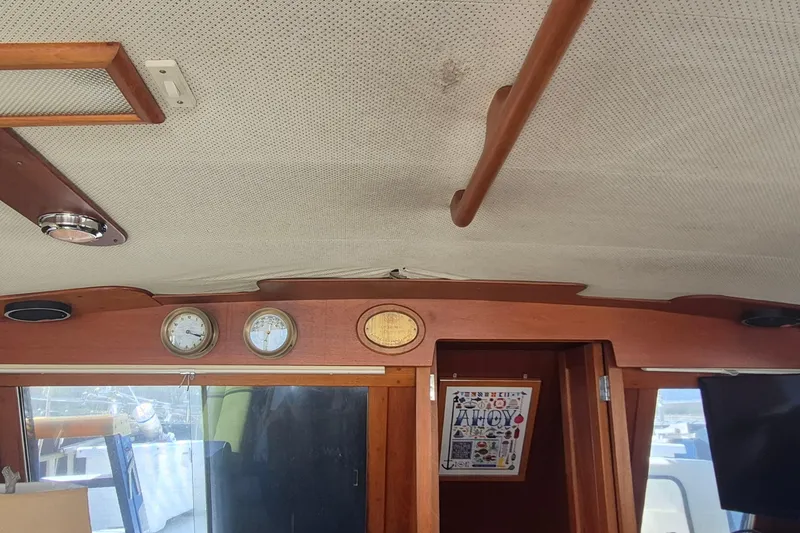

• The main salon features solid teak bulkheads and trim, vinyl headliner, and parquet floors.
• Port and starboard sliding windows are screened and fitted with closed cell blinds (2019).

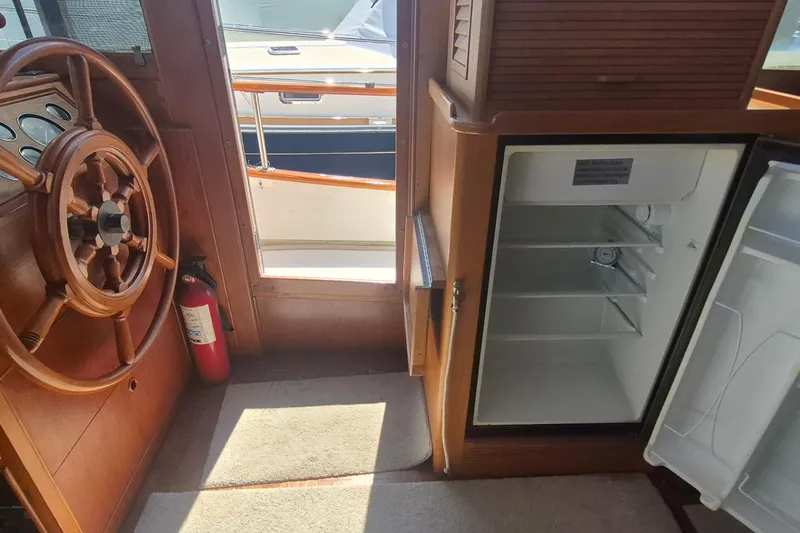

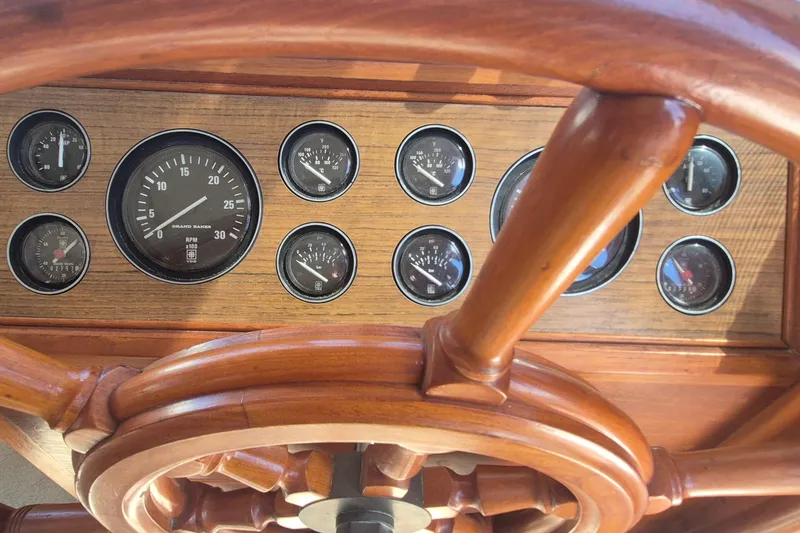

• The lower helm is to starboard and is complete with full instrumentation, electronics and teak wheel.
• Top loading storage is available opposite the helm and doubles as added counter space for the galley, which runs fore and aft to port.
• There are entry doors from the side decks just aft of the helm to starboard and in the center of the salon to port.
• The galley counter extends aft of the entry door all the way to the aft bulkhead of the main salon.

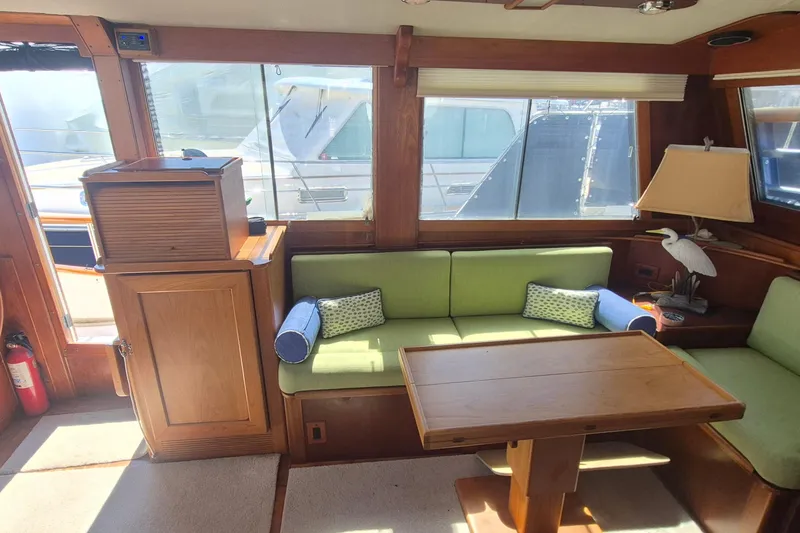

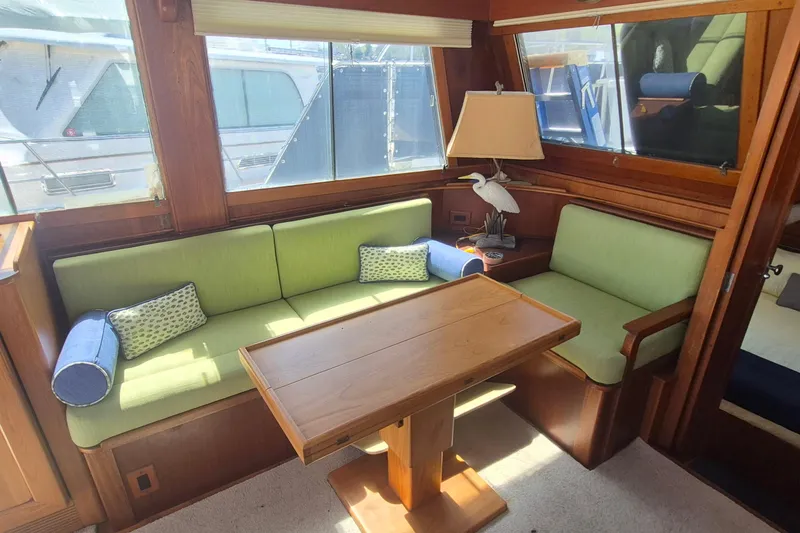

• The custom L-shaped dinette is aft to starboard and has excellent storage built in; new cushions.
• The folding teak drop down table has two leaves.
• Forward of the dinette and aft of the entry door is a custom built cabinet for a fridge or microwave.
• Dedicated A/C unit.

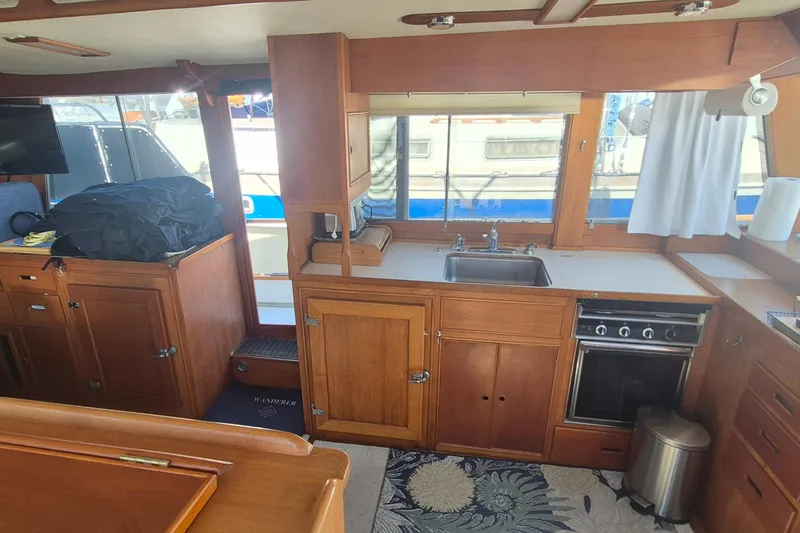

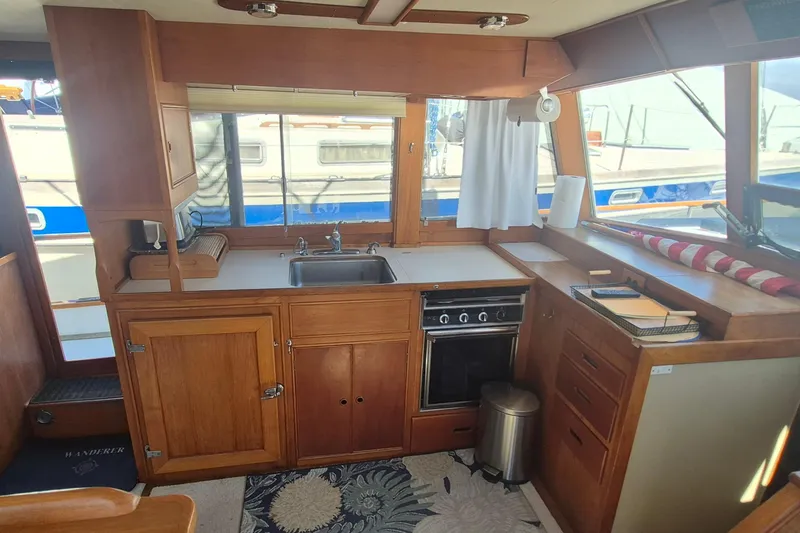

GALLEY:

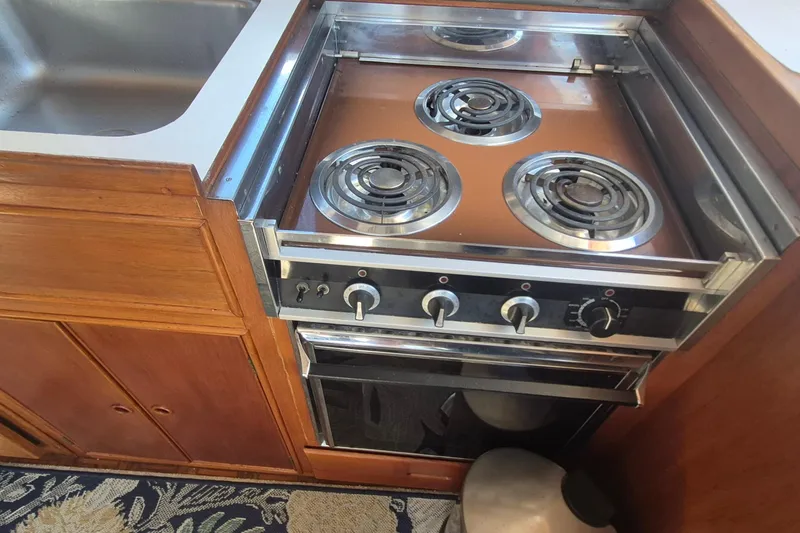

• Three burner Princess electric stove and oven with covering board.
• 700w microwave.
• S/S sink with hot and cold pressure water, soap dispenser, and separate drinking water faucet.
• Grunert cold plate refrigerator is located under the galley counter and is finished with a solid teak door.
• Grunert freezer is also an under counter unit.
• Everpure Fresh Water Filter for Icemaker and Galley Drinking Water Faucet.

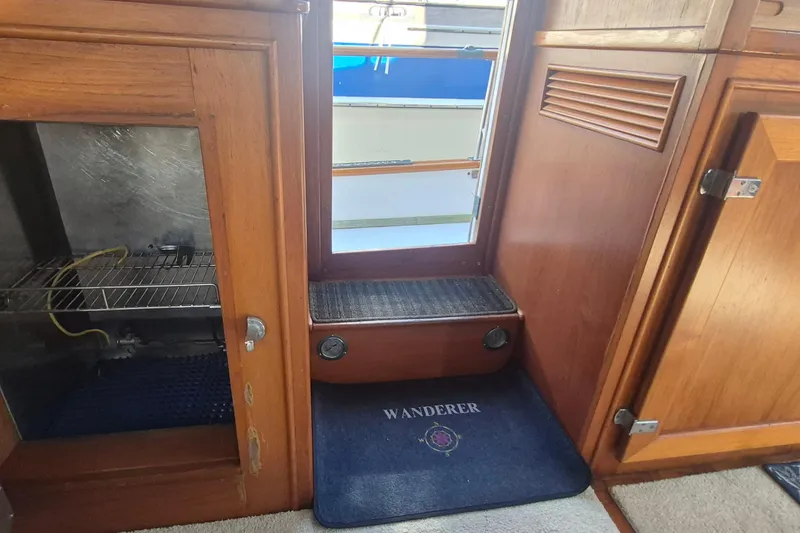

• Stand alone Galanz refrigerator for extra cold storage.
• Custom drop down dishware lockers concealed in the galley overhead.

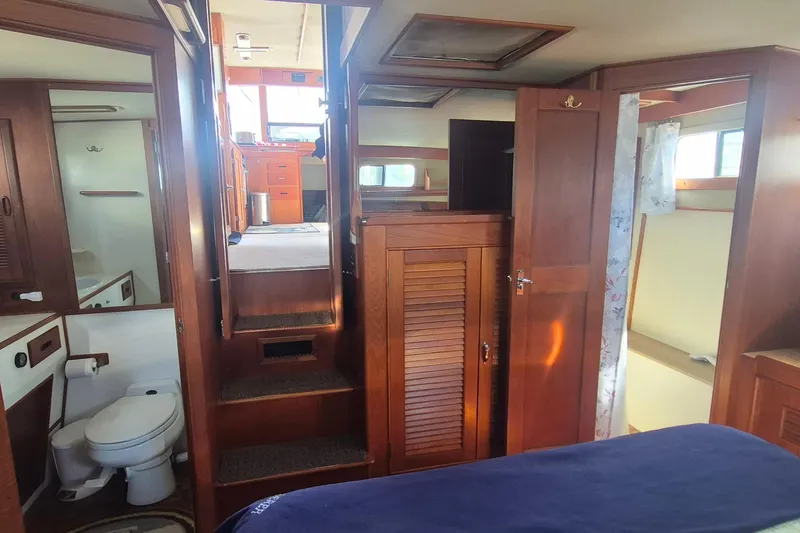

MASTER STATEROOM:

• The master stateroom is aft and down three steps.
• There is a centerline queen berth flanked with built-in end tables, port and starboard.
• Storage abounds in teak cabinetry that includes top-loading lockers under the steps and a vanity/desk aft and to port.
• There are also full width bookshelves aft and overhead.
• Opening ports on all three exterior bulkheads are screened and fitted with shades.
• The overhead is vinyl and the sole teak parquet.
• Ventilated with 2 efficient Cartramo 12V fans.
• The ensuite head and shower compartments are forward and split, port and starboard, providing both versatility and privacy.

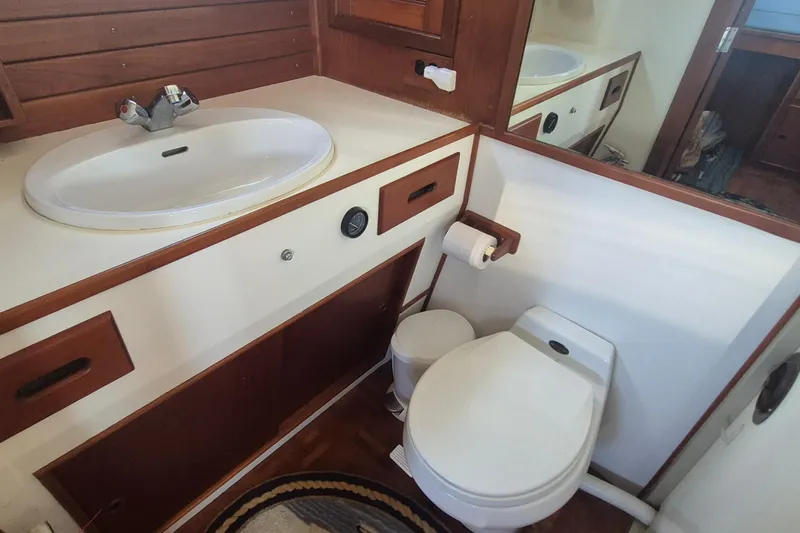

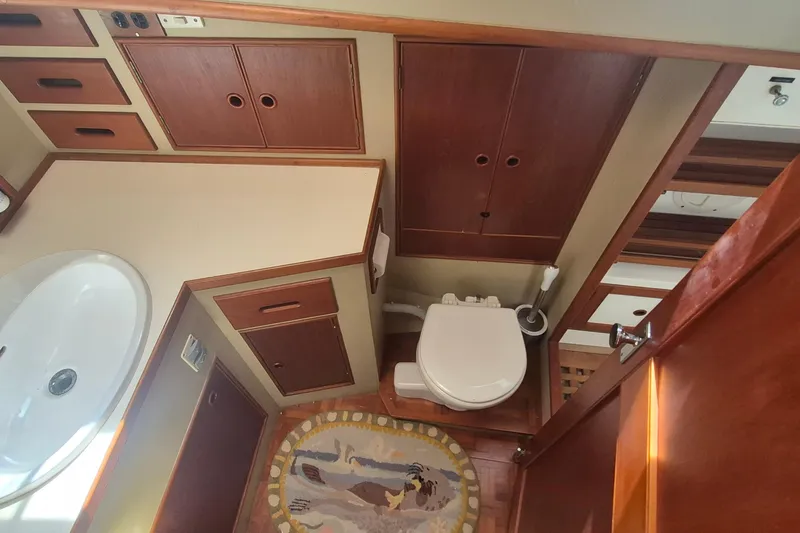

• The head to port includes a Vacuflush unit as well as a vanity with a porcelain sink.

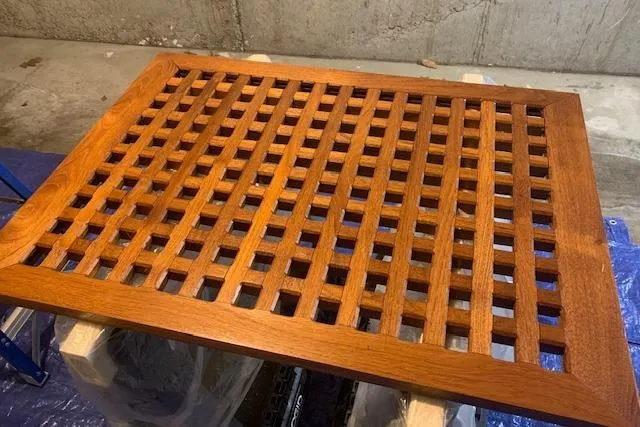

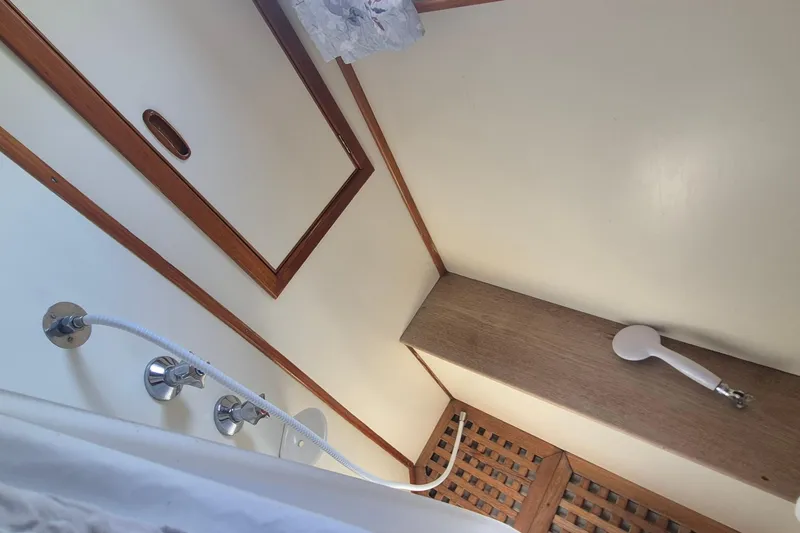

• The starboard shower compartment is spacious and includes a teak seat and shower grate as well as a bulkhead mounted soap and shampoo dispenser.
• Dedicated A/C unit.

GUEST STATEROOM:

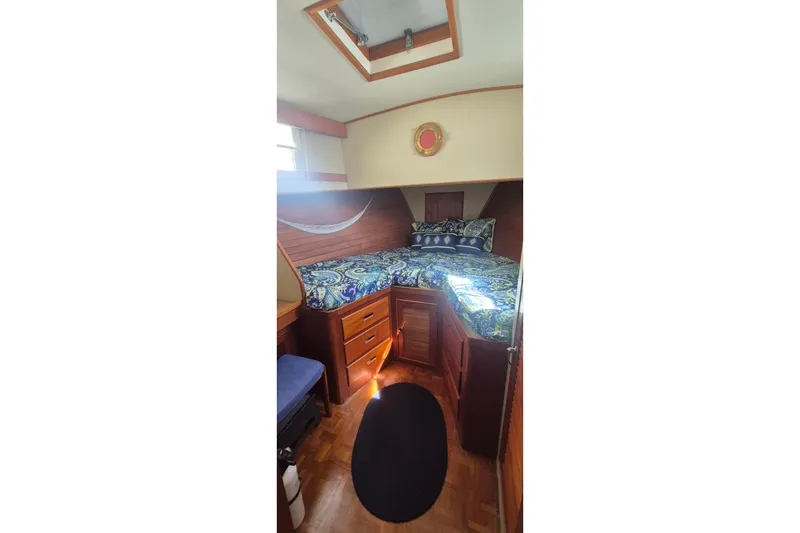

• The forward guest stateroom features large vee berth, teak outboard ceilings, vinyl overhead and off white Formica bulkheads.
• Aft, there is a built in vanity to port and a spacious hanging locker to starboard.
• The sole is teak parquet.
• There are opening ports, a screened overhead hatch, and overhead lighting as well as brass bulkhead lamps.
• Ventilated with a Cartramo fan.
• Dedicated A/C unit.

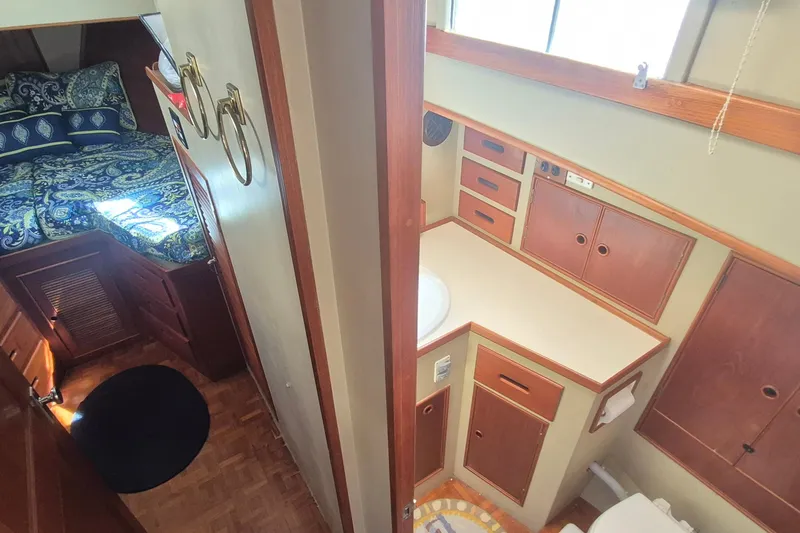

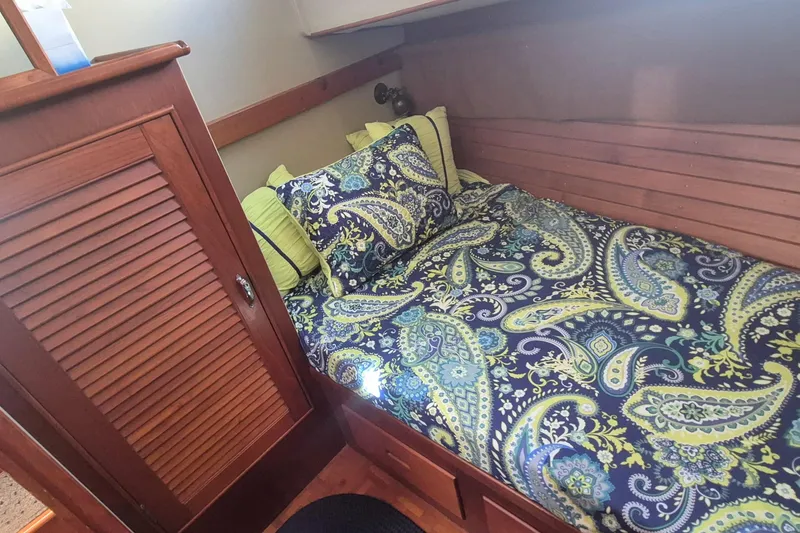

GUEST STATEROOM II:

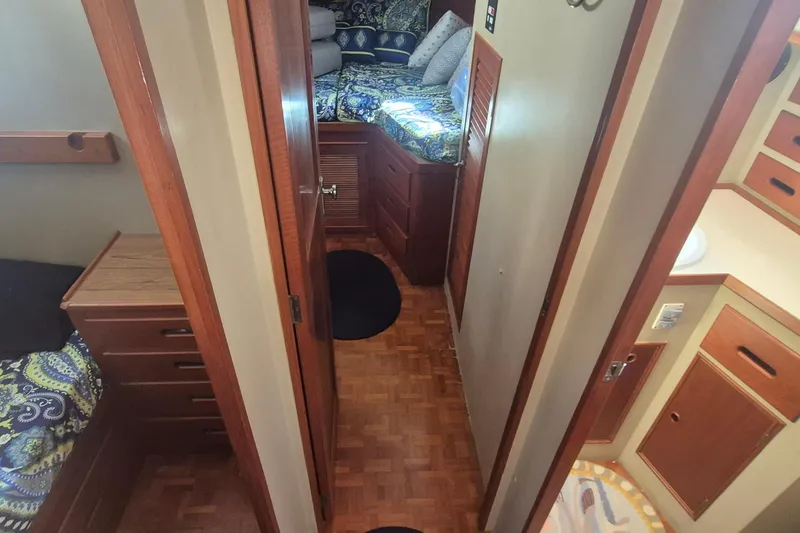

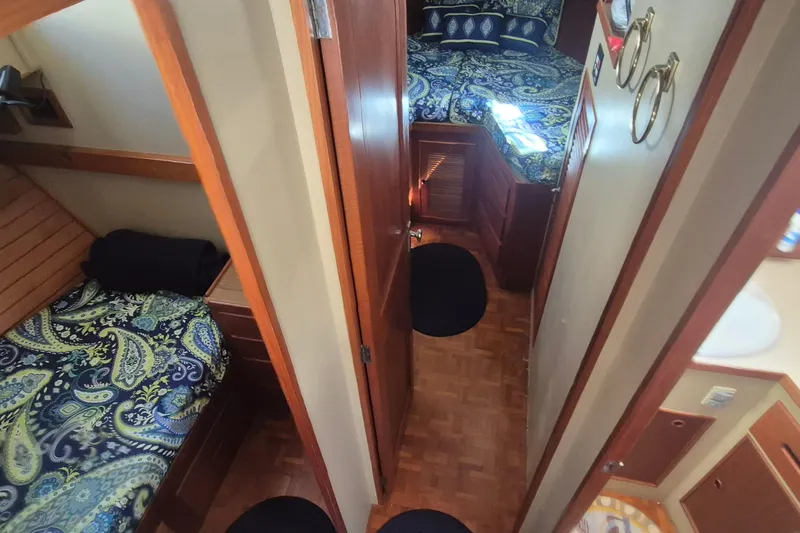

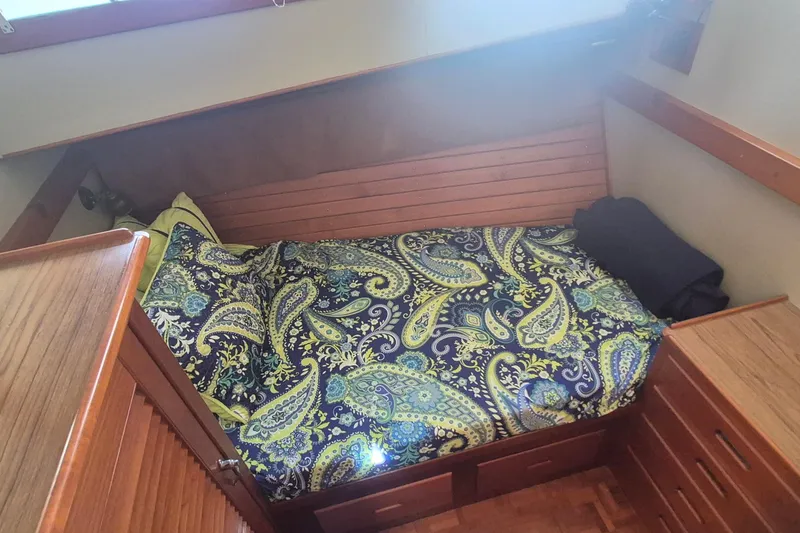

• The second guest stateroom is amidship and to port.
• The oversized double berth is supplemented by an available pipe berth.
• A solid teak four-drawer dresser is on the forward bulkhead and the aft bulkhead contains a hanging locker.
• The sliding entry door provides comfortable access to and from the companionway.
• Lighting is provided by overhead fixtures and brass bulkhead lamps.
• The overhead hatch is screened, as are the opening ports.
• Ports are fitted with shades; overhead is vinyl and sole is teak parquet.
• Ventilated with a Cartramo fan.

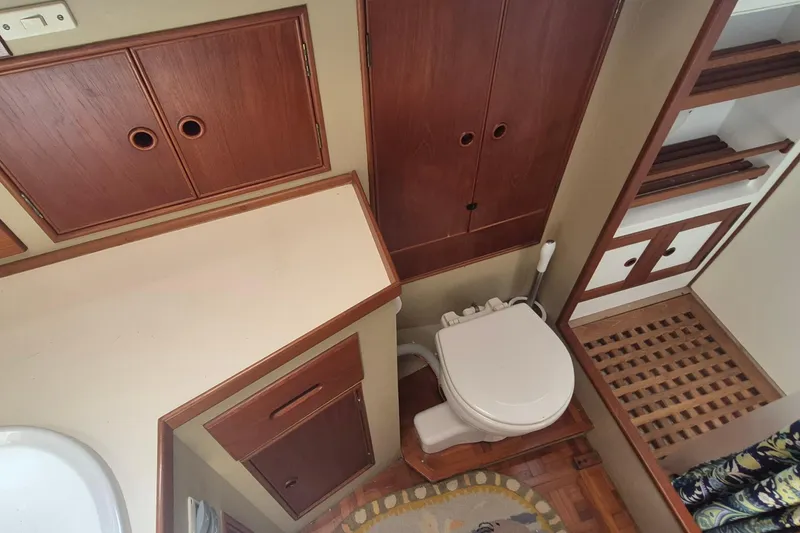

• The guest head is amidship and to starboard. There is a stall shower with teak grate and electric head which leads to a holding tank with "Y" valve for overboard or dockside discharge. The vanity is forward and houses a large porcelain sink. There is an opening port and screened overhead hatch. Storage is above average.

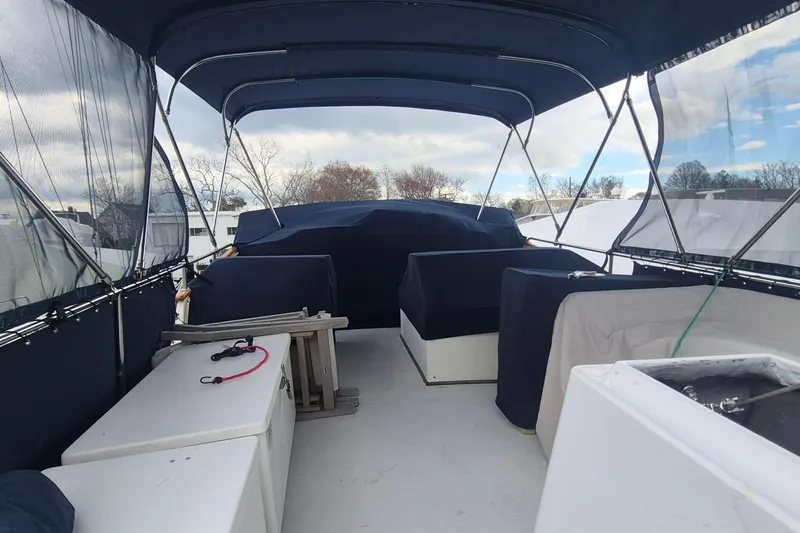

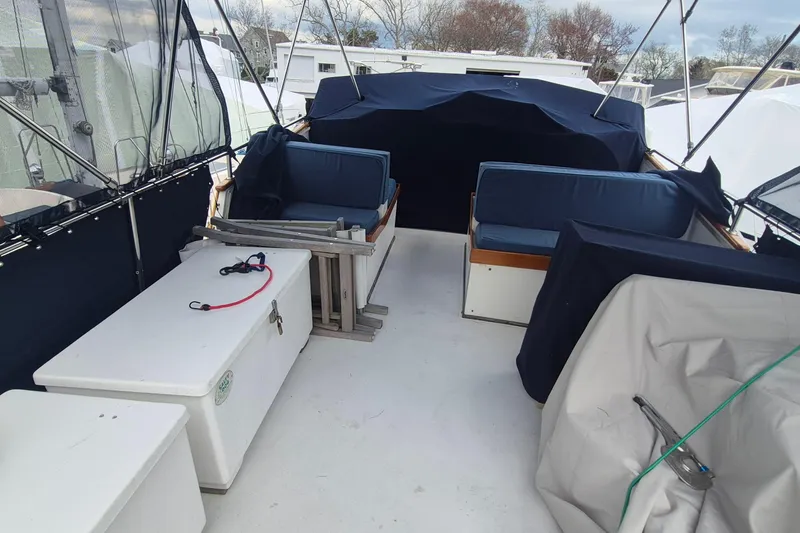

FLYBRIDGE:

• The Radar/Navigation Mast (mast was new in 2014)raises and lowers electrically for going under bridges.
• Mast up clearance is 25'6"; mast lowers automatically for 13' 1" bridge clearance.

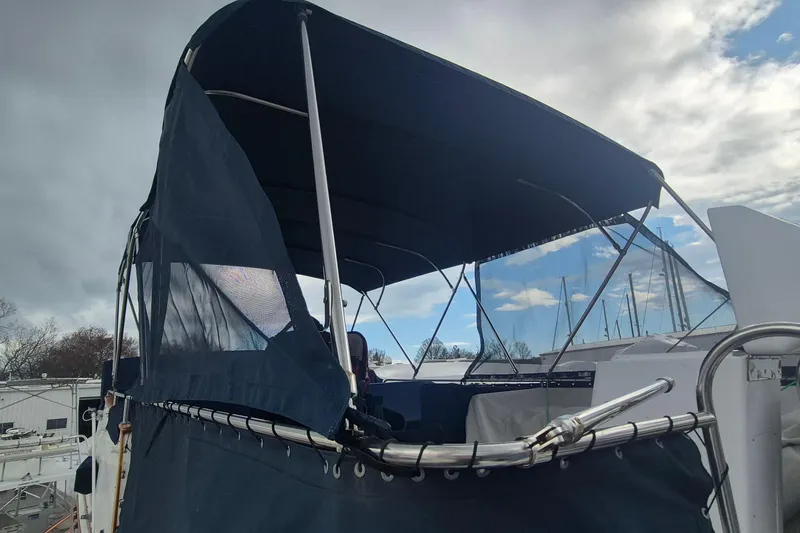

• 2026 blue Sunbrella bimini top protects the entire flybridge.
• The flybridge and aft deck rails are also skirted in the same fabric.

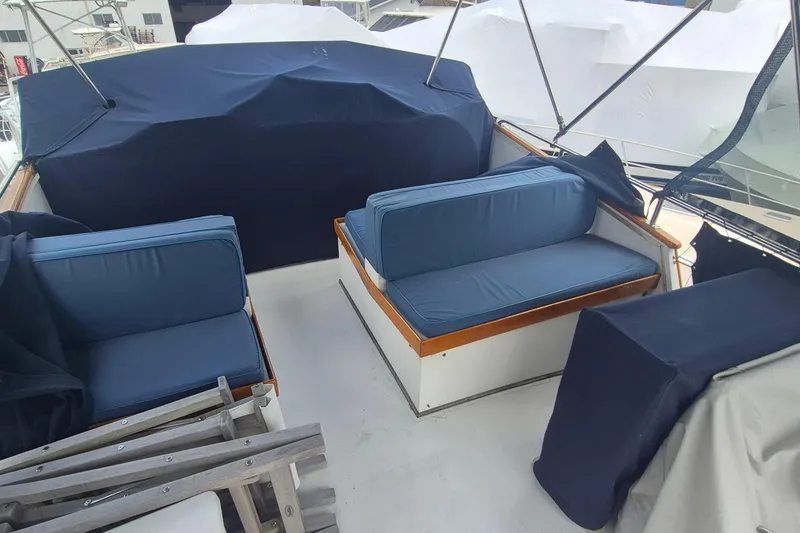

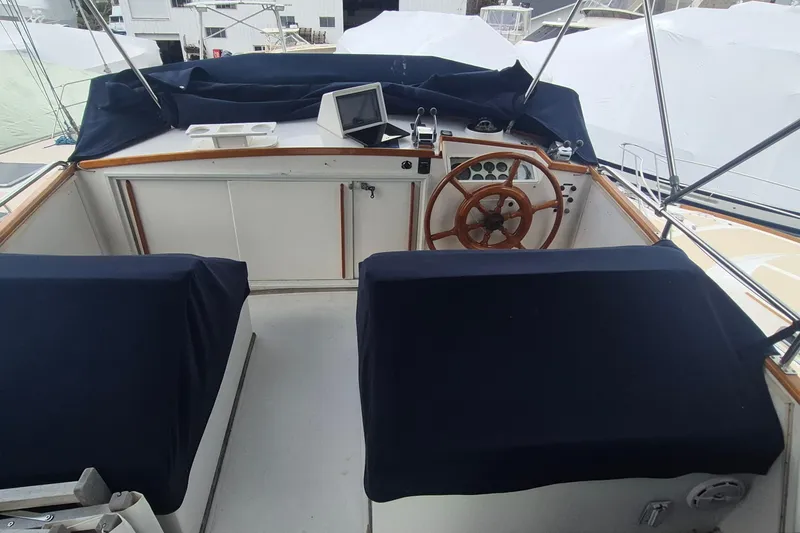

• Flybridge seating consists of port and starboard back-to-back, cushioned, seats with storage under.
• Ample storage is provided under the helm and in two fiberglass deck boxes mounted at the after end of the bridge.

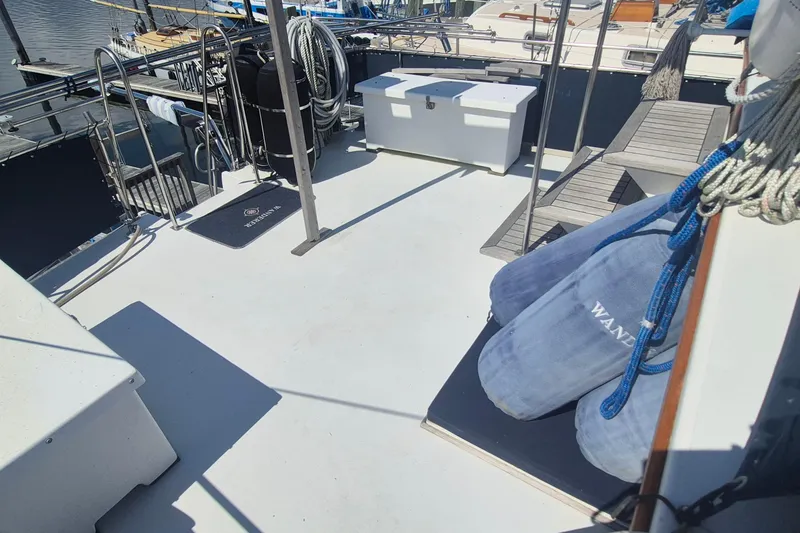

• 3 steps with S/S handrails lead to the aft deck with Sunbrella skirting all around.

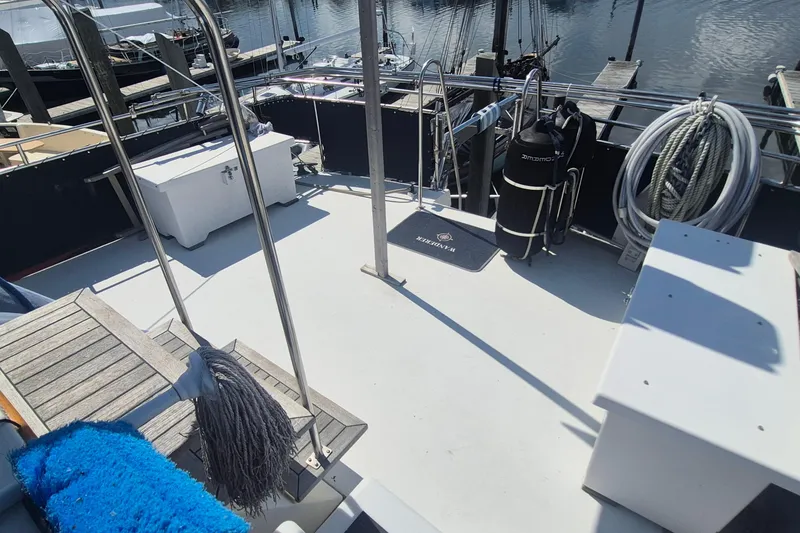

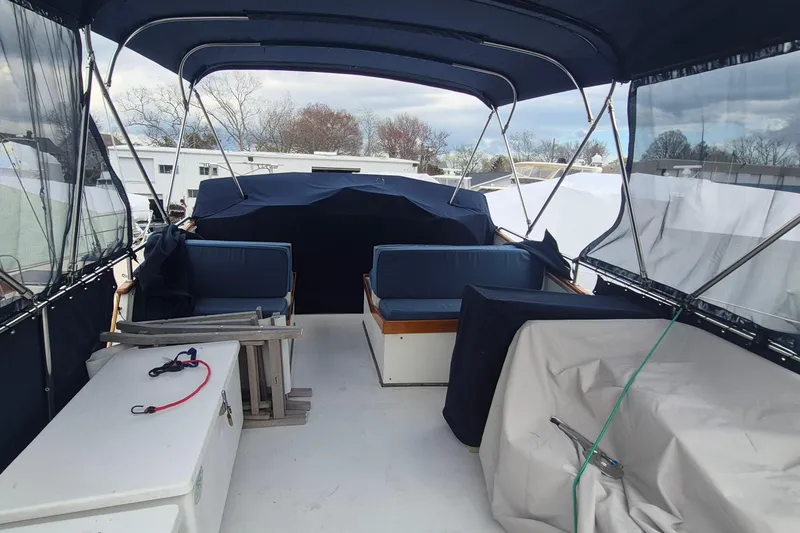

• The aft deck area is shaded by a blue Sunbrella bimini 2024.

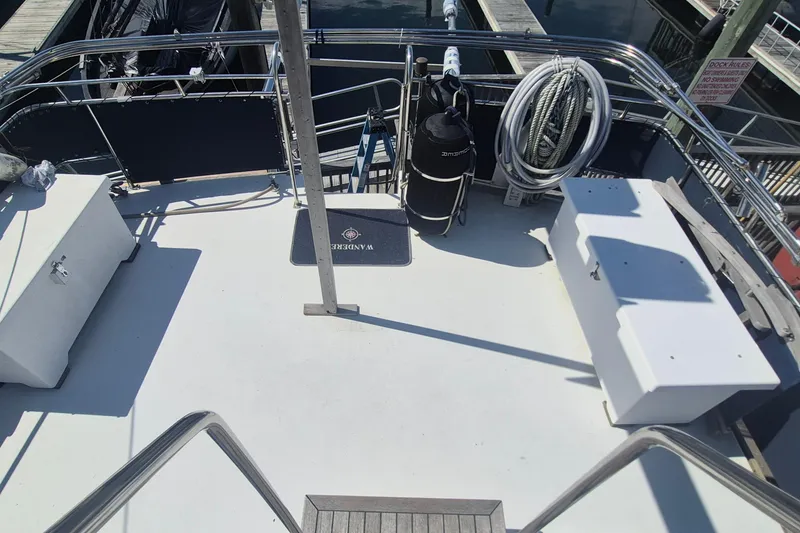

• This deck houses two additional fiberglass deck boxes.
• Swim Platform/Dinghy Launch.

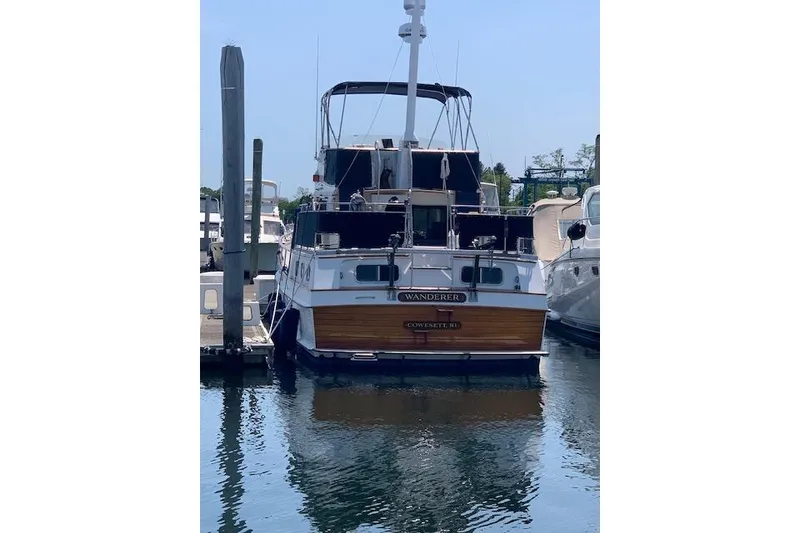

• The aft gated entry/exit leads to a custom built teak and mahogany swim platform with 5 step, full width companionway.
• A step stainless folding swim ladder is attached to the underside of the platform; this design improvement facilitates access to the dinghy.

ELECTRONICS:

FLYBRIDGE:

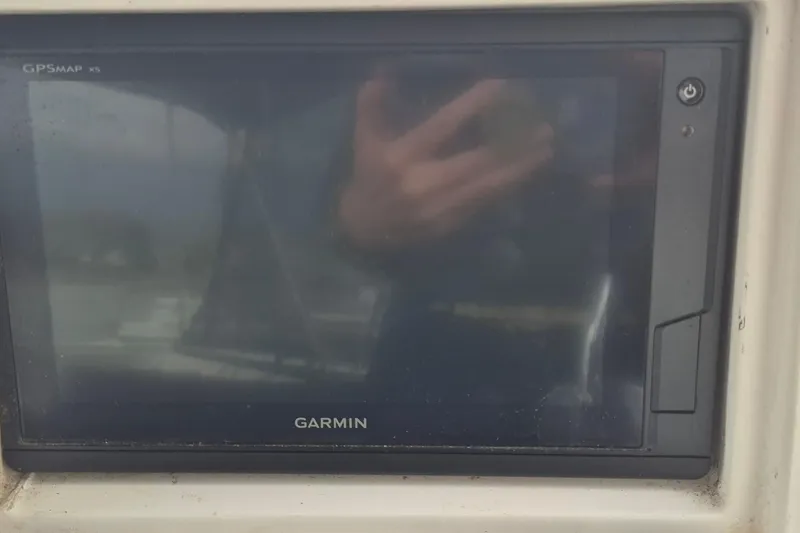

• Garmin 942XS Radar/GPS/Chartplotter.

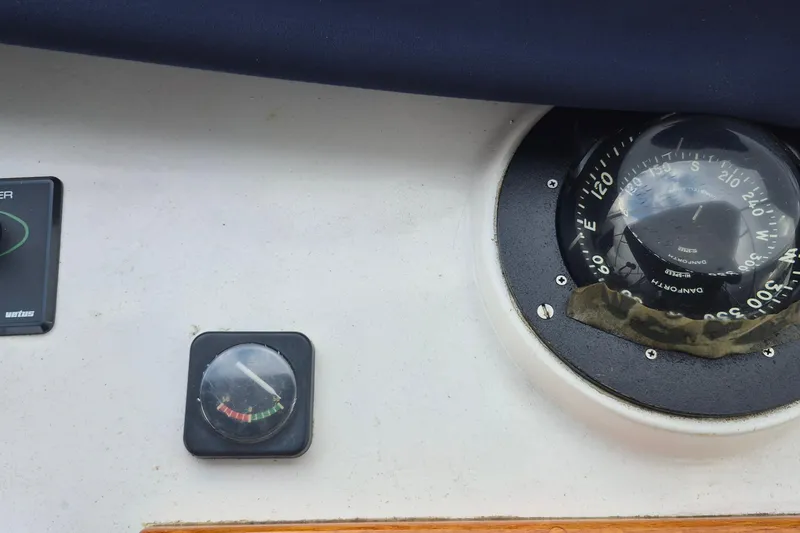

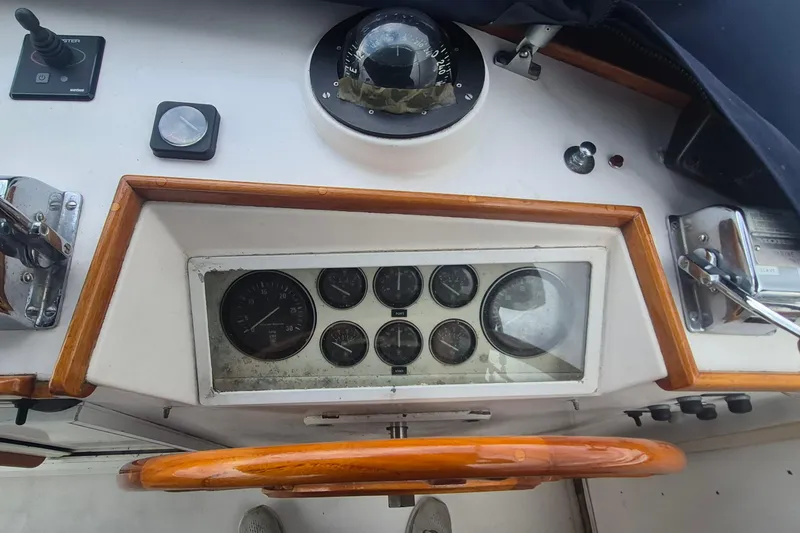

• Danforth constellation compass.
• Standard Horizon VHF (two AIS receivers).
• Robertson AP20 Autopilot (new 2020 motor drive).
• Maxwell windlass controls at deck and helm.
• Rudder indicator.
• Engine synchronizer.
• Full VDO engine instrumentation.

PILOTHOUSE:

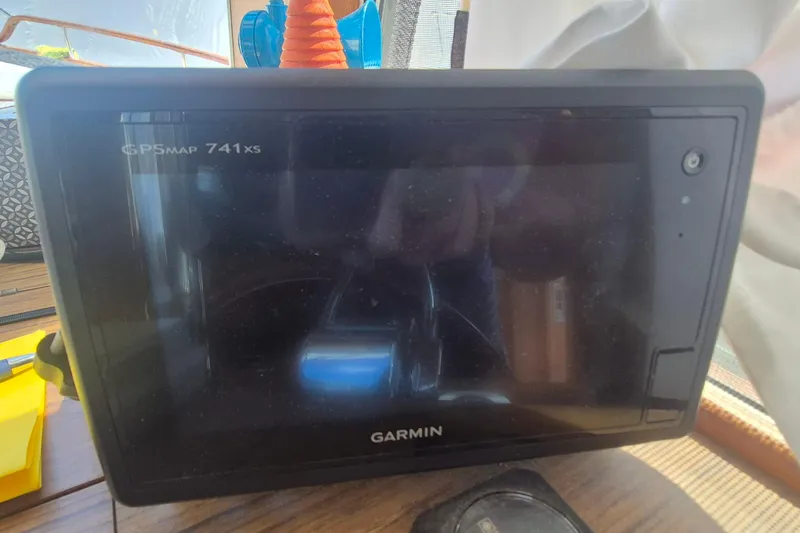

• Garmin 741 Radar/GPS/Chart plotter.
• KVH Track Vision TV.
• Dish receiver w/ remote (2018).
• Rudder indicator.
• Datamarine digital depth finder.
• Datamarine speed / log.

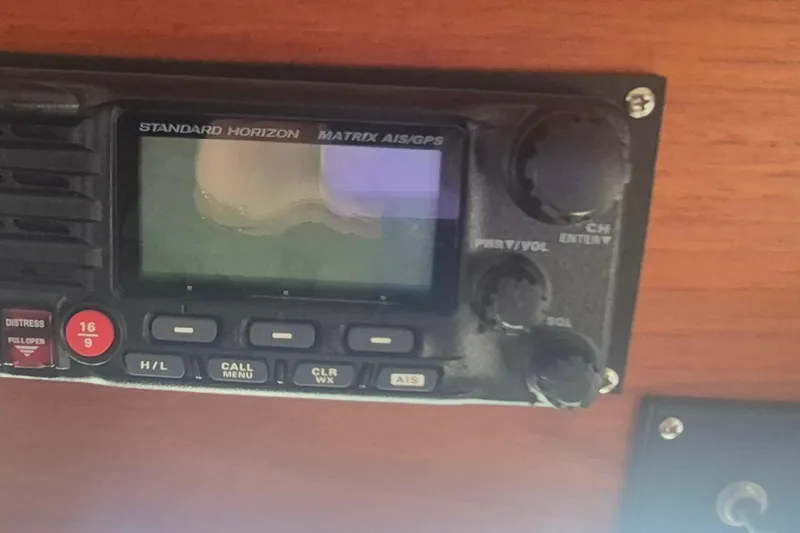

• Standard Horizon -VHF.
• Battery Monitor.
• Full VDO engine instrumentation.
• Glendinning engine synchronizer.

EQUIPMENT:

• 2015 Maxwell Windlass with controls at pulpit and bridge.
• Simpson Polished Stainless Steel Davits.
• Flag and Staff.
• Electric Horn.

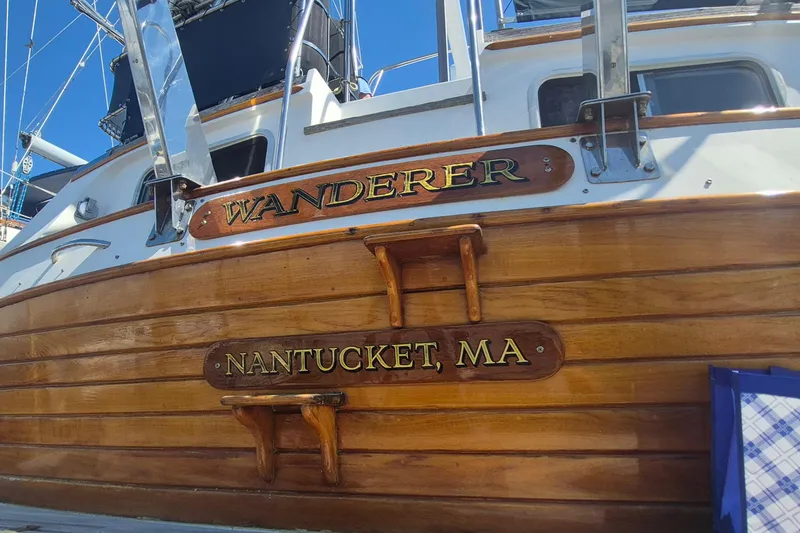

• Varnished Teak Name-board and Side-lights.
• USCG Equipment.
• Drink Holders.
• New docklines and fenders.
• Boat Hook (2).
• Fenders (6).
• Brass Clock and Barometer.

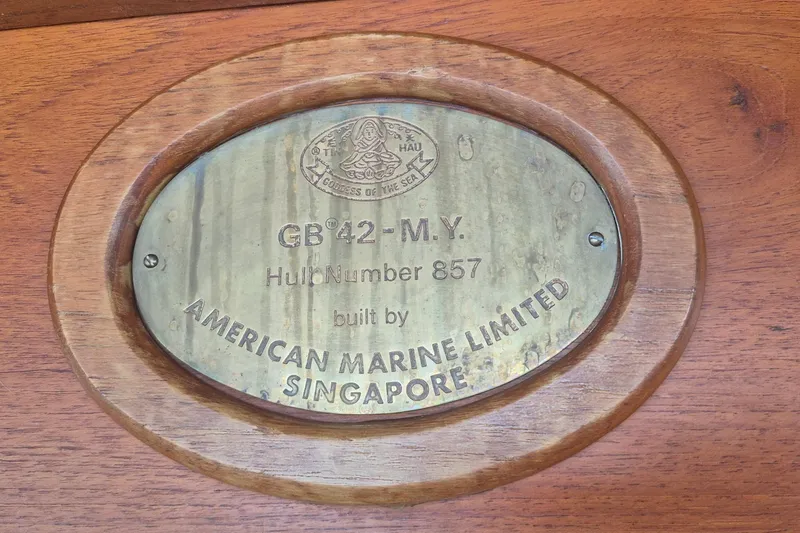

• Brass Grand Banks Hull # 857 Plate.
• 150' of 3/8 auxiliary chain and 100' 5/8" of three-strand nylon rode.
• Secondary Fortress FX 23 is on the aft deck with a third CQR in reserve below the starboard vee berth.
• 2022 65 lb Mantis anchor with 200' 4G chain.
• EXCLUDED: 2 ART WORKS - 1 in galley, 1 in aft cabin, flybridge sofa and miscellaneous personal items.
