2018 Winter Custom Center Console

Mechanical Equipment

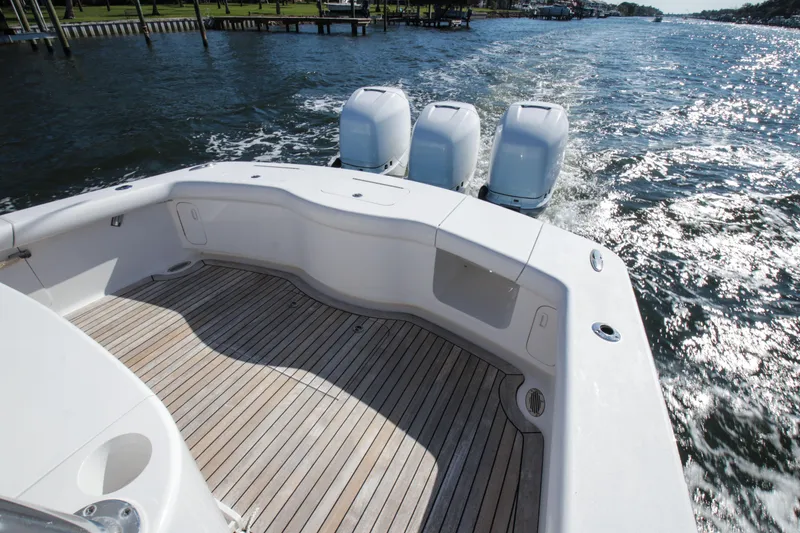

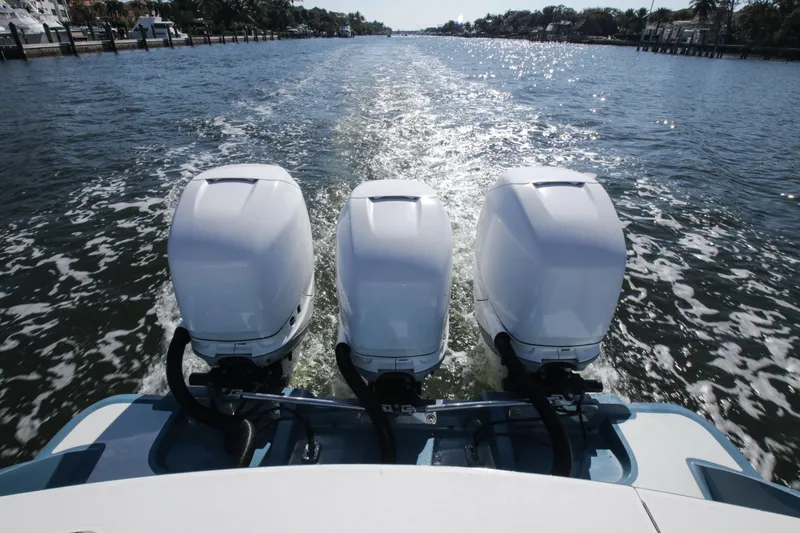

• Triple Mercury Verado 350 HP Outboards
• SeaKeeper 3 gyro stabilizer
• Mercury power steering recently changed with upgraded pumps
• Mercury fuel filters
• Side Power SE 80 12 VDC Bow Thruster
• Jabsco saltwater pump
• Jabsco Blaster freshwater pump
• (4) 1500 GPH Rule bilge pumps with Ultra Safety Systems Jr float switch
• (2) 2000 GPH Rule bilge pumps with Ultra Safety Systems Jr float switch
• Rule sump boxes
• FRP discharges on hull sides

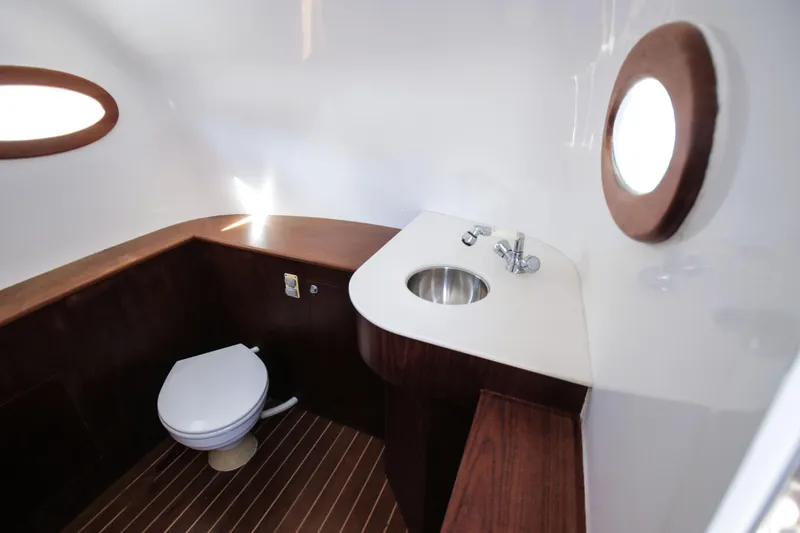

• Dometic freshwater flush head with 15 gallon holding tank
• Livorsi 1150 high speed trim tabs
• New batteries

Electrical Equipment

• (2) Newmar 60-amp battery charger 12-volt, (3) bank
• C-Zone control system on all DC systems
• Custom Paneltronics panels
• 120-volt AC, 24-volt DC
• 30-amp, 240-volt AC service
• 12-volt DC lighting throughout
• All wiring guided by ABYC standards
• (2) 803 TIX Lumishore underwater lights in transom

Deck

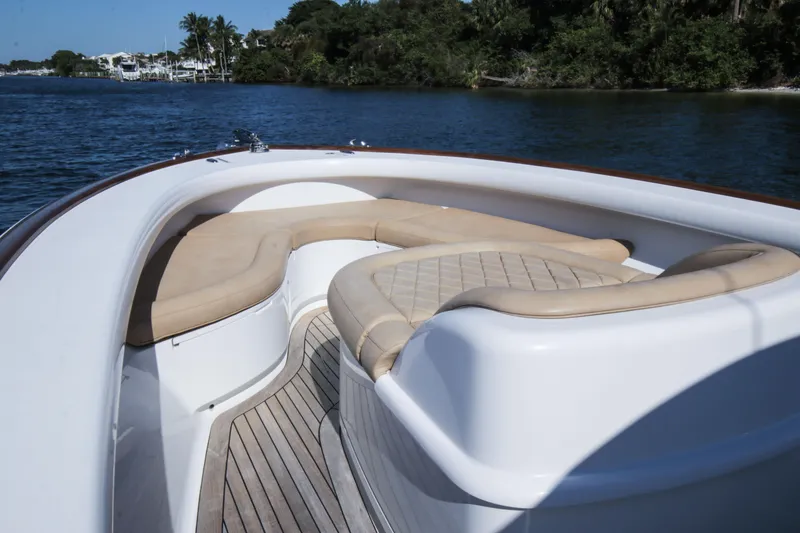

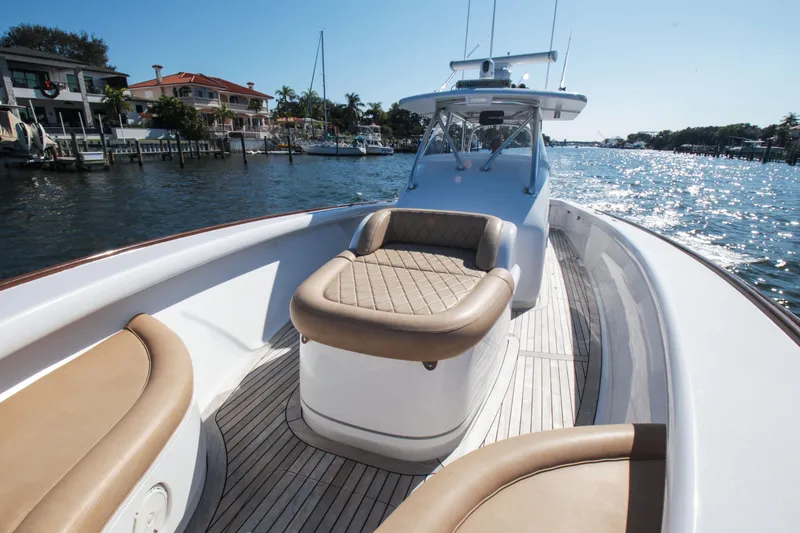

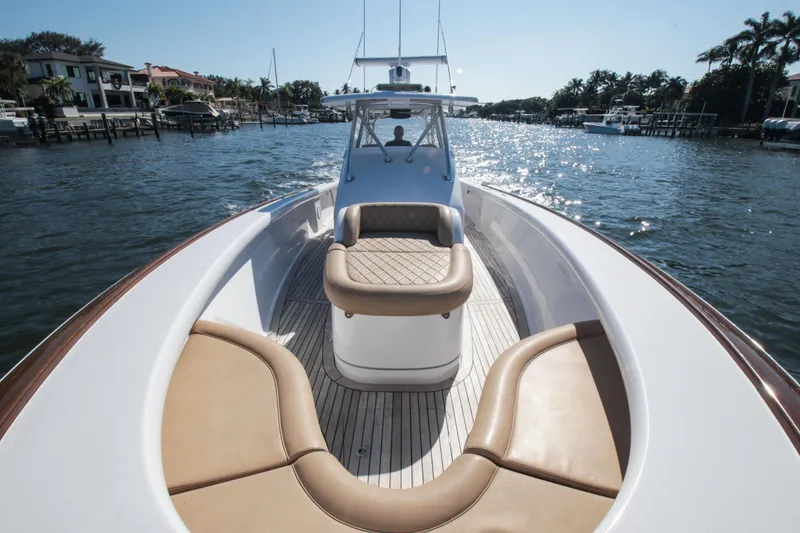

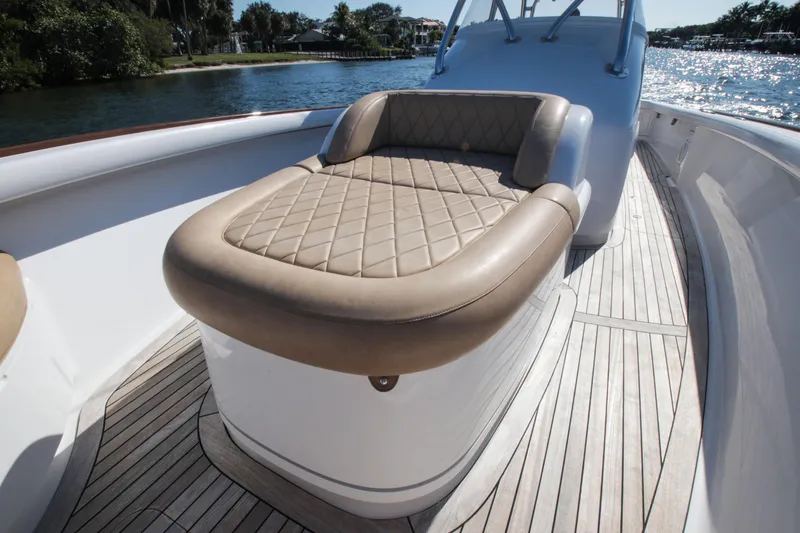

• Forward bow seating with storage within
• (6) 15-degree rod holders in bow cap
• (4) 8” pull up cleats on top deck
• Faux teak toe rail with chafe gear
• Custom removable bow pulpit and gear
• RC-5 low profile windlass
• MaxSet 8 polished SS plow anchor
• Genuine teak decking
• Radiused gunnel faces
• Dive tank storage under love seat
• (2) Fuel fills on side gunnels
• Water fill on side gunnels
• Waste access on gunnels
• Full pass-through side door with gate

Hardtop

• Palm Beach Towers hard top
• Custom molded hardtop with polished aluminum frame T-top style
• Upgraded hardtop to incorporate thicker 3” hardtop
• Radar Pod
• Molded aft single 12-volt LED Lumitec spreader light with molded pod
• Molded forward single 12-volt LED Lumitec spreader light with molded pod
• Molded navigation lights
• Recessed dome lights 12-volt, tri-color
• (6) Rod holders welded to aft side of hardtop
• Anchor light on mast
• Molded in “Pancake” Birdsall Marine teaser reels
• 20” Rigid Spot style LED light bar
• Rupp Revolution Top Gun outrigger bases
• Rupp HD carbon fiber poles 18’
• Rupp HD carbon fiber center rigger
• One piece acrylic curtain enclosure

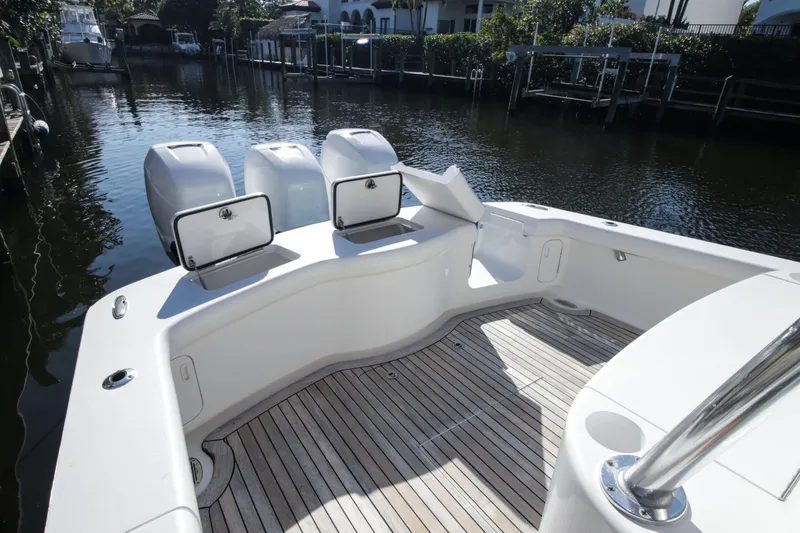

Cockpit

• (6) 30 degree rod holders in cockpit
• (2) Hawse pipes on covering board top
• (2) 10” cleats mounted on side wall I cockpit
• Custom baitwell in transom
• Baitwells to feature laminated curved glass
• Genuine teak decking
• 26” freeboard from transom to bow
• Full pass-through transom door with gate
• Under gunnel accent lighting throughout

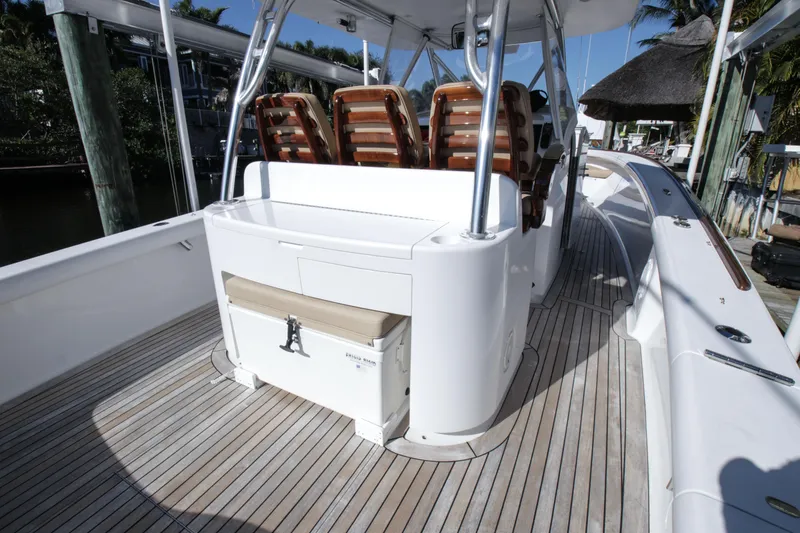

• Release Marine triple seat with flip-up bolster
• Concealed access to shore power and water spigots under gunnels
• (2) In-deck fish box (16” W x 14” D x 60” L)
• Dive ladder on transom
• Access to lazarette and gyro compartment

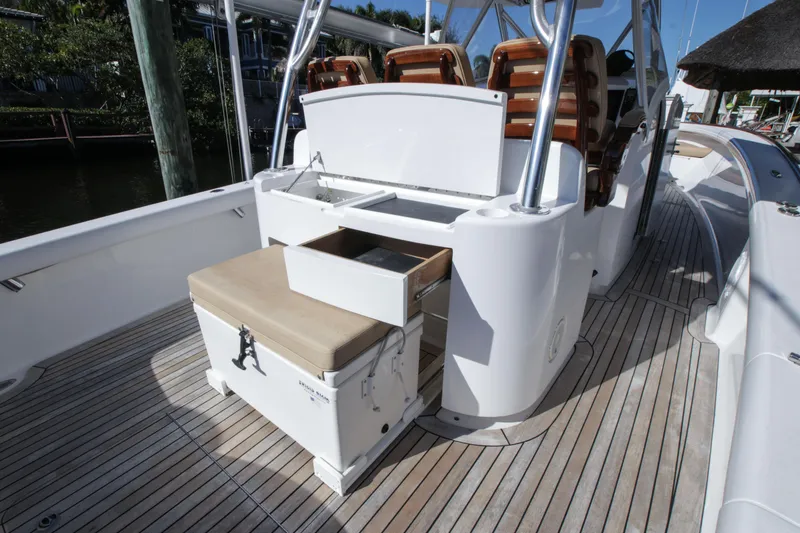

• Frigid Rigid cooler with slides

Interior

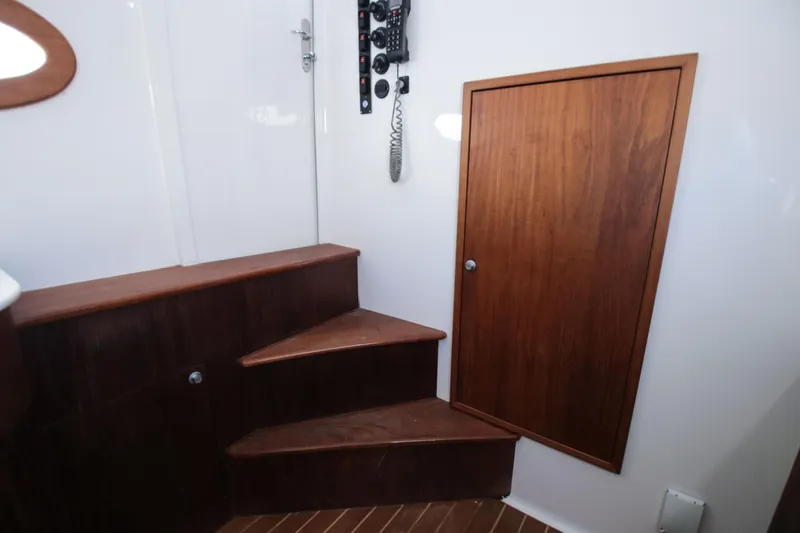

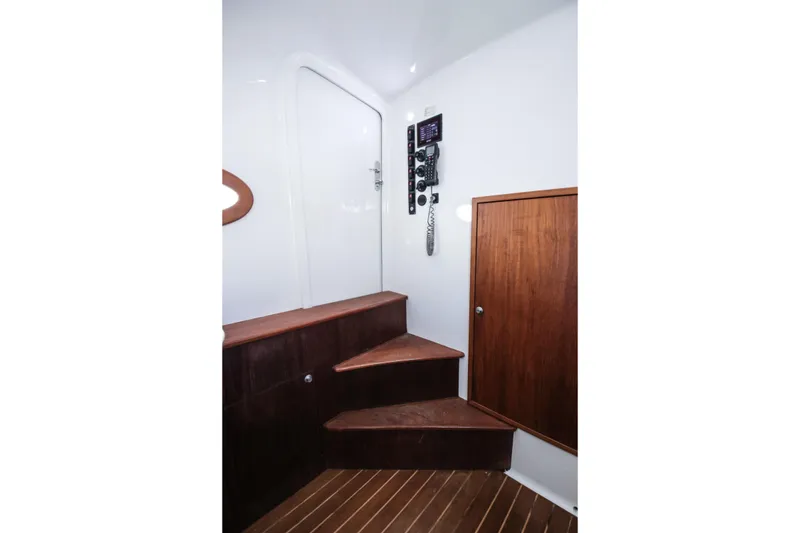

• Teak stair treads
• Quarter sawn teak interior
• Teak and maple flooring
• Cabinetry throughout interior with satin finish
• White painted surfaces
• Solid teak countertops
• Solid surface countertops with stainless steel undermount sink

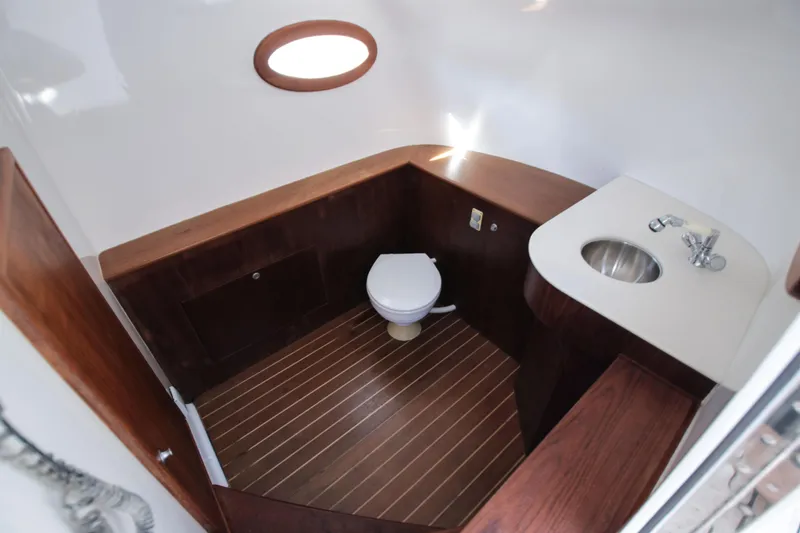

• Jabsco freshwater flush head
• Satin Southco Mobella McCoy door handles
• Satin Southco push button latches
• Recessed Imtra Ventura LED lights with white bezel in overhead
• Access to all electronics and AC panel
• Oversized bilge pumps
• Warning beacon light on top of tower to indicate bilge pump operation

Exterior

• A buildup of Alexseal fairing products followed by Alexseal primer to a finished surface
• Topsides: Alexseal Cloud White
• Hull: Alexseal Stars and Stripes
• Boot Stripe: Alexseal Cloud White
• Bottom Paint: SeaHawk Cukote Black
• 1” solid stainless steel bumper metal

Hull Bottom

• (2) Layers ½” marine grade Okoume plywood
• Layer 1708 Vectorply biaxial fiberglass outside bottom impregnated with Pro Set Epoxy
• Layers 1708 Vectorply biaxial fiberglass on keel and chine
• Layers 1708 Vectorply biaxial fiberglass inside bottom up through hull side
• Laminated Douglas Fir stringers

Hull Sides

• Hull side 2 layers 6mm Okoume plywood Loyds type 1088
• Layer 1708 Vectorply biaxial fiberglass impregnated with Pro Set Epoxy
• Laminated Douglas Fir rib bands
• Laminated Douglas Fir chine
• Laminated Douglas Fir sheer clamp
