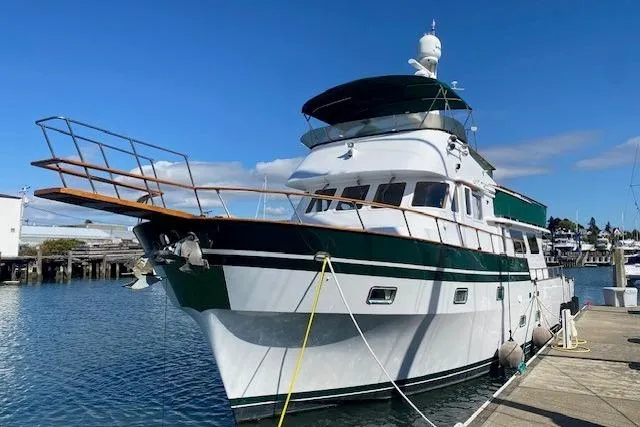

1980 Willard Pilothouse

$449,000

Used

Boat in Bellingham, WA 98225 US

builtBuilt in 1980
Year the boat was built
model

Pilothouse

Boat model
engine

2 Engines (Twin Caterpillar, Twin Caterpillar)

Engine type and count
length

60 feet

Overall boat length
fuel

Diesel

Fuel type
material

Fiberglass/Reinforced

Hull material
Nominal Length
60ft
Length Overall
69.92ft
Length at Waterline
60ft
Beam
17ft
Max Bridge Clearance
27ft
Max Draft
5ft
Displacement
105000lb
Cruising Speed
8kn
Max Speed
11kn
Range
1500nmi
Cabins
3
Heads
4
Fresh Water Tanks
228gal
Fuel Tanks
1400gal
Holding Tanks
50gal
Hull Material
fiberglass
Engine 1
Engine Make
Twin Caterpillar
Engine Model
3406TA
Total Power
375hp
Engine Hours
7275
Fuel Type
diesel
Engine 2
Engine Make
Twin Caterpillar
Engine Model
3406TA
Total Power
375hp
Engine Hours
7275
Fuel Type
diesel
Accommodations & Layout

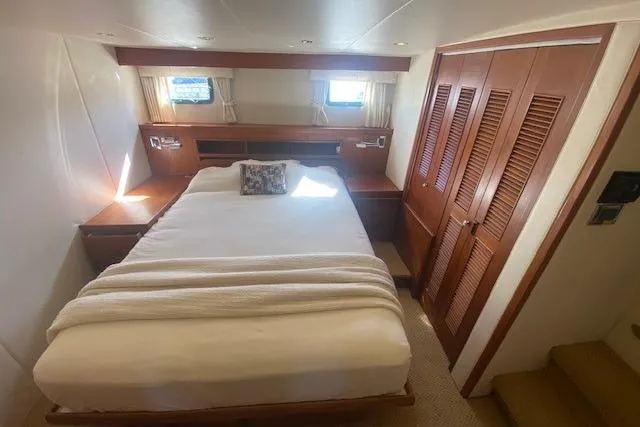

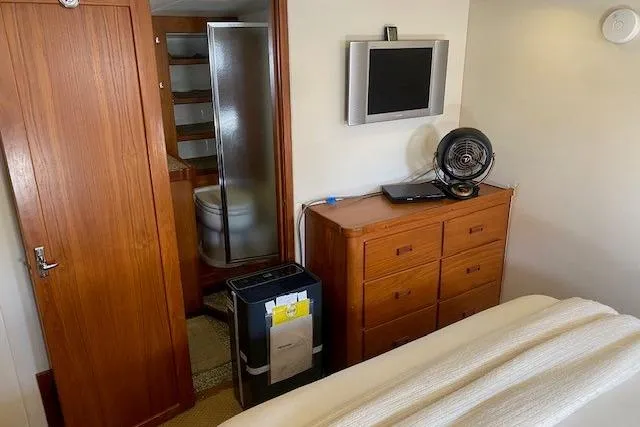

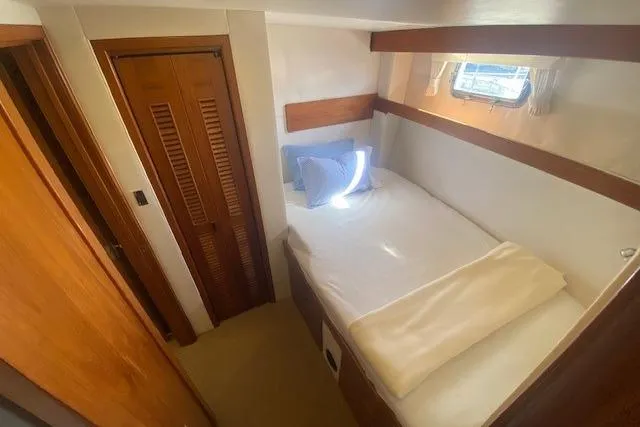

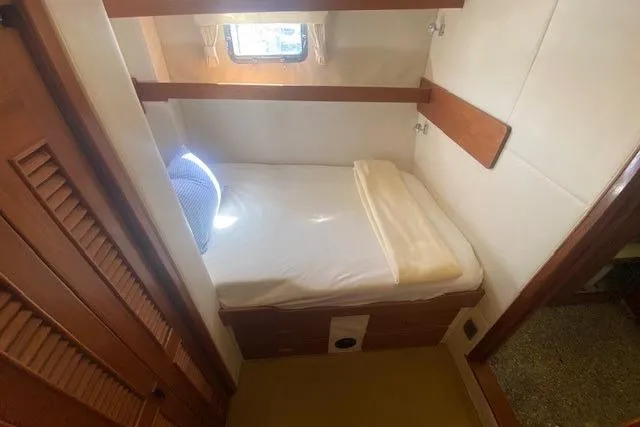

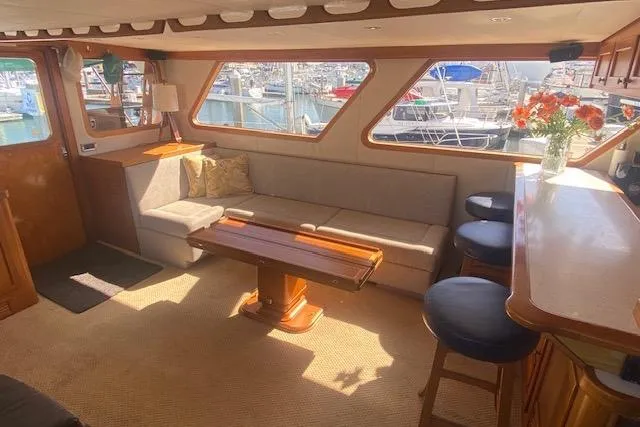

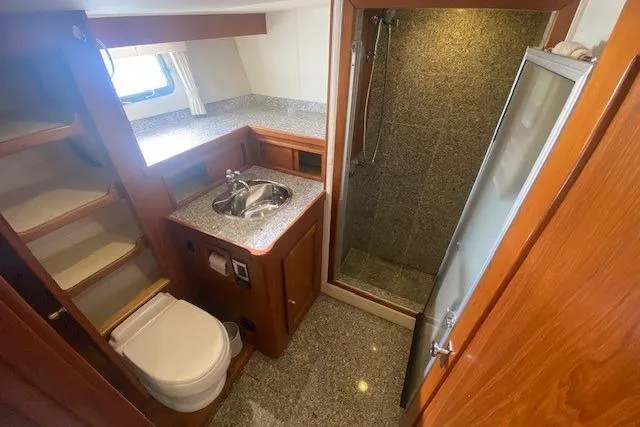

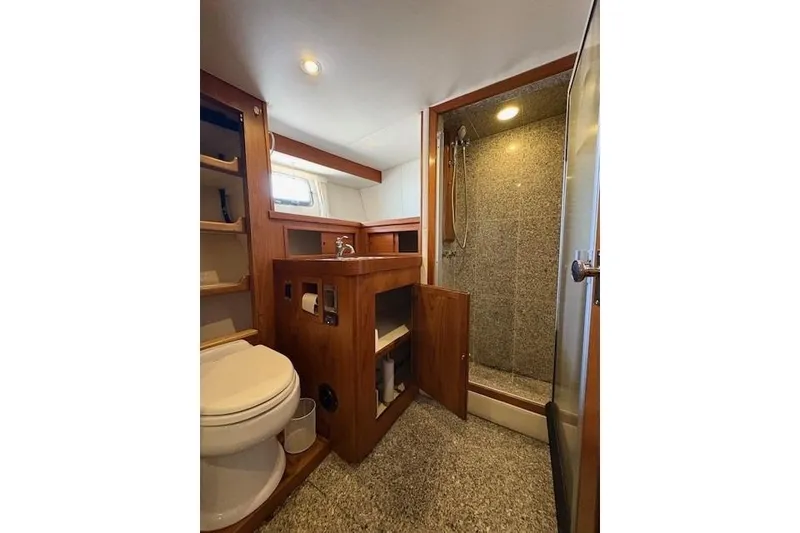

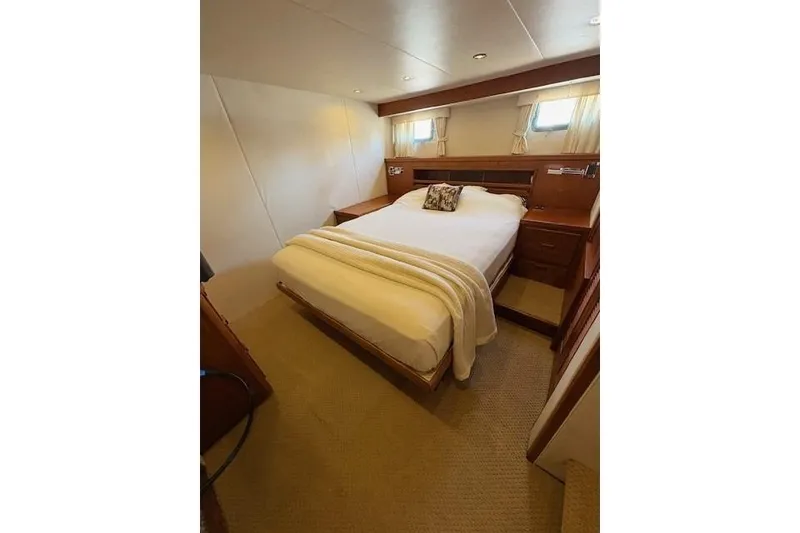

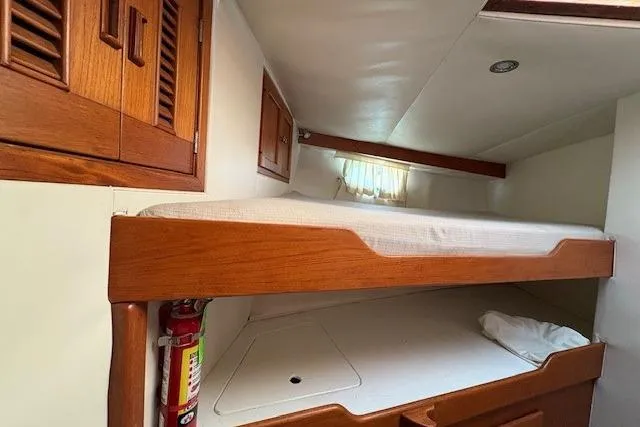

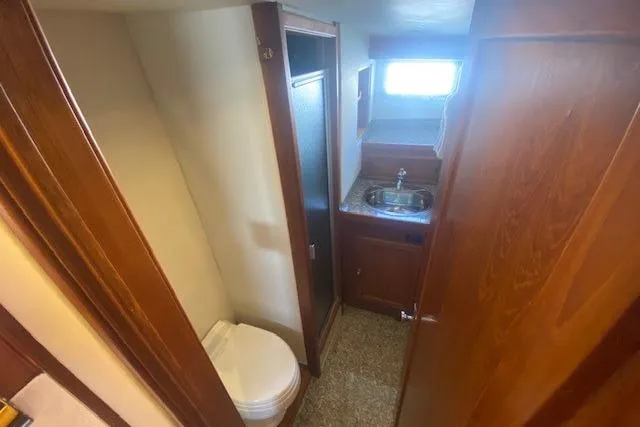

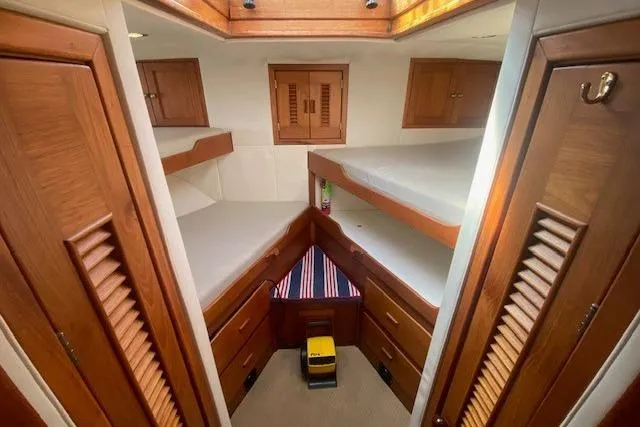

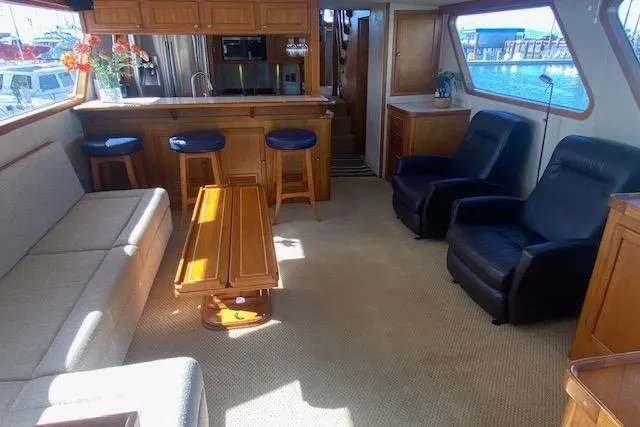

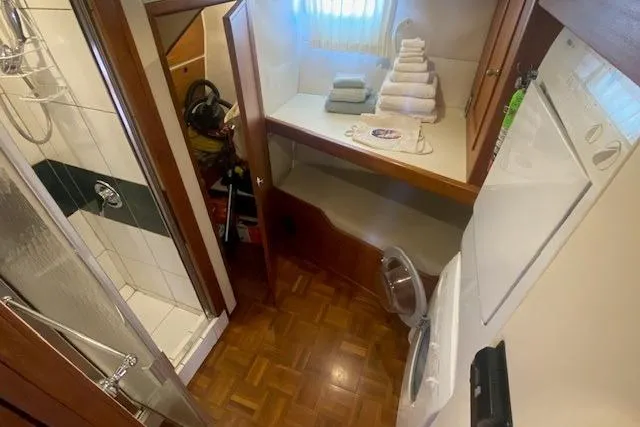

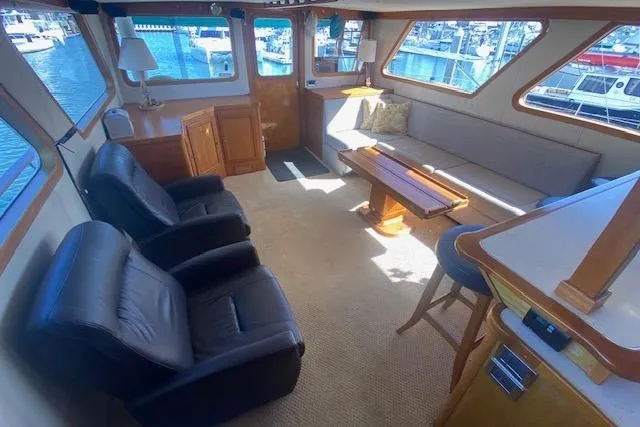

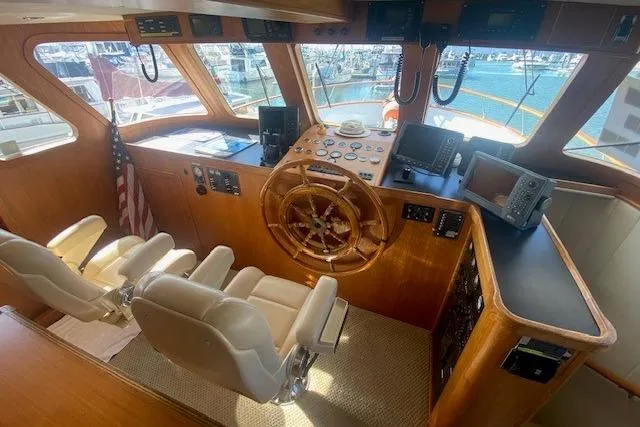

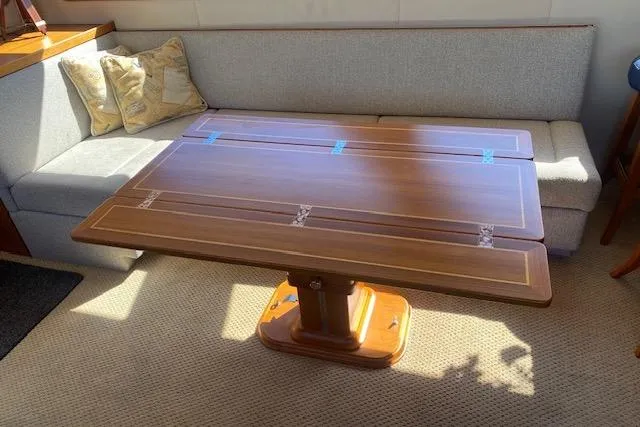

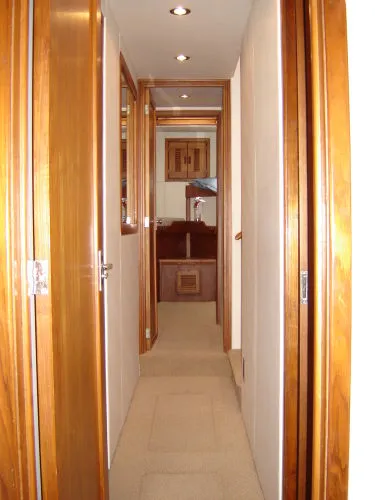

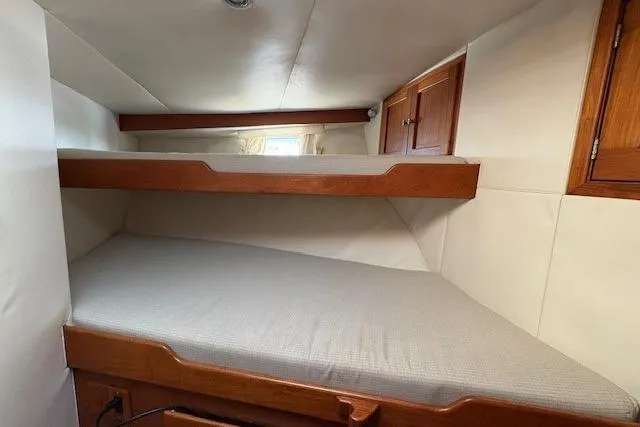

Sleeps 10 in 3 staterooms, pilothouse and laundry room. She has an island bed in the amidships master w/island queen berth, 20" Sharp flat screen TV with DVD player and an ensuite head and shower. VIP guest stateroom has double berth with ensuite head and shower. Forward V-berth sleeps 4 in bunks. There is another head and shower in the companionway and another berth and shower in the laundry room. There is a day head on the salon/galley area for convenient use while underway. There is a large pilothouse with two Stidd pedestal helm seats and seating around the table, with a pilot berth behind. The salon and galley is large and airy with custom features throughout; these include: Whisperwall, Hunter Douglas blinds, Corian and granite counters, custom teak drawers, Insignia 42” TV with custom cabinet and electric raising and lowing, custom ordered Grand Banks teak hi-lo yacht table, two electric recliners, Newly upholstered settee with storage below, Bose Lifestyle stereo system and more…

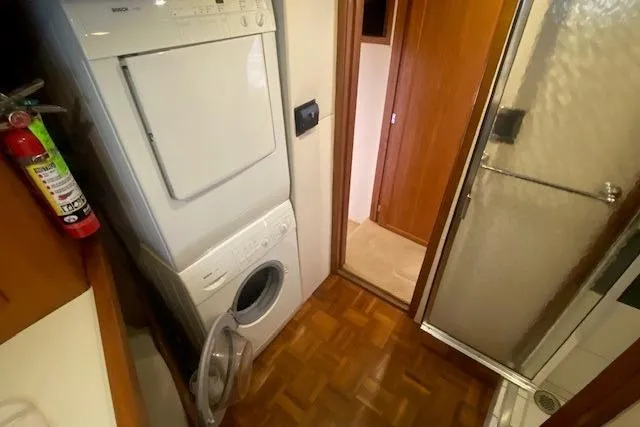

  • Bosch Axxis washer and dryer

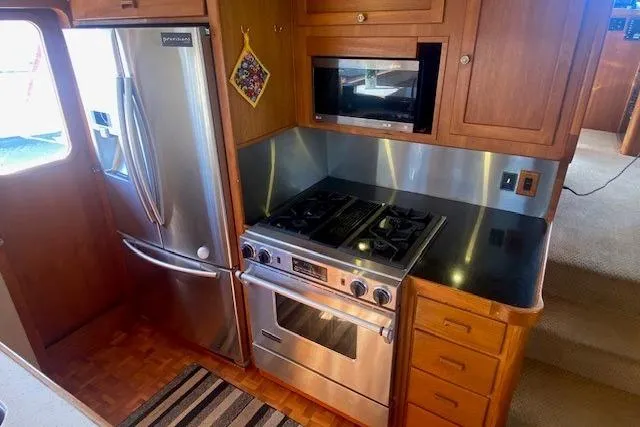

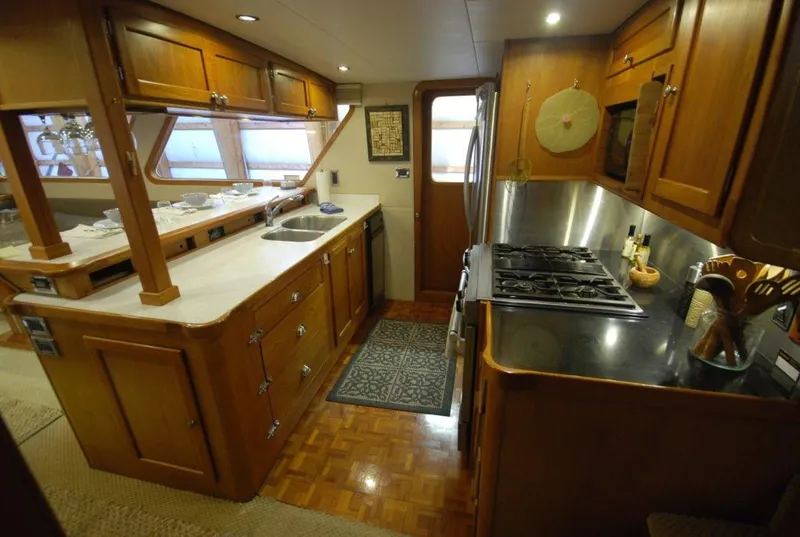

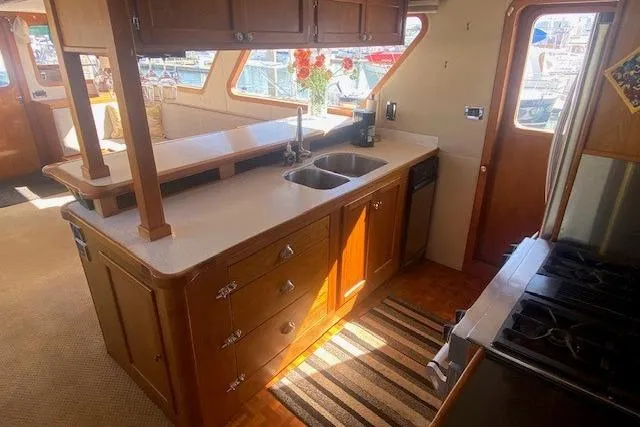

Galley
  • Jenn-Aire dual convection electric oven
  • Jenn-Aire 4-burner propane cooktop w/down draft fan
  • Samsung Provisions full size refrigerator/freezer w/ice and filtered water in the door
  • Isotherm beverage refer in cockpit beneath BBQ - 12vdc or 120vac
  • Frigidaire 7.5 CF chest freezer on boat deck NEW 2023
  • LG microwave - NEW 2023
  • Frigidaire trash compactor
  • Retractable faucet
  • Double SS sink w/garbage disposal
  • Custom Corian & granite countertops
  • Custom teak drawers

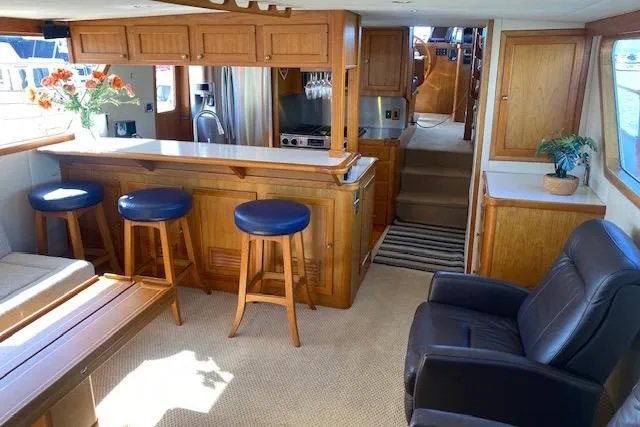

  • Corian breakfast bar with 3 bar stools
  • 40 gallon water heater (220VAC & Kabola furnace heated)
  • Dual Headhunter FW pumps preplumbed for back up use - 12vdc

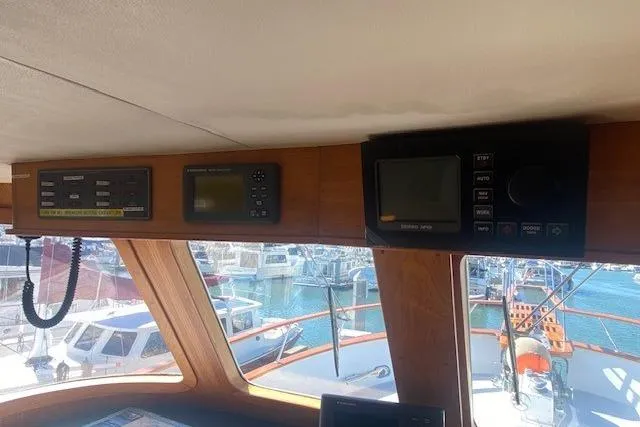

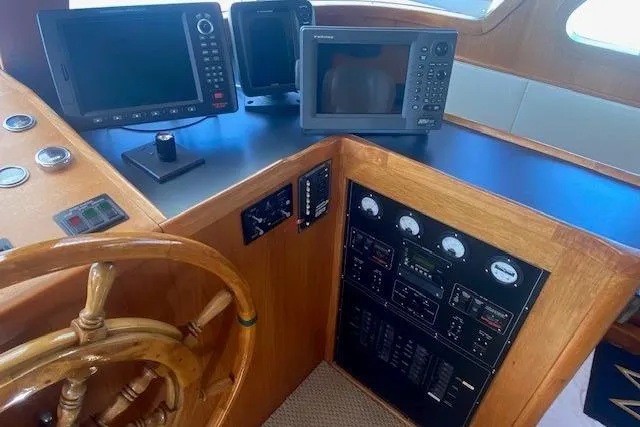

Electronics and Navigation Equipment
  • NEW ZF electronic controls w/ 50' cable on remote w/shift/throttle/thruster
  • Furuno 10" NavNet RDP-139 48-mile radar/depth/plotter
  • Furuno 1945 64 mile radar
  • Furuno FCV-585 video depth
  • Furuno GPS Navigator DGPS GP 36
  • Simrad AP50 autopilot w/rudder indicator
  • Standard Horizon CP 590 w/Cmaps for Pacific Coast, Central America, Atlantic Coast, Gulf of Mexico and Caribbean (cruise Alaska to Nova Scotia!)

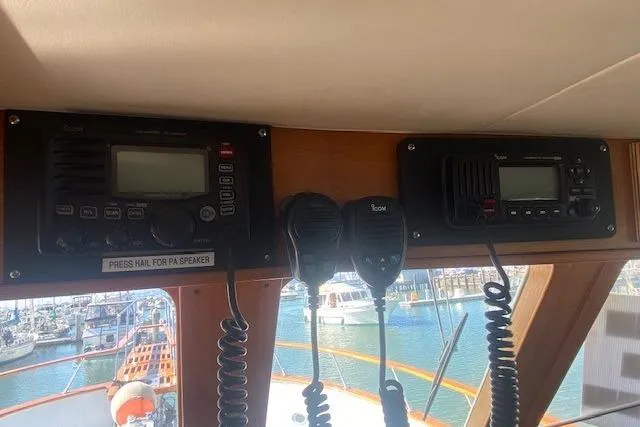

  • Icom M504 VHF & M424G VHF/GPS & Icom command mic
  • Standard Horizon WS150 anemometer
  • Wesmar hydraulic bowthruster
  • Furuno 7" Navnet on FB
  • Icom M424G VHF/GPS on FB
  • Simrad AP51 autopilot remote on FB
  • Stereo speakers on FB
  • Air horn
  • Panasonic 42" flat screen TV on lift in salon
  • Denon CD/DVD entertainment system
  • Sirius XM radio hardware
  • Intellian TV satellite receiver w/24" dome
  • Red night lights at helm
  • LED lights in entire boat
  • (2) Stidd helm seats
  • Rudder angle indicator
  • Tank Tender for fuel and black water tanks
  • 12vdc outlets
  • 110vac outlets - GFCI protected
Electrical
  • 20 kw Northern Lights generator w/Centek gas/water separator w/1,497 hours
  • 10 kw Northern Lights generator w/Centek gas/water separator w/3,291 hours

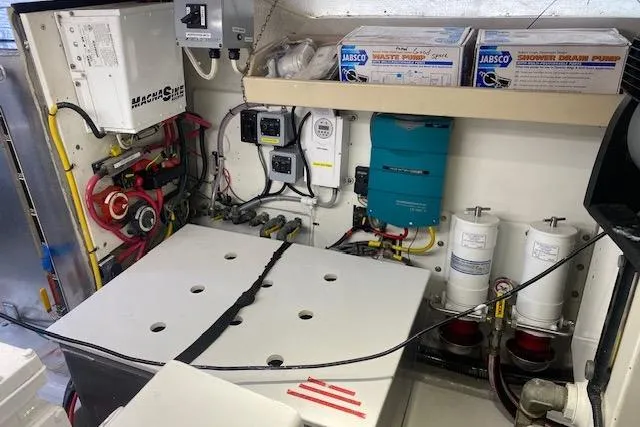

  • Magnum MS2812 inverter/charger
  • Mastervolt 12vdc output 100 amp house battery charger
  • Newmar Phase 3 charger for start and genset batteries
  • Inverter by-pass switch - direct to shore power
  • 160 amp 12v alternator-house bank
  • Blue Sea ELCI shorepower isolation transformers - bow & engine room
  • SmartPlug 50 amp 125/250 shore power service - fore & aft
  • 10 Lifeline 6V AGM batteries for house bank - 2000 amp hours
  • NEW maintenance free battery for 12 and 20 kw gensets
  • 2-8D start batteries - NEW 2024

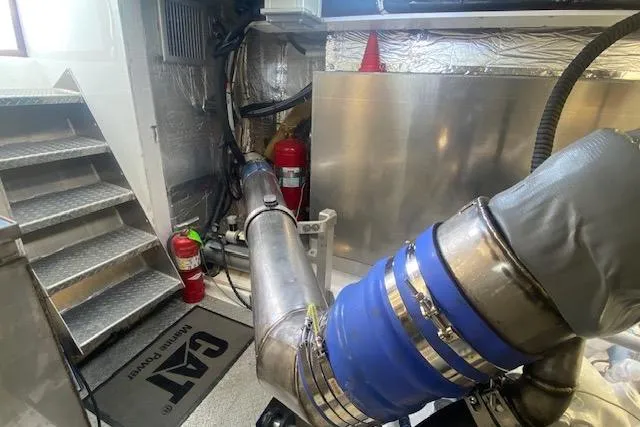

  • Sea Fire FE-241 engine room fire suppression
  • Blue Seas panels
  • 12v DC lighting - LED's throughout on dimmers
  • 120v AC lighting
  • 120v LED engine room lighting plus 12v lighting
  • 220v AC shore power and panel
  • 120v AC panel
  • 12v & 24v DC alternators on mains
Mechanical

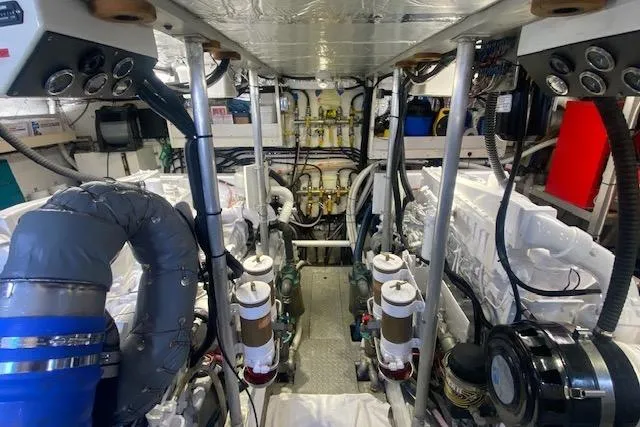

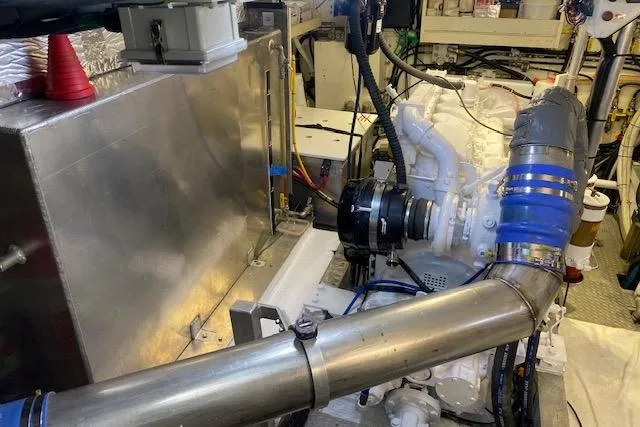

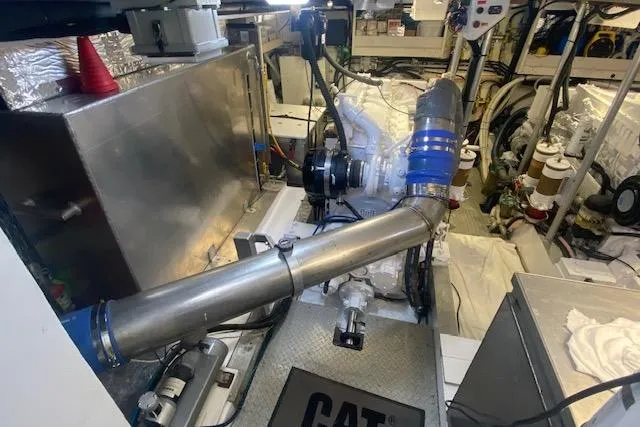

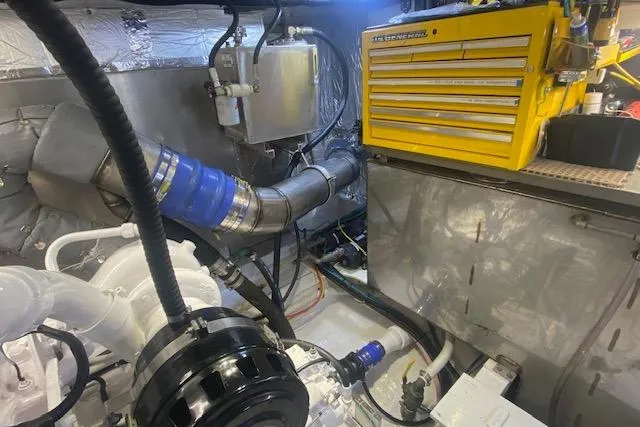

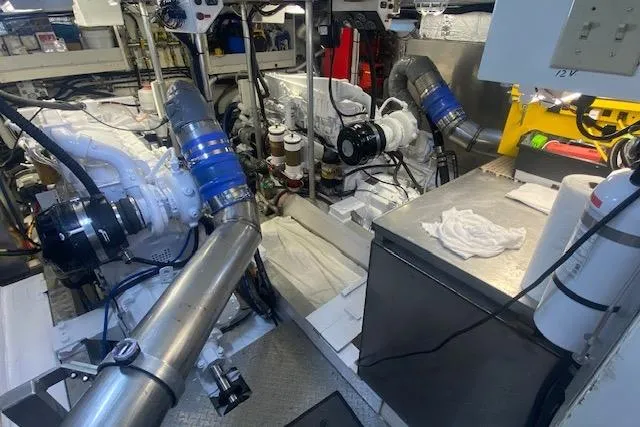

  • Twin 3406 Caterpillars - 375 hp with "Spinner II" oil cleaning centrifuges #996

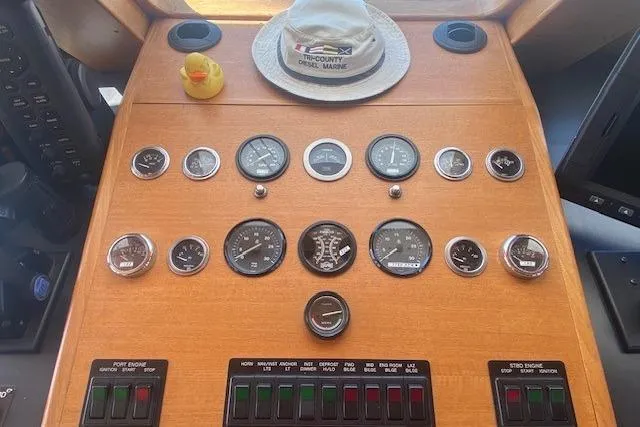

  • Engine mounted instruments w/start and stop, hour meters, pyrometers, transmission pressure, fuel pressure, oil pressure, and temperature gauges
  • Wesmar GPS 1000 Electronic Gyroscopic hydraulic stabilizers
  • Wesmar hydraulic bow thruster
  • Hydraulic pumps on both engines
  • ZF electronic controls
  • SeaFire FE 241 automatic fire suppression w/remote activation from aft deck and pilothouse
  • Floscan fuel flow monitors
  • Fuel transfer pump
  • Sea Recovery Aqua Whisper watermaker - 50 GPH (removed but available with vessel)

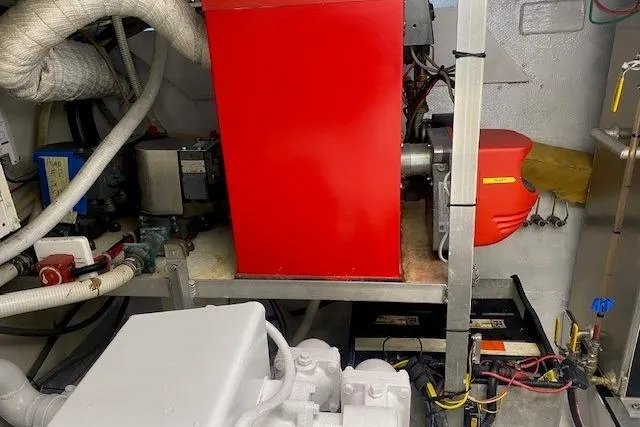

  • Kabola hot water diesel furnace - cabin heat and hot water
  • Dometic Masterflush heads
  • Vacuflush commercial pumps for macerator
  • Bilge pump filters
  • Dual Racor fuel filters
  • Tide Strong seal dripless packing glands
  • Tank Tender level indicators
  • 2.5" stainless steel shafts
  • 32X22 four blade bronze props

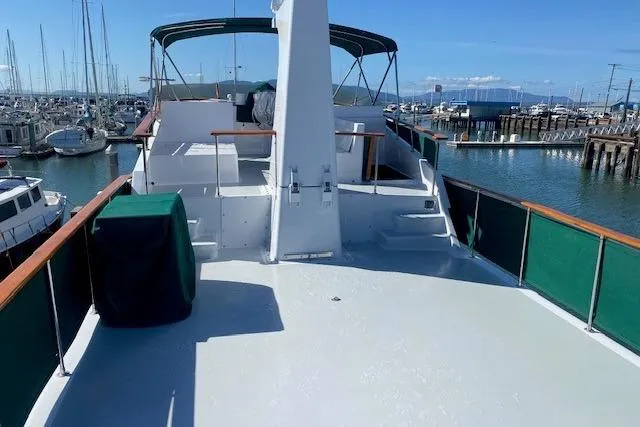

Deck and Hull Equipment
  • Custom aluminum powder coated hinged mast - allows for 18' 6" air draft when lowered - dual radars mounted on mast

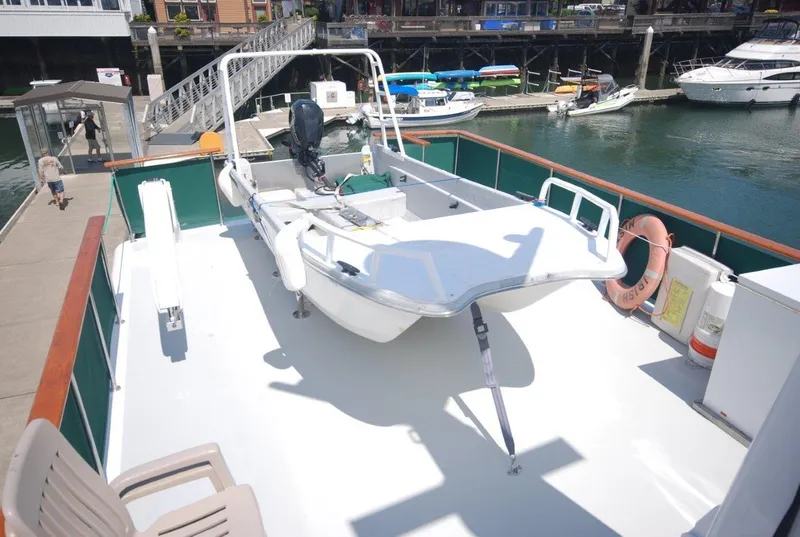

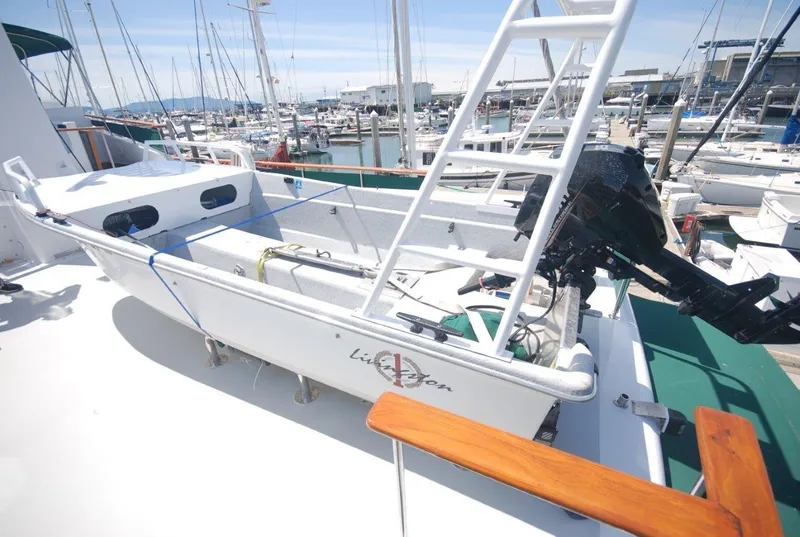

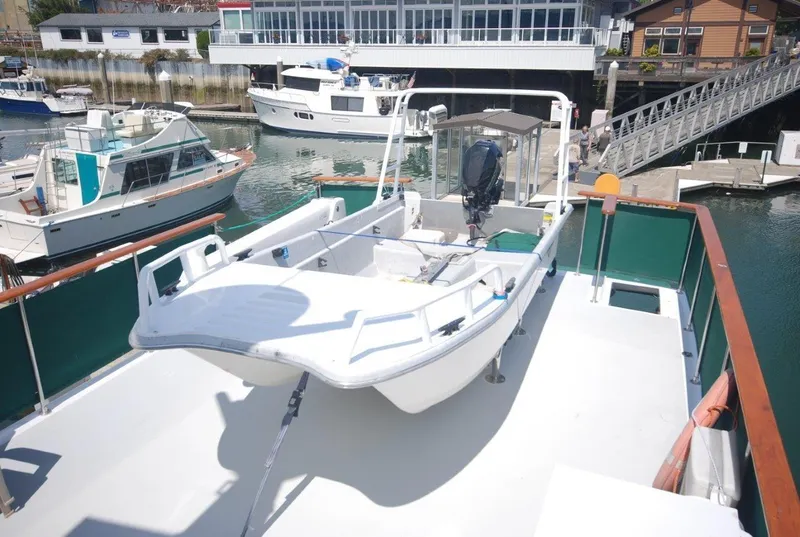

  • 14' Livingston w/6 hp Tohatsu (NEW 2023) four stroke manual start
  • Ideal horizontal hydraulic windlass w/handheld remote
  • 132# Ultra primary stainless steel anchor w/Ultra swivel
  • 60# CQR spare anchor
  • 300'+ of 3/8 chain rode for Ultra

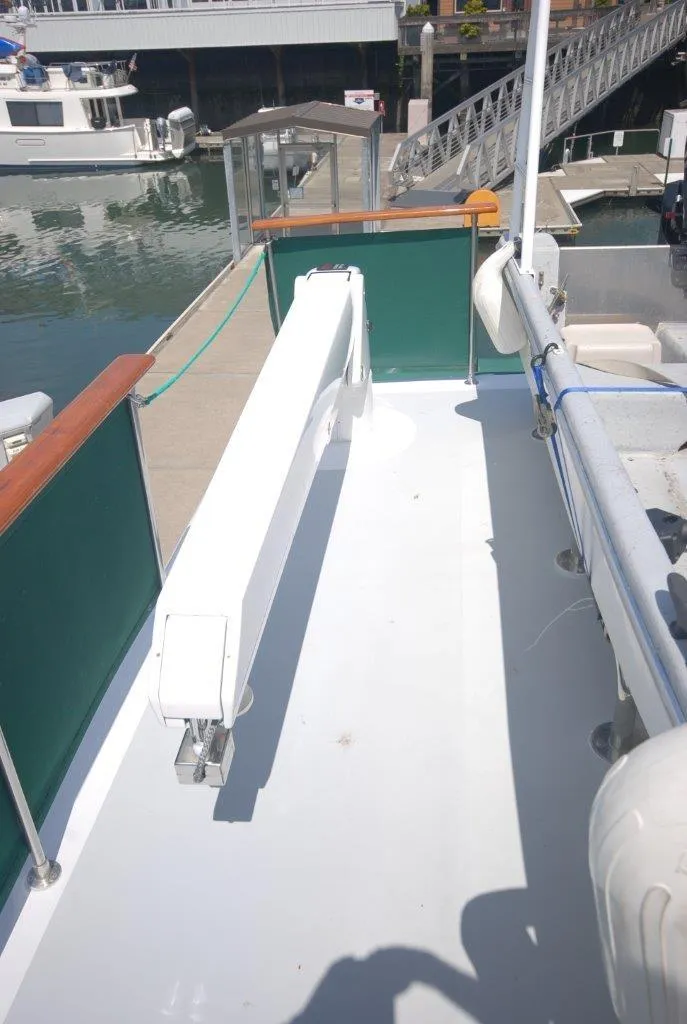

  • 2014 Steelhead ES1500 Hydraulic davit crane - full 4 function proportional control - power rotation
  • Custom stainless steel dinghy chocks
  • Commercial pot puller in cockpit for crab and shrimp

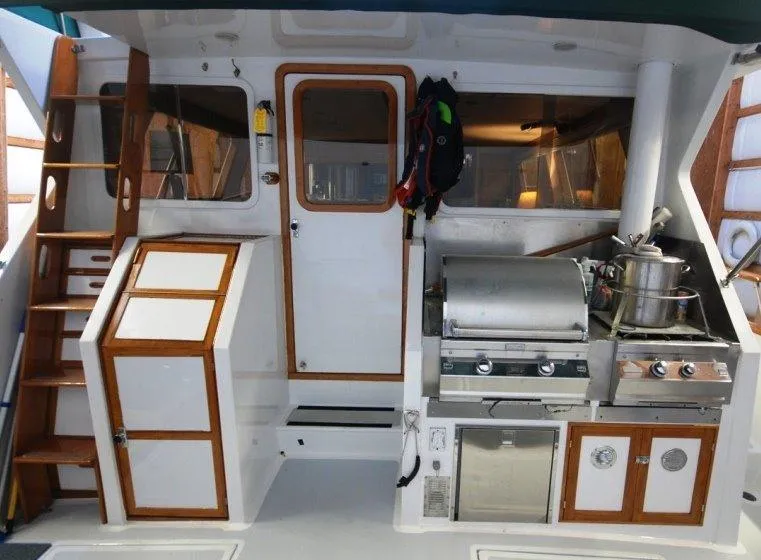

  • Fire Magic built in propane BBQ w/2 propane tanks
  • Fire Magic propane burner for crab pots and more
  • Massive New SS cleats in cockpit for towing large dinghy
  • New custom swim platform w/recessed cleats and 4 safety staples
  • Freeman aluminum laz hatch to extra storage shelve and water heater access

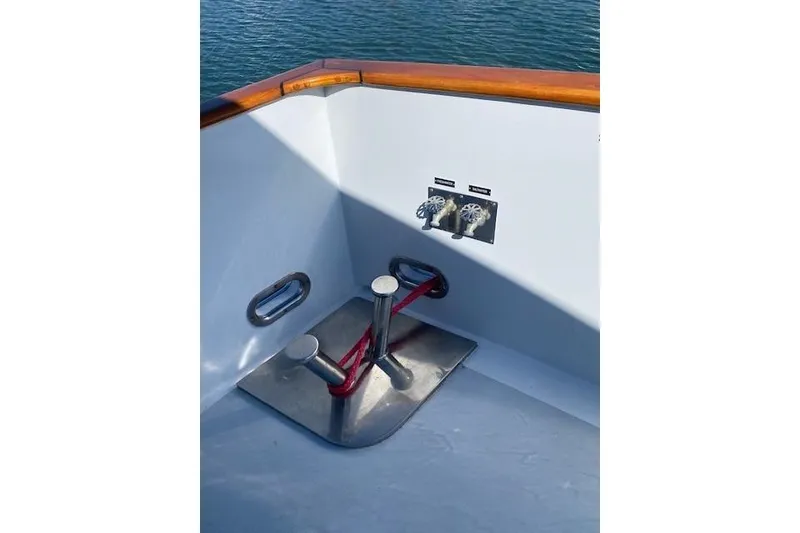

  • FW/SW washdowns bow and stern

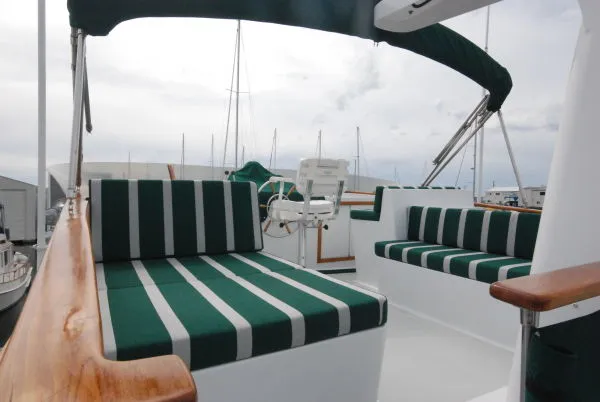

  • Canvas: Bimini, dodger, cockpit eyebrow, FB instruments, and aft hatch, cushions for seating on foredeck

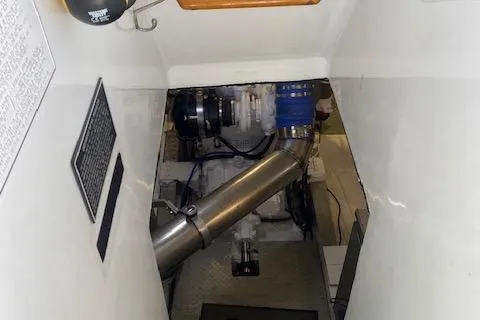

  • Cockpit engine room access
  • Cockpit ladder to boat deck w/built in storage
  • Access hatches to 20/10kw gensets in cockpit
  • Sundeck seating and storage for lines and power cords on foredeck
  • Large custom teak bow sprit
  • Minimum air draft of 19' - CAN DO THE GREAT LOOP
Exclusions

All owner personal gear not specifically noted on the specifications.

List of upgrades since July 2010

JULIE K UPGRADES



  1. Removal of old boom and hydraulic drums on mast to lift dinghy

  2. Installation of four function 1,500 Steelhead davit with remote

  3. 14' Livingston Dinghy w/6 hp Tohatsu four stroke
  4. New Furuno 1945 Radar

  5. New Furuno FVC 585 depth sounder

  6. New AIS

  7. Two new Icom VHF radios

  8. New External VHF antenna

  9. New MasterFlush electric freshwater heads and head hoses

  10. New dual Macerator pump

  11. New ZF electronic engine controls in wheel house and fly bridge

  12. New 50' remote for engine controls - gears/throttle/thruster

  13. New refrigerator

  14. New microwave

  15. New Ultra SS Anchor 132 #

  16. New audio system including sat radio

  17. New Sat TV system

  18. Installation of large barbeque and refrigerator on aft deck

  19. Installation of storage shelves in aft laz

  20. New Smart plug outlets installed for shore power

  21. ELCI breakers installed both fore and aft shore power inlets

  22. NEW engine room fuel tanks 2018
  23. Reupholstered salon settee 2018
  24. 2 electric recliners in salon 2018
Disclaimer

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.

Price History

DateEventPrice
1/29/26Initial price$449,000
